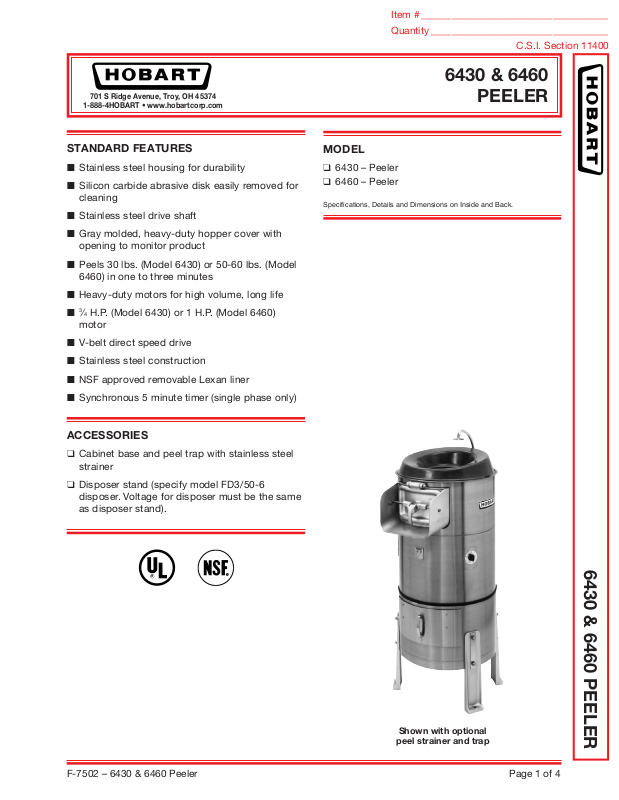

Page 1
Item # _____________________________________
R
Quantity ___________________________________
C.S.I. Section 11400
6430 & 6460
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Stainless steel housing for durability
■ Silicon carbide abrasive disk easily removed for
cleaning
■ Stainless steel drive shaft
■ Gray molded, heavy-duty hopper cover with
opening to monitor product
■ Peels 30 lbs. (Model 6430) or 50-60 lbs. (Model
6460) in one to three minutes
■ Heavy-duty motors for high volume, long life
3
■
⁄4 H.P. (Model 6430) or 1 H.P. (Model 6460)
motor
■ V-belt direct speed drive
■ Stainless steel construction
■ NSF approved removable Lexan liner
PEELER
MODEL
❑ 6430 – Peeler
❑ 6460 – Peeler
Specications, Details and Dimensions on Inside and Back.
■ Synchronous 5 minute timer (single phase only)
ACCESSORIES
❑ Cabinet base and peel trap with stainless steel
strainer
❑ Disposer stand (specify model FD3/50-6
disposer. Voltage for disposer must be the same
as disposer stand).
6430 & 6460 PEELER
Shown with optional
peel strainer and trap
F-7502 – 6430 & 6460 Peeler Page 1 of 4
Page 2
6430 & 6460
PEELER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DETAILS, DIMENSIONS AND CONNECTIONS OF PEELER WITH PEEL TRAP UNIT
MODELS 6430 6460
Approximate Shipping Weight Peeler and Peel Trap Unit 201 lbs. 210 lbs.
Approximate Shipping Weight Peeler less Peel Trap Unit 147 lbs. 156 lbs.
Net Weight of Peeler and Peel Trap Unit 190 lbs. 198 lbs.
WARNING
ELECTRICAL AND GROUNDING CONNECTIONS MUST
COMPLY WITH THE NATIONAL ELECTRICA L CODE
AND/OR OTHER LOCAL ELECTRICAL CODES IN
FORCE. PLUMBING CONNECTIONS MUST COMPLY
WITH APPLICABLE SANITARY, SAFETY AND PLUMBING
CODES IN FORCE.
Page 2 of 4 F-7502 – 6430 & 6460 Peeler
Page 3
6430 & 6460
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DETAILS, DIMENSIONS AND CONNECTIONS OF PEELER WITH DISPOSER STAND
PEELER
Single phase only.
DO NOT use three phase disposers.
MODELS 6430 6460
Net Weight of Peeler 142 lbs. 150 lbs.
Domestic Shipping Weight of Peeler 147 lbs. 156 lbs.
Net Weight of Disposer Stand 58 lbs. 60 lbs.
Domestic Shipping Weight of Disposer Stand 65 lbs. 70 lbs.
NOTE – Disposer Stand shipped in carton separate from Peeler
WARNING
ELECTRICAL AND GROUNDING CONNECTIONS MUST
COMPLY WITH THE NATIONAL ELECTRICA L CODE
AN D /OR O T H ER LO CAL ELECT R ICAL CODES IN
FORCE. PLUMBING CONNECTIONS MUST COMPLY
WITH APPLICABLE SANITARY, SAFETY AND PLUMBING
CODES IN FORCE.
F-7502 – 6430 & 6460 Peeler Page 3 of 4
Page 4
6430 & 6460
PEELER
SPECIFICATIONS
MOTOR: 3⁄4 H.P., Model 6430; 1 H.P. Model 6460. The motor
features manual reset overload protection, grease-packed ball
bearings, and ventilation within the peeler enclosure. Single
phase is capacitor-start, induction run, and three phase is polyphase, squirrel-cage, induction-run type.
ELECTRICAL SPECIFICATIONS: 115/60/1, 200-230/60/1,
200-230/60/3, 460/60/3 UL Listed. 115/50/1, 220-240/50/1,
220-240/50/3, 380-415/50/3—Not submitted for UL Listing.
SWITCH: Manual tumbler type, located on right side of
discharge chute as standard. Switch can be relocated to other
side of chute if desired.
TIMER – Models 6430T and 6460T: Syn chronous 5-minute
timer, adjustable for any increments from 1⁄2 minute up to
5 minutes, with 15-second markings etched on a large timer
dial. This timer is furnished only in single phase specications
as standard.
DRIVE: Multigrip, poly V-belt provides the direct speed reduction between motor and peeling disc. Belt adjustment may be
accomplished from outside the machine. The stainless steel
drive shaft is rigidly mounted on grease-packed ball bearings.
Advanced designed triple protection sealing prevents entrance
of water into shaft bearings.
PEELER UNIT: Cylindrical construction, heliarc-welded stainless steel with removable NSF approved Lexan liner. A one
piece, reinforced plastic molded, lightweight, easily removable,
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
positive locking hopper cover is provided for easy cleaning.
Quick-opening removable aluminum hopper door and positive,
cam-type pressure lock. Discharge chute is ball burnished cast
aluminum. To facilitate installation, the peeler unit can be positioned at 90° intervals, in relation to the peel trap unit.
ABRASIVE DISC: An extremely lightweight berglass
reinforced plastic disc is 201⁄2 inches in diameter. The
silicon-carbide abrasive is permanently bonded to the disc, assuring unequaled long service. Disc can be easily and quickly
removed for cleaning by removing the lightweight hopper
cover. Two angle mounted wipers provide positive movement
of waste into the outlet.
WORKING CAPACITY: Model 6430 peels 30-33 pounds in one
to three minutes. Model 6460 Peeler peels 50-60 pounds in
similar time.
FINISH: Peeler and peel trap unit are glass-beaded stainless
steel. Plastic molded hopper cover is gray. Door and handle,
discharge chute, and legs are cast aluminum and ball burnished for durability. Bottom of peeler unit is cushioned in
resilient rubber trim molding.
WATER INLET: The inlet is the air-gap type, mounted at the
rear of the peeler unit at sufcient height to meet plumbing
codes. The water from the inlet impinges on the curved surface
of the hopper cover to form a fan pattern of water into the unit.
This design promotes interior self-cleaning and forms a water
curtain which prevents undesirable splash.
DETAILS, DIMENSIONS AND CONNECTIONS OF PEELER WITH DISPOSER STAND
WARNING
ELECTRICAL AND GROUNDING CONNECTIONS MUST
COMPLY WITH THE NATIONAL ELECTRICA L CODE
AN D /OR O T H ER LO CAL ELECT R ICAL CODES IN
FORCE. PLUMBING CONNECTIONS MUST COMPLY
WITH APPLICABLE SANITARY, SAFETY AND PLUMBING
CODES IN FORCE.
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
Page 4 of 4 F-7502 – 6430 & 6460 Peeler
F-7502 (REV. 01/08) LITHO IN U.S.A. (H-01)
