CATALOG OF
REPLACEMENT
PARTS
4812CE CHOPPER
4812CE ML-136159
4812CE ML-104734
4812 (Korean) ML-136201
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
F-43198 (August 2010)
- 2 -
© HOBART 2010
Table of Contents
4812CE CHOPPER REPLACEMENT PARTS
5 ELECTRICAL COMPONENTS
7 HOUSING (ML-136159 & ML-136201)
9 HOUSING (ML-104734)
11 ATTACHMENT HUB AND MOTOR (ML-136159 & ML-136201)
13 MOTOR PARTS (ML-104734)
15 #12 CHOPPER ATTACHMENT (NSF)
16 ATTACHMENT HUB AND TRANSMISSION UNIT (ML-104734)
- 3 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
7
8
6
9
10
11
12
13
1
ML-136201
2
3
4
5
31
30
14
21
15
22
24-25
16
17
18
19
20
23
F-43198 (August 2010)
26-27
28-29
ELECTRICAL COMPONENTS
- 4 -
PL-59210
4812CE CHOPPER REPLACEMENT PARTS
ELECTRICAL COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
PL-59210
1 00-944059 Switch Assy. (With 2 Harnesses) (ML-136201)..........................................................................1
2 00-291961 Plate – Switch (ML-136201) ......................................................................................................1
3 SC-030-06 Mach. Screw 6-32 x 3/8 Slotted Oval Hd. (ML-136201) ..............................................................2
4 WL-019-32 Lockwasher #6 External (ML-136201) .......................................................................................2
5 NS-009-07 Nut 6-32 Hex (ML-136201) ........................................................................................................2
6 00-087711-232-1 Switch (Start/Stop) (ML-104734 & ML-136159) .........................................................................1
7 00-119953 Plate – Switch (ML-104734 & ML-136159) ................................................................................1
8 SC-030-06 Mach. Screw 6-32 x 3/8 Slotted Oval Hd. (ML-104734 & ML-136159) .......................................2
9 WL-019-32 Lockwasher #6 External (ML-104734 & ML-136159) ................................................................2
10 NS-009-07 Nut 6-32 Hex (ML-104734 & ML-136159) .................................................................................2
11 SC-027-29 Mach. Screw 8-32 x 3/8 Slotted Rd. Hd. (ML-104734 & ML-136159) .........................................1
12 WL-010-01 Lockwasher #8 External Shakeproof (ML-104734 & ML-136159) .............................................1
13 00-065890-00090 Terminal – Grounding (ML-104734 & ML-136159) ....................................................................1
14 00-106825-00002 Clip – Wiring (ML-104734) .........................................................................................................1
15 NS-009-07 Nut 6-32 Hex (ML-104734) ........................................................................................................2
16 00-478671 Bracket – Terminal Block (ML-104734) ......................................................................................1
17 00-477562-00002 Block – Terminal (ML-104734) ...................................................................................................1
18 WL-019-32 Lockwasher #6 External (ML-104734) .......................................................................................2
19 SC-018-24 Mach. Screw 6-32 x 3/4 Phil. Pan Hd. (ML-104734) ...................................................................2
20 SC-012-49 Mach. Screw 8-32 x 3/8 Slotted Fil. Hd. (ML-104734).................................................................2
21 WL-010-01 Lockwasher #8 External Shakeproof (ML-104734) ...................................................................2
22 WL-010-01 Lockwasher #8 External Shakeproof (ML-136159) ...................................................................1
23 SC-027-29 Mach. Screw 8-32 x 3/8 Slotted Rd. Hd. (ML-136159) ................................................................1
24 00-914288 Contactor (ML-136159) ..............................................................................................................1
25 00-914738 Contactor (ML-104734) ..............................................................................................................1
26 00-914287 Overload (ML-136159) ...............................................................................................................1
27 00-914739-00001 Overload (ML-104734) ...............................................................................................................1
28 SC-025-17 Mach. Screw 6-32 x 5/8 Slotted Bndg. Hd. (ML-136159) ............................................................2
29 SC-009-67 Mach. Screw 6-32 x 5/8 Slotted Rd. Hd. (ML-104734) ................................................................2
30 00-914102 Plate – Electrical Weldment (ML-136159) .................................................................................1
31 NS-010-11 Nut 8-32 Hex (ML-136159) ........................................................................................................2
00-914280-00001 Plate – Electrical Assy. (Incls Items 22, 23, 24, 26, 28, 30, & 31) ..............................................1
00-438074-00002 Snubber Assy. ............................................................................................................................1
- 5 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
4
1
2
3
35
15
16
14
13
12
10
11
33
5
6
7
8
9
34
32
31
30
29
17
F-43198 (August 2010)
18
19
20
21
22
23
24

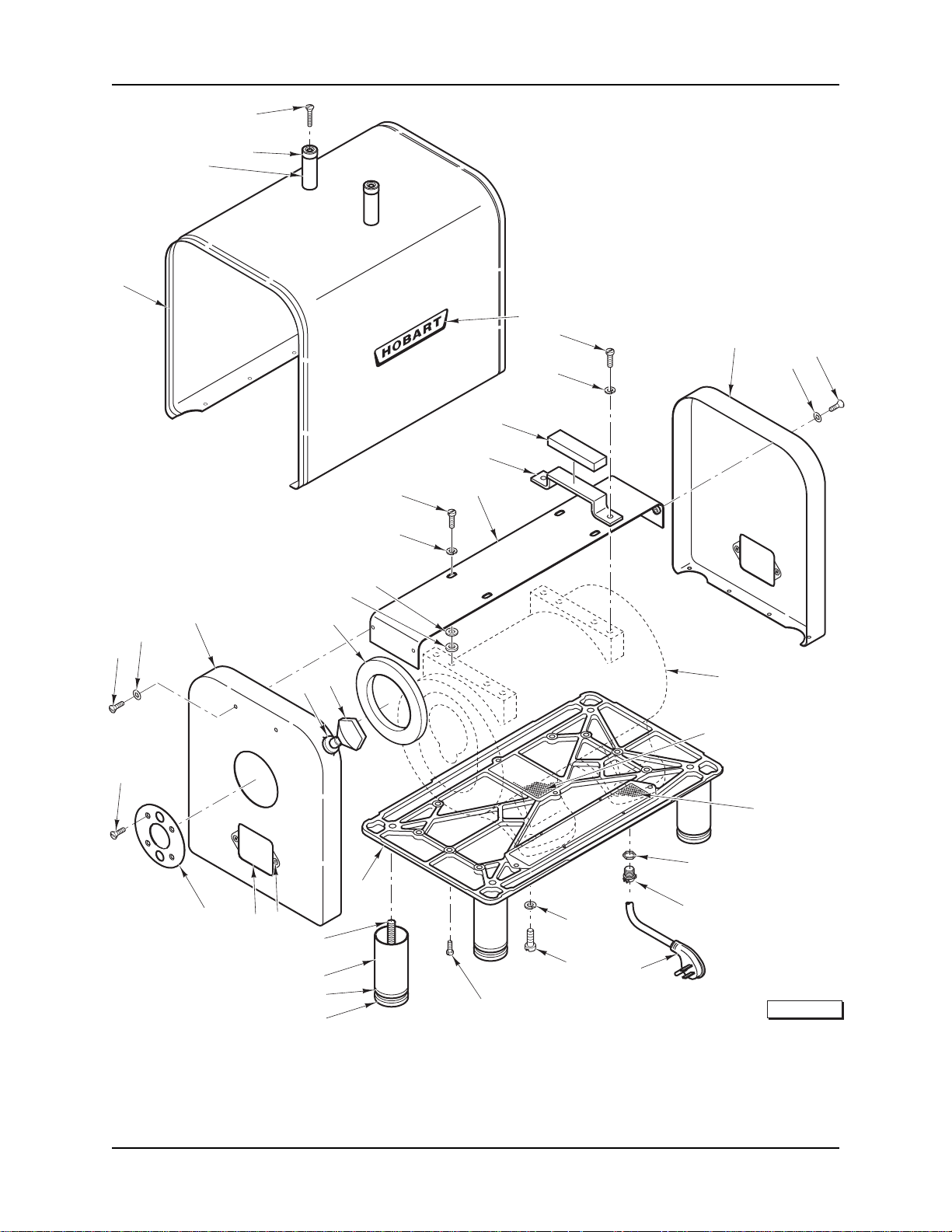

HOUSING (ML-136159 & ML-136201)
- 6 -
28
27
25-26
PL-59207
4812CE CHOPPER REPLACEMENT PARTS
HOUSING (ML-136159 & ML-136201)
ILLUS. PART NO. NAME OF PART AMT.
PL-59207
1 SC-060-10 Mach. Screw 8-32 x 3 Rd. Hd. ...................................................................................................2
2 00-019105-00001 Bumper ......................................................................................................................................2
3 00-119911 Spacer – Pan Rest .....................................................................................................................2
4 00-290481-00018 Housing Assy. ............................................................................................................................1
5 SC-010-16 Mach. Screw 10-24 x 1/2 Truss Hd. .............................................................................................2
6 WL-007-12 Lockwasher #10 External Shakeproof .......................................................................................2
7 WS-023-07 Washer .......................................................................................................................................2
8 00-875720 Support – Frame & Housing ......................................................................................................1
9 00-875722-00001 Bracket – Locating .....................................................................................................................1
10 00-065140 Gasket – Attachment Hub ..........................................................................................................1
11 00-108197-00004 Thumb Screw Assy. ...................................................................................................................1
12 00-064824 Grommet (Thumb Screw) ..........................................................................................................1
13 00-064965-00008 Panel – Front Housing ...............................................................................................................1
14 WC-004-10 Washer – Countersunk ..............................................................................................................2
15 SC-015-36 Mach. Screw 10-24 x 5/8 Oval Hd. ..............................................................................................2
16 SC-022-17 Mach. Screw 10-24 x 3/8 Flat Hd. ...............................................................................................3
17 SC-022-16 Mach. Screw 10-24 x 5/16 Flat Hd. ..............................................................................................1
18 00-914767 Washer – Trim (Attachment Hub) ..............................................................................................1
19 00-875551 Frame Weldment .......................................................................................................................1
20 00-290061-00002 Stud – Leg .................................................................................................................................4
21 00-290060-00002 Leg .............................................................................................................................................4
22 00-064814 Cap – Leg End ...........................................................................................................................4
23 00-083681 Foot – Rubber ............................................................................................................................4
24 SC-025-07 Mach. Screw 10-24 x 5/16 Bndg. Hd...........................................................................................18
25 00-117542-00024 Cord & Plug Assy. (ML-136159).................................................................................................1
26 00-117542-00114 Cord & Plug Assy. (ML-136201).................................................................................................1
27 FE-008-20 Strain Relief ...............................................................................................................................1
28 FE-007-12 Lock Nut 3/4 Electrical .................................................................................................................1
29 WL-003-47 Lockwasher 5/16 Medium ............................................................................................................2
30 SC-036-40 Cap Screw 5/16-18 x 11/4 Hex Hd. ................................................................................................2
31 SC-015-36 Mach. Screw 10-24 x 5/8 Oval Hd. ..............................................................................................2
32 WC-004-10 Washer – Countersunk ..............................................................................................................2
33 00-064805-00008 Panel – Rear Housing ................................................................................................................1
34 00-064810 Strip – Compression ..................................................................................................................2
35 00-118365 Logo – Hobart ............................................................................................................................1
- 7 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
1
2
3
4
5
6
7
8
9
45
46
47
21
22
20
19
23
24
25
15-16
18
26
17
14
30
13
11
12
10
41 THRU 44
40
37-38-39
36
35
33
F-43198 (August 2010)
27
28
29
31
HOUSING (ML-104734)
- 8 -
32
34
PL-59204
4812CE CHOPPER REPLACEMENT PARTS
HOUSING (ML-104734)
ILLUS. PART NO. NAME OF PART AMT.
PL-59204
1 SC-060-10 Mach. Screw 8-32 x 3 Rd. Hd. ...................................................................................................2
2 00-019105-00001 Bumper ......................................................................................................................................2
3 00-119911 Spacer – Pan Rest .....................................................................................................................2
4 00-290481-00021 Housing Assy. ............................................................................................................................1
5 00-118365 Logo – Hobart ............................................................................................................................1
6 SC-008-81 Mach. Screw 1/4-20 x 1/2 Slotted Rd. Hd. ....................................................................................4
7 WL-003-37 Lockwasher 1/4 Helical................................................................................................................4
8 00-064810 Strip – Compression ..................................................................................................................2
9 00-065116 Bracket – Center Panel (Incls. Item 8) .......................................................................................2
10 00-065148-00001 Bracket – Locating .....................................................................................................................1
11 SC-008-81 Mach. Screw 1/4-20 x 1/2 Slotted Rd. Hd. ....................................................................................4
12 WL-003-37 Lockwasher 1/4 Helical................................................................................................................4
13 WS-003-20 Washer .......................................................................................................................................4
14 00-066185 Washer (Rubber) .......................................................................................................................8
15 00-065140 Gasket – Attachment Hub ..........................................................................................................1
16 00-065142 Washer – Retaining ...................................................................................................................1
17 00-108197-00004 Thumb Screw Assy. ...................................................................................................................1
18 00-064824 Grommet (Thumb Screw) ..........................................................................................................1
19 00-064965-00008 Panel – Front Housing ...............................................................................................................1
20 WC-004-10 Washer – Countersunk ..............................................................................................................2
21 SC-015-36 Mach. Screw 10-24 x 5/8 Oval Hd. ..............................................................................................2
22 SC-022-17 Mach. Screw 10-24 x 3/8 Flat Hd. ...............................................................................................4
23 00-065152 Washer – Trim (Attachment Hub) ..............................................................................................1
24 00-478667 Plate – Data ...............................................................................................................................1
25 SC-030-06 Mach. Screw 6-32 x 3/8 Slotted Oval Hd.....................................................................................2
26 00-290061-00002 Stud – Leg .................................................................................................................................4
27 00-290060-00002 Leg .............................................................................................................................................4
28 00-064814 Cap – Leg End ...........................................................................................................................4
29 00-083681 Foot – Rubber ............................................................................................................................4
30 00-102214-00001 Base Assy. (Incls Items 37 thru 40)............................................................................................1
31 SC-025-07 Mach. Screw 10-24 x 5/16 Bndg. Hd...........................................................................................16
32 SC-036-40 Cap Screw 5/16-18 x 11/4 Hex Hd. ...............................................................................................10
33 WL-003-47 Lockwasher 5/16 Medium ...........................................................................................................10
34 00-117542-00024 Cord & Plug Assy. ......................................................................................................................1
35 FE-008-20 Strain Relief ...............................................................................................................................1
36 FE-007-12 Lock Nut 3/4 Electrical .................................................................................................................1
37 SC-008-09 Mach. Screw 10-24 x 3/8 Slotted Rd. Hd. ...................................................................................4
38 WS-002-21 Washer .......................................................................................................................................4
39 00-065119 Screen – Air Inlet .......................................................................................................................1
40 00-065141 Screen – Air Outlet .....................................................................................................................1
41 ML-104739-0000z Motor Assy. ................................................................................................................................1
42 00-065058 Case – Motor Frame & Gear .....................................................................................................1
43 FP-087-12 Pipe Plug 1/8 Hex Socket Hd. (Inspection) .................................................................................1
44 00-011800-00141 Dowel .........................................................................................................................................2
45 00-064805-00008 Panel – Rear Housing ................................................................................................................1
46 WC-004-10 Washer – Countersunk ..............................................................................................................2
47 SC-015-36 Mach. Screw 10-24 x 5/8 Oval Hd. ..............................................................................................2
- 9 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
5
9
4
3
6
2
1
8
12
9
13
7
15
14
16-17-18
19
20
21
11
25
22-23-24
10
26
27
F-43198 (August 2010)
PL-59209

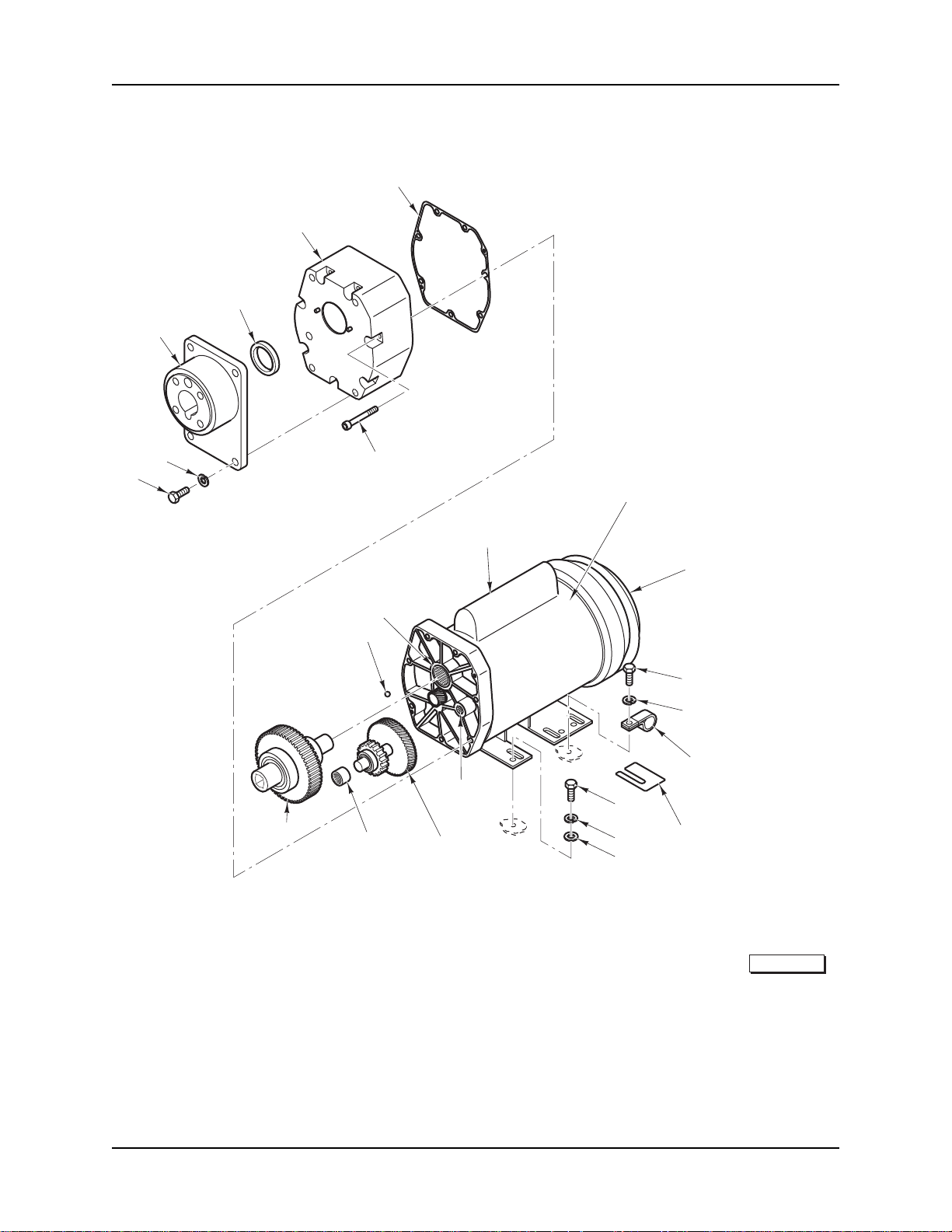

ATTACHMENT HUB AND MOTOR (ML-136159 & ML-136201)
- 10 -
4812CE CHOPPER REPLACEMENT PARTS
ATTACHMENT HUB AND MOTOR (ML-136159 & ML-136201)
ILLUS. PART NO. NAME OF PART AMT.
PL-59209
1 SC-037-86 Cap Screw 7/16-14 x 1 Hex Hd. ...................................................................................................4
2 WL-004-10 Lockwasher 7/16 Helical ..............................................................................................................4
3 00-944045 Adapter – Motor Hub .................................................................................................................1
4 00-914156 Seal ............................................................................................................................................2
5 00-914125 Housing Assy. ............................................................................................................................1
6 00-914131 Gasket .......................................................................................................................................1
7 SC-129-15 Cap Screw 1/4-20 x 23/4 Hex Socket Hd. .....................................................................................7
8 00-944046 Gear Assy. (Low Speed) (With Ball Bearing & Thrust Washer) .................................................1
9 00-914252 Bearing – Needle .......................................................................................................................1
10 00-944047 Gear Assy. (High Speed) ...........................................................................................................1
11 00-914253 Bearing – Needle .......................................................................................................................1
12 00-914202 Ball – Steel .................................................................................................................................3
13 00-914254 Bearing – Needle .......................................................................................................................1
14 00-944048 Capacitor – Start ........................................................................................................................1
15 00-944009 Motor (1Ph.) ...............................................................................................................................1
16 00-914251 Washer – Wavy ..........................................................................................................................1
17 00-944049 Fan Kit .......................................................................................................................................1
18 00-944050 Switch – Start .............................................................................................................................1
19 SC-027-28 Mach. Screw 8-32 x 1/4 Rd. Hd...................................................................................................1
20 WL-011-01 Lockwasher ................................................................................................................................2
21 00-078752-00004 Clamp – Wire .............................................................................................................................1
22 00-914128-00001 Shim – Motor (0.005 Thk.) ........................................................................................................AR
23 00-914128-00002 Shim – Motor (0.010 Thk.) ........................................................................................................AR
24 00-914128-00003 Shim – Motor (0.020 Thk.) ........................................................................................................AR
25 SC-036-40 Cap Screw 5/16-18 x 11/4 Hex Hd. ................................................................................................4
26 WL-003-47 Lockwasher 5/16 Medium ............................................................................................................4
27 WS-029-86 Washer .......................................................................................................................................4
00-914249 Switch – Motor Start ..................................................................................................................1
00-914278 Capacitor – Start ........................................................................................................................1
00-914279 Capacitor – Run .........................................................................................................................1
- 11 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
24
23
22
20-21
19
18
17
16
25-26
27
28
29
30
31
14
15
13
10
11
12
9
7-8
6
5
4
3
2
1
PL-59206
F-43198 (August 2010)
MOTOR PARTS (ML-104734)
- 12 -
4812CE CHOPPER REPLACEMENT PARTS
MOTOR PARTS (ML-104734)
ILLUS. PART NO. NAME OF PART AMT.
PL-59206
1 00-070486-00001 End Cap – Capacitor .................................................................................................................1
2 00-070487-00003 Capacitor ...................................................................................................................................1
3 SC-014-57 Mach. Screw 10-24 x 1/2 Slotted Flat Hd. ...................................................................................2
4 00-066621-00001 Bracket – Capacitor ...................................................................................................................1
5 00-006651 Bushing – Insulating ..................................................................................................................1
6 SC-011-82 Mach. Screw 1/4-20 x 11/4 Slotted Fil. Hd. ...................................................................................4
7 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................2
8 WL-003-38 Lockwasher 1/4 Helical................................................................................................................2
9 00-089073-00002 Bracket – Bearing ......................................................................................................................1
10 SC-016-19 Mach. Screw 1/4-20 x 2 Slotted Oval Hd.....................................................................................2
11 00-072818-00004 Post – Switch Retaining Plate ....................................................................................................2
12 SL-002-04 Spring – Loading ........................................................................................................................1
13 SC-009-25 Mach. Screw 10-24 x 5/8 Slotted Rd. Hd. ...................................................................................4
14 00-065219 Cap – Bearing ............................................................................................................................1
15 00-004478 Lock Nut (Motor Shaft) ...............................................................................................................1
16 00-010928-00002 Nut – Motor Shaft .......................................................................................................................1
17 WS-008-04 Washer .......................................................................................................................................1
18 00-014030 Gasket – Bearing Cap ...............................................................................................................1
19 BB-017-12 Bearing – Ball ............................................................................................................................1
20 NS-009-07 Nut 6-32 Hex ..............................................................................................................................2
21 WL-003-09 Lockwasher #6 Helical ...............................................................................................................2
22 00-074738-00002 Switch Plate Assy. ......................................................................................................................1
23 SC-009-67 Mach. Screw 6-32 x 5/8 Slotted Rd. Hd. .....................................................................................2
24 00-119858-00003 Switch – Starting (Stationary Part) .............................................................................................1
25 SC-011-32 Mach. Screw 10-24 x 3 Slotted Rd. Hd. .....................................................................................8
26 WS-002-15 Washer .......................................................................................................................................8
27 00-065477-142-1 Stator Assy. ................................................................................................................................1
28 00-022275-00279 Rotor Assy. .................................................................................................................................1
29 SC-018-11 Mach. Screw 10-24 x 3/8 Slotted Pan Hd....................................................................................3
30 00-065120 Shroud – Fan .............................................................................................................................1
31 BB-018-43 Bearing – Ball ............................................................................................................................1
00-073156 Insulator – Switch ......................................................................................................................1
- 13 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
1-2
3 THRU 17
18
33
19
27
22 THRU 26
20
21
28
29
30
32
31
PL-59208
F-43198 (August 2010)
#12 CHOPPER ATTACHMENT (NSF)
- 14 -
4812CE CHOPPER REPLACEMENT PARTS
#12 CHOPPER ATTACHMENT (NSF)
ILLUS. PART NO. NAME OF PART AMT.
PL-59208
1 00-077667-00001 Ring – Adjusting (Brite Metal). ...................................................................................................1
2 00-077667-00002 Ring – Adjusting (Tinned) ...........................................................................................................1
3 00-016423-00001 Chopper Plate (1/8 In. Dia. Holes) (Carbon Steel).......................................................................1
4 00-016424-00001 Chopper Plate (3/16 In. Dia. Holes) (Carbon Steel) .....................................................................1
5 00-016425-00001 Chopper Plate (1/4 In. Dia. Holes) (Carbon Steel).......................................................................1
6 00-016426-00001 Chopper Plate (3/8 In. Dia. Holes) (Carbon Steel).......................................................................1
7 00-016427-00001 Chopper Plate (1/2 In. Dia. Holes) (Carbon Steel).......................................................................1
8 00-103970-00001 Chopper Plate (5/8 In. Dia. Holes) (Carbon Steel).......................................................................1
9 00-016429-00001 Chopper Plate (11/16 In. Dia. Holes) (Carbon Steel) ....................................................................1
10 00-019263-00001 Chopper Plate (5/64 In. Dia. Holes) (Carbon Steel) .....................................................................1
11 00-016423-00002 Chopper Plate (1/8 In. Dia. Holes) (Stay Sharp) ..........................................................................1
12 00-016424-00002 Chopper Plate (3/16 In. Dia. Holes) (Stay Sharp) .........................................................................1
13 00-016425-00002 Chopper Plate (1/4 In. Dia. Holes) (Stay Sharp) ..........................................................................1
14 00-016426-00002 Chopper Plate (3/8 In. Dia. Holes) (Stay Sharp) ..........................................................................1
15 00-016427-00002 Chopper Plate (1/2 In. Dia. Holes) (Stay Sharp) ..........................................................................1
16 00-103970-00002 Chopper Plate (5/8 In. Dia. Holes) (Stay Sharp). .........................................................................1
17 00-016429-00002 Chopper Plate (11/16 In. Dia. Holes) (Stay Sharp)........................................................................1
18 00-290339 Knife – Chopper .........................................................................................................................1
19 00-015877 Stud – Plate ...............................................................................................................................1
20 00-015878 Worm Assy. (Incls. Items 19 & 28) .............................................................................................1
21 00-122999 Pin – Plate .................................................................................................................................1
22 00-119759-00001 Chopper Cylinder Assy. (Tinned) (Incls. Items 21 & 28) ............................................................1
23 00-119759-00003 Chopper Cylinder Assy. (Brite Metal) ( Incls. Items 21 & 28) .....................................................1
24 00-119759-00004 Chopper Cylinder Assy. (Kosher Tinned) ...................................................................................1
25 00-119759-00005 Chopper Cylinder Assy. (Kosher Brite Metal).............................................................................1
26 00-079213 Stud – Locating ..........................................................................................................................1
27 00-122555 Pan – Feed (Rectangular) .........................................................................................................1
28 00-003310 Washer – Worm Thrust ..............................................................................................................1
29 00-004838-00001 Washer – Cylinder Thrust. .........................................................................................................1
30 00-004284 Stud – Square Drive ..................................................................................................................1
31 00-295180 Stuffer – Sausage (Sheep Casing) (Packaged) .........................................................................1
32 00-295181 Stuffer – Sausage (Hog Casing) (Packaged) ............................................................................1
33 00-119922-00001 Feed Stomper ............................................................................................................................1
00-119860-00001 Cylinder Attachment Assy. (Tinned) ...........................................................................................1
00-119860-00003 Cylinder Attachment Assy. (Brite Metal) .....................................................................................1
00-119860-00004 Cylinder Attachment Assy. (Kosher)...........................................................................................1
00-119860-00005 Cylinder Attachment Assy. (Kosher Brite Metal) ........................................................................1
- 15 -
F-43198 (August 2010)
4812CE CHOPPER REPLACEMENT PARTS
3
4
2
1
5
7
6
9
8
14
10
11
12
13
PL-59205
ATTACHMENT HUB AND TRANSMISSION UNIT (ML-104734)
ILLUS. PART NO. NAME OF PART AMT.
PL-59205
1 00-011800-00157 Dowel .........................................................................................................................................1
2 00-102328 Attachment Hub & Bushing Assy. ..............................................................................................1
3 SC-037-75 Cap Screw 5/16-18 x 3/4 Hex Hd. .............................................................................................8
4 WL-003-47 Lockwasher 5/16 Helical ............................................................................................................8
5 00-015391 Square Drive Flange & Gear Assy. (53T)...................................................................................1
6 00-004478 Lock Nut (Motor Shaft) ...............................................................................................................1
7 00-010928-00002 Nut – Motor Shaft .......................................................................................................................1
8 WS-008-04 Washer .......................................................................................................................................1
9 00-109070-00004 Key .............................................................................................................................................1
10 00-113393 Pinion – Motor (23T) ..................................................................................................................1
11 00-014029 Defl ector – Grease .....................................................................................................................1
12 BB-005-20 Bearing – Ball ............................................................................................................................1
13 00-113392 Main Drive Gear & Co-Shaft Pinion Assy. (53T) ........................................................................1
14 BB-005-20 Bearing – Ball ............................................................................................................................1
FORM 43198 AUGUST 2010 PRINTED IN U.S.A.
Loading...
