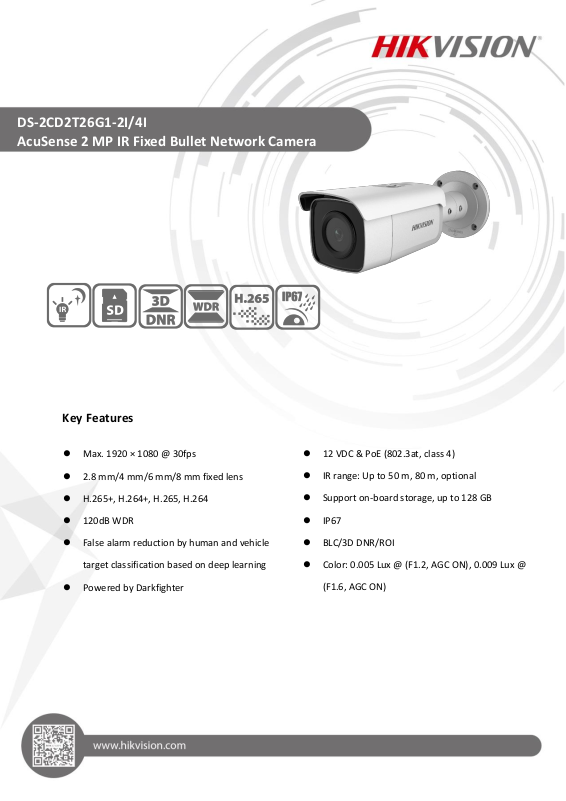

DS-2CD2T26G1-2I/4I
AcuSense 2 MP IR Fixed Bullet Network Camera
Key Features
Max. 1920 × 1080 @ 30fps
2.8 mm/4 mm/6 mm/8 mm fixed lens
H.265+, H.264+, H.265, H.264
120dB WDR
False alarm reduction by human and vehicle
target classification based on deep learning
Powered by Darkfighter
12 VDC & PoE (802.3at, class 4)
IR range: Up to 50 m, 80 m, optional
Support on-board storage, up to 128 GB
IP67
BLC/3D DNR/ROI
Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @
(F1.6, AGC ON)
Specification
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Focal length
2.8/4/6/8 mm
Focus
Fixed
Aperture
F1.6
FOV
2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°
4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°
6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°
8 mm, horizontal FOV: 41°, vertical FOV: 22°, diagonal FOV: 47°
Lens Mount
M12
Day &Night
IR cut filter
DNR
3D DNR
Wide Dynamic Range
120dB
3-Axis Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main stream supports
H.265 Type
Main Profile
H.265+
Main stream supports
Video Bit Rate
32 Kbps to 16 Mbps
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 576, 640 × 480, 352 × 288))
Image Enhancement
BLC/3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
ROI (Region of Interest)
Support 1 fixed region for main stream and sub stream separately
Day/Night Switch
Day/Night/Auto/Schedule
Network
Network Storage
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-filter
Firmware Version
V5.5.72
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button
Yes
SVC
H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exit detection,
false alarm reduction by human and vehicle target classification based on deep learning
When H265+, three streams or motion detection is enabled, the behavior analyses (including
line crossing detection, intrusion detection, region entrance detection and region exiting
detection) are not supported.
General
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3at, class 4)
Power Consumption
-2I:
12 VDC, 0.9 A, max: 10 W
PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, max: 12.5 W
-4I:
12 VDC, 1.2 A, max: 14 W
PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.1A, max: 17 W
IR Range
-2I: 2LEDs, up to 50 m
-4I: 4LEDs, up to 80 m
Wavelength
850 nm
Protection Level
IP67
Material
Front cover: metal, back cover: metal
Dimensions
Camera: Φ105 × 289.5 mm (Φ4.1″ × 11.4″)
Weight
Camera: 1100 g (2.4 lb.)
With package: 1600 g (3.5 lb.)
Available Models
DS-2CD2T26G1-2I (2.8/4/6/8 mm), DS-2CD2T26G1-4I (2.8/4/6/8 mm)
4-Ø 4.2 mm(0.2")
62.6 mm(2.5")
62.6 mm(2.5")
90.4 mm(2.6")
289.5 mm(11.4")
163.4 mm(6.4")
270.2 mm(10.6")
101.8 mm(4.0")
Ø 105 mm(4.1")
DS-1275ZJ-SUS
Vertical pole mount
DS-1260ZJ
Junction box
DS-1276ZJ-SUS
Corner mount
DS-1275ZJ-S-SUS
Vertical pole mount
Accessories
Dimensions
