Hikvision DS-2CD2T27G1-L-4mm, DS-2CD2T27G1-L-6mm, DS-2CE10DFT-F-3-6mm, DS-2CE10DFT-F-6mm, DS-2CE10DFT-F28-2-8mm User Manual
...
olo
rVu
2 MP
Bullet and Turret
Cameras
User Manual
122919NA
DS-2CE10DFT-F • DS-2CE10DFT-F28
DS-2CE12DFT-F • DS-2CE12DFT-F28
DS-2CE72DFT-F •DS-2CE72DFT-F28
Table of Contents
Regulatory Information ...................................................................... 3
FCC Information ................................................................................... 3
FCC Conditions .................................................................................... 3
EU Conformity Statement .................................................................. 3
Industry Canada ICES-003 Compliance ............................................ 4
Warning ................................................................................................ 4
Safety Instruction ............................................................................... 4
Warnings .............................................................................................. 4
Cautions ............................................................................................... 5
Mark Description ................................................................................. 5
1 Introduction ................................................................................... 6
Product Features ................................................................................ 6
• High Performance CMOS Sensor .................................................. 6
• Full Time Color ............................................................................... 6
• OSD Menu with Configurable Parameters ................................... 6
• Auto White Balance ...................................................................... 6
• Internal Synchronization .............................................................. 6
• Smart Light Mode .......................................................................... 6
• 3-Axis Adjustment......................................................................... 6
Overview............................................................................................... 6
1.1 Overview of Type I Bullet Camera .............................................. 6
1.2 Overview of Type II Bullet Camera ............................................. 6
1.3 Overview of Type I Turret Camera ............................................. 7
2 Installation ..................................................................................... 7
2.1 Installation of Type I Bullet Camera ......................................... 7
2.1.1 Ceiling/Wall Mounting without Junction Box ....................... 7

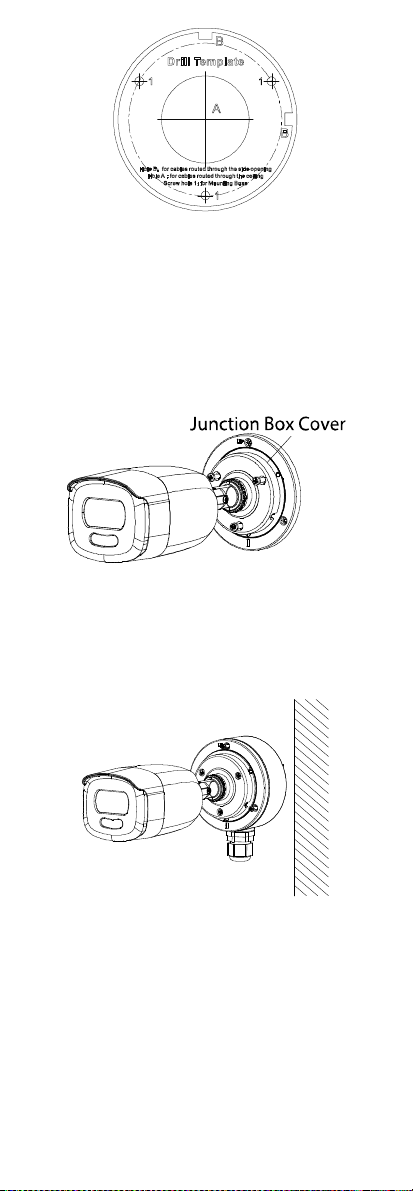

2.1.2 Ceiling/Wall Mounting with Junction Box ............................. 9
2.2 Installation of Type II Bullet Camera ...................................... 10
2.2.1 Ceiling/Wall Mounting without Junction Box ..................... 10
2.2.2 Ceiling/Wall Mounting with Junction Box ........................... 11
2.3 Installation of Type I Turret Camera ....................................... 12
2.3.1 Ceiling/Wall Mounting without Junction Box ..................... 12

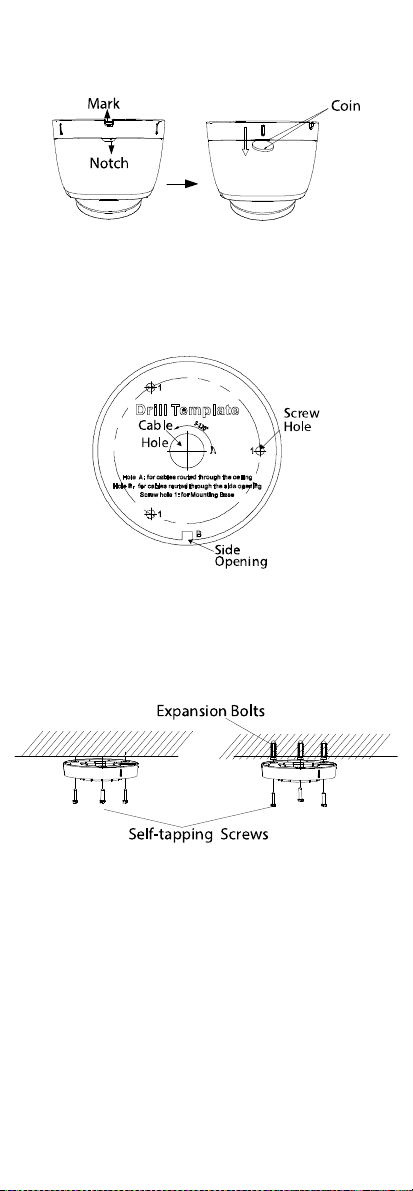

2.3.2 Ceiling/Wall Mounting with Junction Box ........................... 14
3 Menu Description ........................................................................ 16
3.1 FORMAT ....................................................................................... 17
3.2 EXPOSURE ................................................................................... 17
3.1.1 EXPOSURE MODE ....................................................................... 17
• GLOBAL .......................................................................................... 17
• BLC (Backlight Compensation) .................................................. 17
• WDR (Wide Dynamic Range) ....................................................... 17
3.1.2 AGC (Auto Gain Control) ......................................................... 17
3.1.3 SLOW SHUTTER ........................................................................ 17
3.1.4 VIDEO SETTINGS ....................................................................... 18
• WHITE BALANCE ............................................................................ 18
• BRIGHTNESS .................................................................................. 18
• CONTRAST...................................................................................... 18
• SHARPNESS ................................................................................... 18
• SATURATION .................................................................................. 19
• 3 DNR (Digital Noise Reduction) ................................................. 19
• MIRROR .......................................................................................... 19
3.1.5 SMART LIGHT ............................................................................. 19
• AUTO .............................................................................................. 19
• OFF ................................................................................................ 19
3.1.6 FUNCTIONS ................................................................................ 19
• PRIVACY ......................................................................................... 19
• MOTION .......................................................................................... 20
• DPC (Defective Pixel Correction) ................................................ 20
3.1.7 FACTORY DEFAULT .................................................................... 20
3.1.8 SAVE & EXIT............................................................................... 20
UM ColorVu DS-2CExxDFT-Fxx 122919NA 2
User Manual
DS-2CE10DFT
-F
DS-2CE10DFT
-F28
DS-2CE12DFT
-F
DS-2CE12DFT
-F28
DS-2CE72DFT
-F
DS-2CE72DFT
-
F28
Thank you for purchasing our product. If there are any
questions or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type Model
Type I Bullet Camera
Type II Bullet Camera
Type I Turret Camera
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or update
the products or procedures described in the manual.
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC Compliance
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and, if applicable, the supplied
accessories too are marked with “CE” and
comply therefore with the applicable
UM ColorVu DS-2CExxDFT-Fxx 122919NA 3
harmonized European standards listed under the Low
Warnings
Follow
these
Cautions
Follow these
Voltage Directive 2014/35/EU, the EMC Directive
2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE Directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (Battery Directive): This product
contains a battery that cannot be disposed of
as unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is marked with
this symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a
designated collection point. For more information, see:
www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference, in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions.”
Warnings: Serious injury or death may occur if any of the
warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
safeguards to prevent
serious injury or death.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of the
nation and region.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 4
precautions to prevent
potential injury or material
damage.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12 VDC
according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power adapter
to avoid overheating or a fire hazard caused by overload.
Make sure that the plug is firmly connected to the power
socket.
Make sure that the device is firmly fixed if wall mounting
or ceiling mounting is used.
If smoke, odor, or noise rise from the device, turn off the
power at once, unplug the power cord, and contact the
service center.
Never attempt to have the camera disassembled by
unprofessional personnel.
Cautions
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40° to 60° C), dusty, or
damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use a clean cloth with a bit of
ethanol, and wipe it gently.
Do not aim the camera at the sun or extra bright places.
The sensor may burn out by a laser beam, so if any laser
equipment is in use, make sure that the surface of the
sensor will not be exposed to the laser beam.
Do not expose the device to high electromagnetic
radiation or an extremely hot, cold, dusty, or damp
environment.
To avoid heat accumulation, good ventilation is required
for the operating environment.
Keep the camera away from liquid while in use for a nonwaterproof device.
While in delivery, the camera shall be packed in its
original, or similar, packing.
Mark Description
Table 0-1 Mark Description
Mark Description
DC Voltage
UM ColorVu DS-2CExxDFT-Fxx 122919NA 5
1 Introduction
Product Features
The main features are as follows:
•
High Performance CMOS Sensor
•
Full Time Color
•
OSD Menu with Configurable Parameters
•
Auto White Balance
•
Internal Synchronization
•
Smart Light Mode
•
3-Axis Adjustment
2 Overview
This manual applies to two types of bullet camera and
one type of turret camera. The overviews of each type
are shown in the figures below.
1.1 Overview of Type I Bullet Camera
Figure 1, Type I Bullet Camera Overview
NOTE:
Press and hold the switch button for five
seconds to switch the video output. Four
kinds of video outputs are available: TVI, AHD,
CVI, and CVBS.
1.2 Overview of Type II Bullet Camera
Figure 2, Type II Bullet Camera Overview
NOTE:
Press and hold the switch button for five
seconds to switch the video output. Four
kinds of video outputs are available: TVI, AHD,
CVI, and CVBS.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 6
1.3 Overview of Type I Turret Camera
Figure 3, Type I Turret Camera Overview
NOTE:
Press and hold the switch button for five
seconds to switch the video output. Four
kinds of video outputs are available: TVI, AHD,
CVI, and CVBS.
3 Installation
Before You Start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is powered off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply matches your power
output to avoid damage.
Make sure the wall is strong enough to withstand three
times the weight of the camera and the mount.
If the wall is concrete, insert expansion bolts before
installing the camera. If the wall is wood, use selftapping screws to secure the camera.
If the product does not function properly, contact your
dealer or the nearest service center. Do NOT disassemble
the camera for repair or maintenance yourself.
2.1 Installation of Type I Bullet Camera
2.1.1 Ceiling/Wall Mounting without Junction Box
1. Paste the drill template (supplied) where you want to
install the camera.
2. Drill the screw holes and the cable hole (optional) in
the ceiling/wall according to the drill template.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 7
Figure 2-1 Drill Template
NOTE:
Drill the cable hole when using the ceiling
outlet to route the cable.
3. Attach the bracket to the ceiling/wall, and secure the
camera with supplied screws.
Figure 2-2 Affix Camera to Ceiling
NOTE:
The supplied screw package contains self-
tapping screws and expansion bolts.
For a concrete wall/ceiling, expansion bolts are
required to affix the camera. For a wood wall/ceiling,
self-tapping screws are required.
4. Route the cables through the cable hole or the side
opening.
5. Connect the corresponding power cord and video
cable.
6. Power on the camera to check whether the image on
the monitor is at an optimum angle. If not, adjust the
camera according to the figure below to get an
optimum angle.
Figure 4, 3-Axis Adjustment
UM ColorVu DS-2CExxDFT-Fxx 122919NA 8
1) Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2) Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3) Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before You Start
You need to purchase a junction box separately.
1. Paste the drill template on the ceiling/wall.
Figure 5, Junction Box Drill Template
2. Drill screw holes and the cable hole in the
ceiling/wall according to the drill template holes.
3. Take apart the junction box, and align the bullet
camera screw holes with those on the junction box
cover.
Figure 6, Attach Camera to Junction Box Cover
4. Attach the camera on the junction box’s cover with
supplied screws.
5. Attach the junction box body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling/wall.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 9
Body
Junction Box
Figure 7, Affix Junction Box to Wall/Ceiling
7. Route the cables through the bottom cable hole or
the side cable hole of the junction box.
Figure 8, Reattach Cover to Junction Box
8. Connect the junction box cover to its body.
9. Repeat steps 5 and 6 of
without Junction Box
2.1.1 Ceiling/Wall Mounting
to complete the installation.
2.2 Installation of Type II Bullet Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
1. Paste the drill template (supplied) where you want to
install the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) on the ceiling.
Figure 9, Drill Template
NOTE:
Drill the cable hole in center of drill template
when using ceiling outlet to route the cable.
3. Route the cables through the cable hole (optional) or
the side opening.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 10
4. Fix the camera to the ceiling with supplied screws.
Figure 10, Affix Camera to Ceiling
NOTE:
The supplied screw package contains self-
tapping screws and expansion bolts.
5. For a concrete wall/ceiling, expansion bolts are
required to fix the camera. For a wood wall/ceiling,
self-tapping screws are required.
6. Connect the corresponding power cord and video
cable.
7. Power on the camera to check whether the image on
the monitor is at an optimum angle. If not, adjust the
surveillance angle.
Figure 11, 3-Axis Adjustment
1) Loosen the No.1 adjusting screw to adjust the
pan position [0° to 360°]. Tighten the No.1
adjusting screw.
2) Loosen the No.2 adjusting screw to adjust the
tilting position [0° to 180°]. Tighten the No. 2
adjusting screw.
3) Loosen the No.3 adjusting screw to adjust the
rotation position [0° to 360°]. Tighten the No.3
adjusting screw.
2.2.2 Ceiling/Wall Mounting with Junction Box
Before You Start
You need to purchase a junction box separately.
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the drill template holes.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 11
Figure 12, Drill Template
NOTE:
Drill the cable hole when using ceiling outlet
to route the cable.
3. Take apart the junction box, and align the screw holes
of the bullet camera with those on the junction box’s
cover.
4. Fix the camera on the junction box’s cover with three
supplied screws.
Figure 13, Install the Junction Box
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
6. Route the cables through the bottom cable hole or
the side cable hole of the junction box.
Figure 14, Attach Junction Box Cover to its Body
7. Attach the junction box cover to its body with
supplied screws.
8. Repeat steps 5 and 6 of
without Junction Box
2.3 Installation of Type I Turret Camera
2.2.1 Ceiling/Wall Mounting
to complete the installation.
2.3.1 Ceiling/Wall Mounting without Junction Box
1. Disassemble the camera.
1) Rotate the camera to align the notch to one of
the marks.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 12
2) Pry the mounting base to remove the mounting
base with the camera body with a flat object
(e.g., a coin).
Figure 15, Pry Open Mounting Base
2. Paste the drill template (supplied) to where you want
to install the camera.
3. Drill the screw holes and the cable hole (optional) in
the ceiling/wall according to the drill template.
Figure 16, Drill Template
NOTE:
Drill the cable hole when using the ceiling
outlet to route the cable
4. Attach the mounting base to the ceiling/wall, and
secure with supplied screws
Figure 17, Attach Mounting Base to Ceiling
NOTE:
The supplied screw package contains selftapping screws and expansion bolts.
For concrete wall/ceiling, expansion bolts
are required to fix the camera. For wood
wall/ceiling, self-tapping screws are
required.
5. Route the cables through the cable hole or the side
opening.
6. Align the camera with the mounting base, and secure
the camera on the mounting base.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 13
Figure 18, Secure Camera to Mounting Base
7. Connect the corresponding cables such as power
cord and video cable.
8. Power on the camera to check whether the image on
the monitor is at an optimum angle. If not, adjust the
camera according to the figure below to get an
optimum angle.
Figure 19, 3-Axis Adjustment
1) Hold the camera body and rotate the enclosure to
adjust the pan position [0° to 360°].
2) Move the camera body up and down to adjust the
tilt position [0° to 75°].
3) Rotate the camera body to adjust the rotation
position [0° to 360°].
2.3.2 Ceiling/Wall Mounting with Junction Box
Before You Start
You need to purchase a junction box separately.
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and cable hole (optional) in the
ceiling/wall according to the drill template holes.
Figure 20, Junction Box Drill Template
NOTE:
Drill the cable hole when using the ceiling
outlet to route the cable.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 14
3. Disassemble the junction box, and align the screw
holes of the turret camera’s mounting base with
those on junction box’s cover.
4. Fix the mounting base on junction box’s cover by
supplied screws.
Figure 21, Install Turret Camera’s Mounting Base
Figure 22, Install Junction Box Body on Ceiling/Wall
5. Secure the junction box’s body to the ceiling/wall
with supplied screws.
6. Attach the junction box cover to the junction box
body.
7. Repeat steps 5 to 8 of
without Junction Box
2.3.1 Ceiling/Wall Mounting
to install the camera to the
junction box.
Figure 2-8 Fix the Camera to the Junction Box
UM ColorVu DS-2CExxDFT-Fxx 122919NA 15
4 Menu Description
Follow the steps below to call the menu.
NOTE:
The actual display may vary by camera model.
1. Connect the camera to the TVI DVR and the monitor.
Figure 23, Connections
2. Power on the camera, TVI DVR, and the monitor to view
the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking the button or call
the preset No. 95.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 16
Figure 24, Main Menu Overview
5. Click the direction arrow to control the camera.
1) Click up/down direction button to select the item.
2) Click Iris + to confirm the selection.
3) Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
You can set the video format to 2 MP @ 25 fps or 2 MP
@ 30 fps.
3.2 EXPOSURE
EXPOSURE describes the brightness-related parameters,
which can be adjusted by EXPOSURE MODE, AGC, and
SLOW SHUTTER.
Figure 25, AE
3.1.1. EXPOSURE MODE
You can set the EXPOSURE MODE to GLOBAL, BLC, or WDR.
• GLOBAL refers to the normal exposure mode, which
adjusts lighting distribution, variations, and nonstandard processing.
• BLC (Backlight Compensation) compensates light to
the object in the front to make it clear, but may cause
overexposure of the background where the light is
strong.
• WDR (Wide Dynamic Range) helps the camera provide
clear images even under backlight circumstances.
WDR balances the brightness level of the whole
image and provides clear images with details.
3.1.2. AGC (Auto Gain Control)
AGC optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MEDIUM, or
LOW. Select OFF to disable the AGC function.
NOTE:
Noise will be amplified when the
AGC
is on.
3.1.3. SLOW SHUTTER
SLOW SHUTTER increases the exposure time on a single
frame, which makes a camera more sensitive to the light
so it can produce images even in low lux conditions.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 17
You can set the SLOW SHUTTER according to different
light conditions.
3.1.4. VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the sub-menu. WHITE BALANCE, BRIGHTNESS,
CONTRAST, SHARPNESS, SATURATION, 3 DNR, and MIRROR
are adjustable.
Figure 26, Video Settings
• WHITE BALANCE. The white rendition function of the
camera, is to adjust the color temperature according
to the environment. It can remove unrealistic color
casts in the image. You can set WHITE BALANCE mode
to AUTO or MANUAL.
- AUTO: White balance is adjusted automatically
according to the color temperature of the scene
illumination.
-
MANUAL: You can set the R-GAIN/B-GAIN to adjust
the shades of red/blue color of the image.
Figure 27, Manual Mode
• BRIGHTNESS. Brightness refers to the brightness of
the image. You can set the BRIGHTNESS to darken or
brighten the image. The greater the value, the
brighter the image.
• CONTRAST. This feature enhances the difference in
color and light between parts of an image.
• SHARPNESS. Sharpness determines the amount of
detail an imaging system can reproduce.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 18
• SATURATION. Adjust this feature to change the color
intensity.
• 3 DNR (Digital Noise Reduction). The 3 DNR function
can decrease the noise effect, especially when
capturing moving images in poor light conditions, and
deliver a more accurate and sharper image.
• MIRROR. OFF, H, V, and HV are selectable.
- OFF: The mirror function is disabled
- H: The image flips 180° horizontally
- V: The image flips 180° vertically
- HV: The image flips 180° both horizontally and
vertically
3.1.5. SMART LIGHT
Under the SMART LIGHT sub-menu, you can set the mode
to AUTO or OFF
.
Figure 28, Smart Light
• AUTO. Under the AUTO mode, the white light turns on
automatically when the environmental illumination
becomes poor.
- THRESHOLD value controls the sensitivity of the
white light. The greater the value, the more
sensitive the white light.
- LEVEL value controls the white light brightness.
The greater the value, the brighter the white light.
• OFF. This is the default mode.
3.1.6. FUNCTIONS
In the FUNCTIONS sub-menu, you can set the privacy
mask, the motion detection, and DPC of the camera.
• PRIVACY. The privacy mask allows you to cover certain
areas you don’t want to be viewed or recorded. Up to
four privacy areas are configurable.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 19
Figure 29, Privacy
1. Select a PRIVACY area.
2. Set the MODE as ON.
3. Click up/down/left/right button to define the
position and the size of the area.
• MOTION. In the user-defined motion detection
surveillance area, the moving object can be detected
and the alarm will be triggered. Up to four motion
detection areas can be configured.
Figure 30, Motion
1. Select a MOTION area.
2. Set the MODE as ON.
3. Click the up/down/left/right button to define the
position and the size of the area.
• DPC (Defective Pixel Correction). Defective pixels are
pixels in a CMOS image sensor that fail to sense light
levels correctly.
This series of cameras supports defective pixel
correction. You can set the DPC as ON or OFF.
3.1.7. FACTORY DEFAULT
Resets all settings to the factory defaults.
3.1.8. SAVE & EXIT
1. Move the cursor to SAVE & EXIT.
2. Click Iris+ to save the setting and exit the menu.
UM ColorVu DS-2CExxDFT-Fxx 122919NA 20
Loading...
