Hikvision DS-2CD2H23G0-IZS Technical data

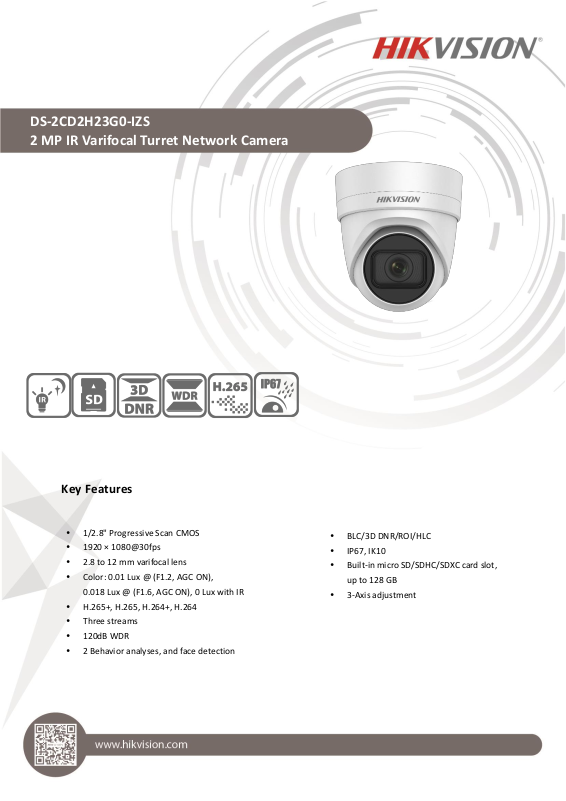

DS-2CD2H23G0-IZS
2 MP IR Varifocal Turret Network Camera

 BLC/3D DNR/ROI/HLC
 IP67, IK10
 Built-in micro SD/SDHC/SDXC card slot,

up to 128 GB

 3-Axis adjustment

 1/2.8" Progressive Scan CMOS
 1920 × 1080@30fps
 2.8 to 12 mm varifocal lens
 Color: 0.01 Lux @ (F1.2, AGC ON),

0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

 H.265+, H.265, H.264+, H.264
 Three streams
 120dB WDR
 2 Behavior analyses, and face detection

Key Features

Specifications

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focal length

2.8 to 12 mm

Lens Type

Motorized

Aperture

F1.6

Focus

Auto

FOV

horizontal FOV: 110° to 31°
vertical FOV: 58° to 18°
diagonal FOV: 136° to 36°

Lens Mount

Φ14

IR

IR Range

Up to 30 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client
software or web browser

Target Cropping

No

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter

Firmware Version

V5.5.80

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users
3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface

Audio

1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Alarm

1 input, 1 output (max. 12 VDC, 30 mA), terminal block

Video Output

No

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding

Reset Button

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, terminal block
PoE (802.3af, class 3)

Power Consumption and
Current

12 VDC, 0.85A, max. 10W
PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12.5W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Φ 135.8 × 145.5 mm (Φ 5.4" × 5.7")

Weight

Camera: Approx. 1200 g (2.6 lb.)
With Package: Approx. 1580 g (3.5 lb.)

Available Model:

DS-2CD2H23G0-IZS (2.8 to 12 mm)

Φ135.8 mm

(5.35")

145.5 mm
(5.73")

46 mm (1.81")

35 mm (1.38")

83.5 mm
(3.29")

Φ 36 mm

(1.42")

Φ 4.5 mm

(0.18")

DS-1473ZJ-135

Wall Mount

DS-1471ZJ-135
Pendant Mount

DS-1281ZJ-DM23
Inclined Ceiling Mount

DS-1475ZJ-SUS

Vertical Pole Mount

DS-1476ZJ-SUS

Corner Mount

DS-1473ZJ-135B

Wall Mount

with Junction Box

Accessory

Dimensions
