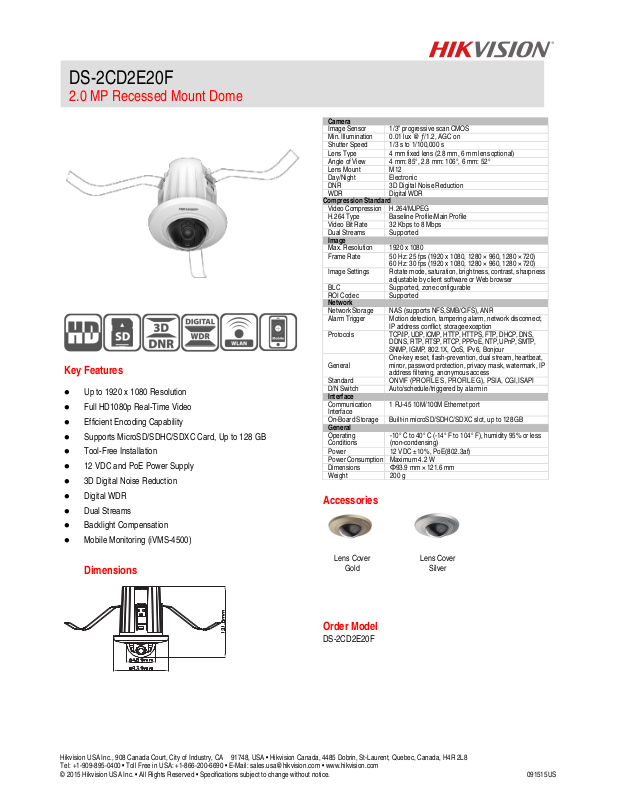

Hikvision DS-2CD2E20F-2 Specsheet
DS-2CD2E20F
Camera
Image Sensor 1/3" progressive scan
CMOS
Min. Illumination
0.01 lux @ ƒ/1.2, AGC
on
Shutter
Speed 1/3 s to 1/100,000
s
Lens Type 4 mm fixed lens (2.8 mm,
6 mm lens
optional)
Angle of
View 4 mm: 85°, 2.8 mm: 106°, 6 mm:
52°
Lens Mount M12
Day/Night
Electronic
DNR 3D Digital Noise
Reduction
WDR Digital WDR
Compression
Standard
Video Compression
H.264/MJPEG
H.264 Type Baseline Profile/Main
Profile
Video Bit
Rate 32 Kbps to 8
Mbps
Dual Streams
Supported
Max.
Resolution
1920 x 1080
Frame Rate 50 Hz: 25 fps (1920 x 1080, 1280 × 960, 1280 ×
720)
60
Hz: 30 fps (1920 x 1080, 1280 × 960, 1280 ×
720)
Image Settings
Rotate mode, saturation,
brightness,
contrast,
sharpness
adjustable
by
client software
or
Web browser
BLC Supported, zone
configurable
ROI Codec Supported
Network
Network
Storage
NAS
(supports NFS,SMB/CIFS),
ANR
Alarm Trigger Motion detection, tampering alarm, network disconnect,
IP address conflict, storage
exception
Protocols
TCP/IP, UDP,
ICMP, HTTP,
HTTPS,
FTP, DHCP,
DNS,
SNMP, IGMP,
802.1X, QoS, IPv6,
Bonjour
One-key reset, flash-prevention,
dual stream,
heartbeat,
address filtering, anonymous
access
Standard
ONVIF (PROFILE S, PROFILE G), PSIA, CGI,
ISAPI
D/N Switch Auto/schedule/triggered by alarm
in
Interface
Communication
Interface
1 RJ-45 10M/100M Ethernet
port
On-Board Storage
Built-in microSD/SDHC/SDXC slot, up to 128
GB
General
Operating
-
10° C to 40° C (-14° F to 104° F), h
umidity 95% or less
Power 12 VDC
±10%,
PoE (802.3af)
Power Consumption
Maximum 4.2
W
Dimensions
Φ93.9 mm × 121.6 mm
Weight 200 g
2.0 MP Recessed Mount Dome
Key Features
Up to 1920 x 1080 Resolution
Full HD1080p Real-Time Video
Efficient Encoding Capability
Supports MicroSD/SDHC/SDXC Card, Up to 128 GB
Tool-Free Installation
12 VDC and PoE Power Supply
3D Digital Noise Reduction
Digital WDR
Dual Streams
Backlight Compensation
Mobile Monitoring (iVMS-4500)
Dimensions
General
Conditions
DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
mirror, password protection, privacy mask, watermark, IP
(non-condensing)
Accessories
Lens Cover Lens Cover
Gold Silver
Order Model
DS-2CD2E20F
