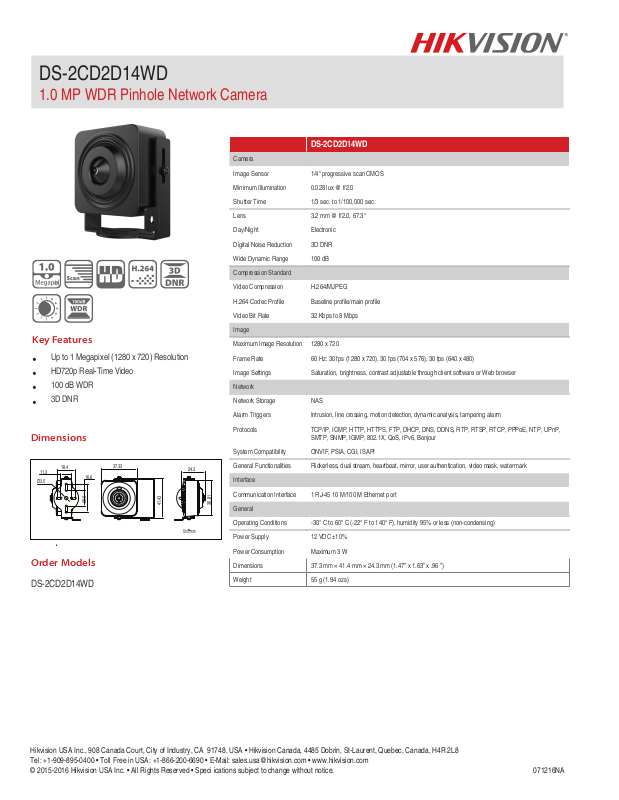

Hikvision DS-2CD2D14WD-3-2MM Specsheet

DS-2CD2D14WD

1.0 MP WDR Pinhole Network Camera

Camera

Image Sensor 1/4" progressive scan CMOS

Minimum Illumination 0.028 lux @ f/2.0

Shutter Time 1/3 sec. to 1/100,000 sec.

Lens 3.2 mm @ f/2.0, 67.3°

Day/Night

Digital Noise Reduction 3D DNR

Wide Dynamic Range 100 dB

Compression Standard

Video Compression H.264/MJPEG

H.264 Codec Prole Baseline prole/main prole

Video Bit Rate 32 Kbps to 8 Mbps


Key Features

Up to 1 Megapixel (1280 x 720) Resolution

•

HD720p Real-Time Video

•

100 dB WDR

•

3D DNR

•

Dimensions

37.33

16.6

28.9

Ø3.5

11.3

18.4

Order Models

DS-2CD2D14WD

24.3

41.43

Unit: mm

Maximum Image Resolution 1280 x 720

Frame Rate 60 Hz: 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)

Image Settings Saturation, brightness, contrast adjustable through client software or Web browser

Network

Network Storage NAS

Alarm Triggers Intrusion, line crossing, motion detection, dynamic analysis, tampering alarm

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,

System Compatibility ONVIF, PSIA, CGI, ISAPI

General Functionalities Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark

Interface

Communication Interface 1 RJ-45 10 M/100 M Ethernet port

36.81

General

Operating Conditions -30° C to 60° C (-22° F to 140° F), humidity 95% or less (non-condensing)

Power Supply 12 VDC ±10%

Power Consumption Maximum 3 W

Dimensions 37.3 mm × 41.4 mm × 24.3 mm (1.47” x 1.63” x .96 ”)

Weight 55 g (1.94 ozs)

DS-2CD2D14WD

Electronic

SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
