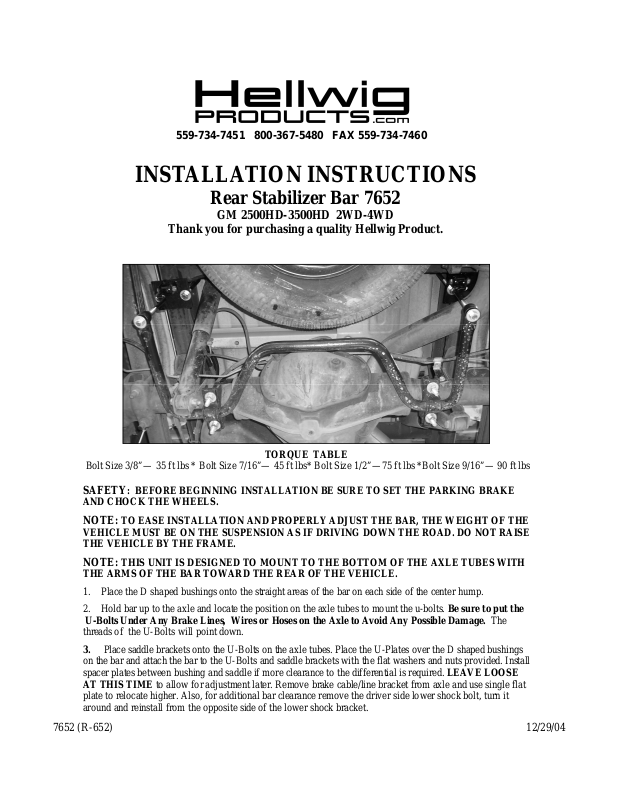

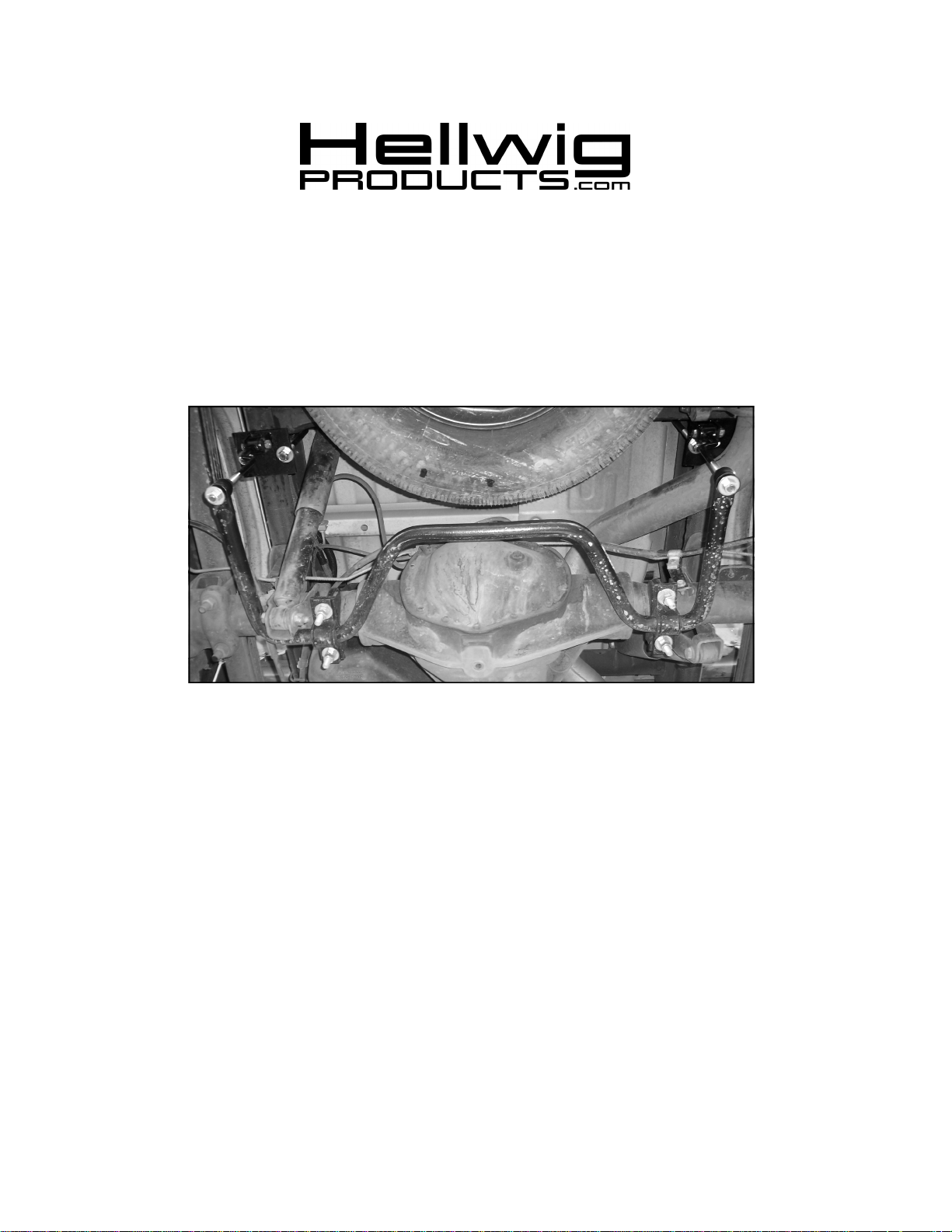

INSTALLATION INSTRUCTIONS

Rear Stabilizer Bar 7652

GM 2500HD-3500HD 2WD-4WD

Thank you for purchasing a quality Hellwig Product.

TORQUE TABLE
Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs

SAFETY: BEFORE BEGINNING INSTALLATION BE SURE TO SET THE PARKING BRAKE

AND CHOCK THE WHEELS.

NOTE: TO EASE INSTALLATION AND PROPERLY ADJUST THE BAR, THE WEIGHT OF THE

VEHICLE MUST BE ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE
THE VEHICLE BY THE FRAME.

NOTE: THIS UNIT IS DESIGNED TO MOUNT TO THE BOTTOM OF THE AXLE TUBES WITH

THE ARMS OF THE BAR TOWARD THE REAR OF THE VEHICLE.

1. Place the D shaped bushings onto the straight areas of the bar on each side of the center hump.

2. Hold bar up to the axle and locate the position on the axle tubes to mount the u-bolts. Be sure to put the
U-Bolts Under Any Brake Lines, Wires or Hoses on the Axle to Avoid Any Possible Damage. The
threads of the U-Bolts will point down.

3. Place saddle brackets onto the U-Bolts on the axle tubes. Place the U-Plates over the D shaped bushings
on the bar and attach the bar to the U-Bolts and saddle brackets with the flat washers and nuts provided. Install
spacer plates between bushing and saddle if more clearance to the differential is required. LEAVE LOOSE
AT THIS TIME to allow for adjustment later. Remove brake cable/line bracket from axle and use single flat
plate to relocate higher. Also, for additional bar clearance remove the driver side lower shock bolt, turn it
around and reinstall from the opposite side of the lower shock bracket.

7652 (R-652) 12/29/04

559-734-7451 800-367-5480 FAX [phone]

Driver’s Side

Passenger Side

4. Locate existing spare tire crossmember on vehicle frame. Place square U-bolt over the frame rail in front of the crossmem­ber with legs of the U-bolt pointing downward.

5. Insert the legs of the U-bolt into slotted holes of the frame brackets. Using 1/2” locknuts and washers, install the frame
bracket with the centered clevis on the driver side of vehicle as shown in photos. Install the frame bracket with the offset
clevis on passenger side of vehicle as shown in photos. LEAVE LOOSE for adjustment later. ( FINAL TIGHTENING
ON FRAME U-BOLTS TORQUE TO 40 FT. LBS. )

6. Insert hourglass bushing and sleeve into end link assembly. Lubricate the bushing and sleeve to ease assembly.

7. Attach end links to clevis on frame bracket as shown using the 7/16 x 2 1/4” bolts. LEAVE LOOSE for adjustment later.

8. Raise bar ends upward to be level with the frame and attach end links to sway bar ends as shown in photos using the hard­ware provided. Use the 1/2” lock nut on the end of the end link assembly.

9. Align bar from side to side through the D-bushings to be as centered as possible. Rotate bar front to rear by rotating the U­Bolts on the axle. Adjust frame brackets so that the end-links are straight up and down as possible. Be sure the bar does
not contact the differential, shocks, or leaf springs.

10. Torque all of the mounting hardware to the specified rates. Bounce vehicle, checking for clearance on all undercarriage
components, ie: exhaust, shocks, fuel lines, brake lines, etc. Recheck installation periodically on a regular basis.

ATTENTION INSTALLER: PLEASE MAKE SURE CUSTOMER RECEIVES THIS INSTRUCTION
SHEET,ALL IMPORTANT NOTE CARDS, WARNING CARDS AND THE
WARRANTY FORM

7652 (R-652) 12/29/04
