Data Sheet

f

September 4, 20 13

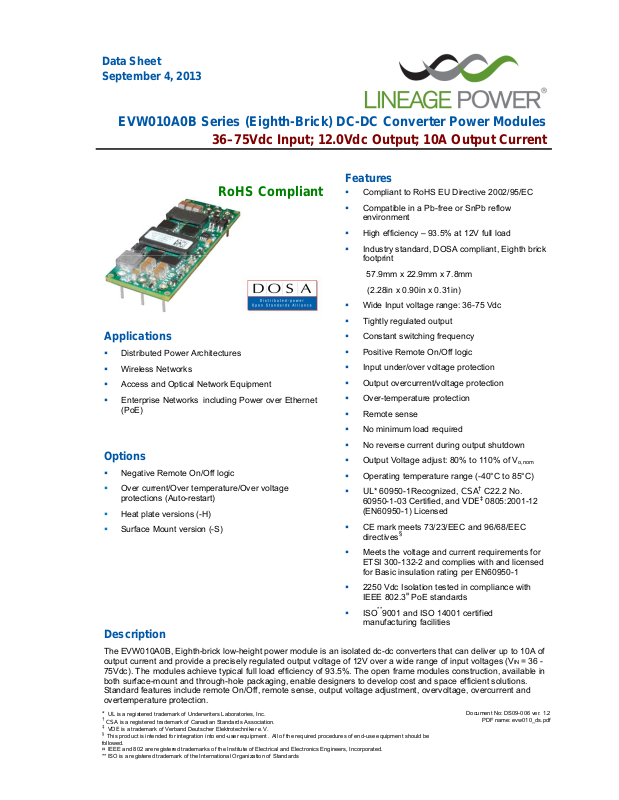

EVW010A0B Series (Eighth-Brick) DC-DC Converter Power Modules

36–75Vdc Input; 12.0Vdc Output; 10A Output Current

Applications

 Distributed Power Architectures

 Wireless Networks

 Access and Optical Network Equipment

 Enterprise Networks including Power over Ethernet

(PoE)

Options

 Negative Remote On/Off logic

 Over current/Over temperature/Over voltage

protections (Auto-restart)

 Heat plate versions (-H)

 Surface Mount version (-S)

Description

The EVW010A0B, Eighth-brick low-height power module is an isolated dc-dc converters that can deliver up to 10A of
output current and provide a precisely regulated output voltage of 12V over a wide range of input voltages (V
75Vdc). The modules achieve typical full load efficiency of 93.5%. The open frame modules construction, available in
both surface-mount and through-hole packaging, enable designers to develop cost and space efficient solutions.
Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage, overcurrent and
overtemperature protection.

* UL is a registered trademark of Underwriters Laboratories, I nc.

†

CSA is a registered trademark of Canadian Standards Association.

‡

VDE is a trademark of Verband Deutscher Elektrotechniker e. V.

§

This product is intended for integration into end-user e quipment . All of the required procedures of end-us e equipment should be
followed.
¤ IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Orga nization of Standards

RoHS Compliant

Features

 Compliant to RoHS EU Directive 2002/95/EC

 Compatible in a Pb-free or SnPb reflow

environment

 High efficiency – 93.5% at 12V full load

 Industry standard, DOSA compliant, Eighth brick

footprint

57.9mm x 22.9mm x 7.8mm

(2.28in x 0.90in x 0.31in)

 Wide Input voltage range: 36-75 Vdc

 Tightly regulated output

 Constant switching frequency

 Positive Remote On/Off logic

 Input under/over voltage protection

 Output overcurrent/voltage protection

 Over-temperature protection

 Remote sense

 No minimum load required

 No reverse current during output shutdown

 Output Voltage adjust: 80% to 110% of V

 Operating temperature range (-40°C to 85°C)

†

 UL* 60950-1Recognized, CSA

60950-1-03 Certified, and VDE

C22.2 No.

‡

0805:2001-12

(EN60950-1) Licensed

 CE mark meets 73/23/EEC and 96/68/EEC

directives

§

 Meets the voltage and current requirements for

ETSI 300-132-2 and complies with and licensed
for Basic insulation rating per EN60950-1

 2250 Vdc Isolation tested in compliance with

IEEE 802.3

 ISO

¤

PoE standards

**

9001 and ISO 14001 certified

manufacturing facilities

Document No: DS09-006 ver. 1.2

PDF name: evw010_ds.pd

o,nom

IN = 36 -

Data Sheet

September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are

absolute stress ratings only, functional operation of the device is not implied at these or any other conditions in

excess of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for

extended periods can adversely affect the device reliability.

Parameter Device Symbol Min Max Unit

Input Voltage

Continuous All V

Transient (≤100 ms) All V

Operating Ambient Temperature All T

IN

IN,trans

A

-0.3 80 Vdc

-0.3 100 Vdc

-40 85 °C

(see Thermal Considerations section)

Storage Temperature All T

I/O Isolation voltage (100% factory Hi-Pot tested) All

stg

 

-55 125 °C

2250 Vdc

Electrical Specifications

Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature

conditions.

Parameter Device Symbol Min Typ Max Unit

Operating Input Voltage All VIN 36 48 75 Vdc

Maximum Input Current

(VIN= V

IN, min

to V

IN, max

, IO=I

Input No Load Current

(VIN = V

, IO = 0, module enabled)

IN, nom

Input Stand-by Current

(VIN = V

, module disabled)

IN, nom

O, max

)

All I

All I

All I

IN,max

IN,No load

IN,stand-by

3.4 3.7 Adc

75 mA

20 mA

Inrush Transient All I2t 0.5 A2s

Input Reflected Ripple Current, peak-to-peak
(5Hz to 20MHz, 1μH source impedance; V
V

= I

IN, max, IO

; See Test configuration section)

Omax

IN, min

to

All 20 mA

p-p

Input Ripple Rejection (120Hz) All 50 dB

CAUTION: This power module is not internally fused. An input line fuse must always be used.

This power module can be used in a wide variety of applications, ranging from simple standalone operation to an

integrated part of sophisticated power architectures. To preserve maximum flexibility, internal fusing is not included,

however, to achieve maximum safety and system protection, always use an input line fuse. The safety agencies

require a time-delay fuse with a maximum rating of 8 A (see Safety Considerations section). Based on the

information provided in this data sheet on inrush energy and maximum dc input current, the same type of fuse with a

lower rating can be used. Refer to the fuse manufacturer’s data sheet for further information.

LINEAGE POWER 2

Data Sheet

A

A

September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Electrical Specifications (continued)

Parameter Device Symbol Min Typ Max Unit

Nominal Output Voltage Set-point

VIN=V

IN, min

, IO=I

O, max

, TA=25°C)

All V

O, set

Output Voltage

(Over all operating input voltage, resistive load,

All V

and temperature conditions until end of life)

Output Regulation

Line (VIN=V
Load (IO=I

Temperature (T

IN, min

O, min

to V

to I

O, max

ref=TA, min

) All

IN, max

)

to T

) All

A, max

All

Output Ripple and Noise on nominal output

(VIN=V

IN, nom

,IO= I

O, max

, TA=T

, min

to T

)

, max

RMS (5Hz to 20MHz bandwidth) All

Peak-to-Peak (5Hz to 20MHz bandwidth) All

External Capacitance All C

Output Current All I

Output Current Limit Inception (Hiccup Mode ) All
(VO= 90% of V
Output Short-Circuit Current

(VO≤250mV) ( Hiccup Mode )

)

O, set

All I

I

O, lim

O, s/c

o

Efficiency All η 93.5 %

VIN= V

IO=I

Switching Frequency (Input ripple is ½ fsw) All f

, TA=25°C

IN, nom

= V

O, max , VO

O,set

sw

Dynamic Load Response

(dIo/dt=0.1A/s; VIN = V

IN, nom

; TA=25°C)

Load Change from Io= 50% to 75% or 25% to
50% of Io,max;

Peak Deviation All V

Settling Time (Vo<10% peak deviation)

(dIo/dt=1A/s; VIN = V

IN, nom

; TA=25°C)

Load Change from Io= 50% to 75% or 25% to
50% of Io,max;

Peak Deviation All V

Settling Time (Vo<10% peak deviation)

pk

All t

s

pk

All t

s

11.76 12.0 12.24 V

O

-3.0



 

+3.0 % V

0.2 % V

  0.2 % V

 

 
 

O

100

0




1.0 % V

30 mV

100 mV

2,000 μF

10 Adc

105 115 130



3 5 A

370 kHz




3

200


 s

% V




5

200


 s

% V

% I

dc

O, set

O, set

O, set

O, set

rms

pk-pk

rms

O, set

O, set

o

Isolation Specifications

Parameter Device Symbol Min Typ Max Unit

Isolation Capacitance All C

Isolation Resistance All R

I/O Isolation Voltage (100% factory Hi-pot tested) All All

iso

iso



10

 

1000

 



2250 Vdc

pF

MΩ

General Specifications

Parameter Device Symbol Min Typ Max Unit

Calculated Reliability based upon Telcordia SR­332 Issue 2: Method

=40°C, airflow = 200 lfm, 90% confidence)

T

A

I Case 3 (I

=80%I

O

O, max

,

Weight (Open Frame) All

Weight (with Heatplate) All

All FIT 323.4 10

All MTBF 3,092,530 Hours





19

(0.67)

32

(1.13)





LINEAGE POWER 3

9

/Hours

g

(oz.)

g

(oz.)

Data Sheet

September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Feature Specifications

Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature

conditions. See Feature Descriptions for additional information.

Parameter Device Symbol Min Typ Max Unit

Remote On/Off Signal Interface

(VIN=V
Signal referenced to V
Negative Logic: device code suffix “1”
Logic Low = module On, Logic High = module Off
Positive Logic: No device code suffix required
Logic Low = module Off, Logic High = module On

Logic Low - Remote On/Off Current All I

Logic Low - On/Off Voltage All V

Logic High Voltage – (Typ = Open Collector) All V

Logic High maximum allowable leakage current All I

Turn-On Delay1 and Rise Times

(IO=I

Case 1: On/Off input is set to Logic Low (Module
ON) and then input power is applied (T
instant at which V

Case 2: Input power is applied for at least 1 second
and then the On/Off input is set from OFF to ON (T

from instant V

Output voltage Rise time (time for Vo to rise from 10%
of V

Output voltage overshoot – Startup

IO= I

Remote Sense Range All V

(Max voltage drop is 0.5V)

Output Voltage Adjustment Range

Output Overvoltage Protection

Input Undervoltage Lockout All V

Turn-on Threshold

Turn-off Threshold

Hysterisis 1.5 2.0

Input Overvoltage Lockout All V

Turn-off Threshold

Turn-on Threshold

Hysterisis 1 2

Notes:

1. The module has an adaptable extended Turn-On Delay interval, T
following either: 1) the rapid cycling of Vin from normal levels to less than the Input Undervoltage Lockout (which causes module shutdown), and
then back to normal; or 2) toggling the on/off signal from on to off and back to on without removing the input voltage. The normal Turn-On Delay
interval, T

2. Maximum trim up possible only for Vin>40V.

to V

IN, min

O, max , VIN=VIN, nom, TA

to 90% of V

o,set

; VIN=V

O, max

, will occur whenever a module restarts with input voltage removed from the module for the preceding 1 second.

delay

; open collector or equivalent,

IN, max

terminal)

IN-

on/off

on/off

on/off

on/off

 

-0.7

2.0 5.0 Vdc

 

= 25 oC)

= V

IN

toggles until VO = 10% of V

on/off

IN, min

until VO = 10% of V

IN, min

)

o, set

to V

IN, max

, TA = 25 oC

2

delay

from

O, set

O,set

)

All T

delay

).

All T

All T

All

All 80 110 % V

All V

, of 4 seconds. The extended T

delay

― 25 30 msec

delay

― 12 20 msec

delay

rise

― 10 15 msec

10 % V

SENSE

O, limit

UVLO

OVLO

13.8

30 34.5 36 Vdc

30 32.5



75 78

delay

1.0 mA



1.0 Vdc

10 μA

― 3 % V



16.5 Vdc




80 83 V




will occur when the module restarts

Vdc

Vdc

Vdc

Vdc

O, set

O, set

O, set

dc

LINEAGE POWER 4

Data Sheet

V

V

V

September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Characteristic Curves

The following figures provide typical characteristics for the EVW010A0B (12V, 10A) at 25oC. The figures are identical
for either positive or negative remote On/Off logic.

95

90

85

Vin = 48

80

Vin = 36

75

Vin = 75

70

EFFICIENCY,  (%)

0246810

OUTPUT CURRENT, IO (A) TIME, t (100µs/div)

(V) (200mV/div) Io(A) (2A/div)

O

V

OUTPUT VOLTAGE OUTPUT CURRENT

Figure 1. Converter Efficiency versus Output Current. Figure 4. Transient Response to 1.0A/µS Dynamic

Load Change from 50% to 75% to 50% of full load (V

(V) (50mV/div)

O

V

OUTPUT VOLTAGE

TIME, t (2s/div)

Figure 2. Typical output ripple and noise (V
I

o = Io,max).

IN = VIN,NOM,

= V

On/Off VOLTAGE OUTPUT VOLTAGE

Figure 5. Typical Start-up Using Remote On/Off,
negative logic version shown (VIN = VIN,NOM, Io = Io,max).

IN,NOM

(V) (2V/div)

On/Off

(V) (2V/div) V

O

V

(V) (2V/div)

O

).

TIME, t (5ms/div)

IN

(V) (200mV/div) Io(A) (2A/div)

O

V

OUTPUT VOLTAGE OUTPUT CURRENT

TIME, t (100µs/div) TIME, t (10ms/div)

Figure 3. Transient Response to 0.1A/µS Dynamic
Load Change from 50% to 75% to 50% of full load (V
= V

IN,NOM

).

IN

(V) (20V/div) V

IN

INPUT VOLTAGE OUTPUT VOLTAGE

V

Figure 6. Typical Start-up Using Input Voltage (V
V

IN,NOM, Io = Io,max).

IN =

LINEAGE POWER 5

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Test Configurations

SCOP E

Vout+

Vout-

CURRENT P ROBE

33-100μF

RESISTIVE

LOA D

V

O

x 100 %

Vin+

Vin-

R

contactRdistribution

R

contactRdistribution

R

LOAD

TO OSCILL OSCOPE

L

TEST

12μH

CS 220μF

BAT TERY

NOTE: M easure input r eflected ri pple current wi th a s imulated

E.S .R.<0 .1

@ 20° C 100kHz

source inductance (L
possi ble batt ery imp edance. Mea sure current as shown
above.

) of 12μH. Capacitor CS offs ets

TEST

Figure 7. Input Reflected Ripple Current Test
Setup.

COPPER STRIP

V O (+)

V O ( – )

NOTE: A ll volt age mea surements to be tak en at the module

termin als, as shown ab ove. If sock ets are used th en
Kelvi n connec tions are requ ired at th e module te rminals
to av oid meas urement errors due to socket c ontact
resistance.

10uF

1uF

GROUND PLANE

Figure 8. Output Ripple and Noise Test Setup.

R

R

contact

distribution

R

R

contact

distribution

NOTE: All voltage measurements to be taken at t he module

terminals, as shown above. If sockets are used then
Kelvin connections are required at the module terminals
to avoid measurement errors due to socket contact
resistance.

Vin+

V

IN

Vin-

Figure 9. Output Voltage and Effici ency Tes t
Setup.

. I

V

O

Efficiency

=



VIN. I

O

IN

EVW010A0B Series Power Modules

Design Considerations

Input Filt ering

The power module should be connected to a low
ac-impedance source. Highly inductive source
impedance can affect the stability of the power
module. For the test configuration in Figure 7 a 33­100μF electrolytic capacitor (ESR<0.1 at 100kHz),
mounted close to the power module helps ensure the
stability of the unit. Consult the factory for further
application guidelines.

Safety Considerations

For safety-agency approval of the system in which the
power module is used, the power module must be
installed in compliance with the spacing and
separation requirements of the end-use safety agency
standard, i.e., UL 60950-1-3, CSA C22.2 No. 60950­00, and VDE 0805:2001-12 (IEC60950-1).

If the input source is non-SELV (ELV or a hazardous
voltage greater than 60 Vdc and less than or equal to
75Vdc), for the module’s output to be considered as
meeting the requirements for safety extra-low voltage
(SELV), all of the following must be true:

 The input source is to be provided with reinforced

insulation from any other hazardous voltages,
including the ac mains.

 One V

pin and one V

IN

pin are to be

OUT

grounded, or both the input and output pins are
to be kept floating.

 The input pins of the module are not operator

accessible.

 Another SELV reliability test is conducted on the

whole system (combination of supply source and
subject module), as required by the safety
agencies, to verify that under a single fault,
hazardous voltages do not appear at the
module’s output.

Note: Do not ground either of the input pins of the

module without grounding one of the output
pins. This may allow a non-SELV voltage to
appear between the output pins and ground.

The power module has extra-low voltage (ELV)
outputs when all inputs are ELV.

All flammable materials used in the manufacturing of
these modules are rated 94V-0, or tested to the
UL60950 A.2 for reduced thickness.

For input voltages exceeding –60 Vdc but less than or
equal to –75 Vdc, these converters have been
evaluated to the applicable requirements of BASIC
INSULATION between secondary DC MAINS
DISTRIBUTION input (classified as TNV-2 in Europe)
and unearthed SELV outputs.

The input to these units is to be provided with a
maximum 8 A time-delay fuse in the ungrounded lead.

LINEAGE POWER 6

Data Sheet

E

September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Feature Description

Remote On/Off

Two remote on/off options are available. Positive logic
turns the module on during a logic high voltage on the
ON/OFF pin, and off during a logic low. Negative logic
remote On/Off, device code suffix “1”, turns the
module off during a logic high and on during a logic
low.

Vin+

Vout+

EVW010A0B Series Power Modules

the module remains at or below the maximum rated
power (Maximum rated power = Vo,set x Io,max).

SENSE(+)

SENSE(–)

V

I(+)

VO(+)

SUPPLY

CONTACT

RESISTANCE

I

I

I(-)

V

O(–)

V

IO

CONTACT AND

DISTRIBUTION LOSS

Figure 11. Circuit Configuration for remote
sense .

LOAD

I

on/off

ON/OFF

TRIM

Input Undervoltage Lockout

At input voltages below the input undervoltage lockout
limit, the module operation is disabled. The module

V

on/off

will only begin to operate once the input voltage is
raised above the undervoltage lockout turn-on

Vin-

Vout-

Figure 10. Remote On/Off Implementation.

To turn the power module on and off, the user must
supply a switch (open collector or equivalent) to
control the voltage (V
terminal and the V
low is 0V ≤ V

≤ 1.0V. The maximum I

on/off

) between the ON/OFF

on/off

(-) terminal (see Figure 10). Logic

IN

on/off

during a
logic low is 1mA, the switch should be maintain a
logic low level whilst sinking this current.

During a logic high, the typical maximum V

on/off

generated by the module is 5V, and the maximum
allowable leakage current at V

= 5V is 1μA.

on/off

If not using the remote on/off feature:

For positive logic, leave the ON/OFF pin open.

For negative logic, short the ON/OFF pin to V

(-).

IN

Remote Sense

Remote sense minimizes the effects of distribution
losses by regulating the voltage at the remote-sense
connections (See Figure 11). The voltage between
the remote-sense pins and the output terminals must
not exceed the output voltage sense range given in
the Feature Specifications table:

[V

(+) – VO(–)] – [SENSE(+) – SENSE(–)]  0.5 V

O

Although the output voltage can be increased by both
the remote sense and by the trim, the maximum
increase for the output voltage is not the sum of both.
The maximum increase is the larger of either the
remote sense or the trim.

The amount of power delivered by the module is
defined as the voltage at the output terminals
multiplied by the output current. When using remote
sense and trim, the output voltage of the module can
be increased, which at the same output current would
increase the power output of the module. Care should
be taken to ensure that the maximum output power of

threshold, V

Once operating, the module will continue to operate
until the input voltage is taken below the undervoltage
turn-off threshold, V

Overtemperature Protection

To provide protection under certain fault conditions,
the unit is equipped with a thermal shutdown circuit.
The unit will shutdown if the thermal reference point
Tref (Figure 13), exceeds 150
thermal shutdown is not intended as a guarantee that
the unit will survive temperatures beyond its rating.
The module can be restarted by cycling the dc input
power for at least one second or by toggling the
remote on/off signal for at least one second. If the
auto-restart option (4) is ordered, the module will
automatically restart upon cool-down to a safe
temperature.

Output Overvoltage Protection

The output over voltage protection scheme of the
modules has an independent over voltage loop to
prevent single point of failure. This protection feature
latches in the event of over voltage across the output.
Cycling the on/off pin or input voltage resets the
latching protection feature. If the auto-restart option
(4) is ordered, the module will automatically restart
upon an internally programmed time elapsing.

Overcurrent Protection

To provide protection in a fault (output overload)
condition, the unit is equipped with internal
current-limiting circuitry and can endure current
limiting continuously. At the point of current-limit
inception, the unit enters hiccup mode. If the unit is
not configured with auto–restart, then it will latch off
following the over current condition. The module can
be restarted by cycling the dc input power for at least
one second or by toggling the remote on/off signal for
at least one second. If the unit is configured with the
auto-restart option (4), it will remain in the hiccup
mode as long as the overcurrent condition exists; it

UV/ON

.

UV/OFF

.

o

C (typical), but the

operates normally, once the output current is brought

LINEAGE POWER 7

Data Sheet



September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Feature Descriptions (continued)

back into its specified range. The average output
current during hiccup is 10% I

Output Voltage Programming

Trimming allows the output voltage set point to be
increased or decreased, this is accomplished by
connecting an external resistor between the TRIM pin
and either the V

VIN(+)

ON/OFF

VIN(-)

Figure 12. Circuit Configurat i on t o Tr im Out pu t
Voltage.

Connecting an external resistor (R
the TRIM pin and the Vo(-) (or Sense(-)) pin
decreases the output voltage set point. To maintain
set point accuracy, the trim resistor tolerance should
be ±1.0%.

The following equation determines the required
external resistor value to obtain a percentage output
voltage change of ∆%

Where

For example, to trim-down the output voltage of the
module by 8% to 11.04V, Rtrim-down is calculated as
follows:

R

Connecting an external resistor (R
TRIM pin and the V
the output voltage set point. The following equations
determine the required external resistor value to
obtain a percentage output voltage change of ∆%:

R



uptrim



Where

(+) pin or the VO(-) pin.

O

VO(+)

VOTRIM

VO(-)



R





downtrim












downtrim








VV

,





R

desiredseto

V

,

seto

511




8



downtrim

(+) (or Sense (+)) pin increases

O

V

,seto










VV

V

,

seto

511





%225.1

%

,

setodesired

O, max











8% 

22.10

%)100(11.5











.

R

R

trim-down





22.10




100%








655.53

) between the

trim-up

511





100%

trim-up

trim-down

) between



%

LOAD





22.10




EVW010A0B Series Power Modules

For example, to trim-up the output voltage of the
module by 5% to 12.6V, R

is calculated is as

trim-up

follows:

5% 



511





R



uptrim






R

uptrim

)5100(0.1211.5

5225.1

5

8.938







22.10




The voltage between the Vo(+) and Vo(–) terminals
must not exceed the minimum output overvoltage
protection value shown in the Feature Specifications
table. This limit includes any increase in voltage due
to remote-sense compensation and output voltage
set-point adjustment trim.

Although the output voltage can be increased by both
the remote sense and by the trim, the maximum
increase for the output voltage is not the sum of both.
The maximum increase is the larger of either the
remote sense or the trim. The amount of power
delivered by the module is defined as the voltage at
the output terminals multiplied by the output current.
When using remote sense and trim, the output
voltage of the module can be increased, which at the
same output current would increase the power output
of the module. Care should be taken to ensure that
the maximum output power of the module remains at
or below the maximum rated power (Maximum rated
power = V

O,set

x I

O,max

).

Thermal Considerations

The power modules operate in a variety of thermal
environments; however, sufficient cooling should be
provided to help ensure reliable operation.

Considerations include ambient temperature, airflow,
module power dissipation, and the need for increased
reliability. A reduction in the operating temperature of
the module will result in an increase in reliability. The
thermal data presented here is based on physical
measurements taken in a wind tunnel.

The thermal reference point, T
specifications for open frame modules is shown in
Figure 13. For reliable operation this temperature
should not exceed 122

Figure 13. T

ref

o

C.

Temperature Measurement

Location for open Frame Module.

The thermal reference point, T
specifications for modules with heat plates (–H) is
shown in Figure 14. For reliable operation this
temperature should not exceed 114

used in the

ref

used in the

ref

o

C.

AIRFLOW

LINEAGE POWER 8

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Thermal Considerations (continued)

AIRFLOW

Figure 14. T
Location for Heat plate Module.

Heat Transfer via Convection

Increased airflow over the module enhances the heat
transfer via convection. Derating curves showing the
maximum output current that can be delivered by the
open frame module versus local ambient temperature
(T

A) for natural convection and up to 3m/s (600

ft./min) forced airflow are shown in Figure 15.

10

9

(A)

8

O

7

6

5

4

OUTPUT CURRENT, I

3

Figure 15. Output Current Derating for the Open
Frame Module; Airflow in the Transverse Direction
from Vout(+) to Vout(-); Vin =48V.

For additional power, the module is available with an
optional heatplate (-H), that allows for the use of
heatsinks to improve the thermal derating. Derating
curves showing the maximum output current that can
be delivered by the heatplate module with different
heatsink heights versus local ambient temperature
(T

A) for natural convection and up to 3m/s (600

ft./min) forced airflow are shown in Figures 16 -19.

Temperature Measurement

ref

3.0 m/s

(600LFM)

2.0 m/s

(400LFM)

1.0 m/s

(200LFM)

0.5 m/s

(100LFM)

20 30 40 50 60 70 80 90

NC

AMBIENT TEMEPERATURE, TA (oC)

EVW010A0B Series Power Modules

10

9

(A)

8

O

7

6

5

4

OUTPUT CURRENT, I

3

20 30 40 50 60 70 80 90

AMBIENT TEMEPERATURE, TA (oC)

Figure 16. Output Current Derating for the Module
with Heatplate; Airflow in the Transverse Direction
from Vout(+) to Vout(-); Vin =48V.

10

9

(A)

8

O

7

6

5

4

OUTPUT CURRENT, I

3

20 30 40 50 60 70 80 90

AMBIENT TEMEPERATURE, TA (oC)

Figure 17. Output Current Derating for the Module
with Heatplate and 0.25 in. heatsink; Airflow in the
Transverse Direction from Vout(+) to Vout(-); Vin
=48V.

10

9

(A)

8

O

7

6

5

4

OUTPUT CURRENT, I

3

20 30 40 50 60 70 80 90

AMBIENT TEMEPERATURE, TA (oC)

Figure 18. Output Current Derating for the Module
with Heatplate and 0.5 in. heatsink ; Airflow in the
Transverse Direction from Vout(+) to Vout(-); Vin
=48V.

3.0 m/s

(600LFM)

2.0 m/s

(400LFM)

1.0 m/s

(200LFM)

2.0 m/s

(400LFM)

2.0 m/s

(400LFM)

0.5 m/s

(100LFM)

1.0 m/s

(200LFM)

0.5 m/s

(100LFM)

1.0 m/s

(200LFM)

0.5 m/s

(100LFM)

NC

NC

NC

LINEAGE POWER 9

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Thermal Considerations (continued)

10

EVW010A0B Series Power Modules

product information such as product code, serial
number and the location of manufacture.

9

(A)

8

O

7

6

5

4

OUTPUT CURRENT, I

3

20 30 40 50 60 70 80 90

AMBIENT TEMEPERATURE, TA (oC)

1.0 m/s

(200LFM)

0.5 m/s

(100LFM)

NC

Figure 19. Output Current Derating for the Module
with Heatplate and 1.0 in. heatsink; Airflow in the
Transverse Direction from Vout(+) to Vout(-); Vin
=48V.

Please refer to the Application Note “Thermal
Characterization Process For Open-Frame Board­Mounted Power Modules” for a detailed discussion of
thermal aspects including maximum device
temperatures.

Through-Hole Soldering Information

The RoHS-compliant (Z codes) through-hole products
use the SAC (Sn/Ag/Cu) Pb-free solder and RoHS­compliant components. The RoHS-compliant with
lead solder exemption (non-Z codes) through-hole
products use Sn/Pb solder and RoHS-compliant
components. Both non-Z and Z codes are designed to
be processed through single or dual wave soldering
machines. The pins have an RoHS-compliant finish
that is compatible with both Pb and Pb-free wave
soldering processes. A maximum preheat rate of
3

C/s is suggested. The wave preheat process

should be such that the temperature of the power
module board is kept below 210
the recommended pot temperature is 260
Pb-free solder pot is 270

C. For Pb solder,

C, while the

C max. Not all RoHS-

compliant through-hole products can be processed
with paste-through-hole Pb or Pb-free reflow process.
If additional information is needed, please consult with
your Lineage Power representative for more details.

Surface Mount Information

Pick and Place

The EVW010A0B modules use an open frame
construction and are designed for a fully automated
assembly process. The modules are fitted with a
label designed to provide a large surface area for pick
and place operations. The label meets all the
requirements for surface mount processing, as well as
safety standards, and is able to withstand reflow
temperatures of up to 300

o

C. The label also carries

Figure 20. Pick and Place Location.

Nozzle Recommendations

The module weight has been kept to a minimum by
using open frame construction. Even so, these
modules have a relatively large mass when compared
to conventional SMT components. Variables such as
nozzle size, tip style, vacuum pressure and placement
speed should be considered to optimize this process.
The minimum recommended nozzle diameter for
reliable operation is 6mm. The maximum nozzle outer
diameter, which will safely fit within the allowable
component spacing, is 9 mm.

Oblong or oval nozzles up to 11 x 9 mm may also be
used within the space available.

Reflow Soldering Information

The surface mountable modules in the EVW family
use our newest SMT technology called “Column Pin”
(CP) connectors. Figure 21 shows the new CP
connector before and after reflow soldering onto the
end-board assembly.

Figure 21. Column Pin Connector Before and After

The CP is constructed from a solid copper pin with an
integral solder ball attached, which is composed of
tin/lead (Sn/Pb) solder for non-Z codes, or Sn/Ag/Cu
(SAC) solder for –Z codes. The CP connector design
is able to compensate for large amounts of co­planarity and still ensure a reliable SMT solder joint.
Typically, the eutectic solder melts at 183
solder) or 217-218
and subsequently wicks the device connection.
Sufficient time must be allowed to fuse the plating on
the connection to ensure a reliable solder joint. There
are several types of SMT reflow

Reflow Soldering.

EVW Board

Insulator

Solder Ball

o

C (SAC solder), wets the land,

End as sembl y PCB

o

C (Sn/Pb

LINEAGE POWER 10

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Surface Mount Information (continued)

technologies currently used in the industry. These
surface mount power modules can be reliably
soldered using natural forced convection, IR (radiant
infrared), or a combination of convection/IR.

The following instructions must be observed when
SMT soldering these units. Failure to observe these
instructions may result in the failure of or cause
damage to the modules, and can adversely affect
long-term reliability.

Pb-free Reflow Profile

Power Systems will comply with J-STD-020 Rev. C
(Moisture/Reflow Sensitivity Classification for
Nonhermetic Solid State Surface Mount Devices) for
both Pb-free solder profiles and MSL classification
procedures. This standard provides a recommended
forced-air-convection reflow profile based on the
volume and thickness of the package (table 4-2). The
suggested Pb-free solder paste is Sn/Ag/Cu (SAC).
The recommended linear reflow profile using
Sn/Ag/Cu solder is shown in Fig. 24.

Tin Lead Soldering

300

The recommended linear reflow profile using Sn/Pb
solder is shown in Figure 22 and 23. For reliable
soldering the solder reflow profile should be
established by accurately measuring the modules CP
connector temperatures.

300

250

200

15 0

10 0

REFLOW TEMP (C)

50

0

Peak Temp 235oC

Heat zone

oCs-1

max 4

Soak zone
30-240s

Preheat zo ne

oCs-1

max 4

REFLOW TIME (S)

T

lim

205

Co o ling
zo ne
1- 4

above

o

C

oCs-1

Figure 22. Recommended Reflow Profile for
Tin/Lead (Sn/Pb) process.

240

235

230

225

220

215

210

MAX TEMP SOLDER (C)

205

200

0 10 2030405060

Figure 23. Time Limit, T

, Curve Above 205oC for

lim

Tin/Lead (Sn/Pb) process.

Lead Free Soldering

The –Z version of the EVW010A0B modules are lead­free (Pb-free) and RoHS compliant and are both
forward and backward compatible in a Pb-free and a
SnPb soldering process. Failure to observe the
instructions below may result in the failure of or cause
damage to the modules and can adversely affect
long-term reliability.

LINEAGE POWER 11

Per J-STD-020 Rev. C

250

200

150

Heat ing Zone
1°C/Second

100

Reflow Temp (°C)

50

0

Peak Temp 260°C

* Min. Time Above 235°C
15 Seconds

*Time Above 217°C

60 Seconds

Reflow Time (Seconds)

Cooling
Zone

Figure 24. Recommended linear reflow profile
using Sn/Ag/Cu solder.

MSL Rating

The EVW010A0B modules have a MSL rating of 2A.

Storage and Handling

The recommended storage environment and handling
procedures for moisture-sensitive surface mount
packages is detailed in J-STD-033 Rev. A (Handling,
Packing, Shipping and Use of Moisture/Reflow
Sensitive Surface Mount Devices). Moisture barrier
bags (MBB) with desiccant are required for MSL
ratings of 2 or greater. These sealed packages
should not be broken until time of use. Once the
original package is broken, the floor life of the product
at conditions of

 30°C and 60% relative humidity

varies according to the MSL rating (see J-STD-033A).
The shelf life for dry packed SMT packages will be a
minimum of 12 months from the bag seal date, when
stored at the following conditions: <40°C, < 90%
relative humidity.

Post Solder Cleaning and Drying
Considerations

Post solder cleaning is usually the final circuit-board
assembly process prior to electrical board testing. The
result of inadequate cleaning and drying can affect
both the reliability of a power module and the
testability of the finished circuit-board assembly. For
guidance on appropriate soldering, cleaning and

drying procedures, refer to Lineage Power Board
Mounted Power Modules: Soldering and Cleanin g
Application Note (AN04-001).

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

EMC Considerations

The circuit and plots in Figure 25 shows a suggested configuration to meet the conducted emission limits of EN55022
Class B.

Level [dBµV]

80

70

60

50

x

40

30

20

10

0

150k 300k 500k 1M 2M 3M 4M 5M 7M 10M 30M

x xMES CE0615090841_fin QP

MES CE0615090841_pre PK

Level [dBµV]

80

70

Frequency [Hz]

x

x

x

x

x

60

50

+

40

30

20

10

0

150k 300k 500k 1M 2M 3M 4M5M 7M 10M 30M

+ +MES CE0615090841_fin AV

MES CE0615090841_pre AV

Frequency [Hz]

+

+

+

+

+

Figure 25. EMC Considerations

For further information on designing for EMC compliance, please refer to the FLT007A0 data sheet (DS05-028).

LINEAGE POWER 12

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Mechanical Outline for Surface Mount Module

Dimensions are in millimeters and [inches].

Tolerances: x.x mm

x.xx mm

Top

#

View

 0.5 mm [x.xx in.  0.02 in.] (Unless otherwise indicated)

 0.25 mm [x.xxx in  0.010 in.]

#

Top side label includes Lineage Power name, product designation and date code.

EVW010A0B Series Power Modules

Side

View

Bottom

View

LINEAGE POWER 13

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Mechanical Outline for Through-Hole Module

Dimensions are in millimeters and [inches].

Tolerances: x.x mm

x.xx mm

 0.5 mm [x.xx in.  0.02 in.] (Unless otherwise indicated)

 0.25 mm [x.xxx in  0.010 in.]

#Top side label includes Lineage Power name, product designation and date code.

Top

#

View

EVW010A0B Series Power Modules

Side

View

Bottom

View

* For optional pin lengths, see Table 2 Device Options and Coding Scheme

LINEAGE POWER 14

Data Sheet
September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Mechanical Outline for Through-Hole Module with Heat Plate (-H)

Dimensions are in millimeters and [inches].

Tolerances: x.x mm

x.xx mm

 0.5 mm [x.xx in.  0.02 in.] (Unless otherwise indicated)

 0.25 mm [x.xxx in  0.010 in.]

Top

View

Side
View

Bottom

View

#

* For optional pin lengths, see Table 2 Device Options and Coding Scheme

#

Bottom side label includes Lineage Power name, product designation and date code.

LINEAGE POWER 15

Data Sheet
September 4, 2013

Recommended Pad Layout

Dimensions are in millimeters and [inches].

Tolerances: x.x mm

x.xx mm

 0.5 mm [x.xx in.  0.02 in.] (Unless otherwise indicated)

 0.25 mm [x.xxx in  0.010 in.]

EVW010A0B Series Power Modules

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

SMT Recommended Pad Layout (Component Side View)

TH Recommended Pad Layout (Component Side View)

LINEAGE POWER 16

Data Sheet
September 4, 2013

EVW010A0B Series Power Modules

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

Packaging Details

The surface mount versions of the EVW surface
mount modules (suffix –S) are supplied as standard in
the plastic tray shown in Figure 26. The tray has
external dimensions of 135.1mm (W) x 321.8mm (L) x

12.42mm (H) or 5.319in (W) x 12.669in (L) x 0..489in
(H).

Tray Specification

Material Antistatic coated PVC

Max surface resistivity 10

Color Clear

Capacity 12 power modules

Min order quantity 48 pcs (1 box of 4 full
trays)

Each tray contains a total of 12 power modules. The
trays are self-stacking and each shipping box will
contain 4 full trays plus one empty hold down tray
giving a total number of 48 power modules.

12

/sq

Figure 26. Surface Mount Packaging Tray.

LINEAGE POWER 17

Data Sheet

a

©

September 4, 2013

36 – 75Vdc Input; 12.0Vdc Output; 10A Output Current

EVW010A0B Series Power Modules

Ordering Information

Please contact your Lineage Power Sales Representative for pricing, availability and optional features.

Table 1. Device Codes

Product Codes Input Voltage

Output

Voltage

EVW010A0B41Z 48V (36-75Vdc) 12V 10A Negative Through hole CC109143203

EVW010A0B64Z 48V (36-75Vdc) 12V 10A Positive Through hole CC109156015

EVW010A0B641Z 48V (36-75Vdc) 12V 10A Negative Through hole CC109158473

EVW010A0B41-HZ 48V (36-75Vdc) 12V 10A Negative Through hole CC109152781

EVW010A0B41-SZ 48V (36-75Vdc) 12V 10A Negative Surface mount CC109153516

Table 2. Device Options and Coding Scheme
Characteristic Character and Position Definition

Form Factor E E = Eighth Brick
Family Designator V
Input Voltage W W = Wide Input Voltage Range, 36V -75V
Output Current 010A0 010A0 = 010.0 Amps Rated Output Current

Ratings

Output Voltage B B = 12.0 Vout Nominal

Omit = No Pin Trim

Pin Length

6 6 = Pin Length: 3.68 mm ± 0.25mm , (0.145 in. ± 0.010 in.)

8 8 = Pin Length: 2.79 mm ± 0.25mm , (0.110 in. ± 0.010 in.)
Action following Omit = Latching Mode
Protective Shutdown 4 4 = Auto-restart following shutdown (Overcurrent/Overvoltage)

On/Off logic

Options

Customer Specific XY XY = Customer Specific Modified Code, Omit for Standard Code

Omit = Positive Logic

1 1 = Negative Logic

-

Omit = Standard open Frame Module
Mechanical Features

H H = Heat plate (not available with –S option)

S S = Surface mount connections

RoHS

Omit = RoHS 5/6, Lead Based Solder Used

Z Z = RoHS 6/6 Compliant, Lead free

Output

Current

On/Off

Logic

Connector

Type

Comcodes

Asia-Pacific Headquarters

Tel: [phone]*808

World Wide Headquarters
Lineage Power Corporation

601 Shiloh Road, Plano, TX 75074, USA
+1-888-LINEAGE(546-3243)
(Outside U.S.A.: +1-972-244-WATT(9288))

www.lineagepower.com
e-mail: [e-mail]

Lineage Power reserves the right to make changes to the prod uct(s) or information contained herein without notice. No liability is assumed as a result of their use or

pplication. No rights under any patent accompany the sale of any such product (s) or information.

Lineage Power DC-DC products are protected under various pat ents. Information on these patents is available at www.lineagepower.com/patents.

2010 Lineage Power Corporation, (Plano, Texas) All Internationa l Rights Reserved.

Europe, Middle-East and Africa Headquarters

Tel: [phone]

India Headquarters

Tel: [phone]

Document No: DS09-006 ver. 1.2

PDF name: evw010_ds.pdf
