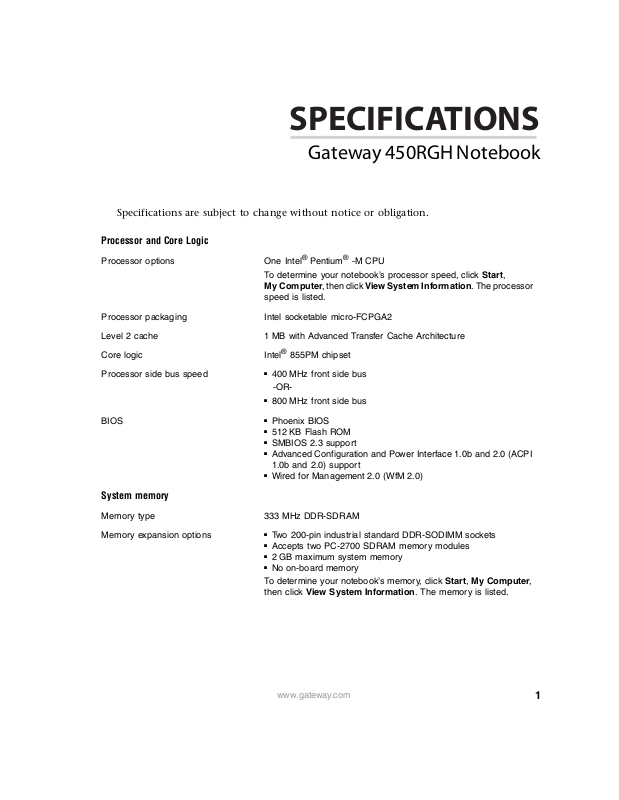

Page 1
SPECIFICATIONS
Gateway 450RGH Notebook
Specifications are subject to change without notice or obligation.
Processor and Core Logic
Processor options One Intel® Penti um® -M CPU
To determine your notebook’s processor speed, click Start,
My Computer, then click View System Information. The processor
speed is listed.
Processor packaging Intel socketable micro-FCPGA2
Level 2 cache 1 MB with Advanced Transfer Cache Architecture
®
Core logic Intel
Processor side bus speed
855PM chipset
■
400 MHz front side bus
-OR-
■
800 MHz front side bus
BIOS
■
Phoenix BIOS
■
512 KB Flash ROM
■
SMBIOS 2.3 support
■
Advanced Configuration and Power Interface 1.0b and 2.0 (ACPI
1.0b and 2.0) support
■
Wired for Management 2.0 (WfM 2.0)
System memory
Memory type 333 MHz DDR-SDRAM
Memory expansion options
■
Two 200-pin industrial standard DDR-SODIMM sockets
■
Accepts two PC-2700 SDRAM memory modules
■
2 GB maximum system memory
■
No on-board memory
To determine your notebook’s memory, click Start, My Computer,
then click View System Information. The memory is listed.
www.gateway.com
1
Page 2
Video
Graphics controller
■
ATI Mobility Radeon 9600 (M10)
■
3D rendering acceleration
Video memory 64 MB or 128 MB
LCD display panel 15.0-inch active matrix (TFT) LCD color display
Maximum panel resolution: 1400
× 1050 or 1600 × 1200
Maximum color depth: 32-bit (16.7 million colors)
LCD supported video modes SXGA+ or UXGA
LCD maximum refresh rate 60 Hz
■
Controls
External video
Brightness level selectable through FN keys (up, down)
■
Icon to display 8 levels of brightness
■
Auto dim on battery
■
Auto bright on AC power
■
Supports dual display and extended desktop
■
Integrated TV encoder
External CRT resolutions Supports standard IBM VGA compatible modes
Maximum resolution: 2048
× 1536 × 32-bit colors
External CRT maximum refresh rate 200 Hz
TV out (composite video) jack Supports NTSC/PAL connection to standard TV monitors with RCA
jack
TV out (S-Video) jack Supports NTSC/PAL connection to standard TV monitors with
S-Video jack on optional port replicator
■
IEEE 1394
One 4-pin connector
■
100/200/400mps
■
Supports video and audio capture
■
Software included for motion and still-frame capture
Audio
Audio chipset Sigmatel® Soft Audio AC97 rev 2.3 codec (STAC9752)
■
Sound support
2
PCI interface audio
■
Multi-stream Direct Sound and Direct Sound 3D acceleration
■
SoundBlaster Pro, MIDI, Windows Sound System compatible,
MP3, WMA
■
S/PDIF output for PCM or AC-3 content via Toslink jack on optional
port replicator
■
PCI Power Management Interface (PPMI) 1.1 compliant
NOTE: This notebook does not have an internal microphone.
www.gateway.com
Page 3
Digital DVD audio Provides full 5.1 channel Dolby Digital output (AC-3) from DVD
decoder through Toslink optical S/PDIF jack on optional port
replicator.
■
Vol u m e c o ntrols
Volume control keys on keyboard
■
Software control provided through Windows
Internal speakers
Audio jacks
Communications
Modem features
10/100/1000 Mbps Ethernet interface
features
Wireless Ethernet interface features
(Factory installed option)
■
Stereo speakers built into front of notebook
■
1.5 W maximum output
■
Stereo headphone output
■
Stereo line input
■
Monophonic microphone input
■
Integrated V.92/56K data/fax modem
■
Uses the RJ-11 jack on the back of the notebook
■
Supports Wake on ring from S3 power mode
■
Integrated 1000BASE-T, 100BASE-TX, and 10BASE-T (802.3,
802.3u, and 802.3ab) Ethernet interface
■
Uses the RJ-45 jack on the back of the notebook
■
Supports Wake on LAN from S3 (suspend to RAM), S4
(Hibernate), and S5 (off) power modes. (S4 and S5 supported only
when DC power is connected.)
■
Intel® PRO/Wireless IEEE 802.11b network card embedded in the
notebook
-OR-
■
Intel® PRO/Wireless IEEE 802.11b/g network card embedded in
the notebook
-OR-
■
Broadcom BCM94306 IEEE802.11g network card embedded in
the notebook
-OR-
■
Broadcom BCM94309 IEEE802.11a/g network card embedded in
the notebook
■
Antenna: Uses factory-installed internal antenna assembly
Operating channels: 11 selectable channels
Security: 128 and 64 bit WEP encryption
Operating Frequency
■
2.4 GHz Direct Sequence Spread Spectrum (IEEE 802.11b and
IEEE 802.11g)
■
5.0 GHz (IEEE 802.11a)
Maximum Data Rate
■
54 Mbps (IEEE802.11g and IEEE 802.11a)
■
11 Mbps (IEEE802.11b)
www.gateway.com
3
Page 4
Input/Output (I/O)
Keyboard
Pointing device
Optional fingerprint reader
■
U.S. English keyboard
■
Full-sized 86-keys
■
19 mm × 19 mm key pitch
■
3.0 mm keystroke
■
Gateway EZ-Pad™ touchpad
■
4-button design
■
Optional EZ Point keyboard pointing device 3-button design
■
ST Micro TouchChip™ strip sensor
■
Protector Suite QL software featuring:
■
Secure logon
■
Password bank
■
Pre-boot authentication
■
“My Safe” encrypted file folder
Multifunction buttons Four “hot keys” that launch e-mail, Web browser, help application,
and My Computer
■
LED status indicators
Caps lock
■
PA D l o c k
■
Scroll lock
■
Hard drive access
■
Module bay access/bay swap
■
Power/Suspend
■
Battery status
Input/Output (I/O) ports
PCMCIA
4
■
Two USB 2.0 (4-pin)
■
High-speed serial
■
Parallel (bi-directional, EPP, ECP)
■
IEEE 1394 (4-pin)
■
V.92, 56K Modem (RJ-11)
■
10/100 Ethernet (RJ-45)
■
External monitor (VGA)
■
TV out (NTSC/PAL composite video)
■
Stereo headphone output
■
Stereo line input
■
Monophonic microphone input
■
PS/2 keyboard or mouse
■
PC Card sockets (two Type II or one Type III)
■
Docking port
■
DC input
■
Accepts two Type II or one Type III device
■
Ricoh R5C554 controller
NOTE: This notebook does not support Zoom Video.
www.gateway.com
Page 5
Docking solution
Type Port replicator
■
Docking supported
Hot dock
■
Warm dock
■
Cold dock
Input/Output (I/O ports)
■
Two USB 2.0 (4-pin)
■
High-speed serial
■
Parallel
■
Modem (RJ-11)
■
Ethernet (RJ-45)
■
External monitor (VGA)
■
S-Video TV out
■
S/PDIF digital audio out
■
Stereo headphone output
■
Analog audio line input (stereo)
■
Two PS/2
■
Docking port
■
DC input
Security Kensington lock loop
Storage
Hard drive controller Supports up to Ultra DMA 100 and up to PIO mode 4
■
Hard drive
Super I/O controller
User removable
■
2.5-inch diameter
■
9.5 mm height
To find the hard drive capacity, click Start, then click My Computer.
Right-click the drive letter, then click Properties. The drive’s capacity
and available space appear. If the drive has multiple partitions (for
example, C: and D:), add the capacities of each partition to
determine the drive’s total capacity.
■
NS PC87391 LPC super I/O controller
■
Diskette drive controller
■
IEEE 1284 compliant parallel port
■
Serial port
www.gateway.com
5
Page 6
Modular bay One modular bay is available on the notebook. The modules are
hot-swappable.
Optical Drive
Available optical drives include:
■
CD
■
DVD
■
Combination DVD/CD-RW
■
DVD-RW/CD-RW
To determine the type of drive in a bay, examine the drive tray’s
plastic cover. A CD Compact Disc logo indicates a CD drive, a DVD
logo indicates a DVD drive, a DVD logo in combination with a
CD-R/RW logo indicates a DVD drive that also is a
recordable/rewritable CD drive, and a DVD-ROM/R/RW logo in
combination with a CD-R/RW logo indicates a recordable/rewritable
DVD drive that also is a recordable/rewritable CD drive.
Second Hard Drive
■
2.5-inch diameter
■
12.7 mm or 9.5 mm high
Diskette Drive
■
12.7 mm high
■
3.5-inch diskettes
■
720K/1.2M/1.44M support
Memory Card Reader
Supports the following card types:
■
CompactFlash
■
IBM Microdrive™
■
Memory Stick
■
MultiMediaCard™
■
Secure Digital™
■
SmartMedia™
®
®
Secondary Battery
■
Removable six-cell prismatic Lithium Ion battery pack
■
3.4 Ah
■
11.1 V nominal
■
37.74 Wh
Power
Intelligent charger Supports dynamic charge current to achieve the best charge
performance
■
AC adapter
6
19 VDC, 4.74A, 90 W output
■
Automatically adjusts for 100 to 240 VAC, 50 to 60 Hz power
source
■
Three-wire design
■
Includes power LED
www.gateway.com
Page 7
Battery type Main
■
Removable eight or six-cell Lithium Ion battery pack
■
Embedded controller inside to support smart battery
Secondary
■
Removable six-cell prismatic Lithium Ion battery pack
Battery capacity Main
8-cell:
■
4.2 Ah
■
14.8 V nominal
■
62.16 Wh
6-cell:
■
3.8 Ah
■
11.1 V nominal
■
42.18 Wh
Secondary
■
3.4 Ah
■
11.1 V nominal
■
37.74 Wh
Battery life varies depending on configuration, programs, power
management settings, and features used. Recharge time varies,
depending on usage.
■
Power management
Advanced Configuration and Power Interface 1.0b or later
(ACPI 1.0b or later) support
■
SMBIOS 2.3
■
PC 2001 compliant
■
CPU supports Intel® Speedstep™ technology
■
Controls
Keyboard-activated pop-up display gives battery charge as a
percentage remaining
■
Icon on taskbar shows battery charge as a percentage remaining
■
Battery meter on battery
Power switch Supports Power On/Off, Standby/Resume, Hibernate, Shutdown
Reset hole Resets whole system if notebook cannot be recovered by power
switch
Lid switch LCD On/Off, Standby, Hibernate
www.gateway.com
7
Page 8
Security
Passwords
Physical
System software
Operating system
System management
System compatibility
■
Power-on password (2-level password support)
■
Hard drive password
■
Fingerprint reader authentication Windows login and pre-boot
security
■
Main system memory compartment screw
■
Hard drive kit screw
■
Mini PCI bay security screw
■
Kensington® security slot on notebook right side
■
Kensington® security ring on port replicator
■
Microsoft® Windows® XP Professional
■
Microsoft® Windows® XP Home Edition
■
SMBIOS 2.3 BIOS support
■
Advanced Configuration and Power Interface (ACPI) power
management
■
Support for Wake on LAN from S3, S4, and S5 power modes
■
Support for Intel® LANDesk® Client manager 6.0
■
Wired for Management 2.0 (WfM 2.0) enabled
■
PC2001 specification
■
Advanced Configuration and Power Interface 1.0b and 2.0
(ACPI 1.0b and 2.0) support
■
SMBIOS 2.3
■
Windows Hardware Quality Labs (WHQL) certified
Quick boot Supported
Physical specifications
Dimensions 15.0-inch display
~13.15 × 10.63 × 1.3 in. (W × D × H)
~334 × 270 × 33 mm (W × D × H)
System weight 15.0-inch display (includes DVD drive and 6-cell battery)
~6.11 lbs.
~2.77 kg
AC adapter weight 17.5 or 18.9 ounces (500 or 540 grams) (depends on adapter)
8
www.gateway.com
Page 9
Environment
Operating temperature 41°F to 95°F (5°C to 35°C)
Storage temperature -4
Operating humidity 20% to 80% relative humidity; no condensation
Storage humidity 10% to 90% relative humidity; no condensation
Operating altitude, maximum 8,000 feet at 59
Storage altitude, maximum 12,000 feet (3,658 m)
°F to 140°F (-20°C to 60°C)
°F (2,438 meters at 15°C)
MAN SYS 450 RGH SPEC R1 6/04
