This manual reﬂects the operation of Software version 3.0 or later. Some differences in operation may be observed when comparing the information in this manual to earlier or later software versions. Some differences may also be observed when comparing the information in this manual to your device.

Garmin International, Inc., 1200 East 151st Street, Olathe, Kansas 66062, U.S.A. Tel: 913/397.8200 Fax: 913/397.8282

Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A. Tel: 503/391.3411 Fax 503/364.2138

Garmin (Europe) Ltd, Liberty House, Hounsdown Business Park, Southampton, SO40 9LR, U.K. Tel: 44/0870.8501241 Fax: 44/0870.8501251

Garmin Corporation, No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel: 886/02.2642.9199 Fax: 886/02.2642.9099

Web Site Address: www.garmin.com

Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express written permission of Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Garmin®, SafeTaxi®, FliteCharts® and Garmin Pilot™ are registered trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

Jeppesen® is a registered trademark of Jeppesen, Inc. NavData™ is a trademark of Jeppesen, Inc. Android™ is a trademark of Google, Inc. Canadian Radar is provided by Environment Canada.

April, 2014

190-01532-00 Rev. G

Printed in the United States

Blank Page

Warnings, Cautions & Notes

WARNING:

Do not rely solely upon the indicators shown on the Panel Display

Pane to maneuver the aircraft.

WARNING:

The altitude displayed by Garmin Pilot™ on the Panel Page is geometric height above Mean Sea Level and could vary signiﬁcantly from the altitude displayed by pressure altimeters. Always use pressure altitude displayed by the aircraft altimeter when determining or selecting aircraft altitude.

WARNING:

Do not use outdated database information. Databases used in the Garmin Pilot™ must be updated regularly in order to ensure that the information remains current. Pilots using any outdated database do so entirely at their own risk.

WARNING:

To reduce the risk of unsafe operation, carefully review and understand all aspects of Garmin Pilot™ User documentation and the Pilot’s Operating Handbook of the aircraft. Thoroughly practice basic operation prior to actual use. During ﬂight operations, carefully compare indications from Garmin Pilot™ to all available navigation sources, including the information from other NAVAIDs, visual sightings, charts, etc. For safety purposes, always resolve any discrepancies before continuing navigation.

WARNING:

Garmin Pilot™ has a very high degree of functional integrity. However, the pilot must recognize that providing monitoring and/or self-test capability for all conceivable failures is not practical. Although unlikely, it may be possible for erroneous operation to occur without a fault indication shown by Garmin Pilot™. It is thus the responsibility of the pilot to detect such an occurrence by means of cross-checking with all redundant or correlated information available in the cockpit.

WARNING:

For safety reasons, Garmin Pilot™ operational procedures must be

learned on the ground.

WARNING:

System and is solely responsible for its accuracy and maintenance. The GPS system is subject to changes which could affect the accuracy and performance of all GPS equipment. Portions of Garmin Pilot™ utilize GPS as a precision electronic NAVigation AID (NAVAID). Therefore, as with all NAVAIDs, information presented by Garmin Pilot™ can be misused or misinterpreted and, therefore, can become unsafe.

190-01532-00 Rev. G

The United States government operates the Global Positioning

Garmin Pilot for Android User’s Guide

Warnings, Cautions & Notes

WARNING:

Do not use basemap (land and water data) information for primary navigation. Basemap data is intended only to supplement other approved navigation data sources and should be considered as an aid to enhance situational awareness.

WARNING:

Do not use the indicated data link weather product age to determine the age of the weather information shown by the data link weather product. Due to time delays inherent in gathering and processing weather data for data link transmission, the weather information shown by the data link weather product may be signiﬁcantly older than the indicated weather product age.

WARNING:

Do not use data link weather information for maneuvering in, near, or around areas of hazardous weather. Information contained with in data link weather products may not accurately depict current weather conditions.

WARNING:

Do not rely solely upon the display of trafﬁc information for collision avoidance maneuvering. The trafﬁc display does not provide collision avoidance resolution advisories and does not under any circumstances or conditions relieve the pilot’s responsibility to see and avoid other aircraft

WARNING:

Do not rely solely upon the display of trafﬁc information to accurately depict all of the trafﬁc within range of the aircraft. Due to lack of equipment, poor signal reception, and/or inaccurate information from aircraft or ground stations, trafﬁc may be present that is not represented on the display.

NOTE:

All visual depictions contained within this document, including screen images of Garmin Pilot™ panel and displays, are subject to change and may not reﬂect the most current Garmin Pilot™ software and aviation databases.

NOTE:

Temporary Flight Restriction (TFR) data is provided by the FAA and may not be updated outside of normal business hours. Conﬁrm data currency through alternate sources and contact your local FSS for interpretation of TFR data.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

License Agreement

END-USER LICENSE AGREEMENT

The Garmin Pilot™ application and data (the “Application”) are licensed, not sold. The Application is provided under the following license and is subject to the following terms and conditions, which are agreed to by End User (“you” or “your”), on the one hand, and Garmin, International, Inc. and its afﬁliates (collectively, "Garmin") on the other hand.

IMPORTANT: CAREFULLY READ THIS LICENSE BEFORE USING THIS APPLICATION. USING THIS APPLICATION INDICATES YOUR ACKNOWLEDGMENT THAT YOU HAVE READ THIS LICENSE AND AGREE TO ITS TERMS. IF YOU DO NOT AGREE, THEN YOU MUST NOT USE THE APPLICATION.

WARNING:

For VFR use only as an aid to prudent navigation. All information is presented for reference only. You assume total responsibility and risk associated with using the AOPA Airport Directory.

LICENSE TERMS AND CONDITIONS

Garmin grants you a limited, non-exclusive license to use the Application in accordance with the terms of this Agreement. You agree not to reproduce, copy, modify, decompile, disassemble, reverse engineer or create derivative works of any portion of the Application, and you may not transfer or distribute it in any form, for any purpose. Garmin reserves the right to anonymously collect and report non-personally identiﬁable information related to your use of the Application, such as the frequency with which you use the Application.

Restrictions. You are prohibited from selling, renting or leasing the Application to any other person or third party. You acknowledge that the Application should be used only for general information purposes and you should not rely on the Application for any life or death situation. The Application should not be relied upon as a sole source of navigation.

No Warranty. This Application is provided to you “as is,” and you agree to use it at your own risk. Garmin makes no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, content, quality, accuracy, completeness, effectiveness, reliability, merchantability, ﬁtness for a particular purpose, usefulness, use or results to be obtained from the Application, or that the Application will be uninterrupted or error-free.

Advertisements. If the Application is partially or fully supported by advertisements you will receive advertisements on your mobile device when you use the Application. Garmin might also share on an anonymous basis the location of your mobile device with the third party supplier of advertisements so that the supplier can provide you with advertisements that are relevant to the location of your device.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

License Agreement

Meteo France Weather Data. Weather data provided and/or displayed by Meteo France in connection

with the Application, hereafter called “Meteo France Weather Data”, only indicates the measurement or the most probable evolution of a set of elements. You therefore acknowledge that Meteo France shall not be liable for the accuracy of Meteo France Weather Data made available to you, whether such data are produced by Meteo France or by third-parties. Meteo France, moreover, cannot be held responsible for events that may result from the interpretation and/or utilization by you, directly or indirectly, of the Meteo France Weather Data made available. Meteo France cannot be held liable for the absence of observation data in the set of Meteo France Weather Data provided to you in the case of absence or delay in availability to Meteo France of data produced and owned by national meteorological services (NMS), via ECOMET or EUMETSAT, or via the Global Transmission System (GTS). Consequently, you refrain from pursuing either Meteo France or Meteo France’s own providers for events relating to any interpretation of the information contained in the Meteo France Weather Data made available to you, or for missing data. You acknowledge that you have been fully informed of the restrictions of use of such Meteo France Weather Data, of the exclusions and/or of the limitations of liability regarding such Meteo France Weather Data and of the date of validity of Meteo France Weather Data provided and/or displayed by Meteo France, if any. The Meteo France Weather Data is provided on an “as is” basis, without any warranties or conditions, express or implied, including, but not limited to, any implied warranty arising by law, statute, usage of trade, or course of dealing. You assume all responsibility and risk for the use of the Meteo France Weather Data and Meteo France disclaims all liability for any loss, injury or damage, resulting from the use of the Meteo France Weather Data, whether direct or indirect, and whether or not Meteo France has been advised of or has knowledge of the possibility of such loss, injury or damage. In no event shall Meteo France have any liability to you or any other person or entity for any compensatory, indirect, incidental, special, consequential or exemplary damages whatsoever, including, but not limited to, loss of revenue or proﬁt, or other commercial or economic loss, even if Meteo France has been advised of the possibility of such damages, or they are foreseeable.

Disclaimer of Warranty.

GARMIN AND ITS AFFILIATES DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT. NO ORAL OR WRITTEN ADVICE OR INFORMATION PROVIDED BY GARMIN SHALL CREATE A WARRANTY, AND YOU ARE NOT ENTITLED TO RELY ON ANY SUCH ADVICE OR INFORMATION. THIS DISCLAIMER OF WARRANTIES IS AN ESSENTIAL CONDITION OF THIS AGREEMENT.

Territories and Countries do not allow certain warranty exclusions, so to that extent the above exclusion may not apply to you.

Some States,

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

License Agreement

Disclaimer of Liability.

GARMIN AND ITS AFFILIATES SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE APPLICATION, ANY DEFECT IN THE APPLICATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF GARMIN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. GARMIN’S AND ITS AFFILIATES’ TOTAL AGGREGATE LIABILITY WITH RESPECT TO ITS OBLIGATIONS UNDER THIS AGREEMENT OR OTHERWISE WITH RESPECT TO THE APPLICATION SHALL NOT EXCEED $1.00.

do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.

Export Control. You agree not to export from anywhere any part of the Application provided to you or

any direct product thereof except in compliance with, and with all licenses and approvals required under, applicable export laws, rules and regulations.

Indemnity. You agree to indemnify, defend and hold Garmin and its afﬁliates free and harmless from and

against any liability, loss, injury (including injuries resulting in death), demand, action, cost, expense, or claim of any kind or character, including but not limited to attorney’s fees, arising out of or in connection with any use or possession by you of the Application.

Entire Agreement. These terms and conditions constitute the entire agreement between Garmin and

you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.

Governing Law. THE ABOVE TERMS AND CONDITIONS SHALL BE GOVERNED BY THE LAWS

Some States, Territories and Countries

OF KANSAS, WITHOUT GIVING EFFECT TO ITS CONFLICT OF LAWS PROVISIONS. YOU AGREE TO SUBMIT TO THE JURISDICTION OF KANSAS FOR ANY AND ALL DISPUTES, CLAIMS AND ACTIONS ARISING FROM OR IN CONNECTION WITH THE APPLICATION PROVIDED TO YOU HEREUNDER.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

License Agreement

Blank Page

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Rev Date Change Summary

A December, 2012 Initial Release

B January, 2013 Updated for Application version 2.3:

• Airport Information Page updates

• Chart Next Cycle Downloads

C May, 2013 Updated for Application version 2.4:

• Added Scratch Pad

• Added Split-screen Trafﬁc

• Updated Trip Planning

D July, 2013 Updated for Application version 2.5 and 2.6

• Added Airspace Widget

• Added combined Map Layers

• Changed Trip Planning to File & Brief

• Added Routes to File & Brief

• Added Display Time Format

• Added Tools Menu for conﬁguring time/distance alerts

• Added Custom Own Ship Icons.

E November, 2013 Updated for Application version 2.7

• Added Proposed Routes

• Added Keep Screen on

• Added Decoded TAFs

• Added D2® Watch support

F January, 2014 Updated for Application version 2.8

• Added support for the GDL 39 3D and a new attitude indicator display in the navigation panel

• Added 'right' trafﬁc pattern directions for runways in the airport browser and the airport information widget.

G April, 2014

Updated for Application version 3.0

• Added support for vector maps that work ofﬂine

• Added new distance measure tool

• Added fuel range rings

• Added ownship track vector

• Added extended runway centerlines

• Added auto-zoom feature

• Added map decluttering options

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

RR-13

Blank Page

RR-14

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Table of Contents

OVERVIEW ......................................................................................................................................... 1

Plan File Fly ............................................................................................................................... 1

Features ...................................................................................................................................... 1

ABOUT THIS HANDBOOK ..................................................................................................... 2

Android™ Tricks for Pilots .................................................................................................... 2

Getting Started ......................................................................................................................... 6

Help File .............................................................................................................................. 7

Map Pane Controls ............................................................................................................. 13

Map/Chart Selection and Settings ....................................................................................... 15

Overlays ............................................................................................................................. 15

Settings ..................................................................................................................................... 17

General .............................................................................................................................. 17

Pilot and Aircraft Info ......................................................................................................... 18

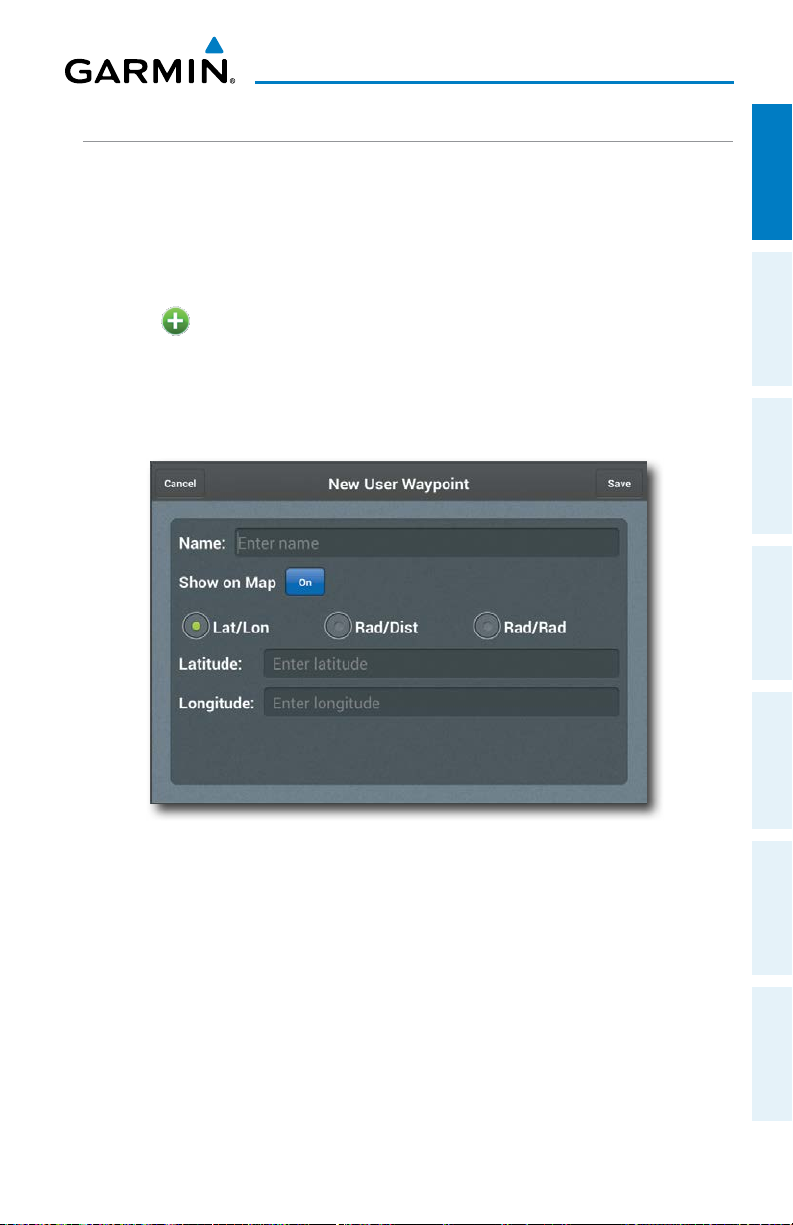

User Waypoints .................................................................................................................. 21

Weather Data .................................................................................................................... 22

GDL 39 / GDL 39 3D .......................................................................................................... 23

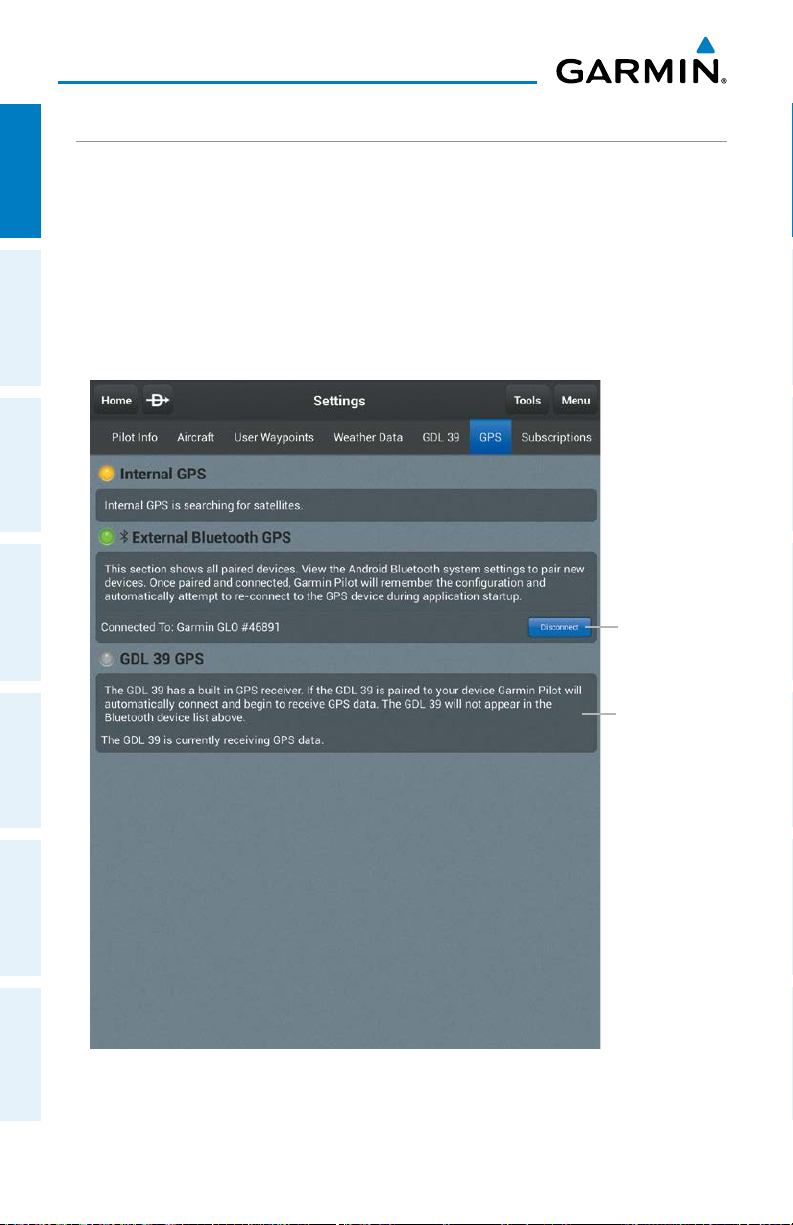

GPS ................................................................................................................................... 26

Subscriptions ...................................................................................................................... 27

Downloads .............................................................................................................................. 28

Chart Updates .................................................................................................................... 33

PLAN .................................................................................................................................................. 35

Flight Plan ................................................................................................................................. 35

Actions Menu ..................................................................................................................... 37

D2™ Pilot Route Sharing ..................................................................................................... 41

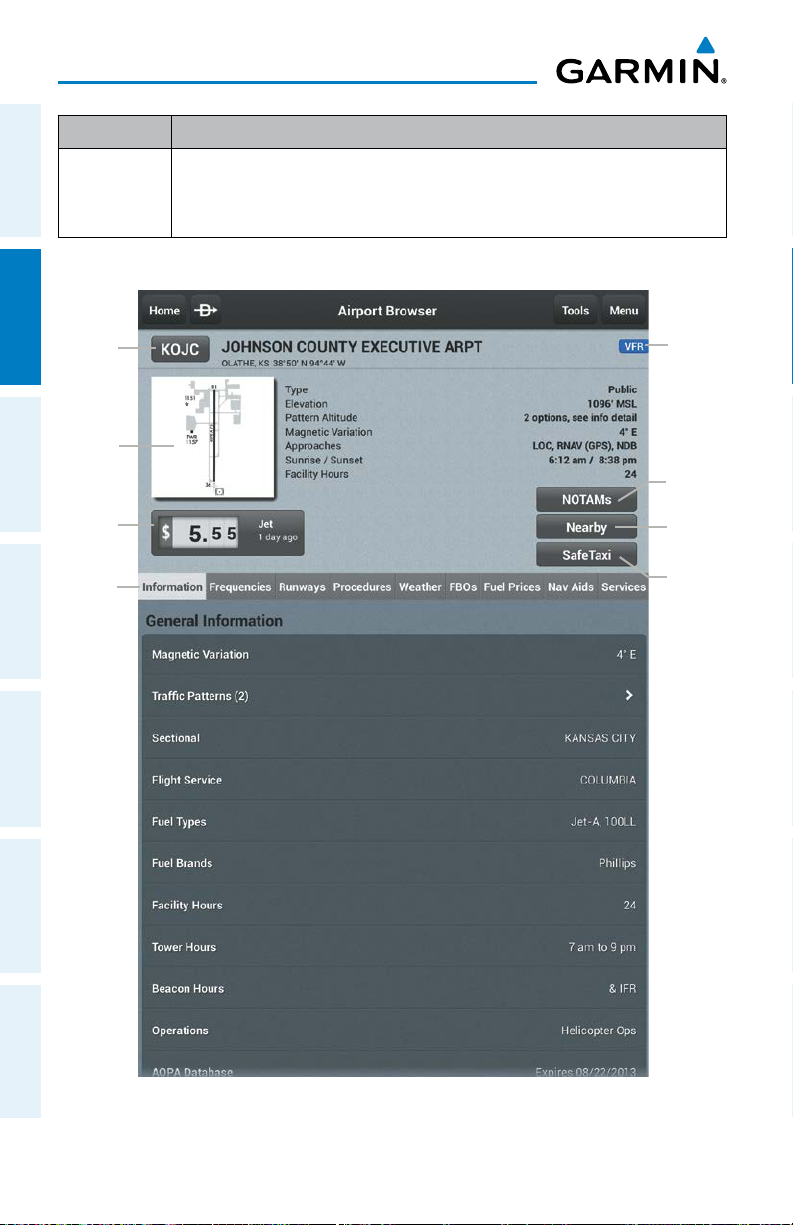

Airport Information .............................................................................................................. 43

Weather Data .......................................................................................................................... 48

Weather Widgets................................................................................................................ 49

RADAR .............................................................................................................................. 52

INFRARED SATELLITE (IR SAT) ............................................................................................. 54

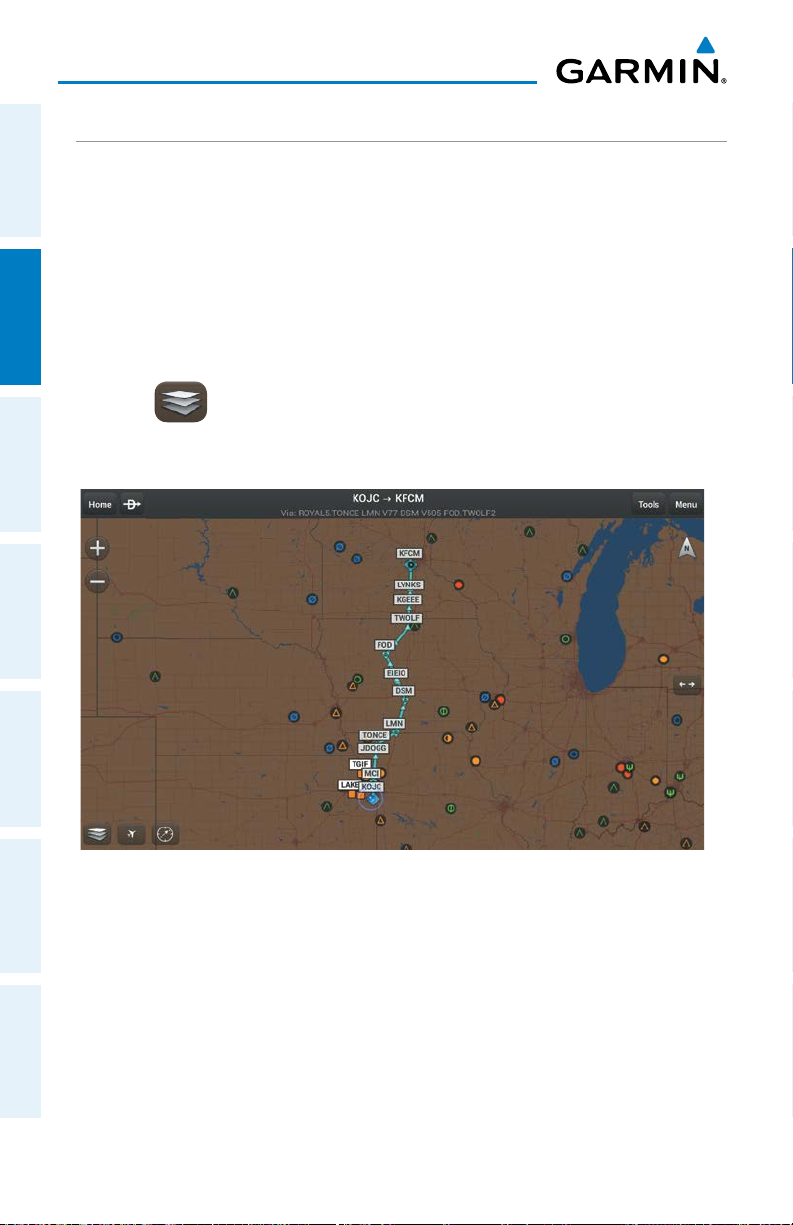

Weather Overlay ................................................................................................................ 54

AIRMETS ............................................................................................................................ 58

SIGMETS ............................................................................................................................ 58

TEMPORARY FLIGHT RESTRICTIONS (TFRs) ......................................................................... 59

PIREPS ............................................................................................................................... 60

LIGHTNING ........................................................................................................................ 62

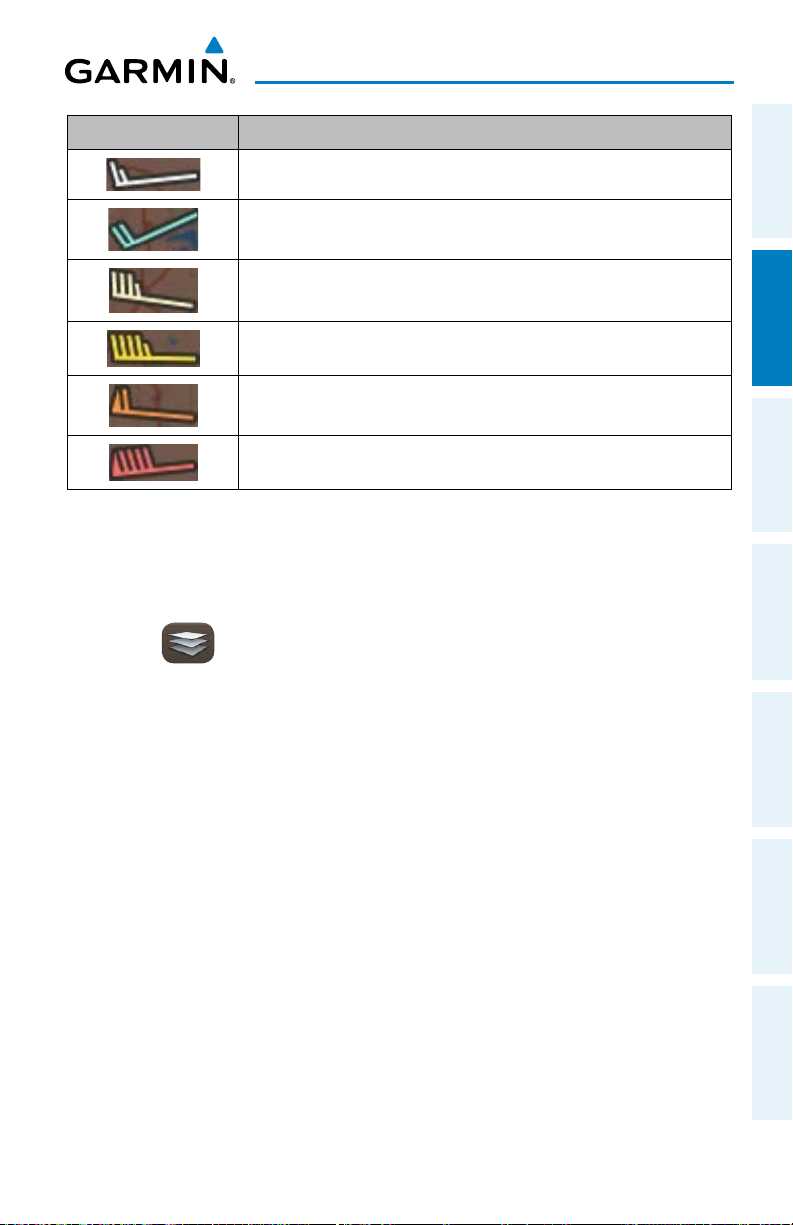

WINDS ALOFT .................................................................................................................... 62

METARS AND TAFS ............................................................................................................. 64

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Table of Contents

FILE ..................................................................................................................................................... 65

Trip Planning ............................................................................................................................ 65

Preparing to File ................................................................................................................. 66

Planning a Trip ................................................................................................................... 67

Brief................................................................................................................................... 73

File Flight Plan ................................................................................................................... 75

FLY ....................................................................................................................................................... 79

Map Page .................................................................................................................................. 80

Map Pane Controls ............................................................................................................. 81

map settings ...................................................................................................................... 82

Overlays ............................................................................................................................. 88

Opacities ............................................................................................................................ 89

Ownship / route ................................................................................................................. 89

general map settings .......................................................................................................... 92

Distance Measuring Tool................................................................................................... 103

Split-Screen ...................................................................................................................... 104

System Status ................................................................................................................... 117

Trafﬁc Description ............................................................................................................. 118

Data Link Weather (FIS-B) ................................................................................................... 124

FIS-B Weather Products .................................................................................................... 124

Charts ..................................................................................................................................... 134

Scratch Pad ............................................................................................................................. 137

SUBSCRIPTIONS ......................................................................................................................... 139

Geo-Referenced FliteCharts ............................................................................................... 139

SafeTaxi ................................................................................................................................... 140

Baron Mobile Link™ ............................................................................................................ 142

APPENDIX A: LICENSE AGREEMENT AND WARRANTY ......................................... 147

Contact Garmin ..................................................................................................................... 147

END-USER LICENSE AGREEMENT ..................................................................................... 147

AOPA Airport Directory Notice .......................................................................................... 150

SiriusXM Satellite Radio Service Agreement ....................................................................... 150

Weather Data Warranty .................................................................................................... 150

Index ...................................................................................................................................Index-1

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

OVERVIEW

Overview Plan File Fly Subscriptions Appendices Index

PLAN FILE FLY

Garmin Pilot is the most comprehensive suite of tools for the Android designed speciﬁcally for general aviation and corporate pilots. Flight planning, DUAT(S) ﬁling, charts, interactive maps, weather brieﬁng resources, and navigation capabilities; it's all included. The app's intuitive interface closely resemble those on the newest Garmin touchscreen avionics so you can go seamlessly from preﬂight to in-ﬂight. Plan, ﬁle, ﬂy with Garmin Pilot.

FEATURES

• Charts: VFR Sectionals, WAC, TAC, low and high IFR en-route, airport diagrams and approach procedures.

• Optional geo-referenced Garmin FliteCharts® and Garmin SafeTaxi® both show aircraft position on approach charts or taxiways.

• Weather Maps: Animated radar, AIRMETs, SIGMETs, Lightning, PIREPs, METARs, TAFs, Winds Aloft, TFRs, Lightning, Infrared and Visible Satellite.

• Extensive text products: AIRMETs, SIGMETs, PIREPs, METARs, TAFs, Winds Aloft, Area Forecasts and NOTAMs.

• Dynamic weather overlays with your route displayed on the map

• AOPA Airport Directory and Fuel Prices

• Flight plan ﬁling via DUAT(S)

• Comprehensive weather data direct from the National Weather Service and Environment Canada

NOTE:

All visual depictions contained within this document, including screen images of Garmin Pilot™, are subject to change and may not reﬂect the most current Garmin Pilot™ software and aviation databases.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

ABOUT THIS HANDBOOK

This operating handbook is designed to provide a comprehensive guide to help

OverviewPlanFileFlySubscriptionsAppendicesIndex

with understanding how to use Garmin Pilot for reviewing aviation weather, airport information, creating and ﬁling ﬂight plans, and for viewing charts, maps, and navigation data in-ﬂight.

ANDROID™ TRICKS FOR PILOTS

Android tablets are offered by a variety of manufactures and features can vary widely. It is important to know the features or your individual tablet before using Garmin Pilot for navigation. Some tablets are offered with one or two connectivity options; Wi-Fi or Wi-Fi + Cellular. It is also important to know which connectivity option you have before using Garmin Pilot for navigation.

There are also a few things to know about your tablets basic features and settings that will enhance your Garmin Pilot experience. These features are not hidden, but they may not be immediately apparent. To get completely familiar with your tablet and its features, it is recommended that you access the User's Guide for your tablet and/or the User's Guide for your Android version (Garmin Pilot requires Android 2.3 or later).

Some features of this application will vary between handsets and tablets. Also, the

3.0 release is only available on Android 4.0 (Ice Cream Sandwich) and above. Devices with older versions of Android will continue to have access to Garmin Pilot 2.8.

GPS

Global Positioning System (GPS) receiving capability is optional on some Android tablets. Garmin Pilot can be used without GPS for ﬂight planning, but the navigation features will be inoperative. If your tablet does not include a GPS receiver, a Garmin GLO™ portable GPS and GLONASS receiver, or a Garmin GDL 39 or GDL 39 3D portable GPS and ADS-B receiver will be required to take advantage of the navigation features of Garmin Pilot. Alternative or third-party GPS sources known to work with Garmin Pilot are: Bad Elf, Dual Electronics XGPS150 Universal Bluetooth GPS, and GNS 5870 MFI Bluetooth GPS receiver. Other portable GPS sources may also work with Garmin Pilot.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

DISPLAY ORIENTATION

Overview Plan File Fly Subscriptions Appendices Index

Many devices have a default setting that will enable the unit to automatically rotate the display to either portrait or landscape according to which edge of the unit is facing upward. This automatic setting can be quite troublesome in the cockpit as the solidstate accelerometers are very sensitive to movement and can cause the display to rotate unexpectedly.

The primary means of enabling/disabling the rotation lock is via the Settings Menu. Your device may have other options to lock the display orientation, consult your User's Guide.

Locking Display Orientation:

Tap Settings > Display.

Tap Auto-rotate screen to select/deselect.

GLARE REDUCTION

One limitation of some devices in the cockpit, is glare. There are number of ways to mitigate the effects of this glare using aftermarket screen protectors and similar products. However, one can do reasonably well by simply adjusting the display brightness.

Adjusting Display Brightness:

Tap Settings > Display > Brightness.

Use the slider control to manually adjust the display brightness or tap Automatic brightness to select/deselect.

Or:

Within Garmin Pilot, tap Tools > Brightness located in the Navigation Bar

and use the slider control to set the desired display brightness.

NOTE:

To enable the in application brightness settings some Android devices may require disabling the "Automatic brightness" setting for the system brightness.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

GENERAL GARMIN PILOT OPERATING GUIDELINES

Garmin Pilot by default will open on the Map Page. If the application has been

OverviewPlanFileFlySubscriptionsAppendicesIndex

recently used it will resume on the most recently viewed page. From any page,, it is possible to access any desired feature by tapping, ﬂicking, and/or dragging your ﬁnger on the active areas of the display that appear as buttons, slide controls, ﬂick lists, text ﬁelds, or icons. As with most applications, text ﬁelds automatically open a QWERTY keyboard for easy text entry.

Also like other applications that use maps, panning is done by “touch-dragging”

the ﬁnger across the display and you can magnify or zoom by double-tapping the display, by pinching, or use the button. Reversing your pinch or tapping the

will de-magnify or zoom out. Additionally, double-tapping the screen will increase magniﬁcation in 50% intervals and center the map over the area tapped.

Pinch Zoom

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

Garmin Pilot can be used in either portrait or landscape orientation and will respond

Overview Plan File Fly Subscriptions Appendices Index

to the Android's automatic orientation feature. The map may be displayed in either full screen or split screen in either orientation. The lower half of the display in portrait orientation or second (non-map) display in landscape orientation has four possible functions; Panel, Widgets, Charts, SafeTaxi, or Trafﬁc.

• Panel Mode is customizable and can be conﬁgured to display an instrument panel with virtual instruments to indicate GPS altitude, ground speed, vertical speed, course, and lateral deviation as well as a table with up to 15 conﬁgurable data ﬁelds for monitoring navigation data.

• Widget Mode enables a series of customizable data windows called ‘Widgets’ to be displayed. Widgets offer quick access to a variety of aviation weather products (METARs, TAFs, Winds Aloft, NOTAMs, etc…) for nearby or selected airports and can also display up to 14 navigation parameters which are also conﬁgurable.

Charts, SafeTaxi, Trafﬁc when viewed in split-screen, have the same function,

navigation, and capabilities as the full screen versions of these products, just displayed in half screen.

Garmin Pilot requires a data connection for downloading maps and other data prior to

departure, but once you have downloaded everything needed for your ﬂight, it is ready to navigate. The Downloads Menu in the Garmin Pilot settings options will indicate when new downloadable data products are available upon connection to the Internet

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

GETTING STARTED

Garmin Pilot is fully functional immediately upon installation, but there are a few

OverviewPlanFileFlySubscriptionsAppendicesIndex

things you may wish to set up in order to optimize performance right away. The best place to start is with the highly intuitive Settings Menu, which can be found by momentarily tapping the Home Button and then the Settings Icon. The Settings Menu is always available from the Home Button.

Garmin Pilot Settings

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

From the Settings Menu it is possible to set up or change the time format, show/hide

Overview Plan File Fly Subscriptions Appendices Index

features like the Navigation Bar (on the map display) or input pilot proﬁle and aircraft information, manage user waypoints, set up your preferred ﬂight plan ﬁling service, manage your data subscriptions and much more. All of these and more selections are available by tapping the tab associated with the desired function.

HELP FILE

The content of the User's Guide is mirrored in the in-app help ﬁle providing context

sensitive instructions for getting the most out of your Garmin Pilot subscription. The help ﬁle can be accessed from any page, by tapping the Menu Button( ) located in the Navigation Bar and then tapping Help in the page sensitive menu. Navigating within the Help File is as easy as tapping any of the hyperlinks.

Tap to Download the Full Help Manual

Help File

Accessing the Help File:

Tap Menu > Help. The Help File will open to context sensitive content

190-01532-00 Rev. G

Map Page Menu

Garmin Pilot for Android User’s Guide

Overview

USER'S GUIDE

The Full Manual is a PDF formatted User's Guide for Garmin Pilot. The ﬁrst time the

OverviewPlanFileFlySubscriptionsAppendicesIndex

ﬁle is accessed you will be prompted to chose a default PDF viewer. The Full Manual has a linked table of contents, index, and Bookmarks for easy navigation. The Full manual can also be downloaded from www.garmin.com

NOTE:

The Full Manual will open to the most recently accessed page. Use

the Bookmarks or Page Slider to quickly navigate the ﬁle.

Accessing the Full Manual:

Tap Menu > Help.

Tap Download to download, tap View, to view the manual once downloaded. Anytime an updated manual is available the View button will revert to a Download button.

Accessing the Full Manual at www.garmin.com:

Point your browser to www.garmin.com

At the top of the page hover your pointer over Support.

Select Manuals.

From the drop down menu select In the Air.

From the next drop down menu select Apps.

From the next drop down menu select Garmin Pilot™.

Select Download for the desired User's Guide.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

NAVIGATION BAR

Overview Plan File Fly Subscriptions Appendices Index

Garmin Pilot's user interface is comprised of icons and active areas that provide

access to the various features and functions of the application. The Navigation Bar, located at the top of every page, provides access to many of the basic functions.

Home

Button

Direct-to Tools Button

Active

Flight Plan

Navigation Bar

Page

Sensitive

Menu Button

HOME BUTTON

The Home Button is the primary means of accessing many of the features of Garmin

Pilot. The Home Button provides quick access to the various pages within Garmin Pilot (i.e., Map, Active Flight Plan, Trip Planning, Airport Information, Charts, Downloads, Settings, and Trafﬁc).

NOTE:

The Trafﬁc Button will only be available after connecting to a GDL 39 / GDL 39 3D and will remain present even if you are not currently connected to a GDL 39 / GDL 39 3D.

Map

Button

Charts Button

Settings Button

190-01532-00 Rev. G

Flight Plan

Button

Scratch

Pad Button

Garmin Pilot for Android User’s Guide

Trafﬁc Button

Home Menu

Airport Information Button

Downloads Button

Trip Planning Button

Overview

DIRECT-TO

The Direct-to button can be accessed From any page, and provides a quick and easy

OverviewPlanFileFlySubscriptionsAppendicesIndex

way to navigate direct to any waypoint (i.e., Flight Plan Waypoint, Nearest Waypoints, or User Waypoints).

Direct-to Dialog

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

TOOLS

Overview Plan File Fly Subscriptions Appendices Index

The Tools Button provides access Brightness, and Alerts. Control display brightness

and create Alerts based on time or location.

Brightness

The Tools Menu provides access to the display brightness control. Simply tap Tools > Brightness to display a display brightness slider and set the desired display brightness. Move the slider to the right to increase display brightness or left to decrease brightness.

Brightness Slider

NOTE:

To enable the in application brightness settings some Android devices may require disabling the "Automatic brightness" setting for the system brightness.

Alerts

Create Alerts based on time or location. Alerts that are based on time, can range from 10 seconds to several hours. Time alerts can also be set to repeat. Location based Alerts can be set; At, Before, or After a Flight Plan Waypoint.

Creating a time based alert:

1) Tap Tools > Alerts > Add Alert.

2) Tap Time.

3) Enter the desired count down time (HH:MM:SS).

4) If desired, use the Repeating On/Off switch, to enable/disable repeating.

5) Tap Save, to save.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

Creating a location based alert:

1) Tap Tools > Alerts > Add Alert.

2) Tap Location.

OverviewPlanFileFlySubscriptionsAppendicesIndex

3) Tap the Relationship ﬁeld and select Before, At, or After.

4) Tap the Distance ﬁeld, and use the keypad to set the desired distance in

nautical miles.

5) Tap the Waypoint ﬁeld, and select the desired waypoint from the list.

6) If desired, touch the Message ﬁeld, and use the keypad to enter a custom

message.

7) Tap Save, to save.

Editing Alerts:

1) Tap Tools > Alerts > Edit.

Tap the desired alert for the list.

Tap the desired ﬁeld(s) to edit.

Tap Save, to save changes.

Deleting Alerts:

Tap Tools > Alerts > Edit.

Tap > Delete to delete the Alert.

Repeating

Time Alert

Distance

Alert

Alerts

Garmin Pilot for Android User’s Guide

Time Remaining

Distance Remaining

190-01532-00 Rev. G

Overview

The Menu Button provides a page-sensitive menu structure. Each page has speciﬁc menu options that control, search, navigate, or display page-sensitive menu items.

Map Page Menu

MAP PANE CONTROLS

Overview Plan File Fly Subscriptions Appendices Index

The Map Pane has a number of buttons that control the Base Map, Map Overlays and center map and split-screen. The table below shows the Map Pane Controls.

Control Icon Description

Map/Chart Selection/Settings, Map Overlay

Map Settings

Center on

Aircraft

Center on

Route

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Selection, Overlay Opacity Settings, and General

Map Settings

Centers the Map Pane on the current

location.

Centers the entire route in Map Pane.

Overview

Control Icon Description

OverviewPlanFileFlySubscriptionsAppendicesIndex

Zoom Out

Split-Screen

Orientation

Zoom

In/Out

Zoom In

Map

Map Pane Controls

Zooms In on the map

Zooms out on the map

Selects full screen map or partial map with

Widgets, Panel, Charts, and SafeTaxi.

Toggles map orientation from north up to

track up. The Icon is blue when track up is

active.

Map Orientation

Center

on Route

Center on

Aircraft

Map

Settings

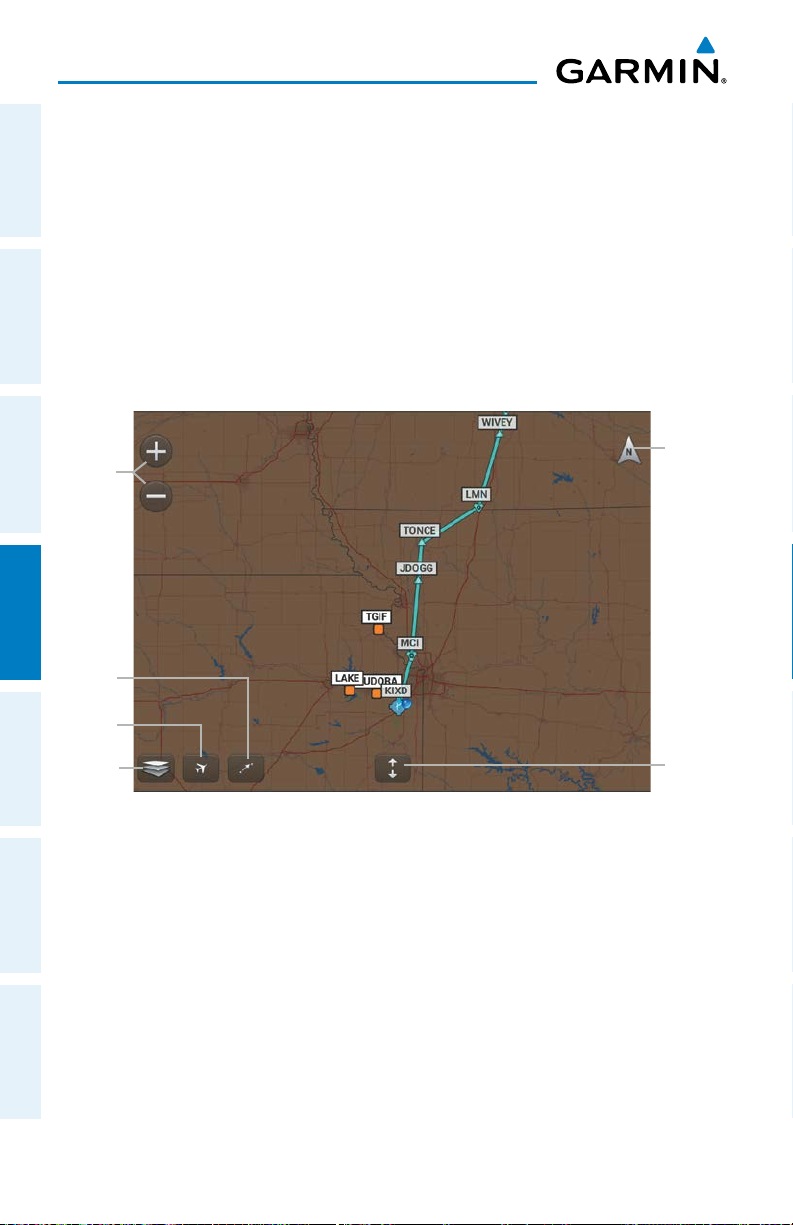

Map Pane

Garmin Pilot for Android User’s Guide

SplitScreen

190-01532-00 Rev. G

Overview

MAP/CHART SELECTION AND SETTINGS

Overview Plan File Fly Subscriptions Appendices Index

There are three maps and four charts available for display on the Map Page. The following charts are available for viewing in the map area: Sectional TAC, WAC, IFR Low, and IFR High. Charts are high-resolution color images that resemble the paper version of the National Aeronautical Navigation Products (AeroNav) published charts. The Roads/Borders Map is a very basic map showing major roads, bodies of water, boarders and Flight Plan information. Both IFR and VFR maps are vector-based interactive maps that are populated with aeronautical information such as airports, navigation aids, airspaces, and victor airways.

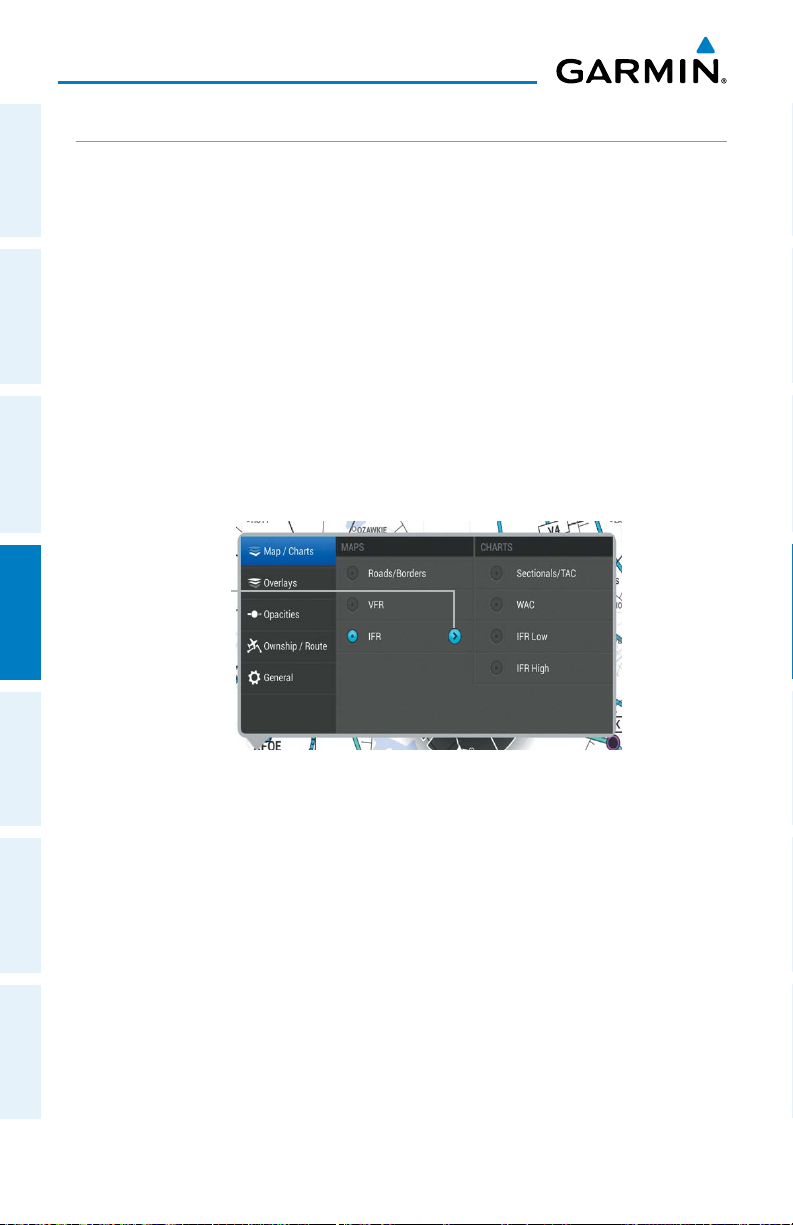

Map/Chart Menu

OVERLAYS

Map Overlays provide graphical weather products, graphical TFRs, and Fuel Prices. Multiple Overlays can be selected for display. Some overlays are mutually exclusive such as Radar and Radar (FIS-B), and IR Sat and Vis Sat. Overlays in the right column, (i.e. PIREPs, Winds Aloft, Fuel Prices, and Weather) are also mutually exclusive.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

OverviewPlanFileFlySubscriptionsAppendicesIndex

Overlays

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

SETTINGS

Overview Plan File Fly Subscriptions Appendices Index

Located under the Home Button, tap the Settings Icon to open the Settings Menu. The Settings Menu tabs customize and manage Garmin Pilot features, subscriptions, Pilot Info, Aircraft Info and much more.

GENERAL

The General Settings tab provides access to settings for Brightness, Time Format, displaying the Nav Bar, Alerts and selecting and displaying the Own Ship Symbol. Tap About to display the current version of the Garmin Pilot Application installed on your device, copyright information, and contact information (both email and phone) for Garmin Aviation Support. Tap the email address to compose an email and send it directly to Garmin Aviation Support. Sending a support email in this manner will automatically populate the email with information that will greatly aid us in troubleshooting and resolving any issues you may have.

NOTE:

A data connection (i.e., Wi-Fi or cellular) is required to send and receive

email.

Tap What's new in this version... to view information about what's new in the latest Garmin Pilot update.

When Automatic SafeTaxi is on, SafeTaxi will launch after landing at the destination airport when ground speed drops below 40 kts.

ALERTS

The Alerts settings allow the pilot the turn Notiﬁcations On/Off and conﬁgure ringtone and vibration settings, when notiﬁcations are on. When Notiﬁcations are On the Garmin Pilot Icon will appear in the device notiﬁcation area when the conﬁgured alert criteria (i.e., time or location) is met.

Conﬁguring Alert Notiﬁcations:

From any page, tap Home > Settings.

Tap the General Tab.

Tap Notiﬁcation On/Off button

Tap Notiﬁcation Ringtone to select a ringtone

Tap the Vibrate On/Off button to select/deselect notiﬁcation vibrations.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

KEEP SCREEN ON

The Keep Screen On settings provide three options for controlling the device display

settings when using Garmin Pilot.

OverviewPlanFileFlySubscriptionsAppendicesIndex

• Auto: The screen will stay on when the device GPS senses a ground speed over 40kts and when viewing SafeTaxi

• On: The screen will always be on.

• Off: Uses the system default display settings.

Conﬁguring Screen Settings:

From any page, tap Home > Settings.

Tap the General Tab.

Tap Auto, On or Off to select the desired Keep Screen On settings.

PILOT AND AIRCRAFT INFO

NOTE:

A data connection (i.e., Wi-Fi or cellular) is required to ﬁle ﬂight plans.

If you already have a Garmin Pilot account, Pilot and Aircraft information will automatically be synchronized across your devices. To add a new pilot tap Pilot Info > . Tap in each ﬁeld and use the on-screen keyboard to enter your information (i.e., Name, Telephone, Street, City, State, and Zipcode). Add aircraft information by tapping Aircraft > , enter aircraft Identiﬁer, Type, Equip Sufﬁx, Home Base, Primary and Secondary Color, TAS, and Fuel information.

To link Garmin Pilot with a Direct User Access Terminal Service (DUATS) account, under Pilot Information, enter username and password information for the preferred DUATS provider. By linking to a DUATS account, Garmin Pilot can ﬁle ﬂight plans. Garmin Pilot is compatible with both Data Transformation Corp. (DTC) or Computer Sciences Corporation (CSC) Direct User Access Terminal Service (DUATS) services.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

Select YES to receive

notiﬁcations from ATC

that include proposed

routes and clearances

for proposed route

Overview Plan File Fly Subscriptions Appendices Index

190-01532-00 Rev. G

Pilot and Aircraft Information Entry

Garmin Pilot for Android User’s Guide

Overview

Entering Pilot Information:

From any page, tap Home > Settings.

OverviewPlanFileFlySubscriptionsAppendicesIndex

Tap Pilot Information

Enter the Pilot Information by tapping each ﬁeld and use the keyboard.

Tap Save, to save Pilot Information.

> Add Pilot Information..

Entering Aircraft Information:

From any page, tap Home > Settings.

Tap

Aircraft > Add Aircraft...

Enter Required and/or optional Aircraft Information by tapping each ﬁeld and use the keyboard.

Tap Save, to save Aircraft Information.

ATC PROPOSED ROUTE NOTIFICATIONS

ATC Proposed Route Notiﬁcations are Push notiﬁcations, that include a proposed route for departures and destinations that you have ﬁled ﬂight plans for. Notiﬁcations come in the notiﬁcation area if you are not currently using Garmin Pilot, or as Popups within Garmin Pilot. To accept the proposed route and make it the Flight Plan, ensure Make Flight Plan is set to On, and touch Brief to open the Trip Planning Page. To dismiss the notiﬁcation and not make it the Flight Plan, ensure Make Flight Plan is set to Off, and touch Dismiss to remove the popup.

Subscribing to ATC Proposed Route Notiﬁcations:

From any page, tap Home > Settings.

Tap the Aircraft Tab.

Tap Add Aircraft...

Tap a current Aircraft in the list, to edit.

Tap YES, for Receive Proposed Routes, to subscribe to Proposed Route Notiﬁcations.

Tap Save, to save Aircraft Information.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

USER WAYPOINTS

The User Waypoints Tab provides a quick and easy way to create and view stored

user waypoints. User Waypoints are synchronized across devices.

Creating a User Waypoint from User Waypoint Tab:

Tap the User Waypoint Tab to display the list of user waypoints

2) Tap button to display the New User Waypoint dialog box.

3) Enter a name.

4) Deﬁne the waypoint location by Lat/Lon, Rad/Dist, or Rad/Rad.

5) Tap Save, to save the waypoint, or Back to exit.

Overview Plan File Fly Subscriptions Appendices Index

New User Waypoint Dialog

Sharing User Waypoints with D2™ Pilot Watch:

From any page,, tap Home > Settings > User Waypoints Tab to display the list of user waypoints

2) Ensure the D2 Pilot Watch is in 'Share Mode' tap, Menu > Send to D2, for each waypoint. Waypoints that have been shared with D2 will display a light blue check mark.

3) Touch Done to ﬁnish and exit sharing mode.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

WEATHER DATA

The Weather Data Tab provides information about the current source of weather data

OverviewPlanFileFlySubscriptionsAppendicesIndex

and the age of Garmin Weather Data items cached on the device. The age and status of weather data for FIS-B-sourced weather is viewable under the GDL 39 Tab. Weather data is available from three sources, Garmin Weather Data Services, FIS-B weather via a GDL 39, GDL 39 3D, or SiriusXM Weather via a Baron Mobile Link™. Garmin Weather Data Services requires a data connection through Wi-Fi or cellular network. Baron Mobile Link™ weather, and FIS-B weather, require additional hardware. Baron Mobile Link also requires a subscription to SiriusXM Weather.

Weather

Connection

Status

Weather Data Services

Garmin Pilot for Android User’s Guide

Tap to refresh cached weather data

Tap to view weather data status

190-01532-00 Rev. G

Weather

Product

Total

Product

Item

Cached

Overview

Overview Plan File Fly Subscriptions Appendices Index

Number of Items Updated and Update Time

Weather Data Status

GDL 39 / GDL 39 3D

The GDL 39 is a Bluetooth® enabled receive-only data link radio with on-board GPS, 978 MHz (Universal Access Transceiver frequency band), and 1090 MHz Extended Squitter (1090 ES) receivers. It is designed to receive, process, and output trafﬁc (ADS-B air-to-air, and Trafﬁc Information Service-Broadcast (TIS-B) trafﬁc information), and weather (Flight Information Service-Broadcast (FIS-B)) information to Garmin Pilot wirelessly through Bluetooth®. The GDL 39 Tab displays the GDL 39 Bluetooth connection status, GDL 39 ﬁrmware version, Ground Station Status, Pressure and Geometric Altitude as well as Trafﬁc and Weather information. The Trafﬁc Overview includes the number and source (i.e., ADS-B air-to-air, or (TIS-B)) of trafﬁc the GDL 39 is currently tracking. The Weather information provides the age of weather products received through FIS-B. The GDL 39 also has a pressure altitude sensor to aide in displaying the relative altitude of received trafﬁc information. If the GDL 39 is used

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

onboard a pressurized aircraft the pressure altitude sensor should be turned off to prevent false readings.

The GDL 39 3D adds the display of aircraft attitude information (pitch and roll).

OverviewPlanFileFlySubscriptionsAppendicesIndex

When connected to the GDL 39 3D a back-up attitude indicator is displayed on the panel.

Conﬁguring the GDL 39 / GDL 39 3D for a Pressurized or NonPressurized Aircraft:

From any page, tap Home > Settings.

Tap the GDL 39 Tab.

Tap Pressurized Cabin to select/deselect.

Updating GDL 39 / GDL 39 3D Firmware:

Ensure the tablet and the GDL 39 / GDL 39 3D are connected to a reliable external power source.

From any page, tap Home > Settings.

Tap the GDL 39 Tab.

Tap Update. The Update button is only displayed when an update is available.

Caution:

Android device during a GDL 39 / GDL 39 3D ﬁrmware update. If power is removed from the GDL 39 / GDL 39 3D during a ﬁrmware update it will be rendered inoperable and service will be required.

Never remove power from the GDL 39 / GDL 39 3D or power off the

GDL 39 Firmware Warning

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

Viewing GDL 39 / GDL 39 3D Status (including Ground Stations, Trafﬁc, and Weather):

From any page, tap Home > Settings.

Tap the GDL 39 Tab.

GDL 39 Battery Status

GDL 39 Status

Tap to Update GDL Firmware

Cabin Pressure Conﬁg

Overview Plan File Fly Subscriptions Appendices Index

190-01532-00 Rev. G

GDL 39 Tab

Garmin Pilot for Android User’s Guide

Scroll down to view Trafﬁc Overview, and FIS-B Weather Status and Age

Overview

GPS

Most Android devices are built with an internal GPS receiver. These may work ﬁne in

OverviewPlanFileFlySubscriptionsAppendicesIndex

smaller aircraft but often a stronger, external GPS receiver is necessary. If your Android device does not include a GPS receiver, a Garmin GLO™ portable GPS and GLONASS receiver, or a Garmin GDL 39 / GDL 39 3D portable GPS and ADS-B receiver will be required to take advantage of the navigation features of Garmin Pilot. Third party GPS receiver applications are no longer recommended for Garmin Pilot to receive location data.

Tap to Connect or Disconnect External GPS Source

GDL 39 GPS Status.

External GPS Tab

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

SUBSCRIPTIONS

Overview Plan File Fly Subscriptions Appendices Index

The Subscriptions Tab provides information about the status of any subscription associated with your Garmin Pilot Account and the ability to purchase annual or monthly subscriptions or renew expired subscriptions. Tap the green icon associated with the desired subscription and enter your Google credentials. The subscription fee will be charged to your Google play account. If you already have Garmin Pilot subscriptions, log in to your Garmin Pilot account to view subscriptions, expiration dates, as well as share routes, aircraft, and pilot information. With an active subscription Garmin Pilot can be installed on up to two devices at the same time, typically a mobile phone and a tablet device.

Tap to Purchase a Monthly or Annual Subscription

Tap to Add GeoReferenced FliteCharts

190-01532-00 Rev. G

Subscriptions

Garmin Pilot for Android User’s Guide

Tap to Add

SafeTaxi

Overview

DOWNLOADS

OverviewPlanFileFlySubscriptionsAppendicesIndex

NOTE:

If charts are not downloaded to the device they will not be available for viewing without a data connection. Download all applicable charts for your planned ﬂight including alternates.

NOTE:

Chart ﬁles can be very large and may take some time to download. It is recommended that downloads be done over Wi-Fi. Additional charges may apply for downloads done over a cellular network.

NOTE:

advisable to carry another source of charts on board the aircraft.

The Downloads Menu is divided into two sections. The Navigation & Airports section allows for downloading US Navigation Data, Airport Info, and SafeTaxi information. The Procedures & Charts section allows for downloading VFR Sectional Charts, WAC Charts, IFR Low and High Altitude Charts, and Instrument Procedures for the Continental US as well as Alaska and Hawaii.

The Downloads Menu is divided into two columns. The Left column shows items available for download as indicated by the blue down arrows ( ) or blue text. The right column is the Download Queue, shows the download status and a list of queued downloads.

With the availability of electronic charts in Garmin Pilot, it is still

The submenus for VFR Sectional Charts, WAC Charts and IFR Low and High Altitude Charts display the Chart Selection Screen, which is a map showing the charts as outlined areas. To select all available charts tap the ﬁle folder in the lower right corner and tap Select All from the list or tap the outlined area for the desired chart(s). After selecting the chart(s) to download tap the Download Arrow in the lower right corner. Terminal Procedure charts can be viewed and downloaded from the Airport Info Page, under the Procedures tab as well.

NOTE:

A data connection (i.e., Wi-Fi or cellular) is required to download or

update charts.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

Downloading US Navigation Data, Airport Info or SafeTaxi:

From any page, tap Home > Downloads.

Tap to begin downloading the desired information.

Download All Button

Update

All Button

Data is

Up to Date

Data

Available

Update

Status

Overview Plan File Fly Subscriptions Appendices Index

Queued Downloads Status and Estimated Time Remaining

Update in Progress

More info in Submenu

Device

Capacity

Info

190-01532-00 Rev. G

Downloads Page

Garmin Pilot for Android User’s Guide

Overview

Downloading Current Cycle Sectional, WAC, IFR Low Altitude, or IFR High Altitude Charts:

OverviewPlanFileFlySubscriptionsAppendicesIndex

From any page, tap Home > Downloads.

2) From the Procedures & Charts list select the submenu for the desired chart.

3) Tap Current.

4) Tap the outlined area on the Chart Selection Screen for the desired chart(s).

5) Tap to download the selected chart(s). The download will begin immediately

as shown in the Download Queue.

: Tap

> Select All > , to download all available charts.

Downloading Next Cycle Sectional, WAC, IFR Low Altitude, or IFR High Altitude Charts:

NOTE: WAC and Sectional Charts are updated individually on the chart schedule and are

available for download, typically 5 days prior to their valid date. IFR Low and High Altitude Charts are updated on a 28-day cycle and are available for download typically 5 days prior to their valid date.

From any page, tap Home > Downloads.

2) From the Procedures & Charts list select the submenu for the desired chart.

3) Tap Next.

4) Tap the outlined area on the Chart Selection Screen for the desired chart(s).

5) Tap to download the selected chart(s). The download will begin immediately

as shown in the Download Queue.

: Tap

> Select All > , to download all available charts.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Overview

Downloading Current Cycle Instrument Procedures:

From any page, tap Home > Downloads.

From the Procedures & Charts list select the submenu for US Instrument Procedures.

3) Tap Current.

4) Tap the State(s) on the Chart Selection Screen for the desired chart(s).

5) Tap to download the selected chart(s). The download will begin immediately

as shown in the Download Queue.

: Tap

> Select All > , to download all available charts.

Downloading Next Cycle Instrument Procedures:

NOTE: US Instrument Procedures are updated on a 28-day cycle and are available for

download typically 5 days prior to their valid date.

From any page, tap Home > Downloads.

From the Procedures & Charts list select the submenu for US Instrument Procedures.

3) Tap Next.

4) Tap the State(s) on the Chart Selection Screen for the desired chart(s).

Overview Plan File Fly Subscriptions Appendices Index

5) Tap to download the selected chart(s). The download will begin immediately as shown in the Download Queue.

: Tap

190-01532-00 Rev. G

> Select All > , to download all available charts.

Garmin Pilot for Android User’s Guide

Overview

Selection

OverviewPlanFileFlySubscriptionsAppendicesIndex

Chart is

Onboard

and Up-

Data

Zoom

In/Out

to-date

Center Map On

Chart Selected for Download

Expired Chart

Delete

Button

Chart Selection Screen

Garmin Pilot for Android User’s Guide

Batch Options Button

Download Button

190-01532-00 Rev. G

Overview

BATCH OPTIONS

The Batch Options Button provides quick access to batch operations including; Update

Expired, Delete Expired, Delete All, Cancel Active Downloads, Reset Selection and Select All.

CHART UPDATES

NOTE:

Electronic Charts are updated frequently. Always ensure that the charts saved to the device are up-to-date prior to each ﬂight. With the availability of electronic charts, it is still advisable to carry another source of charts onboard the aircraft.

Garmin Pilot makes it easy to ensure that charts are always up-to-date by taking advantage of the notiﬁcation area of your Android device. When Garmin Pilot is started it automatically checks for charts updates. When updates are available the Garmin Pilot Icon is displayed in the notiﬁcation area the device. The number of available updates is also displayed on the Downloads Page. When updates are available, the

button becomes active. The Button will

update all available charts no matter the chart type.

Overview Plan File Fly Subscriptions Appendices Index

Downloads

Notiﬁcation

New Downloads Available

US Navigation Data, Airport Info and SafeTaxi are updated on 28-day cycle and are available for download typically 5 days prior to their valid date.

WAC and Sectional Charts are updated individually on the chart schedule and are available for download typically 5 days prior to their valid date.

US Instrument Procedures are updated on a 28-day cycle and are available for download typically 5 days prior to their valid date.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Overview

IFR Low and High Altitude Charts are updated on a 28-day cycle and are available

for download typically 5 days prior to their valid date.

Charts that have been downloaded to the device are always available for viewing

OverviewPlanFileFlySubscriptionsAppendicesIndex

even after their expiration date. If the next cycle chart is downloaded prior to its activation date the current cycle will be used until it expires. After the expiration date the next cycle chart will be used and the old cycle will automatically be removed.

Updating

Sectional, WAC, IFR Low, or IFR High Altitude Charts:

From any page, tap Home > Downloads.

2) Tap Update All (X) to update all available charts.

1) Select the desired chart type submenu.

2) From the Chart Selection Screen tap the expired chart(s), shown in red.

3) Tap to download the selected chart(s). The download will begin immediately

as shown in the Download Queue.

Or:

1) Select the desired chart type submenu.

2) From the Chart Selection Screen tap

> Update Expired > .

The

download will begin immediately as shown in the Download Queue.

Updating Instrument Procedures:

From any page, tap Home > Downloads.

From the Procedures & Charts list select the submenu for US Instrument Procedures.

3) From the Chart Selection Screen tap the expired chart(s), shown in red.

4) Tap to download the selected chart(s). The download will begin immediately

as shown in the Download Queue.

: Tap

> Update Expired > , to update any expired charts.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

PLAN

Overview Plan File Fly Subscriptions Appendices Index

Garmin Pilot's powerful capabilities start with pre-ﬂight planning, providing pilots with the most comprehensive aviation weather information to make better-informed ﬂight decisions. Pilots can check weather radar, visible and infrared cloud imagery, METARs, TAFs, AIRMETs, SIGMETs, PIREPs, NOTAMs, winds and temperatures aloft, TFRs and lightning data. With Garmin Pilot, weather data can be overlaid on VFR Sectionals, IFR low altitude en route charts, IFR high altitude en route charts, WAC, or a simple map showing major roads and borders to visualize the weather for your route. Add text-based weather widgets and use the exclusive NavTrack feature to view weather information along the planned route.

FLIGHT PLAN

The Flight Plan page manages the current ﬂight plan. Flight plans can be created, bookmarked (stored), and reversed from the Flight Plan Page. From the Flight Plan Page, ﬂight plans can be entered in one of two ways. First, tap within the route ﬁeld and use the keyboard to add waypoints separated by spaces. Second, tap the

Add Waypoint button in the ﬂight plan list and use the keyboard to enter the waypoint identiﬁer, or graphically edit on the map once a departure point is entered. The Flight Plan Page allows for ﬂight plans to be bookmarked or stored for later use. Bookmarked Flight Plan are synchronized through your Garmin Pilot account and are available on any device with Garmin Pilot.

Creating a Flight Plan:

From any page, tap Home > Flight Plan.

Tap within the route ﬁeld to activate the cursor.

Use the keyboard to insert waypoints. Separate each waypoint with a space.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

OverviewPlanFileFlySubscriptionsAppendicesIndex

Plan

Or:

Tap the

Use the keyboard to input the waypoint identiﬁer.

Tap the

Or:

Enter Lat/Lon information in one of the following formats:

Add Waypoint button.

Add Waypoint button to add additional waypoints.

Lat/Lon Lat/Lon

####N/#####W

N####/W#####

####/-##### ##.#N/##.#W

N##.#/W##.#

##.#/-##.#

##.#N/0##.#W

##.#/-0##.#

N##.#/W0##.#

Spaces are not allowed, slash (/) is required. Any Latitude format can be combined

with any longitude format in the same string.

Lat/Lon Formats

Or:

Enter Radial/Distance waypoint in one of the following formats:

Radial/Distance Descriptions

MSP/190/035 or MSP/190/35

MSP190035

Identiﬁer/Radial/Distance

IdentiﬁerRadialDistance

Spaces are not allowed, when slashes (/) are used the leading zero can be left off

the radial and/or distance.

Radial/Distance Formats

Or:

Enter a waypoint at the intersection of two VOR radials in the following

format :

VOR/Radial Descriptions

OKB100MZB020

VORRadialVORRadial

Radial Intercept Waypoint

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Radial Intercept Waypoint

Or:

Use one of the above methods to enter a departure point.

In the Map View area long-press any location or ﬂight plan leg, to display the rubber-band, drag the rubber-band to the desired map location.

Once the rubber-band is on or near the desired location release the rubberband. A list of nearby waypoints is displayed.

Select the desired waypoint from the list. Or create a User Waypoint.

Repeat steps 2-4 to add additional waypoints.

Plan

Overview Plan File Fly Subscriptions Appendices Index

ACTIONS MENU

The Flight Plan List contains a waypoint-sensitive Actions Menu. For example if the selected waypoint is the departure point, the Actions Menu will include an Add/ Remove SID. If the selected point is the ﬁnal destination, the Actions Menu will include an Add/Remove STAR action item. Or, if the selected waypoint is a valid Airway entry point, the Actions Menu will include a Load Airway action item. The Actions Menu also has Action Items for adding, removing, or changing ﬂight plan waypoints.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

OverviewPlanFileFlySubscriptionsAppendicesIndex

Plan

Action Description

Insert Before

Insert After

Remove Waypoint

Adds a new line item before the selected waypoint. Places the cursor in the empty line and opens the keyboard for waypoint identiﬁer entry.

Adds a new line item after the selected waypoint. Places the cursor in the empty line and opens the keyboard for waypoint identiﬁer entry.

Removes selected waypoint from the Flight Plan.

Waypoint Info

Direct-To

Add SID

Clear Flight Plan

Expand

Change SID

Remove SID

Load Airway

Remove Airway

Change Airway Entry

Change Airway Exit

Change STAR

Displays Waypoint information.

Opens the Direct To... dialog box. Opens the SID submenu, listing available SIDs. Select the

desired SID to open the submenu of available transitions.

Removes all Flight Plan waypoints.

Expands SID, STAR, or Airways. Only available when the selected item is a SID. Allows the

SID and/or SID transition to be changed. Only available when the selected item is a SID. Removes

SID from Flight Plan.

Only available if the selected item is valid airway entry point. Opens submenu of available Airways. Once an Airway is selected the Select Exit submenu displays a list of available exit waypoints that can be ordered by distance or alphabetically.

Removes Airway and all associated waypoints. Opens the Change Entry submenu with a list of entry

points. The submenu can be viewed as an ordered list or alphabetically.

Opens the Change Exit submenu with a list of Airway exit points. The submenu can be viewed as an ordered list or alphabetically.

Opens the Edit STAR submenu with a list of available STARs. Select the desired STAR to open the submenu of available transitions.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

Action Description

Remove STAR

Removes STAR and all associated waypoints. Opens the STAR submenu, listing available STARs. Select

Add STAR

the desired STAR to open the submenu of available transitions.

Activate Leg

Actives the selected leg for navigation.

Action Menu Options

Adding a SID to a Flight Plan:

From any page, tap Home > Flight Plan.

Tap the departure point in the Flight Plan List to open the Actions Menu.

From the Actions Menu, tap Add SID.

Tap the desired SID.

Tap the desired transition. The SID, transition and associated waypoints are added to the ﬂight plan.

Adding a STAR to a Flight Plan:

From any page, tap Home > Flight Plan.

Tap the destination in the Flight Plan List to open the Actions Menu.

From the Actions Menu, tap Add STAR.

Tap the desired STAR.

Tap the desired transition. The STAR, transition, and associated waypoints are added to the ﬂight plan as a single entry that can be expanded to view all waypoints. Once a STAR has been added to a ﬂight plan, no more waypoints can be added.

Overview Plan File Fly Subscriptions Appendices Index

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

Adding an Airway to a Flight Plan:

From any page, tap Home > Flight Plan.

OverviewPlanFileFlySubscriptionsAppendicesIndex

Tap a waypoint in the Flight Plan List to open the Actions Menu.

If the waypoint is a valid Airway entry point, tap Load Airway in the Actions Menu. Only valid Airway entry points will have the Load Airway action in the Actions Menu.

Tap the desired Airway.

Tap the desired Airway exit point from the list. All Airway waypoints from selected entry point to selected exit point will be added to the ﬂight plan list as one entry that can be expanded to show all waypoints.

Expanding/Collapsing SID, STAR, or Airways in the Flight Plan List:

From any page, tap Home > Flight Plan.

Tap to expand.

Tap to collapse any of the expanded ﬁelds.

Bookmarking a Flight Plan:

From any page, tap Home > Flight Plan > Bookmark.

Tap Bookmark current route to bookmark the Flight Plan. The Flight Plan and all associated waypoints are saved.

Deleting Bookmarked Flight Plans:

From any page, tap Home > Flight Plan > Bookmark.

Tap > Remove to delete the selected Flight Plan.

NOTE:

Flight Plans deleted from the Bookmarked FPLs list will also be deleted

from other devices when the next sync is performed.

Reversing the Flight Plan:

From any page, tap Home > Flight Plan.

Tap to reverse the Flight Plan.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

D2™ PILOT ROUTE SHARING

Garmin Pilot can share the Flight Plan with the Garmin D2 Pilot Watch via a Bluetooth connection. When the Garmin D2 Pilot Watch is in 'Share Mode' it will automatically pair with a compatible Android device.

NOTE:

D2 route sharing is only available with Android devices that support

Bluetooth 4.0 +.

Sharing the Flight Plan:

From any page,, tap Home > Flight Plan > Menu > Send to D2 Watch. Ensure the D2 Pilot Watch is in 'Share Mode' to receive ﬂight plan

data.

NOTE:

associated with the original Flight Plan are removed. If a Departure/Arrival is desired in the reversed Flight Plan, they will need to be added as described above. Airways are copied and reversed.

When a Flight Plan is reversed, Departures or Arrival procedures

Overview Plan File Fly Subscriptions Appendices Index

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

OverviewPlanFileFlySubscriptionsAppendicesIndex

Bookmark

Button

Route

Field

Clear Route Field

Reverse Flight Plan

Selected

Waypoint

Graphically

Edit Route

On Map

Actions Menu

Active Flight Plan Page

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

AIRPORT INFORMATION

Overview Plan File Fly Subscriptions Appendices Index

Airport information is a downloadable product available free with your Garmin Pilot subscription from the Downloads section of the Settings Menu. Because Garmin Pilot will not automatically remove outdated charts, it is important to always ensure the latest Data Cycle has been downloaded prior to planning a ﬂight. The downloaded cycle number and date range for every map data product is displayed on the Downloads Page.

Finding airport information is easy with Garmin Pilot. The Home Button located at the top of the map page contains the Airport Info icon. Tapping the icon will present the Airport Information Page.

The Airport Information Page is divided into two sections. The top of the page under the control bar is a summary of airport information. Immediately below the summary are nine selectable tabs for viewing detailed airport information. View more details for select ﬁelds by tapping . The summary window contains the basic information for the selected airport such as; elevation, pattern altitude, magnetic variation, sunrise/sunset times, and fuel prices. There are also three buttons in the summary area for displaying NOTAMs, Nearby airports, or SafeTaxi (available for an additional subscription).

Tab Description

Trafﬁc pattern altitudes, magnetic variation, Sectional information,

Information

Frequencies

Nav Aids

Runways

FBOs

Services

Weather

Procedures

Flight Service, Fuel information, hours of operation, types of operations, and pertinent phone numbers.

Communication and navigation radio frequencies. Nearest navigation aids, frequencies, distances, and radials. Runway numbers, dimensions, composition, and conditions. Fixed base operations, contact information and services available. Nearby lodging, car rental, transportation, and dining information. Current weather conditions including: METAR, TAF, Winds Aloft, and

Area Forecast. List of applicable procedures available for the current airport.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

Fuel Prices

OverviewPlanFileFlySubscriptionsAppendicesIndex

Tab Description

Fuel prices on ﬁeld, fuel prices organized by nearest airports, lowest 100LL and lowest Jet fuel, detailed FBO contact information, services, and credit cards accepted. Fuel Prices are provided by AirNav.

Airport Information Tabs

Airport

Identiﬁer

Button

Airport

Diagram

Thumbnail

Fuel

Prices

Button

Airport

Info Tabs

Current Weather

NOTAMs Button

Nearby Button

SafeTaxi Button

Airport Info Page

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

Within the Airport Summary window is an expandable thumbnail image of the

Overview Plan File Fly Subscriptions Appendices Index

airport diagram. Momentarily tapping the airport diagram thumbnail will open a larger view of the airport diagram. Tapping the image a second time will bring you back to the previous page

From the Airport Information Page, there are multiple ways to search for airport information. The two primary methods of accessing airport search functionality are by touching either the airport identiﬁer or the Menu Button. Touching the airport identiﬁer, on the left side of the airport title bar opens the airport search tool. Touching the Menu Button, in the upper right corner of the display reveals several more search options, including a basic search (same as touching the airport identiﬁer), search for airports near your current location, or airports near the currently selected airport. While on the Airport Info page, the Menu Button also offers quick access to the Airport Information pages for the departure and destination airports in the Flight Plan.

Searching for an Airport:

From any page, tap Home > Airport Info.

Touch the Airport Identiﬁer Button in the Summary Window.

Or:

Tap Menu > Search.

Select a search criteria.

Search Criteria Description

Search Airport Information by State or use the keyboard to input the

Recent

Route

identiﬁer, or city in the search window. This creates a list of matching airports from which to select.

Opens a list of recently viewed airports. Select desired airport from the list. Opens a list airports used to deﬁne the Flight Plan. Departure, Destination

and any other airports used as waypoints along the route of ﬂight.

Airport Search Options

Select an airport from the Search Results list.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

OverviewPlanFileFlySubscriptionsAppendicesIndex

Plan

Airport

Input

Airport Info Page Menu

Criteria

Airport Identiﬁer Search

Airport Information Quick Access:

From any page, tap Home > Airport Info.

Tap Menu.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Select one of the quick access options. (Departure: XXXX, Destination: XXXX, Nearby XXXX, Nearby Me, or Recent Airports,).

Or:

Touch Nearby to view airports near current location or near selected

airport. Sort list by Near Me or Near XXXX. Filter airport list by Public or

All.

Viewing NOTAMs:

From any page, tap Home > Airport Info.

Tap NOTAMs to view the NOTAMs window.

Viewing Nearby Airports:

From any page, tap Home > Airport Info.

Tap Nearby to view airports (i.e., Public or All) nearby the currently selected airport.

Viewing SafeTaxi (Subscription Required):

From any page, tap Home > Airport Info.

Tap SafeTaxi to view the SafeTaxi airport diagram.

Tap the Back button to return to the Airport Info Page.

Plan

Overview Plan File Fly Subscriptions Appendices Index

Tap to enter or exit split-screen.

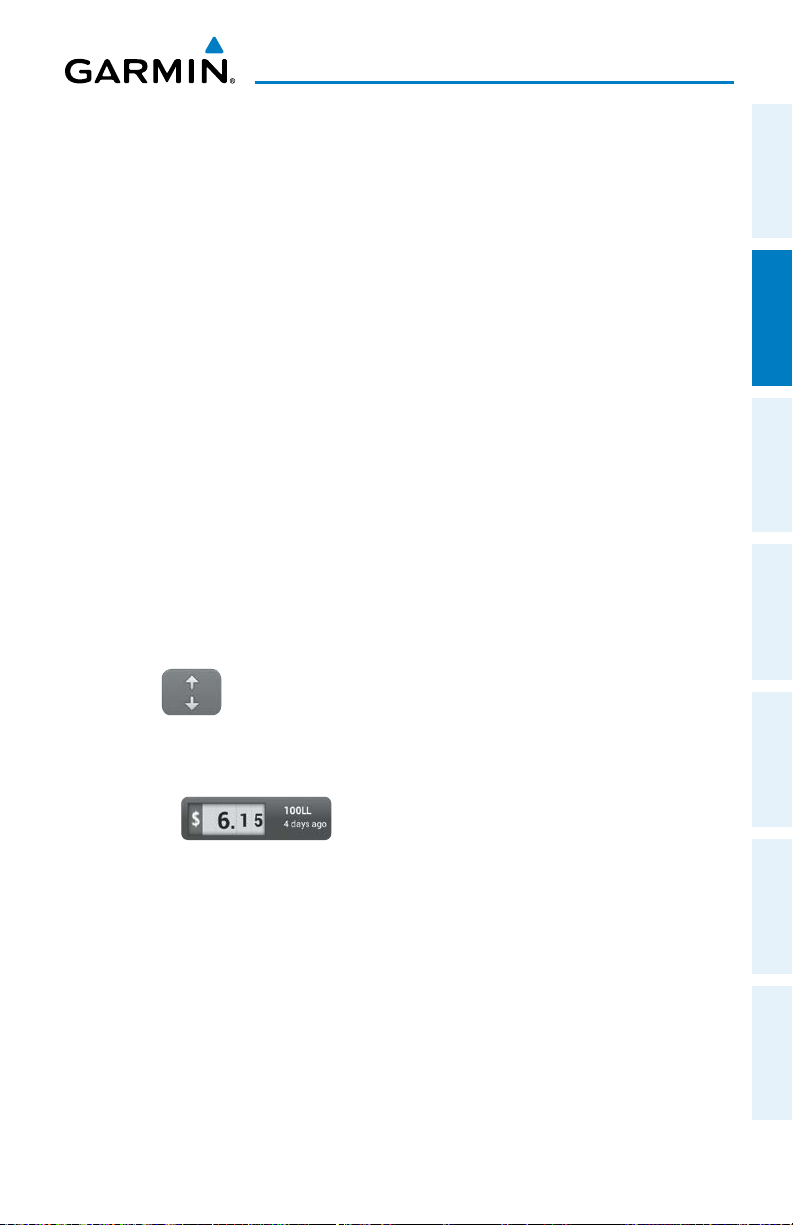

Viewing Fuel Prices by type:

From any page, tap Home > Airport Info.

Touch to cycle through each type of fuel (100LL, Jet, or Mogas). If the selected fuel type is not available at this location, or if no data is available for this location, price is displayed as dashes. The age of the data is shown just below the fuel type.

Touch the Fuel Prices tab to view fuel price. Sort fuel prices by Nearest Airports or Lowest Price.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

Viewing and Organizing Procedures:

NOTE:

OverviewPlanFileFlySubscriptionsAppendicesIndex

From any page, tap Home > Airport Info.

Tap the Procedures Tab. All available charts and procedures are shown

Terminal procedures (i.e. SIDs, STARs, instrument approach procedures, airport diagrams, Hot Spots, and Take-off Minimums) are available for selection from the Airport Information Page. Any charts that are not geo-referenced will open in the default PDF document viewer.

including; (Airport Diagrams, Approach Procedures, Arrival Procedures, and Departures). Chart titles followed by ,will need to be downloaded. Charts followed by have already been downloaded to the device.

Tap the desired chart to view.

Or:

To organize charts

Tap to create a Chart Binder or add to an existing binder.

Tap and enter a Binder Name or select from the list of available binders.

Tap for each additional chart to add to a binder.

WEATHER DATA

WARNING: Do not use the indicated data link weather product age to determine the age of the weather information shown by the data link weather product. Due to time delays inherent in gathering and processing weather data for data link transmission, the weather information shown by the data link weather product may be signiﬁcantly older than the indicated weather product age.

WARNING: Do not use data link weather information for maneuvering in, near, or around areas of hazardous weather. Information contained with in data link weather products may not accurately depict current weather conditions.

Weather is presented in Widgets (as text), and map overlays. To receive up-todate weather information, the device must have access to a data connection (Wi-Fi or cellular), or a GDL 39 or GDL 39 3D. However, once downloaded, some weather products will remain available for up to 90 minutes after connection to the Internet is lost.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

WEATHER WIDGETS

Overview Plan File Fly Subscriptions Appendices Index

Weather Widgets are viewable in the lower portion of the Map Page in split screen. Controls located at the upper left and right corners of each Widget open a menu that allows you to select the Widget Type and to choose an airport to which the Widget is applicable.

The NavTrack located at the bottom of the display enables you to dynamically change the Widget location to view information related to points on or near the active route. Dragging the slider at the bottom of the widgets pane moves a light blue diamond along the route of ﬂight. As the symbol approaches airports along the active route Colored push-pins correspond to matching colored dots to the left of the airport identiﬁer in the upper right corner of the Widget to indicate the location from which the information contained in the Widget originates.

There are six weather, and four navigation information products available for selection from the Widget Type menu. The weather products available to be displayed as widgets are METAR, TAF, PIREPs, winds and temperatures aloft, area forecast, and AIRMET/SIGMETs. The four navigation information products are NOTAMs, Fuel Prices, TFRs, and Airspaces.

Sliding a ﬁnger left or right over the widgets will bring more widgets or the Add Widget tool into view. The source, product age and relative location will be displayed at the bottom of each widget.

Adding a Weather Widget:

From any page, tap Home > Map.

Tap Menu > Split Screen > Widgets.

Drag the Widgets from right to left and tap the plus button to add a widget.

Select a widget from the Select Widget Type menu.

Changing a Widget Type:

Tap the widget type as displayed in the upper left corner of the widget.

Select the desired widget type from the Select Widget Type menu.

Removing a Weather Widget:

Tap the widget type as displayed in the upper left corner of the widget.

Scroll to the bottom of the ﬂick list.

Select Delete Widget from the bottom of the menu.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

WIDGET NAVTRACK

At the bottom of the widget pane is the NavTrack. Touch-dragging the slider moves

a light blue diamond along the route of ﬂight. Colored push-pins appear on the map

OverviewPlanFileFlySubscriptionsAppendicesIndex

to indicate locations near the blue diamond that provide information corresponding to selected widgets. In some cases, there may be more than one location near the blue diamond that provides information corresponding to a widget. To view weather information for nearby locations, it may be necessary to tap the inverted white triangle next to the widget location in the widget header bar. This will open a menu of nearby widget information sources.

Change the Location Associated with a Weather Widget:

Drag the NavTrack at the bottom of the widget pane until the blue diamond corresponds with a colored push-pin on the map display that is near a desired location.

If the push-pin does not correspond to the desired location, tap the location indicator at the top right corner of the widget to search for nearby locations.

Select the desired location from the Nearby menu.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Push Pin

Color and

Widget

Location

Correspond

Tap to

Change

Widget

Location

Widget

Location

Plan

Overview Plan File Fly Subscriptions Appendices Index

Push Pin

Widget Type

Tap to Change Widget Type

Weather

Product

Source,

Age and

Relative

Location

190-01532-00 Rev. G

Widgets

Garmin Pilot for Android User’s Guide

Plan

RADAR

Weather radar data is collected from radar sites across the United States, Canada,

OverviewPlanFileFlySubscriptionsAppendicesIndex

and select overseas locations. It is combined into a mosaic for easier display and analysis.

The radar data displayed is not real-time. The lapsed time between collection, processing, and dissemination of radar images can be signiﬁcant and may not reﬂect the current radar synopsis. Due to the inherent delays and the relative age of the data, it should be used for long-range planning purposes only. Never use radar data to penetrate hazardous weather. Rather, use it in an early-warning capacity for predeparture evaluation.

Composite data from radar sites in the United States is shown. This data is composed of the maximum reﬂectivity from the individual radar sweeps at different tilt angles of the radar beam with respect to the ground. The display of the information is color-coded to indicate the weather severity level. Colors are used to identify the different echo intensities (reﬂectivity) measured in dBZ (decibels or Z). “Reﬂectivity” (designated by the letter Z) is the amount of transmitted power returned to the radar receiver. The dBZ values increase as returned signal strength increases. Precipitation intensity is displayed using colors corresponding to the dBZ values.

RADAR ABNORMALITIES

There are possible abnormalities regarding displayed radar images. Some, but not all, of those include:

• Ground clutter

• Strobes and spurious radar data

• Sun strobes (when the radar antenna points directly at the sun)

• Military aircraft deploy metallic dust (chaff) which can cause alterations in radar scans

• Interference from buildings or mountains, which may cause shadows

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

RADAR LIMITATIONS

Certain limitations exist regarding radar displays. Some, but not all, are listed for

the user’s awareness:

• Surface precipitation type is estimated with shades of blue for snow and shades of pink for indeterminate types. The actual precipitation type aloft could vary.

• Radar base reﬂectivity is sampled at the minimum antenna elevation angle. An individual radar site cannot depict high altitude storms at close ranges, and has no information about storms directly over the site.

• Radar coverage in Canada is only available in the southern 1/4 of the country.

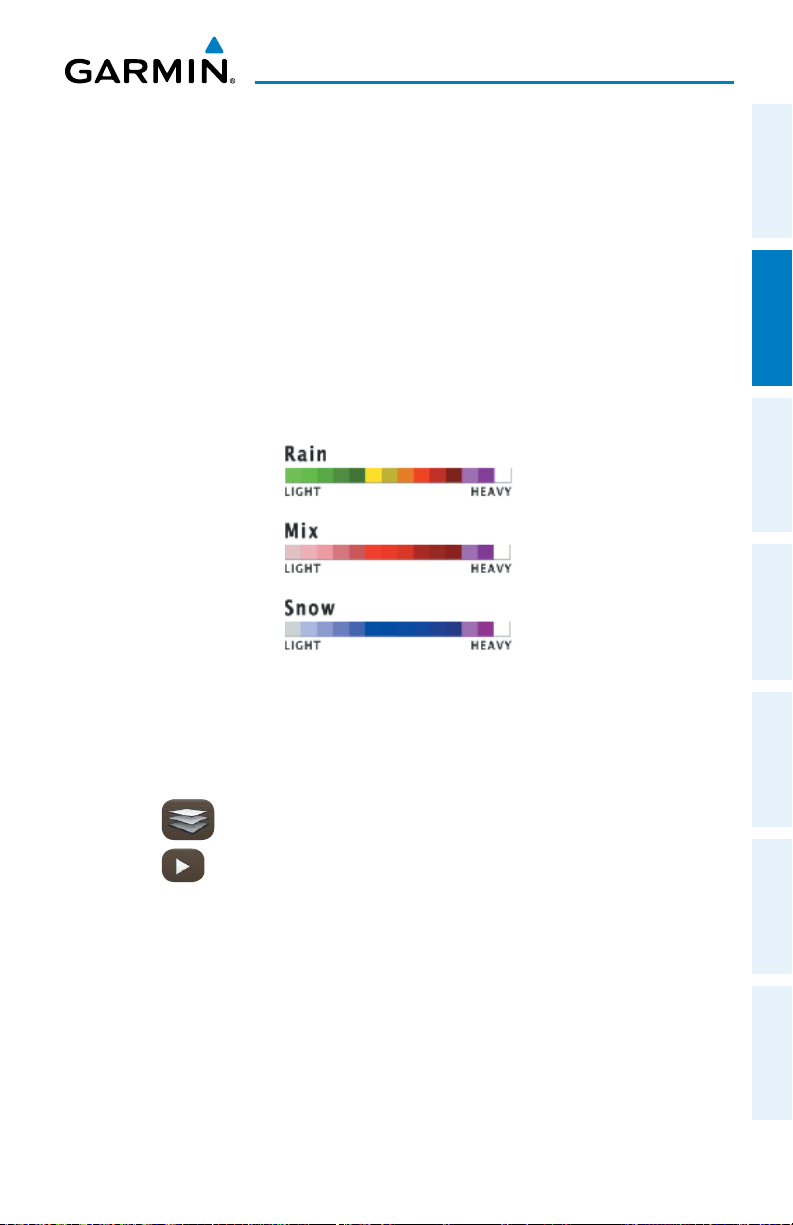

Radar Intensity

Overview Plan File Fly Subscriptions Appendices Index

Viewing Radar Information:

From any page, tap Home > Map.

Tap select Radar from the Layer Select menu.

Tap to animate the radar loop. Each frame of the radar loop is time stamped. The time stamp is just right of the play button.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

INFRARED SATELLITE (IR SAT)

IR Sat displays infrared composite satellite images of cloud cover taken by

OverviewPlanFileFlySubscriptionsAppendicesIndex

geostationary weather satellites.

Viewing Infrared Satellite Information:

From any page, tap Home > Map.

Tap select IR Clouds from the Layer Select menu.

Tap to animate the satellite loop. Each frame of the satellite loop is time stamped. The time stamp is just right of the play button.

Viewing Visible Satellite Information (Vis Sat):

From any page, tap Home > Map.

Tap select Vis Clouds from the Layer Select menu.

Tap to animate the satellite loop. Each frame of the satellite loop is time stamped. The time stamp is just right of the play button.

WEATHER OVERLAY

The Weather Overlay provides weather icons that graphically display one of 14 parameters typically reported in a METAR. Each icon can be tapped to display the current METAR data in both raw and translated formats. Color coded icons provide a quick visual representation of the current weather conditions. Blue icons indicate VFR conditions, Green icons indicate MVFR conditions, Yellow icons indicate IFR conditions and Red icons indicate LIFR conditions. The color coding applies to Station ID, Flight Conditions, Cloud Ceiling, Visibility, and Cloud Cover.

Wind barbs and wind speed icons are slightly different where green is used to indicate winds of less than 10 kts, yellow is for winds greater than 10 kts and red is used for winds greater than 20 kts. Colored icons are also used to show dew point spread where the spreads of ﬁve degrees or greater are green, spreads of three or four degrees are yellow and spreads of two degrees or less are red.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

Viewing and Conﬁguring the Weather Overlay:

From any page, tap Home > Map.

Tap and select Weather from the Layer Select menu.

Tap the Overlay Control button in the lower left corner.

Select the desired option from the list.

Tap any of the displayed Weather Icons to view the Raw and translated METAR information.

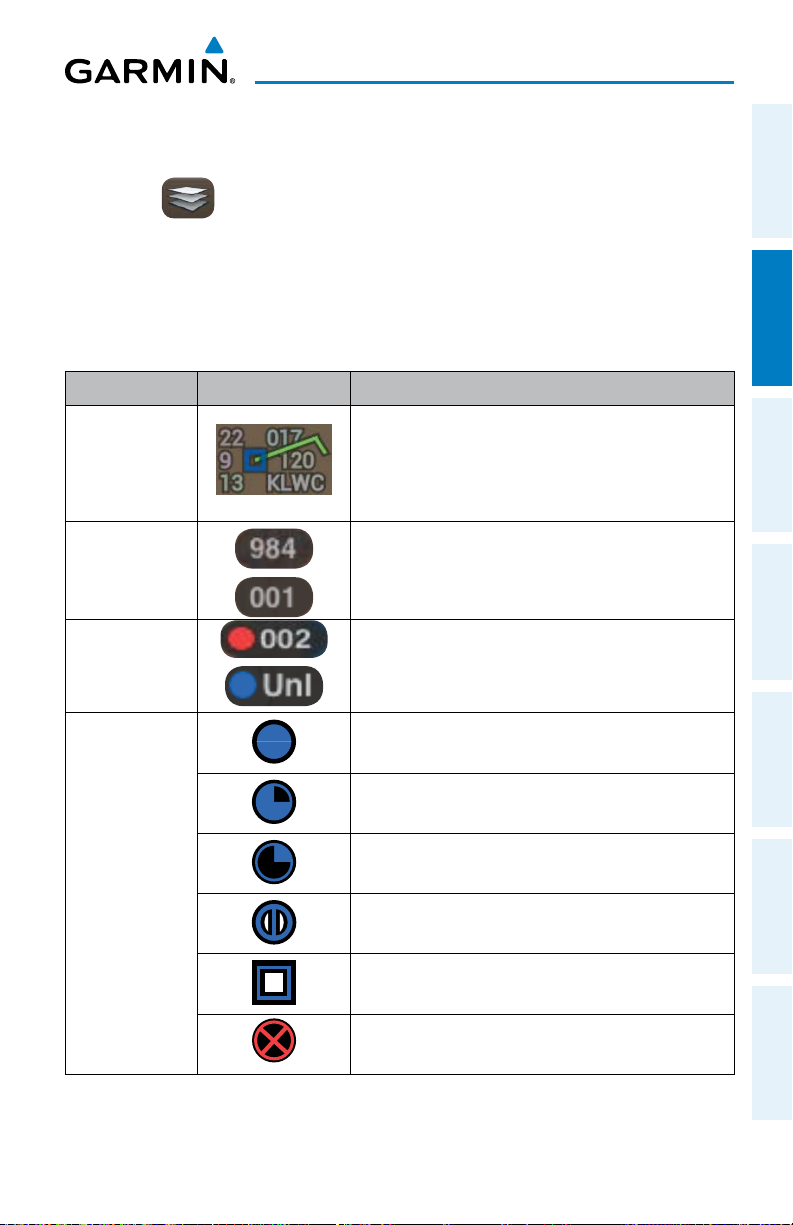

Layer Icons Description

When reading the station model clockwise

Station

Model

provides current; altimeter, ceiling, identiﬁer, dewpoint, visibility and temperature. Also provides current wind and cloud cover as icons.

Altimeter ("Hg) setting with the leading 2 or

Altimeter

3 omitted as well as the decimal. (e.g., 984 =

29.84 or 001 = 30.01)

Reported ceiling in hundreds of feet or 'Unl'

Cloud Ceiling

if there is not a cloud layer that constitutes a ceiling.

Overview Plan File Fly Subscriptions Appendices Index

Cloud Cover

190-01532-00 Rev. G

Overcast

Broken

Scattered

Few

Clear

Fog

Garmin Pilot for Android User’s Guide

Plan

Layer Icons Description

OverviewPlanFileFlySubscriptionsAppendicesIndex

Dew point

Spread

Flight

Conditions

Dew point °C

Dew point Spread °C

VFR

VFR ceiling with MVFR visibility.

MVFR ceiling with VFR visibility.

IFR ceiling with VFR visibility.

VFR ceiling with IFR visibility.

LIFR ceiling with VFR visibility.

VFR ceiling with LIFR visibility.

MVFR

MVFR ceiling with IFR visibility.

IFR ceiling with MVFR visibility

MVFR ceiling with LIFR visibility

LIFR ceiling with MVFR visibility

IFR

LIFR ceiling with IFR visibility

IFR ceiling with LIFR visibility

LIFR Missing weather information. A split dot with

brown indicates partial missing data.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

Layer Icons Description

Observation

Age

Observation Age in minutes

VFR conditions (Blue)

Station ID

MVFR conditions (Green)

IFR conditions (Yellow)

LIFR conditions (Red)

Temperature

Visibility

Temperature °C

Reported Visibility in statute miles.

Wind barbs indicate wind speed and direction and always point in the direction that the wind is coming from. The wind speed is depicted using ﬂags at the end of the wind barb. A short wind ﬂag is 5 knots, a long wind ﬂag is 10 knots, and

Wind Barbs

a ﬁlled triangle is 50 knots. Wind Barbs are also color coded where green barbs indicate wind is 5-9 kts, yellow barbs are 10-19 kts and red is for winds of 20 kts or greater. When winds are calm an open green circle is used. Light and variable winds are indicated by an open green circle with a green 'V'.

Overview Plan File Fly Subscriptions Appendices Index

Wind Gust

Wind Speed

Conditions

190-01532-00 Rev. G

Reported wind gusts (kts).

Reported steady wind speed (kts).

Dynamic black shaded box that displays two letter weather condition codes and qualiﬁers.

Weather Icons

Garmin Pilot for Android User’s Guide

Plan

AIRMETS

An AIRMET (AIRmen’s METeorological Information) can be especially helpful for

OverviewPlanFileFlySubscriptionsAppendicesIndex

pilots of light aircraft that have limited ﬂight capability or instrumentation. An AIRMET must affect or be forecasted to affect an area of at least 3,000 square miles at any one time. AIRMETs are routinely issued for six-hour periods and are amended as necessary due to changing weather conditions. AIRMETs are displayed as green (IFR/mountain obscuration), orange (turbulence), or blue (icing) shaded areas on the map display.

SIGMETS

A SIGMET (SIGniﬁcant METeorological Information) advises of weather that is potentially hazardous to all aircraft. In the contiguous United States, the following items are covered: severe icing, severe or extreme turbulence, volcanic ash (red), dust storms, and sandstorms that lower visibility to less than three statute miles.

A Convective SIGMET is issued for thunderstorms, isolated severe thunderstorms, embedded thunderstorms, hail at the surface, and tornadoes.

A SIGMET is widespread and must affect or be forecast to affect an area of at least 3,000 square miles.

Viewing AIRMETS and SIGMETS:

From any page, tap Home > Map.

Tap and select AIRMET/SIGMET from the Layer Select menu.

Tap and select the desired type of AIRMET/SIGMET (i.e., Convective, Icing, IFR/MTN, or Turbulence) to display.

Tap within the shaded area for AIRMET/SIGMET details.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

AIRMET/SIGMET Layer

TEMPORARY FLIGHT RESTRICTIONS (TFRS)

NOTE:

Do not rely solely upon data link services to provide Temporary Flight Restriction TFR information. Always conﬁrm TFR information through ofﬁcial sources such as Flight Service Stations or Air Trafﬁc Control.

Plan

Overview Plan File Fly Subscriptions Appendices Index

Temporary Flight Restrictions or TFRs temporarily restrict all aircraft from entering the selected airspace unless a waiver has been issued. TFRs are routinely issued for occurrences such as sporting events, dignitary visits, military depots and forest ﬁres. TFRs are represented as an area outlined in dark blue (special events), green (forest ﬁres), or Red (dignitary visits).

Viewing Temporary Flight Restrictions (TFR):

From any page, tap Home > Map.

Tap and select TFR from the Layer Select menu.

Tap within the outlined area for TFR details.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

PIREPS

Pilot Weather Reports (PIREPs) provide timely weather information for a particular

OverviewPlanFileFlySubscriptionsAppendicesIndex

route of ﬂight. When signiﬁcant weather conditions are reported or forecast, Air Trafﬁc Control (ATC) facilities are required to solicit PIREPs. A PIREP may contain unforecast adverse weather conditions, such as low in-ﬂight visibility, icing conditions, wind shear, and turbulence. PIREPs are issued as either Routine (UA) or Urgent (UUA).

Viewing PIREPs:

From any page, tap Home > Map.

Tap and select PIREPs from the Layer Select menu.

Tap the PIREP icon for details.

PIREP Layer

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

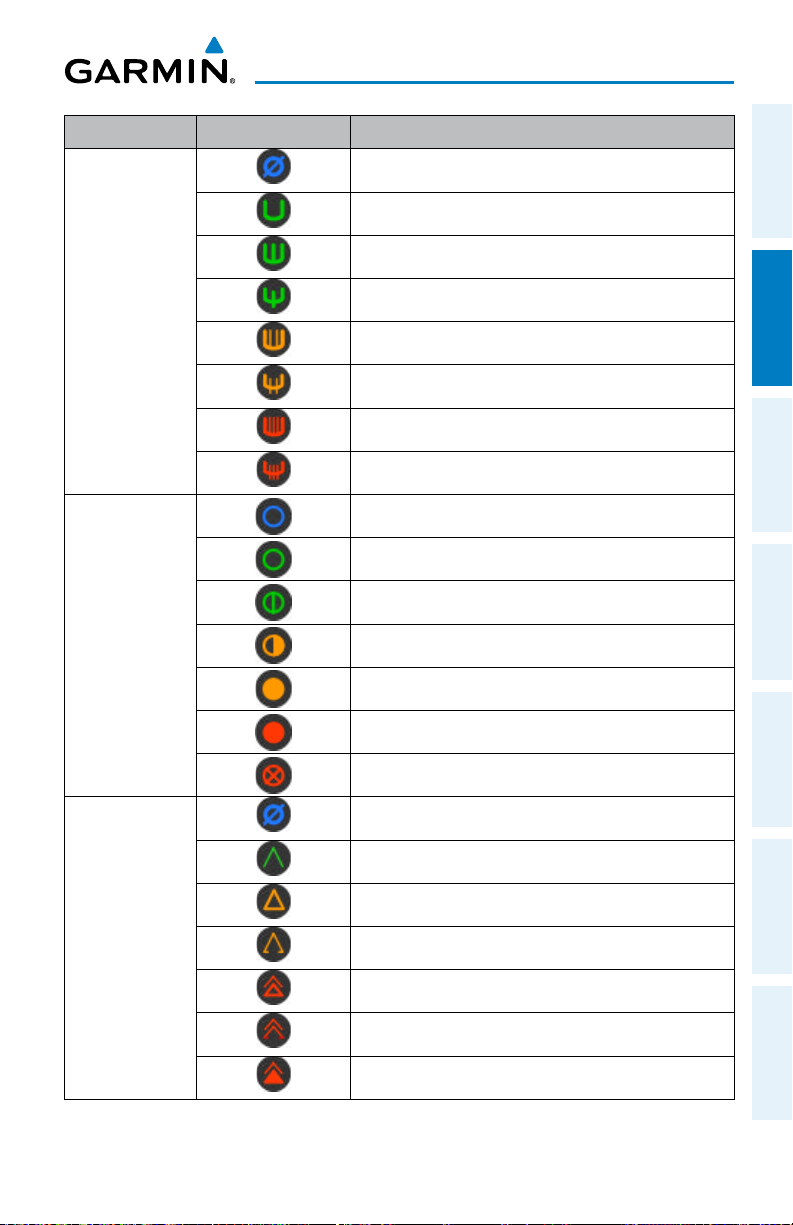

PIREP TYPE Icons Description

Negligible Icing

Trace Icing

Trace to Light Icing

Light Icing

Icing

Light to Moderate Icing

Moderate Icing

Moderate to Severe Icing

Severe Icing

Unknown Sky Condition

Sky Clear

Few Clouds

Sky

Conditions

Scattered Clouds

Broken Clouds

Overview Plan File Fly Subscriptions Appendices Index

Turbulence

190-01532-00 Rev. G

Overcast

IMC

Turbulence Negligible or Smooth

Light Turbulence

Light to Moderate Turbulence

Moderate Turbulence

Moderate to Severe Turbulence

Severe Turbulence

Extreme Turbulence

PIREP Icons

Garmin Pilot for Android User’s Guide

Plan

LIGHTNING

Lightning data shows the approximate location of cloud-to-ground lightning strikes.

A strike icon represents a strike that has occurred within a two-kilometer region. The

OverviewPlanFileFlySubscriptionsAppendicesIndex

exact location of the lightning strike is not displayed.

Viewing Lightning Information:

From any page, tap Home > Map.

Tap and select Lightning from the Layer Select menu.

Tap to animate the Lightning loop. Each frame of the Lightning loop is time stamped. The time stamp is just right of the play button. Lightning information is available in one minute increments for the previous 45 minutes.

WINDS ALOFT

Winds Aloft data shows the forecasted wind speed and direction at the surface and at selected altitudes. Altitudes can be displayed in 3,000-foot increments up to 42,000 feet MSL.

Winds Aloft are displayed using wind barbs. The wind barbs indicate wind speed and direction. The wind speed is depicted using ﬂags at the end of the wind barb. A short wind ﬂag is 5 knots, a long wind ﬂag is 10 knots, and a ﬁlled triangle is 50 knots. Wind barbs are also color coded to indicate wind speed. Wind direction is depicted by the ﬂagged end of the barb. The ﬂagged end indicates the direction from which the wind is coming.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Plan

Icons

Description

White indicates wind speeds of 20 kts or less.

Light blue indicates wind speeds of 21-30 kts.

Light yellow indicates wind speeds of 31-40 kts.

Yellow indicates wind speeds of 41-50 kts.

Orange indicates wind speeds of 51-80 kts.

Red indicates wind speeds of 81 kts or greater.

Winds Aloft Barbs

Viewing Winds Aloft Information:

From any page, tap Home > Map.

Tap and select Winds Aloft from the Map Overlay menu.

Drag the horizontal slider to the right to view forecast winds aloft.

Overview Plan File Fly Subscriptions Appendices Index

Drag the slider up to the desired altitude. Altitudes are displayed in 3,000foot increments up to 42,000 feet MSL.

Or:

Tap any wind barb to view a winds aloft table. Tap the time to view

current/forecasted winds aloft.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Plan

METARS AND TAFS

METAR (METeorological Aerodrome Report) is an international code used for

OverviewPlanFileFlySubscriptionsAppendicesIndex

reporting weather observations. METARs are updated hourly or as needed. METARs typically contain information about the temperature, dew point, wind, precipitation, cloud cover, cloud heights, visibility, and barometric pressure. They can also contain information on precipitation amounts, lightning, and other critical data.

TAF (Terminal Area Forecast) is the standard format for 24-hour weather forecasts. TAFs may contain some of the same code as METAR data. It typically forecasts signiﬁcant weather changes, temporary changes, probable changes, and expected changes in weather conditions.

METAR and TAF data are displayed as raw and/or decoded text.

Viewing METAR and TAF Information:

From any page, tap Home > Airport Info.

Select the Weather Tab to view METAR, TAF, and Winds Aloft for the selected airport.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

File

FILE

Overview Plan File Fly Subscriptions Appendices Index

With Garmin Pilot, users can easily enter a ﬂight plan and interactively edit it on the map. Pre-loaded forms makes it quick to save and reuse data for frequently ﬂown routes. And when the ﬂight plan is ready, Garmin Pilot make it simple to ﬁle, cancel or close the ﬂight plan via DTC DUAT or CSC DUATS.

TRIP PLANNING

NOTE:

A data connection (i.e., Wi-Fi or cellular) is required to receive preﬂight

weather brieﬁngs, ﬁle, amend, cancel or close ﬂight plans from Garmin Pilot.

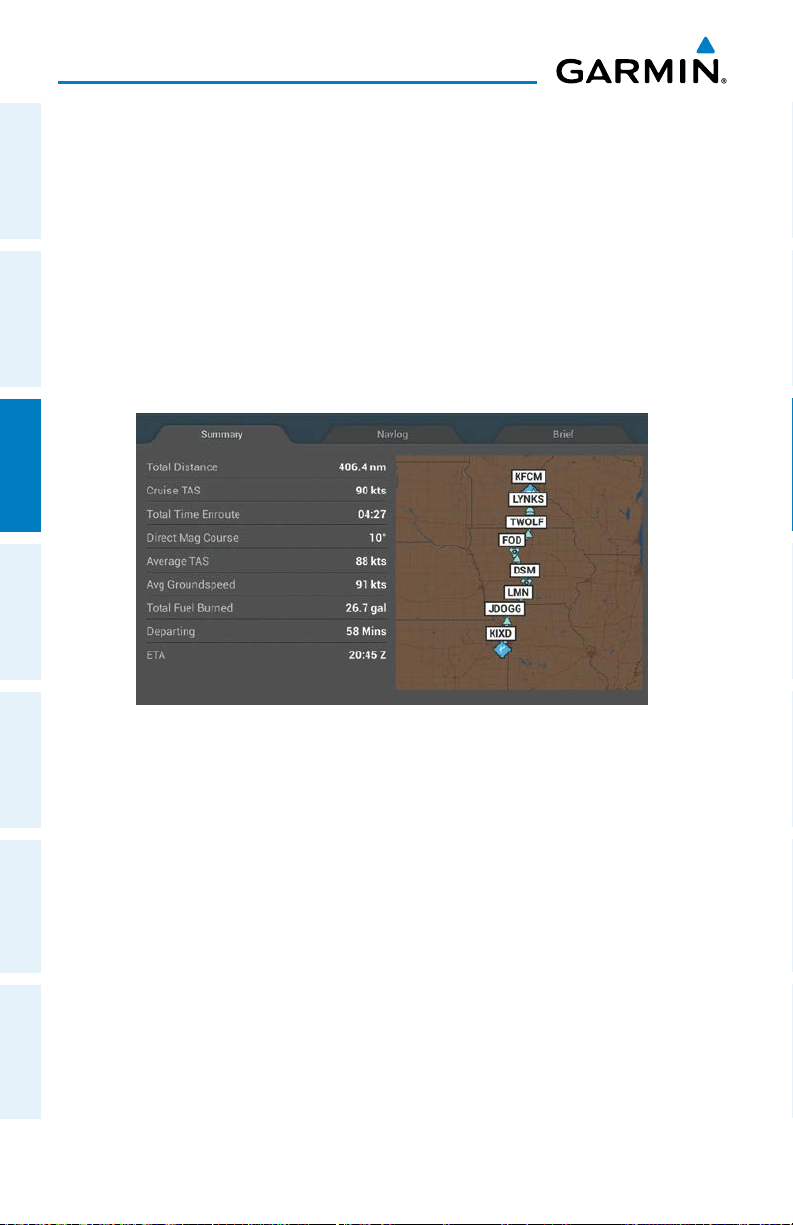

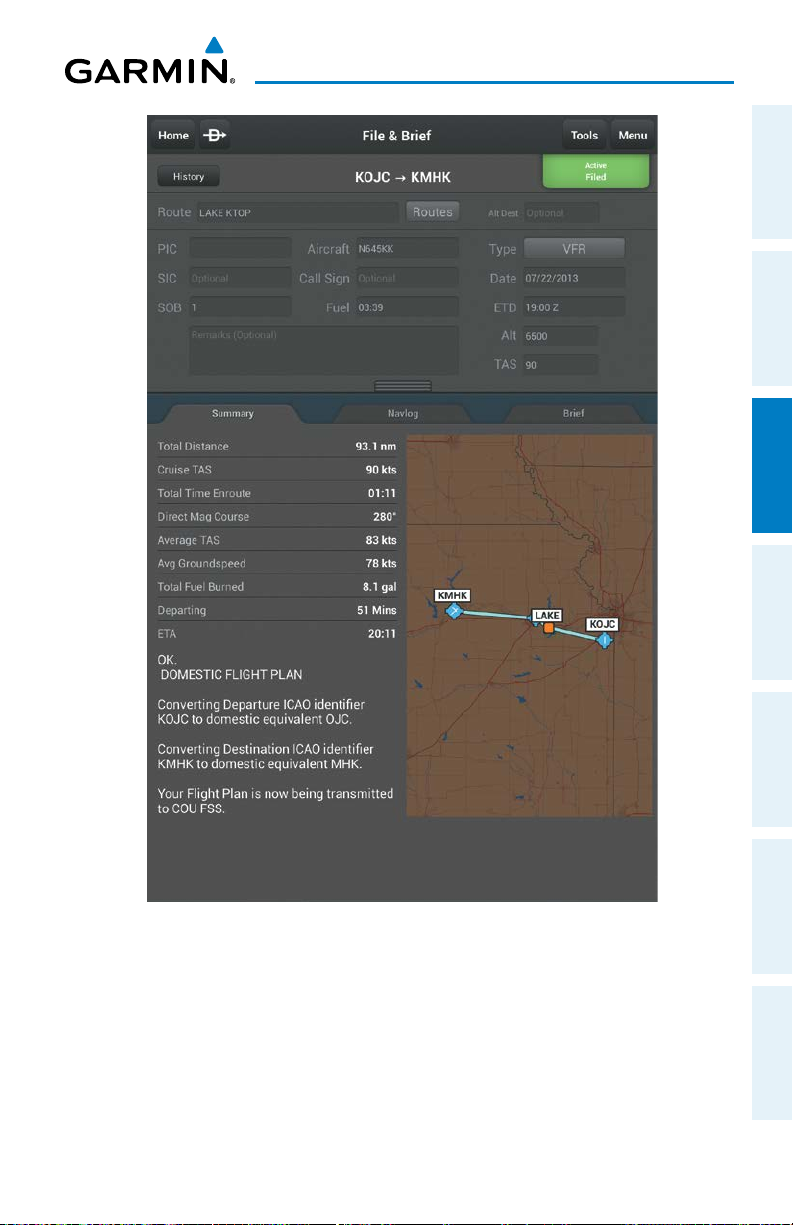

The Trip Planning Page manages all of the trip planning details for each trip. When a new trip is created and activated on the Trip Planning Page it becomes the active ﬂight plan. Flight plans created on the Flight Plan Page do not become the active trip plan. The Flight Plan must be imported to become the active trip. Trips created on the Trip Planning Page will default to a direct-to route from departure to destination. Add additional waypoints in the route ﬁeld by entering ﬁxes, Nav Aids, airway, departures, arrivals or airports. For Long or complex routes use the Flight Plan page to create the ﬂight plan and then import.

Complete the trip plan by entering pilot information, aircraft information, departure/ arrival times, altitude, airspeed, etc.. Some of the data will be auto-ﬁlled based on data from your Garmin Pilot account. Once all mandatory ﬁelds have been completed, Garmin Pilot creates a trip summary, and navlog. If Garmin Pilot has been linked to a DUATS service provider, Garmin Pilot will retrieve a DUATS Standard Weather Brieﬁng for the route of ﬂight for the Estimate Time of Departure (ETD). Since Garmin Pilot is connected to a DUATS account, ﬂight plans can also be ﬁled, amended, canceled or closed within Garmin Pilot.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

File

Trips can be cloned and/or deleted on the Trip Planning Page. Cloning a trip copies the current trip. Any changes made after the clone is created are not copied. The selected trip can not be deleted. Cloned trips are saved in the Trips List. All trip data

OverviewPlanFileFlySubscriptionsAppendicesIndex

is cloned including pilot information, aircraft information, route of ﬂight and all other associated data. Trips that have been cloned are available for use at a future date. Activate a cloned trip, change the date and all applicable data, refresh the brieﬁng, and the trip is ready to be ﬁled.

PREPARING TO FILE

NOTE:

Prior to ﬁling the ﬂight plan, ensure that all of the information entered on the

Trip Planning Page is correct including the route of ﬂight.

Garmin Pilot provides a quick and easy method to ﬁle, close or cancel ﬂight plans. When Garmin Pilot is connected to a DUATS account, route of ﬂight, pilot information, aircraft information, type of ﬂight plan (IFR/VFR), number of persons onboard, fuel onboard, date, estimated time of departure (ETD), altitude, airspeed, and any optional data including alternate, and remarks are transmitted to DUATS The ETD must be at least 30 minutes in the future or the ﬂight plan will not be transmitted. To ﬁle a ﬂight plan with a departure time less than 30 minutes in the future you must call the FSS.

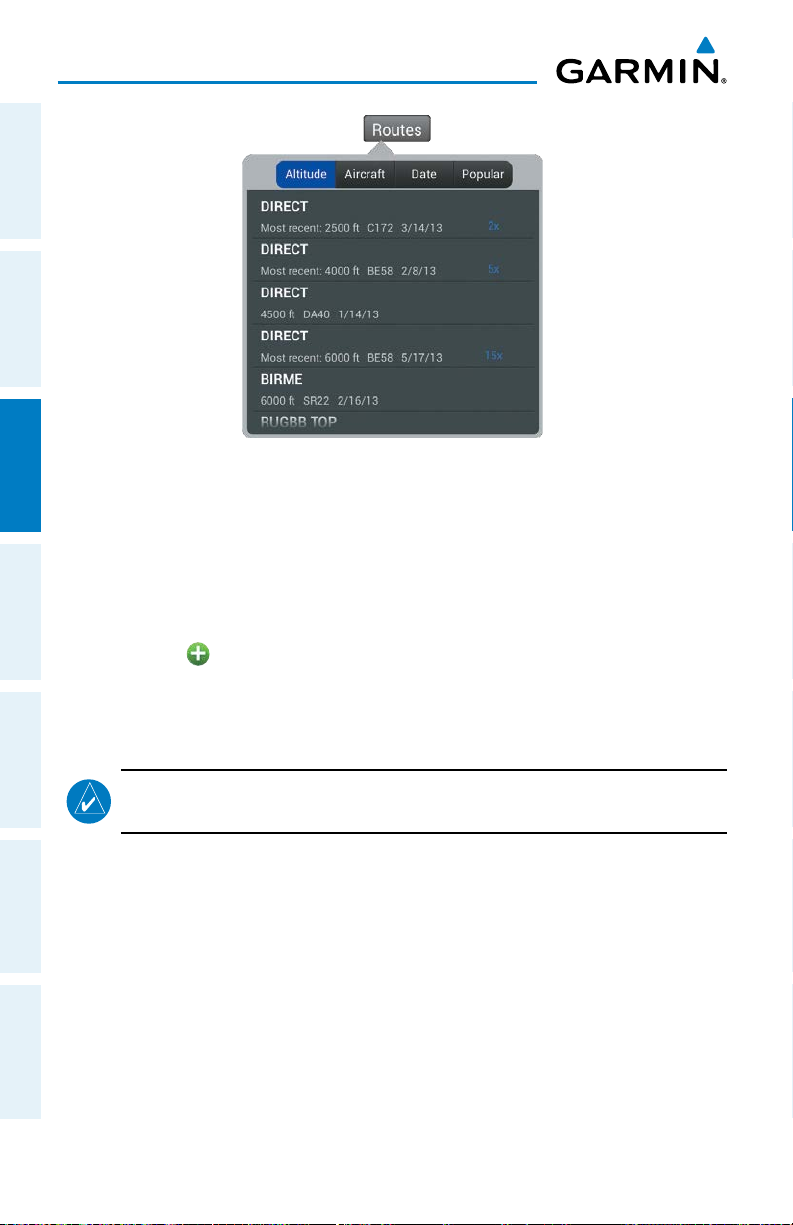

Creating an Active Flight Plan:

From any page, tap Home > Airport Info.

Tap within the route ﬁeld to activate the cursor.

Use the keyboard to insert waypoints. Separate each waypoint with a space.

Or:

Tap the

Use the keyboard to input the waypoint identiﬁer.

Tap the

Or:

Enter Lat/Lon information.

Or:

Enter Radial/Distance waypoint in one of the following formats:

Or:

Add Waypoint button.

Add Waypoint button to add additional waypoints.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Use one of the above methods to enter a departure point.

On the Map Page tap Menu > Graphical Route Edit.

Long press on the map area to display the rubber-band. Place the rubberband on or near the desired location and then release the rubber-band. A list of nearby waypoints is displayed.

Select the desired waypoint from the list, or create a User Waypoint.

Repeat steps 3 and 4 to add additional waypoints.

Tap Save to save or Cancel to cancel.

PLANNING A TRIP

CREATING A NEW TRIP:

From any page, tap Home > Trip Planning.

Tap Menu > New.

Enter Departure, Routing, and Destination.

Or:

Enter Departure, Destination and Choose a Preferred ATC Route after the

trip is created.

Or:

Tap Import Flight Plan to import the Flight Plan. Importing the Flight Plan will ﬁll the Departure, Routing, and Destination ﬁelds. Complete the remaining ﬁelds are necessary.

File

Overview Plan File Fly Subscriptions Appendices Index

Tap Create Trip.

Choose a Preferred ATC Route:

Tap Routes to view Preferred ATC Routes.

Tap Altitude, Aircraft, Date, or Popular to sort the list.

Tap the desired route from the list, to add the route to the trip.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

File

OverviewPlanFileFlySubscriptionsAppendicesIndex

Entering Pilot Information:

Tap the Pilot ﬁeld.

Enter pilot's Name, Telephone, Street, City, State and Zipcode.

Or:

Tap Add Pilot....

Enter the Required Contact Information by touching each ﬁeld. A keyboard will appear to enable typing in each selected ﬁeld.

Enter the optional DTC or CSC DUATS Credentials.

Preferred ATC Routes

NOTE:

Garmin Pilot must be connected to a DUAT account in order to receive

brieﬁngs, or ﬁle ﬂight plans.

Tap Save.

Tap the desired Pilot from the list.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

File

Entering Aircraft Information:

Tap the Aircraft ﬁeld.

Select the desired aircraft from the list.

Or:

Tap Add Aircraft....

Enter the Required Aircraft Information by touching each ﬁeld and using the keyboard.

Enter optional performance data.

NOTE:

parameters.

Performance data is used to create Navlog and to calculate trip

Tap Save. Tap the desired Aircraft from the list.

Enter type of Flight Plan:

Tap the Type Button and select IFR or VFR from the drop down menu.

Enter Date, ETD, Altitude, and Airspeed:

Tap the applicable ﬁeld and enter the desired value(s). The Airspeed will be populated with the Cruise TAS (kts) entered for the aircraft.

Overview Plan File Fly Subscriptions Appendices Index

Enter Souls Onboard (SOB):

Tap the Souls on Board (SOB) ﬁeld to enter the number of occupants.

Enter Fuel:

Tap the Fuel ﬁeld to enter the number of hours:minutes of fuel onboard. The Fuel ﬁeld is automatically populated with the Default Fuel/Cruise Burn Rate, but should be adjusted to reﬂect the actual fuel onboard the aircraft.

Enter Optional Data (SIC, Call Sign, Alternate and Remarks):

Tap the applicable ﬁeld and enter the desired information.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

File

TRIP SUMMARY

The Flight Summary displays the following information: Total Distance, True Airspeed,

OverviewPlanFileFlySubscriptionsAppendicesIndex

Total Time En Route, Direct True Course, Average Groundspeed, and Total Fuel Burned. Values are based on currently reported weather conditions and the user provided aircraft performance data.

Viewing the Trip Summary:

From any page, tap Home > Trip Planning.

Tap Summary, to view the Trip Summary.

Trip Summary

NAVLOG

Garmin Pilot generates a navigation log using the Active Flight Plan waypoints, user-

provided Trip Plan information, user-provided aircraft performance data, and DUAT

-sourced weather data. The navlog provides navigation information for each leg of the Active Flight Plan. The column values are user selectable, tap each column header to cycle through the available units, or tap a column header to change the column group.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

File

Navlog Column Options:

• Crosswind

• Distance End (Dist End)

• Distance Leg (Dist Leg)

• Distance Flown (Dist Leg)

• Distance Remaining (Dist Rem)

• ETA

• ETE Leg

• ETE Flown

• ETE Remaining (ETE Rem)

• Fuel Burned

• Fuel Leg

• Fuel Remaining (Fuel Rem)

• Ground Speed (GS (kts))

• Headwind (kt)

• Magnetic Course (Mag Crs)

• Magnetic Heading (Mag Hdg)

• Temperature (Temp (C°))

• True Air Speed (TAS (kts))

• True Course (True Crs)

• True Heading (True Hdg)

• Wind (kt)

• Wind Correction

Viewing the Navlog:

From any page, touch Home > Trip Planning.

Tap Navlog, to view the Garmin Pilot generated Navlog.

Overview Plan File Fly Subscriptions Appendices Index

Changing Navlog Column Values:

From any page, touch Home > Trip Planning.

Tap a column header to view the column header options menu.

Tap the desired value.

Expanding Flight Plan Legs:

From any page, touch Home > Trip Planning.

Tap Navlog.

Tap for ﬂight plan legs containing a Departure, Arrival, or Airway to expand the leg and view all waypoints for that leg. Tap again to

collapse the leg.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

File

OverviewPlanFileFlySubscriptionsAppendicesIndex

Navlog Column Headers

Flight

Plan

Leg

Expanded

Flight Plan Leg (Arrival)

Cloning a Trip:

From any page, touch Home > Trip Planning.

Tap Menu > Clone.

Viewing a Cloned Trip:

From any page, touch Home > Trip Planning.

Tap History to view the list of cloned trips

Tap Date, Route, or Aircraft to organize the Trips List by date created, route of ﬂight, or aircraft used.

Navlog

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

File

Activating a Cloned Trip:

From any page, touch Home > Trip Planning.

Tap History to view the list of cloned trips

Tap Date, Route, or Aircraft to organize the Trips List by date created, route of ﬂight, or aircraft.

Tap the desired trip from the Trips List.

Tap the Date Field to change the date to the current date. Edit other desired Trip Plan Fields.

Tap Menu > Activate to activate the Trip.

Or:

Tap Trip Not Active Touch To File > File to activate and ﬁle the Trip.

Deleting Trips:

From any page, touch Home > Trip Planning.

Tap History.

Tap Delete > > Done to delete the trip.

BRIEF

When connected to a DUATs account, Garmin Pilot will retrieve a preﬂight weather brieﬁng based on the parameters of the Active Flight Plan and Trip Plan. The Brief Tab contains a standard weather brieﬁng for the route of ﬂight including; Weather Synopsis, Severe Weather, SIGMETs, AIRMETs, Center WX Advisories, METARs, PIREPs, Radar Summaries, Terminal Forecasts, Winds Aloft, TFRs, and NOTAMs.

Overview Plan File Fly Subscriptions Appendices Index

Accessing Preﬂight Weather Brieﬁng:

From any page, touch Home > Trip Planning.

Tap Brief, to view the Standard Weather Brieﬁng for the route of ﬂight.

Tap Refresh if necessary to update the weather information.

Tap to expand individual ﬁelds or Expand All.

Touch to collapse any of the expanded ﬁelds or Collapse All.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

File

OverviewPlanFileFlySubscriptionsAppendicesIndex

Date and

Time of

Brief

Refresh

Brief

Button

Brief

Field

Expand All

Collapse All

Expand Field

Brieﬁng Tab

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

File

FILE FLIGHT PLAN

NOTE:

A data connection (i.e., Wi-Fi or cellular) is required to receive preﬂight

weather brieﬁngs and to ﬁle ﬂight plans.

Overview Plan File Fly Subscriptions Appendices Index

Once all required information is entered and after reviewing the weather brieﬁng and supplemental weather information, ﬁle the ﬂight plan. A notiﬁcation appears on the Summary Tab stating the status of the ﬂight plan. The notiﬁcation on the Summary Tab gives the time the ﬂight plan will be transmitted to the appropriate FSS. A conﬁrmation e-mail is also sent giving the time the ﬂight plan will be transmitted to the appropriate FSS. If the ﬂight plan was not successfully transmitted to DUATS, a notiﬁcation window will provide the reason it was not transmitted.

Filing:

From any page, touch Home > Trip Planning.

Tap Active Trip Change Date to File.

Tap File Plan to ﬁle the Trip. The trip Status Ribbon turns green and the Trip Status on the Summary Tab displays OK. DOMESTIC FLIGHT PLAN.

Your Flight Plan will be transmitted to the XXX FSS XX hours and XX minutes from now for a proposed departure at XXXX on XX/ XX/XXXX.

Amending a Filed Flight Plan:

From any page, touch Home > Trip Planning.

Tap Active Trip Filed.

Tap Amend Plan.

Make the desired changes on the Trip Planning Page.

Tap File Amendment or Cancel Amendment to cancel changes and use original ﬂight plan.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

OverviewPlanFileFlySubscriptionsAppendicesIndex

File

Example Conﬁrmation E-mail

Canceling a Filed Flight Plan:

From any page, touch Home > Trip Planning.

Tap Active Trip Filed.

Tap Cancel Plan.

The Trip Status displays OK. Flight Plan Cancelled on

the Summary Tab.

Closing a Filed Flight Plan:

From any page, touch Home > Trip Planning.

Tap Active Trip Filed.

Tap Close Plan. The

Summary Tab.

Garmin Pilot for Android User’s Guide

trip status displays OK. Flight Plan Closed on the

190-01532-00 Rev. G

File

Overview Plan File Fly Subscriptions Appendices Index

190-01532-00 Rev. G

Trip Planning Page

Garmin Pilot for Android User’s Guide

OverviewPlanFileFlySubscriptionsAppendicesIndex

File

Blank Page

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Fly

FLY

Overview Plan File Fly Subscriptions Appendices Index

Garmin Pilot provides full en-route navigation capabilities on its moving map. The ability to view navigation data such as ETE, ETA, crosstrack error, and distance information. Long press any location on the map and the Radial Menu provides quick and easy access to navigation information, including airports, navaids, and METARs. The Radial Menu also provides a ready means of navigating direct-to, creating user waypoints or graphically editing the route of ﬂight. After takeoff, pilots can continue to view updated weather information via a GDL 39 / GDL 39 3D (sold separately) or by connecting to SiriusXM Weather through the Baron Mobile Link™ paired with a satellite weather receiver (sold separately, subscription required).

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Fly

MAP PAGE

The Map Page is comprised of a highly conﬁgurable Map Pane which can be displayed

OverviewPlanFileFlySubscriptionsAppendicesIndex

in either full or split-screen. The Split-screen option allows the Map Pane to be divided between the Map Pane and either Widgets, Panel, Charts, or SafeTaxi displays.

The Split-screen feature is available in either portrait or landscape screen orientation. In portrait orientation, the screen is split horizontally with the Map Pane always appearing in the upper portion of the screen. In landscape orientation, the screen is split vertically with the Map Pane always appearing to the left.

Map

Zoom

In/Out

Orientation

Center

on Route

Center on

Aircraft

Map

Settings

Map Pane

Garmin Pilot for Android User’s Guide

SplitScreen

190-01532-00 Rev. G

Fly

MAP PANE CONTROLS

The Map Pane has a number of buttons that control the Base Map, Map Overlays,

and center map and split-screen. The table below shows the Map Pane Controls.

Control Icon Description

Map/Chart Selection/Settings, Map Overlay

Map Settings

Center on

Aircraft

Center on

Route

Zoom In

Zoom Out

Split-Screen

Selection, Overlay Opacity Settings, and General

Map Settings

Centers the Map Pane on the current

location.

Centers the entire route in Map Pane.

Increases magniﬁcation of the map

Decreases magniﬁcation of the map

Selects full screen map or partial map with

Widgets, Panel, Charts, and SafeTaxi.

Overview Plan File Fly Subscriptions Appendices Index

Map

Orientation

190-01532-00 Rev. G

Toggles map orientation from north up to

track up. The Icon is blue when track up is

Map Pane Controls

Garmin Pilot for Android User’s Guide

active.

Fly

MAP SETTINGS

The Map Settings button shown in the table above and located on the lower left

OverviewPlanFileFlySubscriptionsAppendicesIndex

corner of the Map Pane opens the Map Settings Menu. The Map Settings Menu contains ﬁve tabs titled Map / Charts, Overlays, Opacities, Ownship / Route, and General. Each tab provides access to controls for conﬁguring the various features of the Map Pane display.

MAP / CHARTS SELECTION AND SETTINGS

There are three maps and four charts available by touching the Map Settings button in the lower left corner of the Map Pane and selecting from the Map/Chart Menu. The three available map selections are Roads/Borders, VFR, and IFR. Many of the symbols and other map features including victor airways shown on the VFR and IFR maps may be added directly to a ﬂight plan using the graphical ﬂight plan editing feature.

Map

Setup

Map/Chart Menu

The following rasterized charts are available for viewing in the map pane: Sectional TAC, WAC, IFR Low, and IFR High. These charts are high-resolution color images that resemble the paper version of the National Aeronautical Navigation Products (AeroNav) published charts.

Each of the Maps under the Maps column have an adjacent Map Setup button, which provides access to the Map Setup menu. The Map Setup menu consists of ﬁve tabs labeled General, Airports, Nav Aids, Airspaces, and Cities. Under each tab, there are a number of slider controls enabling the map ranges at which the related map features become visible on the map as well as buttons for toggling the individual features off or selecting the size of the label shown on the map: small, medium, or large.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Map Setup Menu

Selecting a Map or Chart:

Touch > Map/Chart.

Touch the radio button or Map/Chart title to select a Map/Chart.

Map Panning:

From any page, tap Home > Map.

Tap

and drag within the Map Pane to pan the map to the desired area.

Fly

Overview Plan File Fly Subscriptions Appendices Index

3) Tap to center the Map Pane over the route of ﬂight

4) Tap to center the Map Pane over the current location.

Choosing the map color:

From any page, tap Home > Map.

Touch > Map/Chart.

3) Select one of the three available maps under the Maps column.

4) Touch the Map Setup button.

5) Touch one of the buttons labeled White, Green, or Brown.

190-01532-00 Rev. G

Garmin Pilot for Android User’s Guide

Fly

OverviewPlanFileFlySubscriptionsAppendicesIndex

Map Setup Airports Menu

Setting Visibility Range and Label Size for Airports

From the Map Setup touch the Airports Tab.

Use the slider controls to select the map range at which selected airports appear. At map ranges greater than the selected ﬁgure, the airport symbol will not appear on the map.

Scroll to bring the Label Size selections into view.

Touch the buttons to the right of the listed items that correspond to the desired label sizes for each.

Touch the Done button located in the upper right corner of the Map Setup Menu.

Garmin Pilot for Android User’s Guide

190-01532-00 Rev. G

Garmin Pilot User's Guide
