Garmin Non-Airframe, Part 23 AML STC Cockpit Reference Guide

G500/600

Cockpit Reference Guide

This manual reﬂects the operation of system software version 7.00, or later. Some differences in operation may be observed when comparing the information in this manual to later software versions.

Garmin International, Inc., 1200 East 151st Street, Olathe, KS 66062, U.S.A. Tel: 913.397.8200 Fax: 913.397.8282

Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A. Tel: 503.391.3411 Fax 503.364.2138

Garmin (Europe) Ltd., Liberty House, Bulls Copse Road, Hounsdown Business Park, Southampton, SO40 9RB, U.K. Tel. +44 (0) 870 850 1243 Fax +44 (0) 238 052 4004

Garmin Corporation, No. 68, Jangshu 2nd Road, Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Tel: 886.02.2642.9199 Fax: 886.02.2642.9099

www.garmin.com At Garmin, we value your opinion. For comments about this guide, please e-mail: Techpubs.Salem@garmin.com. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express written permission of Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Garmin®, GDU™ 620 are trademarks of Garmin Ltd. or its subsidiaries. FliteCharts®, and SafeTaxi® are registered trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

NavData® is a registered trademark of Jeppesen, Inc.; SkyWatch® is a registered trademark of L-3 Avionics Systems; and SiriusXM® is a registered trademark of Sirius XM Radio, Inc.; Iridium® is a registered trademark of Iridium Communications Inc.; Canadian radar data provided by Environment Canada; United States radar data provided by NOAA; European radar data collected and provided by Meteo France.

AOPA Membership Publications Inc., and its related organizations (hereinafter collectively “AOPA”) expressly disclaim all warranties, with respect to the AOPA information included in this data, express or implied, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose. The information is provided “as is” and AOPA does not warrant or make any representations regarding its accuracy, reliability, or otherwise. Under no circumstances including negligence, shall AOPA be liable for any incidental, special or consequential damages that result from the use or inability to use the software or related documentation, even if AOPA or an AOPA authorized representative has been advised of the possibility of such damages. User agrees not to sue AOPA and, to the maximum extent allowed by law, to release and hold harmless AOPA from any causes of action, claims or losses related to any actual or alleged inaccuracies in the information. Some jurisdictions do not allow the limitation or exclusion of implied warranties or liability for incidental or consequential damages so the above limitations or exclusions may not apply to you.

April 2015 Printed in the U.S.A.

AVIATION LIMITED WARRANTY

All Garmin avionics products are warranted to be free from defects in materials or workmanship for: two years from the date of purchase for new Remote-Mount and Panel-Mount products; one year from the date of purchase for new portable products and any purchased newly-overhauled products; six months for newly-overhauled products exchanged through a Garmin Authorized Service Center; and 90 days for factory repaired or newly-overhauled products exchanged at Garmin in lieu of repair. Within the applicable period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not apply to: (i) cosmetic damage, such as scratches, nicks and dents; (ii) consumable parts, such as batteries, unless product damage has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, ﬂood, ﬁre, or other acts of nature or external causes; (iv) damage caused by service performed by anyone who is not an authorized service provider of Garmin; or (v) damage to a product that has been modiﬁed or altered without the written permission of Garmin. In addition, Garmin reserves the right to refuse warranty claims against products or services that are obtained and/or used in contravention of the laws of any country.

THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.

IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Garmin retains the exclusive right to repair or replace (with a new or newly-overhauled replacement product) the product or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

Online Auction Purchases: Products purchased through online auctions are not eligible for warranty coverage. Online auction conﬁrmations are not accepted for warranty veriﬁcation. To obtain warranty service, an original or copy of the sales receipt from the original retailer is required. Garmin will not replace missing components from any package purchased through an online auction.

International Purchases: A separate warranty may be provided by international distributors for devices purchased outside the United States depending on the country. If applicable, this warranty is provided by the local in-country distributor and this distributor provides local service for your device. Distributor warranties are only valid in the area of intended distribution. Devices purchased in the United States or Canada must be returned to the Garmin service center in the United Kingdom, the United States, Canada, or Taiwan for service.

To obtain warranty service, contact your local Garmin Authorized Service Center. For assistance in locating a Service Center near you, visit the Garmin web site at http://www.garmin.com or contact Garmin Customer Service at 866.739.5687.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

WARNINGS, CAUTIONS, AND NOTES

Warnings, Cautions, & Notes

WARNING:

upon the use of the terrain function. The GDU 620 Terrain Proximity feature is NOT intended to be used as a primary reference for terrain avoidance and does not relieve the pilot from the responsibility of being aware of surroundings during ﬂight. The Terrain Proximity feature is only to be used as an aid for terrain avoidance and is not certiﬁed for use in applications requiring a certiﬁed terrain awareness warning system. Terrain data is obtained from third party sources. Garmin is not able to independently verify the accuracy of the terrain data.

WARNING:

in nature and should not be relied upon as the sole source of obstacle and terrain avoidance information. Always refer to current aeronautical charts for appropriate minimum clearance altitudes.

WARNING:

integrity. However, the pilot must recognize that providing monitoring and/ or self-test capability for all conceivable system failures is not practical. Although unlikely, it may be possible for erroneous operation to occur without a fault indication shown by the GDU 620. It is thus the responsibility of the pilot to detect such an occurrence by means of cross-checking with all redundant or correlated information available in the cockpit.

Navigation and terrain separation must NOT be predicated

The displayed minimum safe altitudes (MSAs) are only advisory

The Garmin GDU 620 has a very high degree of functional

WARNINGS, CAUTIONS, AND NOTES

WARNING:

above Mean Sea Level and could vary signiﬁcantly from the altitude displayed by pressure altimeters, such as the output from the GDC 74A/B Air Data Computer, or other pressure altimeters in aircraft. GPS altitude should never be used for vertical navigation. Always use pressure altitude displayed by the GDU 620 PFD or other pressure altimeters in aircraft.

WARNING:

in the G500 or G600 system must be updated regularly in order to ensure that the information remains current. Pilots using an outdated database do so entirely at their own risk.

The altitude calculated by GPS receivers is geometric height

Do not use outdated database information. Databases used

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

WARNINGS, CAUTIONS, AND NOTES

WARNING: Do not use basemap (land and water data) information for primary navigation. Basemap data is intended only to supplement other approved navigation data sources and should be considered as an aid to enhance situational awareness.

WARNING:

Display is provided as an aid in visually acquiring trafﬁc. Pilots must

Trafﬁc information shown on the GDU 620 Multi-Function

maneuver the aircraft based only upon ATC guidance or positive visual acquisition of conﬂicting trafﬁc.

WARNING: Do not use the indicated data link weather product age to determine the age of the weather information shown by the data link weather product. Due to time delays inherent in gathering and processing weather data for data link transmission, the weather information shown by the data link weather product may be signiﬁcantly older than the indicated weather product age.

WARNING: For safety reasons, GDU 620 operational procedures must be learned on the ground.

WARNING: To reduce the risk of unsafe operation, carefully review and understand all aspects of the G500/600 Pilot’s Guide. Thoroughly practice basic operation prior to actual use. During ﬂight operations, carefully compare indications from the G500/600 to all available navigation sources, including the information from other NAVAIDs, visual sightings, charts, etc. For safety purposes, always resolve any discrepancies before continuing navigation.

WARNINGS, CAUTIONS, AND NOTES

WARNING: Exceeding 200 deg/second in pitch or roll may invalidate AHRS attitude provided to the GDU 620. Exceeding 450 KIAS may invalidate ADC information provided to the GDU 620.

WARNING: Because of anomalies in the earth’s magnetic ﬁeld, operating the G500/600 within the following areas could result in loss of reliable attitude and heading indications. North of 70° North latitude and south of 70° South latitude. An area north of 65° North latitude and between longitude 75° West and 120° West. An area north of 70° North latitude and between longitude 85° East and 114° West. An area south of 55° South latitude between longitude 120° East and 165° East.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

iii

WARNINGS, CAUTIONS, AND NOTES

WARNING: Do not use Terrain-SVT information for primary terrain avoidance. Terrain-SVT is intended only to enhance situational awareness.

CAUTION: The United States government operates the Global Positioning System and is solely responsible for its accuracy and maintenance. The GPS system is subject to changes which could affect the accuracy and performance of all GPS equipment. Portions of the Garmin GDU 620 utilize GPS as a precision electronic NAVigation AID (NAVAID). Therefore, as with all NAVAIDs, information presented by the GDU 620 can be misused or misinterpreted and therefore, become unsafe.

CAUTION: The Garmin GDU 620 does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modiﬁcations could void both the warranty and pilot’s authority to operate this device under FAA/FCC regulations.

CAUTION: The GDU 620 PFD and MFD displays use a lens coated with a special anti-reﬂective coating that is very sensitive to skin oils, waxes, and abrasive cleaners. CLEANERS CONTAINING AMMONIA WILL HARM THE ANTI-REFLECTIVE COATING. It is very important to clean the lens using a clean, lint-free cloth and an eyeglass lens cleaner that is speciﬁed as safe for anti-reﬂective coatings.

WARNINGS, CAUTIONS, AND NOTES

NOTE: Do not rely solely upon data link services to provide Temporary Flight Restriction (TFR) information. Always conﬁrm TFR information through ofﬁcial sources such as Flight Service Stations or Air Trafﬁc Control.

NOTE: Interference from GPS repeaters operating inside nearby hangars can cause an intermittent loss of attitude and heading displays while the aircraft is on the ground. Moving the aircraft more than 100 feet away from the source of the interference should alleviate the condition.

NOTE: All visual depictions contained within this document, including screen images of the GDU 620 bezel and displays, are subject to change and may not reﬂect the most current GDU 620 system. Depictions of equipment may differ slightly from the actual equipment.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

WARNINGS, CAUTIONS, AND NOTES

NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Terrain data is not displayed when the aircraft latitude is greater than 75° North or 60° South.

NOTE: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This notice is being provided in accordance with California’s Proposition 65. If you have any questions or would like additional information, please refer to our web site at www.garmin.com/ prop65.

NOTE: Terrain-SVT is standard when the Synthetic Vision Technology™ (SVT) option is installed. The TAWS option will take precedence over TerrainSVT.

NOTE: Do not use SafeTaxi, FliteCharts, or Chartview functions as the basis for ground maneuvering. SafeTaxi, FliteCharts, and Chartview functions have not been qualiﬁed to be used as an airport moving map display (AMMD). SafeTaxi, FliteCharts, and Chartview are intended to improve pilot situational awareness during ground operations and should only be used by the ﬂight crew to orient themselves on the airport surface.

WARNINGS, CAUTIONS, AND NOTES

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

Record of Revisions

Part Number Revision Date Description

190-00601-03 A

6/12/08

6/1/09

Production release Revision reﬂects functionality added with SW version 3.00. Added SVT, TAWS-B, Terrain Proximity, Wind Vectors, Minimums Bug, GAD 43, and Weather Radar information.

10/26/09

Updated subscription information for FliteCharts and ChartView.

11/30/10

Added changes to reﬂect v4.00 and v5.00 software changes.

8/23/11

Added changes to reﬂect v6.00 software changes.

10/23/12

Added changes to reﬂect v6.11 software changes.

4/10/15

Added changes to reﬂect software version 7.00. G500 and G600 CRG’s are combined.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Contents

Warnings, Cautions, & Notes ............................................................................ii

Introduction ...................................................................................................... 1

Primary Flight Display (PFD) ............................................................................. 2

Airspeed Tape ...............................................................................................................................................4

Altitude Tape ................................................................................................................................................6

Barometric Pressure ...................................................................................................................................... 6

Minimums Bug (Barometric or Radar Altimeter) .............................................................................................7

Altitude Bug ................................................................................................................................................. 9

Fast/Slow Indication .....................................................................................................................................9

Wind Vectors .............................................................................................................................................. 10

Vertical Speed (V/S) ....................................................................................................................................10

Vertical Deviation Indicator (VDI) ................................................................................................................11

Temperature Display ...................................................................................................................................11

DME Indication ...........................................................................................................................................12

Clock/Timer ................................................................................................................................................ 12

Attitude Indicator ....................................................................................................................................... 12

Horizontal Situation Indicator (HSI): Aircraft Heading ................................................................................... 13

Adjusting the Course Pointer ......................................................................................................................14

HSI Bearing Pointers ................................................................................................................................... 14

Marker Beacon Annunciations ..................................................................................................................... 16

Miscompare Annunciations ......................................................................................................................... 17

Autopilot (AP) ................................................................................................. 19

GAD 43 Attitude ......................................................................................................................................... 19

Heading ..................................................................................................................................................... 20

Altitude Capture (Optional Upgrade) ........................................................................................................... 20

Autopilot Navigation .................................................................................................................................. 20

GPSS .......................................................................................................................................................... 21

Flight Director Display .................................................................................................................................22

Vertical Speed Control ................................................................................................................................ 22

Autopilot Mode Annunciations .................................................................................................................... 23

Additional Features ........................................................................................ 24

Synthetic Vision Technology™ ..................................................................................................................... 24

Displaying SVT™ Terrain ..............................................................................................................................25

Displaying Heading on the Horizon ............................................................................................................. 25

Displaying Airport Signs .............................................................................................................................. 25

Multi-Function Display (MFD) ......................................................................... 26

Page Navigation - Moving Between Pages ..................................................................................................27

Changing Settings within a Page.................................................................................................................27

Default Map Page ....................................................................................................................................... 27

MFD Soft Key Map ...................................................................................................................................... 28

Map Group ..................................................................................................... 29

Navigation Map 1 and Navigation Map 2 Pages .......................................................................................... 29

Decluttering (DCLTR) the Map Pages ...........................................................................................................30

Split Screen Page (Optional) ........................................................................................................................ 34

Trafﬁc Map Page (Optional) ........................................................................................................................35

Terrain/TAWS-B Page .................................................................................................................................. 41

TABLE OF CONTENTS

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

vii

TABLE OF CONTENTS

Terrain Pop-Up Alerts ..................................................................................................................................43

WX Group ....................................................................................................... 44

XM Weather Map Pages .............................................................................................................................44

Customizing the Weather Map ....................................................................................................................44

Changing Forecast Time .............................................................................................................................. 46

Changing Weather Altitude ......................................................................................................................... 46

Garmin Flight Data Services (GFDS) Map Pages ........................................................................................... 47

FIS-B Weather Map Pages ........................................................................................................................... 49

Customizing the Weather Map ....................................................................................................................49

Weather Radar (Optional) ..............................................................................51

Weather Radar Map Page ...........................................................................................................................51

Airborne Color Weather Radar ....................................................................................................................52

Aux Group ...................................................................................................... 55

External Video Page (Optional) .................................................................................................................... 55

System Setup Page .....................................................................................................................................56

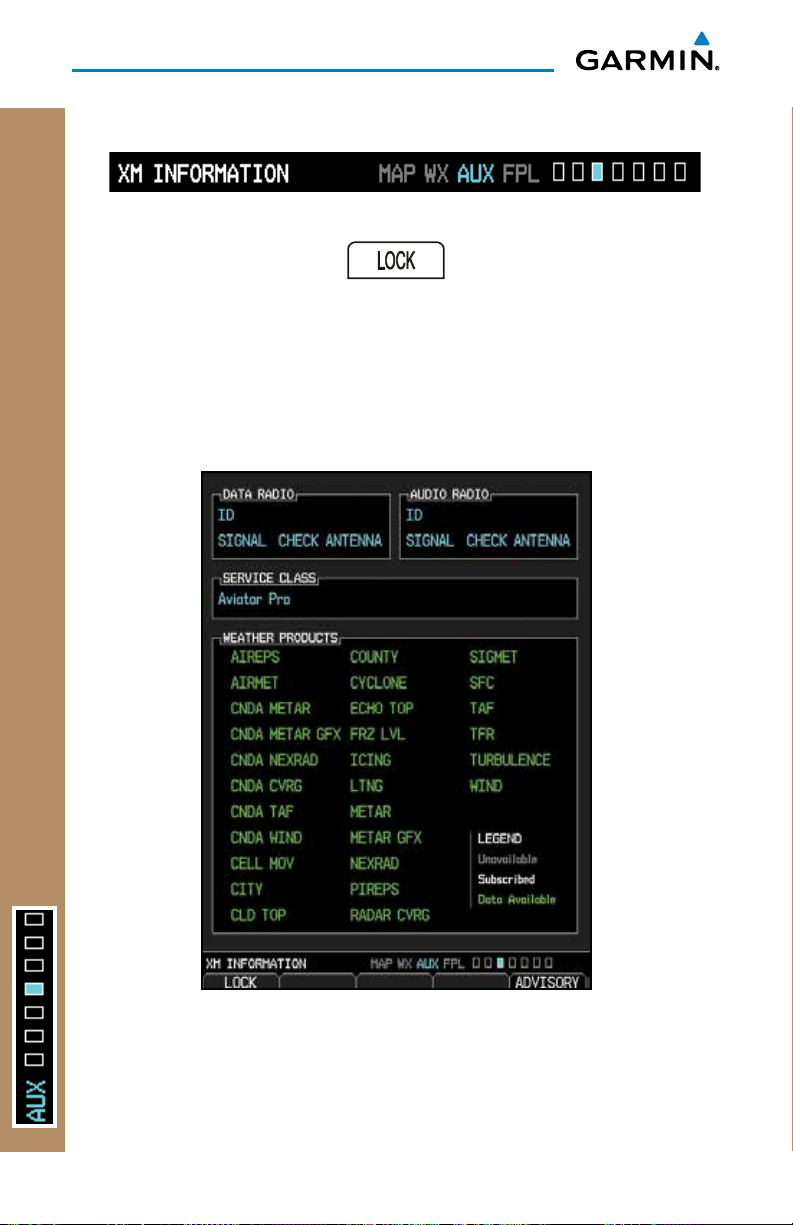

XM® Information Page (Optional) ...............................................................................................................62

XM® Radio Page (Optional) ........................................................................................................................63

Position Reporting Page .............................................................................................................................. 65

Iridium® Phone Page (Optional) ................................................................................................................. 66

System Status Page.....................................................................................................................................68

Flight Plan Group ........................................................................................... 69

Active Flight Plan Page ...............................................................................................................................69

Viewing Your Active Flight Plan ................................................................................................................... 69

Waypoint Information Page.........................................................................................................................70

Charts Page (Optional) ...............................................................................................................................71

Chart Information ....................................................................................................................................... 71

Selecting a Chart ........................................................................................................................................ 71

Selecting Other Charts ................................................................................................................................ 72

Viewing Charts and Panning .......................................................................................................................72

TABLE OF CONTENTS

Viewing Details of ChartView™ Charts .......................................................................................................73

Setting Minimums ......................................................................................................................................73

Changing Day/Night View ........................................................................................................................... 73

Viewing NOTAMs (ChartView Only) .............................................................................................................74

Alerts .............................................................................................................. 75

On Screen Alerts ......................................................................................................................................... 75

TAWS-B Alerts ............................................................................................................................................80

Terrain-SVT™ Alerts .....................................................................................................................................81

Symbols .......................................................................................................... 82

Map Page Symbols .....................................................................................................................................82

SafeTaxi® Symbols ...................................................................................................................................... 83

Trafﬁc Symbols ...........................................................................................................................................83

Terrain Obstacle Symbols ............................................................................................................................85

Map Toolbar Symbols ................................................................................................................................. 86

XM® WX Weather Symbols and Product Age ............................................................................................... 87

Miscellaneous Symbols ............................................................................................................................... 88

viii

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Introduction

This reference guide covers the operation of the GDU 620 as integrated in the G500 and G600 Avionics Display Systems. The G500 and G600 Avionics Display Systems are avionics suites that combine primary ﬂight instrumentation, navigational information, and a moving map all displayed on dual 6.5 inch color screens. The G500 and G600 systems are composed of sub-units or Line Replaceable Units (LRUs). LRUs have a modular design and can be installed directly behind the instrument panel or in a separate avionics bay if desired. This design greatly eases troubleshooting and maintenance of the G500 or G600 system. A failure or problem can be isolated to a particular LRU, which can be replaced quickly and easily. Each LRU has a particular function, or set of functions, that contributes to the system’s operation. For more details on the G500 and G600 systems, refer to the latest revision of the G500/600 Pilot’s Guide, P/N 190-00601-02.

PRIMARY FLIGHT DISPLAY

PFD/MFD

NOTE: In some models or installations, the PFD and MFD and their controls

are switched to the other side.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Primary Flight Display (PFD)

PRIMARY FLIGHT DISPLAY

10 11

Airspeed Tape: Displays Groundspeed (GS), Airspeed Trend, Current Airspeed,

and True Airspeed (TAS). Markings dependent upon installation conﬁguration.

Primary Flight Display (PFD)

19 18

Wind Vector: Displays direction and speed of wind.

Heading Select Key: Press HDG and turn PFD knob to set heading bug.

Course Select Key: Press CRS and turn PFD knob to set the course of the

selected source (VOR1, VOR2, GPS1, or GPS2).

Altitude Select Key: Press ALT and turn PFD knob to set altimeter bug.

V/S (Vertical Speed) Select Key: Press V/S and turn PFD knob to set V/S bug.

Barometer Select Key: Press BARO and turn PFD knob to change barometric

setting.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Outside Air Temperature (SAT, TAT, or ISA): Displays the current outside air

temperature.

NAV Status Window: (NAV Style 2 Shown) Displays which GPS is selected as the Active Source, Active Waypoint (WPT), and Distance to Waypoint (DIS).

NAV Style 1 (Not Shown) displays Active Source, WPT, DIS, Desired Track (DTK), and Current Track (TRK) at top of screen.

PFD Knob: Turn PFD knob to change bug settings, Heading Bug, Course,

Altitude Bug, V/S Bug, and Barometer setting.

Soft Keys: Used to select available options on PFD or MFD.

SD Card Slots, Upper and Lower: The lower slot is used for the supplemental

database card, including aviation database updates. The upper slot may be used to update the internal aviation database.

Soft Key Labels: Located on the bottom screen of the PFD and MFD. Selection is done by pressing the corresponding soft key. Soft keys that are available

have the labels shown as white text on a black background. Soft keys that are selected have the labels shown as black text on a gray background. Soft keys that are unavailable have the labels shown as gray text on a black background.

Horizontal Situation Indicator (HSI): Displays the Selected Heading Box, Current

Heading, Turn Rate Markings, and Heading Trend.

PRIMARY FLIGHT DISPLAY

Vertical Speed Tape: Displays Vertical Speed and the Vertical Speed Bug

Barometric (BARO) Setting: Displays the current setting of barometric pressure.

Radar Altimeter Display: Displays current height above ground from the radar

altimeter. Brown band in altitude tape represents the ground.

Fast/Slow Indicator: See your AFM for details on operation.

Roll Pointer and Slip/Skid Indicator: The slip/skid indicator is the bar beneath the

roll pointer. The indicator moves with the roll pointer and laterally away from the pointer to indicate lateral acceleration (slip/skid).

Altitude Tape: Displays Current Altitude, Altitude Trend, Altitude Bug, Altitude or

Radar Altimeter Minimums Bug, and BARO setting.

Marker Beacon: Marker Beacon Indicator

Clock or Timer window.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Airspeed Tape

The upper left portion of the PFD display provides Groundspeed, Airspeed Trend, Current Airspeed, and True Airspeed information. Current Airspeed is normally shown in white on the black pointer. The Trend Indicator (magenta line) indicates what the airspeed will be in six seconds, if the current acceleration is maintained. If the current acceleration will cause the airspeed to exceed Vne in six seconds, the airspeed is displayed in yellow. If the current airspeed exceeds Vne, the pointer changes to red with white text.

NOTE: Airspeed tape markings are dependent upon conﬁguration at

the time of installation. Reference the AFM or POH or latest revision of the G500/600 Pilot’s Guide for more details.

Groundspeed

Mmo/

Vmo/

Vne

Vno

Vfe

Vs0

PRIMARY FLIGHT DISPLAY

Typical Airspeed Tape Markings

Overspeed

Overspeed Indication

Vs1

Current

Airspeed

Airspeed Tape

Additional Reference Markings

Reference Speeds

Trend Indicator

True Airspeed

White triangle (See AFM/POH)

YSE

Maximum speed with landing gear

MCA

extended.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

V-speeds (Glide, Vr, VX, and VY) default values are set during the installation process, but can be changed and turned on/off from the System Setup page on the ﬁrst page of the Aux page group. When active (on), the V-speeds are displayed at their respective locations to the right of the airspeed scale.

Glide Reference Marker

Vr Reference Marker Vx Reference Marker

Vy Reference Marker

Reference Speeds

The labels for the reference markers may vary as conﬁgured during installation.

Reference Marker

V2 Reference Marker

V1 Reference Marker

Vr Reference Marker

PRIMARY FLIGHT DISPLAY

190-00601-03 Rev G

Alternate Reference Speeds

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Altitude Tape

The upper right portion of the PFD displays the Altitude Bug setting, Current Altitude, Altitude Trend, Altitude Minimums Bug, and the current BARO Setting. The Altitude Trend indicates what the altitude will be in six seconds if the current vertical speed is maintained.

Altitude Bug Setting

Altitude Bug

Altitude Trend

Altitude Minimums Bug

BARO Setting

Altitude Tape

Current Altitude

PRIMARY FLIGHT DISPLAY

Barometric Pressure

The Barometric Pressure (BARO setting) is displayed at the bottom of the altitude tape. To change the BARO setting, press the BARO key and turn the PFD knob to the desired pressure. To select standard pressure (29.92in, 1013 mb), press the PFD knob. To return to the previous setting, press the PFD knob again.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Minimums Bug (Barometric or Radar Altimeter)

For altitude awareness, an Altitude Minimums Bug commonly referred to as the Minimums Bug, can be set. the source of data for minimums alerting can be selected to either barometric altitude or radar altitude (if installed.) When active and within 2500 feet of the selected minimums altitude, the minimums bug setting is displayed to the bottom left of the altimeter. When set, a bug appears parked at the bottom of the altitude tape and moves up the tape as the set altitude comes into view.

• When the aircraft altitude descends to within 2500 feet of the selected

altitude minimums setting, the minimums box appears with the altitude value in cyan text. Once in range, the Minimums Bug appears in cyan on the altitude tape.

A portion of the Minimums Bug will be displayed at the bottom of the altitude tape if the selected altitude minimums bug is off of the tape.

• When the aircraft is within 100 feet of the selected altitude minimums setting, the bug and the altitude text turn white.

• Once the aircraft reaches the selected altitude minimums setting, the bug and the altitude text turn yellow and the aural alert, “Minimums, minimums” is heard one time.

Bug and text

Bug and text are

cyan within 2500 ft

Bug and text are

white within 100 ft

are yellow when altitude reached

PRIMARY FLIGHT DISPLAY

Minimums

Bug

Minimums

Box

Minimums Annunciations using BARO for Source

Alerting is inhibited while the aircraft is on the ground and also, if a value has been set for altitude alerting, until the aircraft reaches 150 feet above the setting for the alert.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

To set the altitude for the Minimums Bug:

1) While viewing the Active Flight Plan page of the FPL Group, press the small

MFD knob to activate the cursor and turn the large MFD knob to the Source selection.

2) Turn the small MFD knob to select Off, BARO, or RAD ALT.

3) Turn the large MFD knob to the ALTITUDE portion of the MINIMUMS section.

4) Turn the small MFD knob to enter the desired altitude. Press the ENT key to

conﬁrm selection.

5) When ﬁnished, press the small MFD knob to exit the MINIMUMS box.

The Minimums Bug can also be set from the Charts page of the FPL.

1) While viewing the Charts page of the FPL Group, press the MENU key and

select “Set Minimums” from the Options menu.

2) Turn the small MFD knob to select Off, BARO, or RAD ALT.

3) Press the ENT key to move to enter altitude. Turn the small MFD knob to

enter the desired altitude. Press the ENT key to conﬁrm selection.

PRIMARY FLIGHT DISPLAY

Radar Altimeter Value

Minimums Annunciations using RAD ALT for Source

G500/600 Cockpit Reference Guide

Brown band represents the ground.

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Altitude Bug

The Altitude Bug is displayed on the Altitude Tape at the selected altitude bug setting. A portion of the Altitude Bug will be displayed at the top or bottom of the altitude tape if the selected altitude bug is off of the tape.

Altitude Bug

Setting

Altitude Bug

PRIMARY FLIGHT DISPLAY

Altitude Bug

The Altitude Bug provides visual and aural altitude alerting. Aural alerting occurs within 200 feet (or 1000 feet, as conﬁgured) of the Altitude Bug setting or when deviating beyond 200 feet of the bug.

Within 1000 ft

Within 200 ft

Deviation of

+/- 200ft

Altitude Bug Indications

Fast/Slow Indication

The Fast/Slow indication from an external system may be optionally displayed on the left side of the PFD. Refer to the Airplane Flight Manual for instructions on using the Fast/Slow indications.

Pointer

Fast/Slow Scale

Fast/Slow Scale and Pointer

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Wind Vectors

The PFD will display a Wind Vector Field to the left of the HSI when conﬁgured by the user. There are four different styles of wind vector displays available. Refer to the System Setup page in the AUX Group section of this guide for instructions on selecting wind vector style. Wind Vectors can only be calculated when the aircraft is in the air.

Wind Vector

Field

Wind Vector Display

Vertical Speed (V/S)

The Vertical Speed Tape and Vertical Speed Bug are displayed below the Altitude Tape. For aircraft with vertical speed operating limitations, red bands showing Vertical Speed Maximum and Minimum ranges will be shown on the left side of the Vertical Speed tape.

Vertical Speed Bug

PRIMARY FLIGHT DISPLAY

Vertical Speed

G500/600 Cockpit Reference Guide

Vertical Speed

Current Vertical Speed

Vertical Speed Bug Setting

Maximum

Vertical Speed

Minimum

Vertical Speed Warning

Indication

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Vertical Deviation Indicator (VDI)

The Vertical Deviation Indicator is displayed for ILS and GPS approaches with vertical guidance. The GPS approach glidepath is shown in magenta (G and indicator), while the ILS approach glideslope is shown in green (G and indicator.)

Vertical Deviation Source

Vertical Deviation Indicator

PRIMARY FLIGHT DISPLAY

GPS Approach

ILS Approach

Temperature Display

The outside air temperature is displayed to the left of the HSI. The air data computer calculates the temperature based on temperature probe and pitot/ static inputs. The units (°C or °F) and temperature reference are selected on the AUX – SYSTEM SETUP page. The temperature reference can be selected to one of the following choices:

•

Static Air Temperature (SAT) – This is the calculated temperature of the stationary (static) outside air. Conceptually, this is the temperature that would be read on a thermometer ﬂoating stationary at the current location.

• Total Air Temperature (TAT) – This is the calculated temperature of the outside air as it moves past the aircraft, including the rise in temperature due to air compression and friction at the current airspeed.

• Difference from International Standard Atmosphere (ISA) – This is the difference between SAT and standard (ISA) temperature at the current altitude. This provides an indication of how much warmer/colder the temperature is from a “standard” atmosphere.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

DME Indication

DME information is displayed in a window in the lower left corner of the PFD.

The distance to the station and the NAV source used are shown.

DME Information

DME Hold Annunciation

Selected DME

Set Hold for Selected DME

DME Indication

Clock/Timer

The Clock/Timer function displays a clock or timer window in the lower left corner of the PFD.

Show/Hide Clock

Show/Hide Timer

Select Timer

Select Clock

Clock and Timer Functions

Start/StopTimer Reset Timer

Attitude Indicator

The standby mechanical Attitude Indicator in your aircraft is either a Ground Pointer or a Roll Pointer conﬁguration. The GDU 620 Attitude Indicator has been conﬁgured in either a Ground Pointer or a Roll Pointer conﬁguration to match the conﬁguration of your aircraft’s standby Attitude Indicator.

In an aircraft with an Attitude Indicator that has a Ground Pointer, the pointer

PRIMARY FLIGHT DISPLAY

above the roll scale shifts with the roll or bank angle of the aircraft to keep the Roll Scale Zero Pointer pointing towards the ground.

Roll Pointer

Attitude Indicator with a Ground Pointer Conﬁguration in a Left Turn

Roll Scale Zero Pointer

Roll Scale

In an aircraft with an Attitude Indicator that has a Sky Pointer, the pointer below the roll scale shifts with the roll or bank angle of the aircraft to keep the

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Roll Pointer pointing towards the sky.

Roll Scale Zero Pointer

Roll Pointer

Roll Scale

Attitude Indicator with a Sky Pointer Conﬁguration in a Left Turn

The Slip/Skid Indicator is the bar beneath the roll pointer. The indicator moves with the roll pointer and moves laterally away from the pointer to indicate lateral acceleration. Slip/skid is indicated by the location of the bar relative to the pointer.

PRIMARY FLIGHT DISPLAY

One bar displacement from the roll pointer is equivalent to one ball displacement on a traditional Slip/Skid Indicator.

Roll Scale Zero

Roll Pointer Slip/Skid Indicator

Slip/Skid Indicator

Horizontal Situation Indicator (HSI): Aircraft Heading

The top of the HSI displays current heading, current GPS track (magenta diamond), heading trend, and turn rate markings. The heading trend indicates the rate of turn. Marking for rate of turn are provided at half-standard (1.5°/sec) and standard (3°/sec) rate.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Current Heading Turn Rate Markings

Heading TrendCurrent GPS Track

HSI Heading Markings

NOTE: If magnetic heading is lost, GPS ground track will be displayed

in place of heading.

Adjusting the Course Pointer

Press the CRS key and turn the PFD knob to select a course for a VOR/ILS or OBS mode course.

HSI Bearing Pointers

NOTE: The Bearing Pointer for navigation source 1 (BRG1) will be an

arrow with a single line. The Bearing Pointer for navigation source 2 (BRG2) will be an arrow with a double line.

To toggle between the available bearing pointers, press the PFD soft key, then the BRG soft key, and then the BRG1 or BRG2 soft keys.

PRIMARY FLIGHT DISPLAY

The BRG1 soft key cycles through modes NAV1 and GPS1. Additionally, ADF is available if an ADF source is installed.

The BRG2 soft key cycles through modes, NAV2 and GPS2 if a second NAV or GPS source is available. Additionally, ADF is available if an ADF source is installed.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

BRG2 Pointer

Bearing Pointers on the HSI

BRG1 Pointer

Selected source for

BRG 2 bearing pointer

Selected source for BRG 1 bearing pointer

PRIMARY FLIGHT DISPLAY

GPS1 GPS2 VOR1 VOR2 LOC1 LOC2

190-00601-03 Rev G

CDI Source GPS Mode

GPS Advisory

LOI

MSG

LOI

PFD HSI Annunciations

G500/600 Cockpit Reference Guide

Suspend

OCN

ENR

TERM

APR

LNAV

LNAV+V

LNAV/VNAV

LPV

LP +V

1.00nm

0.30nm

OBS

SUSP

PRIMARY FLIGHT DISPLAY (PFD)

CDI Source

The CDI Source on the HSI will display which navigation source is selected.

Navigation sources available: GPS1, VOR1, or LOC1.

Navigation sources available: GPS2, VOR2, or LOC2, if a second source is available.

GPS Mode

The GPS Mode annunciation on the HSI indicates the current CDI scaling of the GPS navigator. See the GPS navigator pilot’s guide for a description of each mode.

GPS Advisory

MSG: Displays when a new advisory message is displayed on the GPS navigator.

LOI (Loss of Integrity): Displays when GPS integrity is lost.

Suspend

OBS: Displays when OBS mode is activated.

SUSP: Displays when automatic waypoint sequencing on the interfaced GPS unit is

suspended.

Marker Beacon Annunciations

PRIMARY FLIGHT DISPLAY

Current Beacon

Inner Marker

Middle Marker

Outer Marker

Marker Beacon Location

Marker Beacons

Icon (Standard) Icon (Blink)

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Miscompare Annunciations

For complete description and conditions of miscompare annunciations, see the G500/600 Pilot’s Guide, P/N 190-00601-02.

Pitch and Roll Miscompare

PRIMARY FLIGHT DISPLAY

Pitch Miscompare

Miscompare Annunciations

Roll Miscompare

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

GPS

NAVIGATOR 2

VLOC

NAVIGATOR 2

GPS

NAVIGATOR 1

VLOC

NAVIGATOR 1

Switching Between Navigation Sources

CDI Sources

The Course Deviation Indicator (CDI) can display two sources of navigation: GPS or NAV (VOR or LOC). Press the CDI soft key to toggle between the available CDI modes, (GPS or VOR).

If a second GPS source or NAV source is available, pressing the 1 - 2 soft key will toggle the navigation sources (VOR1 and VOR2, or GPS1 and GPS2).

PRIMARY FLIGHT DISPLAY

NOTE: Verify the navigation source by the indication on the HSI.

NOTE: The selected navigator is the source for all PFD and MFD functions, except for bearing pointers and external TAWS PFD annunciations.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Autopilot (AP)

The G500/600 is able to interface to certain autopilot systems to provide the functions described in this section. Please refer to your particular Airplane Flight Manual and autopilot documentation for speciﬁc information and operating instructions.

GAD 43 Attitude

If the GAD 43 Adapter is providing attitude to the autopilot, test the disconnect mechanism prior to each ﬂight in the following manner:

1) Allow all avionics to complete power up and begin normal operation.

2) Engage the autopilot while on the ground.

PRIMARY FLIGHT DISPLAY

3) Press and release the AP TEST soft key and verify that the autopilot

disconnects normally.

NOTE: If the AP TEST soft key is held for longer than one second, the test will not run.

CAUTION: Do not use the autopilot if the AP TEST key fails to disconnect the autopilot.

Autopilot Disconnect

When the GDU 620 attitude monitors have detected an AHRS malfunction, or the inability to actively monitor the AHRS, a “Check Attitude” annunciation will be displayed on the PFD and the autopilot will automatically disconnect.

NOTE: Only appears with the installation of an optional GAD 43 Adapter.

190-00601-03 Rev G

Check Attitude Annunciation

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Heading

The GDU 620 heading bug may be used in conjunction with the “Heading” mode of supported autopilots. When the autopilot is in “heading” mode and the heading bug is adjusted in the normal manner, and the autopilot will turn to and maintain the selected heading. Refer to the Airplane Flight Manual and autopilot system documentation for instructions on how to use the autopilot heading mode

Selected Heading Box on HSI

Altitude Capture (Optional Upgrade)

Adjust the altitude bug in the normal manner when using the altitude capture interface. Some autopilot installations support arming and disarming of the selected altitude using the indicate when this function is available. The selected altitude may be alternately armed or disarmed by pressing and holding the ALT key on the PFD bezel.

ALT

key on the PFD. The PFD knob window will

PRIMARY FLIGHT DISPLAY

Arm/Disarm Altitude Bug

Autopilot Navigation

The GDU 620 acts as a switching source between the installed navigation sources (e.g. GPS/VLOC 1-2). The navigation source that is displayed on the HSI is sent to the autopilot. Refer to the Airplane Flight Manual and autopilot system documentation for instructions on how to use the autopilot navigation functions.

1) Set your navigation source and HSI to the desired course.

2) Engage your autopilot in navigation mode.

3) Control your autopilot navigation through the navigation source and the HSI.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

GPSS

The GDU 620 will send the GPSS commands from the displayed GPS source to the autopilot. For example, if GPS 1 is displayed on the HSI, the GPSS commands from GPS 1 will be sent to the autopilot. Refer to the Airplane Flight Manual and autopilot system documentation for instructions on how to use the autopilot’s GPSS function.

NOTE: GPSS commands are not sent to the autopilot when a VLOC source is displayed on the HSI.

In installations that use GPSS emulation in combination with the “heading” mode of the autopilot, GPSS mode may be toggled on/off with an external switch or by pressing and holding the HDG key on the PFD. If the installation uses the HDG key on the PFD, the PFD knob window will display the GPSS/HDG mode options.

NOTE: The GDU 620 has the ability to emulate GPSS roll steering for autopilots that do not support GPSS. The GDU 620 emulates GPSS by sending headings to the autopilot that guide turn anticipation.

PRIMARY FLIGHT DISPLAY

GPSS OFF GPSS ON

GPSS Mode Control

When GPSS mode is on, the heading bug on the HSI changes to a hollow outline and a crossed-out heading bug appears in the PFD Knob Mode Indicator, indicating that the autopilot is not coupled to the heading bug. The bug is still controllable and may still be used by the pilot for reference. GPSS is annunciated in the lower left portion of the PFD. The GPSS mode annunciation depends on the location of the NAV STATUS information, as shown in the following ﬁgure.

NAV Status Style 2

190-00601-03 Rev G

NAV Status Style 1

GPSS Mode Annunciations

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Flight Director Display

Flight director commands are presented as a single cue ﬂight director on the PFD.

SVT Off SVT On

Flight Director Bars Showing Aircraft Pitch

Vertical Speed Control

The GDU 620 vertical speed bug may be used to control vertical speed with certain autopilots. Refer to the Airplane Flight Manual and autopilot system documentation for instructions on how to use the vertical speed mode, if available.

Adjust the vertical speed bug in the normal manner when using the vertical speed mode interface. Some autopilot installations support engaging/disengaging the vertical speed mode using the VS key on the PFD. The vertical speed mode may be alternately engaged or disengaged by pressing and holding the VS key

PRIMARY FLIGHT DISPLAY

on the PFD bezel.

Engage/Disengage VS Bug

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

Autopilot Mode Annunciations

Some autopilots support mode annunciations located at the top of the PFD. Refer to the Airplane Flight Manual and autopilot system documentation for details on the autopilot mode annunciations.

When autopilot annunciations are displayed at the top of the PFD, the Nav Status information will be located to the left of the HSI (NAV STATUS Style 2).

Active Mode

Armed Mode

Roll Modes Pitch Modes

Autopilot Status

Autopilot Annunciations

Active Mode Armed Mode

PRIMARY FLIGHT DISPLAY

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

PRIMARY FLIGHT DISPLAY (PFD)

Additional Features

Synthetic Vision Technology™

Synthetic Vision Technology (SVT) is offered as a feature to the G500/600.

SVT is primarily comprised of a computer-generated forward-looking, attitude aligned view of the topography immediately in front of the aircraft from the pilot’s perspective. SVT information is shown on the PFD.

SVT offers a three-dimensional view of terrain and obstacles. Terrain and obstacles that pose a threat to the aircraft in ﬂight are shaded yellow or red.

PRIMARY FLIGHT DISPLAY

Airport

Sign

Zero-Pitch

Line

Flight

Path

Marker

Terrain Threat

SVT Soft Keys

Synthetic Vision Imagery

NOTE: SVT will become disabled if the databases necessary to display

SVT are unavailable (generating a GDU DB ERR or SVT DISABLED alert) or AHRS or GPS data is unavailable. SVT may be restored once the fail conditions are removed by following the steps in “Displaying SVT Terrain.”

Horizon Heading Mark

Obstacle

SVT Terrain

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

PRIMARY FLIGHT DISPLAY (PFD)

The following features are part of the Synthetic Vision Technology. For more details refer to the G500/600 Pilot’s Guide, Rev. G or later.

• Flight Path Marker • Airport Signs

• Horizon Heading Marks • Runway Display

• Terrain/Obstacle Display and Alerting • Water

• Three-dimensional Trafﬁc

• Zero-Pitch Line

• Wind Vectors • Altitude Minimums Bug

NOTE: SVT may be deactivated under certain conditions, such as loss of heading. Once the condition is resolved SVT may restart automatically, otherwise, to reactivate SVT, press the PFD soft key followed by the

SYN VIS soft key, then the SYN TERR soft key.

NOTE: SVT features are not a substitute for standard course and

altitude deviation information using the CDI, VSI, and VDI.

Displaying SVT™ Terrain

1) Press the PFD soft key.

2) Press the SYN VIS soft key.

PRIMARY FLIGHT DISPLAY

3) Press the SYN TERR soft key.

4) Press the BACK soft key to return to the previous page.

Displaying Heading on the Horizon

1) Press the PFD soft key.

2) Press the SYN VIS soft key.

3) If not already enabled, press the SYN TERR soft key.

4) Press the HRZN HDG soft key.

5) Press the BACK soft key to return to the previous page.

Displaying Airport Signs

1) Press the PFD soft key.

2) Press the SYN VIS soft key.

3) If not already enabled, press the SYN TERR soft key.

4) Press the APTSIGNS soft key.

5) Press the BACK soft key to return to the previous page.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MULTI-FUNCTION DISPLAY (MFD)

Multi-Function Display (MFD)

NOTE: In some models or installations, the PFD and MFD and their controls

MULTI-FUNCTION DISPLAY

are switched to the other side.

Soft Keys

Large MFD knob: Use to move between page groups.

Small MFD knob: Use to move within page groups.

Enter: Validates or conﬁrms a menu selection or data entry.

Clear: Erases information, cancels entries, or removes page menus. Pressing and holding the CLR key displays the ﬁrst page of the Map Group.

Menu: Displays conﬁguration items for each page of the page groups.

Range Select: Changes the range on the map pages. Up arrow zooms out, down arrow zooms in. Also aids in scrolling up and down text pages.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

MULTI-FUNCTION DISPLAY (MFD)

Page Navigation - Moving Between Pages

Page Group

Turn Large MFD knob

Turn Small MFD knob

Page

1) Turn the large MFD knob to move between page groups.

2) Turn the small MFD knob to change pages within the page group.

NOTE: Page Group and Page are shown at the bottom of the MFD.

Changing Settings within a Page

1) Press the MENU key and make the necessary adjustments with the large MFD knob and small MFD knobs.

2) Press the small MFD knob to activate editing.

3) Turn the large MFD knob to select the desired item.

4) Turn the small MFD knob to change the highlighted value.

5) Press ENT to accept displayed value or press the small MFD knob to cancel selection or exit the editing mode.

MULTI-FUNCTION DISPLAY

Default Map Page

Press and hold the

190-00601-03 Rev G

CLR

key to return to the ﬁrst page of the MAP group.

G500/600 Cockpit Reference Guide

MULTI-FUNCTION DISPLAY (MFD)

MFD Soft Key Map

The soft keys available depend on the page displayed and the features available.

The soft key “Alerts” is present on the far right position on all MFD pages.

MAP

Navigation Map 1

Declutter Map

Trafﬁc Topo Terrain

Navigation Map 2

Declutter

Map

Trafﬁc Topo Terrain

Split Screen

Declutter Map

Trafﬁc Topo Terrain

Trafﬁc*

* Softkeys depend on conﬁguration

Weather Map 1 Weather Map 2 Weather Map 3

Legend FCST Time (XM) WX Alt Dn WX Alt Up

AUX

External

Video

MULTI-FUNCTION DISPLAY

Video 1 Video 2 Setup

System

Setup

Default Unit RA Test Dﬂt Spd

XM Info

Lock

Channel

CH CH + DIR CH

AUX

XM Radio

MAP GROUP

Map Group

Navigation Map 1 and Navigation Map 2 Pages

Soft Keys Found on Navigation Map Pages

Moving the Map Pointer Around the Map (Panning)

NOTE: Panning can be used in Terrain pages to view elevation levels.

1) While viewing Navigation Map 1 or Navigation Map 2 of the Map Page Group, press the small MFD knob. A ﬂashing arrow (map pointer) will appear in the center of the map page.

MAP GROUP: NAV PAGES

2) Turn the large MFD knob to move the map pointer left and right (horizontally).

Map Pointer

3) Turn the small MFD knob to move the map pointer up and down (vertically).

4) Press the small MFD knob again to exit panning mode.

Selecting Items on the Map

1) While viewing Navigation Map 1 or Navigation Map 2 of the Map Page Group, while the map pointer is active, move the map pointer to highlight a waypoint.

2) Press ENT to display information about the highlighted waypoint.

3) Press the INFO soft key (if available) to view more information about the highlighted waypoint.

4) Press the WX soft key (if available) to view TAF and METAR information. Press the small MFD knob again to return to the map.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MAP GROUP

Decluttering (DCLTR) the Map Pages

There are four levels of decluttering, DCLTR, DCLTR-1, DCLTR-2, and

DCLTR-3. DCLTR shows the most detail while DCLTR-3 removes most detail.

While viewing Navigation Map 1 or Navigation Map 2 page of the Map Page Group, press the will toggle through the declutter levels.

Turning on Map Overlays

While viewing Navigation Map 1 or Navigation Map 2 of the Map Page Group, press the

MAP

the appropriate soft key.

Measuring Distances

1) While viewing Navigation Map 1 or Navigation Map 2 of the Map Page

Group, press MENU.

2) Turn the large MFD knob or the small MFD knob to highlight “Measure

Bearing/Distance” and then press ENT.

DCLTR

soft key. Each successive press of the

DCLTR

soft key

soft key. Select the Trafﬁc, TOPO, or Terrain overlays by pressing

3) Turn the large or small MFD knobs to move the map pointer. The distance,

bearing, and coordinates are displayed at the top of the screen.

MAP GROUP: SETUP OPTIONS

Distance, Bearing and Coordinates Display Measuring Map Pointer

4) Press ENT to reset the distance and bearing values.

5) Press the small MFD knob to stop measuring.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

MAP GROUP

Customizing Maps

1) While viewing Navigation Map 1 or Navigation Map 2 of the Map Page

Group, press the MENU key.

Map Setup Option Menu

2) Press the ENT key to enter the setup page. The selected group will be

ﬂashing.

3) Turn the small MFD knob to activate the drop down menu and to move

within available groups (Map, Weather, Trafﬁc, or Aviation).

MAP GROUP: SETUP OPTIONS

Available Groups

4) Press the ENT key to select the group and set your preferences.

5) Turn the large MFD knob to move between ﬁelds.

6) Turn the small MFD knob to display available options. Press the ENT key to

select your preference and move to the next option.

7) When completed with setting preferences, press the small MFD knob to

return to the Navigation Map 1 page.

8) Repeat the above steps to set preferences for the remaining groups.

NOTE: In the Map Options Setup section, the selected range is deﬁned as the map range below which the display feature will be visible.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MAP GROUP

Map Setup Options

Group Selections

• Orientation (North Up, Track Up, DTK up, HDG up)

• North Up At (Off to 500 NM)

• Auto Zoom (On or Off)

• Land Data (On or Off)

• Track Vector Length (Off to 20 mins)

• Wind Vector (On or Off)

MAP

• Enhanced Range Ring (On or Off)

• Topo Data (On or Off)

• Topo Scale (On or Off)

• TERRAIN Data (On or Off)

• Obstacle Viewing Range (Off to 15 NM)

• Power Line Viewing Range (Off to 15 NM)

• Lat/Lon Viewing Range (Off to 500 NM)

• Selected Alt Range Arc (On or Off)

• NEXRAD Data Viewing Range (Off to 500 NM)

• NEXRAD Cell Movement (On or Off)

WEATHER

• NEXRAD Legend (On or Off)

• NEXRAD Source (US or Canada)

• XM Lightning Viewing Range (Off to 500 NM)

MAP GROUP: SETUP OPTIONS

TRAFFIC

• Trafﬁc Mode (Off, All Trafﬁc, TA/PA, TA Only)

• SafeTaxi Viewing Range (Range: Off to 2.5 NM)

• RWY Extension Range (Range: Off to 2.5 NM)

• INT/NDB Viewing Range (Range: Off to 15 NM)

• VOR Viewing Range (Range: Off to 150 NM)

• Class B/TMA (Range: Off to 500 NM)

• Class C/TCA (Range: Off to 150 NM)

• Class D (Range: Off to 150 NM)

AVIATION

• Restricted (Range: Off to 150 NM)

• MOA (Military) (Range: Off to 150 NM)

• Other/Adiz (Range: Off to 150 NM)

• TFR (Range: Off to 500 NM)

• Airways (Off, All, LO Only, HI Only)

• Smart Airspace (On or Off)

• Show Airspaces (All, Below 18000ft - Below 3000ft)

• Airspace Labels (On or Off)

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

MAP GROUP

SafeTaxi® (Optional)

SafeTaxi is an enhanced feature that gives greater map detail when zooming in on airports at close range. The airport display on the map reveals runways with numbers, taxiways with identifying letters/numbers, and airport landmarks including ramps, buildings, control towers, and other prominent features. Resolution is greater at lower map ranges. When the aircraft location is within the screen boundary, including within SafeTaxi ranges, an airplane symbol is shown on the navigation map views for enhanced positional awareness. This database

MAP GROUP: SETUP OPTIONS

is updated on a 56-day cycle.

NOTE: Do not use SafeTaxi or ChartView functions as a basis for ground maneuvering. SafeTaxi and ChartView functions have not been qualiﬁed to be used as an Airport Moving Map Display (AMMD). SafeTaxi and ChartView are intended to improve pilot situational awareness during ground operations and should only be used by the ﬂight crew to orient themselves on the airport surface.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MAP GROUP

Split Screen Page (Optional)

Soft Keys Found on Split Screen Page

External Video is an optional function that displays video provided by an externally mounted video source on the aircraft.

1) While viewing the Map function, turn the small MFD knob to the third page

of the map group.

Current Video Source

Display of External Video Source

Map Display

MAP GROUP: SPLIT SCREEN PAGE

External Video

2) The External Video page will show the external video on the top half of the

MFD and a Navigation Map will be shown on the lower half.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Trafﬁc Map Page (Optional)

Soft Keys Found on Trafﬁc Map Page

MAP GROUP

OPERATE STANDBY MOTION

STANDBY

ABSOLUTE

RELATIVE OFF

ALT MODE

DESELECT

DURATION

BACK BELOW NORMAL ABOVE UNRSTD

OPR/STBY

Trafﬁc Display

When a trafﬁc alert is generated by an interfaced trafﬁc system, the PFD will display a trafﬁc annunciator and the MFD will have a pop-up screen displaying the detected trafﬁc, if not viewing the Trafﬁc page. To remove the pop-up, press the CLR window will be removed when the trafﬁc alert is no longer active.

key

. Press the ENT key to go to the trafﬁc page. The trafﬁc pop-up

Trafﬁc Annunciation

Trafﬁc

MAP GROUP: TRAFFIC PAGE

PFD Trafﬁc Display MFD Trafﬁc Pop-Up Window

190-00601-03 Rev G

Trafﬁc Pop-Up

G500/600 Cockpit Reference Guide

MAP GROUP

Displaying and Operating Trafﬁc Advisory Systems (TAS)

Operating

Mode

Range Ring

Non-Threat

Trafﬁc

Ownship

Symbol

Proximity Advisory,

Aircraft is 5000

ft Above and

Descending

Non-Bearing Trafﬁc (System is Unable to Determine Bearing),

Aircraft Distance is 8.0 NM, 1100 ft Above and Descending

Trafﬁc Map - TAS

Trafﬁc Advisory, Off Scale Aircraft is Out of Range, 1200 ft Above and Climbing

Trafﬁc Advisory, 1200 ft Above and Climbing

Trafﬁc Mode Field

MAP GROUP: TRAFFIC PAGE

NOTE: Depending on your trafﬁc conﬁguration, the OPERATE and STANDBY soft keys may not be available.

Altitude Mode Field

NOTE: Some trafﬁc systems will not enter standby mode while airborne.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

MAP GROUP

Press the ALT MODE soft key to change what trafﬁc is displayed. Pressing the BELOW, NORMAL, ABOVE or UNRSTD soft keys will determine what trafﬁc

is displayed. The selection is shown in the altitude mode ﬁeld. The values below deﬁne what each altitude mode displays, relative to the altitude of the aircraft.

Soft Key Description

BELOW Displays trafﬁc from -9900 to +2700 ft

NORMAL Displays trafﬁc from -2700 to +2700 ft

ABOVE Displays trafﬁc from -2700 to +9900 ft

UNRSTD All trafﬁc is displayed (unrestricted) from +/-9900 ft

TAS Test Mode (On Ground)

MAP GROUP: TRAFFIC PAGE

1) While viewing the Trafﬁc Map Page of the Map Page Group, press the MENU

key and select Test Mode from the menu.

2) Verify that a trafﬁc message is shown next to the altitude tape on the PFD

and that the trafﬁc pop-up is displayed on the MFD.

After a few seconds, test mode is exited automatically by the trafﬁc system.

Trafﬁc Annunciation

Trafﬁc Annunciation on PFD

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MAP GROUP

TIS Trafﬁc

The Trafﬁc Map Page is conﬁgured to show surrounding TIS trafﬁc data in relation to the aircraft’s current position and altitude, without clutter from the basemap. Aircraft orientation on this map is always heading up unless there is no valid heading.

TIS receives trafﬁc information from ground stations, and is updated every ﬁve seconds. The GDU 620 displays up to eight trafﬁc targets within a 7.5-NM radius, from 3000 feet below to 3500 feet above the requesting aircraft.

Displaying TIS Trafﬁc

While viewing the Trafﬁc Page of the Map Page Group

press the OPERATE

soft key to begin displaying trafﬁc. “TIS OPER” is displayed in the upper left hand corner of the MFD.

NOTE: TIS is disabled when a Trafﬁc Advisory System (TAS) is installed.

Operating

Mode

MAP GROUP: TRAFFIC PAGE

G500/600 Cockpit Reference Guide

Trafﬁc Advisory, Aircraft is 1200 feet above, climbing, and moving in the direction of the line

Proximity Advisory, Aircraft is 3000 feet above, descending, and moving in the direction of the line

190-00601-03 Rev G

MAP GROUP

ADS-B Trafﬁc (Optional)

The ADS-B trafﬁc page provides an enhanced display of trafﬁc from a compatible ADS-B In system. Available ADS-B trafﬁc features may include individual target selection and other details, such as type, direction, groundspeed, and motion.

ADS-B and TCAS

Status and Altitude

Filter

Map

Orientation

Range Ring Radius

Selected Trafﬁc Info

MAP GROUP: TRAFFIC PAGE

Basic Directional

Trafﬁc, 4000 ft

Below and

Climbing

Selected Vector

Motion and

Duration

NOTE: ADS-B targets will be shown as the ﬁlled-in icon when they are within 6NM laterally and 1200 ft vertically of the ownship; otherwise, they are shown as the hollow icons.

Trafﬁc Motion Vector

Ownship Icon

Range Rings

Turn Cursor Knob for Next Target

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MAP GROUP

ADS-B Target Selection

Trafﬁc targets displayed on the dedicated trafﬁc page may be selected in order

to obtain additional information about a trafﬁc target.

1) Press the small MFD knob to start target selection.

2) Turn the small or large MFD knobs to step through selection of the available targets.

3) Press the small MFD knob to stop target selection. Press the DESELECT key to stop selection and/or clear target selection.

ADS-B Status

ADS-B Status displays the current status of trafﬁc application: Off, Surface,

Airborne, Fail, Test, or N/A.

TAS/TCAS/TCAD Status

This shows the current operating mode/status of an interfaced TAS/TCAS/

TCAD system: STBY, GND, APR, OPER, or FAIL.

ADS-B Motion Vector

When Absolute Motion Vectors are selected, the vectors extending from the trafﬁc targets depict the target reported track and speed over the ground. When Relative Motion Vectors are selected, the vectors extending from the trafﬁc targets display how the trafﬁc target is moving relative to your aircraft. These vectors are calculated using the trafﬁc target’s track and ground speed and your aircraft’s track and ground speed. These two values are combined to depict where the trafﬁc target

MAP GROUP: TRAFFIC PAGE

is moving purely with respect to your aircraft and give a forecast of where the trafﬁc target will be, relative to your aircraft, in the near future.

NOTE: Absolute motion vectors are the same color as the trafﬁc target. Relative motion vectors are yellow for TAs and otherwise are green. The annunciation on the bottom of the dedicated trafﬁc page indicates which vector type is selected and their length.

NOTE: Relative motion vectors are not available on the ground.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

MAP GROUP

Terrain/TAWS-B Page

(Optional)

Soft Keys Found on Terrain/TAWS-B Page

Garmin provides the following Terrain/TAWS selections, based upon your

system conﬁguration.

ARC INHIBIT

MAP GROUP: TERRAIN/TAWS-B PAGE

WARNING: Do not use Terrain-SVT information for primary terrain avoidance. Terrain-SVT is intended only to enhance situational awareness.

NOTE: Terrain data is not displayed when the aircraft latitude is greater than 75° North or 60° South.

NOTE: Terrain-SVT is standard when the Synthetic Vision Technology (SVT) option is installed. The TAWS option will take precedence over Terrain-SVT.

NOTE: TAWS alerts will be generated by the GPS TAWS unit on the PFD if an external TAWS unit is installed and interfaced to the G500/600.

• TERRAIN-PROXIMITY - is a non-TSO-C151b certiﬁed terrain awareness system. Do not confuse Terrain Proximity with TAWS. TAWS is TSOC151b certiﬁed and Terrain Proximity is not. Terrain Proximity does not provide warning annunciations or voice alerts, it only provides color indications on map displays when terrain and obstacles are within a certain altitude threshold from the aircraft.

• TERRAIN-SVT - refers to a subset of Class B TAWS that meets the terrain alerting requirements outlined in Section 7.b of AC 23-26. Terrain-SVT is a non-TSO-C151b certiﬁed terrain awareness system. Do not confuse Terrain-SVT with TAWS. TAWS is TSO-C151b certiﬁed and TerrainSVT is not. Terrain-SVT is a subset of Class B TAWS that provides a

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

MAP GROUP

Class B TAWS FLTA functionality, including visual alerting and aural alerting. Terrain-SVT is provided with the Synthetic Vision functionality and not marketed separately. Garmin Terrain-SVT is available in GDU 620 v3.00 or later, with SVT enabled.

• TAWS-B - is an optional feature developed that meets the terrain alerting and ground proximity requirements for Class B TAWS system as deﬁned in TSO-C151b.

Viewing Terrain

NOTE: Obstacles/Wires will be removed from the Terrain/TAWS page

when range

(

RNG

)

exceeds 10 NM.

While viewing the Terrain/TAWS-B page of the Map Page Group, press the

VIEW soft key and then press the 360 or ARC soft keys to select the desired view.

360 or ARC Soft Keys

Pressing the INHIBIT soft key, deactivates the PDA/FLTA aural and visual alerts.

See AFMS for guidance on inhibiting TAWS.

Inhibit Soft Key

Press

for selections to hide or show Aviation Data Overlay on the

Terrain page.

NOTE: Installations with a valid external TAWS-B source will not

display the INHIBIT key.

MAP GROUP: TERRAIN/TAWS-B PAGE

Aviation Data Overlay

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Terrain Pop-Up Alerts

MAP GROUP

MAP GROUP: TERRAIN/TAWS-B PAGE

TERRAIN-SVT Pop-Up Alert on MFD

TAWS-B Pop-Up Alert on MFD

TERRAIN-SVT™ Pop-Up Alert

TERRAIN-SVT alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert is issued, visual annunciations are displayed and aural alerts are simultaneously issued. Refer to the Alerts section of this guide for more information on alerts, both visual and aural. When an alert is issued, annunciations appear on the PFD and MFD (TAWS page only). If the TERRAINSVT Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert and return to the currently viewed page, press the CLR key. To acknowledge the pop-up alert and go to the TERRAIN-SVT page, press the ENT key.

TAWS-B Pop-Up Alert

TAWS-B alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert is issued, visual annunciations are displayed and aural alerts are simultaneously issued. Refer to the Alerts section of this guide for more information on alerts, both visual and aural. When an alert is issued, annunciations appear on the PFD and MFD (TAWS page only). If the TAWS-B Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert and return to the currently viewed page, press the CLR key. To acknowledge the pop-up alert and go to the TAWS-B page, press the ENT key.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

WX GROUP

WX Alt Up

WX Group

XM Weather Map Pages

Soft Keys Found on XM Weather Map Pages

LEGEND

NOTE: The preferences set on XM Weather Map pages are unique to

each page.

FCST TIME

WX Alt Dn

Customizing the Weather Map

1) While viewing any of the XM Weather Map pages in the WX Page Group,

press the MENU key to display the page menu. Press ENT.

2) Turn the small MFD knob to select Weather Setup 1 or Weather Setup 2 and

press ENT.

WX GROUP: XM WEATHER PAGES

3) Turn the large MFD knob to select desired item to change. Turn the small

MFD knob to set the preference of the weather feature option.

4) Press ENT to conﬁrm your selection.

5) To return to the XM Weather Map page, press the small MFD knob.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

XM Weather Items

WX Page Menu - Weather Setup

Menu Item Adjustment

Map Orientation North Up, Track Up

NEXRAD Data Viewing Range Off, 10 NM to 500 NM

NEXRAD Legend On/Off

Source US, Canada

Echo Top Data Viewing Range Off, 10 NM to 500 NM

Cloud Top Data Viewing Range Off, 10 NM to 500 NM

Lightning Data Viewing Range Off, 10 NM to 500 NM

Cell Mov Data Viewing Range Off, 10 NM to 500 NM

SIG/AIR Viewing Range Off, 10 NM to 500 NM

PIREPS Data Viewing Range Off, 10 NM to 500 NM METAR Data Viewing Range Off, 10 NM to 500 NM Surface Data Viewing Range Off, 10 NM to 500 NM

Frz Lvl Data Viewing Range Off, 10 NM to 500 NM

Wnds Aloft Data Viewing Range Off, 10 NM to 500 NM

County Data Viewing Range Off, 10 NM to 500 NM

TFR Data Viewing Range Off, 10 NM to 500 NM

AIREPS Data Viewing rnage Off, 10 NM to 500 NM

Icing Data Viewing Range Off, 10 NM to 500 NM

Turbulence Data Viewing Range Off, 10 NM to 500 NM

Cyclone Data Viewing Range Off, 50 NM to 500 NM

WX GROUP

WX GROUP: XM WEATHER PAGES

NOTE: Due to similarities in color schemes, it is not possible to display NEXRAD Data and Echo Top Data at the same time.

NOTE: Due to similarities in color schemes, it is not possible to display Echo Top Data and Cloud Top Data at the same time.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

WX GROUP

Weather Legend

A mini-legend can be displayed on the XM Weather Map page upper right hand corner for the weather products you selected in the setup menu.

To view a full page legend:

1) While viewing any of XM Weather Map pages in the WX

Page Group, press the LEGEND soft key.

2) Turn the small MFD knob or large MFD knob to view

the entire legend.

3) Exit and return to the map page by pressing either the

LEGEND soft key, ENT key, or the small MFD knob.

Mini-Legend

Changing Forecast Time

1) When the Surface Data products (Surface Analysis and City Forecasts) are

displayed, the time period for these forecasts can be changed with the FCST TIME soft key.

2) Press the FCST TIME soft key to cycle through the age of the information in

WX GROUP: XM WEATHER PAGES

12 hour increments from CURRENT to 48 HR.

Changing Weather Altitude

1) When Winds Aloft, Turbulence, or Icing products are displayed, the altitude for

these forecasts can be selected with the WX Alt Up/Dn soft keys.

2) Press the WX Alt Dn or WX Alt Up soft keys to cycle through the available

forecast periods as shown on the right side of the weather page.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

WX GROUP

Garmin Flight Data Services (GFDS) Map Pages

Soft Key Found on GFDS Weather Map Pages

WX GROUP: GFDS PAGES

Requesting Garmin Flight Data Services (GFDS)

Prior to requesting GFDS information, an access code and system ID will need to be assigned. For more information on GFDS and how to register, see the latest revision of the G500/600 Pilot’s Guide, P/N 190-00601-02.

After registering you are able to display GFDS data:

1) While viewing any one of the three pages of the WX Group, press the MENU

button.

2) Highlight GFDS Data Request and press the ENT button to display the GFDS

DATA REQUEST page.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

WX GROUP

Coverage

Area

Coverage Area Distances: Remaining FPL, Next 50 NM - Next 500 NM

Width of Coverage: 50 NM - 500 NM

Update Rate: Off - 60 Minutes

Manual

Request

GFDS Data Request Page

Cancel Manual Request

Status of Request

Conﬁguring GFDS Data Request Page

1) Turn the large MFD knob to the Coverage box. Press ENT to select or

deselect the coverage areas. Selected coverage areas are denoted by a green

WX GROUP: GFDS PAGES

check mark.

2) Turn the large MFD knob to the Auto Request box and press ENT to change

the update rate to either OFF or ON.

3) Turn the large MFD knob to the Manual Request box and press ENT to either

send request or cancel current request.

4) Press the small MFD knob to return to the GFDS page.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

FIS-B Weather Map Pages

Soft Keys Found on FIS-B Weather Map Pages

WX GROUP

WX GROUP: FIS-B WEATHER PAGES

LEGEND

NOTE: The preferences set on FIS-B Weather Map pages are unique to

each page.

FCST TIME

WX Alt Dn WX Alt Up

Customizing the Weather Map

1) While viewing any of the FIS-B Weather Map pages in the FIS-B Page Group,

press the MENU key to display the page menu.

2) Turn the small MFD knob to select Weather Setup and press ENT.

3) Turn the large MFD knob to select the desired item to change. Turn the small

MFD knob to set the preference of the weather feature option.

4) Press ENT to conﬁrm your selection.

5) To return to the FIS-B Weather Map page, press the small MFD knob.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

WX GROUP

FIS-B Weather Items

WX Page Menu - Weather Setup

Menu Item Adjustment

Map Orientation North Up, Track Up

NEXRAD Data Viewing Range Off, 10 NM to 500 NM

NEXRAD Legend On/Off

Source CONUS, Regional, Combined

SIG/AIR Viewing Range Off, 10 NM to 500 NM

PIREPS Data Viewing Range Off, 10 NM to 500 NM

METAR Data Viewing Range Off, 10 NM to 500 NM

Wnds Aloft Data Viewing Range Off, 10 NM to 500 NM

TFR Data Viewing Range Off, 10 NM to 500 NM

WX GROUP: FIS-B WEATHER PAGES

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Weather Radar (Optional)

Weather Radar Map Page

Soft Keys Found on Weather Radar Map Page

WX GROUP

WX GROUP: WEATHER RADAR

Operating

Mode

Weather

Alert

(GWX only)

Precipitation Scale

Operating Mode

Control Window

190-00601-03 Rev F

Weather Radar

G600 Cockpit Reference Guide

WX GROUP

Airborne Color Weather Radar

WARNING: Begin transmitting only when it is safe to do so. If transmitting

on the ground is necessary, ensure that no personnel or objects are within the minimum safe distance from the radar antenna. For Garmin GWX radars, the minimum safe distance may be up to 14 feet. For 3rd-party radars, refer to the radar pilot’s guide or other manufacturer documentation to determine the minimum safe dis-tance.

CAUTION: In Standby Mode, the antenna is parked at the center line. It is always recommended to put the radar in Standby Mode before taxiing the aircraft to prevent the antenna from bouncing on the bottom stop and possibly causing damage to the radar assembly.

Displaying Weather on the Weather Radar Page

1) Turn the large MFD knob to select the last page of the WX Page Group.

2) Press the MODE soft key.

3) If the aircraft is on the ground, press the STANDBY soft key to initiate the

warm-up period. After the warm-up is complete, the radar enters Standby Mode. After the aircraft is airborne, press the WEATHER soft key.

WX GROUP: WEATHER RADAR

If the aircraft is already airborne, press the

WEATHER or GROUND soft key. The warm-up period is initiated, after which the radar begins transmitting. The horizontal scan is initially displayed. Press the BACK soft key, then the VERTICAL soft key to scan vertically.

4) Press the RNG keys to select the desired range.

Adjusting Antenna Tilt

1) Press and turn the small MFD knob to adjust the tilt of the antenna up or down. Monitor the displayed tilt value in the TILT ﬁeld. The range of tilting the antenna is DN 15° to UP 15°.

2) Press the small MFD knob to conﬁrm selection.

G600 Cockpit Reference Guide

190-00601-03 Rev F

WX GROUP

Adjusting the Antenna Bearing

1) Press the small MFD knob and turn the large MFD knob to move to the BEARING ﬁeld.

2) Adjust the azimuth position of the antenna right or left. Monitor the displayed bearing value in the BEARING ﬁeld. The range of the bearing is R45° to L45°.

3) Press the ENT key to remove the cursor.

When scanning horizontally, a bearing line may be displayed to aid in

positioning the antenna for the vertical scan. If the Bearing Line is not displayed,

WX GROUP: WEATHER RADAR

perform the following steps:

1) Press the CONTROL soft key.

2) Press the BRG soft key.

Sector Scan (GWX Radars Only)

1) Press the small MFD knob and turn the large MFD knob to move to the SECTOR SCAN ﬁeld.

2) Turn the small MFD knob to select FULL, 60°, 40°, or 20° scan.

3) If desired, readjust the Bearing Line to change the center of the Sector Scan. Turn the large MFD knob to move cursor to the BEARING ﬁeld and turn the small MFD knob to adjust the line.

Adjusting Gain

WARNING: Changing the gain in Weather Mode (Garmin GWX units only)

causes precipitation intensity to be displayed as a color not representative of the true intensity. Remember to return the gain setting to “Calibrated” for viewing the actual intensity of precipitation.

1) Press the small MFD knob and turn the large MFD knob to move to the GAIN ﬁeld.

2) Turn the small MFD knob to adjust the gain for the desirable level. The gain setting is visible in the gain ﬁeld as a movable horizontal bar in a ﬂashing box. The line pointer is a reference depicting the calibrated position.

3) Press the ENT key to remove the cursor.

4) To restore the gain to the calibrated position, press the GAIN CAL soft key.

190-00601-03 Rev F

G600 Cockpit Reference Guide

WX GROUP

Antenna Stabilization

1) To activate or deactivate the antenna stabilization, press the CONTROL soft key.

2) Press the STAB ON soft key to activate antenna stabilization or press the STAB OFF soft key to deactivate. The current stabilization condition is shown in the upper right of the weather radar display.

Weather Attenuated Color Highlight (WATCH™) (GWX Weather Radar only)

WATCH (Weather Attenuated Color Highlight) which helps identify possible “shadowing” effects of short-range cell activity – identifying areas where radar return signals are weakened, or attenuated, by intense precipitation (or large areas of lesser precipitation) and may not fully reﬂect the “storm behind the storm”.

To activate the WATCH feature, press the CONTROL soft key. Press the WATCH soft key. Press the WATCH soft key again to deactivate.

Automatic Standby

When the weather radar system is in the Weather or Ground Map Mode, upon landing the system automatically switches to Standby Mode.

Altitude Compensated Tilt (ACT) - GWX 70 only

Altitude Compensated Tilt (ACT) automatically adjusts the tilt to compensate

for altitude changes as you climb or descend.

Turbulence Detection - GWX 70 only (optional)

WX GROUP: WEATHER RADAR

Turbulence Detection activates a feature that detects and displays severe turbulence. Turbulence Detection is inactive at ranges greater that 160 NM. This optional feature requires a separate enablement. See your dealer for details. If Turbulence Detection is enabled and available, Turbulence Detection will be reported as Inactive in any of the following conditions:

• Scan orientation is not Horizontal

• Scan range is greater than 160 NM

• Radar mode is not Weather

Ground Clutter Suppression (GCS) - GWX 70 only (optional)

Ground Clutter Suppression reduces the amount of returns as a result of highly reﬂective objects on the ground, such as buildings or cities, while maintaining the intensity and size of weather returns. his optional feature requires a separate enablement. See your dealer for details.

G600 Cockpit Reference Guide

190-00601-03 Rev F

AUX GROUP

Aux Group

External Video Page (Optional)

Soft Key Found on External Video Page

Setting Brightness, Contrast, and Saturation Levels

The following steps can be applied to either Video 1 or Video 2.

1) While viewing the External Video Page of the Aux Page Group, press the

desired video soft key (VIDEO 1, VIDEO 2, or FULL).

2) Press the SETUP soft key. The BRIGHTNESS in the CURRENT box will ﬂash.

Turn the small MFD knob to change the brightness of the video output.

3) Turn the large MFD knob to CONTRAST and turn the small MFD knob to

change the contrast level of the video output.

AUX GROUP: SYSTEM SETUP PAGE

4) Turn the large MFD knob to SATURATION and turn the small MFD knob to

change the saturation level of the video output.

5) Press the small MFD knob to exit out of the setup mode.

Setting the Zoom Level of the Video Output

1) While viewing the External Video Page of the Aux Page Group, press the small

MFD knob.

2) Press the RNG (Range) keys to zoom in and out. The range of the zoom

feature is 1x up to 10x.

3) Press the small MFD knob to exit.

Setup Soft Key

Video Soft Keys

190-00601-03 Rev G

Full Soft Key

G500/600 Cockpit Reference Guide

AUX GROUP

System Setup Page

Soft Keys Found on System Setup Page

Setting Brightness and Mode

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob. The LEVEL in the DISPLAY BRIGHTNESS box will ﬂash.

2) Turn the small MFD knob to brighten or dim the display.

3) Press ENT when you reach the desired level.

NOTE: When LEVEL is changed, the MODE defaults to MANUAL. If MODE is set the AUTO, the LEVEL will adjust in response to ambient light or a lighting bus, as conﬁgured during installation.

Setting Airspeed References

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob. Turn the large MFD knob to move to the desired ﬁeld in the AIRSPEEDS box.

2) Turn the small MFD knob to change the speeds and to also turn the speeds

ON or OFF. When the speeds are turned ON they are shown near the bottom of the Airspeed Tape if airspeed is zero.

AUX GROUP: SYSTEM SETUP PAGE

Airspeed ReferencesV Speed References on Airspeed Tape

NOTE: At any time during the setting of your airspeed references,

pressing the conﬁguration.

DFLT SPD

G500/600 Cockpit Reference Guide

soft key will restore the unit to its initial

190-00601-03 Rev G

AUX GROUP

Selecting Wind Vector Styles

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob and turn the large MFD knob to move to the ﬁeld in the PFD OPTIONS box.

2) Turn the small MFD knob to select the styles available for displaying wind

vectors. Each style shows direction and velocity of the wind.

Style 1 Style 2 Style 3 Style 4

AUX GROUP: SYSTEM SETUP PAGE

Style 1

Style 2

Style 3

Style 4

Displays headwind and crosswind components Displays total wind direction and speed. Displays total wind direction with headwind and crosswind speed components. Displays total wind direction in degrees with wind speed.

Selecting NAV Status Styles

When selected, Nav Status information is displayed on the PFD either on the

top of the display (Style 1) or to the left of the HSI (Style 2).

1) While viewing the System Setup page of the AUX page group, press the small

MFD knob to activate the cursor.

2) Turn the large MFD knob to highlight the desired NAV Status value.

3) Turn the small MFD knob to select the style and press ENT

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

AUX GROUP

Selecting Temperature Reference

1) While viewing the System Setup page of the AUX page group, press the small

MFD knob to activate the cursor. Turn the large MFD knob to highlight the desired Temp Reference value.

2) Turn the small MFD knob to select the Temp Reference type and press ENT

Figure 3-44 Outside Air Temperature Selection

Synchronization (For Dual Installations Only)

NOTE: The SYNCHRONIZATION option will only be available if a

second GDU 620 is installed.

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob and turn the large MFD knob to move to the desired ﬁeld in the SYNCHRONIZATION box.

2) Turn the small MFD knob to turn ON or OFF synchronization of the CDI. Turn

the large MFD knob to move to the BARO setting. Turn the small MFD knob to turn the synchronization of the barometer ON or OFF. Turn the small MFD knob to turn the synchronization of databases ON or OFF.

3) Press ENT to move to the DATE/TIME box or press the small MFD knob to

AUX GROUP: SYSTEM SETUP PAGE

exit the editing mode.

Synchronization Option

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

AUX GROUP

Setting Time Format

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob. Turn the large MFD knob to the desired ﬁeld in the DATE/TIME box. The only items that are able to be modiﬁed is the TIME FORMAT and TIME OFFSET. The date and time are coordinated with the GPS.

2) Turn the small MFD knob to display your choices of LOCAL 12hr, LOCAL

24hr, and UTC (Universal Time, Coordinated). Turn the small MFD knob to the desired format and press ENT to conﬁrm your selection.

Setting Time Offset

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob. Turn the large MFD knob to the time offset portion of the DATE/ TIME box.

2) Use the small MFD knob and large MFD knob to edit the time offset.

3) Press ENT to conﬁrm your selection. Press the small MFD knob to exit the

editing mode.

To convert UTC to local time, a time offset must be chosen. See the table below

to determine the time offset.

Time Zone Standard Local Time Offset Daylight Saving Time Offset

Atlantic -4 hours -3 hours Eastern -5 hours -4 hours

Central -6 hours -5 hours

Mountain -7 hours -6 hours

Paciﬁc -8 hours -7 hours

Alaskan -9 hours -8 hours

Hawaiian -10 hours -9 hours

AUX GROUP: SYSTEM SETUP PAGE

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

AUX GROUP

MFD Display Units

NOTE: At any time during the setting of your preferences, pressing

the

DFLT UNIT

synchronization, time format, time offset and display units to the initial settings.

NOTE: The corresponding GPS navigator must also be set to match the selection chosen (distance, speed, NAV angle, pressure, and temperature units) on the GDU 620.

Setting Distance and Speed Units

soft key will restore the settings for brightness,

1) Press the small MFD knob and turn the large MFD knob to move to the MFD

DISPLAY UNITS box.

2) Turn the small MFD knob to display your choices of IMPERIAL, METRIC, and

NAUTICAL units for distance and speed displayed on MFD. Press ENT to conﬁrm your selection. Press the small MFD knob to exit editing mode.

Setting Altitude and Vertical Speed Units

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob and turn the large MFD knob to move to the desired ﬁeld of the MFD DISPLAY UNITS box.

2) Turn the small MFD knob to display your choices of FEET or METRIC units

for altitude and vertical speed. Press ENT to conﬁrm your selection. Press the small MFD knob to exit editing mode.

Setting Nav Angle

1) While viewing the System Setup Page of the Aux Page Group, press the small

AUX GROUP: SYSTEM SETUP PAGE

MFD knob and turn the large MFD knob to move to the desired ﬁeld of the SYSTEM DISPLAY UNITS box.

2) Turn the small MFD knob to display your choices of MAGNETIC(°) or TRUE (°)

measurement for navigating. Press ENT to conﬁrm your selection and move to the next preference or press the small MFD knob to exit editing mode.

Setting Pressure Units

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob and turn the large MFD knob to move to the desired ﬁeld of the SYSTEM DISPLAY UNITS box.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

AUX GROUP

2) Turn the small MFD knob to display your choices of INCHES(in) or

HECTOPASCALS (hpa) for your barometric pressure units. Press ENT to conﬁrm your selection and move to the next preference or press the small MFD knob to exit editing mode.

Setting Temperature Units

1) While viewing the System Setup Page of the Aux Page Group, press the small

MFD knob and turn the large MFD knob to move to the desired ﬁeld of the SYSTEM DISPLAY UNITS box.

2) Turn the small MFD knob to display your choices of CELSIUS(°C) or

FAHRENHEIT(°F) for the temperature. Press ENT to conﬁrm your selection and

AUX GROUP: SYSTEM SETUP PAGE

press the small MFD knob to exit editing mode.

Data Link

1) Press the small MFD knob and turn the large MFD knob to move to the Data

Link box.

2) Turn the small MFD knob to display your choices of the available WX/TFR

Source. Press ENT to conﬁrm your selection. Press the small MFD knob to exit editing mode.

Radar Altimeter Test

NOTE: Not all radar altimeters have the test function.

Press the RA TEST soft key (if available) to activate the radar altimeter test. An RA TEST annunciation will be displayed on the PFD. For more information on the Radar Altimeter and its settings, see the latest revision of the G500/600 Pilot’s Guide, P/N 190-00601-02.

RA TEST Annunciation on PFD

If the unit fails the self-test, the RA FAIL annunciation will appear on the PFD.

RA FAIL Annunciation on PFD

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

AUX GROUP

XM® Information Page (Optional)

Soft Key Found on XM Information Page

While viewing the Aux Group, turn the small

MFD knob

to display the XM Information screen. This page contains the Data Radio and Audio Radio IDs. The only option on this page is to

LOCK

in your information once your subscription

has been activated.

AUX GROUP: XM RADIO PAGE

XM Information Page

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

XM® Radio Page (Optional)

Soft Keys Found on XM Radio Page

AUX GROUP

AUX GROUP: XM RADIO PAGE

Selecting a Channel

1) While viewing the XM Radio page of the Aux Page Group, press the small

MFD knob and then turn the small MFD knob to highlight the desired channel.

2) Press ENT to make the highlighted channel the Active Channel.

3) Press the small MFD knob to end editing.

4) Press CHNL and then the CH+ or CH- soft keys to increment up or down one

channel at a time in the active category.

5) Press CHNL and then the DIR CH soft key to directly select a channel in the

active channel ﬁeld. Turn the small MFD knob and large MFD knob to select desired channel.

6) Press ENT to save the selection or press the small MFD knob to cancel

selection.

Selecting a Channel within a Category

1) Press CATGRY to highlight the category window.

2) Press CAT+ or CAT- to cycle through the different categories or turn the small

MFD knob to the category and press ENT.

3) Turn the small MFD knob to move to the desired channel.

4) Press ENT to make that channel the active channel.

5) Press the small MFD to end editing.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

AUX GROUP

Volume

While viewing the XM Radio page of the Aux Group, press the Press the decrease radio volume. Press the small the radio, press the or the

VOL+

MUTE

VOL-

soft keys or turn the small

MFD

knob when done adjusting. To mute

MFD

soft key. To restore the radio volume, press

soft keys.

VOL

soft key.

knob to increase or

MUTE

Storing a Preset Channel

While viewing the XM Radio page, you may set a preset for the Active Channel. Press the

PRESETS

soft key. Press and hold a preset soft key, such as

PS1

until it

blinks. You are able to preset up to 15 channels.

Recalling a Preset Channel

While viewing the XM Radio page, press the preset soft key for the desired stored channel, such as group of presets, press the

soft key.

PRESETS

PS1

soft key and press the

. To move to the next

again

AUX GROUP: XM RADIO PAGE

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Position Reporting Page

Soft Key Found on Position Reporting Page

AUX GROUP

AUX GROUP: POSITION REPORTING

Position Reporting Page

Position Reporting Status

The Status window shows the time until the next data transmission and the status of the reporting system.

Settings Window

1) While viewing the Position Reporting page, press the small MFD knob.

2) Turn the large MFD knob to change the report type to either AFF (Automatic

Flight Following) or Standard.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

AUX GROUP

Status Window

Iridium® Phone Page (Optional)

Soft Keys Found on Iridium Phone Page

Name and

Phone

Number

Field

Volume Level

Phonebook Catalog Icon

AUX GROUP: IRIDIUM PHONE

Iridium Phone Page

For detailed use of the Iridium Phone system, see the latest revision of the G500/600 Pilot’s Guide, P/N 190-00601-02.

Call Suppression

1) While viewing the Iridium Phone page, press the small MFD knob.

2) Turn the large MFD knob to select the Call Suppression type of Off, On,

or On During APR/MAPR/TERM. The last setting will suppress call during approaches, missed approaches, or during terminal procedures.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

AUX GROUP

Creating Entries into Phonebook

1) While viewing the Iridium Phone page of the Aux Group, press the small MFD

knob to activate the cursor.

2) Turn the large MFD knob to highlight the phonebook catalog icon. Turn the

small MFD knob to display phonebook.

3) If the name already exists, it will be displayed in the drop down menu. If you

are adding a new entry, highlight, (New Entry). Press ENT.

4) Turn the small MFD knob to enter each letter of the name. Press ENT.

5) Turn the large MFD knob to move to enter the phone number. Turn the small

MFD to enter each number. Press ENT.

AUX GROUP: IRIDIUM PHONE

Deleting Entries into Phonebook

1) Press the small MFD knob to activate the cursor and then turn the large MFD

knob to select the Phone Book Catalog icon.

2) Turn the small MFD knob to display the contents of the Phone Book Catalog

and highlight the desired entry. Press ENT to select the catalog entry.

3) Turn the large MFD knob to highlight the DELETE key. Press ENT to delete

the catalog entry. Press the small MFD knob again to cancel the selection cursor.

Editing a Phone Book Catalog Entry

1) Press the small MFD knob to activate the cursor and then turn the large MFD

knob to select the Phone Book Catalog icon.

2) Turn the small MFD knob to display the contents of the Phone Book Catalog

and highlight the desired entry. Press ENT to select the catalog entry.

3) Use the large MFD knob and small MFD knobs to make changes to the name

or number. Press ENT to save the changes. Press the small MFD knob again to cancel the selection cursor.

Making a Phone Call

1) While viewing the Iridium Phone page, enter a phone number using the KEYS

soft key, rotary knobs, or select one from the Phone Book catalog.

2) Press the DIAL key.

3) After completing the call, press the HANG UP key.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

AUX GROUP

System Status Page

Soft Keys Found on System Status Page

The System Status page of the AUX Page group shows the status, serial number, and version of LRUs as well as the effectivity information. There are no menu options. In the LRU Status column, a green check means the unit is present and operating properly, while a red X indicates an absence or failure.

System Status

1) While viewing the System Status page of the Aux Page Group, press the

AUX GROUP: SYSTEM STATUS PAGE

DB ACTV soft key and turn the small MFD knob to view the list of the databases loaded into the GDU 620. Press the small MFD knob to exit.

2) Press the DB SYNC soft key synchronize databases with a second LRU.

Press the small MFD knob to exit.

3) Press the LRU soft key and turn the small MFD knob to scroll through the

status, serial number, and version of each LRU. Press the small MFD knob to exit.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Flight Plan Group

Active Flight Plan Page

Soft Keys Found on Active Flight Plan Page

Viewing Your Active Flight Plan

FPL GROUP

The active ﬂight plan (as received from the active GPS unit) is shown on the ﬁrst page of the Flight Plan page group. No changes to the ﬂight plan can be made from the GDU 620. All ﬂight plan changes must be made from the GPS unit.

FPL GROUP: ACTIVE FLIGHT PLAN

Active Flight Plan Page

1) While viewing the Active Flight Plan page of the FPL Page Group, press the

small MFD knob and then turn the large MFD knob to highlight waypoints in the ﬂight plan.

2) Press the INFO soft key to view information about the highlighted waypoint.

3) Press the small MFD knob to return to the Active Flight Plan page.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

FPL GROUP

WX/NOTAM

Waypoint Information Page

Soft Keys Found on Waypoint Information Page

Facility Identiﬁer

Facility Name

Facility Location

Bearing & Distance

to Wpt from

Present Position

Map Orientation

Info/Map Soft Key

Rwy/Freq Soft Key

Airport Directory Soft Key

Waypoint Information Page

Facility Type

Map Region

Lat/Lon

Map Window

Wpt Weather

Info Soft Key

1) While viewing the Waypoint Information page of the FPL Page Group, press

the small MFD knob and then turn the small MFD knobs to enter or select

FPL GROUP: WAYPOINT INFO PAGE

the waypoint. You can also turn the small MFD knob counterclockwise to obtain drop down menus for FPL, Nearest, and Recent.

2) Press the RWY/FREQ soft key to view runway and frequency information

about the waypoint.

3) Press the APT DIR soft key (if available) to view the airport directory

information such as facility hours, noise abatement, pattern, etc. Press the small MFD knob and turn to scroll down the page (if available).

4) Press the WX or WX/NOTAM soft key (if available) to view METARs, TAFs, or

NOTAMs for the waypoint.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Charts Page (Optional)

Soft Keys Found on Charts Page

Chart Information

FPL GROUP

FliteCharts

FliteCharts resemble the paper version of FAA published terminal procedures

FPL GROUP: CHARTS PAGE

charts. The charts are displayed with high-resolution and in color for applicable charts. The database contains procedure charts for the United States only. This database is updated on a 28-day cycle. FliteCharts is disabled 180 days after the expiration date and is no longer available for viewing upon reaching the disable date.

ChartView™ (Optional with Enablement Card)

ChartView resembles the paper version of Jeppesen terminal procedures charts. The charts are displayed in full color with high resolution. The MFD depiction shows the aircraft position on the moving map in the plan view of approach charts and on airport diagrams. ChartView requires an enablement card.

The ChartView database is updated on a 14-day cycle. ChartView is disabled 70 days after the expiration date and is no longer available for viewing upon reaching the disable date.

Selecting a Chart

1) While viewing the Charts page of the FPL Page Group, press the SELECT soft

key to change the airport or chart.

2) Turn the small and large MFD knobs to select the airport identiﬁer and press

ENT to accept the selected airport.

3) Turn the large MFD knob to select the desired chart.

4) Press ENT to display the desired chart.

NOTE: The chart for the selected destination airport or approach is automatically loaded. If no ﬂight plan is entered, the chart page will default to the nearest airport.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

FPL GROUP

Selecting Other Charts

You are able to choose other charts to display based on your ﬂight plan (FPL), charts of the nearest airport (NRST) or recently selected airports (RECENT).

1) While viewing the Charts page of the FPL Page Group, press the SELECT soft

key.

2) Turn the small MFD knob counterclockwise.

3) Turn the small MFD knob to show FPL, NRST, or RECENT.

4) Turn the large MFD knob to highlight the desired airport, then press ENT.

Display Charts From

Flight Plan

Display Charts Of

Nearest Airport

Display Charts From

Recent Choices

Viewing Charts and Panning

1) While viewing the Charts page of the FPL Page Group, press the RNG (Range)

keys to zoom in and out.

FPL GROUP: CHARTS PAGE

2) Press the small MFD knob to enter the panning mode and activate scroll bars

on the edges of the chart.

3) Turn the large MFD knob to move around the chart horizontally and turn the

small MFD knob to move vertically.

4) Press the small MFD knob to cancel the scroll bars and exit panning.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

FPL GROUP

Viewing Details of ChartView™ Charts

1) While viewing the Charts page of the FPL Page Group, press the DETAIL soft

key.

2) Press the HEADER, PLAN, PROFILE, or MINIMUMS soft keys to view

detailed sections for the chart for those topics.

Setting Minimums

1) While viewing the Charts page of the FPL Page Group, press the MENU key

to display the Options menu and press ENT.

2) Turn the small MFD knob to select the source, BARO or RAD ALT. Press the

ENT key.

3) Turn the small MFD knob to select the altitude. Press ENT to set the altitude.

Changing Day/Night View

1) While viewing the Charts page of the FPL Page Group, press the MENU key

to display the Options menu.

2) Turn the small MFD knob to Chart Setup. Press ENT. The Color Scheme

option will be highlighted.

3) Turn the small MFD knob to select Day - Auto - Night. Press the small MFD

knob to save the selected value and return to the Charts page.

4) If “Auto” is selected, turn the large MFD knob to highlight the Display Level

Brightness value. Turn the small MFD knob to change the display level value for which the display will automatically switch from Day/Night brightness.

5) Press the MFD knob to save the selected value.

FPL GROUP: CHARTS PAGE

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

FPL GROUP

Viewing NOTAMs (ChartView Only)

In the event there is an active NOTAM (Notice to Airmen) for a particular chart, the

NOTAM

soft key.

soft key will be available. To view the information press the

FPL GROUP: CHARTS PAGE

Charts Page

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

ALERTS

Alerts

Contact your Garmin dealer for service if any of the following alerts appear. Refer to the Airplane Flight Manual and ADAS+ ETM documentation in the event that Engine Trend Monitor (ETM) alerts are displayed.

On Screen Alerts

Alert Description

ADC1 ALT EC

AHRS1 GPS

AHRS1/2 SRVC

AHRS1/2 TAS AHRS1 or AHRS 2 is not receiving true airspeed from ADC.

ALT KEY INOP The ALT key is disabled.

ALT NO COMP No data from on or more altitude sensors. ARINC 429 CONFIG ARINC 429 conﬁguration error. ARINC 708 CONFIG ARINC 708 conﬁguration error.

AUD NOT AVAIL Audio system is not available.

AUD SYS FAIL Audio system has failed.

CAL LOST Registry reports that the GDU 620 has lost calibration data.

CNFG MISMATCH GDU 1-2 airframe conﬁguration settings disagree.

CNFG MODULE Failure of conﬁguration module.

ADC Altitude Error Correction is unavailable. GDC is reporting that altitude correction is unavailable. AHRS 1 or AHRS 2 is not receiving any GPS information. AHRS 1 or AHRS 2 is operating exclusively in no-GPS mode. AHRS 1 or AHRS 2 is using the backup GPS information. AHRS1 or AHRS 2 magnetic ﬁeld model needs update. This

appears on the ground only.

ALERTS

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

ALERTS

Alert Description

• GDL 88 ADS-B Failure. Unable to transmit ADS-B messages.

• GDL 88 ADS-B fault.

• ADS-B fault: UAT receiver.

• ADS-B fault: 1090 receiver.

• GDL 88 needs service.

• GDL 88 ADS-B is not transmitting position. Check GPS devices.

DATALINK

• GDL 88 control panel input fault. Check transponder mode.

• GDL 88 ADS-B fault. Pressure altitude source inoperative.

• GDL 88 external trafﬁc system inoperative or connection lost.

• GDL 88 conﬁguration module needs service.

• GDL 88 is inoperative or connection to GDU is lost.

• GDL 88 CSA failure.

• GDL 88 external trafﬁc system has a low battery.

ALERTS

• GDL 88 external trafﬁc system in standby for more than 60 seconds.

DATA LOST Pilot stored data was lost. Recheck data and settings.

DB ERR Database found on top card.

DB SYNC COMPLETE

Database sync complete.

DB SYNC DISABLED No database card found to receive databases.

DB SYNC ERROR Not enough space to receive one or more databases.

DIAG MODE System is in Diagnostic Mode.

DSCRT CONFIG Discrete output conﬁguration error.

ENG SENSOR UNIT

1/2

FAN 1/2 FAIL

• Conﬁguration error. Communication with sensors is halted.

• Communication with sensors lost.

Cooling fan #1 or #2 has failed.

ETM CAPTURE ADAS+ engine trend monitor is recording trend data.

ETM EXCEED

ADAS+ engine trend monitor is reporting an exceedence or advisory condition.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

ALERTS

Alert Description

ETM FAULT ADAS+ engine trend monitor is reporting a system fault.

• Cooling fan 1/2 has failed.

• Unit may operate at extreme temperatures

FAN 1/2 FAIL

• Extended operation at high temperatures is not recommended as damage to the GDU may occur.

• PFD/MFD coloration may be incorrect.

• Backlight may dim to reduce power and heat.

Gyro Emulation Type Mismatch Fault Yaw Rate Scale Factor Mismatch Fault GDU AHRS Monitor Fault Pitch Deviation Fault Roll Deviation Fault Yaw Rate Deviation Fault AHRS A429 Attitude Timeout Fault AHRS A429 Attitude Invalid Fault AHRS Pitch Out of Range Fault AHRS Attitude Invalid Fault

GAD 43

AHRS A429 Heading Timeout Fault AHRS A429 Heading Invalid Fault Reference Timeout Fault Application SCI Integrity Fault Conﬁguration Integrity Fault AC Reference Lost Calibration Integrity Fault Unit Fault Power Supply Fault GAD 43 communication lost.

GAD 43E CONFIG GAD 43e conﬁguration error. Communication halted.

GATE MODE Automated testing is on.

GDL 69 GDL 69/69A has failed.

ALERTS

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

ALERTS

Alert Description

GEO LIMITS AHRS too far North/South, no magnetic compass.

GPS1/2 FAIL No GPS1 or GPS2 data is available.

GPS(1/2) PPS FAIL The PPS signal has not been received in more than 5 seconds.

GSR FAIL The GSR 56 has failed.

GWX CONFIG GWX conﬁguration error. Conﬁguration service required.

GWX SERVICE GWX need service. Return unit for repair.

HDG FAULT AHRS 1 magnetometer fault has occurred.

HDG LOST HDG features disabled or defaulted to GPS1 TRK.

• External HTAWS not available. Internal TERRAIN-HSVT

HTAWS

alerting enabled.

• External HTAWS conﬁguration mismatch.

IAS NO COMP No data from one or more airspeed sensors.

<LRU> CONFIG

Error in conﬁguration of speciﬁc LRU, where <LRU> denotes speciﬁc LRU.

<LRU> COOLING Speciﬁc LRU has poor cooling, reducing power usage.

<LRU> DB ERR Database for speciﬁc LRU is corrupt. <LRU> KEYSTK <LRU> <KEY> is stuck.

ALERTS

<LRU> SERVICE Speciﬁc LRU needs service.

<LRU> VOLTAGE <LRU> has low voltage reducing power usage.

MANIFEST

GDU has received product data for an LRU that should have a manifest entry, but is not in the manifest.

NAV1/2 FAIL No navigation receiver #1 or #2 data.

NO RADAR DATA No data is being sent to the GDU.

PIT NO COMP No data from one or more pitch attitude sensors.

PREV EXCEED

RADAR CONTROLS

DISAGREE

ADAS+ engine trend monitor is reporting a previous exceedence.

Data does not match for 15 seconds or more.

ROL NO COMP No data from one or more roll attitude sensors. RS-232 CONFIG RS-232 conﬁguration error. RS-485 CONFIG RS-485 conﬁguration error.

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Alert Description

SIMULATOR Sim Mode is active. Do not use for navigation.

STORMSCOPE Stormscope® either reports a failure or has timed out.

Out of available terrain region.

SVT DISABLED

Terrain DB resolution too low.

SW MISMATCH GDU software version strings to no match. Xtalk is off.

• External TAWS not available. Internal TERRAIN-SVT alerting

TAWS

enabled.

• External TAWS conﬁguration mismatch.

TDB Airframe does not support terrain database.

TERRAIN DSP

Terrain awareness unavailable. (For conﬁgurations using TAWS-B or TERRAIN-SVT).

TRAFFIC CONFIG ADS-B trafﬁc data does not match conﬁguration.

• Trafﬁc device has failed.

TRAFFIC FAIL

• Trafﬁc data will no longer be displayed.

TRAFFIC STDBY Trafﬁc device is in standby mode while airborne.

TRK LOST GPS1 TRK lost. HSI defaulted to GPS2 TRK.

TRK TRAFFIC Heading lost. Trafﬁc is now based on track.

WX ALERT Possible severe weather ahead.

WX RADAR Weather radar has failed.

WX RDR SERVICE Weather radar needs service.

WXR INPUT FAULT Weather radar is not receiving one or more inputs.

ALERTS

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

ALERTS

TAWS-B Alerts

Alert Type

Excessive Descent Rate Warning (EDR-W)

FLTA Terrain Warning (RTC-W, ITI-W)

FLTA Obstacle Warning (ROC-W, IOI-W)

FLTA Wire Warning

(ILI-W, RLC-W)

FLTA Terrain Caution (RTC-C, ITI-C)

FLTA Obstacle Caution (ROC-C, IOI-C)

PFD/MFD Alert

Annunciation

Aural Message

“Pull Up”

“Terrain Ahead, Pull Up; Terrain Ahead,

Pull Up”*

“Terrain, Terrain; Pull Up, Pull Up”

“

Obstacle Ahead, Pull Up; Obstacle Ahead,

Pull Up

”*

“

Obstacle, Obstacle; Pull Up, Pull Up

“

Wire Ahead, Pull Up; Wire Ahead, Pull Up

"Wire, Wire, Pull Up, Pull Up"

“Terrain Ahead; Terrain Ahead”*

“Caution, Terrain; Caution, Terrain”

“Obstacle Ahead; Obstacle Ahead”*

“Caution, Obstacle; Caution, Obstacle”

”

”*

ALERTS

FLTA Wire Caution

(ILI-C, RLC-C)

Premature Descent Alert Caution (PDA)

Voice Callout

None

(VCO-500) Excessive Descent Rate

Caution (EDR-C) Negative Climb Rate

Caution (NCR-C)

* Alerts with multiple messages are conﬁgurable at installation and are installation-

dependent. Alerts for the default conﬁguration are indicated with asterisks.

"Wire Ahead; Wire Ahead"

“Caution, Wire; Caution Wire”

“Too Low, Terrain”

“Five-Hundred”

“Sink Rate”

“Don’t Sink”*

“Too Low, Terrain”

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Terrain-SVT™ Alerts

ALERTS

Alert Type PFD/MFD Alert

Aural Message

Annunciation

GPS signal re-established None “Terrain System Available” Terrain System Test Successful None “Terrain System test OK” Terrain System Test in Progress None

Terrain Alerting is disabled None

No GPS position Excessively degraded GPS

signal Terrain SVT System Test Fail “Terrain System Failure”

Alert Type PFD/MFD Alert

“Terrain System Not Available”

Aural Message

Annunciation

FLTA Terrain Caution

(RTC-C, ITI-C)

FLTA Terrain Caution

(RLC-C, ILI-C)

FLTA Terrain Warning

(RTC-W, ITI-W)

FLTA Terrain Warning

(RLC-W, ILI-W)

FLTA Obstacle Caution

(ROC-C, IOI-C)

FLTA Obstacle Warning

(ROC-W, IOI-W)

“Caution, Terrain, Terrain”

“Caution, Wire, Wire”

“Warning, Terrain, Terrain”

“Warning, Wire, Wire”

“Caution, Obstacle, Obstacle”

“Warning, Obstacle, Obstacle”

ALERTS

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

SYMBOLS

Map Page Symbols

Symbol Description

Symbols

Unknown Airport

Non-towered, Non-serviced Airport

Towered, Non-serviced Airport

Non-towered, Serviced Airport

Towered, Serviced Airport

Soft Surface, Serviced Airport

Soft Surface, Non-serviced Airport

Private Airport

Heliport

SYMBOLS

Intersection

LOM (compass locator at outer marker)

NDB (Non-directional Radio Beacon)

VOR

VOR/DME ILS/DME or DME-only VORTAC

TACAN

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

SafeTaxi® Symbols

Symbol Description

Helipad

Airport Beacon

Under Construction Zones

Designated Water Areas

Trafﬁc Symbols

TAS Symbol Description

Other Trafﬁc

SYMBOLS

Proximity Advisory (PA)

Trafﬁc Advisory (TA)

Trafﬁc Advisory Off Scale

TAS/TCAS Trafﬁc Symbols

TIS Symbol Description

Proximate Trafﬁc (other than TA trafﬁc)

Trafﬁc Advisory (TA)

Trafﬁc Advisory Off Scale

TIS Trafﬁc Symbols

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

SYMBOLS

Symbol Description

Basic Non-Directional Trafﬁc (White in Air, Brown on Ground)

Basic Directional Trafﬁc (White in Air, Brown on Ground)

Basic Off-scale Selected Trafﬁc

Proximate Non-Directional Trafﬁc

Proximate Directional Trafﬁc

Proximate Off-scale Selected Trafﬁc

Non-Directional Alerted Trafﬁc

Off-Scale Non-Directional Alerted Trafﬁc

Directional Alerted Trafﬁc

Off-Scale Directional Alerted Trafﬁc

SYMBOLS

Non-Directional Surface Vehicle

Directional Surface Vehicle

ADS-B Trafﬁc Symbols

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Terrain Obstacle Symbols

Threat Location

Unlighted Obstacle

Projected Flight Path

1000 ft

100 ft Threshold

Terrain more than 1000 ft below the aircraft altitude (Black)

Terrain between 100 ft and 1000 ft below the aircraft altitude (Yellow)

Terrain above or within 100 ft below the aircraft altitude (Red)

SYMBOLS

Unlighted Obstacle (Height is less than

1000 ft AGL)

Tower Windmill

Lighted Obstacle

(Height is less

than 1000 ft AGL)

Unlighted Obstacle

(Height is greater

than 1000 ft AGL)

Grouped Obstacles

Lighted Obstacle

(Height is greater than

1000 ft AGL)

Power Line

The “*” notes

grouped obstacles.

NOTE: Obstacles will be removed from the Terrain/TAWS page when

range

(

RNG

)

exceeds 10 nm.

SYMBOLS

190-00601-03 Rev G

Terrain Altitude/Color Correlation

G500/600 Cockpit Reference Guide

SYMBOLS

Map Toolbar Symbols

Symbol Description

Terrain Proximity Enabled and Available Indicator

Terrain Proximity Enabled and Not Available Indicator

Point Obstacle Enabled and Available Indicator

Point Obstacle Enabled and Not Available Indicator

Wire Obstacles Enabled and Available Indicator

Wire Obstacles Enabled and Not Available Indicator

StormScope

StormScope Enabled and Not Available Indicator

Trafﬁc Enabled and Available Indicator

SYMBOLS

Trafﬁc Enabled and Not Available Indicator

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

SYMBOLS

XM® WX Weather Symbols and Product Age

The broadcast rate represents the interval at which XM WX Satellite Radio broadcasts new signals that may or may not contain new weather data. It does not represent the rate at which weather data is updated or new content is received by the Data Link Receiver. Weather data is updated at intervals that are deﬁned and controlled by XM WX Satellite Radio and its data vendors. The product label in the legend will turn yellow at half the expiration time and grey when expired. Expired products will not be shown on the display.

Weather Product Expiration Time

(Minutes)

NEXRAD (NEXRAD and Echo Top are Mutually Exclusive) 30 Echo Top (Cloud Top and Echo Top Mutually Exclusive)

(NEXRAD and Echo Top Mutually Exclusive) Cloud Top (Cloud Top and Echo Top Mutually Exclusive) 60 XM Lightning 30 Cell Movement 30 SIGMETs / AIRMETs 60 METARs 90 City Forecast 90 Surface Analysis 60 Freezing Levels 120 Winds Aloft 90 County Warnings 60 PIREPS 90 TFRs 60 AIREPS 90 Icing 90 Turbulence 180 Cyclone Warnings 60

SYMBOLS

NOTE: Product age is not displayed for individual reports of AIRMETs,

SIGMETs, City Forecasts, County Warnings, Cell Movement and TFRs. Product generation time is displayed for Freezing Level and Winds Aloft instead of valid time.

190-00601-03 Rev G

G500/600 Cockpit Reference Guide

SYMBOLS

Miscellaneous Symbols

Symbol Description

Low Wing Prop

High Wing Prop

Jet

Piston Rotorcraft

Turbine Rotorcraft

Default Map Cursor

Measuring Cursor

MFD Wind Vector (w/ valid GPS solution)

Parallel Track Waypoint

SYMBOLS

( ) ( )

( )

Restricted/Prohibited/Warning/Alert

TFR (Temporary Flight Restrictions)

MOA

Class B Airspace (De-Emphasized Smart Airspace) Class C Airspace (De-Emphasized Smart Airspace) Class D Airspace (De-Emphasized Smart Airspace)

Airspace Altitude Label (Upper/Lower Limits)

User Waypoint

G500/600 Cockpit Reference Guide

190-00601-03 Rev G

Garmin International, Inc.

1200 East 151st Street, Olathe, Kansas 66062, U.S.A.

Tel. 913/397.8200 or 866.739.5687

Fax 913/397.8282

Garmin AT, Inc.

2345 Turner Rd., SE, Salem, Oregon 97302, U.S.A.

Tel. 503/581.8101 or 800/525.6726

Fax. 503/364.2138

Garmin (Europe) Ltd.

Liberty House, Bulls Copse Road, Hounsdown Business Park,

Southampton, SO40 9RB, U.K.

Tel. +44 (0) 870 850 1243 Fax +44 (0) 238 052 4004

Garmin Corporation

No. 68, Jangshu 2nd Road, Xizhi Dist., New Taipei City 221, Taiwan (R.O.C)
