Funai LT850-M22 Schematic

SERVICE MANUAL

This Service Manual is for the
LT850-M22 (A0C70EP) / LT851-M22 (A0C71EP) model.
For the LT850-M22 (A0C70EP) / LT851-M22 (A0C71EP) model, the letter
(A0C70EP) / (A0C71EP) is printed on the Serial Number Label on the back
of the unit. Refer to the Serial Number Label below.

Serial No. Label Serial No. Label

"A0C70EP" "A0C71EP"

22″ COLOR LCD TELEVISION

LT850-M22 / LT851-M22

22″ COLOR LCD TELEVISION

LT850-M22 / LT851-M22

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

1-1 A0C70_1SP

SPECIFICATIONS

< TUNER >

VHS/UHF Input ----------- 75Ω unbal., IEC Connector
Center IF ------------------- SECAM-L 38.9MHz, SECAM-L’ 33.9MHz

< LCD PANEL >

<DVB-T>

*1: modulation parameters = [8k 64QAM CR=2/3 GI=1/32]
*2: modulation parameters = [8k 16QAM CR=3/4 GI=1/8]
*3: modulation parameters = [2k 64QAM CR=2/3 GI=1/32]
*4: modulation parameters = [2k 16QAM CR=3/4 GI=1/32]

< VIDEO >

Description Condition Unit Nominal Limit

1. Video S/N 80 dB --- 40

2. Audio S/N --- dB --- 40/40

Description Condition Unit Nominal Limit

1. Number of Pixels

Horizontal

Ver ti ca l

pixels
pixels

1366

768

---

---

2. Viewing Angle

Horizontal

Ver ti ca l

°
°

-85 to 85

-80 to 80

-75 to 75

-70 to 70

Description Condition Unit Nominal Limit

1.

RECEIVED FREQ.RANGE
(-60dBm, 45ch.) *1, *2

+

-

kHz
kHz

1000

900

500
167

2. INPUT DYNAMIC
RANGE (mix./max)

c:*1 VHF HIGH 8ch.

UHF 45ch.

dBuV
dBuV

25/101
25/101

28/98
29/98

d:*2 VHF HIGH 8ch.

UHF 45ch.

dBuV
dBuV

18/101
18/101

21/98
21/98

3. C/N PERFORMANCE

(-50dBm)

c:*1 VHF HIGH 8ch.

UHF 45ch.

dB
dB

15
15

≦18
≦18

d:*2 VHF HIGH 8ch.

UHF 45ch.

dB
dB

11
11

≦14
≦14

4. MULTIPATH (-50dBm)

a. Performance with

short delay echoes

b. Performance with

long delay echoes

UHF 45ch.

c:*3
d:*4
c:*3
d:*4

dB
dB
dB
dB

18.7

14.0

19.1

13.0

≦23
≦20
≦23
≦18

Description Condition Unit Nominal Limit

1. Over Scan

Horizontal

Vert i cal

%
%

5
5

---

---

2. Color Temperature

AT 70% WHITE FIELD

x
y

°K 9200

0.286

0.295

--­±0.008
±0.008

3. Resolution

Horizontal

Vert i cal

line
line

400
350

---

---

4. Brightness

AT 100% WHITE FIELD

Retail
Home

cd/m

2

cd/m

2

230
160

---

---

1-2 A0C70_1SP

< AUDIO >

All items are measured across 16 Ω load at speaker output terminal.

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 3.0/3.0 2.0/2.0

2. Audio Distortion 500mW: Lch/Rch % 1.5/1.5 3.0/3.0

3. Audio Freq. Response

-

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 10 k
70 to 10 k

---

---

4. Audio S/N Lch/Rch dB ---

≧45/45

2-1 LTVP_ISP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the
customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the LCD module
and the cabinet mask, (2) excessively wide
cabinet ventilation slots, and (3) an improperly
fitted and/or incorrectly secured cabinet back
cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 230 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American

National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this LCD
TV receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

TEST ALL EXPOSED
METAL SURFACES

READING SHOULD
NOT BE ABOVE 0.5 mA

EARTH
GROUND

_

DEVICE

LEAKAGE

CURRENT

TESTER

+

BEING

TESTED

2-2 LTVP_ISP

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc..
Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-3 LTVP_ISP

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-4 LTVP_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform the following tests and con­firm the specified values in order to verify compliance
with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals, an­tenna terminals, video and audio input and output ter­minals, microphone jacks, earphone jacks, etc.).

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of load
Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

≥ 3mm(d)

≥ 8mm(d’)

Fig. 1

Chassis or Secondary Conductor

Primary Circuit

d' d

Fig. 2

AC Voltmeter
(High Impedance)

Exposed Accessible Part

B

One side of
Power Cord Plug Prongs

Z

AC Line Voltage Load Z Leakage Current (i)

One side of power cord plug

prongs (B) to:

220 to 240 V

2kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

RF or

Antenna terminals

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

A/V Input, Output

3-1 TVP_SN

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

3. The 1st pin of every male connector is indicated as
shown.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

To p Vi ew

Out

In

Bottom View

Input

5

10

Pin 1

Pin 1

Pb free mark

Fig. S-1-1

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

Flat Pack-IC

Tweezers

Masking
Ta pe

Fig. S-1-2

3-2 TVP_SN

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Fine Tip
Soldering Iron

Sharp
Pin

Fig. S-1-4

To Solid
Mounting Point

Soldering Iron

Iron Wire

or

Hot Air Blower

Fig. S-1-5

Fine Tip
Soldering Iron

CBA

Flat Pack-IC

Tweezers

Fig. S-1-6

3-3 TVP_SN

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Presolder

CBA

Flat Pack-IC

Fig. S-1-8

<Incorrect>

CBA

Grounding Band

Conductive Sheet or
Copper Plate

1MΩ

1MΩ

<Correct>

CBA

4-1 A0C72_73DC

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

2. Disassembly Method

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
N = Nut, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta b l e. "

Step/

Loc.

No.

Part

Removal

Fig.

No.

Remove/*Unhook/

Unlock/Release/

Unplug/Unclamp/

Desolder

Note

[1]

Stand
Assembly

D1 3(S-1) ---

[2]

Rear
Cabinet

D1

12(S-2), 3(S-3),
(S-4), (S-5)

---

[3]

Tuner
Shield

D2 (S-6) ---

[4] Main CBA

D2
D3

10(S-7), *CN102A,
*CN103, *CN301,
*CN401, *CN402,
*CN403, *CN404,
*CN801, *CN802,
*CN1550, *CN1650,
*CN1750

---

[5]

HP Jack
Holder

D2 (S-8) ---

[6] Jack CBA

D2
D3

3(S-9) ---

[7] Jack Holder D2 (S-10) ---

[1] Stand

Assembly

[2] Rear Cabinet

[11] Speaker

[8] Shield Box

[3] Tuner Shield

[7] Jack Holder

[9] Digital Main
CBA Unit

[4] Main CBA

[10] LCD Module
Assembly

[14] Front
Cabinet

[12] Junction
CBA

[13] Function
CBA

[6] Jack CBA

[5] HP Jack
Holder

[8] Shield Box

D2
D3

2(S-11), (S-12),
5(S-13), 2(H-1),
*CN3901

---

[9]

Digital Main
CBA UnitD2D3

--------------- ---

[10]

LCD
Module
Assembly

D2

(S-14), 2(S-15),
Stand Holder,
Separation Sheet

---

[11] Speaker D2

4(S-16),
Speaker Holder

---

[12]

Junction
CBA

D2
D3

Desolder ---

[13]

Function
CBA

D2
D3

2(S-17) ---

[14]

Front
Cabinet

D2 --------------- ---

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

Step/

Loc.

No.

Part

Removal

Fig.

No.

Remove/*Unhook/

Unlock/Release/

Unplug/Unclamp/

Desolder

Note

4-2 A0C72_73DC

[2] Rear Cabinet

[1] Stand Assembly

(S-3)

(S-2)

(S-2)

(S-2)

(S-2)

(S-2)

(S-4)

(S-5)

(S-1)

Fig. D1

4-3 A0C72_73DC

(S-8)

(S-10)

[3] Tuner
Shield

[5] HP Jack
Holder

[7] Jack
Holder

[6] Jack CBA

[4] Main CBA

[9] Digital Main
CBA Unit

[10] LCD Module
Assembly

[11] Speaker

[11] Speaker

[12] Junction
CBA

[13] Function CBA

[14] Front Cabinet

(S-11)

(S-13)

(S-13)

(S-7)

(S-7)

(S-7)

(S-7)

(S-7)

(S-15)

(S-14)

(S-6)

(S-9)

(S-16)

(S-16)

(S-12)

(H-1)

Speaker
Holder

Separation Sheet

Stand Holder

Speaker
Holder

(S-17)

[8] Shield
Box

Fig. D2

4-4 A0C72_73DC

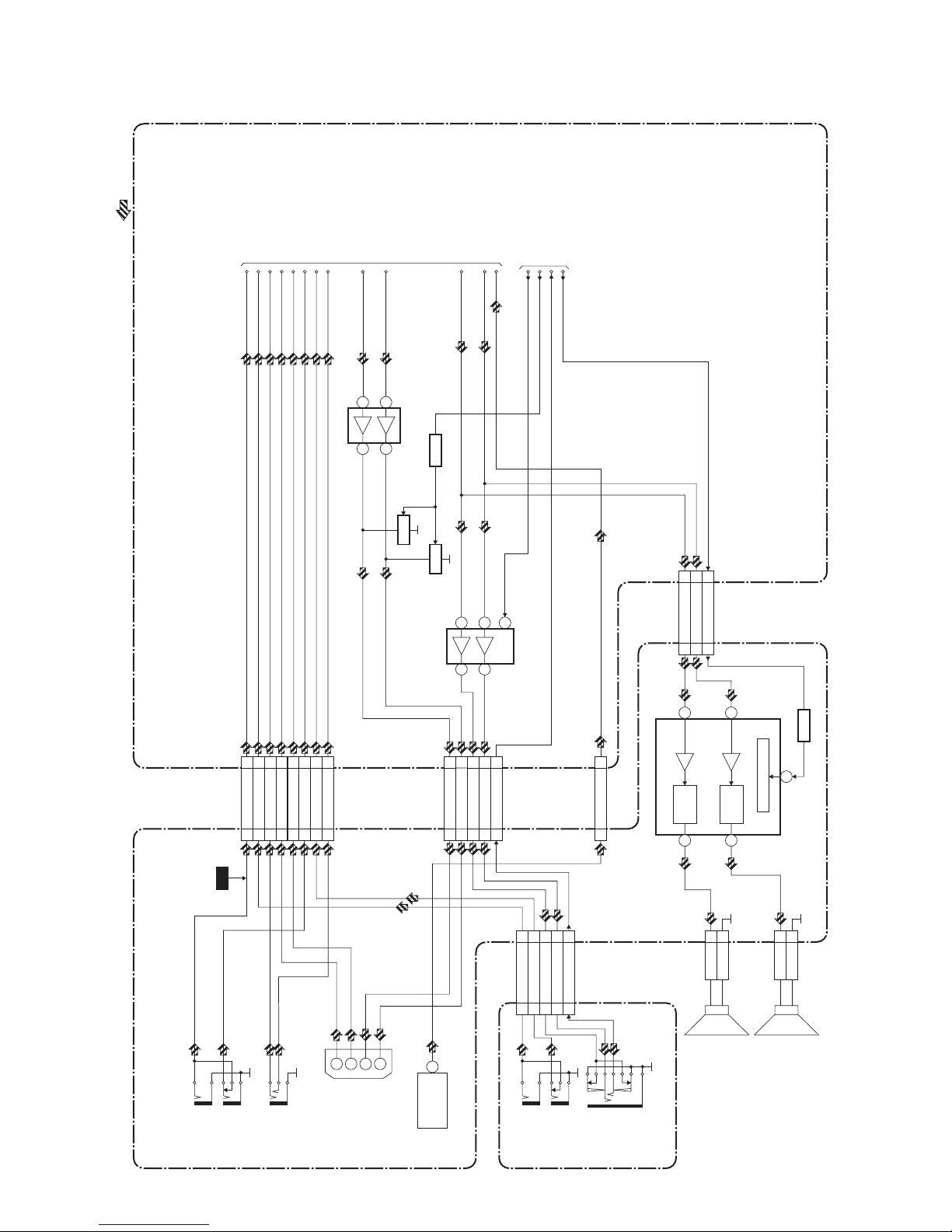

TV Cable Wiring Diagram

Main CBA

Digital Main
CBA Unit

Jack CBA

CN3704

CN3702

CN3703

CN3701

CN3901

Junction CBA

Function CBA

To Speaker

To Speaker

To LCD Module
Assembly

CN101B

CN102B
CN101A

CN452

CN401

CN404

CN403

CN402

CN1550

CN1650

CN1750

CN801

AC CORD

CN301

CN802

CN102A

CN103

Fig. D3

5-1 A0CN0EA

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

2. Remote control unit

3. Color Analyzer

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Software” in “OTHERS” and press [OK]
button.

4. Press [0], [4], [2], [5], [7], [4] and [ ] buttons on
the remote control unit in this order. The following
screen appears.

Code :
Pic code :

Inch :
MIPS :

************-***-**
**-*******-***-*-**
*** *******
****

Safety : Safety_Non

"*" differs depending on the models.

5-2 A0CN0EA

1. Purity Check Mode

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the remote
control unit, the display changes as follows.

3. To cancel or to exit from the Purity Check Mode,
press [BACK] button.

2. VCOM Adjustment

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer and bring the optical
receptor to the center on the LCD-Panel surface
after zero point calibration as shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. To enter the “VCOM-2 adjustment mode”, press [3]
button on the remote control unit.
To enter the “VCOM-1 adjustment mode”, press [2]
button on the remote control unit.

5. Press [P / ] buttons on the remote control
unit so that the color analyzer value becomes
minimum.

6. To cancel or to exit from the VCOM Adjustment,
press [BACK] button.

[7] button

Note:

When entering this mode, the default setting is White mode.

Purity Check Mode

[7] button

Red mode

Green mode

Blue mode

Black mode

[7] button

White mode

[7] button

[7] button

White 20% mode

[7] button

Test Point Adj. Point

Screen

[P / ]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

Color Analyzer

To avoid interference from ambinent
light, this adjustment should be
performed in a dark room.

L = 3 cm

Perpendicularity

5-3 A0CN0EA

The White Balance Adjustment should be
performed when replacing the LCD Panel
or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.

Symptom of Misadjustment: White becomes bluish
or reddish.

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 40%=40IRE).

3. Set the color analyzer to the CHROMA mode and
bring the optical receptor to the center on the
LCD-Panel surface after zero point calibration as
shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [ -] button on the
remote control unit and select “C/D” mode.

5. [CUTOFF]
Press [1] button to select “COR” for Red Cutoff
adjustment. Press [3] button to select “COB” for
Blue Cutoff adjustment.

[DRIVE]

Press [4] button to select “DR” for Red Drive
adjustment. Press [6] button to select “DB” for Blue
Drive adjustment.

6. In each color mode, press [P / ] buttons to
adjust the values of color.

7. Adjust Cutoff and Drive so that the color
temperature becomes 9200°K (x

=

0.286 / y= 0.295

±0.005).

8. To cancel or to exit from the White Balance
Adjustment, press [BACK] button.

Tes t Po int

Adj. Point Mode Input

Screen

[P / ]

buttons

[VIDEO1]

C/D

White Raster

(APL 70%)

or

(APL 40%)

M. EQ. Spec.

Pattern Generator,

Color analyzer

x= 0.286 ± 0.005
y= 0.295 ± 0.005

Figure

Color Analyzer

L = 3 cm

Perpendicularity

INPUT: WHITE 70%, 40%

To avoid interference from ambinent
light, this adjustment should be
performed in a dark room.

40%=40IRE

70%=70IRE

100IRE

100IRE

0IRE 0IRE

INPUT SIGNAL

Low

Light

Hight
Light

6-1 A0CN0INT

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. Enter the service mode. (Refer to page 5-1.)

- To cancel the service mode, press [ ] button on
the remote control unit.

3. Press [ ] button on the remote control unit to
initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the
screen. "INITIALIZED" color will change to green
from red when initializing is complete.

7-1 LC8.5FW

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device
b. Remote Control Unit

Firmware Update Procedure

[Check the current version]

1. Press [MENU] button on the remote control unit to
display the menu mode.

2. Press [ÅK] or [ÅL] to select “OTHERS”, then press
[OK] button.

3. Press [ÅK] or [ÅL] to select “Software”, then press
[OK] button.

The current FW version will be displayed.

[Preparation]

1. Prepare USB storage device.

2. Copy F/W-file (ecc file) to USB storage device.
Note: Make sure to use the blank USB Storage.

3. Rename the F/W-file’s name.

Step1. Add the “_F” at the end of the name.

(If the file name in USB says
“ZF6731915NOS-030-05.ecc”,
the new file name should be
“ZF6731915NOS-030-05_F.ecc”.)

Step2. The 6th and 7th digit of the file name

indicate the size of TV. If the size of your
TV and the file name were not the same,
you must change the file name.

[Update procedure]

1. Plug in the AC power cord.

2. Press [ ] button on the remote control unit to turn
off (standby).

3. Check “STAND BY” indicator (Red LED) lighting.

4. Insert USB storage device with F/W to TV set.

5. Press [ ] button to turn on.

6. After approximately 70 seconds, the following will
appear on the screen and the update begins
automatically.

Note: Do not turn off the TV set and do not
remove the USB storage device while this
procedure.

The update will be completed in about 2 minutes.
And the following screen appears.

7. Press [ ] button to turn off (standby).

8. Check “STAND BY” indicator (Red LED) lighting.

9. Remove USB storage device from TV set.

10. Press [ ] button to turn on.

(Example)

The software upgrade is completed.

Remove USB storage device, turn TV off and then on again.

(Example)

8-1 A0CN0TR

TROUBLESHOOTING

Check IC605, D603, D606 and their pe

riphery, and

service it if defective.

The power cannot be turned on.

The fuse blows out.

FLOW CHART NO.1

FLOW CHART NO.2

Is normal state restored when once unplugged power
cord is plugged again several seconds?

Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(IC605, Q601, Q602, D602, D604, D605, D607,
T601, R602)

Ye s

No

Ye s

Is the fuse (F601) normal?

See FLOW CHART No.2 <The fuse blows out.>

No

Ye s

Is approximately 32V voltage supplied to the cathode
of D618?

No

Check each rectifying circuit of the secondar

y circuit

and service it if defective.

Check the presence that the

primary component is

leaking or shorted and service it if defective.

Check the presence that the

rectifying diode or circuit

is shorted in each r

ectifying circuit of secondary side,

and service it if de

fective.

After servicing, replace the fus

e (F601).

When the output voltage fluctuates.

FLOW CHART NO.3

Does the photocoupler circuit on

the secondary side

operate normally?

No

Ye s

Check IC605, Q603, D615, D623, D628 and their
periphery, and service it if defective.

When buzz sound can be heard in the vicinity of power circuit.

FLOW CHART NO.4

Check if there is any short-circuit on the rectifying diode and the circ

uit in each rectifying circuit of the secondary side, and

service it if defective. (D612, D616, D618, D6

22, D637, Q605, Q606, Q609, Q611, Q615, Q616)

8-2 A0CN0TR

P-ON+5V is not output.

FLOW CHART NO.6

Ye s

No

Is approximately 6V voltage supplied to the base of
Q616?

AL+3.3V is not output.

FLOW CHART NO.5

Ye s

No

Is approximately 5V voltage supplied to the collector
of Q605?

Check D637, C628 and their periphery circuit, and
service it if defective.

Check D637, C628 and their periphery circuit, and
service it if defective.

Check Q607, Q610, D653, P-ON-H2 line and their
periphery circuit, and service it if defective.

Ye s

No

Is approximately 4V voltage supplied to the base
of Q605?

Check D634 and their periphery circuit, and
service it if defective.

Replace Q605.

Is approximately 7.5V voltage supp

lied to the collector

of Q616?

No

AL+7.5V is not outputted.

FLOW CHART NO.7

Ye s

No

Check if there is any leak or short-circuit on the
loaded circuit, and service it if defective.

Check D637, C628 and their periphery circuit, and
service it if defective.

Is approximately 7.5V voltage supplied to the cathode
of D637?

AL+15V(1) is not outputted.

FLOW CHART NO.8

Ye s

No

Check if there is any leak or short-circuit on the
loaded circuit, and service it if defective.

Check D612, D620, C613 and their periphery circuit,
and service it if defective.

Is approximately 15V voltage supplied to the cathode
of D612?

8-3 A0CN0TR

PANEL+12.5V is not output.

FLOW CHART NO.10

Is approximately

15V voltage supplied to the cathode

of D612?

No

Ye s

Ye s

Check D612, D620, C613 and their per

iphery circuit,

and service it if defec

tive.

Check D613, C618 and their periphery circuit, and
service it if defective.

Check D640, R657, R658 and their periphery circuit,
and service it if defective.

No

Ye s

Replace Q611.

Replace Q615.

No

LCD-5.5V is not output.

FLOW CHART NO.11

Is approximately -10V voltage supplied to the anode of
D613?

Is approximately -10V voltage supplied to the base of
Q611?

Ye s

Is approximately 1

3V voltage supplied to the base

of Q615?

No

Check D664 an

d their periphery circuit, and

service it if defective.

PANEL+25.6V is not output.

FLOW CHART NO.9

Ye s

No

Is approximately 32V voltage supplied to the cathode
of D618?

Is approximately 32V voltage outputted to the collector
of Q612?

Ye s

Check D617, D636 and their periphery circuit, and
service it if defective.

Check D618, D623, C616 and their periphery circuit,
and service it if defective.

No

Check Q612, Q613, P-ON-H1 line and their periphery
circuit, and service it if defective.

8-4 A0CN0TR

AL+5V is not output.

FLOW CHART NO.12

Is approximately 5.5V voltage supplied to the cathode
of D616?

Check if there is any leak or short-circuit on the
loaded circuit, and service it if defective.

Ye s

Check D616, C614 and their periphery circuit, and
service it if defective.

No

P-ON+11V is not output.

FLOW CHART NO.14

Ye s

No

Is approximately 15V voltage supp

lied to the

collector of Q609?

Is approximately 12V voltage supplied to the
base of Q609?

No

Ye s

Replace Q609.

Replace Q606.

P-ON+3.3V is not output.

FLOW CHART NO.13

Is approximately

5V voltage supplied to the collector

of Q606?

Ye s

Check D616, C614 and their periphery circuit, and

service it if defective.

Check D612, D620, C613 and their periphery circuit,
and service it if defective.

Check Q607, Q610, D639, P-ON-H2

line and their

peripher

y circuit, and service it if def

ective.

No

Is approximately 3.5V voltage supplied to the base
of Q606?

Ye s

Check Q607, Q610, D671, P-ON-H2 line and their

peripher

y circuit, and service it if defec

tive.

No

When pressing each switches (SW101-SW106) do
the voltage of Pin(11) on CN403 increa

se?

Ye s

No

FLOW CHART NO.15

Are the contact point and installation state of the key
switches (SW101-SW106) nor

mal?

Re-install the switches (SW101-SW106) correctly or
replace the poor switch.

No

Check the switches (SW101-SW106) and their
periphery, and service it if defective.

Ye s

Replace Digital Main CBA Unit.

The key operation is not functioning.

8-5 A0CN0TR

No

Is the "L" pulse sent out Pin(1) of

RS101 (remote control

receiver)

when the infrared remote control is activated?

Check the line between Pin(1) of RS101 (remote
control receiver) and Pin(13) of CN403, and service
it if defective.

Ye s

Is the "L" pulse supplied to Pin(13

) of CN403?

Ye s

Is 3.3V voltage supplied to Pin(2) of RS101 (remote
control receiver)?

No

No operation is possible from the remote control unit.

FLOW CHART NO.16

Operation is possible from the unit.

Check AL+3.3V line and service it if defective.

No

Replace the RS101 (remote control receiver) or
remote control unit.

Ye s

Replace Digital Main CBA Unit.

Picture does not appear normally. (Video input/S-Video input/Y/Pb/Pr input/RGB input)

Are the video signals outputted to the specific
terminal?

Check the luminance signal line, and service it if
defective.

Check the chrominance signal line, and service it if
defective.

Check the RGB video signal line, and service it if
defective.

Check the composite video signal line, and service it
if defective.

Check the component video(Y/Pb/Pr) signal line,
and service it if defective.

Check the line between each pin of CN401 and
CN404 and input terminal and service it if defective.

No

No

No

No

No

Ye s

Are the luminance signals outputted to Pin(27) of
CN401?

Are the chrominance signals outputted to Pin(29)
of CN401?

Are the component video(Y/Pb/Pr) signals outputted
to Pin(4, 6, 8) of CN404?

Are the RGB video signals outputted to Pin(26, 28, 29)
of CN404?

Are the composite video signals outputted to
Pin(2,22) of CN404?

Replace Digital Main CBA Unit or LCD Module
Assembly.

FLOW CHART NO.17

8-6 A0CN0TR

Are the DIF signals outputted to Pin(16,18) of CN403?

No

Ye s

Check the line between Pin(16, 18) of CN403 and
Pin(4, 5) of TU10, and TU10(Tuner Unit), and service
it if defective.

Audio is not outputted normally. (Tuner input (Digital))

FLOW CHART NO.19

No

Are the audio(L/R) signals inputted to the Pin(1,9)
of IC801?

No

Ye s

Are the audio(L/R) signals outputted to Pin(8,10) of
CN403?

Ye s

Check the line between Pin(8,10) of CN403 and
Pin(1,9) of IC801, and service it if defective.

Are the audio(L/R) signals outputted to CN801 and
CN802?

No

Ye s

Check SP801,SP802 and their periphery circuit, and
service it if defective.

Check IC801 and the periphery circuit, and service it
if defective.

Replace Digital Main CBA Unit.

Audio is not outputted normally. (Audio input terminals)

FLOW CHART NO.20

Check the line between Pin(16, 18) of CN403 and
Pin(4, 5) of TU10, and TU10(Tuner Unit), and service
it if defective.

Are the DIF signals outputted to Pin(16, 18) of CN403?

No

FLOW CHART NO.18

Replace Digital Main CBA Unit or LCD Module
Assembly.

Are the audio(L/R) signals outputted to the specific
terminal?

Check the audio(L/R) signal line, and service it if
defective.

Check the component audio(L/R) signal line, and
service it if defective.

Check the PC audio(L/R) signal line, and service it if
defective.

Check the line between each pin of CN401 and input
terminal and service it if defective.

No

No

No

Ye s

Are the audio(L/R) signals outputted to Pin(21,22) of
CN401?

Are the component audio(L/R) signals outputted to
Pin(18,19) of CN401?

Are the PC audio(L/R) signals outputted to Pin(24,25)
of CN401?

Replace Digital Main CBA Unit.

Ye s

Picture does not appear normally.

9-1

System Control Block Diagram

A0C70BLS

BLOCK DIAGRAMS

C25

KEY SWITCH

IC3301

(MAIN MICRO CONTROLLER)

DIGITAL MAIN CBA UNIT

FUNCTION CBA

MAIN CBA

CN101B

REMOTE

SENSOR

RS101

AL+3.3V

D102

POWER

STANDBY

D101

PANEL

+24V

LED144

CN101A

REMOTE22

CN3703 CN403

CLKOUT-Y1-25M

CLKIN-Y1-25M

X3101

25MHz

OSC

AH1

AG1

SCL

SDA

8

9

TU10 (TUNER UNIT)

TO

INVERTER

BLOCK

DIAGRAM

TO

POWER SUPPLY

BLOCK DIAGRAM

PROTECT3

AJ11

VCOM-PWM AH3

PROTECT1

AH11

KEY-IN1

AJ9

BACKLIGHT-SW AF9

LED1

AJ1

P-ON-H2

AK8

REMOTE AK1

P-ON-H1

PROTECT1

P-ON-H2

P-ON-H1

AH2

JUNCTION

CBA

CN102B

KEY-IN166

CN102A

CN403CN3703

AH27

BACKLIGHT-ADJ

IC3102

(SERIAL FLASH MEMORY)

CLOCK

DATA-IN

D11

B10

6

5

E23

TUNER-CLK

TUNER-DATA

CN403CN3703

CN402CN3701

SPI-CLK

SPI-WR

DATA-OUT E122 SPI-RD

IC301,Q301,

Q302,Q303

DRIVE

23

23SCL2222

SDA

5

5

PROTECT1

4

4PROTECT3

4

4

VCOM-PWM

2

2

BACKLIGHT-SW

1

1

BACKLIGHT-ADJ

KEY-IN111 11

P-ON-H111

REMOTE13 13

LED114 14

P-ON-H222

LED144

REMOTE22

KEY-IN166

TO AUDIO

BLOCK

DIAGRAM

TO VIDEO

BLOCK

DIAGRAM

AUDIO-MUTE

AUDIO-MUTE

AG9

S-SW

S-SW

AK2

AUDIO-MUTE2

AUDIO-MUTE2

D17

HEADPHONE-DET

HEADPHONE-DET

C17

HEADPHONE-MUTE

HEADPHONE-MUTE

AK3

CN301

10

VCOM

TO LCD MODULE

ASSEMBLY

Q102

AL+3.3V

9-2

Video Block Diagram

A0C70BLV

JK403

VIDEO-IN

CN404 CN3702

CN401 CN3704

JK413

15

11

7

VIDEO-B

VIDEO-G

VIDEO-R

19

20

RGB-

VIDEO-IN

VIDEO-OUT

VIDEO SIGNAL

MAIN CBA

VIDEO-IN22

VIDEO-OUT24 24

VIDEO-R26 26

VIDEO-G28 28

VIDEO-B29 29

RGB-VIDEO-IN22 22

S-VIDEO-C-IN29 29

S-VIDEO-Y-IN27 27

COM-VIDEO-Y-IN
44

COM-VIDEO-Pb-IN
66

COM-VIDEO-Pr-IN
88

VIDEO-OUT

15

BUFFER

Q10

TU-CVBS29 29

S-SW11

TU-CVBS

TU10

DIF-OUT2

4

DIF-OUT1

5

(TUNER UNIT)

IF-AGC

6

CN403 CN3703

DIF-OUT216 16

IF-AGC20 20

DIF-OUT118 18

VIDEO-IN

RGB-VIDEO-IN

VIDEO-OUT

VIDEO-R

VIDEO-G

VIDEO-B

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

DIF-OUT2

DIF-OUT1

IF-AGC

S-SW

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

AUDIO SIGNAL

JK402

S-VIDEO-IN

CY

WF1

WF10WF8

WF9

WF6

WF5

WF3

WF4

WF2

DIGITAL MAIN CBA UNIT

Q404

BUFFER

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK407

JK408

JK409

JACK CBA

CN452 CN103

COM-VIDEO-Y-IN
11

COM-VIDEO-Pb-IN
33

COM-VIDEO-Pr-IN
44

9-3

Audio Block Diagram

A0C70BLA

AUDIO SIGNAL

CN3704CN401

CN3704

MUTE

CN3703

CN401

CN303

AUDIO(L)22 22

AUDIO(R)21 21

COM-AUDIO(L)19 19

PC-AUDIO(L)25 25

PC-AUDIO(R)24 24

RGB-AUDIO(L)-IN

10 10

RGB-AUDIO(R)-IN
99

COM-AUDIO(R)

18 18

PC-AUDIO-IN

JK401

SIF(+)

AUDIO-MUTE2

HEADPHONE-MUTE

HEADPHONE-DET

AUDIO-MUTE

AUDIO(L)

-IN

AUDIO(R)

-IN

JK404

JK405

JK413

1

3

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

6

RGB-AUDIO(L)-IN2RGB-AUDIO(R)-IN

MAIN CBA

TO DIGITAL SIGNAL PROCESS

BLOCK DIAGRAM

DIGITAL MAIN CBA UNIT

SIF-OUT

TU10

(TUNER UNIT)

14

7

1

6

2

SIF(+)26 26

HEADPHONE(L)
33

HEADPHONE(R)
44

HEADPHONE-DET
22

CN3703CN403

AMP(L)-OUT10 10

AMP(R)-OUT88

AUDIO-MUTE12 12

TO SYSTEM CONTROL

BLOCK DIAGRAM

WF7

RGB-AUDIO(L)-OUT
66

RGB-AUDIO(R)-OUT
77

8

IC801 (AUDIO AMP)

IC3802

(OP AMP)

1

9

MUTE CONTROL

CN802CL802

SP802

SPEAKER

L-CH

CN801

SP-GND 2

CL801

SP801

SPEAKER

R-CH

DRIVE

7

1

5

3

2

IC3805

(HP AMP)

SP(R) 1

SP-GND 2

SP(L) 1

DRIVE

HEADPHONE(L)

Q3804, Q3805

DRIVE

Q3802

MUTE

Q3801

MUTE

Q801, Q802

MUTE

4

6

AUDIO(L)

AUDIO(R)

COM-AUDIO(L)

PC-AUDIO(L)

PC-AUDIO(R)

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

COM-AUDIO(R)

HEADPHONE(R)

COM-AUDIO(L)19 19

COM-AUDIO(R)

18 18

COMPONENT

AUDIO(L)-IN

COMPONENT

AUDIO(R)-IN

JK412

JK411

JACK CBA

HEADPHONE(L)
33

HEADPHONE(R)
44

HEADPHONE-DET
22

JK406

HEADPHONE

JACK

CN103CN452

9-4

A0C70BLD

Digital Signal Process Block Diagram

DIGITAL MAIN CBA UNIT

IC3301 (DIGITAL SIGNAL PROCESS)

VIDEO-OUT

DIGITAL

SIGNAL

PROCESS

D-SUB

3

12

15

1

2

RED

GREEN

BLUE

DATA

CLOCK

JK3701

L2

P2

J2

A/D

CONVERTER

T1

14

13

HSYNC

VSYNC

U1

U2

AG8

AK5

V1

V2

AE1

AB3

AA2

AC3

AD1

AB4

AD4

AE3

AC4

AD2

AC1

AB1

AA3

W1

VIDEO-IN

VIDEO-R

VIDEO-G

VIDEO-B

TO VIDEO

BLOCK

DIAGRAM

TO VIDEO

BLOCK

DIAGRAM

TO VIDEO

BLOCK

DIAGRAM

TO AUDIO

BLOCK

DIAGRAM

SW

N3

N1

M1L3M2

R1

K1

J3

RGB-VIDEO-IN

N2

DIF-OUT2

DIF-OUT1

IF-AGC

T2

TU-CVBS

AA1

P3

H-SYNC

V-SYNC

VGA-SDA

VGA-SCL

IF-AGC

HDMI-IN2

HDMI-IN1

JK3703

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

SDA

SCL

79461

3

101216

15

79461

3

101216

15

JK3704

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

F2

F1

G2

G1

H2

H1

E2

E1

AG10

AJ8

B1

B2

C1C2D1

D2

A1

A2

AF10

AE11

TMDS-CLOCK(+)

TMDS-CLOCK(-)

DEMODULATOR

/MPEG DECODER

DEMODU.

ADC

DAC

AUDIO I/F

RDQ(0-31)

MRA(0-12)

IC3201, IC3202

(DDR2 SDRAM)

HDMI I/F

AUDIO

DECODER

VIDEO

DECODER

VIDEO SIGNAL

AUDIO SIGNAL

CI

CARD

SLOT

DAC

SIF(+)

AB2

LCD MODUL

E

ASSEMBLY

CN3901

LLV1(-)21

LLV1(+)20

LLV0(-)23

LLV0(+)22

LLV2(-)19

LLV2(+)18

LLV3(-)13

LLV3(+)12

LLV4(-)11

LLV4(+)10

LLV5(-)9

LLV5(+)8

LLVCLK(+)16

LLVCLK(-)15

TP6

POL5

CPV4

OE13

STV1

TIMING

CONTROL

LVDS

OUTPUT

AK23

AJ23

AK22

AJ22

AK21

AJ21

AK20

AJ20

AK19

AJ19

AH18

AH19

AJ24

AK24

AG23

AH23

AH25

AK26

AH26

DATA(0-31)

ADDESS(0-12)

GDAT(0-15)

GADR(0-13)

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

HEADPHONE(L)

AUDIO(L)

AUDIO(R)

COM-AUDIO(L)

PC-AUDIO(L)

PC-AUDIO(R)

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

COM-AUDIO(R)

HEADPHONE(R)

9-5

A0C70BLINV

Inverter Block Diagram

MAIN CBA

IC1001

(PWM CONTROL)

BACK

LIGHT

1

2

1

2

CN1650

CN1750

BACK

LIGHT

T1600

Q1006,

Q1009,

Q1010

Q1003

Q1501

Q1601

Q1500

Q1004,Q1011,

Q1013,Q1014

Q1001,Q1002

Q1023,

Q1024

Q1600

T1700

DRIVE

Q1005,

Q1007,

Q1008

DRIVE

OSC

PWM

CONTROL

LOGIC

VCC

DTC

CURRENT

CONTROL

SWITCH

CURRENT

CONTROL

SWITCH

Q1700

CURRENT

CONTROL

SWITCH

11

8

5 6

15

3

4

12

VREF

14

16

2

1

SW

SW+7.5V

Q1402

LCD MODULE

ASSEMBLY

T1500

3

1

4

786

5

2

BACK

LIGHT

1

2

CN1550

AL+7.5V

AL+33V

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

3

1

4

786

5

2

3

1

4

786

5

2

SW+7.5V

Q1701

9-6

A0C70BLP

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT COLD

MAIN CBA

HOT CIRCUIT. BE CAREFUL.

Q602

SWITCHING

CONTROL

14

3 2

IC605

T601

3

LINE

FILTER

L601

AC601

AC CORD

BRIDGE

RECTIFIER

D602, D604, D605, D607

1

2

16

15

14

13

12

11

10

9

5

6

FEED

BACK

Q601

SWITCHING

Q603

CN301

CN402 CN3701

LCD MODULE ASSEMBLY

Q612, Q613

SWITCHING

Q611

SW-6.8V

Q604

Q607

Q616

SW+5V

Q605

Q609

SW+11V

Q615

SW+13V

Q606,D671

SW+3.3V

SW+3.3V

F601

T4A H 250V

P-ON-H1

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

P-ON-H2

PROTECT1

Q610

P-ON+5V

AL+3.3V

AL+15V(1)

P-ON+11V

13-161027-29

AL+3.5V

AL+5.5V

AL+3.3V

P-ON+3.3V

P-ON+5V

DIGITAL MAIN CBA UNIT

P-ON+3.3V13-16

P-ON+3.3V6,7

PANEL+25.6V4

LCD-5.5V8

PANEL+12.5V2,3

AL+3.3V10

24,26

19-21

AL+5.5V24,26

AL+3.5V19-21

P-ON+5V27-29

AL+33V

AL+7.5V

Q608

Q617

10-1 LCDP_SC

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “!” in
the schematic diagram and the par ts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3

, M = 106).

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

-6

µF).

5. All voltages are DC voltages unless otherwise
specified.

6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two
digits are not shown for each component. In each
block of the diagram, there is a note such as
shown below to indicate these abbreviated two
digits.

10-2 LCDP_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE
FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

5. How to read converged lines

6. Test Point Information

2

3

1

5.0 5.0

Voltage

Indicates that the voltage
is not consistent here.

Power on mode

(Unit: Volt)

3

2

1

ABCD

1-B1

1-D3

AREA D3

AREA B1

1-D3

Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe

r

"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

10-3

A0C70SCM1

Main 1 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

10-4

A0C70SCM2

Main 2 Schematic Diagram

10-5 A0C70SCM3

Main 3 Schematic Diagram

10-6

A0C70SCM4

Main 4 Schematic Diagram

10-7

A0C70SCF

Function & Junction Schematic Diagram

10-8

Jack Schematic Diagram

A0C70SCJ

10-9

A0C70SCD1

Digital Main 1 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-10

A0C70SCD2

Digital Main 2 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-11

A0C70SCD3

Digital Main 3 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-12

A0C70SCD4

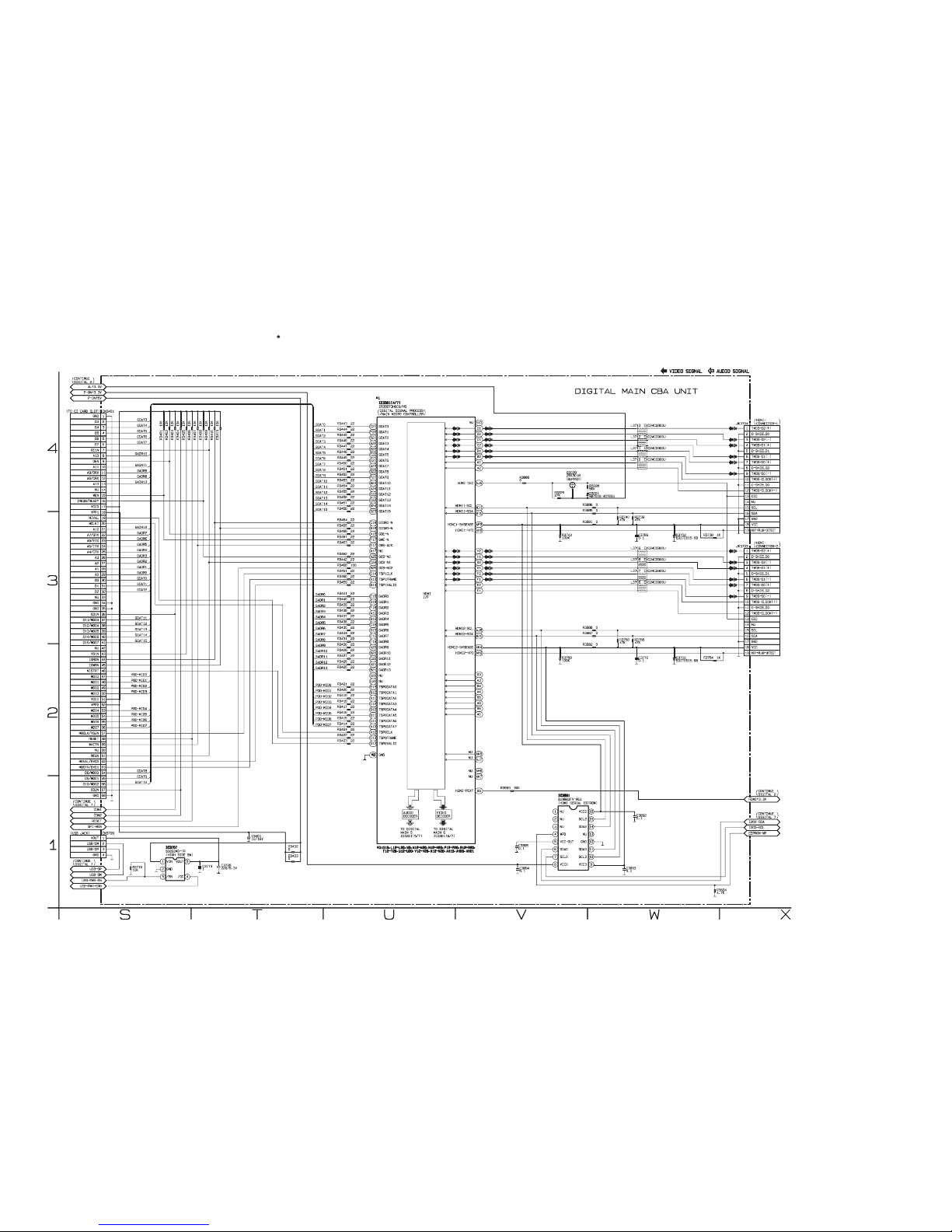

Digital Main 4 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-13

A0C70SCD5

Digital Main 5 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-14

A0C70SCD6

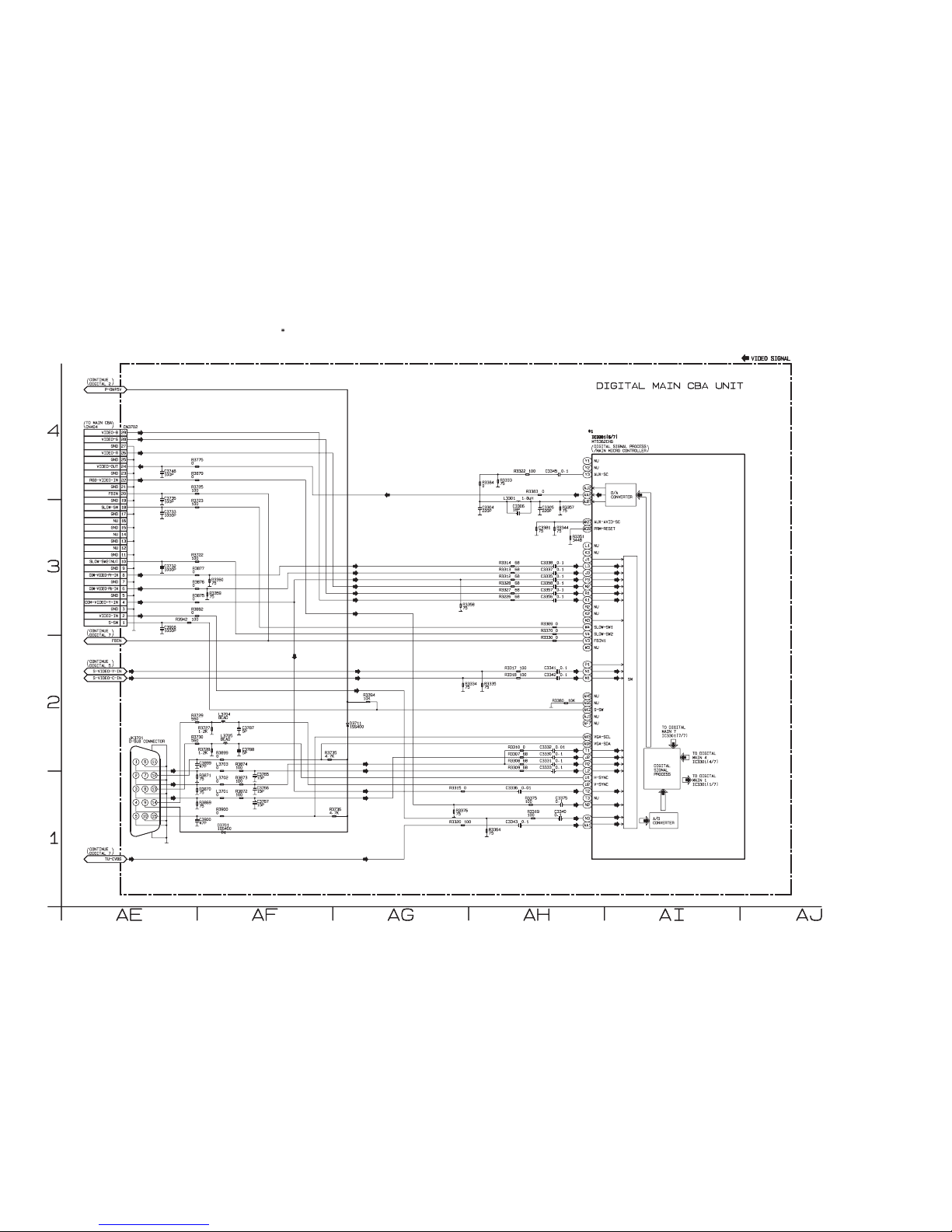

Digital Main 6 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-15

A0C70SCD7

Digital Main 7 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into six and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

1 NOTE:

10-16

T 4A H/250V

1

6

1

2

C7A3 A3

/BLUE

TM601

/BROWN

TM602

AND REPLACE

ONLY

WITH MARKED.

MAINS

PLUG BEFORE FUSE REPLACEMENT

AND FIRE HAZARD.DISCONNECT

WARNING:TO PREVENT ELECTRIC

SHOCK

101 2 3 4 5 6 7 8 9

TOOL NO.

F601

2

1

2

11

C1500

P-ON-H1

J318

C1501

R401

C1502

C1503

J1020

C1504

J1021

C1505

J1022

+15V

J1023

C27

JK410

J1024

AG

J320

J1025

AG

J321

AG

J322

GND

J1027

GNDJ323

JK413

GND

J1028

GND

J324

C1700

J1029

GND

J325

C1701

R601

J326

C1702

R602

C1703

GND

J328

C1704

GND

J329

C1705

J1030

R609

INV+33V

J1032

INV+33V

J1033

J1034

J330

GND

J1035

J1036

GND

J1037

GNDJ1038

GND

J334

R610

J1039

GND

J335

R611

R805

CN401

GNDJ336

CN402

R612

J337

CN403

R613

GNDJ338

R614

CN404

GND

J339

R421

R615

R616

R617

J1040

D1500

J1041

R425

R619

D1501

INV+33VJ1042

D1502

INV+33V

J1043

R427

D1503

GND

J1044

D1504

J1045

J341

GND

GND

J1046

J1047

J1048

R620

R1504

R1505

R1506

R817

R1507

R624

R818

R1508

D1700

R1509

D1701

D1702

D1703

D1704

CN801

GND

J1052

R436

CN802

GND

J1053

J1054

R438

R1704

J1055

R1705

GND

J1056

R1706

GND

J1057

R1707

GND

J1058

R1708

+7.5V

J1059

R1709

R441

R635

R442

R637

GND

J1060

CN1550

R638

Q10

GND

J1061

R445

R639

BL-ADJ

J1062

Protect-3

J1063

R447

BL-SW

J1065

R449

C601

FH601

VCOM

J1066

C602

FH602

VCOM-PWM

J1068

J364

R640

GND

J365

GND

J1069

R641

C605

C606

J367

C607

J368

C1550

CN1750

R644

C608

GND

J369

C1551

R451

C609

C1552

R452

R646

C

15

5

3

R453

C1554

C1555

GND

J1072

R456

R457

GND

J370

R458

C804

J371 GND

R459

C611

C805

C612

C806

C613

C807

C1750

C614

C808

R651

C615

C1751

C1752

R652

C422

C617

C1753

C1754

C618

C1755

C619

R656

R463

R659

C812

C814

C620

C621

C622

C623

J190

R660

C430

SLOW-SW-IN

J191

R661

C626

+15VJ193

R6

6

3

J194 +7.5V

C628

T1500

SIF-P

J195

R471

C629

SIF-N

J196

TU-CVBS

J197

P-ON+5V

J198

D1550

R669

D1551

D1552

D1553

D1554

C630

D1555

D1556

C632

D1557

C634

R670

T1700

C637

D1750

R675

D1751

C639

R676

D1752

D1753

D1560

D1754

D1561

D1755

D1562

D1756

D1563

D1757

D1564

C640

C641

R680

C645

R682

R684

D1760

R685

D1761

R686

D1762

D1763

D1764

R689

Q301

Q302

Q303

C651

Q305

R690

D402

D404

D406

R697

R698

D408

D601

D603

D410

D411

D412

D606

D413

D414

D608

D415

D609

D416

D417

D419

D801

D802

D803

D804

D610

D805

D612

D613

D420

D614

D421

D615

D422

D616

D423

D617

D618

D424

D425

D619

D427

D428

D429

D811D812

D813

D620

D814

D621

D623

D430

D624

T601

IC605

D627

D628

D629

IC801

D631

D632

D633

J200
PON+11V

D634

D635

C1001

D636

D637

C1003

PON+11V

J204

D638

J205

D639

Q1001

P-ON-H2

J206

C1006

Q1002

J207 ALL+3.3V

ALL+3.3V

J208

Q1004

Q1005

Q1006

Q1007

D640

Q1008

D641

Q1009

D642

D643

P-ON+3.3V

J210

D644

D645

BC1001

J211

BC1002

D646

C1012

PANEL+12.5V

J214

D648

C1014

Q1010

BC1005

D649

Q1011

BC1006

Q1012

BC1007

PANEL-5.5V

J218

BC1008

C1402

C1403

D650

C1404

D653

R308

R309

GREEN LED +25.6V

J222

J223

C1600

CN102A

GNDJ225

C1601

P-ON+3.3V

J226

C1602

J227

C1603

D1003

JS400

C1604

D1004

POW-for-1.1V

J229

R311

C1605

D1005

D1006

R1002

CN103

D1007

D660

R1004

R1005

P-ON+5VJ230

SP-L

J231

GNDJ234

D1010

D1011

CN301

VDACOUT1

J236

D1012

+15V

J238

ON/OFF-H1J239

R1012

D670

D671

D1401

D672

D673

D1403

D674

R1018

D1404

GNDJ240

+33V

J241

R1019

AMP-R

J242

GND

J243

AMP-L

J244

L10

J245

L11

VCOM-PWMJ247

BL-SWJ248

D1600

BL-ADJ

J249

D1601

R1022

D1602

D1603

D1604

R1026

R1027

R1028

R1604

GNDJ250

PANEL-5.5VJ251

R1029

R1605

R1606

J252

POW-for-1.1V

P-ON+3.3V

J253

R1607

R1608

J255

R1609

C301

P-ON-H1

J257

J258

R1030

J259

R1031

J260

ALL+3.3V

J261

R156

P-ON-H2

J262

R157

+3.5V

J263

PANEL+12.5V

J264

C312

PANEL+12.5V

J266

Protect-1

J268

CN1650

J269

D1045

R11

R1042

C318

C319

J270 P-ON+5V

R1048

P-ON+3.3V

J271

R1049

AG

J273

PON+11VJ274

C16

50

Protect-3

J275

C1651

Protect-1

J276

C1652

P-ON+3.3V

J277

C1653

Protect-1

J278

R1050

C1657

R1053

C1658

J283

GND

J292

GND

J293

GNDJ294

T1600

GNDJ295

SA601

GND

J297

D1650

COMP-R

J299

R1071

D1651

R1072

D1652

D1653

R1074

D1654

D1655

D1656

D1657

D1660

D1661

D1662

D1663

D1664

D301

Q404

Q405

Q406

D501

D502

D503

Q601

D506

Q602

Q603

D508

Q604

D509

Q605

Q606

Q607

Q609

D510

D511

L405

Q801

L406

Q802

L407

D513

Q803

L408

Q610

Q804

Q611

Q612

Q613

Q614

Q615

BC401

L601

BC402

Q616

BC601

BC602

BC603

BC604

BC605

BC801

BC802

D151

J1001

J1002

INV+33V

J1003

J1004

J1005

INV+33V

J1006

J302

INV+33V

J1007

J303

INV+33V

J1008

J304

GND

J1009

J305

SW601

ALL+3.3V

J306

J307

J1010

C14

J1011

GND

J1013

GND

J1014

SLOW-SW-IN

J310

C18

+15V/+12V

J1015

JK401

J311

JK402

GND

J312

J1017

JK403

GND

J313

JK404

J314

J1019

JK405

J316

J317

5.0mm

7.5mm

COLD

HOT

5

1

DCBA

2

3

4

EF

P-ON+3.3V

J267

R653

R806

COMP

GND

GND

D815

11

10

1

10

1

2

2

1

29

28

28

29

1

2

2

1

29

28

28

29

1

2

1

15

1

9

10

18

SCART CVBS OUT

COMP-Pr

COMP-Pb

COMP-Y

COMP-L

J298

PON+11V

J201

A-MUTE

J202

J1026

J1012

J279

BA0C70F0101 2LC8.5 EU 22W

J265

J1018

J1016

Q1501

Q1601

D1405

Q1701

J192

R420

S-SW

GND

J366

TU10

AC601

J235

RESET

J284

J300

GND

J232

J309

GND

J372

J246

J373

Q617

J375

J374

D600

Q608

C1013

D607

D602

D605

D604

D622

C616

J1080

J376

BLUE LED +12.5V

BLUE LED +12.5V

J377

BA0C70F01012

Main CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

10-17

C1500

P-ON-H1

J318

C1501

R401

C1502

C1503

J1020

C1504

J1021

C1505

J1022

+15V

J1023

C27

JK410

J1024

AG

J320

J1025

AG

J321

AG

J322

GND

J1027

GND J323

JK413

GND

J1028

GND

J324

C1700

J1029

GND

J325

C1701

R601

J326

C1702

R602

C1703

GND

J328

C1704

GND

J329

C1705

J1030

R609

INV+33V

J1032

INV+33V

J1033

J1034

J330

GND J1035

J1036

GND

J1037

GND J1038

GND

J334

R610

J1039

GND

J335

R611

R805

CN401

GND J336

CN402

R612

J337

CN403

R613

GND J338

R614

CN404

GND

J339

R421

R615

R616

R617

J1040

D1500

J1041

R425

R619

D1501

INV+33V J1042

D1502

INV+33V

J1043

R427

D1503

GND J1044

D1504

J1045

J341
GND

GND

J1046

J1047

J1048

R620

R1504

R1505

R1506

R817

R1507

R624

R818

R1508

D1700

R1509

D1701

D1702

D1703

D1704

CN801

GND

J1052

R436

CN802

GND

J1053

J1054

R438

R1704

J1055

R1705

GND J1056

R1706

GND

J1057

R1707

GND

J1058

R

170

8

+7.5V

J1059

R1709

R441

R635

R442

R637

GND

J1060

CN1550

R638

Q10

GND

J1061

R445

R639

BL-ADJ

J1062

Protect-3 J1063

R447

BL-SW

J1065

R449

C601

FH601

VCOM

J1066

C602

FH602

VCOM-PWM

J1068

J364

R640

GND

J365

GND

J1069

R641

C605

C606

J367

C607

J368

C1550

CN1750

R644

C608

GND

J369

C1551

R451

C609

C1552

R452

R646

C1

553

R453

C1554

C1555

GND

J1072

R456

R457

GND

J370

R458

C804

J371GND

R459

C611

C805

C612

C806

C613

C807

C1750

C614

C808

R651

C615

C1751

C1752

R652

C422

C617

C1753

C1754

C618

C1755

C619

R656

R463

R659

C812

C814

C620

C621

C622

C623

J190

R660

C430

SLOW-SW-IN

J191

R661

C626

+15V J193

R6

63

J194+7.5V

C628

T1500

SIF-P

J195

R471

C629

SIF-N

J196

TU-CVBS

J197

P-ON+5V

J198

D1550

R669

D1551

D1552

D1553

D1554

C630

D1555

D1556

C632

D1557

C634

R670

T1700

C637

D1750

R675

D1751

C639

R676

D1752

D1753

D1560

D1754

D1561

D1755

D1562

D1756

D1563

D1757

D1564

C640

C641

R680

C645

R682

R684

D1760

R685

D1761

R686

D1762

D1763

D1764

R689

Q301

Q302

Q303

C651

Q305

R690

D402

D404

D406

R697

R698

D408

D601

D603

D410

D411

D412

D606

D413

D414

D608

D415

D609

D416

D417

D419

D801

D802

D803

D804

D610

D805

D612

D613

D420

D614

D421

D615

D422

D616

D423

D617

D618

D424

D425

D619

D427

D428

D429

218D118D

D813

D620

D814

D621

D623

D430

D624

T601

IC605

D627

D628

D629

IC801

D631

D632

D633

J200

PON+11V

D634

D635

C1001

D636

D637

C1003

PON+11V

J204

D638

J205

D639

Q1001

P-ON-H2

J206

C1006

Q1002

J207

ALL+3.3V

ALL+3.3V

J208

Q1004

Q1005

Q1006

Q1007

D640

Q1008

D641

Q1009

D642

D643

P-ON+3.3V

J210

D644

D645

BC1001

J211

BC1002

D646

C1012

PANEL+12.5V

J214

D648

C1014

Q1010

BC1005

D649

Q1011

BC1006

Q1012

BC1007

PANEL-5.5V

J218

BC1008

C1402

C1403

D650

C1404

D653

R308

R309

GREEN LED +25.6V

J222

J223

C1600

CN102A

GND J225

C1601

P-ON+3.3V

J226

C1602

J227

C1603

D1003

JS400

C1604

D1004

POW-for-1.1V

J229

R311

C1605

D1005

D1006

R1002

CN103

D1007

D660

R1004

R1005

P-ON+5V J230

SP-L

J231

GND J234

D1010

D1011

CN301

VDACOUT1

J236

D1012

+15V

J238

ON/OFF-H1 J239

R1012

D670

D671

D1401

D672

D673

D1403

D674

R1018

D1404

GND J240

+33V

J241

R1019

AMP-R

J242

GND

J243

AMP-L

J244

L10

J245

L11

VCOM-PWM J247

BL-SW J248

D1600

BL-ADJ

J249

D1601

R1022

D1602

D1603

D1604

R1026

R1027

R1028

R1604

GND J250

PANEL-5.5V J251

R1029

R1605

R1606

J252

POW-for-1.1V

P-ON+3.3V

J253

R1607

R1608

J255

R1609

C301

P-ON-H1

J257

J258

R1030

J259

R1031

J260

ALL+3.3V

J261

R156

P-ON-H2

J262

R157

+3.5V J263

PANEL+12.5V

J264

C312

PANEL+12.5V

J266

Protect-1

J268

CN1650

J269

D1045

R11

R1042

C318

C319

J270

P-ON+5V

R1048

P-ON+3.3V

J271

R1049

AG

J273

PON+11V J274

C16

50

Protect-3

J275

C1651

Protect-1

J276

C1652

P-ON+3.3V

J277

C1653

Protect-1

J278

R1050

C1657

R1053

C1658

J283

GND

J292

GND J293

GND J294

T1600

GND J295

SA601

GND

J297

D1650

COMP-R

J299

R1071

D1651

R1072

D1652

D1653

R1074

D1654

D1655

D1656

D1657

D1660

D1661

D1662

D1663

D1664

D301

Q404

Q405

Q406

D501

D502

D503

Q601

D506

Q602

Q603

D508

Q604

D509

Q605

Q606

Q607

Q609

D510

D511

L405

Q801

L406

Q802

L407

D513

Q803

L408

Q610

Q804

Q611

Q612

Q613

Q614

Q615

BC401

L601

BC402

Q616

BC601

BC602

BC603

BC604

BC605

BC801

BC802

D151

J1001

J1002

INV+33V

J1003

J1004

J1005

INV+33V

J1006

J302

INV+33V

J1007

J303

INV+33V

J1008

J304

GND

J1009

J305

SW601

ALL+3.3V

J306

J307

J1010

C14

J1011

GND

J1013

GND

J1014

SLOW-SW-IN

J310

C18

+15V/+12V

J1015

JK401

J311

JK402

GND

J312

J1017

JK403

GND

J313

JK404

J314

J1019

JK405

J316

J317

5.0mm

7.5mm

COLD

HOT

5

1

DCBA

2

3

4

EF

P-ON+3.3V

J267

R653

R806

COMP

GND

GND

D815

11

10

1

10

1

2

2

1

29

28

28

29

1

2

2

1

29

28

28

29

1

2

1

15

1

9

10

18

SCARTCVBSOUT

COMP-Pr

COMP-Pb

COMP-Y

COMP-L

J298

PON+11V

J201

A-MUTE

J202

J1026

J1012

J279

BA0C70F0101 2 LC8.5 EU 22W

J265

J1018

J1016

Q1501

Q1601

D1405

Q1701

J192

R420

S-SW

GND

J366

TU10

AC601

J235

RESET

J284

J300

GND

J232

J309

GND

J372

J246

J373

Q617

J375

J374

D600

Q608

C1013

D607

D602

D605

D604

D622

C616

J1080

J376

BLUE LED +12.5V

BLUE LED +12.5V

J377

6

1

C21

C22

R403

C24

Q1500

C1506

C1507

R28

Q1700

R411

R412

C1706

R413

C1707

R1105

R502

R1106

R1107

R1109

R801

R802

R803

R804

R807

R1110

R808

R809

R422

R423

R424

R426

R810

R1500

R811

R1501

R812

R1502

R813

R1503

R814

R815

R816

R625

R819

R626

R627 R628

R1700

R629

R1701 R1702

R437

R1703

R820

R439

R823

R630

R824

R825

C402

R826

C403

R827

R440

C404

R829

C405

C406

R443

R444

C408

C409

R446

R448

R830

R831

C410

R642

C413

R643

C414

R450

R648

C418

R649

C801

C802

R505

C803

R504

C1558

R503

R650

C420

C421

C809

C423

R654

C424

R655

C425

C426

R657

C427

C810

C1758

R658

C428

C429

C811

R467

C813

R468

C815

R469

C817

C431

C625

C819

C432

C433

C434

C435

R472

R666

C437

R473

R667

C438

R474

R668

C820

C821

C822

C823

C824

R1550

C825

R1551

C631

C441

R671

C442

R672

C636

C443

R673

R480

C444

R674

R1558

C638

R481

R1559

R677

R484

R678

R1750

R485

R1751

R486

R487

R1560

C642

C643

R1758

C644

R681

R1759

C646

R683

R687

R688

R1760

C652

R694

R695

R696

C480

C481

C482

C483

C484

C485

C486

C1004

C1005

C1007

Q1003

C1008

C1009

C1010

C1011

C1015

C1016

C1017

Q1013

C1018

Q1014

R301

R302

R303

R304

R305

R306

Q1402

R307

C1020

C1021

R501

Q1023

Q1024

R310

Q1600

R312

C1606

R313

C1607

R1003

R314

R1006

R1007

R318

R1008

R319

R1009

R320

R321

R322

R1014

R1015

R1016

R1017

R1403

C1045

R1405

R1406

R1407

R1020

C1049

R1021

R1023

R1024

R1600

R1025

R1601

R1602

R1603

C302

C303

C304

C305

R1032

C306

R1033

R1034

R1035

C309

R1036

R1037

C310

C311

C313

C314

C315

C316

R12

R1043

C317

R13

R14

R1044

R1045

R15

R1046

R16

R1047

R18

R19

R20

R1051

R21

R1052

R24

R1054

R25

R1055

R26

R1056

R27

R1058

R1059

C1661

R1060

R1061

R1062

R1063

R1064

R1065

C151

C152

C153

C154

R1650

C155

R1075

R1651

R1076

R1658

R1659

R1660

IC301

C10

C11

C12

C15

C17

C19

R488

R29

IC1001

C29

R30

R699

R323

R464

R462

R22

R607

R606R605

R604

R618

R31

C647

R662

C501

1

35

6

6

1

9

H.V

CAUTION

H.V

CAUTION

H.V CAUTION

2

1

12

2

11

14

5

8

1

8

9

16

1

45

8

8

5

4

1

8

5

4

1

WF8

PIN 29 OF
CN404

WF9

PIN 28 OF
CN404

WF10

PIN 26 OF
CN404

WF1

PIN 2 OF
CN404

WF2

PIN 27 OF
CN401

WF3

PIN 29 OF
CN401

WF4

PIN 4 OF
CN404

WF5

PIN 6 OF
CN404

WF6

PIN 8 OF
CN404

WF7

PIN 22 OF
CN401

Main CBA Bottom View

BA0C70F01012

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

10-18

Jack CBA, Function CBA & Junction CBA Top View

Function CBA

Junction CBA

Jack CBA

BA0C70F01021

10-19

Jack CBA, Function CBA & Junction CBA Bottom View

BA0C70F01021

Function CBAJunction CBA

Jack CBA

11-1

LC8.5PWF

WAVEFORMS

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF1 ~ WF6 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

S-VIDEO-Y

S-VIDEO-Y

0.2V

0.2V

2020µ

s

S-VIDEO-C

S-VIDEO-C

0.2V

0.2V

2020µ

s

VIDEO-Y

VIDEO-Y

0.2V

0.2V2020

µ

s

20

20

µ

s

VIDEO-Pr

VIDEO-Pr

0.2V

0.2V2020

µ

s

VIDEO-Pb

VIDEO-Pb

0.2V

0.2V2020

µ

s

Pin 6 of CN404

WF5

VIDEO

VIDEO

0.2V

0.2V

2020µ

s

WF1

Pin 2 of CN404

WF4

Pin 4 of CN404

WF2

Pin 27 of CN401

WF6

Pin 8 of CN404

WF3

Pin 29 of CN401

11-2

LC8.5PWF

VIDEO-B

VIDEO-B

0.5V

0.5V

WF8

Pin 29 of CN404

WF9

Pin 28 of CN404

WF10

Pin 26 of CN404

AUDIO(L)

AUDIO(L)

0.5V

0.5V

0.5m

0.5m

s

WF7

Pin 22 of CN401

2020µ

s

VIDEO-G

VIDEO-G

0.5V

0.5V

2020µ

s

VIDEO-R

VIDEO-R

0.5V

0.5V

2020µ

s

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF7 ~ WF10 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

12-1

A0C70WI

WIRING DIAGRAMS

TUNER UNIT

PC-

AUDIO-IN

MAIN CBA

DIGITAL MAIN CBA UNIT

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-1

D-SUB

CONNECTOR

LCD MODULE ASSEMBLY

VIDEO-IN

AUDIO(L)

-IN

AUDIO(R)

-IN

S-VIDEO

-IN

JUNCTION CBA FUNCTION CBA

CN102B

CN102A

1

1

GND GND

3

3

AL+3.3V

2

2

REMOTE

4

4

LED1

5

5

PANEL+24V

6

6

13245

6

13245

6

KEY-IN1

AL+3.3V

REMOTE

LED1

PANEL+24V

KEY-IN1

CN101B

CN101A

CN3901CL3901

CL401CL303

CL302 CL404

GND

GND

GND

GND

LLV5(+)

LLV5(-)

LLV4(+)

LLV4(-)

LLV3(+)

LLV3(-)

LLV2(+)

LLV2(-)

LLV1(+)

LLV1(-)

LLV0(+)

LLV0(-)

LLVCLK(-)

LLVCLK(+)

TP

POL

STV

XA0

OE1

CPV

CN3703

CN403

231921

15

172220

18

16

141012

6

8

13

11

9

7

513

4

BACKLIGHT-ADJ

VCOM-PWMNUSCART-OUT-SEL(NU)

GND

AMP(R)-OUT

KEY-IN1

GND

AMP(L)-OUT

AUDIO-MUTE

GND

REMOTE

LED1

DIF-OUT2

GND

GND

DIF-OUT1

IF-AGC

GND

SCL

GND

SIF(-)

SIF(+)

GND

GND

TU-CVBS

SDA

BACKLIGHT-SW

GND

2 2

CN3701CN402

1

5

3

9

7

2

4

6

8

101412

18

16

11

13

15

17

19

23

21

20

252123

17

192422

20

18

161214

8

101513

11

9

735

6

22

RESET

24

2

P-ON-H2

25

1

P-ON-H1

P-ON+11V

GND

GND

GND

AL+3.3V

P-ON+3.3V

GND

GND

P-ON+3.3V

GND

P-ON+3.3V

P-ON+3.3V

GND

AL+3.5V

AL+3.5V

AL+3.5V

GND

GND

GND26AL+5.5V27P-ON+5V28P-ON+5V

29

2524262728

29

262728

29

262728

29

262728

29

231921

15

172220

18

16

141012

6

8

13

11

9

7

513

4

2524262728

29

262728

29

P-ON+5V

AL+5.5V

PROTECT3

PROTECT1

4

21

23

17

192422

20

18

161214

8

101513

11

9

735

6

214

HEADPHONE(L)

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

GND

RGB-AUDIO(R)-IN

RGB-AUDIO(L)-INNUGNDNUGND

GNDNUNU

COM-AUDIO(R)

AUDIO(R)

COM-AUDIO(L)

GND

AUDIO(L)

GND

GND

S-VIDEO-Y-IN

GND

S-VIDEO-C-IN

PC-AUDIO(L)

PC-AUDIO(R)

CN401

HEADPHONE(R)

GND

CN3704

252123

17

192422

20

18

161214

8

101513

11

9

7

3

HEADPHONE-DET

2NU1

5

6

4

252123

17

192422

20

18

161214

8

101513

11

9

7

321

5

6

4

GND

COM-VIDEO-Pb-IN

GND

COM-VIDEO-Pr-IN

GND

SLOW-SW2(NU)

GND

GNDNUMU

GND

GNDNUSLOW-SW

GND

GND

FBIN

RGB-VIDEO-IN

GND

GND

VIDEO-R

GND

VIDEO-G

VIDEO-B

VIDEO-OUT

CN404

COM-VIDEO-Y-IN

GND

CN3702

252123

17

192422

20

18

161214

8

101513

11

9

7

3

VIDEO-IN

2

S-SW

1

5

6

4

262728

29

252123

17

192422

20

18

161214

8

101513

11

9

7

321

5

6

4

SCART

JACK

HEADPHONE

JACK

CI

CARD SLOT

USB JACK

GND

GND

PANEL+12.5V

PANEL+12.5V

PANEL+25.6V

GND

P-ON+3.3V

P-ON+3.3V

LCD-5.5V

VCOM

GND

BACK

LIGHT

CN1550

2

1

BACK

LIGHT

CN1650

2

1

CL301

1

5

3

9

7

2

4

6

8

10

11

BACK

LIGHT

CN1750

2

1

CN301

AC601

AC CORD

CL801

1

CN801

2

SP(R)

SP-GND

CL802

1

CN802

2

SP(L)

SP-GND

SP802

SPEAKER

L-CH

SP801

SPEAKER

R-CH

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN
COMPONENT-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

JACK CBA

HEADPHONE

JACK

GND

COM-VIDEO-Y-IN

GND

5

2

1

COM-VIDEO-Pr-IN

44

5

2

COM-VIDEO-Pb-IN

33

1

HEADPHONE(L)

HEADPHONE(R)

GND

11

HEADPHONE-DET

9

8

10

11

9

8

10

COM-AUDIO(R)

COM-AUDIO(L)

6

7

6

7

CN452

CN103

13-1 A0C70_71CEX

EXPLODED VIEWS

Cabinet

L17

L1

A6

S5

L1

B2

B27

L9

L2

L2

B3

B3

B3

L4

L5

A4

L1

L9

L1

L1

B13

L3

L3

L3

L11

L19

L3

L3

L3

B1

B18

B9

X3301

B9

L19

B7

L3

A17

A16

B23

L13

B12

L13

L13

L3

L3

B4

L1

L1

L1

L3

B14

A1

L8

L1

L1

A5

B8

L8

B8

A3

See Electrical Parts List
for parts with this mark.

Digital Main CBA Unit

AC601

Function CBA

Junction CBA

Main CBA

Stand Assembly

LCD1

CL302

CL303

CL404

CL401

CL3901

CL301

CL801

CL802

SP802

SP801

Jack CBA

CL103

A14

13-2 A0C70_71PEX

Packing

S4

S5

S3

Ta pe

Packing Tape

Packing Tape

Packing Tape

S6

L17

X1

Some Ref. Numbers are
not in sequence.

Stand
Assembly

X3

X4

FRONT

FRONT

X2-1
X2-2

S1

S2

Ta pe

20100507 14-1 A0C70/71CA

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Comparison Chart of Models and Marks

Model Mark

LT850-M22 A

LT851-M22 B

Ref. No. Mark Description Part No.

STAND ASSEMBLY A0CN0EZ 1ESA23370

A1 A FRONT CABINET A9372EP 1EM123573

A1 B FRONT CABINET A9371EP 1EM123753

A3 A CONTROL PLATE A91N0UH 1EM325762

A3 B CONTROL PLATE A93N1EP 1EM326657

A4 A REAR CABINET A0C70EP 1EM124413

A4 B REAR CABINET A0C71EP 1EM124433

A5 A DECORATION PLATE A0C70EP 1EM224403

A5 B DECORATION PLATE A0C71EP 1EM224404

A14 POP LABEL A0CN0EP ----------

A16 A JACK HOLDER A0C70EP 1EM327437

A16 B JACK HOLDER A0C71EP 1EM327439

A17 A HP JACK HOLDER A0C70EP 1EM327438

A17 B HP JACK HOLDER A0C71EP 1EM327440

B1 SHIELD BOX A93N2EP 1EM123594A

B2 STAND HOLDER A9170UH 1EM325637

B3 WALL MOUNT BRACKET A84N0UH 1EM323797

B4 PCB STUD A0C70EP 1EM431017

B7 GASKET A8AF0UH 1EM425861

B8 SPEAKER HOLDER A94N0UH 1EM325677

B9 GASKET(4X15XT3.0) A0CN0EP 1EM431762

B18 TUNER SHIELD A93N2EP 1EM326238

B27 SEPARATION SHEET A9370EP 1EM326237

CL103 WIRE ASSEMBLY 11PIN FFC 11PIN

60MM

WX1A9370-101

CL301 WIRE ASSEMBLY 11PIN FFC 11PIN

90MM

WX1A9170-107

CL302 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL303 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL401 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL404 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL801 WIRE ASSEMBLY 2PIN 2PIN 100MM

RED GLAY

WX1A9370-203

CL802 WIRE ASSEMBLY 2PIN 2PIN 100MM

RED GLAY

WX1A9370-203

CL3901 WIRE ASSEMBLY 24PIN FFC 24PIN

80MM

WX1A9170-101

L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L2 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080

L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

L8 ASSEMBLED SCREW M3X10 1EM420633A

L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100

L11 HEX SCREW #4-40 7MM 1EM430139

L19 S-TIGHT SCREW M3X6 BIND

HEAD+BLACK

GBHS3060

LCD1 LCD MODULE 6BIT NORMAL GRADE UJ22MXA

SP801 SPEAKER S0307F03 DS08070XQ001

SP802 SPEAKER S0307F03 DS08070XQ001

X3301 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003

PACKING

S4 SET BAG A81N0UH 1EM322872A

S6 STAND BAG A81N0UH 1EM424597

ACCESSORIES

X3 A REMOTE CONTROL NH201RD NH201RD

X3 B REMOTE CONTROL NH203RD NH203RD

Ref. No. Mark Description Part No.

A6! A RATING LABEL A0C70EP ----------

A6! B RATING LABEL A0C71EP ----------

L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L3 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080

L5 SCREW TAP TIGHT M3X10 BIND

HEAD+BLK NI

GBHS3100

L9 DOUBLE SEMS SCREW M4X10 + BLK FPH34100

PACKING

S1 A CARTON A0C70EP 1EM431950

S1 B CARTON A0C71EP 1EM431956

S2 STYROFOAM TOP A9372EP 1EM024145

S3 STYROFOAM BOTTOM A9372EP 1EM024146

S5 SERIAL NO. LABEL L9750UA ----------

ACCESSORIES

L17 STAND SCREW KIT A93N2EP 1ESA21092

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2-1! OWNERS MANUAL(WE-10) A0CN0EP 1EMN25761

X2-2! OWNERS MANUAL(PL-7) A0CN0EP 1EMN25762

X4 BATTERY DRY R03REL/2PA XB00M00MS001

Ref. No. Mark Description Part No.

20100507 15-1 A0C70/71EL

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

Comparison Chart of Models and Marks

DIGITAL MAIN CBA UNIT

MAIN CBA

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Model Mark

LT850-M22 A

LT851-M22 B

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A0C70MMA-003

Ref. No. Mark Description Part No.

ABMAIN CBA

MAIN CBA
Consists of the following:

A0C70MPW-001
A0C71MPW-001

CAPACITORS

C11 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C14 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

CAP ELE 100µF/10V/M/85 or CEB101KSN001
CAP ELE 100µF/10V/M/85 CEB101TEP001

C15 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C17 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C 0G/100pF/50V CHD101EYA030

C18 ELECTROLYTIC CAP. 100µF/10V M H7 or CE1AMAVSL101

CAP ELE 100µF/10V/M/85 H7 CEB101KSN003

C19 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C21 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C 0G/100pF/50V CHD101EYA030

C22 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C 0G/100pF/50V CHD101EYA030

C24 CHIP CERAMIC CAP. CH J 15pF/50V or CHD1JJ3CH150

CAP CHIP 1608 J/C0G/15pF/50V CHD150EYA030

C29 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C152 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V or

CHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C153 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V or

CHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C154 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C155 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C301 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

CAP ELE 47µF/25V/M/85 or CED470KSN001
CAP ELE 47µF/25V/M/85 CED470TEP001

C302 CHIP CERAMIC CAP.(1608) B K 0.1µF/

16V

CHD1CK30B104

C303 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105

C304 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V or

CHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C310 CHIP CERAMIC CAP.(1608) B K 0.1µF/

16V

CHD1CK30B104

C311 CHIP CERAMIC CAP.(1608) B K 0.1µF/

16V

CHD1CK30B104

C312 CAP CERAMIC (AX) 0.1µF/50V/B/K CA1J104TU061
C313 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C314 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C315 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C316 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C317 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C319 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

CAP ELE 47µF/25V/M/85 or CED470KSN001
CAP ELE 47µF/25V/M/85 CED470TEP001

C406 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C408 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C409 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C410 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C418 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C420 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C422 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

CAP ELE 470µF/10V/M/85 or CEB471KSN001
CAP ELE 470µF/10V/M/85 CEB471TEP001

C423 CHIP CERAMIC CAP.(1608) CH J 47pF/

50V or

CHD1JJ3CH470

CAP CHIP 1608 J/C0G/47pF/50V CHD470EYA030

C426 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V or

CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C427 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C0G/100pF/50V CHD101EYA030

C428 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V or

CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C429 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V or

CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C430 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

CAP ELE 100µF/16V/M/85 or CEC101KSN001
CAP ELE 100µF/16V/M/85 CEC101TEP001

Ref. No. Mark Description Part No.

20100507 15-2 A0C70/71EL

C432 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C433 CHIP CERAMIC CAP.(1608) B K 1µF/10V orCHD1AK30B105

CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

C434 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V or

CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C437 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C 0G/330pF/50V CHD331EYA030

C438 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C 0G/330pF/50V CHD331EYA030

C441 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C 0G/330pF/50V CHD331EYA030

C442 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C 0G/330pF/50V CHD331EYA030

C443 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C 0G/330pF/50V CHD331EYA030

C444 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C 0G/330pF/50V CHD331EYA030

C484 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C486 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C601! CAP METALIZED FILM 0.22µF/300V K

3.5MM or

CT2F224DC004

! CAP METALIZED FILM MPX-

224K27B15L3 or

CT2E224EUR01

! CAP METALIZED FILM 0.22µF/310V /K/

LE-MX or

CTA2240DC001

! CAP METALIZED FILM 0.22µF/275V/K CTA224PKR001
C605 CAP ELECTROLYTIC 180µF/400V M or CA2H181DYG10

ELECTROLYTIC CAPACITOR 180µF/
400V M or

CA2H181NC207

CAP ELE 85 180µF/400V M85_30X25 CEN181KSN006

C606 CERAMIC CAP. 390pF/2KV or CA3D391PAN04

CERAMIC CAP. BL 390pF/2KV or CA3D391XF003

CERAMIC CAP. RB 390pF/2KV CA3D391TE006

C607 POLYESTER FILM CAP. (PB FREE)

0.015µF/100V J or

CA2A153DT018

CAP POLYESTER FILM 0.015µF/100V J orCA2A153SER02

CAP POLYESTER FILM 0.015µF/100V/J/
PCMT or

CTA153PKR003

POLYESTER FILM CAP. 0.015µF/100V J orCMB153EUR001

CAP POLYESTER FILM 0.015µF/100V J CA2A153DT026

C608 POLYESTER FILM CAP. (PB FREE)

0.0027µF/100V J or

CA2A272DT018

CAP POLYESTER FILM 0.0027µF/10 0V J orCA2A272SER02

POLYESTER FILM CAP. 0.0027µF/1 00V J orCMB272EUR001

CAP POLYESTER FILM 0.0027µF/100/J/
AMB or

CMB2720DT001

CAP POLYESTER FILM 0.0027µF/100V J CA2A272DT026

C609 POLYESTER FILM CAP. (PB FREE)

0.056µF/100V J or

CA2A563DT018

CAP POLYESTER FILM 0.056µF/100V J orCA2A563SER02

CAP POLYESTER FILM 0.056µF/100V/J/
PCMT or

CTA563PKR003

POLYESTER FILM CAP. 0.056µF/100V J orCMB563EUR001

POLYESTER FILM CAP. (PB FREE)

0.056µF/100V J

CA2A563DT026

C611! SAFTY CAP. 3300pF/250V or CCN2EMA0E332

! SAFTY CAP. 3300pF/250V KX or CA2E332MR101

! SAFETY CAP. 3300pF/250V M CCN2HMN0E332

C613 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNDL102
CAP ELE 1000µF/25V/M/85 or CED102KSN002
CAP ELE 1000µF/25V/M/85 CED102TEP002

C614 ELECTROLYTIC CAP. 3300µF/10V M or CE1AMZPDL332

Ref. No. Mark Description Part No.

ELECTROLYTIC CAP 3300µF/10V or CE1AMZNDL332
CAP ELE 3300µF/10V/M/85 or CEB332KSN002
CAP ELE 3300µF/10V/M/85 CEB332TEP002

C616 ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNDL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZPDL102
CAP ELE 1000µF/35V/M/85 or CEE102KSN002
CAP ELE 1000µF/35V/M/85 CEE102TEP002

C617 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001
CAP ELE 10µF/50V/M/85 CEF100TEP001

C618 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

CAP ELE 47µF/25V/M/85 or CED470KSN001
CAP ELE 47µF/25V/M/85 CED470TEP001

C619 ELECTROLYTIC CAP 3300µF/6.3V M or CE0KMZNDL332

ELECTROLYTIC CAP. 3300µF/6.3V SM or CE0KMZPDL332
CAP ELE 3300µF/6.3V/M/85 or CEA332KSN002
CAP ELE 3300µF/6.3V/M/85 CEA332TEP002

C621 POLYESTER FILM CAP. (PB FREE)

0.0027µF/100V J or

CA2A272DT018

CAP POLYESTER FILM 0.0027µF/100V J orCA2A272SER02

POLYESTER FILM CAP. 0.0027µF/100V J orCMB272EUR001

CAP POLYESTER FILM 0.0027µF/100/J/
AMB or

CMB2720DT001

CAP POLYESTER FILM 0.0027µF/100V J CA2A272DT026

C622 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

CAP ELE 2.2µF/50V/M/85 or CEF2R2KSN 001
CAP ELE 2.2µF/50V/M/85 CEF2R2TEP001

C623 ELECTROLYTIC CAP. 1000µF/10V M or CE1AMASDL102

CAP ELE 1000µF/10V/M/85 or CEB102KSN001
CAP ELE 1000µF/10V/M/85 CEB102TEP001

C626 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

CAP ELE 100µF/10V/M/85 or CEB101KSN001
CAP ELE 100µF/10V/M/85 CEB101TEP001

C628 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

CAP ELE 470µF/16V/M/85 or CEC471KSN001
CAP ELE 470µF/16V/M/85 CEC471TEP001

C630 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001
CAP ELE 10µF/50V/M/85 CEF100TEP001

C631 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C632 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

CAP ELE 1µF/50V/M/85 or CEF1R0KSN001
CAP ELE 1µF/50V/M/85 CEF1R0TEP001

C636 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C637 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

CAP ELE 470µF/10V/M/85 or CEB471KSN001
CAP ELE 470µF/10V/M/85 CEB471TEP001

C638 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C639 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

CAP ELE 220µF/16V/M/85 or CEC221KSN001
CAP ELE 220µF/16V/M/85 CEC221TEP001

C640 ELECTROLYTIC CAP. 47µF/50V M or CE1JMASDL470

CAP ELE 47µF/50V/M/85 or CEF470KSN001
CAP ELE 47µF/50V/M/85 CEF470TEP001

C641 ELECTROLYTIC CAP. 100µF/10V M H7 or CE1AMAVSL101

CAP ELE 100µF/10V/M/85 H7 CEB101KSN003

C643 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C644 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

Ref. No. Mark Description Part No.

20100507 15-3 A0C70/71EL

C646 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C651 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

CAP ELE 1µF/50V/M/85 or CEF1R0KSN001
CAP ELE 1µF/50V/M/85 CEF1R0TEP001

C801 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V or

CHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C802 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V or

CHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C803 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C804 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

CAP ELE 220µF/25V/M/85 or CED221KSN001
CAP ELE 220µF/25V/M/85 CED221TEP001

C805 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

CAP ELE 220µF/25V/M/85 or CED221KSN001
CAP ELE 220µF/25V/M/85 CED221TEP001

C808 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASDL471

CAP ELE 470µF/25V/M/85 or CED471KSN001
CAP ELE 470µF/25V/M/85 CED471TEP001

C809 CHIP CERAMIC CAP.(1608) B K 0.022µF/

50V or

CHD1JK30B223

CAP CHIP 1608 K/X7R/0.022µF/50V CHD223EYA032

C810 CHIP CERAMIC CAP.(1608) B K 0.022µF/

50V or

CHD1JK30B223

CAP CHIP 1608 K/X7R/0.022µF/50V CHD223EYA032

C811 CHIP CERAMIC CAP.(1608) B K 1µF/10V orCHD1AK30B105

CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

C812 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

CAP ELE 100µF/16V/M/85 or CEC101KSN001
CAP ELE 100µF/16V/M/85 CEC101TEP001

C813 CHIP CERAMIC CAP.(1608) B K 1µF/10V orCHD1AK30B105

CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

C815 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C 0G/100pF/50V CHD101EYA030

C817 CHIP CERAMIC CAP.(1608) B K 1µF/10V orCHD1AK30B105

CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

C821 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C822 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C823 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C 0G/100pF/50V CHD101EYA030

C824 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V or

CHD1JJ3CH101

CAP CHIP 1608 J/C 0G/100pF/50V CHD101EYA030

C825 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V or

CHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

C1001 ELECTROLYTIC CAP. 470µF/35V M or CE1GMZNDL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471
CAP ELE 470µF/35V/M/85 or CEE471KSN002
CAP ELE 470µF/35V/M/85 CEE471TEP002

C1003 ELECTROLYTIC CAP. 100µF/25V M or CE1EMASDL101

CAP ELE 100µF/25V/M/85 or CED101KSN001
CAP ELE 100µF/25V/M/85 CED101TEP001

C1004 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V or

CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C1005 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

Ref. No. Mark Description Part No.

C1006 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001
CAP ELE 10µF/50V/M/85 CEF100TEP001

C1007 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C1008 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C1009 CHIP CERAMIC CAP. B K 470pF/50V or CHD1JK30B471

CAP CHIP 1608 K/X7R/470pF/50V CHD471EYA032

C1010 CHIP CERAMIC CAP. B K 470pF/50V or CHD1JK30B471

CAP CHIP 1608 K/X7R/470pF/50V CHD471EYA032

C1012 METALIZED POLYESTER FILM CAP.

0.47µF/50V J or

CT1J474DT040

METALIZED POLYESTER FILM CAP.

0.47µF/63V J or

CT1K474SER01

CAP POLYESTER FILM 0.47µF/63V/J/
PCMT

CTA474PKR002

C1013 POLYESTER FILM CAP. (PB FREE)

0.0039µF/100V J or

CA2A392DT018

CAP POLYESTER FILM 0.0039µF/100V J orCA2A392SER02

POLYESTER FILM CAP. 0.0039µF/100V J orCMB392EUR001

CAP POLYESTER FILM 0.0039µF/100/J/
AMB or

CMB3920DT001

CAP POLYESTER 0.0039µF/100V J CA2A392DT026

C1014 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

CAP ELE 47µF/25V/M/85 or CED470KSN001
CAP ELE 47µF/25V/M/85 CED470TEP001

C1015 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C1016 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C1017 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C1018 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C1020 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V or

CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C1021 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C1045 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

C1403 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001
CAP ELE 10µF/50V/M/85 CEF100TEP001

C1404 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001

CAP ELE 10µF/50V/M/85 CEF100TEP001
C1500 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062
C1501 ELECTROLYTIC CAP. 470µF/35V M or CE1GMZNDL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471

CAP ELE 470µF/35V/M/85 or CEE471KSN002

CAP ELE 470µF/35V/M/85 CEE471TEP002

C1502 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C1503 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C1550 CAP CERAMIC HV 15pF/6.3KV/SL/J or CCA1500MR001

CAP CERAMIC HV 15pF/6.3KV/SL/J CCC1500MR007

C1551 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

C1552 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

C1553 CAP CERAMIC HV 15pF/6.3KV/SL/J or CCA1500MR001

CAP CERAMIC HV 15pF/6.3KV/SL/J CCC1500MR007
C1554 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001

Ref. No. Mark Description Part No.

20100507 15-4 A0C70/71EL

CAP ELE 10µF/50V/M/85 CEF100TEP001

C1555 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

CAP ELE 10µF/50V/M/85 H7 CEF100KSN003

C1558 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C1600 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062
C1601 ELECTROLYTIC CAP. 470µF/35V M or CE1GMZNDL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471

CAP ELE 470µF/35V/M/85 or CEE471KSN002

CAP ELE 470µF/35V/M/85 CEE471TEP002

C1602 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C1603 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C1650 CAP CERAMIC HV 15pF/6.3KV/SL/J or CCA1500MR001

CAP CERAMIC HV 15pF/6.3KV/SL/J CCC1500MR007

C1651 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

C1652 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

C1653 CAP CERAMIC HV 15pF/6.3KV/SL/J or CCA1500MR001

CAP CERAMIC HV 15pF/6.3KV/SL/J CCC1500MR007
C1657 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

CAP ELE 10µF/50V/M/85 H7 CEF100KSN003
C1658 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

CAP ELE 10µF/50V/M/85 H7 CEF100KSN003
C1661 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C1700 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062
C1701 ELECTROLYTIC CAP. 470µF/35V M or CE1GMZNDL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471

CAP ELE 470µF/35V/M/85 or CEE471KSN002

CAP ELE 470µF/35V/M/85 CEE471TEP002

C1702 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C1703 CERAMIC CAP. B K 2200pF/500V CCD2JKS0B222

C1750 CAP CERAMIC HV 15pF/6.3KV/SL/J or CCA1500MR001

CAP CERAMIC HV 15pF/6.3KV/SL/J CCC1500MR007

C1751 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

C1752 CAP CERAMIC (AX) 1500pF/50V/B/K CA1J152TU061

C1753 CAP CERAMIC HV 15pF/6.3KV/SL/J or CCA1500MR001

CAP CERAMIC HV 15pF/6.3KV/SL/J CCC1500MR007
C1754 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

CAP ELE 10µF/50V/M/85 or CEF100KSN001

CAP ELE 10µF/50V/M/85 CEF100TEP001
C1755 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

CAP ELE 10µF/50V/M/85 H7 CEF100KSN003
C1758 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V or

CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032

CONNECTORS

CN102A 242 SERIES CONNECTOR

224202106W1

J322C06TG001

CN103 FFC CONNECTOR IMSA-9615S-11A-PP-

A or

JC96J11ER007

CONNECTOR PRINT MES 00 6232 011

006 800+ or

JC62G11UG026

CONNECTOR PRINT MES 11 S 1.0-11-

11P

JC1111JSH001

CN301 FFC CONNECTOR IMSA-9615S-11A-PP-

A or

JC96J11ER007

CONNECTOR PRINT MES 00 6232 011

006 800+ or

JC62G11UG026

CONNECTOR PRINT MES 11 S 1.0-11-

11P

JC1111JSH001

CN401 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029

006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11-

29P

JC1129JSH001

CN402 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029

006 800+ or

JC62G29UG026

Ref. No. Mark Description Part No.

CONNECTOR PRINT MES 29 S 1.0-11­29P

JC1129JSH001

CN403 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029
006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11­29P

JC1129JSH001

CN404 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029
006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11­29P

JC1129JSH001

CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN) or

J3PHC02JG029

CONNECTOR PRINT OSU TOP 2P
440054-2 or

J344C02AP001

CONNECTOR PRINT OSU JS-1125­02KK

J3JT02CHY002

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN) or

J3PHC02JG029

CONNECTOR PRINT OSU TOP 2P
440054-2 or

J344C02AP001

CONNECTOR PRINT OSU JS-1125­02KK

J3JT02CHY002

CN1550

!

CONNECTOR PRINT OSU KW05-120­02-00

J30502KET001

CN1650

!

CONNECTOR PRINT OSU KW05-120­02-00

J30502KET001

CN1750

!

CONNECTOR PRINT OSU KW05-120­02-00

J30502KET001

DIODES

D151 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D402 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D404 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D406 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D408 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D410 DIODE ZENER 3V9BSB-T26 or NDTB3R9BST26

DIODE ZENER HZS3.9NB2TE-EQ QDTB0HZS3R9N

D411 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D420 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D425 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D501 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D502 DIODE ZENER 11BSB-T26 or NDTB011BST26

DIODE ZENER HZS11NB2TE-EQ QDTBHZS11NB2

D503 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D508 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D509 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D510 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D511 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D513 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

Ref. No. Mark Description Part No.

20100507 15-5 A0C70/71EL

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D600 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

D601! DIODE ZENER 22BSB-T26 or NDTB022BST26

! DIODE ZENER HZS22NB2TE-EQ QDTBHZS22NB2

D602! DIODE 1N5399BE NDL1001N5399

D603 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D604! DIODE 1N5399BE NDL1001N5399

D605! DIODE 1N5399BE NDL1001N5399

D606 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D607! DIODE 1N5399BE NDL1001N5399

D608 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D610! DIODE ZENER 1ZB18BB or NDWZ0001ZB18

! DIODE ZENER 1N4746A B0 18V NDLZ01N4746A

D612 DIODE FAST RECOVERY FR303BH or NDWZ0FR303BH

DIODE FAST RECOVERY FR303-B/P NDWZ0FR303BP

D613 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D615 DIODE ZENER 16BSB-T26 or NDTB016BST26

DIODE ZENER HZS16NB2TE-EQ QDTBHZS16NB2

D616 DIODE SCHOTTKY SB260BD NDWZ000SB260

D617 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D618 DIODE SCHOTTKY 30PHA20 QDLZ030PHA20

D620 DIODE ZENER 20BSB-T26 or NDTB020BST26

DIODE ZENER HZS20NB2TE-EQ QDTBHZS20NB2

D621 DIODE ZENER 6V2BSA-T26 or NDTA6R2BST26

DIODE ZENER HZS6.2NB1TE-EQ QDTA0HZS6R2N

D622 SCHOTTKY BARRIER DIODE SB240-B/PNDWZ000SB240

D623! DIODE ZENER 1ZB43BB or NDWZ0001ZB43

! DIODE ZENER 1N4755A B0 43V NDLZ01N4755A

D624 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D627 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D628 DIODE ZENER 4V7BSB-T26 or NDTB4R7BST26

DIODE ZENER HZS4.7NB2TE-EQ QDTB0HZS4R7N

D629! DIODE ZENER 8V2BSA-T26 or NDTA8R2BST26

! DIODE ZENER HZS8.2NB1TE-EQ QDTA0HZS8R2N

D631! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

! DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D632! SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

! DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

! DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D633 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D634 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

Ref. No. Mark Description Part No.

D635 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D636 DIODE ZENER 27BSA-T26 or NDTA027BST26

DIODE ZENER HZS27NB1TE-EQ QDTAHZS27NB1

D637 SCHOTTKY BARRIER DIODE SB270-B/PNDWZ000SB270

D638 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D639 DIODE ZENER 12BSB-T26 or NDTB012BST26

DIODE ZENER HZS12NB2TE-EQ QDTBHZS12NB2

D640 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D641 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D642 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D643 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D644 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D645 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D646 DIODE ZENER 4V7BSB-T26 or NDTB4R7BST26

DIODE ZENER HZS4.7NB2TE-EQ QDTB0HZS4R7N

D648 DIODE ZENER 12BSB-T26 or NDTB012BST26

DIODE ZENER HZS12NB2TE-EQ QDTBHZS12NB2

D649 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D653 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D670 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D671 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D672 DIODE ZENER 12BSB-T26 or NDTB012BST26

DIODE ZENER HZS12NB2TE-EQ QDTBHZS12NB2

D673 DIODE ZENER 12BSB-T26 or NDTB012BST26

DIODE ZENER HZS12NB2TE-EQ QDTBHZS12NB2

D674 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D802 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D803 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D804 DIODE ZENER 15BSB-T26 or NDTB015BST26

DIODE ZENER HZS15NB2TE-EQ QDTBHZS15NB2

D805 DIODE ZENER 15BSB-T26 or NDTB015BST26

Ref. No. Mark Description Part No.

20100507 15-6 A0C70/71EL

DIODE ZENER HZS15NB2TE-EQ QDTBHZS15NB2

D815 DIODE ZENER 8V2BSB-T26 or NDTB8R2BST26

DIODE ZENER HZS8.2NB2TE-EQ QDTB0HZS8R2N

D1003 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

D1004 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

D1005 DIODE ZENER 15BSB-T26 or NDTB015BST26

DIODE ZENER HZS15NB2TE-EQ QDTBHZS15NB2

D1007 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

D1010 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

D1012 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

D1045 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1401 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1403 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1404 DIODE ZENER 7V5BSB-T26 or NDTB7R5BST26

DIODE ZENER HZS7.5NB2TE-EQ QDTB0HZS7R5N

D1405 DIODE ZENER 6V2BSB-T26 or NDTB6R2BST26

DIODE ZENER HZS6.2NB2TE-EQ QDTB0HZS6R2N

D1550 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1551 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1552 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1553 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1554 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1555 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1556 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1557 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1560 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1561 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

Ref. No. Mark Description Part No.

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1562 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1563 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1564 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1650 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1651 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1652 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1653 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1654 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1655 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1656 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1657 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1661 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1662 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1663 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1664 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1750 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1751 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1752 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1753 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1754 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1755 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

Ref. No. Mark Description Part No.

20100507 15-7 A0C70/71EL

D1756 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1757 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1760 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1761 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1762 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1763 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1764 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

ICS

IC301 IC TL3472CDR or NSZBA0TTY115

IC MC34072L-S08-R QSZBA0TUTC01

IC605! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

IC801 AUDIO AMP IC TDA1517P/N3 112 NSCA0SNXP003

IC1001 IC PULSE-WIDTH-MODULATION CONT

TL494CDR

NSCA0T0TY006

COILS

L10 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001
L11 INDUCTOR 10µH-K-5FT LLARKBSTU100

L405 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001
L406 INDUCTOR 0.22µH-J-26T LLAXJATTUR22
L407 INDUCTOR 0.22µH-J-26T LLAXJATTUR22
L408 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

L601! COIL LINE FILTER JLB20108 or LLEG0Z0XB008

! COIL LINE FILTER LCL-2027 18.0MH LLEG0ZMEK001

TRANSISTORS

Q10 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q301 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q302 TRANSISTOR 2SC2655-Y(TE6 F M) QQSY2SC2655F

Q303 TRANSISTOR 2SA1020-Y(TE6 F M) or QQSY2SA1020F

TRANSISTOR KTA1281-Y-AT/P NQVYKTA1281P

Q404 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

Ref. No. Mark Description Part No.

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q601! MOS FET 2SK3798(Q) or QFWZ2SK3798Q

! MOS FET 2SK3798(Q.M) QFQZSK3798QM

Q602! TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

! TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

! TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

! TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

! NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

! NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q603 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q604 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q605 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q606 NPN TRANSISTOR POWER 2SC4881F

HFE MAX320 or

QQWZ2SC4881F

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

Q607 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q608 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q609 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Ref. No. Mark Description Part No.

20100507 15-8 A0C70/71EL

Q610 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q611 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q612 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q613 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q614 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q615 TRANSISTOR 2SD400(F) or QQUF002SD400

TRANSISTOR 2SD400(E) or QQUE002SD400

TRANSISTOR KTC3205-Y-AT/P or NQSYKTC3205P

NPN TRANSISTOR STD1862O or NQS00STD1862

NPN TRANSISTOR STD1862 or NQSY0STD1862

TRANSISTOR KTC3205OAT NQS00KTC3205

Q616 NPN TRANSISTOR POWER 2SC4881F

HFE MAX320 or

QQWZ2SC4881F

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

Q617 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q801 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

Ref. No. Mark Description Part No.

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q802 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1001 TRANSISTOR 2SA950-Y(TE2 F T) or QQSY02SA950F

TRANSISTOR (PB FREE) KTA1271-Y-AT/
P or

NQSYKTA1271P

TRANSISTOR 2SA950-O (TE2 F T) or QQS002SA950F

TRANSISTOR (PB FREE) KTA1271-O-AT/
P or

NQS0KTA1271P

PNP TRANSISTOR 2SA1981 or NQS002SA1981

PNP TRANSISTOR 2SA1981Y-AT NQSY02SA1981

Q1002 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1003 NPN TRANSISTOR SMD

2SC4081UBTLQ or

QQ1Q2SC4081U

NPN TRANSISTOR SMD
2SC4081UBTLR or

QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q1004 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q1005 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1006 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q1007 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

Ref. No. Mark Description Part No.

20100507 15-9 A0C70/71EL

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q1008 TRANSISTOR 2SA950-Y(TE2 F T) or QQSY02SA950F

TRANSISTOR (PB FREE) KTA1271-Y-AT/

P or

NQSYKTA1271P

TRANSISTOR 2SA950-O (TE2 F T) or QQS002SA950F

TRANSISTOR (PB FREE) KTA1271-O-AT/

P or

NQS0KTA1271P

PNP TRANSISTOR 2SA1981 or NQS002SA1981

PNP TRANSISTOR 2SA1981Y-AT NQSY02SA1981

Q1009 TRANSISTOR 2SA950-Y(TE2 F T) or QQSY02SA950F

TRANSISTOR (PB FREE) KTA1271-Y-AT/

P or

NQSYKTA1271P

TRANSISTOR 2SA950-O (TE2 F T) or QQS002SA950F

TRANSISTOR (PB FREE) KTA1271-O-AT/

P or

NQS0KTA1271P

PNP TRANSISTOR 2SA1981 or NQS002SA1981

PNP TRANSISTOR 2SA1981Y-AT NQSY02SA1981

Q1010 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1011 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1013 NPN TRANSISTOR SMD

2SC4081UBTLQ or

QQ1Q2SC4081U

NPN TRANSISTOR SMD

2SC4081UBTLR or

QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q1014 NPN TRANSISTOR SMD

2SC4081UBTLQ or

QQ1Q2SC4081U

NPN TRANSISTOR SMD

2SC4081UBTLR or

QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

Ref. No. Mark Description Part No.

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q1023 NPN TRANSISTOR SMD

2SC4081UBTLQ or

QQ1Q2SC4081U

NPN TRANSISTOR SMD
2SC4081UBTLR or

QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q1024 PNP TRANSISTOR SMD

2SA1576UBTLQ or

QQ1Q2SA1576U

PNP TRANSISTOR SMD
2SA1576UBTLR or

QQ1R2SA1576U

TRANSISTOR KTA2014-GR-RTK/P or NQ14KTA2014P

PNP TRANSISTOR ISA1602AM1-T111U­1E or

QQ1E1SA1602A

PNP TRANSISTOR ISA1602AM1-T111U­1F or

QQ1F1SA1602A

PNP TRANSISTOR SMD 2SA1980UFO orNQ102SA1980U

PNP TRANSISTOR SMD 2SA1980UFY orNQ1Y2SA1980U

PNP TRANSISTOR SMD 2SA1980UFG orNQ1G2SA1980U

PNP TRANSISTOR SMD 2SA1980UFL NQ1L2SA1980U

Q1402 NPN TRANSISTOR SMD

2SC4081UBTLQ or

QQ1Q2SC4081U

NPN TRANSISTOR SMD
2SC4081UBTLR or

QQ1R2SC4081U

TRANSISTOR KTC4075-GR-RTK/P or NQ14KTC4075P

NPN TRANSISTORS 2SC4154-T111-1E orQQ1E02SC4154

NPN TRANSISTORS 2SC4154-T111-1F orQQ1F02SC4154

NPN TRANSISTORS 2SC4154-T111-1G orQQ1G02SC4154

NPN TRANSISTOR SMD 2SC5343UFO orNQ102SC5343U

NPN TRANSISTOR SMD 2SC5343UFY orNQ1Y2SC5343U

NPN TRANSISTOR SMD 2SC5343UFG orNQ1G2SC5343U

NPN TRANSISTOR SMD 2SC5343UFL NQ1L2SC5343U

Q1500! FET MOS SMD TPC8214-H QF2ZTPC8214H

Q1501 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q1600! FET MOS SMD TPC8214-H QF2ZTPC8214H

Q1601 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q1700! FET MOS SMD TPC8214-H QF2ZTPC8214H

Q1701 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

Ref. No. Mark Description Part No.

20100507 15-10 A0C70/71EL

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

RESISTORS

R11 RES CARBON FILM T 1/4W J 1.8k Ω or RCX4182T1001

RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM 1/4W J 1.8k Ω RCJ182PAK001
R12 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002
R14 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R15 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002
R16 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002
R18 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002
R21 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002
R22 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R24 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R25 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R26 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R27 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R28 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R29 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R30 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R156 RES CARBON FILM T 1/4W J 56k Ω or RCX4563T1001

RES CARBON FILM 1/4W J 56k Ω or RCX4563FS002

RES CARBON FILM 1/4W J 56k Ω RCJ563PAK001
R157 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM 1/4W J 10 Ω RCJ100PAK001
R301 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R302 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002
R303 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R304 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002
R305 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002
R306 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002
R307 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R308 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM 1/4W J 10 Ω RCJ100PAK001
R309 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM 1/4W J 10 Ω RCJ100PAK001
R310 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R311 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

Ref. No. Mark Description Part No.

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R313 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R314 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R322 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R411 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R420 RES CARBON FILM T 1/4W J 100 Ω or RCX4101T1001

RES CARBON FILM 1/4W J 100 Ω or RCX4101FS002
RES CARBON FILM 1/4W J 100 Ω RCJ101PAK001

R421 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R425 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R427 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R436 RES CARBON FILM T 1/4W J 560 Ω or RCX4561T1001

RES CARBON FILM 1/4W J 560 Ω or RCX4561FS002
RES CARBON FILM 1/4W J 560 Ω RCJ561PAK001

R438 RES CARBON FILM T 1/4W J 560 Ω or RCX4561T1001

RES CARBON FILM 1/4W J 560 Ω or RCX4561FS002
RES CARBON FILM 1/4W J 560 Ω RCJ561PAK001

R440 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R441 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R442 RES CARBON FILM T 1/4W J 6.8k Ω or RCX4682T1001

RES CARBON FILM 1/4W J 6.8k Ω or RCX4682FS002
RES CARBON FILM 1/4W J 6.8k Ω RCJ682PAK001

R443 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R444 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R445 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R446 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R447 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R448 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R449 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R451 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R452 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002
RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

Ref. No. Mark Description Part No.

20100507 15-11 A0C70/71EL

R453 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001
R456 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001
R457 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001
R458 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001
R459 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001
R463 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001
R467 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002
R468 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002
R469 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002
R471 RES CARBON FILM T 1/4W J 47k Ω or RCX4473T1001

RES CARBON FILM 1/4W J 47k Ω or RCX4473FS002

RES CARBON FILM 1/4W J 47k Ω RCJ473PAK001
R480 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R481 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R484 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R485 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R486 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R487 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R488 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R501 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002
R502 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R503 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R504 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R505 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R601! GLASS GLAZE RES. 1/2W J 3.3M Ω or RXX2JZLZ0335
! RES. CARBON FILM J 1/2W J 3.3M Ω RCX2335T1003
R602! CEMENT RESISTOR 5W K 2.7 Ω or RW052R7PAK10
! CEMENT R ES. 5W K 2.7 Ω RW052R7PG001
R604 CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

RES CHIP 3216 1/4W J 1.0M Ω R RX4105YF004
R605 CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

RES CHIP 3216 1/4W J 1.0M Ω R RX4105YF004
R606 CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

RES CHIP 3216 1/4W J 1.0M Ω R RX4105YF004
R607 CHIP RES. 1/4W J 680k Ω or RRX4JR7Z0684

RES CHIP 3216 1/4W J 680k Ω or RRX4684HH034

RES CHIP 3216 1/4W J 680k Ω RRX4684YF004

Ref. No. Mark Description Part No.

R610 RES CARBON FILM T 1/4W J 390 Ω or RCX4391T1001

RES CARBON FILM 1/4W J 390 Ω or RCX4391FS002
RES CARBON FILM 1/4W J 390 Ω RCJ391PAK001

R611 RES CARBON FILM T 1/4W J 560 Ω or RCX4561T1001

RES CARBON FILM 1/4W J 560 Ω or RCX4561FS002
RES CARBON FILM 1/4W J 560 Ω RCJ561PAK001

R612 RES CARBON FILM T 1/4W J 330 Ω or RCX4331T1001

RES CARBON FILM 1/4W J 330 Ω or RCX4331FS002
RES CARBON FILM 1/4W J 330 Ω RCJ331PAK001

R613 RES CARBON FILM T 1/4W J 1.5k Ω or RCX4152T1001

RES CARBON FILM 1/4W J 1.5k Ω or RCX4152FS002
RES CARBON FILM 1/4W J 1.5k Ω RCJ152PAK001

R614 METAL RESISTER. 2W J 0.56 Ω or RN02R56ZU001

METALOXIDE RES 2W J 0.56 Ω RNJR56PAK002

R615 RES CARBON FILM T 1/4W J 150 Ω or RCX4151T1001

RES CARBON FILM 1/4W J 150 Ω or RCX4151FS002
RES CARBON FILM 1/4W J 150 Ω RCJ151PAK001

R616 RES CARBON FILM T 1/4W J 3.3k Ω or RCX4332T1001

RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002
RES CARBON FILM 1/4W J 3.3k Ω RCJ332PAK001

R617 RES CARBON FILM T 1/4W J 270 Ω or RCX4271T1001

RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002
RES CARBON FILM 1/4W J 270 Ω RCJ271PAK001

R618 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R619 RES CARBON FILM T 1/4W J 1.8k Ω or RCX4182T1001

RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002
RES CARBON FILM 1/4W J 1.8k Ω RCJ182PAK001

R620 RES CARBON FILM T 1/4W J 1.8k Ω or RCX4182T1001

RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002
RES CARBON FILM 1/4W J 1.8k Ω RCJ182PAK001

R625 CHIP RES. 1/10W F 680 Ω or RRXAFR5H6800

CHIP RES.(1608) 1/10W F 680 Ω or RRXAFR5Z6800
RES CHIP 1608 1/10W F 680 Ω RT W6800 YF002

R626 CHIP RES. 1/10W F 680 Ω or RRXAFR5H6800

CHIP RES.(1608) 1/10W F 680 Ω or RRXAFR5Z6800
RES CHIP 1608 1/10W F 680 Ω RT W6800 YF002

R627 CHIP RES. 1/10W F 680 Ω or RRXAFR5H6800

CHIP RES.(1608) 1/10W F 680 Ω or RRXAFR5Z6800
RES CHIP 1608 1/10W F 680 Ω RT W6800 YF002

R628 CHIP RES. 1/10W F 680 Ω or RRXAFR5H6800

CHIP RES.(1608) 1/10W F 680 Ω or RRXAFR5Z6800
RES CHIP 1608 1/10W F 680 Ω RT W6800 YF002

R629 CHIP RES. 1/10W F 470 Ω or RRXAFR5H4700

CHIP RES.(1608) 1/10W F 470 Ω or RRXAFR5Z4700
RES CHIP 1608 1/10W F 470 Ω RT W4700 YF002

R630 CHIP RES. 1/10W F 4.7k Ω or RRXAFR5H4701

CHIP RES.(1608) 1/10W F 4.7k Ω or RRXAFR5Z4701
RES CHIP 1608 1/10W F 4.70k Ω RTW47 01YF0 02

R635 RES CARBON FILM T 1/4W J 68 Ω or RCX4680T1001

RES CARBON FILM 1/4W J 68 Ω or RCX4680FS002
RES CARBON FILM 1/4W J 68 Ω RCJ680PAK001

R637 RES CARBON FILM T 1/4W J 2.7k Ω or RCX4272T1001

RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002
RES CARBON FILM 1/4W J 2.7k Ω RCJ272PAK001

R638 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R639 RES CARBON FILM T 1/4W J 270 Ω or RCX4271T1001

RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002
RES CARBON FILM 1/4W J 270 Ω RCJ271PAK001

R640 RES CARBON FILM T 1/4W J 100 Ω or RCX4101T1001

RES CARBON FILM 1/4W J 100 Ω or RCX4101FS002
RES CARBON FILM 1/4W J 100 Ω RCJ101PAK001

R641 RES CARBON FILM T 1/4W J 18 Ω or RCX4180T1001

RES CARBON FILM 1/4W J 18 Ω or RCX4180FS002

Ref. No. Mark Description Part No.

20100507 15-12 A0C70/71EL

RES CARBON FILM 1/4W J 18 Ω RCJ180PAK001
R642 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301

RES CHIP 1608 1/10W F 3.30k Ω RTW3301YF002
R643 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002
R644 RES CARBON FILM T 1/4W J 8.2k Ω or RCX4822T1001

RES CARBON FILM 1/4W J 8.2k Ω or RCX4822FS002

RES CARBON FILM 1/4W J 8.2k Ω RCJ822PAK001
R648 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002
R649 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002
R650 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002
R652 RES CARBON FILM T 1/4W J 1.8k Ω or RCX4182T1001

RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM 1/4W J 1.8k Ω RCJ182PAK001
R654 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R655 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R656 RES CARBON FILM T 1/4W J 5.6k Ω or RCX4562T1001

RES CARBON FILM 1/4W J 5.6k Ω or RCX4562FS002

RES CARBON FILM 1/4W J 5.6k Ω RCJ562PAK001
R657 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R658 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002
R659 RES CARBON FILM T 1/4W J 2.7k Ω or RCX4272T1001

RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM 1/4W J 2.7k Ω RCJ272PAK001
R660 RES CARBON FILM T 1/4W J 1.8k Ω or RCX4182T1001

RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM 1/4W J 1.8k Ω RCJ182PAK001
R661 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001
R662 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R663 METAL OXIDE FILM RES. 2W J 3.9 Ω or RN023R9ZU001

METALOXIDE RES 2W J 3.9 Ω RNJ3R9PAK002
R666 CHIP RES. 1/10W F 8.2k Ω or RRXAFR5H8201

CHIP RES.(1608) 1/10W F 8.2k Ω or RRXAFR5Z8201

RES CHIP 1608 1/10W F 8.20k Ω RTW8201YF002
R667 CHIP RES. 1/10W F 2.7k Ω or RRXAFR5H2701

CHIP RES.(1608) 1/10W F 2.7k Ω or RRXAFR5Z2701

RES CHIP 1608 1/10W F 2.70k Ω RTW2701YF002
R668 CHIP RES. 1/10W F 2.7k Ω or RRXAFR5H2701

CHIP RES.(1608) 1/10W F 2.7k Ω or RRXAFR5Z2701

RES CHIP 1608 1/10W F 2.70k Ω RTW2701YF002
R669 RES CARBON FILM T 1/4W J 2.2k Ω or RCX4222T1001

RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM 1/4W J 2.2k Ω RCJ222PAK001
R670 RES CARBON FILM T 1/4W J 8.2k Ω or RCX4822T1001

RES CARBON FILM 1/4W J 8.2k Ω or RCX4822FS002

RES CARBON FILM 1/4W J 8.2k Ω RCJ822PAK001
R671 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R672 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002
R673 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002
R674 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R675 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

Ref. No. Mark Description Part No.

RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002
RES CARBON FILM 1/4W J 10 Ω RCJ100PAK001

R676 RES CARBON FILM T 1/4W J 150 Ω or RCX4151T1001

RES CARBON FILM 1/4W J 150 Ω or RCX4151FS002
RES CARBON FILM 1/4W J 150 Ω RCJ151PAK001

R677 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002
RES CHIP 1608 1/10W F 10.0k Ω RTW10 02YF0 02

R678 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301
RES CHIP 1608 1/10W F 3.30k Ω RTW33 01YF0 02

R680 RES CARBON FILM T 1/4W J 2.2k Ω or RCX4222T1001

RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002
RES CARBON FILM 1/4W J 2.2k Ω RCJ222PAK001

R681 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R682 RES CARBON FILM T 1/4W J 270 Ω or RCX4271T1001

RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002
RES CARBON FILM 1/4W J 270 Ω RCJ271PAK001

R683 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H5601

CHIP RES. 1/10W F 5.6k Ω or RRXAFR5Z0562
RES CHIP 1608 1/10W F 5.60k Ω RTW56 01YF0 02

R684 RES CARBON FILM T 1/4W J 22 Ω or RCX4220T1001

RES CARBON FILM 1/4W J 22 Ω or RCX4220FS002
RES CARBON FILM 1/4W J 22 Ω RCJ220PAK001

R685 RES CARBON FILM T 1/4W J 22 Ω or RCX4220T1001

RES CARBON FILM 1/4W J 22 Ω or RCX4220FS002
RES CARBON FILM 1/4W J 22 Ω RCJ220PAK001

R686 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002
RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001

R687 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H5601

CHIP RES. 1/10W F 5.6k Ω or RRXAFR5Z0562
RES CHIP 1608 1/10W F 5.60k Ω RTW56 01YF0 02

R688 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002

R689 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R690 RES CARBON FILM T 1/4W J 150 Ω or RCX4151T1001

RES CARBON FILM 1/4W J 150 Ω or RCX4151FS002
RES CARBON FILM 1/4W J 150 Ω RCJ151PAK001

R694 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301
RES CHIP 1608 1/10W F 3.30k Ω RTW33 01YF0 02

R695 CHIP RES. 1/10W J 43k Ω or RRXAJR5Z0433

RES CHIP 1608 1/10W J 43k Ω RRXA433YF002

R697 METAL OXIDE FILM RES. 2W J 0.68 Ω or RN02R68ZU001

METALOXIDE RES 2W J 0.68 Ω RNJR68PAK002

R698 RES CARBON FILM T 1/4W J 150 Ω or RCX4151T1001

RES CARBON FILM 1/4W J 150 Ω or RCX4151FS002
RES CARBON FILM 1/4W J 150 Ω RCJ151PAK001

R801 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R802 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R803 CHIP RES. 1/10W J 8.2 Ω or RRXAJR5Z08R2

RES CHIP 1608 1/10W J 8.2 Ω RRXA8R2YF002

R804 CHIP RES. 1/10W J 8.2 Ω or RRXAJR5Z08R2

RES CHIP 1608 1/10W J 8.2 Ω RRXA8R2YF002

R805 METAL OXIDE FILM RES. 2W J 1.5 Ω or RN021R5ZU001

METALOXIDE RES 2W J 1.5 Ω RNJ1R5PAK002

R806 METAL OXIDE FILM RES. 2W J 1.5 Ω or RN021R5ZU001

METALOXIDE RES 2W J 1.5 Ω RNJ1R5PAK002

R807 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

Ref. No. Mark Description Part No.

20100507 15-13 A0C70/71EL

R808 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002
R809 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002
R810 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002
R811 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002
R812 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002
R813 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002
R815 CHIP RES. 1/10W J 680 Ω or RRXAJR5Z0681

RES CHIP 1608 1/10W J 680 Ω RRXA681YF002
R816 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R817 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001
R818 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001
R819 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002
R820 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002
R823 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002
R831 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω RRXA220YF002

R1002 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001
R1003 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1004 RES CARBON FILM T 1/4W J 1.2 Ω or RCX41R2T1001

RES CARBON FILM 1/4W J 1.2 Ω or RCX41R2FS002

RES CARBON FILM 1/4W J 1.2 Ω RCJ1R2PAK001
R1005 RES CARBON FILM T 1/4W J 4.7k Ω or R CX4472T1001

RES CARBON FILM 1/4W J 4.7k Ω or RCX4472FS002

RES CARBON FILM 1/4W J 4.7k Ω RCJ472PAK001
R1006 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1007 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002
R1008 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H5601

CHIP RES. 1/10W F 5.6k Ω or RRXAFR5Z0562

RES CHIP 1608 1/10W F 5.60k Ω RTW5601YF002
R1009 CHIP RES.(1608) 1/10W F 75k Ω or RRXAFR5H0753

CHIP RES. 1/10W F 75k Ω or RRXAFR5Z0753

RES CHIP 1608 1/10W F 75.0k Ω RTW7502YF002

R1012 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001
R1014 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002
R1015 CHIP RES. 1/10W J 82k Ω or RRXAJR5Z0823

RES CHIP 1608 1/10W J 82k Ω RRXA823YF002
R1016 CHIP RES. 1/10W J 56k Ω or RRXAJR5Z0563

RES CHIP 1608 1/10W J 56k Ω RRXA563YF002
R1017 CHIP RES. 1/10W J 220k Ω or RRXAJR5Z0224

RES CHIP 1608 1/10W J 220k Ω RRXA224YF002
R1020 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002
R1021 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R1023 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R1024 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R1025 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002

R1026 RES CARBON FILM T 1/4W J 10k Ω or RCX4103T1001

RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002
RES CARBON FILM 1/4W J 10k Ω RCJ103PAK001

R1027 RES CARBON FILM T 1/4W J 10k Ω or RCX4103T1001

RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002
RES CARBON FILM 1/4W J 10k Ω RCJ103PAK001

R1028 RES CARBON FILM T 1/4W J 2.2k Ω or RCX4222T1001

RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002
RES CARBON FILM 1/4W J 2.2k Ω RCJ222PAK001

R1029 RES CARBON FILM T 1/4W J 150 Ω or RCX4151T1001

RES CARBON FILM 1/4W J 150 Ω or RCX4151FS002
RES CARBON FILM 1/4W J 150 Ω RCJ151PAK001

R1030 RES CARBON FILM T 1/4W J 2.2k Ω or RCX4222T1001

RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002
RES CARBON FILM 1/4W J 2.2k Ω RCJ222PAK001

R1031 RES CARBON FILM T 1/4W J 150 Ω or RCX4151T1001

RES CARBON FILM 1/4W J 150 Ω or RCX4151FS002
RES CARBON FILM 1/4W J 150 Ω RCJ151PAK001

R1036 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R1037 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R1043 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R1044 CHIP RES. 1/10W F 2.7k Ω or RRXAFR5H2701

CHIP RES.(1608) 1/10W F 2.7k Ω or RRXAFR5Z2701
RES CHIP 1608 1/10W F 2.70k Ω RTW27 01YF0 02

R1045 CHIP RES. 1/10W F 1.2k Ω or RRXAFR5H1201

CHIP RES.(1608) 1/10W F 1.2k Ω or RRXAFR5Z1201
RES CHIP 1608 1/10W F 1.20k Ω RTW12 01YF0 02

R1048 RES CARBON FILM T 1/4W J 33k Ω or RCX4333T1001

RES CARBON FILM 1/4W J 33k Ω or RCX4333FS002
RES CARBON FILM 1/4W J 33k Ω RCJ333PAK001

R1049 RES CARBON FILM T 1/4W J 1.2k Ω or RCX4122T1001

RES CARBON FILM 1/4W J 1.2k Ω or RCX4122FS002
RES CARBON FILM 1/4W J 1.2k Ω RCJ122PAK001

R1050 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R1051 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R1053 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R1054 CHIP RES. 1/10W F 120 k Ω or RRXAFR5H1203

CHIP RES. 1/10W F 120k Ω or RRXAFR5Z0124
RES CHIP 1608 1/10W F 120k Ω RT W1203 YF002

R1055 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002
RES CHIP 1608 1/10W F 10.0k Ω RTW10 02YF0 02

R1056 CHIP RES. 1/10W F 18k Ω or RRXAFR5H1802

CHIP RES.(1608) 1/10W F 18k Ω or RRXAFR5Z1802
RES CHIP 1608 1/10W F 18.0k Ω RTW18 02YF0 02

R1058 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R1059 CHIP RES. 1/10W J 120k Ω or RRXAJR5Z0124

RES CHIP 1608 1/10W J 120k Ω RRXA124YF002

R1060 CHIP RES. 1/10W F 7.50 k Ω or RRXAFR5H7501

Ref. No. Mark Description Part No.

20100507 15-14 A0C70/71EL

CHIP RES. 1/10W F 7.5k Ω or RRXAFR5Z7501

RES CHIP 1608 1/10W F 7.50k Ω RTW7501YF002
R1061 CHIP RES. 1/10W F 4.7k Ω or RRXAFR5H4701

CHIP RES.(1608) 1/10W F 4.7k Ω or RRXAFR5Z4701

RES CHIP 1608 1/10W F 4.70k Ω RTW4701YF002
R1062 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002
R1063 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002
R1064 CHIP RES. 1/10W F 1.0k Ω or RRXAFR5H1001

CHIP RES. 1/10W F 1k Ω or RRXAFR5Z1001

RES CHIP 1608 1/10W F 1.00k Ω RTW1001YF002
R1065 CHIP RES. 1/10W F 27k Ω or RRXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF002
R1071 RES CARBON FILM T 1/4W J 2.7k Ω or R CX4272T1001

RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM 1/4W J 2.7k Ω RCJ272PAK001
R1072 RES CARBON FILM T 1/4W J 2.7k Ω or R CX4272T1001

RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM 1/4W J 2.7k Ω RCJ272PAK001
R1074 RES CARBON FILM T 1/4W J 12k Ω or RCX4123T1001

RES CARBON FILM 1/4W J 12k Ω or RCX4123FS002

RES CARBON FILM 1/4W J 12k Ω RCJ123PAK001
R1075 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002
R1076 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002
R1105 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002
R1106 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1107 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1109 CHIP RES. 1/10W F 2.2k Ω or RRXAFR5H2201

CHIP RES. 1/10W F 2.2k Ω or RRXAFR5Z0222

RES CHIP 1608 1/10W F 2.20k Ω RTW2201YF002
R1110 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1403 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1405 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002
R1406 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002
R1407 CHIP RES. 1/10W J 43k Ω or RRXAJR5Z0433

RES CHIP 1608 1/10W J 43k Ω RRXA433YF002
R1500 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002
R1501 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002
R1502 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002
R1503 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002
R1508 METAL OXIDE FILM RES. 2W J 0.22 Ω or RN02R22ZU001

METALOXIDE RES 2W J 0.22 Ω RNJR22PAK002
R1509 RES CARBON FILM T 1/4W J 33k Ω or RCX4333T1001

RES CARBON FILM 1/4W J 33k Ω or RCX4333FS002

RES CARBON FILM 1/4W J 33k Ω RCJ333PAK001
R1550 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002
R1551 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002
R1558 CHIP RES. 1/10W J 24k Ω or RRXAJR5Z0243

RES CHIP 1608 1/10W J 24k Ω RRXA243YF002
R1559 CHIP RES. 1/10W J 9.1k Ω or RRXAJR5Z0912

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 9.1k Ω RRXA912YF002

R1560 CHIP RES. 1/10W J 220k Ω or RRXAJR5Z0224

RES CHIP 1608 1/10W J 220k Ω RRXA224YF002

R1600 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002

R1601 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002

R1602 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R1603 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R1608 METAL OXIDE FILM RES. 2W J 0.22 Ω or RN02R22ZU001

METALOXIDE RES 2W J 0.22 Ω RNJR22PAK002

R1609 RES CARBON FILM T 1/4W J 33k Ω or RCX4333T1001

RES CARBON FILM 1/4W J 33k Ω or RCX4333FS002
RES CARBON FILM 1/4W J 33k Ω RCJ333PAK001

R1650 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R1651 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R1658 CHIP RES. 1/10W J 24k Ω or RRXAJR5Z0243

RES CHIP 1608 1/10W J 24k Ω RRXA243YF002

R1659 CHIP RES. 1/10W J 9.1k Ω or RRXAJR5Z0912

RES CHIP 1608 1/10W J 9.1k Ω RRXA912YF002

R1660 CHIP RES. 1/10W J 220k Ω or RRXAJR5Z0224

RES CHIP 1608 1/10W J 220k Ω RRXA224YF002

R1700 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002

R1701 CHIP RES. 1/10W J 10 Ω or RRXAJR5Z0100

RES CHIP 1608 1/10W J 10 Ω RRXA100YF002

R1702 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R1703 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R1708 METAL OXIDE FILM RES. 2W J 0.22 Ω or RN02R22ZU001

METALOXIDE RES 2W J 0.22 Ω RNJR22PAK002

R1709 RES CARBON FILM T 1/4W J 33k Ω or RCX4333T1001

RES CARBON FILM 1/4W J 33k Ω or RCX4333FS002
RES CARBON FILM 1/4W J 33k Ω RCJ333PAK001

R1750 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R1751 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R1758 CHIP RES. 1/10W J 24k Ω or RRXAJR5Z0243

RES CHIP 1608 1/10W J 24k Ω RRXA243YF002

R1759 CHIP RES. 1/10W J 9.1k Ω or RRXAJR5Z0912

RES CHIP 1608 1/10W J 9.1k Ω RRXA912YF002

R1760 CHIP RES. 1/10W J 220k Ω or RRXAJR5Z0224

RES CHIP 1608 1/10W J 220k Ω RRXA224YF002

SWITCH

SW601 SWITCH POWER AJ7222BF SPEVBA0MS001

MISCELLANEOUS

AC601 ! A AC CORD W/O A GND WIRE CEE/

1760MM/NO/BLACK or

WAE1720LW001

! A AC CORD W/O A GND WIRE CEE/

1760MM/NO/BLACK

WAE172ZHN001

AC601 ! B CORD W/O A GND WIRE CEE/1760MM/

NO/WHITE or

WAE1720LW002

! B AC CORD W/O A GND WIRE CEE/

1760MM/NO/WHITE

WAE172ZHN002

B12 HEAT SINK PMS ASSEMBLY A8CN0FP 1EM426337A

B13 HEAT SINK PMU A8A70UH 1EM324377

B14 HEAT SINK PMT ASSEMBLY A8C70EP 1EM426357A

B23 HEAT SINK PMW A8C70EP 1EM426760

BC401 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC402 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

Ref. No. Mark Description Part No.

20100507 15-15 A0C70/71EL

JACK ASSEMBLY

JACK CBA

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC601 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC602 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC603 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC604 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC605 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC801 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC802 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

BC1006 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC1007 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC1008 BEADS INDUCTOR FBR07HA121SB-00 orLLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

F601! FUSE 4A/250V(PB FREE) 0215004.MXP PBGZ20BAG021

FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

JK401 JACK HPEP SML PCB S PJ-358H or JXSJ020YUQ01

JACK HPEP SML PCB S 02 MSJ-035-

29D (ABS)

JXSJ020LY001

JK402 JACK SW DIN PCB S 04/DIN-417HA-01 orJYEJ040YUQ03

JACK SW DIN PCB S 04 MDC-076H-A LF JYEJ040LY002

JK403 JACK RCA PCB S YELLOW 01/RCA-

101H(YL) or

JXRJ010YUQ05

JACK RCA PCB S (YELLOW) 01 MTJ-

032-04B-40 FE or

JXRJ010LY032

JACK RCA PCB S YELLOW 01 / RCA-

101HF(YL)

JXRJ01YUQ011

JK404 JACK RCA PCB S WHITE 01/RCA-

101H(WH) or

JXRJ010YUQ02

JACK RCA PCB S (WHITE) 01 MTJ-032-

04B-41 FE or

JXRJ010LY031

JACK RCA PCB S WHITE 01 / RCA-

101HF(WH)

JXRJ01YUQ008

JK405 JACK SW RCA PCB S RED RCA-

102H(RD) or

JYRJ010YUQ03

JACK SW RCA PCB S(RED) 01 MTJ-032-

04A-75 FE

JYRJ010LY031

JK413 JACK RGB PCB S 01/RGB-11HS JXGJ21YUQ001

JS400 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

L13 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

SA601! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR or NVQZVR10D471

! VARISTOR/Q TVR10471KS42Y NVQKTVR10471

T601! TRANS POWER BCK-35AO or LTT3PEMEK004

! TRANS POWER BCK-35-0746 LTT3PE0XB061

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

Ref. No. Mark Description Part No.

T1500! TRANS INVERTER HVT-179 or LTZ3PZ0XB012

! TRANS INVERTER TK.7610A.101 or LTZ3PZDAR008

T1600! TRANS INVERTER HVT-179 or LTZ3PZ0XB012

! TRANS INVERTER TK.7610A.101 or LTZ3PZDAR008

T1700! TRANS INVERTER HVT-179 or LTZ3PZ0XB012

! TRANS INVERTER TK.7610A.101 or LTZ3PZDAR008

Ref. No. Description Part No.

JACK ASSEMBLY
Consists of the following:

A0C70MJC-001

JACK CBA
FUNCTION CBA
JUNCTION CBA

----------

----------

----------

Ref. No. Description Part No.

JACK CBA
Consists of the following:

----------

CAPACITORS

C401 CHIP CERAMIC CAP.(1608) B K 1µF/10V or CHD1AK30B105

CAP CHIP 1608 K/X5R/1µF/10V CHD105EYA048

C439 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

C440 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/C0G/330pF/50V CHD331EYA030

C450 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EYA032

C451 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EYA032

CONNECTORS

CN452 FFC CONNECTOR IMSA-9615S-11A-PP-A or JC96J11ER007

CONNECTOR PRINT MES 00 6232 011 006
800+ or

JC62G11UG026

CONNECTOR PRINT MES 11 S 1.0-11-11P JC1111JSH001

COILS

L401 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

L402 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7
L403 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7

RESISTORS

R402 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002
RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001

R429 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R431 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R433 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R454 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002
RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R455 RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002
RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001

R476 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

Ref. No. Mark Description Part No.

20100507 15-16 A0C70/71EL

FUNCTION CBA

JUNCTION CBA

WIRE CP CP0.56 XZ40F0XRC001

R477 WIRE CP STP-S-0.50 or XZ40F0REN001

WIRE CP STP-S-0.60 or XZ40F0REN002

WIRE CP 6113-05603-0220 or XZ40F0SHG001

WIRE CP CP0.56 XZ40F0XRC001

R482 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R483 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R490 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R491 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

MISCELLANEOUS

JK406 JACK SW HPEP SML PCB L PJ-350 or JYSL010YUQ03

JACK SW HPEP SML PCB L MSJ-2000
AG(B110)

JYSL010LY005

JK407 JACK RCA PCB S GREEN 01/RCA-101H(GN) orJXRJ010YUQ03

JACK RCA PCB S(GREEN) 01 MTJ-032-04B-73
FE or

JXRJ010LY030

JACK RCA PCB S GREEN 01 / RCA­101HF(GN)

JXRJ01YUQ009

JK408 JACK RCA PCB S BLUE 01/RCA-101H(BL) or JXRJ010YUQ04

JACK RCA PCB S(BLUE) 01 MTJ-032-04B-74
FE or

JXRJ010LY033

JACK RCA PCB S BLUE 01 / RCA-101HF(BL) JXRJ01YUQ010

JK409 JACK RCA PCB S RED 01/RCA-101H(RD) or JXRJ010YUQ01

JACK RCA PCB S(RED) 01 MTJ-032-04B-75 FE orJXRJ010LY028

JACK PCA PCB S RED 01 / RCA-101HF(RD) JXRJ01YUQ007

JK411 JACK RCA PCB S WHITE 01/RCA-101H(WH) or JXRJ010YUQ02

JACK RCA PCB S (WHITE) 01 MTJ-032-04B-41
FE or

JXRJ010LY031

JACK RCA PCB S WHITE 01 / RCA-101HF(WH) JXRJ01YUQ008

JK412 JACK SW RCA PCB S RED RCA-102H(RD) or JYRJ010YUQ03

JACK SW RCA PCB S(RED) 01 MTJ-032-04A­75 FE

JYRJ010LY031

JS451 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS452 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

Ref. No. Description Part No.

FUNCTION CBA
Consists of the following:

----------

CAPACITORS

C105 CHIP CERAMIC CAP. B K 330pF/50V or CHD1JK30B331

CAP CHIP 1608 K/X7R/330pF/50V CHD331EYA032

C107 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

CAP ELE 47µF/16V/M/85 H7 CEC470KSN003

C108 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

DIODES

D101 LED L-53HT or NP4Z000L53HT

LED 333HT/E-L or NPHL00333HTE

LED 333HT/E-K NPHK00333HTE

D102 LED GREEN 333GT/E(FNA) or NPWZ33GTEFNA

LED(GREEN) LTL-4234 NPWZ0LTL4234

TRANSISTORS

Q102 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Ref. No. Description Part No.

RESISTORS

R102 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R103 CHIP RES. 1/10W J 220 Ω or RRXAJR5Z0221

RES CHIP 1608 1/10W J 220 Ω RRXA221YF002

R104 RES CARBON FILM T 1/4W J 470 Ω or RCX4471T1001

RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002
RES CARBON FILM 1/4W J 470 Ω RCJ471PAK001

R105 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R106 RES CARBON FILM T 1/4W J 1.0k Ω or RCX4102T1001

RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002
RES CARBON FILM 1/4W J 1.0k Ω RCJ102PAK001

R107 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002

R108 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R109 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R110 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R111 RES CARBON FILM T 1/4W J 220 Ω or RCX4221T1001

RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002
RES CARBON FILM 1/4W J 220 Ω RCJ221PAK001

R112 CHIP RES. 1/10W J 1.1k Ω or RRXAJR5Z0112

RES CHIP 1608 1/10W J 1.1k Ω RRXA112YF002

R113 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002

R114 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002

R115 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002

R116 CHIP RES. 1/10W J 8.2k Ω or RRXAJR5Z0822

RES CHIP 1608 1/10W J 8.2k Ω RRXA822YF002

R119 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R120 CHIP RES. 1/10W J 330 Ω or RRXAJR5Z0331

RES CHIP 1608 1/10W J 330 Ω RRXA331YF002

SWITCHES

SW101 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW102 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW103 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW104 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW105 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW106 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

MISCELLANEOUS

JS902 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS903 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

RS101 SENSOR REMOTE RECEIVER KSM-712TH2E orUSESJRSKK044

SENSOR REMOTE RECEIVER KSM-712TH2M USEJRS0KK001

Ref. No. Description Part No.

JUNCTION CBA
Consists of the following:

----------

CONNECTORS

CN101A WIRE ASSEMBLY 6PIN 6PIN/120MM/AWG26/

GRA

WX1A9370-001

Ref. No. Description Part No.

20100507 15-17 A0C70/71EL

CN102B 242 SERIES CONNECTOR TUC-P06X-B1 WHT STJCTUB06TG002

Ref. No. Description Part No.

TU1 TUNER UNIT DTOS40AML201A UTNPSG0SM002

Ref. No. Description Part No.

LT850-M22/LT851-M22

A0C70EP/A0C71EP

2010-06-03
