FUNAI MJ427GG User Manual

Size:
937.83 Kb
Download

MJ427GG

TO RECEIVE DIGITAL SIGNAL

YOU MUST CONNECT ANTENNA

SYMBOLE D'AVERTISSEMENT POUR
LES COMPOSANTES
APPAREIL ET MEUBLE A ROULETTES
S3126A

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The important note is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1.READ INSTRUCTIONS-Allthe safety and operating instructions should be read before the appliance is operated.

2.RETAIN INSTRUCTIONS-Thesafety and operating instructions should be retained for future reference.

3.HEED WARNINGS-Allwarnings on the appliance and in the operating instructions should be adhered to.

4.FOLLOW INSTRUCTIONS-Alloperating and use instructions should be followed.

5.CLEANING-UnplugTV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.ATTACHMENTS-Donot use attachments not recommended by the TV manufacturer as they may cause hazards.

7.WATER AND MOISTURE-Donot use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.ACCESSORIES-Donot place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV.

Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

S3126A

AMEUBLESCet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un

meuble à roulettes, déplacez les deux ensembles avec précaution. Un

arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières

risquent de déstabiliser l’ensemble et de le renverser.

9.VENTILATION-Slotsand openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in abuilt-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.POWER SOURCES-ThisTV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11.GROUNDING OR POLARIZATION-ThisTV is equipped with a polarizedalternating-currentline plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.POWER-CORDPROTECTION-Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

2

EN

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE



ANTENNA



LEAD IN



WIRE



GROUND



CLAMP



ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT





GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING



ELECTRODE SYSTEM

S 2 8 9 8 A

(NEC ART 250, PART H)

13.OUTDOOR ANTENNA GROUNDING-Ifan outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges andbuilt-upstatic charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of thelead-inwire to an antenna discharge unit, size of grounding conductors, location ofantenna-dis-charge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.LIGHTNING-Foradded protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and powerline surges.

15.POWER LINES-Anoutside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.OVERLOADING-Donot overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.OBJECT AND LIQUID ENTRY-Neverpush objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18.SERVICING-Donot attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.DAMAGE REQUIRING SERVICE-Unplugthis TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power supply cord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the TV.

c.If the TV has been exposed to rain or water.

d.If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.

e.If the TV has been dropped or damaged in any way.

f.When the TV exhibits a distinct change in performance, this indicates a need for service.

20.REPLACEMENT PARTS-Whenreplacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.SAFETY CHECK-Uponcompletion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22.HEAT-ThisTV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

IMPORTANT SAFEGUARDS

3

EN

SUPPLIED ACCESSORIES

• Owner’s Manual

• Remote control unit

• Batteries

(1EMN21788)

(NE601UE)

(“AA” x 2)

If you need to replace these accessories, please refer to the PART NO, above the illustrations and call our help line mentioned in the warranty.

Depending on your antenna system, you may need different types of Combiners (Mixer) or Separator (Splitter). Contact your local electronics store for these items.

PRECAUTIONS

Place your TV in a room with adequate ventilation.

Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

Do not place your TV on soft surfaces, such as rugs or blankets.

Leave enough room for air to circulate around the bottom, top and back of the set.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the owner’s manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING: Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Model No.



Date of Purchase



Serial No.



Dealer Phone No.



Dealer Purchase from



Dealer Address



4

EN

FEATURES

DTV/TV/CATV

This TV lets you easily switch TV(NTSC) and DTV(ATSC) with the remote control. This feature enables you to simply view from conventional analog TV to Standard Definition TV, High Definition TV. You can also connect this TV to CATV if you have a CATV box.

Program Information Display (DTV)

You can display the title, contents and other information of the current DTV program on the screen.

Auto Preset Channel

This TV can automatically scan and memorize the channels receivable in your residential area. This feature eliminates the need of a difficult setting procedure.

V-CHIP

This feature lets you set the viewing limitations to prevent your children from watching inappropriate programs.

Closed Caption Decoder

This TV contains the built-inClosed Caption Decoder that displays text across the screen. It allows you to read the dialogue of a TV program or other information in the ClosedCaption-supportedprograms.

MTS/SAP Tuner

This feature allows you select with the remote control your desired audio language.

Auto Shut Off Function

The power of the main unit is automatically turned off when there has been no signal or key input for more than 15 minutes.

Sleep Timer

This feature will automatically turn off the power of the main unit at a preset time.

On-ScreenFunction Display (ENGLISH/SPANISH/FRENCH)

This feature lets you select the language displayed in the menu screen from ENGLISH, SPANISH or FRENCH.

Stereo Sound Function

Full-FunctionRemote Control

PLL Frequency Synthesized Tuning

S-VIDEOInput

Front / Rear AV Input

Component VIDEO Input

Rear Digital Audio Output

EN

SUPPLIED ACCESSORIES / PRECAUTIONS / FEATURES

5

CONTENTS

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

SUPPLIED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

PREPARATION FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ANTENNA/BASIC CABLE CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 CONNECTION TO CABLE/SATELLITE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 COMPONENT CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 EXTERNAL CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 USING FRONT A/V CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 DIGITAL AUDIO CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLING THE BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 BATTERY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REMOTE CONTROL AND FRONT PANEL FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

WATCHING TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INITIAL SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SWITCHING ANALOG MODE/DIGITAL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 CHANNEL SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 VOLUME ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SWITCHING AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SCREEN INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 SWITCHING EXTERNAL INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

OPTIONAL SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

MENU SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

PICTURE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

CLOSED CAPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

V-CHIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

CHANGING THE SCREEN DISPLAY MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

OTHER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

AUTO PRESET CH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 CHANNEL ADD/DELETE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 LANGUAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 D. S. T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 TIME ZONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

MISCELLANEOUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BACK COVER

SYMBOLS USED IN THIS MANUAL

The following is the description for the symbols used in this manual.

TV

: Settings only for the analog mode

DTV

: Settings only for the digital mode

DTV

TV : Common settings for the analog mode and digital mode

6

EN

PREPARATION FOR USE

CONNECTION

This section describes how to connect this TV to reception and other sources.

MAKE SURE YOU HAVE AN ANTENNA

As DTV is only available over the air, you need an antenna to receive digital signal.

[ANTENNA / BASIC CABLE CONNECTION]

1) When connecting TV to antenna

Connect the RF cable or antenna cable on your home outlet to the ANT. IN jack of this TV.

2) When connecting TV to basic cable (without box)

Connect the RF cable or incoming cable on your home outlet to the ANT. IN jack of this TV.

or

(if necessary)

CABLES NOT INCLUDED

* COMMERCIALLY AVAILABLE

NOTES:

For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. IN jack before moving the unit.

If you use an antenna in order to receive analog TV, the same antenna generally will work for DTV reception. Outdoor or attic antennas will be more effective than set-topversions.

To easily switch between antenna and cable wires, you can purchase “Antenna Selector” commercially available.

*Once connections are completed, turn on the TV and begin initial setup.

Channel scanning is necessary for the TV to memorize all available channels in your area if using antenna or basic cable. (Refer to “INITIAL SETTINGS” on page 13.)

CONTENTS / PREPARATION FOR USE

7

EN

[CONNECTION TO CABLE/SATELLITE BOX]

1)Connect the antenna cable on your home outlet to the input jack of the CABLE/SATELLITE box.

2)Use the corresponding cable to connect the ANT. IN jack of this TV and the output jack of the CABLE/SATELLITE box.

*Required cables in 2) and connecting methods differ depending on the CABLE/SATELLITE box. For more information, please contact the store where you purchased the CABLE/SATELLITE box or nearby electric appliance stores.

Satellite

Cable TV

antenna or

signal

CABLES NOT INCLUDED

[COMPONENT CONNECTION]

1)This is the best method to connect this TV to video devices with the component output jack, such as DVD player, etc. It can minimize the deterioration of image quality.

Use the component cable (commercially available) for connection.

CABLES NOT INCLUDED

NOTE:

This TV can only accept a 480i (interlaced) video signal.

8

EN

[EXTERNAL CONNECTION]

When using the Audio/Video cables

1)This is the general method to connect this TV to video devices with the video or audio output jacks, such as VCR etc.

When the audio jack of video devices is monaural, connect this TV to the AUDIO L jack.

AUDIO VIDEO S-VIDEO

OUT OUT OUT

CABLES NOT INCLUDED

When using the S-Videocable

1)This is how to connect this TV to the video devices with the S-VIDEOOUT jack. You can expect better picture quality than the normal video cable connection.

Use the S-Videocable (commercially available) for connection.

AUDIO VIDEO S-VIDEO

OUT OUT OUT

PREPARATION FOR USE

CABLES NOT INCLUDED

NOTE:

If you connect to the S-VIDEOjack and the VIDEO jack at the same time,S-Videoconnection will have priority.

9

EN

[USING FRONT A/V CONNECTION]

1) This is how to use the A/V jack in front of this TV and connect to external devices. This is useful when you use game playing devices etc.

When the audio jack of external devices is monaural, connect this TV to the AUDIO L jack.

CABLES NOT INCLUDED

[DIGITAL AUDIO CONNECTION]

1)If you connect this TV to the digital-supportedaudio devices, you can enjoy much more of the digital broadcasting programs with the feeling of being at a live program.

Use the digital audio coaxial cable (commercially available) for connection.

CABLES NOT INCLUDED

Manufactured under license from Dolby Laboratories. "Dolby" and the double-Dsymbol are trade-marks of Dolby Laboratories.

10

EN

INSTALLING THE BATTERIES



1

2

3

Install two AA batteries (supplied) matching the

polarity indicated inside battery compartment of







the remote control.

[BATTERY PRECAUTIONS]

Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc)or old batteries with fresh ones.

If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

Features of digital broadcasting

Digital broadcasting uses the newest broadcasting technology such as compression of audio and video signals and provides much more improved image and sound quality than analog broadcasting. For image quality, digital broadcasting have realized the High Definition Television (HDTV) that can display sharper and finer images than Standard Definition Television (SDTV) with double scanning lines, and can adopt the 16:9 wide screen format that fits more to range of human vision.

For audio quality, digital broadcasting offers the 5.1ch surround broadcast to give you the feeling of being at a stadium or a theater.

In addition, digital broadcasting enables to broadcast 2 or 3 programs of Standard Definition Television (SDTV), which is the analog television format, at the same time by 1 channel. This feature has made the program planning more diversified. In addition, digital broadcasting has overcome problems experienced with analog television such as ghosting or interference with digital technology.

Minor channel of digital broadcasting

In digital broadcasting, the selected channel can have the sub channel. It is called the minor channel. Though the minor channel programs provide a little poorer image quality than the High Definition Television (HDTV) programs, they have such an advantage as it will not move back other programs even when a sport relay is extended.

PREPARATION FOR USE

11

EN

FUNCTIONS

REMOTE CONTROL AND FRONT PANEL FUNCTION

POWER button

POWER





DTV / TV

To turn TV on/off





AUDIO

INFO







Channel number buttons (p15)

1

2

3



-/ENTbutton(p15)



4

5

6



To confirm the command of











channel number buttons

7

8

9

CHANNEL



–/ENT





RETURN

AUDIO button (p16)

Analog mode (TV) To select audio mode

Digital mode (DTV)

To select audio language

DTV/TV button (p15)

To switch between digital mode (DTV) and analog mode

CH K/L buttons (p13) To select channels and move up/down through menu items

MENU button (p19)

To display on-screenmenu

INPUT SELECT button (p18) To select TV or external input mode (to access camcorders, games, etc.)

SLEEP button (p19) To turn the power off automatically at preset time



0

+



100





CH



VOL

VOL





CH

MENU

INPUT

SLEEP MUTE

SELECT





INFO button (p17)

Analog mode (TV)

To display channel No.

Digital mode (DTV)

To display channel information

CHANNEL RETURN button (p15) To return to previously viewed channel

+100 button (p15)

CATV

To enter the channel number for 100 or higher channels

Digital mode (DTV)

To select the minor channel

MUTE button (p16)

VOL X/Y buttons(p13)

To adjust volume, and to change settings / to move to next screen for menu items



















MENU button (p19)





































To view on-screenmenu

AUDIO L/R input jacks (p10)



















VOLUME X/Y buttons(p13)













































To adjust volume

VIDEO input jack (p10)





























CHANNEL K/L buttons(p13)





























































To select channels





































POWER button









































































To turn TV on/off

































































































































































MENU Y VOLUME X

L CHANNEL K POWER

VIDEO L - AUDIO - R

Infrared Sensor Window

To receive the infrared rays transmitted from the remote control

12

EN

WATCHING TV

INITIAL SETTINGS

This section describes the initial settings when you first turn on the power after purchase. The initial setting items are shown below.

NOTE:

Be sure that antenna or cable is connected properly before plugging the power cord.

1Select your language.

When you first turn on the power, the following screen is displayed.

SELECT LANGUAGE

ENGLISH

NEXT:PRESS K

ESPAÑOL

DEPUÉS:PRESIONE L

FRANÇAIS

APRÈS:PRESSEZ X

• LANGUAGE SELECTION

You can select the menu language displayed on the screen among English, Spanish and French.

• D.S.T. (Daylight Saving Time)

You can set the air time display for digital broadcasting. When you set this function to ON, the date information adjusted for the area set by TIME ZONE will be adjusted to the one added by another 1 hour. In addition, the time difference will be adjusted as follows: 2 a.m. on first Sunday in April to 3 a.m., 1 hour ahead, and 2 a.m. on last Sunday in October to 1 a.m., 1 hour behind.

TIME ZONE

The EPG information in digital broadcasting is adjusted based on the area set in TIME ZONE.

AUTO PRESET CH (TV/DTV)

(When using antenna)

The channels broadcasted in TV and DTV are automatically scanned and memorized. Only the receivable channels in the area where this TV is used will be memorized.

AUTO PRESET CH (CATV)

(When using basic cable)

The channels broadcasted in CATV are automatically scanned and memorized.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN

CH K /L

0

+100



CH







VOL

VOL





CH





VOL X /Y

MENU

INPUT

SLEEP MUTE

SELECT

At initial language screen, press [CH K] for English. press[CH L] for Spanish. press[VOL X] for French.

The next menu will be displayed in the selected language after you press the button.

2Using [VOL X/Y], set "D.S.T. (Daylight Saving)" to [ON].

1.PLEASE CONNECT ANTENNA TO THE UNIT.

2.SET UP THE ITEMS WITH

,ANDBUTTONS.

D.S.T. (Daylight Saving)

[ON]

TIME ZONE

[- - -]

AUTO PRESET CH (TV/DTV)



AUTO PRESET CH (CATV)



3Using [CH K/L], select "TIME ZONE".

1.PLEASE CONNECT ANTENNA TO THE UNIT.

2.SET UP THE ITEMS WITH

,ANDBUTTONS.

D.S.T. (Daylight Saving)

[ON]

TIME ZONE

[- - -]

AUTO PRESET CH (TV/DTV)



AUTO PRESET CH (CATV)



Every time you press [VOL X/Y], the area will be switched as below.

• Set your area.

NOTE:

You must set “D.S.T.” and “TIME ZONE” before presetting channels.

FUNCTIONS / WATCHING TV

13

EN

4Set the AUTO PRESET CH.

NOTES:

If "D.S.T. (Daylight Saving)" and "TIME ZONE" is not set, you cannot select "AUTO PRESET CH".

Make sure if the TV is connected to antenna or cable. When antenna is connected, select “AUTO PRESET CH (TV/DTV)” at the procedure below. When connected to CATV, select “AUTO PRESET CH (CATV)”.

Here describes the case for searching and memorizing channels for TV/DTV.

Using [CH K/L], select "AUTO PRESET CH(TV/DTV)".

1.PLEASE CONNECT ANTENNA TO THE UNIT.

2.SET UP THE ITEMS WITH

,ANDBUTTONS.

D.S.T. (Daylight Saving)

[ON]

TIME ZONE

[ALASKA]

AUTO PRESET CH (TV/DTV)

AUTO PRESET CH (CATV)

When you press [VOL X], the channel scanning in both analog and digital modes will automatically start.

AUTO PRESET CH(TV/DTV)

When scanning is completed, the memorized smallest channel will be displayed.

NOTES:

The initial AUTO PRESET CH function can be executed for either TV/DTV or CATV only once. If you want to scan both TV/DTV and CATV, you need to select "CHANNEL SET" in the MENU screen to scan and memorize other channels after initial presetting is completed. (Refer to page 28.)

You can exit the initial AUTO PRESET menu by pressing

[MENU].

When you press [MENU] while scanning, the scanning is interrupted and the memorized smallest channel is displayed.

If you press [POWER], the power will be turned off. When the scanning is not completed, initial AUTO PRESET CH screen is displayed every time you turn on the power.

When no channel can be received by AUTO PRESET CH, "NO TV SIGNALS" is displayed on the screen.

NO TV SIGNALS

14

EN

SWITCHING ANALOG MODE / DIGITAL MODE

You can easily switch the TV (NTSC) and DTV (ATSC) with the remote control and enjoy viewing the High Definition TV programs as well as the Standard Definition TV programs with simple operation.

POWER



DTV / TV





DTV/ TV





AUDIO INFO

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN



0

+100





CH



VOL

VOL





CH

1Press [DTV/TV] on the remote control.

The analog mode and digital mode switch alternately.

When you press [DTV/TV] in external input, the analog mode and digital mode will be switched.

NOTE:

When you switch the analog mode to the digital mode, it may take a while until the digital channel selection is completed. The following screen is displayed while switching the mode.

NOW SCANNING

CHANNEL SELECTION

You can select the channel by using either [CH K/L] orChannel number buttons. How to select the channel in each way is shown below.

AUDIO INFO

Channel

1

2

3















number

4

5

6





buttons

7

8

9

CHANNEL





–/ENT







-/ENT





RETURN

CHANNEL



0

+100



CH K /L





CH



RETURN















VOL



VOL

+100







CH





MENU

INPUT

SLEEP

MUTE





SELECT













1Using [CH K/L]

Using [CH K/L], change the channel.

When you press [CHANNEL RETURN], the previously selected channel will be selected.

Same operation is available with [CH K/L] on the front panel of the main unit.

2Using Channel numberbuttons

When you select a channel from 1 to 99, press the channel number you want to view with Channel number buttons. The selected channel will be displayed.

When you select a channel larger than 100, press [+100] first. Then usechannel number buttons to press the lower 2 digits.

To search the minor channel of the major channel currently viewed in DTV, press [+100]. If you know the minor channel while viewing the major channel with1-digitchannel number, press the major channel number and press[-/ENT].Then, press the minor channel number you want to view. In case the major channel number is 2 digits, press the major channel number and press the minor channel number directly. If you press[-/ENT] after pressing the2-digitmajor channel number, the smallest minor channel will be selected.

When you press [CHANNEL RETURN], the previously selected channel will be selected.

NOTE:

In the DTV broadcasting, one channel sometimes broadcasts multiple programs depending on the air time. In this case, the main channel is called major channel and the sub channel is called minor channel.

WATCHING TV

15

EN

VOLUME ADJUSTMENT

This section describes how to adjust the volume when viewing TV. The MUTE function, which is useful when you have a visitor or a phone call, will be also described.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN



0

+100





CH



VOL

VOL





CH





VOL X /Y

MENU

INPUT

SLEEP MUTE

SELECT

MUTE

1Using [VOL X/Y]

You can adjust the audio volume with [VOL X/Y].

The volume bar is displayed at the bottom of the screen when adjusting the volume.

Same operation is available with [VOL X/Y] on the front panel of the main unit.

VOLUME

2Using [MUTE]

Press [MUTE] on the remote control to mute the sound.

The colored volume bar is displayed on the screen while muting.

VOLUME

To release the MUTE status, press [MUTE] again or press[VOL X/Y].

16

SWITCHING AUDIO

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

POWER

DTV / TV

AUDIO

INFO

AUDIO

1 2 3

4 5 6

7 8 9

TV

1Switch the audio.

Every time you press [AUDIO], the audio will be switched as below.

MAIN

: Outputs main-audio

SAP

: Outputs second audio channel

MONO : Outputs mono-audio

DTV

1Switch the audio language.

When you press [AUDIO], the currently selected language and the number of received languages will be displayed on the screen.





KABC

CH 95-03

Audio



Jay Jay the Jet Plane



ENGLISH 1/3



11:00AM- 1:00PM

language









Every time you press [AUDIO], the language will be switched.

KABC

CH 95-03

Jay Jay the Jet Plane



SPANISH 2/3



11:00AM- 1:00PM

Languages you can switch differ depending on the receiving broadcast.

NOTE:

Even if you press [AUDIO] in external input, the audio will not be switched.

EN

SCREEN INFORMATION

You can display the currently selected channel number or other information such as the audio mode on the screen for checking.

POWER



DTV / TV





AUDIO INFO





INFO

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN



0

+100





CH



VOL

VOL

CH

TV

In the analog mode, the currently selected channel number and the audio mode are displayed.

1Display the channel number and the audio mode.

Press [INFO] on the remote control.

The currently selected channel number and the audio mode are displayed at the top right of the screen.

CH 10

STEREO

To clear the display, press [INFO] again.

The following screens are displayed when connecting to external devices:

1) When using video cable for connection

VIDEO 2

DTV

In the digital mode, the detailed information for the currently selected channel such as the program guide is displayed.

1Display the detailed information for the channel.

Every time you press [INFO], the display mode will be switched as below.

WATCHING TV

The following information is displayed in the INFO1 mode.

(1)Channel number

(2)Channel title

(3)Program title (max. 2 lines displayed)

(4)Audio language ("OTHER" is displayed when the audio language cannot be acquired, or the acquired languages are other than ENGLISH, SPANISH or FRENCH.)

(5)Program air time

(2)







KABC

CH 95-03



(1)







(3)







AB WORLD





(5)







ENGLISH

11:00AM- 1:00PM



(4)





























The program guide added to the displayed information in the INFO1 mode is displayed in the INFO2 mode.

KABC

CH 95-03

AB WORLD



ENGLISH

11:00AM- 1:00PM

We bring you the latest information Program from around the world as quickly asguide possible.

2)When using component video cable for connection

COMPONENT

NOTES:

When the program guide is displayed in more than 6 lines, use [VOL X/ Y] and scroll for reading.

"No description provided" is displayed when the program guide is not provided.

While the information is displayed in the INFO2 mode, the CLOSED CAPTION function is interrupted.

17

EN

SWITCHING EXTERNAL INPUT

When you connect external devices including a video cassette recorder and home audio system, you can easily switch the input mode with the remote control.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN



0

+100





CH



VOL

VOL





CH

INPUT SELECT





MENU

INPUT

SLEEP MUTE

SELECT





1Switch the input mode.

When you press [INPUT SELECT] on the remote control, the input mode will be switched as below.

To use the VIDEO-1INPUT jacks on the rear of the TV, select "VIDEO1".

(If you use the S-VIDEOjack,"S-VIDEO"is displayed.)

To use the jacks on the front of the TV, select "VIDEO2".

To use the COMPONENT VIDEO INPUT jacks on the rear of the TV, select "COMPONENT".

When you press [INFO], the current external input mode will be displayed at the top right of the screen.

1) When using VIDEO-1INPUT jack

VIDEO 1

2) When using VIDEO-2INPUT jack

VIDEO 2

3)When using COMPONENT VIDEO INPUT jack

COMPONENT

4) When using S-VIDEOINPUT jack

S-VIDEO

18

EN

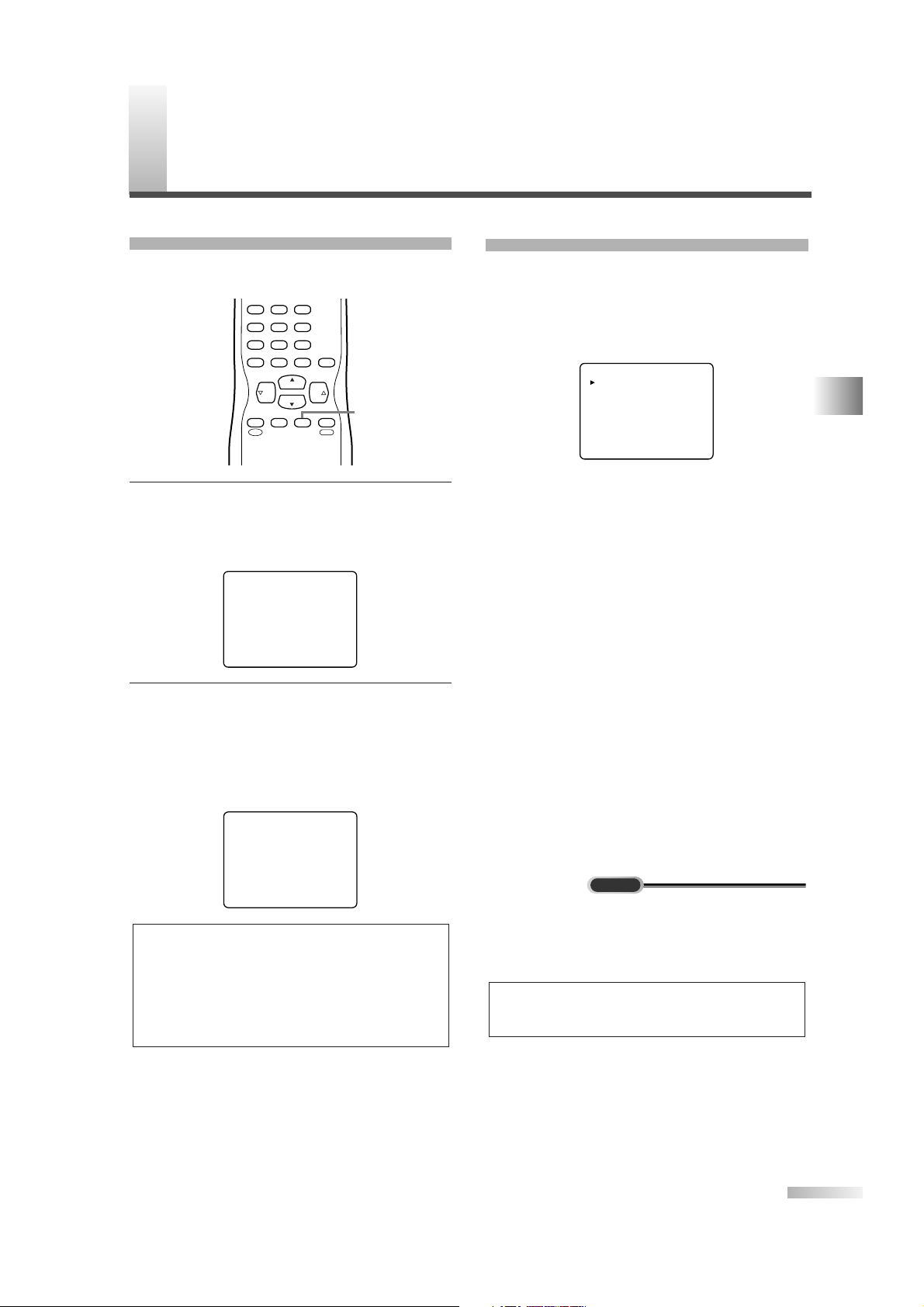

OPTIONAL SETTINGS

SLEEP TIMER

The SLEEP TIMER function will automatically turn off the power of the unit at a preset time.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN



0

+100





CH



VOL

VOL





CH





SLEEP

MENU

INPUT

SLEEP MUTE

SELECT





1Use SLEEP TIMER.

Press [SLEEP] on the remote control.

The setting display for SLEEP TIMER is shown in the screen.

SLEEP 0

2Set the timer.

Every time you press [SLEEP], the time increases by 10 minutes.

You can set the timer up to 90 minutes.

After setting, you can check the remained time per 1 minute by pressing [SLEEP].

SLEEP 16

NOTES:

When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled.

To cancel the sleep timer, press [SLEEP] repeatedly until "SLEEP 0" is displayed.

The Sleep Timer setting display will automatically disappear after 10 seconds.

MENU SCREEN

This section describes the overview of the menu screen displayed when you press [MENU]. For more details, see the reference page for each item.

The menu screen consists of the function setting items below.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

• PICTURE

You can adjust the picture quality (BRIGHT, CONTRAST, COLOR, TINT, SHARPNESS).

(Refer to "PICTURE ADJUSTMENT" on page 20.)

• CHANNEL SET

You can automatically scan the receivable channels and add or delete the channel as necessary.

(Refer to "AUTO PRESET CH" on page 28.)

• ENG/ESP/FRA

You can change the language (ENGLISH, SPANISH, FRENCH) displayed in the menu screen.

(Refer to "LANGUAGE SELECTION" on page 31.)

V-CHIPSET UP

You can set the viewing limitations. (Refer to "V-CHIP"on page 24.)

CAPTION

You can change the display format for CLOSED CAPTION, which displays the dialogue of a TV program or other information across the screen.

(Refer to "CLOSED CAPTION" on page 21.)

• DTV SET UP DTV

You can set the screen display or CAPTION in the DTV mode.

(Refer to "CHANGING THE SCREEN DISPLAY MODE" on page 27.)

NOTES:

"DTV SET UP" can be displayed only in the DTV mode.

To move to the normal screen, press [MENU].

OPTIONAL SETTINGS

19

EN

PICTURE ADJUSTMENT

You can adjust the brightness, contrast, color, tint and sharpness of the picture.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN

CH K /L

0

+100



CH







VOL

VOL





CH

MENU



VOL X /Y

INPUT



MENU

SLEEP MUTE

SELECT





1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "PICTURE".

Using [CH K/L], select "PICTURE" and press[VOL X] to confirm.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

The adjustment bar for picture quality item is displayed in the screen.

[-]









BRIGHT

[+]































3Adjust the picture quality.

Using [CH K/L], select the picture quality item you want to adjust.

• Using [VOL X/Y], adjust the picture quality.

BRIGHT

[+] : To increase brightness [ - ] : To decrease brightness

CONTRAST

[+] : To increase contrast [ - ] : To decrease contrast

COLOR

[+] : To brilliant [ - ] : To pale

TINT

[+] : To green [ - ] : To purple

SHARPNESS

[+] : To clear [ - ] : To soft

NOTES:

The display will disappear automatically after 10 seconds unless you press a button.

Magnetism from nearby appliances and speakers might affect the color of the TV picture. If this happens, press [POWER] to turn off the TV and turn it on again after about 30 minutes.

20

EN

CLOSED CAPTION

You can view specially labeled (cc) TV programs, movies, news and prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

You can also change the font size and font style of the caption in the digital broadcasting.

7

8

9

–/ENT



CHANNEL



RETURN



0

+100

CH K /L



CH

VOL

VOL



CH

MENU





VOL X /Y

INPUT





MENU

SELECT

SLEEP

MUTE

TV

1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "CAPTION".

• Using [CH K/L], select "CAPTION".

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIPSET UP

CAPTION [OFF]

DTV SET UP

3Switch the CAPTION mode.

When you press [VOL X/Y], CAPTION will be switched as below.

[CAPTION MODE (C1, C2)]



• CAPTION1 (C1)



Displays standard closed captions (what a char-



acter is saying).



• CAPTION2 (C2)



Displays foreign language closed captions (for-



eign language words showing what a character



is saying).



• There are three display modes according to



programs:

SETTINGS

Paint-on mode: Displays input characters on the



screen immediately.



Pop-on mode : Once characters are stored in



memory, they are displayed all

OPTIONAL

[TEXT MODE (T1, T2)]

at once.



Roll-up mode : Displays the characters continu-



ously by scrolling (max. 4 lines).



TEXT1 (T1) and TEXT2 (T2) display halfscreen text by scrolling (such as a channel guide, schedule or announcement).

4To exit the menu, press [MENU].

NOTES:

If the closed caption is not broadcasted, nothing is displayed.

When your TV receives a special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the TV may not display the correct caption or text.

Captions and texts may not match the TV voice exactly.

Interference may cause the closed caption system not to function properly.

The caption or text characters will not be displayed while the menu display or functions display is shown.

If a black box appears on the screen, this means that the TV is set to TEXT mode. To clear screen, select CAPTION "C1", "C2" or "OFF".

DTV

1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

21

EN

2Select "DTV SET UP".

• Using [CH K/L], select "DTV SET UP".

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIPSET UP CAPTION [OFF]DTV SET UP

Press [VOL X].

The following screen is displayed.

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.[Daylight Saving] [ON]

TIME ZONE [ALASKA]

3Select "DTVCC".

• Using [CH K/L], select "DTVCC".

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.[Daylight Saving] [ON]

TIME ZONE [ALASKA]

Press [VOL X].

The following screen is displayed.

CAPTION SERVICE

[OFF]

USER SETTING

[OFF]

CAPTION SIZE

[MIDDLE]

FONT STYLE

[STYLE1/8]

CHARACTER EDGE

[NONE]

FORE OPACITY

[SOLID]

FORE COLOR

[WHITE]

BACK OPACITY

[SOLID]

BACK COLOR

[BLACK]

4Select "CAPTION SERVICE".

When you press [VOL X/Y], you can switch CAPTION as below. Select CAPTION SERVICE you want to use.

22

NOTE:

CAPTION SERVICE you can switch differs depending on the broadcast description.

5Use "USER SETTING".

The "USER SETTING" function lets you change the caption size and font style.

Using [CH K/L], select "USER SETTING".

CAPTION SERVICE

[SERVICE1/6]

USER SETTING

[OFF]

CAPTION SIZE

[MIDDLE]

FONT STYLE

[STYLE1/8]

CHARACTER EDGE

[NONE]

FORE OPACITY

[SOLID]

FORE COLOR

[WHITE]

BACK OPACITY

[SOLID]

BACK COLOR

[BLACK]

Press [VOL X] and set "USER SETTING" to "ON".

6Set each item.

When "USER SETTING" is set to "ON", you can set the following items.

CAPTION SERVICE

[SERVICE1/6]

USER SETTING

[ON]

CAPTION SIZE

[MIDDLE]

FONT STYLE

[STYLE1/8]

CHARACTER EDGE

[NONE]

FORE OPACITY

[SOLID]

FORE COLOR

[WHITE]

BACK OPACITY

[SOLID]

BACK COLOR

[BLACK]

Using [CH K/L], select the item you want to set.

You can switch the setting for each item with

[VOL X/Y].

The setting description for each item is shown below.

[CAPTION SIZE]

Text size of the displayed caption can be switched as below.

EN

[FONT STYLE]

Font style of the displayed caption can be switched as below.

[CHARACTER EDGE]

Text edging of the displayed caption can be switched as below.

[FORE OPACITY]

Text opacity of the displayed caption can be switched as below.

[FORE COLOR]

Text color of the displayed caption can be switched as below.

OPTIONAL SETTINGS

[BACK OPACITY]

Background opacity of the displayed caption can be switched as below.

[BACK COLOR]

Background color of the displayed caption can be switched as below.

23

EN

V-CHIP

You can set the viewing limitations to prevent your children from watching inappropriate programs including disagreeable expression and description. The viewing limitations set for the program can be released by entering the access code.

AUDIO INFO

Channel 1 2 3 number4 5 6 buttons7 8 9

–/ENT

CHANNEL

RETURN

0

+100

CH K /L



CH

VOL

VOL



CH

VOL X

MENU

MENU

INPUT

SLEEP

MUTE

SELECT







1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "V-CHIPSET UP".

• Using [CH K/L], select"V-CHIPSET UP".

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIPSET UP CAPTION [OFF] DTV SET UP

Press [VOL X].

The access code entry screen is displayed.

ACCESS CODE

_ _ _ _

3Enter the access code.

Use Channel number buttons and enter the4-digitnumber.

When you have not set up your access code, enter 0000.

When the access code is correct, the following "V-CHIPSET UP" screen is displayed.

TV RATING

A

MPAA RATING

B

CHANGE CODE

C

See the following description for setting each item.

A TV RATING

4Display the "TV RATING" screen.

Using [CH K/L], select "TV RATING". Press[VOL X].

TV RATING

MPAA RATING

CHANGE CODE

5Set "TV RATING".

• Using [CH K/L], select the rating.

TV-Y

[VIEW]

TV-Y7(

) [VIEW]

TV-G

[VIEW]

TV-PG(

) [VIEW]

TV-14(

) [VIEW]

TV-MA(

) [VIEW]

<Selection> <Rating Category Explanations>

TV-Y :Appropriate for all children

TV-Y7 :Appropriate for children seven

and older

TV-G :General Audience

TV-PG :Parental Guidance suggested

TV-14 :Unsuitable for children under 14

TV-MA :Mature audience only

24

EN

L :
S :
V :

6Set "BLOCK" or "VIEW".

Press [VOL X] and set to "BLOCK" or "VIEW" for the rating without sub categories.

TV-Y



[VIEW]

TV-Y7(

)

[VIEW]

TV-G



[BLOCK]

TV-PG(DLSV)

[BLOCK]

TV-14(DLSV)

[BLOCK]

TV-MA(

LSV)

[BLOCK]

For the rating with sub categories, they are displayed by pressing [VOL X] twice.

Press [CH K/L] and select the rating. Then press[VOL X] and set to "BLOCK" or "VIEW".

TV-Y



[VIEW]

TV-PG

[BLOCK]

TV-Y7

(

)

[VIEW]





TV-G





[VIEW]

D

[BLOCK]

TV-PG

(

)

[VIEW]

L

[BLOCK]

TV-14

(

)

[VIEW]

S

[BLOCK]

TV-MA

(

)

[VIEW]

V

[BLOCK]













Sub categories

<Selection> <Rating Category Explanations>

TV-Y7

FV : Fantasy Violence

TV-PG /TV-14 /TV-MA :

D : Suggestive Dialog

(TV-PG,TV-14only)

Coarse Language

Sexual Situation

Violence

7 To exit the menu, press[MENU].

B MPAA RATING

4Display the "MPAA RATING" screen.

Using [CH K/L], select "MPAA RATING".

Press [VOL X].

TV RATING

MPAA RATING

CHANGE CODE

5Set "MPAA RATING".

• Using the [CH K/L], select the rating.

G

[VIEW]

PG

[VIEW]

PG-13

[VIEW]

R

[VIEW]

NC-17

[VIEW]

X

[VIEW]



<Selection>

<Rating Category Explanations>



SETTINGS



• G :

General Audience











• PG :

Parental Guidance suggested







PG-13 :

Unsuitable for children under









13







• R :

Restricted; under 17 requires



OPTIONAL





accompanying parent or adult















guardian







NC-17 :

No one under 17 admitted







• X :

Mature audience only

























6Set "BLOCK" or "VIEW".

• Press [VOL X] and set to "BLOCK" or "VIEW".

G

[VIEW]

PG

[VIEW]

PG-13

[VIEW]

R

[BLOCK]

NC-17

[BLOCK]

X

[BLOCK]

7 To exit the menu, press[MENU].

NOTES:

for TV RATING and MPAA RATING

You cannot access the setup menu when the "PROTECTED PROGRAM by ..." message appears. You need to move to an unblocked channel to access the setup menu.

When you select a rating and set it to "BLOCK", the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

When you set the lowest rating to "VIEW", all other ratings will automatically be available for viewing.

25

EN

C CHANGE CODE

4Display the "CHANGE CODE" screen.

• Using [CH K/L], select "CHANGE CODE".

TV RATING

MPAA RATING

CHANGE CODE

• Press [VOL X].

5Change the access code.

Use Channel number buttons on the remote control and enter the NEW CODE(4-digit).

Enter code again in CONFIRM CODE box.

NEW CODE

_ _ _ _

CONFIRM CODE

_ _ _ _

6To exit the menu, press [MENU].

NOTES:

Make sure to enter the exact same new code in the "CONFIRM CODE" space as one in the "NEW CODE" space. If they are different, the "NEW CODE" space is cleared for reentering.

Your personal access code will be erased and return to the default (0000) when a power failure occurs or when you turn off the power using a wall switch. If you forget the code, unplug the power cord for 10 seconds to restore the access code to 0000.

26

EN

DTV

CHANGING THE SCREEN DISPLAY MODE

2 types of display modes can be selected in the digital mode.

You can select your favorite display mode and enjoy the program.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN

CH K /L

0

+100



CH







VOL

VOL





CH

MENU



VOL X /Y

INPUT



MENU

SELECT

SLEEP MUTE

1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "DTV SET UP".

• Using [CH K/L], select "DTV SET UP".

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIPSET UP CAPTION [OFF]DTV SET UP

When you press [VOL X], the menu screen will be displayed as below.

DTV DISPLAY [LETTERBOX]

DTVCC



D.S.T.[Daylight Saving]

[ON]

TIME ZONE

[ALASKA]

3Select the display mode.

Every time you press [VOL X/Y], "LETTERBOX" and "ZOOM" will be switched alternately.



D10-0





D10-0



LETTERBOX

ZOOM

SETTINGS

[LETTERBOX]







Display the digital-supportedprogram in full-



screen.





Black borders will spread in the upper and

OPTIONAL

lower screen.



[ZOOM]



Enlarge and display the center area of the digital-

supported program.



The right and left side of image will be cut off.

4 To exit the menu, press[MENU].

NOTE:

You may not switch the display mode depending on the program.

27

EN

OTHER SETTINGS

AUTO PRESET CH

If you switch wires (e.g. between antenna and CATV) or if you move the TV to a different area after the initial setting, or if you need to add the DTV channel you deleted, you will need to perform AUTO PRESET CH again. This function lets you easily select the receivable channels with [CH K/L] and the TV memorizes them even if you switch wires.

POWER



DTV / TV







DTV/TV





AUDIO

INFO

1

2

3



4

5

6



7

8

9



–/ENT



CHANNEL



RETURN

CH K /L

0

+100





CH







VOL X



VOL

VOL





CH



MENU

INPUT





MENU

SLEEP

MUTE

SELECT

NOTE:

Make sure if the TV is connected to antenna or cable. When aerial antenna is connected, select “AUTO PRESET CH (TV)” or “(TV/DTV)” at step 4. When connected to CATV, select “AUTO PRESET CH (CATV)”.

TV

When scanning TV or CATV

1Select analog mode by pressing [DTV/TV].

2Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF]

3Select "CHANNEL SET".

• Using [CH K/L], select "CHANNEL SET".

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF]

• Press [VOL X].

28

4For TV channels

Using [CH K/L], select "AUTO PRESET CH(TV)".

ADD/DELETE

AUTO PRESET CH(TV)

AUTO PRESET CH(CATV)

AUTO PRESET CH(TV/DTV)

Press [VOL X].

Scanning and memorizing the channels automatically starts.

AUTO PRESET CH(TV)

When the scanning and memorizing are completed, the memorized smallest channel in the analog broadcasting will be displayed.

4For CATV channels

Using [CH K/L], select "AUTO PRESET CH(CATV)".

ADD/DELETE

AUTO PRESET CH(TV)

AUTO PRESET CH(CATV)

AUTO PRESET CH(TV/DTV)

Press [VOL X].

Scanning and memorizing the channels automatically starts.

AUTO PRESET CH(CATV)

When the scanning and memorizing are completed, the memorized smallest channel in the CATV will be displayed.

EN

DTV

When scanning DTV

1Select digital mode by pressing [DTV/TV].

2Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

3Select "CHANNEL SET".

• Using [CH K/L], select "CHANNEL SET".

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

• Press [VOL X].

4Using [CH K/L], select "AUTO PRESET CH(DTV)".

ADD/DELETE(DTV)

AUTO PRESET CH(DTV)

AUTO PRESET CH(TV/DTV)

Press [VOL X].

Scanning and memorizing the channels automatically starts.

AUTO PRESET CH(DTV)

When the scanning and memorizing are completed, the memorized smallest channel in the digital broadcasting will be displayed.

DTV TV

When scanning both TV and DTV at the same time

*You can access this menu from both modes (analog / digital).

1Display the menu screen and select "CHANNEL SET".

Press [MENU] and select "CHANNEL SET" using[CH K/L].

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF]

DTV SET UP

SETTINGS

• Press [VOL X].







2 Using[CH K/L], select "AUTO PRESET

OTHER

CH(TV/DTV)".



ADD/DELETE(DTV)



AUTO PRESET CH(DTV)



AUTO PRESET CH(TV/DTV)



Press [VOL X].

Scanning and memorizing the channels automatically starts.

AUTO PRESET CH(TV/DTV)

When the scanning and memorizing are completed, the memorized smallest channel in the analog broadcasting will be displayed. If no analog channel is memorized, the memorized smallest channel in the digital broadcasting will be displayed.

NOTES:

If you press [POWER] or[MENU] while setting AUTO PRESET CH, AUTO PRESET CH setting will be canceled.

If there is no TV signal input, "NO TV SIGNALS" will appear on the display after the completion of channel scanning.

NO TV SIGNALS

29

EN

CHANNEL ADD/DELETE

The CHANNEL ADD/DELETE function lets you add the channel that was not added by the AUTO PRESET CH function due to the bad reception status at the initial setting. You can also delete the unnecessary channels.

POWER





DTV / TV







DTV/TV





AUDIO

INFO

1

2

3



4

5

6



7

8

9

CHANNEL

–/ENT









RETURN

CH K /L

0

+100





CH











VOL



VOL





CH



MENU





VOL X /Y

INPUT





MENU

SELECT

SLEEP

MUTE

TV

1Select analog mode by pressing [DTV/TV].

2Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF]

3Select "CHANNEL SET".

• Using [CH K/L], select "CHANNEL SET".

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF]

Press [VOL X].

The following CHANNEL SET screen is displayed.

ADD/DELETE

AUTO PRESET CH(TV)

AUTO PRESET CH(CATV)

AUTO PRESET CH(TV/DTV)

30

4Select "ADD/DELETE".

• Using [CH K/L], select "ADD/DELETE".

ADD/DELETE

AUTO PRESET CH(TV)

AUTO PRESET CH(CATV)

AUTO PRESET CH(TV/DTV)

• Press [VOL X].

5Select the channel you want to add or delete.

Using [CHK/L]or Channel numberbuttons, select the channel.

15

ADD/DELETE

• Select "ADD" or "DELETE" with [VOL X/Y].

NOTE:

Color of channel number displayed at the right top of the screen;

-Blue/Green:The selected channel will be added.-Pink/Red:The selected channel will be deleted.

6 To exit the menu, press[MENU].

DTV

1Select digital mode by pressing [DTV/TV].

2Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

3Select "CHANNEL SET".

• Using [CH K/L], select "CHANNEL SET".

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

• Press [VOL X].

EN

4Select "ADD/DELETE(DTV)".

• Using [CH K/L], select "ADD/DELETE(DTV)".

ADD/DELETE(DTV)

AUTO PRESET CH(DTV)

AUTO PRESET CH(TV/DTV)

• Press [VOL X].

5Select the channel you want to add or delete.

Using [CHK/L]or Channel numberbuttons, select the channel.

D12

ADD/DELETE:DTV

• Select "ADD" or "DELETE" with [VOL X/Y].

NOTE:

Color of channel number displayed at the right top of the screen;

-Blue/Green:The selected channel will be added.-Pink/Red:The selected channel will be deleted.

6To exit the menu, press [MENU].

NOTES:

The menu will disappear automatically after about 10 seconds.

In the digital mode (DTV), you can add or delete channels only for Major channel.

Once you delete a DTV channel, you cannot add the channel again without performing AUTO PRESET CH again. (Refer to “AUTO PRESET CH” on page 28.)

LANGUAGE SELECTION

You can change the language used on the menu screen. ENGLISH, SPANISH or FRENCH can be selected.

How to change the language in the menu screen shown below.

4

5

6



7

8

9



–/ENT



CHANNEL





RETURN



CH K /L

0

+100





CH











VOL

VOL







CH



MENU





VOL X /Y

INPUT



SETTINGS

MENU

SLEEP MUTE

SELECT



1 Display the menu screen.

OTHER







• Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "ENG/ESP/FRA".

• Using [CH K/L], select "[ENG]/ESP/FRA".

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

Every time you press [VOL X/Y], the language will be switched as below. Select the language.

3 To exit the menu, press[MENU].

31

EN

D.S.T.

After the initial setting you set when you first turned on the power, you can set the D.S.T. (Daylight Saving Time) again. When you set this function to ON, the clock will automatically move forward one hour at 2:00 a.m. on the first Sunday in April and move back one hour at 2:00 a.m. on the last Sunday in October.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN

CH K /L

0

+100



CH







VOL

VOL





CH

MENU



VOL X /Y

INPUT



MENU

SELECT

SLEEP MUTE

1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "DTV SET UP".

• Using [CH K/L], select "DTV SET UP".

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIPSET UP CAPTION [OFF]DTV SET UP

When you press [VOL X], the following menu screen is displayed.

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.[Daylight Saving] [- - -]

TIME ZONE [ALASKA]

3Select "D.S.T. (Daylight Saving)".

• Using [CH K/L], select "D.S.T. (Daylight Saving)".

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.(Daylight Saving) [- --]

TIME ZONE [ALASKA]

4Set "D.S.T. (Daylight Saving)".

• Using [VOL X/Y], set to "ON" or "OFF".

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.(Daylight Saving) [ON]

TIME ZONE [ALASKA]

5 To exit the menu, press[MENU].

NOTE:

When you set D.S.T. to "OFF", the date and time information adjusted for the area set by "TIME ZONE" is displayed.

32

EN

TIME ZONE

If you move the TV to a different area after the initial setting you set when you first turned on the power, you can set the area again.

1

2

3

4

5

6

7

8

9

–/ENT



CHANNEL



RETURN

CH K /L

0

+100



CH







VOL

VOL





CH

MENU



VOL X /Y

INPUT



MENU

SLEEP MUTE

SELECT





1Display the menu screen.

Press [MENU].

The following menu screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRAV-CHIPSET UP CAPTION [OFF] DTV SET UP

2Select "DTV SET UP".

• Using [CH K/L], select "DTV SET UP".

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIPSET UP CAPTION [OFF]DTV SET UP

When you press [VOL X], the following menu screen is displayed.

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.[Daylight Saving] [ON]

TIME ZONE [ALASKA]

3Select "TIME ZONE".

• Using [CH K/L], select "TIME ZONE".

DTV DISPLAY [LETTERBOX]

DTVCC

D.S.T.[Daylight Saving] [ON]

TIME ZONE [ALASKA]

4 Select your "TIME ZONE".

• When you use [VOL X/Y], the TIME ZONE will

be switched as below. SETTINGSOTHER

Based on the world standard time information acquired from digital broadcasting, the time difference will be adjusted as below.

ALASKA

-9hours





HAWAII

-10hours





PACIFIC

-8hours





MOUNTAIN

-7hours





CENTRAL

-6hours





EASTERN

-5hours





ATLANTIC

-4hours





5 To exit the menu, press[MENU].

33

EN

MISCELLANEOUS

TROUBLESHOOTING GUIDE

Before calling for service, check the following chart again.

Symptom



Remedy









• Be sure the Power cord is connected to outlet.





No power











• If a power failure occurs, unplug the power cord for 30









minutes to allow the unit to reset itself.















No picture or sound



• Check if the power is on.









• Check the outlet connection.









• Check the antenna or cable connection to the main unit.









• When the outside antenna is used, check the wire condi-









tion and connection.









• Try to view other channels. It may be the problem on the









broadcasting station.









• Turn off the power and wait for about 1 minute, then turn









it on again.















No color



• Check the antenna or cable connection to the main unit.









• When the outside antenna is used, check the wire condi-









tion and connection.









• Try to view other channels. It may be the problem on the









broadcasting station.









• Adjust the color in the MENU screen.















Sound OK, Picture Poor



• Check the antenna or cable connection to the main unit.









• When the outside antenna is used, check the wire condi-









tion and connection.









• Electric waves may be interfered due to the electric appli-









ances, etc. nearby.









• Adjust CONTRAST and BRIGHT in the MENU screen.









• Try to view other channels. It may be the problem on the









broadcasting station.















Picture Distorted



• When the outside antenna is used, check the wire condi-









tion and connection.









• Try to view other channels. It may be the problem on the









broadcasting station.















Weak Picture



• Check the antenna or cable connection to the main unit.









• When the outside antenna is used, check the wire condi-









tion and connection.









• Adjust CONTRAST and BRIGHT in the MENU screen.









• Try to view other channels. It may be the problem on the









broadcasting station.















Lines or Streaks in Picture



• When the outside antenna is used, check the wire condi-









tion and connection.









• Electric waves may be interfered due to the electric appli-









ances, etc. nearby.









• Try to view other channels. It may be the problem on the









broadcasting station.















Picture blurred



• When the outside antenna is used, check the wire condi-









tion and connection.









• Try to view other channels. It may be the problem on the









broadcasting station.















Ghosts in picture



• Check the antenna or cable connection to the main unit.









• When the outside antenna is used, check the wire condi-









tion and connection.









• Electric waves may be interfered due to the electric appli-









ances, etc. nearby.









• Try to view other channels. It may be the problem on the









broadcasting station.



34

EN

Symptom



Remedy

Bars on screen



• When the outside antenna is used, check the wire condi-





tion and connection.





• Electric waves may be interfered due to the electric appli-





ances, etc. nearby.







Picture rolls vertically



• When the outside antenna is used, check the wire condi-





tion and connection.





• Electric waves may be interfered due to the electric appli-





ances, etc. nearby.





• Try to view other channels. It may be the problem on the





broadcasting station.







Different color marks on screen



• Move the TV apart from electric appliances nearby. Turn





off the power and wait for about 30 minutes, then turn it





on again.





• Try to view other channels. It may be the problem on the





broadcasting station.







Poor reception on some channels



• Check the antenna or cable connection to the main unit.





• When the outside antenna is used, check the wire condi-





tion and connection.





• Electric waves may be interfered due to the electric appli-





ances, etc. nearby.





• Try to view other channels. It may be the problem on the





broadcasting station.







Picture OK, sound poor



• Electric waves may be interfered due to the electric appli-





ances, etc. nearby.





• Try to view other channels. It may be the problem on the





broadcasting station.







Remote control doesn’t work



• Check the antenna or cable connection to the main unit.





• Check the battery life of the remote control.





• Check if there is an obstacle between the sensor and the





remote control.





• Test the signal output. If OK, then possible remote sensor





trouble. (Refer to “IR SIGNAL CHECK” on page 36.)







Problems on Closed Caption

Misspelled captions are displayed.

• Closed captioning production companies may broadcast



programs without correcting the misspelling in a live



broadcast.





Captions are not entirely displayed, or

• Captions that are delayed a few seconds behind the actual

captions are delayed behind the dia-

dialogue are common for live broadcasts. Most captioning

logue.

production companies can display a dialogue to a maximum



of 220 words per minute. If a dialogue exceeds that rate,



selective editing is used to insure that the captions remain



up-to-datewith the current TV screen dialogue.



Captions are displayed as a white box. • When electric waves are interfered due to buildings,

No caption is displayed in the Closed

weather conditions etc., incomplete captions may be dis-

Caption-supportedprogram.

played.



• Broadcasting station may shorten the program to insert



the advertisement. The closed caption decoder cannot



read the information of the shortened program.





No caption is displayed when playing

• The videotape may be illegally copied, or the caption sig-

the videotape containing captions.

nal may fail to be read while coping.





Black box is displayed in the screen.

• [TEXT] mode is selected for caption. Select [C1], [C2] or



[OFF].









MISCELLANEOUS

35

EN

GLOSSARY

ATSC

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standard in the United States.

High Definition TV (HDTV)

Ultimate digital format that produces high resolution and high picture quality.

Letterbox

Letterbox refers to the format displaying a wide-screenpicture on a standard 4:3 aspect ratio television screen with black bars above and below. It is used to maintain the aspect ratio of the original source such as a motion picture (16:9 or wider).

NTSC

Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standard used in the United States.

SAP

(Secondary Audio Program)

Second-audiochannel delivered separately frommain-audiochannel. This audio channel is used as an alternate in bilingual broadcasting.

Standard Definition TV (SDTV)

Standard digital format that is similar to the NTSC picture quality.

S-Videooutput

It delivers independently each signal of color(C) and luminance (Y) to TV as video signals, so that higher-qualitypicture will be gained.

MAINTENANCE

CABINET CLEANING

Wipe the front panel and other exterior surfaces of the TV with a soft cloth immersed in lukewarm water and wrung dry.

Never use a solvent or alcohol. Do not spray insecticide liquid near the TV. Such chemicals may cause damage and discoloration to the exposed surfaces.

PICTURE TUBE CLEANING

Wipe the picture tube of the TV with a soft cloth. Before cleaning the picture tube, disconnect the power cord.

SERVICING

Should your unit become inoperative, do not try to correct the problem by yourself. There are no userserviceable parts inside. Turn off, unplug the power cord and please call our help line mentioned in the warranty, to locate customer service.

36

IR SIGNAL CHECK

If the remote control doesn’t work properly, You can test if the remote control sends out the infrared signal with AM radio or a digital camera (including builtin camera of cellular phone). It will help to define the cause of malfunction.

With an AM radio:

Tune an AM radio to a band with no broadcasting. Press a button on remote control toward the radio. Sound will be fluttering when you press any key and the radio receives the signal. This means the remote control unit is working.

With a digital camera(including builtin camera of cellular phone):

Direct a digital camera to remote control, press and hold a button on remote control. If infrared light appears through digital camera, the remote is working.

EN

Television system:
Closed Caption System:
Channel coverage VHF:
UHF:
DTV:
CATV:
Tuning System Channel access:
Terminals Antenna input:
S-Video input: Video input:

SPECIFICATIONS

GENERAL SPECIFICATIONS

NTSC-M

TV Standard

§15.119/FCC

2 ~ 13

14 ~ 69

2 ~ 69

2 ~ 13, A ~ W,

W+1 ~ W+84,

A-5~A-1,5A Channel frequency

synthesized tuning system Direct access keyboard, programmable

scan and up/down

VHF/UHF/DTV/CATV 75 ohm unbalanced (F-type)

Mini DIN 4-pinjack RCA connector x 2 (1 x Front / 1 x Rear)

Audio input: RCA connector x 4 (2 (L/R) x Front / 2 (L/R) x Rear)

Coaxial digital audio output:

One pin jack, 500mVpp (75 ohm) Component Video/Audio input

One pin jack (Y) / 1Vpp (75 ohm)

Two pin jacks (Cb/Cr) / 700mVpp (75 ohm) RCA connector x 2 (L/R)

Stereo Sound System 2 speakers

ELECTRICAL SPECIFICATIONS

Sound output: 1W, 8 ohm x 2

OTHER SPECIFICATIONS

Remote control:

Digital encoded



infrared light system

Operating





temperature:

5°C to 40°C





(41°F to 104°F)

Power requirements:

AC120V, 60Hz



Power consumption





(Maximum):

130W



Picture tube:

27"



Dimensions:

H : 22.1"

(560mm)



W: 26.0"

(660mm)



D : 19.7"

(500mm)

Weight:

77.2 lbs. (35kg)

Designs and specifications are subject to change without notice and without our legal obligation.

If there is a discrepancy between languages, the default language will be English.

SPECIFICATIONS

37

EN

MEMO

38

EN

MEMO

39

EN

LIMITED WARRANTY

This form describes the protection You will have under this Limited Warranty.

LIMITED WARRANTY PERIOD:

This Limited Warranty begins on the date of purchase of the Covered Product and continues for a period of six months.

WHAT IS COVERED:

Meijer will pay the cost of labor and repair or replacement parts in the event Your Covered Product fails to operate as a result of a mechanical or electrical failure caused by defects in workmanship and/or materials. A mechanical or electrical failure caused by a direct result of a power surge is also covered. Parts will be replaced with those of like kind and quality, and may be new or remanufactured. If the Covered Product cannot be repaired, if the cost of the repair exceeds the original purchase price or if parts are not available due to the age of the Covered Product or discontinued by the manufacturer, the Covered Product will be replaced with a product of similar features.

WHERE YOU ARE COVERED:

Coverage under this Limited Warranty is limited to the United States of America, including the District of Columbia. It does not include any Canadian or U.S. Territories including Guam, Puerto Rico, or U.S. Virgin Islands.

WHAT IS NOT COVERED:

PRODUCTS NOT ORIGINALLY COVERED BY A MANUFACTURER’S WARRANTY;

ITEMS THAT ARE STILL COVERED BY THE MANUFACTURER’S WARRANTY, REGARDLESS OF WHETHER THE MANUFACTURER HONORS SUCH WARRANTY;

PERIODIC CHECKUPS AND/OR PREVENTIVE MAINTENANCE AS DIRECTED BY THE MANUFACTURER EXCEPT AS PROVIDED HEREIN;

INHERENT PRODUCT DEFECTS THAT ARE THE RESPONSIBILITY OF THE MANUFACTURER OR PARTS FAILURE DUE TO A MANUFACTURER’S RECALL;

ANY AND ALL PRE-EXISTINGCONDITIONS THAT OCCUR PRIOR TO THE EFFECTIVE DATE OF THIS LIMITED WARRANTY AND/OR ANY COSTS TO REPAIR ANY PRODUCT SOLD“AS-IS”INCLUDING BUT NOT LIMITED TO FLOOR MODELS, DEMONSTRATION MODELS, ETC;

PARTS OR REPAIRS DUE TO NORMAL WEAR AND TEAR AND ITEMS NORMALLY DESIGNED TO BE PERIODICALLY REPLACED BY THE PURCHASER DURING THE COVERED PRODUCT’S LIFE, INCLUDING BUT NOT LIMITED TO BATTERIES, LIGHT BULBS, ETC.;

DAMAGE FROM ACCIDENT, ABUSE, MISUSE, MISHANDLING, INTRODUCTION OF FOREIGN OBJECTS INTO THE COVERED PRODUCT, UNAUTHORIZED MODIFICATIONS OR ALTERATIONS TO A COVERED PRODUCT, FAILURE TO FOLLOW THE MANUFACTURER’S INSTRUCTIONS, AND EXTERNAL CAUSES INCLUDING THIRD PARTY ACTIONS, FIRE, THEFT, INSECTS, ANIMALS, EXPOSURE TO WEATHER CONDITIONS, WINDSTORM, SAND, DIRT, HAIL, EARTHQUAKE, FLOOD, WATER, ACTS OF GOD OR CONSEQUENTIAL LOSS OF ANY NATURE;

LOSS OR DAMAGE CAUSED BY WAR, INVASION OR ACT OF FOREIGN ENEMY, HOSTILITIES, CIVIL WAR, REBELLION, RIOT, STRIKE, LABOR DISTURBANCE, LOCKOUT, OR CIVIL COMMOTION;

INCIDENTAL, CONSEQUENTIAL OR SECONDARY DAMAGES OR DELAY IN RENDERING SERVICE UNDER THIS LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE COVERED PRODUCT IS AT AN AUTHORIZED SERVICE CENTER OR OTHERWISE AWAITING PARTS;

ANY PRODUCT USED IN A COMMERCIAL SETTING OR RENTAL BASIS;

FAILURES THAT OCCUR OUTSIDE OF THE 50 STATES OF THE UNITED STATES OF AMERICA, INCLUDING THE DISTRICT OF COLUMBIA;

NONFUNCTIONAL OR AESTHETIC PARTS INCLUDING BUT NOT LIMITED TO PLASTIC PARTS, KNOBS, ROLLERS, BASKETS, SCRATCHES, PEELING AND DENTS;

UNAUTHORIZED REPAIRS AND/OR PARTS;

COST OF INSTALLATION, SET-UP,DIAGNOSTIC CHARGES, REMOVAL OR REINSTALLATION OF THE COVERED PRODUCT, EXCEPT AS PROVIDED HEREIN;

ACCESSORIES USED IN CONJUNCTION WITH A COVERED PRODUCT;

ANY LOSS OTHER THAN A COVERED BREAKDOWN OF THE COVERED PRODUCT;

SERVICE WHERE NO PROBLEM CAN BE FOUND;

BREAKDOWNS WHICH ARE NOT REPORTED WITHIN THE TERM OF THIS LIMITED WARRANTY;

IMPROPER INSTALLATION OF COMPONENTS OR PERIPHERALS;

CORRUPTION OF ANY RECORDING MEDIA, INCLUDING ANY PROGRAM, DATA OR SETUP INFORMATION RESIDENT ON ANY HARD DRIVES AND INTERNAL OR EXTERNAL REMOVABLE STORAGE DEVICES, AS A RESULT OF THE MALFUNCTIONING OR DAMAGE OF AN OPERATING PART, OR AS A RESULT OF ANY REPAIRS OR REPLACEMENT UNDER THIS LIMITED WARRANTY;

DAMAGE TO CLOTHING;

COLOR FADING OF PICTURE FOR ANY TELEVISION;

BURNED-INPHOSPHOR (INCLUDING IMAGE GHOSTING), PIXEL BURNOUT NOT IN ACCORDANCE WITH THE MANUFACTURER’S SPECIFICATIONS.

WHAT TO DO WHEN YOUR PRODUCT FAILS TO OPERATE:

• Call the 24-hourcustomer servicetoll-freenumber at (866)845-9436.

Many oversights, which are not covered under this Limited Warranty, can be due to simple circumstances such as the Covered Product not being switched on, being unplugged, or a fuse blown at the junction box. For a Covered Product that uses batteries as the primary power supply, or a remote control unit, please check that the batteries do not need replacing or recharging.

SERVICE DELIVERABLES:

There is no deductible required to obtain service for Your Covered Product.

OTHER PROVISIONS:

Limit of Liability:

The limit of liability under this Limited Warranty is the least of the cost of (1) the purchase price of the Covered Product excluding tax and delivery costs or (2) authorized repairs not to exceed the purchase price of the Covered Product or (3) replacement of the Covered Product with similar features or (4) reimbursement for authorized repairs or replacement. Upon replacement, there is no longer any obligation for the replaced product under this Limited Warranty.

Limitations of Implied Warranty:

All Implied Warranties which may arise under state law, including all Implied Warranties of Merchantability or Fitness for a particular purpose, are limited to the duration of this Warranty and do not cover incidental or consequential damages. Some states do not allow limitations on how long an Implied Warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to You. This Warranty gives You specific legal rights, and You may also have other rights which vary from state to state.

Transferability and Renewals:

This Limited Warranty is not transferable or renewable.

Subrogation:

If We pay for a loss, We may require You to assign Us Your rights of recovery against others. We will not pay for a loss if You impair these rights to recover. Your rights to recover from others may not be waived.

Arbitration:

In the event of a disagreement between You and Us concerning costs, either of us may make a written demand for arbitration. This must be done within sixty (60) days after the day You filed Your claim. Each of us will select an arbitrator. The two arbitrators will select an umpire. Each of us will pay the expenses of the arbitrator We select. The expenses of the umpire will be shared equally. Unless both of us agree otherwise, arbitration will take place in the county and state in which You live. Local rules apply. A majority decision will be binding.

1EMN21788

Printed in Thailand



L4706UG
