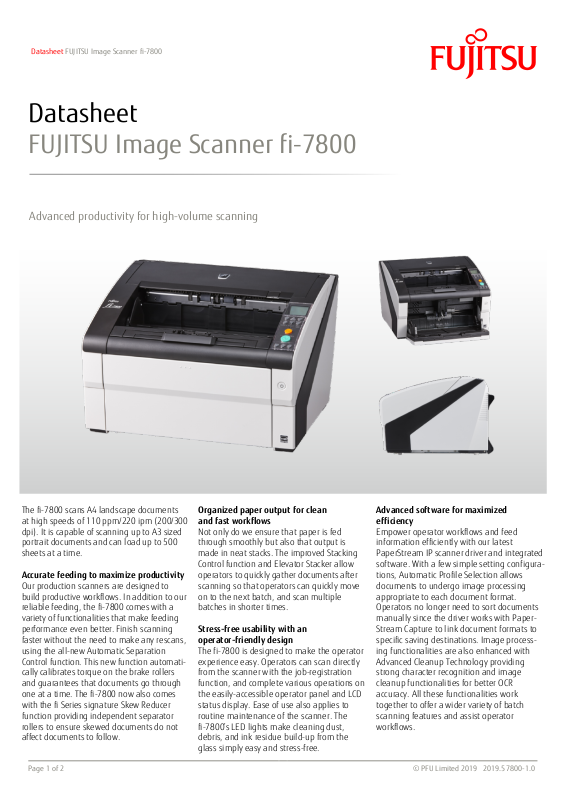

Datasheet FUJITSU Image Scanner fi-7800

Datasheet

FUJITSU Image Scanner fi-7800

The fi-7800 scans A4 landscape documents
at high speeds of 110 ppm/220 ipm (200/300
dpi). It is capable of scanning up to A3 sized
portrait documents and can load up to 500
sheets at a time.

Accurate feeding to maximize productivity

Our production scanners are designed to
build productive workflows. In addition to our
reliable feeding, the fi-7800 comes with a
variety of functionalities that make feeding
performance even better. Finish scanning
faster without the need to make any rescans,
using the all-new Automatic Separation
Control function. This new function automati­cally calibrates torque on the brake rollers
and guarantees that documents go through
one at a time. The fi-7800 now also comes
with the fi Series signature Skew Reducer
function providing independent separator
rollers to ensure skewed documents do not
affect documents to follow.

Page 1 of 2

Organized paper output for clean
and fast workflows

Not only do we ensure that paper is fed
through smoothly but also that output is
made in neat stacks. The improved Stacking
Control function and Elevator Stacker allow
operators to quickly gather documents after
scanning so that operators can quickly move
on to the next batch, and scan multiple
batches in shorter times.

Stress-free usability with an
operator-friendly design

The fi-7800 is designed to make the operator
experience easy. Operators can scan directly
from the scanner with the job-registration
function, and complete various operations on
the easily-accessible operator panel and LCD
status display. Ease of use also applies to
routine maintenance of the scanner. The
fi-7800’s LED lights make cleaning dust,
debris, and ink residue build-up from the
glass simply easy and stress-free.

Advanced software for maximized
efficiency

Empower operator workflows and feed
information efficiently with our latest
PaperStream IP scanner driver and integrated
software. With a few simple setting configura­tions, Automatic Profile Selection allows
documents to undergo image processing
appropriate to each document format.
Operators no longer need to sort documents
manually since the driver works with Paper­Stream Capture to link document formats to
specific saving destinations. Image process­ing functionalities are also enhanced with
Advanced Cleanup Technology providing
strong character recognition and image
cleanup functionalities for better OCR
accuracy. All these functionalities work
together to offer a wider variety of batch
scanning features and assist operator
workflows.

©PFU Limited 2019 2019.5 7800-1.0

Datasheet FUJITSU Image Scanner fi-7800

Technical Information

Scanner Type

Scanning Speed*¹ (A4 Landscape)
(Color*²/Grayscale*²/Monochrome*³)

Scanning Speed*¹ (A4 Portrait)
(Color*²/Grayscale*²/Monochrome*³)

Output Resolution*⁴
(Color / Grayscale / Monochrome)

Document Size

Paper Weight (Thickness)

Less than A5 Size / Over A4 Size

Multifeed Detection

Interface

Power Consumption

Operating Environment

ADF (Automatic Document Feeder) / Manual Feed, Duplex

Simplex: 110 ppm (200/300 dpi)
Duplex: 220 ipm (200/300 dpi)

Simplex: 90 ppm (200/300 dpi)
Duplex: 180 ipm (200/300 dpi)

Color CCD x 2 (front x 1, back x 1)Image Sensor Type

White LED Array x 4 (front x 2, back x 2)Light Source

600 dpiOptical Resolution

50 to 600 dpi (adjustable by 1 dpi increments)
1,200 dpi (driver)*⁵

Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bitOutput Format

White / Black (selectable)Background Colors

304.8 x 431.8 mm (12 x 17 in.)Maximum

52 x 74 mm (2 x 3 in.)Minimum

5,588 mm (220 in.)Long Page Scanning*₆

20 to 209 g/m² (5.4 to 56 lb)A4 to A5 Size

41 to 209 g/m² (11 to 56 lb)

500 sheets (A4 80 g/m² or Letter 20 lb)ADF Capacity*⁷

100,000 sheetsExpected Daily Volume*⁸

Overlap detection (Ultrasonic sensor),
Length detection

Lag detectionPaper Protection

USB 2.0 / USB 1.1

AC 100 to 240 V ± 10%Power Requirements

200 W or lessOperating Mode

3.2 W or lessSleep Mode

Less than 0.3 WAuto Standby (Off) Mode

5 to 35 °C (41 to 95 °F)Temperature

20 to 80% (non-condensing)Relative Humidity

Environmental Compliance

Dimensions*⁹
(Width x Depth x Height)

Weight

Supported Operating System

Included Software / Drivers

Image Processing Functions

Included Items

ENERGY STAR®, RoHS

460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.)

32 kg (70 lb)

Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit),
Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit),
Windows Server® 2016 (64-bit), Windows Server® 2012 R2
(64-bit), Windows Server® 2012 (64-bit), Windows Server®
2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)

PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA
Driver*¹⁰, PaperStream Capture, 2D Barcode for
PaperStream*¹¹, Software Operation Panel, Error Recovery
Guide, Scanner Central Admin

Multi image output, Automatic color detection, Blank page
detection, Static threshold, Dynamic threshold (iDTC),
Advanced DTC, SDTC, Error diffusion, Dither, De-Screen,
Emphasis, Dropout color (None/Red/Green/Blue/White/
Saturation/Custom), sRGB output, Hole punch removal,
Cropping, Index tab cropping, Split image, De-Skew, Edge
correction, Vertical streaks reduction, Character extraction,
Background pattern removal, Automatic profile selection

AC cable, USB cable, Setup DVD-ROM

Options

PA03575-D201 Front-side printing on documentPost Imprinter (FI-680PRF)

PA03575-D203 Back-side printing on documentPost Imprinter (FI-680PRB)

PaperStream Capture Pro
Scan Station (MV)

PA43404-A695 PaperStream Capture Pro optional license

Consumables

Pick Roller PA03575-K011 Every 600,000 sheets or one year

Separator Roller PA03800-K012 Every 600,000 sheets or one year

Brake Roller PA03575-K013 Every 600,000 sheets or one year

4,000,000 printed characters or
Print Cartridge CA00050-0262

6 months after opening the bag

*1 Actual scanning speeds are affected by data transmission and software processing times. *2 Indicated speeds are from using JPEG compression. *3 Indicated speeds are from using TIFF CCITT Group 4 compression.
*4 When scanning in high resolutions (500 dpi or above), scanning may be rejected depending on scanning mode, document size, memory size, and application program. Selectable maximum density may vary

depending on the length of the scanned document. *5 Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).

*6 Documents between 431.8 mm (17 in.) and 863 mm (34 in.) in length are limited to 400 dpi. Documents between 863 mm and 3,175 mm (125 in.) in length are limited to 300 dpi. *7 Maximum capacity depends

on paper weight and may vary. *8 Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability. *9 With the ADF hopper closed.

*10 Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver. *11 Software can be downloaded from the website designated in the Setup DVD-ROM.

Trademarks

ISIS is a trademark of Open Text. Microsoft, Windows, and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Any other products or
company names appearing in this document are the trademarks or registered trademarks of the respective companies.

Safety Precautions

Be sure to carefully read all safety precautions prior to using this product and use this device as instructed. Do not place this device in wet, moist, steamy, dusty or oily areas. Using this product under such conditions may
result in electrical shock, fire or damage to this product. Be sure to limit the use of this product to listed power ratings.
