P3PC-1342-02EN
CONTENTS
■ Regulatory Information ........................................................ ii
■ Note, Liability ....................................................................... iii
■ Safety Precautions ................................................................ v
Chapter1 PREPARING THE SCANNER.................................. 1
1.1 Checking the Contents of the Scanner Package............. 1
1.2 Names of Parts ................................................................... 1
1.3 Operator panel.................................................................... 2
Chapter2 INSTALLATION OF THE SCANNER...................... 3
2.1 Installing the Scanner ........................................................ 3
2.2 Connecting the Scanner to Your PC................................. 3
2.3 Installing the Scanner Application ................................... 5
Appendix1 TROUBLESHOOTING........................................ AP-1
Appendix2 DAILY CARE ...................................................... AP-4
Appendix3 REPLACING CONSUMABLES.......................... AP-5
fi-5530C Image Scanner Getting Started i
INTRODUCTION
Thank you for purchasing the fi-5530C Duplex Color
Scanner.
This document describes how to use fi-5530C and basic
operation methods. Before you start using fi-5530C be
sure to thoroughly read this manual to ensure correct
use.
The "Operator’s Guide" stored on the Setup CD Rom
provides useful and detailed information on Operations
when you would like to use advanced features, Daily
Care for maintenance of the scanner, and Replacing
Consumables to maintain conditions for smooth scanning. Please also read the Operator’s Guide for further
information.
■ Regulatory Information
FCC declaration
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment
and receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is
located.
•Consult your dealer or an experienced radio/TV
technician.
FCC warning: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTICE
The use of a shielded interface cable is
required to comply with the Class B limits
of Part 15 of FCC rules.
The length of the AC cable must be 3
meters (10 feet) or less.
Canadian DOC Regulations
This digital apparatus does not exceed the Class B
limit for radio noise emissions from digital
apparatus set out in the Radio interference
Regulations of the Canadian Department of
Communications.
This Class B digital apparatus complies with
Canadian ICES-003.
Le présent appareil numérique n'émet pas de
parasites radioélectriques dépassant les limites
applicables aux appareils numériques de la classe
B et prescrites dans le Règlement sur le brouillage
radioélectrique dictées par le Ministère des
Communications du Canada.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Bescheimigung des Herstellers /
Importeurs
Für den fi-5530C wird folgendes bescheinigt:
•In Übereinsstimmung mit den Bestimmungen
der EN45014(CE) funkentstört
•Maschinenlärminformationsverordnung
3.GPSGV: Der höchste Schalldruckpegel beträgt
70 dB (A) oder weniger, gemäß EN ISO 7779.
International ENERGY STAR® Program
As an ENERGY STAR®
Partner, PFU LIMITED has
determined that this product
meets the
STAR
energy efficiency.
The International
STAR
international program that promotes energy
saving through the penetration of energy efficient
computers and other office equipment. The
program backs the development and
dissemination of products with functions that
effectively reduce energy consumption. It is an
open system in which business proprietors can
participate voluntarily. The targeted products are
office equipment such as computers, monitors,
printers, facsimiles, copiers, scanners, and
multifunction devices. Their standards and logos
are uniform among participating nations.
ENERGY
®
guidelines for
ENERGY
®
Office Equipment Program is an
ii
■ Note, Liability
READ ALL OF THIS MANUAL CAREFULLY
BEFORE USING THIS PRODUCT. IF THIS
PRODUCT IS NOT USED CORRECTLY,
UNEXPECTED INJURY MAY BE CAUSED TO
USERS OR BYSTANDERS.
•Do not put the substance contained in the lamp
in your mouth as it has mercury.
•Do not breathe the chemical liquid contained in
the scanner lamps.
•Do not incinerate, crush, or shred the lamps or
scanner parts.
Also, keep this manual in a safe place so that it
can be easily referred to during use of this
product.
While all efforts have been made to ensure the
accuracy of all information in this manual, PFU
assumes no liability to any party for any damage
caused by errors or omissions or by statements of
any kind in this manual, its updates or
supplements, whether such errors are omissions or
statements resulting from negligence, accidents,
or any other cause. PFU further assumes no
liability arising from the application or use of any
product or system described herein; nor any
liability for incidental or consequential damages
arising from the use of this manual. PFU disclaims
all warranties regarding the information contained
herein, whether expressed, implied, or statutory.
Use in High-safety Applications
This product has been designed and manufactured
on the assumption that it will be used in office,
personal, domestic, regular industrial, and
general-purpose applications. It has not been
designed and manufactured for use in applications
(simply called "high-safety applications" from
here on) that directly involve danger to life and
health when a high degree of safety is required,
for example, in the control of nuclear reactions at
nuclear power facilities, automatic flight control
of aircraft, air traffic control, operation control in
mass-transport systems, medical equipment for
sustaining life, and missile firing control in
weapons systems, and when provisionally the
safety in question is not ensured. The user should
use this product with adopting measures for
ensuring safety in such high-safety applications.
PFU LIMITED assumes no liability whatsoever
for damages arising from use of this product by
the user in high-safety applications, and for any
claims or compensation for damages by the user
or a third party.
About the use of mercury
Lamp(s) inside this product contain
H
g
mercury and must be recycled or
disposed of according to local, state, or
federal laws.
Trademarks
Microsoft, Windows, and Windows NT are
registered trademarks of Microsoft Corporation in
the United States and/or other countries.
ISIS and QuickScan are trademarks or registered
trademarks of EMC Corporation in the United
States.
Adobe, the Adobe logo, and Acrobat are either
registered trademarks of Adobe Systems
Incorporated in the United States and/or other
countries.
Other product names are the trademarks or
registered trademarks of the respective companies.
How Trademarks Are Indicated In
This Manual
References to operating systems (OS) are
indicated as follows:
Windows 95
Windows 98
Windows Me
WindowsNT
4.0
Windows 2000
Windows XP
Where there is no distinction between the different
versions of the above operating system, the
general term "Windows " is used.
Microsoft® Windows® 95
operating system
Microsoft® Windows® 98
operating system.
Microsoft® Windows®
Millennium Edition operating
system.
Microsoft® Windows NT® 4.0
Server operating system,
Microsoft
Workstation operating system.
Microsoft® Windows® 2000
Professional operating system.
Microsoft® Windows® XP
Professional operating system,
Microsoft
Edition operating system.
®
Windows NT® 4.0
®
Windows® XP Home
To avoid unexpected injuries;
fi-5530C Image Scanner Getting Started iii
Adobe Acrobat
Adobe® Acrobat®
All the descriptions in this manual assume the
usage of Adobe Acrobat bundled with this
product. However, Adobe Acrobat may be
upgraded without notice. If the descriptions differ
from the screens actually displayed, refer to the
Acrobat’s “Help”.
Manufacturer
PFU LIMITED
R
A TRIANGLE symbol indicates that special care
and attention is required.
The drawing inside the triangle shows the
specific caution.
A CIRCLE with a diagonal line inside shows
action which users may not perform.
The drawing inside or under the circle shows the
specific action that is not allowed.
Outline characters on a colored background
show instructions users should follow.
It may also include the drawing that shows the
specific instruction.
International Sales Dept., Imaging Business
Division, Products Group
Solid Square East Tower, 580 Horikawa-cho,
Saiwai-ku, Kawasaki-shi Kanagawa 212-8563,
Japan
Phone : (81-44) 540-4538
All Rights Reserved, Copyright© PFU LIMITED 2006
About Maintenance
The user must not perform repairs on this scanner.
Contact the store where you purchased the scanner
or an authorized FUJITSU Image Scanner service
provider to make repairs to this product.
Warning Indications Used In This
Manual
This indication alerts operators to an
WARNING
CAUTION
operation that, if not strictly
observed, may result in severe injury
or death.
This indication alerts operators to an
operation that, if not strictly
observed, may result in safety
hazards to personnel or damage to
equipment.
Warning Label
The glass surface inside the ADF becomes hot
during the operation. Be careful not to touch the
glass surface inside the ADF.
ATTENTION
Do NOT remove, stain or scratch the
warning labels from the scanner.
Screen Examples In This Manual
The screen examples in this manual are subject to
change without notice in the interest of product
improvement. If the actual displayed screen
differs from the screen examples in this manual,
operate by following the actual displayed screen
while referring to the User's Manual of the scanner
application you are using.
The screenshots in this manual were captured
from FUJITSU TWAIN32 scanner driver,
ScandAll 21 Image Capturing Utility Software,
FUJITSU ISIS scanner driver, QuickScan Pro™
®
image capturing software and Adobe
Acrobat®.
Symbols Used In This Manual
ATTENTION
HINT
This symbol alerts operators to particularly
important information. Be sure to read this
information.
This symbol alerts operators to helpful
advice regarding operation.
iv
■ Safety Precautions
WARNING
Turn the scanner OFF if it is damaged.
If the scanner is damaged for any reason,
disconnect immediately the power plug in order
to turn out the scanner. Contact the store
where you purchased the scanner.
Do not damage the AC cable.
A damaged AC cable may cause fire or electric
shock. Do not place heavy objects on AC
cables, or pull, bend, twist, heat, damage or
modify AC cables.
Do not use damaged AC cables or power
plugs, or install any cables or power plugs to
loose wall sockets.
Use only specified AC cables and
connector cables
Use only specified AC cables and connector
cables. Failure to use the correct cables might
cause electric shock and/or equipment failure.
Please don’t use the AC cable provided with
this scanner for other devices, since this might
cause equipment failure and other troubles or
an electric shock.
Use this scanner only at the indicated
power voltage. Do not connect to multiplepower strips.
Use this scanner only at the indicated power
voltage and current. Improper power voltage
and current might cause fire or electric shock.
Do not connect to multiple-power strips.
Do not touch the AC cable with wet hands.
Do not touch the power plug with wet hands.
Doing so might cause electric shock.
Do not put liquids inside the scanner.
Do not insert or drop metal objects in to the
scanner. Do not scan wet documents or
documents with paper clips or staples. Do not
splash or allow the scanner to get wet.
If foreign objects (water, small metal objects,
liquids, etc.) get inside the scanner, immediately
turn off the scanner and disconnect the power
plug from the power outlet, then contact the store
where you bought the scanner or the
Maintenance Service Center. Pay particular
attention to this warning in households where
there are small children.
Do not touch the inside of the scanner
unless necessary.
Do not take apart or modify the scanner. The
inside of the scanner contains high-voltage
components. Touching these components might
cause fire or electric shock.
Do not use the scanner if there is a strange
odor.
If you detect excessive heat coming from the
device or detect other problems such as smoke,
strange smells or noises, disconnect immediately
the power plug in order to turn out the scanner.
Make sure that any smoke coming from it has
stopped, before contacting the store where you
bought the scanner or an authorized FUJITSU
scanner service provider.
Wipe any dust from the power plug.
Wipe off any dust from metal parts on the
power plug or metal fittings with a soft, dry
cloth. Accumulated dust might cause fire or
electric shock.
Do not install the device in locations that
has oil smoke, steam, humidity, and dust.
Do not install the scanner in locations subject
to oil smoke, steam, humidity, and dust. Doing
so might cause a fire or electric shock.
fi-5530C Image Scanner Getting Started v
CAUTION
Do not install the scanner on unstable
surfaces.
Make sure that the scanner is installed on a
flat, level surface and that none of its parts
extend beyond the surface top, such as a desk
or table. Do not install the scanner on
unstable surfaces. Install the scanner on a level
surface that is free of vibration to prevent it
from falling.
Install the scanner on a strong surface that will
support the weight of the scanner and other
devices.
Do not block the ventilation ports.
Do not block the ventilation ports. Blocking the
ventilation ports generates heat inside of
scanner, which may results in fire or scanner
failure.
Do not place heavy objects or stand on top
of the scanner.
Do not place heavy objects on the scanner or
use the scanner's surface top to perform other
work. Improper installation might cause injuries
and equipment failure.
Firmly insert the power plug.
Firmly insert the power plug as far it can go into
the power outlet.
Avoid any contact when scanner is in use.
Avoid touching any scanner mechanism during
scanning since this may cause injuries.
Before moving the scanner, disconnect the
power plug from the power outlet.
Do not move the scanner with the power and
interface cables connected as this might
damage the cables, causing fire, electric shock
or injuries. Before moving the scanner, be sure
to disconnect the power plug from the power
outlet, and all other data cables. Make sure that
the floor is free of any obstruction.
Protect the scanner from static electricity.
Install the scanner away from strong magnetic
fields and other sources of electronic noise.
Also, protect the scanner from any static
electricity as this might cause the scanner to
malfunction.
Do not use aerosol sprays near the
scanner.
Do not use aerosol sprays to clean the scanner.
Aerosol sprays cause dirt and dust to enter the
scanner, resulting scanner failure and
malfunction.
Disconnect the power plug from the power
outlet when the scanner is not used for a
long period of time.
When the scanner is not going to be used for a
long period of time, be sure to disconnect the
power plug from the power outlet for safety.
Do not install the scanner in the direct
sunlight.
Do not install the scanner under direct sunlight or
near heating apparatus. Doing so might cause
excessive heat to build up inside the scanner,
which can cause scanner trouble or even fire.
Install the scanner in a well-ventilated location.
Do not use the scanner immediately after
moving it from a cold place into a warm
room.
Do not use the device immediately after
moving it from a cold place into a warm room.
This may cause condensation, which might
lead to scanning errors. Let the device dry
about one or two hours before you use it.
vi
Chapter1 PREPARING THE SCANNER
1.1 Checking the Contents of the Scanner Package
When you unpack the scanner package, make sure that
the package contains all the parts on the list included in
the package.
If any parts are missing or defective, contact your scanner dealer or an authorized FUJITSU scanner service
provider. Handle the scanner and accessories with care.
1.2 Names of Parts
This section describes the names of parts.
■ Front side
(2) ADF paper chute
(3) Side guide
(1) Automatic document
feeder (ADF)
(4) ADF button
■ Removable Parts
The following shows the parts that can be removed from
the scanner.
ADF paper chute
Sheet guide
Pad ASSY
Pick roller
Can be removed
■ Rear side
(5) Operator panel
(6) Stacker
(10) DC inlet
(9) USB Interface connector
(11) EXT connector
(8) SCSI Interface connector
(7) SCSI ID switch
fi-5530C Image Scanner Getting Started 1
1.3 Operator panel
The operator panel is located on the right side of the
scanner. The panel consists of a Function Number Display, four buttons and a LED.
■ Indications on the Function
Number Display
The following shows the indications on the Function
Number Display.
Function No.
display
Function
Send to
Scan
Power button
LED
.
Name Function
Function Number
Display
Buttons
LED -
Function
Send to
Scan
Power button
Indicates the state of the scanner. The meaning of the numbers and alphabets indicated are
explained later in this section.
Changes the Function activated
by the Send to button (*).
Launches the linked application
software (*).
Turns the scanner ON and OFF.
Lights when the scanner is
turned ON.
*) About the settings on the launcher, refer to FUJITSU
TWAIN32 scanner driver help and the "fi-5530C
Operator’s Guide" on the Setup CD-ROM.
Indication Meaning
8
P
0
1
U
E
Lights only one time upon turning on the
scanner.
Indicates that the scanner has been turned
ON and is being initialized.
Indicates that initialization will soon be
completed.
Indicates that initialization has been completed successfully.
This status is called "Ready Status".
Indicates that a temporary error (that users
can solve) has occurred during the initialization or scanning of documents.
"U" and an error number (1, 2, 6) are displayed alternately.
To return the scanner to the ready status
("1"), press the "Scan" or "Send to" button
while the error is indicated.
Indicates that a device alarm (that users can
not solve) has occurred during the initialization or
scanning of documents.
"E" and an alarm number (2 to 9, and, c, d,
F) are indicated alternately.
To return the scanner to the ready status
("1"), press "Scan" or "Send to" button.
If this alarm occurs, turn the power off and
then on again. If the alarm is indicated after
turning on the power again, contact your
service engineer.
2
Chapter2
INSTALLATION OF THE SCANNER
2.1 Installing the Scanner
1. Place the scanner at its installation site.
For details on the scanner's dimensions and
required installation space, refer to the fi-5530C
Operator’s Guide "7.2 Installation Specifications"
on the Setup CD-ROM.
2. Attach the ADF paper chute.
Hold the ADF paper chute and insert its tabs into
the corresponding slots in the scanner as shown in
the figure below.
The Side guides of the ADF paper chute have to
face up.
ADF paper chute
Tab
3) Plug the AC cable into the outlet.
HINT
The Function Number Display and the LED
may flash for an instant when plugging the
AC cable into the outlet.
2.2 Connecting the Scanner to
Side guide
3. Connect the AC adapter.
ATTENTION
1) Connect the AC cable to the AC adapter.
Use only the AC adapter provided by the
manufacturer.
Your PC
When running Windows 95 or Windows NT 4.0, connect the scanner with the SCSI interface cable.
When running Windows 98, Windows Me, Windows
2000, or Windows XP, connect either with the USB
interface cable or the SCSI interface cable.
ATTENTION
■ Connecting with the USB
Interface Cable
1. Connect the USB interface cable to the USB
interface connector.
This scanner is provided with two interfaces: Ultra SCSI and USB 2.0 /1.1. Connect only one of the USB or SCSI interface
cable. Windows 95 and Windows NT 4.0
do not support USB interface.
2) Connect the AC adapter connector to the scanner’s DC inlet.
fi-5530C Image Scanner Getting Started 3
2. Connect the other end of the USB interface
cable to your PC.
ATTENTION
• Be sure to use the USB cable which
comes with this scanner as an accessory. Correct operation with commercially available cables is not guaranteed.
• When connecting to an USB hub, use
the first stage USB hub that is closest to
the computer. If you use the second or
later hub stages, the scanner may not
operate correctly.
• If you connect the scanner with USB 2.0,
it is required that the USB port and Hub
are compliant with USB 2.0. The scanning speed may slow down if it is connected with USB1.1.
■ Connecting with the SCSI Inter-
face Cable
When using the scanner with a SCSI interface, the following SCSI interface cable and SCSI card must be purchased.
• SCSI interface cable:
Use a cable which complies with a 50 Pin Contact Shielded High-Density SCSI Device Connector for Ultra SCSI.
• SCSI card
Find the recommended SCSI card information in
the Fujitsu web site (FAQ).
http://imagescanner.fujitsu.com/
2. Connect the other end of the cable to your PC.
ATTENTION
HINT
Be careful not to bend the pins of the SCSI
cable when connecting to the scanner .
The SCSI ID initially set at the factory is "5".
If the SCSI ID of another SCSI device is set
to the same ID, either change the scanner's
SCSI ID or SCSI ID of the other SCSI
device. For details on how to change the
SCSI ID, refer to " Setting the SCSI ID" in
this section.
■ Setting the SCSI ID
The factory initial setting for SCSI ID is "5".
1. Press the power button at least for two seconds to turn off the scanner if it is on. Disconnect the AC cable from the outlet.
ATTENTION
• When connecting the SCSI interface
cable, turn the scanner off. Be sure to
connect the SCSI interface cable first ,
and then turn on the power of the scanner and PC.
• In a SCSI daisy chain formation, con-
nect the scanner so that it is the terminated device.
1. Insert the SCSI interface cable into the interface connector of the scanner until both sides
click.
2. Set the SCSI ID using the SCSI ID switch on
the back of the scanner.
Click
ID No. Description
0 to 7
8, 9
Can be set as the ID
Works with the factory default value
(SCSI ID = 5).
3. Press the power button to turn ON the scanner.
When the scanner is turned ON, the SCSI ID set
at step 2 is enabled.
4
2.3 Installing the Scanner Application
For scanning documents with this scanner, both scanner
driver and image capturing application software (called
"application" hereafter) must be installed on your PC.
The following scanner drivers and applications are provided:
• Scanner Driver:
FUJITSU TWAIN 32 Scanner Driver
FUJITSU ISIS Scanner Driver
• Scanning application:
ScandAll 21 (for FUJITSU TWAIN 32)
QuickScan Pro
Install the appropiate scanner driver for the application
you will use. The following sections descri be installation of each driver and application.
TM
(for FUJITSU ISIS)
FUJITSU TWAIN32 V8
• When using Windows 95 or Windows NT
4.0:
ASPI Manager V4.01 or later is required (generally comes with SCSI board products).
■ Installing the FUJITSU TWAIN32
Scanner Driver
HINT
1. Press the power button to turn ON the scanner.
2. Turn on your PC and log on to Windows.
Windows XP screenshots are used in this
section. The windows and operations may
slightly vary depending on your OS.
For FUJITSU TWAIN32 Scanner Driver
■ Preparation
Confirm the following items before installing the application.
• Take out the Setup CD-ROM from its package, but do not insert the Setup CD-ROM
into the CD driver yet.
• Connect the scanner correctly to your PC.
HINT
• Uninstall any older versions of FUJITSU
TWAIN 32 driver if it has already been
installed.
For details on how to connect the scanner,
refer to "2.2 Connecting the Scanner to
Your PC" on page 3.
ATTENTION
When using Windows NT 4.0, Windows
2000 or Windows XP, log on as a user with
"Administrator" privileges.
3. If the scanner is automatically detected,
[Found New Hardware Wizard] or [Add/
Remove Hardware Wizard] dialog box will
appear. Click [Cancel] to close the Wizard window.
ATTENTION
Uninstall [Scanner Utility for Microsoft Windows] from [Add/Remove Programs] on
the control panel.
• There are two types of FUJITSU TWAIN 32:
One of the following driver software will be
automatically installed according to your Operating System (OS).
For Windows 98, Windows Me, Windows
2000, and Windows XP:
FUJITSU TWAIN32 V9
For Windows 95, Windows NT 4.0
:
fi-5530C Image Scanner Getting Started 5
4. Insert the Setup CD-ROM into the CD drive.
⇒ <SETUP DISK START UP SCREEN>
appears.
ATTENTION
This screen may not appear when the
"Autoplay" setting of your CD drive is off.
In this case, run "Install.exe" in this CDROM directly from "Explorer" or "My Computer".
5. Click [INSTALL PRODUCTS].
6. Click [TWAIN Driver] on the window below.
9. Install the application following the instructions
on the window.
10. When the [InstallShield Wiizard Complete] window appears, click [Finish].
Your computer will be restarted and the scanner will be
detected. Do not remove the Setup CD-ROM from the
CD drive until your PC has completely restarted.
7. Error Recovery Guide Installation window
appears.
Error Recovery Guide is a software that displays troubleshooting information on screen
when any scanner error occurs. Although this
software’s installation is highly recommended,
it can be installed later if you do not install it in
this step.
ATTENTION
When you select [Yes] for installing the
Error Recovery Guide, [Choose Setup Language] window appears. Select a language
and follow the instructions on the window.
Error Recovery Guide will automatically
continue finishing its installation. Please
wait until the installation of TWAIN driver
automatically starts.
ATTENTION
Depending on the OS, the following operations may be necessary.
For Windows 98:
When a request for inserting the CD-ROM
of Windows 98 appears, insert it into the
CD drive and click [OK].
For Windows 2000:
When [Digital Signature not Found]
appears, click [Yes].
Installation of the scanner driver is completed.
ATTENTION
To confirm whether the installation was
successful, perform a scanning operation
with an application that complies with the
TWAIN standards such as ScandAll 21.
■ Installing ScandAll 21
"Scandall 21" is an image capturing software that complies with the TWAIN standard.
8. Select a language used for installation on
[Choose Setup Language] window and click
[OK].
6
ATTENTION
When using Windows NT 4.0, Windows
2000 or Windows XP, log on as a user with
"Administrator" privileges
1. Insert the Setup CD-ROM into a CD drive.
⇒ <SETUP DISK START UP SCREEN>
appears.
2. Click [INSTALL PRODUCTS].
ATTENTION
For finishing the installation, it may be necessary to restart your computer. Follow the
instructions on the window.
■ Confirming Installation
1. Load the documents on the scanner.
For details on how to set documents, refer to the
"1.2 Loading Documents on the ADF for Scanning" in the fi-5530C Operator’s Guide provided
in the CD-ROM.
3. Click [ScandAll 21] on the window below.
4. Select a language used for installation on
[Choose Setup Language] window and click
[OK].
2. Start ScandAll21
Select [Start] - [Programs] - [Scanner Utility for
Microsoft Windows] - [ScandAll 21].
3. Specify the scanner to use
Select [Select Source...]from the [Scan] menu of
ScandAll 21.
4. Select "FUJITSU fi-5530Cdj" or "FUJITSU
TWAIN32" on the dialog box appeared.
5. Continue to install the application following the
instructions on the window.
6. When the [InstallShield Wizard Complete] window appears, click [Finish]
fi-5530C Image Scanner Getting Started 7
HINT
For Windows 98, Windows Me, Windows
2000, Windows XP:
[FUJITSU fi-5530Cdj]
For Windows 95, Windows NT 4.0:
[FUJITSU TWAIN 32]

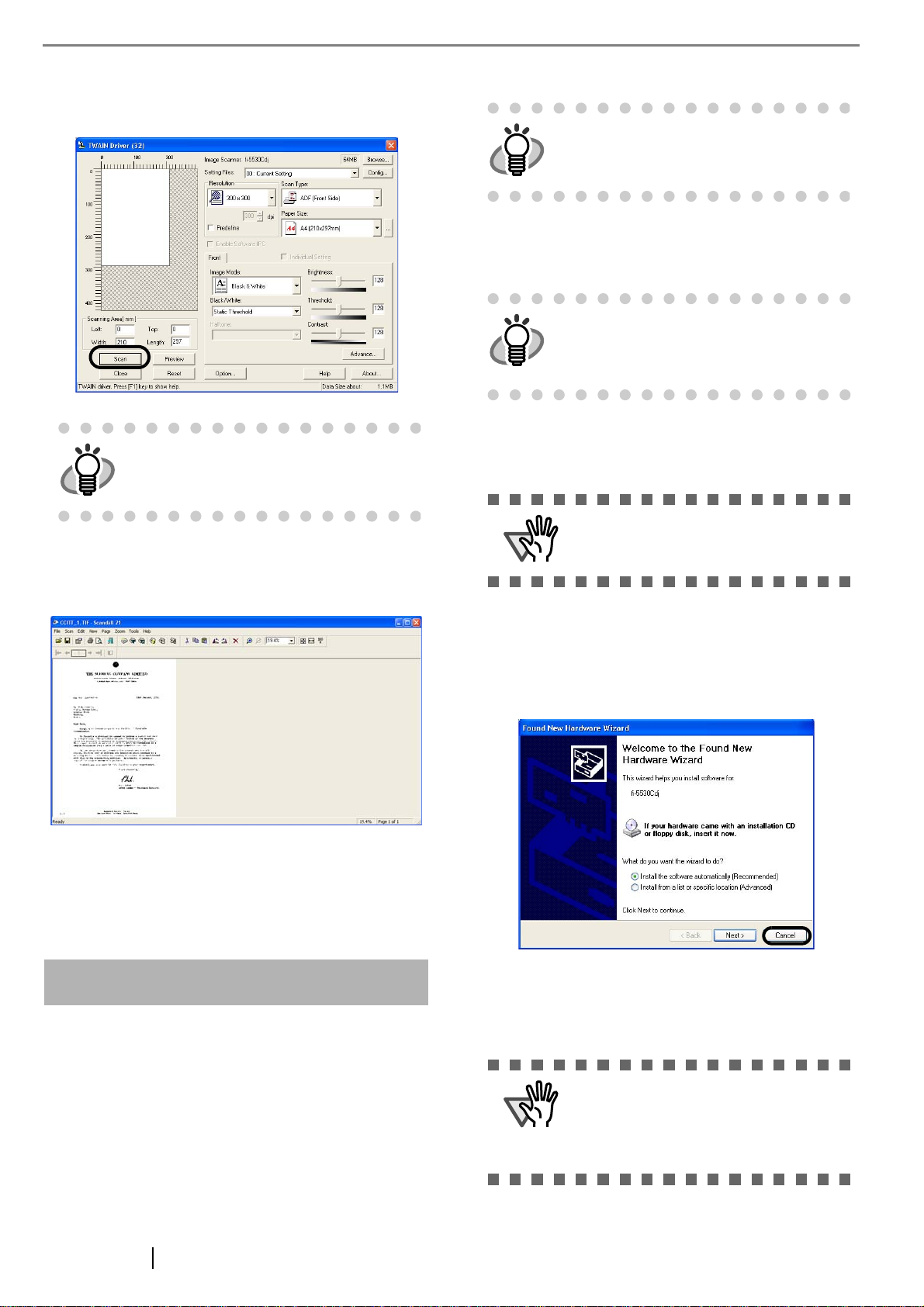

5. Select [To View...] from the [Scan] menu.
6. Set scanning resolution, document size, etc. on
the [TWAIN driver] window (for setting details
of scanning) and click the [Scan] button.
• Connect the scanner correctly to your PC.
HINT
For details on how to connect the scanner,
refer to "2.2 Connecting the Scanner to
Your PC" on page 3.
■ Installing the FUJITSU ISIS
Scanner Driver
HINT
For details on [TWAIN driver], refer to the
"FUJITSU TWAIN32 Scanner Driver Help"
provided on the Setup CD-ROM
7. Documents are scanned, and the generated
images are displayed on the [ScandAll 21] window.
HINT
Windows XP screenshots are used in this
section as examples. The windows and
operations may vary slightly depending on
your OS.
1. Press the power button to turn ON the scanner.
2. Turn on your PC and log on to Windows..
ATTENTION
When using Windows NT 4.0, Windows
2000 or Windows XP, log on as a user with
"Administrator" privileges.
3. If the scanner is automatically detected,
[Found New Hardware Wizard] or [Add/
Remove Hardware Wizard] dialog box will
appear. Click [Cancel] to close the Wizard window.
If the scanning is completed without any troubles, the
installation was performed successfully.
For details on various types of scanning, refer to the
"fi-5530C Operator’s Guide" on the Setup CD-ROM.
For FUJITSU ISIS Scanner Driver
■ Preparation
Confirm the following items before installing the application.
• Take out the Setup CD-ROM from its package, but do not insert the Setup CD-ROM
into the CD driver yet.
8
4. Insert the "Setup CD-ROM" into the CD drive.
⇒ <SETUP DISK START UP SCREEN>
appears.
ATTENTION
This screen may not appear when the
"Autoplay" setting of your CD drive is off.
In this case, run "Install.exe" in this CDROM directly from "Explorer" or "My Computer".
5. Click [INSTALL PRODUCTS].
9. Install the application following the instructions
on the window.
10. When the [InstallShield Wiizard Complete] window appears, click [Finish].
Your computer will be restarted and the scanner will be
detected. Do not remove the Setup
CD-ROM from the CD drive until your PC has completely restarted.
6. Click [ISIS Driver] on the window below.
7. Error Recovery Guide Installation window
appears.
Error Recovery Guide is a software that displays troubleshooting information on screen if
any scanner error occurs. Although this software’s installation is highly recommended, it
can be installed later if you do not install it in
this step.
ATTENTION
When you select [Yes] for installing Error
Recovery Guide, the [Choose Setup Language] window appears. Select a language and follow the instructions on the
window. The Error Recovery Guide will
automatically continue finishing its installation. Please wait until the installation of
TWAIN driver automatically starts.
ATTENTION
Depending on the OS, the following operations may be necessary.
For Windows 98:
When a request for inserting the CD-ROM
of Windows 98 appears, insert it into the
CD drive and click [OK].
For Windows 2000:
When [Digital Signature not Found]
appears, click [Yes].
The installation of the scanner driver is completed.
■ Installing QuickScan Pro
TM
"QuickScan ProTM" is an image capturing software that
complies with the ISIS standard.
ATTENTION
When using Windows NT 4.0, Windows
2000 or Windows XP, log on as a user with
"Administrator" privileges.
1. Insert the Setup CD-ROM into a CD drive.
⇒ <SETUP DISK STARTUP SCREEN>
appears.
2. Click [INSTALL PRODUCTS].
8. Select a language used for installation on
[Choose Setup Language] window and click
[OK].
fi-5530C Image Scanner Getting Started 9
3. Click [QuickScan PRO (Trial)] on the window
below.
■ Confirming Installation
1. Load the documents on the scanner.
For details on loading documents, refer to "1.2
Loading Documents on the ADF for Scanning" in
the fi-5530C Operator's Guide on the Setup CDROM.
TM
2. Start QuickScan Pro
From [Start] menu select [Programs]-[QuickScan]-[QuickScan].
3. Select [Select Scanner...] from [Scan] menu in
QuickScan Pro
TM
.
.
4. Continue to install the application following the
instructions on the window.
5. Enter required information, then click [Next >].
And select fi-5530C from the list of [Scanner:],
and then click [OK] button.
4. Select [Preview Settings...] from the [Scan]
menu. Set the scan resolution, paper size and
other scanning conditions, and then click [OK].
ATTENTION
"QuickScan ProTM" included in the Setup
CD-ROM is an trial version. For further use
after expiration of the trial period (up to 30
launches), it is necessary to purchase a
fully functional version of QuickScan
Pro. (When you install the trial version, do
not change the Serial Number already displayed.)
TM
6. Install the application following the instructions
on the window.
10
5. Select [Preview Scan] from the [Scan] menu.
And then the document is scanned.
If the scanning completes without any trouble, the
installation was performed successfully.
3. Click [Error Recovery Guide] on the next window.
4. Select a language used for the installation in
the "Choose Setup Language" window and
click [OK].
HINT
Refer to "QuickScan Overview" or "QuickScan Help" for information about QuickScan functions and operations. On the
[Start] menu, point to [Programs]-[QuickScan] and click the file.
Error Recovery Guide
The Error Recovery Guide is a software that displays
troubleshooting information on screen if any scanner
error occurs.
If you did not install the Error Recovery Guide when
installing the scanner driver, install it following the procedure below.
1. Insert the Setup CD-ROM into the CD drive.
⇒ <SETUP DISK STARTUP SCREEN>
appears.
2. Click [INSTALL PRODUCTS].
5. Install the application following the instructions
on the window.
6. When the [InstallShield Wiizard Complete] window appears, click [Finish].
Image Processing Software Option
(Trial)
For details on the installation of the Image Processing
Software Option, refer to the "Image Processing Software Option USER’S GUIDE".
fi-5530C Image Scanner Getting Started 11
3. Select "Install Adobe Acrobat".
Adobe
®
Acrobat
®
Install Adobe Acrobat from the "Adobe Acrobat
CD-ROM" provided with this scanner.
ATTENTION
HINT
1. Insert the Adobe Acrobat CD-ROM into the
CD-ROM drive.
Adobe Acrobat bundled with this scanner
is not supported
Microsoft Windows 98 /98 Second Edition,
Microsoft Windows NT4.0, Microsoft Windows Me.
Adobe Acrobat is required for displaying the
manuals stored in the CD-ROM.
* Installation of Adobe Acrobat is not necessary if it has already been installed in your
PC.
by Microsoft Windows 95,
4. Click the [Next] button. The set up window
appears.
⇒ The "Adobe Acrobat" window appears.
ATTENTION
2. Select the language and Click [OK] button.
This window is not displayed aoutomatically when the "Auto play" setting of your
computer is deactivated. In this case,
please run "Auto play.exe" of this CDROM directly from "Explore" or "My computer".
5. Follow the instructions to install the software.
HINT
Select "How to install" on the "Adobe
Acrobat" window to learn more about
Adobe Acrobat installation. Refer to
"Adobe Acrobat Help" about how to use
Adobe Acrobat.
.
12
ATTENTION
ATTENTION
Notes for using Adobe Acrobat
When scanning a paper document and
converting the image to PDF using Adobe
Acrobat, unexpected images may be output when:
1. Setting "Edge Shadow Removal" in Acrobat, and setting "Digital Endorser" or
"Black Background" options in the
TWAIN driver at the same time. Letter
strings embedded in the image or the
background may be missed.
Solution 1: Set "Edge shadow removal"
to "OFF" or set any option other than
"Adaptive" for "Color/Grayscale" and/or
"Monochrome" under "Compression" by
selecting [File]->[Create PDF]-> [From
Scanner...]-> [Image Settings...] in Acrobat.
Solution 2: Adjust the scanning density
in the TWAIN driver.
2. Setting "Adaptive" for "Color/Grayscale"
and/or "Monochrome" under "Compression" in Acrobat and scanning in a resolution lower than the resolution
recommended for Acrobat.
Solution: Set OPTION to something
other than "Adaptive" under "Compression."
3. Scanning a document longer than the
double letter (11x17) or A3 size, when
setting "Overscan" in the TWAIN driver,
the scan may fail.
Solution: When scanning a double letter
(11x17) or A3 size of document, do not
set "Overscan" in TWAIN driver.
*As for detailed usage and information of
Acrobat, refer to "Create a PDF file from a
scanned document" in Acrobat Help.
Support and User registration for Adobe
products
Refer to the technical support information
stored in the [Customer Support] folder on
Adobe Acrobat CD-ROM. (Note that free
person-to-person support is not available
for this is bundled product.)
■
Uninstalling Supplied Programs
Follow the procedure below to uninstall supplied programs.
HINT
Windows XP screenshots are used in this
section. The windows and operations may
slightly vary depending on your OS.
1. Start up your PC.
ATTENTION
When using Windows NT 4.0, Windows
2000 or Windows XP, log on as a user with
"Administrator" privileges (privileges of the
administrator of your PC).
2. Exit all currently running programs.
3. Select [Control Panel] - [Add or remove Programs] from the [Start] menu.
⇒ This displays the "Add or remove Programs"
screen which displays a list of the currently
installed applications.
4. Select the application to uninstall.
• When uninstalling FUJITSU TWAIN 32
scanner driver,
select "Scanner Utility for Microsoft Windows".
• When uninstalling Scandall 21,
select "ScandAll 21".
• When uninstalling FUJITSU ISIS scanner
driver,
select "Fujitsu ISIS Drivers".
• When uninstalling QuickScan Pro
select "QuickScan 3.0".
• When uninstalling Error Recovery Guide,
select "Error Recovery Guide".
• When uninstalling Software Operation
Panel,
select "Software Operation Panel".
TM
,
ATTENTION
• When uninstalling Image Processing
Software Option, refer to "Image Processing Software Option Operation
Guide".
• When uninstalling Adobe Acrobat, refer
to the installation procedure described in
the Adobe Acrobat CD-ROM.
fi-5530C Image Scanner Getting Started 13
5. Click the [Change/Remove] or [Remove] button.
6. When the confirmation dialogbox appears,
Click the [OK] or [Yes] button.
⇒ This executes the uninstallation.
ATTENTION
Screen displays may vary slightly according to the operation system (OS) you are
using. Follow the on screen instructions of
the OS.
Example: When the OS Windows 2000
• "Add or Remove Programs" - "Add/
Remove Applications"
• [Changel/Remove] button - [Add/
Remove] button.
14
Appendix1 TROUBLESHOOTING
■ Troubleshooting checklist
Symptom Check this item Remedy
Scanner does not turn on. Have you pushed the power button? Push the power button.
Are the AC cable and AC adapter properly connected to the scanner?
Is Windows normally started up? Push the power button again after completely
Scanning does not start. Are the documents loaded correctly on
the ADF paper chute?
Is the ADF closed completely? Close the ADF completely.
Is the USB cable or SCSI cable properly
connected?
(When using SCSI interface) Is SCSI ID
set correctly?
Does the Function Number Display indi-
cates an alarm or an error?
Does the alarm state remain displayed
even after the scanner has been turned
off and back on again?
Vertical lines appear in the
generated image of the
scanned image.
The generated image shifts
or is distorted.
Quality of generated image
is unsatisfactory.
Multi feed frequently
occurs.
Is the glass dirty? Clean the glass following the instructions in the
Are the documents loaded correctly? Load the documents correctly.
Are the glass or sheet guides (a white
location) clean?
Do the documents satisfy the "Document Quality" and the "Multi feed
Detection Conditions" in the chapter 6
of the fi-5530C Operator’s Guide?
Are the documents set properly in the
ADF paper chute?
Is the document stack thicker than
10mm?
Is the Pad ASSY dirty? Clean the Pad ASSY. Refer to the Operator's
Is the Pad ASSY worn out? Replace the Pad ASSY. Refer to the Operator's
Correctly connect the AC cable and the AC
adapter.
Disconnect the AC cable and the AC adapter from
the scanner, then connect them again.
If this does not restore the power supply, contact
the store where you purchased the scanner or an
authorized FUJITSU scanner service provider.
starting up Windows.
Load the document correctly on ADF paper chute.
Correctly connect the cable. (When a USB hub is
used, check the hub's power supply.)
Set SCSI ID correctly by SCSI ID switch on rear
of scanner.
When the Function Number Display indicates an
alarm or an error, refer to the "Chapter 5. TROUBLESHOOTING" in the fi-5530C Operator’s
Guide for removing the alarm or the error.
Turn off and on the power button.
If this does not eliminate the alarm state, contact
the store where you purchased the scanner or an
authorized FUJITSU scanner service provider.
Operator's Guide "3. Daily Care".
Clean dirty locations.
Use the documents that satisfy the "Document
Quality" and the "Multi feed Detection Conditions" in the chapter 6 of the fi-5530C Operator’s
Guide.
Fan the documents before scanning. Correctly
align the document stack and load them on the
ADF paper chute. Refer to "2.1 Installing the
Scanner" on page 3 for details.
Reduce the number of sheets in the document
stack to 10 mm thickness or less.
Guide "3.2. Cleaning the ADF".
Guide "4.2. Replacing the Pad ASSY".
fi-5530C Image Scanner Getting Started AP-1
Symptom Check this item Remedy
Paper is not fed (pick error
occurs frequently, or document stops midway).
The generated images are
elongated.
There is a shadow on the
leading edge of the generated image?
Do the documents satisfy the "Document Quality" and the "Multi feed
Detection Conditions" in the chapter 6
of the fi-5530C Operator’s Guide?
Is the Pick roller dirty? Clean the Pick roller. Refer to the Operator's
Is the Pick roller worn out? Clean the Pick roller. Refer to the Operator's
Is there any debris on the document feed
path?
Are the Feed rollers dirty? Clean the Feed rollers. Refer to the Operator's
Have you adjusted the scan scale? For Windows 98, Windows Me, Windows 2000,
Are the Feed rollers dirty? Clean the Feed rollers. Refer to the Operator's
Have you adjusted the offset (the scanning starting position)?
Use the documents that satisfy the "Document
Quality" and the "Multi feed Detection Conditions" in the chapter 6 of the fi-5530C Operator’s
Guide.
Guide "3.2. Cleaning the ADF".
Guide "4.3. Replacing the Pick Roller".
Remove any debris from the document feed path.
Guide "3.2. Cleaning the ADF".
WindowsXP, select "Scanners and Cameras" in
the control panel, then click the [Device Set] tab
to adjust scale.
For Windows 95, Windows NT 4.0, right click the
Scanner Control Center in the task tray, select
[Options] and adjust the scan scale.
Guide "3.2. Cleaning the ADF".
For Windows 98, Windows Me, Windows 2000,
WindowsXP, adjust the [Sub-scan Setting] on
[Scanners and Cameras] in the control panel.
For Windows 95, Windows NT 4.0, right click the
Scanner Control Center, select [Options]-[Subscan Setting] and adjust the offset.
AP-2
■ Temporary error
■ Device alarm (Permanent error)
Indication Meaning
U1 A paper feed error occurred.
U2 A multi feed error occurred.
U6 The print cartridge is not set.
The following shows the procedure for releasing of each
temporary error.
• "U1" error
1. Remove jammed documents.
(Refer to fi-5530C Operator’s Guide "5.1
Removing Jammed Documents" on the Setup
CD-ROM..)
2. Confirm that the documents meet the paper
conditions for scanning.
(Refer to fi-5530C Operator’s Guide "6.2 Document Quality" on the Setup CD-ROM.)
• "U2" error
Press the [Send to] button on the Operator Panel.
The papers that were multi fed will be ejected.
• "U6" error
This is a temporary error related with the
Imprinter option (sold separately). For details
refer to 553PR Operator's Guide, chapter "5
Error Message".
Indication Meaning
E2 Trouble in the optical system (front).
E3 Trouble in the optical system (back).
E4 The motor fuse has blown out.
E6 Trouble in the operator panel.
E7 Trouble occurred in the internal memory
(EEPROM).
E8 The SCSI interface fuse has blown out.
E9 An error in the image memory.
Ec An alarm in the memory.
Ed Trouble in the SCSI interface controller.
EF A trouble in the Background switching
mechanism.
When you encounter any alarm, turn off and on the
scanner. If the alarm is still displayed on the Function
Number Display, contact the store where you purchased
the scanner or an authorized FUJITSU scanner service
provider.
fi-5530C Image Scanner Getting Started AP-3
Appendix2 DAILY CARE
When operating the scanner, the
WARNING
ADF’s inside glass becomes very
hot.
Before you clean inside the scanner, turn off its power and unplug
the AC adapter from the outlet. Wait
for at least 15 minutes.
Do not turn off the scanner when
you clean the Feed rollers or Eject
rollers.
■ Cleaning Materials
Cleaning
Materials
Cleaner F1
(or isopropyl
alcohol)
Lint-free dry
cloth
For details about the cleaning materials, contact the
FUJITSU scanner dealer where you purchased the scanner.
Parts No. Remarks
CA995010013
- Commercially available one
1 bottle
Moisten a cloth with
this fluid and wipe the
scanner clean.
■ Locations and Cycle for Cleaning
Part to clean Standard Cleaning Cycle
Pad ASSY Clean these parts after every
5,000 scans.
Pick roller
Feed rollers
Plastic rollers
Eject rollers
Sheet guides
Glass
Ultra sonic sensor
ATTENTION
The scanner must be cleaned more frequently if you scan any of the following
type of sheets:
• Documents of coated paper
• Documents that are almost completely
covered with printed text or graphics
• Chemically treated documents such
as carbonless paper
• Documents containing a large amount
of calcium carbonate
• Documents written by pencil
• Documents on which the toner is not
fused sufficiently.
■ Cleaning Method
The ADF must be cleaned with a lint-free cloth moistened with the Cleaner F1.
For details on the cleaning the ADF, refer to "3.2 cleaning the ADF" in fi-5530C Operator’s Guide on the Setup
CD-ROM".
AP-4
Appendix3 REPLACING CONSUMABLES
r
During its operation, the inside
WARNING
glass of the ADF becomes very
hot .
Before replacing the
consumables, turn its power off
and unplug the AC adapter from
the outlet. Wait at least
15 minutes.
■ Consumables and Replacement
Cycle
The followings are the specifications of consumables
and their recommended replacement cycles.
Description Parts No.
Pad ASSY PA03334-
0002
Standard
Replacement Cycle
After 100,000 scans or
one year
The following illustrations show the locations of the
consumables. Refer to "Chapter 4 Replacing Consumables" fi-5530C Operator’s Guide on the Setup
CD-ROM.
■ Replacing the Pad ASSY
To remove
Pad ASSY
To attach
■ Replacing the Pick Roller
Sheet guide
Pick roller PA03334-
0001
To purchase consumables,
contact the store where you
After 200,000 sheets
or one year
purchased the scanner or an authorized FUJITSU scanner
service provider.
The replacement cycles above are rough guidelines
when using A4/Letter woodfree or wood containing
paper 64 g/m
2
(17 lb). This cycle varies according to the
type of the used paper and how frequently the scanner is
used and cleaned.
ATTENTION
Use only the specified consumables.
Pick rolle
fi-5530C Image Scanner Getting Started AP-5
fi-5530C Image Scanner Getting Started
P3PC-1342-02EN
Date of issuance: June, 2006
Issuance responsibility: PFU LIMITED
z Copying of the contents of this manual in whole or in part and
copying of the scanner application is forbidden under the
copyright law.
z The contents of this manual are subject to change without notice.
z PFU LIMITED is not liable whatsoever for any damages resulting
from use of this scanner and procedures described in this manual,
profit loss due to defects, and any claims by a third party.
