Fisher & Paykel WL42T26CW1 User Guide

Installation instructions
and user guide US CA (EN)

AquaSmart™ clothes washer

Instructivo de instalación

y guía de usuario US CA (ES)

Lavadora AquaSmart™

Instructions d’installation

et guide de l’utilisateur US CA (FR)

Laveuse AquaSmart™

WARNING!

Electric Shock Hazard

Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.

Failure to do so can result in death, electric shock, fire or injury to persons.

Please Note: To obtain maximum efficiency, your AquaSmart™ washer has the ability to learn
and adapt to the local environment. This may take several wash cycles, therefore maximum
energy efficiency may not be achieved until a number of wash cycles have been completed.
This usually takes about 5 cycles.

English Page 1 – 45

Español Pág 46 – 83

Français Page 84 – 121

As an ENERGY STAR® Partner Fisher & Paykel Limited has determined

that this product meets ENERGY STAR® guidelines for energy efficiency.

Contents

Important Safety Instructions 3
Installation instructions 6
Before you do your first wash 12

Checklist, Water consumption, Capacity 12

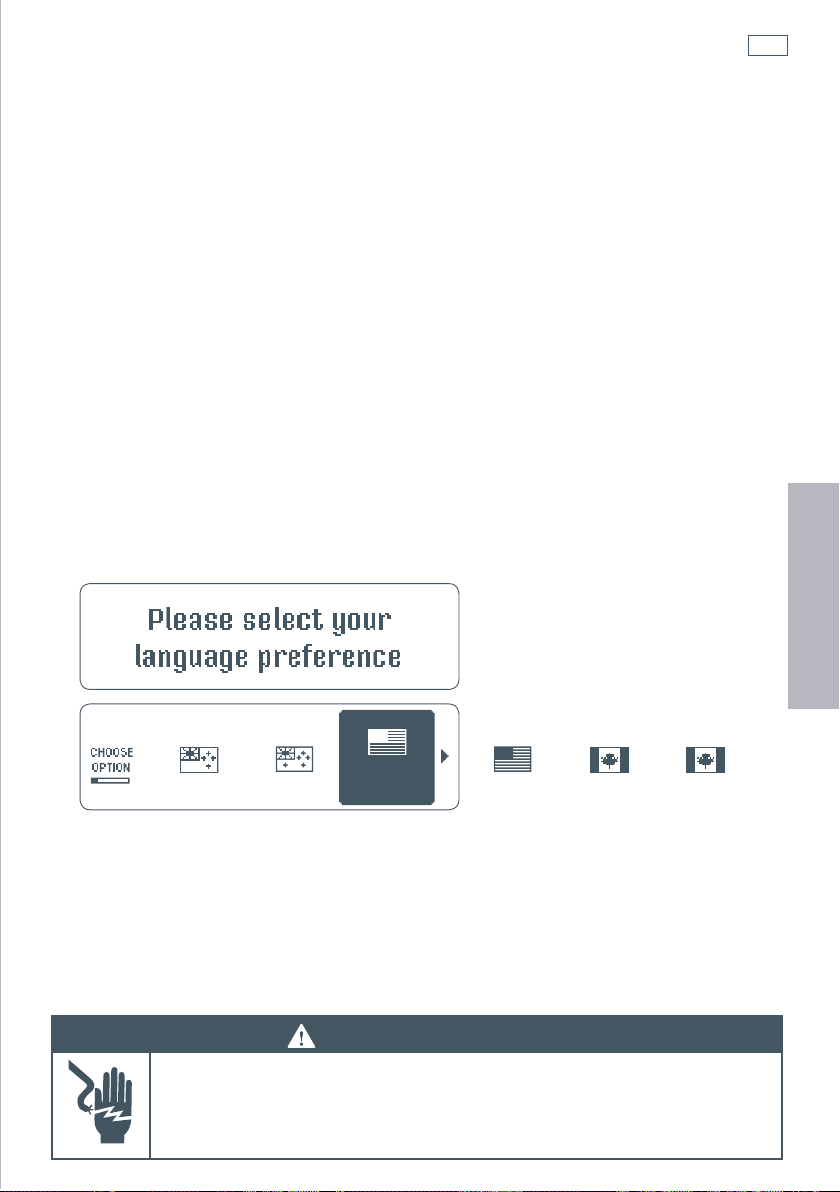

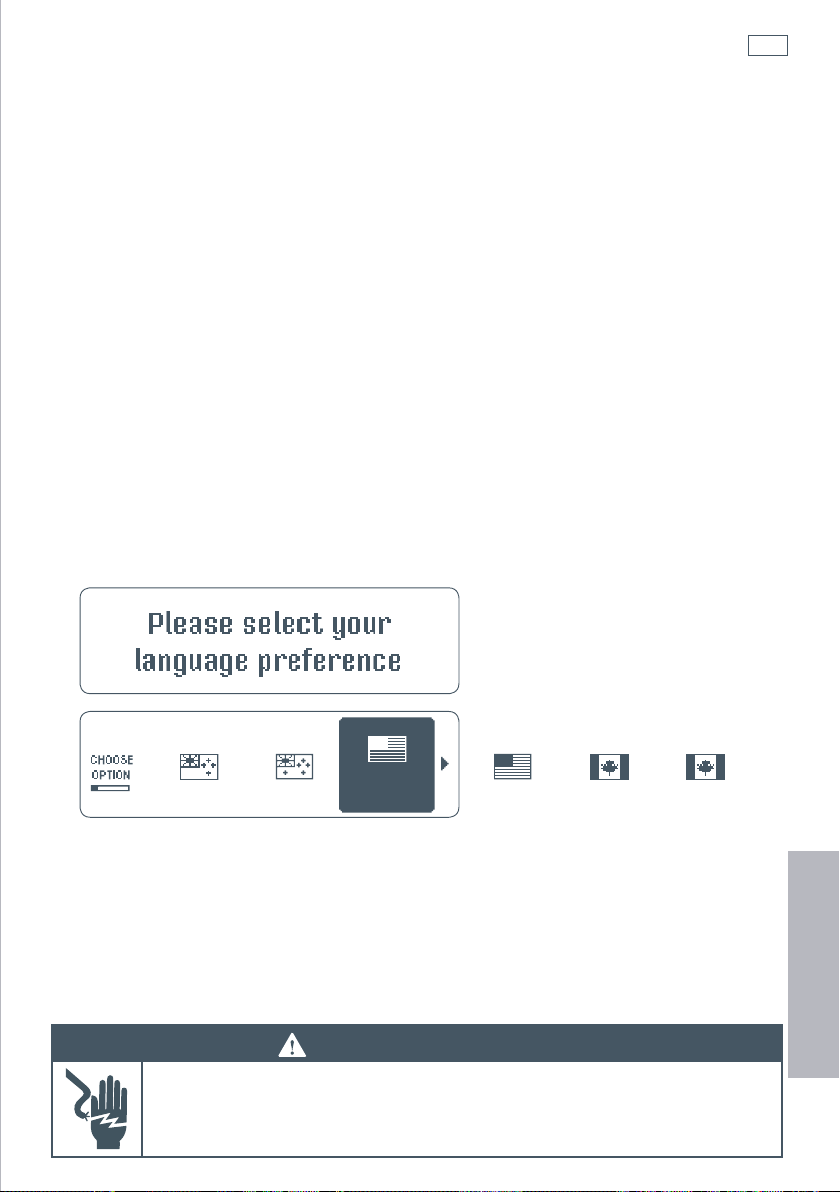

The first time you turn your washer on 13
Getting started quickly 14

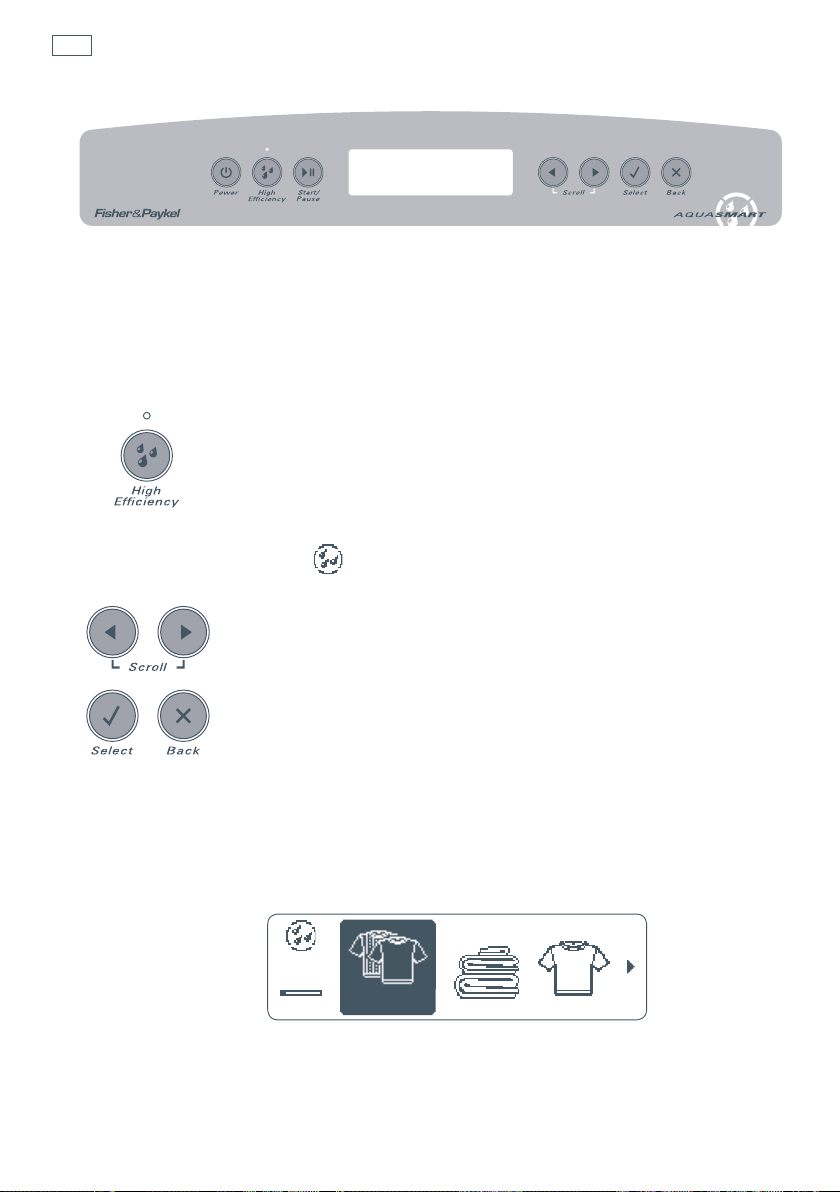

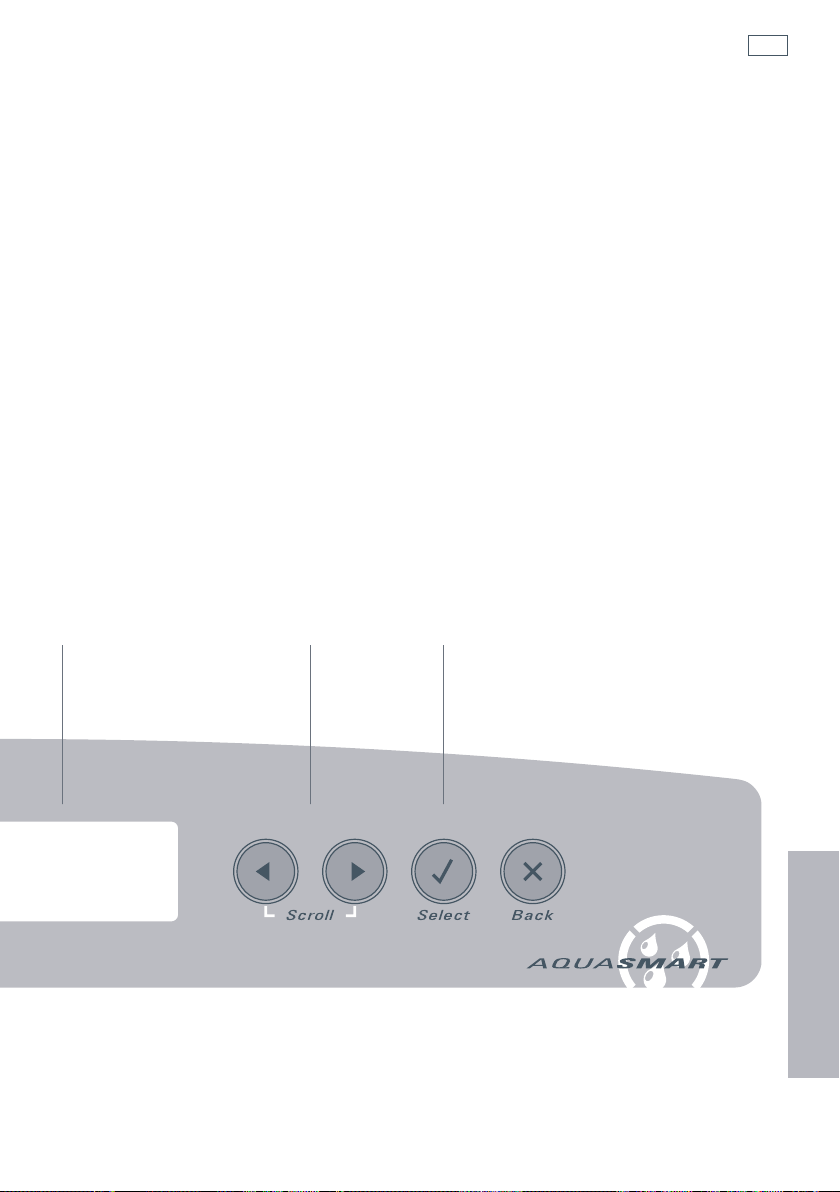

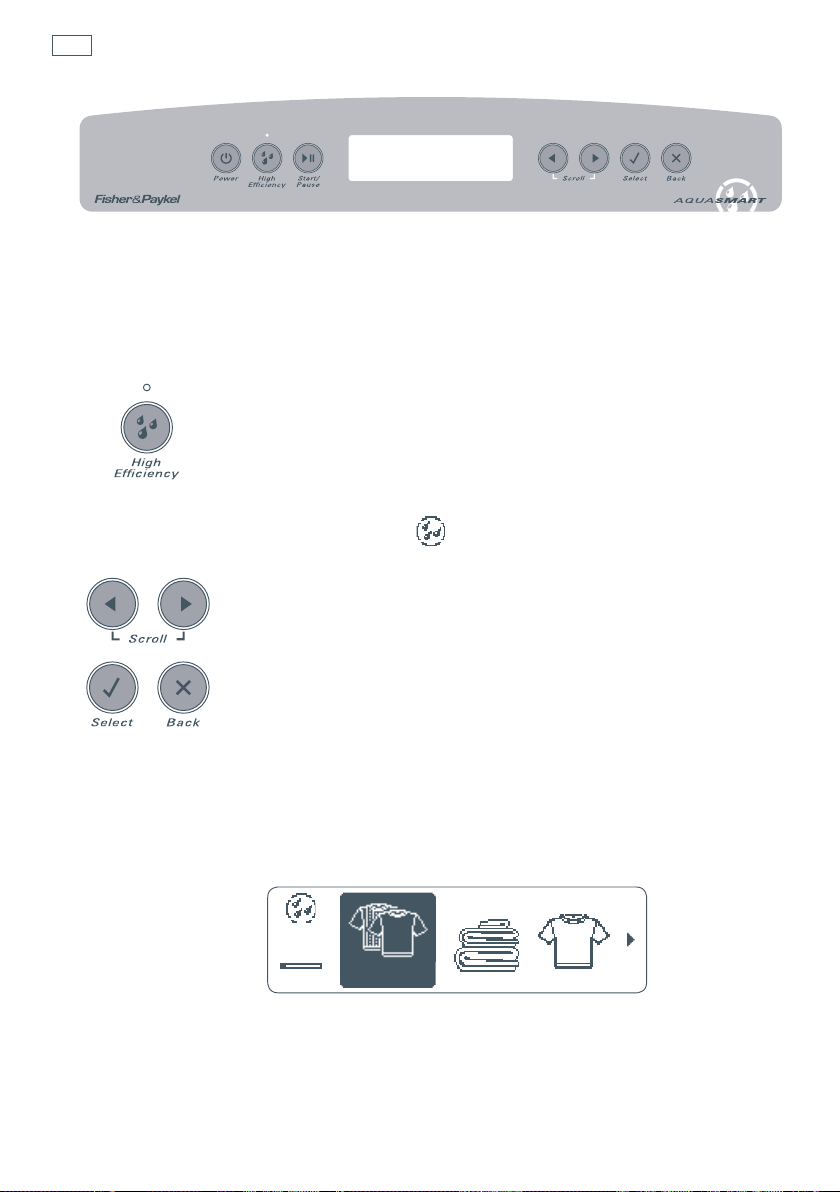

AquaSmart™ controls 16

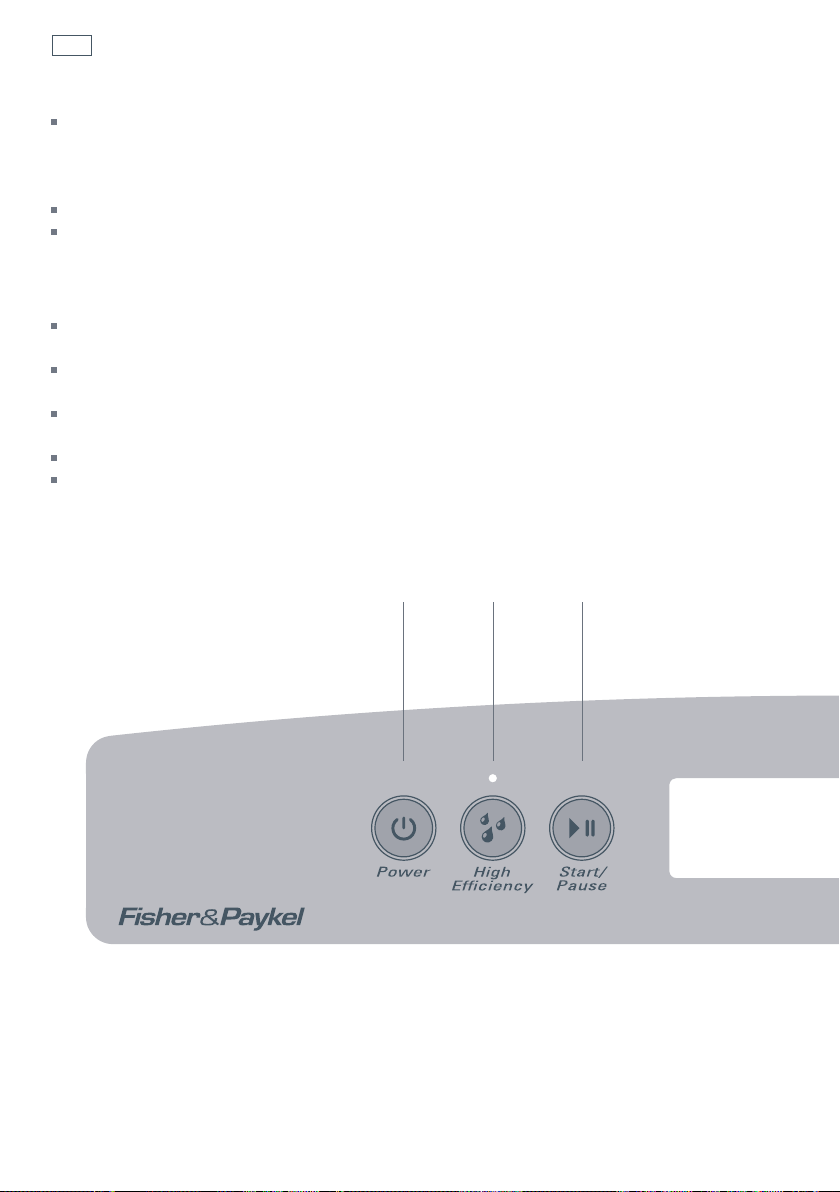

Easy touch controls, The display screen, Time to go 16

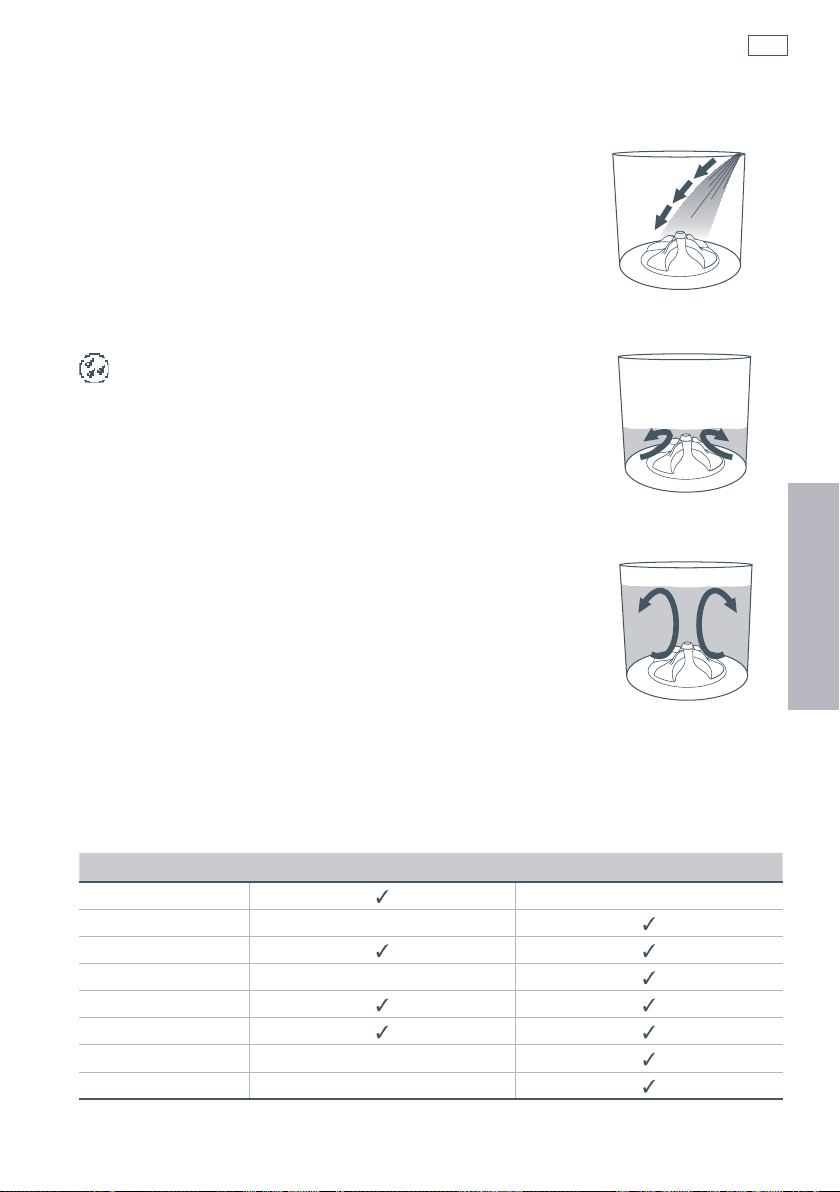

The unique AquaSmart™ wash 17

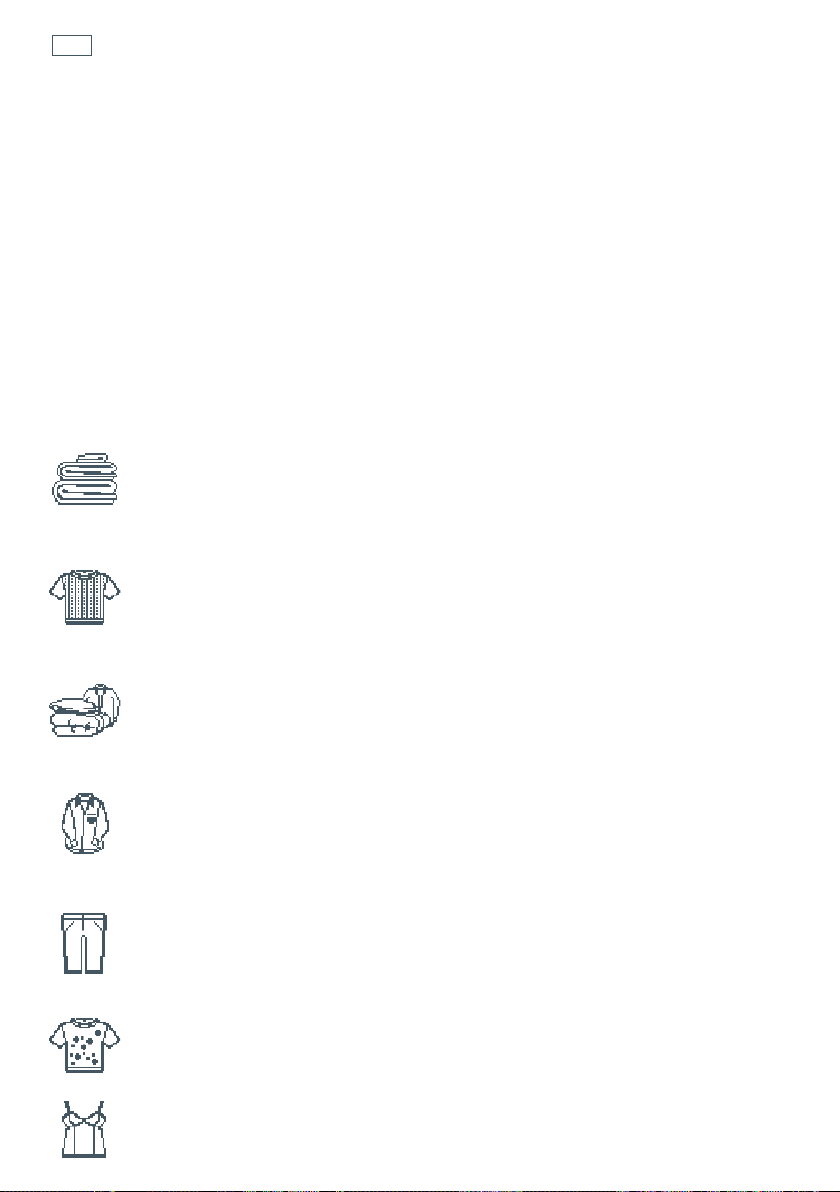

Sorting and Loading 18

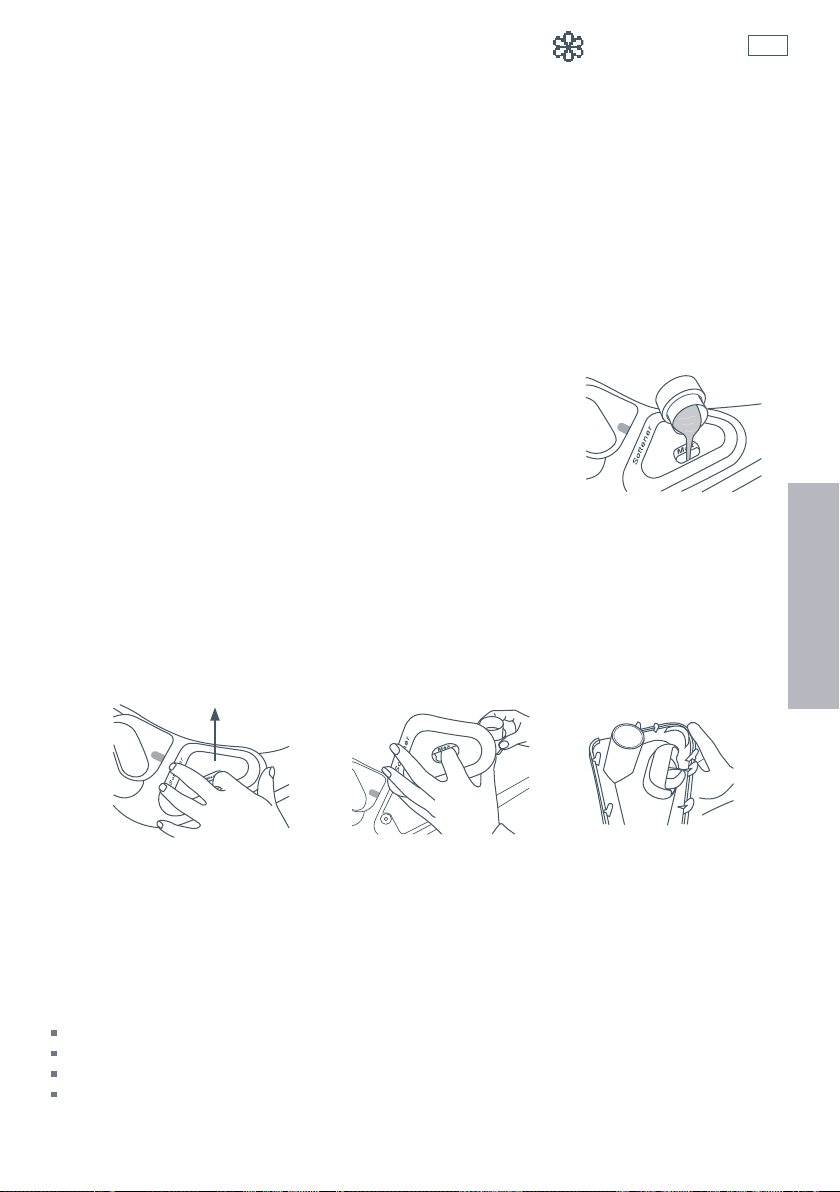

Detergent 20

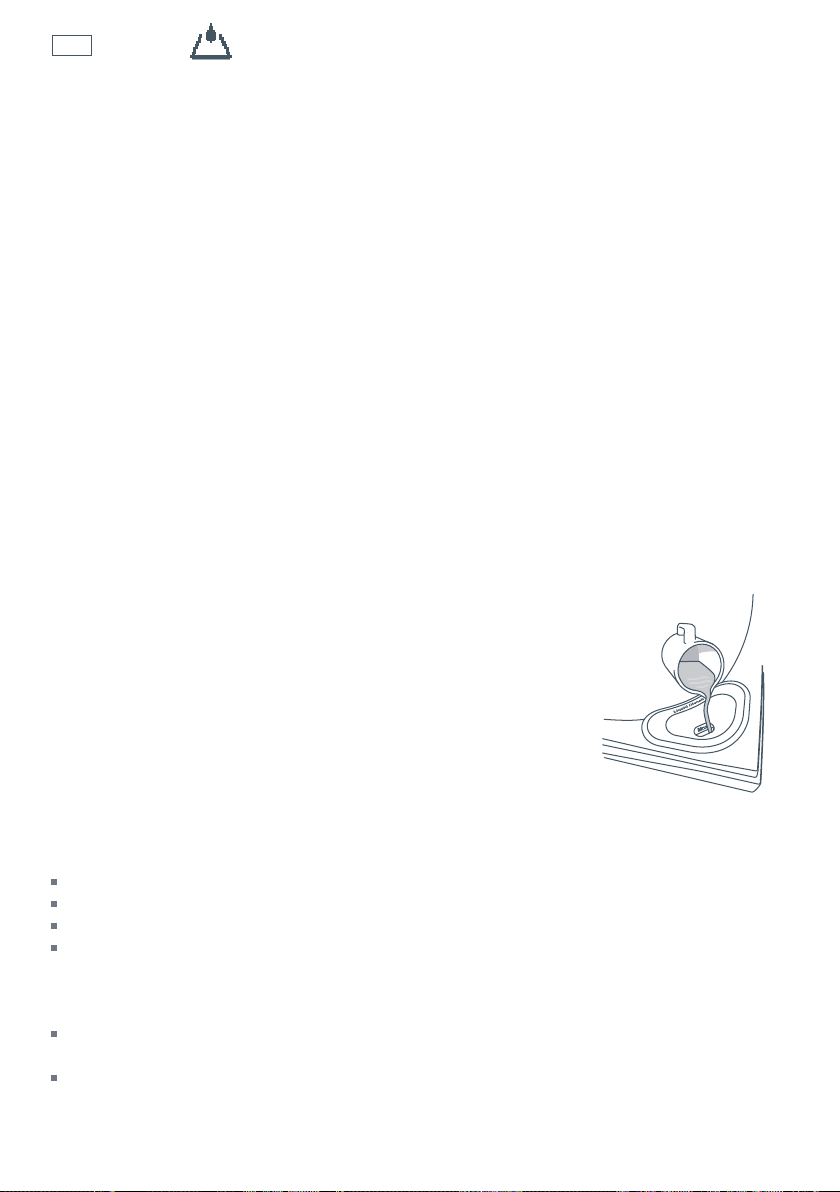

Fabric Softener 21
Bleach 22
AquaSmart™ safety features 23
Choosing your wash cycle 24
Changing the wash cycle options 25

Wash cycle options 26

Wash cycles 27

Wash cycles explained 27
Bulky wash options 28

Lifestyle cycles 29

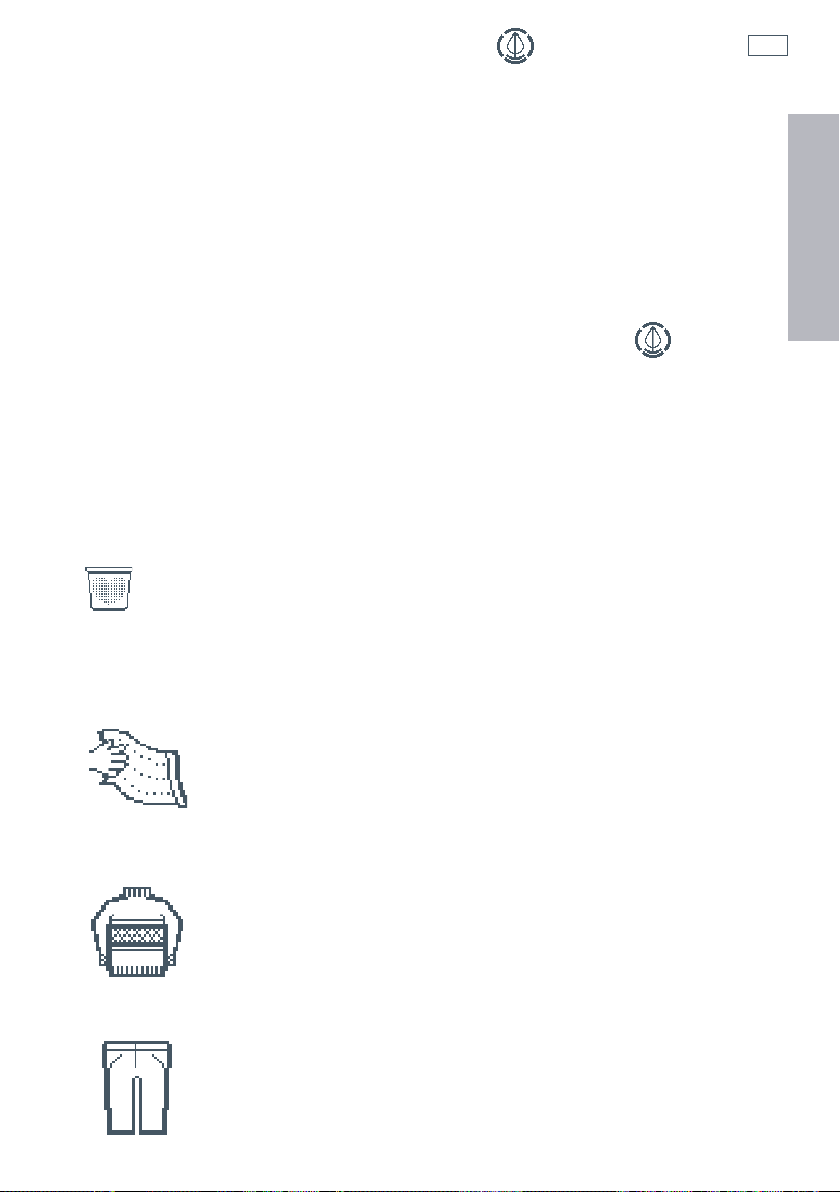

Special Care Handwash / Wool / Jeans 29

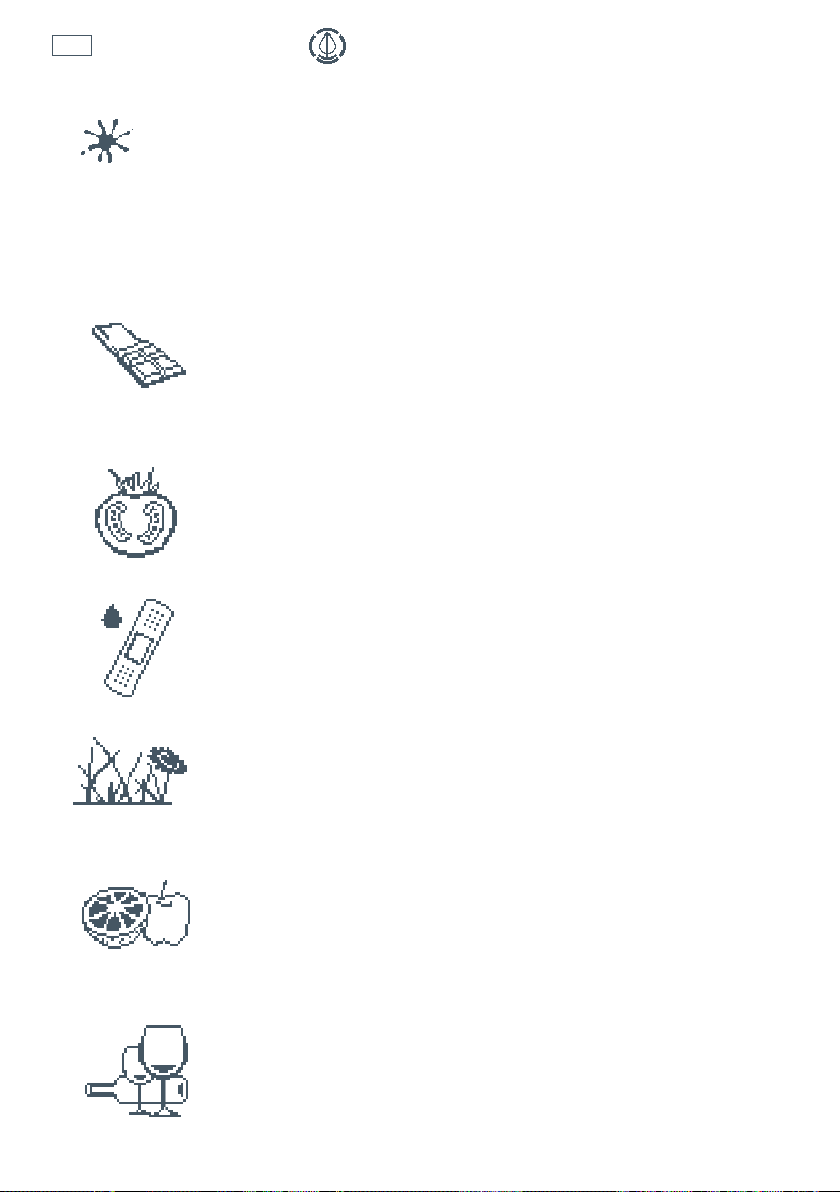

Stains Chocolate / Tomato / Blood / Grass / Fruit / Wine 30
Family Comforter / Allergy / Hygiene / Diaper Rinse / Soft Toys 31

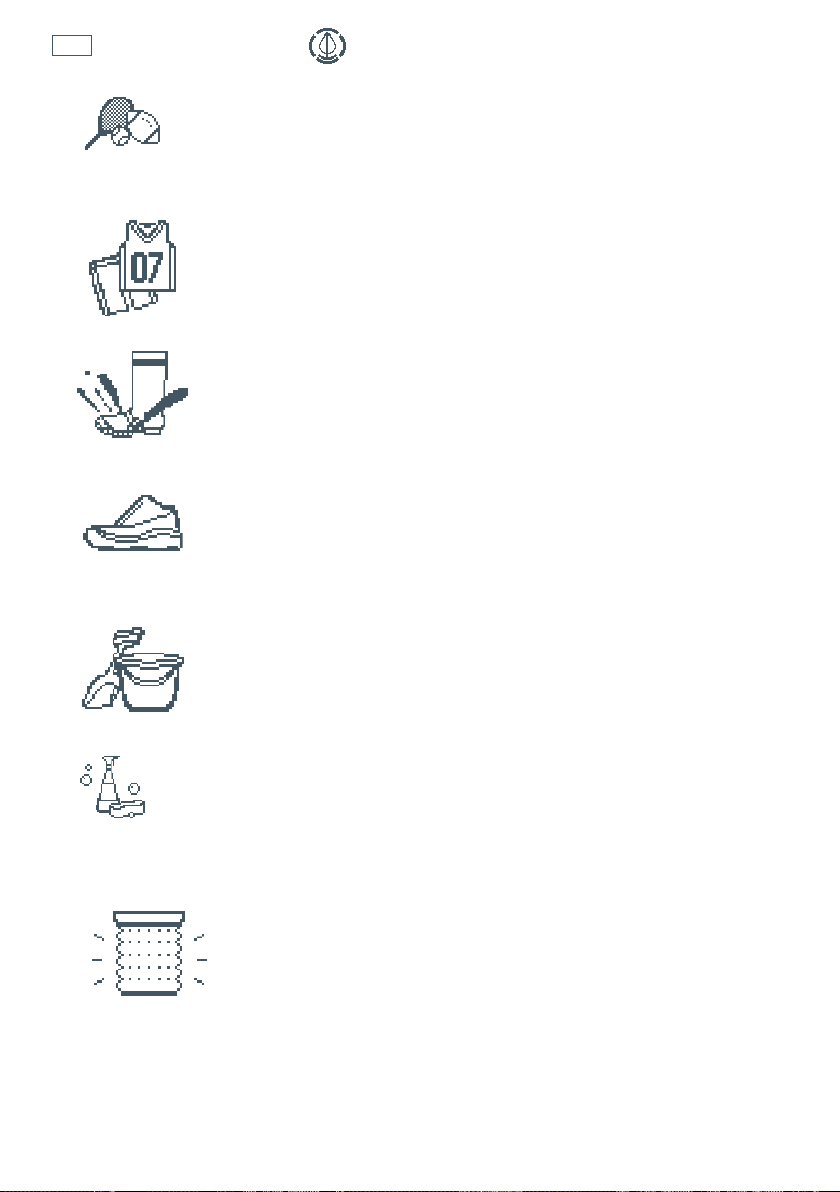

Sports Sweaty / Muddy / Sports Shoes / Beach Gear 32
Clean Up Clean Me 32

Settings Menu 33

Balance Recovery / Alarm Beeps 33
Screen Brightness and Contrast/ Key Lock Mode / Hints 34

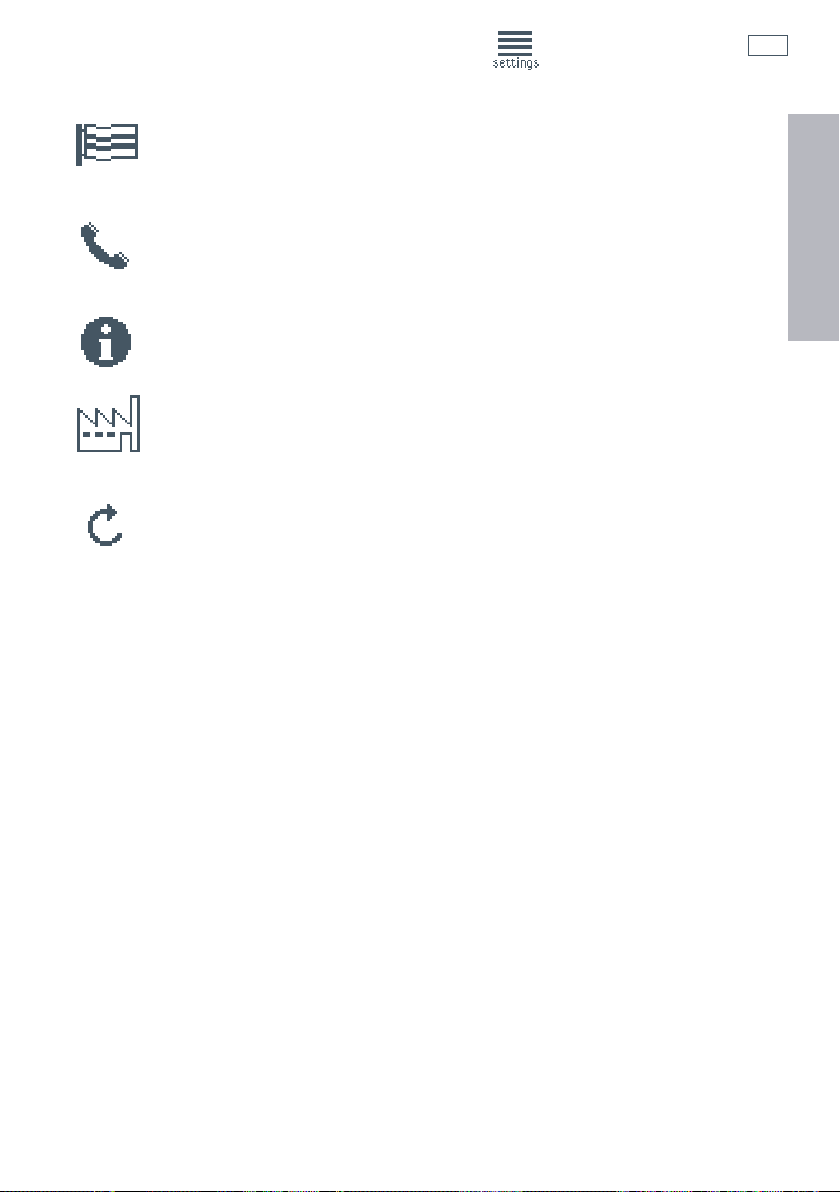

Language / Service Contacts / Trouble Shooting / Reset Defaults / Replay Intro 35

Caring for your AquaSmart™ washer 36
Before you call for service 38

If your AquaSmart™ beeps for help 38
Solving operating problems 40
Solving wash problems 42

Limited warranty 43

How to get service 45

1

EN

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2

Introduction

Welcome to AquaSmart™

Thank you for buying a Fisher & Paykel AquaSmart™ clothes washer. We are very proud of this
washer and trust it will serve you well for many years.

At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
kind to the environment. Thousands of tonnes of washing and 70 years of laundry experience
have been programmed into your clothes washer to help give you the best possible performance.

Your AquaSmart™ clothes washer works differently from a conventional washer. It is a “High
Efficiency” washer utilizing innovative technology to wash in less water and take great care of
your clothes.

The revolutionary, super water efficient wash action of your AquaSmart™ washer means that it
is no longer necessary to wash using a full bowl of water. This innovative wash action relies on
maintaining a small volume of water for the wash load to ensure the best wash results. Please be
aware that the water level for this model is fully automatic, with the machine ‘smarts’ choosing
the appropriate water volume for you. This means that there is no option to select your
water level.

It is important that you take the time to read these instructions carefully before you begin using
your washer. Like all High Efficiency washers, a little extra care in how you sort your clothes and
choose your cycle and detergent will ensure that you get the best possible wash result.

We hope you enjoy your new washer, we have certainly enjoyed designing it for you.

Important!

It is important that this User Guide should be retained with your AquaSmart™ clothes washer
for future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.

Important Safety Instructions

3

Read all safety information before using

Many washers are located near a gas dryer or a water heater in the home.

WARNING!

Fire Hazard

For your safety the information in this manual must be followed to
minimize the risk of fire or explosion or to prevent property damage,
personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service
agency or the gas supplier.

What to do if you smell gas

DO NOT try to light any appliance.
DO NOT touch an electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from your neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.

EN

Water heater safety

Under certain conditions Hydrogen gas may be produced in a water heater that has not been
used for two weeks or more.

HYDROGEN GAS CAN BE EXPLOSIVE UNDER THESE CIRCUMSTANCES.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or
injury by turning on all hot water faucets and allowing them to run for several minutes before
using any electrical appliance which is connected to the hot water system. This will allow any
hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process.

4

Important Safety Instructions

WARNING!

Electric Shock Hazard

Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death, electric shock, fire or injury to persons.

Important safety precautions

Read all instructions before using the appliance.
Use this appliance only for its intended purpose as described in this User Guide.
This washer must be properly installed and located in accordance with the Installation Instructions
before it is used.
This washer must be properly grounded to conform with all governing codes and ordinances. Follow
details in the Installation Instructions.
Do not install or store washer where it will be exposed to temperatures below freezing or exposed to
the weather.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
Connect to adequate plumbing and drain facilities as described in the Installation Instructions.
Turn off water faucets when the washer is not in use to relieve pressure on hoses and valves and to
minimize leakages if a hose or valve should break or rupture.
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide or in published user repair instructions that you understand, and
have skills to carry out.
When disconnecting the appliance pull by the plug rather than the cord or junction of cord to avoid
damage to the cord or junction of the cord and plug.
Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subject
to damage or stress.
Keep all laundry aids (such as detergents, bleach, fabric softener, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all warnings on container labels to avoid personal injury.
Do not tamper with the controls.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags, chemicals, etc.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Never reach into the washer if the tub or agitator is moving.
Before loading, unloading or adding clothes, press START/PAUSE and wait until the washer has
completely stopped before opening the lid.
Close supervision is necessary if this appliance is used by or near children. Do not allow children to
play inside, or on, or with this appliance or any discarded appliance.

Important Safety Instructions

Dispose of discarded appliances and shipping/packing materials properly. Before discarding a
washer, or removing from service, remove the washer lid.
Do not leave the washer lid up during the cycle. The washer will not function. To start, close lid and
press START/PAUSE.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash
water. Do not use these substances around your washer and/or dryer during operation, as they give
off vapors that could ignite or explode.
The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, the garment
manufacturer’s care instructions should be followed very carefully.
Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover. Mixing can
produce a toxic gas which may cause death.
Never climb on or stand on the washer top or lid.
Do not wash fibreglass articles in your washer. Skin irritation could result from the remaining
particles that may be picked up by clothing during subsequent washer use.
To minimize the possibility of electric shock, unplug this appliance from the power supply or
disconnect the washer at the household distribution panel by removing the fuse or switching off the
circuit breaker before attempting any maintenance or cleaning.
Note: Pressing the POWER button does NOT disconnect the appliance from the power supply, even
though the lights are out.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged cord or plug.
Do not operate this appliance if the lid has been incorrectly fitted.
If you are using an extension cord or a portable electrical outlet device (eg. multi-socket outlet box),
ensure that it is positioned so that it does not come into contact with water or moisture.

5

EN

SAVE THESE INSTRUCTIONS

6

Installation instructions

Before you begin – read these instructions completely and carefully.

WARNING!

Electric Shock Hazard

Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.

Improper connection of an equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.

Failure to do so can result in death, electric shock, fire or injury to persons.

Important!

Observe all governing codes and ordinances.

Installation Requirements

Location

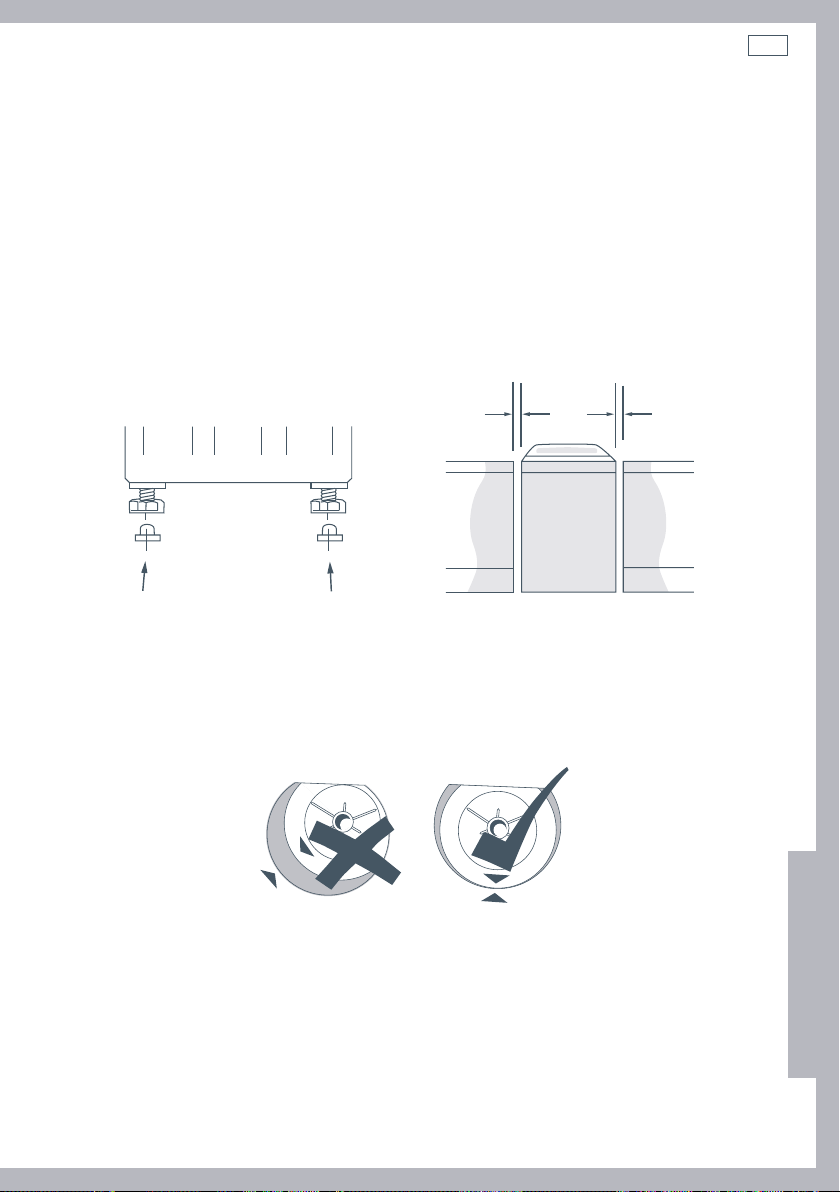

Your washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete
flooring is best, but wood base is sufficient providing the floor support meets FHA standards.

Your washer should not be installed on rugs or exposed to the weather.

Plumbing

Water Temperature

Your cold water should not exceed 95˚F (35˚C) or your hot water exceed 149˚F (65˚C).
Temperatures above this may damage your washer.

Shut Off Valves

Both hot and cold shut-off valves (faucets) should be available in the laundry area.

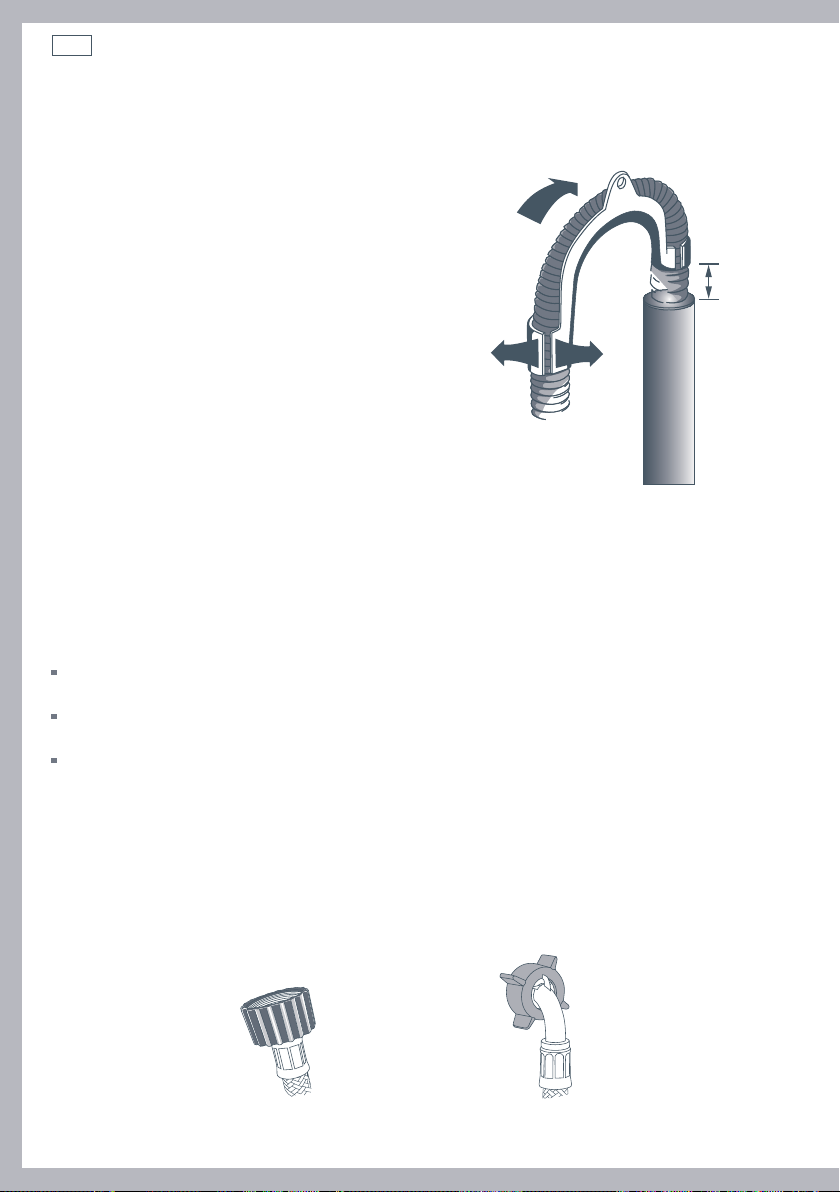

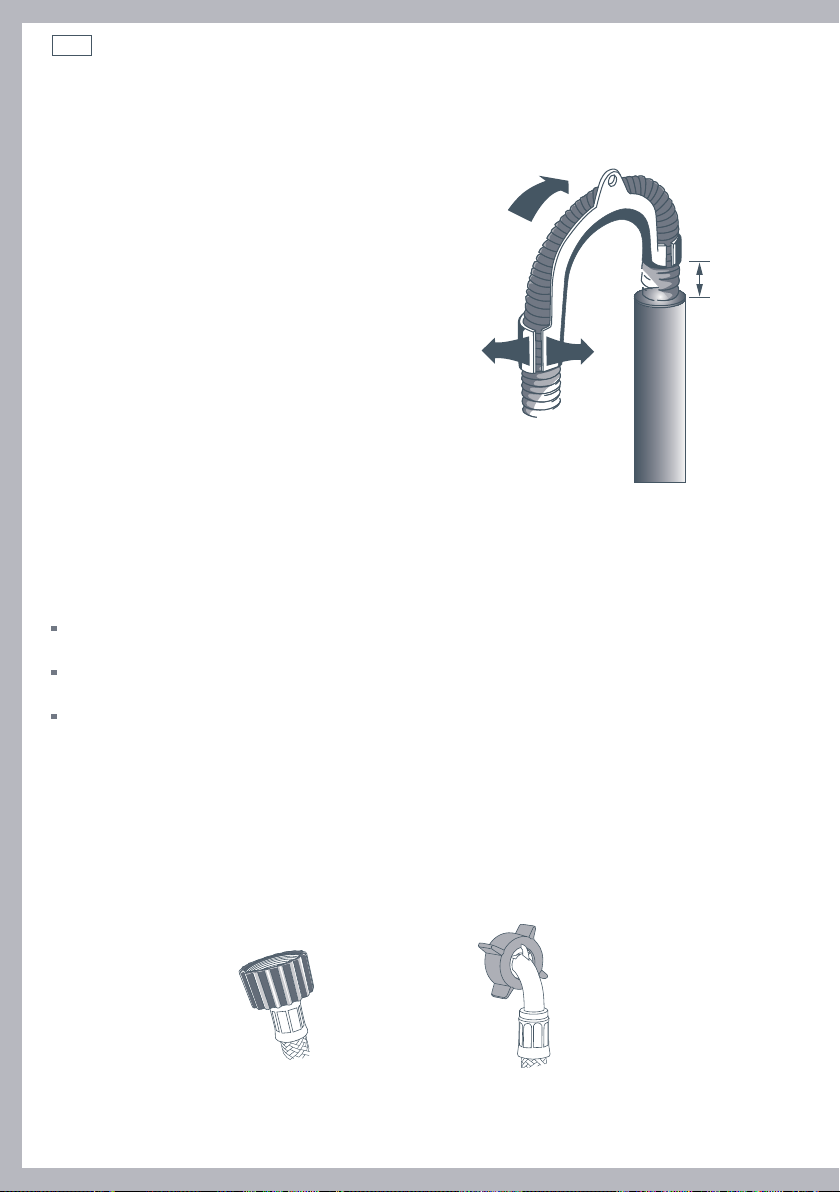

Drain

Water may be drained into a standpipe or set tub/sink. The standpipe must be 1 ½” (38 mm)
minimum interior diameter and must be open to the atmosphere.

Electrical

This appliance must be supplied with 110V – 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.

Installation instructions

7

Water supply

This washer must be plumbed into both a hot and cold water supply or it will not work
correctly. Please ensure that both hot and cold water are connected to the washer.
If you have an uncontrolled water-heating source (eg. a wet back or solar heating) you should
have a tempering device fitted. This will ensure the hot water temperature remains within
safe limits. For the most suitable type of tempering device we recommend you contact a local
plumber or plumbing supply merchant.
Inlet Water Static Pressure 5psi (35kPa) to 150psi (1MPa) (If using a header tank then the top of
the header tank must be at least 39” (2 m) above the top of your clothes washer).
Minimum flow rate from the faucet supplying the clothes washer should be greater than
1 ½ gallons/min (6 liters/min) (assumes ½” (12.7 mm) diameter pipes).
Minimum height of faucets to clear the top of the washer is 45” (1150 mm).

Draining

Regularly check that your standpipe or set tub/sink is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
In multi-storey apartments or any upper floor, the washer should be installed on a drained floor.
Draining must comply with local by-laws.

Clothes washer safety

This clothes washer is not intended for use by young children or infirm persons without
supervision.
Please supervise young children to ensure they do not play with this clothes washer.

EN

Important!

If you are using an extension cord or a portable electrical outlet device (eg. multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.

Accessories and spare parts

Available from your Fisher & Paykel Dealer or Authorized Service Center.

Drain Hose Extension Part No. 425627p
Power Cord If the Power Cord of your clothes washer is damaged it must be
replaced by a Fisher & Paykel Authorized Service Center, as it
is not a standard power cord.

8

Installation instructions

Unpacking

To ensure the best performance from your new AquaSmart™
clothes washer please follow the instructions below.

Removing the packaging

1

Remove the outer packaging.

2

Tilt the washer backwards and walk it off the bottom

packer one foot at a time.

3

Remove the bottom packer from under the washer by

pulling it out the front.

Caution!

Operating the washer when the bottom packer is in
place can result in damage to the washer.

4

Lift the lid and remove the basket packer from the basket.

5

Remove the hoses and accessories.

6

Keep the bottom packer and basket packer in case they are required for future transit.

Please ensure that the bottom packer has been removed before operating your washer.

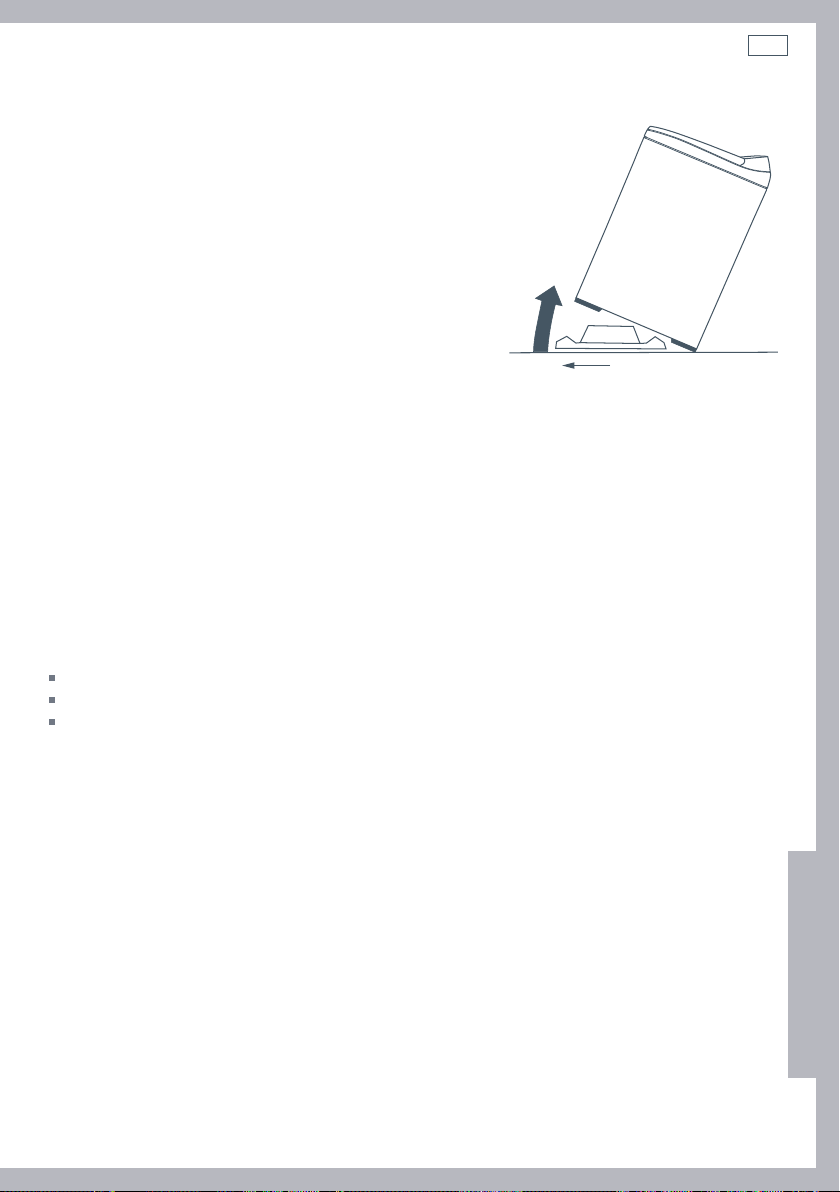

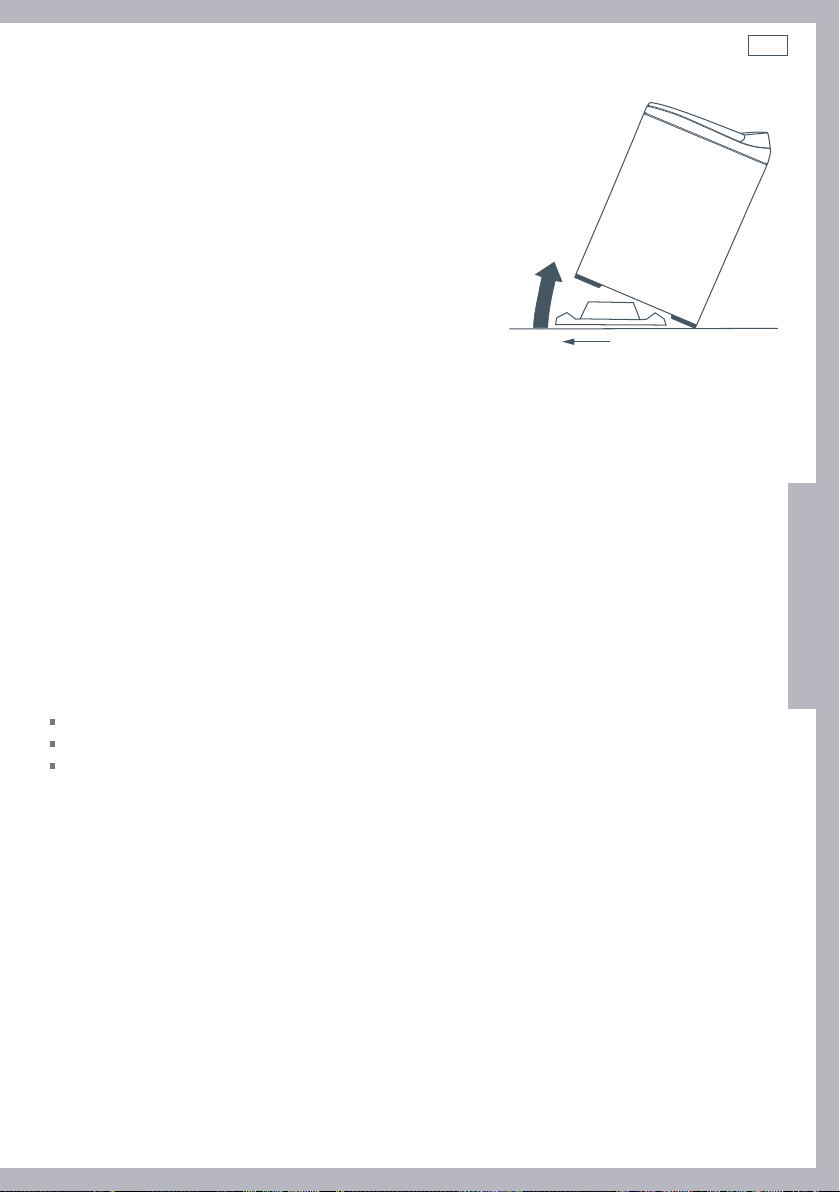

Fig.1 Tilt washer backwards
to remove packer

Installation

In your clothes washer you will find:

4 rubber inserts for the levelling feet (joined together).
1 hose guide.
2 inlet hoses.

Installation instructions

9

Drain hose

1

Carefully pull the drain hose out from the

back of the washer by pulling the exposed
part of the hose downwards and outwards.

2

To guide the drain hose over the set tub/sink

or standpipe the hose guide MUST be fitted
to the drain hose.

To prevent siphoning:

The drain hose should not extend more than

¾” (20 mm) from the end of the guide.

The height of the standpipe or set tub/sink

should be between 33 ½” to 78” (850 – 1200 mm).

The drain hose can be trimmed to length.

3

Place the drain hose in the set tub/sink or

standpipe.

Pull hose
through guide

¾” (20 mm)
maximum

Flex hose
guide apart

Standpipe 33 ½” to 78” (850 – 1200 mm)

Fig.2 Fitting the drain hose guide

Important!

In multi-storey apartments or any upper floor installation, the washer should be installed on a
drained floor.
Check that the tub or standpipe is free from lint or other obstructions before operating the washer.
In a basement installation do not exceed a standpipe height of 96” (2438 mm).

Inlet hoses

1

Install hoses with the straight end (with filters) fitted to the faucets (refer to Fig.3).

2

Install elbow ends onto clothes washer (inlet valves are marked on the back of the washer

H=hot, C=cold) (refer to Fig.4).

EN

Fig.3 Faucet end of hose Fig.4 Washer end of hose

10

Installation instructions

Levelling your washer

It is IMPORTANT to level the washer to ensure good spin performance and effective detergent,

softener and bleach dispensing.

1

Separate the 4 rubber foot inserts from the moulding and fit into the feet on the base of

the washer.

2

Move the washer to its final position. (We suggest a minimum clearance of 1” (25 mm) each side).

3

Adjust the feet so the washer is level and cannot rock.

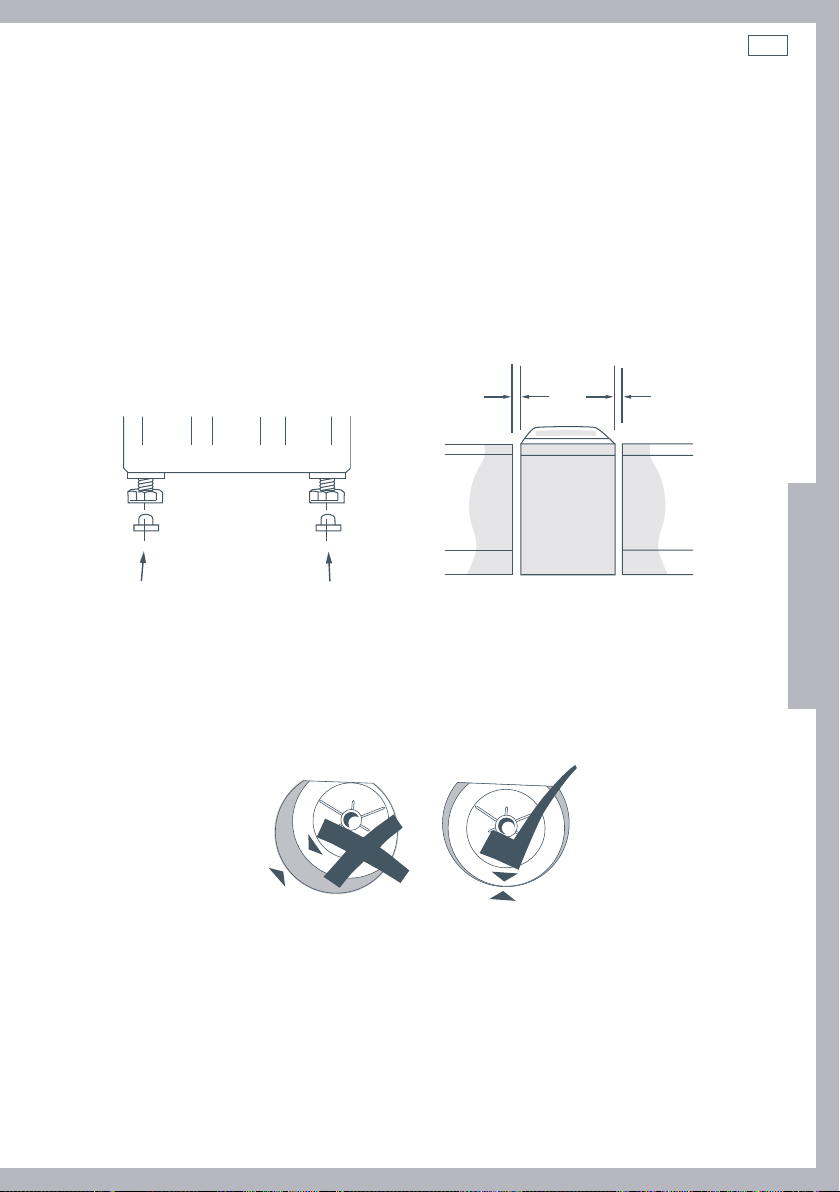

1” (25 mm) 1” (25 mm)

Adjustable feet

Rubber insert

Fig.5 Levelling your washer

4

Use the walls and adjacent counter tops as a sight guide to check to see if washer appears level.

Fig.6 Minimum clearances

Readjust the feet if necessary.

5

Open the lid and check the washer tub to see that it sits slightly forward of centre. (See Fig. 7).

Incorrect

adjustment

Fig.7

6

Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hoses.

7

Uncoil power cord and plug into wall socket.

8

Check for leaks, noise, vibration, correct water temperatures and proper operation in spin. Check

Correct

adjustment

that the lid locks during spin.

Installation instructions

11

Special requirements for alcove or closet installation

The minimum ventilation clearance between the washer and adjacent walls or other surfaces is:

1” (25mm) minimum either side and front
3” (75mm) minimum rear

Consideration must be given to providing adequate
clearance for installation and servicing.

The minimum vertical space required from floor
to overhead shelves, cabinets, ceilings etc is 59”
(1500 mm).

Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches open
area for a washer only, or if the closet contains both
a washer and dryer, doors must contain at least 120
square inches of open area equally distributed.

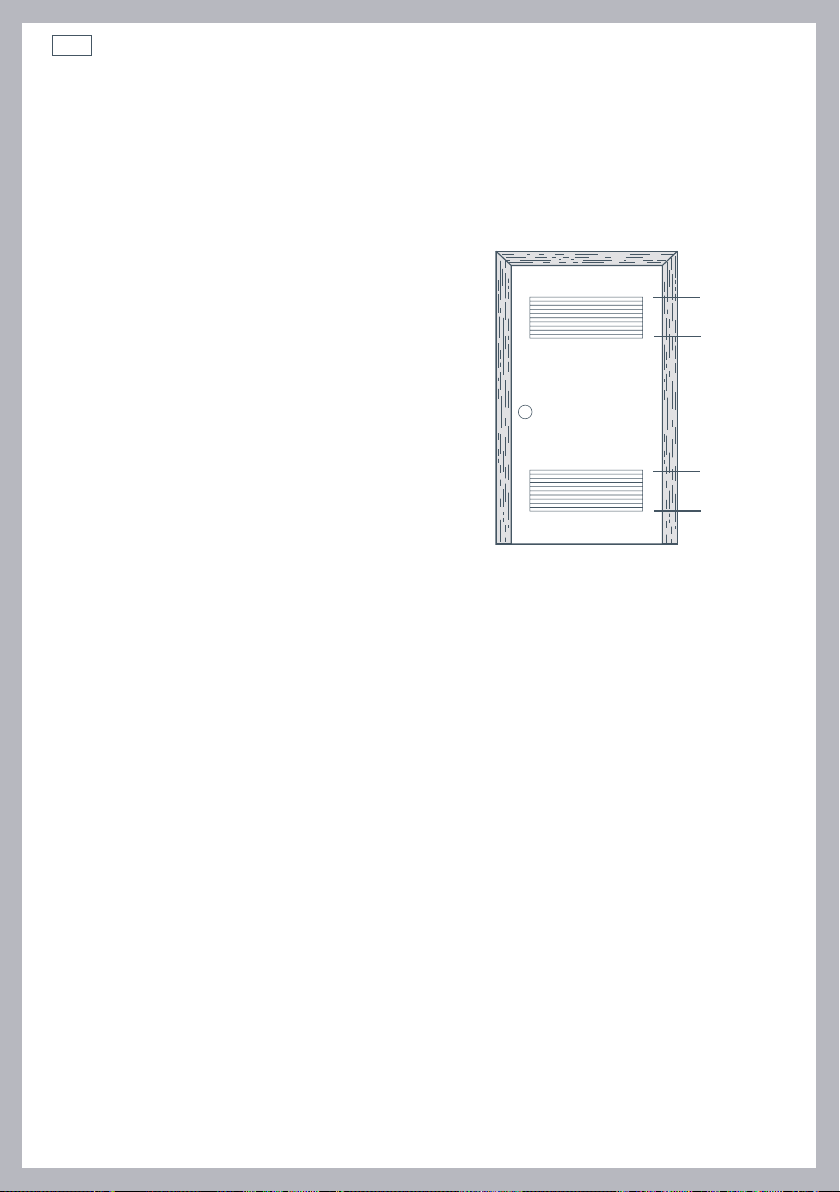

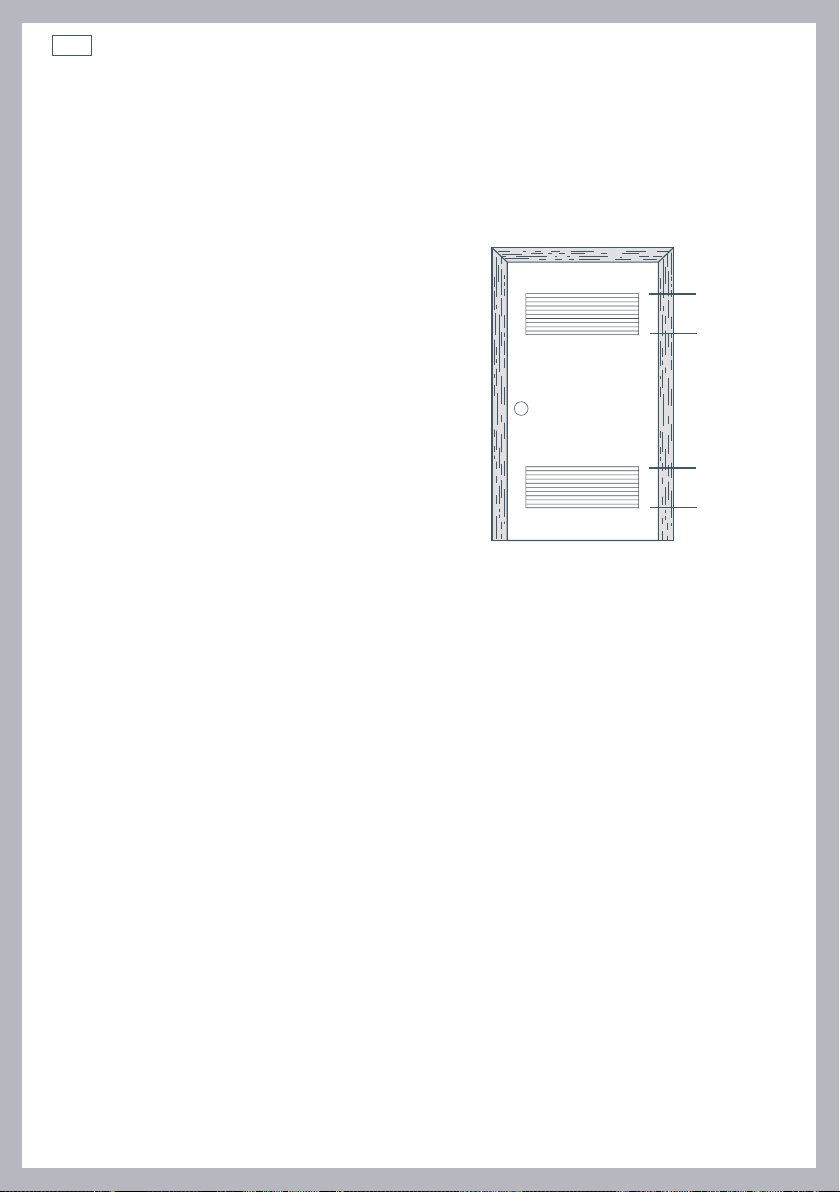

Fig.8 Louvered door Washer & Dryer

60 Sq. In
(388 Sq. cm)

60 Sq. In
(388 Sq. cm)

Caution!

Do not install this appliance in a closet with a solid door.

Mobile home installation

Installation must conform to the STANDARD FOR MOBILE HOMES, ANSI A119.1 and NATIONAL
MOBILE HOME CONSTRUCTION & SAFETY STANDARDS ACT OF 1974 (PL93-383).

EN

Grounding instructions

This appliance must be grounded. In the event of malfunction or break down, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord that has an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.

Specification subject to change without notice.

12

Before you do your rst wash

You owe it to yourself and your AquaSmart™ to have it installed correctly by an authorized
service agent.

Before you start, it is a good idea to go through the following checklist:

1

Has the basepacker been removed?

2

Is the hot hose connected to the hot valve marked ‘H’?

Is the cold hose connected to the cold valve marked ‘C’?

3

Is the drain hose threaded through the ‘U bend’ hose guide

(with no more than ¾” extended) and on to your standpipe?

4

Are the rubber inserts secured into the feet on the base of

your washer and is the washer levelled?

Refer to Installation instructions, pages 6 – 11.

AquaSmart™ water consumption

Load Size Regular High Efficiency*

15.5 lb (7 kg) 20 G (76 L)
11 lb (5 kg) 17 G (64 L)

7 lb (3 kg) 15 G (57 L)
2 lb (1 kg) 13 G (49 L)

*Regular High Efficiency is the default wash cycle for AquaSmart™.
Note: Water consumptions are based on the AquaSmart™ default settings.

AquaSmart™ capacity

AquaSmart™ offers a generous 15.5 lb (7 kg) capacity. The list below outlines what is included in
a 15.5 lb (7 kg) wash load (in accordance with ANSI/AHAM HLW-1-2002).

3 Bed sheets (double)
2 Tablecloths
4 Shirts
6 Bath towels
4 T-shirts
4 Pillow cases
6 Shorts
6 Washcloths
5 Handkerchiefs

We recommend for everyday use that you separate out your bed sheets and wash them on the
specially designed SHEETS cycle.

The rst time you turn your washer on

13

Customizing your AquaSmart™ washer

The first time that you turn your washer on an initial set-up mode will be initiated. This is to
ensure that your AquaSmart™ is customized for your individual needs. The set-up mode will
prompt you to select the language that you would prefer your AquaSmart™ washer to use.

JH:C<A>H=

New Zealand

Using the SCROLL buttons, scroll to the language that you would like your washer to use. Once
the language icon has been highlighted, press SELECT to confirm your choice. Your washer will
now use this language, and the initial set-up prompt will not appear again.

If you wish to change your language choice at any time, you can do this by simply selecting the
LANGUAGE option in the SETTINGS MENU (please refer to page 35).

Australia US Español Canada

English

Canada

Français

EN

WARNING!

Electric Shock Hazard

Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.

Failure to do so can result in death, electric shock, fire or injury to persons.

14

Operating Instructions - Getting started quickly

It is important to sort your clothes, particularly by color, as well as separating out bed sheets and
washing them on the SHEETS cycle. Jeans also need to be washed separately on the JEANS cycle
(refer to page 18 for more details on sorting and loading).
Close bra clasps, do up zippers and check pockets.
Place your clothes directly into the wash basket.

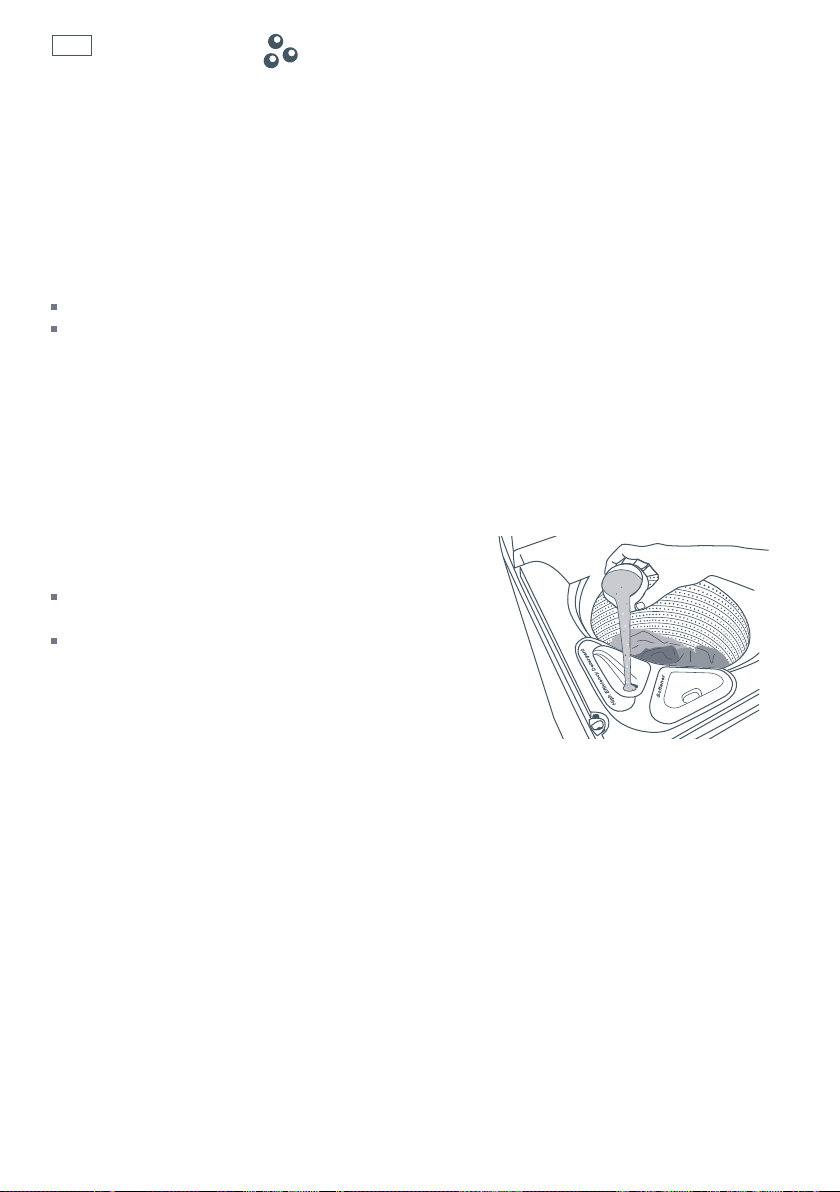

Detergent

Your AquaSmart™ has been designed for use with High Efficiency (HE) detergent. For example
Tide® HE liquid or powder, Wisk® HE liquid or powder.
AquaSmart™ offers a detergent dispenser for your convenience, located on the front, left hand
side of the top deck.
For detergent dose, please follow the manufacturers directions, outlined on the detergent
package.
Pour the detergent down the detergent dispenser.
For more information on detergent, fabric softener or bleach please refer to pages 20 – 22.

1 2 6

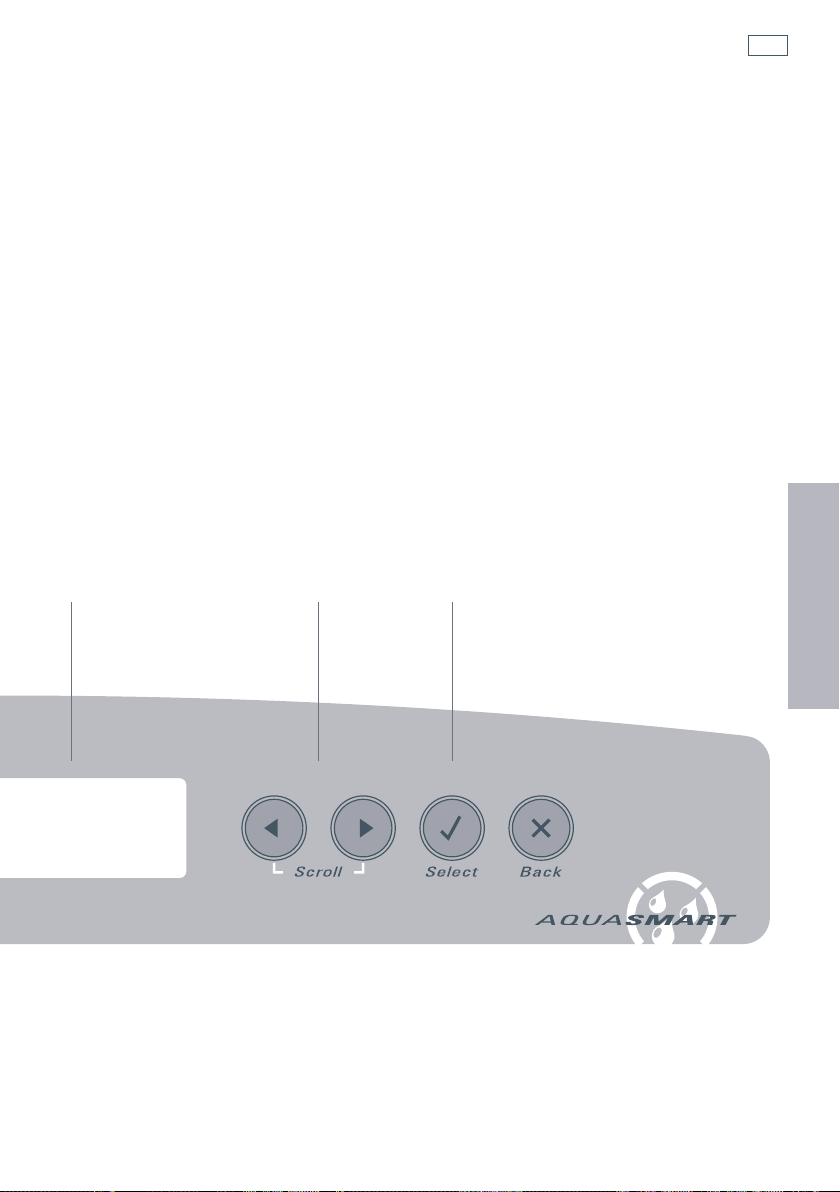

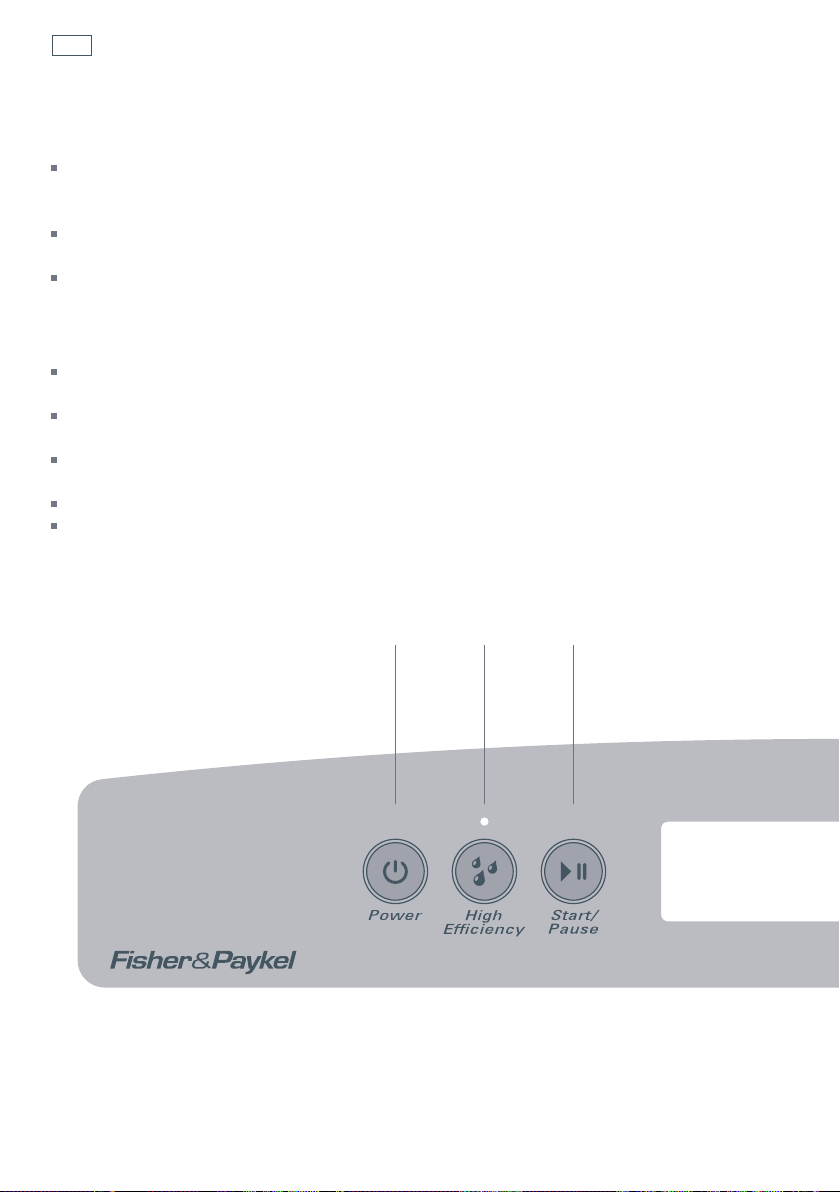

Fig.9 AquaSmart™ control panel

Getting started quickly

15

Easy touch buttons and LCD screen

These buttons require only a gentle touch to activate.

1

Touch POWER to activate your AquaSmart™ washer.

2

HIGH EFFICIENCY – this light tells you when ‘High Efficiency’ mode is recommended, and the

button allows you to switch between High Efficiency and Conventional modes (refer to
page 17).

3

The screen in the middle of the panel will display the wash cycles available (refer to pages

27 – 32).

4

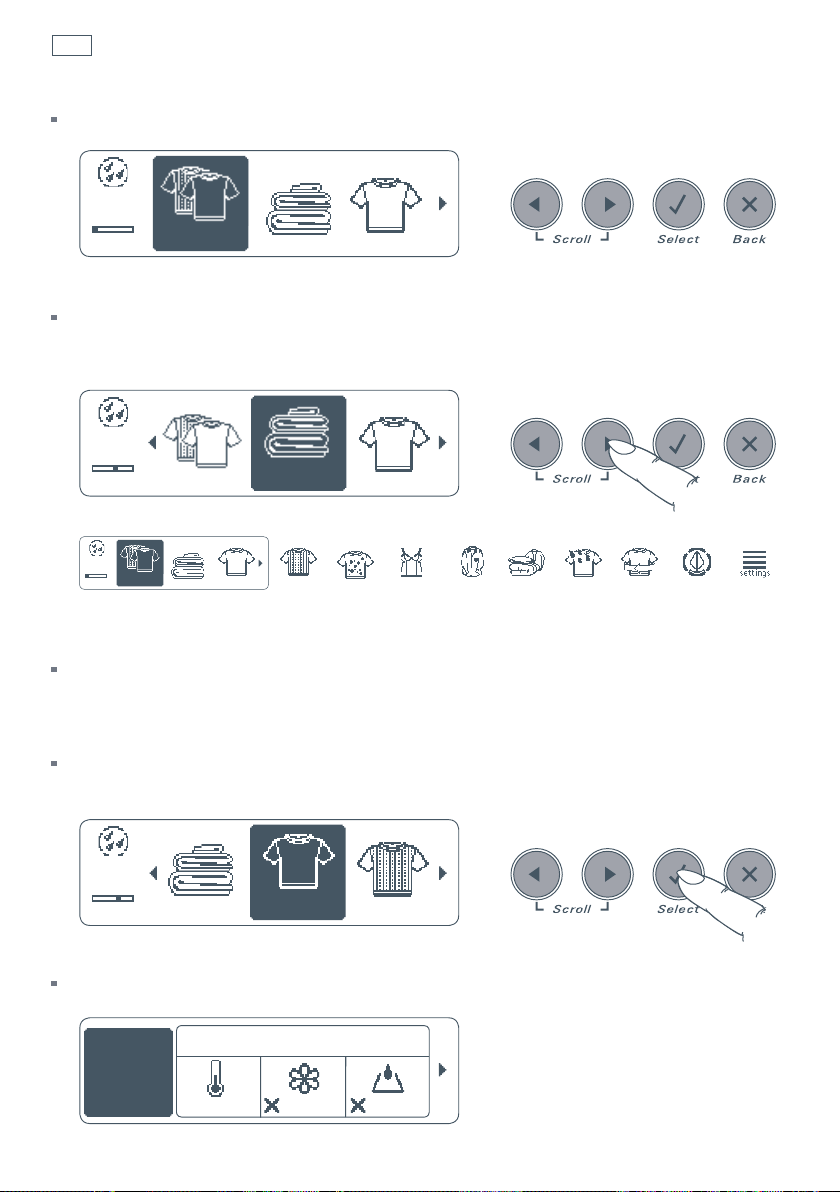

Use the SCROLL buttons to select the wash cycle that best suits your load (refer to page 24).

5

Use the SELECT/TICK button to confirm your selection. (For more information on how to alter

wash options refer to page 25).

6

Touch START – your AquaSmart™ will start to fill with water, and will automatically select the

correct water level and wash action for your load. To pause your AquaSmart™ at any time, simply
touch START/PAUSE.

3 4 5

EN

Important!

Failure to follow the advice in this User Guide may result in damage to your garments, and
your expectations of wash performance may not be met.

16

AquaSmart™ controls

Easy touch controls

These smooth, easy clean buttons require only a gentle touch to activate. To scroll you need to
remove your finger to break contact and touch it again. Once you become accustomed to the
soft touch technology you will find it effortless to operate.

High Efficiency mode

This button activates or deactivates the HIGH EFFICIENCY mode. The light
will be on when High Efficiency is selected (please refer to High Efficiency
mode page 17). To select CONVENTIONAL mode simply press the High
Efficiency mode button and the light will turn off.

The High Efficiency symbol
is active.

Scroll

The SCROLL buttons allow you to scroll between the wash options.

Select

Use the SELECT key to confirm your selected option and the BACK key to
cancel.

will appear on the screen when the mode

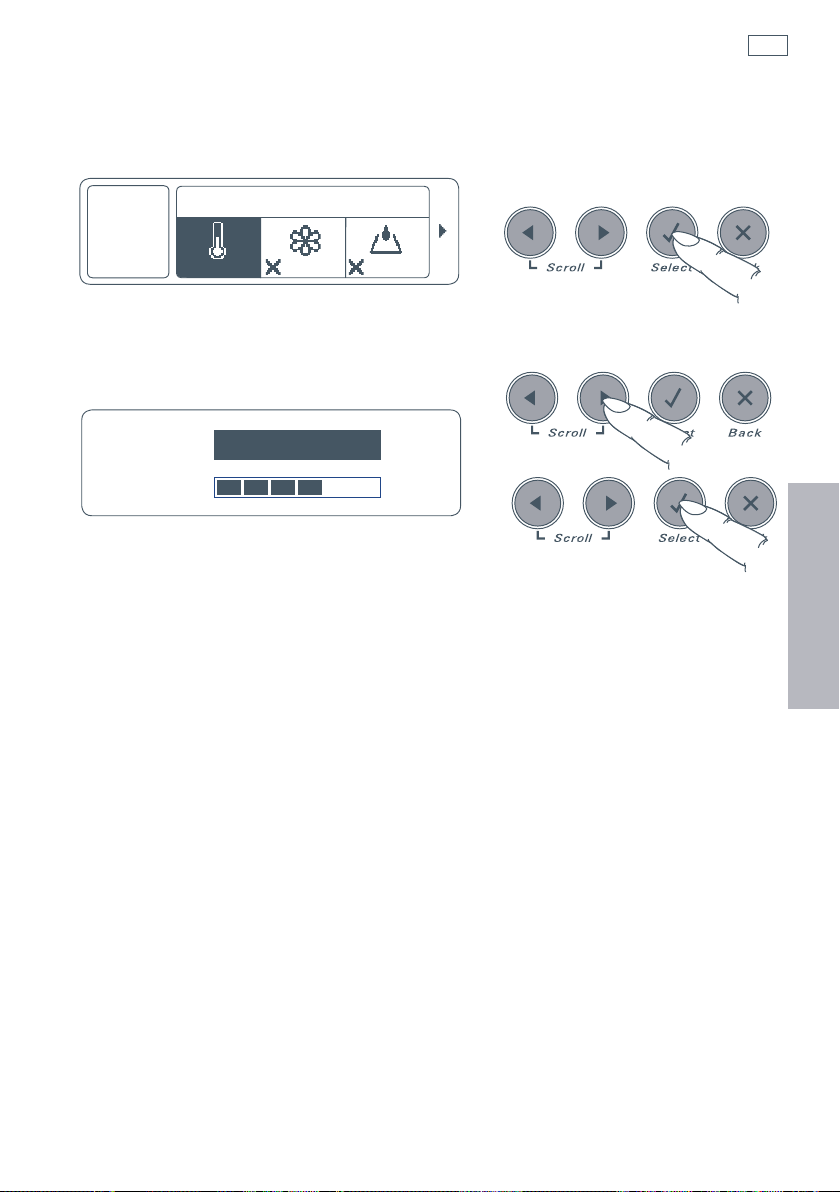

The display screen

The display screen allows you to view the available wash cycles and modify options. It provides
feedback on what your AquaSmart™ washer is doing and how long the wash has to go, to keep
you informed throughout the cycle. The screen will also display messages to help you with the
overall running of your washer.

8=DDH:

L6H=

GZ\jaVg

Time to go

Your AquaSmart™ washer will display how many minutes the wash cycle has to go, so that you
can tell at a glance when your washing will be finished. Once AquaSmart™ has finished the filling
and sensing process, the time to go will be displayed. A progress bar is also displayed and will
move along as the cycle progresses. Please be aware that the flow rate of the water supply may
influence your cycle time.

The unique AquaSmart™ wash

17

The AquaSmart™ washer has two modes of washing, High Efficiency and Conventional. Both
modes start the same way, with a Detergent Activating wash.

Detergent Activating wash

AquaSmart™ fills the basket at the selected water temperature,
with just enough water so the clothes are saturated. This small
amount of sudsy water flows through the clothes, up a specially
designed portal and back onto the clothes in a waterfall effect.
This thoroughly dissolves and activates the detergent.

High Efficiency mode

In the High Efficiency mode the AquaSmart™ then fills with just
enough water to lift the clothes off the low profile agitator so when
it rotates, the clothes gently roll over each other. This wash uses
similar quantities of water to most Front Loaders and so, not only
do you get the benefits of water savings but the higher detergent
concentrations give you optimum soil removal.

Conventional mode

The Conventional mode is the immersion wash all Top Loader users
are familiar with. After the Detergent Activating wash the AquaSmart™
fills with cooler water until the clothes are submerged, and gently
turns the clothes over. We recommend this mode when the dilution
effect of water can solve or prevent common wash problems. For
example, when dye or color run can be a problem, or when washing
sandy towels. The SHEETS cycle uses the Conventional mode.

Fig.10 Detergent Activating wash

Fig.11 High Efficiency wash

Fig.12 Conventional wash

EN

Some cycles can be used in both modes, whilst others work in only one.

High Efficiency Conventional

Regular
Sheets –
Whites
Colors –
Heavy Duty
Delicate
Easy Iron –
Bulky –

These two wash modes mean that your AquaSmart™ washer gives you the best of both worlds,
to suit any laundry situation.

–

18

Sorting and loading

Fully automatic water level

You may notice that your AquaSmart™ clothes washer behaves differently from your previous washer.

Your AquaSmart™, like all High Efficiency washers, has a fully automatic water level. This means
that, like Front Loaders, the selection of the water level is left entirely up to the washer. This
ensures optimum wash performance and water savings.

Should you wish to use more water, simply select a Conventional cycle (refer to Conventional
mode page 17).

Sorting and loading explained

You have bought a High Efficiency washer, like Front Loaders your AquaSmart™ uses much less
water and energy than traditional Top Loading clothes washers. It is important to sort your wash
load to ensure optimum wash performance.

BED SHEETS – Separate out bed sheets and comforter covers and use the SHEETS cycle
which has been especially designed for these items. Ensure that comforter covers are
buttoned or zipped up. To get the best possible wash for bed sheets, drop these items
directly into the washer, do not wrap them around the low profile agitator.

COLORED ITEMS – Dye or color run can be a problem with High Efficiency washers, so
separate highly colored garments especially when they are new and choose the COLORS
cycle. Most dye transfer occurs when clothes are left too long in the washer at the
completion of the cycle so try not to leave your colored clothes lingering in the washer.

BULKY ITEMS – Comforters, sleeping bags, ski jackets , blankets and throws are all items
which tend to behave unusually in a clothes washer. The lighter ones tend to float, while
a large blanket can get very heavy and make spinning difficult. Your AquaSmart™ has
specific BULKY cycles designed to take care of these washing challenges.

ITEMS THAT WRINKLE – When you are concerned about creasing or wrinkling we
recommend you use the EASY IRON cycle. Alternatively select one of the Conventional
cycles. The extra water used by these cycles will help to reduce wrinkling. Reducing the
spin speed of the wash may also help (refer to page 26).

JEANS – These heavy items can be responsible for damaging other items in the wash
and require their own specific wash action to get clean. We feel strongly that they should
be washed separately, so we created a special JEANS cycle which can be found in the
Lifestyle menu. Select LIFESTYLE, SPECIAL CARE, JEANS.

SOIL – Very dirty, sandy, or linty loads are best washed separately to prevent transfer
onto other garments. It may be that you have new towels that create lots of lint or very
sandy beach gear. We suggest using the Conventional mode in this circumstance, eg. on
a heavy cycle.

DELICATES – To take extra care of delicate items, we suggest using the DELICATE , or
HANDWASH cycles. For HANDWASH select LIFESTYLE, SPECIAL CARE, HANDWASH.

Sorting

Care Labels

Care labels will tell you about the fabric of the
garment and how it should be washed.

Soil

Sort clothes according to the type and amount
of soil. Some soils suit warmer washes eg. oily
soils, while others are best washed in cold water
eg. mud, blood.

Color

Sort white fabrics from colored fabrics.

Lint

Wash lint givers and lint collectors separately.
Where possible, turn lint collectors inside out.

Sorting and loading

Hand Wash

Do not bleach

Do not tumble dry

Medium iron

Dryclean

Examples of care label symbols.

19

EN

Before you load

Check pockets

Loose items can damage both your AquaSmart™
and your clothes.

Close zippers, hooks and eyes

This is to make sure that these items do not snag on other clothes. We recommend putting
lingerie in a lingerie bag prior to washing for best care of these items.

Mend any torn garments or loose buttons

Tears or holes may become larger during washing. Remove any loose bra wires as they can
damage your washing machine and/or dryer.

Pretreat any stains

Use an appropriate surface to apply treatments. Please do not use the lid of the washer as
damage may occur.

For a balanced load

Place items directly into the basket.
Do not wrap large items, such as bed sheets, around the low profile agitator. Drop them straight
into the washer.
A mixture of small and large items will wash the best (remember to separate out bed sheets and
select the SHEETS cycle for these).
When washing a single large item, add a large beach towel to the wash to ensure that the load
is balanced for an effective spin.

Lint Givers Lint Collectors

Towels Synthetics
Chenille Corduroy
Nappies Polyester cottons

Socks

Important!

Please do not, under any circumstances, attempt to wash an electric blanket in your AquaSmart™
washer. We do not recommend washing curtains in your washer. Sunlight makes them brittle so
they may disintegrate during washing.

20

Detergent

Choosing the right detergent

Your AquaSmart™ is a High Efficiency clothes washer and needs Low Sudsing Detergent to
prevent oversudsing problems. This is the same type of detergent Front Loaders use and is
labelled “High Efficiency” (HE).

We recommend the use of liquid detergent for best results. If you wish to use powdered
detergent, dissolve in water first before adding to the dispenser.

There are both liquid and powdered Low Sudsing detergents. Some examples are:

Tide® HE liquid or powder
Wisk® HE liquid or powder

When washing woollens use a wool detergent but use it sparingly as these are usually very high
foaming. Do not use soap flakes or soap powders.

How much detergent?

Use the instructions on the back of the detergent packet as a guide to the correct amount to use.
The correct amount of detergent will vary depending on the amount of soil in your clothes and
the size of your load. Jeans and work clothes may need more and towels less.

As a starting point:

Use one cap full for a large load and reduce or increase
the dosage as required.
For a small load (eg. 4 – 5 t-shirts) use ¼ cap.

If you have oversudsing problems reduce your dosage.
If your clothes are not clean enough, try using a bit more.

Where do I put my detergent?

Pour your detergent into the detergent dispenser,
located on the left side of the washer.
We recommend that you measure your detergent first.
If you use powdered detergent, we recommend that you
dissolve it in water before adding it to the dispenser.

You will notice that most of the detergent placed in the dispenser will fall into the machine. It
will remain in an area separated from your clothes until the machine begins to fill. As the washer
fills, the dispenser will be flushed of any residue. The detergent is then mixed with water, and
specially designed ribs at the bottom of the outer tub help to rapidly dissolve the detergent to
ensure optimum wash performance.

When washing in very cold water or on the quicker cycles (eg. DELICATE) dissolving the
detergent in warm water before pouring it down the dispenser will improve wash performance.

When needed, wipe out the detergent dispenser with a damp cloth.

Fig.13 Adding detergent to
the detergent dispenser

Fabric Softener

21

Choosing the right cycle

If you wish to use fabric softener you will need to select the FABRIC SOFTENER option which will
give you a deep rinse. If Fabric Softener is not selected, the softener will not be dispensed.

1

Select your wash cycle. Using the SCROLL buttons, scroll through the cycle choices until the

desired cycle is highlighted, then press SELECT (refer to page 24 for more information).

2

Scroll through the Wash Options until SOFTENER is highlighted, then touch SELECT.

3

Scroll until Fabric Softener ON is highlighted, touch SELECT to confirm your choice. You will then
have the option to save this choice for future washes when using this wash cycle (refer to page 25).

Adding the fabric softener

Measure the fabric softener out into the cap and pour into
the Fabric Softener Dispenser. It will remain in the top of the
dispenser until the deep rinse when water flushes it into the tub.
Note: If you fill beyond the MAX mark, the overflow will pour
fabric softener into the basket prematurely and contribute to
scrud (refer below).

Fig.14 Adding softener into
the Fabric Softener dispenser

Cleaning the dispenser

The funnel of the fabric softener (the top) clicks off easily. Simply place a finger down the center
and lift. The remaining siphon tube and Fabric Softener well is not removable and needs to be
wiped clean periodically with hot water and an old toothbrush. If the siphon tube looks partially
blocked use a cotton bud to clean.

EN

Scrud

Scrud is the name of the waxy build-up that can occur within any washer when fabric softener
comes into contact with detergent. This build-up is not brought about by a fault in the washer. If
scrud is allowed to build-up in the washer it can result in stains on the clothes or an unpleasant
smell in your washer.

If you wish to use fabric softener we recommend you:

Use it sparingly.
Measure it carefully to ensure you do not fill above the MAX level.
Clean the dispenser as soon as the cycle has finished.
Clean your washer regularly using the CLEAN ME cycle (see pages 32 and 37).

Cold water washing increases the chance of this build-up occurring. We recommend a warm or
hot wash at regular intervals, eg. every 5th wash.

Fig.15 Removing the Fabric Softener funnel

22

Bleach

Choosing the right cycle

Remember to check clothing labels before you begin to ensure that garments are bleach
compatible.

If you wish to use bleach please select the BLEACH option to ON. The bleach will be diluted and
automatically released into the wash at the correct point in the cycle. This ensures maximum
bleach efficiency and optimum clothes care. If the Bleach option is not selected, bleach will not
be dispensed into the wash and will drain safely away.

1

Choose your wash cycle and press SELECT.

2

Scroll through the wash options until BLEACH is highlighted. Press SELECT.

3

Scroll until Bleach ON is highlighted and press SELECT to confirm your choice.

When washing white items, select the WHITES cycle for best performance with bleach. When
washing colors use Color-safe bleach and select the COLORS cycle .

Note: For best clothes care the Bulky and Lifestyle cycles do not offer a bleach dispensing option.

How much bleach do I use and where do I put it?

Liquid Bleach

Your AquaSmart™ washer requires less bleach than traditional
top loading washers, no more than 100 ml. Pour bleach into a
measuring cup with a spout, then carefully pour this into the
bleach dispenser ensuring that it does not fill higher than the
MAX level. Adjust the amount of bleach you use to the load size,
eg. for smaller loads use less bleach.

Fig.16 Adding bleach into
the bleach dispenser

Important!

Do not fill the bleach dispenser beyond the MAX fill mark.
Do not pour undiluted, liquid chlorine bleach directly onto clothes.
Use only liquid chlorine bleach in this dispenser.
To avoid splashing and spills we recommend the use of a cup with a pouring spout.

Note: Both liquid and powdered color-safe bleach can be used in your AquaSmart™ washer.
If you use a powdered detergent, use a powdered color-safe bleach (however add this to the

detergent dispenser NOT the bleach dispenser. Follow the manufacturers instructions).
If you are using liquid detergent, use a liquid color-safe bleach (add the bleach to the bleach
dispenser. Follow the manufacturers instructions).

Failure to follow the instructions above could result in damage to clothing.

AquaSmart™ safety features

23

Auto Drain

Unsupervised clothes washers filled with water can present a drowning hazard to small children.

In order to minimize any risk of this type of accident, your AquaSmart™ has been
pre-programmed to know when this hazard is created, and drain the wash water to a safe level.

If you pause your AquaSmart™ at any time during the wash cycle when there is water in the

basket, the machine will activate the AUTO DRAIN function after 3 minutes. This will drain the
water in the wash basket to an acceptable level, removing any potential hazard.

A warning message will be displayed to warn you prior to AUTO DRAIN being activated, and the

washer will beep as it drains.

If you wish to soak clothing items during the wash process please select the SOAK option. This

will provide you with a two hour soak.

Lid Lock

Your AquaSmart™ washer is able to lock its lid during the wash cycle, to provide extra safety for
you and your family while it is operating.

The Lid Lock symbol
glance if you can open the lid or not.

To unlock the lid at any time press START/PAUSE.

If the lid is left open, your AquaSmart™ washer will be unable to lock the lid, and the cycle will be
halted. The machine will beep and display a message on screen to alert you. If this occurs, ensure
that the lid is closed and touch START/PAUSE.

appears in the top right-hand corner of the screen, letting you know at a

EN

Important!

Do not put anything down the Lid Lock slot in the top deck.
Do not try to disable the Lid Lock.

24

Choosing your wash cycle

When you turn your AquaSmart™ washer on, the main wash cycles will be displayed.

8=DDH:

L6H=

GZ\jaVg

To view all 10 wash cycles, the Lifestyle cycles and menu options, use the right arrow button to
scroll along the menu (use the left arrow button to scroll back along the menu).

8=DDH:

L6H=

H]ZZih

8=DDH:

L6H=

GZ\jaVg

Bed

sheets

Heavy

ColorsWhites Bulky Lifestyle MenuRinse

duty

Delicate Easy

iron

and spin

Spin

To see the wash cycles explained in more detail please refer to pages 27 – 32.

To select a wash cycle

To select a wash cycle scroll along until your selection is highlighted then touch the SELECT
button. This will confirm your selection.

8=DDH:

L6H=

L]^iZh

The wash cycle options will then be displayed for your chosen cycle.

GZ\jaVg

HI6GI4

L6GB" 7A:68=

HD;I:C:G

Changing the wash cycle options

1

Select the wash option you wish to modify, highlight it by touching the SELECT button.

GZ\jaVglVh]

HI6GI4

25

EN

L6GB 7A:68=

2

Scroll to the appropriate setting and press SELECT. This will highlight your choice to show you

that it has been selected.

Eg. temperature selection

8=DDH:

I:BE

3

You will then be given the option whether to save this modified option for future washes or to

just use it for this one. If you select Save for Future Washes, the washer will save the changed
wash option for that cycle only. (Please note: This option is not available for the Delay Start or
Drip Dry selections).

4

Press SELECT to select.

5

You will then return to the main wash options screen.

6

Touch START/PAUSE or SELECT to begin the wash.

Note: If you wish to change any of the wash options while your AquaSmart™ is running please
press START/PAUSE then change the required option.

L6GB

8DA9:G L6GB:G

HD;I:C:G

26

Changing the wash cycle options

Wash cycle options

To alter any of the Wash Options explained below, please refer to page 25 for instructions on
changing the Wash Cycle Options.

Temperature

AquaSmart™ offers six wash temperatures (for the first phase of the two-part wash system).

Cold Cold+ Warm/Cold Warm Warm/Hot Hot

Incoming water

from faucet

Note: Some temperatures are not available on some cycles for best clothes care (e.g
DELICATE cycle).

Cold+ (Controlled Cold)

The Cold+ option helps to keep your cold water at the optimum temperature of 68°F
(20°C) for the most effective wash possible in cold water.

Hint: If a hot wash is required, where both phases of the wash system are hot, select
SHEETS cycle, and “hot” temperature.

Fabric Softener

If you wish to use fabric softener please select the FABRIC SOFTENER option to
automatically dispense fabric softener at the correct time.

Bleach

If you wish to use liquid bleach, please select the BLEACH option to automatically
dispense bleach into the wash.

Spin Speed

Your AquaSmart™ washer offers three spin speeds: Fast (1000 rpm), Medium (700 rpm)
and Slow (300 rpm), plus an additional No Spin option.

Delay Start

This option delays the start of the wash from 15 minutes to 18 hours. We suggest that
you avoid using Delay Start for damp, non-colorfast items.

68°F

(20°C)

91°F

(33°C)

102°F

(39°C)

115°F

(46°C)

140°F

(60°C)

Drip Dry

Drip Dry alerts you when it is time to remove drip-dry garments before the final spin.
Touch START/PAUSE to continue the cycle.

Soak

The Soak option provides a 2 hour soak during the middle of the wash phase. To exit
Soak at any time simply press the BACK button.

Wash cycles explained

Spin

Fast

(1000 rpm)

Fast

(1000 rpm)

Fast

(1000 rpm)

Fast

(1000 rpm)

Fast

Fast

(1000 rpm)

Fast

(1000 rpm)

(1000 rpm)

Wash cycles

Slow

Slow

(300 rpm)

(300 rpm)

Slow

(300 rpm)

27

EN

Slow

(300 rpm)

Rinse

Sequence

Wash Time Wash Action Wash Temp

(shower)

Aqua Rinse

Warm

Efficiency

Regular High

12 – 15 mins

(shower)

Aqua Rinse

Warm Spray/Deep

Warm/Hot

Bed Sheets

Efficiency

Regular High

Conventional

15 – 17 mins

Warm/Hot Spray/Deep

Regular

Conventional

12 – 15 mins

(shower)

Aqua Rinse

Cold Spray/Deep

Warm

Regular

HE

Heavy Duty

Conventional

15 mins

12 – 15 mins

Warm Spray/Deep

Heavy Duty

Conventional

15 mins

(shower)

Aqua Rinse

Conventional

Warm Double Deep

Bulky

Conventional

6 mins + soak

Warm/Cold

Warm/Cold Spray/Deep

Delicate

Efficiency

Delicate High

Conventional

6 mins

Warm/Cold Spray/Deep

Regular

HE Mode ON (default) – For normally soiled

everyday loads, eg. towels, t-shirts, shorts, shirts.

HE Mode ON – Unavailable. n/a n/a n/a n/a n/a

HE Mode OFF – Unavailable. n/a n/a n/a n/a n/a

Regular

HE Mode OFF (default) – Recommended for bed

sheets, tablecloths, comforter covers.

Sheets

HE Mode OFF (default) – For washing white

garments. Additional water used will help to keep

HE Mode ON – Cycle for washing white garments. 12 – 15 mins

whites looking whiter.

Whites

HE Mode ON – Unavailable. n/a n/a n/a n/a n/a

HE Mode OFF (default) – For washing colored items

that may release dye.

Colors

HE Mode OFF – For heavily soiled durable garments

HE Mode ON (default) – For heavily soiled items, eg.

when using more water would be an advantage.

tea towels, sports gear, children’s clothes.

Duty

Heavy

HE Mode ON – For delicate lightly soiled clothes. 6 mins

HE Mode OFF (default) – For washing your delicates

in more water.

Delicate

HE Mode ON – Unavailable. n/a n/a n/a n/a n/a

HE Mode OFF (default) – For minimizing wrinkling. 12 mins

HE Mode ON – Unavailable. n/a n/a n/a n/a n/a

Easy Iron

HE Mode OFF (default) – Recommended cycle for

washing bulky items.

Bulky

Note: HE = High Efficiency.

28

Wash cycles

Specific bulky wash options

Spin

Fast

(1000 rpm)

Fast

(1000 rpm)

Fast

(1000 rpm),

or as selected.

Rinse

Sequence

Wash Time Wash Action Wash Temp

Aqua Rinse

None None None

(Shower)

None None None Spray/Deep

None None None None

The BULKY cycle takes special care of bulky items. These items wash most effectively when they can move freely. Ensure that there is sufficient

room in the basket for the load to move during the wash.

Some bulky items may float during the wash (eg. comforters and sleeping bags). Ensure that bulky items are pushed as far down into the

basket as possible prior to spin (the washer will alert you when to do this). To continue the cycle simply touch START/PAUSE.

Please Note: we recommend that you do not wash woollen comforter inners,

or any other item marked “dryclean only” in your AquaSmart™ washer.

This allows you to select a Spin only cycle, letting

more water for those situations that require it.

and Spin

you customize the spin speed to suit your needs.

Spin Only

Note: HE = High Efficiency.

Note: if you wish to change any of the wash options while your AquaSmart™ is running touch START/PAUSE then select the required option.

HE Mode OFF – A Rinse and Spin only cycle, using

HE Mode ON – This cycle allows you to select a

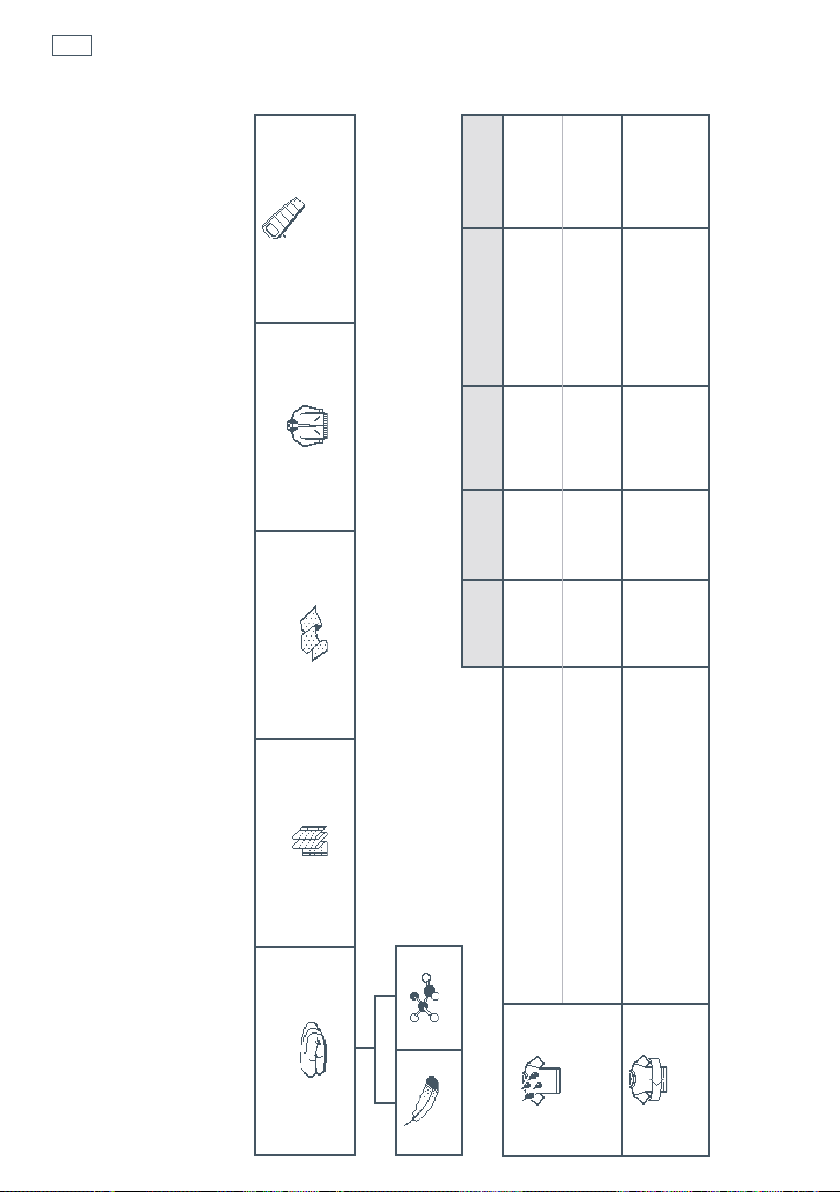

Comforter Blanket Throw Jacket Sleeping Bag

Feather Synthetic

Note: When washing a single bulky item add a large beach towel to the wash, to ensure the load is balanced for an effective spin.

Once you have selected the BULKY cycle, you will be given a request for more information about the bulky item you wish to wash (see below).

Your AquaSmart™ will then select the optimum wash action for your item.

water efficient Rinse and Spin only.

Rinse
