TOP LOAD WASHING MACHINE
WL8058G1, WL9058G1, WL1064G1, WL1064P1, WL1264P1 models
INSTALLATION GUIDE
NZ AU
SAFETY AND WARNINGS
!
WARNING!
Electrical Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• If you are using an extension cord or
a portable electrical outlet device (eg
multi-socket outlet box), ensure that it is
positioned so that it does not come into
contact with water or moisture.
READ AND SAVE THIS GUIDE
When using your clothes washer, follow basic precautions, including thefollowing:
General
z
This product has been designed for personal, family or household use. This product is
not designed for any commercial use. Any commercial use will terminate this products
manufacturer’s warranty.
z
A damaged power cord must be replaced by a Fisher&Paykel trained and supported
service technician or similarly qualified person in order to avoid a hazard. Do not use
the appliance until it has been repaired to avoid a risk of electric shock.
z
Do not operate this machine if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher&Paykel trained and supported service technician.
z
This clothes washer is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they are supervised or given instructions on how to use the
washerby someone responsible for their safety.
z
Keep children away from the washer while it is in operation.
z
Supervise children to ensure they do not play with the washer or climb inside thedrum.
z
The washer should only be used for washing and rinsing of textiles where this
isindicated on the care label.
z
Do not add petrol, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapours that could ignite or explode.
z
Do not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.
z
The lid will be locked when Start/Pause is pressed at the start of the cycle for safety
reasons. To unlock the lid and open it during the cycle (not recommended), press Start/
Pause. Never force the lid open.
z
Do not touch or operate the machine with wet hands or with bare-feet.
z
Ensure the installation provides accessibility to the plug or incorporate a switch in the
fixed wiring in accordance with the wiring rules to allow disconnection of the appliance
from the supply after installation.
z
Read and follow the detergent manufacturers’ instructions carefully. Instructions on
how to use the detergent will be clearly indicated on the pack. Remember to store your
detergents out of the reach of children.
MODEL CODE MAX CAPACITY* (KG)
WL8058G1 8
WL9058G1 9
WL1064G1, WL1064P1 10
WL1264P1 12
*Capacity refers to the maximum dry weight of items the washer can wash at any one time.
z
Do not overload your washing machine beyond its rated capacity.
z
Do not wash an electric blanket in your washer unless the care label specifically states
it is safe to do so.
z
Do not wash curtains in this washer, as sunlight makes them brittle and they may
disintegrate during washing.
z
The only user-removable parts of the washer are the inlet hose(s), the dispenser funnels
(tops) and lint filters. No other parts are designed to be removed by anyone other than
a Fisher&Paykel trained and supported service technician.
Installation
z
For guidance on how to install your product, please refer to installation instructions
contained in this document.
Water supply requirements:
z
Inlet water static pressure: Max. 1MPa (145psi), 50kPa (7.3psi)
z
Inlet water flow rate at tap: Min. 8 litres /min.
z
A pressure-reducing valve must be installed if pressure is higher than 1MPa.
z
For optimum wash performance check the supply pressure is within the
recommendedrange.
z
New hose sets provided with the washer should be used to connect the washer to the
water mains. Old hose sets should not be re-used.
z
We recommend the inlet hose(s) are changed every 5 years. WARNING: Failure to do so
may result in a flood and damage to property.
z
The hot water temperature should not exceed 65°C and the cold water temperature
not exceed35°C. Temperatures above these may cause the machine to fault or cause
damage to the machine.
z
Install the machine on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpet, rugs).
Disposal
z
When disposing of the washer, it is recommended that the lid is removed to
avoidchildren getting trapped inside, and that the electrical cable is cut off close to
thewasher.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
3

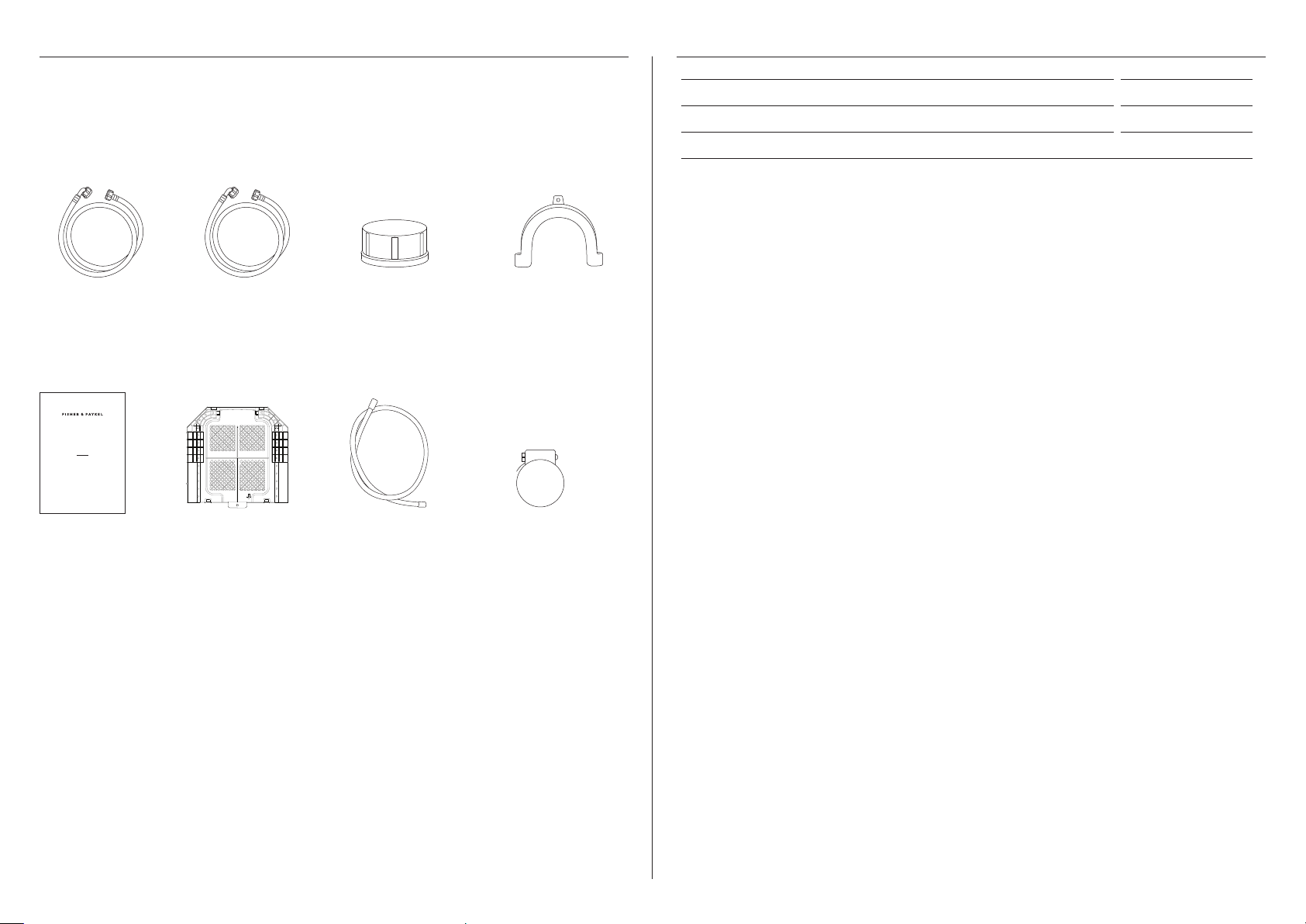

SUPPLIED PARTS
z
Keep all packing materials until the unit has been inspected.
z
Inspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
z
Fisher & Paykel is not responsible for shipping damage.
SPARE PARTS
SPARE PARTS* PART NO.
Hose(s) inlet long (1.5m) 422680P
Hose(s) inlet large bore 426123P
* Available from your Fisher&Paykel dealer or a Fisher&Paykel trained and supported service technician
Inlet hose cold (1) Inlet valve cap (1) Drain hose guide (1)
FRONT LOADER
WASHING MACHINE
USER GUIDE
User guide (1)
Inlet hose hot (1)
Bottom plate (1) Drain hose (1) Drain clamp (1)
4

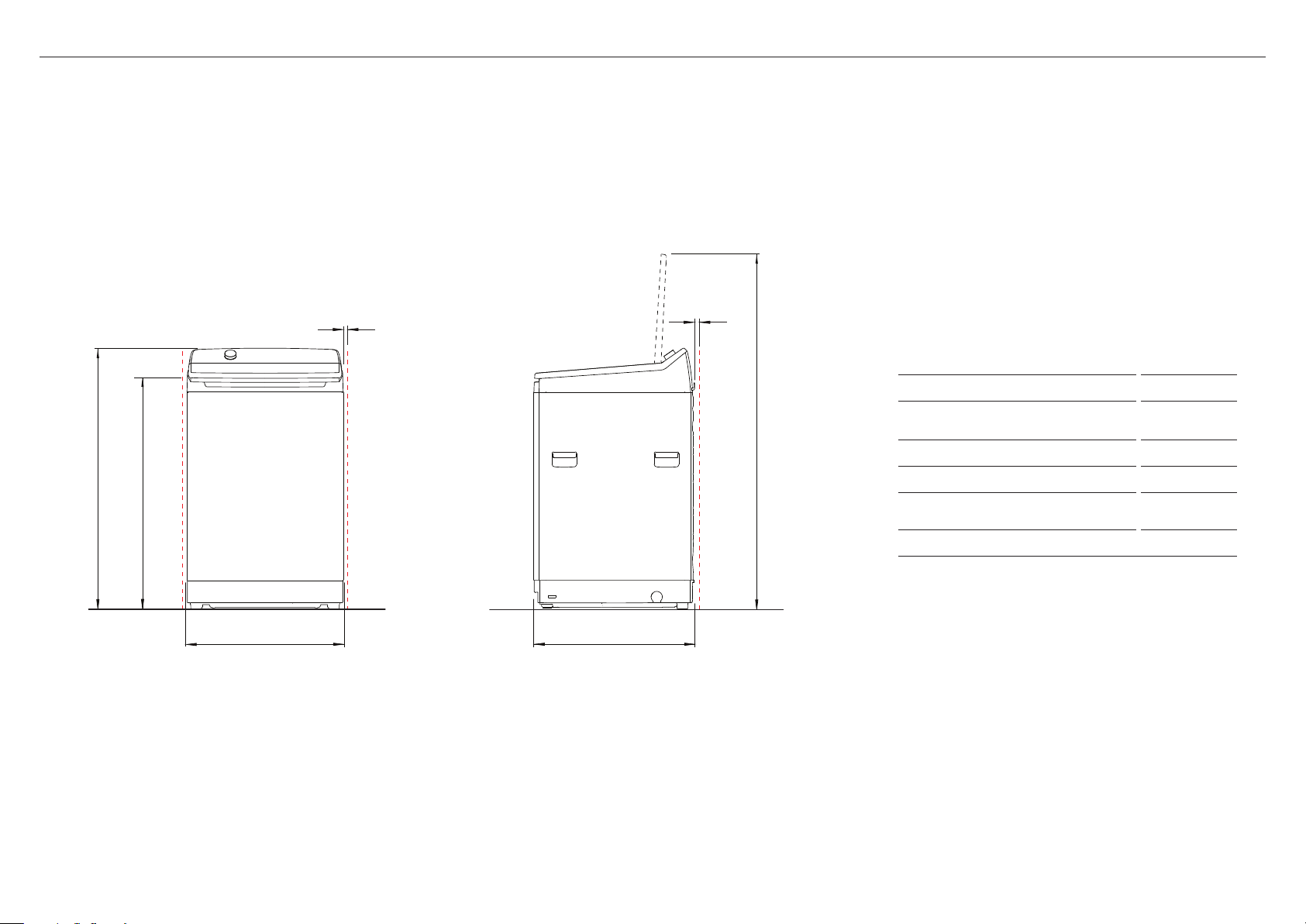

WL8058G1 & WL9058G1 models
D
A
PRODUCT DIMENSIONS
E
PRODUCT DIMENSIONS MM
A Overall height of product (to
highest point on lid)
B Overall width 580
C Overall depth* 600
D Height of product lid closed
(to highest point of console)
E Height of product lid open 1380 - 1400
* Exact height is dependent on foot adjustment
995 – 975
1020 - 1040
B C
FRONT PROFILE
Actual product dimensions may vary by ± 2 mm.
5

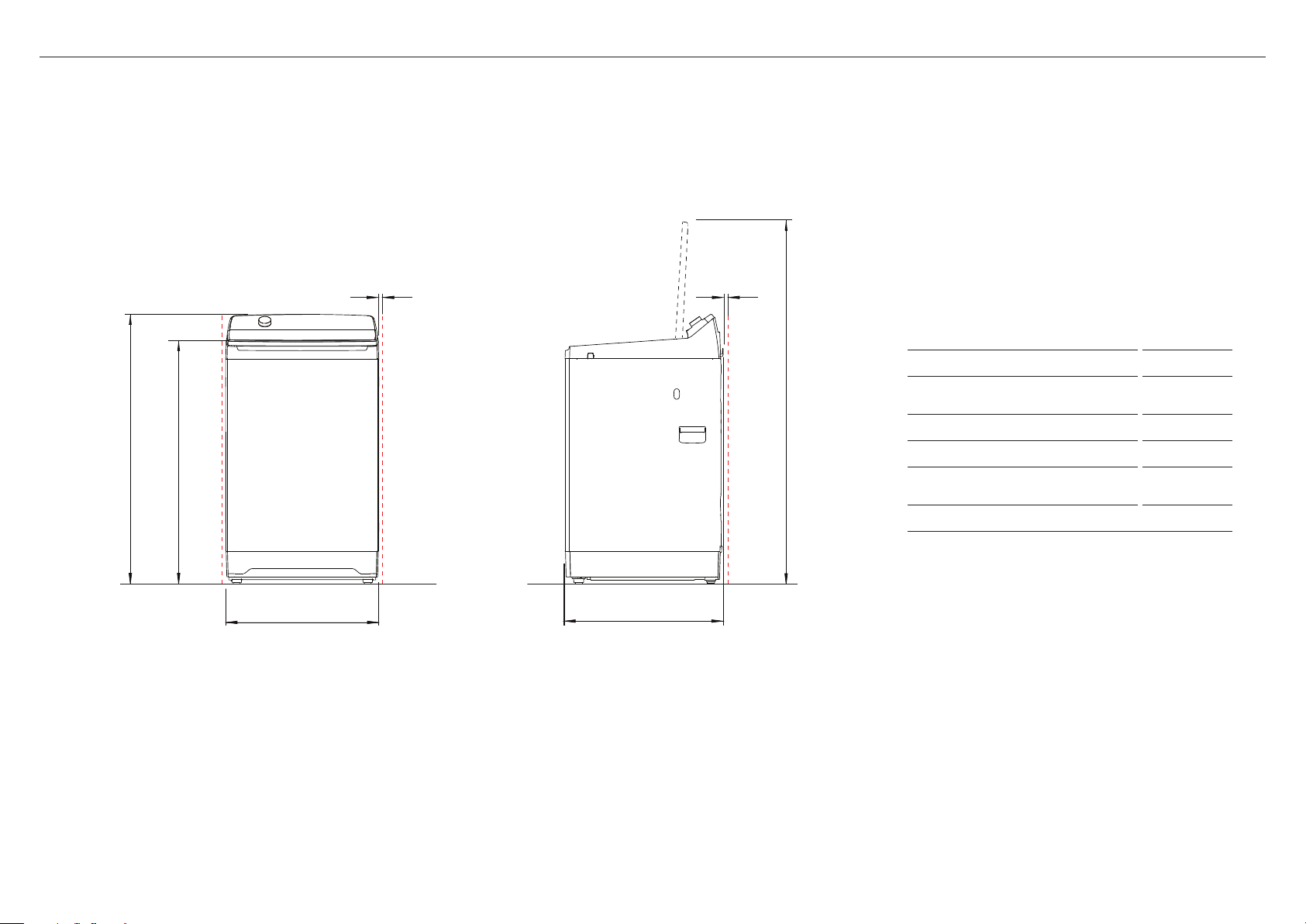

WL1064G1, WL1064P1 & WL1264P1 models
D
A
PRODUCT DIMENSIONS
E
PRODUCT DIMENSIONS MM
A Overall height of product (to
highest point on lid)
B Overall width 640
C Overall depth* 650
D Height of product lid closed (to
highest point on console)
E Height of product lid open 1500 - 1520
* Exact height is dependent on foot adjustment
1025 – 1045
1085 - 1105
Actual product dimensions may vary by ± 2 mm.
B C
FRONT PROFILE
6

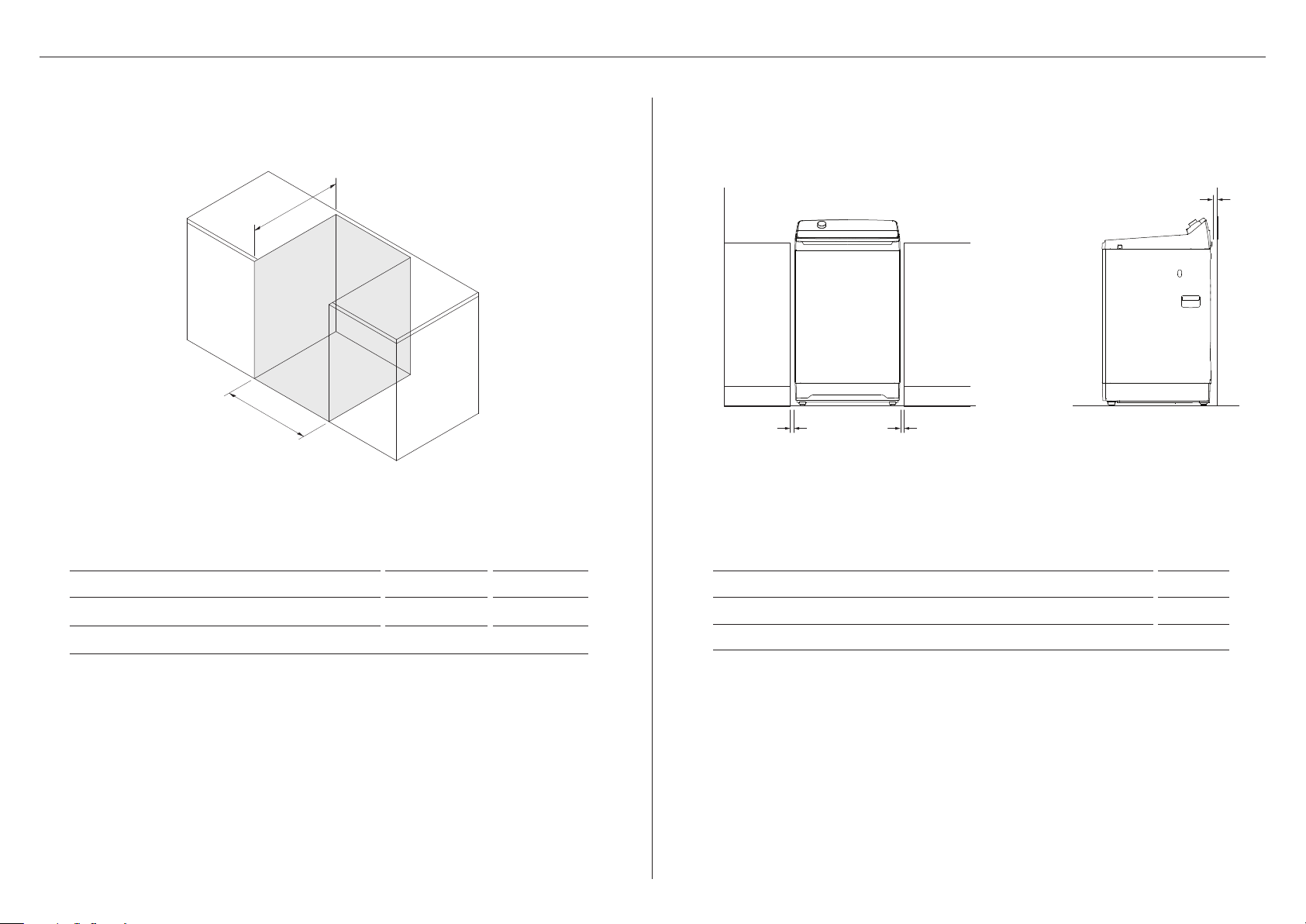

CAVITY & CLEARANCE DIMENSIONS
b
a
ISOMETRIC FRONT PROFILE
CAVITY DIMENSIONS 580 MODELS 640 MODELS
A Minimum cavity width 620 680
B Minimum cavity depth
665 715
b
aa
CLEARANCE DIMENSIONS MM
A Minimum clearance to either side, wall or adjacent product 20
B Minimum gap clearance at the rear of the product 50
Actual dimensions may vary by ± 2 mm.
For paired installation dimensions please visit fisherpaykel.com
7

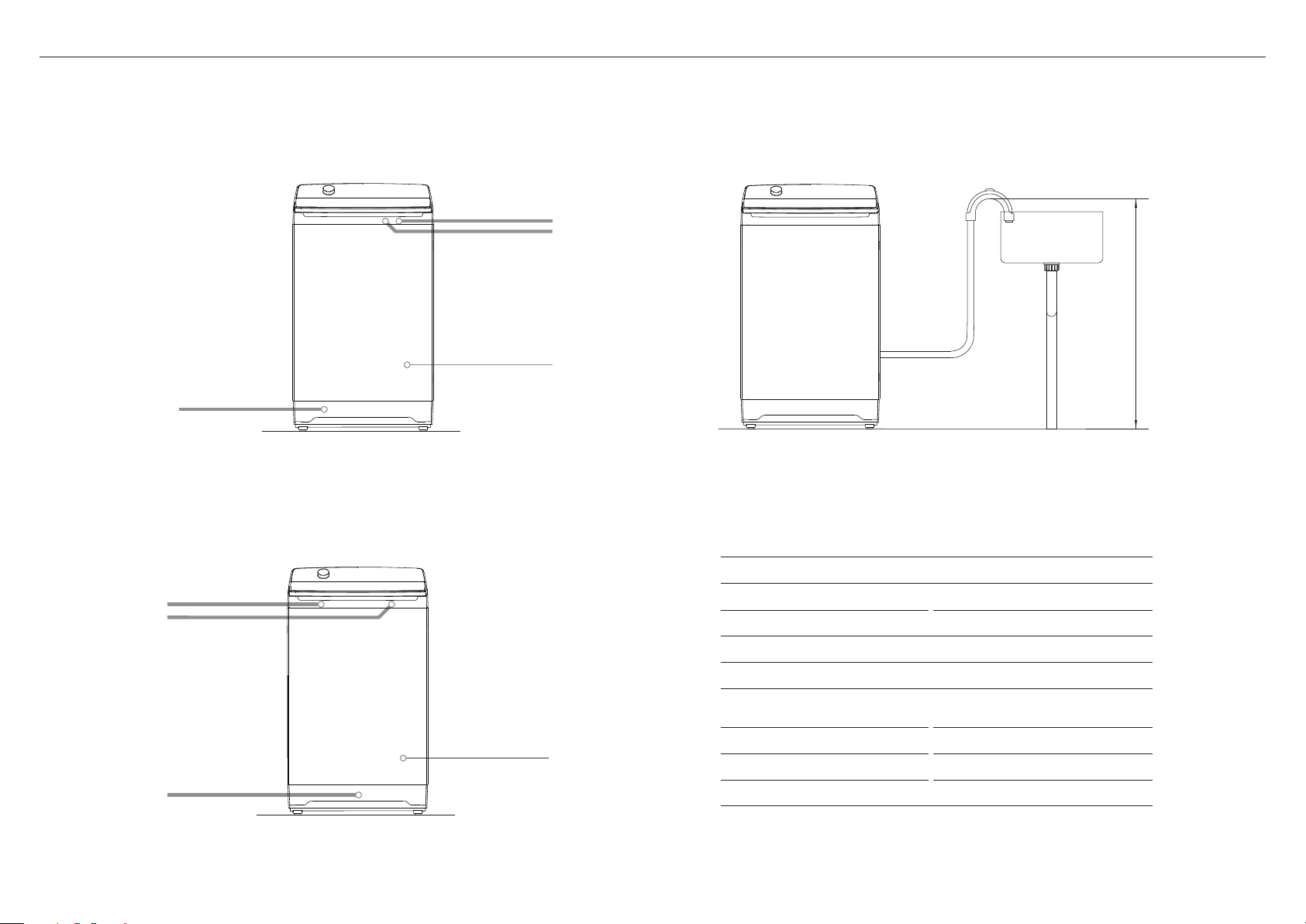

CONNECTION LOCATIONS / LENGTHS
Drain Hose
1500 or 1600mm
(model dependant)
580 models only
ELECTRICAL & PLUMBING CONNECTION
DRAINAGE HEIGHTS
Water Hoses
1500mm
900mm min 1200mm max*
Power Cord
1500mm
* Recommended standpipe height is 1000mm
SPECIFICATIONS
ELECTRICAL
Water Hoses
1500mm
Power Cord
1500mm
Drain Hose
1500 or 1600mm
(model dependant)
640 models only
8
Supply
Service
PLUMBING
Pressure
Flow rate at tap
Cold water temp
Hot water temp
220 – 240 V, 50 Hz
10 amp circuit
max 1 MPa (145psi)
min 50kPa (7.3psi)
Min. 8 litres/minute
max 35°C
max 65°C
UNPACKING WATER SUPPLY
Unpacking
To ensure the best performance from your new washer please follow the instructionsbelow.
Your washer is heavy, we recommend two persons to move and install.
1 Remove the outer packaging.
2 Using two people, lift the washer up and away from the base packer.
Hold the base packer down while lifting the washer up. Move base
packer to side and place the machine gently on floor.
3 Lift the lid and remove the drum packer from the drum.
4 Remove the hoses and accessories.
5 Keep the base packer and drum packer in case they
are required for future transit.
Ensure that the base packer has been removed before operating your machine.
Water supply requirements
If you have an uncontrolled water heating source (eg a wet back or solar heating system) you
should fit a tempering valve. This will ensure the hot water temperature remains within safe
limits. Contact your registered plumber to select and install the tempering valve.
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the washer.
Inlet hose(s)
Failure to adhere to the following guidance may result in
a flood and damage to property. Only use the new hose
set(s) provided with your washer.
1 Connect the straight ends of the inlet hose(s) to the
tap(s), thereare washers fitted in both ends.
2 Connect the elbow ends to the corresponding washer
inlet valves. If present, the hot valve is coloured
orange to make this easier.
3 Tighten the inlet hose(s) ends by hand until the hose
seal just makes contact with the tap-sealing face.
Continue to tighten a further half-turn.
4 Make sure there are no kinks in the hose(s).
5 Turn the tap(s) on and check for leaks. Check for leaks
again after 24 hours.
Cold supply only
If you only have a cold water supply, you must connect the inlet valve cap (blanking cap)
provided with your washer to the hot inlet valve. The cap prevents water leaking out of the hot
valve. This appliance incorporates backflow protection complying with AS3500.1/IEC61770. No
further backflow protection is required for connection to the water supply.

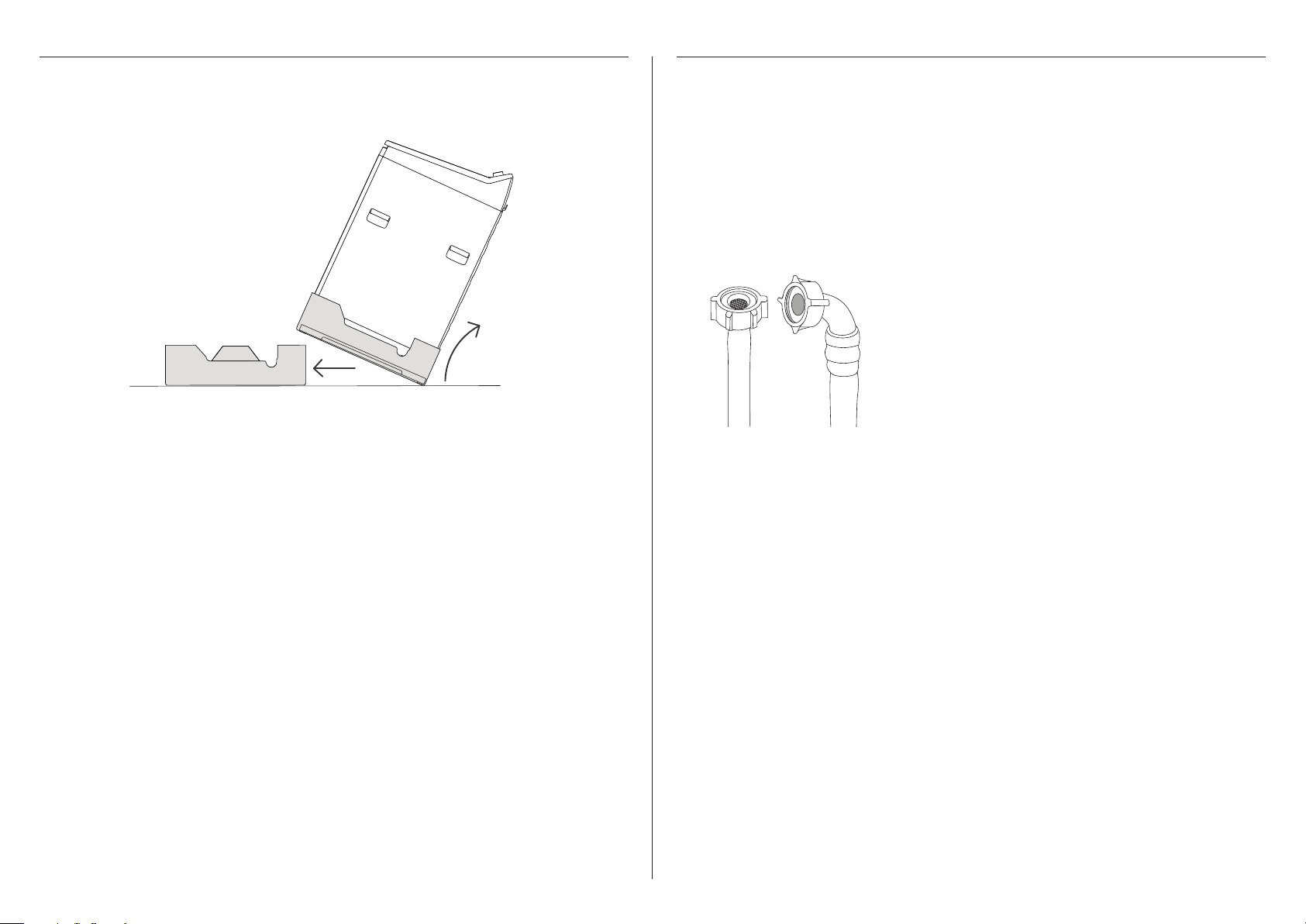

Installing the bottom plate
The bottom plate is installed to reduce noise from the washing machine during use.
1 Tilt the machine backwards against a supported wall.
2 Place the plate onto the bottom of the machine.
3 Clip and screw the bottom plate to the washer.
4 Once the screw is tight and the bottom plate is secure, return the
washer to it’s standing position.
9
DRAINING
LEVELLING THE WASHER
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain. Draining must comply with local by-laws.
Installing Drain hose
1 Remove the cap of the drain hose outlet. Note: A small amount of
water may come out when the cap is removed. This is normal as
there maybe some water left in the pump as the machine is tested
during manufacture.
2 Connect the drain hose to the connection point on the lower right
side of the cabinet rear, and fasten with drain hose clamp (provided).
Place the drain hose in a tub or standpipe

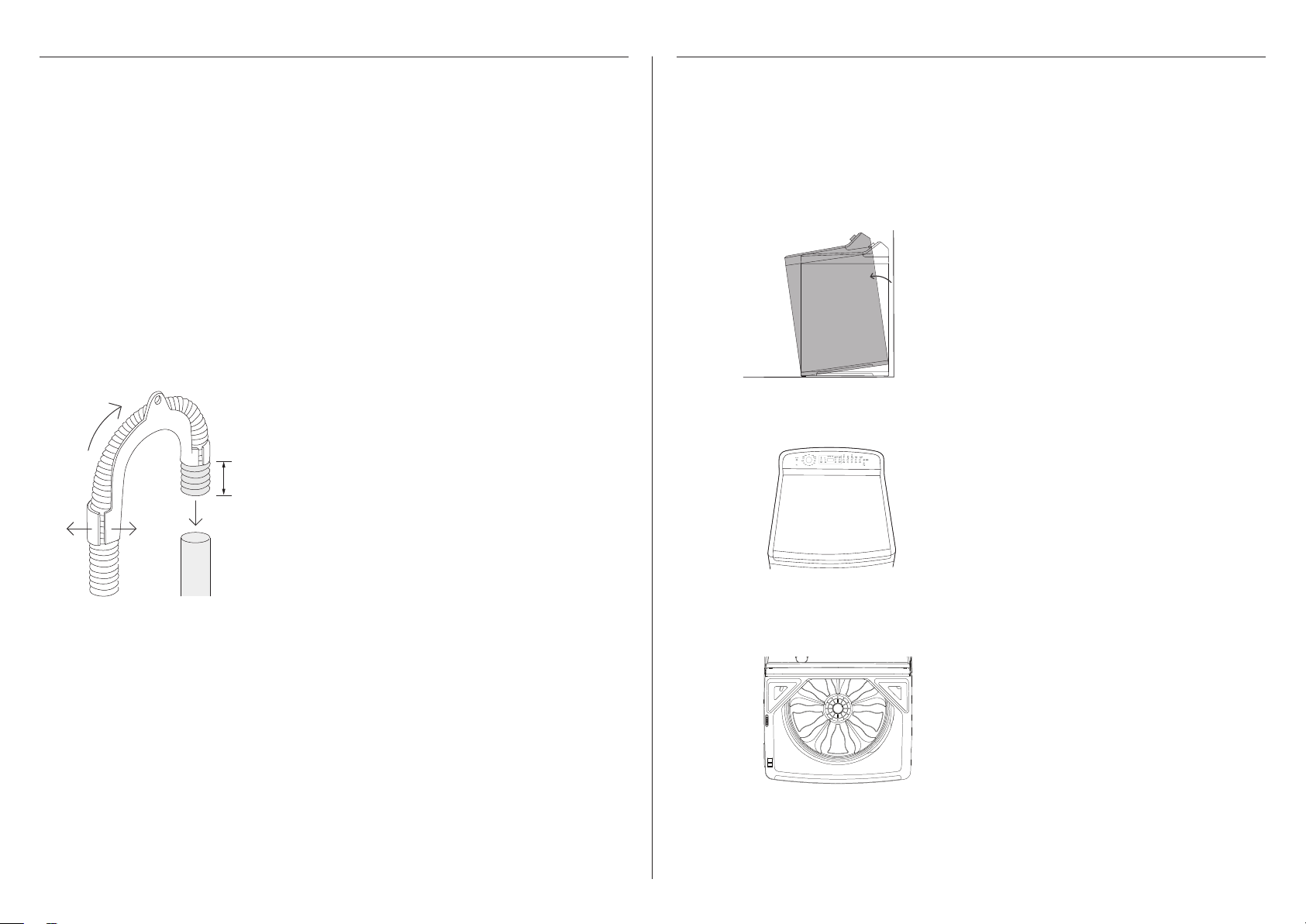

The hose guide is used to hold the drain hose over the tub or standpipe.
1 Flex the guide apart and pull the hose
through the guide.
20 mm
max.
2 Ensure a maximum of 20mm of the hose
is left exposed at the end.
3 Secure the hose guide to prevent it
dislodging from the standpipe or tub.
4 Do not fit the hose to a drain spigot.
Drainage must not be airtight in order to
prevent siphoning.
Levelling instructions
It is IMPORTANT to level the washer to ensure good spin performance.
Your washer is equipped with adjustable feet at the front. Ensure they do not move once you
have levelled your washer by hand-tightening the locknuts on each of the feet.
After levelling, the corners of the washer should be clear of the floor and the washer must not
rock in any direction.
Move the washer to its final position allowing for required clearances.
Release the rear feet:
z
1
Close the lid and tilt washer forward away
from the wall. Gently lower washer down.
Level the washer side to side:
z
Check whether washer rocks from side to
2
side. Wind the front feet up or down to
correct any rocking. Open the lid and check
the drum is in a central position.
If the drain hose is placed on the ground or if the tub or standpipe is less than 900mm
high, the washer will continuously drain (siphon) while being filled.
Tub or standpipe height should be a minimum of 900mm.
Regularly check that your tub or standpipe is free from lint or other obstructions. This may
affect operation or cause flooding.
If in future the product needs to be moved, disconnect the drain hose to prevent damage.
Have a towel handy to absorb residual water, then refit the drain cap. Place the drain hose
inside the drum during transportation, and storage.
The pump filter cap on the lower rear of the machine is not to be removed by anyone other
than a trained service technician.
10
3
Level the washer front to back:
z
Open the lid, check the drum is still in a
central position.
z
Wind the front left or right foot up or
down, to adjust. There should be equal
weight on both front feet. There must be
no rocking in any direction, and the bowl
must be in a central position.
z
If the washer is not level repeat the above
steps.
z
Once level, hand tighten the locknuts on
the front feet.
If moving or transporting your washer in the
future, ensure you tape the lid down.
COMPLETE INSTALLATION
INSTALLER CHECKLIST
Completing the installation
z
Turn on the water and check all hose connections for leaks. Ensure there are no kinks in
the hoses. Check the hose connections for leaks again after 24hours.
z
Uncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.
z
Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
z
Complete a test cycle with an empty drum.

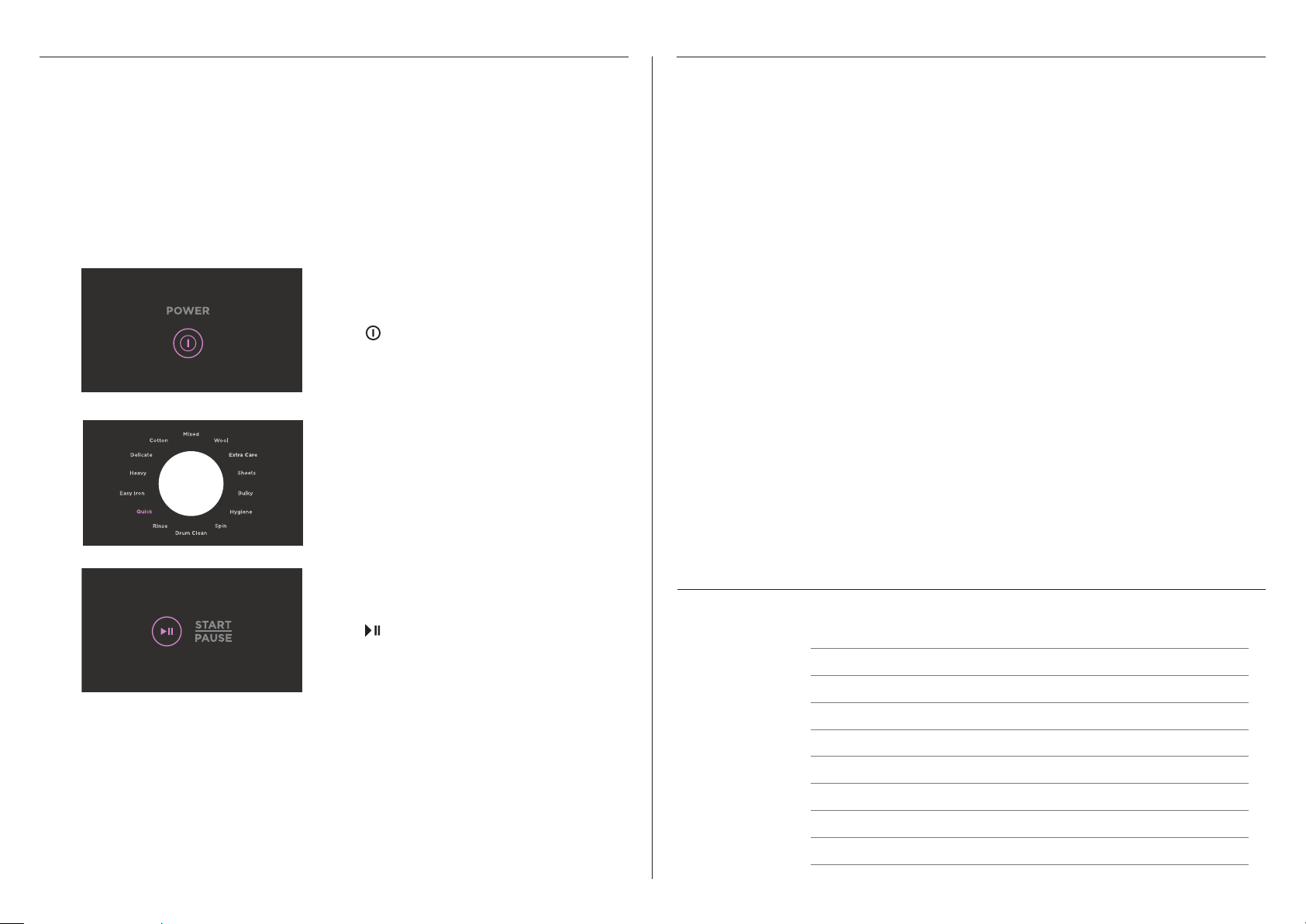

Test cycle
Your washer must be correctly installed before use. Check the installation and operation of
the washer using the following procedure:
1
2
Touch to activate your washer.
Select QUICK CYCLE.
TO BE COMPLETED BY THE INSTALLER
Have all packaging been removed?
Is the washer correctly levelled, feet are extended and cabinet corners are clear of
the floor?
Is the drain hose connected and clamped to the drain outlet at the rear of the machine?
Is the drain hose threaded through the hose guide ‘U bend’ (with no more than 20mm
extended) and hooked into your standpipe or tub?
Is the hot hose connected to the hot valve marked ‘H’, or blanking cap installed?
Is the cold hose connected to the cold valve marked ‘C’?
Have the taps been turned on?
Has the power cord been connected to an appropriate power supply and the power
turned on?
Have you performed a test cycle?
Complete a HYGIENE cycle with High water level selected, with a half-load amount of
detergent and without a load to remove any residues remaining from the manufacturing
process.
3
If there are any problems, you must address these before proceeding with normal use.
The washer will automatically turn off at the end of the cycle if there are no problems.
If you need further assistance, please contact a Fisher&Paykel trained and supported
service technician or our Customer Care Centre.
Touch to start the test cycle.
Complete and keep for safe reference:
Model
Serial no.
Purchase date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
11
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2023. All rights reserved.
The models shown in this guide may not be available in all markets
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
and are subject to change at any time.
41197C 08.2
Loading...
