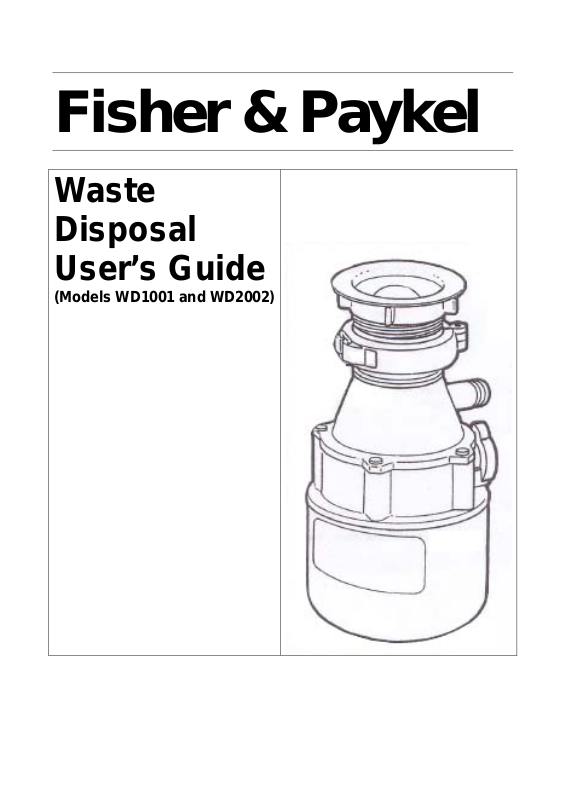

Fisher & Paykel WD1001 User Manual

Fisher & Paykel

Waste
Disposal
User’s Guide

(Models WD1001 and WD2002)

- 2 -

FISHER & PAYKEL WASTE DISPOSAL -
INSTALLATION INSTRUCTIONS

IMPORTANT

Before you start to install your FISHER & PAYKEL Waste disposal please read all of these
instructions carefully. This set of instructions is general: local building codes take precedence
over the instructions in this guide and your installation must conform to the building codes in your
area. Be sure to retain this set of instructions for future reference.

TOOLS REQUIRED FOR INSTALLATION

You may need the following tools and supplies when installing your disposer:
(ILLUSTRATION #1)

Pipe wrench Hacksaw Plumber’s Rod Phillips Screw Driver

Rubber Mallet Electrical Switch

(20 amp rating)

- 3 -

UNPACKING YOUR WASTE DISPOSAL

Remove the waste disposal from the packing carton, being careful not to misplace any of the
pieces. Inside the carton you should find the following: (ILLUSTRATION #2)

1. Sink Drain plug *

2. Sink Frange *

3. Sink Flange Rubber Gasket *

4. Sink Flange Fiber Gasket *

5. Mount Ring *

6. Hinged Clamp *

7. Waste Pipe

8. Flange & Screws

9. Rubber Gasket

10. Hexagon Wrench

ILLUSTRATION #2
If any parts are missing contact your dealer before beginning installation.

REMOVE OLD DISPOSER OR SINK WASTE REDUCER

IF REMOVING AN OLD DISPOSER & INSTALLING A
FISHER & PAYKEL WASTE DISPOSAL…
Disconnect the drain where it connects to the old
disposer’s waste pipe. (ILLUSTRATION #3). Then
dismount the disposer from the sink mounting
assembly. Finally remove the sink flange from the
topside of the sink (ILLUSTRATION #4).

ILLUSTRATION #3

IF REMOVING A SINK WASTE REDUCER

If your sink is equipped with a sink waste reducer
instead of a waste disposer, remove the nut or
threaded ring holding the waste reducer in place.
(ILLUSTRATION #5).

ILLUSTRATION #4

ILLUSTRATION #5
