Fisher Paykel RS2484FRJK1 Quick Guide

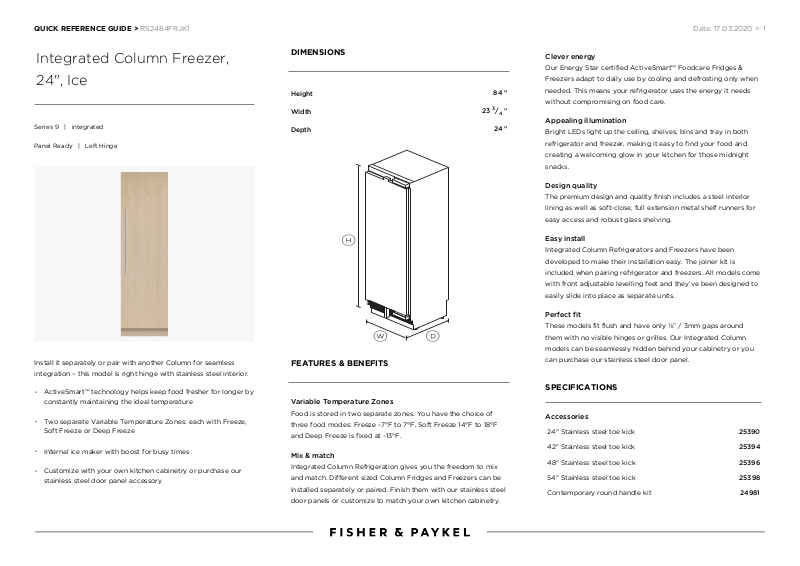

QUICK REFERENCE GUIDE > RS2484FRJK1 Date: 17.03.2020 > 1
Integrated Column Freezer,
24", Ice
Series 9 | integrated
Panel Ready | Left Hinge
Install it separately or pair with another Column for seamless
integration – this model is right hinge with stainless steel interior.
ActiveSmart™ technology helps keep food fresher for longer by
constantly maintaining the ideal temperature
Two separate Variable Temperature Zones: each with Freeze,
Soft Freeze or Deep Freeze
Internal ice maker with boost for busy times
Customize with your own kitchen cabinetry or purchase our
stainless steel door panel accessory
DIMENSIONS
Height
Width
Depth
84 "
23 3/4 "
24 "
FEATURES & BENEFITS
Variable Temperature Zones
Food is stored in two separate zones. You have the choice of
three food modes: Freeze -7°F to 7°F, Soft Freeze 14°F to 18°F
and Deep Freeze is fixed at -13°F.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix
and match. Different sized Column Fridges and Freezers can be
installed separately or paired. Finish them with our stainless steel
door panels or customize to match your own kitchen cabinetry.
Clever energy
Our Energy Star certified ActiveSmart™ Foodcare Fridges &
Freezers adapt to daily use by cooling and defrosting only when
needed. This means your refrigerator uses the energy it needs
without compromising on food care.
Appealing illumination
Bright LEDs light up the ceiling, shelves, bins and tray in both
refrigerator and freezer, making it easy to find your food and
creating a welcoming glow in your kitchen for those midnight
snacks.
Design quality
The premium design and quality finish includes a steel interior
lining as well as soft-close, full extension metal shelf runners for
easy access and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been
developed to make their installation easy. The joiner kit is
included when pairing refrigerator and freezers. All models come
with front adjustable levelling feet and they’ve been designed to
easily slide into place as separate units.
Perfect fit
These models fit flush and have only ⅛” / 3mm gaps around
them with no visible hinges or grilles. Our Integrated Column
models can be seamlessly hidden behind your cabinetry or you
can purchase our stainless steel door panel.
SPECIFICATIONS
Accessories
24" Stainless steel toe kick 25390
42" Stainless steel toe kick 25394
48" Stainless steel toe kick 25396
54" Stainless steel toe kick 25398
Contemporary round handle kit 24981
QUICK REFERENCE GUIDE > RS2484FRJK1 Date: 17.03.2020 > 2
Contemporary square handle
24979
Hinge right
Joiner kit 24985
Professional Round Handle Kit 24980
Professional Square Handle Kit 24982
Stainless steel door panel 24970
Capacity
Total 11.9cu ft
Consumption
Energy Star rating Yes
Energy star certified Yes
Energy usage 439kWh/year
Freezer features
Automatic ice maker •
Bottle chill •
Door alarm •
Fast freeze •
Freezer bins 4
Frost free freezer •
Ice Boost •
LED bin lighting •
LED ceiling lighting •
LED side lighting •
SmartTouch interface at
ActiveSmart™ technology •
Adaptive defrost •
Dual evaporator •
Frost free freezer •
Weights and measures
Packaged weight 275lbs
Unpackaged weight 258lbs
Inverter controlled compressor •
Sabbath mode •
Variable food modes
Soft freeze; Freeze; Deep
SKU 25591
Variable temperature zones 2
The product dimensions and specifications in this page apply to the specific product
Power requirements
Rated current 10A
Supply frequency 60Hz
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel's Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019.
Supply voltage 115V
Product dimensions
Depth 24 "
Depth (less door) 24 "
Height 84 "
Minimum inside width of
Minimum internal depth of
Minimum internal height of
24 "
25" "
84" "
Width 23 3/4 "
Refrigerator features
Adjustable door shelves 4
Adjustable glass cantilevered
3
•
Performance
ActiveSmart™ Foodcare •
Warranty
Parts and labor 2 years
Sealed system parts only 5 years
