PJ-Net Organizer® ÑÄâá

Model No. POA-PN02

Chapter 1 Preparation

Chapter 2 Installation

Chapter 3 Basic Setting & Operation

Chapter 4 Controlling the Projector

Chapter 5 Network Capture & Viewer

Chapter 6 Controlling the Multi-Projectors

Chapter 7 Use of Serial Port

Chapter 9 Appendix

This PJ-Net Organizer is an optional network product for the projector. Mount this product to the projector and connect a network cable. It enables a projector to display the image data stored in the file server and the screen image of the computer via the network. In addition, you can control and set up the projector remotely by using the web browser.

This product is only used for SANYO projectors that have a terminal for the PJ-Net Organizer.

This manual explains the installation of the PJ-Net Organizer and its operation.

OWNER’S MANUAL

Compliances

Federal Communication Commission Notice

This equipment has been tested and found to comply









with the limits for a Class B digital device, pursuant to

SANYO

POA-PN02

part 15 of the FCC Rules. These limits are designed



Tested To Comply

to provide reasonable protection against harmful



With FCC Standards

interference in a residential installation. This equip-

FOR HOME OR OFFICE USE

ment generates, uses and can radiate radio frequency





energy and, if not installed and used in accordance





with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Numbers

: POA-PN02

Trade Name

: Sanyo

Responsible party

: SANYO FISHER COMPANY

Address

: 21605 Plummer Street, Chatsworth, California 91300

Telephone No.

: (818)998-7322





















CAUTION ON USE IN NETWORK

-When you receive an alert e-mail from the projector, you must check the projector immediately. Fire or accident may result if the projector is used in an abnormal condition.

-When you install the projector at remote location and use it through the network, you must perform the safety inspections periodically. In this case you must pay attention to the change of environment in which you installed the projector. It may cause fire or an accident depending on the change of environment.

CAUTION

SANYO Electric Co. Ltd assumes no responsibility for the loss or damage of data or damage of the computer caused by use of this product.

2

Contents

Chapter 1 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.6

Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.9

Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Software License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Chapter 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Flow of installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Name and function of each part . . . . . . . . . . . . . . . . . . . . . . . . . .15 Installation and Network configuration . . . . . . . . . . . . . . . . . . . . .16

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Connection of LAN cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Network configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

Password setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

Notice about system construction . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

Installing the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Network Viewer & Capture installation . . . . . . . . . . . . . . . . . . . . . . . .

22

Installed software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

File Converter 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Installed software and places . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Chapter 3 Basic Setting and Operation . . . . . . . . . . . . . . . . . .25

Login the setting page of the projector . . . . . . . . . . . . . . . . . . .

. 26

1

Enter the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.26

2

Select a display mode and login . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26

3

Display of main setting page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

1

Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

2

Password Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

3

Temperature unit setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

4

Date/Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

1

Configure the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

2

Name the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

E-mail Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33

Examples: Type and contents of alert mail . . . . . . . . . . . . . . . . . . . . .

35

Chapter 4 Controlling the Projector . . . . . . . . . . . . . . . . . . . . .37

Power on/off the projector . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .38

Check the status of projector . . . . . . . . . . . . . . . . . . . . . .

. . . . . .39

Control the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .40

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .41

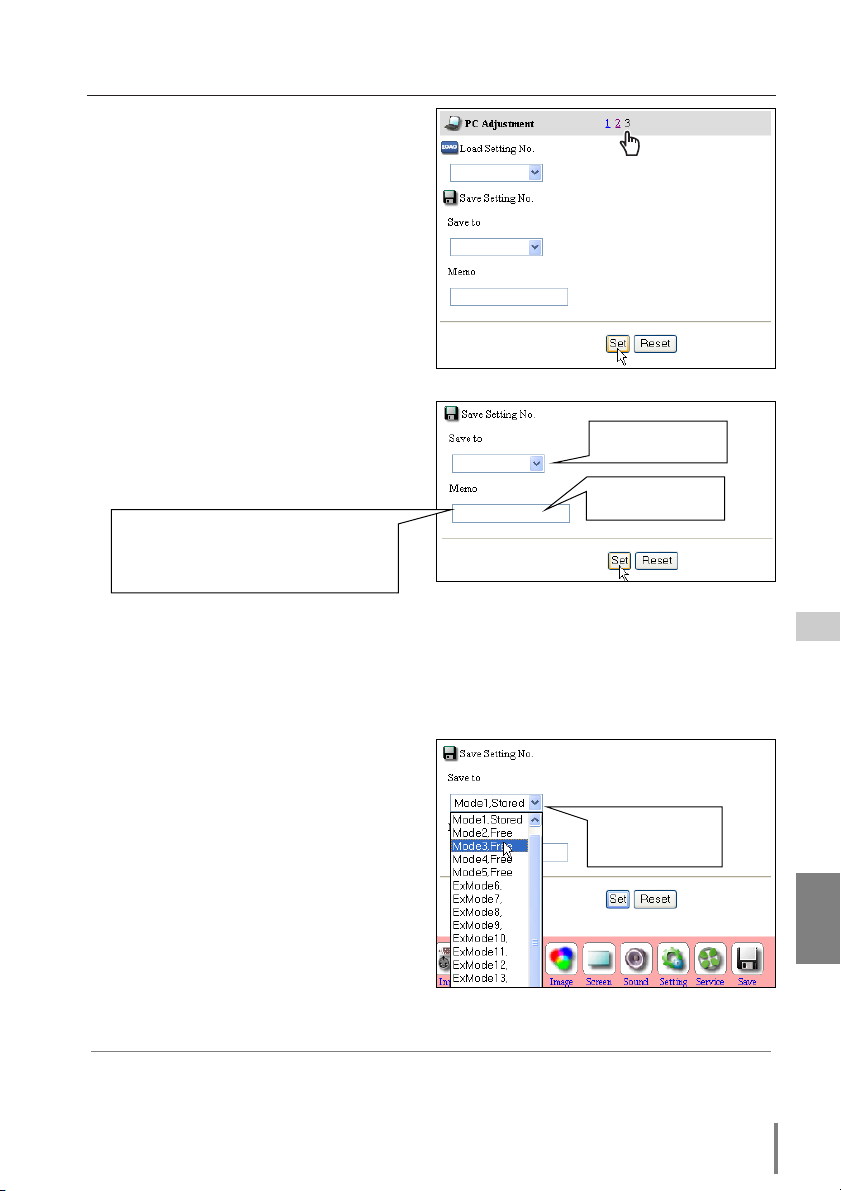

PC Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .42

Save a Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .43

Load a Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .43

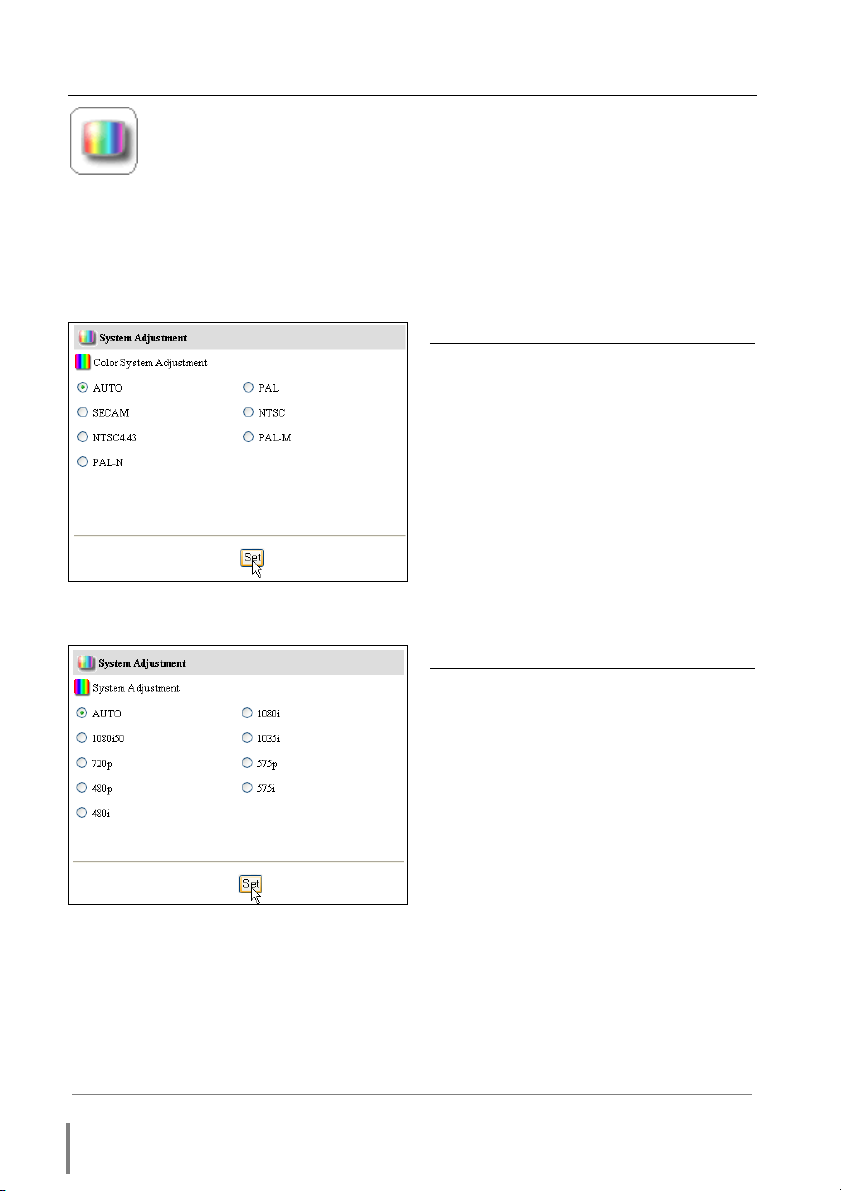

System Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .44

Image Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .45

Save an image adjustment value . . . . . . . . . . . . . . . . . . . . .

. . . . . . .46



Network Unit 3



OWNER’S MANUAL

ENGLISH

Contents

Load an image mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.46

Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

47

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

47

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

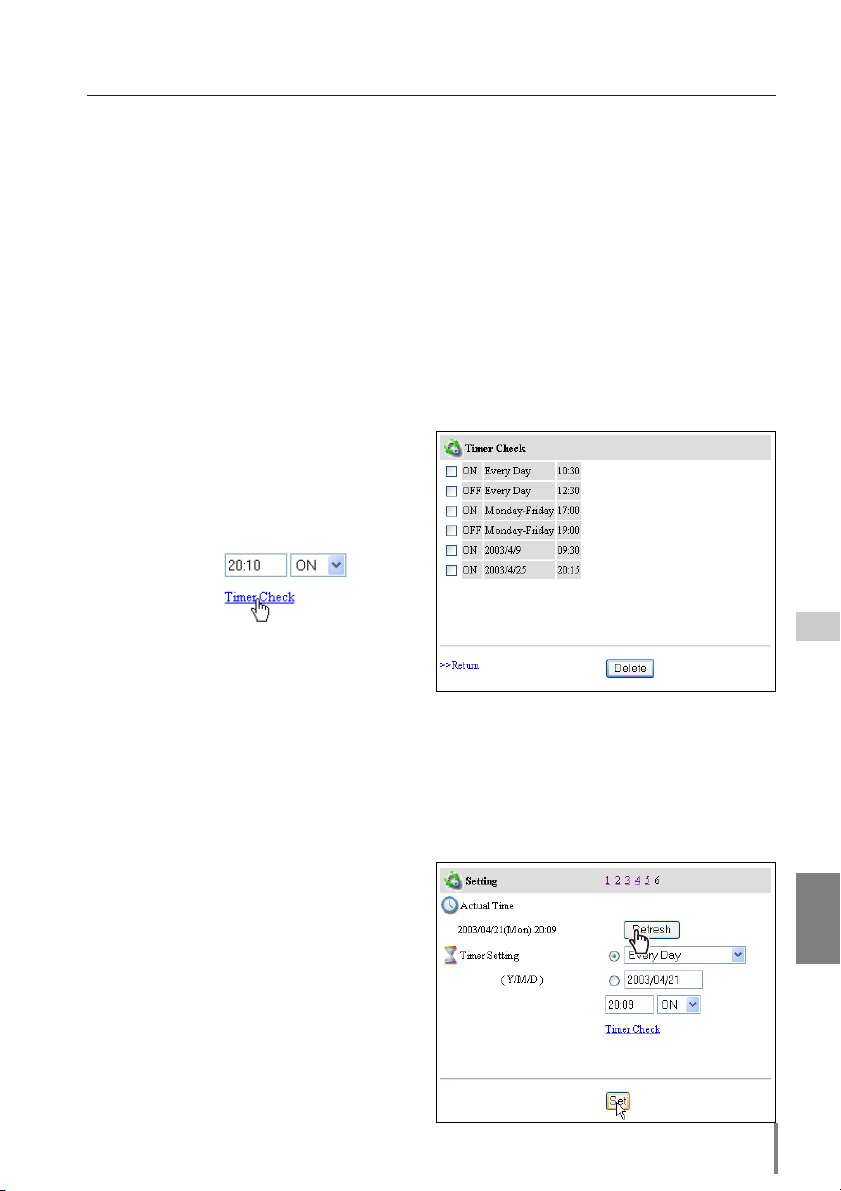

How to set the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Check the Timer events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51

Cancel the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

53

Save Actual Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54

Check the Save items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

55

Control the projector's menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

Make a memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58

Chapter 5 Network Viewer & Capture . . . . . . . . . . . . . . . . . .59

Using the Network Capture function . . . . . . . . . . . . . . . . . . . . . .

60

Launching the Network Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60

Parameter Determination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60

Advanced using example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

64

Create the available data [File Converter] . . . . . . . . . . . . . . . . . . .65

[1] How to use the Network Viewer (File Converter 1) . . . . . . . . . . . .65 Converting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66 [2] How to use the Network Viewer (File Converter 2) . . . . . . . . . . . .68 Conversion procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Making a program file [Program Editor] . . . . . . . . . . . . . . . . . . .

.69

Procedure of making program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Using the Network Viewer function . . . . . . . . . . . . . . . . . . . . . . .72

Chapter 6 Controlling the Multi-Projectors . . . . . . . . . . . . . .79

Multi-Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Register IP address and projector name . . . . . . . . . . . . . . . . . . . . . . .81 Check IP address and projector name . . . . . . . . . . . . . . . . . . . . . . . .81 Exclude/Add/Delete a projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.83

Load and apply the setting value . . . . . . . . . . . . . . . . . . . . . . . .

.83

Chapter 7 Use of Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . .

.85

Serial Port setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.86

Control Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.88

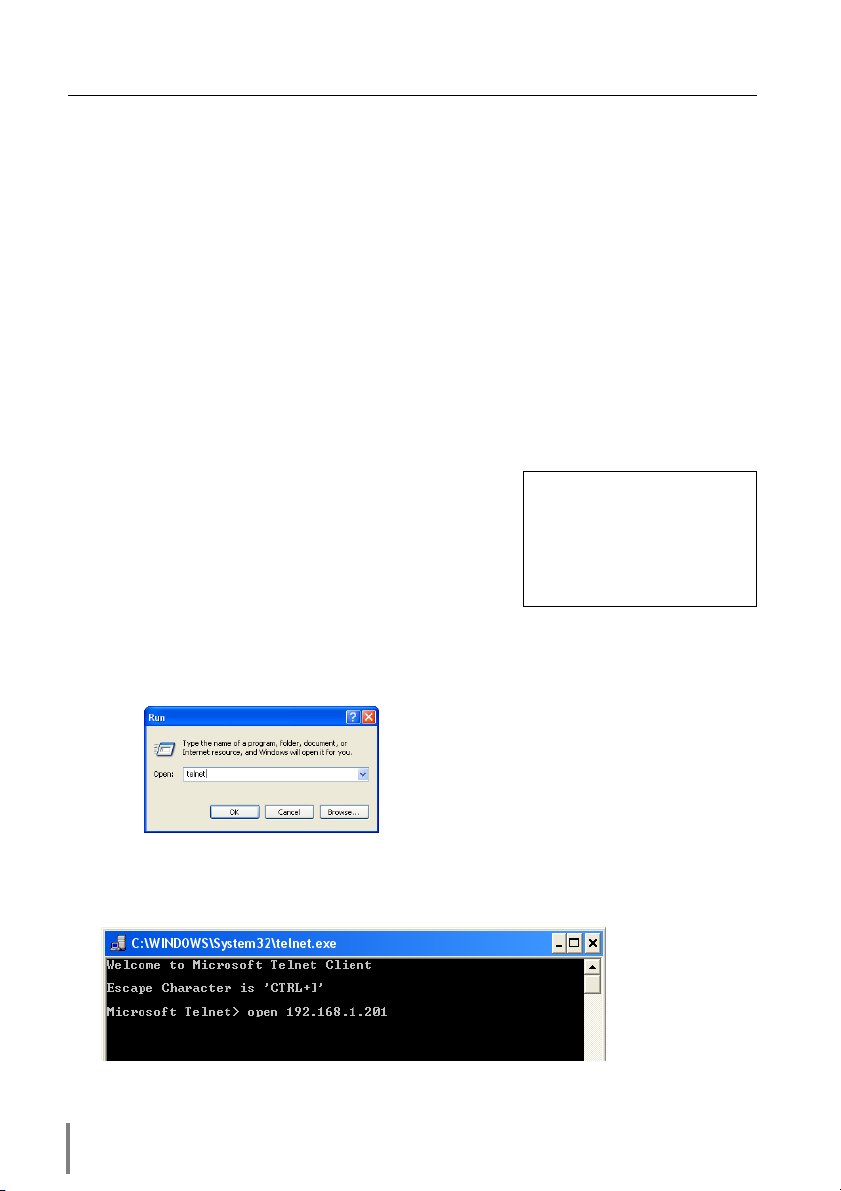

Use of Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.90

Control the projector with Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . .

.92

Chapter 8 Appendix:A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.93

Examples of Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.94

Web browser setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.96

Product specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

101

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

104

4

Chapter 1

1



Preparation



ENGLISH

Network Unit 5

OWNER’S MANUAL

Chapter 1 Preparation

Features

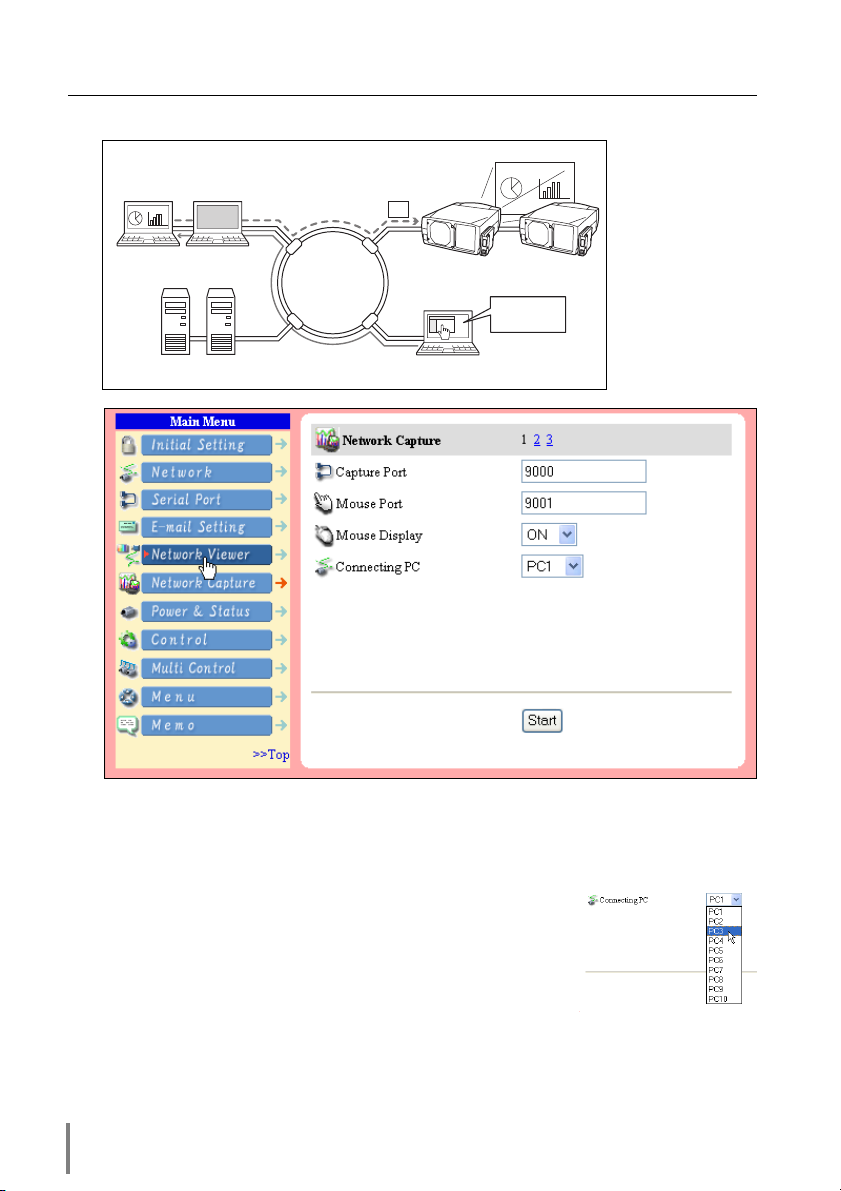

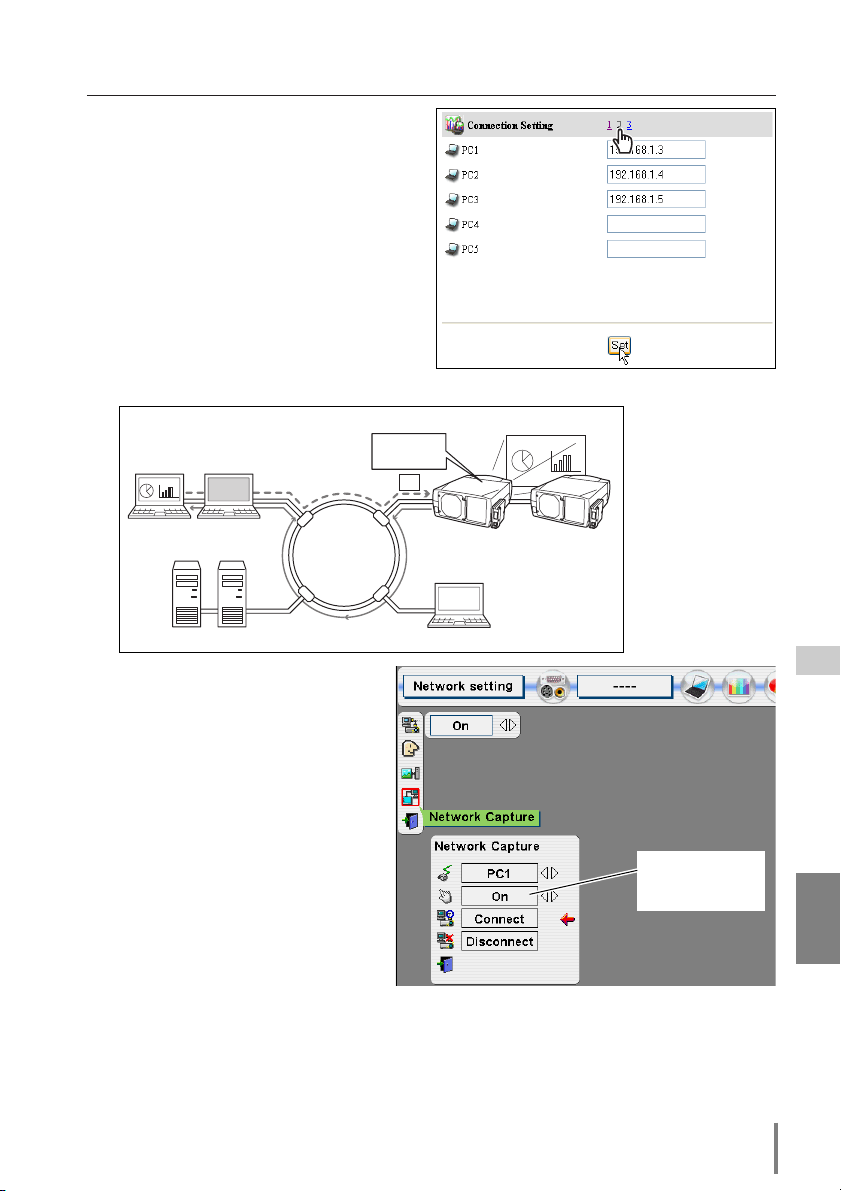

Network Capture function

It enables a projector to project the screen image of the computer on the screen via the network by using an exclusive utility software .

PC1 PC2

PC3 PC4

Capture

Internet

PJ2

PJ1





Intranet

PC5

Project a screen







image of PC1 with





PJ2.

Network Viewer function

The projector receives the image data stored in the file severs in the network and displays images automatically.

PC1 PC2

PC3 PC4

Prog.

JPEG

JPEG

Internet

PJ2

PJ1





Intranet

PC5

Project JPEG images











stored in PC3 with PJ2.

* ftp file servers

6

Features

Web Management function

With this function, you can monitor projector functions such as power status, lamp status, input mode, signal condition, lamp-use time, etc. through the network by using the web browser installed on your computer.

PC1

PC2

Turn on PJ2.

















Internet

PJ2

PJ1

PC3

PC4





Intranet









PC5











E-Mail Alert function

The projector (Network Unit) sends messages to the registered e-mail addresses when a lamp abnormality or power failure occurs with the projector. This message describes how to solve the cause of the problems. You can take efficient action for quick recovery.

PC1 PC2



Internet

PJ2

PJ1

PC3 PC4





Intranet







PC5















You've got







Mail.

Network Unit 7

OWNER’S MANUAL

ENGLISH

Chapter 1 Preparation

Multi-control function

A single computer can control and set up the multiple computers at the same time.

PJ4



PJ3



PC3





PC4

































































































































































































Internet

Intranet

































































































PJ2









PJ1















PC5

Select Input2 for PJ1 to PJ4

Automatic On/Off using Clock function

Automatically turn on or off the projectors at specified date/day and time by using the clock function.

I am ready to turn ON, and select Input 3 (Video)

Now it's 11:30

Control port ready for external equipment via network

This product provides a serial port (RS-232C) for controlling external equipment. By connecting the equipment which has a serial port, it can be controlled by a computer via the network. * This product does not provide the interface driver software to control external equipment.

PC1 PC2

PC3 PC4

Turn on the DVD player and start playing.

Internet

Intranet

PJ2

PJ1

PC5

DVD Player

8

Operating Environment

Operating Environment

To perform the managing and setting of the projector by using this product, the environment described below is required.

Network

Network must handle Ethernet correctly and accept TCP/IP and FTP protocol.

Operating System

Windows 98 / Windows 2000 / Windows Me / Windows NT4.0 SP6 / Windows XP

Computer system requirements

Computer with 900 MHz or higher processor clock speed recommended;

*Intel Pentium/Celeron family or compatible processor recommended

128 MB of RAM or higher recommended (64 MB minimum supported)

100 MB of available hard-disk space

VGA or higher-resolution video adapter and monitor

CD-ROM drive

10Base-T or 100Base-TX network card

Web browser application*

Microsoft Internet Explorer version 5.0, 5.5 or 6.0.

Netscape Navigator version 6.1, 6.2 or 7.0.

*Used to control and set up the projector. The layout of pages in the browser may slightly differ from each type of application or operating system you use.

Internet mail application*

Microsoft Outlook Microsoft OutlookExpress Netscape Mail

*Required the internet e-mail application software to receive an e-mail alert sent from this product. If you do not use the function E-mail Alert, this application is not required.

File service*

ftp server (Windows 2000 Professional or Windows XP Professional)

*The ftp service provided with the Windows 2000 Professional or Windows XP Professional is required when using the Network Viewer function.

Network Unit 9

OWNER’S MANUAL

ENGLISH

Chapter 1 Preparation

The limitation*1 of connection between this product and Hub or Computer

Suitable LAN cables are limited by length and type as follows;

Connection

Type of usable LAN cable

Maximum length







Network Unit - Hub

UTP Straight Cable with category 3 or 5 *2

100m

Network Unit - Computer

UTP Cross Cable with category 3 or 5*2

100m







*1 There may be other limitations depending on your network environment or LAN specification. Please consult your network administrator for further details.

*2 Category of LAN cable indicates the cable quality. Normally, a cable with category 3 or 5 is used for 10Base-T network, and a cable with category 5 is used for 100Base-TX network.

Before use

Package contains

The package contains following items. Check each item as you unpack the package. If you have any of the following items missing, contact the sales dealer.

Network unit

1 piece

Owner’s manual English/Japanese

1 piece each

CR-ROM

1 piece

10

Expression

Expression/Abbreviation

The word “projector” found in this manual means “projector provided with Network Unit” unless otherwise noted.

The OS of the computer and the Web browser described in this manual is Windows XP Professional and Internet Explorer 6.0. In case of another OS or Web browser, some instruction procedures may differ from the actual operation depending on your computer environment.

Use of this manual

This manual does not provide the description of basic operation and functions for computer, web browser, projector and network. For instructions about each piece of equipment or application software, please refer to the respective booklet.

Trademarks

PJ-Net Organizer is a registered trademark of SANYO Electric Co., Ltd. Ethernet is a registered trademark of Xerox Corporation. Microsoft, Windows, Windows NT are registered trademarks of Microsoft Corporation. Internet Explorer is a registered trademark of Microsoft Corporation. Netscape Navigator and Netscape Communicator are trademarks or registered trademarks of Netscape Communications Corporation. JavaScript is a registered trademark of Sun Microsystems, Inc.

Other product or brand names in this manual are registered trademarks or trademarks of their respective owners.

*Unauthorized use of a part or whole of the contents in this manual is prohibited.

*The contents of this manual are subject to change without notice.

ENGLISH

Network Unit 11

OWNER’S MANUAL

Chapter 1 Preparation

Software License Agreement

Before using Network Viewer & Capture Software CD-ROM, thoroughly read the following software license agreement to fully understand its contents.

Use this CD-ROM only when you agree to the terms of this agreement.

If you do not agree to the terms, do not use this CD-ROM.

Software License Agreement

This is a legal agreement between the customer (hereafter referred to as "user") and Sanyo Electric. Co Ltd. (hereafter referred to as "our company"). Both parties accept the following terms on use of this software product (hereafter referred to as "software") that our company grants to the user the right to use the software.

Article 1 Definition of software

"Software" in this agreement includes computer software contained in this CD-ROM.

Article 2 Grant of license

Our company grants to the user the non-exclusive right to use the software on the following terms and conditions stated in this agreement.

Article 3 Duplication of software

The user may not duplicate all or a part of the software except that the user may make a copy of the software for backup purpose.

Article 4 Modification of software

The user may not decompile, disassemble, reverse engineer, or in any way modify the program code of the software.

Article 5 Proprietary right and copyright

All of the copyright and proprietary right of the software and its copies belong to our company.

Article 6 Prohibition of regrant and transfer of the license to any third party.

The user may not transfer the program or its copy to any third party without the express written permission from our company, or may not transfer or regrant the right to use the software.

Article 7 Contract term

This contract will commence on the date when the user starts using the software and shall be effective until the user finishes using the software.

However, our company shall have the right to deprive the user of the right to use the software and terminate the contract if the user is in the material breach of any term of this agreement.

Article 8 Obligations after contract termination

When the user terminates the contract, the user shall be responsible for making the software obsolete and dispose of it so that a third party cannot re-use it. The user shall also dispose of all duplicated or modified software and all documented materials about the software.

Article 9 Responsibilities of our company

In no event will company be liable to the user for direct, incidental or consequential damages, or other property damages, such as data and program damages, including any loss of profits or lost savings arising from use of the software made by the user.

12

Chapter 2

2



Installation



ENGLISH

Network Unit 13

OWNER’S MANUAL

Chapter 2 Installation

Flow of installation

The following are instructions for attaching this product to the projector and connecting it to the network. Please review the entire procedure to become familiar with it.

1 Function of the Network Unit ( p.15)

Explains the name and functions of each part of the network unit.

2 Installation and network configuration ( p.16-21)

1 Mount this product onto the projector.

2 Connect the LAN cable and join it to the network. 3 Configure the network of the network unit.

4 Set the password.

3 Installation of the software ( p.22-24)

Explains how to install the software Network Viewer & Capture into your computer.

Set up is completed.

The preparation is completed to control the projector connected to the network. At next step, set up and control the projector via the network by using the web browser installed on your computer. Please see chapter 3 “Basic setting and operation”. ( p.25)

14

Name and function of each part

z Name and function of each part

Power indicator

This lights up red when the network function is set ON in the projector menu.

Serial port

This is used when controlling the external equipment via the network. ( p.85)

LAN port

Connecting the LAN cable. ( p.17)

Connector plug

Connecting to the terminal on the projector. ( p.16)

Mounting screws

Mount by using a coin etc. ( p.16)

LINK indicator (Orange)

This lights up orange when the Network Unit is connected to the network correctly.

ACT indicator (Green)

This turns on and off when sending or receiving of data

Network Unit

OWNER’S MANUAL

ENGLISH

15

Chapter 2 Installation

x Installation and Network configuration

Mounting

1 Disconnect the AC plug from the projector.

Connector cover

2 Remove the connector cover and screw covers from the projector and insert plug on this product to the option connector.

Screw cover

3 Tighten two screws by using a coin etc.

!Caution

The AC cord must be disconnected when mounting or removing this product otherwise it may damage the product.

Do not connect the AC cord until after connecting the LAN cable and computer.

16

Connection of LAN cable

Connection of LAN cable

To connect to the network, it is required to use the UTP (Unshielded Twisted Pair) strait cable with RJ-45 plug. There are two different types of cables depending on whether the network is constructed with 10Base-T or 100Base-TX. Prepare the Hub (10Base-T or 100Base-TX) to distribute the network cable if required.

1 Disconnect the AC plug from the projector.

2 Connect the UTP strait cable to the LAN port on the Network Unit.

3 Connect the UTP strait cable to the hub.

Hub

(10BaseT, 100Base-TX)

Projector

UTP strait cable

ENGLISH

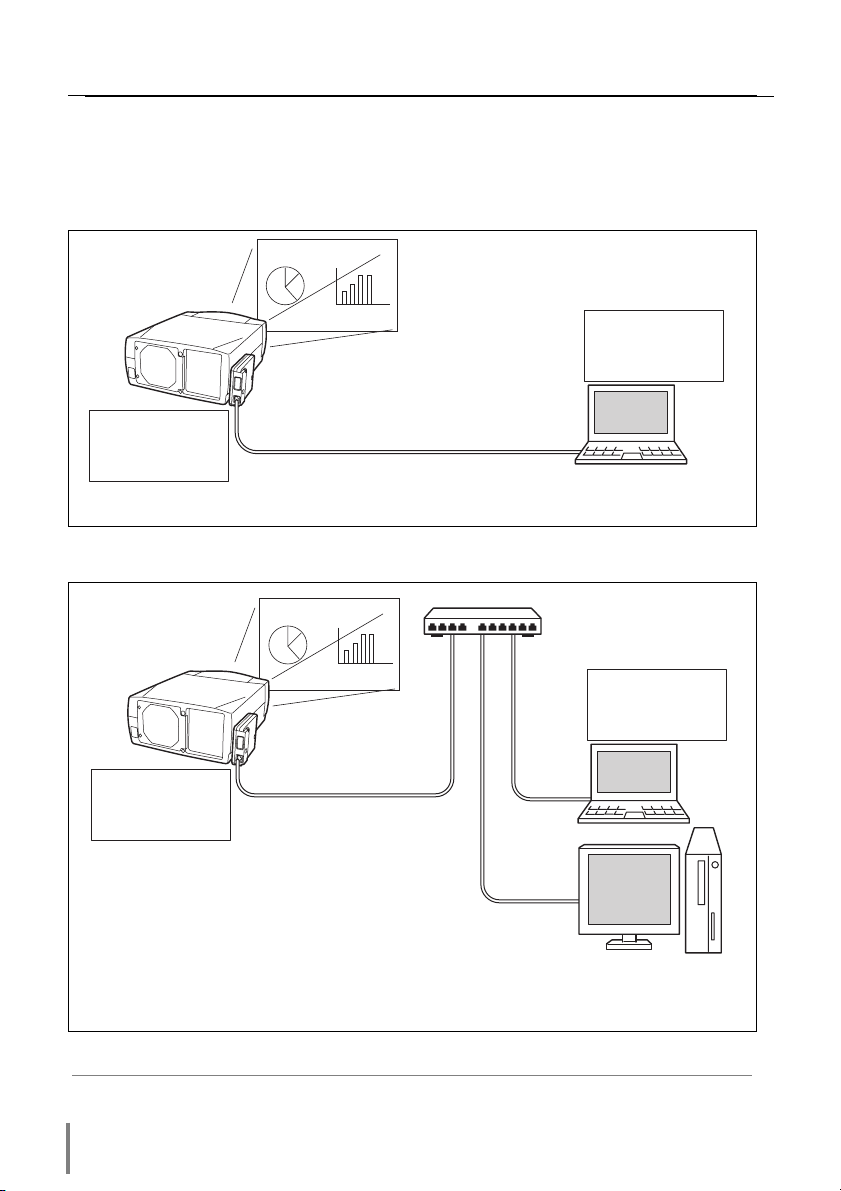

Use the UTP cross cable when you connect the computer and projector directly not using the hub.

When you connect the projector into the 10Base-T network, use cable with category 3 or 5. When you connect the projector into the 100Base-TX network, use cable with category 5.

The length of cable between hub and projector should be less than 100m.

Network Unit 17

OWNER’S MANUAL

Chapter 2 Installation

Network configuration

Confirmation of the network menu

When installing this product to the projector, the network on-screen menu items for this product are activated automatically. If not activated, the product may not have been installed correctly. Please check item “Mounting” ( p.16).

Configure the network

When you connect the projector to the network, the network number of projector must be the same as the network you intend to connect. You should configure projector’s network first.

This example explains how to set the following configuration.

IP Address

: 192.168.1.201





Subnet Mask

: 255.255.255.0





Default Gateway

: 192.168.1.1





DNS

: 0.0.0.0













The default network configuration is set as follows.

IP Address

: 192.168.0.2





Subnet Mask

: 255.255.255.0





Default Gateway

: 0.0.0.0





DNS

: 0.0.0.0





























1 Selection of network menu [Network]

Turn on the projector and display the menu on the screen. Select the Network setting icon from the main menu using the point buttons (d e 7 8). From the submenu, select Network setting sub icon, then press SELECT button once. Check that the mode is ”On”. If not, change mode to ”On” using the point buttons 7 8.

Network setting

*The above on-screen display may differ from the actual display depending on the functions of the projector you use.

18

Network configuration

2 Configuration for IP Address/ Sub net/ Gateway*/DNS*

Press SELECT button again, the following network setting menu appears on the screen. Enter the specified network address.

How to enter the numbers

There are 2 ways to enter the numbers, one is by using the point buttons (d e 7 8) on the remote control handset or on the projector, the other is by using the screen 10-key pallet by which the numbers can be entered directory. For further information see next page.

3 Restart the Network Unit

Select Set with 7 8 keys and press SELECT button again. The network configuration display disappears and the network unit begins restarting. It takes about 40 seconds. Do not turn off the mains switch during this period.

Completing of installation

Now the installation is completed. The IP address of this projector is set to “192.168.1.201”.

ENGLISH

*In the network environments not using a Gateway or Router, the Default Gateway address should be set to [0.0.0.0]. If you do not use the functions E-mail or DNS server, it is also set [0.0.0.0] for the DNS address.

Network Unit 19

OWNER’S MANUAL

Chapter 2 Installation

Password setting

A password can be set to restrict access to the setting pages of the projector using the web browser. The default password is set “0000” as no password.

Network setting

1 Use the projector’s menu and select the Network setting icon on the menu.

2 Select the Network setting sub icon from the submenu, and then press SELECT button once. Check that the mode is “On”.

3 Select the Password sub icon and then press SELECT button once.

*The setting window appears. The numbers on the display indicates the current password.

4 Enter your desired number by using the point buttons on the projector or remote control handset, and then select Set and press SELECT button.

*The password setting window disappears and the network unit begins restarting. It takes about 40 seconds. Do not turn off the mains switch during this period.

*The password can be entered by using the screen 10-key pallet ( P.21).

How to enter the numbers with point buttons

To move the selection and change the value, use the point buttons (de78) on the projector or on the remote control handset.

The point buttons 78are used to select the column.

The point buttons de are used to change the numbers up and down.

Password setting must be done when you connect the projector to the network. This setting is carried out through the projector’s menu and also it can be set through the network using the web browser. For further information please refer to item “Initial Setting/Password setting” ( p.30).

Valid characters for password are only 4 digits numeric numbers 0 to 9. The number “0000” means no password set.

This password is not to restrict the use of the projector. This password is to set the security against the use of the projector through the network.

20

Network configuration

How to enter the numbers with the screen 10-key pallet

1. Select a column with a red frame by

using the point buttons 78 .

10-key pallet



2. Press SELECT button. The screen



10-key pallet appears on the screen.



3. By using the point buttons(d e 7



8), select numbers 0 to 9 and press



SELECT button. By repeating the



above to enter the complete number



on the column.



*To change the number in a column,



select “C” and press SELECT button

Exit

to clear the number in the column and then enter the number again.



4.After entering the number in the column, select a move key (7 8ed) located on the lower part of the pallet by using the point buttons and press SELECT button repeatedly to move the red frame.

5.Repeat steps 3 to 4 for entering all the network address.

6.After finishing, select “Exit” and press SELECT button. The 10-key pallet disappears on the screen.

Notice about system construction

For installation of multiple projectors into the same network with Network Unit.

Do not install multiple projectors with Network Units that have their default network settings to the same network. The use of the Network Units which have the default IP address set to the same network settings will cause IP addresses to collide and create a malfunction. When you install multiple projectors into the same network, configure the network with the following steps.

1.Change the IP address from the default IP address. To change the IP address, use the network setting menu on the projector. Please see item “Network Configuration” for further information ( p.18).

2.Make sure that there is no network equipment set with the same IP address in the network before connecting to the network.

3.When installing other projectors, follow the above steps to change the IP address and connect to the network.

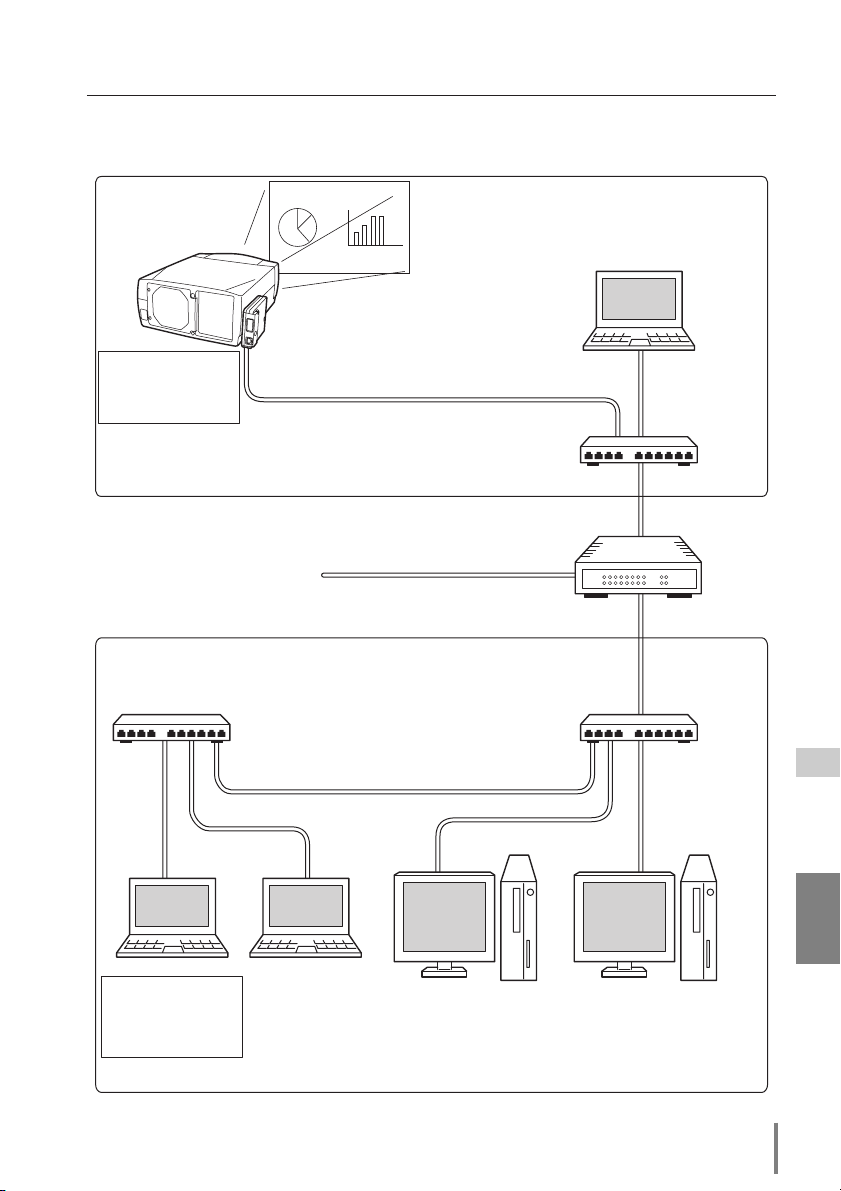

In case of installing the projector with Network Unit into the network constructed with the DHCP/BOOTP server.

This Network Unit does not support the DHCP/BOOTP server. The static IP address must be manually configured. To use this product in this network environment, set it up so that the DHCP/BOOTP server does not assign the IP address configured to this product for another device on the network. Please consult your network administrator for further information.

Network Unit

OWNER’S MANUAL

ENGLISH

21

Chapter 2 Installation

c Installing the software

It is required to install the software into your computer to use the Network Capture function and Network Viewer function. Please install the following procedure.

Note:

To install the software into the computer with Windows 2000, Windows XP or Windows NT, you should login with administrator rights. Before installation, make sure that the other applications are closed, otherwise proper installation cannot be made.

Network Viewer & Capture installation

1 Set the supplied Network Viewer & Capture CD-ROM into the CD-ROM drive of your computer. Double click SetupTool.exe icon in the “Tool” folder in the CD-ROM.

2 Select “English [United States]” from the pull-down menu on the “Choose Setup Language” window and click OK button to start installing and then follow the installation wizards.

As the “Software License Agreement“ will appear, read contents carefully and click Yes button if you agree the license agreement to proceed with installing.

22

Installing the software

Installed software

The following 3 software are installed on your computer.

Network Capture:

Capture the displayed image of the computer and serve it to the projector via the network.

This software is registered into “startup folder” of the computer and the capture icon stays on the task bar after booting the computer.

Capture icon

Network Viewer (File Converter 1):

Converts the JPEG*1 data format which can be projected with the projector from the JPEG and BMP files.

Network Viewer (Program Editor) :

This is a tool to make the programs which has a function to specify and order the projecting JPEG image data stored in the file servers.

ENGLISH

* To uninstall these software, use “Add/Remove Program” from the control panel.

*1 The data which can be projected by the projector is the JPEG format based on the ISO/IEC 10918.ITU-T recommendation T.81. There are several kinds of JPEG formats. To project the JPEG images by using the Network Viewer function of the projector, the files need to be converted to the optimized JPEG file by using the File Converter application software previously.

Network Unit 23

OWNER’S MANUAL

Chapter 2 Installation

File Converter 2 Installation

1 Set the supplied Network Viewer & Capture CD-ROM into the CD-ROM drive of your computer. Double click SetupDrv.exe icon in the “Driver” folder in the CD-ROM.

2 Select “English [United States]”from the pull-down menu on the language selection window and then click Install button to start installing.

Installed software and places

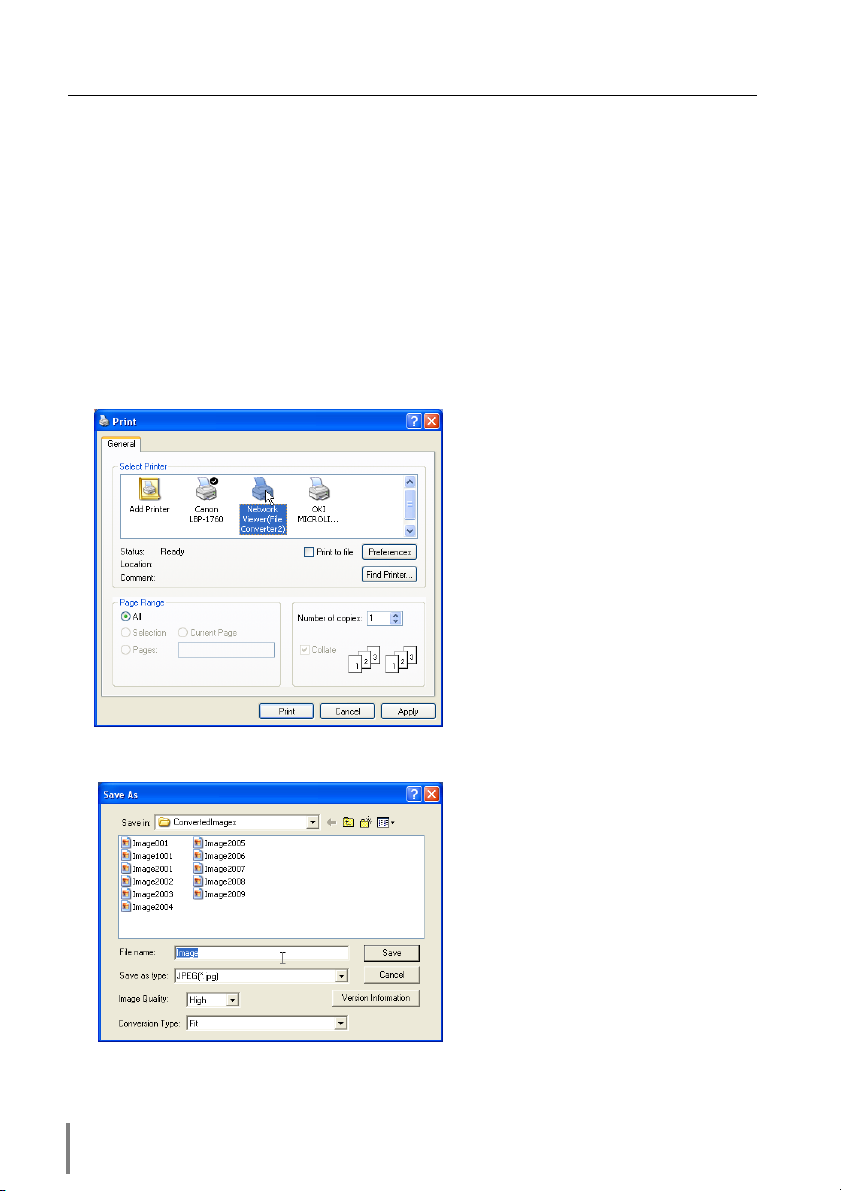

Network Viewer (File Converter 2) is installed in the “Printers and Faxes” folder in the “Control Panel”.

Network Viewer (File Converter 2):

This is a kind of the printer driver to convert to the JPEG data optimized to project by the projector from any of the documents created by the application software.

*To uninstall this software, just delete the “Network Viewer” icon from the “Printers and faxes” folder.

24

Chapter 3

3



Basic Setting and Operation



ENGLISH

Network Unit 25

OWNER’S MANUAL

Chapter 3 Basic Setting and Operation

This chapter describes basic operations and settings for controlling the projector via a network using this product. It is required that computer and projector be connected to the network and the network address be properly configured.

Login the setting page of the projector

1 Enter the IP address

Launch the web browser installed in your computer, enter the IP address into the “Address” on the browser and the press “Enter” key.

Enter the IP address that you configured in

item “Network Configuration”( p.18). The default IP address is [192.168.0.2].

2 Select a display mode and login

This product provides 2 types of control mode, Graphic Mode and Text Mode as the below. Select a proper mode to match your PC and network environment by clicking on the text link.

Graphic Mode Displays with 600 x 400 dots and the menus and settings with graphic icons. This mode is recommended for standard use.

Text Mode Displays with 200 x 300 dots. This mode is optimized for use of the handheld computer, PDA, etc. It is also convenient if the network traffic is heavy.

If the setting page has set the password, the authentication window will appear. In this case type “user” onto the User Name text area and the login password onto the Password text area and then click OK button.

*The entering User Name must be “user” and it can not be changed.

[Note]

When accessing the projector at first time or setting the no password [0000], the auto-login will be performed and the next main setting page is displayed.

26

Login the setting page of the projector

3 Display of main setting page

The following main setting page will be displayed according to your display mode selection. Perform the various kinds of setting through this page. Click on the menus to display the control and setting pages.

z Main setting page in the Graphic Mode display

Setting page number

Browses pages by clicking the linked number.

Main menu

For selection of control and setting items of the projector.

( p.37)

Setting page

Displays the control and setting items according to the selected menu. The “Power & Status” page is displayed as the default.

ENGLISH

*This graphic mode display is mainly used through this manual for the setting and control description.

Network Unit 27

OWNER’S MANUAL

Chapter 3 Basic Setting and Operation

x Main setting page in the Text Mode display

Main menu

For selection of control and setting items of the projector. Displays sub menu and status of selected items when clicking the linked text.

Returns to the display mode selection page.

Setting page number

Browses pages by clicking the linked number.

Setting page

Displays the control and setting items according to the selected menu.

The network viewer function in the text mode has following limitation;

-Cannot select the program or folder for the display ( p.73)

-Cannot perform the registration, check or change of the program ( p.75-76).

28

Initial Settings

Initial Settings

After installing this product to the projector, perform the following basic initial setting.

Click Initial Setting on the main menu to display the initial setting page.

The Languages, Date/Time, Password and Temperature unit can be set in this page. The model name of the projector on which this product is mounted is displayed on the page.

1 Language Setting

Projector’s model name is indicated.

This setting is to select the display language of the web page. Select your language with the pull-down menu button and then click Set button. The selectable language is English or Japanese. You may find the unrecognized character text in the menu if the computer does not provide Japanese fonts.

[Note]

This language selection is realized by using the JavaScript function of the web browser. If the preference of the browser is set not to use the JavaScript, “Set” linked text appears on the page as the below. Click on its text to change the language display. There are various kinds of ways to change this preference depending on the web browser's version and application. Please refer to item “Appendix: Web browser setting/Active Script (JavaScript enable)”.

( p.96)

Network Unit

OWNER’S MANUAL

ENGLISH

29

Chapter 3 Basic Setting and Operation

2 Password Setting

This page is to set the password to restrict the access from an unauthorized person through the network.

Enter the password onto the text box and click Set button.

The Network Unit begins restarting and it takes about 40 seconds. Close (Quit) the web browser and access to the login page again in 40 seconds. This is to perform the login authentication firmly.

The default password [0000] means no password. When you connect the projector with this product to the network, it is recommended that you set a new password. Only a four-digit numeric number is valid for the password.

*If you forget the password to the projector, you can check it by selecting “Password” sub menu from “Network setting” menu on the projector. For further information, please see item “Password Setting”.( p. 20)

3 Temperature unit setting

Change the temperature unit displayed on the Power & Status page by using the pull-down menu.

Centigrade : indicated with ºC Fahrenheit : indicated with ºK

*The projector icons shows the thermal sensors inside the projector. For further information see item “Check the status of projector” ( p. 39).

! Caution

Use of Battery

This product provides a lithium battery. When the battery runs down, the clock and timer functions do not operate properly. Contact your local dealer for the replacement of battery. The replacement must be carried out by a qualified service personnel.

30

Initial Settings

4 Date/Time Setting

Click on the page number “2” to display the Time Setting page. Type present date onto the

date text area with (Year/Month/Date) format and type present time onto the time text area with (Hour:Minute) format in 24 hours indication. Click Set button and confirm that the data and time are set correctly. The displayed date and time are not updated automatically, click the Refresh button to get the present date and time.

ENGLISH

Network Unit 31

OWNER’S MANUAL

Chapter 3 Basic Setting and Operation

Network Configuration

Click Network on the main menu. The following setting page is displayed. This page is to set the IP Address, Subnet Mask, Default Gateway, DNS

(Domain Name Server) and projector name.

1 Configure the network

The IP address and Subnet Mask have been configured already in chapter “Installation”. If you want to change them or configure default gateway*1 or DNS*2, perform them in this page. Enter an applicable address number onto each parameter and click Set button.

The Network Unit begins restarting and it takes about 40 seconds. Close (Quit) the web browser and access to the login page again in 40 seconds.

You must use the number specified by your administrator. The address must be entered as a group with four numbers split by a dot like [192.168.1.101].

2 Name the projector

You can name*3 the projector. By setting this name properly for the DNS server, the projector can be accessed by using this name instead of the IP address.

For further information, please consult your network administrator.

*1 Set [0.0.0.0] if the network does not provide the gateway (router). *2 Set [0.0.0.0] if you do not use the function E-Mail alert.

*3 If you use the DNS server, register the host name registered to the DNS server as a projector name. You can access with this projector name from any computers in your network. If you do not use the DNS server, access with the assigned IP address to the projector.

32

E-mail Setting

E-mail Setting

This product has an E-mail function which can send an alert message to users or an administrator if it detects an abnormality on the projector or run out of the life span of the lamp. Click E-Mail Setting on the main menu and follow the

below steps.

1SMTP Server*1

Type the E-mail address of SMTP server and administrator and click Set button. The administrator address is set to "Reply-To" address sent from the projector.

*1 The SMTP server is a server for sending E-Mail. Please contact your network administrator to have this SMTP server address.

*If the network unit sends an alert message due to the abnormality on the projector but the SMTP server is down in some other reason, the message does not be sent. In this case, the message “Unable to connect to server.” will be displayed on the setting page. Click Set button to remove the message.

To use the E-Mail function, it must be set the DNS address on the Network setting page correctly.

You cannot use this E-mail function if the DNS server and SMTP server cannot be used in your network environment. If the SMTP server is located in your LAN (Local Area network), the address set to SMTP server should be specified the in SMTP server located in your LAN. The server located outside of your LAN may not be available for security reason. For further information please contact your network administrator.

Up to 10 E-mail addresses can be registered.

Network Unit

OWNER’S MANUAL

ENGLISH

33

Chapter 3 Basic Setting and Operation

2 Registering and deleting E-mail addresses

Type the E-mail address onto the Mail Address text area and click Set button. To check the registered addresses, click on the Mail Address Check & Delete linked text. The addresses are listed as the figure on the right.

To delete the registered addresses, check the address you want to delete and click Delete button.

3 Option selection for sending alert message

Click on the Option linked text. Check the condition items under which alert messages will be sent and click Set button.

Please refer to item “Examples :Type and contents of alert messages” described on the next page.

34

E-mail Setting

4 Condition selection for sending alert message

Check the condition items under which alert messages will be sent and click Set button.

A free message can be sent when the lamp use time reaches the preselected lamp use time.

Check this condition and enter a setting time. Type a free message on “Attached Message” text box and the click Set button.

*The length of message should be less than 256 characters.

*The lamp use time can be set 0 to 9999 hours.

If you check “When a connection error occurs during an auto play.”, the projector sends an alert message when the error occurs while the projector projects images automatically by using the Network Viewer function ( p.72). For the detail of error contents, please see item “Auto display setting and control page[3]”. ( p.74)

Examples: Type and contents of alert mail

When the projector has an abnormality, the following alert messages are sent to the registered E-mail address according to your selected condition. Administrator or user can take an efficient action quickly by receiving this message. This is very useful to maintain and service the projector.

The following are examples of received messages.

When the internal temperature is too high:

TITLE: Message from projector 01-03-2003 00:59

Projector Model Name: XP50/55

TCP/IP: 192.168.1.201 Projector Name: myProjector

It sends you following message.

*The Projector lamp is turned off, because internal projector temperature is too high.

Wait Temperature Warning Indicator turned off,turn the Projector on again. If the Indicator continues to flash,check the air filter for dust accumulation.

[A] 36.5 Degree [B] 46.5 Degree [C] 58.2 degree Temperature of Sensor C is too high.

ENGLISH

The Network Unit let users know the information which thermal sensor [A], [B] or [C] inside the projector detected the abnormal temperature risen and so the projector was turned off. Please refer to item “Check the status of projector” for the location of the sensors [A], [B] and [C], and temperature ( p.39). Also see the owner's manual of the projector for further details.

Network Unit 35

OWNER’S MANUAL

Chapter 3 Basic Setting and Operation

When the internal power circuit is failed:

TITLE: Message from projector 01-03-2003 00:59

Projector Model Name: XP50/55

TCP/IP: 192.168.1.201 Projector Name: myProjector

It sends you following message.

*The Projector lamp was turned off, because projector power circuit failed. Unplug the projector from AC outlet and ask servicing to qualified service personnel.

The Projector lamp was turned off, because the projector power circuit failed.

Unplug the projector from AC outlet and ask servicing to a qualified service personnel.

When the life span of lamp is reached:

TITLE: Message from projector 01-03-2003 00:59

Projector Model Name: XP50/55

TCP/IP: 192.168.1.201 Projector Name: myProjector

It sends you following message.

*The life span of lamp is reached.

Replace it with a new lamp immediately and reset the lamp counter. If the projector is used without reset the lamp counter, the alert mail is sent to users in every poweron of the projector. This alert mail will not be sent when unchecking the mail sending condition "When the life span of lamp is reached".

When the lamp use time reaches preselect lamp use time:

TITLE: Message from projector 01-03-2003 00:59

Projector Model Name: XP50/55

TCP/IP: 192.168.1.201 Projector Name: myProjector

It sends you following message.

*The lamp use time reaches 800 hours. Prepare the lamp replacement.

Free messages

The Network Unit sends a free message when the lamp use time reaches the preselected lamp use time. It can be used for preparation of the lamp replacement and the maintenance required.

36

Chapter 4

4



Controlling the Projector



ENGLISH

Network Unit 37

OWNER’S MANUAL

Chapter 4 Controlling the Projector

This chapter describes controlling the projector via a network using this product. Display the main menu following to the login procedure described on page 26.

Power on/off the projector

Click Power & Status on the main menu. The control page will be displayed. By clicking On or Standby button on the page, the power of the projector can be controlled. When you click Standby button, another confirmation popup win-

dow*1 will appear, and then click OK button if it is set to standby.

[Note]

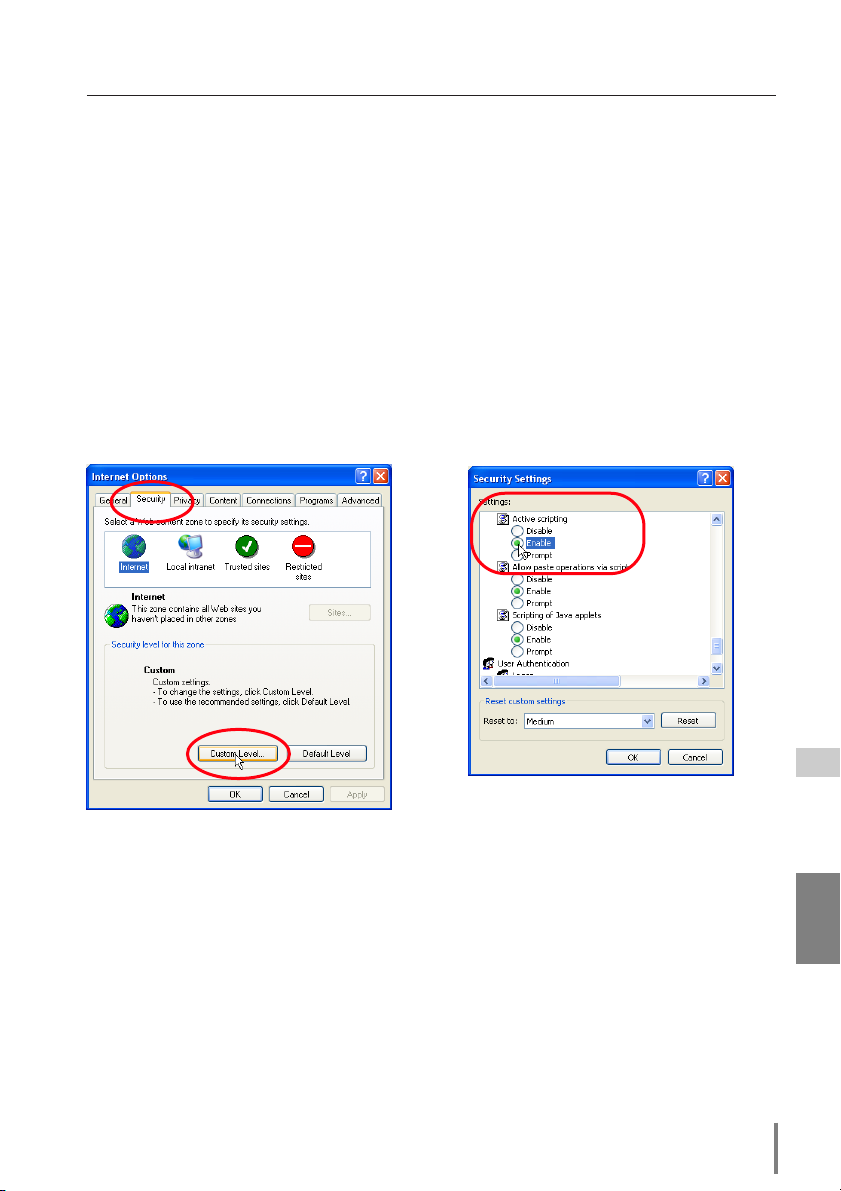

*1 This popup window is realized by using the JavaScript function of web browser. If the preference of the browser is set not to use JavaScript, the popup window will not appear on the screen.

There are various kind of ways to change this preference depending on the web browser's version and application. Please refer to item “Appendix: Web browser setting/Active Script (JavaScript enable)” ( p.96).

(JavaScript On)

(JavaScript Off)

The projector is not turned on for about 90 seconds after switching into the standby mode. After the power status indicator on the control page changes from “On Cooling down” to “OFF”, then try to turn on the projector with On button.

The web browser checks and updates the projector's condition every 20 seconds automatically.

38

Check the status of projector

Check the status of projector

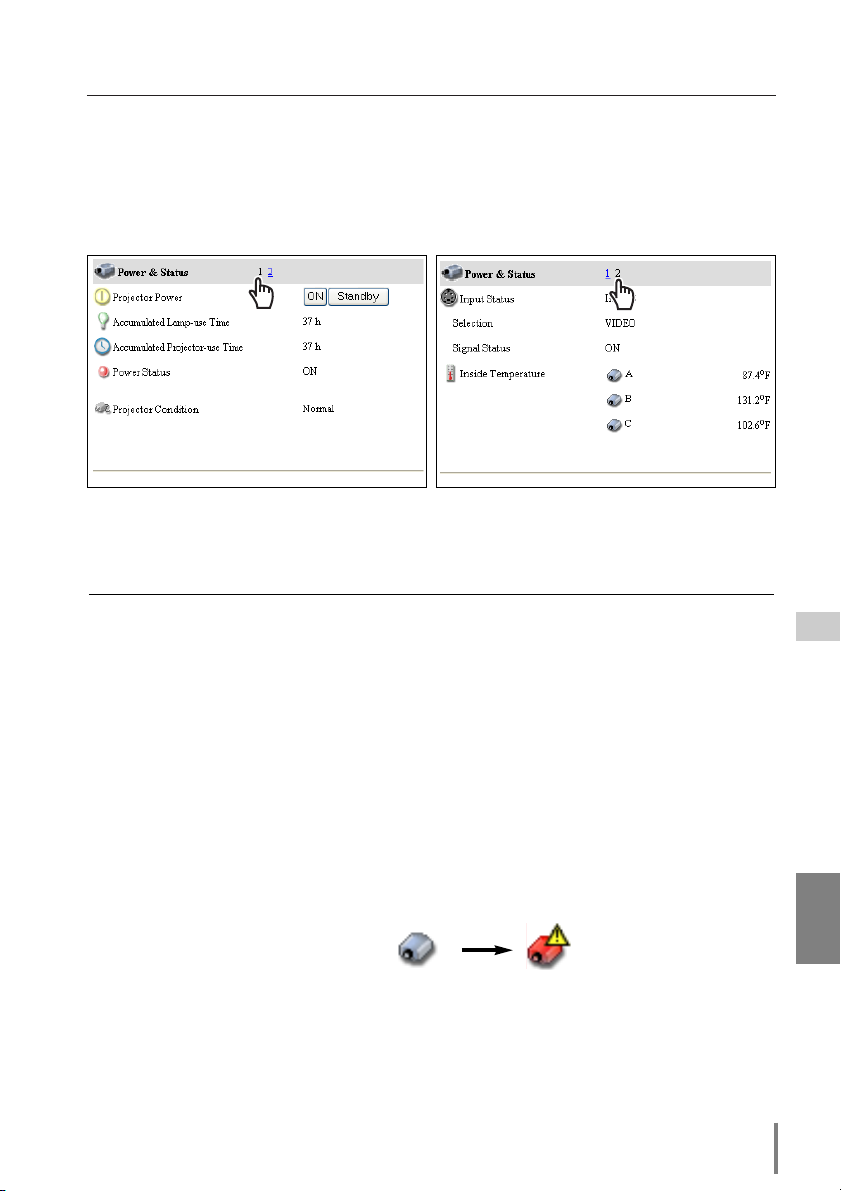

In the “Power & Status” page, you can control the projector power, and also you can check the status of the projector as follows. To change the page, click on the page number linked text.

Items

Description

Accumulated













Lamp-use Time ..............

Displays the accumulated lamp use time in hour units (h).

Accumulated













Projector-use Time ..........

Displays the accumulated projector use time in hour unit (h).

Power Status

..................

Displays the status of the lamp.

Projector Condition..........

Displays the status of the projector's power.

Input Status ....................



Displays the selected input mode.

Selection..........................



Displays the source mode of selected input mode.

Signal Status

..................

Displays the signal status of the selected input mode.

Internal temperature ........

Displays the temperature at internal thermal sensors in centigrade/ fahren-





heit degrees. The icons [A], [B] and [C] on the page represent the thermal





sensors located in the projector. If the temperature at one of those sensors





exceeds specified temperature, the appearance of its icon changes to the





following alert icon to let users know the abnormal temperature. Please





check surrounding temperature of the projector, the clogged air filters and





the area surrounding the ventilation fans.











































ENGLISH

The icons [A], [B] and [C] represent the sensors located in the projector as follows: [A]: Surrounding temperature of the projector*.

[B]: Surrounding temperature of the lamp. [C]: Surrounding temperature of the panel.

*The indicated peripheral temperature of the projector is a little higher than actual surrounding temperature.

Network Unit 39

OWNER’S MANUAL

Chapter 4 Controlling the Projector

Control the projector

The sub control menu appears on the lower side of the page when clicking Control on the main menu. When you click each control icon, the control page is displayed according to the control menu you selected. The setting method

differs depending on the contents of the page. Click on the page number linked texts to change pages and select desired setting items.

Please see the owner's manual of the projector to have the further information of each control item.

Sub control menu

The control page displays valid control items depending on the selected input mode, signal or functions of the projector you use, therefore, there may be different controls between the described items and actual control items on the page display.

When the projector is in standby, only the timer on the setting menu is effective; others are inactive.

40

Control the projector

Input

This function is to select the input mode and source mode of the projector. Select the input mode with the radio button, and input source mode with the pull-down menu button. Then set the selected input mode and source

mode by clicking Set button.

Select a input mode with radio buttons.

Select a source mode with pull-down menu.



Item

Description









Input1 ................

Available RGB(Analog),









RGB(Scart), RGB(PC Digital),









RGB(AV HDCP), Monitor out









source mode.







Input2 ................

Available VIDEO,









Y,Cb/Pb,Cr/Pr, RGB source









mode.







Input3 ................

Available VIDEO, S-VIDEO,









Y,Cb/Pb,Cr/Pr source mode.







Network..............

Using the Network Capture &









Viewer function.









































ENGLISH

Network Unit 41

OWNER’S MANUAL

Chapter 4 Controlling the Projector

PC Adjustment

This function is to adjust the signal from the computer connected to the projector to obtain the proper picture image on the screen. Click on the page number linked texts to change the setting pages.

Item

Description

Current Mode ........

Displays current mode of the



computer.

Auto PC Adj. ......

Performs automatic adjust-



ment.

Fine Sync...........

Performs Fine Sync adjust-



ment.

Total Dots ..........

Adjust the number of total dots



in the horizontal period.

Horizontal ..........

Adjusts horizontal picture posi-



tion.

Vertical ..............

Adjusts vertical picture posi-



tion.

Item

Description

Clamp ................

Adjusts clamp position of the



picture.

Display Area H ......

Adjusts the image area horizontally.

Display Area V ......

Adjusts the image area vertically.

Full Screen ........

Makes the image full screen



display.

These parameters will appear only when the RGB(Analog) or Network input mode is selected.

42

Control the projector

Save a Set

1 Decide your desired PC adjustment values through the PC Adjustment pages “1”to “2”.

2 Display the page “3” and select a mode number with the pull-down menu button of the Save to. Type a memo into the Memo text area for simply description of your selected number.

3 Register by clicking Set button.

To restore the adjustments, click Reset button.

The memos for Mode1 to Mode 5 are displayed with “Stored” or “Free”. The memos for ExMode6 to ExMode50 are can be stored with the input text.

Select a mode by clicking the button

Type a memo for the selected mode

Load a Set

Select a set to load with the pull-down menu button of the Load Set No. and click Set button. The stored setting values will be applied to the each PC adjustment item.

Select a load mode by clocking the button

ENGLISH

The PC adjustment settings can be stored up to 50 sets, 5 sets for Mode1 to Mode 5 are stored into the projector and 45 sets for ExMode6 to ExMode50 are stored into the network unit..

Network Unit 43

OWNER’S MANUAL

Chapter 4 Controlling the Projector

System Adjustment

This function is to select the color system of video signal or scanning system of component signal input to the projector. Select a system with the radio buttons to match the color system or scanning system of input

source, and then click Set button. The displayed systems are switched according to the input mode.

Available selection when the VIDEO/S-VIDEO input

Item

Description

Color System

....Selects a color system of the



input video signal.

AUTO ................

It automatically switches to the



color system of the input sig-



nal.

Available selection when the Y, Cb/Pb, Cr/Pr input

Item

Description

System

..............Selects a scanning system of



the input component signal.

AUTO ................

It automatically switches to the



scanning system of the input



signal.

These selections will not appear when the source mode is selected to the computer mode.

44

Control the projector

Image Adjustment

This function is to adjust the projected picture image and set the image mode. For selection of image mode, select a desired image mode with the Image pull-down menu button and then click Set button. The setting items

are switched automatically according to selected input mode, computer or video input. To change the setting of each page, click Set button on each page. When clicking Reset button, all of the contents of the pages are reset.

*Some control items can not be used depending on the selecting input mode or functions of the projector you use. In this case, the values of those items are indicated with “---”.

Item

Description

Image ..................

Selects image mode among



the Standard, Real*, Cinema**,



Image1 to Image4 with pull-



down button menu . Image1 to



4 are user preset mode.

Original Mode ........

Displays which predefined



image adjustment mode is



based upon.

Adjustment



items ..................

Contrast, Brightness, Color, Tint

* This item is only available in the computer input mode.

** This item is only available in the video input mode.

Item

Description

White Balance



Color Temp. ......

Sets a color temperature



mode.

Red, green,



Blue ................

Adjusts a white balance



respectively.

Item

Description

Sharpness..........

Adjusts picture sharpness.

Gamma ..............

Adjusts brightness of darker



part of the picture.

Noise



Reduction ..........

Switches noise reduction



on/off.

Progressive Scan....Switches progressive mode.

Auto Picture



Control ................

Adjusts picture quality automat-



ically.

Save Adjustment ....

Select a mode to store the



image adjustment values.

Network Unit

OWNER’S MANUAL

ENGLISH

45

Chapter 4 Controlling the Projector

Save an image adjustment value

1 Decide your desired image adjustment value through the image adjustment pages “1” to “3”.

2 Display the page “3” and select the desired image number with the pulldown menu of the Save Adjustment.

3 Register by clicking Set button.

To restore the adjustments, click Reset button.

The Image1 to Image4 are for the user preset modes to store the image adjustment. The Original Mode represents the mode that user preset mode Image1 to Image4 is created from the predefined image modes Standard, Real or Cinema.

Load an image mode

Display the page “1” and select a set to load with the pull-down menu button of the Image and click Set button.

46

Control the projector

Screen

This function is to adjust the screen mode of the projector. The setting items are switched automatically according to selected input mode, computer or video input.

Item

Description

Aspect................

Changes the screen mode.

True* ................

Switches the projected image



mode.

Digital Zoom* ....

Adjusts the image zooming or



compressing.

*These items are only available in the computer input mode.

Sound

This function is to adjust the sound of the projector. The values in the text box represent the current control value or status.

Item

Description

Volume

..............Adjusts the sound volume from



the built-in speakers.

Mute ..................

Suppresses the sound.

ENGLISH

Network Unit 47

OWNER’S MANUAL

Chapter 4 Controlling the Projector

Setting

This function is to set up the projector. Click on the page number “1” to “6” linked texts to change the setting pages.

*The displayed items may differ from the actual depending on the functions of the projector you use.

Item

Description

Language

..........Changes the on-screen menu



language of the projector.

Keystone............

Corrects the keystone distor-



tion of the projected image on



the screen. It moves quickly if



“High Speed” is checked.

OFF ....................

Cancels the keystone correc-



tion.

Item

Description

Blue Back

..........Switches on or off the blue



images on the screen when no



input signal received.

Display ..............

Switches on or off the on-screen



menu display on the screen.

Logo ..................

Sets on or off the logo display on



the screen during the startup.

Ceiling................

Sets the image top/bottom and



left/right reversed.

Rear ..................

Sets the image left/right



reversed.

Item

Description

No Show ............

Sets the image black out mode.

Freeze................

Sets the image frozen mode.

Power



Management......

Sets into the selected power



management mode, OFF,



Ready or Shut Down, if the



input signal is interrupted and



no control key is pressed for



the specified period of time. *



*The specified time can be set



up to 30 min.

On Start ............

The projector automatically



turns on just connecting the AC



cord to the wall outlet.

Lamp Mode........

Switches lamp mode “Auto”,



“Eco” or “Normal”.

48







Control the projector















Item

Description

















Remote Control ......

Sets one of 8 types remote







control codes.





Lamp Counter









Reset ................

Resets the lamp use-time.







Reset when replaced lamp.





Factory Default ......

Sets all of the control items to







the factory shipping set.





P-TIMER ............

Used to display the timer on







the screen. The status is







changed as ON -> STOP ->







OFF when this button is clicked







repeatedly.





..............Keylock

Sets the prohibition of the pro-







jector control by the remote







control or the keys on the pro-







jector.

The confirmation window

The confirmation window will appear when the button of “Lamp Counter Reset” or “Factory Default” is clicked. Click OK button to execute the setting.

(JavaScript On)

(JavaScript Off)

Item

Description

Aspect................

Adjusts each control vertical



scale, vertical position, horizon-



tal scale and horizontal position



independently.

Anamorphic........

When set to “On”, the screen



format is set to 4:3 format



forcedly.

There are various kinds of ways to change the JavaScript preference depending on the web browser's version and application. Please refer to item “Appendix: Web browser setting/Active Script (JavaScript enable)” ( p.96).

Network Unit

OWNER’S MANUAL

ENGLISH

49

Chapter 4 Controlling the Projector

Item Description

Actual Time........Displays the current time set to the projector.

Timer Setting ....Function to switch on or off the projector at the programmed date and time. Please see item “How to set the Timer” for further instructions.

How to set the Timer

This function is used to turn the projector off or on at a programmed day/date and time. Follow the below steps for setting.

1 Set a day or date

To set the timer event at same time everyday,

select “day” entry with radio button and then select desired day with the pulldown menu button.

The selectable days are as follows:

- Same time everyday

- Every week ( a day from Monday to Sunday)

- Every week (Monday to Friday)

- Every week (Monday to Saturday)

To set the timer event on specified date,

select “date” entry with radio button and then type the date with (Year/Month/Date) format.

Ex.: Type [2003/08/20] if you specify [August 20, 20003].

Select day

Select date

Event

50

Control the projector

2 Set a time

Type the time with (Hour:Minute) and 24 hours format.

Ex.: Type [18:25] if you specify [PM 6 o’clock and 25 minutes].

3 Select an event “ON” or “OFF”.

Select an event ON or OFF with the pull-down menu button to turn on or off the projector.

4 Register an event

Click Set button to register the set timer event. Repeat steps 1 to 4 for another timer event setting.

Check the Timer events

To check the set timer events, click on the Timer Check linked text.

Getting the current time

The displayed time is the value set when the setting page was displayed. This time value is not updated automatically. To update the display time click Refresh button.

Network Unit

OWNER’S MANUAL

ENGLISH

51

Chapter 4 Controlling the Projector

Notes on timer setting

Up to 10 timer events can be registered. Timer events always operate according to the next valid event depending on the projector's power status. In the example below, event 3 turns on the projector so next event 4 (also turning on projector) will not be effective because the projector is already turned on. Similarly, when the projector is turned off by event 5, event 6 OFF will not be effective in turning it off again. But these secondary events (event 4 and event 6) will become effective if a person turns off the projector (after event 3 and before event 4) or turns on the projector (after event 5 and before event 6).





Invalid event

Invalid event

Projector Power

ON

ON



Event 1

ON





Event 2



OFF



Event 3



ON



Event 4



ON



Event 5





OFF

Event 6





OFF

Time







When the timer events are set at the same time, the last event set will override the previous events. For example, if there is an event like “On at 8:00 everyday” and then new event is set like “Off at 8:00 everyday”, only the last setting event is effective.

When the timer event ON occurs during cooling down period, this is invalid event because the projector cannot be turned on during this cooling down period.

Cancel the timer

To cancel the timer event, check the timer event you want to delete and then click Delete button.

The timer operates by using the clock function provided in this product. Before setting the timer, please confirm that the current date and time are set correctly. Timer and clock functions are functioning using a lithium battery provided in this product. When the battery runs down, the clock and timer functions will not operate correctly. Consult your local dealer for the replacement of battery. The replacement must be carried out by a qualified service personnel.

52

Control the projector

Service

This function sets the cooling fan speed of the projector. Set proper fan speed depending on the installation environment. Select “Normal” or “Maximum” with the pull-down menu button and click Set button.

ENGLISH

Network Unit 53

OWNER’S MANUAL

Chapter 4 Controlling the Projector

Save Actual Adjustment

This function is to save and load the control values of the projector. The storable control items are Input, PC, System, Image and Screen controls, and these control items differ from each selected input mode and functions

of the projector you use.

1 Adjust and set the controls

Set the controls properly according to the selected source. (see pages 41-47 for further adjustment)

2 Select the Save page

Click on the Save icon from the control menu. The setting page is displayed as the right. Change pages by clicking on

the page numbers “1” to “8” linked

Select a set text and check the current settings. number

For further information please see the next page.





Type a memo for the

3

Name the current setting

selected set number



Select a set number (Set1 to set10) you intend to store current settings with the pull-down menu button of the

Save Setting No.: Save to. Name this set number onto the Memo text area.

4 Save the current setting

Click Set button to store the current setting and name into the selected set number.

You can store up to 10 sets of controls into the network unit.

54

Control the projector

Check the Save items

Browse pages by clicking on the page numbers and check each setting status. The pages for the saving items are constructed by 8 pages. The contents of the pages may differ from the actual depending on the selected input mode and the function of the projector.

ENGLISH

Network Unit 55

OWNER’S MANUAL

Chapter 4 Controlling the Projector

Load a control set

Select your desired set number with the pull-down menu button of the Load Setting No. and then click Set button. The setting values of the selected set number are applied to the current settings.

Example of setting

56

Control the projector’s menu

Control the projector's menu

Click Menu on the main menu. The following menu control page is displayed. This page is to control the on-screen display menu of the projector.

Item Description

Display Menu ....To switch the on-screen display menu on or off by clicking ON or OFF button. The same operation with the MENU button on the projector and remote control handset.

Cursor ................Used to select an item or adjust value in on-screen menu by clicking Up, Down, Left and Right button. The same operation with the point buttons on the projector and remote control handset. Used to execute the item selected by clicking Set button. The same operation with SELECT button on the projector and remote control handset.

ENGLISH

Network Unit 57

OWNER’S MANUAL

Chapter 4 Controlling the Projector

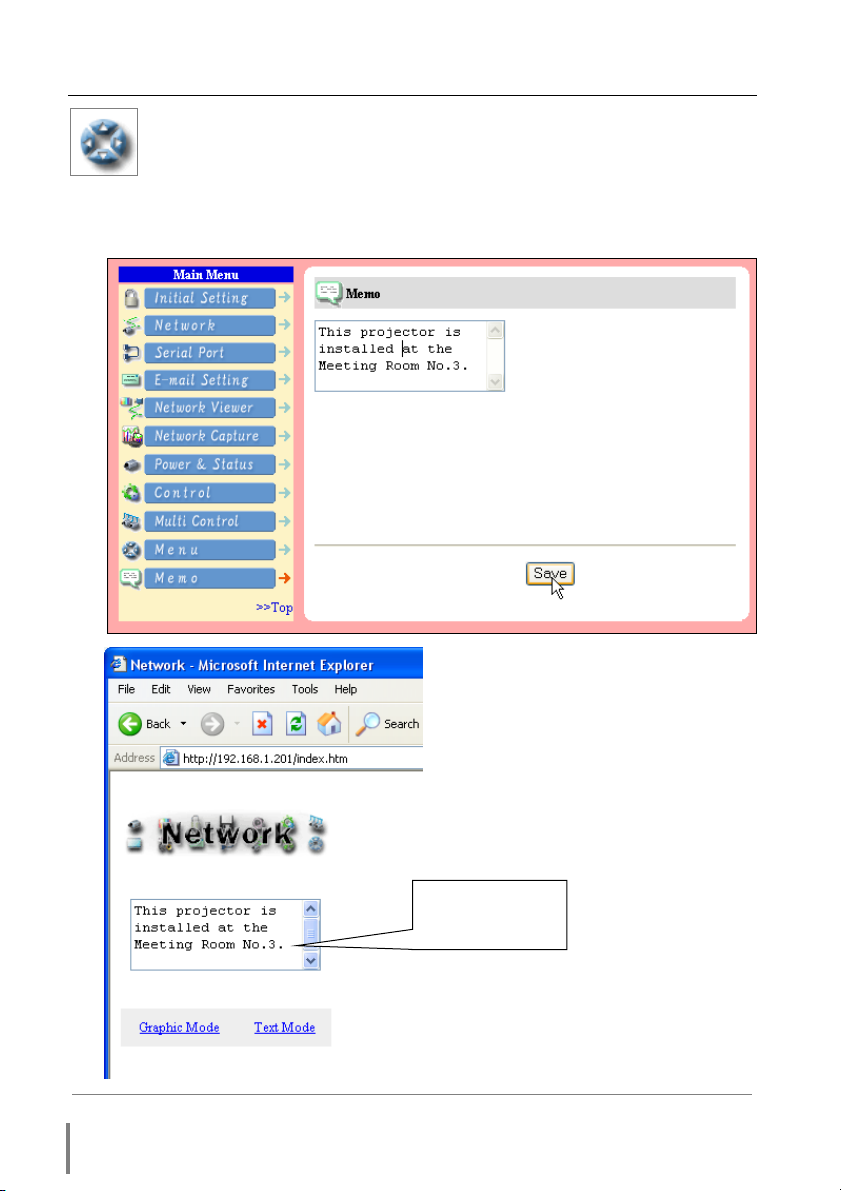

Make a memo

Select the Memo setting page by clicking Memo on the main menu. The following setting page is displayed. It is convenient to use as a memo for the simple description where the projector is placed in. This note will be displayed on

the login page.

The saved memo is displayed on the login page.

The data of the memo is stored into the network unit.

58

Chapter 5

5



Network Viewer & Capture



ENGLISH

Network Unit 59

OWNER’S MANUAL

Chapter 5 Network Viewer & Capture

Using the Network Capture function

The Network Capture is a function to project the screen images of the computer by the projector via the network by using the Network Viewer software. Up to 10 computers can be registered and the capture images of the computer projected by the projector can be selected by the Network Capture software in the computer, web browser and projector. *The network capture function cannot be used when using the network

viewer function.

Launching the Network Viewer

After installing the Network Capture software, the shortcut icon is copied into the “Startup” folder. When you boot the computer, the Network Capture software also starts and its icon stays on the task bar. If the icon is not appeared on the task bar, the Network Capture software does not start. Click “Network Capture” from “Start” - “All the Programs” - “Network Viewer & Capture” menu to launch it manually. The status which the Network Capture icon stays on the task bar is just preparing the screen capturing.

Parameter Determination

1 Click Network Capture icon on the task bar.

2 Click “Parameter Determination” on

the popup menu. The setting window will appear.

3 Set Capture Port and Mouse Port to match to the projector’s port number.

*To check the projector’s setting, access to the control page with the web browser. For further instruction, please see item “Control by the web browser” ( p.62)

*Specify the port number of TCP/IP. The default port setting is 9000 and 9001 respectively. There are some reserved port numbers and also some applications may use their own port numbers. If one of those port numbers is used, the alert dialog window will appear and let

you know that it is an invalid port number. In this case, use another port number.

*The reserved port numbers are http (80), ftp (21), telnet (23), etc. The port no. 10000 is reserved to control the projector through the LAN port.

60

Network Capture

4 Click Search button to list up the available IP address assign to the projector and select desired IP address you use, or you can enter the IP address manually if you know that IP address.

5 Set the quality of the image.

Quality: Selects from High, Mid, Low

Image Magnification: If checked, the screen image size of the computer is automatically adjusted to the projector’s screen size.

6 Click OK button to close the setting window.

About Image Quality

Quality : Quality mode of the captured image shows following JPEG compression mode.; High : JPEG low compression mode

Mid : JPEG medium compression mode Low : JPEG high compression mode

[1] Control by the computer

Project this screen

PC1 PC2

image with PJ2.

* PC privided with the Network Capture.

PC3 PC4

Capture

Internet

PJ2

PJ1





Intranet

PC5







*Start capturing from the computer.

Select input mode to the “Network” previously. 1 Click Network Capture icon on the task bar.

2 Click “Start” on the popup menu.

The captured screen image of the computer will appear on the projected screen.

* If the error message appears, check “Parameter Determination” described on the previous page.

3 To stop capturing, click “Stop” on the popup menu.

In the standby

In capturing

Icon on the task bar

ENGLISH

Network Unit 61

OWNER’S MANUAL

Chapter 5 Network Viewer & Capture

[2] Control by the web browser

PC1

PC2













Capture



* PC privided with the Network Capture.

Internet

PJ2

PJ1





PC3

PC4





Intranet









PC5

Project a screen















image of PC1 with









PJ2.

*Start capturing of the PC1 from the PC5.

Select input mode to the “Network” previously.

1 Access to the control page on the projector by using the web browser. From the main menu, click Network Capture to display the setting page ( p.26).

2 Select the computer number to connect from the pull-down menu button of “Connecting PC” and click Start button.

*The IP address of the connecting PC should be registered previously ( p.63).

*Set the Capture Port and Mouse Port to match to the computer’s port number you intend to connect ( p.61).

*Set “On”on the “Mouse Display” when you want to display the mouse cursor on the screen.

3 Click Stop button to stop capturing.

*You can use the capture function by using the web browser or the projector if the Network Capture software is installed into the computer correctly and its icon stays on the task bar.

62

Network Capture
* Start capturing of the PC1 from the projector PJ2.
Set “On” when using the wireless mouse function.

Registering the computers

Up to 10 computers can be registered. To register a computer, on the Network Capture setting page, click the page number “2” or “3” linked text to change to “Connection Setting” page and enter the IP address of the computer to the PC number, and then click Set button.

*The registered computer starts capturing if only the Network Capture icon appears on the task bar.

[3] Control by the projector

PC1 PC2

* PC privided with the Network Capture.

PC3 PC4

Project a screen image of PC1 with PJ2.

Capture

Internet

PJ2

PJ1





Intranet

PC5







Select input mode to the “Network” previously.

1 Display the menu bar on the projected screen by pressing the MENU button on the projector or the remote control handset.

2 Select “Network setting” icon by using the point buttons (7/8) and press SELECT button once.

Check the mode is “On”. 3 Select “Network Capture” icon by

using the point buttons (e/d) and then press SELECT button. The setting window will appear.

4 Select the PC number to connect by using the point buttons (7/8).

5 Select “Connect” and then press SELECT button to start capturing. To stop capturing, select “Disconnect” in the above window and the press SELECT button.

*The projector does not provide the function to register the IP address of the computer and to set the parameter of the capturing. They should be registered by using the web browser previously ( p.62-63).

Network Unit

OWNER’S MANUAL

ENGLISH

63

Chapter 5 Network Viewer & Capture

Advanced using example

Displays the presentation data stored in the computer by using the wireless mouse function from the projector.

1 Start capturing of the computer PC1 by using the projector.

Select “Network Capture” icon from the menu and select “PC1” and then select “Connect” ( p.63).

=> The Network Capture software installed in the selected computer will start capturing.

2 On the PC1 capture image projected on the screen, search a presentation file data stored in the PC1 by using the wireless mouse function of the remote control supplied with the projector.

3 Select a desired file and double click with the remote control .

=> The application by which the document was created starts and the projector projects the presentation picture on the screen.

4 Start the presentation.

=> By using wireless mouse function, control the page browsing and some another operations for the PC1.

*For further instructions of the wireless mouse, please refer to the projector’s owners manual.

*On the projected screen using with the network viewer, the shape of the mouse pointer differs from the one on the computer’s screen.

PC1 PC2

* PC privided with the Network Capture.

PC3 PC4

Project a screen image of PC1 with PJ2.

Capture

PJ2

Internet

Intranet

* Controlling PC1 with the wireless mouse.

Setting condition

Projector

Input mode: Network

Network Unit

Registering the connection: The IP address of the computer and proper parameter must be set to the PC1 ( p.61, p.63).

Mouse Display: “On” ( p.62)

Computer PC1

Software: The Network Capture software is installed correctly and its icon appears on the task bar.

64

File Converter

Create the available data [File Converter]

The image available with this projector is the JPEG format. There are several types of JPEG data. Before using the images with the Network Viewer function, it should be converted to the optimized JPEG data for this projector.

[1] How to use the Network Viewer (File Converter 1)

The File Converter 1 is a software to convert from the JPEG data or bitmap data to the optimized JPEG data for the projector.

Launch and quit the File Converter 1

To launch the File Converter 1, click “Network Viewer (File Converter 1)” menu from “Start” - “All Programs” - “Network Viewer & Capture” menu.

To quit the File Converter 1, click on the close box on the upper right hand of the window.

File Converter 1 window

Explorer win-

Preview window

dow to browse image files

ENGLISH

Network Unit 65

OWNER’S MANUAL

Chapter 5 Network Viewer & Capture

Converting procedure

1 Select a folder in which the image files are stored by the explorer window.

The preview images of the available image data (JPEG file, BMP file) in the selected folder are displayed on the preview window.

*On the preview window, the preview displayed with the red frame represents a file not optimized JPEG file or BMP file for the projection. The preview without the red frame represents the optimized JPEG file for the projection. So you do not need to convert them again, but if you change the size or image quality, perform to convert them again.

2 Click “Convert a folder” when converting all the files in a selected folder.

When converting each file, select a preview image first and then click “Convert each file”.

*To select two or more files at once, press and hold “Shift” key or “Ctrl” key and then click the preview images.

Preview with red frame represents the file not optimized for the projection.

3 As the confirmation window appears, check the conversion object and conversion type and then click OK button. The File converter 1 starts converting and stores the optimized files into the output folder.

*To change the conversion type or output folder, click Change button on the confirmation window. Please see the next page for the setting of conversion mode.

66

File Converter

Setting of conversion mode

When clicking Change button on the confirmation window in the step 3 on the previous page, following option setting window appears.

Conversion type:

Fit

......................Converts as either width or height of the



image sets to be the maximum screen



width or height.

Justify[both ends]....Converts as width of the image sets to be



the maximum screen width.

Justify[top and bottom]

..........................

Convert as height of the image sets to be



the maximum screen height.

Cut ....................

Cuts image with the screen size not



depending on the image size. This type



has following mode.

* Select this mode when you want to have the images with the original size. Select each mode by clicking on the button.

Image Quality ....Select an image conversion quality with “High”, “Mid” or “Low”.

Other menu items

View: Preview size: Sets preview mode with the Large, Medium, Small

Tool: Option: Sets default mode in the conversion

ENGLISH

Network Unit 67

OWNER’S MANUAL

Chapter 5 Network Viewer & Capture

[2] How to use the Network Viewer (File Converter 2)

The File Converter 2 is a kind of the printer driver software to convert to the optimized JPEG data for the projection from the any documents created by the other software such as text editor, spreadsheet or presentation software. It is possible to convert to the JPEG file from the any kinds of documents created by the software which has a “print” menu.

Conversion procedure

1 Open a document with the individual software.

2 Select a “Print” sub menu and open the printing dialog. On the window, select “Network Viewer (File Converter 2)” icon on “Select Printer” item and click Print button.

3 Select a folder and click Save button.

*Set the option setting for the page layout or paper setting by clicking Preferences button if required.

*The file name is named with “Image001” as the default. If the converted image has 2 or more pages, the file names are numbered from “001” to “999” sequently.

*Image quality and Conversion type can be setup this window. For further information, please see “Setting of the Conversion Mode” ( p.67).

*It may appear the white space around the edges on the converted image depending on the type of the image data.

* The above procedure may differ from each computer environment and applications.

68

Program Editor

Making a program file [Program Editor]

Network Viewer (Program Editor) is a tool to make a program file specify the stored information of the JPEG images in the file server (ftp server) and the order of the display images. Program Editor makes a folder “DispParam” at the login root directory in the file server and makes files as each program name into this folder. These files are called as “Program”. By specifying the program file with the Network Viewer function, you can have the programmed display with the projector .

Procedure of making program

1 To launch the Program Editor, click “Network Viewer (Program Editor)” menu from “Start” - “All Programs” - “Network Viewer & Capture” menu.

2 Click Connect button.

3 If the connection setting window appears, enter the each item and then click OK button.

Host name....Enter the ftp server name

Root Folder ......Specify the root directory of the ftp server. Normally use “/”.

User ID ........Enter your login account of the ftp sever or use blank when you login as anonymous account for the ftp server

Password ....Enter your password or use blank when you login as anonymous account.

IMPORTANT

It is required to set the write permission mode for the login directory of the ftp server. If only the read only mode, you will have an error when you register a new program.

ENGLISH

Network Unit 69

OWNER’S MANUAL

Chapter 5 Network Viewer & Capture

The setting window disappears and then the programs are listed on the window if there are program files at the login directory in the connected ftp server.

4 Click New button.

5 Enter a program name and click Add button.

Changes the contents of the program file. Deletes the program from the list.

6 The folder selection window appears and select a folder in which the JPEG data are stored and then click Add button to register into the folder lists.











































..............Add

Displays the folder selection







..........Delete

Deletes the folder path from the folder list.





UP

Moves up the selected folder path.









DOWN..........

Moves down the selected folder path.





*The order of the display is listed in the folder list window. To change the order of the display, change the list order of the folder list by using UP or DOWN button.

*The programs are stored into the “DispParam” folder at the login root directory and this “DispParam” folder is made by software automatically.

7 Click Register button to register the folder list into the program.

8 Click “Close box” to quit the Program Editor.

70

Program Editor

Use the web browser to access to the control page of the projector. Click Network Viewer on the main menu on the web page, then connect to the file server and select the program name which was made at previous section. The projector starts displaying the images along the program. For further information, please see “Using the Network Viewer function”( p.72).

The limitation of the Program file

There are several limitations for the program file as follows;

*Number of programs in a root folder is less than 1000.

*Number of folders in a program is less than 100.

*Total characters of folder name is less than 255.

*Total characters of program file name is less than 63.

*Do not make a program name started with “.”.

*Do not make a program name contained with following characters:

\/ : , ; * ? “ < > |

*The program name started with “ “(space) is registered with removing the space.

Network Unit

OWNER’S MANUAL

ENGLISH

71

Chapter 5 Network Viewer & Capture

Using the Network Viewer function

The Network Viewer is a function to acquire and project the JPEG image data on the screen from the file servers placed in the network. The projected image data are specified with the folder unit. You can set the display period and repeating times, and also you can register those folders as the program. *The network viewer function cannot

be used when using the network capture function.

Condition to use the Network Viewer function:

*Enables to use the ftp service with Windows 2000 Professional or XP Professional.

*User must have a full-access account to the ftp server or the ftp server allows anyone to use with “Anonymous” account which also has a full-access mode.

*The allowed number of the same connection limits from the same IP address is more than 20.

[1] Control by the web browser

PC1 PC2

PC3 PC4

Prog.

JPEG

JPEG

Internet

PJ2

PJ1





Intranet

PC5

Project JPEG images











stored in PC3 with PJ2.

* ftp file servers

72

Network Viewer

Select input mode to “Network” previously.

1 Access to the control page on the projector by using the web browser. From the main menu, click Network Viewer to display the setting page.

2 Setup the setting page [1] of the Visual Display.

Host name....Enter the name of ftp server, yourftp.server etc.

Folder Path ..Use “/”(root directory) in normal, or enter the directory name follow the “/” as shown in the below example if you have a specified directory in the server.

/data/

User ID ........You may skip when using the anonymous account Password ....You may skip when using the anonymous account

Option ..........Set “Display On” when you display the acquired preview images on the web browser.

3 Select Multi Display On or OFF to display images for multi projectors. When setting “On”, the same images are projected with multi projectors that are registered to the multi control, described on chapter 6 “Controlling the multi projectors” ( p.79-82).

4 Setup the setting page [2] of the Selection Display.

Display Object :

Select either “Folder Selection” or “Program selection”.

*Up to 1000 images can be displayed.

*“Program” is described on item “6 Program New Registration” ( p.75).

Display Form :

Select either “filename list” or “Thumbnail”.

When clicking Check button, the images or file names in the selected folder or program are listed on the preview page. In this page, when clicking on the radio button next to the file name, the selected image is projected on the projector’s screen and set its page as the starting page for “Auto Display” function on the next page.

* The display order of the files is according to the ASCII character order.

*1 IMPORTANT NOTICE

Please note that if you use the ftp server with personal account except anonymous account and set “Display ON” at the option setting item, the user ID and password are displayed on the browser as the image linked address information. We recommend that this function should be used with the anonymous account usually.

Network Unit

OWNER’S MANUAL

ENGLISH

73

Chapter 5 Network Viewer & Capture

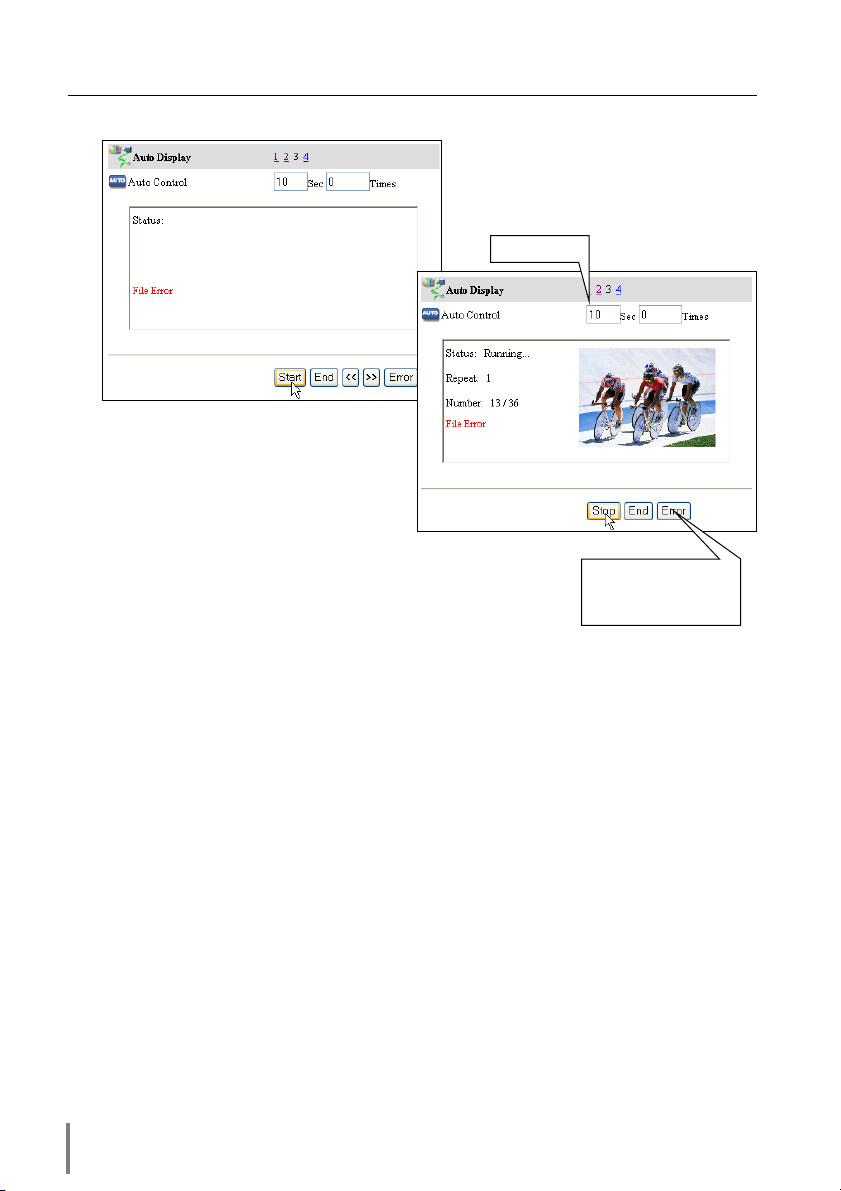

5 Auto Display setting and control page [3]

Display period

Auto Control ....Displays period (3 to 240 sec.),

Repeating times (1 to 999 times)

*0 times represents endless display

The display status is indicated on the text area.

Start

Starts automatic-image displaying

Click here to display the

details when the file

End

Quits automatic-image displaying

error is occurred.

Stop

Stops automatic-image displaying



<< ................

Displays the previous image



>> ................

Displays the next image



Error ............

Displays the details when the file error is occurred



*When the file error is occurred during the automatic display, you may have the alert e-mail message. For further information, please see item “4 Condition selection for sending alert message” ( p.35).

*Error type

‘File Error’ ............It is displayed when the network unit cannot acquire the correct file images from the ftp server, or when the master projector is turned off during the multi-control.

Click Error button to check the details.

‘Connection Error’ ..It may be displayed when the slave projector is using the Network Viewer or capture function during the multi-control. For further error details, please see chapter “Multi Control/Check & Change” ( p.82).

Caution

*The display period is greatly affected by the network environment or the operation of multi control, so it may not display the image as the specified display period.

*The switching is not the same timing between the images on the screen and on the web browser.

74

Network Viewer

6 Program New Registration [4]

1.Click on “New Registration” linked text.

2.Enter a program name and click Select button.

3.On the Folder Selection window,

click a folder and click Add button. Repeat the above for adding some another folders.

After finishing, click Close button.

4.Check that the folder paths you added are listed on the text area. To delete the folder path, select the folder path first and then click Delete button.

*The folder paths are ordered by creation date, and the images are displayed with this order and it cannot be changed. To change the order, use the Program Editor software ( p.75).

* Up to 100 folder paths can be added per program.

5.Click Register button to register a program

*Up to 1000 programs can be registered at the same directory.

IMPORTANT

It is required to set the write permission mode for the login directory of the ftp server. Only in the read only mode, you will have an error when you register a new program.

Network Unit

OWNER’S MANUAL

ENGLISH

75

Chapter 5 Network Viewer & Capture

7 Program Confirmation & Change [4]

1.Click on “Confirmation & Change” linked text.

2.From “Program Name” pull-down menu button, select the program name you want to confirm or change.

*Click Delete button to delete.

*Click Select button to confirm or change the program. The registered folder paths are listed on the text area.

3.To add a new folder which has new images into selected program, click Add button and then add new folders in the folder selection window.

*To delete the folder from the program, select the folder path and then click Delete button.

Deletes the program

4.After editing the program contents, click Register button to update the program.

Click >>Return linked text to return to the previous control page.

Deletes the folder path

*The folder paths are ordered by creation date, and the files in the folder are ordered by the ASCII characters.

*To change the order of the folder paths, use the Program Editor software ( p.75).

76

Network Viewer

[2] Control by the projector









Select input mode to











“Network” previously.











1 Display the menu bar







Project JPEG



PC1

PC2



images with PJ2.









on the projected screen







JPEG



by pressing the MENU











button on the projector





Internet

PJ2

PJ1

or the remote control

PC3

PC4





Intranet













handset.







PC5

























2 Select

“Network

JPEGJPEG









JPEG









setting”

icon by

* ftp file servers







using the point but-

















tons (7/8) and press SELECT







button once. Check the mode is







“On”.













3 Select “Network Viewer” icon by







using the point buttons (e/d) and







then press SELECT button. The







setting window will appear.









4 Set as follows to setup the display







mode;













Auto-Display: Select “Auto” and press SELECT button and the set the display period and repeating times by using the point buttons.

Manual Display: Select “Manual” and press SELECT button.

5 Select “Connect” and then press

SELECT button. The projector downloads the images from the file server and projects them on the screen.

*In the automatic displaying mode [Auto], when the left-click button on the remote control is pressed, projector stops automatic displaying and sets into the manual displaying mode. When pressing the right-click button, it starts automatic displaying again.

*During the displaying, you can browse images backward or forward by using point buttons (e/d) on the remote control or on the projector.

6 To disconnect from the file server, select “Disconnect” and press SELECT button.

*The image data used for this function are the program or folder that the Network Viewer function used last time. The projector cannot specify particular images or file servers itself.

*1 to 255 repeating times can be set. The mark ““ represents endless display.

*3 to 240 seconds can be set for the display period. The display period is greatly affected by the network environment or the operation of multi control, so it may not display the image as the specified display period.

ENGLISH

Network Unit 77

OWNER’S MANUAL

Chapter 5 Network Viewer & Capture

78

Chapter 6

6



Controlling the Multi-Projectors



ENGLISH

Network Unit 79

OWNER’S MANUAL

Chapter 6 Controlling the Multi-Projectors

Display the main menu following to the login procedure described on page 26.

Multi-Control

This function enables to control the multiple projectors equipped with the Network Units that are connected to the network at the same time. Click

Multi Control on the main menu to display the control page.

Note:

To control the multiple projectors, each projector must has the same password.

Example of multi control

PJ4



PJ3



PC3





PC4

































































































































































































Internet

Intranet

































































































PJ2









PJ1















PC5

Select Input2 for PJ1 to PJ4

80

Register IP address and projector name

Register IP address and projector name

Click on Projector Registration to display the registration page. Type the IP address and projector name*1 if required and the click Register button.

Check IP address and projector name

To check the registered information, click on Confirmation & Change. The registered information of the projector is listed as the right.

*The word “None” is displayed if the projector name is not registered.

Projector name

When you click on a listed IP address, the login page for the selected projector will be displayed with a new window and then enter the password for this projector and login.

IP address

ENGLISH

*1 Normally, the projector in the network is recognized with the IP address. This product allows you to name the projector instead of the IP address. By registering the projector’s nickname like “MeetingRoom101”, it can be managed and recognized easily. If you use the DNS server, register the host name registered to the DNS server as projector name. For further information please consult your network administrator.

You can register the projectors up to 100 sets for the multi-control.

Network Unit 81 OWNER’S MANUAL

Chapter 6 Controlling the Multi-Projectors

Exclude/Add/Delete a projector

To change the mode of the registered projectors, select a mode with the pull-down menu button under the IP address of the target projector and then click Set button.

Mode

Operation

Control ................

Controlling the projector

Visual Control ........

Displaying the images

Both Control ..........

Controlling and displaying images

OFF ....................

Excluding from the multi-control

Delete ..................

Deleting from the multi-control

Status

If some of the registered projectors are deactivated by some means (such as disconnecting the power source, disconnecting the LAN cable, disconnecting from the network), control changes will continue to be effective for the projectors that are still activated. At the same time, the deactivated projectors are excluded from the multicontrol. The status of the registered projectors are indicated under the projector name. See the table below for status indications.

Status

Description

(blank)................

The projector is connected to the network correctly

No connection ........

The projector may not connect to the network. Please check the connection and net-



work configuration of this projector.

Password error ......

The login password is incorrect. The password for the multi-controlled projectors



must be the same. Change password of this projector to the common password.

File Error ..............

Not displaying the images. Check if this projector is using the Network Capture func-



tion or Network Viewer function individually, or in the stand by mode.

If the multi-controlled projector is in the standby mode, any change is not effective except timer setting.

It is recommended that a specified projector should be chosen for setting as a master when you use this multi-control function. The control for the multi-controlled projectors will become too complicated operation if this function is used for each projector.

If the registered projector is not connected to the network, it will take some time to complete the multi-control operation because of waiting for the response from each registered projector.

82

Control

Control

Display the control page by clicking on Multi Control on the multi-control page. The setting pages are constructed from 1 to 6 page and each item is indicated on the next page.

Load and apply the setting value

The control sets saved for each projector ( p.54) can be used while the multi-con- trolled projectors function is being used. Select a setting number from the item Load Setting No. with the pull-down menu button and then click Set button. The control values stored with selected set number for each projector will be applied to the individual projector assigned to that set. The control values will not be applied to all of the projectors under the multi-control.

ENGLISH

Network Unit 83

OWNER’S MANUAL

Chapter 6 Controlling the Multi-Projectors

Control multi-projectors at the same time

The valid controls are shown below. Please refer to item “Control the Projector” ( p.40) for further control and description. When the control button or setting button is clicked, the registered projectors for the multi-control are controlled at the same time. * These control items differ from each selected input mode and functions of the projector

you use.

84

Chapter 7

7



Use of Serial Port



ENGLISH

Network Unit 85

OWNER’S MANUAL

Chapter 7 Use of Serial Port

This product provides a serial control port (RS-232C) to control the external equipment which has an RC-232C port. This function allows external equipment to be controlled by the computer through the network and the projector can be controlled by the external serial controller. Before connecting the external equipment, perform the setting “Serial port setting” described below.

Serial Port setting

This is to set up the serial port on the network unit. Display the setting page by clicking on Serial Port on the main menu. To communicate with external equipment correctly, communication condition must be set to the same values as that the connected equipment is using. After fixing the setting, click Set button*1.

Item

Description



Baud Rate..........

Communication speed for serial port, select with the pull-down menu.

Parity..................

Parity check, the ways for error detecting of the transferred data.

Stop ..................

Stop bit, indicates the end of communication.

Flow Control ......

Ways for communication flow.

Data ..................

Indicates the length of data

Serial Control ....Selects equipment to control



External ........

Used to select when the external equipment connected to the serial





port is controlled by the computer through the LAN port.



Projector........

Used to select when the projector is controlled by the serial controller





connected to the serial port.

Port ....................

Indicates the port number of TCP/IP. The default number is 23. Use the same port



number specified by application. There are some reserved port number*2. If one of



those port numbers is used, the alert dialog window will appear and let you know



that it is an invalid port number.

86

Serial port setting

Setting for controlling the equipment connected to the serial port from the computer

Serial Control :Selects “External”

Port :Sets according to the computer specified port no. Do not use port no. 10000*2.

Other Settings :Sets according to the communication condition of the equipment

Setting for controlling the projector from the serial controller connected to the serial pot

Serial Control :Selects “Projector”

Port :Not specified. Do not use port no. 10000*2.

Other Settings :Sets according to the communication condition of the serial controller

Setting fro controlling the projector from the computer through the LAN port

Serial Control

:Not specified







Port

:Not specified







Other Settings

:Not specified





































* The port no. of the computer must be used with 10000.

*1 This product will restart automatically when “Port” or “Serial Control” is changed and it takes about 40 seconds.

*2 The reserved port numbers are http (80), ftp (21), telnet (23), etc. The port no. 10000 is reserved to control the projector through the LAN port.

Exclusive driver software for control of the external equipment is required. This product does not provide any driver software. Please consult your local dealer.

There are 2 types of RS-232C serial cable, Normal(Straight) and Reverse(Cross) type. Usually, when connecting between this product and a projector or a computer, use Reverse type of serial cable. When connecting DVD player etc., use Normal type.

Network Unit

OWNER’S MANUAL

ENGLISH

87

Chapter 7 Use of Serial Port

Control Examples

Example 1

Controlling AV equipment through network

PC1 PC2

PC3 PC4

Turn on the DVD player and start playing.

Internet

Intranet

PJ2

PJ1

PC5

DVD Player

RS-232C serial cable

Example 2

Controlling a projector which is not on the network function through network.

PC2

Turn on the projector PJ1.

Internet

PC4

Intranet

PJ2

PC5

PJ1

RS-232C serial cable

88

Control Examples

Example 3

Controlling the projector with the serial controller through the serial port (RS-232C).



PC2











Internet

PJ2

PJ1

PC3

PC4





Intranet









PC5



















Serial controller









RS-232C serial cable

ENGLISH

Use proper serial cable depending on the connected equipment port specification. Please refer to “Port Specification” of the serial port specification of this product ( p.102).

Network Unit 89

OWNER’S MANUAL

Chapter 7 Use of Serial Port

Use of Telnet

You can control the equipment connected to the serial port on the network unit and the projector itself by using the telnet application*1 installed on your computer. The following is a control example of external equipment. The telnet application is needed to use commands*2 which controls the external equipment.

Preparation

1 Turn the projector off with the mains switch and connect an external equipment to the serial port with an RS-232C serial cable.

2 Turn on the projector and external equipment.

3 Display the setting page by clicking on Serial Port on the main menu with the web browser. ( p.86).

4 Change the serial port setting to be the same communication condition as the connected external equipment and then click Set button.

The following example setting is for our projector communication condition. When controlling our projector set as follows:

Control

Baud rate ..........

19200

Parity ................

NONE

Stop ..................

1

Flow Control ......

NONE

Data ..................

8

Serial Control ....

External

Port ..................

23

(For example, in case of using the Telnet application of the Windows XP Professional.) 1 Select Run... submenu from Start menu on the computer. Type “telnet” onto the

Open text area on the displayed window and press OK button.

2 The telnet application will start and the following window will be displayed. Type as below to connect the projector.

> open 192.168.1.201 return

* Use the IP address assigned to the projector

90

Use of telnet

3 When communication is established, the word “PASSWORD:” appears on the window. Type the login password* for the projector and then press “Enter” key on the keyboard. If you do not register the login password, just press “Enter” key.

When the word “Hello” is replied, login has been succeeded.

* For example, entering password [1234]

4 Type the commands from the key board to control the external equipment and then enter “Enter” key for termination. For example, type “C00” and enter “Enter” key.

-The extra projector will be turned on.

*“C00” is a command to turn the projector on.

To disconnect the communication, type “Ctrl” key and “]” key at the same time.

ENGLISH

*1 Further instructions about the telnet application, please see the on-line guide on your computer. Macintosh does not provide the telnet application.

*2 The commands are defined by each product independently, so please consult the manufacturer or sales dealer for further information of the commands.

*The password is a login password decided on page 20 or 30. If the authentication of the entered password is failed 4 times continuously, the communication will be disconnected automatically. Please try again for the connection.

Network Unit 91

OWNER’S MANUAL

Chapter 7 Use of Serial Port

Control the projector with Telnet

This product allows you to control the projector by using the Telnet application. Normally, it is used for controlling the external equipment connected to the serial port and also control the projector itself by specifying the telnet port no.10000.

*It is not affected by the serial port setting of the projector when using the telnet application.

In the step 2 of the previous page, enter port no. “10000” after the IP address no. > open 192.168.1.201 10000 return

* Use the IP address assigned to the projector

After the communication is established, type the password and the command for controlling the projector and then enter “Enter” key.

The right table shows the typical command lists for controlling the our projector and please consult your local dealer for further information of another commands.

Command list table





Command

Function













C00

Turn the projector on





C01

Turn the projector off





C05

Selects input1





C06

Selects input2





C07

Selects input3





C08

Selects Network





C09

Volume up





C0A

Volume down





C0B

Mute on





C0C

Mute off





C0D

Video mute on





C0E

Video mute off





C1C

Menu display on





C1D

menu display off

















92

Chapter 8

8



Appendix:A



Connection examples

Web browser setting

Technical data

ENGLISH

Network Unit 93

OWNER’S MANUAL

Chapter 8 Appendix

Examples of Connection

Peer-To-Peer connection

Connecting the projector (PJ01) to the control computer (PC05) directly





Computer Name: PC05





IP Address

: 192.168.0.5





Subnet Mask

: 255.255.255.0





Default Gateway

:





DNS

:

Projector Name: PJ01





IP Address

: 192.168.0.2





Subnet Mask

: 255.255.255.0





Default Gateway

: 0.0.0.0

* UTP cross cable



DNS

: 0.0.0.0



Connecting the projector (PJ01) to the control computer (PC05) via the hub.



Hub





Computer Name: PC05



IP Address

: 192.168.0.5



Subnet Mask

: 255.255.255.0



Default Gateway

:



DNS

:

Projector Name: PJ01



IP Address

: 192.168.0.2



Subnet Mask

: 255.255.255.0



Default Gateway

: 0.0.0.0



DNS

: 0.0.0.0





Computer Name: PC10



IP Address

: 192.168.0.10



Subnet Mask

: 255.255.255.0



Default Gateway

:



DNS

:

When the projector is connected to the computer directly without hub, the UTP cross cable should be used .

94

Examples of connection

The gateway (Router) installed in the network

Connecting the projector (PJ01) to the control computer (PC05) via the gateway.

Meeting Room

Projector Name: PJ01

IP Address

: 192.168.200.15

Subnet Mask

: 255.255.255.0

Default Gateway

: 192.168.200.1

DNS

: 192.201.1.5

Network Group: 192.168.200.0

To another network

Office

Hub

Computer Name

: PC205

IP Address

: 192.168.200.5

Subnet Mask

: 255.255.255.0

Default Gateway

: 192.168.200.1

DNS

: 192.201.1.5













Hub

Gateway (Router) IP Address : 192.168.200.1

IP Address : 192.168.100.1

IP Address : 192.168.10.1

Hub

ENGLISH

Computer Name: PC05

Computer Name

IP Address

: 192.168.10.5

IP Address

Subnet Mask

: 255.255.255.0

Subnet Mask

Default Gateway

: 192.168.10.1

Default Gateway

DNS

: 192.201.1.5

DNS

: PC10

Computer Name

: PC51

Computer Name

: PC61

: 192.168.10.10

IP Address

: 192.168.10.51

IP Address

: 192.168.10.61

: 255.255.255.0

Subnet Mask

: 255.255.255.0

Subnet Mask

: 255.255.255.0

: 192.168.10.1

Default Gateway

: 192.168.10.1

Default Gateway

: 192.168.10.1

: 192.201.1.5

DNS

: 192.201.1.5

DNS

: 192.201.1.5

Network Group: 192.168.10.0

Network Unit 95

OWNER’S MANUAL

Chapter 8 Appendix

Web browser setting

This product is designed to enable the projector to be set up and controlled from an Internet web browser. Depending on the preference settings of the web browser, some control functions may not be available. Please make sure that the following functions are set up properly in the web browser.

Active Script/JavaScript enable

There are some control items used with the JavaScript function in the setting pages. If the web browser is set not to use this JavaScript function, it may not control the projector properly. In this case, the following warning message will be displayed on the top of the page. To enable the JavaScript, please see further instructions on the next page.

Proxy setting

In some cases, your web browser is set up to use the proxy server for the internet or intranet connection. In this case, when you install this product into the local network, you should set up the proxy setting of web browser preference correctly. Especially when connecting the projector and computer with a UTP cross cable directly, or when the network does not provide the proxy server, make sure that “not use proxy server” is set up in your web browser preference. To set up the proxy setting, please see further instructions on next page.

There are various ways to change your browser preferences depending on the version or applications. Please see the setting instructions on next page for example and also refer to on-line help of your web browser.

96

Web browser setting

Examples: OS/Browsers

Windows XP Professional

Internet Explorer v.6.0

ActiveScript setting

Select the Internet Options menu from the Tool menu on the web browser and then select Security tab and click Customize Level… button. On the security setting window, scroll down and find the Scripting item, make sure that “Enable” is selected in item Active Scripting.

ENGLISH

Network Unit 97

OWNER’S MANUAL

Chapter 8 Appendix

Proxy setting

Select the Internet Options menu from the Tool menu on the web browser and then select Connection tab and click LAN Settings button. Properly set up your web browser's the proxy server settings according to the local area network environment to which the projector is connected.

- Using proxy server

To use an external internet connection from the local area network, check the item Use a proxy server and enter the proxy server address and port correctly in the proxy settings window. For further instruction please consult your network administrator.

- Not using proxy server

Uncheck the item Use a proxy server.

If you connect the projector to the computer directly with UTP cross cable, this must be unchecked.

To designate proxy settings that will not use the proxy server when accessing the projector installed in the local area network, enter the IP address or domain name here.

98

Web browser setting

Netscape Navigator v.7.0

JavaScript Setting

Select the Preference menu from the Edit menu on the web browser and then select the item Advanced/Scripts & Plugins in the Category column. Make sure that the

Enable JavaScript for Navigator is checked.

ENGLISH

Network Unit 99

OWNER’S MANUAL

Chapter 8 Appendix

Proxy setting

Select the Preference menu from the Edit menu on the web browser and then select the item Advanced/Proxies in the Category column. Properly set up your web browser's the proxy server settings according to the local area network environment to which the projector is connected.

- Using proxy server

When you use an external internet connection from the local area network, select the item Manual proxy configuration. Enter the proxy server address and port number correctly on the HTTP Proxy item. For further instruction please consult your network administrator.

- Not using proxy server

Select the item Direct connection to the Internet in the proxy setting window.

If you connect the projector to the computer directly with UTP cross cable, this must be selected.

To designate proxy settings that will not use the proxy server when accessing the projector installed in the local area network, enter the IP address or domain name here.

100
