Multimedia Projector

MODEL PLC-XP41

PLC-XP41L (Lensless)

Owner’s Manual

TO THE OWNER

Before operating this projector, read this manual thoroughly and operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector



SIDE and TOP



REAR



cabinet for allowing air circulation and cooling the projector. 20cm









































Minimum distance should be taken. If the projector is to be built





















into a compartment or similarly enclosed, the minimum distances

















must be maintained. Do not cover the ventilation slot on the

































projector. Heat build-up can reduce the service life of your



50cm



50cm





50cm













projector, and can also be dangerous.

















Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

2

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power cord or plug is damaged or frayed.

b.If liquid has been spilled into the projector.

c.If the projector has been exposed to rain or water.

d.If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e.If the projector has been dropped or the cabinet has been damaged.

f.When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd.

Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

3

COMPLIANCES

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number

: PLC-XP41/PLC-XP41L

Trade Name

: Sanyo

Responsible party

: SANYO FISHER COMPANY

Address

: 21605 Plummer Street, Chatsworth, California 91311

Telephone No.

: (818)998-7322

AC POWER CORD REQUIREMENT

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be

unable to insert the plug into the outlet, contact your electrician.

GROUND



AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code: Green-and-yellow ············Earth

Blue ·································Neutral Brown ······························Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

4

TABLE OF CONTENTS

FEATURES AND DESIGN

6

PREPARATION

7

NAME OF EACH PART OF PROJECTOR

7

SETTING-UP PROJECTOR

8

CONNECTING AC POWER CORD

8

POSITIONING PROJECTOR

9

LENS INSTALLATION

9

ADJUSTABLE FEET

10

MOVING PROJECTOR

10

CONNECTING PROJECTOR

11

TERMINALS OF PROJECTOR

11

CONNECTING TO COMPUTER

12

CONNECTING TO VIDEO EQUIPMENT

13

COMPUTER MODE

22

SELECTING INPUT SOURCE

22

SELECTING COMPUTER SYSTEM

22

PC ADJUSTMENT

23

AUTO PC ADJUSTMENT

23

MANUAL PC ADJUSTMENT

24

COMPATIBLE COMPUTER SPECIFICATIONS

26

PICTURE IMAGE ADJUSTMENT

27

IMAGE LEVEL SELECT

27

IMAGE LEVEL ADJUSTMENT

28

PICTURE SCREEN ADJUSTMENT

29

VIDEO MODE

30

SELECTING INPUT SOURCE

30

SELECTING VIDEO SYSTEM

31

PICTURE IMAGE ADJUSTMENT

32

IMAGE LEVEL SELECT

32

IMAGE LEVEL ADJUSTMENT

33

BEFORE OPERATION

14

PICTURE SCREEN ADJUSTMENT

34





OPERATION OF REMOTE CONTROL

14

SETTING

35





LASER POINTER FUNCTION

14

SETTING MENU

35

REMOTE CONTROL BATTERIES INSTALLATION

15

TOP CONTROLS AND INDICATORS

16





OPERATING ON-SCREEN MENU

17

APPENDIX

37

HOW TO OPERATE ON-SCREEN MENU

17

FLOW OF ON-SCREEN MENU OPERATION

17





MENU BAR

18

OPERATING WIRELESS MOUSE

37





BASIC OPERATION

19





TURNING ON / OFF PROJECTOR

19

LAMP REPLACEMENT

39

ADJUSTING SCREEN

20

LAMP REPLACE COUNTER

39

ZOOM ADJUSTMENT

20

TROUBLESHOOTING

40

FOCUS ADJUSTMENT

20

TECHNICAL SPECIFICATIONS

42

LENS SHIFT ADJUSTMENT

20





KEYSTONE ADJUSTMENT

20





PICTURE FREEZE FUNCTION

21





NO SHOW FUNCTION

21





P-TIMER FUNCTION

21





SOUND ADJUSTMENT

21





TRADEMARKS

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

Windows and PowerPoint are registered trademarks of Microsoft Corporation.

Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

5

FEATURES AND DESIGN

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compact Design



Digital Zoom (for Computer)

This projector is extremely compact in size and weight. It is designed to carry and work anywhere you wish to use.

Compatibility

This projector widely accepts various video and computer input signals including;

Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL- N color system can be connected.

Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

High Resolution Image

This projector provides 1024 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer between XGA (1024 x 768) and SXGA (1280 x 1024) is compressed into 1024 x 768 dots. This projector cannot display image of over 1280 x 1024 dots. When resolution of your computer is over than 1280 x 1024, reset a computer output for lower resolution.

Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.

Motor-driven Lens Shift

Projection lens can be moved up and down with motordriven lens shift function. This function makes it easy to provide projected image where you want.

Zoom and focus can be also adjusted with motor-driven operation.

Digital Zoom function adjusts image size to approx. 1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.

Keystone Correction

Positioning of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.

Power Management

Power Management function is provided to reduce power consumption while a projector is not in use.

This Power Management function operates to turn Projection Lamp off when a projector detects signal interruption and any button is not pressed over 5 minutes. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed.

This projector is shipped with this function ON.

Digital Visual Interface

This projector is equipped with DVI 24-pin terminal for connecting DVI output from a computer.

Laser Pointer Function

Remote Control Unit supplied with this projector includes Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

Wireless Mouse

Remote Control Unit supplied with this projector has Wireless Mouse function for a connected computer. This function enables you to operate both projector and computer with Remote Control Unit only.

Multilanguage Menu Display

Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean or Japanese.

PJ-Net Organizer (Optional)

PJ-Net Organizer is an optional product to control and set up a projector via the network cable. By accessing to the connected projector using the web browser on your computer. It can be controlled and set up the projector remotely. Contact the sales dealer where you purchased this projector for optional parts.

6

PREPARATION

NAME OF EACH PART OF PROJECTOR

FRONT OF CABINET

TOP CONTROLS

AND INDICATORS

PROJECTION LENS









AIR INTAKE









VENT

LENS COVER







INFRARED

SPEAKERS

REMOTE RECEIVER



BACK OF CABINET

POWER CORD



TERMINALS

INFRARED

EXHAUST VENT

CONNECTOR

AND CONNECTORS

REMOTE RECEIVER















HOT AIR EXHAUSTED !

Air blown from exhaust vent is hot. When using or installing a projector, following precautions should be taken.

● Do not put a flammable object near this vent. ● Keep rear grills at least 3’(1 m) away from any object, especially heat-sensitive object.

● Do not touch this area, especially screws and metallic parts. This area will become hot while a projector is used.

This projector detects internal temperature

and automatically controls operating power LAMP COVER of Cooling Fans.

CARRYING

HANDLE

When attached the PJ-Net organizer (optional part) to the projector, remove the these parts. Refer to the owner's manual in the optional PJ-Net organizer.

BOTTOM OF CABINET

AIR INTAKE VENTS

This projector is equipped with cooling fans for protection from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover vent slots.

● Keep side clear of any objects. Obstructions may block cooling air.

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

7

PREPARATION

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of type of power supply being in use.

Connect a projector with a peripheral equipment before turning a projector on. (Refer to pages 11 ~ 13 for connection.)

CAUTION

For safety, unplug AC Power Cord when an appliance is not used.

When this projector is connected to outlet with AC Power Cord, an appliance is in Stand-by Mode and consumes a little electric power.

Connect AC Power Cord (supplied) to a projector. AC outlet must be near this equipment and must be easily accessible.

NOTE ON POWER CORD

AC Power Cord must meet requirement of country where you use a projector.

Confirm an AC plug type with chart below and proper AC Power Cord must be used.

If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

Projector side











AC Outlet side













































For the U.S.A. and Canada

For Continental Europe

For the U.K.















































Ground









To POWER CORD











To the AC Outlet.



To the AC Outlet.





CONNECTOR on your





To the AC Outlet.



(200 - 240 V AC)



(120 V AC)





projector.





(200 - 240 V AC)



































































8

PREPARATION

POSITIONING PROJECTOR

This projector is designed to project on a flat projection surface.

Projector can be focused from 4.6’ (1.4m) ~ 47.3’ (14.4m).

Refer to figure below to adjust screen size.

ROOM LIGHT

Brightness in room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide best image.







47.3’(14.4m)





35.4’(10.8m)

Max. Zoom

400”





23.6’(7.2m)









11.8’(3.6m)

300”



308”

200”



4.6’(1.4m)









231”

Min. Zoom





100”



40”

154”











77”















31”









Screen



Max. Zoom



40”





100”





150”





200”





250”





300”





400”

















































Size

















































Min. Zoom



31”





77”





115”





154”





192”





231”





308”





































































































































Distance



4.6’ (1.4m)





11.8’ (3.6m)





17.7’ (5.4m)





23.6’ (7.2m)





29.5’ (9.0m)





35.4’ (10.8m)





47.3’ (14.4m)



































































































LENS SHIFT ADJUSTMENT

Projection lens can be moved up and down with motor-driven lens shift function. This function makes it easy to provide projected image where you want. U/D ratio can be adjusted 10 : 0 ~ 1 : 1 (refer to figure below.). Refer to P 20 for operation.

Highest (10 : 0) Lowest (1 : 1)

1

10 : 0

1

LENS INSTALLATION (For Lensless model PLC-XP41L only)

Before setting up a projector, install Projection Lens on

Projector.

1. Before installation, check where a projector is used and

COVER CAP

prepare suitable lens. For specifications of a Projection Lens,



contact sales dealer where you purchased a projector.



2. For installation, refer to installation manual in the optional lens.

NOTE;

When install the lens, remove the cover cap in the projector.

9

PREPARATION

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.5 degrees.

1

Lift front of a projector and pull FEET LOCK LATCHES





on both sides of a projector.



2

Release FEET LOCK LATCHES to lock ADJUSTABLE





FEET and rotate ADJUSTABLE FEET to fine tune





position and tilt.



3

To shorten ADJUSTABLE FEET, lift front of a projector





and pull and undo FEET LOCK LATCHES.





Position and keystone distortion of image can be adjusted





using Menu Operation. (Refer to P 20 and 35.)





ADJUSTABLE FEET

FEET LOCK



NOTE :

LATCHES

THIS PROJECTOR SHOULD BE SET IN THE WAY

INDICATED. PROJECTION LAMP MAY MALFUNCTION.

MOVING PROJECTOR

Use Carry Handle when moving a Projector.

When moving a projector, replace lens cover and retract feet to prevent damage to lens and cabinet.

When this projector is not in use for an extended period, put it into case (dust cover) supplied with this projector.

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR

Do not drop or bump a projector, otherwise damages or malfunctions may result.

When carrying a projector, use a suitable carrying case.

Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best way.

10

USB CONNECTOR (Series B)
When controlling computer with Remote Control Unit of this projector, connect mouse port of your personal computer to this terminal. (Refer to P12.)
RESET BUTTON
This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart unit. Do not use RESET function excessively.
Do not press this button. This button is used for our optional accessories.
COMPUTER AUDIO
INPUT (1 and 2) JACKS
Connect an audio output (stereo) from computer to these jacks.
(Refer to P12.)

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 11 to 13 and connect properly.

COMPUTER INPUT

TERMINALS (DIGITAL/ANALOG)

Connect computer (digital/analog) output to one of these terminals. (Refer to P12.)

INPUT 1









-D)













R/C

USB



RESET

CONTROL PORT

1







2



G

B



R

H/V

V

Cb/Pb



Cr/Pr











INPUT 2





VIDEO/Y Cb/Pb

Cr/Pr

R–AUDIO–L

S–VIDEO













)







INPUT 3





R/C JACK

When using Wired/Wireless Remote Control Unit as Wired Remote Control, Connect Wired Remote Control Unit to this jack with Remote Control Cable (supplied).

CONTROL PORT CONNECTOR

When controlling computer with Remote Control Unit of this projector, connect mouse port of your personal computer to this connector. (Refer to P12.)

VIDEO INPUT JACKS



AUDIO INPUT JACKS



S-VIDEO INPUT JACK





Connect composite video

Connect an audio output

5 BNC INPUT JACKS





output from video equipment

from video equipment to

Connect component video

to VIDEO/Y jack or connect

these jacks.

component video outputs to

(Refer to P13.)

output (Y, Cb, Cr or Y, Pb, Pr)

VIDEO/Y, Cb/Pb and Cr/Pr



from video equipment to



jacks. (Refer to P13.)



VIDEO/Y, Cb/Pb and Cr/Pr



jacks or connect computer





output {5 BNC Type (Green,





Blue, Red, Horiz. Sync and





Vert. Sync.)} from computer





to G, B, R, H/V and V jacks.





(Refer to P12 and 13.)





Connect S-VIDEO output from video equipment to this jack. (Refer to P13.)

11

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

Cables used for connection ( = Cable or adapter is not supplied with this projector.)

• VGA Cable (HDB 15 pin)

• USB Cable

• DVI-Digital Cable (for Single Link T.M.D.S.)

• MAC Adapter (When connecting to Macintosh computer)

• BNC Cable

• Audio Cables (RCA x 2 and Mini Plug (stereo) x 1)

• Control Cable for PS/2 Port, Serial Port or ADB Port



IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

Desktop type

Laptop type

Monitor Output







Monitor Output

USB port

Audio Output Serial port

PS/2 port

ADB port

















































































































































































































































































































































































































































































































































USB

Audio

Control Cable

Control Cable

Control Cable



MAC Adapter

DVI

Cable

for Serial Port

for PS/2 Port

for ADB Port



Cable











BNC

Set slide switches

Cable



(stereo)

Terminal

Terminal

Terminal

according to chart





Cable













below.



























VGA Cable











COMPUTER

Use one of these Control











AUDIO IN 1 or 2











Cables corresponding with

























terminal of your computer.



USB









COMPUTER IN ANALOG







COMPUTER IN DIGITAL



CONTROL























PORT





INPUT 1









ANALOG



DIGITAL(DVI-D)













R/C JACK





USB



RESET

AUDIO 2

CONTROL PORT





AUDIO 1











G

B

R

H/V

V





VIDEO/Y Cb/Pb

Cr/Pr





INPUT 2



VIDEO/Y Cb/Pb Cr/Pr

R–AUDIO–L

S–VIDEO





(MONO)





INPUT 3



MAC ADAPTER

Set switches as shown in table

































































below depending on RESOLU-

ON





























TION MODE that you want to











































ON





DIP









use before you turn on projec-











1

2

3

4

5

6











































tor and computer.





OFF











































































































































1

2

3

4









5







6







13" MODE (640 x 480)

ON

ON

OFF

OFF

OFF







OFF





16" MODE (832 x 624)

OFF

ON

OFF

ON

OFF







OFF





19" MODE (1024 x 768)

OFF

ON

ON

OFF

OFF







OFF





21" MODE (1152 x 870)

ON

ON

ON

ON

OFF







OFF











































Terminals

of a Projector

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.

12

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Cables used for connection ( = Cable is not supplied with this projector.)

Video Cable (RCA x 1 or RCA x 3)

BNC Cable

S-VIDEO Cable

Audio Cable (RCA x 2)

Video Source (example)

Component video output equipment.

Video Cassette Recorder

Video Disc Player

(such as DVD player or high-definition TV source.)



Composite

Component Video Output

Composite

Component Video Output Audio Output S-VIDEO Output

Video Output

(Y, Cb/Pb, Cr/Pr)

Video Output

(Y, Cb/Pb, Cr/Pr)









































































































































Video Cables









(RCA x 1 or





Audio Cable

S-VIDEO

RCA x 3)





BNC Cable



(RCA x 2)

Cable





VIDEO

Y - Cb/Pb - Cr/Pr VIDEO

Y - Cb/Pb - Cr/Pr

AUDIO IN

S-VIDEO





INPUT 1

ANALOG

DIGITAL(DVI-D)

R/C JACK

AUDIO 1

USB

RESET



CONTROL PORT





AUDIO 2





G

B



R

H/V



V

VIDEO/Y

Cb/Pb



Cr/Pr













INPUT 2







VIDEO/Y Cb/Pb Cr/Pr

R–AUDIO–L

S–VIDEO



(MONO)

INPUT 3

Terminals

of a Projector

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet.

13

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

Left Side

ON

ALL

OFF

ALL-OFF SWITCH

When using Remote Control Unit, turn this switch to “ON.” And turn it to “ALL OFF” when it is not used.

LASER POINTER INDICATOR

Lights red while laser beam is emitted from Laser Light Window.

MENU BUTTON

Used to select MENU operation. (P17, 18)

SELECT BUTTON

Used to execute item selected, or to expand or compress image in DIGITAL ZOOM +/– mode. (P29)

It is also used as a PC mouse in Wireless Mouse Operation. (P37)

LASER BUTTON

Used to operate Laser Pointer Function. Laser beam is emitted while pressing this button within 1 minute.

When using this Laser Pointer for more than 1 minute, release LASER button and press it again.

ON-OFF

ZOOM FOCUS VOLUME

LOCK

MUTE D.ZOOM INPUT

MENU

LASER

KEYSTONE

LENS SHIFT

NO SHOW

FREEZE

AUTO PC ADJ.


P-TIMER



POWER ON-OFF BUTTON

Used to turn projector on or off. (P19)

INPUT BUTTON

Used to select input source. (P22)

POINT BUTTON

Used to move a pointer on ONSCREEN MENU, adjust each item, or pan image in DIGITAL ZOOM +/– mode. (P29)

It is also used as a PC mouse in Wireless Mouse Operation. (P37)

When pressing center of this button, it works as SELECT button.

RIGHT CLICK BUTTON

Used as a PC mouse in Wireless Mouse Operation. (P37)

P-TIMER BUTTON

Used to operate P-TIMER function. (P21)

LASER POINTER FUNCTION

This Remote Control Unit emits a laser beam as laser pointer function from Laser Light Window. When LASER button is pressed, laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is released, light goes off. LASER POINTER INDICATOR lights RED and Laser is emitted with RED light to indicate laser beam is being emitted.

Laser emitted is a class II laser; therefore, do not look into Laser Light Window or shine laser beam on yourself or other people. Three marks bellow are caution labels for laser beam.

CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result hazardous radiation exposure.

These caution labels are put on remote control.

LASER POINTER INDICATOR

Laser Light Window

14

BEFORE OPERATION

ZOOM BUTTON



ON-OFF

Used to adjust zoom.





(P20)

ZOOM

FOCUS VOLUME





LOCK



FOCUS BUTTON

MUTE

D.ZOOM INPUT

Used to adjust focus.





(P20)







MENU



MUTE BUTTON

Used to mute sound.(P21)

KEYSTONE BUTTON

Used to correct keystone distortion. (P20, 35)

NO SHOW BUTTON

Used to turn picture into black image. (P21)

AUTO PC ADJ. BUTTON

Use to operate AUTO PC Adjustment function. (P23)

LASER

KEYSTONE

LENS SHIFT

NO SHOW

FREEZE

AUTO PC ADJ.


P-TIMER



WIRED REMOTE JACK

When using as Wired Remote Control, connect Remote Control Cable to this jack.

Battery installation is required when using as Wired Remote Control.

VOLUME BUTTON

Used to adjust volume. (P21)

D.ZOOM BUTTON

Used to select DIGITAL ZOOM +/– mode and resize image. (P29)

FREEZE BUTTON

Used to freeze picture. (P21)

IMAGE BUTTON

Used to select image level. (P27, 32)

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P20)

Operating Range

Point Remote Control Unit toward projector (Receiver Window) whenever pressing any button. Maximum operating range for Remote Control Unit is about 16.4’ (5m) and 60° in front and rear of a projector.

60°

16.4’ (5 m)

16.4’ (5 m)

60°

Remote Control Batteries Installation

1

2

Press lid downward and slide it.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

To insure safe operation, please observe following precautions :

Use (2) AA, UM3 or R06 type alkaline batteries.

Replace two batteries at same time.

Do not use a new battery with an used battery.

Avoid contact with water or liquid.

Do not expose Remote Control Unit to moisture, or heat.

Do not drop Remote Control Unit.

If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.

Danger of explosion if battery is incorrectly replaced.

Dispose of used batteries according to batteries manufacturers instructions and local rules.

15

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

LAMP REPLACE INDICATOR



WARNING TEMP. INDICATOR



READY INDICATOR

Turns to yellow when

Flashes

red

when

Lights green when a

life of projection lamp

internal

projector

projector is ready to be

draws to an end. (P39)

temperature

is too

turned on.

And it





high. (P38)





flashes green in Power













Management

mode.













(P36)



LAMP INDICATOR

Becomes dim when a projector is turned on. And bright when a projector is in stand-by mode.

MENU BUTTON

Used to open or close MENU operation. (P17, 18)

ZOOM BUTTON

Used to adjust zoom. (P20)

FOCUS BUTTON

Used to adjust focus. (P20)

LENS SHIFT BUTTON

Used to select LENS

SHIFT function. (P20)

POINT (VOLUME + / – ) BUTTONS

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in DIGITAL ZOOM +/– mode. (P29)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons.

SELECT BUTTON

Used to execute item selected. It is also used to expand / compress image in DIGITAL ZOOM mode. (P29)

POWER ON–OFF BUTTON

Used to turn a projector on or off. (P19)

INPUT BUTTON

Used to select input source. (P22)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC

Adjustment function. (P23)

IMAGE BUTTON

Used to select image level. (P27, 32)

16

BEFORE OPERATION

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN MENU. Refer to following pages to operate each adjustment on ON-SCREEN MENU.

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

2 MOVING POINTER

Move pointer ( see below) or adjust value of item by pressing POINT button(s) on Top Control or on Remote Control Unit.

Pointer is icon on ON-SCREEN MENU to select item. See figures on section "FLOW OF ON-SCREEN MENU OPERATION" below.

3 SELECT ITEM

Select item or set selected function by pressing SELECT button.

WIRELESS REMOTE CONTROL

POINT BUTTON

Used to move Pointer

UP/ DOWN/ RIGHT/

LEFT.

SELECT BUTTON

Used to select item.

TOP CONTROL

POINT BUTTONS

Used to move Pointer

UP/ DOWN/ RIGHT/

LEFT.

SELECT BUTTON

Used to select item.

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

1

Press MENU button to display ON-SCREEN MENU (MENU

BAR). A red frame is POINTER.





Select Menu to be adjusted





2

Move POINTER (red frame) to MENU ICON that you want to

select by pressing POINT RIGHT / LEFT buttons.



Control or adjust item through ON-SCREEN MENU



3

Press POINT DOWN button and move POINTER (red frame

or red arrow) to ITEM that you want to adjust, and then press



SELECT button to show ITEM DATA.

4

Adjust ITEM DATA by pressing POINT RIGHT / LEFT

buttons.

Refer to following pages for details of respective adjustments.

MENU BAR

MENU ICON

POINTER

POINTER (red frame) (red frame) Press POINT DOWN button to

move POINTER.

ITEM

SELECT

BUTTON

ITEM DATA

Press POINT LEFT/RIGHT buttons to adjust value or set function.

17

BEFORE OPERATION

MENU BAR

FOR PC SOURCE Press MENU BUTTON while connecting to PC input source.









IMAGE SELECT MENU



SCREEN MENU























Used to select



Used to adjust size

GUIDE WINDOW



PC SYSTEM MENU





image level among



of image. [Normal











Shows selected



Used to select



Standard, Real



/ True / Wide /

item of ON-



computer system.



and Image 1 ~ 4.



Digital zoom +/–]

SCREEN MENU.



(Refer to P22, 23)



(Refer to P27)



(Refer to P29)















SETTING MENU

Used to change settings of projector or reset Lamp Replace Counter. (Refer to P35,-37)

INPUT MENU

Used to select input source (Input 1, Input 2 or Input 3). (Refer to P22)

PC ADJUST MENU



IMAGE ADJUST MENU



SOUND MENU











Used to adjust



Used to adjust



Used to adjust

parameters to



computer image.



volume or mute

match with input



[Contrast / Brightness



sound.

signal format.



/ White Balance



(Refer to P21)

(Refer to P23-25)



(R/G/B) / Gamma]









(Refer to P28)













FOR VIDEO SOURCE Press MENU BUTTON while connecting to VIDEO input source.

INPUT MENU

Used to select input source (Input 1, Input 2 or Input 3). (Refer to P30)

IMAGE SELECT MENU

Used to select image level among Standard, Cinema and Image 1 ~ 4. (Refer to P32)

SCREEN MENU

Used to set size of image to Normal or Wide.

(Refer to P34)















AV SYSTEM MENU



IMAGE ADJUST MENU

Same function as









Used to select



Used to adjust picture image.

Menu for PC source.



system of selected



[Contrast / Brightness / Color /











video source.



Tint / White balance (R/G/B) /





(Refer to P31)



Sharpness / Gamma/Noise









Reduction/Progressive]









(Refer to P33, 34)











Same function as Menu for PC source.

18

BEFORE OPERATION

TURNING ON / OFF PROJECTOR

TURNING ON PROJECTOR

1

Complete peripheral connections (with Computer, VCR, etc.)

before turning on projector. (Refer to "CONNECTING TO



PROJECTOR" on pages 11~13 for connecting that equipment.)

2

Connect a projector's AC Power Cord into an AC outlet. LAMP

Indicator lights RED, and READY Indicator lights GREEN.



NOTE : When “On start” function is ON, this projector is turned



on automatically by connecting AC Power Cord to an



AC outlet. (Refer to pages 35, 36.)

3

Press POWER ON-OFF button on Top Control or on Remote

Control Unit to ON. LAMP Indicator dims, and Cooling Fans

start to operate. Preparation Display appears on a screen and count-down starts. Signal from PC or Video source appears after 30 seconds.

Current Input position and Lamp mode status are also displayed on screen for 5 seconds. (Refer to "LAMP MODE" on page 36.)

Input position and

Lamp mode status

Input 1

30

Preparation Display disappears after 30 seconds.

1

2

TURNING OFF PROJECTOR

Press POWER ON-OFF button on Top Control or on Remote

Control Unit, and a message "Power off?" appears on a screen.

Press POWER ON-OFF button again to turn off projector. LAMP

Indicator lights bright and READY Indicator turns off. After Power off? projector is turned off, Cooling Fans operate (for 90 seconds).

During this "Cooling Down" period, this appliance cannot be turned on.

3

When projector has cooled down, READY Indicator lights

Message disappears after 4 seconds.

GREEN again and you can turn projector on. After cooling down



completely, disconnect AC Power Cord.

TO MAINTAIN LIFE OF LAMP, ONCE YOU TURN

PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE

TURNING IT OFF.

When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically. Refer to “Power Management” on page 35.

When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on projector again.

When WARNING TEMP. Indicator continues to flash, follow procedures below:

1.Press POWER ON-OFF button to turn a projector off and disconnect AC Power Cord from an AC outlet.

2.Check Air Filters for dust accumulation.

3.Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 38.)

4.Turn a projector on again.

If WARNING TEMP. Indicator should still continue to flash, contact sales dealer where you purchased this projector or service center.

19

BASIC OPERATION

1

2

ADJUSTING SCREEN

ZOOM ADJUSTMENT

Press ZOOM button on Top Control or ZOOM ▲/▼ button on









Remote Control Unit. Message “Zoom” is displayed.









Press ZOOM ▲ button or POINT UP button to make image









larger, and press ZOOM ▼ button or POINT DOWN button to





Zoom



make image smaller.





















Message disappears after 4 seconds.

1

2

FOCUS ADJUSTMENT

Press FOCUS button on Top Control or FOCUS ▲/▼ button on Remote Control Unit. Message “Focus” is displayed.

Adjust focus of image by pressing FOCUS ▲ /▼ button or POINT UP/DOWN button(s) .

NOTE;

Focus adjustment may not function properly if the image is corrected by KEYSTONE adjustment.

Focus

Message disappears after 4 seconds.



LENS SHIFT ADJUSTMENT

1

Press LENS SHIFT button on Top Control or LENS SHIFT ▲/▼

button on Remote Control Unit. Message “Lens shift” is



displayed.

2



Press POINT UP button or LENS SHIFT ▲ button to move



image up, press POINT DOWN or LENS SHIFT ▼ button to



move image down.

Lens shift



KEYSTONE ADJUSTMENT

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

1

Press KEYSTONE button on Remote Control Unit or select



Keystone on SETTING menu. (Refer to page 35.) Keystone





dialog box appears.



2

Correct keystone distortion by pressing POINT



UP/DOWN/LEFT/RIGHT button(s). Press POINT UP button to

• Arrows are white in no correction.



reduce the upper part of the image, and press POINT DOWN



• Arrow(s) of direction being corrected turn(s) red.



button to reduce the lower part. Press POINT LEFT button to

• Arrow(s) disappear(s) at the maximum



reduce the left part, and press POINT RIGHT button to reduce

correction.



the right part.



Reduce the upper width

Reduce the lower width

Reduce the left part with

with POINT UP button.

with POINT DOWN button.

POINT LEFT button.

































Reduce the right part with POINT RIGHT button.

20

BASIC OPERATION

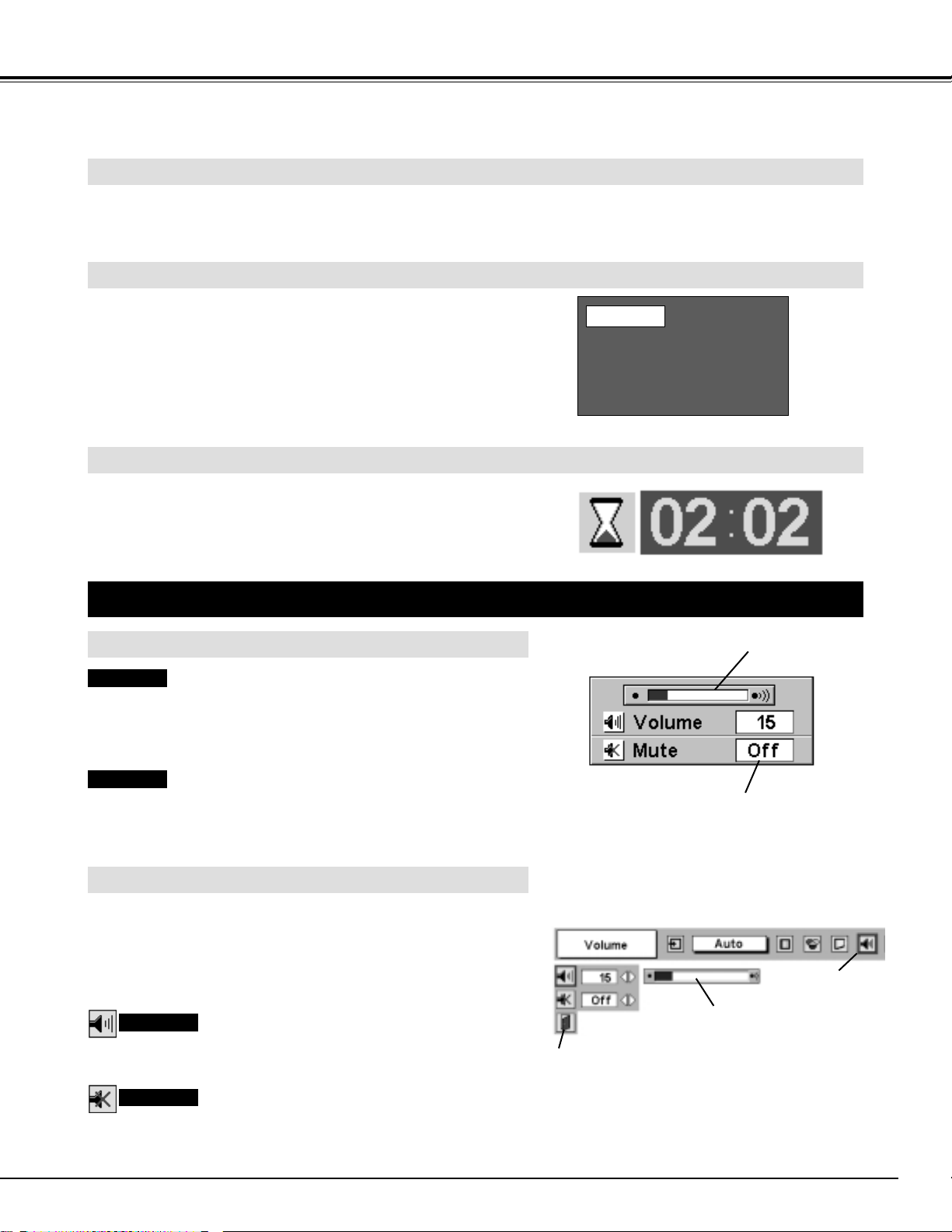

PICTURE FREEZE FUNCTION

Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button.

NO SHOW FUNCTION

Press NO SHOW button on Remote Control Unit to black out image. To restore to normal, press NO SHOW button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button.

No show

Message disappears after 4 seconds.

P-TIMER FUNCTION

Press P-TIMER button on Remote Control unit. Timer display “00 : 00” appears on screen and timer starts to count time (00 : 00 ~ 59 : 59).

To stop P-TIMER display, press P-TIMER button. And then, press P- TIMER button again to cancel P-TIMER function.

SOUND ADJUSTMENT

DIRECT OPERATION

Volume

Press VOLUME (+/–) button(s) on Top Control or on Remote Control Unit to adjust volume. Volume dialog box appears on screen for a few seconds.

(+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) button(s).

Indicates roughly level of volume.

Press MUTE button to set

Mute function On or Off.

Display disappears after 4 seconds.



MENU OPERATION

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to



SOUND Menu icon.

2

Press POINT DOWN button to move a red frame pointer to item

that you want to select, and then press SELECT button.

Volume

To increase volume, press POINT RIGHT button, and press POINT LEFT button for decreasing.

Mute

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

SOUND MENU

SOUND Menu icon

Indicates roughly level of volume.

Close SOUND Menu.

21

COMPUTER INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Choose Computer by pressing INPUT button on Top Control or on Remote Control Unit.

If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).



MENU OPERATION

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to select Input and press SELECT



button. Another dialog box INPUT SELECT Menu will appear.

2

Press POINT DOWN button and a red-arrow icon will appear.

Move arrow to INPUT source that you want to select, and then

press SELECT button.

INPUT button

INPUT 1

INPUT 2

INPUT 3

INPUT Menu icon

SELECTING COMPUTER SYSTEM

WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



INPUT Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to Input

1 and then press SELECT button. Source Select Menu will



appear.

3

Move a pointer to either Digital or Analog and then press

SELECT button.



When your computer is connected to COMPUTER

Digital





INPUT (DIGITAL) terminal, select RGB (Digital).







When your computer is connected to COMPUTER INPUT

Analog





(ANALOG) terminal, select RGB (Analog).





INPUT MENU

INPUT Menu icon

Move a pointer (red arrow) to Input 1 and press SELECT button.

Input 1

Source Select Menu

Move a pointer to Digital or Analog and press SELECT button.

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

When connect a computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)] from a computer to G, B, R, H/HV and V jacks.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



INPUT Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to Input

2 and then press SELECT button. Source Select Menu will



appear.

3

Press POINT DOWN button and a red-arrow icon will appear.

Move arrow to "RGB", and then press SELECT button.

INPUT MENU

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

Input 2

Source Select Menu

Move a pointer to RGB and press SELECT button.

22

COMPUTER INPUT

AUTOMATIC MULTI-SCAN SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 26). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)

Note : Projector may display one of following messages.

Auto

––––

When projector cannot recognize connected signal as PC PC SYSTEM MENU system provided in this projector, Auto PC Adjustment

function operates to adjust projector and message “Auto” is displayed on SYSTEM Menu icon.

When image is not provided properly, manual adjustment is required. (Refer to P24 and 25.)

There is no signal input from computer. Make sure connection of computer and a projector is set correctly. (Refer to TROUBLESHOOTING on page 40.)

PC SYSTEM Menu icon Displays system being selected.

D-VGA, D-SVGA or D-XGA

When digital computer signal is received on DVI terminal, above message is displayed on PC SYSTEM Menu icon.

SELECT COMPUTER SYSTEM MANUALLY

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to PC



SYSTEM Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to



system that you want to set, and then press SELECT button.

PC SYSTEM MENU

PC SYSTEM Menu icon

Displays system being selected.

Systems on this dialog box can be selected.

Custom Mode (1~5) set in PC

ADJUST Menu. (P24, 25)

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.



Auto PC Adj.



1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to PC



ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to

AUTO PC Adj. icon and then press SELECT button twice.

This Auto PC Adjustment can be also executed by pressing AUTO PC ADJ. button on Remote Control Unit.

Store adjustment parameters.

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P23). Refer to step 3 of MANUAL PC ADJUSTMENT section (P25).

NOTE

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame pointer to AUTO PC

Adj. icon and press SELECT button.

Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When image is not provided properly through this function, manual adjustments are required. (Refer to page 24, 25.)

Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “RGB”, “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.

23

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal and “RGB” is selected on PC SYSTEM MENU (P23).

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to PC



ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to item

that you want to adjust and then press SELECT button.

Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

Fine sync

Adjusts an image as necessary to eliminate flicker from display. Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)

Total dots

Number of total dots in one horizontal period. Press POINT LEFT/RIGHT button(s) and adjust number to match your PC image.

Horizontal

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Vertical

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Current mode

Press SELECT button to show information of computer selected.

Clamp

Adjusts clamp position. When image has a dark bar(s), try this adjustment.

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame icon to item and press

SELECT button.





Shows status







Selected Mode

(Stored / Free) of



selected Mode.





Press POINT LEFT/RIGHT

button to adjust value.

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Current mode

Press SELECT button at Current mode icon to show information of computer connected.

24

COMPUTER INPUT

Display area

Selects area displayed with this projector. Select resolution at Display area dialog box.

Display area H

Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area V

Adjustment of vertical area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Full screen

Press POINT LEFT/RIGHT button(s) to switch Full screen function to “On” or “Off.” Set “On” to resize image with 4 x 3 aspect ratio to fit screen.

NOTE : Display area (H/V) and Full screen cannot be adjusted when “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P23).

3 Store

To store adjustment parameters, move a red frame pointer to Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 5 that you want to store and then press SELECT button.

Mode free

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then SELECT button. Move a red arrow pointer to Mode that you want to clear and then press SELECT button.

Other icons operates as follows.

Reset

Reset all adjust parameters on adjustment dialog box to previous figure.

Quit

Closes PC ADJUST MENU.

Press SELECT button at Display area icon and Display area dialog box appears.

Display area

Press POINT LEFT /RIGHT button(s) to adjust value and then press SELECT button.

To store adjustment data.

This Mode has parameters being stored.

Vacant Mode

Shows values of “Total dots,”



“Horizontal,” “Vertical,” “Display



area H,” and “Display area V.”

Store icon



To clear adjustment data.

Close this dialog box.

Mode free icon

25

COMPUTER INPUT

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 160 MHz of Dot Clock.

ON-SCREEN

RESOLUTION

H-Freq.

V-Freq.



ON-SCREEN

RESOLUTION

H-Freq.



V-Freq.

DISPLAY

(kHz)

(Hz)



DISPLAY

(kHz)



(Hz)









VGA 1

640 x 480

31.47

59.88



XGA 10











1024 x 768

62.04

77.07

VGA 2

720 x 400

31.47

70.09



XGA 11

1024 x 768

61.00



75.70

VGA 3

640 x 400

31.47

70.09



XGA 12

1024 x 768

35.522



43.48



(Interlace)



VGA 4

640 x 480

37.86

74.38



XGA 13

1024 x 768

46.90



58.20

VGA 5

640 x 480

37.86

72.81



XGA 14

1024 x 768

47.00



58.30

VGA 6

640 x 480

37.50

75.00



XGA15

1024 x 768

58.03



72.0

VGA 7

640 x 480

43.269

85.00



MAC 19

1024 x 768

60.24



75.08

MAC LC13

640 x 480

34.97

66.60



MAC 21

1152 x 870

68.68



75.06

MAC 13

640 x 480

35.00

66.67



SXGA 1

1152 x 864

64.20



70.40

RGB

––––––––

15.734

30



SXGA 2

1280 x 1024

62.50



58.60

(Interlace)





RGB

––––––––

15.625

25



SXGA 3

1280 x 1024

63.90



60.00

(Interlace)





SVGA 1

800 x 600

35.156

56.25



SXGA 4

1280 x 1024

63.34



59.98

SVGA 2

800 x 600

37.88

60.32



SXGA 5

1280 x 1024

63.74



60.01

SVGA 3

800 x 600

46.875

75.00



SXGA 6

1280 x 1024

71.69



67.19

SVGA 4

800 x 600

53.674

85.06



SXGA 7

1280 x 1024

81.13



76.107

SVGA 5

800 x 600

48.08

72.19



SXGA 8

1280 x 1024

63.98



60.02

SVGA 6

800 x 600

37.90

61.03



SXGA 9

1280 x 1024

79.976



75.025

SVGA 7

800 x 600

34.50

55.38



SXGA 10

1280 x 960

60.00



60.00

SVGA 8

800 x 600

38.00

60.51



SXGA 11

1152 x 900

61.20



65.20

SVGA 9

800 x 600

38.60

60.31



SXGA 12

1152 x 900

71.40



75.60

SVGA 10

800 x 600

32.70

51.09



SXGA 13

1280 x 1024

50.00



43.00



(Interlace)



SVGA 11

800 x 600

38.00

60.51



SXGA 14

1280 x 1024

50.00



47.00



(Interlace)



MAC 16

832 x 624

49.72

74.55



SXGA 15

1280 x 1024

63.37



60.01

XGA 1

1024 x 768

48.36

60.00



SXGA 16

1280 x 1024

76.97



72.00

XGA 2

1024 x 768

68.677

84.997



SXGA 17

1152 x 900

61.85



66.00

XGA 3

1024 x 768

60.023

75.03



SXGA 18

1280 x 1024

46.43



43.35



(Interlace)



XGA 4

1024 x 768

56.47

70.07



SXGA 19

1280 x 1024

63.79



60.18





XGA 5

1024 x 768

60.31

74.92



MAC

1280 x 960

75.00



75.08

XGA 6

1024 x 768

48.50

60.02



MAC

1280 x 1024

80.00



75.08





XGA 7

1024 x 768

44.00

54.58



720p (HDTV)

––––––––

45.00

60.00



(Progressive)

XGA 8

1024 x 768

63.48

79.35



1035i (HDTV)

––––––––

33.75

30.00



(Interlace)

XGA 9

1024 x 768

36.00

43.59



1080i (HDTV)

––––––––

33.75

30.00

(Interlace)



(Interlace)

When a input signal is digital from DVI terminal, refer to chart below.

ON-SCREEN

RESOLUTION

H-Freq.

V-Freq.



ON-SCREEN

RESOLUTION

H-Freq.

V-Freq.

DISPLAY

(kHz)

(Hz)



DISPLAY

(kHz)

(Hz)







D-VGA

640 x 480

31.469

59.940



D-XGA

1024 x 768

48.363

60.004

D-SVGA

800 x 600

37.879

60.317





























NOTE : Specifications are subject to change without notice.

26

COMPUTER INPUT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P28).

IMAGE button Standard

Real

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



IMAGE SELECT Menu icon.

2

Press POINT DOWN button to move a red frame pointer to level

that you want to set and then press SELECT button.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P28).

IMAGE SELECT MENU

IMAGE SELECT

Menu icon

Move a red frame icon to level and press SELECT button.

Level being selected.

27

COMPUTER INPUT

IMAGE LEVEL ADJUSTMENT

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to



IMAGE ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to item

that you want to adjust and then press SELECT button. Level of

each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

3 Store

To store manually preset image, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image 1 to 4 where you want to set and then press SELECT button.

Other icons operates as follows.

Reset

Reset all adjustment to previous figure.

Quit

Closes IMAGE MENU.

IMAGE ADJUST MENU

IMAGE ADJUST

Menu icon

Move a red frame pointer to item to be selected and then press SELECT button.

Selected Image level

Press POINT LEFT/RIGHT buttons to adjust value.

Store icon

Press SELECT button at this icon to store adjustment.

Image Level Menu

Move a red frame pointer to any of Image 1 to 4 where you want to set and then press SELECT button.

28

COMPUTER INPUT

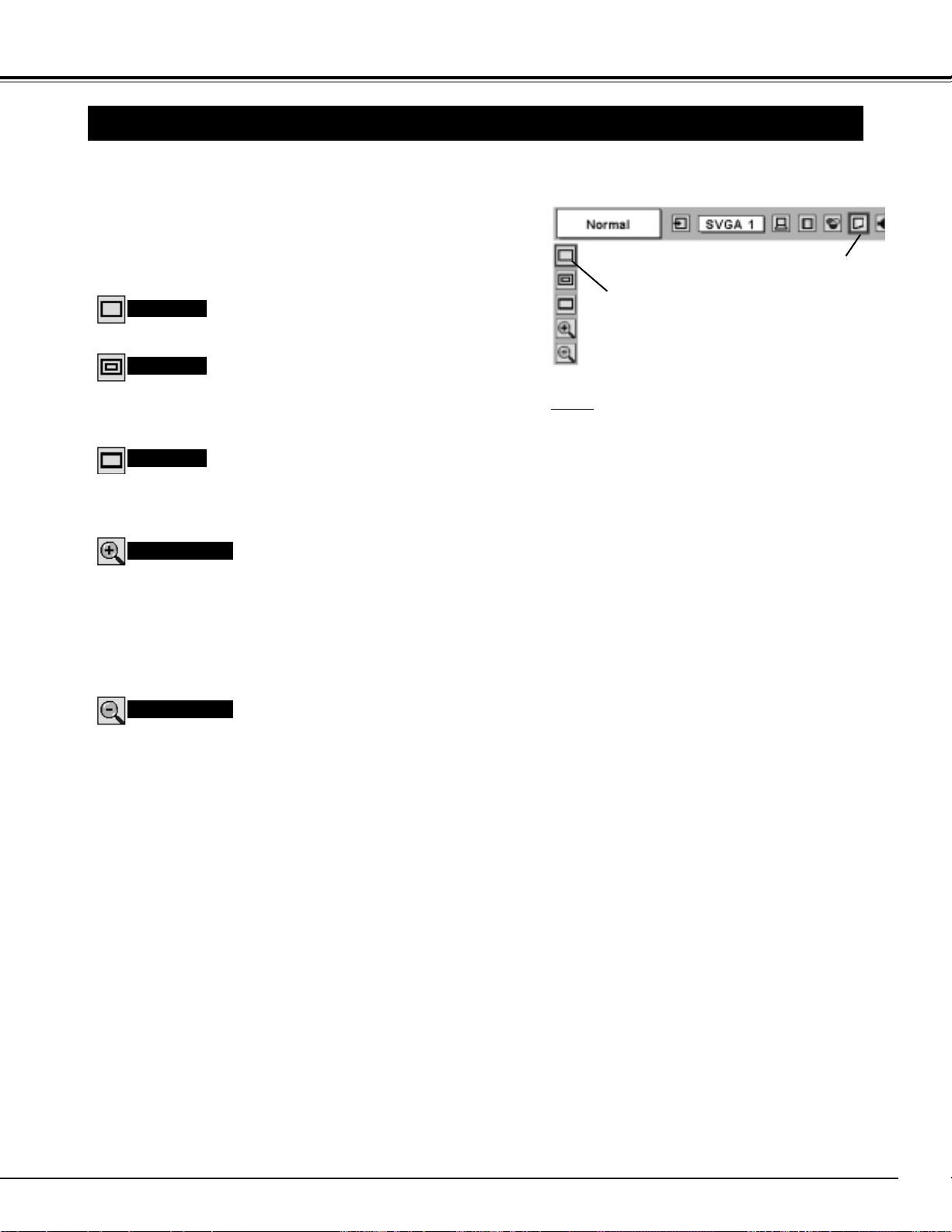

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button(s) to move a red frame pointer to



SCREEN Menu icon.

2

Press POINT DOWN button and move a red frame pointer to

function that you want to select and then press SELECT button.

Normal

Provides image to fit screen size.

True

Provides image in its original size. When original image size is larger than screen size (1024 x 768), this projector enters “Digital zoom +” mode automatically.

Wide

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

Digital zoom +

When Digital zoom + is selected, ON-SCREEN MENU disappears and message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan image. Panning function can work only when image is larger than screen size.

A projected image can be also expanded by pressing D.ZOOM ▲ button on Remote Control Unit.

SCREEN MENU

SCREEN Menu icon

Move red frame to function and press

SELECT button.

NOTE

True and Digital zoom +/– cannot be operated when “RGB”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P23).

Wide cannot be selected when “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P23).

This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset resolution to lower before connecting projector.

Image data in other than XGA (1024 x 768) is modified to fit screen size in initial mode.

Panning function may not operate properly if computer system prepared on PC ADJUST Menu is used.

Digital Zoom –

When Digital zoom – is selected, ON-SCREEN MENU disappears and message “D. Zoom –” is displayed. Press SELECT button to compress image size.

A projected image can be also compressed by pressing D.ZOOM ▼ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM ▲/▼, SELECT, POINT and AUTO PC ADJ. buttons.

29

VIDEO INPUT

SELECTING INPUT SOURCE

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

When connecting to those equipment, select a type of Video source in SOURCE SELECT Menu.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



INPUT Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to Input

2 and then press SELECT button. Source Select Menu will



appear.

3

Move a pointer to source that you want to select and then press

SELECT button.





When video input signal is connected to VIDEO jack,



Video





select Video.





Y,Pb/Cb,Pr/Cr When video input signal is connected to Y-Pb/Cb- Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

INPUT MENU

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

Input 2

Source Select Menu

Move a pointer to Video or

Y, Pb/Cb, Pr/Cr and press

SELECT button.

WHEN SELECT INPUT 3 (AV TERMINALS )

When connecting to those equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



INPUT Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to Input

3 and then press SELECT button. Source Select Menu will



appear.

3

Move a pointer to source that you want to select and then press

SELECT button.





When video input signal is connected to VIDEO jack,



Video





select Video.





Y,Pb/Cb,Pr/Cr When video input signal is connected to Y-Pb/Cb- Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

S-Video When video input signal is connected to S-VIDEO jack, select S-Video.

INPUT MENU

INPUT Menu icon

Move a pointer (red arrow) to Input 3 and press SELECT button.

Input 3

Source Select Menu (VIDEO)

Move a pointer to source and press SELECT button.

30

VIDEO INPUT

SELECTING VIDEO SYSTEM

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to AV



SYSTEM Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to

system that you want to select and then press SELECT button.

VIDEO JACK OR S-VIDEO JACK

Auto

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select system manually first.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM Menu icon

This box indicates system being selected.

Move pointer to system and press SELECT button.

Y, Pb/Cb, Pr/Cr JACKS

Auto

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance.

When Video System is 1035i or 1080i, select system manually first.

COMPONENT VIDEO SIGNAL FORMAT

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i.

AV SYSTEM MENU (COMPONENT VIDEO)

AV SYSTEM Menu icon

This box indicates system being selected.

Move pointer to system and press SELECT button.

31

VIDEO INPUT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P34).

IMAGE button Standard

Cinema

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



IMAGE SELECT Menu icon.

2

Press POINT DOWN button to move a red frame pointer to level

that you want to set and then press SELECT button.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P34).

IMAGE SELECT MENU

IMAGE SELECT

Menu icon

Move red frame pointer to level and press SELECT button.

Level being selected.

32

VIDEO INPUT

IMAGE LEVEL ADJUSTMENT

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red frame pointer to



IMAGE ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to item

that you want to adjust and then press SELECT button. Level of

each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

IMAGE ADJUST MENU

Move a red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST Menu icon

Brightness

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Color

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Tint

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften image, and POINT RIGHT button to sharpen image. (From 0 to 15.)

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Noise reduction

Press POINT LEFT/RIGHT button(s) to change noise reduction mode. Dialog box display is changed to “On” to reduce noise (rough parts) of image. Press POINT LEFT/RIGHT button(s) again, to change noise reduction mode to off.

Progressive scan

Press POINT LEFT/RIGHT button(s) to change progressive scan mode. Dialog box display is changed to “Off” and progressive scan mode to off. Press POINT LEFT/RIGHT button(s) again, progressive scan mode to on.

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to store value.

NOTE :

Tint cannot be adjusted when video system is PAL, SECAM, PAL-M or PAL-N.

Noise Reduction cannot be operated when video signal types and systems as follow.

Composite video signal (SECAM, NTSC4.43, PAL-M and PAL-N systems).

S-video signal (SECAM, PAL-M and PAL-N systems).

Component video signal.

Progressive cannot be operated when “480p”, “575p”, “720p”, “1035i” or “1080i” is selected on AV SYSTEM MENU (P31).

33

VIDEO INPUT

3 Store

To store adjustment data, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image Level 1 to 4 and then press SELECT button.

Other icons operates as follows.

Reset

Reset all adjustment to previous figure.

Quit

Store icon



Closes IMAGE MENU.

Image Level Menu

Move a red frame pointer to image icon to be set and then press SELECT button.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button(s) to move a red frame pointer to



SCREEN Menu icon.

2

Press POINT DOWN button and move a red frame pointer to

function that you want to select and then press SELECT button.

Normal

Provides image at a normal video aspect ratio of 4 : 3.

Wide

Provides image at a wide screen ratio of 16 : 9.

SCREEN MENU

SCREEN Menu icon

Move red frame to function and press

SELECT button.

NOTE : SCREEN Menu cannot be operated when “720p,” “1035i,” or “1080i” is selected on AV SYSTEM Menu (P31).

34

SETTING

SETTING MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red-frame pointer to



SETTING icon.

2

Press POINT DOWN button to move a red-frame pointer to item

that you want to set and then press SELECT button. Setting

dialog box appears.

Language

Language used in ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean and Japanese.

Keystone

When image is distorted, select Keystone. ON-SCREEN MENU disappears and Keystone dialog box is displayed. Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT button(s). Refer to KEYSTONE ADJUSTMENT on page 20.

Blue back

When this function is “On,” this projector will produce a blue image instead of video noise on screen when any input source is unplugged or turned off.

Display

This function decides whether to display On-Screen Displays. On ···shows all On-Screen Displays.

Off ····sets On-Screen Displays disappeared except;

ON-SCREEN MENU

“Power off?” message

SETTING MENU

Set a red frame

SETTING Menu icon

pointer to item and



press SELECT



button.



























When pressing SELECT button at Language, Language Menu appears.

Logo

When this function is “On,” projector displays our logo when starting up.

Ceiling

When this function is “On,” picture is top / bottom and left / right reversed. This function is used to project image from a ceiling mounted projector.

Rear

Move a pointer to item and then press POINT LEFT/RIGHT button(s).

Ceiling function

When this function is “On,” picture is left / right reversed. This function is used to project image to a rear projection screen.

Power management

This function turns Projection Lamp off when this projector detects signal interruption and is not used for a certain period in order to reduce power consumption and maintain Lamp-life. (This projector is shipped with this function ON.)

Power Management function operates to turn Projection Lamp off when input signal is interrupted and any button is not pressed over 5 minutes. This function operates as follows;

1.When any input signal is interrupted, “No signal” and counting down display appears (for 5 minutes).

2.After counting down for 5 minutes, projector lamp and READY indicator are turned off.

3.When READY indicator flashing, Projection Lamp can be turned on again (Power Management mode).

In this Power Management mode, Projection Lamp is automatically turned on when input signal connected or projector is operated with any button on Top Control or on Remote Control Unit again.

Rear function

Time left until Lamp off.

35

SETTING

On start

When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet.

Note ; Be sure to turn projector off properly (refer to section “TURNING OFF PROJECTOR” on P19). If projector is turned off in wrong steps, On Start function does not operate properly.

Lamp mode

When selecting the "" (Eco), the projector reduce the brightness and set into the low power consumption mode.

Remote control

This projector has two different remote control codes; factory-set normal code (Code 1) and secondary code (Code 2). This switching function prevents remote control operation mixture (jam) when operating several projectors or video equipment together.

When operating projector in “Code 2,” both projector and Remote Control Unit must be switched to “Code 2.”

To change code of Projector;

Set Remote control in SETTING MENU to “Code 2.”

To change code of Remote Control Unit;

Press both MENU and IMAGE buttons on Remote Control Unit together for over 10 seconds.

After changing code, make sure Remote Control operates properly. To return to normal code (Code 1), operate both projector and Remote Control in ways above again.

NOTE : When batteries of Remote Control Unit are replaced or ALLOFF switch is turned to “ALL-OFF,” remote transmit code automatically returns to normal code (Code 1).

USB

This Projector is equipped with USB port for interactive operation between a projector and computer. Set mode following steps below.

Wireless Mouse mode

Select " " when controlling a computer with Remote Control of this projector

Projector mode

Select " when controlling a projector with computer.

NOTE: Before you control a projector by computer, install USB driver (optionally sold parts) and set up computer following instruction in USB driver package. Contact your authorized dealer.

PJ-Net Organizer

This function cannot be adjusted when not attach the PJ-Net organizer (optional part) to the projector.

Refer to the owner's manual in the optional PJ-Net organizer.

Press SELECT button at this icon to display other items.

On start

Press SELECT button at this icon to display previous items.

Move pointer to item and then press

POINT LEFT/RIGHT button(s).

36

SETTING/APPENDIX

Lamp counter reset

This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 39 for operation.

Quit

Closes SETTING MENU.

Lamp counter reset

Move pointer to Lamp counter reset and then press SELECT button. Message “Lamp replace counter reset?” is displayed.

OPERATING WIRELESS MOUSE

Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal Computers. POINT buttons and two CLICK buttons are used for wireless mouse operation.

This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ONSCREEN MENU or any message / dialog box is displayed on screen instead of PC mouse pointer, this Wireless Mouse function cannot be used.

INSTALLATION

To use Wireless Remote Control Unit as Wireless Mouse for a Personal Computer, installation of mouse driver (not supplied) is required. Make sure that mouse driver is properly installed in your computer. And make sure that mouse port (or USB port) of a Personal Computer is activated.

1

Connect mouse port (or USB port) of your computer to Control

Port (or USB connector) of this projector with Control Cable (or



USB cable). (Refer to page 11, 12 for connection.)

2

Turn a projector on first, and then turn on your computer. When

computer is switched on first, Wireless Mouse may not work

properly.

Note : When your computer has no mouse port, connect Serial Port of your computer to Control Port of a projector with Control Cable for Serial Port (not supplied).

OPERATING WIRELESS MOUSE

When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, SELECT button, and RIGHT CLICK button on Wireless Remote Control Unit.

POINT button

Used to move PC mouse pointer. Pointer is moved corresponding with direction you are pressing.

SELECT (LEFT CLICK) button

This button has same function as left button in a PC mouse.

RIGHT CLICK button

This button has same function as right button in a PC mouse. This button is not available for controlling this projector.

POINT button (Move pointer)

SELECT button

RIGHT CLICK button

(left button of mouse)

(right button of mouse)

37

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

WARNING TEMP. Indicator flashes red when an internal temperature of a projector exceeds normal temperature. This Indicator stops flashing when temperature of a projector returns to normal.

When WARNING TEMP. Indicator continues to flash, check items listed below.

1

Ventilation Slots of a projector may be blocked. In such an event, reposition a projector so that Ventilation Slots are

not obstructed.

2

Air Filter may be clogged with dust particles. Clean Air Filter by following section AIR FILTER CARE AND CLEANING

below.

3

If WARNING TEMP. Indicator remains on after performing above checks, Cooling Fans or Internal Circuits may be

malfunctioning. Contact service personnel from an authorized dealer or a service station.

AIR FILTER CARE AND CLEANING

Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect life of a projector. Clean Air Filter following steps below:

1

Turn off a projector, and disconnect AC power cord from AC

outlet.

2

Turn a projector upside down and remove Air Filter (2 used) by

pulling latches upward.

3

Clean Air Filter with a brush or wash out dust and particles.

4

inserted.Replace Air Filter properly. Make sure that Air Filter is fully

CAUTION

Do not operate a projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality.

Do not put small parts into Air Intake Vents. It may result in malfunction of a projector.

AIR FILTER

Pull up and remove.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside a projector. This condition may degrade quality of a projected image.

When above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

CLEANING PROJECTION LENS

Follow these steps to clean Projection Lens:

1

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.

Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.

2

3

Lightly wipe a cleaning cloth over Projection Lens.

When a projector is not in use, replace Lens Cover.

38

APPENDIX

LAMP REPLACEMENT

When life of Projection Lamp of this projector draws to an end, LAMP REPLACEMENT indicator lights yellow. When a projected image becomes dark or color of an image becomes unnatural, replacement of Projection Lamp is required.

























CAUTION







CAUTION









For continued safety, replace with a lamp







Do not drop a lamp assembly or touch a glass









assembly of same type.







bulb! Glass can shatter and may cause injury.









Allow a projector to cool for at least 45



























minutes before you open Lamp Cover. Inside

















of a projector can become very hot.































































Follow these steps to replace lamp assembly.

1

Turn off a projector and disconnect AC plug. Allow a projector to

cool for at least 45 minutes.

2

Loosen 2 screws with a screwdriver and open Lamp Cover.

3

Loosen 2 screws with a screwdriver and pull out Lamp Assembly

by grasping Handle.

4

Replace Lamp Assembly with a new one and tighten 2 screws

back. Make sure that Lamp Assembly is set properly. Replace



Lamp Cover and tighten 2 screws.

5

Connect AC Power Cord to a projector and turn it on.

6

Reset Lamp Replace Counter (refer to section “Lamp Replace

Counter” below).

NOTE : Do not reset Lamp Replace Counter when Projection Lamp is not replaced.



LAMP COVER

LAMP

HANDLE

ASSEMBLY



ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering Projection Lamp, give following information to dealer.

● Model No. of your projector : PLC-XP41/PLC-XP41L

● Replacement Lamp Type No. : POA-LMP47

(Service Parts No. 610 297 3891)

LAMP REPLACE COUNTER

Be sure to reset Lamp Replace Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP REPLACE Indicator stops lighting.

1

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to



move a red frame pointer to SETTING Menu icon (refer to page 37).

2

Press POINT DOWN button to move a red frame pointer to “Lamp counter reset” and then press SELECT button.



Message "Lamp replace counter reset?" is displayed. Move pointer to [Yes] and then press SELECT button.

3

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

Do not reset Lamp Replace Counter except after Projection Lamp is replaced.

39

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check matters below once again.

1.Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 11 ~ 13.

2.Check cable connection. Verify that all computer, video and power cord are properly connected.

3.Verify that all power is switched on.

4.If a projector still does not produce an image, re-start your computer.

5.If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. Problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to turn computer and monitor off before you power up a projector. Power equipment back on in order of : Projector and computer.)

6.If problem still exists, check following chart.

Problem:

Try these Solutions

No power.

● Plug a projector into your AC outlet.



● Make sure READY Indicator lights.



● Wait 90 seconds after a projector is turned OFF when turning a projector back on.



NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as



follows:



1. LAMP indicator lights bright and READY indicator turns off.



2. After 90 seconds, READY indicator lights green again and a projector may be



turned on by pressing Power ON-OFF button.



● Check WARNING TEMP. indicator. If indicator flashes red, a projector cannot be turned



on.



(See "TURNING ON/OFF PROJECTOR" section on page 19.)



● Check Projection Lamp. (Refer to page 39.)





Image is out of

● Adjust focus of a projector.

focus.

● Make sure a projection screen is at least 4.6’ (1.4m) from a projector.

● Check Projection Lens to see if it needs cleaning.





NOTE : Moving a projector from a cool temperature location to a warm temperature location



may result in moisture condensation on Projection Lens. In such an event, leave a



projector OFF and wait until condensation disappears.





Picture is Left/Right

● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)

reversed.







Picture is

● Check Ceiling feature. (See “SETTING” section on page 35.)

Top/Bottom



reversed.







Some displays are

● Check Display feature.(See “SETTING” section on page 35.)

not seen during



Operation.







No image.

● Check connection between your computer or video equipment and a projector.



● When turning a projector on, it takes about 30 seconds to display an image.



● Check system that you select is corresponding with your computer or video equipment.



● Make sure temperature is not out of Operating Temperature (5°C ~ 35°C).

No sound.

● Check audio cable connection from audio input source.



● Adjust audio source.



● Press VOLUME (+) button.



● Press MUTE button.





40

APPENDIX

Problem:

Try these Solutions

Remote Control Unit

● Check batteries.

does not work.

● Check ALL-OFF switch on Remote Control Unit is set to “ON”.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.





● Make sure you are not too far from a projector when using Remote Control Unit.



Maximum operating range is 16.4’ (5m).



● Check transmitted signal mode from Remote Control Unit.



(See“SETTING” section on page 36.)

Wireless Mouse

● Check cable connection between a projector and your computer.

function does not

● Check mouse setting on your computer.

● Turn a projector on before turning on a computer.

work.







SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open cabinet.

You can often correct operating problems yourself. If a projector fails to work properly, see "TROUBLESHOOTING" section on page 40, 41. To correct failure, try "Solutions".

If after following all operating instructions, you find that service is necessary, contact Sanyo Service Station or store where you purchased unit.

Give model number and explain difficulty. We will advise you how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

41

APPENDIX



TECHNICAL SPECIFICATIONS

















Projector Type

Multi-media Projector







Dimensions (W x H x D)

12.6" x 6.6" x 16.8" (319 mm x 168 mm x 429.5 mm)





Net Weight

17.4 lbs (7.9 kg)









LCD Panel System

1.3" TFT Active Matrix type, 3 panels





Panel Resolution

1024 x 768 dots









Number of Pixels

2,359,296 (1024 x 768 x 3 panels)





Color System

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N





High Definition TV Signal

480i, 480p, 575i, 575p, 720p, 1035i and 1080i





Scanning Frequency

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz





Projection Lens

F1.8 ~ 2.1 lens with f=48.4 mm ~ 62.8 mm Motor zoom and focus





Throw distance

4.6' (1.4 m) ~ 47.3' (14.4 m)





Motorized Lens Shift

Up and Down









Projection Image Size (Diagonal)

Adjustable from 31" to 400"





Horizontal Resolution

800 TV lines (HDTV)







Projection Lamp

275 watt type









Input 1 Jacks

DVI Terminal (Digital), HDB 15-pin Terminal (Analog)







and Stereo Mini Type Jack (Audio)





Input 2 Jacks

BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H and V), Stereo Mini







Type Jack (Audio)









Input 3 Jacks

RCA Type x 3 (VIDEO/Y, Cb/Pb and Cr/Pr), RCA Type x 2 (Audio R and L)







and DIN 4-pin (S-Video)





Other Jacks

DIN 8-pin (Control port), USB port (Series B receptacle), Wired Remote Jack











and PJ-Net Organizer Connector





Built-in Speakers

INT. SP. Stereo (R and L), 2 watt RMS (T.H.D. 10%)





Feet Adjustment

0˚ to 10.5˚









Voltage and

AC 100 ~ 120 V (4.8 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)





Power Consumption

AC 200 ~ 240 V (2.4 A

Max. Ampere), 50 / 60 Hz (Continental Europe and The U.K.)





Operating Temperature

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)





Storage Temperature

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)





Remote Control Transmitter

Power Source

:

AA, UM3 or R06 Type x 2







Operating Range

:

16.4’ (5m) / ±30˚







Dimensions

:

2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)







Net Weight

:

0.36 lbs (165 g) (including batteries)







Laser Pointer

:

Class II Laser (Max. Output : 1mW / Wave length : 650±20nm)





Accessories

Owner’s Manual











AC Power Cord











Wireless/Wired Remote Control Transmitter and Batteries







Remote Control Cable









VGA Cable











MAC/VGA Adapter











3 Types Control Cable (For PS/2, Serial and ADB port)







Protective Dust Cover









Lens Cover



















● Specifications are subject to change without notice.

42

APPENDIX

CONFIGURATIONS OF TERMINALS

COMPUTER INPUT-1 TERMINAL (ANALOG)

Terminal : HDB15-PIN

Connect display output terminal of computer to this terminal with VGA Cable (supplied). When connecting Macintosh computer, MAC Adapter (supplied) is required.

Pin Configuration



1

Red Input

9

+5V Power











2

Green Input

10

Ground (Vert.sync.)

5

4

3

2

1

3

Blue Input

11

Sense 0

4

Sense 2

12

DDC Data

10

9



8

7 6

15

14

13

12

11

5

Ground (Horiz.sync.)

13

Horiz. sync.





















6

Ground (Red)

14

Vert. sync.











7

Ground (Green)

15

DDC Clock











8

Ground (Blue)





COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal : DVI 24-pin

Connect display output terminal of computer to this terminal with DVI cable (for Single Link T.M.D.S. / not supplied).

Pin Configuration



1

T.M.D.S. Data2–

9

T.M.D.S. Data1–

17

T.M.D.S. Data0–























2

T.M.D.S. Data2+

10

T.M.D.S. Data1+

18

T.M.D.S. Data0+























3

T.M.D.S. Data2 Shield

11

T.M.D.S. Data1 Shield

19

T.M.D.S. Data0 Shield

1

2

3

4

5

6

7

8







4

No Connect

12

No Connect

20

No Connect

9

10

11

12

13

14

15

16







17

18

19

20

21

22

23

24







5

No Connect

13

No Connect

21

No Connect

























































6

DDC Clock

14

+5V Power

22

T.M.D.S. Clock Shield























7

DDC Data

15

Ground (for +5V)

23

T.M.D.S. Clock+























8

No Connect

16

Hot Plug Detect

24

T.M.D.S. Clock–

CONTROL PORT CONNECTOR

Terminal : Mini DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this connector with Control Cable (supplied).

Pin Configuration





PS/2

Serial

ADB









1

-----

R X D

-----









2

CLK

-----

ADB

8

7

6



3

DATA

-----

-----



4

GND

GND

GND

5

4

3





5

-----

RTS / CTS

-----

2

1









6

-----

T X D

-----

















7

GND

GND

-----









8

-----

GND

GND

USB CONNECTOR (Series B)

Connect USB port terminal on your computer or peripheral equipment to this connector with USB Cable (not supplied).

Pin Configuration

2

1

3

4

1

Vcc

2

- Data

3

+ Data

4

Ground

43

Printed in Japan

Part No. 610 297 8445 (1AA6P1P3150-- MB8AA)

SANYO Electric Co., Ltd
