Multimedia Projector

MODEL PLC-SW20

Owner’s Manual

TO THE OWNER

Before operating this projector, read this manual thoroughly and operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector



SIDE and TOP



REAR



cabinet for allowing air circulation and cooling the projector. 20cm









































Minimum distance should be taken. If the projector is to be built





















into a compartment or similarly enclosed, the minimum distances

















must be maintained. Do not cover the ventilation slot on the

































projector. Heat build-up can reduce the service life of your



50cm



50cm





50cm













projector, and can also be dangerous.

















Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

2

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power cord or plug is damaged or frayed.

b.If liquid has been spilled into the projector.

c.If the projector has been exposed to rain or water.

d.If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e.If the projector has been dropped or the cabinet has been damaged.

f.When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd.

Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

3

COMPLIANCES

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number

: PLC-SW20U, PLC-SW20E, PLC-SW20B

Trade Name

: Sanyo

Responsible party

: SANYO FISHER COMPANY

Address

: 21605 Plummer Street, Chatsworth, California 91311

Telephone No.

: (818)998-7322

AC POWER CORD REQUIREMENT

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be

unable to insert the plug into the outlet, contact your electrician.

GROUND



AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code: Green-and-yellow ············Earth

Blue ·································Neutral Brown ······························Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

4

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

NAME OF EACH PART OF PROJECTOR SETTING-UP PROJECTOR

CONNECTING AC POWER CORD POSITIONING PROJECTOR ADJUSTABLE FEET

MOVING PROJECTOR

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR CONNECTING TO COMPUTER CONNECTING TO VIDEO EQUIPMENT

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

OPERATING RANGE

REMOTE CONTROL BATTERY INSTALLATION

TOP CONTROLS AND INDICATORS OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU FLOW OF ON-SCREEN MENU OPERATION MENU BAR

BASIC OPERATION

TURNING ON / OFF PROJECTOR ADJUSTING SCREEN

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT KEYSTONE ADJUSTMENT PICTURE FREEZE FUNCTION NO SHOW FUNCTION P-TIMER FUNCTION

6

COMPUTER INPUT

22



SELECTING INPUT SOURCE

22

7

SELECTING COMPUTER SYSTEM

22

COMPATIBLE COMPUTER SPECIFICATIONS

23

7

PC ADJUSTMENT

24

AUTO PC ADJUSTMENT

24

8

MANUAL PC ADJUSTMENT

25

8

PICTURE IMAGE ADJUSTMENT

27

9

IMAGE LEVEL SELECT

27

9

IMAGE LEVEL ADJUSTMENT

28

10

PICTURE SCREEN ADJUSTMENT

29

11

VIDEO INPUT

30

11

SELECTING INPUT SOURCE

30

12

SELECTING VIDEO SYSTEM

31

13

PICTURE IMAGE ADJUSTMENT

32



IMAGE LEVEL SELECT

32



IMAGE LEVEL ADJUSTMENT

33

14

PICTURE SCREEN ADJUSTMENT

34





14

SETTING

35

15





15

SETTING MENU

35

16





17





17

APPENDIX

37

17

18







MAINTENANCE

37

19





19

LAMP REPLACEMENT

38

LAMP REPLACE COUNTER

38

20

TROUBLESHOOTING

39

20

TECHNICAL SPECIFICATIONS

41

20





20





20





21





21





SOUND ADJUSTMENT

21

TRADEMARKS

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

Windows and PowerPoint are registered trademarks of Microsoft Corporation.

Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

5

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compact Design



One-Touch Auto PC Adjustment

This projector is extremely compact in size and weight. It is designed to carry and work anywhere you wish to use.

Compatibility

This projector widely accepts various video and computer input signals including;

Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL- N color system can be connected.

Component Video

Component video signal, such as a DVD player output, high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

High Resolution Image

This projector provides 800 x 600 dots resolution for computer input and 500 horizontal TV lines. Resolution from a computer between SVGA (800 x 600) and SXGA (1280 x 1024) is compressed into 800 x 600 dots. This projector cannot display image of over 1280 x 1024 dots. When resolution of your computer is higher than 1280 x 1024, reset a computer output for lower resolution.

Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

Incoming computer video signals are recognized and the best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.

Digital Zoom (for Computer)

Digital Zoom function expands (to approx. 16 times of screen size) or compress the image size, allowing you to focus on crucial information at a presentation.

Keystone Correction

Positioning height of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.

Power Management

Power Management function is provided to reduce power consumption while a projector is not in use.

This Power Management function operates to turn Projection Lamp off when a projector detects signal interruption and any button is not pressed over 5 minutes. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed.

This projector is shipped with this function ON.

Multilanguage Menu Display

Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean or Japanese.

6

PREPARATION

NAME OF EACH PART OF PROJECTOR

7

PREPARATION

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of the type of power supply being in use.

Connect a projector with a peripheral equipment before turning a projector on. (Refer to pages 11 ~ 13 for connection.)

CAUTION

For safety, unplug AC Power Cord when an appliance is not used.

When this projector is connected to the outlet with AC Power Cord, an appliance is in Stand-by Mode and consumes a little electric power.

Connect AC Power Cord (supplied) to a projector. The AC outlet must be near this equipment and must be easily accessible.

NOTE ON THE POWER CORD

AC Power Cord must meet requirement of the country where you use a projector.

Confirm an AC plug type with the chart below and proper AC Power Cord must be used.

If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

Projector side











AC Outlet side













































For the U.S.A. and Canada

For Continental Europe

For the U.K.















































Ground









To POWER CORD











To the AC Outlet.



To the AC Outlet.





CONNECTOR on your





To the AC Outlet.



(200 - 240 V AC)



(120 V AC)





projector.





(200 - 240 V AC)



































































8

PREPARATION



POSITIONING PROJECTOR

ROOM LIGHT

The brightness in a room has a great influence on



picture quality. It is recommended to limit



ambient lighting in order to provide the best



image.





















13.1’ (4.0m)







Max. Zoom



5.3’ (1.6m)









100”







Min. Zoom





40”

83”



34”



Screen Size

34”

40”

100







(W x H) mm

690.9 x 518.2

812.8 x 609.6

2032 x



Height (H1)

19.4”(492.3mm)

22.8”(579.12mm)

57”(1447

Height (H2)

1.0”(25.9mm)

1.2”(30.48mm)

3”(76.

ADJUSTABLE

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.6 degrees.

1

Lift the front of a projector and pull FEET LOCK LATCHES



on the both sides of a projector.

2

Release FEET LOCK LATCHES to lock ADJUSTABLE FEET



and rotate ADJUSTABLE FEET to adjust position and tilt.

3

To retract ADJUSTABLE FEET, lift the front of a projector

and pull and undo FEET LOCK LATCHES.

Keystone distortion of a projected image can be adjusted by Menu Operation. (Refer to P20 and 35.)

CAUTION





FEET LOCK

Avoid positioning a projector with the angle of more than 20

ADJUSTABLE FEET

LATCHES



degrees. Projection Lamp may malfunction.





9

PREPARATION

MOVING PROJECTOR

When moving a projector, replace Lens Cover and retract Adjustable Feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into the case (carrying bag) supplied with the projector.

CAUTION

Carrying Bag (supplied) is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed to protect an appliance from external forces. Do not transport a projector through a courier or transport services with this bag, otherwise the projector can be damaged. When handling a projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

Do not drop or bump a projector, otherwise damages or malfunctions may result.

When carrying a projector, use a suitable carrying case.

Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best way.

10

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

Cables used for connection ( = Cable or adapter is not supplied with this projector.)

VGA Cable (HDB 15 pin)

Control Cable for PS/2 Port , Serial Port , or ADB Port

USB Cable

MAC Adapter (When connecting to Macintosh computer)

Audio Cable (Mini Plug (stereo) x 1)

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

Desktop type

Laptop type

Monitor Output

Audio Output USB port Serial port PS/2 port ADB port

MAC Adapter











Set slide switches











according to the



Control Cable

Control Cable

Control Cable

chart below.

USB

for Serial Port

for PS/2 Port

for ADB Port

Audio

Cable

Terminal

Terminal

Terminal



Cable











(stereo)











VGA Cable











COMPUTER AUDIO IN

USB



Use one of these Control





Cables or USB Cable













corresponding with the





CONTROL PORT

terminal of your computer.







COMPUTER IN ANALOG











VIDEO







RESET

Y –

Pb / Cb

– Pr / Cr

USB









COMPUTER

CONTROL PORT

S–VIDEO









AUDIO IN









AV

















IN

AUDIO OUT









Terminals

of the Projector

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

MAC ADAPTER (Not supplied)

Set switches as shown in the table

ON























below depending on RESOLUTION



































ON







DIP



MODE that you want to use before









1

2

3



4

5

6































you turn on projector and computer.

OFF

























































































1

2

3

4







5







6



13" MODE (640 x 480)

ON

ON

OFF

OFF



OFF







OFF



16" MODE (832 x 624)

OFF

ON

OFF

ON



OFF







OFF



19" MODE (1024 x 768)

OFF

ON

ON

OFF



OFF







OFF



21" MODE (1152 x 870)

ON

ON

ON

ON



OFF







OFF

AUDIO OUT

Audio Cable

(stereo)

Audio Input

External Audio Equipment

Audio Amplifier





Audio Speaker







(stereo)





























12

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Cables used for connection ( = Cable is not supplied with this projector.)

Video Cable (RCA x 1 or RCA x 3)

S-VIDEO Cable

Audio Cable (Mini Plug (stereo) x 1)

Video Source (example)





Component video output equipment.





(such as DVD player or high-definition

Video Cassette Recorder

Video Disc Player

TV source.)

Audio Output

Composite

Component Video Output S-VIDEO Output





Video Output

(Y, Pb/Cb, Pr/Cr)













































































































































Audio Cable

Video Cable





Video Cable





(stereo)

(RCA x 1)





(RCA x 3)































































































































AUDIO IN

VIDEO

Y - Pb/Cb - Cr/Pr





VIDEO

Y – Pb / Cb – Pr / Cr

USB

CONTROL PORT

S–VIDEO

COMPUTER



AV

COMPUTER IN

UDIO OUT

AUDIO OUT

S-VIDEO

Cable

S-VIDEO

Use any of VIDEO jack Y-Pb/Cb- Pr/Cr jacks or S-VIDEO jack.

When both VIDEO jack and S- VIDEO jack are connected, S- VIDEO jack has priority over VIDEO jack.

When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, Y-Pb/Cb-Pr/Cr jacks has priority over S-VIDEO jack.

Terminals

of the Projector

Audio Cable (Stereo)

Audio Input

External Audio Equipment

Audio Amplifier



Audio Speaker (stereo)















































































NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

13

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

Infrared signals are transmitted from this point.

INPUT BUTTON

Used to select input source. (P22, 30)

D.ZOOM BUTTONS

Used to select DIGITAL ZOOM mode and resize the image. (P29)

KEYSTONE BUTTONS

Used to correct the keystone distortion.

(P20, 35)

MENU BUTTON

Used to select MENU operation. (P17, 18)

FREEZE BUTTON

INPUT

KEYSTONE D.

MENU

NOSHOW

Used to freeze the picture. (P20)

AUTO PC ADJ. P–

NO SHOW BUTTON

Used to turn the picture into black image. (P21)

AUTO PC ADJ. BUTTON

Use to operate Auto PC

Adjustment function. (P24)

P-TIMER BUTTON

Used to operate P-TIMER function. (P21)

To insure safe operation, please observe the following precautions :

Do not bend, drop Remote Control Unit, or expose Remote Control Unit to moisture or heat.

For cleaning, use soft dry cloth. Do not apply benzene, thinner, splay or any chemical material.

POWER ON-OFF BUTTON

Used to turn the projector on or off. (P19)

VOLUME BUTTONS

Used to adjust volume. (P21)

POINT BUTTONS

Used to move the pointer on the MENU, to adjust the item, or to pan the image in DIGITAL ZOOM mode. (P29)

SELECT BUTTON

Used to execute the item selected or to expand / compress the image in DIGITAL ZOOM mode. (P29)

MUTE BUTTON

Used to mute sound.(P21)

IMAGE BUTTON

Used to select image level. (P27, 32)

Battery is installed in Remote Control Unit.

Before operation, pull out and remove a protect sheet from Remote Control Unit. This sheet protecting discharge of a battery.

AUTO PC ADJ. P–TIMER


Pull and remove.

BATTERY PROTECT SHEET (transparent sheet)

14

BEFORE OPERATION

REMOTE CONTROL BATTERY INSTALLATION

1

2

3

Install battery and

Battery Holder into





Put Battery + mark

Remote Control Unit.











as shown direction.

BATTERY













LITHIUM BATTERY







CR2025 (3.0V)







(+) mark indicates







its (+) polarity.





BATTERY HOLDER



To insure safe operation, please observe the following precautions :

● Use only specified battery. Improper battery may cause malfunction of Remote Control or improper battery's installation may cause explosion.

Be sure to install battery with correct polarity.

Do not expose a battery to moisture or heat. Do not charge a battery.

If a battery have leaked on Remote Control Unit, carefully wipe the case clean and load a new battery.

Dispose used battery according to the battery-manufacturer's instructions.

Keep a battery away from children to avoid swallowing it accidentally.

15

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

POWER ON–OFF BUTTON

Used to turn the projector on or off. (P19)

INPUT BUTTON

Used to select input source. (P22, 30)

MENU BUTTON

Used to open or close MENU operation. (P17, 18)

IMAGE BUTTON

Used to select image level. (P27, 32)

ON – OFF

INPUT

MENU

-VOLUME-


SELECT

SELECT BUTTON

Used to execute the item selected. It is also used to expand / compress the image in DIGITAL ZOOM mode. (P29)

LAMP INDICATOR

Becomes dim when the projector is turned on. And bright when the projector is in stand-by mode.

READY INDICATOR

LAMP

Lights green when the projector is ready to be turned on. And it

READY

flashes green in Power Management mode.

WARNING (P36)

TEMP .

LAMP WARNING TEMP. INDICATOR

REPLACE

Flashes red when internal projector temperature is too high. (P37)

LAMP REPLACE INDICATOR

Turns to yellow when the life of the projection lamp draws to an end. (P38)

POINT (VOLUME + / – ) BUTTONS

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan the image in DIGITAL ZOOM +/– mode. (P29)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons.

16

BEFORE OPERATION

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN MENU. Refer to the following pages to operate each adjustment on ON-SCREEN MENU.

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

2 MOVING POINTER

Move the pointer ( see below) or adjust the value of item by pressing POINT button(s) on Top Control or on Remote Control Unit.

Pointer is the icon on ON-SCREEN MENU to select the item. See the figures on the section "FLOW OF ON-SCREEN MENU OPERATION" below.

3 SELECT ITEM

Select the item or set selected function by pressing SELECT button.

WIRELESS REMOTE CONTROL

MENU BUTTON

TOP CONTROL

MENU

-VOLUME-


SELECT

POINT BUTTON

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

SELECT BUTTON

Used to select the item.

MENU BUTTON

POINT BUTTONS

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

SELECT BUTTON

Used to select the item.

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

1

Press MENU button to display ON-SCREEN MENU (MENU



BAR). A red frame is POINTER.

Select Menu to be adjusted

2

Move POINTER (red frame) to MENU ICON that you want to



select by pressing POINT RIGHT / LEFT buttons.

Control or adjust item through ON-SCREEN MENU

3

Press POINT DOWN button and move POINTER (red frame





or red arrow) to ITEM that you want to adjust, and then press

4

SELECT button to show ITEM DATA.

Adjust ITEM DATA by pressing POINT RIGHT / LEFT





buttons.



Refer to the following pages for details of respective



adjustments.

MENU BAR

POINTER (red frame)

Press POINT DOWN button to move POINTER.

ITEM

SELECT

BUTTON

MENU ICON

POINTER (red frame)

ITEM DATA

Press POINT LEFT/RIGHT buttons to adjust value or set function.

17

BEFORE OPERATION

MENU BAR

FOR PC SOURCE Press MENU BUTTON while connecting to PC input source.

GUIDE WINDOW



PC SYSTEM







Shows selected



Used to

item of ON-



computer

SCREEN MENU.



(Refer to







INPUT MENU

Used to select input source either Computer or Video.

(Refer to P22)

FOR VIDEO SOURCE





SCREEN MENU



SETTING MENU















Used to adjust size



Used to change





of image. [Normal



settings of projector





/ True / Wide /



or reset Lamp





Digital zoom +/–]



Replace Counter.





(Refer to P29)



(Refer to P35, 36)











IMAGE SELECT

Used to select level among Standard, and Image 1 (Refer to P32)

SOUND MENU

Used to adjust volume or mute sound.

(Refer to P21)

input source.

SCREEN MENU

Used to set size of image to Normal or Wide.

(Refer to P34)













Same



function as

MENU



IMAGE ADJUST MENU









select



Used to adjust picture image.

Menu for PC source.



system of selected



[Contrast / Brightness / Color /















video source.



Tint / White balance (R/G/B) /







(Refer to P31)



Sharpness / Gamma]











(Refer to P33, 34)





















Same function as Menu for PC source.

18

BASIC OPERATION

TURNING ON / OFF PROJECTOR

TURNING ON PROJECTOR

1

Complete peripheral connections (with Computer, VCR, etc.)



before turning on projector. (Refer to "CONNECTING TO



PROJECTOR" on pages 11~13 for connecting that equipment.)

2

Connect the projector's AC Power Cord into an AC outlet. LAMP



Indicator lights RED, and READY Indicator lights GREEN.

3

Press POWER ON-OFF button on Top Control or on Remote

Control Unit to ON. LAMP Indicator dims, and Cooling Fans start to operate. Preparation Display appears on a screen and the count-down starts. The signal from PC or Video source appears after 30 seconds.

30

Preparation Display disappears after 30 seconds.

1

2

TURNING OFF PROJECTOR

Press POWER ON-OFF button on Top Control or on Remote

Control Unit, and a message "Power off?" appears on a screen.

Press POWER ON-OFF button again to turn off projector. LAMP

Indicator lights bright and READY Indicator turns off. After Power off? projector is turned off, Cooling Fans operate (for 90 seconds).

During this "Cooling Down" period, the projector cannot be turned on.

3

When projector has cooled down, READY Indicator lights

Message disappears after 4 seconds.

GREEN again and you can turn projector on. After cooling down



completely, disconnect AC Power Cord.

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN

PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE

TURNING IT OFF.

When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically. Refer to “Power Management” on page 36.

When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on projector again.

When WARNING TEMP. Indicator continues to flash, follow procedures below:

1.Press POWER ON-OFF button to turn a projector off and disconnect AC Power Cord from an AC outlet.

2.Check Air Filters for dust accumulation.

3.Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 37.)

4.Turn a projector on again.

If WARNING TEMP. Indicator should still continue to flash, contact the sales dealer where you purchased this projector or service center.

19

BASIC OPERATION

ADJUSTING SCREEN

ZOOM ADJUSTMENT

Move ZOOM LEVER upward to make the image larger. Move

LEVER downward to make the image smaller.

FOCUS

Rotate the FOCUS RING to adjust the projected picture focus.

KEYSTONE ADJUSTMENT

If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.

1

Press KEYSTONE ▲/▼ button on Remote Control Unit or select



Keystone on SETTING menu. (Refer to page 35.) Keystone



dialog box appears.

2

Correct keystone distortion by pressing KEYSTONE ▲/▼ button



or POINT UP/DOWN button(s). Press KEYSTONE ▲ button or

POINT UP button to reduce the upper part of image, and press KEYSTONE ▼ button or POINT DOWN button to reduce the lower part.

Reduce the upper width with KEY STONE ▲ button or POINT UP button.

Reduce the lower width with KEY STONE ▼ button or POINT DOWN button.

PICTURE FREEZE FUNCTION

Press FREEZE button on Remote Control Unit to freeze the picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button.

20

BASIC OPERATION

NO SHOW FUNCTION

Press NO SHOW button on Remote Control Unit to black out the image. To restore to normal, press NO SHOW button again or press any other button.

No show

Message disappears after 4 seconds.

P-TIMER FUNCTION

Press P-TIMER button on Remote Control unit. The timer display “00 : 00” appears on the screen and the timer starts to count time (00 : 00 ~ 59 : 59).

To stop P-TIMER display, press P-TIMER button. And then, press P- TIMER button again to cancel P-TIMER function.

SOUND ADJUSTMENT

DIRECT OPERATION

Volume

Press VOLUME (+/–) button(s) on Remote Control Unit or POINT LEFT / RIGHT button on Top Control to adjust volume. Volume dialog box appears on the screen for a few seconds.

VOLUME (+) or POINT RIGHT button to increase volume, and VOLUME (–) or POINT LEFT button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) or POINT LEFT / RIGHT button(s).

Indicates roughly level of volume.

Press MUTE button to set

Mute function On or Off.

The display disappears after 4 seconds.



MENU OPERATION

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT buttons to move a red frame pointer to



SOUND Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the



item that you want to select, and then press SELECT button.

Volume

To increase volume, press POINT RIGHT button, and press POINT LEFT button for decreasing.

Mute

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

SOUND MENU

SOUND Menu icon

Indicates roughly level of volume.

Close SOUND Menu.

21

COMPUTER INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Choose Computer by pressing INPUT button on Top Control or on Remote Control Unit.

If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).

INPUT button

Computer

Video



MENU OPERATION



1

Press MENU button and ON-SCREEN MENU will appear. Press

INPUT MENU





POINT LEFT/RIGHT button to move a red frame pointer to





INPUT Menu icon.



2

Press POINT DOWN button to move a red arrow pointer to





Computer and then press SELECT button.



INPUT Menu icon

Move a pointer (red arrow) to Computer and press SELECT button.

SELECTING COMPUTER SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 23). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)

Note : Projector may display one of the following messages.

Auto

When projector cannot recognize connected signal as PC PC SYSTEM MENU

system provided in this projector, Auto PC Adjustment





function operates to adjust projector and the message



“Auto” is displayed on SYSTEM Menu icon. (Refer to



P24.) When image is not provided properly, manual



adjustment is required. (Refer to P25 and 26.)

––––There is no signal input from computer. Make sure the connection of computer and a projector is set correctly. (Refer to TROUBLESHOOTING on page 39.)

SELECT COMPUTER SYSTEM MANUALLY

SYSTEM Menu icon Displays system being selected.

This projector automatically selects PC system among those provided PC SYSTEM MENU in this projector and PC system can be also selected manually.

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT buttons to move a red frame pointer to PC



SYSTEM Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to the



system that you want to set, and then press SELECT button.

SYSTEM Menu icon

Displays system being selected.

The systems on this dialog box can be selected.

Custom Mode (1~5) set in PC ADJUST Menu. (P25, 26)

22

COMPUTER INPUT

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100 MHz of Dot Clock.

ON-SCREEN

RESOLUTION



H-Freq.

V-Freq.

DISPLAY



(kHz)

(Hz)





VGA 1

640 x 480



31.47

59.88

VGA 2

720 x 400



31.47

70.09

VGA 3

640 x 400



31.47

70.09

VGA 4

640 x 480



37.86

74.38

VGA 5

640 x 480



37.86

72.81

VGA 6

640 x 480



37.50

75.00

VGA 7

640 x 480

43.269

85.00

MAC LC13

640 x 480



34.97

66.60

MAC 13

640 x 480



35.00

66.67

RGB

––––––––

15.625

50

(Interlace)

RGB

––––––––

15.734

60

(Interlace)

SVGA 1

800 x 600



35.156

56.25

SVGA 2

800 x 600



37.88

60.32

SVGA 3

800 x 600



46.875

75.00

SVGA 4

800 x 600



53.674

85.06

SVGA 5

800 x 600



48.08

72.19

SVGA 6

800 x 600



37.90

61.03

SVGA 7

800 x 600



34.50

55.38

SVGA 8

800 x 600



38.00

60.51

SVGA 9

800 x 600



38.60

60.31

SVGA 10

800 x 600

32.70

51.09

SVGA 11

800 x 600



38.00

60.51

MAC 16

832 x 624

49.72

74.55

XGA 1

1024 x 768

48.36

60.00

XGA 2

1024 x 768

68.677

84.997











ON-SCREEN

RESOLUTION

H-Freq.



V-Freq.



DISPLAY

(kHz)



(Hz)





XGA 3

1024 x 768

60.023

75.03

XGA 4

1024 x 768

56.476

70.07

XGA 5

1024 x 768

60.31

74.92

XGA 6

1024 x 768

48.50

60.02

XGA 7

1024 x 768

44.00

54.58

XGA 8

1024 x 768

63.48

79.35

XGA 9

1024 x 768

36.00

87.17



(Interlace)

XGA 10

1024 x 768

62.04

77.07

XGA 11

1024 x 768

61.00



75.70

XGA 12

1024 x 768

35.522



86.96



(Interlace)

XGA 13

1024 x 768

46.90



58.20

XGA 14

1024 x 768

47.00



58.30

XGA 15

1024 x 768

58.03



72.00

MAC 19

1024 x 768

60.24



75.08

MAC 21

1152 x 870

68.68



75.06

SXGA 1

1152 x 864

64.20



70.40

SXGA 11

1152 x 900

61.20



65.20

SXGA 13

1280 x 1024

50.00



86.00



(Interlace)

SXGA 14

1280 x 1024

50.00



94.00



(Interlace)

SXGA 17

1152 x 900

61.85



66.00

SXGA 18

1280 x 1024

46.43



86.70



(Interlace)

720p (HDTV)

––––––––

45.00



60.00

1035i (HDTV)

––––––––

33.75



60.00



(Interlace)

1080i (HDTV)

––––––––

33.75



60.00



(Interlace)











NOTE : Specifications are subject to change without notice.

23

COMPUTER INPUT

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.



Auto PC Adj.



1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button to move a red frame pointer to PC



ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to

AUTO PC Adj. icon and then press SELECT button twice.

This Auto PC Adjustment can be also executed by pressing AUTO PC ADJ. button on Remote Control Unit.

Store adjustment parameters.

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P22). Refer to step 3 of MANUAL PC ADJUSTMENT section (P26).

NOTE

Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly through this function, manual adjustments are required. (Refer to page 25, 26.)

Auto PC Adjustment function cannot be operated when “RGB,” “720p (HDTV),” “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P22).

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame pointer to AUTO PC

Adj. icon and press SELECT button.

24

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to the display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from the standard ones and may not be tuned by MultiScan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when "RGB" is selected on PC SYSTEM Menu (P22).

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button to move a red frame pointer to PC



ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the

item that you want to adjust and then press SELECT button. Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

Fine sync

Adjusts an image as necessary to eliminate flicker from the display. Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)

Total dots

The number of

LEFT/RIGHT

Horizontal

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust the position.

Vertical

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust the position.

Current mode

Press SELECT button to show the information of computer selected.

Clamp

Adjusts clamp level. When the image has a dark bar(s), try this adjustment.

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame icon to the item and press SELECT button.



Shows status

Selected Mode

(Stored / Free) of the

selected Mode.



Press POINT LEFT/RIGHT

button to adjust the value.

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Current mode

Press SELECT button at Current mode icon to show the information of computer connected.

25

COMPUTER INPUT

Display area

Selects area displayed with this projector. Select the resolution at Display area dialog box.

Display area H

Adjustment of horizontal POINT LEFT/RIGHT the resolution of

Display area V

Adjustment of vertical area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value to match the resolution of image.

Full screen

Press POINT LEFT/RIGHT button(s) to switch Full screen function to “On” or “Off.” Set “On” to resize the image with 4 x 3 aspect ratio to fit the screen.

NOTE : Fine sync, Total dots, Display area (H/V) and Full screen cannot be adjusted when “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P22).

3 Store

To store adjustment parameters, move a red frame pointer to Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 5 that you want to store to and then press SELECT button.

Mode free

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then SELECT button. Move a red arrow pointer to the Mode that you want to clear and then press SELECT button.

Other icons operates as follows.

Reset

Reset all adjust parameters on adjustment dialog box to previous figure.

Quit

Closes PC ADJUST MENU.

Press SELECT button at Display area icon and Display area dialog box appears.

Display area

To store adjustment data.

This Mode has parameters being stored.

Vacant Mode Shows values of “Total dots,” “Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

To clear adjustment data.

Close this dialog box.

26

COMPUTER INPUT

PICTURE IMAGE ADJUSTMENT

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit.

Standard

Normal picture adjustment preset on this projector.

Real

Picture adjustment improved in reproduction of halftones. This adjustment is suitable for providing better image in brighter place.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P28, 29).

IMAGE button Standard

Real

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button to move a red frame pointer to



IMAGE SELECT Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the



level that you want to set and then press SELECT button.

Standard

Normal picture adjustment preset on this projector.

Real

Picture adjustment improved in reproduction of halftones. This adjustment is suitable for providing better image in brighter place.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P28, 29).

IMAGE SELECT MENU

IMAGE SELECT

Menu icon

Move a red frame pointer to the level and press SELECT button.

The level being selected.

27

COMPUTER INPUT

IMAGE LEVEL ADJUSTMENT

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT buttons to move a red frame pointer to



IMAGE ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the

item that you want to adjust. and then press SELECT button. The level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Color

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Tint

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften the image, and POINT RIGHT button to sharpen the image. (From 0 to 15.)

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

IMAGE ADJUST MENU

IMAGE ADJUST

Menu icon

red frame pointer to to be selected and SELECT button.

Selected Image level

Press POINT LEFT/RIGHT buttons to adjust value.

Store icon

Press SELECT button at this icon to store the adjustment.

Press POINT LEFT/RIGHT buttons to adjust value.

28

COMPUTER INPUT

3 Store

To store manually preset image, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to the Image 1 to 4 where you want to set and then press SELECT button.

Other icons operate as follows.

Reset

Reset all adjustment to previous figure.

Quit

Closes IMAGE MENU.

Image Level Menu

Move a red frame pointer to any of Image 1 to 4 where you want to set and then press SELECT button.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button(s) to move a red frame pointer to



SCREEN Menu icon.

2

Press POINT DOWN button and move a red frame pointer to the



function that you want to select and then press SELECT button.

Normal

Provides image to fit screen size.

True

Provides image in its original size. When the original image size is larger than screen size (800 x 600), this projector enters “Digital zoom +” mode automatically.

Wide

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

Digital zoom +

When Digital zoom + is selected, ON-SCREEN MENU disappears and the message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan the image. Panning function can work only when the image is larger than screen size.

A projected image can be also expanded by pressing D.ZOOM ▲ button on Remote Control Unit.

Digital zoom –

When Digital zoom – is selected, ON-SCREEN MENU disappears and the message “D. Zoom –” is displayed. Press SELECT button to compress image size.

A projected image can be also compressed by pressing D.ZOOM ▼ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM ▲/▼, SELECT, and POINT buttons.

SCREEN MENU

SCREEN Menu icon

Move the red frame to the function and press SELECT button.

NOTE

This SCREEN Menu cannot be operated when “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P22).

Wide cannot be selected when “720p (HDTV)” is selected on PC SYSTEM Menu (P22).

True and Digital zoom +/– cannot be selected when “RGB” is selected on PC SYSTEM Menu (P22).

This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting projector.

Digital zoom – cannot be fully operated when the image resolution is higher than SVGA (800 x 600).

The image data in other than SVGA (800 x 600) is modified to fit the screen size in initial mode.

Panning function may not operate properly if the computer system prepared on PC ADJUST Menu is used.

29

VIDEO INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Choose Video by pressing INPUT button on Top Control or on Remote Control Unit.

If projector cannot reproduce proper video source, select correct input source through MENU OPERATION (see below).

INPUT button

Video

Computer





MENU OPERATION

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button to move a red frame pointer to



INPUT Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to



Video and then press SELECT button. Source Select Menu will



appear.

3

Move a pointer to the source that you want to select and then



press SELECT button.





Projector automatically detects incoming Video signal,



Auto





and adjusts itself to optimize its performance.





When both VIDEO jack and S-VIDEO jack are connected, S-VIDEO jack has priority over VIDEO jack.

When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, Y-Pb/Cb-Pr/Cr jacks have priority over S- VIDEO jack.

Video

When video input signal is connected to VIDEO jack,



select Video.





When video input signal is connected to S-VIDEO jack,

S-Video



select S-Video.



Y,Pb/Cb,Pr/Cr When video input signal is connected to Y-Pb/Cb- Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

INPUT MENU

Move a pointer to Video and press SELECT button.

VIDEO

Source Select Menu (VIDEO)

Move a pointer to the source and press SELECT button.

30

VIDEO INPUT

SELECTING VIDEO SYSTEM

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT buttons to move a red frame pointer to AV



SYSTEM Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to the



system that you want to select and then press SELECT button.

VIDEO JACK OR S-VIDEO JACK

Auto

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM Menu icon

This box indicates the system being selected.

Move the pointer to the system and press SELECT button.

Y, Pb/Cb, Pr/Cr JACKS

Auto

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i.

AV SYSTEM MENU (COMPONENT VIDEO)

AV SYSTEM Menu icon

This box indicates the system being selected.

Move the pointer to the system and press SELECT button.

31

VIDEO INPUT

PICTURE IMAGE ADJUSTMENT

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit.

Standard

Normal picture adjustment preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P33,34).

IMAGE button Standard

Cinema

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button to move a red frame pointer to



IMAGE SELECT Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the



level that you want to set and then press SELECT button.

Standard

Normal picture adjustment preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P33,34).

IMAGE SELECT MENU

IMAGE SELECT

Menu icon

Move the red frame pointer to the level and press SELECT button.

The level being selected.

32

VIDEO INPUT

IMAGE LEVEL ADJUSTMENT

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button(s) to move a red frame pointer to



IMAGE ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the

item that you want to adjust and then press SELECT button. The level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Color

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Tint

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften the image, and POINT RIGHT button to sharpen the image. (From 0 to 15.)

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

NOTE : Tint cannot be adjusted when the video system is PAL, SECAM, PAL-M or PAL-N.

IMAGE ADJUST MENU

Move a red frame pointer to

IMAGE ADJUST

to be selected and SELECT button.

Menu icon

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to store the value.

33

VIDEO INPUT

3 Store

To store the adjustment data, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to the Image Level 1 to 4 and then press SELECT button.

Other icons operate as follows.

Reset

Reset all adjustment to previous figure.

Quit

Closes IMAGE MENU.

Image Level Menu

Move a red frame pointer to the image icon to be set and then press SELECT button.

Store icon

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button(s) to move a red frame pointer to



SCREEN Menu icon.

2

Press POINT DOWN button and move a red frame pointer to the



function that you want to select and then press SELECT button.

Normal

Provides image at a normal video aspect ratio of 4 : 3.

Wide

Provides image at a wide screen ratio of 16 : 9.

SCREEN MENU

SCREEN Menu icon

Move the red frame to the function and press SELECT button.

NOTE : SCREEN Menu cannot be operated when “720p,” “1035i,” or “1080i” is selected on AV SYSTEM Menu (P31).

34

SETTING

SETTING MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button(s) to move a red-frame pointer to



SETTING icon.

2

Press POINT DOWN button to move a red-frame pointer to the



item that you want to set and then press SELECT button.

Setting dialog box appears.

Language

Language used in ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean, and Japanese.

Keystone

When the image is distorted vertically, select Keystone. ON-

Refer

Blue back

When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when any input source is unplugged or turned off.

Display

This function decides whether to display On-Screen Displays. On ···shows all the On-Screen Displays.

Off ····sets On-Screen Displays disappeared except;

ON-SCREEN MENU

“Power off?” message (P19)

P-TIMER

“No signal” message (P36)

Logo

When this function is “On,” projector displays our logo when starting up.

Ceiling

When this function is “On,” picture is top / bottom and left / right reversed. This function is used to project the image from a ceiling mounted projector.

Rear

When this function is “On,” picture is left / right reversed. This function is used to project the image to a rear projection screen.

SETTING MENU

Set a red frame

SETTING Menu icon

pointer to the item



and press SELECT



button.



When pressing SELECT button at Language, Language Menu appears.

Move a pointer to the item and then press POINT LEFT/RIGHT button(s).

Ceiling function

Rear function

35

SETTING

Power management

This function turns Projection Lamp off when this projector detects signal interruption and is not used for a certain period in order to reduce power consumption and maintain the Lamp-life. (This projector is shipped with this function ON.)

Power Management function operates to turn Projection Lamp off when the input signal is interrupted and any button is not pressed over 5 minutes. This function operates as follows;

1.When any input signal is interrupted, “No signal” and the counting down display appears (for 5 minutes).

2.When Projection Lamp is turned off, READY Indicator is turned off. Cooling Fans operate and Projection Lamp is turned off for 90 seconds. (During this "Cooling Down" period, projector cannot be turned on.)

3.When Projection Lamp has cooled down, READY Indicator flashes and Projection Lamp can be turned on again (Power Management mode).

In this Power Management mode, Projection Lamp is automatically turned on when the input signal is connected or projector is operated with any button on Top Control or on Remote Control Unit again.

Remote control

This projector has two different remote control codes; the factory-set normal code (Code 1) and the secondary code (Code 2). This switching function prevents remote control operation mixture (jam) when operating several projectors or video equipment together.

When operating projector in “Code 2,” both projector and Remote Control Unit must be switched to “Code 2.”

To change the code of Projector;

Set Remote control in the SETTING MENU to “Code 2.”

To change the code of the Remote Control Unit;

Press both MENU and IMAGE buttons on Remote Control Unit together for over 10 seconds.

After changing the code, make sure Remote Control operates properly.

To return to the normal code (Code 1), operate both projector and Remote Control in the ways above again.

NOTE : When battery of Remote Control Unit is replaced, the remote control code automatically returns to the normal code (Code 1).

Lamp counter reset

This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 38 for operation.

Time left until Lamp off.

Move the pointer to Lamp counter reset and then press SELECT button. The message “Lamp replace counter reset?” is displayed.

36

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

WARNING TEMP. Indicator flashes red when an internal temperature of a projector exceeds the normal temperature. This Indicator stops flashing when the temperature of a projector returns to normal.

When WARNING TEMP. Indicator continues to flash, check the items listed below.

1

Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots

are not obstructed.

2

Air Filters may be clogged with dust particles. Clean Air Filters by following the section AIR FILTER CARE AND

CLEANING below.

3

If WARNING TEMP. Indicator remains on after performing the above checks, Cooling Fans or the Internal Circuits may

be malfunctioning. Contact service personnel from an authorized dealer or a service station.

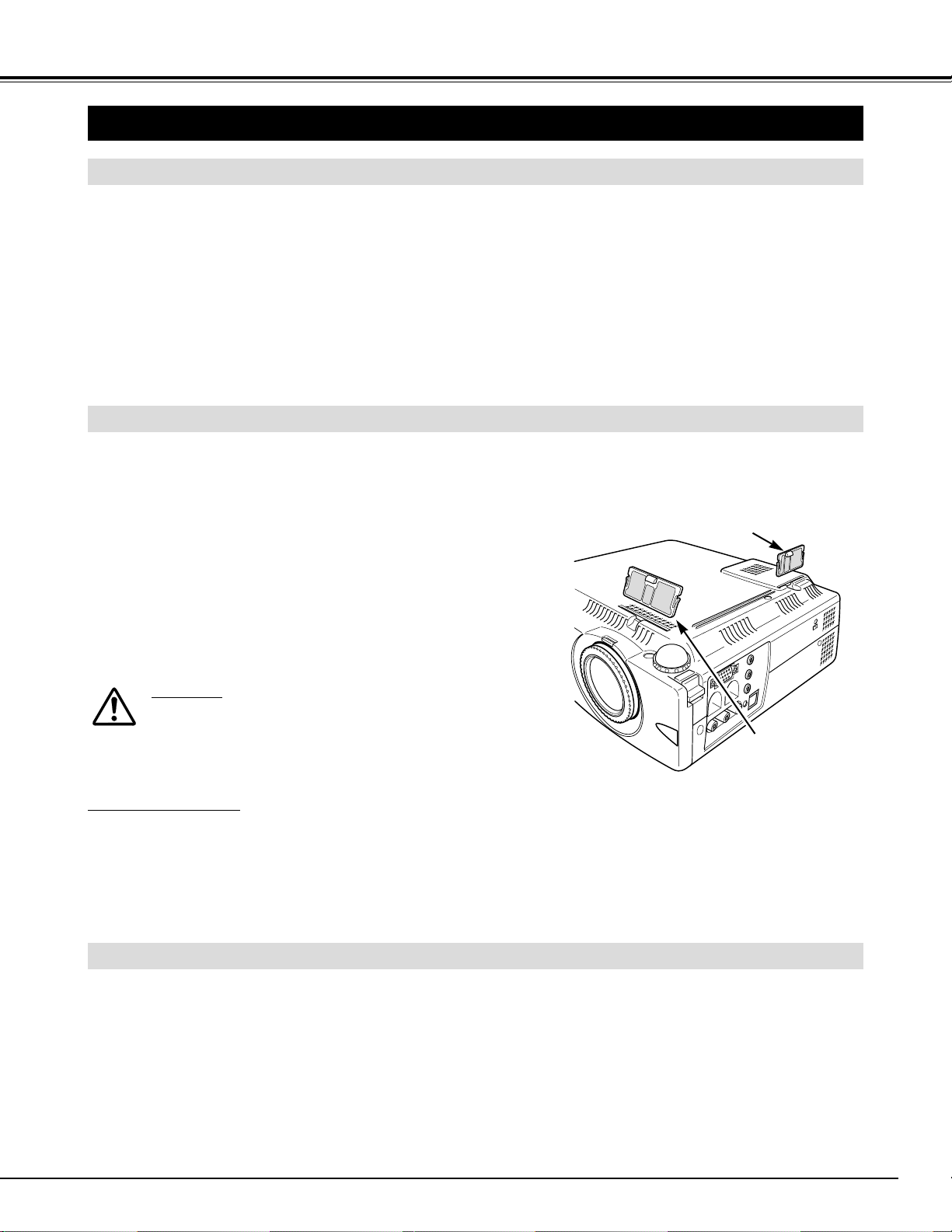

AIR FILTER CARE AND CLEANING

Removable Air Filters prevent dust from accumulating on the surface of Projection Lens and Projection Mirror. Should Air Filters become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean Air Filters following the steps below:

1

Turn off the projector, and disconnect AC power cord from the



AC outlet.

2

Turn the projector upside down and remove two Air Filters



(Large and Small) by pulling the latches upward.

3

Clean Air Filters with a brush or wash out dust and particles.

4

Replace each Air Filter properly. Make sure that Air Filters are



fully inserted.

CAUTION

Do not operate the projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality.

Do not put small parts into Air Intake Vents. It may result in malfunction of the projector.

AIR FILTER (Small)

AIR FILTER (Large)

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. This condition may degrade the quality of a projected image.

When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

CLEANING PROJECTION LENS

Follow these steps to clean Projection Lens:

1

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.



Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.

2

3

Lightly wipe lens surface with a cleaning cloth.

When the projector is not in use, replace Lens Cover.

37

APPENDIX

LAMP REPLACEMENT

When the life of Projection Lamp of this projector draws to an end, LAMP REPLACEMENT indicator lights yellow. When a projected image becomes dark or the color of an image becomes unnatural, replacement of Projection Lamp is required.

Follow these steps to replace the lamp assembly.

1

Turn off the projector and disconnect AC plug. Allow the



projector to cool for at least 45 minutes.

2

3

Remove a screw with a screwdriver to remove Lamp Cover.

Remove 2 screws with a screwdriver and pull out Lamp Assembly by grasping Handle.

4

Replace Lamp Assembly with a new one and tighten 2 screws



back. Make sure that Lamp Assembly is set properly. Replace

Lamp Cover and tighten a screw.

5

6

Connect AC Power Cord to the projector and turn it on.

Reset Lamp Replace Counter (refer to the section “Lamp Replace Counter” below).

38

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check the items below once again.

1.Make sure you have connected a projector to your computer or video equipment as described in the section "CONNECTING THE PROJECTOR" on pages 11 ~ 13.

2.Check cable connection. Verify that all computer, video and power cord are properly connected.

3.Verify that all power is switched on.

4.If a projector still does not produce an image, re-start your computer.

5.If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, be sure to turn the computer and monitor off before you power up the projector. Turn the projector on, and then the computer.)

6.If the problem still exists, check following chart.

Problem:

Try these Solutions

No power.

● Plug a projector into your AC outlet.



● Make sure READY Indicator lights.



● Wait 90 seconds after a projector is turned OFF when turning the projector back on.



NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as



follows:



1. LAMP indicator lights bright and READY indicator turns off.



2. After 90 seconds, READY indicator lights green again and a projector may be



turned on by pressing Power ON-OFF button.



● Check WARNING TEMP. indicator. If the indicator flashes red, the projector cannot be



turned on.



(See "TURNING ON/OFF PROJECTOR" section on page 19.)



● Check Projection Lamp. (Refer to page 38.)





Image is out of

● Adjust focus of a projector.

focus.

● Make sure a projection screen is at least 5.3’ (1.6m) from the projector.

● Check Projection Lens to see if it needs cleaning.





NOTE : Moving a projector from a cool temperature location to a warm temperature location



may result in moisture condensation on Projection Lens. In such an event, leave a



projector OFF and wait until condensation disappears.





Picture is Left/Right

● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)

reversed.







Picture is

● Check Ceiling feature. (See “SETTING” section on page 35.)

Top/Bottom



reversed.







Some displays are

● Check Display feature.(See “SETTING” section on page 35.)

not seen during the



Operation.







No image.

● Check the connection between your computer or video equipment and a projector.



● Check NO SHOW function. (Refer to page 21.)



● When turning a projector on, it takes about 30 seconds to display an image.



● Check the system that you select is corresponding with your computer or video



equipment.



● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).





No sound.

● Check audio cable connection from audio input source.



● Adjust the audio source.



● Press VOLUME (+) button.



● Press MUTE button.





39

APPENDIX

Problem:

Try these Solution

Remote Control Unit

● Check the battery.

does not work.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure of maximum operating distance 16.4’ (5m) between the receiver on the





projector and Remote Control Unit.



● Make sure the code of Remote Control is set to conform to projector.



(See “SETTING” section on page 35, 36.)





WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If the problem still persists after following all operating instructions, contact the sales dealer where you purchased the projector or the service center. Give the model number and explain the problem in detail. We will advise you of how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

40











APPENDIX











































TECHNICAL SPECIFICATIONS





















Projector Type

Multi-media Projector











Dimensions (W x H x D)

10.12" x 2.98" x 9.02" (257mm x 75.8mm x 229mm) (not including Adjustable Feet and Lens)









Net Weight

6.2lbs (2.8 kg)













LCD Panel System

0.7" TFT Active Matrix type, 3 panels









Panel Resolution

800 x 600 dots













Number of Pixels

1,440,000 (800 x600 x 3 panels)









Color System

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N









High Definition TV Signal

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i









Scanning Frequency

H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz









Projection Image size (Diagonal)

Adjustable from 34” to 200”









Horizontal Resolution

500 TV lines (S-Video)











Projection Lens

F 1.6 ~ 1.78 lens with f 28.7 mm ~ 34.5 mm with manual zoom and focus









Throw Distance

5.3’ ~ 26.6’ (1.6 m ~ 8.1 m)









Projection Lamp

150 W













Video Input Jacks

RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)









Audio Input Jacks

Mini Jack (stereo)

x 1











Computer Input Terminals

(VGA) HDB 15 Terminal x 1









Computer Audio Input Jack

Mini Jack (stereo)

x 1











Control Port Connector

Mini DIN 8 pin x 1













USB Connector

USB Series B receptacle x 1









Audio Output Jacks

Mini Jack (stereo)

x 1











Internal Audio Amp

1.0 W RMS













Built-in Speaker

1 speaker, ø 1.1" (28mm)









Feet Adjustment

0˚ to 10.6˚













Voltage and

AC 100 ~ 120 V (2.8 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)









Power Consumption

AC 200 ~ 240 V (1.4 A

Max. Ampere), 50 / 60 Hz (Continental Europe and The U.K.)







Operating Temperature

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)









Storage Temperature

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)









Remote Control Transmitter

Power Source

: Lithium Type (CR2025 / 3.0V)











Operating Range

:

16.4’ (5m) / ±30˚









Dimensions

: 2.1” x 0.28” x 5.3” (54mm x 7mm x 135mm)









Net Weight

:

1.27oz (36 g) (including battery)























Accessories

Owner’s Manual















AC Power Cord















Wireless Remote Control Transmitter and Battery









VGA Cable















Carrying Bag















Lens Cover

























● The specifications are subject to change without notice.

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give name and Type No. of it to the sales dealer.

● Wireless Remote Control Unit

Type No. : POA-RCKIT01

● Control Cable for ADB Port

Type No.: POA-MCMAC

● Control Cable for PS/2Port

Type No. : POA-MCPS2

● MAC Adapter

Type No.: POA-MACAP

● Control Cable for Serial Port

Type No.: POA-MCSRL





41

APPENDIX

CONFIGURATIONS OF THE TERMINALS

COMPUTER INPUT TERMINAL (ANALOG)

Terminal : HDB15-PIN

Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied). When connecting the Macintosh computer, MAC Adapter (not supplied) is required.

Pin Configuration



1

Red Input

9

No Connect











2

Green Input

10

Ground (Vert.sync.)

5

4

3

2

1

3

Blue Input

11

Sense 0

4

Sense 2

12

Sense 1



10

9

8

7 6

15

14

13

12

11

5

Ground (Horiz.sync.)

13

Horiz. sync.





















6

Ground (Red)

14

Vert. sync.











7

Ground (Green)

15

Reserved











8

Ground (Blue)





CONTROL PORT CONNECTOR

Terminal : Mini DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this connector with Control Cable (not supplied).

Pin Configuration





PS/2

Serial

ADB









1

-----

R X D

-----









2

CLK

-----

ADB

8

7

6



3

DATA

-----

-----



4

GND

GND

GND

5

4

3





5

-----

RTS / CTS

-----

2

1









6

-----

T X D

-----

















7

GND

GND

-----









8

-----

GND

GND

USB CONNECTOR (Series B)

Connect USB port terminal on your computer or peripheral equipment to this connector with USB Cable (not supplied).

Pin Configuration

2

1

3

4

1

Vcc

2

- Data

3

+ Data

4

Ground

42

43

Printed in Japan

Part No. 610 296 2017 (1AA6P1P2996-- MZ6A)

SANYO Electric Co., Ltd
