Fire-Lite MS-2410BC User Manual

M S - 2 4 1 0 B C

Conventional

Fire Alarm Control Panel

24 Viceroy Road Unit #6 & 7 Concord, Ontario L4K2L9 Phone (905) 660-7210 FAX: (905) 660-7204

Programming, Installation, Maintenance

and Operating Instruction Manual

Document #50801 12/14/01 Rev.

P/N 50801:C ECN 01-680

Fire Alarm System Limitations

While a fire alarm system may lower insurance rates, it is not a substitute for fire insurance!

An automatic fire alarm system–typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control with remote notification capability–can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire.

The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premise following the recommendations of the current edition of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guide for Proper Use of System Smoke Detectors, which is made available at no charge to all installing dealers. A study by the Federal Emergency Management Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons:

Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a first-floor or basement fire.

Particles of combustion or "smoke" from a developing fire may not reach the sensing chambers of smoke detectors because:

• Barriers such as closed or partially closed doors, walls, or chimneys may inhibit particle or smoke flow.

• Smoke particles may become "cold," stratify, and not reach the ceiling or upper walls where detectors are located.

• Smoke particles may be blown away from detectors by air outlets.

• Smoke particles may be drawn into air returns before reaching the detector.

The amount of "smoke" present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at various levels of smoke density. If such density levels are not created by a developing fire at the location of detectors, the detectors will not go into alarm.

Smoke detectors, even when working properly, have sensing limitations. Detectors that have photoelectronic sensing chambers tend to detect smoldering fires better than flaming fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire.

Smoke detectors cannot be expected to provide adequate warning of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions (caused by escaping gas, improper storage of flammable materials, etc.).

Heat detectors do not sense particles of combustion and alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detectors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist.

Heat detectors are designed to protect

property, not life.

IMPORTANT!

Smoke detectors must be installed in the

same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power.

cated, a developing fire may damage the alarm system, crippling its ability to report a fire.

Audible warning devices such as bells may not alert people if these devices are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently consumed drugs, alcohol or medication. Please note that:

• Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy.

• Studies have shown that certain people, even when they hear a fire alarm signal, do not respond or comprehend the meaning of the signal. It is the property owner's responsibility to conduct fire drills and other training exercise to make people aware of fire alarm signals and instruct them on the proper reaction to alarm signals.

• In rare instances, the sounding of a warning device can cause temporary or permanent hearing loss.

A fire alarm system will not operate without any electrical power. If AC power fails, the system will operate from standby batteries only for a specified time and only if the batteries have been properly maintained and replaced regularly.

Equipment used in the system may not be technically compatible with the control. It is essential to use only equipment listed for service with your control panel.

Telephone lines needed to transmit alarm signals from a premise to a central monitoring station may be out of service or temporarily disabled. For added protection against telephone line failure, backup radio transmission systems are recommended.

The most common cause of fire alarm malfunction is inadequate maintenance. To keep the entire fire alarm system in excellent working order, ongoing maintenance is required per the manufacturer's recommendations, and UL and NFPA standards. At a minimum, the requirements of Chapter 7 of NFPA 72 shall be followed. Environments with large amounts of dust, dirt or high air velocity require more frequent maintenance. A maintenance agreement should be arranged through the local manufacturer's representative. Maintenance should be scheduled monthly or as required by National and/ or local fire codes and should be performed by authorized professional fire alarm installers only. Adequate written records of all inspections should be kept.

If detectors are not so lo-

LimWarLg.p65 01/10/2000

Installation Precautions

Adherence to the following will aid in problem-free installation with long-term reliability:

WARNING -

nected to the fire alarm control panel.

of power before servicing. Control unit and associated equipment may be damaged by removing and/or inserting cards, modules, or interconnecting cables while the unit is energized. Do not attempt to install, service, or operate this unit until this manual is read and understood.

CAUTION -

Changes.

must be tested in accordance with NFPA 72 Chapter 7 after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system hardware or wiring.

All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50 devices, must also be tested and proper system operation verified.

This system meets NFPA requirements for operation at 0-49° C/32-120° F condensing) at 30° C/86° F. However, the useful life of the system's standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and all peripherals be installed in an environment with a nominal room temperature of 15-27° C/60-80° F.

Verify that wire sizes are adequate for all initiating and indicating device loops. Most devices cannot tolerate more than a 10% I.R. drop from the specified device voltage.

Several different sources of power can be con-

Disconnect all sources

System Reacceptance Test after Software

To ensure proper system operation, this product

and at a relative humidity of 85% RH (non-

Like all solid state electronic devices, this system may operate erratically or can be damaged when subjected to lightning-induced transients. Although no system is completely immune from lightning transients and interferences, proper grounding will reduce susceptibility.

Overhead or outside aerial wiring is not recommended, due to an increased susceptibility to nearby lightning strikes.

cal Services Department if any problems are anticipated or encountered.

Disconnect AC power and batteries prior to removing or inserting circuit boards. Failure to do so can damage circuits.

Remove all electronic assemblies prior to any drilling, filing, reaming, or punching of the enclosure. When possible, make all cable entries from the sides or rear. Before making modifications, verify that they will not interfere with battery, transformer, and printed circuit board location.

Do not tighten screw terminals more than 9 in-lbs. Over-tightening may damage threads, resulting in reduced terminal contact pressure and difficulty with screw terminal removal.

Though designed to last many years, system components can fail at any time. This system contains static-sensitive components. Always ground yourself with a proper wrist strap before handling any circuits so that static charges are removed from the body. Use static-suppressive packaging to protect electronic assemblies removed from the unit.

Follow the instructions in the installation, operating, and programming manuals. These instructions must be followed to avoid damage to the control panel and associated equipment. FACP operation and reliability depend upon proper installation by authorized personnel.

Consult with the Techni-

FCC Warning

WARNING: This equipment generates, uses, and can

radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC Rules, which is designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at his own expense.

Canadian Requirements

This digital apparatus does not exceed the Class A limits for radiation noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.

LimWarLg.p65 01/10/2000

Notes

Document #50801 Rev.C 12/14/01 P/N 50801:C

Table of Contents

CHAPTER 1: Product Description .........................................................................................................................9

1.1: Product Features..........................................................................................................................................9

FIGURE 1-1: DP-2410BC...................................................................................................................9

FIGURE 1-2: MS-2410BC Panel ........................................................................................................10

1.2: Specifications ..............................................................................................................................................11

1.3: Controls and Indicators ...............................................................................................................................12

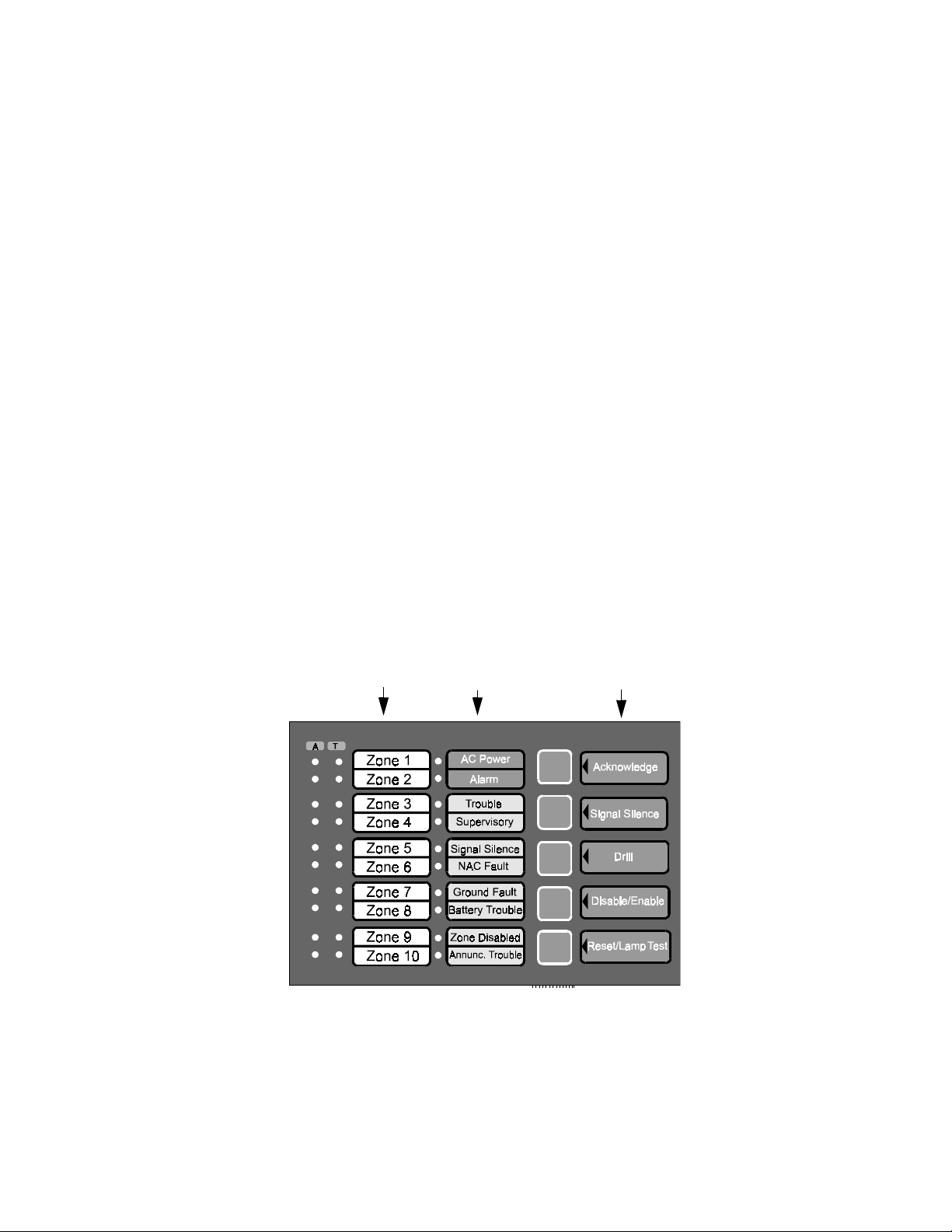

FIGURE 1-3: LEDs and Keypad .........................................................................................................12

1.4: Circuits ........................................................................................................................................................13

1.5: Components ................................................................................................................................................13

FIGURE 1-4: Main Circuit Board .......................................................................................................13

FIGURE 1-5: MS-2410BC Cabinet.....................................................................................................14

FIGURE 1-6: Transformer Assemblies ...............................................................................................14

1.6: Optional Modules........................................................................................................................................14

1.7: Optional Accessories...................................................................................................................................14

FIGURE 1-7: BB-17F Battery Box .....................................................................................................15

FIGURE 1-8: RTB Remote Trouble Buzzer........................................................................................15

FIGURE 1-9: LED-10 Series Annunciator ..........................................................................................15

FIGURE 1-10: AFM-16ATX...............................................................................................................16

FIGURE 1-11: AFM-16ATF ...............................................................................................................16

FIGURE 1-12: AFM-16AF..................................................................................................................16

FIGURE 1-13: LDM-32F Module.......................................................................................................17

FIGURE 1-14: FCPS-24F....................................................................................................................17

CHAPTER 2: Installation.........................................................................................................................................19

2.1: Mounting Options .......................................................................................................................................19

FIGURE 2-1: MS-2410BC Mounting .................................................................................................19

2.2: Backbox Mounting......................................................................................................................................19

FIGURE 2-2: Cabinet Dimensions and Knockout Locations ..............................................................20

FIGURE 2-3: FACP Backbox..............................................................................................................21

2.3: Operating Power..........................................................................................................................................22

FIGURE 2-4: Operating Power Connections.......................................................................................22

2.4: Input Circuits...............................................................................................................................................23

FIGURE 2-5: Class B Initiating Device Circuit Connections .............................................................23

2.5: Output Circuits ............................................................................................................................................24

FIGURE 2-6: Auxiliary Power Connections .......................................................................................24

FIGURE 2-7: Notification Appliance Circuit Connections .................................................................24

FIGURE 2-8: Relay Terminals ............................................................................................................25

2.6: Power-limited Wiring Requirements...........................................................................................................25

FIGURE 2-9: Typical Wiring Diagram for Power-limited Requirements ..........................................25

2.7: Installation of Optional Modules with Remote Accessories .......................................................................26

FIGURE 2-10: RTB Remote Trouble Buzzer......................................................................................26

FIGURE 2-11: LED-10IM Installation................................................................................................27

FIGURE 2-12: Wiring LED-10IM to LED-10 Series .........................................................................27

FIGURE 2-13: ABS-8RF.....................................................................................................................28

FIGURE 2-14: Wiring LED-10IM to ACM-8RF................................................................................28

FIGURE 2-15: Wiring LED-10IM to LDM-32F.................................................................................29

FIGURE 2-16: Wiring LED-10IM to AFM-16ATX...........................................................................30

FIGURE 2-17: 4XTMF Module Connections .....................................................................................31

CHAPTER 3: Programming Instructions...............................................................................................................32

3.1: Switch Functions.........................................................................................................................................32

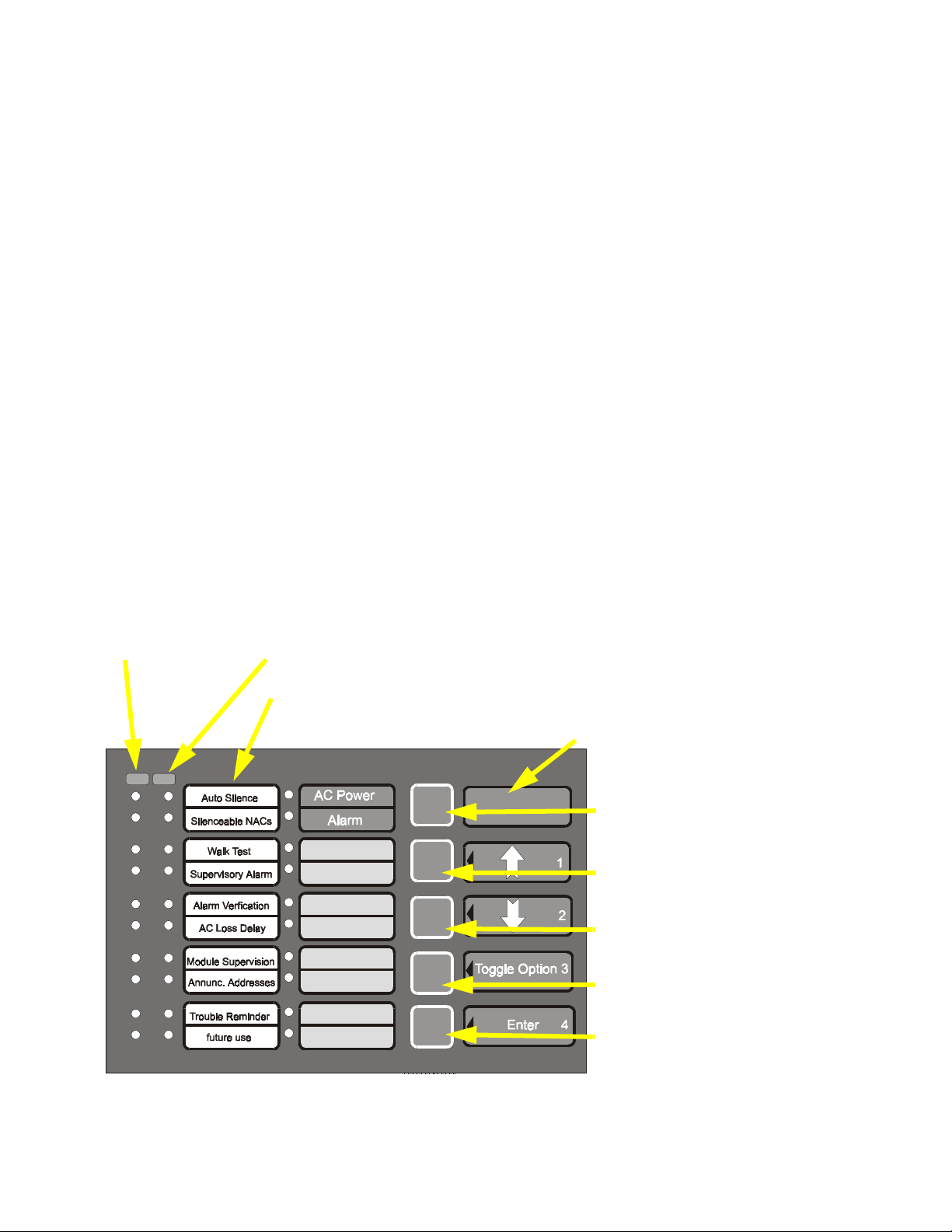

FIGURE 3-1: Programming Mode Keypad.........................................................................................32

3.2: Programmable Features and Options ..........................................................................................................33

TABLE 3-1: Programming Features and Options ...............................................................................33

Document 50801 Rev. C 12/14/01 P/N: 50801:C 5

Table of Contents

3.3: Entering Program Mode ..............................................................................................................................34

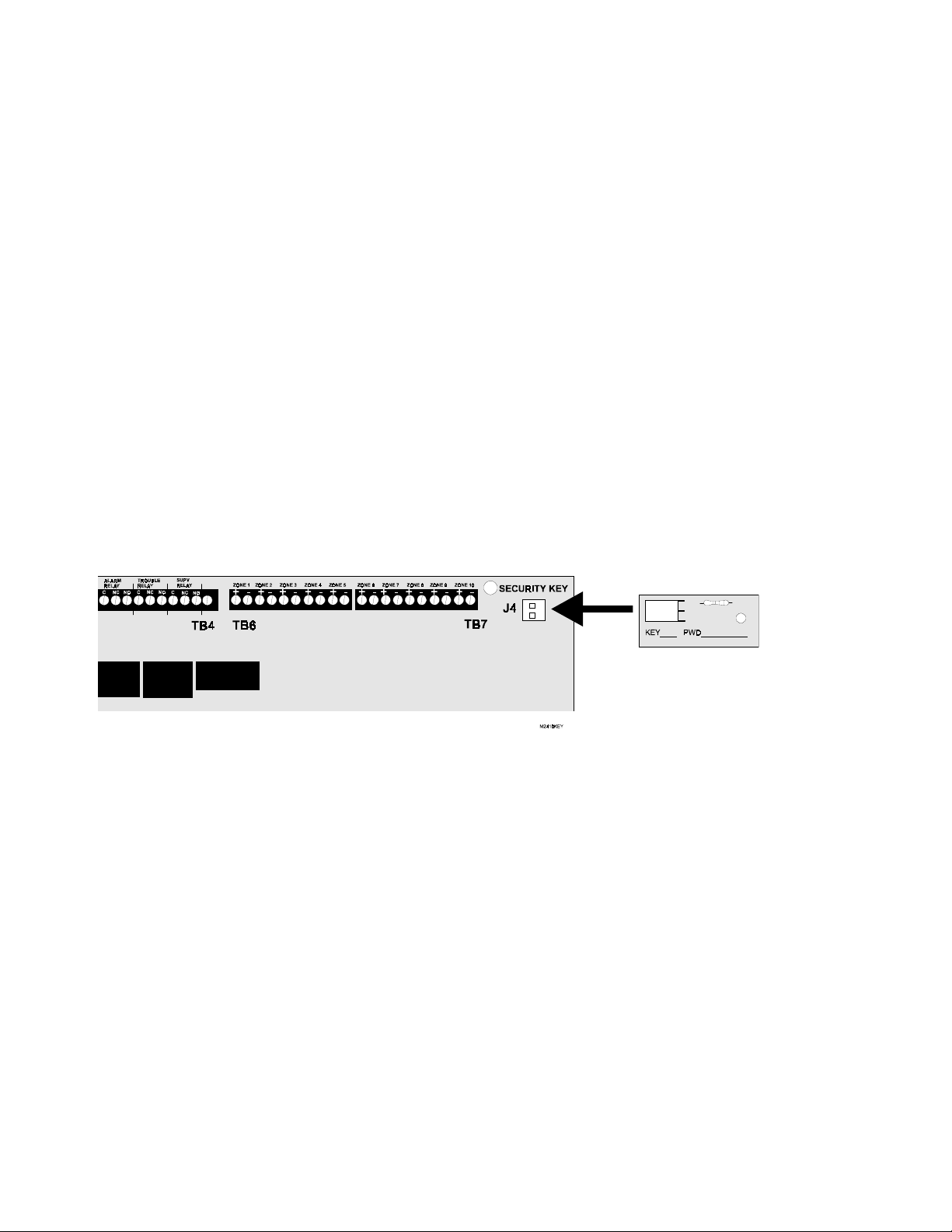

FIGURE 3-2: Programming Security Key - Program Mode ...............................................................34

3.4: Programming Function................................................................................................................................34

3.4.1: Program Feature Selection ................................................................................................................35

3.4.2: Programming Options .......................................................................................................................35

3.4.3: Programming Example......................................................................................................................35

3.5: Program Features and Options ....................................................................................................................39

3.5.1: Program Features...............................................................................................................................39

3.5.2: Programming Options .......................................................................................................................39

TABLE 3-2: Program Feature Indicated by Alarm Zone ....................................................................39

TABLE 3-3: Auto-silence Program Options - Zone 1 Alarm LED .....................................................40

TABLE 3-4: Silenceable NACs - Zone 2 Alarm LED ........................................................................40

TABLE 3-5: Walktest - Zone 3 Alarm LED........................................................................................40

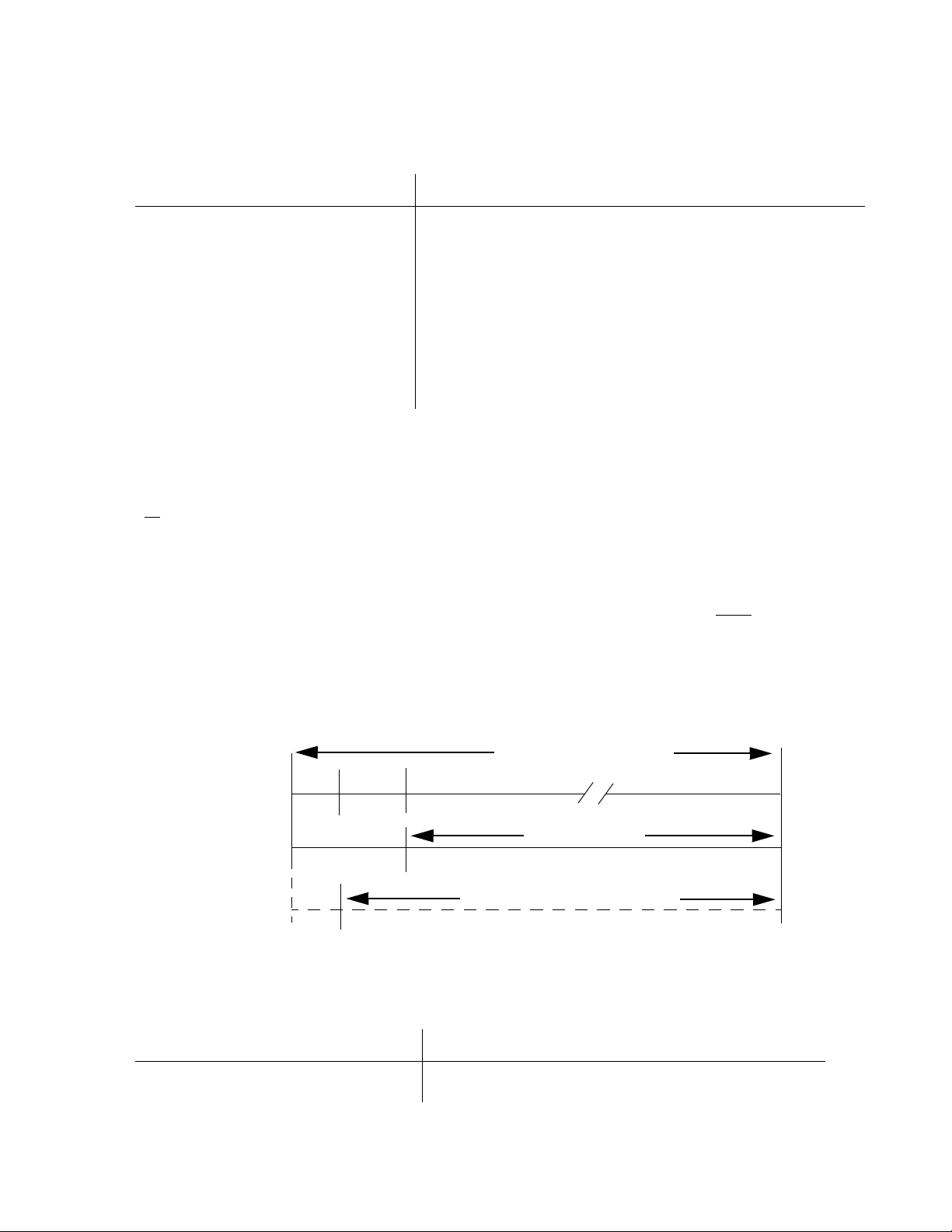

FIGURE 3-3: Verification Timing Diagram........................................................................................41

TABLE 3-6: Supervisory Alarm - Zone 4 Alarm LED .......................................................................41

TABLE 3-7: Alarm Verification- Zone 5 Alarm LED ........................................................................41

TABLE 3-8: AC Loss Time Delay - Zone 6 Alarm LED....................................................................42

TABLE 3-9: Module Supervision - Zone 7 Alarm LED .....................................................................42

TABLE 3-10: Annunciator Addressing - Zone 8 Alarm LED.............................................................43

TABLE 3-11: Trouble Reminder - Zone 9 Alarm LED ......................................................................43

3.6: Default Programming Mode........................................................................................................................44

FIGURE 3-4: Programming Security Key - Default Programming Mode ..........................................44

CHAPTER 4: Operating Instructions .....................................................................................................................45

FIGURE 4-1: LED Indicators and Keypad..........................................................................................45

4.1: Switch Functions in Normal Mode..............................................................................................................45

4.2: Status LEDs.................................................................................................................................................46

4.3: Operation .....................................................................................................................................................47

4.3.1: Fire Alarm Response.........................................................................................................................48

4.3.2: Fire Alarm Restoral...........................................................................................................................48

4.3.3: System Supervisory Condition Response .........................................................................................48

4.3.4: System Supervisory Restoral Response ............................................................................................49

4.3.5: Trouble Condition Response .............................................................................................................49

4.3.6: Trouble Condition Restoral...............................................................................................................49

CHAPTER 5: Servicing............................................................................................................................................50

5.1: Walktest Mode.............................................................................................................................................50

FIGURE 5-1: Security Key - Walktest Mode ......................................................................................50

5.2: Last Event/History Mode ............................................................................................................................51

FIGURE 5-2: Security Key - Last Event/History Mode ......................................................................51

5.3: Lamp Test ....................................................................................................................................................52

TABLE 5-1: History Mode ..................................................................................................................52

Appendix A: Battery Calculations .......................................................................................................................53

TABLE A-1: Battery Calculation .......................................................................................................53

A.1: Main Power Supply ...................................................................................................................................54

TABLE A-2: Filtered Load in Standby TABLE A-3: Filtered Load in Alarm

@24 VDC

. .................................................................................54

. ....................................................................................55

Appendix B: Wire Requirements .........................................................................................................................56

TABLE B-1: Wire Requirements ........................................................................................................56

Appendix C: Slide-in Labels .................................................................................................................................57

FIGURE C-1: Keypad and Display Panel Slide-in Labels .................................................................57

Document #50801 Rev. C 12/14/01 P/N: 50801:C

This control panel has been designed to comply with standards set forth by the following regulatory agencies:

Before proceeding, the installer should be familiar with the following documents.

NFPA Standards

This Fire Alarm Control Panel complies with the following NFPA Standards:

NFPA 72 National Fire Alarm Code for Local Fire Alarm Systems (Automatic, Manual, Waterflow and Sprinkler Supervisory) and Proprietary (Automatic, Manual and Waterflow) Fire Alarm Systems.

Underwriters Laboratories Canada Documents:

CAN/ULC - S524M Standard for Installation of Fire Alarm Systems

CAN/ULC - S527-M87 Standard for Control Units for Fire Alarm Systems

Other:

C22.1, Canadian Electrical Code, Part I

C22.2, No. 0, General Requirements - Canadian Electrical Code, Part II

C22.2, No. 0.4, Bonding and Grounding of Electrical Equipment (Protective Grounding)

C282, Emergency Electrical Power Supply for Buildings

Requirements of the Local Authority Having Jurisdiction (LAHJ)

Fire•Lite Documents

Fire•Lite Device Compatibility Document Document #15384

Annunciator Modules Document #15390

AFM-16ATF Annunciator Document #15970

AFM-16AF Annunciator Document #15210

FCPS-24F Field Charger/Power Supply Document #50079

LDM Series Lamp Driver Modules Document #50055

LED-10 Annunciator Document #50361

ACM-8RF Annunciator Control Relay Module Document #50362

Document #50801 Rev. C 12/14/01 P/N 50801:C

MS-2410BC Main Circuit Board

AC Power

MS-2410BC Terminals and Connectors

Document #50801 Rev.C 12/14/01 P/N 50801:C

Product Description

CHAPTER 1 Product Description

The MS-2410BC is a 10-zone FACP (Fire Alarm Control Panel), which uses conventional input devices. The panel accepts waterflow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and other normally-open contact devices. Outputs include two Notification Appliance Circuits (NACs), three standard Form-C relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote annunciators and optional remote relay modules. The FACP is field programmable via the panel keypad. It also supervises all wiring, AC voltage and battery level.

1.1 Product Features

• 10 Class B Initiating Device Circuits (IDCs)

✓ All zones accept smoke detectors and any normally open contact device

✓ Zones 1 - 8 configured as general alarm zones

✓ Zones 9 - 10 can be configured as smoke zones or supervisory alarm zones

• Two Class B Notification Appliance Circuits (NACs)

• Form-C Alarm Relay

• Form-C Trouble Relay

• Form-C Supervisory Relay

• 3.6 amps of system power expandable to 6.6 amps

• RTB Remote Trouble Buzzer

• Remote Relay Option Module (ACM-8RF) providing one 5.0 amp relay per zone

• Dress Panel coverplate (DP-2410BC)

• Built-in keypad for panel control and programming

• 24 volt operation

• Trouble Reminder

• Alarm Verification (zones 1 through 3 only)

• Interfaces with Fire•Lite annunciators (requires LED-10IM Option Module)

✓ LED-10 Series Remote Annunciators provide

red alarm and yellow trouble LEDs

✓ LDM-32F Graphic Annunciator Driver

✓ AFM Series LED Annunciators

• Small backbox size 20.00" (50.8 cm) X 17.00" (43.18 cm) X 3.125" (7.938 cm)

• Auto-Silence Notification Appliance Circuits

• Fuseless design

• Low AC voltage sense

• Silent or audible Walktest

FIGURE 1-1:

DP-2410BC

Document #50801 Rev. C 12/14/01 P/N 50801:C

Product Features

FIGURE 1-2:

24 VDC Power

Standard Tra nsformer

Keypad and LEDs

MS-2410BC Panel

Notification Appliance Circuits

Remote Trouble Buzzer

Relays

10 Input Zones

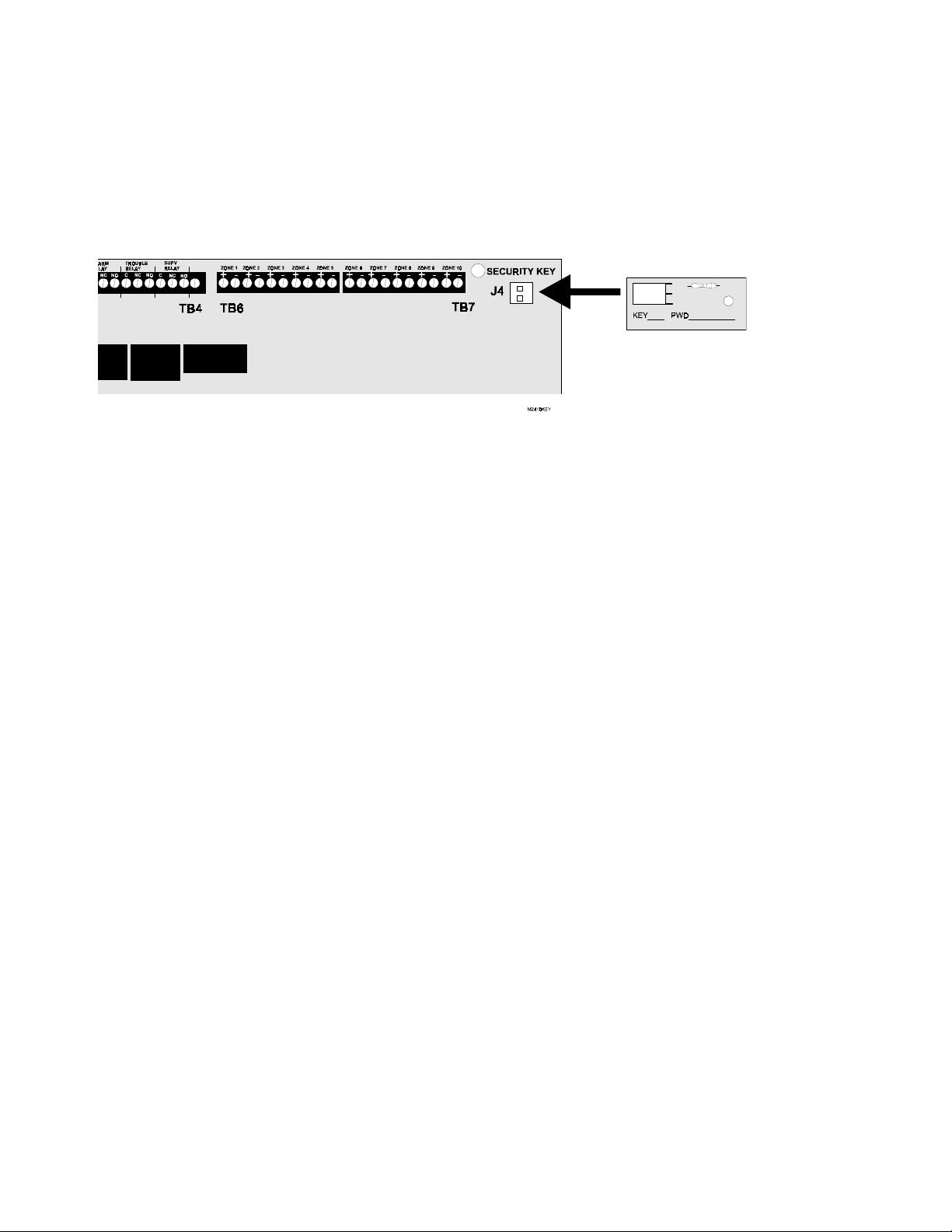

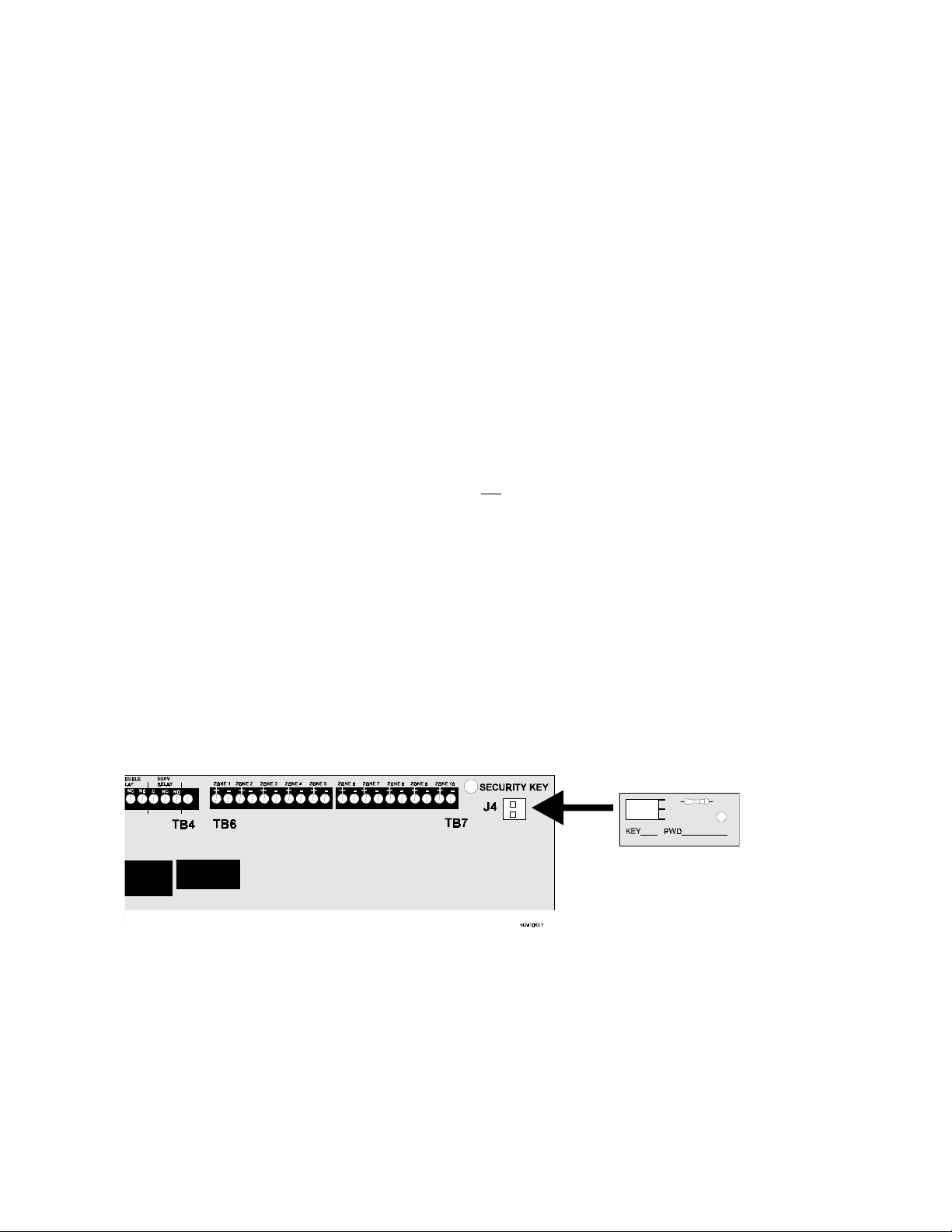

Security Key

LED-10IM Interface Module Connector

Reverse Polarity Module

Optional Tra nsformer

Reverse Polarity Module Supervision

Holds up to 7 AH Batteries,

Document #50801 Rev.C 12/14/01 P/N 50801:C

Specifications

1.2 Specifications

AC Power - TB1

120 VAC, 60 Hz, 2.3 amps

Wire size: minimum #14 AWG (2.0 mm

Battery (lead acid only) - J1

Maximum Charging Circuit: Normal Flat Charge—27.6V @ 0.8 amp

Maximum Charger Capacity: 18 Amp Hour battery (MS-2410BC cabinet holds maximum 7 Amp Hour battery. Larger batteries require Fire•Lite BB-17F)

Initiating Device Circuits TB6 and TB7

General Alarm Zones 1 through 8

Smoke Zones or Supervisory Alarm Zones 9 and 10

Operation: All zones Class B

Normal Operating Voltage: Nominal 24 VDC (ripple = 100 mV maximum)

Alarm Current: 15 mA threshold

Short Circuit Current: 42 mA maximum

Maximum Loop Resistance: 100 ohms

End-of-Line Resistor: 4.7K, ½ watt (Part #27072)

Detector Loop Current is sufficient to ensure operation of two alarmed detectors per zone

Standby Current: 7.26 mA (includes ELR and 2 mA maximum detector current)

Smoke Detector Identifier A

Refer to Fire•Lite Device Compatibility Document for listed compatible devices.

) with 600V insulation

Notification Appliance Circuits - TB3

Class B wiring

Operating voltage nominal 24 volts

Current for all external devices: 3.0 amps expandable to 6.0 amps

Current Limit: TB3 via PTC

Maximum signaling current/circuit: TB3 = 1.25 amps expandable to 2.5 amps

End-of-Line resistor: 4.7K, ½ watt (Part #71252) for Notification Appliance Circuits

Refer to Fire•Lite Device Compatibility Document for listed compatible devices

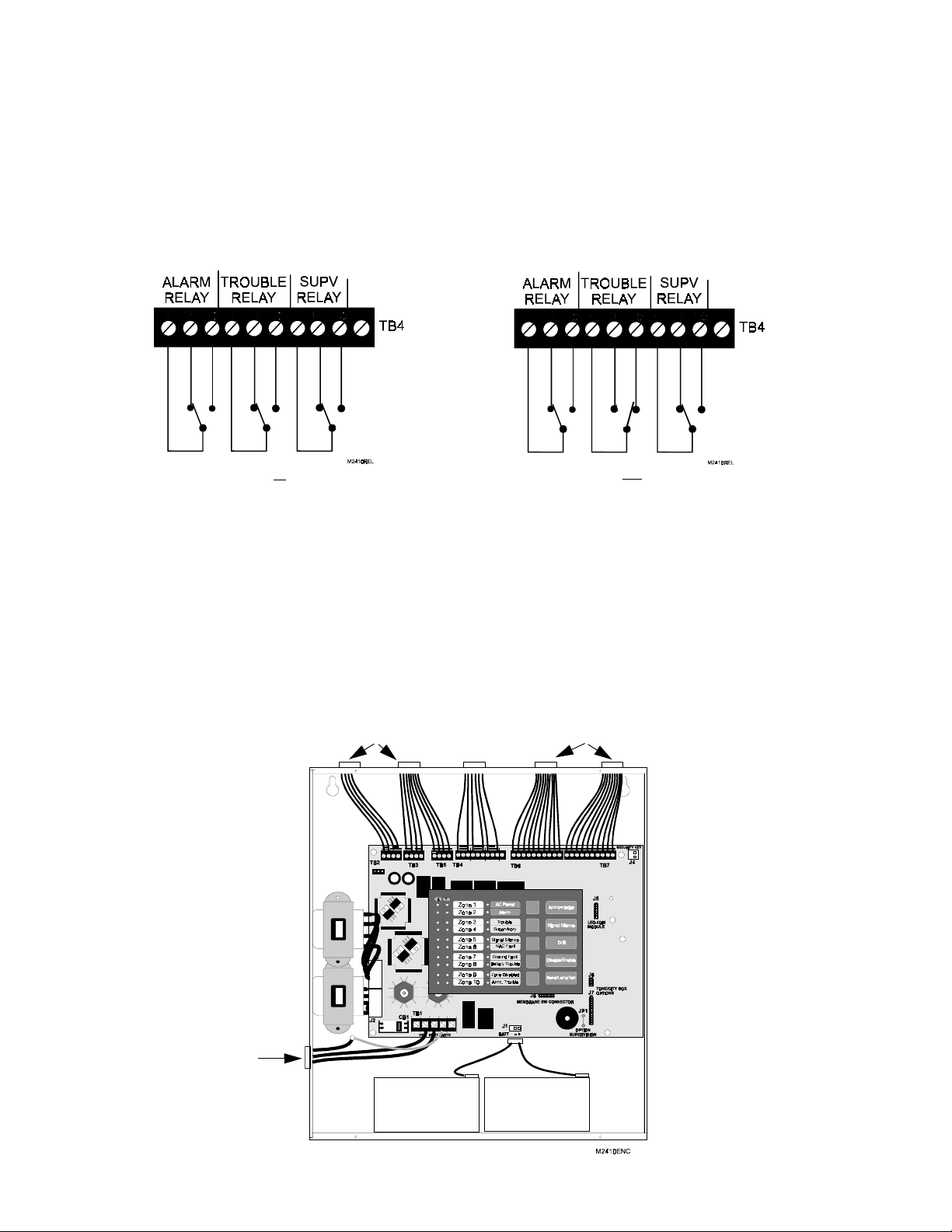

Three Form-C Relays - TB4

TB4 relay contact rating: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive)

Four-wire Smoke Detector Power - TB2 Terminals 3(-) & 4(+)

Maximum ripple voltage: 10 mV

Up to 500 mA is available for powering 4-wire smoke detectors

Recommended maximum Standby current is 50 mA

Operating Voltage nominal 24 volts

RMS

Refer to Fire•Lite Device Compatibility Document for compatible listed device

1. Total current for nonresettable power, four-wire smoke power, and two Notification Appliance Circuits

2. For power supply and battery calculations, refer to Appendix A.

Total system current in excess of 3.6 amps requires the XRM-24 Transformer and 12 Amp Hour or 18 Amp Hour

amps.

batteries.

Document #50801 Rev. C 12/14/01 P/N 50801:C

must not exceed 6.0

Controls and Indicators

Nonresettable 24 VDC Power - TB2 Terminals 1(-) & 2(+)

Maximum ripple voltage: 10 mV

Total DC current available from this output is up to 500 mA

Operating Voltage nominal 24 volts

RMS

Recommended maximum Standby current is 150 mA

Refer to Fire•Lite Device Compatibility Chart for compatible listed devices

Remote Trouble Buzzer - TB5

Operating Voltage: nominal 24 VDC

DC current when RTB Remote Trouble Buzzer is in normal standby (AC Power LED on alone) is 20 mA.

Maximum DC current from this output when RTB Remote Trouble Buzzer is active is 50 mA.

1.3 Controls and Indicators

Front Panel Membrane Keys in Normal Mode

Acknowledge

FIGURE 1-3:

LEDs and Keypad

Signal Silence

Drill

Disable/Enable

Reset/Lamp Test

Note that programming keys function slide-in-labels and option/feature slide-in labels are also provided and should be inserted while in Program Mode to view the altered key functions. Refer to Figure 3-1, “Programming Mode Keypad,” on page 32 and “Slide-in Labels” on page 57.

LEDs

AC Power - green LED

Alarm - red LED

Trouble - yellow LED

Supervisory - yellow LED

Signal Silence - yellow LED

NAC Fault - yellow LED

Ground Fault - yellow LED

Battery Trouble - yellow LED

Zone Disabled - yellow LED

Annunciator Trouble - yellow LED

Zone Fire Alarm - Zones 1 through 10 - red LEDs

Zone Supervisory Alarm - Zones 9 and 10 only - red LEDs (yellow LEDs for Canadian program option)

Zone Trouble - Zones 1 through 10 - yellow LEDs

Note: A blank slide-in label is provided for circuits 1 through 10 which may be customized by the customer. In addition, slide-in-labels listing the programming features/options and programming key functions are provided and should be inserted while in Program Mode.

1. Total current for nonresettable power, four-wire smoke power, and two Notification Appliance Circuits Total system current in excess of 3.6 amps requires the XRM-24 Transformer and 12 Amp Hour or 18 Amp Hour

amps.

batteries.

Document #50801 Rev.C 12/14/01 P/N 50801:C

must not exceed 6.0

Circuits

Local Sounder

A piezo sounder provides separate and distinct sounds for alarm, trouble and supervisory conditions:

• Alarm - on steady

• Alarm Verification - pulse 1 second On and 1 second Off

• Trouble - pulse 1 second On and 1 second Off

• Supervisory - pulse ½ second On and ½ second OFF

1.4 Circuits

Input Circuits

Ten input circuits provide Class B configuration. Input circuits 1 through 10 may be used as standard fire alarm control panel zones and circuits 9 and 10 may be used as supervisory alarm zones. All ten Initiating Device Circuits accept normally-open contact devices and two-wire smoke detectors.

Output Circuits

• 24 Volt Resettable Power Output 500 mA

• 24 Volt Nonresettable Power Output 500 mA

• 24 Volt Remote Trouble Buzzer Output 50 mA maximum

• 24 Volt Battery Charger (up to 18 AH batteries)

• EIA-485 Port (interfaces to LED-10 Series Annunciators, AFM Series and LDM Graphic Series Annunciators and ACM-8RF Remote Relay Module)

Notification Appliance Circuits

Two Notification Appliance Circuits Class B.

Relays

Three dry Form-C relays for system alarm, system trouble and supervisory are provided standard. Contacts are rated 2.0 amps @ 30 VDC (resistive) and 2.0 amps @ 30 VAC (resistive).

EIA-485 Port (Requires LED-10IM Module)

EIA-485 compatible port on the LED-10IM option module supports up to 10 different device addresses which can consist of LED-10 Series Remote Annunciators, ACM-8RF Relay Modules, AFM Series Annunciators or LDM Graphic Series Annunciators or any combination of the four modules.

Battery Charger

Battery Charger will charge up to 18 AH batteries. The MS-2410BC cabinet holds a maximum of 7 AH batteries. The Fire•Lite BB-17F is required to hold 18 AH batteries. The charger is rated for 800 mA maximum current.

1.5 Components

FIGURE 1-4:

Main Circuit Board

The main circuit board contains the system's CPU, power supply, other primary components and wiring interface connectors. Optional modules plug in and are mounted to the main circuit board. The main circuit board is delivered premounted in the cabinet.

Document #50801 Rev. C 12/14/01 P/N 50801:C

Optional Modules

Cabinet

The cabinet is red and the backbox measures 20.00" (50.8 cm) long X 17.00" (43.18 cm) high X 3.125"(7.938 cm) deep and provides space for two batteries (up to 7 Amp Hours). Also included is a dress panel, DP-2410BC, which comes premounted inside the cabinet.

FIGURE 1-5:

MS-2410BC Cabinet

Transformer Assembly

FIGURE 1-6:

Transformer Assemblies

One 100VA transformer is provided standard with the panel. An optional 100VA transformer, XRM-24, is available to provide maximum accessory power.

Standard XRM-24

Batteries

The cabinet provides space for 7 Amp Hour batteries (larger batteries up to 18 Amp Hour batteries, use the listed Fire•Lite

Optional XRM-24

BB-17F battery box). Batteries must be ordered separately.

1.6 Optional Modules

LED-10IM

The LED-10IM Interface Module provides an EIA-485 port to support the LED-10 Series Remote Annunciator, LDM Series Annunciator, AFM Series Annunciator and ACM-8RF Relay Modules. EIA-485 wiring is supervised for short, open and grounded circuits by this module. The LED-10IM mounts to connector J5 on the main circuit board.

4XTMF Transmitter Module

The 4XTMF provides a supervised output for local energy municipal box transmitter and alarm and trouble reverse polarity. It includes a disable switch and disable trouble LED. A module jumper option allows the reverse polarity circuit to open with a system trouble condition if no alarm condition exists.

1.7 Optional Accessories

Dress Panel

A red dress panel (DP-2410BC) is supplied and is required for Canadian installations. The dress panel restricts access to the system wiring while allowing access to the membrane switch panel. Refer to Figure 1-1, “DP2410BC,” on page 9.

Document #50801 Rev.C 12/14/01 P/N 50801:C

Optional Accessories

Battery Box

FIGURE 1-7:

BB-17F Battery Box

The Fire•Lite BB-17F battery box may be used to house two batteries greater than 7 Amp Hour to a maximum of 18 Amp Hour. The battery box mounts directly below the MS-2410BC cabinet, centered to the main circuit board. The BB-17F is red and is provided with knockouts.

Remote Trouble Buzzer

FIGURE 1-8:

RTB Remote Trouble Buzzer

One Remote Trouble Buzzer can be connected to the MS-2410BC control panel using four wires. The remote unit includes an AC LED, System Trouble LED and piezo sounder which are controlled by the MS-2410BC. It mounts to a single-gang electrical box.

ACM-8RF Relay Module

The ACM-8RF option module provides eight Form-C relays rated at 5.0 amps each. The Relay Module connects to the EIA-485 port off of the LED-10IM option module. Relays are assigned to each of the 10 Initiating Device Circuits.

LED-10 Series Annunciator (LED Zone Type Annunciator)

The LED-10 Series is a 10 zone LED annunciator which mounts on a 3-gang electrical box and provides LED indication of the following:

• Alarm Zones 1 through 10

• Supervisory Zones 9 and 10 (LED-10LS2 only)

• Trouble Zones 1 through 10

• AC Power (green)

• System Alarm (red)

• System Trouble (yellow)

• System Supervisory (yellow)

• Alarm Silence (yellow)

FIGURE 1-9:

LED-10 Series Annunciator

A local trouble sounder is standard and switches for remote Acknowledge, Silence, Drill and Reset are also provided on the LED-10 only. Wiring is inherently supervised by the FACP. Slide-in paper labels permit an easy change of zone information. DIP switches allow the enabling and disabling of the local piezo sounder (with approval of local AHJ), enabling and disabling of the mechanical keyswitch which may be used to prevent unauthorized use of the function switches and selection of annunciator receive/transmit mode.

Note that the LED-10 Series Remote Annunciators require the use of the LED-10IM Interface Module.

Document #50801 Rev. C 12/14/01 P/N 50801:C

Optional Accessories

AFM Series Annunciators (LED Zone Type)

The AFM Series Annunciators remotely display system status. The AFM/AEM-16AT annunciators display zone alarm and trouble status. In addition, they provide remote Acknowledge, Silence, Reset and Drill functions. The AFM Series Annunciators require the use of the LED-10IM Interface Module. For more detailed information, refer to the appropriate AFM Annunciator manual.

AFM-16ATX - The Annunciator Fixed Module-16ATX contains

✓

FIGURE 1-10:

AFM-16ATX

16 red alarm and 16 yellow trouble LEDs, a system trouble LED, an ON LINE/POWER LED and a local piezo sounder with switches for Acknowledge, Silence, Reset and Drill. The AFM-16ATX is fixed at address '1' and will accept up to 3 AEM-16ATF Expanders. The AFM-16ATX can be mounted in a Fire•Lite ABS-1F or ABF-1F backbox. Refer to the AFM-16ATX Manual for detailed information. Note that only one AFM-16ATX

is required to annunciate 10 zones of alarm and trouble, provided '8 Point Shift' function is selected. Refer to Annunciator Manual P/ N 15390 for additional information.

AFM-16ATXCS4 (Canadian Supervisory Service) - This mod-

✓

ule is the same as the AFM-16ATX except with four yellow supervisory LEDs in place of the four red LEDs at points 13 through 16.

AFM-16ATXCS8 (Canadian Supervisory Service) - This module is the same as the AFM-16ATX

✓

except with eight yellow supervisory LEDs in place of the eight red LEDs at points 9 through 16.

AFM-16ATXCS16 (Canadian Supervisory Service) - This module is the same as the AFM-16ATX

✓

except with sixteen yellow supervisory LEDs in place of the sixteen red LEDs at points 1 through 16.

AEM-16ATF - The Annunciator Expander Module-16ATF connects to the AFM-16ATX and adds 16

✓

sets of red alarm LEDs and yellow trouble LEDs. Up to three AEM-16ATFs may be added to an AFM-16ATX but only one is required. Note that one AEM-16ATF is required with an AFM-16ATX to

annunciate 10 zones of alarm and trouble as well as general system status provided '8 Point Shift' function is not selected. Refer to Annunciator Manual P/N 15390 for additional information.

AFM-16ATF - The Annunciator Fixed Module-16ATF contains

✓

FIGURE 1-11:

AFM-16ATF

16 red alarm and 16 yellow trouble LEDs, a system trouble LED, an ON LINE/POWER LED and a local piezo sounder with switches for Acknowledge, Silence, Reset and Drill. The AFM-16ATF is fixed at address '1' and communication is via the EIA-485 data line. The AFM-16ATF can be mounted in a Fire•Lite ABS-1F or ABF-1F backbox. Refer to the AFM-16AT Manual for detailed information.

AFM-16AF - The Annunciator Fixed Mod-

✓

ule-16AF has 16 red alarm LEDs. Multiple annunciators may be used by setting all annunciators to Receive Only, except the last AFM-16AF in line. Each annunciator's address is internally fixed at '1' and communication is via the EIA-485 data line. The Local Silence/Acknowledge switch functions as local lamp test and silence for annunciator piezo. LEDs include On-Line and System Trouble indicators. The AFM-16AF Annunciator can be mounted in a standard 4gang electrical box. Refer to the AFM-16AF Manual for detailed information.

Document #50801 Rev.C 12/14/01 P/N 50801:C

FIGURE 1-12:

AFM-16AF

Optional Accessories

LDM Series Lamp Driver Modules (Graphic Annunciator)

The LDM Series Lamp Driver Modules, which consist of the LDM-32F master and LDM-E32F expander modules, are used to provide an interface to a custom graphic LED annunciator. The master module provides power and control for a maximum of three expander modules (expander modules are not required when interfacing to the MS-2410BC). The LDM-32F and LDM-E32F have output connectors which are used to drive lamps or LEDs and input connectors which are used for remote switch functions. The LDM Series requires the use of the LED-10IM Interface Module. Refer to the LDM Series Lamp Driver Modules Manual for a complete description.

LDM-32F - The Lamp Driver Module has 32

✓

FIGURE 1-13:

LDM-32F Module

alarm lamp/LED driver outputs which sink current to system common (-) on activation. A single positive (+) voltage is required to supply total operating power for all lamps or LEDs when all drivers are activated. The LDM-32F provides a separate driver for system trouble and inputs for a local lamp test switch. A maximum of 16 external control switches may be wired to the LDM-32F. DIP switch SW3 is used to enable or disable the onboard piezo sounder, enable remote switch functions, select a flashing LED function for new alarms and troubles and other functions. Switch SW4 is used to configure the module to annunciate 32 alarms or 16 alarms and 16 troubles. A green ON-LINE LED flashes to indicate ongoing communications with the host FACP. One LDM-32F supports up to three LDM-E32F modules. The LDM-32F is supplied with four standoffs and screws for mounting to a CHS-4L chassis or custom backbox.

FCPS-24F Remote Power Supply (System Power Expansion)

The FCPS-24F is a compact, remote power supply and battery charger. This remote power supply consists of a filtered 24 VDC output that may be configured to drive up to four Notification Appliance Circuits (four Class B or two Class A and two Class B). Alternately, the four Notification Appliance Circuits may be used as auxiliary power configured for resettable or nonresettable operation.

The FCPS-24F may be used in a number of different applications. It may be used as a remotely mounted power supply and battery charger powering up to four, coded or noncoded, Notification Appliance Circuits. Alternately, any or all of these circuits may be used as 24 VDC output circuits capable of powering four-wire smoke detectors or any device that requires filtered power. These circuits may be configured as resettable or nonresettable outputs to expand FACP auxiliary system power.

FIGURE 1-14:

FCPS-24F

Notification Appliance Circuit Control Input #1 (from FACP)

Notification Appliance Circuit Control Input #2 (from FACP)

AC Power

Class B/Class A Notification Appli-

ance Circuit or 24 VDC Output #1

Class B Notification Appliance

Circuit or 24 VDC Output #2

Class B/Class A Notification Appli-

ance Circuit or 24 VDC Output #3

Class B Notification Appliance

Circuit or 24 VDC Output #4

Battery Charger

Specific Application

Powe r

Document #50801 Rev. C 12/14/01 P/N 50801:C

FCPS Trouble

Contact Output

Optional Accessories

One of the most common applications for the FCPS-24F remote power supply utilizes the NAC expander mode. In this application, one or two Notification Appliance Circuits (NACs) are connected from the main FACP NAC output(s) to the remote power supply Control Input circuits. When these Control Input circuits activate (due to reverse polarity of the NAC output), the power supply will activate its corresponding outputs. NAC Control Input #1 controls power supply output circuits #1 and #2. NAC Control Input #2 controls output circuits #3 and #4.

During the inactive state, the remote power supply supervises its NAC field wiring for short and open circuits. If a fault is detected, the supply will enter a trouble condition and illuminate the corresponding NAC trouble LED (Output Circuits 1-4), however, once the Notification Appliance Circuits are activated, the supervision is disabled and the circuits are no longer supervised. Supervision of other power supply faults such as low battery, Earth Fault, AC loss and battery charger failure will continue and may be monitored via the independent trouble relay contact.

If a specific application requires that all four outputs activate at the same time, only one NAC control input from the FACP is necessary. For this application, The Notification Appliance Circuit from the FACP is wired into NAC Control Input #1 of the remote supply and then a pair of wires are connected from NAC Control Output #1 to NAC Control Input #2. Refer to the FCPS-24F Installation, Operation and Application Manual for a complete description and examples of applications.

Document #50801 Rev.C 12/14/01 P/N 50801:C

Installation

CHAPTER 2 Installation

2.1 Mounting Options

The cabinet may be either semi-flush or surface mounted. The door is attached to the cabinet by a piano hinge. The cabinet mounts using two key slots and two additional 0.250" (6.35 mm) diameter holes located in the backbox. The key slots are located at the top of the backbox and the two securing holes at the bottom.

Carefully unpack the system and check for shipping damage. Mount the cabinet in a clean, dry, vibration-free area where extreme temperatures are not encountered. The area should be readily accessible with sufficient room to easily install and maintain the panel. Locate the top of the cabinet approximately five feet above the floor with the hinge mounting on the left. Determine the number of conductors required for the devices to be installed. Sufficient knockouts are provided for wiring convenience. Select the appropriate knockout(s) and pull the required conductors into the box. All wiring should be in accordance with the National and/or Local codes for fire alarm systems.

2.2 Backbox Mounting

✓

Open the door.

✓

Remove the main PC board assembly by unscrewing the four screws in the corners of the board. Set the board aside in a safe, clean place. Avoid static discharge which may damage the board.

✓

Mark and predrill holes for the top two keyhole mounting bolts using the dimensions illustrated.

✓

Install two upper fasteners in the wall with the screw heads protruding.

✓

Using the upper 'keyholes', mount the backbox over the two screws.

✓

Mark and drill the lower two holes.

✓

Mount backbox, install remaining fasteners and tighten.

✓

When the location is dry and free of construction dust, reinstall the main PC board.

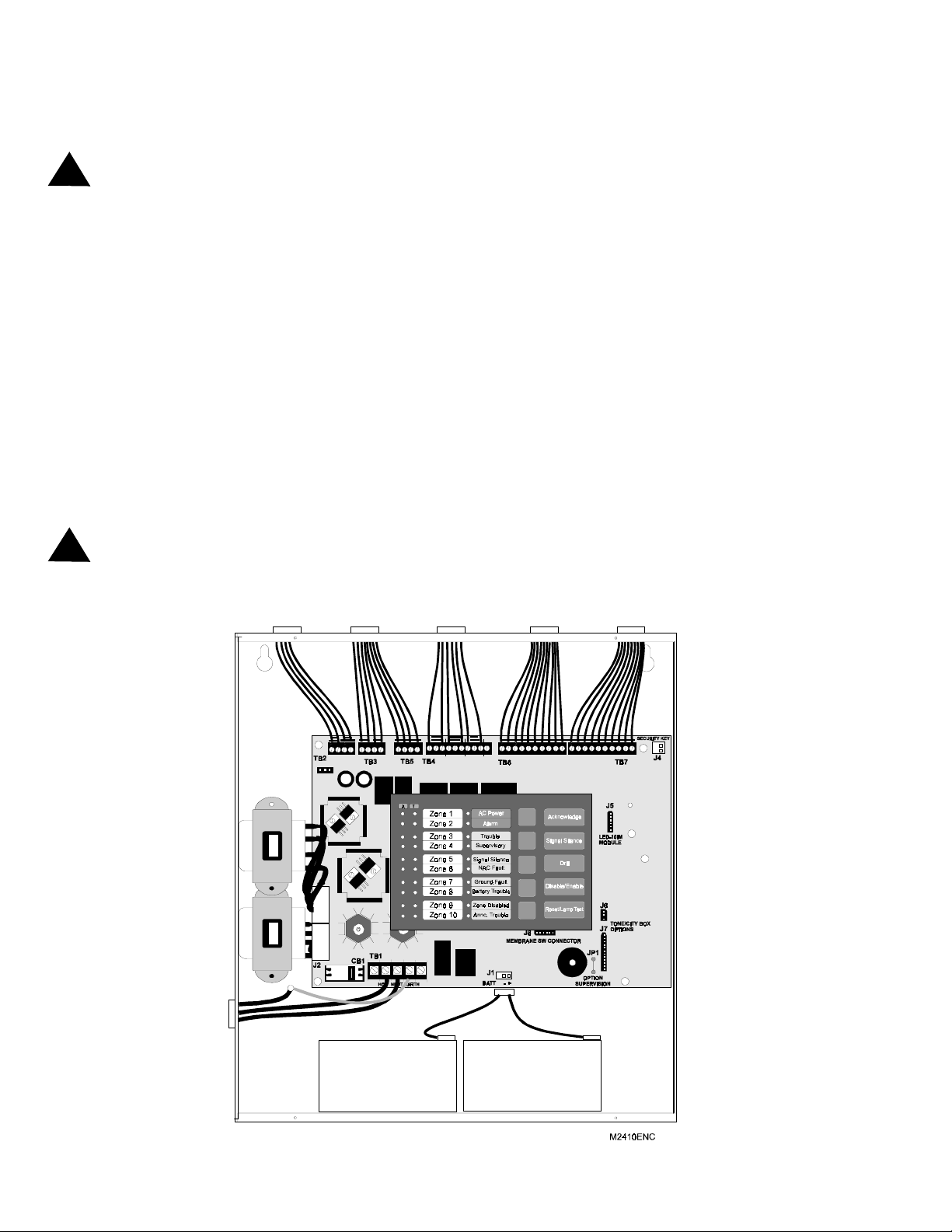

FIGURE 2-1:

MS-2410BC Mounting

Document #50801 Rev. C 12/14/01 P/N 50801:C

Backbox Mounting

Draw wires through the respective knockout locations.

FIGURE 2-2:

Left Side

Cabinet Dimensions and Knockout Locations

To p

Right Side

Bottom

Document #50801 Rev.C 12/14/01 P/N 50801:C
