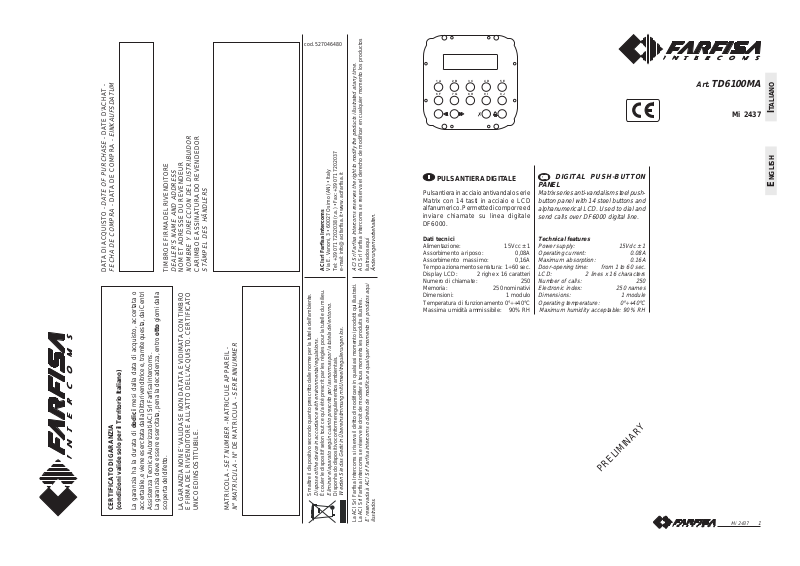

Farfisa TD6100MA User Manual

1A

2B

3C 4D

5E

6F 7G 8H 9I 0J

cod. 527046480

Art.

TD6100MA

ITALIANOENGLISH

EINKAUFSDATUM

- DATE D’ACHAT -

DATE OF PURCHASE

- DATA DE COMPRA -

DATA DI ACQUISTO -

FECHA DE COMPRA

TIMBRO E FIRMA DEL RIVENDITORE

DEALER’S NAME AND ADDRESS

NOM ET ADRESSE DU REVENDEUR

NOMBRE Y DIRECCION DEL DISTRIBUIDOR

CARIMBO E ASSINATURA DO REVENDEDOR

STÄMPEL DES HÄNDLERS

Pulsantiera in acciaio antivandalo serie
Matrix con 14 tasti in acciaio e LCD
alfanumerico. Permette di comporre ed
inviare chiamate su linea digitale
DF6000.

Dati tecnici

Alimentazione: 15Vcc ± 1
Assorbimento a riposo: 0,08A
Assorbimento massimo: 0,16A

ACI srl Farfisa Intercoms

Via E. Vanoni, 3 • 60027 Osimo (AN) • Italy

Tel: [phone] (r.a.) • Fax: [phone]

e-mail: [e-mail] • www.acifarfisa.it

ACI Srl Farfisa Intercoms reserves the right to modify the products illustrated at any time.

ACI Srl Farfisa intercoms se reserva el derecho de modificar en cualquier momento los productos

ilustrados aquí

Änderungen vorbehalten.

Tempo azionamento serratura: 1÷60 sec.
Display LCD: 2 righe x 16 caratteri
Numero di chiamate: 250
Memoria: 250 nominativi
Dimensioni: 1 modulo
Temperatura di funzionamento 0°÷+40°C
Massima umidità ammissibile: 90% RH

PULSANTIERA DIGIT ALE

DIGITAL PUSH-BUTTON

PANEL

Matrix series anti-vandalism steel push­button panel with 14 steel buttons and
alphanumerical LCD. Used to dial and
send calls over DF6000 digital line.

Technical features

Power supply: 15Vdc ± 1
Operating current: 0.08A
Maximum absorption: 0.16A
Door-opening time: from 1 to 60 sec.
LCD: 2 lines x 16 characters
Number of calls: 250
Electronic index: 250 names
Dimensions: 1 module
Operating temperature: 0°÷+40°C

Maximum humidity acceptable: 90% RH

Mi 2437

IT ALIANOENGLISH

SERIENNUMMER

- MATRICULE APPAREIL -

- N° DE MATRICULA -

SET NUMBER

Smaltire il dispositivo secondo quanto prescritto dalle norme per la tutela dell'ambiente.

Dispose of the device in accordance with environmental regulations.

Écouler le dispositif selon tout ce qu'a été prescrit par les règles pour la tutelle du milieu.

Eliminar el aparato según cuánto prescrito por las normas por la tutela del entorno.

Disponha do dispositivo conforme regulamentos ambientais.

Werden Sie das Gerät in Übereinstimmung mit Umweltregulierungen los.

scoperta del difetto.

LA GARANZIA NON E’ VALIDA SE NON DATATA E VIDIMATA CON TIMBRO

E FIRMA DEL RIVENDITORE ALL’ATTO DELL’ACQUISTO. CERTIFICATO

accertabile, e viene esercitata dalla Ditta rivenditrice e, tramite questa, dai Centri

Assistenza Tecnica Autorizzati ACI Srl Farfisa Intercoms.

CERTIFICATO DI GARANZIA

(condizioni valide solo per il Territorio Italiano)

La garanzia deve essere esercitata, pena la decadenza, entro otto giorni dalla

La garanzia ha la durata di dodici mesi dalla data di acquisto, accertata o

UNICO ED INSOSTITUIBILE.

MATRICOLA -

N° MATRICULA

ilustrados.

La ACI Srl Farfisa Intercoms si riserva il diritto di modificare in qualsiasi momento i prodotti qui illustrati.

La ACI Srl Farfisa Intercoms se réserve le droit de modifier à tous moments les produits illustrés.

E’ reservada à ACI Srl Farfisa intercoms o direito de modificar a qualquer momento os produtos aqui

Mi 2437

16

PRELIMINARY

Mi 2437

1

INSTALLAZIONE /

INSTALLATION

ITALIANOENGLISH

IT ALIANOENGLISH

1

5E

3C 4D

2B

1A

6F 7G 8H 9I 0J

2

3C 4D

2B

1A

6F 7G 8H 9I 0J

4

5E

3

Mi 2437

5

2

Mi 2437

15

OPERATION

Check that all connections are correct.
Connect the power supply unit to the
mains; the push-button panel
automatically checks the status of the
line displaying for 5 seconds

“TD6100MA / Rel. SW.....”

of checking, in case of failure, the
display shows

ITALIANOENGLISH

in case of a positive check on the

....”

“TD6100MA / ERROR.

display appears the message “

the number or press

alternate mode).
Dial the number or select the desired
user name (if previously stored) by
pressing the
the desired user name appears on

the display press the
call.

In case of error press
sending the call) and dial the correct
to number.
If the line is free you will hear the
confirmation tone and the display

Call /----

shows “
rings the number of times defined by
system programming.

the call is terminated and

If press
the system is ready for a new call.
The called user picks up the handset
enables the conversation with the
external station for 60 seconds. The
display shows “

Connection /----

The display of the door station starts
flashing 10 seconds before conver­sation ends. To continue conversa­tion for additional 60 seconds press

again (up to 3 times).

From the internal station, press the

button to release the door lock;
this operation requires that the user is
in conversation and wait about 1 sec­ond after lifting the handset. The lock
release activation time is defined by
programming "

" (code 10 -

time

door lock activation

Replace the handset or press
the door station to restore the idle
state.
Numbers that are not sent or deleted
go off after 25 seconds.

In installations with 2 or more digital
push-button panels, when a call is
made from one push-button panel, the
other push-button panels are
deactivated and their display shows

“busy / ”.

Wait until the line is free to

make the call.

; at the end

"

or buttons, once

to make a

(only before

”; the internal station

page 13

).

Dial

( in

”.

on

Door lock opening

The door lock can be opened from the
push-button panel, including in
mode, by dialling one of the 80 4-digit
passwords you have entered.

Door lock activation

- On the keyboard dial 00

- Press
“

; the display shows

Password

/ “

- Dial the personal access code within
10 seconds; each digit is visualised
with * instead of

- Press

.

to release the door lock; you

hear the confirmation tone and the
push-button panel returns to the
current system operation mode (free
or busy).

If properly programmed you can access
the door lock opening function with the
following simplified procedure

note 1 on page 12):

X + Password +

“busy”

(see

Tone table

Dialling. Invitation to dial

012345

Busy. The called user is busy

012345

Programming. Indicates the programming mode

012345

Acknowledge. Indicates that programming has

been executed.

Dissuasion. Indicates that a wrong code was

dialled (higher than 250)

Warning. Indicates that conversation time is about

to end.

012345

Calling tone table

Call no. 0

012456

Call no. 1

012567

Call no. 2

012345

Call no. 3

012456

Morsettiere di connessione

Connection terminal boards

J1

ponticello di programmazione

jumper for programming

all'impianto, gruppo fonico e serratura

to the door speaker, lock and installation

Morsettiera

LP linea positiva
LN linea negativa

- massa generale

+ ingresso alimentazione +15V

1 fonia ricezione/trasmissione (collega-

mento al gruppo fonico)

DB linea dati
EC comando scambiatore (contatto a

massa alla chiamata e durante la
conversazione)

S1-S2 comando per apertura serratura

(contatti normalmente aperti di un relè)

P1 ingresso chiamata diretta da pulsan-

te

Terminals

LP positive line
LN negative line

-

general ground

+

+15V power input

1 receiver/transmitter (to speaker unit)
DB serial data bus
EC analog exchanger command

(grounded contact upon call and dur­ing conversation)

S1-S2 door opener command (normally

open contacts of relay)

P1 Input for direct call push-button

presa per il collegamento al PC

jack for the connection to the PC

J2, J3

ponticelli di programmazione da PC

jumpers for PC programming

IT ALIANOENGLISH

Mi 2437

14

Mi 2437

3
