Epson S11, X12, X15 User Manual

PowerLite

S11/X12/X15 User's Guide

Introduction to Your Projector ................................................................................................................... 9

Setting Up the Projector ........................................................................................................................... 24

Projector Features................................................................................................................................ 9

Product Box Contents.................................................................................................................... 10

Additional Components ................................................................................................................ 11

Optional Equipment and Replacement Parts................................................................................. 12

Warranty and Registration Information .......................................................................................... 13

Notations Used in the Documentation ................................................................................................ 13

Where to Go for Additional Information .............................................................................................. 13

Projector Part Locations ..................................................................................................................... 14

Projector Parts - Front/Top ............................................................................................................ 14

Projector Parts - Rear .................................................................................................................... 15

Projector Parts - Base.................................................................................................................... 19

Projector Parts - Control Panel ...................................................................................................... 19

Projector Parts - Remote Control................................................................................................... 22

Projector Placement........................................................................................................................... 24

Projector Setup and Installation Options ....................................................................................... 24

Projection Distance........................................................................................................................ 26

Projector Connections........................................................................................................................ 27

Connecting to Computer Sources.................................................................................................. 28

Connecting to a Computer for USB Video and Audio................................................................ 28

Connecting to a Computer for VGA Video................................................................................. 29

Connecting to a Computer for HDMI Video and Audio.............................................................. 30

Connecting to a Computer for USB Mouse Control................................................................... 31

Connecting to a Computer for Sound........................................................................................ 32

Connecting to Video Sources ........................................................................................................ 33

Connecting to an HDMI Video Source ...................................................................................... 33

Connecting to a Component-to-VGA Video Source .................................................................. 34

Connecting to a Composite Video Source ................................................................................ 35

Connecting to an S-Video Video Source................................................................................... 36

Connecting to a Video Source for Sound .................................................................................. 37

Connecting to an External Computer Monitor................................................................................ 38

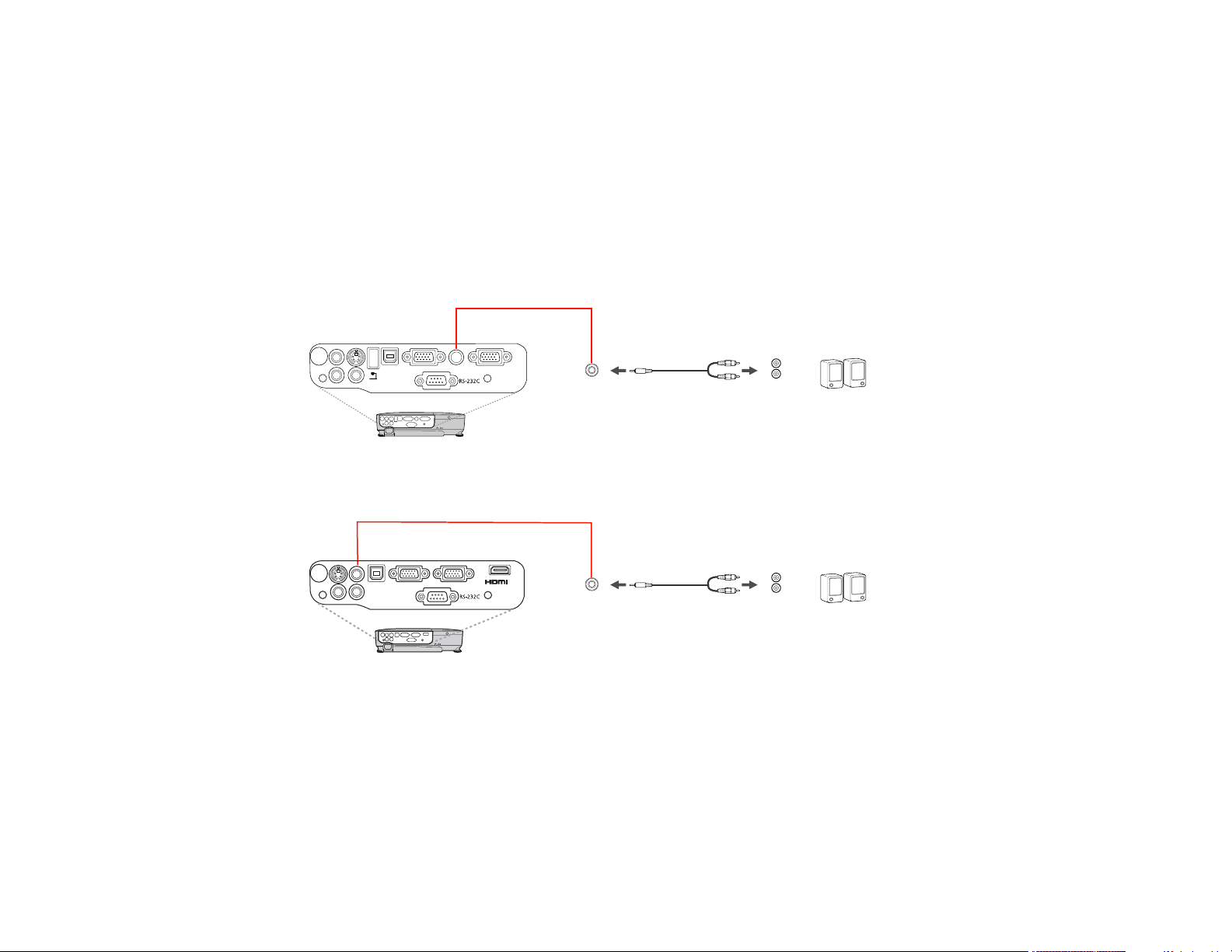

Connecting to External Speakers .................................................................................................. 38

Connecting to External USB Devices ............................................................................................ 39

USB Device Projection.............................................................................................................. 40

Connecting a USB Device or Camera to the Projector.............................................................. 40

Selecting the Connected USB Source ...................................................................................... 41

Disconnecting a USB Device or Camera From the Projector .................................................... 41

Connecting to a Document Camera .............................................................................................. 42

Installing Batteries in the Remote Control .......................................................................................... 42

Opening the Lens Cover .................................................................................................................... 44

Using Basic Projector Features ............................................................................................................... 45

Turning On the Projector .................................................................................................................... 45

Turning Off the Projector .................................................................................................................... 47

Selecting the Language for the Projector Menus................................................................................ 49

Adjusting the Image Height ................................................................................................................ 49

Image Shape...................................................................................................................................... 51

Correcting Image Shape with the Keystone Buttons...................................................................... 51

Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 53

Correcting Image Shape with Quick Corner .................................................................................. 53

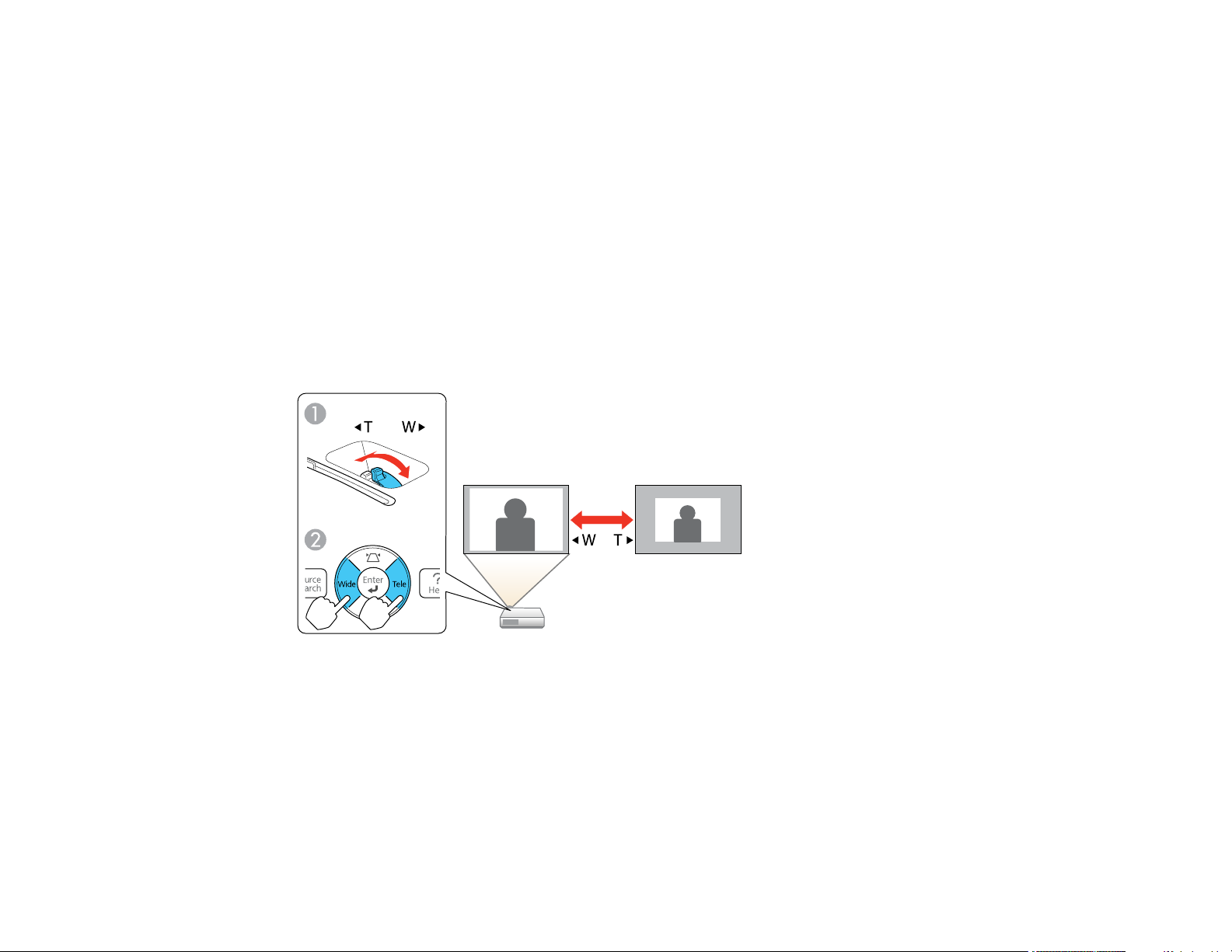

Resizing the Image............................................................................................................................. 55

Focusing the Image Using the Focus Ring......................................................................................... 56

Remote Control Operation ................................................................................................................. 56

Using the Remote Control as a Wireless Mouse ........................................................................... 57

Using the Remote Control as a Presentation Pointer .................................................................... 58

Selecting an Image Source ................................................................................................................ 59

Projection Modes ............................................................................................................................... 61

Changing the Projection Mode Using the Remote Control ............................................................ 61

Changing the Projection Mode Using the Menus........................................................................... 62

Image Aspect Ratio ............................................................................................................................ 62

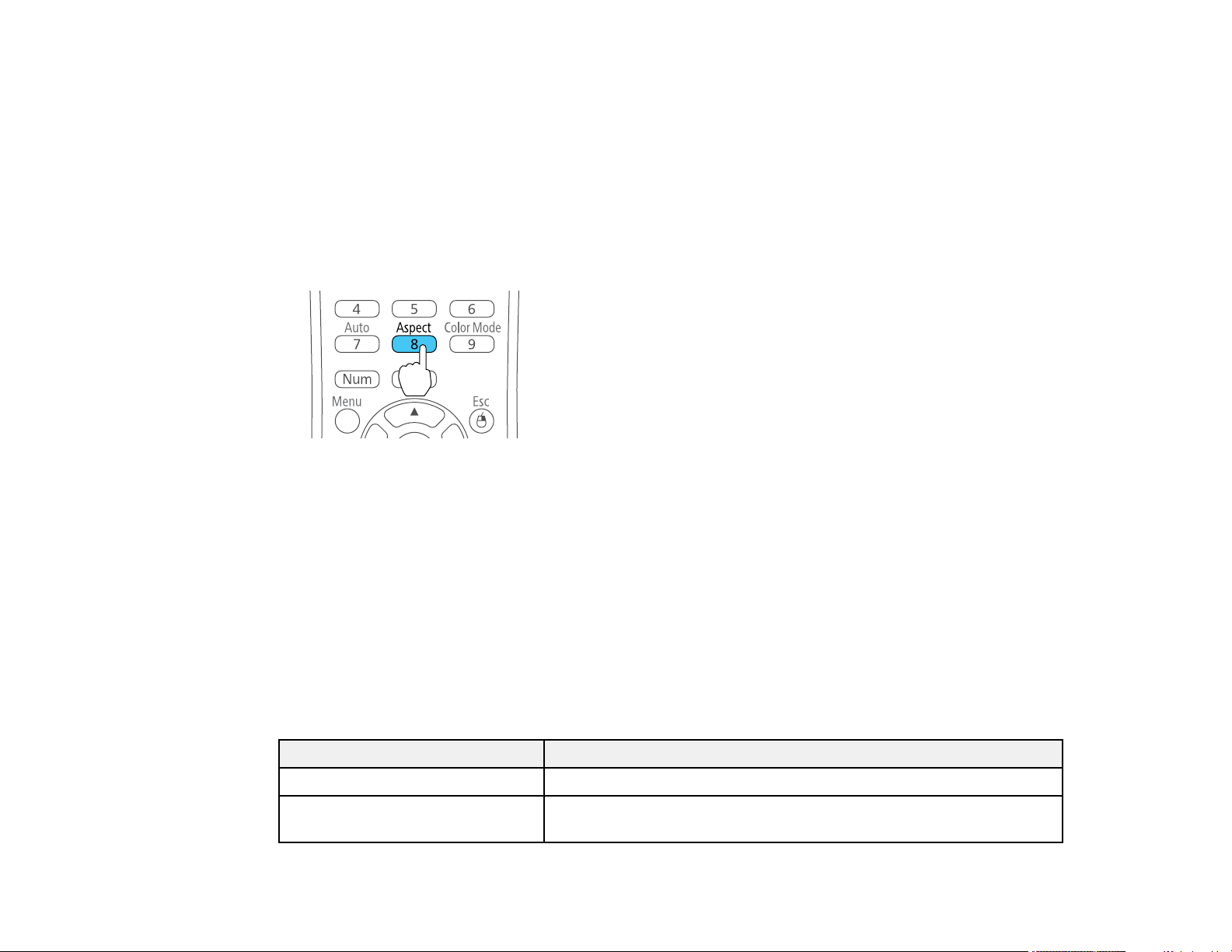

Changing the Image Aspect Ratio ................................................................................................. 63

Available Image Aspect Ratios ...................................................................................................... 63

Color Mode......................................................................................................................................... 64

Changing the Color Mode.............................................................................................................. 64

Available Color Modes................................................................................................................... 65

Turning On Auto Iris....................................................................................................................... 66

Controlling the Volume with the Volume Buttons................................................................................ 66

Projecting a Slide Show ..................................................................................................................... 67

Supported Slideshow File Types ................................................................................................... 67

Starting a Slide Show .................................................................................................................... 68

Slideshow Display Options ....................................................................................................... 70

Adjusting Projector Features ................................................................................................................... 72

Shutting Off the Picture and Sound Temporarily ................................................................................ 72

Stopping Video Action Temporarily .................................................................................................... 73

Zooming Into and Out of Images ........................................................................................................ 73

Projector Security Features................................................................................................................ 74

Password Security Types .............................................................................................................. 74

Setting a Password ................................................................................................................... 74

Selecting Password Security Types.......................................................................................... 76

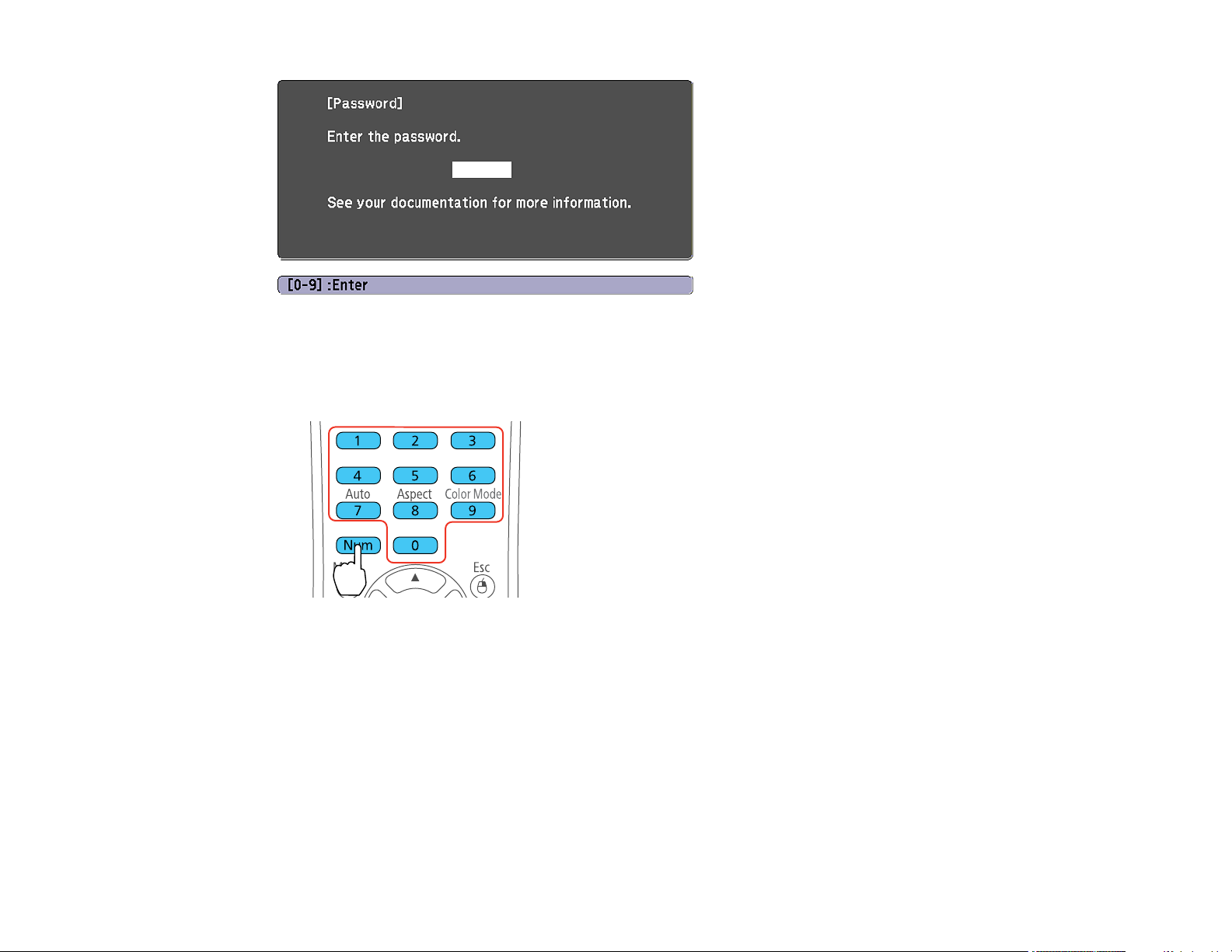

Entering a Password to Use the Projector................................................................................. 76

Saving a User's Logo Image to Display..................................................................................... 78

Locking the Projector's Buttons ..................................................................................................... 79

Unlocking the Projector's Buttons ............................................................................................. 80

Installing a Security Cable ............................................................................................................. 80

Adjusting the Menu Settings .................................................................................................................... 82

Using the Projector's Menus............................................................................................................... 82

Image Quality Settings - Image Menu ................................................................................................ 83

Input Signal Settings - Signal Menu.................................................................................................... 85

Projector Feature Settings - Settings Menu........................................................................................ 87

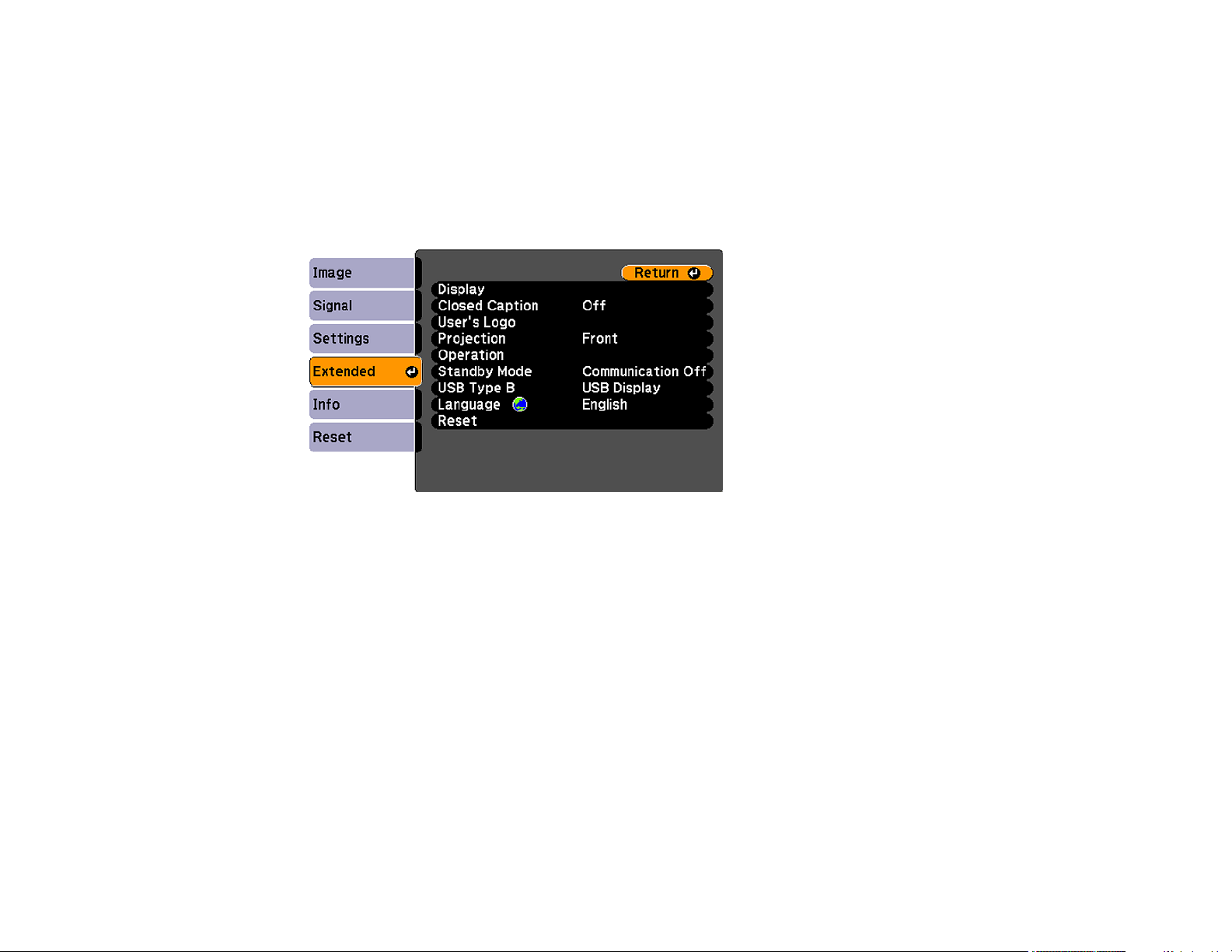

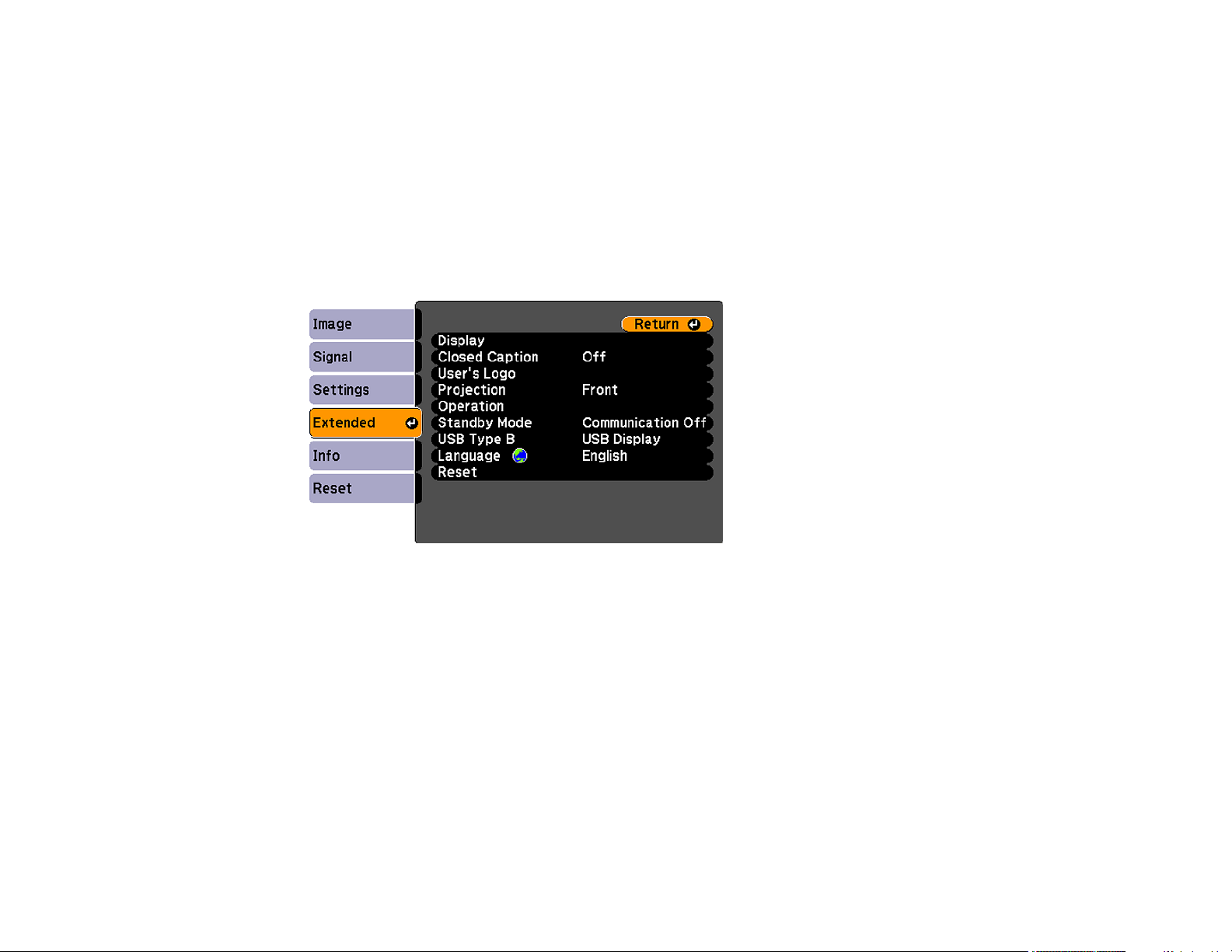

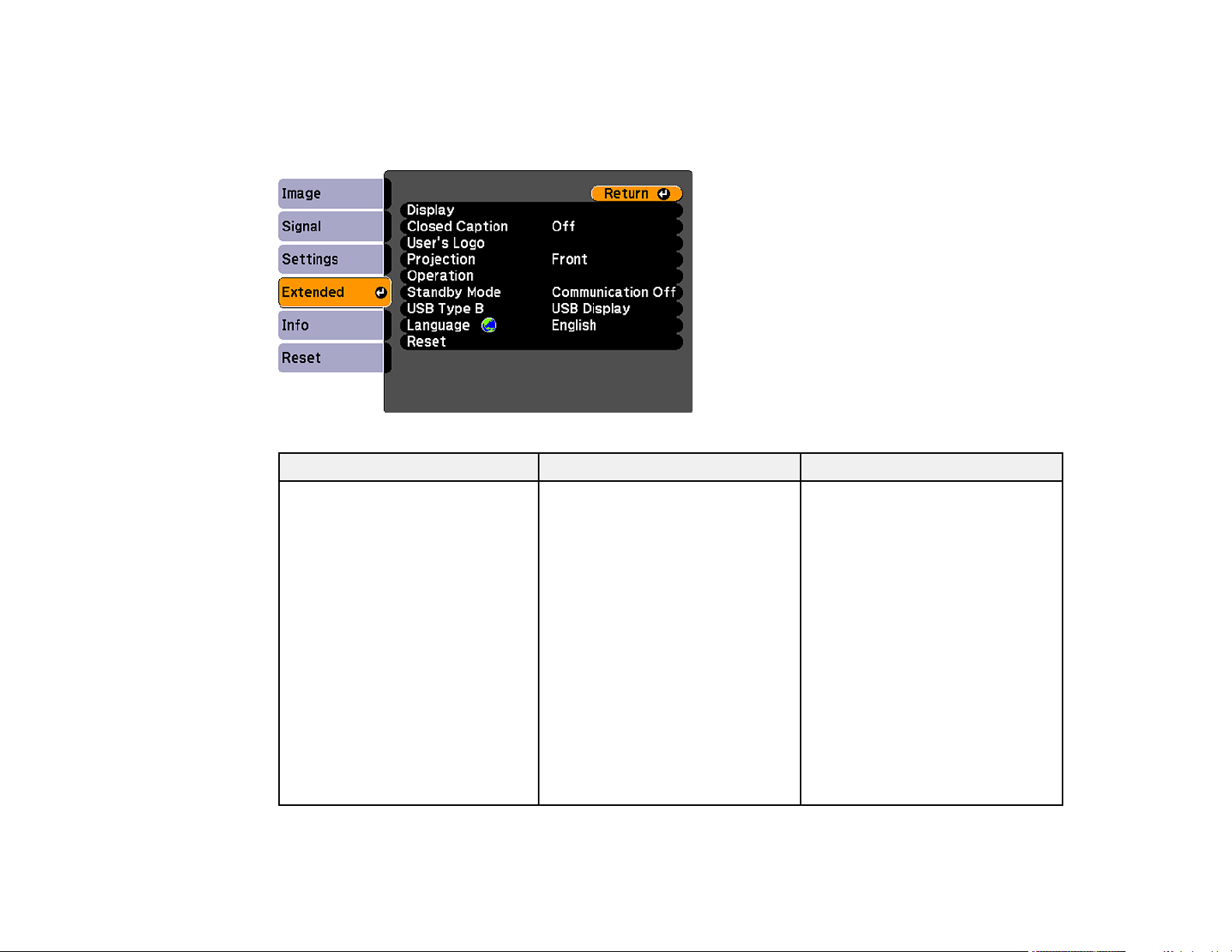

Projector Setup Settings - Extended Menu......................................................................................... 90

Projector Information Display - Info Menu .......................................................................................... 92

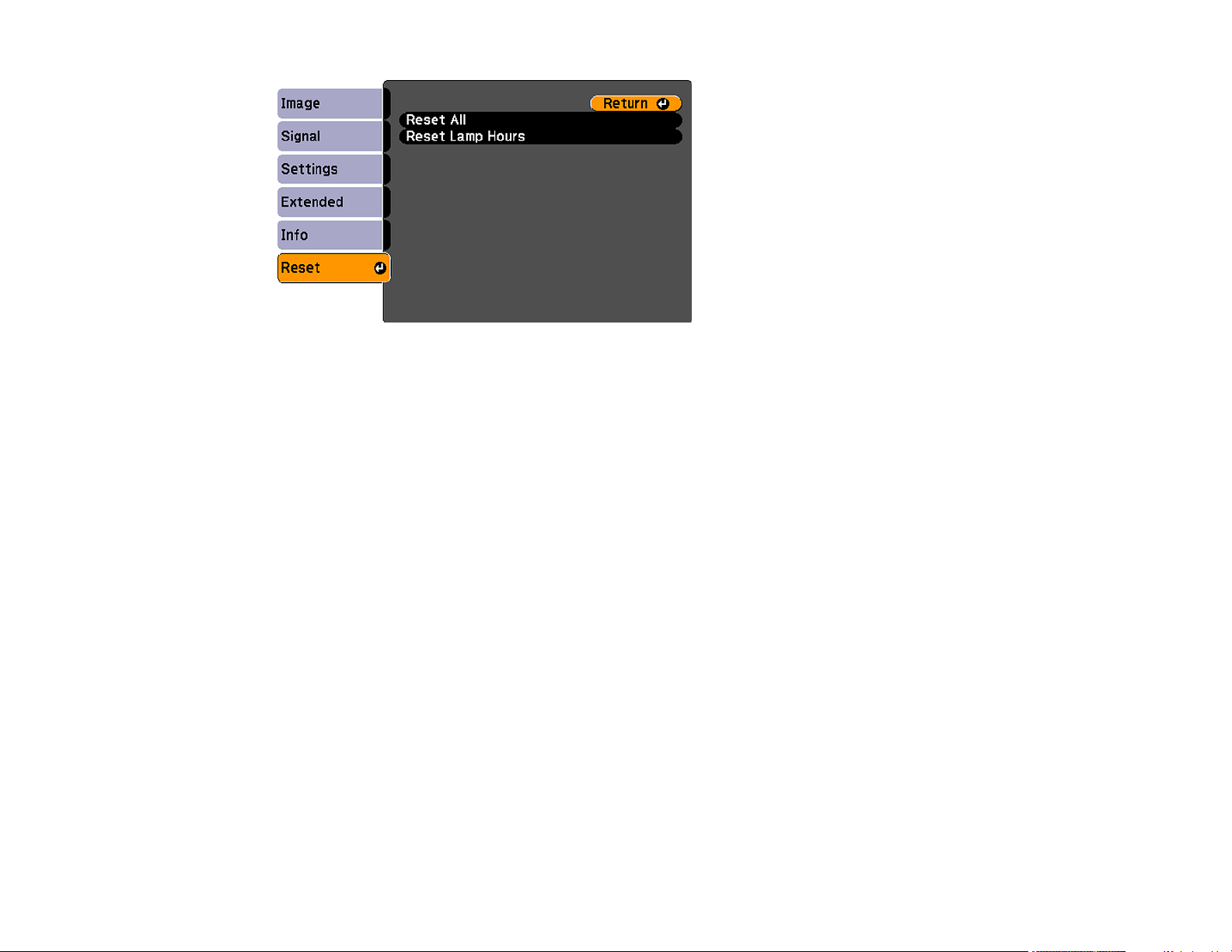

Projector Reset Options - Reset Menu............................................................................................... 93

Maintaining and Transporting the Projector ........................................................................................... 95

Projector Maintenance ....................................................................................................................... 95

Cleaning the Lens.......................................................................................................................... 95

Cleaning the Projector Case.......................................................................................................... 96

Air Filter and Vent Maintenance .................................................................................................... 96

Cleaning the Air Filter and Vents............................................................................................... 97

Replacing the Air Filter.............................................................................................................. 97

Projector Lamp Maintenance......................................................................................................... 99

Replacing the Lamp ................................................................................................................ 100

Resetting the Lamp Timer....................................................................................................... 105

Replacing the Remote Control Batteries ..................................................................................... 106

Transporting the Projector................................................................................................................ 108

Solving Problems .................................................................................................................................... 109

Projection Problem Tips ................................................................................................................... 109

Projector Light Status ....................................................................................................................... 109

Using the Projector Help Displays .................................................................................................... 112

Solving Image or Sound Problems ................................................................................................... 112

Solutions When No Image Appears............................................................................................. 113

Solutions When Image is Incorrect Using the USB Display Function .......................................... 113

Solutions When "No Signal" Message Appears........................................................................... 114

Displaying From a PC Laptop ................................................................................................. 114

Displaying From a Mac Laptop ............................................................................................... 115

Solutions When "Not Supported" Message Appears ................................................................... 115

Solutions When Only a Partial Image Appears............................................................................ 115

Solutions When the Image is Not Rectangular ............................................................................ 116

Solutions When the Image Contains Noise or Static ................................................................... 116

Solutions When the Image is Fuzzy or Blurry .............................................................................. 117

Solutions When the Image Brightness or Colors are Incorrect .................................................... 118

Solutions When There is No Sound or Low Volume .................................................................... 119

Solving Projector or Remote Control Operation Problems ............................................................... 119

Solutions to Projector Power or Shut-Off Problems ..................................................................... 119

Solutions to Problems with the Remote Control........................................................................... 120

Solutions to Password Problems ................................................................................................. 121

Where to Get Help............................................................................................................................ 121

Technical Specifications ........................................................................................................................ 123

General Projector Specifications ...................................................................................................... 123

Projector Lamp Specifications.......................................................................................................... 125

Remote Control Specifications ......................................................................................................... 126

Projector Dimension Specifications.................................................................................................. 126

Projector Electrical Specifications .................................................................................................... 126

Projector Environmental Specifications............................................................................................ 127

Projector Safety and Approvals Specifications................................................................................. 127

Supported Video Display Formats.................................................................................................... 128

USB Display System Requirements................................................................................................. 130

Notices ..................................................................................................................................................... 132

Recycling.......................................................................................................................................... 132

Important Safety Information ............................................................................................................ 132

Important Safety Instructions............................................................................................................ 133

Restriction of Use ........................................................................................................................ 135

FCC Compliance Statement............................................................................................................. 136

Trademarks...................................................................................................................................... 136

Software Copyright........................................................................................................................... 137

Copyright Notice............................................................................................................................... 178

Copyright Attribution.................................................................................................................... 179

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The PowerLite S11, X12, and X15 projectors include these special features:

Bright, high-resolution projection system

• PowerLite S11: Up to 2600 lumens of brightness (white light output and color light output)

PowerLite X12: Up to 2800 lumens of brightness (white light output and color light output)

PowerLite X15: Up to 3000 lumens of brightness (white light output and color light output)

• PowerLite S11: Native resolution of 800 × 600 pixels (SVGA)

PowerLite X12/X15: Native resolution of 1024 × 768 pixels (XGA)

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• PC Free photo slide shows via connected USB memory devices (PowerLite S11/X12)

• HDMI port for computer or video device connection (PowerLite X12/X15)

• Port for connecting an external monitor (PowerLite S11) and external speakers (PowerLite S11/X15)

Easy-to-use setup and operation features

• Low total cost of ownership with longer lamp life

• Innovative horizontal keystone correction slider for flexible projector placement (PowerLite X12/X15)

• 1.2x optical zoom ratio for improved zooming capability (PowerLite X12/X15)

• Built-in closed captioning decoder

• Epson's Instant Off and Direct Power On features for quick setup and shut down

Note: The PowerLite X12 projector is shown in most illustrations in this manual, unless noted otherwise.

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Related concepts

Projector Part Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (two AA alkaline)

4 Power cord

5 VGA computer cable

6 Carrying case (PowerLite S11/X12)

7 Projector documentation CD

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable (PowerLite X12/X15). See your local computer or electronics dealer for purchase information.

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine EPSON Replacement lamp (ELPLP67) V13H010L67

Air filter replacement set (2 filters; ELPAF32) V13H134A32

EPSON DC-06 document camera (ELPDC06) V12H321005

EPSON DC-11 document camera V12H377020

BrightLink Solo interactive module (IU-01) V12H415020

AP-60 Projector Sound Solution V12H329020

PixiePlus Control System ELPSP10

Accolade Duet portable projector screen ELPSC80

ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y

ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y

Universal projector ceiling mount ELPMBPJF

Adjustable suspended ceiling channel kit ELPMBP01

False ceiling plate kit ELPMBP02

Structural Round ceiling plate ELPMBP03

Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01

Component-to-VGA video cable (ELPKC19) V12H005C19

VGA video cable 1.8 m length ELPKC02

VGA video cable 3.0 m length ELPKC09

VGA video cable 20 m length ELPKC10

Kensington security lock ELPSL01

2-Year Extended Service Program - Exchange Service EPPEXPA1

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector during a presentation? Here's where to look for help:

• Built-in help system

Press the Help button on the remote control or projector to get quick solutions to common problems.

• www.epson.com/support (U.S) or www.epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent

2 Lamp cover

3 Horizontal keystone slider (PowerLite X12/X15)

4 Control panel

5 Projector status lights

6 Focus ring (PowerLite S11)

7 Speaker

8 Air filter cover

9 Intake vent

10 Zoom ring (PowerLite X12/X15)

11 Focus ring (PowerLite X12/X15)

12 Remote receiver

13 A/V Mute slide

14 Front adjustable foot

15 Foot release lever

16 A/V Mute slide lever

Parent topic: Projector Part Locations

Projector Parts - Rear

PowerLite S11

1 Remote control receiver

2 Audio ports

3 S-Video port

4 USB TypeA/document camera port

5 USB TypeB port

6 Computer port

7 RS-232C port

8 Audio Out port

9 Monitor Out port

10 Lamp cover screw

11 Security lock port

12 Video port

13 AC input port

PowerLite X12

1 Remote control receiver

2 Audio ports

3 S-Video port

4 USB TypeA/document camera port

5 USB TypeB port

6 Computer port

7 RS-232C serial port

8 HDMI port

9 Lamp cover screw

10 Security lock port

11 Video port

12 AC input port

PowerLite X15

1 Remote control receiver

2 S-Video port

3 Audio Out port

4 USB TypeB port

5 Computer1 port

6 Computer2 port

7 HDMI port

8 Lamp cover screw

9 Security lock port

10 RS-232C serial port

11 Audio port

12 AC input port

13 Video port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Mounting bracket holes

2 Front adjustable foot

3 Rear feet

4 Security cable attachment point

Parent topic: Projector Part Locations

Projector Parts - Control Panel

PowerLite S11

1 Power button

2 Source Search button (searches for connected sources)

3 Menu button (accesses projector menu system)

4 Enter button (selects options)

5 Wide/Tele buttons (adjusts projected image size), horizontal keystone adjustment buttons (adjust

screen shape), and arrow buttons

6 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons

7 Esc button (cancels/exits functions)

8 Help button (accesses projector help information)

PowerLite X12/X15

1 Power button

2 Source Search button (searches for connected sources)

3 Menu button (accesses projector menu system)

4 Enter button (selects options)

5 Volume control buttons, horizontal keystone adjustment buttons (adjust screen shape), and arrow

buttons

6 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons

7 Esc button (cancels/exits functions)

8 Help button (accesses projector help information)

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources)

3 Video button (cycles through connected video sources)

4 Numeric buttons (enter numbers)

5 Auto button (automatically adjusts position, tracking, and sync settings)

6 Aspect button (selects the image aspect ratio)

7 Num button (when held down, switches numeric buttons to number function)

8 Menu button (accesses projector menu system)

9 Arrow buttons (move through on-screen options and control wireless mouse functions)

10 Enter button (selects options and controls wireless mouse functions)

11 User button (customizable for different functions)

12 Page up/down buttons (control presentation slides)

13 E-Zoom +/– buttons (zoom into and out of the image)

14 A/V Mute button (turns off picture and sound)

15 Help button (accesses projector help information)

16 Freeze button (stops video action)

17 Volume up/down buttons (adjust speaker volume)

18 Pointer button (activates on-screen pointer)

19 Esc button (cancels/exits functions and controls wireless mouse functions)

20 Color Mode button (selects display modes)

21 LAN button (button is not functional)

22 USB button (cycles through connected USB sources)

23 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover

Projector Placement

You can place the projector on almost any flat surface to project your presentation.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector to view presentations in the following ways:

Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

PowerLite S11

4:3 Aspect Ratio Image or Screen

Screen or Projection distance image size

1 50 inches 58 to 79 inches (147 to 200 cm)

2 80 inches 93 to 126 inches (237 to 321 cm)

3 100 inches 117 to 158 inches (297 to 401 cm)

4 150 inches 176 to 237 inches (446 to 603 cm)

PowerLite X12/X15

4:3 Aspect Ratio Image or Screen

Wide to Tele

Screen or Projection distance image size

1 50 inches 59 to 71 inches (150 to 180 cm)

2 80 inches 95 to 114 inches (241 to 290 cm)

3 100 inches 119 to 143 inches (302 to 363 cm)

4 150 inches 179 to 215 inches (454 to 546 cm)

Parent topic: Projector Placement

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer that has a USB port, standard video output (monitor) port, or HDMI port (PowerLite X12/X15).

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and camera phones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

• For slide shows without a computer (PowerLite S11/X12), you can connect USB devices (such as a flash drive or camera) or an optional Epson document camera.

Wide to Tele

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode

to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to an External Computer Monitor Connecting to External Speakers Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu

Product Box Contents

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

1. Turn on your computer.

2. Connect the cable to your projector's USB TypeB port.

PowerLite S11/X12

PowerLite X15

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

• Windows 7/Windows Vista: Select Run EMP_UDSe.exe in the dialog box that appears to install

the Epson USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the

Epson USB Display software on your computer.

• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSe.EXE to install the Epson

USB Display software.

• Mac OS X: The USB Display setup folder appears on your screen. Select USB Display Installer

and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources

Related references

Projector Setup Settings - Extended Menu USB Display System Requirements

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

PowerLite S11/X12

PowerLite X15

4. Tighten the screws on the VGA connectors.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable (PowerLite X12/X15).

1. Connect the HDMI cable to your computer's HDMI output port.

+ 149 hidden pages
