Epson L475 User Manual

Wireless Installation Guide for the L475

Contents

Wireless Installation Guide......................................................................................................................... 5
Using the Control Panel .............................................................................................................................. 6
Setting Up Your Product on a Wireless Network ...................................................................................... 9
Control Panel Buttons and Lights ......................................................................................................... 6
Adjusting Control Panel Position .......................................................................................................... 6
Changing LCD Screen Language ........................................................................................................ 7
Setting Up Your Product with Wi-Fi Auto Connect.............................................................................. 10
Setting Up Your Product Using the Control Panel .............................................................................. 19
Setting Up Your Product Using a Temporary USB Connection .......................................................... 27
Product Cannot Connect to a Wireless Router or Access Point ......................................................... 41
Network Software Cannot Find Product on a Network ....................................................................... 42
Product Does Not Appear in OS X Printer Window ............................................................................ 43
Cannot Print Over a Network.............................................................................................................. 43
Cannot Scan Over a Network............................................................................................................. 44
Trademarks........................................................................................................................................ 46
Copyright Notice................................................................................................................................. 46
Copyright Attribution...................................................................................................................... 47
3

Wireless Installation Guide

Welcome to the Wireless Installation Guide.
Before You Begin
Make sure you filled the ink tanks and loaded paper as described on the Start Here sheet. Then follow the instructions in this guide to set up the product for use on a wireless network.
5

Using the Control Panel

See these sections to learn about the control panel and select control panel settings.
Control Panel Buttons and Lights Adjusting Control Panel Position Changing LCD Screen Language

Control Panel Buttons and Lights

1
The power button and the power light
2
The home button
3 The arrow buttons and the OK button
4
The stop button
5 The start button
Parent topic: Using the Control Panel

Adjusting Control Panel Position

You can adjust the position of the control panel to make it easier to use.
• To raise the control panel, lift it up from the bottom.
6
• To lower the control panel, squeeze the release bar and gently push the panel down.
Caution: Do not lower the control panel without first squeezing the release bar or you may damage your product.
Parent topic: Using the Control Panel

Changing LCD Screen Language

You can change the language used on the LCD screen.
1. Press the home button, if necessary.
2. Press the arrow buttons to select Setup and press the OK button.
3. Press the arrow buttons to select Printer Setup and press the OK button.
You see this screen:
7
4. Press the arrow buttons to select Language and press the OK button.
5. Press the arrow buttons to select a language and press the OK button.
6. Press the home button to exit.
Parent topic: Using the Control Panel
8

Setting Up Your Product on a Wireless Network

You can set up your product to communicate with your computer using a wireless router or access point. The wireless router or access point can be connected to your computer over a wireless or wired network.
1 Epson product
2 Wireless router or access point
3 Computer with a wireless interface
4 Computer
5 Internet
6 Ethernet cable (used only for wired connection to the wireless router or access point)
Setting Up Your Product with Wi-Fi Auto Connect Setting Up Your Product Using the Control Panel Setting Up Your Product Using a Temporary USB Connection
9

Setting Up Your Product with Wi-Fi Auto Connect

Your product broadcasts its network information for 60 minutes from the time ink charging begins. If you run the product's software setup package within this 60 minute period, the software automatically connects the product to your wireless network without you having to enter your network name (SSID) and password.
If it has been longer than 60 minutes since the product was first charged with ink, see one of the other sections on setting up your product wirelessly (using the control panel or a temporary USB connection) instead.
Note: If your computer does not have a CD/DVD drive or you are using a Mac, an Internet connection is required to obtain the product software.
1. Make sure your product is turned on but NOT CONNECTED to your computer with a USB cable.
Note: With Windows, if you see a Found New Hardware screen, click Cancel and disconnect the USB cable.
2. Insert the product CD or download your product’s software package from
global.latin.epson.com/Support/L475.
3. Select your language and click Next (Windows), or click Continue and click Continue again (OS X).
4. Accept the software license agreement to continue with software installation.
10
5. When you see one of these screens, click Install.
Windows
OS X
11
Note: With OS X, make sure you install Software Updater to receive firmware and software updates
for your product.
Software installation may take several minutes. Wait for the installation to complete.

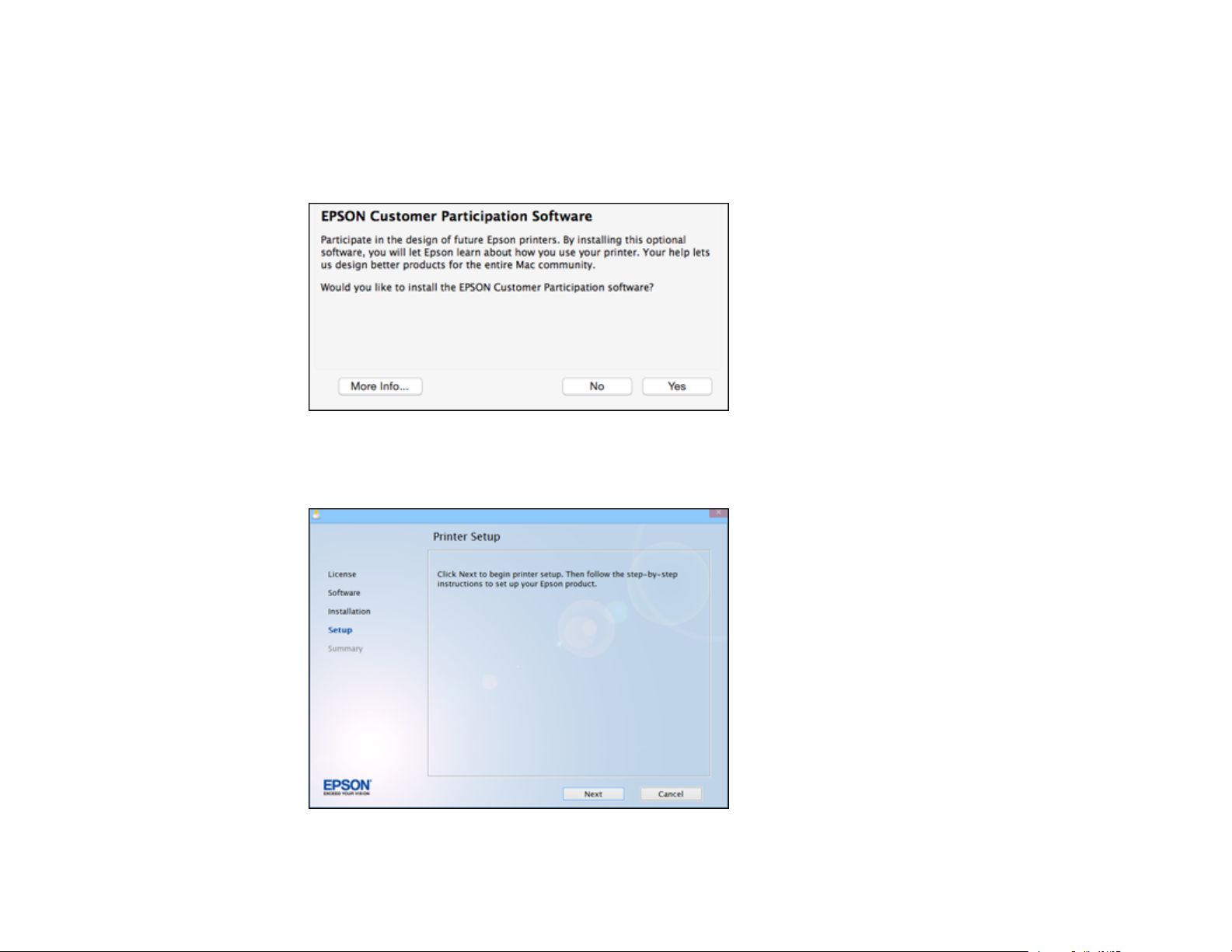

6. OS X: If you see the following message, click Yes or No to continue.
7. When the Printer Setup screen appears, click Next (Windows) or Start (OS X) to begin setting up your product on your network.
12
8. When you see this screen, select Wireless connection and click Next (Windows) or Continue (OS X).
13
9. When you see this screen, select Set up printer for the first time and click Next (Windows) or Continue (OS X).
10. When you see this screen, select Yes and click Next (Windows) or Continue (OS X).
14
You see a screen like this:
11. Click Next to continue.
Note: If you see a firewall alert message, click Unblock or Allow to let EpsonNet Setup continue. Do not select Ask Me Later, Keep Blocking, or Block.
15
