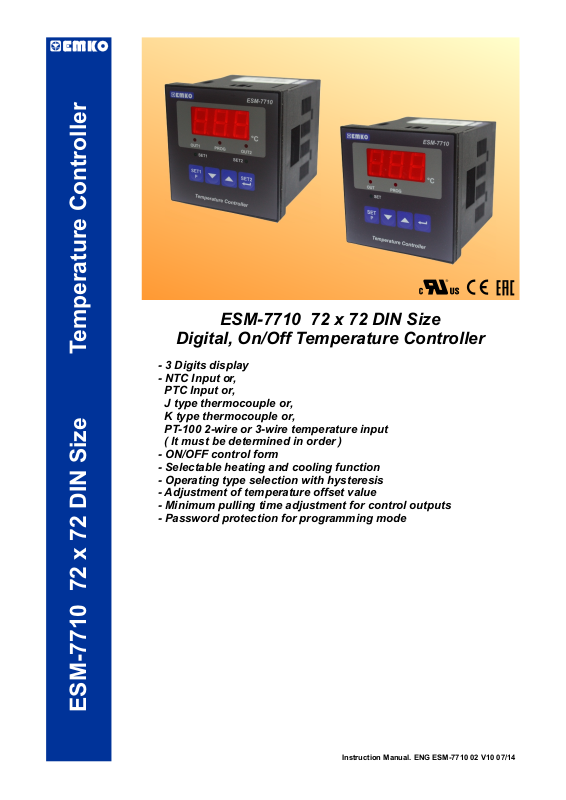

Emko ESM-7710 User guide

ESM-7710 72 x 72 DIN Size

Digital, On/Off Temperature Controller

- 3 D

igits display

- NTC Input or, PTC Input or, J type thermocouple or, K type thermocouple or, PT-100 2-wire or 3-wire temperature input ( It must be determined in order )

- ON/OFF control form

- Selectable heating and cooling function

- Operating type selection with hysteresis

- Adjustment of temperature offset value

- Minimum pulling time adjustment for control outputs

- Password protection for programming mode

ESM-7710 72 x 72 DIN Size Temperature Controller

Instruction Manual. ENG ESM-7710 02 V10 07/14

ABOUT INSTRUCTION MANUAL

Instruction manual of ESM-7710 Temperature Controller consists of three main sections. Explanation of these sections are below. Also, there are other sections which include order information and technical specifications of the device. All titles and page numbers in instruction manual are in “CONTENTS” section. User can reach to any title with section number.

Installation:

In this section, physical dimensions of the device, panel mounting, electrical wiring are explained.

Operation and Parameters:

In this section, user interface of the device, how to access to the parameters, description of the parameters are explained.

Control Algorithm:

Configurable control function that is on the device is explained.

Also in these sections, there are warnings to prevent serious injury while doing the physical and electrical mounting or using the device.

Explanation of the symbols which are used in these sections are given below.

This symbol is used for safety warnings. User must pay attention to these warnings.

This symbol is used to determine the dangerous situations as a result of an electric shock. User must pay attention to these warnings definitely.

This symbol is used to determine the important notes about functions and usage of

the device.

CONTENTS

1.PREFACE............................................................................................................................................

1.1 GENERAL SPECIFICATIONS

1.2 ORDERING INFORMATION

1.3 WARRANTY

1.4 MAINTENANCE

Page 5

2.INSTALLATION...................................................................................................................................

2.1 GENERAL DESCRIPTION

2.2 FRONT VIEW AND DIMENSIONS OF ESM-7710 TEMPERATURE CONTROLLER WITH ONE RELAY

2.3 FRONT VIEW AND DIMENSIONS OF ESM-7710 TEMPERATURE CONTROLLER WITH TWO RELAYS

2.4 PANEL CUT-OUT

2.5 ENVIRONMENTAL RATINGS

2.6 PANEL MOUNTING

2.7 INSTALLATION FIXING CLAMP

2.8 REMOVING FROM THE PANEL

3.ELECTRICAL WIRINGS.....................................................................................................................

3.1 TERMINAL LAYOUT AND CONNECTION INSTRUCTIONS

3.2 ELECTRICAL WIRING DIAGRAM

3.3 LABELS FOR ESM-7710 TEMPERATURE CONTROLLER WITH ONE RELAY

3.4 LABELS FOR ESM-7710 TEMPERATURE CONTROLLER WITH TWO RELAYS

3.5 SUPPLY VOLTAGE INPUT CONNECTION OF THE DEVICE

3.6 TEMPERATURE INPUT CONNECTION

3.6.1 TC (THERMOCOUPLE) CONNECTION

3.6.2 RTD CONNECTIONS

3.6.3 PTC AND NTC CONNECTIONS

3.7 GALVANIC ISOLATION TEST VALUES OF ESM-7710 TEMPERATURE CONTROLLER

3.8 OUTPUT-1 CONNECTIONS

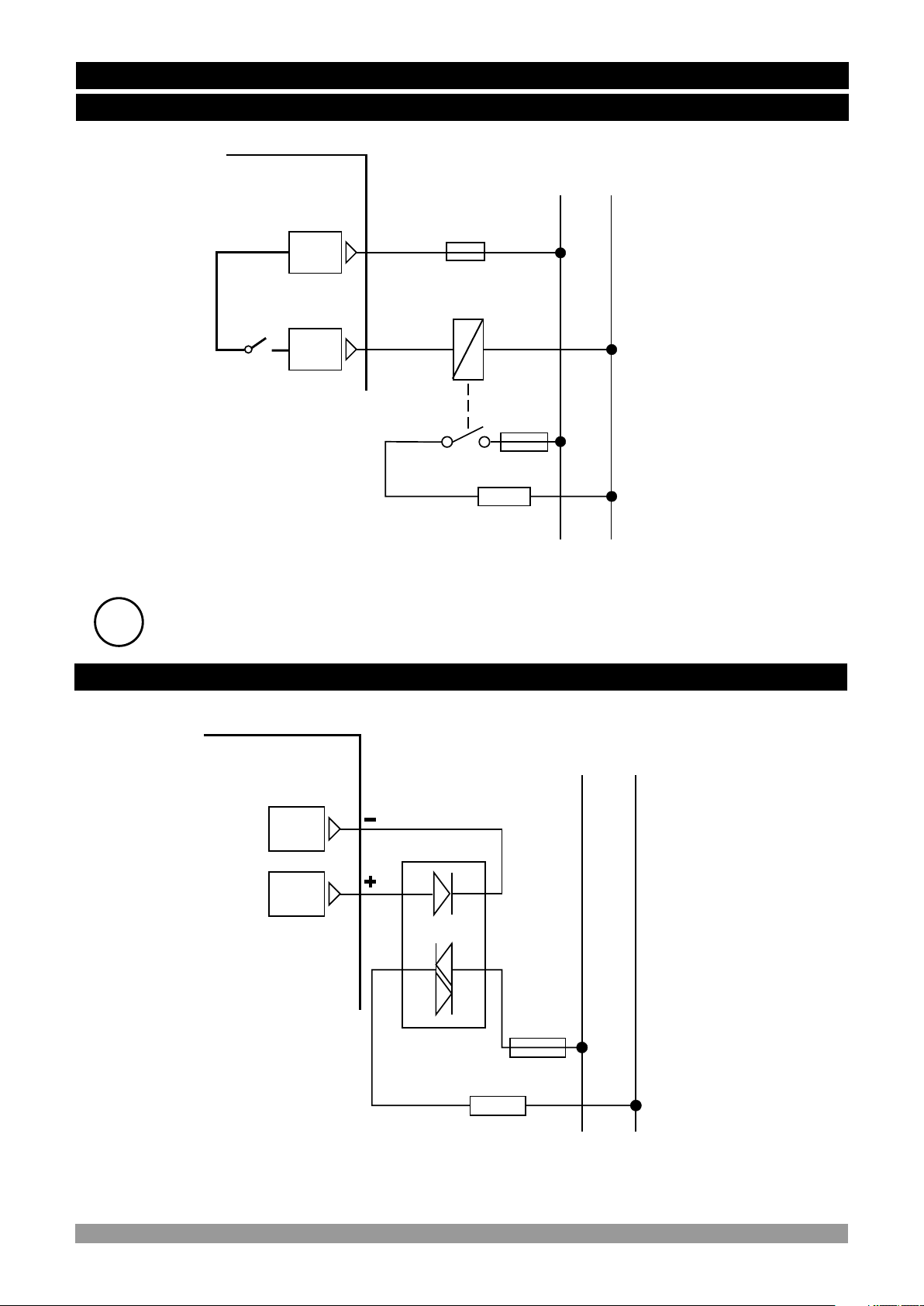

3.8.1 OUTPUT-1 ( RELAY OUTPUT ) CONNECTION

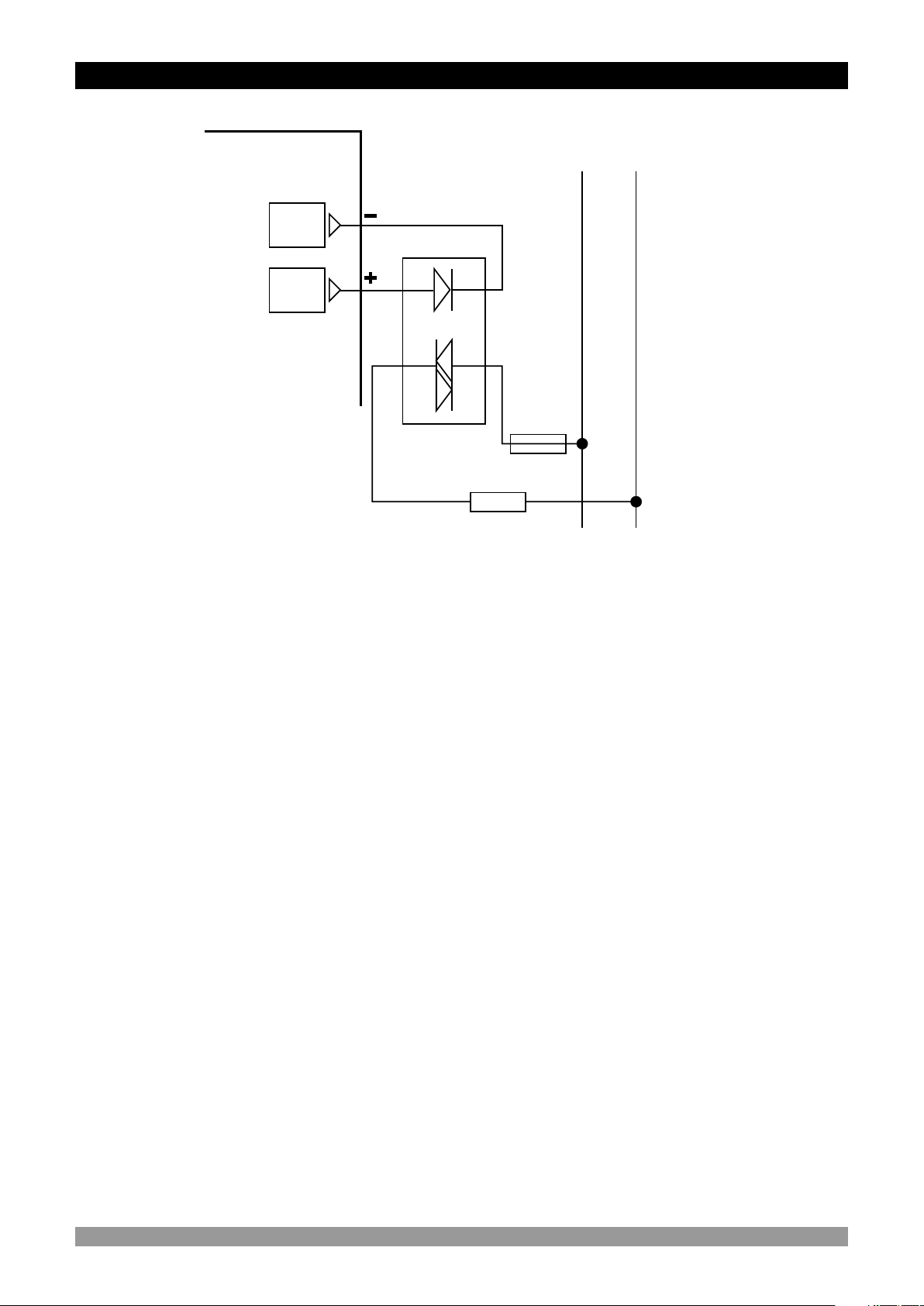

3.8.2 OUTPUT-1 DRIVER OUTPUT CONNECTION

3.9 OUTPUT-2 CONNECTIONS

3.9.1 OUTPUT-2 ( RELAY OUTPUT ) CONNECTION

3.9.2 OUTPUT-2 DRIVER OUTPUT CONNECTION

Page 7

Page 12

4.FRONT PANEL DEFINITION AND ACCESSING TO THE MENUS...................................................

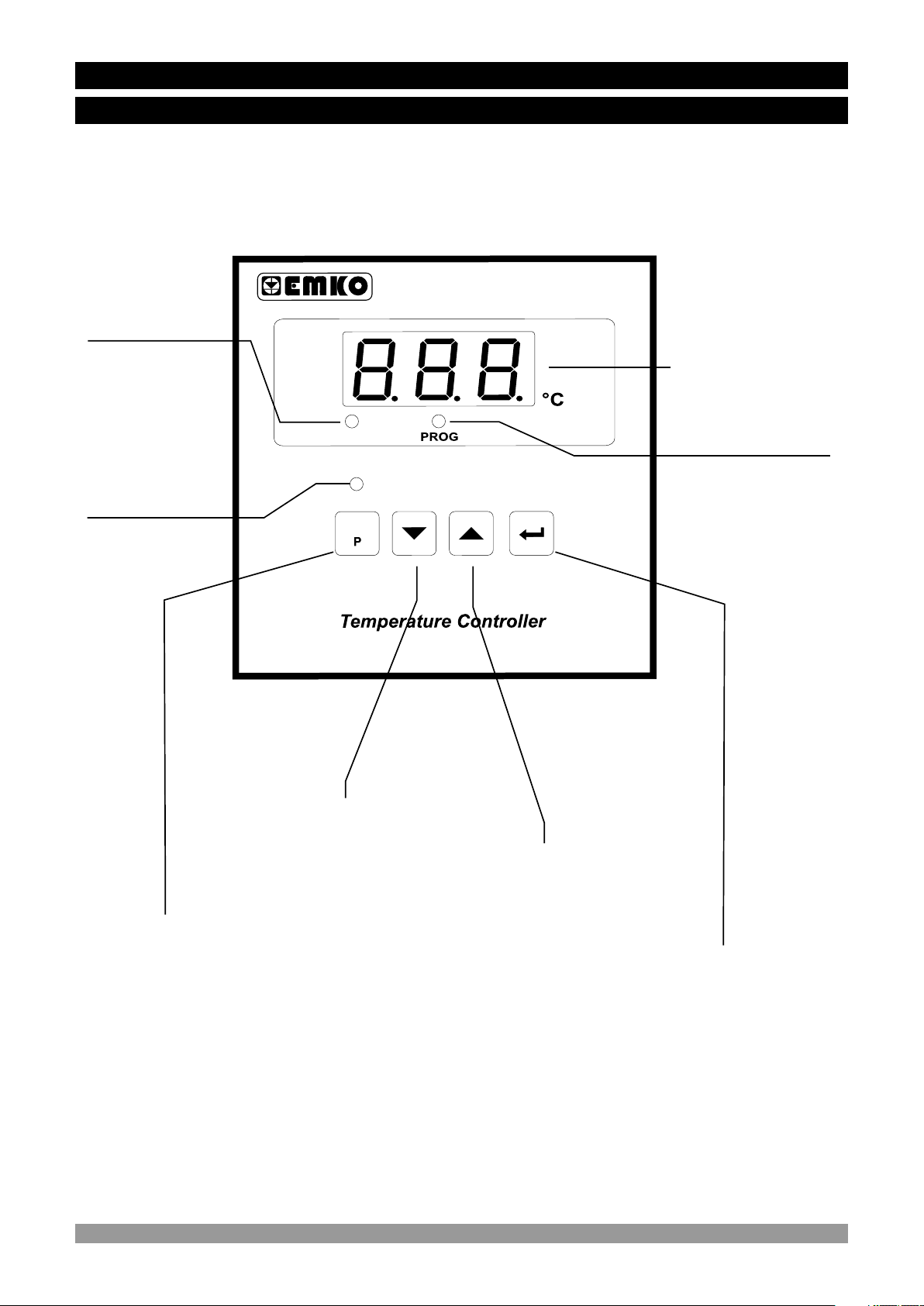

4.1 FRONT PANEL DEFINITION FOR ESM-7710 WITH ONE RELAY

4.2 FRONT PANEL DEFINITION FOR ESM-7710 WITH TWO RELAYS

4.3 OBSERVATION OF ESM-7710 TEMPERATURE CONTROLLER SOFTWARE REVISION

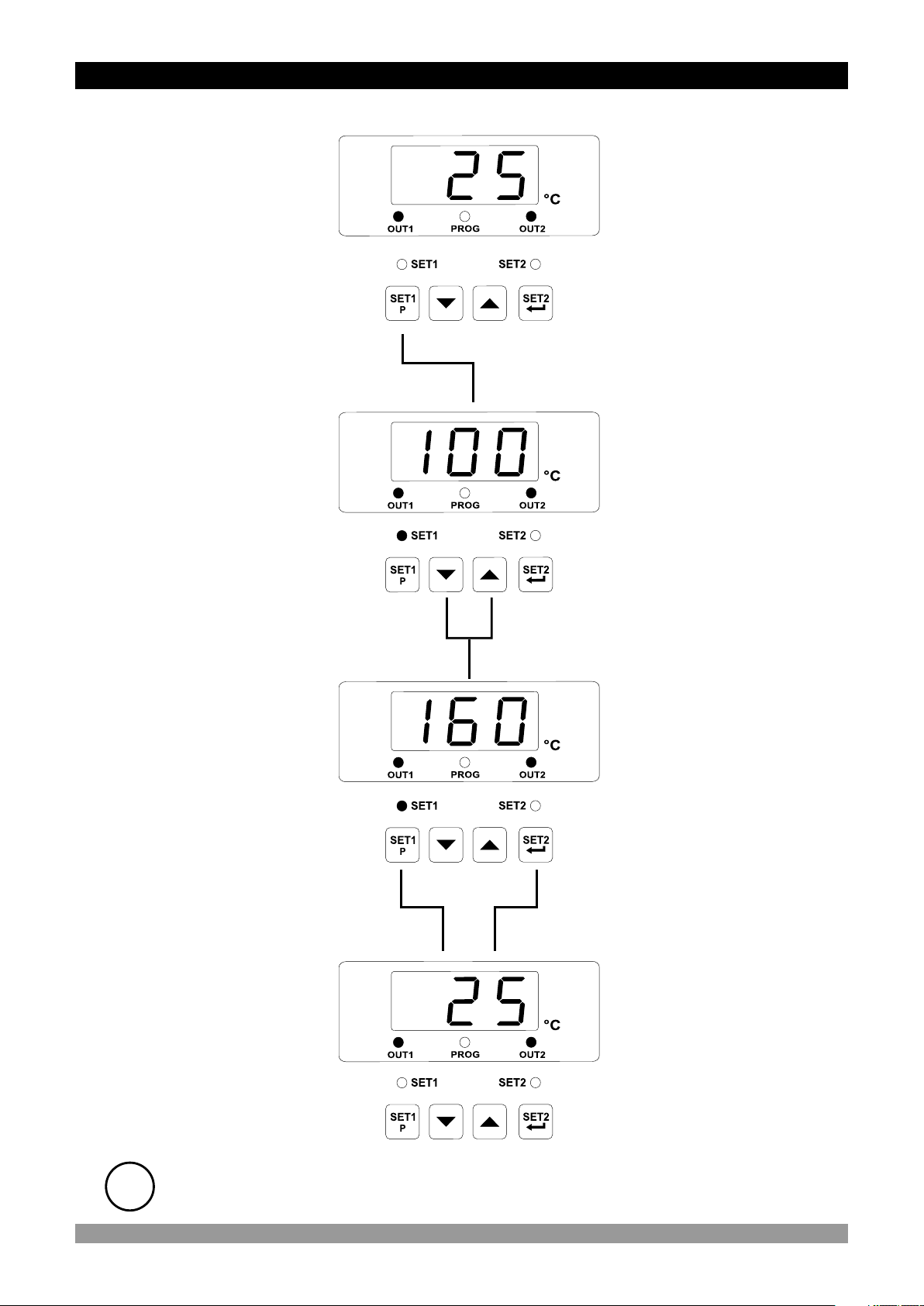

4.4 CHANGING AND SAVING SET VALUES

4.4.1 ESM-7710 WITH ONE RELAY

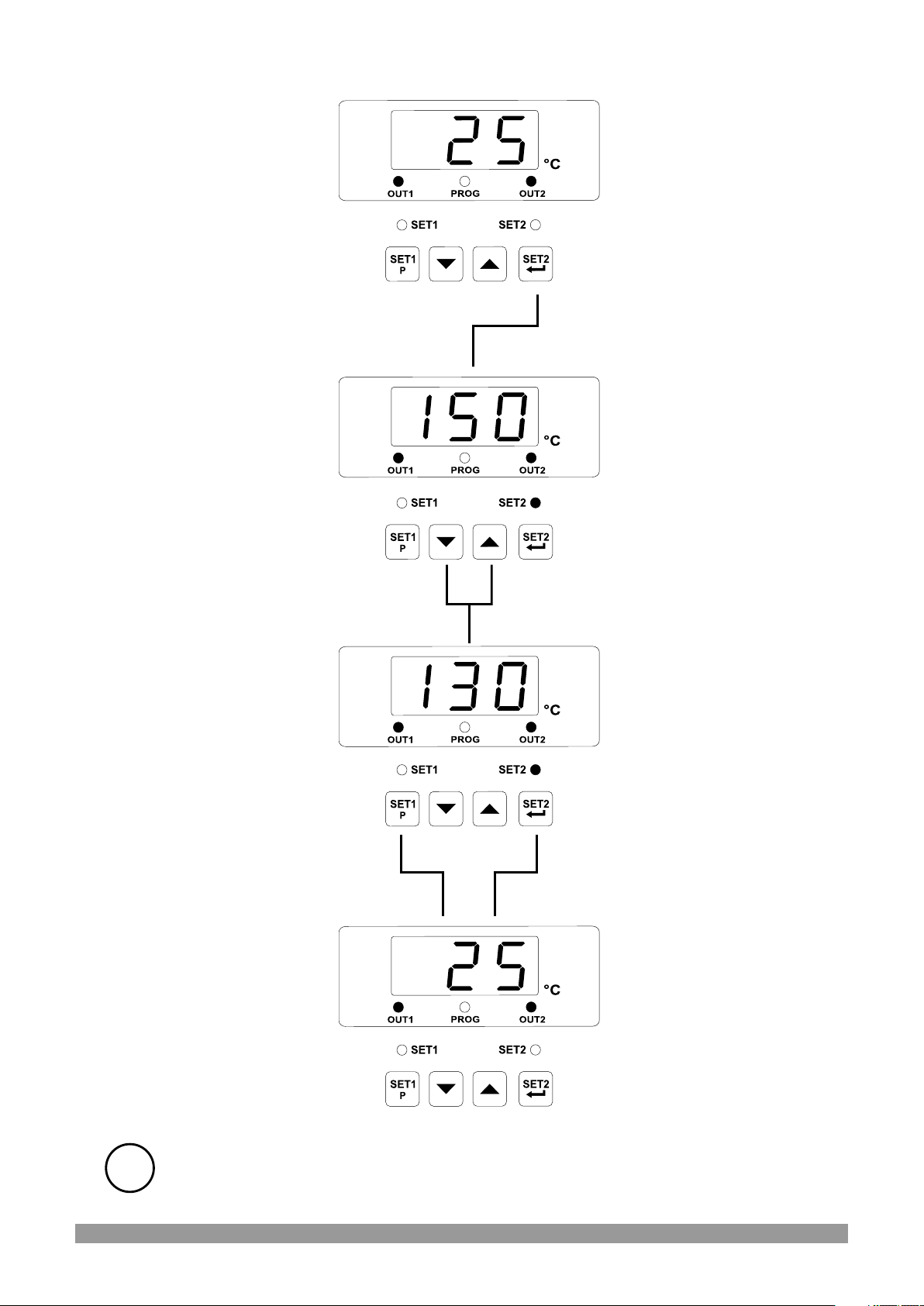

4.4.2 ESM-7710 WITH TWO RELAYS

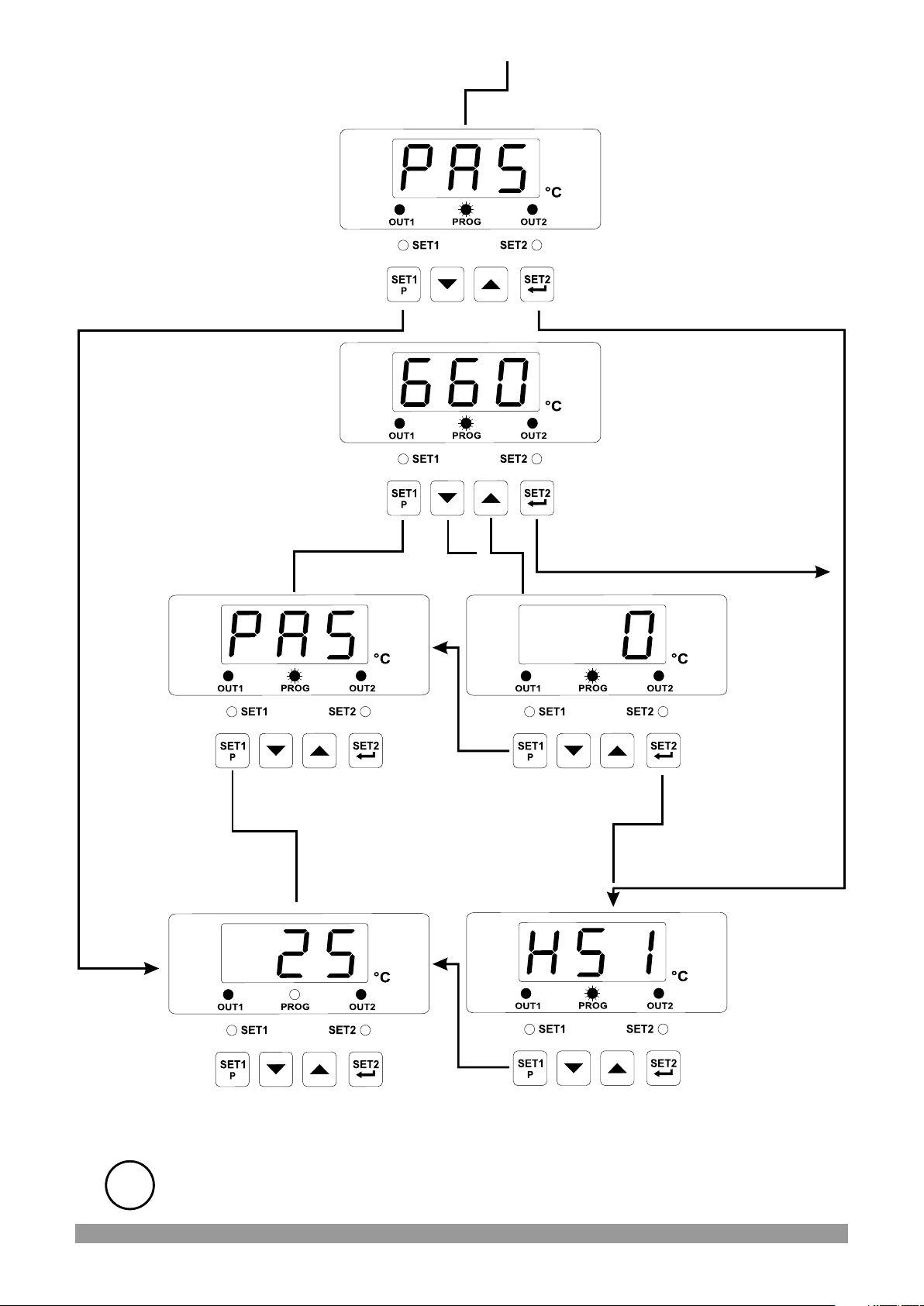

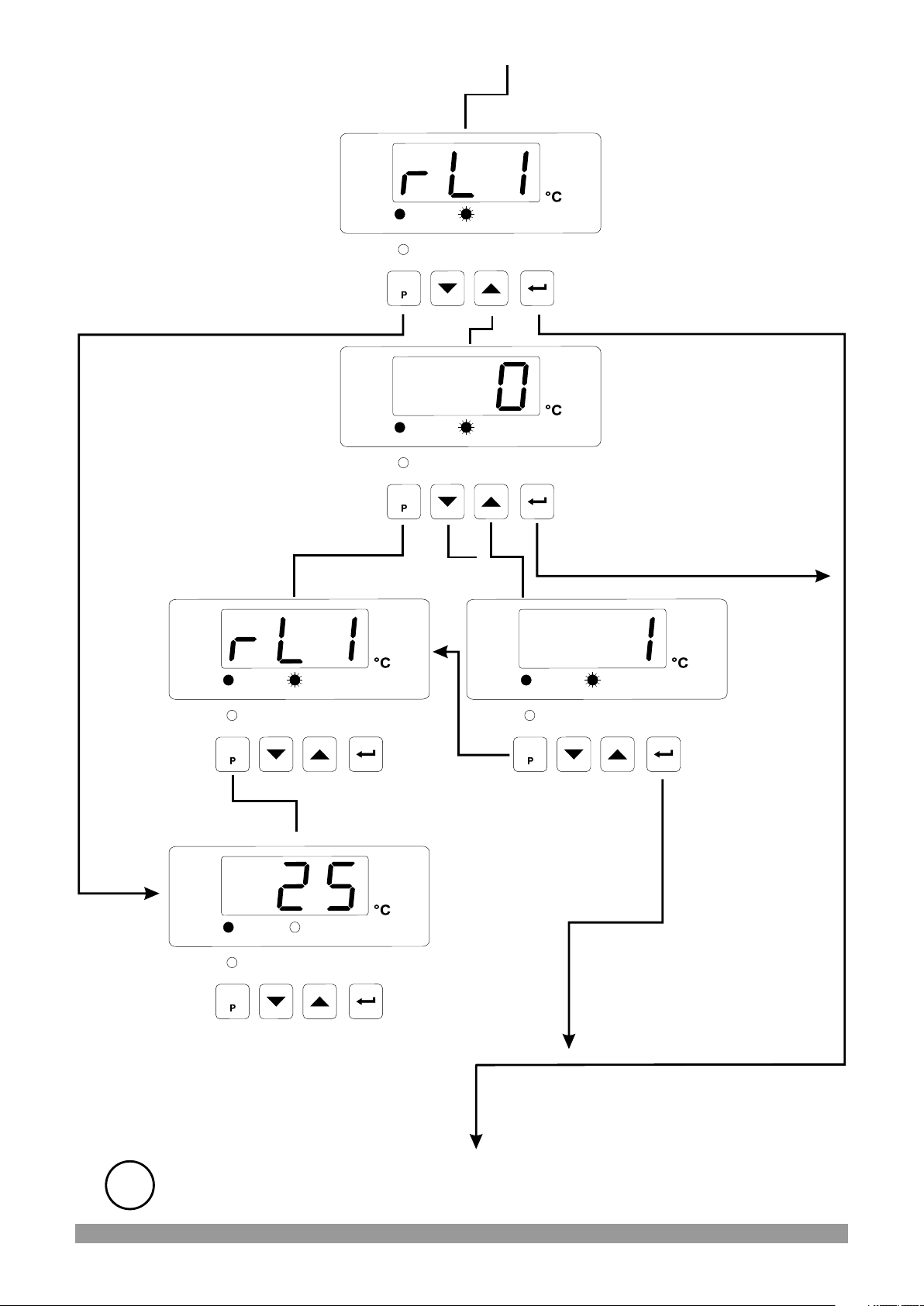

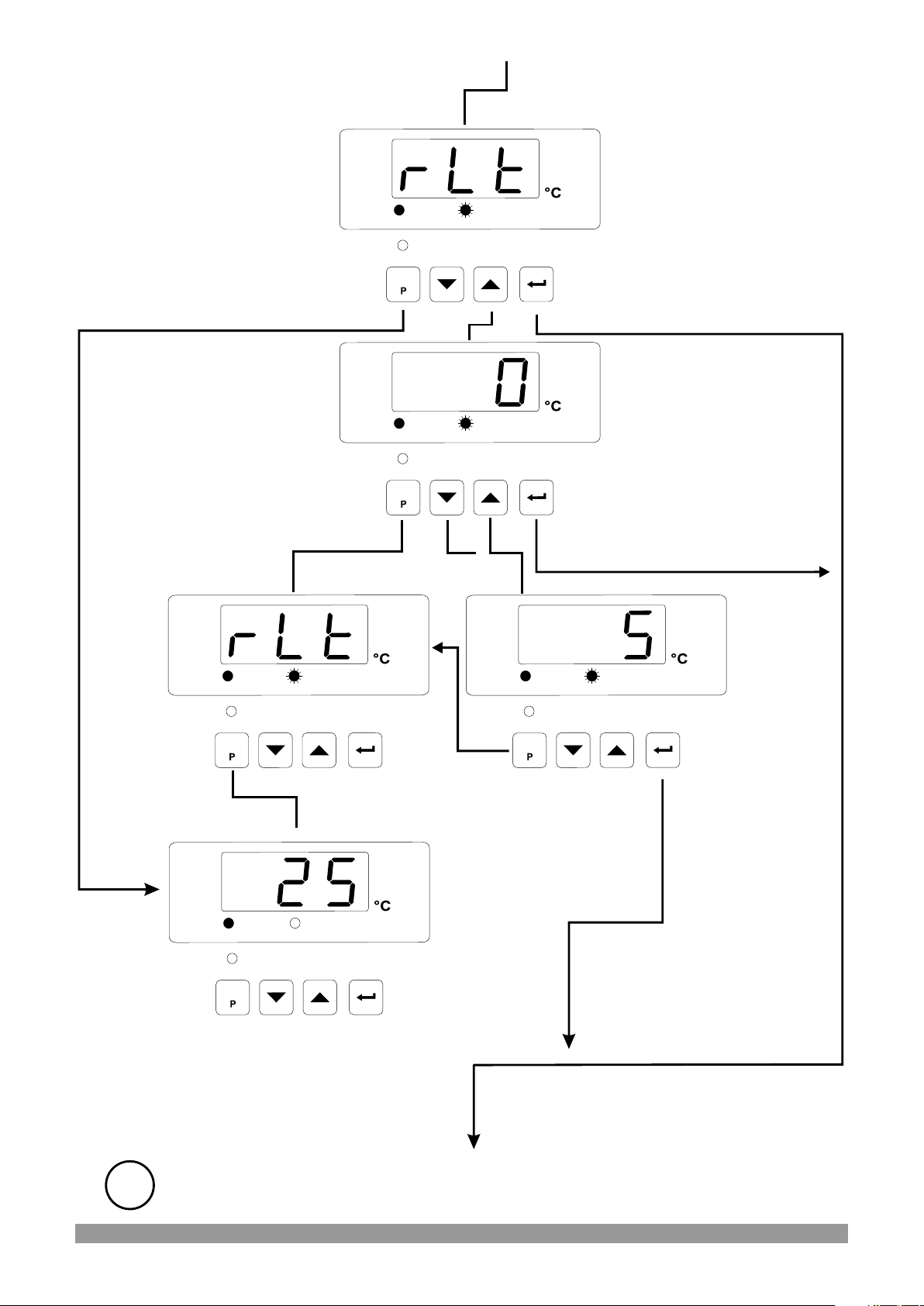

4.5 ENTERING TO PROGRAMMING MODE, CHANGING AND SAVING PARAMETERS

4.5.1 ESM-7710 WITH ONE RELAY

4.5.2 ESM-7710 WITH TWO RELAYS

5.PARAMETERS....................................................................................................................................

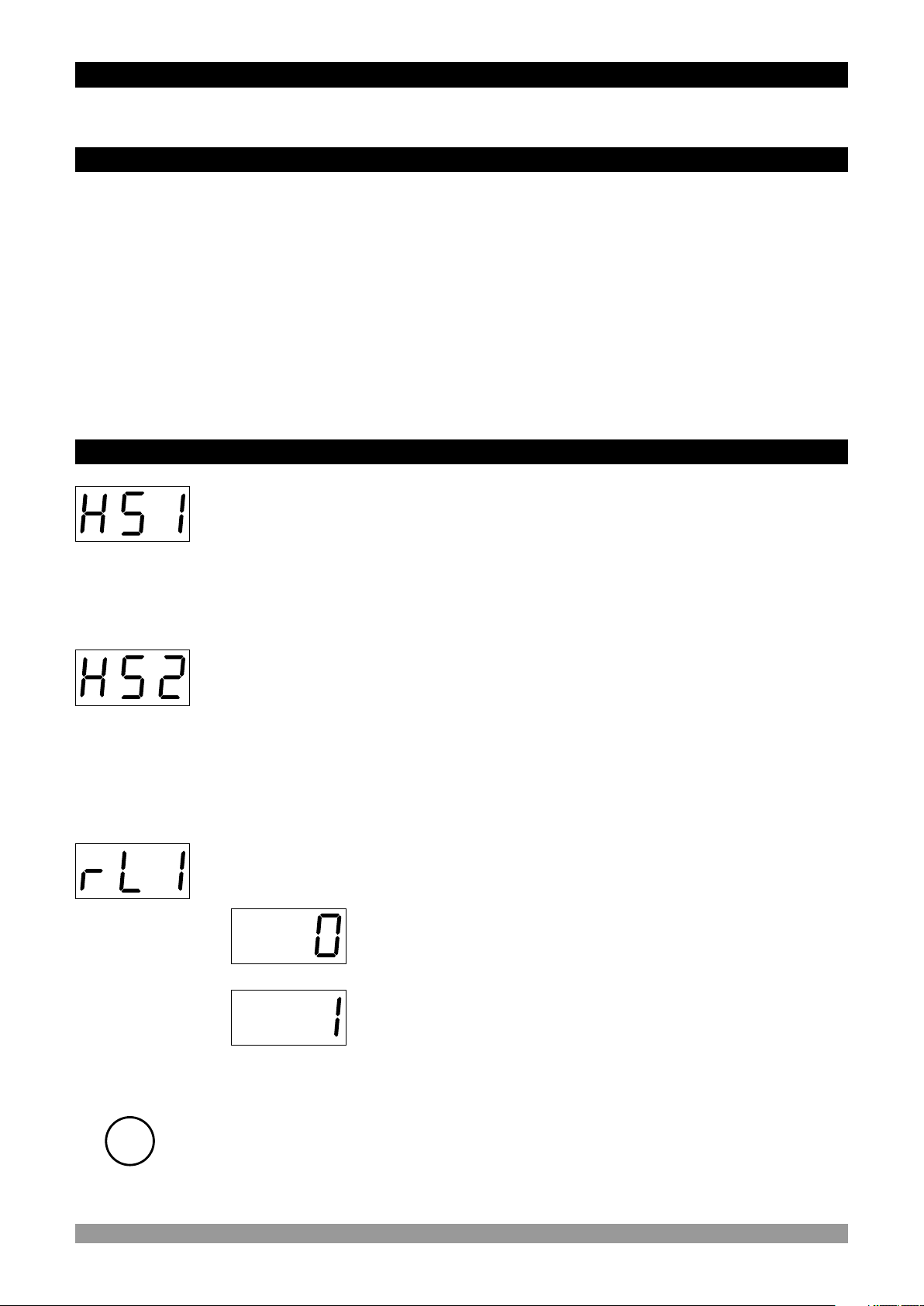

5.1 SET PARAMETERS

5.2 PROGRAM PARAMETERS

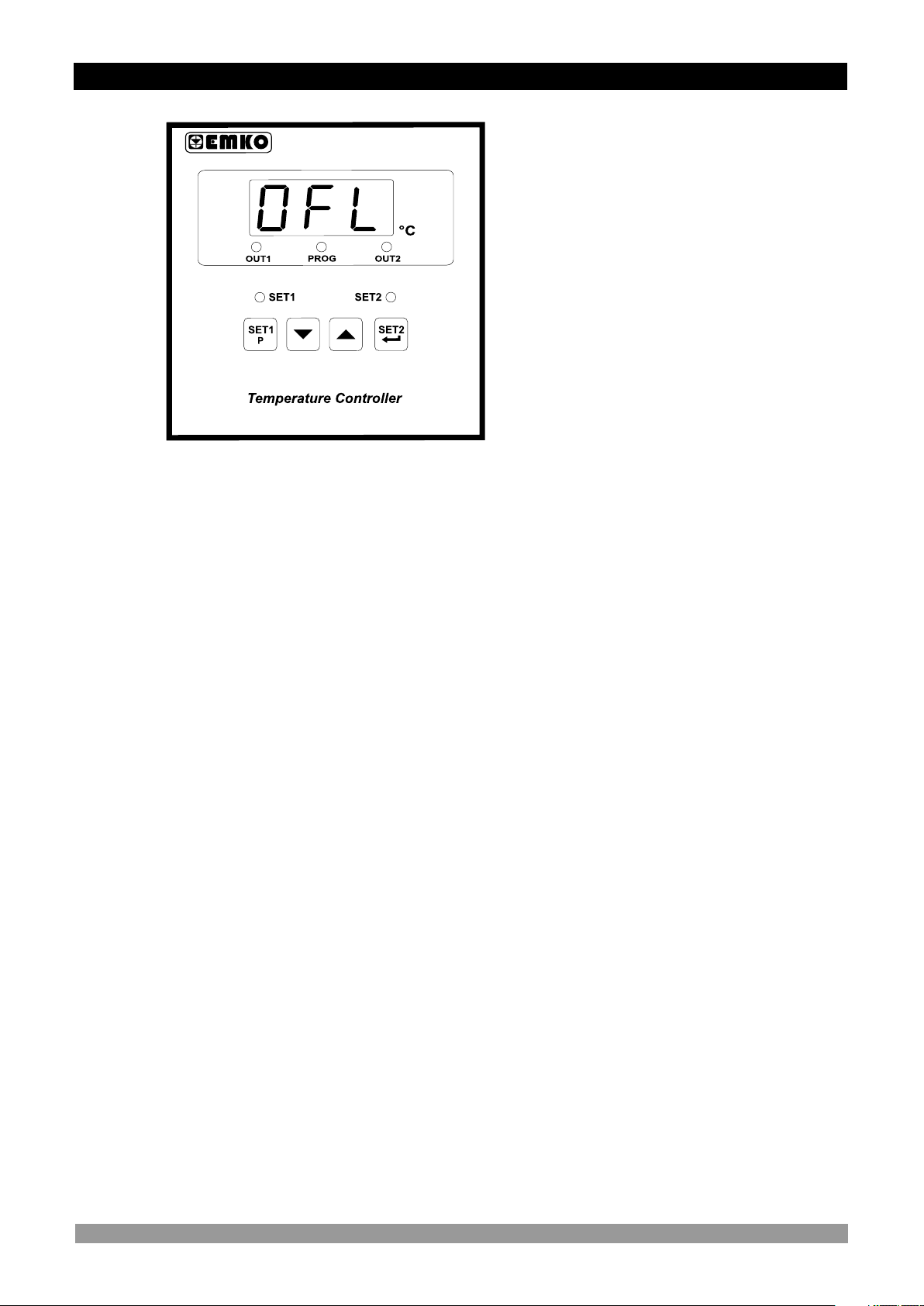

6.FAILURE MESSAGE IN ESM-7710 TEMPERATURE CONTROLLERS............................................

7.CONTROL ALGORITHM.....................................................................................................................

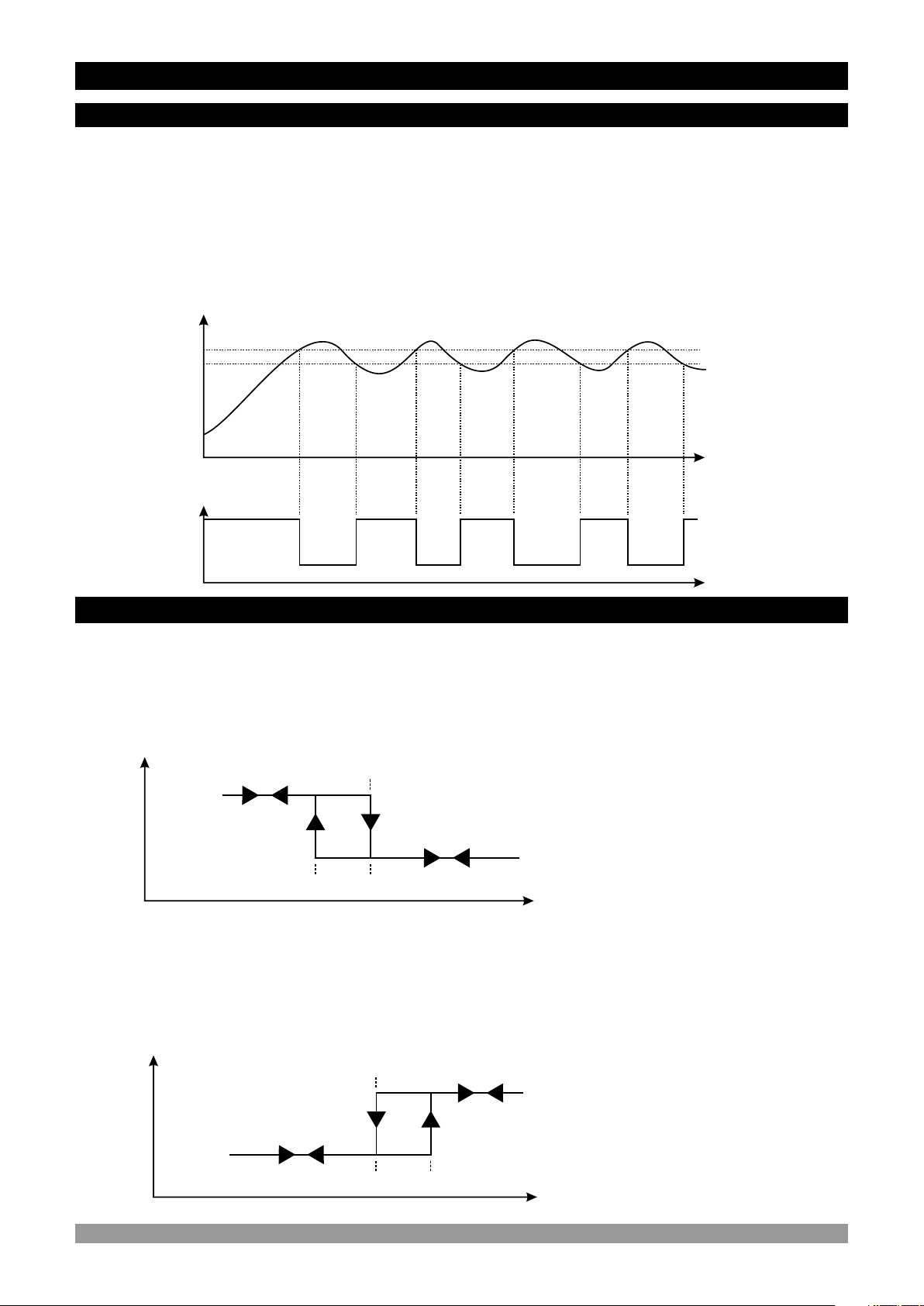

7.1 ON/OFF CONTROL

7.1.1 ON/OFF CONTROL IN ESM-XX10 TEMPERATURE CONTROLLERS

8.SPECIFICATIONS................................................................................................................................

9.OTHER INFORMATIONS....................................................................................................................

Page 21

Page 41

Page 43

Page 44

Page 45

Page 46

EU DECLARATION OF CONFORMITY

Manufacturer’s Name : EMKO ELEKTRONIK A.S. Manufacturer’s Address : DOSAB, Karanfil Sk., No:6,

16369 Bursa, TURKEY

The manufacturer hereby declares that the product:

Product Name : Temperature Controller Unit

Type Number : ESM-7710

Product Category : Electrical equipment for measurement, control and

laboratory use

Conforms to the following directives :

2006 / 95 / EC The Low Voltage Directive

2004 / 108 / EC The Electromagnetic Compatibility Directive

has been designed and manufactured to the following specifications:

EN 61000-6-4:2007 EMC Generic Emission Standard for Industrial Environments

EN 61000-6-2:2005 EMC Generic Immunity Standard for Industrial Environments

EN 61010-1:2001 Safety Requirements for electrical equipment for measurement, control

and laboratory use

When and Where Issued Authorized Signature

16 October 2009 Name : Serpil YAKIN

Bursa-TURKEY Position : Quality Manager

1.Preface

ESM series temperature controllers are designed for measuring and controlling temperature. They can be used in many applications with On/Off control form and heating and cooling selection. Some application fields which they are used are listed below:

Application Fields

Glass Plastic Petro-Chemistry Textile Automative Machine Production Industries

1.1 General Specifications

Standard

ESM-7710

230 V V (±%15) , 50/60 Hz

Supply Voltage Input

Temperature Sensor Input

Standard

Output-1 (Relay Output)

Optional (Note-1)

Output-2 (Relay Output)

Optional Supply Voltage Inputs

115 V V (±%15) , 50/60 Hz

24 V V (±%15) , 50/60 Hz 24 V W ( - %15, + %10 ) 50/60 Hz

NTC PTC J or K Type TC 2 or 3 wire PT 100

Control Output Alarm Output

Heating or Cooling

Function

ON/OFF Operation

Control Output Alarm Output

Note-1: Optional Relay output is standard in ESM-7710 with two relays

1.2 Ordering Information

A BC D E FG HI //U V W Z/

ESM-7710 (72x72 DIN Size)

/0 00 2 0 0

Supply Voltage

24 V W ( - %15, + %10 ) 50/60 Hz

24 V V ( ± %15 ) 50/60 Hz

115 V V ( ± %15 ) 50/60 Hz

230 V V ( ± %15 ) 50/60 Hz

Customer

Input Type

PTC (Note-1)

15 09

PT 100 , IEC751(ITS90) PT 100 , IEC751(ITS90)

03 05

J ,Fe CuNi IEC584.1(ITS90)

K ,NiCr Ni IEC584.1(ITS90) NTC (Note-1)

18 19

NTC (Note-1)

Note-1 : If input type is selected PTC or NTC (BC = 12, 15, 18, 19 ), Temperature sensor is given with the device. For this reason, If input type is selected as PTC, sensor type (V = 0, 1 or 2) or If input type is selected as NTC, sensor type (V = 0, 3 or 4) must be declared in ordering information.

Output-1

1 Relay Output(7A@250VVat resistive load,1NO+1NC)

2 SSR Driver Output (Maximum 23mA,15V)

Scale(°C)

-50°C

-19.9°C

-19.9°C 0°C 0°C 0°C

-50°C 100°C

-19.9°C 99.9°C

150°C

99.9°C

99.9°C 400°C 800°C 999°C

All order information of ESM-7710 Temperature Controller are given on the table at left. User may form appropriate device configuration from information and codes that at the table and convert it to the ordering codes.

Firstly, supply voltage then other specifications must be determined. Please fill the order code blanks according to your needs.

Please contact us, if your needs are out of the standards.

V Þ Vac, Z Þ Vdc,

Þ VacdcW

Output-2 FG

None

Relay Output(7A@250VVat resistive load,1NO)

02 SSR Driver Output (Maximum 23mA,15V)

Temp.Sensor which is given with ESM-7710

None

PTC-M6L40.K1.5(PTC Air probe with 1.5 m silicon cable)

PTCS-M6L30.K1.5.1/8”(PTC Liquid probe with 1.5 m silicon cable)

NTC-M5L20.K1.5 (NTC Probe, thermoplastic moulded with

1.5 m cable for cooling application)

NTC-M6L50.K1.5 (NTC Probe, stainless steel housing with

1.5 m cable for cooling application)

Customer

1.3 Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

1.4 Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.

2.Installation

Before beginning installation of this product, please read the instruction manual and warnings below carefully.

In package ,

- One piece unit

- Two pieces mounting clamps

- One piece instruction manual

A visual inspection of this product for possible damage occured during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.

If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and separate the electrical connection of the device from the system.

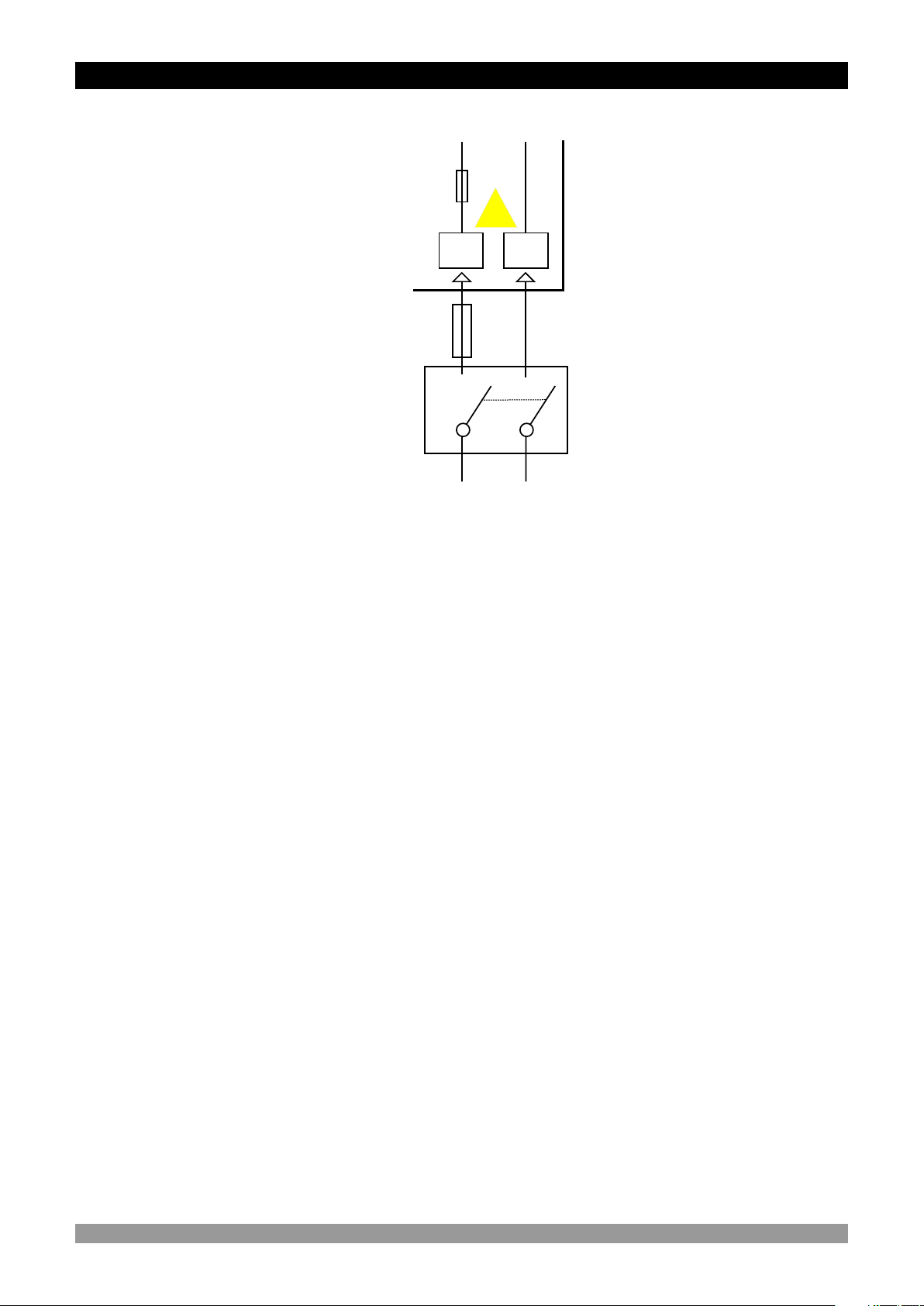

The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.

Do not use the unit in combustible or explosive gaseous atmospheres.

During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.

Montage of the product on a system must be done with it’s own fixing clamps. Do not do the montage of the device with inappropriate fixing clamp. Be sure that device will not fall while doing the montage.

It is your responsibility if this equipment is used in a manner not specified in this instruction manual.

2.1 General Description

Front Panel IP65 protection NEMA 4X

Mounting Clamp

Panel surface (maximum thickness 15 mm / 0.59 inch)

2.2 Front View and Dimensions of ESM-7710 Temperature Controller with One Relay

Maximum 15 mm / 0.59 inch

72 mm / 2.83 inch

11.5 ± 1 mm /0.45 inch

84 mm / 3.31 inch

2.3 Front View and Dimensions of ESM-7710 Temperature Controller with Two Relays

Maximum 15 mm / 0.59 inch

S 77

72 mm / 2.83 inch

2.4 Panel Cut-Out

11.5 ± 1 mm /0.45 inch

97 mm / 3.82 inch (min)

84 mm / 3.31 inch

97 mm / 3.82 inch (min)

69 mm / 2.72 inch

2.5 Environmental Ratings

Operating Conditions

Operating Temperature : 0 to 50 °C

Max. Operating Humidity : 90% Rh (non-condensing)

Altitude : Up to 2000 m.

Forbidden Conditions: Corrosive atmosphere

Explosive atmosphere Home applications (The unit is only for industrial applications)

2.6 Panel Mounting

S -

1-Before mounting the device in your panel, make sure that the cut-out is of the right size.

2-Check front panel gasket position

3-Insert the device through the cutout. If the mounting clamps are on the unit, put out them before inserting the unit to the panel.

During installation into a metal panel, care should be taken to avoid injury from metal burrs which might be present. The equipment can loosen from vibration and become dislodged if installation parts are not properly tightened. These precautions for the safety of the person who does the panel mounting.

2.7 Installation Fixing Clamp

E 7

S 7

Montage of the unit to a system must be done with it’s own fixing clamps. Do not do the montage of the device with inappropriate fixing clamps. Be sure

2.8 Removing from the Panel

that device will not fall while doing the montage.

The unit is designed for panel mounting.

1-Insert the unit in the panel cut-out from the front side.

2- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel

Before starting to remove the unit from panel, power off the unit and the related system.

1-Loosen the screws.

2-Pull mounting clamps from top and

bottom fixing sockets.

3-Pull the unit through the front side of

E 7

S 7

the panel

3.Electrical Wirings

You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the temperature being controlled, and/or personal injury. It is your responsibility, as the installer, to

c c

ensure that the configuration is correct. Device parameters has factory default values. These parameters must be set according to the system’s needs.

Only qualified personnel and technicians should work on this equipment. This equipment contains internal circuits with voltage dangerous to human life. There is severe danger for human life in the case of unauthorized intervention.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

3.1 Terminal Layout and Connection Instructions

Max. 2.5 mm / 0.098 inch

Wire Size:

14AWG/1 mm²

Solid /Stranded

Torque

0.5 Nm

Screw driver

0.8 x 3 mm

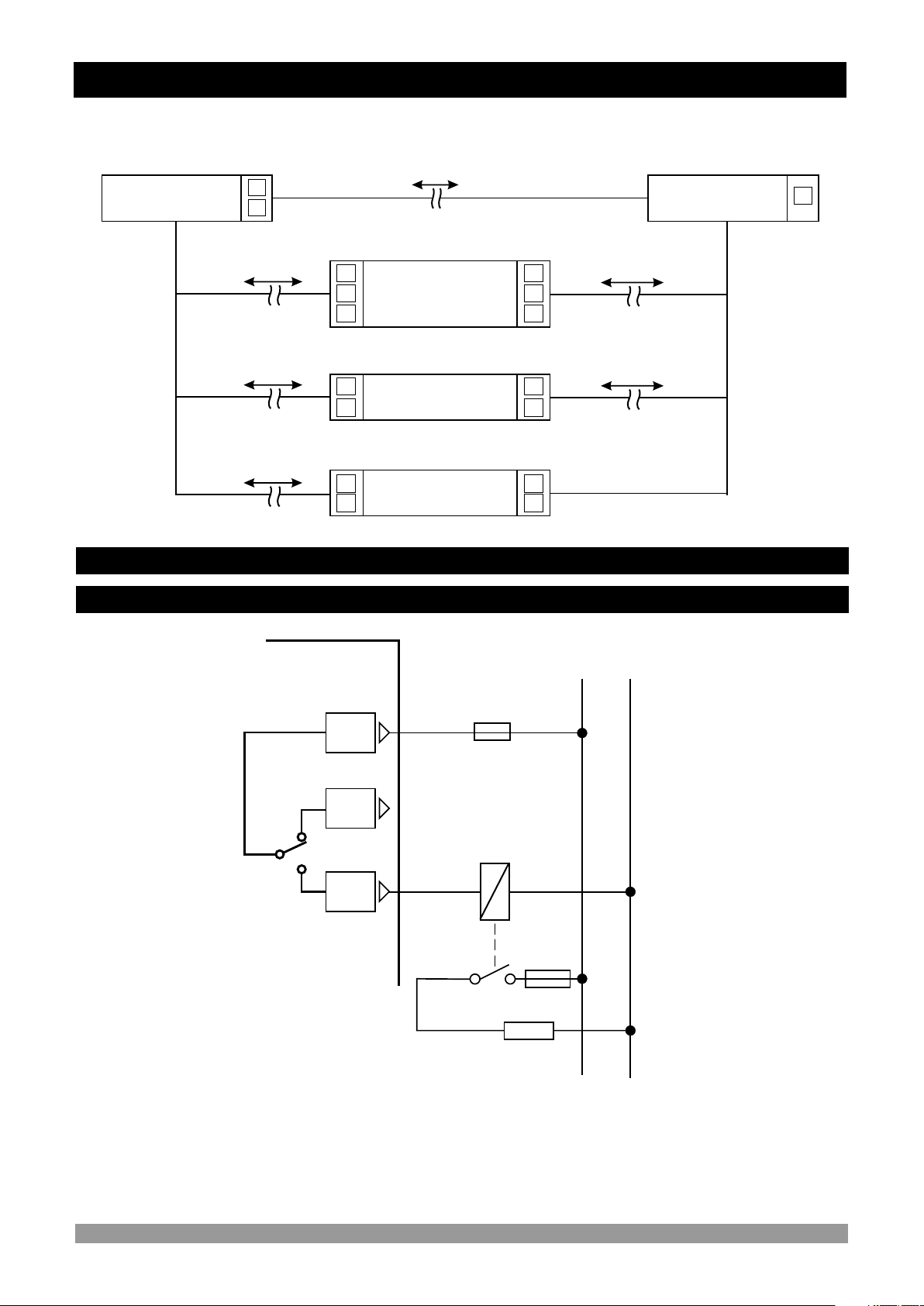

3.2 Electrical Wiring Diagram

Electrical wiring of the device must be the same as ‘Electrical Wiring Diagram’ below to prevent damage to the process being controlled and personnel

injury.

P/N : ESM-7710

NTC, PTC

PT 100

Temperature Input

(TC, PT-100, PTC or NTC)

Relay Output

This Relay Module is in

ESM-7710.A.BC.0.1/01.00

1 2 3 4 5 7 8 96 10

types

CAT II

OUTPUT-2

7A@250VV

NOC C

OUTPUT-1

7A@250VV

NCNO

(-)

(+)

Supply Voltage Input

230 V V (±15%) 50/60 Hz - 3 VA

115 V V (±15%) 50/60 Hz - 3 VA

24 V V (±15%) 50/60 Hz - 3 VA

24 V W (- %15, + %10) 50/60 Hz - 3 VA

(It must be determined in order)

Relay Output

This Relay Module is in

ESM-7710.A.BC.0.1/01.00 and

ESM-7710.A.BC.0.1/00.00

types

Temperature input is in CAT II class.

3.3 Labels for ESM-7710 Temperature Controller with One Relay

Rear label appearance of the device

that have PT-100 (-19.9 ; + 99.9 ) Scale

P/N : ESM - 7710 - 5.09.0.1/00.00/2.0.0.0

o o

C C

CAT II

230VV 15%±

50/60 Hz - 3VA

NCNOC

CAT II

Pt-100

(-19.9 ; +99.9) Scale

2 31

Rear label appearance of the device

that have PTC (-19.9 ; + 99.9 ) Scale

OUTPUT

7A@250VV

6 8 9 10

o o

C C

P/N : ESM - 7710 - 5.15.0.1/00.00/2.0.0.0

230VV 15%±

50/60 Hz - 3VA

NCNOC

PTC

( -19.9 ; 99.9 ) Scale

R W

OUTPUT

7A@250VV

6 8 9 10

Rear label appearance of the device that have PT-100 (0 ; 400 ) Scale

P/N : ESM - 7710 - 5.03.0.1/00.00/2.0.0.0

o o

C C

CAT II

230VV 15%± 50/60 Hz - 3VA

NCNOC

CAT II

Pt-100

( 0 ; 400 ) Scale

2 31

Rear label appearance of the device

that have PTC (-50 ; 150 ) Scale

OUTPUT

7A@250VV

6 8 9 10

o o

C C

P/N : ESM - 7710 - 5.12.0.1/00.00/2.0.0.0

230VV 15%± 50/60 Hz - 3VA

NCNOC

PTC

( -50 ; 150 ) Scale

R W

OUTPUT

7A@250VV

6 8 9 10

Rear label appearance of the device

that have J Type Thermocouple

P/N : ESM - 7710 - 5.05.0.1/00.00/2.0.0.0

o o

C C

( 0 ; 800 ) Scale

CAT II

230VV 15%±

50/60 Hz - 3VA

NCNOC

J TYPE TC

( 0 ; 800 ) Scale

OUTPUT

7A@250VV

6 8 9 10

Rear label appearance of the device

that have K Type Thermocouple

P/N : ESM - 7710 - 5.10.0.1/00.00/2.0.0.0

o o

C C

( 0 ; 999 ) Scale

CAT II

230VV 15%± 50/60 Hz - 3VA

NCNOC

K TYPE TC

( 0 ; 999 ) Scale

OUTPUT

7A@250VV

6 8 9 10

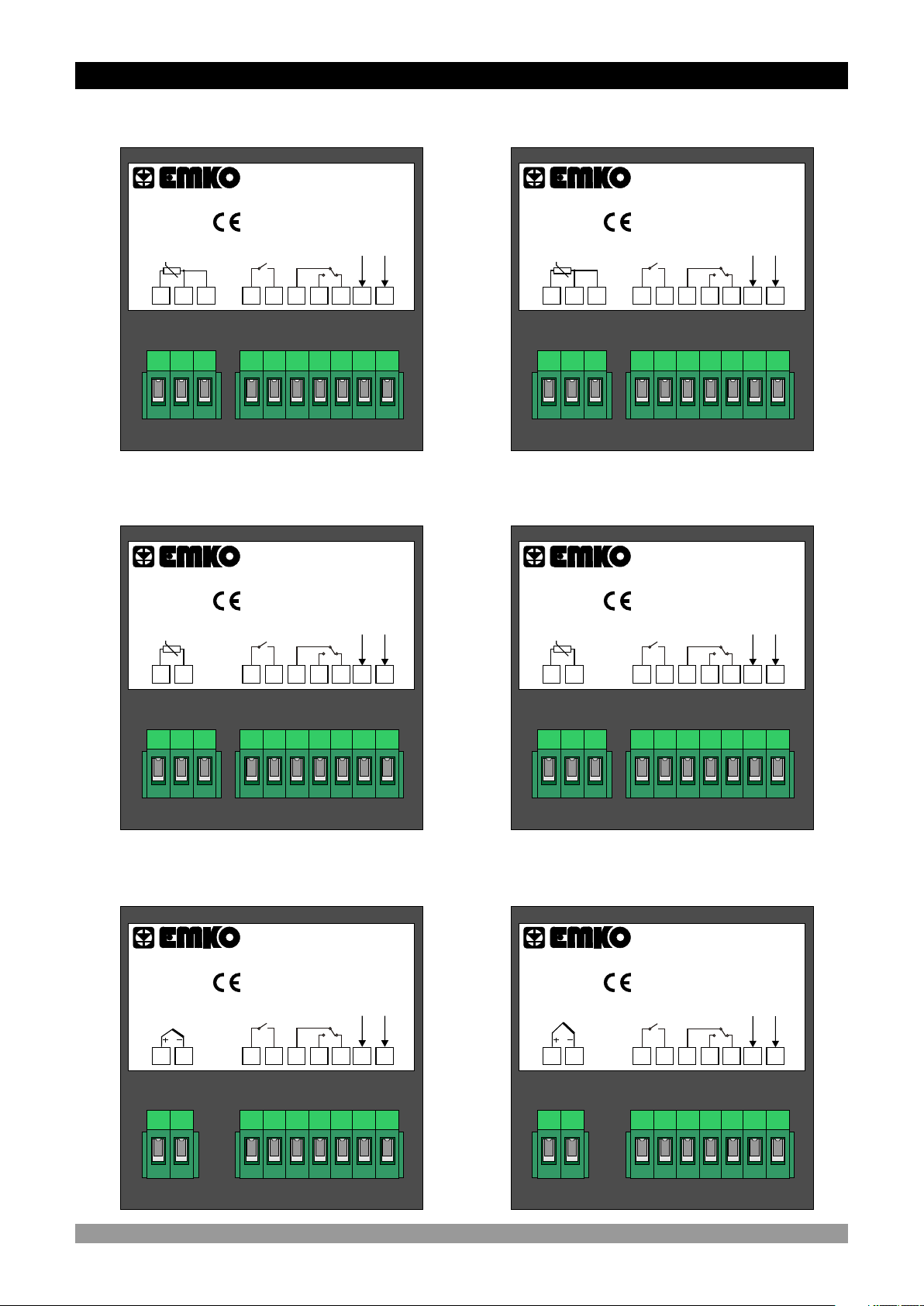

3.4 Labels for ESM-7710 Temperature Controller with Two Relays

Rear label appearance of the device

that have PT-100 (-19.9 ; + 99.9 ) Scale

o o

C C

CAT II

P/N : ESM - 7710 - 5.09.0.1/01.00/2.0.0.0

230VV 15%±

50/60 Hz - 3VA

CAT II

Pt-100

(-19.9 ; +99.9) Scale

2 31

Rear label appearance of the device

that have PTC(-19.9 ; + 99.9 ) Scale

OUTPUT-2

7A@250VV

NOC NCNOC

o o

C C

OUTPUT-1

7A@250VV

64 8 9 10

P/N : ESM - 7710 - 5.15.0.1/01.00/2.0.0.0

230VV 15%±

50/60 Hz - 3VA

NCNOC

PTC

( -19.9 ; 99.9 ) Scale

R W

OUTPUT-2

7A@250VV

OUTPUT-1

7A@250VV

NOC

6 8 9 10

Rear label appearance of the device

that have PT-100 (0 ; 400 ) Scale

o o

C C

CAT II

P/N : ESM - 7710 - 5.03.0.1/01.00/2.0.0.0

230VV 15%± 50/60 Hz - 3VA

CAT II

Pt-100

( 0 ; 400 ) Scale

2 31

Rear label appearance of the device

that have PTC (-50 ; 150 ) Scale

OUTPUT-2

7A@250VV

o o

C C

OUTPUT-1

7A@250VV

NOC NCNOC

64 8 9 10

P/N : ESM - 7710 - 5.12.0.1/01.00/2.0.0.0

230VV 15%± 50/60 Hz - 3VA

NCNOC

PTC

( -50 ; 150 ) Scale

R W

OUTPUT-2

7A@250VV

OUTPUT-1

7A@250VV

NOC

6 8 9 10

Rear label appearance of the device

that have J Type Thermocouple

P/N : ESM - 7710 - 5.05.0.1/01.00/2.0.0.0

o o

( 0 ; 800 ) Scale

C C

CAT II

230VV 15%±

50/60 Hz - 3VA

NCNOC

J TYPE TC

( 0 ; 800 ) Scale

OUTPUT-2

7A@250VV

OUTPUT-1

7A@250VV

NOC

64 8 9 10

Rear label appearance of the device

that have K Type Thermocouple

P/N : ESM - 7710 - 5.10.0.1/01.00/2.0.0.0

o o

( 0 ; 999 ) Scale

C C

CAT II

230VV 15%± 50/60 Hz - 3VA

K TYPE TC

( 0 ; 999 ) Scale

OUTPUT-2

7A@250VV

OUTPUT-1

7A@250VV

NOC NCNOC

64 8 9 10

3.5 Supply Voltage Input Connection of the Device

Connection of Supply Voltage Input

Note-1

9 10

External

Fuse

(1 A T)

Power

Supply

Switch

Note-2

Note-3

Supply Voltage

230 V V ( ± %15 ) 50/60 Hz

115 V V ( ± %15 ) 50/60 Hz

24 V V ( ± %15 ) 50/60 Hz

24 V W ( - %15, + %10 ) 50/60 Hz

Note-1 : There is an internal 33R W fusible flameproof resistor in

There is an internal 4R7 W fusible flameproof resistor in

Note-2 : “L” is (+),“N” is (-) for 24V Z Supply voltage Note-3 : External fuse is recommended.

24VV 50/60Hz and 24VW 50/60Hz

100-240 V V 50/60Hz

Make sure that the power supply voltage is the same indicated on the instrument. Switch on the power supply only after that all the electrical connections have been completed. Supply voltage range must be determined in order. While installing the unit, supply voltage range must be controlled and appropriate supply voltage must be applied to the unit. Controlling prevents damages in unit and system and possible accidents as a result of incorrect supply voltage.

There is no power supply switch on the device. So a power supply switch must be added to the supply voltage input. In accordance with the safety regulations, the power supply switch shall bring the identification of the relevant instrument.Power supply switch shall be easily accessible by the user. Power switch must be two poled for seperating phase and neutral. On/Off condition of power switch is very important in electrical connection. On/Off condition of power switch must be signed for preventing the wrong connection.

If an external fuse is used, it must be on phase connection in Vsupply input. If an external fuse is used, it must be on (+) line connection in Zsupply input.

The instrument is protected with an internal fuse (Please refer to Note-1 for information). In case of failure it is suggested to return the instrument to the manufacturer for repair.

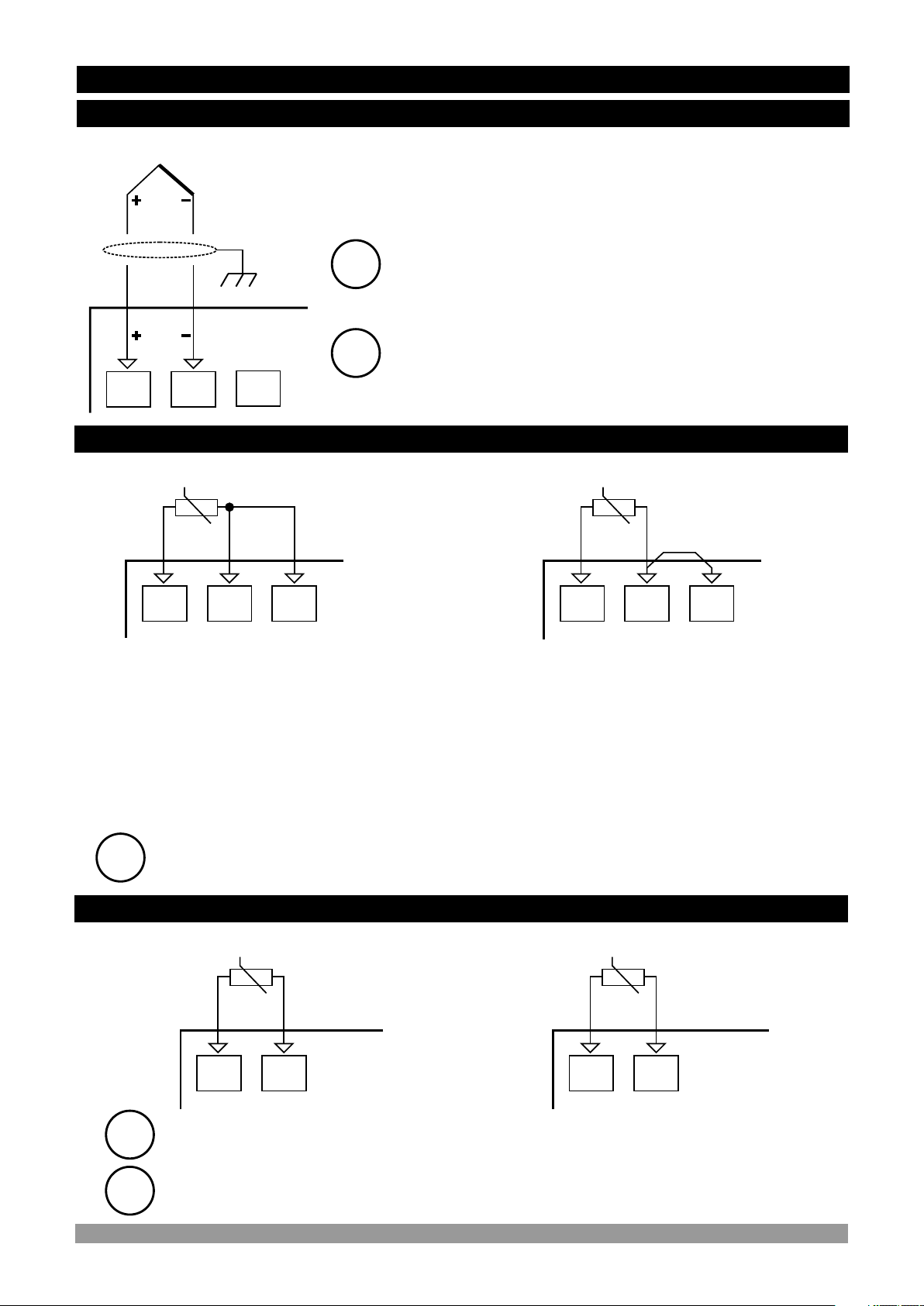

3.6 Temperature Input Connection

3.6.1 TC (Thermocouple) Connection

1 2

3.6.2 RTD Connections

PT-100

Connect the wires with the polarity as shown in the figure at left.

Always use compensation wire corresponding to the thermocouple used. If present, the shield must

be connected to a proper ground.

Input resistance is greater than 10 M W.

PT-100

Note 1

Note 2

1 12 23 3

3-wire PT-100 connection (with line compensation)

(Max. Line impedance is 10 W)

Note 1 : In 3-wire system, use always cables of the same diameter (min 1mm²) Its necessary to use cable in the same gauge and type for doing the line compensation properly.

Note 2 : Install a jumper between terminals 2 and 3 when using a 2-wire RTD. Note 3 : If the distance is longer than 10 meters, use 3-wire system.

Input resistance is greater than 10 M W.

3.6.3 PTC and NTC Connections

PTC

RED

WHITE

2-wire PT-100 connection (without line compensation)

NTC

1 2

ii ii

Input resistance is greater than 10 M W.r.

While doing the PTC Probe connection, pay attention to the PTC Probe cable colour.

1 2

3.7 Galvanic Isolation Test Values of ESM-7710 Temperature Controller

2000V V ( For ESM-7710.5...,ESM-7710.4.... )

500V V ( For ESM-7710.3....,ESM-7710.2.... )

Supply Input

Ground

2000V V

3.8 Output-1 Connection

3.8.1 Output-1 (Relay Output) Connection

Output-1

Relay Output

Output-2

Relay Output

Analogue

Inputs

Device

7 A V T Fuse

2000V V

L N

Last Control Element

(Contactor)

Fuse

Load

Fuses must be selected according to the application

3.8.2 SSR Driver Output-1 Connection

Device

Max.15 V Z

Max. 23mA

Last Control

Element

(SSR)

Load

L N

Fuse

3.9 Output-2 Connections

3.9.1 Output-2 (Relay Output) Connection

Device

7 A V T Fuse

L N

Last Control Element

(Contactor)

Fuse

Load

Fuses must be selected according to the application

Output-2 exists in device with two relays

3.9.2 SSR Driver Output-2 Connection

Device

Last Control Element

Max.15 V Z

Max. 23mA

L N

(SSR)

Fuse

Load

4. Front Panel Definition and Accessing to the Menus

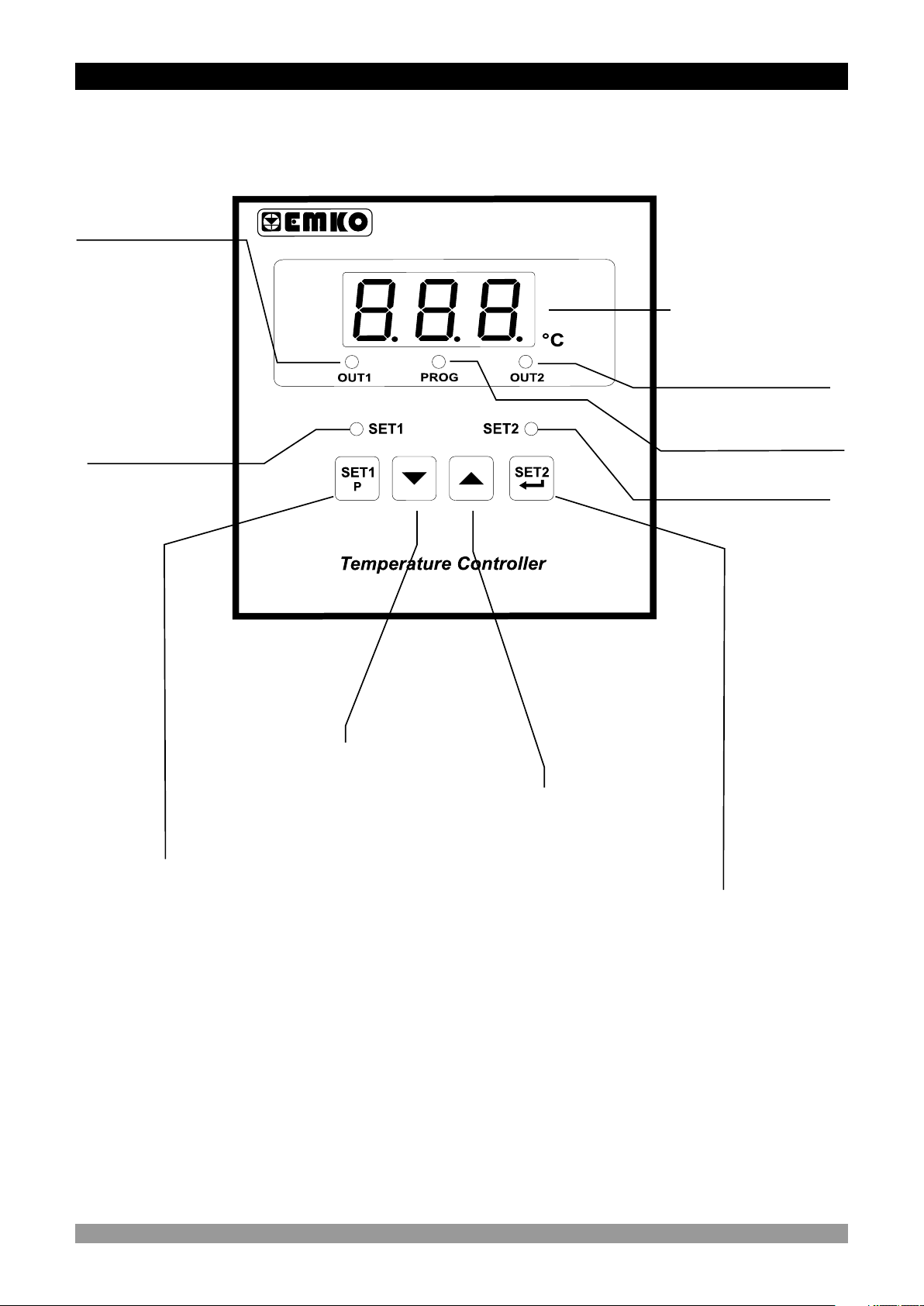

4.1 Front Panel Definition for ESM-7710 with One Relay

E M

Led indication of

Output is active

Led indication of Output Set value

OUT

SET

Displays

Temperature

Value,

Temperature Set

Value

and Parameters

Led indication of

Programming Mode

is active

Note-1

It is used to decrease the

value

Note-1

It is used to increase the

value and access to the

parameter in programming

It is used to change the Set

mode

value, enter to and exit from

the programming mode

It is used to change the Set

value and confirm the

parameter in programming

mode

Note-1: In Set value or programming mode while changing the parameter, if increment or

decrement button is pressed for 5 seconds continuously, increment and decrement number become 10, if increment or decrement button is pressed for 10 seconds continuously, increment and decrement number become 100.

4.2 Front Panel Definition for ESM-7710 with Two Relays

Led indication of

Output-1 is active

Led indication of

Output-1 Set

value

Displays

Temperature

Value,Temperature

Set Value and

Parameter

Led indication of

Output-2 is active

Led indication of

Programming Mode

is active

Led indication of

Output-2 Set value

Note-1

It is used to decrease the

value

Note-1

It is used to increase the

value and access to the

parameter in programming

It is used to enter to Set1

mode

value changing mode,

programming mode and

exit from Set1 value

changing mode, Set2 value

changing mode,

programming mode.

It is used to enter to Set2

value changing mode, and as

OK button in Set1 value

changing mode, Set2 value

changing mode and programming mode

Note-1: In Set value or programming mode while changing the parameter, if increment or

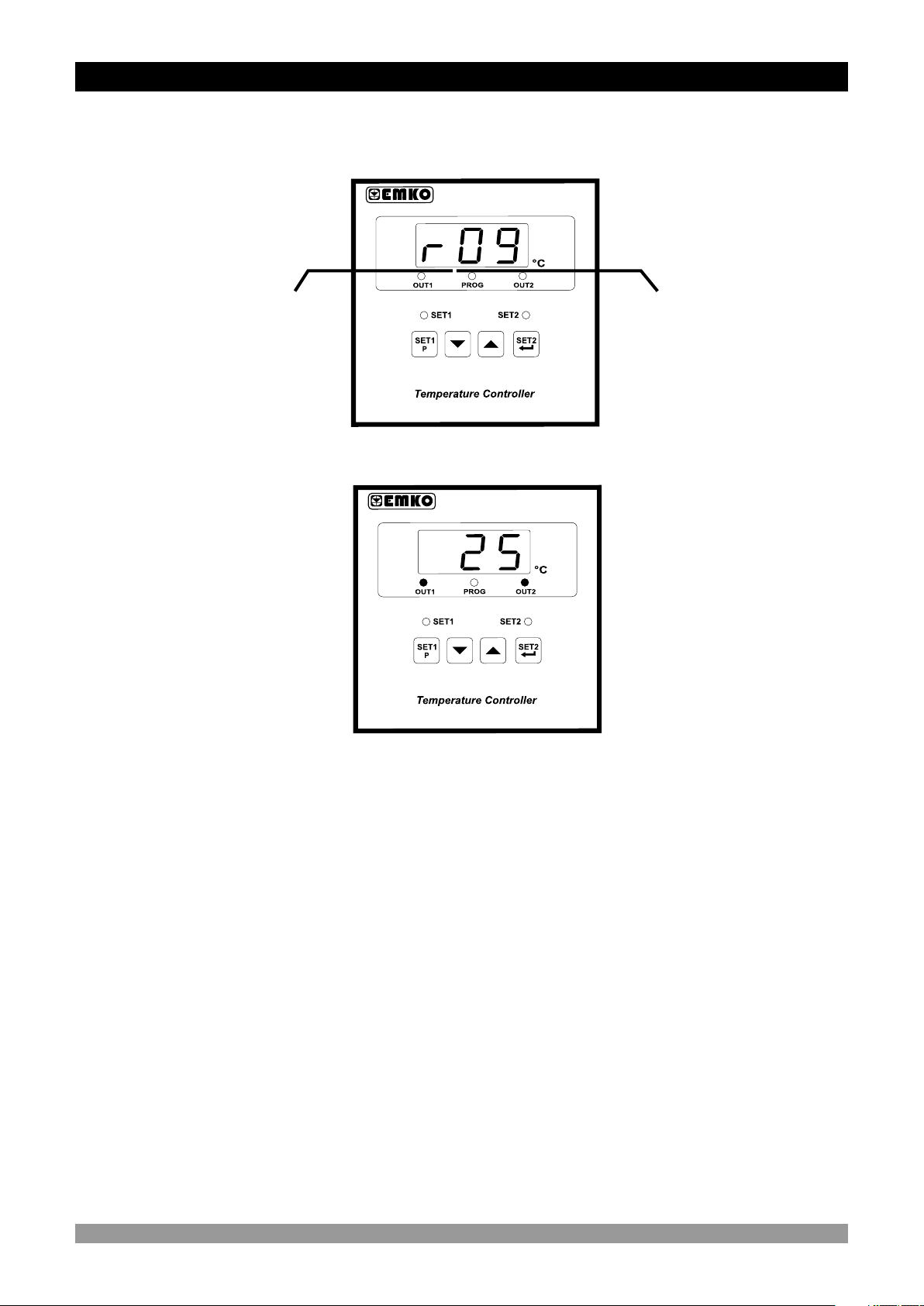

4.3 Observation of ESM-7710 Temperature Controller Software Revision

When the power is applied to the device, software revision number is momentarily shown on the display.

E - 7

“ r”Þ Revision

S 1

E - 7

Software Revision

number

Main operation screen is

shown

If there is an unexpected situation while opening the device, power off the device and inform a qualified personnel.

4.4 Changing and Saving Set Values

4.4.1 ESM-7710 with One Relay

Main Operation Screen

SET Value Screen

OUT

SET

OUT

SET

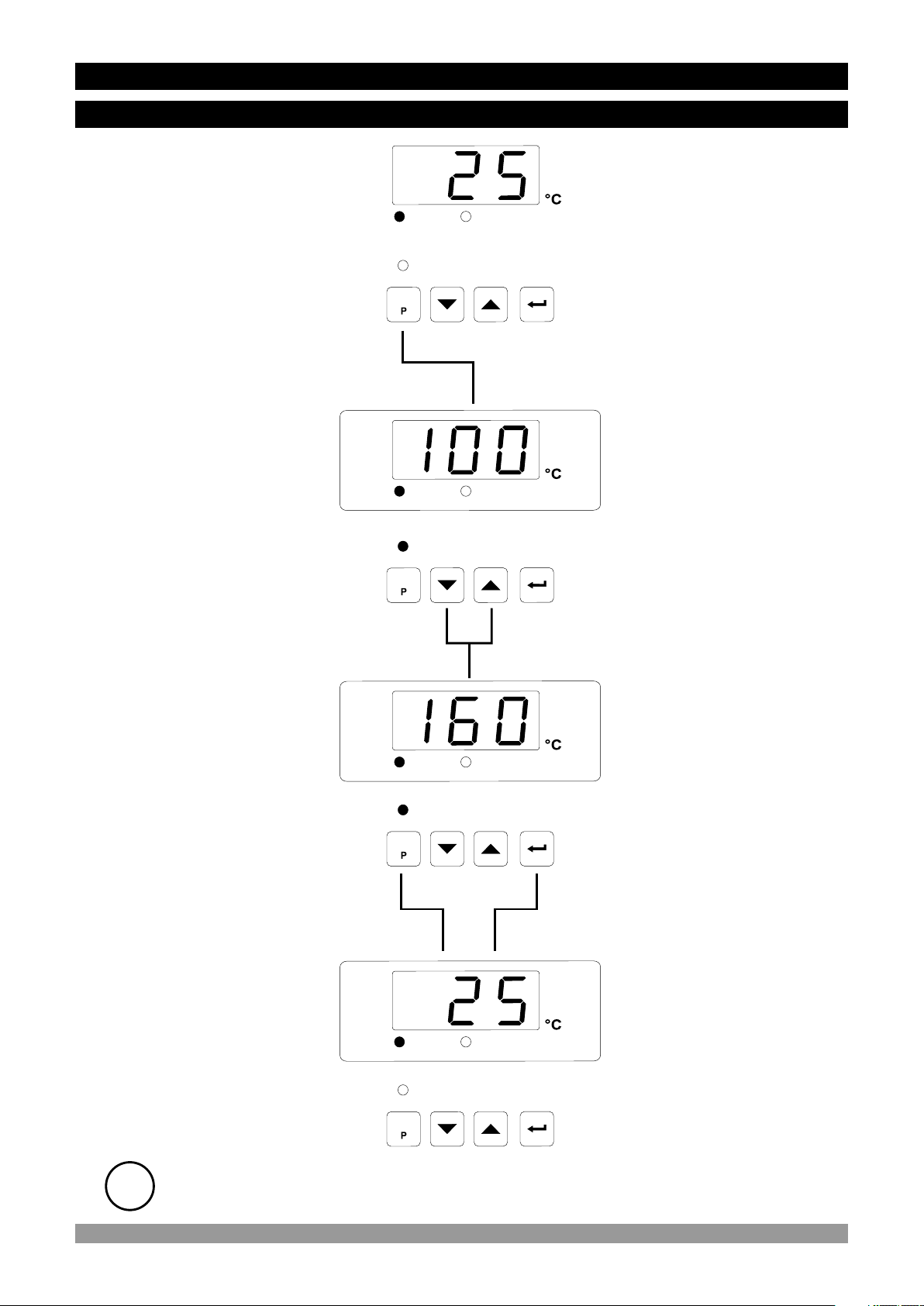

When SET button is pressed, SET led lights on and SET value is observed on display.

PROG

SET

PROG

SET

SET value can be changed with increment and decrement buttons.

SET Value Screen

Press SET button again to

exit without saving SET

value.

Main Operation Screen

OUT

SET

OUT

SET

PROG

SET

Press Enter button for saving SET value.

For both conditions, SET led lights off and it turns to main operation screen.

PROG

SET

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

4.4.2 ESM-7710 with Two Relays

Adjustment of SET1 value

Main Operation Screen

SET1 Value Screen

When SET1 button is pressed, SET1 led lights on and SET1 value is seen on display.

SET1 Value Screen

Press SET1 button again to

exit without saving SET1

value.

Main Operation Screen

SET1 value can be changed with increment and decrement buttons.

Press SET2/Enter button for saving SET1 value.

For both conditions SET1 led lights off and it turns to main operation screen.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Main Operation Screen

SET2 Value Screen

Adjustment of SET2 value

When SET2 button is pressed, SET2 led lights on and SET2 value is seen on display.

SET2 Value Screen

Press SET1 button to exit

without saving SET2 value.

Main Operation Screen

SET2 value can be changed with increment and decrement buttons.

Press SET2/Enter button for saving SET2 value.

For both conditions, SET2 led lights off and it turns to main operation screen.

If no operation is done in programming or Set value mode for 20 seconds, device turns to main operation screen automatically.

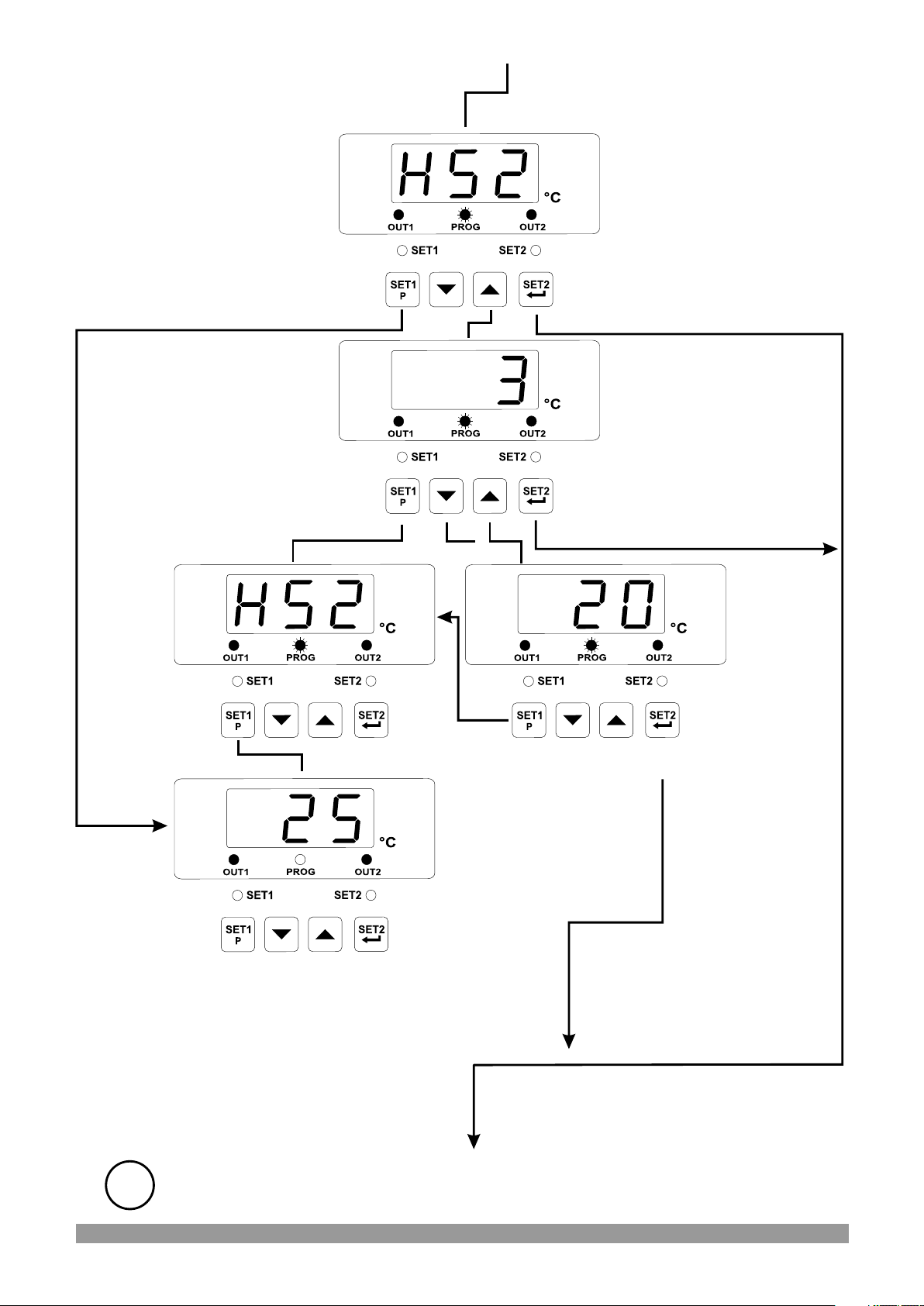

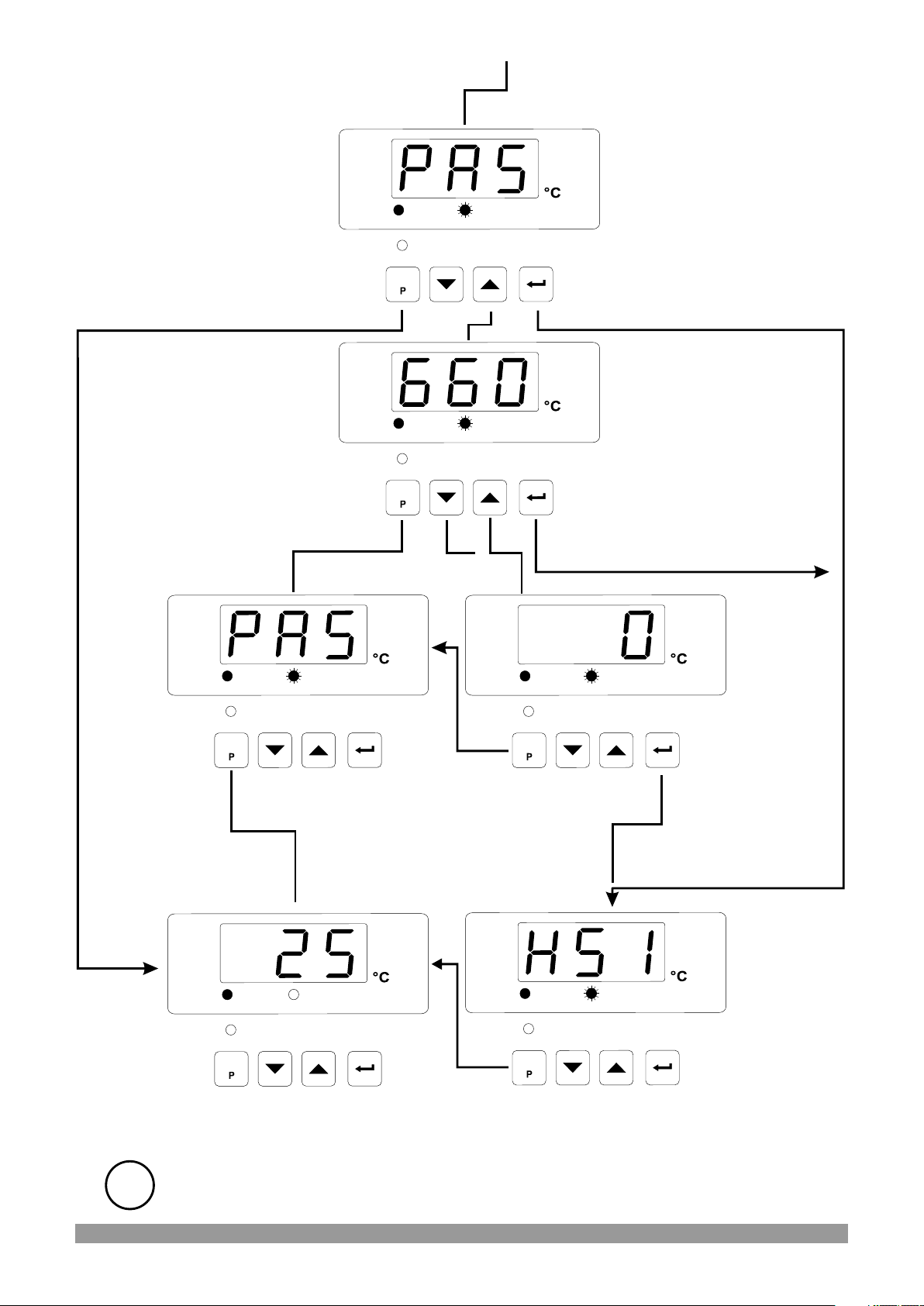

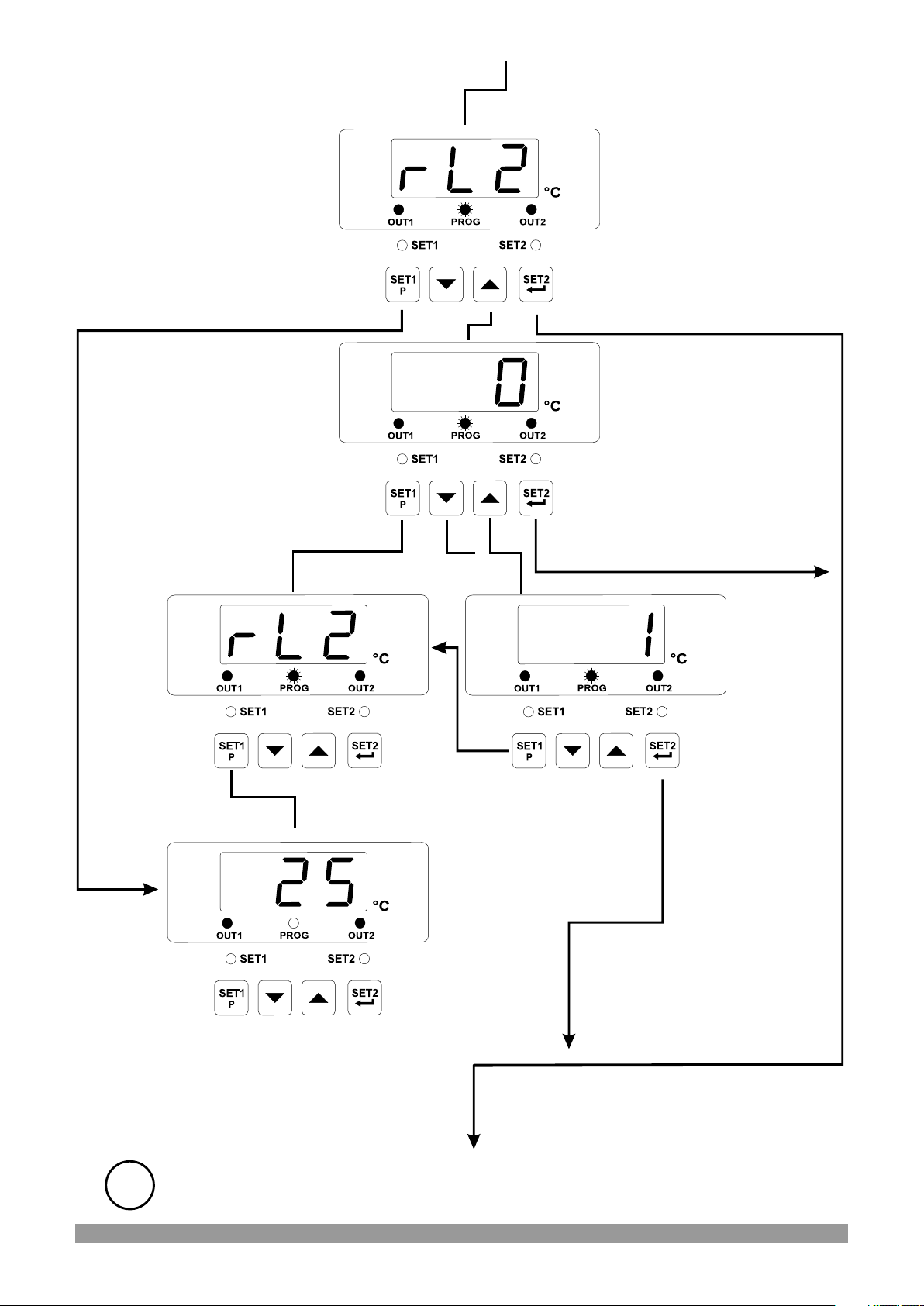

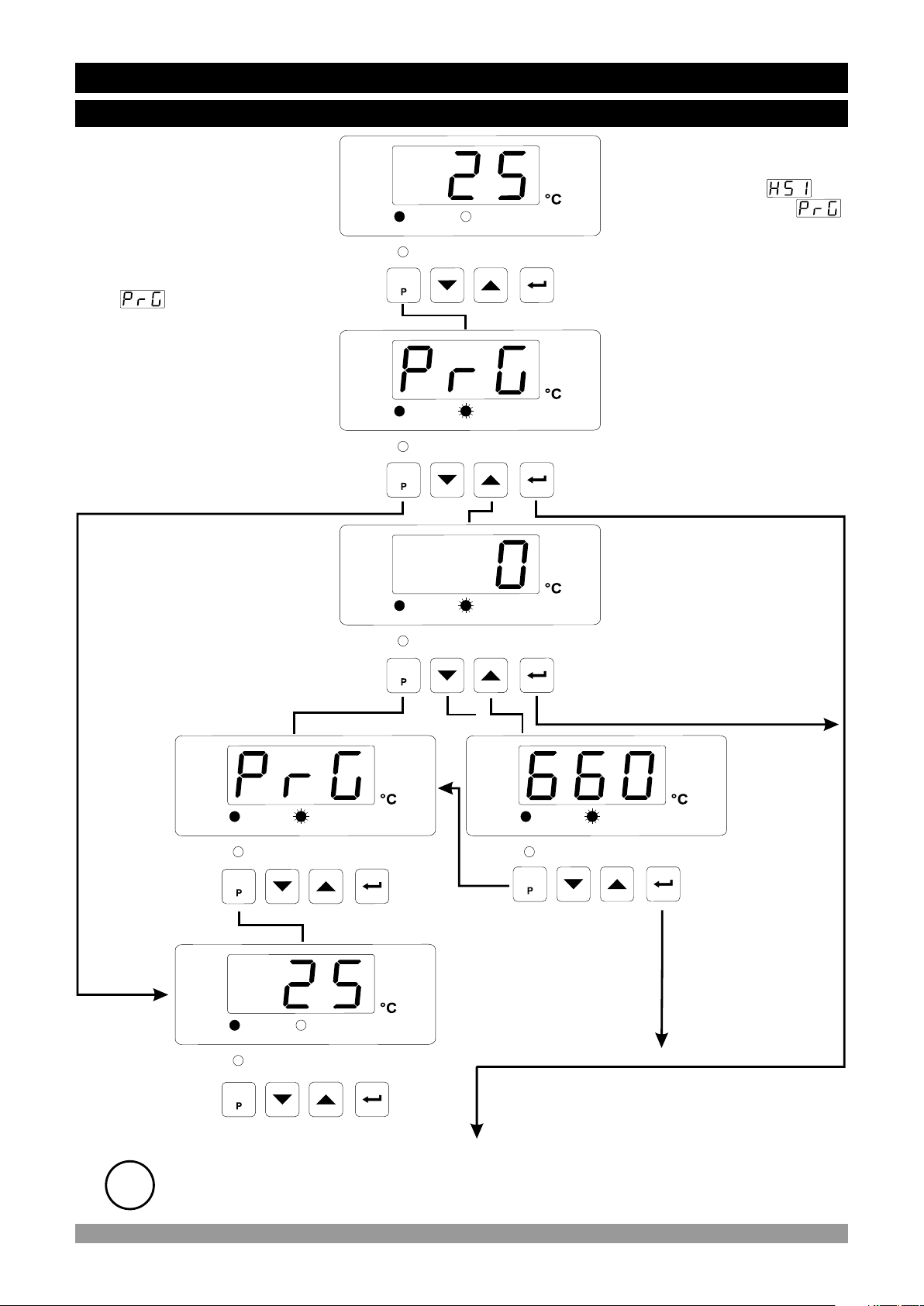

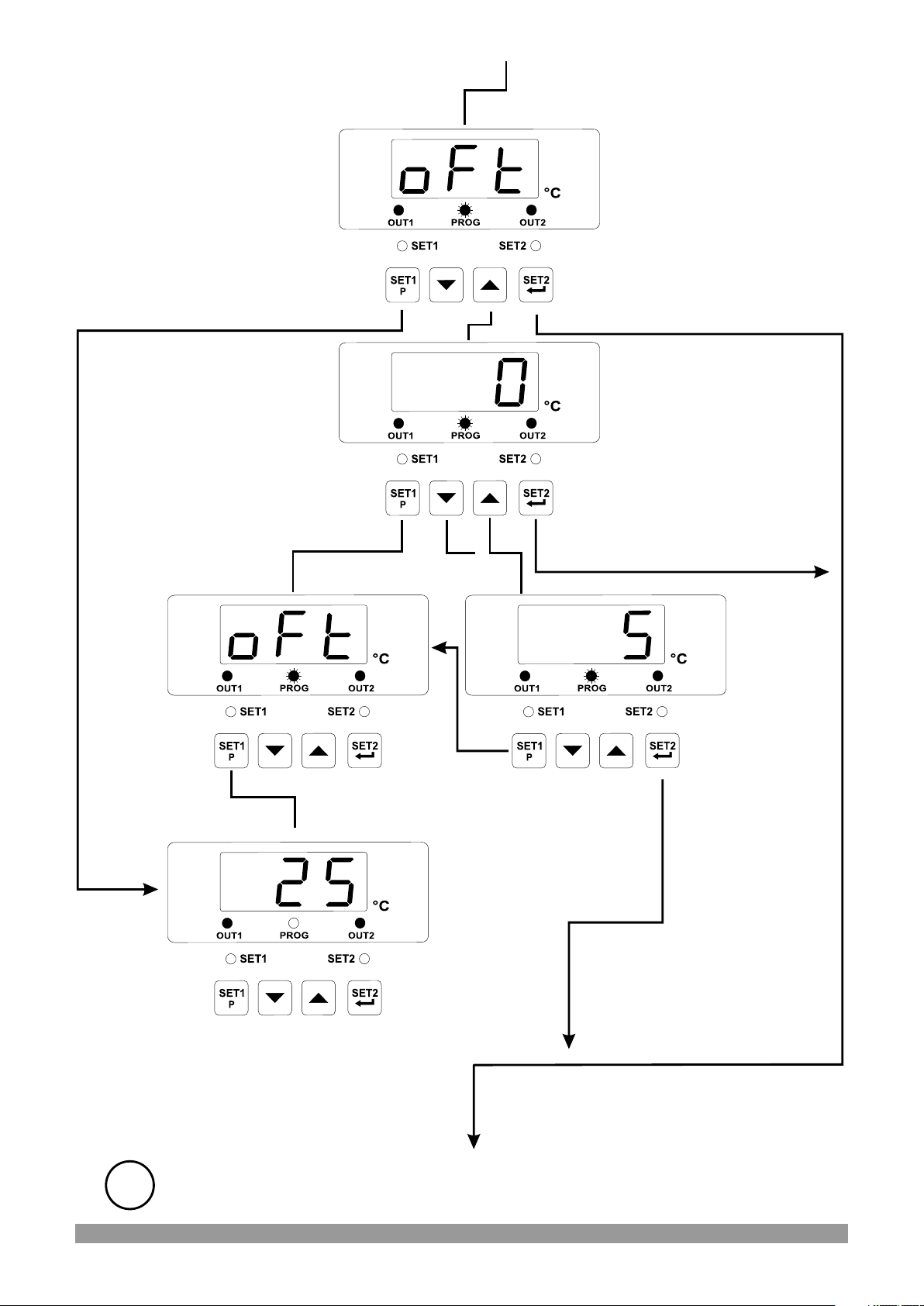

4.5 Entering to Programming Mode, Changing and Saving Parameters

4.5.1 ESM-7710 with One Relay

Main Operation Screen

When SET button is pressed

for 10 seconds, “PROG” led

starts to blink. If programming

mode entering password is

different from 0, programming

mode entering screen

will be observed

Programming Mode

Entering Screen

In programming mode

entering screen, press SET

button to exit from

programming mode and turn

to the main operation screen.

Password Entering Screen

In password entering screen,

press SET button to return

the programming mode

entering screen

Programming Mode

Entering Screen

OUT

SET

OUT

SET

OUT

SET

PROG

Note: If programming mode

accessing password is 0, hysteresis screen is observed instead of programming screen accessing password

Press increment button for accessing to the password

entering screen

Parameters can be

observed by pressing Enter

button, but parameters can

not be changed.

Enter programming mode

accessing password with

increment and decrement

buttons

Parameters can be

observed by pressing Enter

button, but parameters can

not be changed.

Press SET

button to exit

programming

mode.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

OUT

SET

OUT

SET

PROG

SET

PROG

SET

Main Operation Screen

OUT

SET

PROG

SET

In password entering

screen, press SET

button to return the

programming mode

entering screen

Password

Entering

Screen

Press Enter

button for

accessing to the

parameters

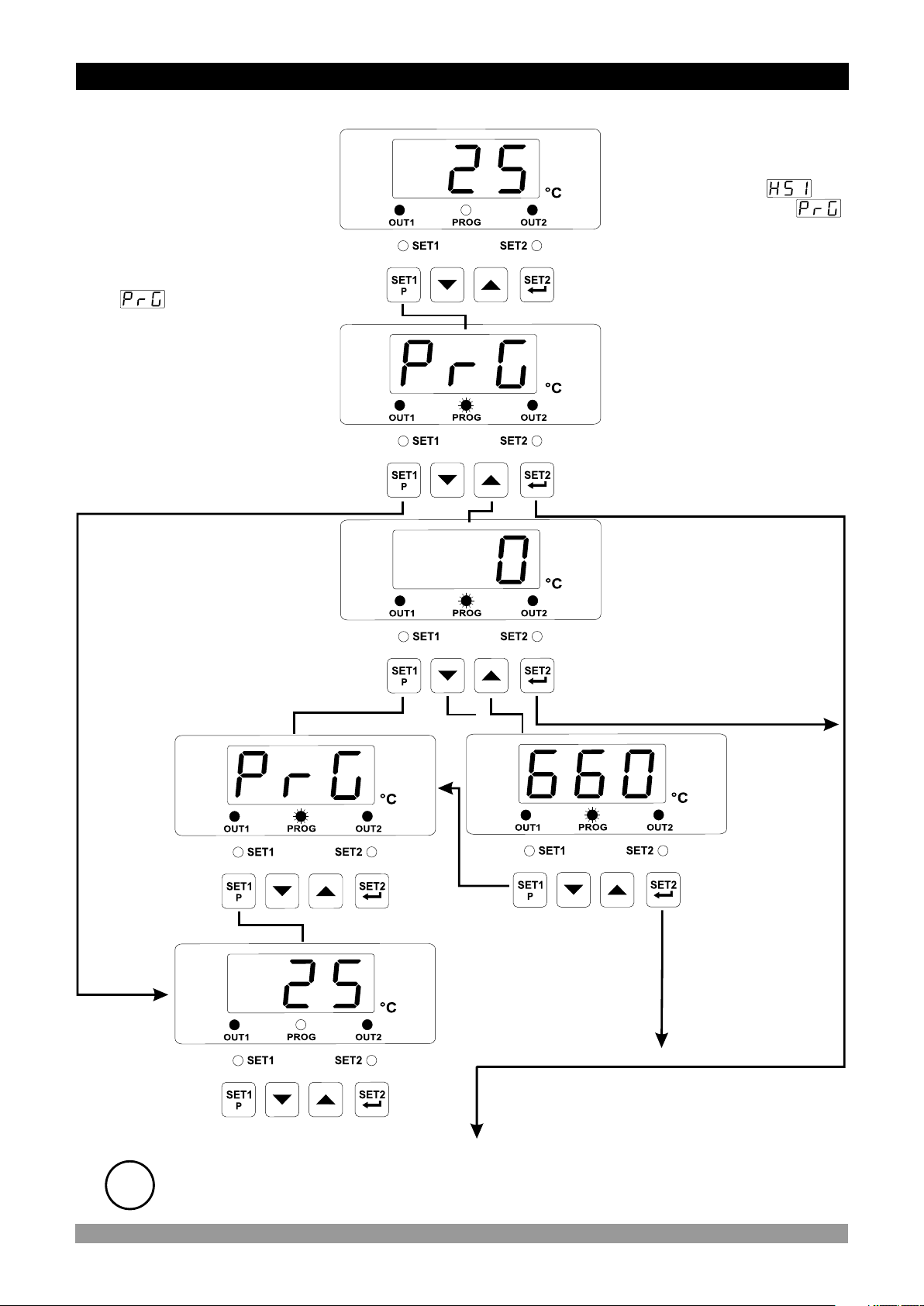

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

In programming screen,

Press SET button to exit from

programming mode and turn

to the main operation screen.

Programming Screen

OUT

SET

OUT

SET

PROG

Hysteresis Parameter

Parameter value can be observed by pressing increment button.

If Enter button is pressed next parameter is shown.

Hysteresis Value

If Enter button is pressed next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET button to exit from programming mode.

OUT

SET

OUT

SET

PROG

SET

PROG

SET

Main Operation Screen

OUT

SET

PROG

SET

Press SET button

to turn to the

programming

screen without

saving the

parameter.

Hysteresis

Value

Press Enter

button for saving

parameter

value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

In programming screen,

Press SET button to exit from

programming mode and turn

to the main operation screen.

Programming Screen

OUT

SET

OUT

SET

PROG

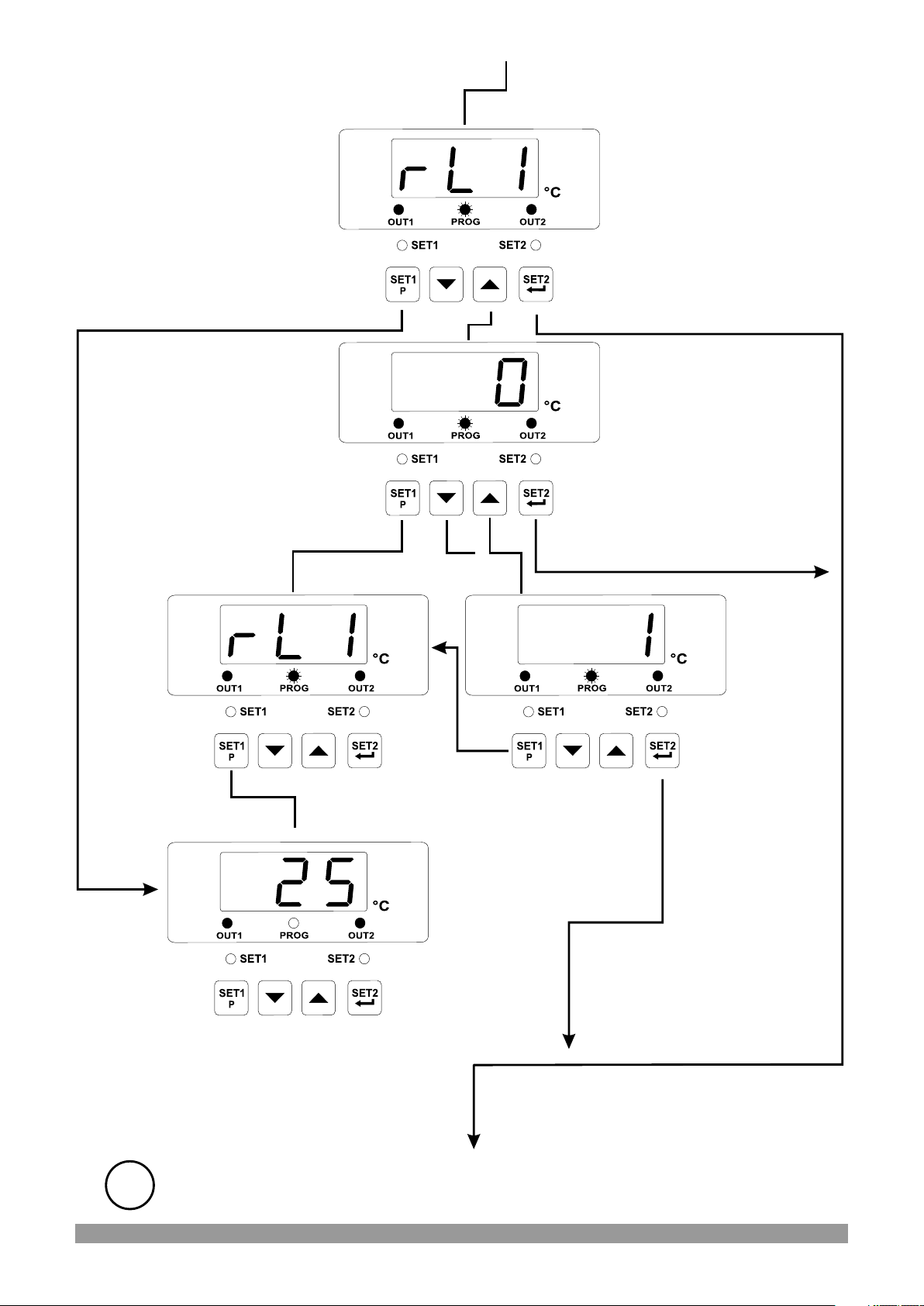

Operation Type Selection for Output

Parameter value can be observed by pressing increment button.

If Enter button is pressed next parameter is shown.

Value of Operation Type Selection for Output

Heating is selected

If Enter button is pressed next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET button to exit from programming mode.

OUT

SET

OUT

SET

PROG

SET

PROG

SET

Main Operation Screen

OUT

SET

PROG

SET

Press SET button

to turn to the

programming

screen without

saving the

parameter.

Value of Operation Type Selection for Output

It is changed as cooling

Press Enter

button for saving

parameter

value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Press SET button to turn

to the programming

screen without saving

the parameter.

Programming Screen

OUT

SET

OUT

SET

PROG

Process Offset

Parameter

Parameter value can be observed by pressing increment button.

If Enter button is pressed, next parameter is shown.

Process Offset Value

If Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET button to exit from programming mode.

OUT

SET

OUT

SET

PROG

SET

PROG

SET

Main Operation Screen

OUT

SET

PROG

SET

Press SET button

to turn to the

programming

screen without

saving the

parameter.

Process Offset Value

Press Enter

button for saving

parameter

value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Press SET button to

turn to the

programming screen

without saving the

parameter.

Programming Screen

OUT

SET

OUT

SET

PROG

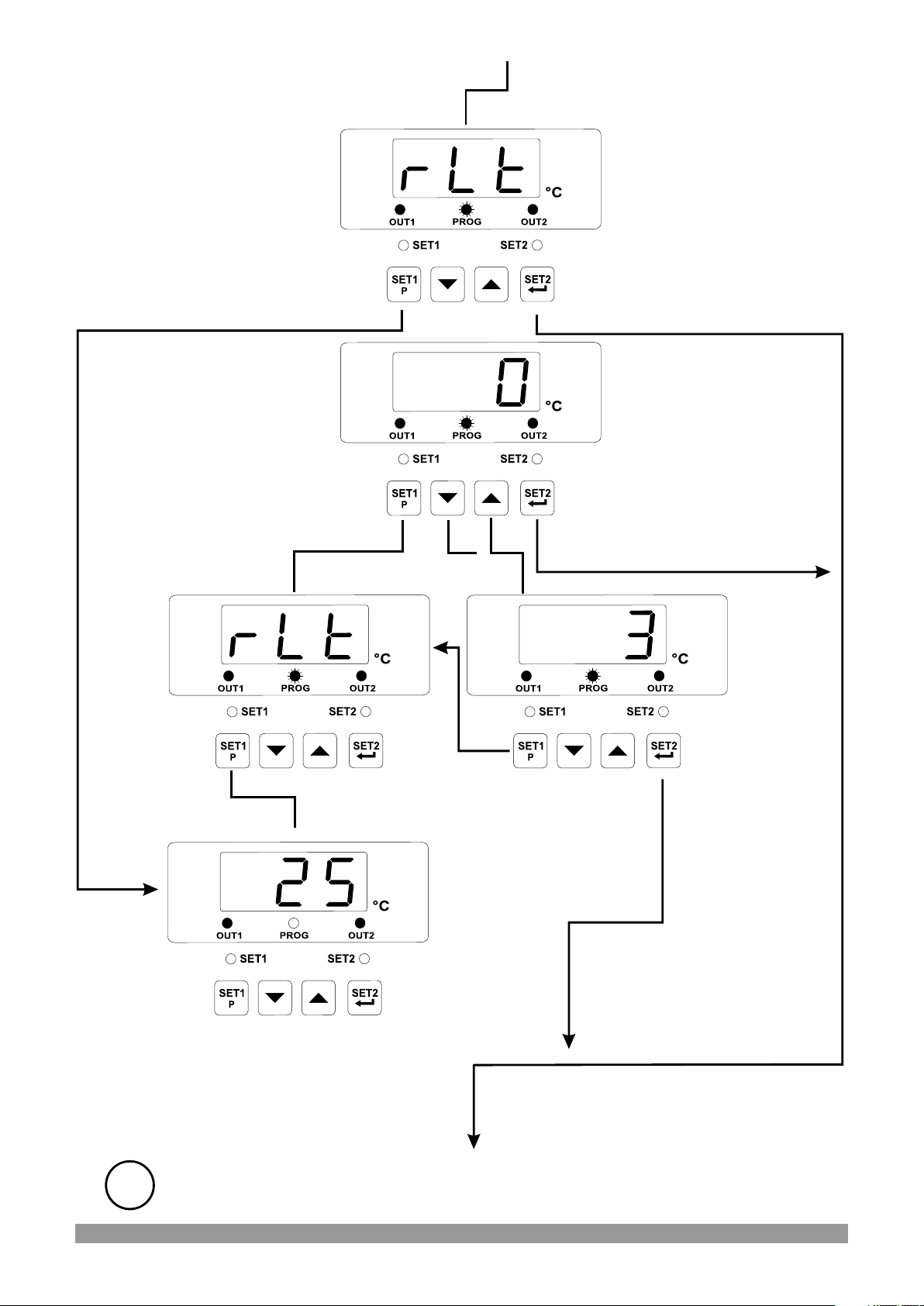

Minimum Pulling Time for Output Parameter

Parameter value can be observed by pressing increment button.

If Enter button is pressed, next parameter is shown.

Value of Minimum Pulling Time for Output

If Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET button to exit from programming mode.

OUT

SET

OUT

SET

PROG

SET

PROG

SET

Main Operation Screen

OUT

SET

PROG

SET

Press SET button

to turn to the

programming

screen without

saving the

parameter.

Value of Minimum Pulling Time for Output

Press Enter

button for saving

parameter

value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

OUT

SET

PROG

Programming Mode Accessing Password

Parameter value can be observed by pressing increment button.

If Enter button is pressed, next parameter is shown.

Programming Mode Accessing Password Value

Press SET button to

turn to the

programming screen

without saving the

parameter.

Programming Screen

OUT

SET

Press SET

button to exit

from

programming

mode.

PROG

OUT

SET

PROG

OUT

SET

PROG

SET

Press SET button to turn to

the programming screen

without saving the

parameter.

Programming Screen

If Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Programming

Mode

Accessing

Password

Value

Press Enter

button for

saving

parameter

value.

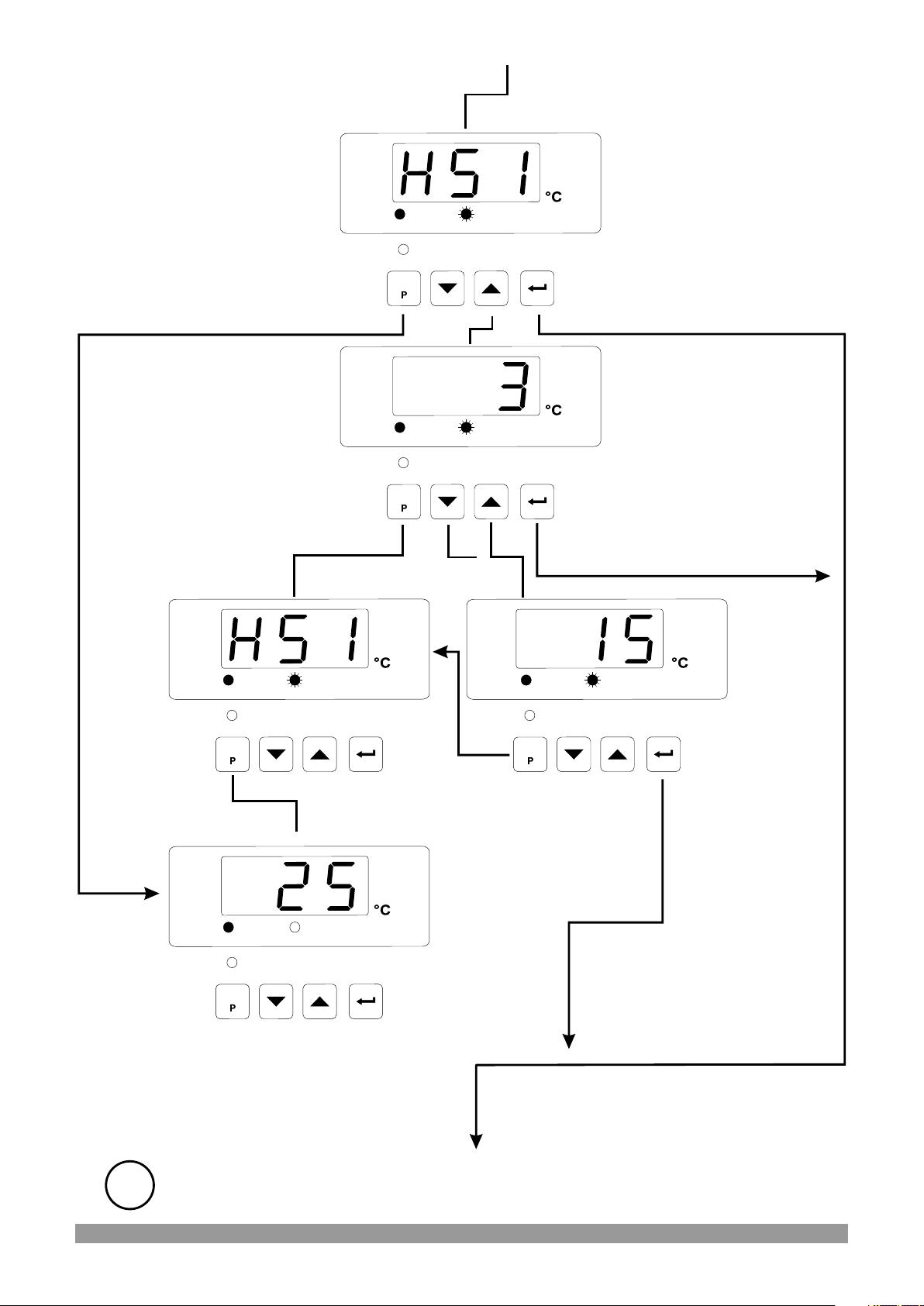

Hysteresis Parameter

It turns to beginning of

OUT

SET

PROG

SET

Main Operation Screen

OUT

SET

Press SET button to

exit from programming

section

SET

PROG

the programming mode

Continue to press SET2/Enter

button for accessing to the

parameters.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

4.5.2 ESM-7710 with Two Relays

Main Operation Screen

When SET1 button is pressed

for 10 seconds, “PROG” led

starts to blink. If programming

mode entering password is

different from 0, programming

mode entering screen

will be observed

Programming Mode

Entering Screen

In programming mode

entering screen, press SET1

button to exit from

programming mode and turn

to the main operation screen.

Password Entering Screen

In password entering screen,

press SET1 button to return

the programming mode

entering screen

Programming Mode

Entering Screen

Note: If programming mode

accessing password is 0, hysteresis screen is observed instead of programming screen accessing password

Press increment button for accessing to the password

entering screen

Parameters can be

observed by pressing

SET2/Enter

parameters can not be

Enter programming mode

accessing password with

increment and decrement

Parameters can be

observed by pressing

SET2/Enter

parameters can not be

button, but

changed.

buttons

button, but

changed.

Press SET1

button to exit

programming

mode.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Main Operation Screen

In password entering

screen, press SET1

button to return the

programming mode

entering screen

Password

Entering

Screen

Press SET2/Enter

button for

accessing to the

parameters

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

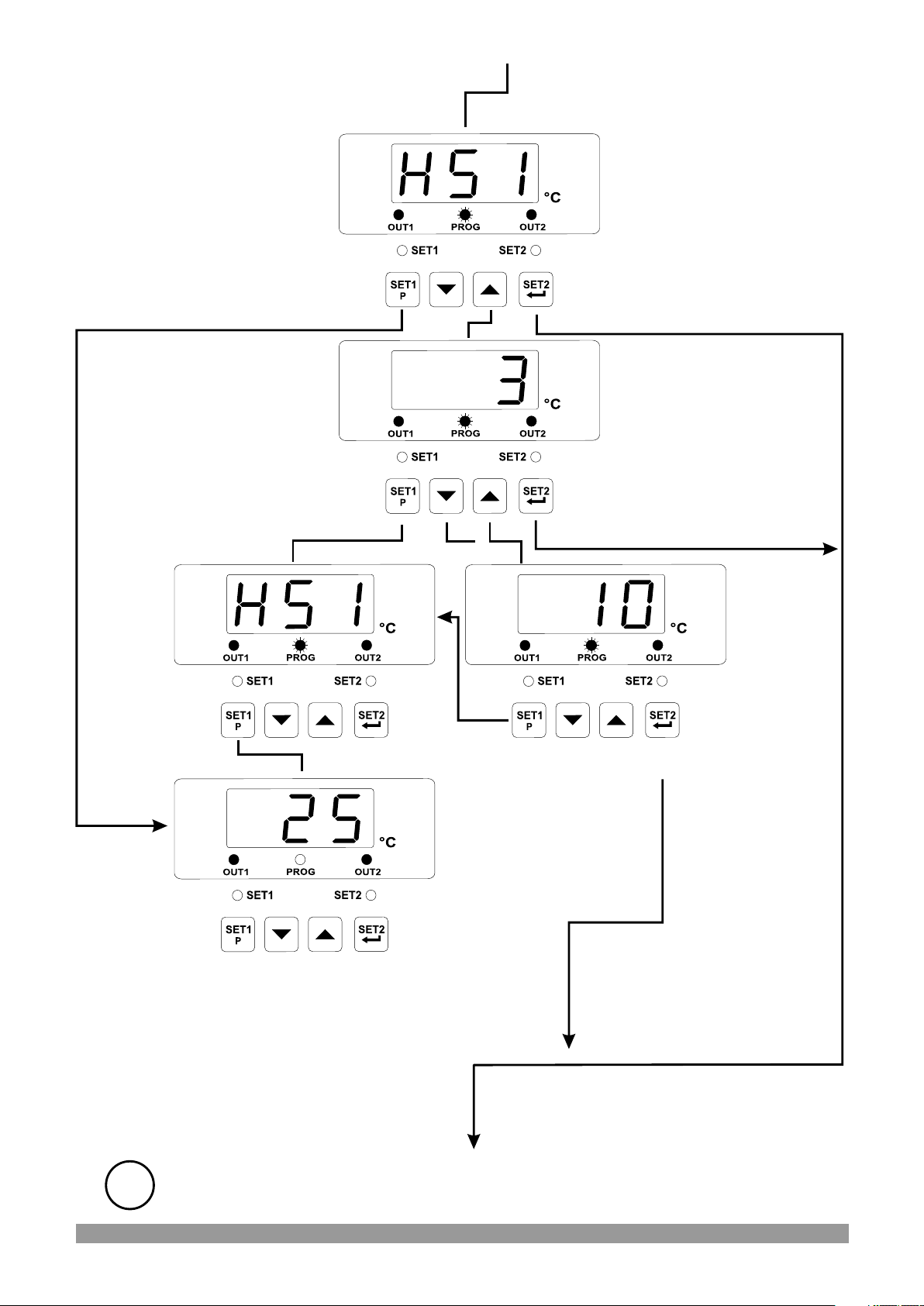

Hysteresis-1 Parameter

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Hysteresis-1 Value

If SET2/Enter button is pressed, next parameter is shown.

Press SET1 button to exit without saving parameter value.

Programming Screen

Press SET1 button to exit from programming mode.

In programming

screen, Press

SET1 button to exit

from programming

mode and turn to

the operation

screen.

Parameter can be changed with increment and decrement buttons.

Hysteresis-1 Value

Press

SET2/Enter

button for

saving

parameter

value.

Main Operation Screen

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Hysteresis-2 Parameter

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Hysteresis-2 Value

If SET2/Enter button is pressed, next parameter is shown.

Press SET1 button to exit without saving parameter value.

Programming Screen

Press SET1 button to exit from programming mode.

In programming

screen, Press

SET1 button to exit

from programming

mode and turn to

the operation

screen.

Parameter can be changed with increment and decrement buttons.

Hysteresis-2 Value

Press

SET2/Enter

button for

saving

parameter

value.

Main Operation Screen

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the operation screen.

Programming Screen

Operation Type Selection for Output-1

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Value of Operation Type Selection for Output-1

Heating is selected

If SET2/Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET1 button to exit from programming mode.

Main Operation Screen

In programming

screen, Press

SET1 button to exit

from programming

mode and turn to

the operation

screen.

Value of Operation Type Selection for Output-1

Cooling is selected

Press

SET2/Enter

button for

saving

parameter

value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Press SET1 button to turn to

the programming screen

without saving the parameter.

Programming Screen

Operation Type Selection for Output-2

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Value of Operation Type Selection for Output-2 Heating is selected

If SET2/Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET1 button to exit from programming mode.

Main Operation Screen

Press SET1 button

to turn to the

programming

screen without

saving the

parameter.

Value of Operation Type Selection for Output-2

Cooling is selected

Press

SET2/Enter

button for

saving

parameter

value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Press SET1 button to turn to

the programming screen

without saving the parameter.

Programming Screen

Process Offset Parameter

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Process Offset Value

If SET2/Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET1 button to exit from programming mode.

Main Operation Screen

Press SET1 button

to turn to the

programming

screen without

saving the

parameter.

Process Offset Value

Press SET2/Enter button for saving parameter value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Press SET1 button to turn to

the programming screen

without saving the parameter.

Programming Screen

Minimum Pulling Time for Output-1

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Value of Minimum Pulling Time for Output-1

If SET2/Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET1 button to exit from programming mode.

Main Operation Screen

Press SET1 button

to turn to the

programming

screen without

saving the

parameter.

Value of Minimum Pulling Time for Output-1

Press SET2/Enter button for saving parameter value.

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Programming Screen

In programming screen,

Press SET1 button to exit

from programming mode and

turn to the main operation

screen.

Press SET1 button to turn to

the programming screen

without saving the parameter.

Programming Screen

Minimum Pulling Time for Output-1

Parameter value can be observed by pressing increment button.

If SET2/Enter button is pressed, next parameter is shown.

Value of Minimum Pulling Time for Output-1

If SET2/Enter button is pressed, next parameter is shown.

Parameter can be changed with increment and decrement buttons.

Press SET1

button to exit

from

programming

mode.

Press SET1 button to turn to

the programming screen

without saving the

parameter.

Programming Screen

Value of Minimum Pulling Time for Output-1

Press SET2/Enter button for saving parameter value.

Hysteresis-1 Parameter

It turns to beginning of the programming mode

Main Operation Screen

If no operation is done in programming or Set value mode for 20 seconds, device

turns to main operation screen automatically.

Press SET1 button

to exit from

programming mode.

Continue to press SET2/Enter

button for accessing to the

parameters.

5. Parameters

Parameters are divided into two groups as SET and PROGRAM parameters.

5.1 Set Parameters

SET value for Output-1. Control of output-1 relay is done according to this

SET1

SET2

5.2 Program Parameters

value. This value can be adjusted according to input type, minimum and maximum of scale.

SET value for Output-2. Control of output-2 relay is done according to this value. This value can be adjusted according to input type, minimum and maximum of scale.

THIS PARAMETER IS NOT ACTIVE IN DEVICES WITH ONE RELAY.

Hysteresis Parameter for Output-1 ( Default = 3 )

1 to 100 °C for TC Type Devices, 1 to 100 °C for PT-100 (0°C , 400°C),

1.0 to 10.0 °C for PT-100 (-19.9°C, 99.9°C), 1 to 100 °C for PTC (-50°C, 150°C),

1.0 to 10.0 °C for PTC (-19.9°C, 99.9°C) and NTC (-19.9°C, 99.9°C) 1 to 20 °C for NTC (-50°C, 100°C)

Hysteresis Parameter for Output-2 ( Default = 3 )

1 to 100 °C for TC Type Devices, 1 to 100 °C for PT-100 (0°C , 400°C),

1.0 to 10.0 °C for PT-100 (-19.9°C, 99.9°C), 1 to 100 °C for PTC (-50°C, 150°C),

1.0 to 10.0 °C for PTC (-19.9°C, 99.9°C) and NTC (-19.9°C, 99.9°C) 1 to 20 °C for NTC (-50°C, 100°C)

Operation Type Selection parameter for output-1.

Operation type of output-1 relay can be adjusted as “HEATING”. Normally energised.

Operation type of output-1 relay can be adjusted “COOLING”. Normally de-energised.

“Hs2” and “rL2” PARAMETERS ARE ACTIVE IN DEVICES WITH TWO RELAYS.

If no operation is done in programming or Set value mode for 20 seconds, device turns to main operation screen automatically.

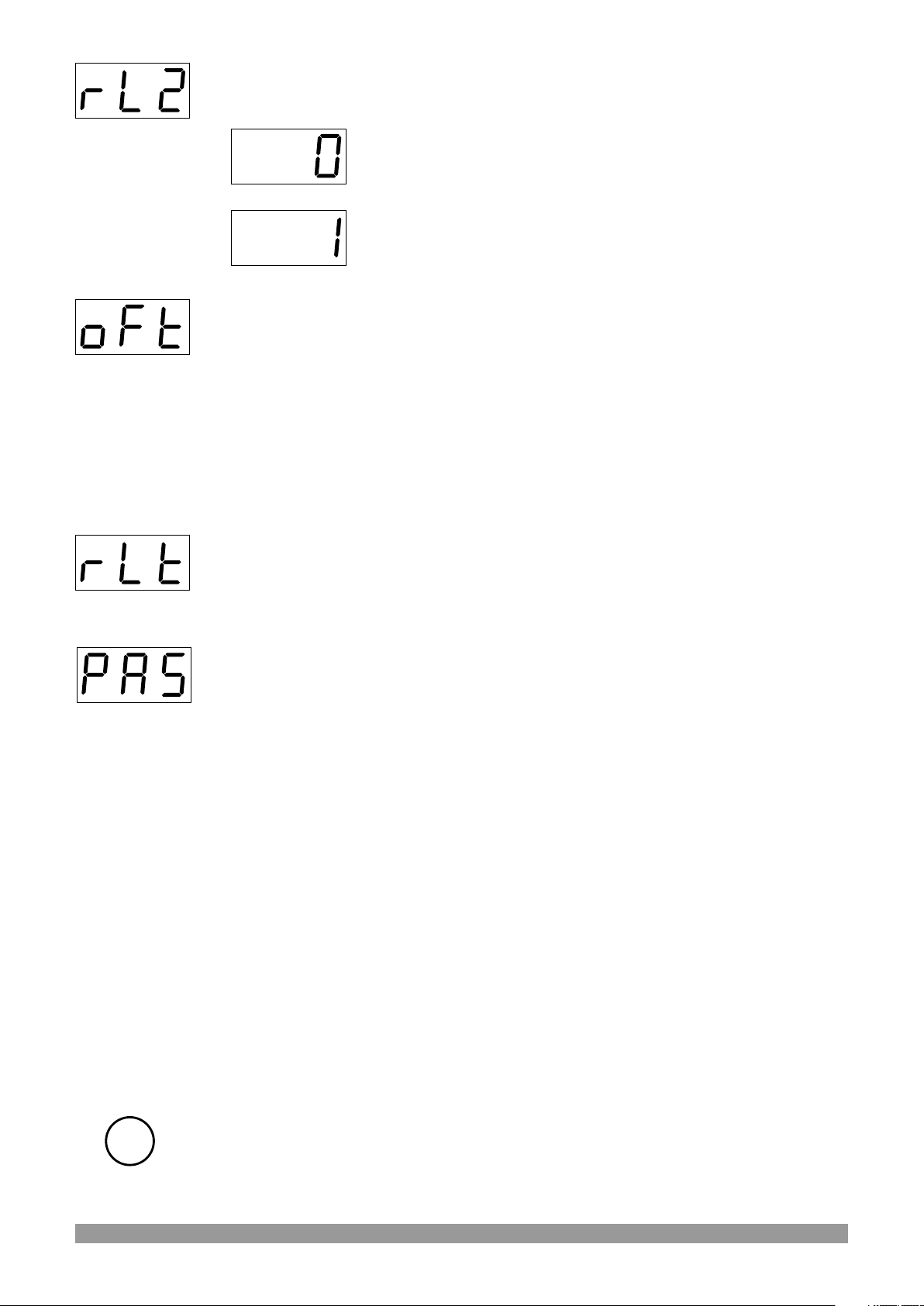

Operation type selection parameter of output-2.

THIS PARAMETER IS NOT ACTIVE IN DEVICES WITH ONE RELAY.

Operation Type of Output-2 relay can be adjusted as “HEATING”. Normally energised.

Operation Type of Output-2 relay can be adjusted as “COOLING”. Normally de-energised.

Process Offset Parameter (Default = 0).

This parameter is offset for the process value. This defined value is added to the process value.

-10 to 10 °C for TC Type Devices,

-10 to 10 °C for PT-100 (0°C , 400°C),

-10.0 to 10.0 °C for PT-100 (-19.9°C, 99.9°C),

-10 to 10 °C for PTC (-50°C, 150°C),

-10.0 to 10.0 °C for PTC (-19.9°C, 99.9°C) and NTC (-19.9°C, 99.9°C)

-10 to 10 °C for NTC (-50°C, 100°C)

Minimum Pulling Time Parameter for Output-1 (Minimum Off Time) (Default = 0)

When Output-1 is inactive this time must be expired for Output-1 to become active again. It can be adjusted from 0 to 100 seconds

Programming Mode Accessing Password ( Default =0 )

It is used for accessing to the programming mode. It can be adjusted from 0 to

999. If it is selected 0, password is not entered for accessing to the parameters.

“Hs2” and “rL2” PARAMETERS ARE ACTIVE IN DEVICES WITH TWO RELAYS.

If no operation is done in programming or Set value mode for 20 seconds, device turns to main operation screen automatically.

6. Failure Message in ESM-7710 Temperature Controllers

Sensor failure in analogue inputs. It means

7 1

sensor connection is wrong or there is no sensor.

7. Control Algorithm

7.1 ON/OFF Control

In ON/OFF control algorithm, temperature value is tried to keep equal to set value by opening or closing the last control element. ON/OFF controlled system, temperature value oscillates continuously. Temperature value’s oscillation period or amplitude around set value changes according to controlled system. For reducing oscillation period of temperature value, a threshold zone is formed below or around set value and this zone is named hysteresis. Action of control output is described with figures below.

Temperature

Set Value

Hysteresis

Time

Temperature

Control Output

OFF

Time

7.1.1 ON/OFF Control in ESM-XX10 Temperature Controller

ON/OFF control form in temperature control output which has heating function

Temperature

Control

Output

Temperature

Set

OFF

HYS

Temperature

ON/OFF control form in temperature control output which has cooling function

Temperature

Control

Output

Temperature

Set

OFF

HYS

Temperature

8. Specifications

Device Type : Temperature Controller Housing&Mounting : 72 mm x 72 mm x 95.5 mm DIN Size 43700 plastic

Housing for panel mounting. Panel cut-out is 69 x 69 mm

Type-1 Enclosure Mounting

Protection Class : NEMA 4X (IP65 at front, IP20 at rear) Weight : Approximately 0.21 Kg Environmental Ratings : Standard, indoor at an altitude of less then 2000 meters

with non-condensing humidity Storage/Operating Temperature : -40 C to +85 C / 0 C to +50 C

o o o o

Storage/Operating Humidity : 90 % max. (Non-condensing) Installation : Fixed installation Over Voltage Category : II Pollution Degree : II, office or workplace, none conductive pollution Operating Conditions : Continuous

Supply Voltage and Power : 230 V V (±15%) 50/60 Hz. 3 VA

115 V V (±15%) 50/60 Hz. 3 VA 24 V V (±15%) 50/60 Hz. 3 VA 24 V (-%15, +%10) 50/60 Hz. 3 VA

Temperature Inputs : NTC, PTC, TC, RTD NTC Input Types : N

TC (10 kW @.25 °C )

PTC Input Type : PTC (1000 W @.25 °C ) Thermocouple Input Types : J, Thermoresistance Input Type :

K (IEC584.1)(ITS90)

PT 100 (IEC751(ITS90)

Accuracy : ± 1% of full scale for thermocouple, thermoresistance Cold Junction Compensation : Automatically ± 0.1 °C / 1 °C

Line Compensation : Maximum 10 W Sensor Break Protection : Upscale Sampling Cycle : 3 samples per second Control Form : ON / OFF

Relay Outputs : 7 A@250 V Vat resistive load

(Electrical Life : 100.000 Operation (Full Load))

Opsiyonel SSR Driver : Maximum 23 mA, Maximum 15 V Z

Outputs

Display : 14 mm Red 3 digits LED display Led Indicators : For ESM-7710-A.BC.0.1/00.00;

SET (Green), OUT (Red), PROG (Red) 3 mm Led For ESM-7710-A.BC.0.1/01.00; SET1(Green),SET2(Green), OUT1 (Red),OUT2 (Red), PROG (Red) 3 mm Led

Approvals : UL Recognized Component (File No : E 254103),

CECE

9. Other Informations

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.Ş. Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA/TURKEY

Phone : +90 224 261 1900 Fax : +90 224 261 1912

Repair and Maintenance Service Information:

Emko Elektronik Sanayi ve Ticaret A.Ş. Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA/TURKEY Phone : +90 224 261 1900 Fax : +90 224 261 1912

Your Technology Partner

Thank you very much for your preference to use Emko Elektronik

Products.

www.emkoelektronik.com.tr

Emko ESM-7710 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
