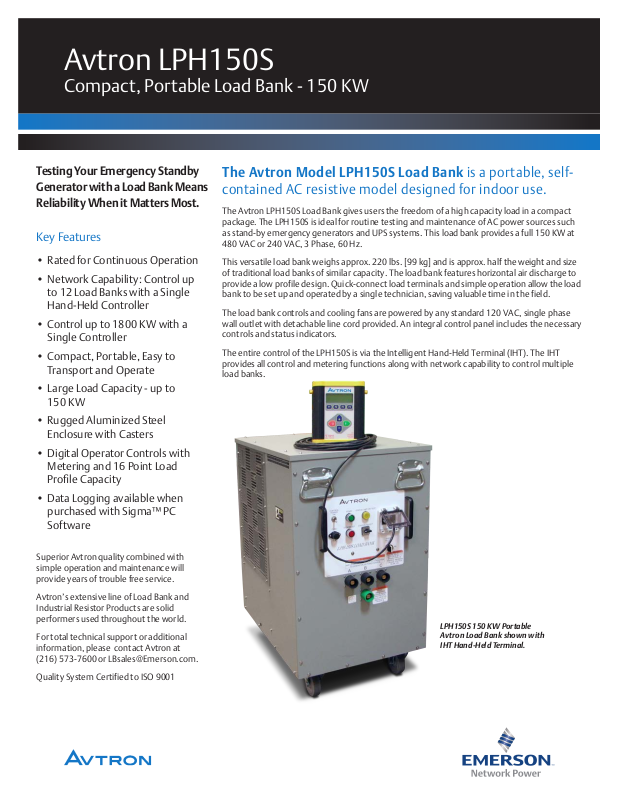

Avtron LPH150S

Compact, Portable Load Bank - 150 KW

Testing Your Emergency Standby
Generator with a Load Bank Means
Reliability When it Matters Most.

Key Features

• Rated for Continuous Operation

• Network Capability: Control up
to 12 Load Banks with a Single
Hand-Held Controller

• Control up to 1800 KW with a
Single Controller

• Compact, Portable, Easy to
Transport and Operate

• Large Load Capacity - up to
150 KW

• Rugged Aluminized Steel
Enclosure with Casters

• Digital Operator Controls with
Metering and 16 Point Load

 ProleCapacity

The Avtron Model LPH150S Load Bank is a portable, self­contained AC resistive model designed for indoor use.

The Avtron LPH150S Load Bank gives users the freedom of a high capacity load in a compact
package. The LPH150S is ideal for routine testing and maintenance of AC power sources such
as stand-by emergency generators and UPS systems. This load bank provides a full 150 KW at
480 VAC or 240 VAC, 3 Phase, 60 Hz.

This versatile load bank weighs approx. 220 lbs. [99 kg] and is approx. half the weight and size
of traditional load banks of similar capacity. The load bank features horizontal air discharge to
provide a low profile design. Quick-connect load terminals and simple operation allow the load
bank to be set up and operated by a single technician, saving valuable time in the field.

The load bank controls and cooling fans are powered by any standard 120 VAC, single phase
wall outlet with detachable line cord provided. An integral control panel includes the necessary
controls and status indicators.

The entire control of the LPH150S is via the Intelligent Hand-Held Terminal (IHT). The IHT
provides all control and metering functions along with network capability to control multiple
load banks.

• Data Logging available when
purchased with Sigma™ PC
Software

Superior Avtron quality combined with
simple operation and maintenance will
provide years of trouble free service.

Avtron’s extensive line of Load Bank and
Industrial Resis tor Products are solid
performers used throughout the world.

For total technical support or additional
information, please contact Avtron at
[phone] or [e-mail].

Quality System Certified to ISO 9001

LPH150S 150 KW Portable
Avtron Load Bank shown with
IHT Hand-Held Terminal.

Avtron LPH150S

Compact, Portable Load Bank - 150 KW

Specications subject to change without notice.

Construction

A compact aluminized steel enclosure with
screened inlet and exhaust openings. Four
swivel casters provide mobility. Heavy duty
lifting handles are also provided.

Control Power

The load bank requires control power of 120
VAC, single phase, 60 Hz (line cord provided).

Cooling

The resistive elements are air cooled by four
high velocity muffin fans for quiet operation.

Controls

Intelligent Hand-Held Terminal (IHT) System
Control. The IHT comes standard with a 32.8'
[10 m] connection cable. The IHT includes
digital display of Volts, Amps, Frequency and
KW, Phase to Phase amps, Load Program­ming, and ModBus.

Local Panel includes: Control Power ON/
OFF toggle switch, START Operation push
button, STOP/RESET push button, STATUS
UNIT ON TEST indication, STATION SELECT
rotary switch.

Hand-Held Interface: IN/OUT Connection Port.

Safety Circuits

The LPH150S Load Bank features main
line circuit fusing, wrong voltage pro­tection (Dual Voltage model only), and
overtemperature protection.

Load Capacity Ratings: (3 phase, 60 Hz)

Load Step Resolution is 5 KW

Rated KW Rated Voltages

150 480/240 VAC

NOTE Designs for international 50/60 Hz voltages are avail­able. Consult factory.

30.50

[774.70]

CONTROL

PANEL

37.48

[952.09]

Load Bank Weight (approx.)

220 lbs. [99 kg]

Options

• 10' Cable Set with Connectors

• Manual (Toggle Switch) Control

• Transport Case

• SIGMA™ PC Load Control Software

21.75

[552.45]

CONTROL
POWER

STATUS: UNIT ON TEST

START

ON

OUT IN

FUSE

STATION SELECTSTOP/RESET

15 A

PHASE
SELECT

3 PH

1 PH

WARNING

WARNING

INSURE SELECTOR

LOAD CABLES MUST BE INSTALLED

SWITCH IS SET TO

AND LOCKED IN PLACE PRIOR TO CONNECTION

PHASE TYPE OF

TO GENERATOR OR POWER SOURCE

SOURCE. MAXIMUM
1-PHASE VOLTAGE

IS 240 VAC

ABC

994252-1

WARNING

WHEN
OPERATING
SINGLE PHASE,
PROTECTIVE
PLUG MUST BE

994252-3

INSTALLED IN

PHASE B

994252-2

AIRFLOW

LOAD
CONNECTION
CONNECTORS

CONTROL

POWER

CONNECTOR

All dimensions are in inches [millimeters].

AIR INTAKE SIDEAIR EXHAUST SIDE

32.21

[818.06]

Emerson Network Power

Avtron • 6255 Halle Drive, Cleveland, Ohio 44125, U.S.A.

216-573-7600 • FAX: [phone] • [e-mail]

EmersonNetworkPower.com/loadbank

Emerson. Consider it Solved and Emerson Network Power are trademarks of Emerson Electric Co.

or one of its afliated companies. All the other marks are the property of their respective owners.

SIGMA™isatrademarkofNJFroment&Co.Ltd.Specicationssubjecttochangewithoutnotice.

©2015 Emerson Network Power Bulletin 605• Rev. C
