LabelWriter
Quick Start
Figure 1
Power adapter
LabelWriter printer
CD-ROM
Roll of
Power cable
Quick Start Guide
USB cable
Roll of
DYMO S tamps labels
address labels
Quick Start Guide
Follow these steps to install the LabelWriter printer and print your first label.
1. Unpacking your LabelWriter Printer
NOTE Do not plug the printer into your computer until asked to do so during the
software installation.
1 Unpack your printer and save the packing materials.
2 Make sure you have all the items shown in Figure 1. (Labels included in the
package may vary.)
Become familiar with the printer’s major components. See Figure 2.
Figure 2
DC power
connector
USB
connector
Cable
channels
Form -feed
Label feed path
and tear bar
cover
button and LED
Label eject
button
Platen
release
Label roll
Top
Label
spool
LabelWriter Printer Features
Your LabelWriter printer is a direct thermal printer and does not use ink or toner.
Instead, the printer uses heat from a thermal print head to print on specially
treated labels. Labels are the only supplies you will ever need to buy.
The form-feed button on the front of the printer advances a single label. The label
eject button is used to remove labels from the printer when changing rolls.
The LED status light visually shows the current state of the printer:
• Solid blue - power is on and the printer is ready.
• Flashing blue - labels are not loaded properly or label spool is empty.
2
2. Installing the Software
DYMO Label
Figure 3
NOTE Do not connect the printer to your computer until instructed to do so during
the software installation.
To install the software on a Windows system
1 Insert the LabelWriter CD into your CD-ROM drive. After a few seconds, the
installation screen appears.
If the installation screen does not appear:
a. Click Start, then Run on the Windows taskbar. The Run dialog box
appears.
b. Enter D:\install.exe (where D is the letter assigned to the CD-ROM drive)
and click OK.
2 Click Install and follow the instructions in the installer.
To install the software on a Mac OS system
1 Insert the DYMO LabelWriter CD into the CD-ROM drive.
After a few seconds, the DYMO Label Software Installer
icon appears. See Figure 3.
2 Double-click the Installer icon and follow the instructions.
If you do not see your printer in the printer list when the installation is
complete, refer to the ReadMe file for instructions on how to add the printer.
3
3. Connecting your LabelWriter Printer
Switching Adapter
S
H
OCK HA
Z
A
RD
RIS
K
OF E
L
ECT
R
I
C S
HO
C
K
DRY
L
OCATI
ON US
E
ONLY
.
NO
N-
S
ERVICEAB
L
E PA
RTS IN
S
IDE
.
F
OR
U
S
E WIT
H
I
TE O
NL
Y.
EN
D A
S
T F
O
R K
ON
T
ORSMASKINER.
CA
UT
ION
Teste
d
to comply
w
ith FCC
s
tan
d
ards
FOR H
O
ME OR
OF
F
ICE USE
I
.T.
E
.
P
O
WE
R
SUPPLY
C
Mode
l
No.:TE
S
A2-
2
401000
U.S. P
/
N: 9
0819
E
urope P/N: 924883
IN
PU
T:10
0-
2
40V-50/60
H
z Max
0.6
4A
OU
T
P
UT
:24V -
-
-
0-1
.0A
M
A
DE
I
N CH
IN
A
LI
S
T
E
D
1
5W
M
E
198850
U
L
U
L
N10926
Power Adapter
Power Cord
Figure 4
Figure 5
USB Power
Cable
channels
Figure 6
NOTE Do not connect the printer to your computer
until instructed to do so during the software
installation.

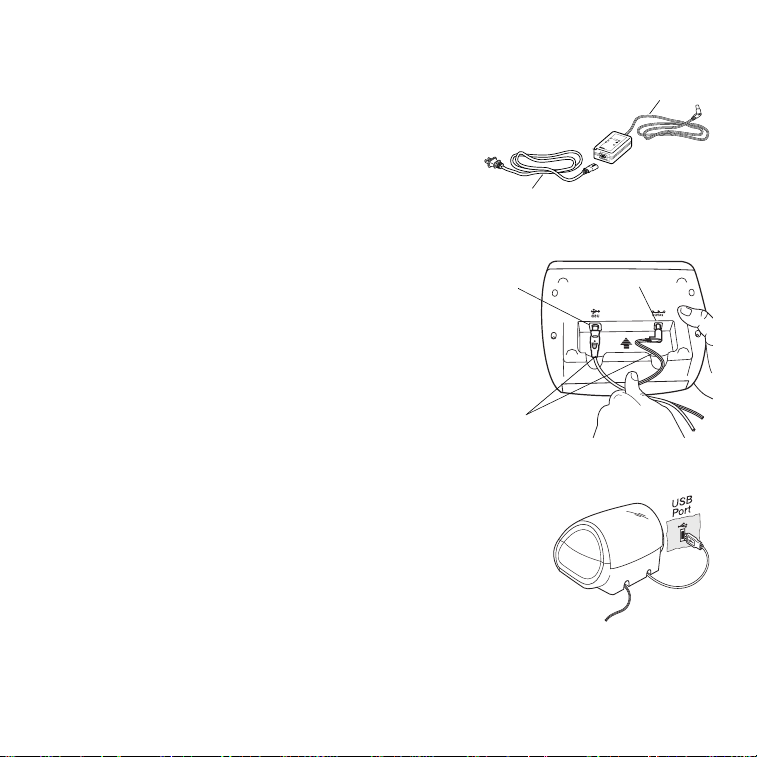

To connect the cables
1 Plug the power cord into the power adapter.
See Figure 4.
2 Plug the power adapter into the power connector
on the bottom of the printer. See Figure 5.
3 Plug the other end of the power cord into a
power outlet.
4 Plug the USB cable into the USB port on the
bottom of the printer. See Figure 5.
5 Insert the power and USB cables through the
cable channels and set the printer down.
NOTE DO NOT CONNECT the other end of the USB cable to
your computer until asked to do so during the software
installation.
6 When prompted by the software installer, plug the USB
cable into a USB port.
4
4. Loading Labels
Figure 7
Spool
spindle
Spool
guide
Figure 8
Figure 9
The LabelWriter Twin Turbo printer holds two label rolls, so you can print two
types of labels without having to change the label roll. For example, load address
labels on the left side and postage labels on the right side.
To load a label roll
1 Press the form-feed button to eject the labels that
protected the printer during shipment.
2 Open the top cover and remove any packing
material inside the label compartment.
3 Remove the label spool from inside the cover.
4 Hold the spool spindle in your left hand and place the
label roll on the spindle so that the labels feed from
underneath and the left edge of the label roll is flush
against the side of the spool. See Figure 8.
5 Place the spool guide onto the right side of the spool
and press the guide tightly against the side of the
label roll, leaving no gap between the roll and the spool. See Figure 8.
NOTE The label roll must fit snugly against both sides of the label
spool, with no gaps, to avoid drifting as the labels feed through the
printer. See Figure 8.
6 Insert the label spool into the slot in the printer cover with the
labels extending from underneath the roll. See Figure 9.
5
7 Align the left edge of the label with the left edge of
Figure 10
the label feed slot and insert the label into the slot.
See Figure 10.
The printer feeds the labels, stopping at the beginning
of the first label. If the printer does not feed the labels,
make sure the first label is fully inserted and then
press the form-feed button.
8 Repeat Steps 3 through 7 to load a second roll of labels (for example,
postage labels).
9 Close the top cover.
You are now ready to print address or postage labels on demand.
5. Printing your First Address Label
To print your first address label
1 Start DYMO Label Software by doing one of the following:
• For Windows, click Start, then Programs>DYMO Label>DYMO Label.
• For Macintosh, double-click in the DYMO Label folder.
The first time you open the application, you are asked to register the
software. Registering the software ensures that you will be informed of any
software updates. You are also asked to enter your default return address.
2 At the main window, click once on the address label and type an address.
3 Choose a font setting that you like from the Formatting toolbar.
6
4 Choose Left Roll or Right Roll from the Label Roll drop-down list to select
Insert text, addresses,
pictures, rectangles,
lines, barcodes, dates,
or counters.
Insert text you’ve
copied to the
Clipboard.
Store your favorite
addresses in the
Address Book;
automatically insert
them on your label.
If you also have a tape
printer, two buttons
allow you to easily
switch between the
Label and Tape Editors.
Verify and correct
addresses as you add them
to the Address Book.
Figure 11
Select the label
roll for your label
the side of the printer where the address labels are loaded. See Figure 11.
5 Click to print the label.

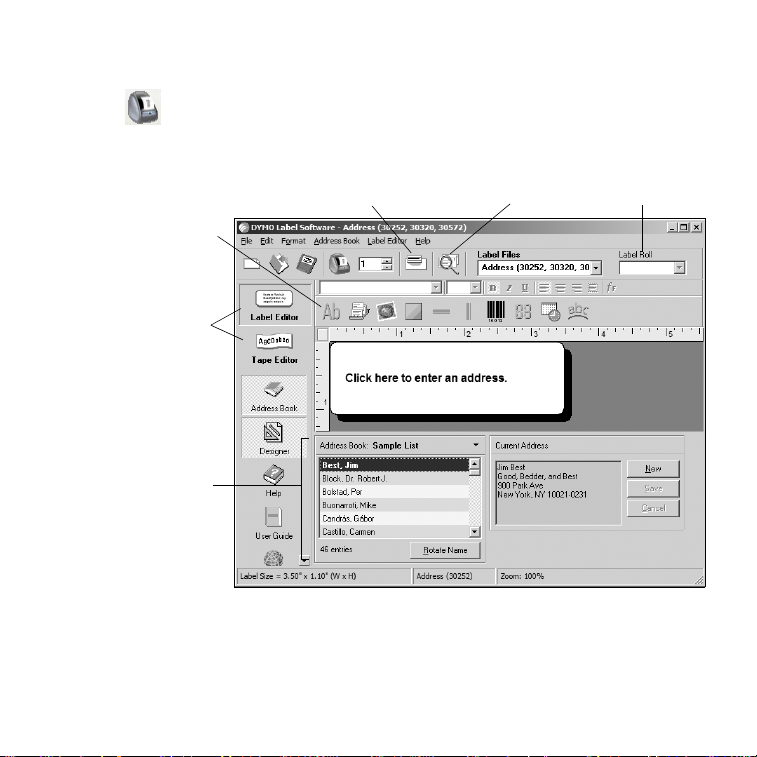

Figure 11 highlights some of the features available in DYMO Label Software.
For complete details on using the software, refer to the DYMO Label Soft ware User
Guide, located on the DYMO Label Software CD-ROM, and the online Help.
7
Printing Postage with
DYMO Stamps
Now you can print postage right from your desktop using your LabelWriter Twin
Turbo label printer. All you need is DYMO Stamps
printer, DYMO Stamps labels, and an Internet connection .
To install DYMO Stamps and print postage
1 Sign up for your USPS account with Endicia. Go to:
www.endicia.com/dymostamps
2 At the end of the sign up process, download and install the DYMO Stamps
software.
DYMO Stamps software is available for both Windows and Mac OS X.
NOTE You must have DYMO Label Software and your LabelWriter printer
installed before installing the DYMO Stamps software.
The first time you start the DYMO
Stamps software, you are prompted
to enter the postage account
number assigned and the pass
phrase you created during the signup process.
3 Enter your account number and
pass phrase, and then click OK.
™
™
software, your LabelWriter
8
4 Select Buy Postage from the
Account menu and purchase
postage for your account.
5 Select LabelWriter Twin Turbo
from the Printer drop-down list
under Printer Selection.
6 Assuming you loaded the
DYMO Stamps labels in the
right side of the printer, select
Right Roll as the Label Roll
and click OK.
7 Click Test Print to print a
voided postage label.
You are now ready to start printing actual postage whenever you need it. Refer to
the DYMO Stamps online Help for more information about using the software.
You can add postage, buy DYMO Stamps postage labels, and order supplies
directly from within the DYMO Stamps software.
9
10
Ordering Labels
Labels for your LabelWriter printer are available in a wide variety of sizes and
styles. You can purchase labels from your local computer and office supply retailer
or directly from DYMO. Visit www.dymo.com or call 1.800.426.7827.
DYMO Stamps labels are regulated by the United States Postal Service, and must
be purchased through the link in DYMO Stamps software or through your Endicia
postage account.
Troubleshooting or Customer Service
Visit www.dymo.com or call 203.588.2500 between 9 a.m. and 8 p.m. Eastern time.
