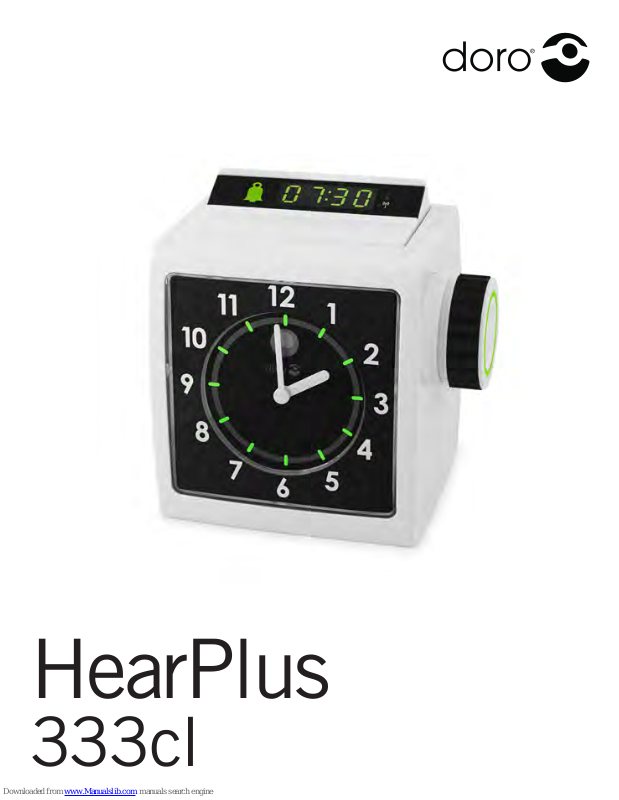

Doro HearPlus 333cl User Manual

HearPlus

333cl

English

Alarm switch (display)
Alarm indicator
Alarm time
Battery indicator
Radio signal indicator
Jog wheel
Jog wheel button
Time set
Phone alarm on/off
Alarm type
Alarm volume
Alarm tone

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

Time zone
Brightness
Phone socket
Line socket
Shaker socket
Mains adapter socket
External alarm socket
Loudspeaker

13.

14.

15.

16.

17.

18.

19.

20.

Alarmomkopplare
(display)
Alarmstatus
Alarmtid
Batteristatus
Radiosignalsstatus
Inställningsratt
Knapp på
inställningsratt
Tidsinställning
Telefonalarm av/på
Alarmtyp

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Alarmvolym
Alarmton
Tidszon
Ljusstyrka
Telefonuttag
Linjeuttag
Shakeruttag
Uttag för strömadapter
Externt alarmuttag
Högtalare

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

Svenska

1

English

Installation

Connecting

Note!

Set the time zone according to Settings/Timezone
before connecting the power.

Connect the mains adapter and, if applicable, phone
line cords. A plug kit (not included) may be needed.

Batteries

Remove the cover on the underside and install 4 AA

1.5V Alkaline batteries (not included) in accordance
with the markings. The batteries are used for backup in
case of power failure.

The clock can continue to operate for approximately 1 year
on batteries. Backlight and display will automatically turn
off when the clock is running on batteries only.

Note!

The pillow shaker and ash will not work during power failure.

2

English

Operation

Setting the time

After connecting the power, the time is adjusted
automatically by an RCC signal. The indicator will
light up on the display. If no RCC signal has been
received within 20 minutes, the time should be set
manually. The clock will retry automatic time adjustmentThe clock will retry automatic time adjustment
at night when there is less radio interference.

The automatic time setting can be adjusted for the
different time zones in Europe, see Settings/Time zone.

Note!

Automatic time adjustment may not be available at all
locations due to obstructions of the radio signal. Place
the unit at least 2 meters away from a TV, computer, air
conditioner or other household electrical appliances.
The optimal location is near a window, preferably facing
Frankfurt/Germany.

3

English

Automatic time setting

Press and hold until is displayed to update
the automatic time adjusment.

Manual time setting

It is not possible to set the time manually while the
clock is searching for an RCC signal, please wait until
the indicator is off.

Press . The display will light up and the hours will
blink on the display.on the display..

Turn the jog wheel to set the hours and press the jog

wheel button to conrm. The minutes will blink on

the display.
Turn the jog wheel to set the minutes and press the

jog wheel button to conrm.

Note!

The adjustment of the analog clock can take up to
30 minutes to complete. During the adjustment, the
analog clock will not show the correct time. Do not
disconnect the power during adjustment since this
could damage the clock.

1.

1.

2.

3.

4

English

Setting the alarm time

Press the jog wheel button. The display will light up
and the hours and the symbol will blink.

Turn the jog wheel to set the hours and press the jog

wheel button to conrm. The minutes will blink.

Turn the jog wheel to set the minutes and press the

jog wheel button to conrm.

Turning on the alarm

Toggle the alarm switch forward to turn on the alarm.
The symbol and the display will light up.symbol and the display will light up.

Note!

The display will time out after 10 seconds after
disconnecting the mains adapter. Press the alarm mains adapter. Press the alarm
switch to turn the display on again. The alarm time will

not show while the clock is searching for an RCC signal.

1.

2.

3.

5

English

Turning off the alarm

To turn off the alarm, toggle the alarm switch backward.

Note!

The alarm turns off automatically after 9 minutes.

Snooze

When the alarm is heard, press the alarm switch. The
alarm will be repeated every 9 minutes until the alarm is
turned off.

6

English

Additional functions

External alarm

An external alarm device such as Doro CarePlus or Doro
SeePlus 314ci can be connected to the socket.

If the alarm is not turned off or snoozed within 9
minutes, the external alarm will be triggered.

Pillow shaker

A pillow shaker such as Doro HearPlus 55v can be
connected to the socket. See Settings/Alarm mode
on how to enable/disable the shaker.

Phone alarm

If the clock is connected to the phone line, incoming
calls will trigger the alarm. See Settings/Phone alarm
on how to enable/disable the phone alarm function. The

sound and ash signals are determined by the Alarm
mode setting when the phone alarm is ON.

7

English

Settings

Phone alarm

Phone alarm ON
Phone alarm OFF

Alarm mode

Shaker only (if connected)
Sound + Flash (+ Shaker if connected)

Flash (+ Shaker if connected)
Sound (+ Shaker if connected)

Alarm volume

Low
High
Very High
Gradually increasing alarm volume.

8

English

Alarm tone

Low frequency
High frequency

Time zone

The radio controlled time setting (RCC) can be adjusted
for time zone differences.

GMT

GMT (London, Dublin...)

+1

GMT + 1 hour (Stockholm, Berlin, Paris...)

+2

GMT + 2 hours (Helsinki, Athens...)

X

Automatic time adjustment disabled. Time
must be set manually.

Note!

The automatic adjustment (RCC) can take up to 30
minutes to complete. During the adjustment, the

analog clock will not show the correct time.

9

English

Backlighting

The backlighting brightness setting also affects the LED
display.

No backlighting. Pressing the alarm switch
will turn on the backlighting for 10 seconds.

Dimmed backlighting.
Pressing the alarm switch will change to
bright backlighting for 10 seconds.

Bright backlighting.

If the mains adapter is disconnected, backlighting is
automatically turned off to save battery power. Press the
alarm switch to turn on the lights for 10 seconds.

10

English

Care and maintenance

Your unit is a technically advanced product and should be treated with
the greatest care. Negligence may void the warranty.

Protect the unit from moisture. Rain/snowfall, moisture and all types
of liquid can contain substances that corrode the electronic circuits. If
the unit gets wet, you should remove the mains power and the batteries
and allow the unit to dry completely before you replace it.

Do not use or keep the unit in dusty, dirty environments. The unit’s
moving parts and electronic components can be damaged.

Do not keep the unit in warm places. High temperatures can reduce
the lifespan for electronic equipment, damage batteries and distort or
melt certain plastics.

Do not keep the unit in cold places. When the unit warms up to normal
temperature, condensation can form on the inside which can damage
the electronic circuits.

Do not try to open the unit in any other way than that which is
indicated here.

Do not drop the unit. Do not knock or shake it either. If it is treated
roughly the circuits and precision mechanics can be broken.

Do not use strong chemicals to clean the unit.

The advice above applies to the unit, battery, mains adapter and other
accessories. If the unit is not working as it should, please contact the
place of purchase for service. Don’t forget the receipt or a copy of the
invoice.

•

•

•

•

•

•

•

11

English

Troubleshooting

If the digital and analog clock becomes un-synchronized
by accident, follow the steps below to restore the
syncronization:

Press and hold and the alarm switch (snooze) for
5 seconds. The display will light up and the hours
will blink on the display.

Turn the jog wheel to set the hours so that they
match the analog clock and press the jog wheel

button to conrm. The minutes will blink on the

display.
Turn the jog wheel to set the minutes so that they

match the analog clock and press the jog wheel

button to conrm.

The clock is now prepared for either automatic or
manual time setting.

1.

2.

3.

4.

12

English

Warranty and technical data

This product is guaranteed for a period of 24 months from the date of
purchase. In the unlikely event of a fault occurring during this period,
please contact the place of purchase. Proof of purchase is required for
any service or support needed during the guarantee period.

This guarantee will not apply to a fault caused by an accident or a similar
incident or damage, liquid ingress, negligence, abnormal usage, non­maintenance or any other circumstances on the user’s part. Furthermore,
this guarantee will not apply to any fault caused by a thunderstorm or

any other voltage uctuations. As a matter of precaution, we recommend

disconnecting the device during a thunderstorm.
Batteries are consumables and are not included in any guarantee.
Use only AA Alkaline batteries of good quality.

Specications

Size: 114 mm x 127 mm x 94 mm
Weight: 567 g (including batteries)
Battery: 4 x 1.5 V AA Alkaline batteries

Declaration of Conformity

Doro hereby declares that Doro HearPlus 333cl conforms to the essential
requirements and other relevant regulations contained in the Directives
1999/5/EC (R&TTE) and 2002/95/EC (RoHS).

A copy of the Declaration of Conformity is available at

www.doro.com/dofc

English

Swedish

Norwegian

Danish

Finnish

French

German

Spanish

Italian

Dutch

Greek

Version 1.1
