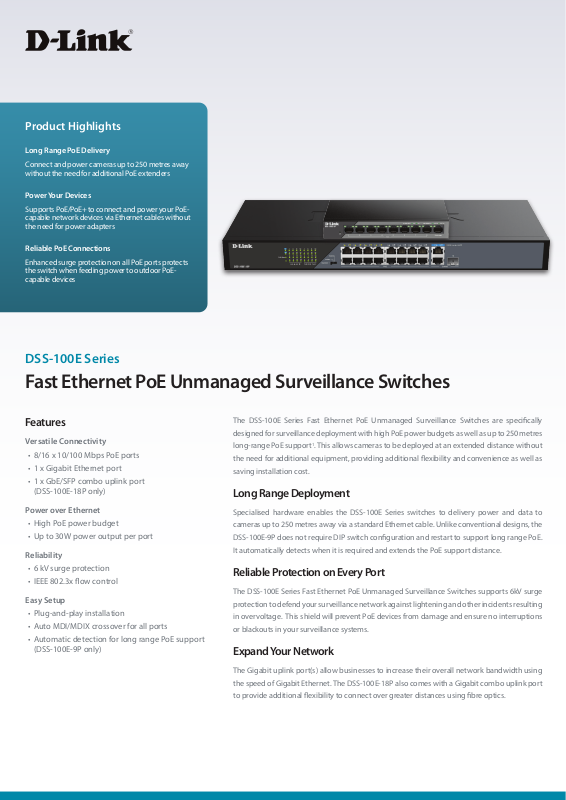

Product Highlights
Long Range PoE Delivery
Connect and power cameras up to 250 metres away
without the need for additional PoE extenders
Power Your Devices
Supports PoE/PoE+ to connect and power your PoEcapable network devices via Ethernet cables without
the need for power adapters
Reliable PoE Connections
Enhanced surge protection on all PoE ports protects
the switch when feeding power to outdoor PoEcapable devices
DSS-100E Series
Fast Ethernet PoE Unmanaged Surveillance Switches
Features
Versatile Connectivity
• 8/16 x 10/100 Mbps PoE ports
• 1 x Gigabit Ethernet port
• 1 x GbE/SFP combo uplink port
(DSS-100E-18P only)
Power over Ethernet
• High PoE power budget
• Up to 30W power output per port
Reliability
• 6 kV surge protection
• IEEE 802.3x ow control
Easy Setup
• Plug-and-play installation
• Auto MDI/MDIX crossover for all ports
• Automatic detection for long range PoE support
(DSS-100E-9P only)
The DSS-100E Series Fast Ethernet PoE Unmanaged Surveillance Switches are specically
designed for surveillance deployment with high PoE power budgets as well as up to 250 metres
1
long-range PoE support
the need for additional equipment, providing additional exibility and convenience as well as
saving installation cost.
. This allows cameras to be deployed at an extended distance without
Long Range Deployment
Specialised hardware enables the DSS-100E Series switches to delivery power and data to
cameras up to 250 metres away via a standard Ethernet cable. Unlike conventional designs, the
DSS-100E-9P does not require DIP switch conguration and restart to support long range PoE.
It automatically detects when it is required and extends the PoE support distance.
Reliable Protection on Every Port
The DSS-100E Series Fast Ethernet PoE Unmanaged Surveillance Switches supports 6kV surge
protection to defend your surveillance network against lightening and other incidents resulting
in overvoltage. This shield will prevent PoE devices from damage and ensure no interruptions
or blackouts in your surveillance systems.
Expand Your Network
The Gigabit uplink port(s) allow businesses to increase their overall network bandwidth using
the speed of Gigabit Ethernet. The DSS-100E-18P also comes with a Gigabit combo uplink port
to provide additional exibility to connect over greater distances using bre optics.
Technical Specications
General
DSS-100E Series
Fast Ethernet PoE Unmanaged Surveillance Switches
Model Number
Device Interfaces • 8 x 10 / 100 Mbps PoE ports
• 1 x 1000BASE-T port
Standards • IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE802.3af/802.3at 100Base-TX PoE,
Switching Fabric • 3.6 Gbps • 7.2 Gbps
64 Byte Max. Forwarding Rate • 2.68 Mpps • 5.36 Mpps
Transmission Method • Store-and-forward
MAC Address Table • 2k • 4k
Media Interface Exchange • Auto MDI/MDIX adjustment for all ports
LED Indicators • Link/activity (per port), Power fail/OK (per PoE port)
PoE Ports • Ports 1~8 up to 30 Watts per port • Ports 1~16 up to 30 Watts per port
PoE Power Budget • 92 Watts • 230 Watts
Surge Protection • Ports 1~9 up to 6 kV • Ports 1~18 up to 6 kV
• DSS-100E-9P • DSS-100E-18P
• 16 x 10 / 100 Mbps PoE ports
• 1 x 1000BASE-T port
• 1 x 100 / 1000BASE-T / SFP combo port
IEEE802.3ab, IEEE 802.3x Flow Control
• IEEE 802.3z, IEEE 802.3az Energy-Efficient Ethernet (EEE) (DSS-100E-18P only)
• Power (per device) (DSS-100E-18P only)
Physical
Dimensions • 177 x 104 x 26 mm • 440 x 178 x 44 mm
Weight • 0.396 kg • 2.137 kg
Power • Internal AC input: 100 ~ 240 V • External AC input: 100 ~ 240 V
Power Consumption • Maximum: 102 watts (PoE on)
• Standby: 10 watts
Temperature • Operating: 0 to 40 ˚C (32 to 104 ˚F) • Storage: -40 to 70 ˚C (-40 to 158 ˚F)
Humidity • Operating: 0% to 95% RH non-condensing • Storage: 0% to 95% RH non-condensing
MTBF • 52,308 hours • 30,000 hours
Heat Dissipation • Standby: 22.67 BTU/h
• Maximum: 486.7 BTU/h
Fan • Fanless • 1 Fan
• Maximum: 265 watts (PoE on)
• Standby: 9.63 watts
• Standby: 33.4 BTU/h
• Maximum: 885.3 BTU/h
Certifications • CE, BSMI (DSS-100E-18P only), RoHS
Safety • LVD
Optional SFP Transceivers (for DSS-100E-18P only)
DEM-310GT 1000BASE-LX, Single-mode, 10 km
DEM-311GT 1000BASE-SX, Multi-mode, 550 m
DEM-312GT2 1000BASE-SX, Multi-mode, 2 km
1
Compatible with a wide selection of D-Link PoE-enabled cameras. Please check with your local D-Link customer service for more information. Up to 250 metres connectivity may be aected by cabling quality. We recommend
customers to test compatibility before actual physical deployment.
