D-link DFL-CP310 User Guide

D-Link NetDefend firewall

Security VPN Firewall NetDefend secured by Check Point

User Guide

Version 1.0 Revised: 01/17/2006

Information in this document is subject to change without notice and does not represent a commitment on part of SofaWare Technologies Ltd.

SofaWare, Safe@Home and Safe@Office are trademarks, service marks, or registered trademarks of SofaWare Technologies Ltd.

Check Point, the Check Point logo, FireWall-1, FireWall-1 SecureServer, FireWall-1 SmallOffice, FloodGate-1, INSPECT, IQ Engine, Meta IP, MultiGate, Open Security Extension, OPSEC, Provider-1, SecureKnowledge, SecureUpdate, SiteManager-1, SVN, UAM, User-to-Address Mapping, UserAuthority, Visual Policy Editor, VPN-1, VPN-1 Accelerator Card, VPN-1 Gateway, VPN-1 SecureClient, VPN-1 SecuRemote, VPN-1 SecureServer, and VPN-1 Edge are trademarks, service marks, or registe red tra dem arks of Chec k Point Software Technologies Ltd. or its affiliates.

All other product names mentioned herein are trademarks or registered trademarks of their respective owners.

The products described in th is document are protected by U.S. Patent No. 5,606,668 and 5,835,726 and may be protected by other U.S. Patents, foreign patents, or pending applications.

GNU GENERAL PUBLIC LICENSE

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this

license document, but changing it is not all ow ed. PREAMBLE The licenses for most software are designed to take aw ay your

freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your program s, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introd uced by others will not reflec t on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that r e distributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any pate nt must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copy ing, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an ap propriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus form ing a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third partie s under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started

running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not requ ired to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribu te them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) w ith the major components (compiler, ker nel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, t hen the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implem ented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfa ces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that dis tribution is permitted only in or among

countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

To receive the SofaWare GPL licensed code, contact info@sofaware.com.

SAFETY PRECAUTIONS

Carefully read the Safety Instructions the Installation and Operating Procedures provided in this User's Guide before at tempting to install or operate the appliance. Failure to follow these instructions may result in damage to equipm e nt and/or personal injuries.

 Before cleaning the appliance, unplug the power cord. Use

only a soft cloth dampened with water for cleaning.

 When installing the appliance, ensure that the vents are not

blocked.

 Do not place this product on an unstable surface or support.

The product may fall, causing serious injury to a child or adult, as well as serious damage to the product.

 Do not use the appliance outdoors.  Do not expose the appliance to liquid or moisture.  Do not expose the appliance to e xtreme high or low

temperatures.

 Do not disassemble or open the appliance. Failure to comply

will void the warranty.

 Do not use any accessories other than those approved by

Check Point. Failure to do so may result in loss of performance, damage to the product, fire, electric shock or injury, and will void the warranty.

 Route power supply cords where they are not likely to be

walked on or pinched by items placed on or against them. Pay particular attention to cords where they are attached to plugs and convenience receptacles, and examine the point where they exit the unit.

 Do not connect or disconnect power supply cables and data

transmission lines during thunderstorms.

 Do not overload wall outlets or extension cords, as this can

result in a risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.

 If the unit or any part of it is damaged, disconnect the power

plug and inform the responsible service personnel. Nonobservance may result in damage to the router.

POWER ADAPTER

 Operate this product only from the type of power source

indicated on the product’s marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

 Use only the power supply provided with your product. Check

whether the device’s set supply voltage is the same as the local supply voltage.

 To reduce risk of damage to the unit, remove it from the outlet

by holding the power adapter rather than the cord.

SECURITY DISCLAIMER

The appliance provides your office network with the highest level of security. However, no single security product can provide you with absolute protection against a determined effort to break into your system. We recommend using additional security measures to secure highly valuable or sensitive information.

Contents

About This Guide.................................................................................................................................xi

Introduction...........................................................................................................................................1

About Your D-Link NetDefend firewall.............................................................................................1

NetDefend Secured by Check Point Product Family..........................................................................2

NetDefend Features and Compatibility...............................................................................................2

Connectivity....................................................................................................................................2

Firewall...........................................................................................................................................3

VPN ................................................................................................................................................4

Management....................................................................................................................................4

Optional Security Services..............................................................................................................5

Power Pack Features.......................................................................................................................5

Package Contents............................................................................................................................6

Network Requirements ...................................................................................................................7

Getting to Know Your NetDefend firewall.........................................................................................8

Rear Panel.......................................................................................................................................8

Front Panel....................................................................................................................................10

Getting to Know Your NetDefend firewall.......................................................................................11

Rear Panel.....................................................................................................................................11

Front Panel....................................................................................................................................13

Contacting Technical Support...........................................................................................................14

Installing and Setting up the NetDefend firewall.............................................................................15

Before You Install the NetDefend firewall .......................................................................................15

Windows 2000/XP........................................................................................................................16

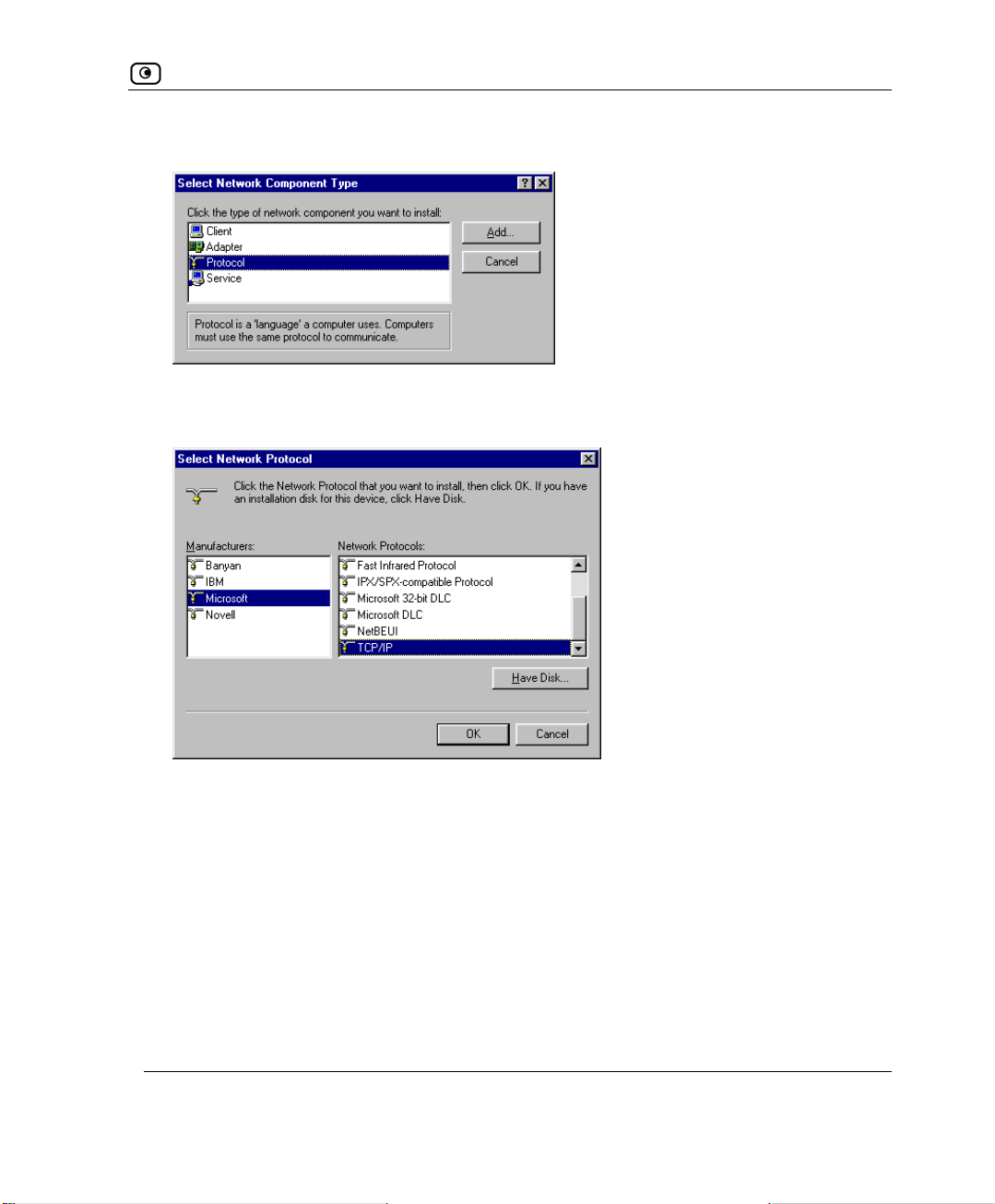

Windows 98/Millennium ..............................................................................................................21

Mac OS.........................................................................................................................................26

Mac OS-X.....................................................................................................................................28

Contents i

Contents

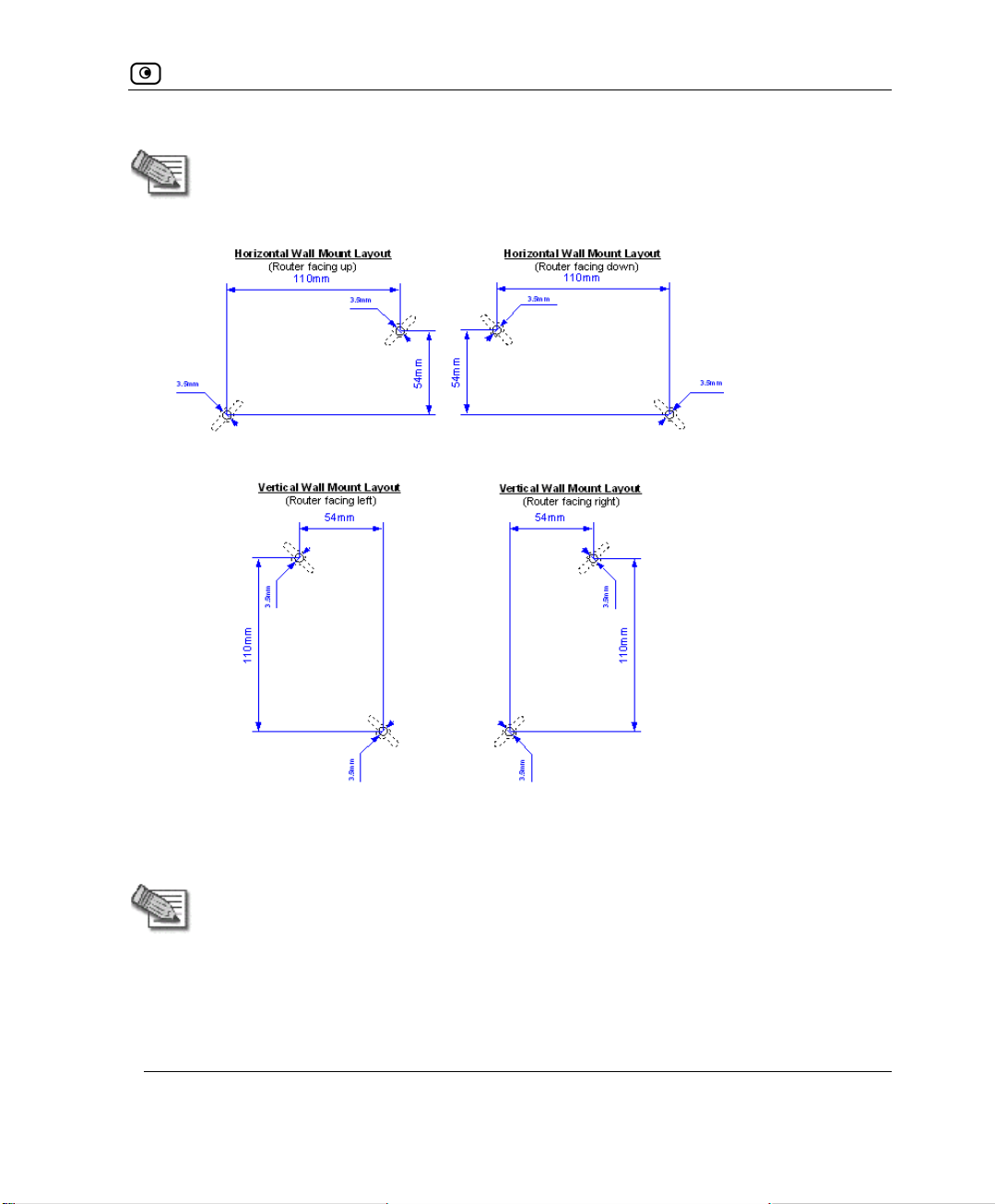

Wall Mounting the Appliance...........................................................................................................30

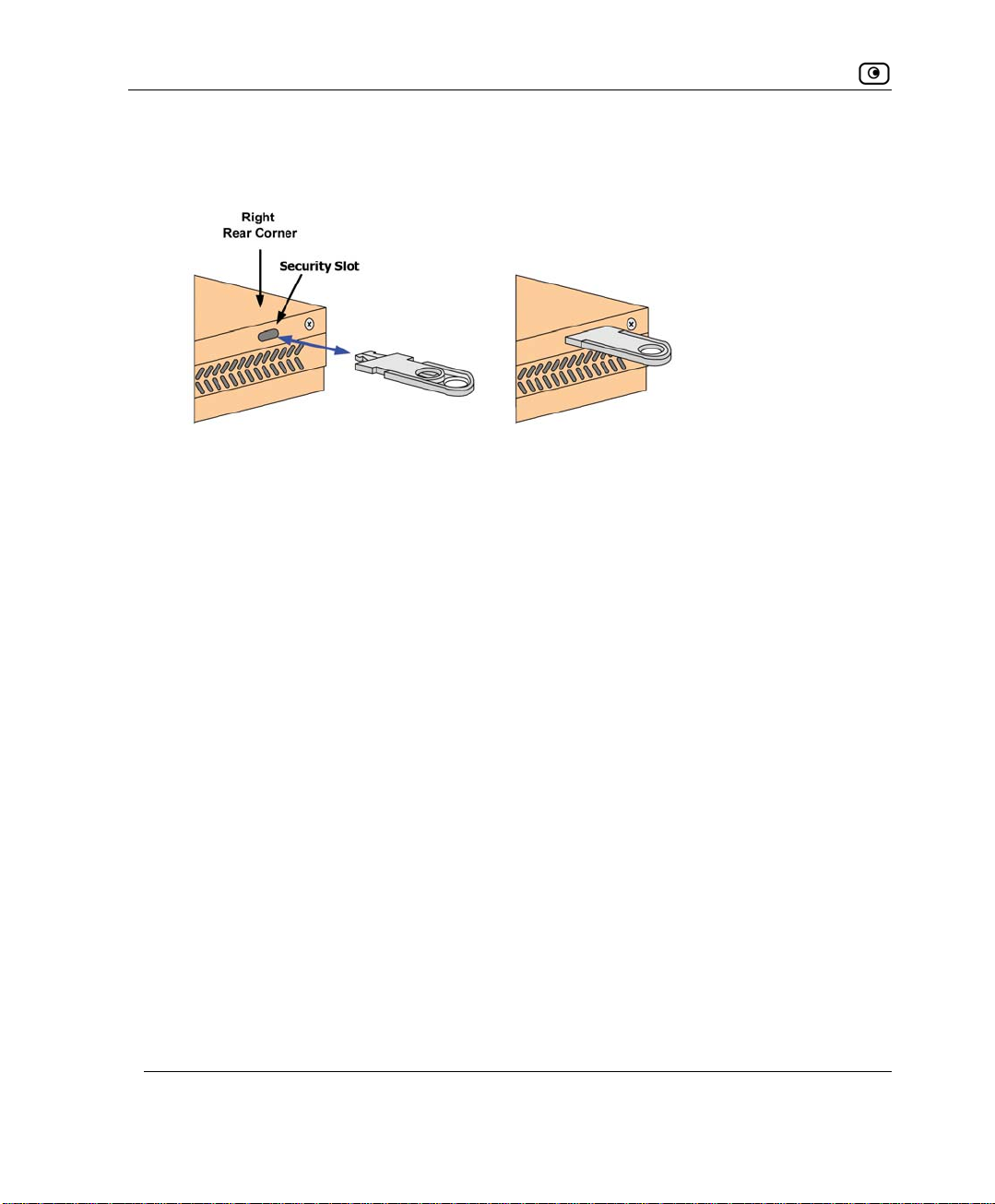

Securing the Appliance against Theft...............................................................................................32

Network Installation..........................................................................................................................35

Setting Up the NetDefend firewall....................................................................................................36

Getting Started....................................................................................................................................39

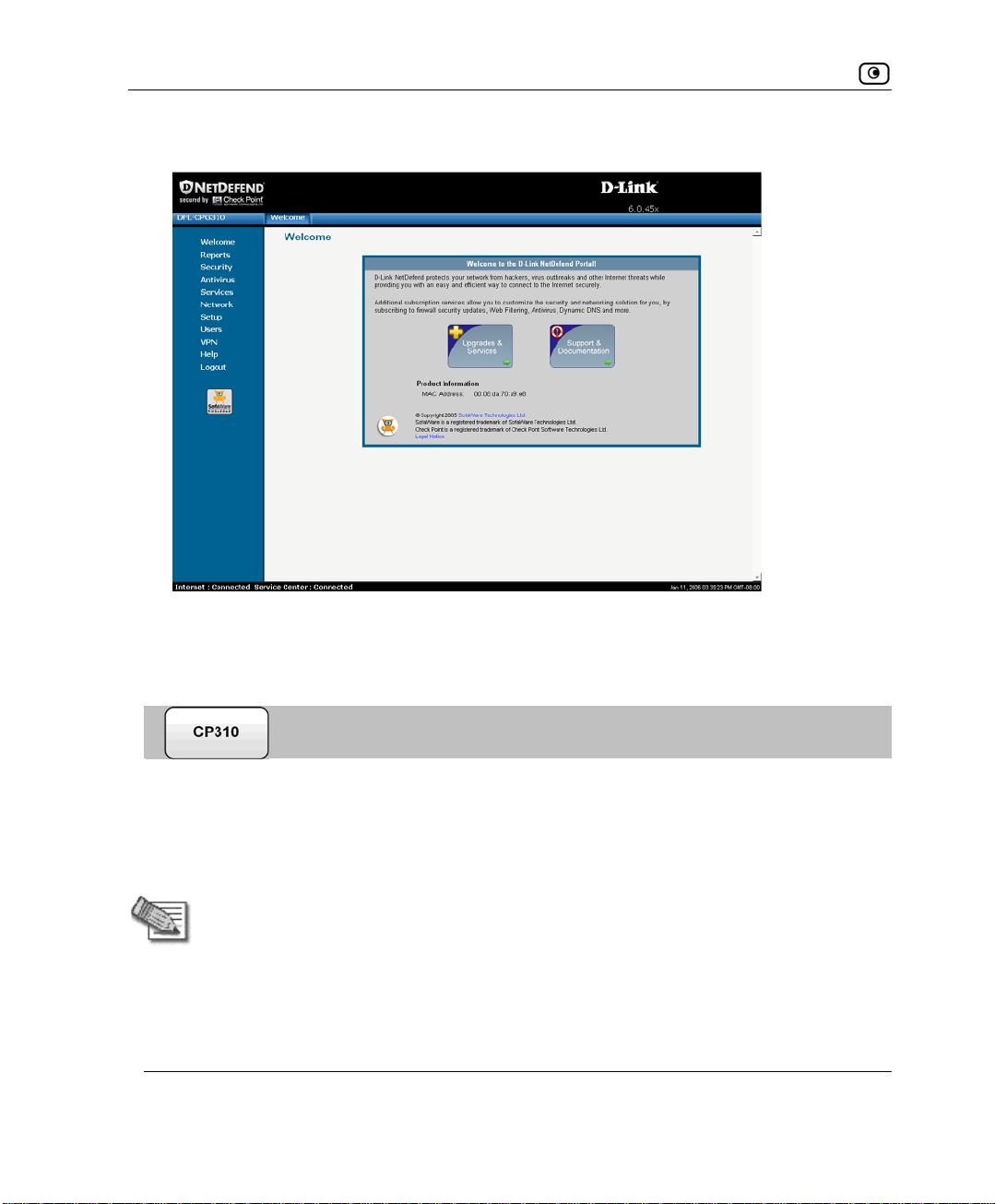

Initial Login to the NetDefend Portal................................................................................................39

Logging on to the NetDefend Portal.................................................................................................42

Accessing the NetDefend Portal Remotely Using HTTPS...............................................................44

Using the NetDefend Portal..............................................................................................................46

Main Menu....................................................................................................................................47

Main Frame...................................................................................................................................48

Status Bar......................................................................................................................................48

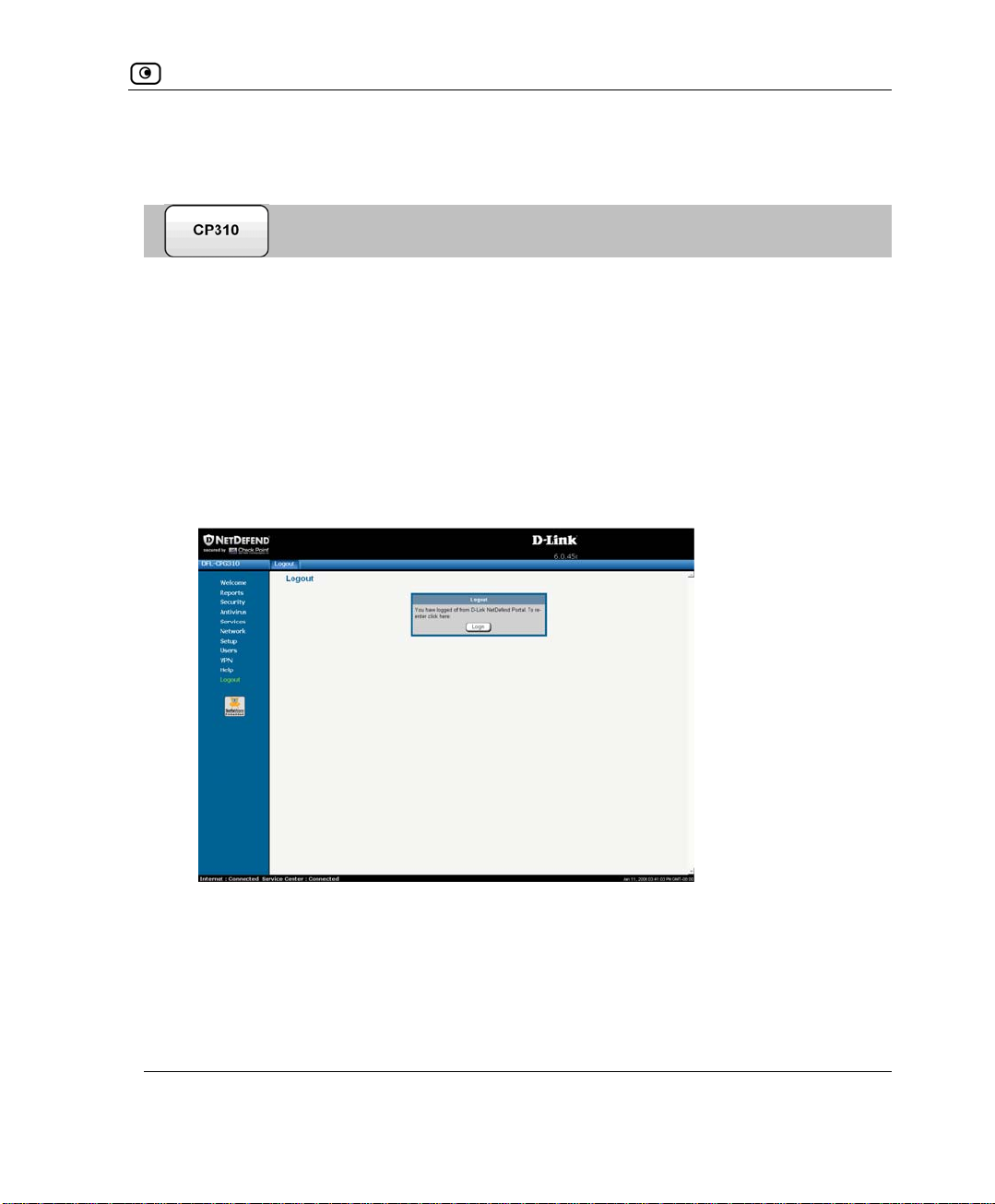

Logging off .......................................................................................................................................51

Configuring the Internet Connection................................................................................................53

Overview...........................................................................................................................................53

Using the Internet Wizard.................................................................................................................54

Using a Direct LAN Connection...................................................................................................56

Using a Cable Modem Connection...............................................................................................58

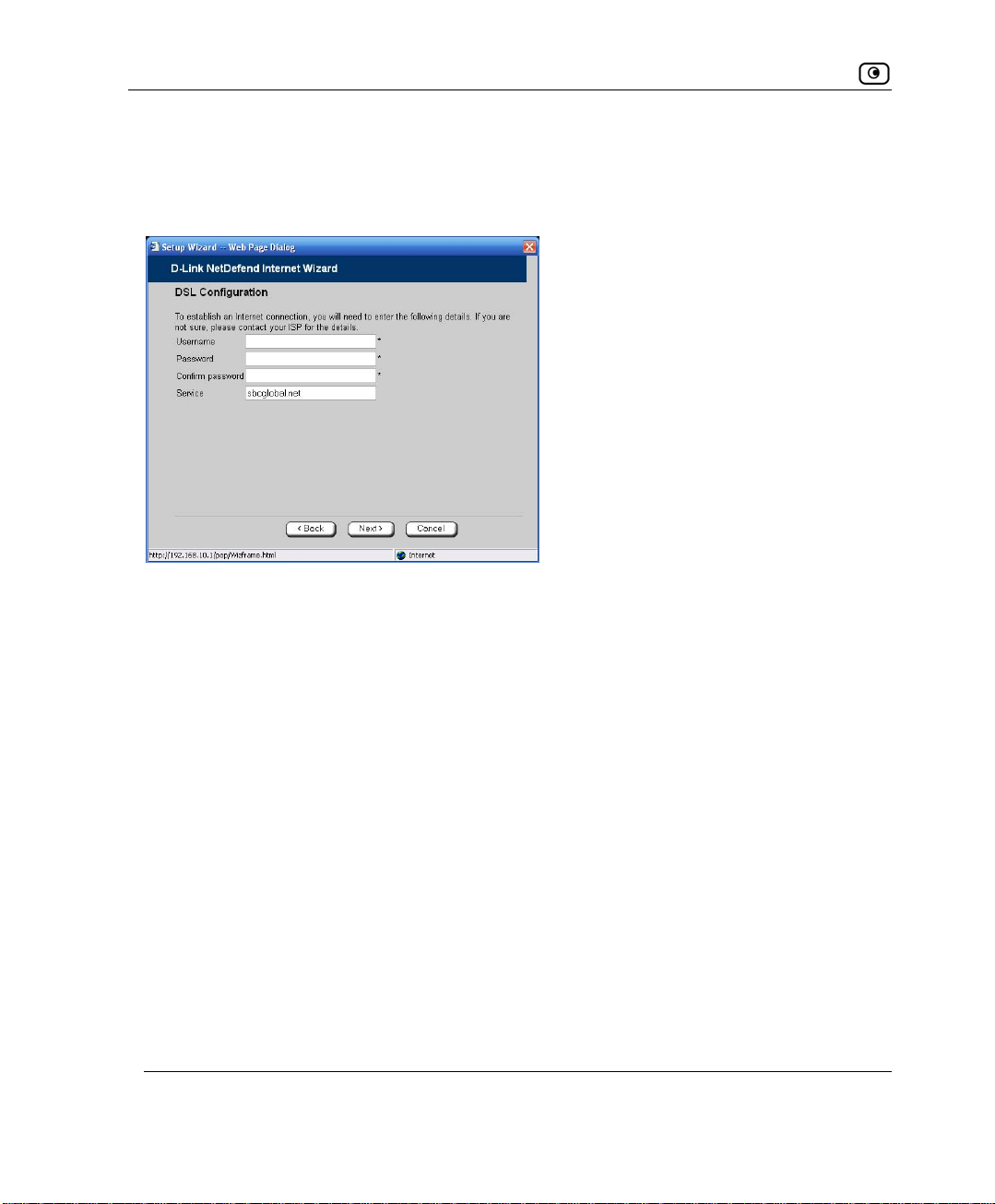

Using a PPTP or PPPoE Dialer Connection..................................................................................59

Using PPPoE.................................................................................................................................60

Using PPTP...................................................................................................................................61

Using Internet Setup..........................................................................................................................63

Using a LAN Connection..............................................................................................................65

Using a Cable Modem Connection...............................................................................................67

Using a PPPoE Connection...........................................................................................................69

Using a PPTP Connection.............................................................................................................71

Using a Telstra (BPA) Connection ...............................................................................................73

ii D-Link NetDefend firewall User Guide

Contents

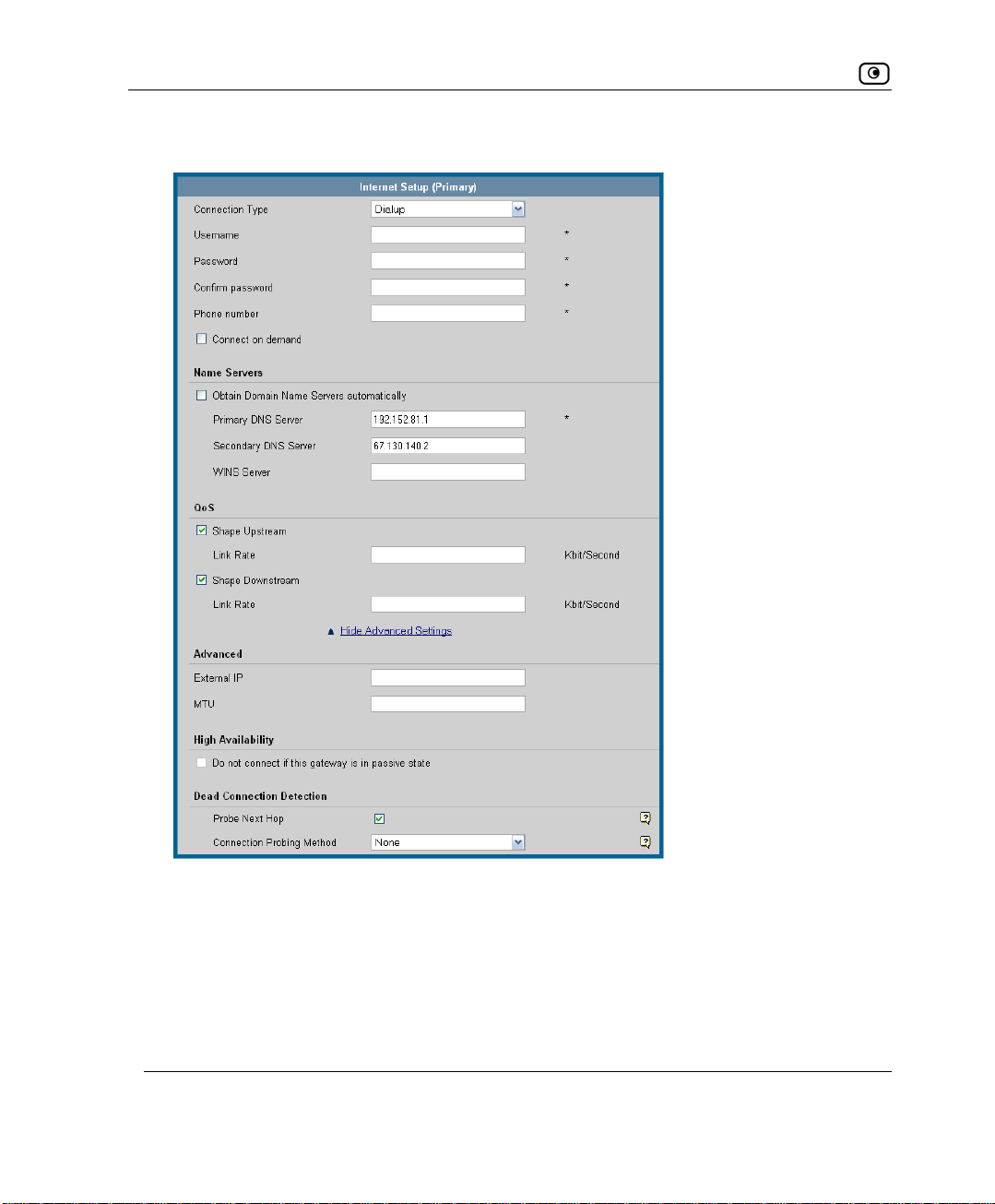

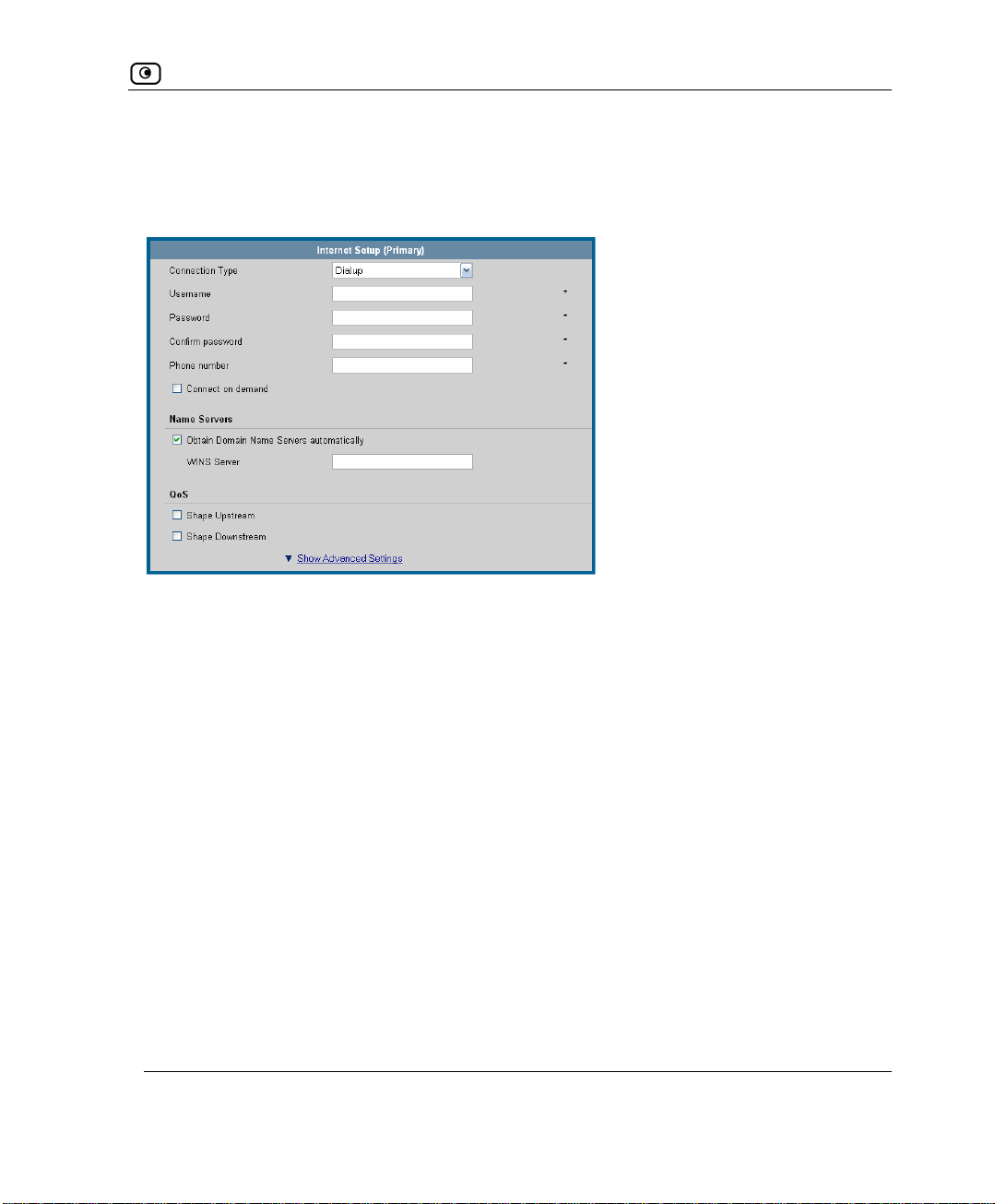

Using a Dialup Connection...........................................................................................................75

Using No Connection....................................................................................................................77

Setting Up a Dialup Modem .............................................................................................................84

Viewing Internet Connection Information........................................................................................87

Enabling/Disabling the Internet Connection.....................................................................................88

Using Quick Internet Connection/Disconnection..............................................................................90

Configuring a Backup Internet Connection.......................................................................................90

Setting Up a LAN or Broadband Backup Connection..................................................................91

Setting Up a Dialup Backup Connection ......................................................................................92

Managing Your Network....................................................................................................................93

Configuring Network Settings ..........................................................................................................93

Configuring a DHCP Server.........................................................................................................94

Changing IP Addresses...............................................................................................................105

Enabling/Disabling Hide NAT....................................................................................................107

Configuring a DMZ Network......................................................................................................108

Configuring the OfficeMode Network........................................................................................110

Configuring VLANs ...................................................................................................................111

Configuring High Availability........................................................................................................119

Configuring High Availability on a Gateway.............................................................................122

Sample Implementation on Two Gateways.................................................................................126

Adding and Editing Network Objects.........................................................................................130

Viewing and Deleting Network Objects.....................................................................................138

Using Static Routes.........................................................................................................................139

Adding and Editing Static Routes...............................................................................................139

Viewing and Deleting Static Routes...........................................................................................144

Managing Ports...............................................................................................................................145

Viewing Port Statuses.................................................................................................................146

Contents iii

Contents

Modifying Port Assignments......................................................................................................147

Modifying Link Configurations..................................................................................................149

Resetting Ports to Defaults..........................................................................................................150

Using Traffic Shaper.........................................................................................................................151

Overview.........................................................................................................................................151

Setting Up Traffic Shaper...............................................................................................................153

Predefined QoS Classes..................................................................................................................154

Adding and Editing Classes............................................................................................................155

Deleting Classes..............................................................................................................................159

Restoring Traffic Shaper Defaults...................................................................................................160

Configuring a Wireless Network .....................................................................................................161

Overview.........................................................................................................................................161

About the Wireless Hardware in Your NetDefend firewall............................................................162

Wireless Security Protocols ............................................................................................................163

Manually Configuring a WLAN.....................................................................................................165

Using the Wireless Configuration Wizard......................................................................................176

WPA-PSK...................................................................................................................................178

WEP............................................................................................................................................180

No Security .................................................................................................................................181

Preparing the Wireless Stations.......................................................................................................182

Troubleshooting Wireless Connectivity..........................................................................................183

Viewing Reports................................................................................................................................187

Viewing the Event Log...................................................................................................................187

Using the Traffic Monitor...............................................................................................................191

Viewing Traffic Reports .............................................................................................................191

Configuring Traffic Monitor Settings.........................................................................................193

Exporting General Traffic Reports..............................................................................................194

iv D-Link NetDefend firewall User Guide

Contents

Viewing Computers ........................................................................................................................194

Viewing Connections......................................................................................................................197

Viewing Wireless Statistics.............................................................................................................198

Setting Your Security Policy............................................................................................................203

Default Security Policy...................................................................................................................203

Setting the Firewall Security Level.................................................................................................204

Configuring Servers........................................................................................................................207

Using Rules.....................................................................................................................................209

Adding and Editing Rules...........................................................................................................213

Enabling/Disabling Rules ...........................................................................................................218

Changing Rules' Priority.............................................................................................................219

Deleting Rules.............................................................................................................................219

Using SmartDefense .......................................................................................................................220

Configuring SmartDefense..........................................................................................................221

SmartDefense Categories............................................................................................................224

Using Secure HotSpot.....................................................................................................................256

Setting Up Secure HotSpot.........................................................................................................257

Enabling/Disabling Secure HotSpot............................................................................................258

Customizing Secure HotSpot......................................................................................................259

Defining an Exposed Host ..............................................................................................................261

Using VStream Antivirus .................................................................................................................263

Overview.........................................................................................................................................263

Enabling/Disabling VStream Antivirus...........................................................................................265

Viewing VStream Signature Database Information........................................................................266

Configuring VStream Antivirus......................................................................................................267

Configuring the VStream Antivirus Policy.................................................................................267

Configuring VStream Advanced Settings...................................................................................275

Contents v

Contents

Updating VStream Antivirus...........................................................................................................279

Using Subscription Services.............................................................................................................281

Connecting to a Service Center.......................................................................................................281

Viewing Services Information ........................................................................................................287

Refreshing Your Service Center Connection..................................................................................288

Configuring Your Account .............................................................................................................288

Disconnecting from Your Service Center.......................................................................................289

Web Filtering ..................................................................................................................................290

Enabling/Disabling Web Filtering ..............................................................................................290

Selecting Categories for Blocking ..............................................................................................291

Temporarily Disabling Web Filtering.........................................................................................292

Automatic and Manual Updates......................................................................................................294

Checking for Software Updates when Remotely Managed........................................................294

Checking for Software Updates when Locally Managed............................................................295

Working With VPNs.........................................................................................................................297

Overview.........................................................................................................................................297

Site-to-Site VPNs........................................................................................................................298

Remote Access VPNs.................................................................................................................301

Internal VPN Server....................................................................................................................302

Setting Up Your NetDefend firewall as a VPN Server...................................................................303

Configuring the Remote Access VPN Server.............................................................................305

Configuring the Internal VPN Server..........................................................................................306

Installing SecuRemote ................................................................................................................307

Adding and Editing VPN Sites .......................................................................................................308

Configuring a Remote Access VPN Site.....................................................................................311

Configuring a Site-to-Site VPN Gateway...................................................................................324

Deleting a VPN Site........................................................................................................................340

vi D-Link NetDefend firewall User Guide

Contents

Enabling/Disabling a VPN Site.......................................................................................................340

Logging on to a Remote Access VPN Site......................................................................................341

Logging on through the NetDefend Portal..................................................................................342

Logging on through the my.vpn page.........................................................................................343

Logging off a Remote Access VPN Site.........................................................................................345

Installing a Certificate.....................................................................................................................345

Generating a Self-Signed Certificate...........................................................................................346

Importing a Certificate................................................................................................................350

Uninstalling a Certificate ................................................................................................................352

Viewing VPN Tunnels....................................................................................................................353

Viewing IKE Traces for VPN Connections....................................................................................356

Managing Users.................................................................................................................................359

Changing Your Password................................................................................................................359

Adding and Editing Users...............................................................................................................361

Adding Quick Guest HotSpot Users...............................................................................................365

Viewing and Deleting Users...........................................................................................................367

Setting Up Remote VPN Access for Users.....................................................................................367

Using RADIUS Authentication.......................................................................................................368

Configuring the RADIUS Vendor-Specific Attribute.....................................................................372

Maintenance......................................................................................................................................375

Viewing Firmware Status................................................................................................................375

Updating the Firmware ...................................................................................................................377

Upgrading Your Software Product..................................................................................................379

Registering Your NetDefend firewall.............................................................................................383

Configuring Syslog Logging...........................................................................................................384

Controlling the Appliance via the Command Line..........................................................................386

Using the NetDefend Portal..................................................................................................... ...386

Contents vii

Contents

Using the Serial Console.............................................................................................................388

Configuring HTTPS........................................................................................................................390

Configuring SSH.............................................................................................................................392

Configuring SNMP.........................................................................................................................394

Setting the Time on the Appliance..................................................................................................397

Using Diagnostic Tools...................................................................................................................401

Using IP Tools ............................................................................................................................402

Using Packet Sniffer...................................................................................................................404

Filter String Syntax.....................................................................................................................407

Backing Up the NetDefend firewall Configuration.........................................................................415

Exporting the NetDefend firewall Configuration........................................................................415

Importing the NetDefend firewall Configuration........................................................................416

Resetting the NetDefend firewall to Defaults.................................................................................418

Running Diagnostics.......................................................................................................................421

Rebooting the NetDefend firewall..................................................................................................422

Using Network Printers....................................................................................................................423

Overview.........................................................................................................................................423

Setting Up Network Printers...........................................................................................................424

Configuring Computers to Use Network Printers...........................................................................425

Windows 2000/XP......................................................................................................................425

MAC OS-X.................................................................................................................................431

Viewing Network Printers...............................................................................................................435

Changing Network Printer Ports.....................................................................................................435

Resetting Network Printers.............................................................................................................436

Troubleshooting................................................................................................................................437

Connectivity....................................................................................................................................438

Service Center and Upgrades..........................................................................................................442

viii D-Link NetDefend firewall User Guide

Contents

Other Problems ...............................................................................................................................443

Specifications.....................................................................................................................................445

Technical Specifications .................................................................................................................445

CE Declaration of Conformity........................................................................................................449

Federal Communications Commission Radio Frequency Interference Statement..........................451

Glossary of Terms.............................................................................................................................453

Index...................................................................................................................................................461

Contents ix

About Your D-Link NetDefend firewall

About This Guide

To make finding information in this manual easier, some types of information are marked with special symbols or formatting.

Boldface type is used for command and button names.

Note: Notes are denoted by indented text and preceded by the Note icon.

Warning: Warnings are denoted by indented text and preceded by the Warning icon.

Each task is marked with an ic

on indicating the NetDefend product required to

perform the task, as follows:

If this icon appears... You can perform the task using these products...

DFL-CP310 or DFL-CPG310, with or without the Power Pack

DFL-CPG310

DFL-CP310 or DFL-CPG310, with the Power Pack

only, with or without the Power Pack

only

Chapter 1: About This Guide xi

About Your D-Link NetDefend firewall

Chapter 1

Introduction

This chapter introduces the D-Link NetDefend firewall and this guide.

This chapter includes the following topics:

About Your D-Link NetDefend firewall ......................................................1

NetDefend Secured by Check Point Product Fami l y....................................2

NetDefend Features and Compatibility ........................................................2

Getting to Know Your NetDefend firewall..................................................8

Getting to Know Your NetDefend firewall................................................11

Contacting Technical Support....................................................................14

About Your D-Link NetDefend firewall

The D-Link NetDefend firewall is a unified threat management (UTM) appliance that enables secure high-speed Internet access from the office. Incorporating software by SofaWare Technologies, an affiliate of Check Point Software Technologies, the worldwide leader in securing the Internet, the NetDefend Secured by Check Point Product Family includes both wired and wireless models. The D-Link firewall, based on the world-leading Check Point Embedded NGX Stateful Inspection technology, inspects and filters all incoming and outgoing traffic, blocking all unauthorized traffic.

The NetDefend firewall also allows sharing your Internet connection among several PCs or other network devices, enabling advanced office networking and saving the cost of purchasing static IP addresses.

With the NetDefend firewall, you can subscribe to additional security services available from select service providers, including firewall security and software updates, Antivirus, Web Filtering, reporting, and VPN management. By supporting integrated VPN capabilities, the NetDefend firewall allows teleworkers and road warriors to securely connect to the office network, and enables secure interconnection of branch offices.

Chapter 1: Introduction 1

NetDefend Secured by Check Point Product Family

The NetDefend series includes the following hardware models:

• DFL-CP310 Security VPN Firewall

• DFL-CPG310 Wireless Security VPN Firewall

You can upgrade your NetDefend firewall to include additional features without replacing the hardware by installing the DFL-CP310 Power Pack, and you can increase the number of licensed users by installing node upgrades. Contact your reseller for more details.

NetDefend Features and Compatibility

Connectivity

The NetDefend series includes the following features:

• LAN ports: 4-ports 10/100 Mbps Fast Ethernet switch

• WAN port: 10/100 Mbps Fast Ethernet

• DMZ/WAN2 Port: 10/100 Mbps Fast Ethernet

• Serial (RS232) port for console access and dialup modem connection

• Supported Internet connection methods: Static IP, DHCP Client, Cable

Modem, PPTP Client, PPPoE Client, Telstra BPA login, Dialup

• Concurrent firewall connections: 8,000

• DHCP server, client, and relay

• MAC cloning

2 D-Link NetDefend firewall User Guide

NetDefend Features and Compatibility

• Static NAT

• Static routes and source routes

• Ethernet cable type recognition

• Backup Internet connection

• Dead Internet Connection Detection (DCD)

• Traffic Monitoring

• Traffic Shaping

• VLAN Support (requires Power Pack)

• Dynamic Routing (requires Power Pack)

The NetDefend DFL-CPG310 firewall includes the following additional features:

• Wireless LAN interface with dual diversity antennas supporting up to 108 Mbps (Super G) and Extended Range (XR)

• Integrated USB print server

• Wireless QoS (WMM)

Firewall

The NetDefend series includes the following features:

• Check Point Firewall-1 Embedded NGX firewall with Application Intelligence

• Intrusion Detection and Prevention using Check Point SmartDefense

• Network Address Translation (NAT)

• Three preset security policies

• Anti-spoofing

• Voice over IP (H.323) support

• Instant messenger blocking/monitoring

Chapter 1: Introduction 3

NetDefend Features and Compatibility

• P2P file sharing blocking/monitoring

VPN

The NetDefend series includes the following features:

• Remote Access VPN Server with OfficeMode and RADIUS support

• Remote Access VPN Client

• Site to Site VPN Gateway

• IPSEC VPN pass-through

• Algorithms: AES/3DES/DES, SHA1/MD5

• Hardware Based Secure RNG (Random Number Generator)

• IPSec NAT traversal (NAT-T)

• Route-based VPN

• Backup VPN gateways

Management

The NetDefend series includes the following features:

• Management via HTTP, HTTPS, SSH, SNMP, Serial CLI

• Central Management: SMP

• NTP automatic time setting

• TFTP Rapid Deployment

• Local diagnostics tools: Ping, WHOIS, Packet Sniffer, VPN Tunnel

Monitor, Connection Table Monitor, Wireless Monitor, Active Computers Display, Local Logs

4 D-Link NetDefend firewall User Guide

NetDefend Features and Compatibility

Optional Security Services

The following subscription security services are available to NetDefend owners by connecting to a Service Center:

• Firewall Security and Software Updates

• Web Filtering

• Email Antivirus and Antispam Protection

• VStream Embedded Antivirus Updates

• VPN Management

• Security Reporting

• Vulnerability Scanning Service

Power Pack Features

The table below describes the differences between the standard DFL-CP310 and DFL-CPG310 with the Power Pack installed.

Feature DFL-CP310/CPG310

High Availability —

Traffic Shaper Basic Advanced

DiffServ Tagging —

Dynamic Routing —

Firewall/VPN Throughput

(Mbps)

Secure Hotspot —

Chapter 1: Introduction 5

100/20 150/30

DFL-CP310/CPG310 with

Power Pack

NetDefend Features and Compatibility

Feature DFL-CP310/CPG310

VLAN (Port/Tag-based) —

VPN Throughput 20 Mbps 30 Mbps

Site-to-Site VPN 2 tunnels 15 tunnels

Site-to-Site VPN

(Managed) *

Included VPN-1

SecuRemote client

Licenses

10 tunnels 100 tunnels

5 users 25 users

DFL-CP310/CPG310 with

Power Pack

* When managed by SofaWare Security Management Portal (SMP).

Package Contents

The NetDefend series package includes the following:

• D-Link NetDefend firewall VPN Firewall

• Power adapter

• CAT5 Straight-through Ethernet cable

• Getting Started Guide

• This User Guide

6 D-Link NetDefend firewall User Guide

NetDefend Features and Compatibility

The DFL-CPG310 also includes:

• Two antennas

• Wall mounting kit, including two plastic conical anchors and two cross-

head screws

• USB extension cable

Network Requirements

• A broadband Internet connection via cable or DSL modem with Ethernet interface (RJ-45)

• 10BaseT or 100BaseT Network Interface Card installed on each computer

• TCP/IP network protocol installed on each computer

• Internet Explorer 5.0 or higher, or Netscape Navigator 4.7 and higher

• CAT 5 STP (Category 5 Shielded Twisted Pair) Straight Through Ethernet

cable for each attached device

Note: The NetDefend firewall automatically detects cable types, so you can use either a straight-through or crossed cable, when cascading an additional hub or switch to the NetDefend firewall.

Note: For optimal results, it is highly recommended to use either Microsoft Internet Explorer 5.5 or higher, or Mozilla Firefox 1.0 or higher.

• When using the DFL-CPG310, an 802.11b, 802.11g or 802.11 Super G wireless card installed on each wireless station

Chapter 1: Introduction 7

Getting to Know Your NetDefend firewall

Rear Panel

All physical connections (network and power) to the NetDefend firewall are made via the rear panel of your NetDefend firewall.

Figure 1: NetDefend firewall Rear Panel Items

Figure 2: NetDefend firewall Rear Panel Items

The following table lists the NetDefend firewall 's rear panel elements.

Table 1: NetDefend firewall Rear Panel Elements

Label Description

PWR A power jack used for supplying power to the unit. Connect the supplied power

adapter to this jack.

8 D-Link NetDefend firewall User Guide

Getting to Know Your NetDefend firewall

Label Description

RESET A button used for rebooting the NetDefend firewall or resetting the NetDefend

firewall to its factory defaults. You need to use a pointed object to press this button.

Short press. Reboots the NetDefend firewall

•

Long press (7 seconds). Resets the NetDefend firewall to its factory defaults, and resets your firmware to the version that shipped with the NetDefend firewall. This results in the loss of all security services and passwords and reverting to the factory default firmware. You will have to re-configure your NetDefend firewall.

Do not reset the unit without consulting your system administrator.

RS-232 / Serial

A serial port used for connecting computers in order to access the NetDefend CLI (Command Line Interface), or for connecting an external dialup modem

WAN Wide Area Network: An Ethernet port (RJ-45) used for connecting your cable or

xDSL modem, or for connecting a hub when setting up more than one Internet connection

DMZ/ WAN2

A dedicated Ethernet port (RJ-45) used to connect a DMZ (Demilitarized Zone) computer or network. Alternatively, can serve as a secondary WAN port, or as a VLAN trunk.

LAN 1-4 Local Area Network switch: Four Ethernet ports (RJ-45) used for connecting

computers or other network devices

Chapter 1: Introduction 9

Getting to Know Your NetDefend firewall

Front Panel

The NetDefend firewall includes several status LEDs that enable you to monitor the appliance’s operation.

Figure 3: NetDefend firewall Front Panel

For an explanation of the NetDefend firewall’s status LEDs, see the table below.

Table 2: NetDefend firewall Status LEDs

LED State Explanation

PWR/SEC Off Power off

LAN 1-4/ WAN/ DMZ/WAN2

10 D-Link NetDefend firewall User Guide

Flashing quickly (Green) System boot-up

Flashing slowly (Green) Establishing Internet connection

On (Green) Normal operation

Flashing (Red) Hacker attack blocked

On (Red) Error

LINK/ACT Off, 100 Off

LINK/ACT On, 100 Off

Link is down

10 Mbps link established for the corresponding port

Getting to Know Your NetDefend firewall

LED State Explanation

VPN Flashing (Green) VPN port in use

Serial Flashing (Green) Serial port in use

LINK/ACT On, 100 On

LNK/ACT Flashing

100 Mbps link established for the corresponding port

Data is being transmitted/received

Getting to Know Your NetDefend firewall

ear Panel

All physical connections (network and power) via the rear panel of your NetDefend firewall.

to the NetDefend firewall are made

Figure 4: NetDefend firewall Rear Panel Items

The following table lists the NetDefend firewall appliance's rear panel elements.

Table 3: NetDefend firewall Rear Panel Elements

Label Description

PWR r supplying power to the unit. Connect the supplied power

Chapter 1: Introduction 11

A power jack used fo adapter to this jack.

Getting to Know Your NetDefend firewall

Label Description

RESET A button used for rebooting the NetDefend firewall or resetting the NetDefend

firewall to its factory defaults. You need to use a pointed object to press this button.

Short press. Reboots the NetDefend firewall

•

Long press (7 seconds). Resets the NetDefend firewall to its factory default, and resets your firmware to the version that shipped with the NetDefend firewall. This results in the loss of all security services and passwords and reverting to the factory default firmware. You will have to re-configure your NetDefend firewall.

Do not reset the unit without consulting your system administrator.

USB Two USB 2.0 ports used for connecting USB-based printers

RS232 A serial (RS-232) port used for connecting computers in order to access the

NetDefend CLI (Command Line Interface), or for connecting an external dialup modem

WAN Wide Area Network: An Ethernet port (RJ-45) used for connecting your cable or

xDSL modem, or for connecting a hub when setting up more than one Internet connection

DMZ/ WAN2

A dedicated Ethernet port (RJ-45) used to connect a DMZ (Demilitarized Zone) computer or network. Alternatively, can serve as a secondary WAN port , or as a VLAN trunk.

LAN 1-4 Local Area Network switch: Four Ethernet ports (RJ-45) used for connecting

computers or other network devices

ANT 1/

Antenna connectors, used to connect the supplied wireless antennas

ANT 2

12 D-Link NetDefend firewall User Guide

Getting to Know Your NetDefend firewall

Front Panel

The NetDefend firewall appliance includes several status LEDs that enable you to monitor the appliance’s operation.

Figure 5: NetDefend firewall Front Panel

For an explanation of the NetDefend firewall appliance’s status LEDs, see the table below.

Table 4: NetDefend firewall Status LEDs

LED State Explanation

PWR/SEC Off Power off

LAN 1-4/ WAN/ DMZ/WAN2

Chapter 1: Introduction 13

Flashing quickly (Green) System boot-up

Flashing slowly (Green) Establishing Internet connection

On (Green) Normal operation

Flashing (Red) Hacker attack blocked

On (Red) Error

Flashing (Orange) Software update in progress

LINK/ACT Off, 100 Off

LINK/ACT On, 100 Off

Link is down

10 Mbps link established for the corresponding port

Contacting Technical Support

LED State Explanation

VPN Flashing (Green) VPN port in use

Serial Flashing (Green) Serial port in use

USB Flashing (Green) USB port in use

WLAN Flashing (Green) WLAN in use

LINK/ACT On, 100 On

LNK/ACT Flashing

100 Mbps link established for the corresponding port

Data is being transmitted/received

Contacting Technical Support

If there is a problem with your NetDefend firewall, see http://support.dlink.com/. You can also download the latest version of this guide from the site.

14 D-Link NetDefend firewall User Guide

Before You Install the NetDefend firewall

Chapter 2

Installing and Setting up the NetDefend

firewall

This chapter describes how to properly set up and install your NetDefend firewall in your networking environment.

This chapter includes the following topics:

Before You Install the NetDefend firewall.................................................15

Wall Mounting the Appliance ....................................................................30

Securing the Appliance against Theft.........................................................32

Network Installation...................................................................................35

Setting Up the NetDefend firewall.............................................................36

Before You Install the NetDefend firewall

Prior to connecting and setting up your NetDefend firewall for operation, you must do the following:

• Check if TCP/IP Protocol is installed on your computer.

• Check your computer’s TCP/IP settings to make sure it obtains its IP

address automatically.

Refer to the relevant section in this guide in accordance with the operating system that runs on your computer. The sections below will guide you through the TCP/IP setup and installation process.

Chapter 2: Installing and Setting up the NetDefend firewall 15

Before You Install the NetDefend firewall

Windows 2000/XP

Note: While Windows XP has an "Internet Connection Firewall" option, it is recommended to disable it if you are using a NetDefend firewall, since the

Checking the TCP/IP Installation

1. Click Start > Settings > Control Panel. The

NetDefend firewall offers better protection.

Control Panel window appears.

2. Double-click the

16 D-Link NetDefend firewall User Guide

Network and Dial-up Connections icon.

Before You Install the NetDefend firewall

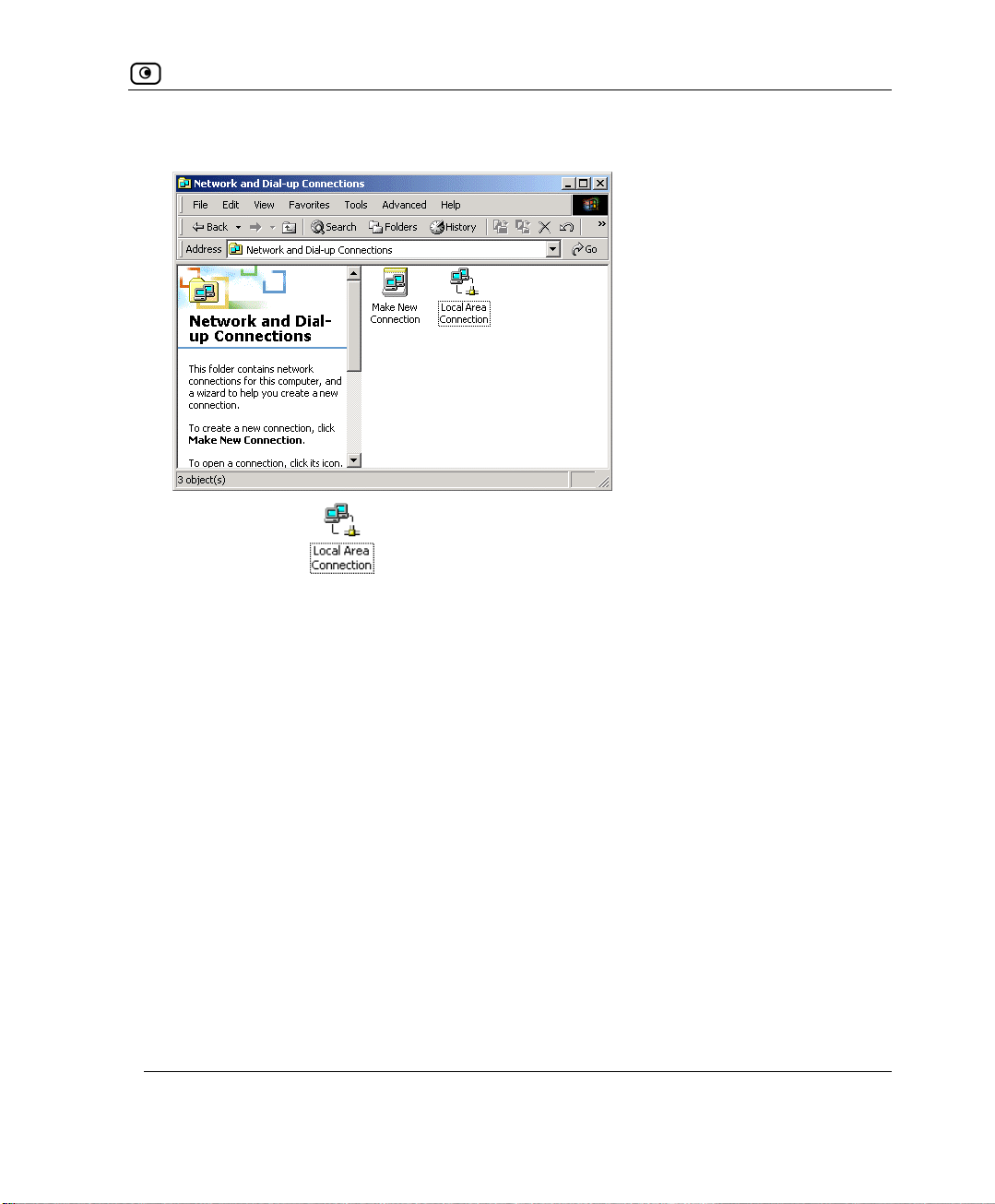

The Network and Dial-up Connections window appears.

3. Right-click the

icon and select Properties from the pop-up menu that

opens.

Chapter 2: Installing and Setting up the NetDefend firewall 17

Before You Install the NetDefend firewall

The Local Area Connection Properties window appears.

In the above window, check if

TCP/IP appears i

n the components list and if it is

properly configured with the Ethernet card, installed on your computer. If TCP/IP does not appear in the Components list, y

ou must install it as described in

the next section.

18 D-Link NetDefend firewall User Guide

Before You Install the NetDefend firewall

Installing TCP/IP Protocol

1. In the Local Area Connection Properties window click Install…. The

Select Network Component Type window appears.

2. Choose The

Protocol and click Add.

Select Network Protocol window appears.

3. Choose

Internet Protocol (TCP/IP) and click OK.

TCP/IP protocol is installed on your computer.

Chapter 2: Installing and Setting up the NetDefend firewall 19

Before You Install the NetDefend firewall

TCP/IP Settings

1. In the Local Area Connection Properties window double-click the Internet Protocol (TCP/IP)

component, or sele

ct it and click Properties.

The Internet Protocol (TCP/IP) Properties

2. Click the

Obtain an IP address automatically radio button.

Note: Normally, it is not recommended to assign a static IP address to your PC but

rather to obtain an IP address automatically. If for some reason you need to assign a static IP address, select

192.168.10.129-254, enter 255.255.255.0 in the Subnet Mask field, and click OK to save the new settings.

Specify an IP address, type in an IP address in the range of

window opens.

(Note that 192.168.10 is the default value, and it may vary if you changed it in the My Network page.)

3. Click the Obtain DNS server address automatically radio button.

4. Click

OK to save the new settings.

Your computer is now ready to access your NetDefend firewall.

20 D-Link NetDefend firewall User Guide

Before You Install the NetDefend firewall

Win

dows 98/Millennium

Checking the TCP/IP Installation

1. Click Start > Settings > Control Panel. The

Control Panel window appears.

2. Double-click the

Chapter 2: Installing and Setting up the NetDefend firewall 21

icon.

Before You Install the NetDefend firewall

The Network window appears.

3. In the and if it is already configured with th

Network window, check if TCP/IP

e Ethernet card, installed on your

appears in the network components list

computer.

Installing TCP/IP Protocol

Note: If TCP/IP is already installed and configured on your co section and mo

ve directly to TCP/IP Settings.

mputer skip this

1. In the Network window, click Add.

22 D-Link NetDefend firewall User Guide

Before You Install the NetDefend firewall

The Select Network Component Type window appears.

2. Choose The

Protocol and click Add.

Select Network Protocol window appears.

3. In

the

Manufacturers list choose Microsoft, and in the Network Protocols list

choose TCP/IP.

4. Click

OK.

If Windows asks for original Windows installation files, provide the installation CD and relevant path when required (e.g. D:\win98)

5. Restart your computer if prompted.

Chapter 2: Installing and Setting up the NetDefend firewall 23

Before You Install the NetDefend firewall

TCP/IP Settings

Note: If you are connecting your NetDefend firewall to an

existing LAN, consult your network manager for the correct configurations.

1. In the Network window, double-click the TCP/IP service for the Ethernet card, which has been installed on your computer

(e.g. The

TCP/IP Properties window opens.

2. Click the

24 D-Link NetDefend firewall User Guide

Gateway tab, and remove any installed gateways.

Before You Install the NetDefend firewall

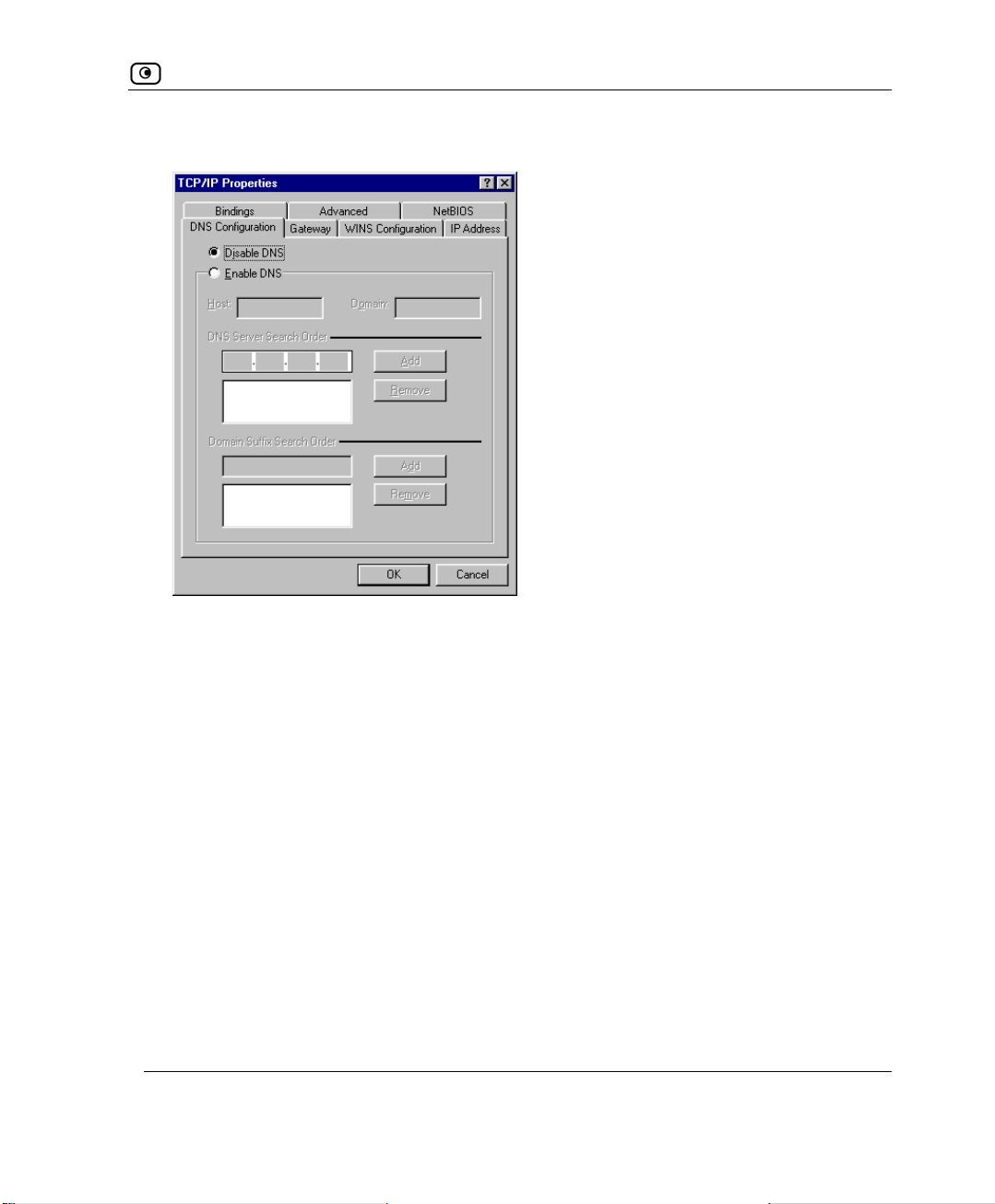

3. Click the DNS Configuration tab, and click the Disable DNS radio button.

Chapter 2: Installing and Setting up the NetDefend firewall 25

Before You Install the NetDefend firewall

4. Click the IP Address button.

Note: Normally, it is not recommended to assign a static IP address to your PC but rather to obtain an IP address automatically. If for some reason you need to assign a static IP address, select Specify an IP address, type in an IP address in the range of 192.168.10.129-254, enter 255.255.255.0 in the Subnet Mask field, and click OK to save the new settings.

tab, and click the Obtain an IP address automatically radio

(Note that 192.168.10 is the default value, and it may vary if you changed it in the My Network page.)

5. Click Yes when p Your computer restarts, and the new

rompted for “Do you want to restart your computer?”.

settings to take effect.

Your computer is now ready to access your NetDefend firewall.

ac OS

Use the following pro

26 D-Link NetDefend firewall User Guide

cedure for setting up the TCP/IP Protocol.

Before You Install the NetDefend firewall

1. Choose Apple Menus -> Control Panels -> TCP/IP. The

TCP/IP window appears.

2. Click the

3. Click the

Connect via drop-down list, and select Ethernet. Configure drop-down list, and select Using DHCP Server.

4. Close the window and save the setup.

Chapter 2: Installing and Setting up the NetDefend firewall 27

Before You Install the NetDefend firewall

Mac OS-X

Use the following procedure for setting up the TCP/IP Protocol.

1. Choose The

2. Click

Apple -> System Preferences.

System Preferences window appears.

Network.

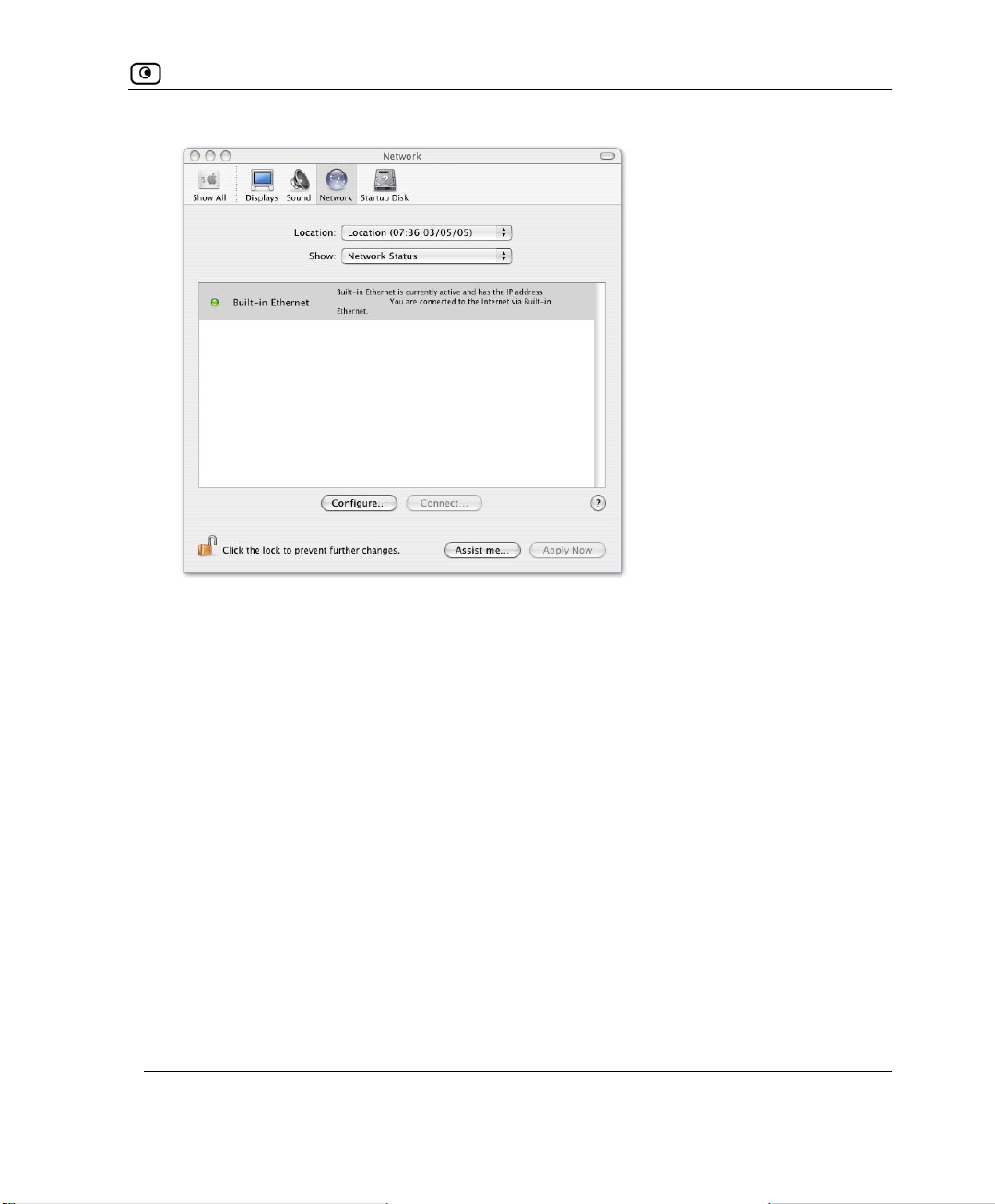

The Network window appears.

28 D-Link NetDefend firewall User Guide

Before You Install the NetDefend firewall

3. Click

Chapter 2: Installing and Setting up the NetDefend firewall 29

Configure.

Wall Mounting the Appliance

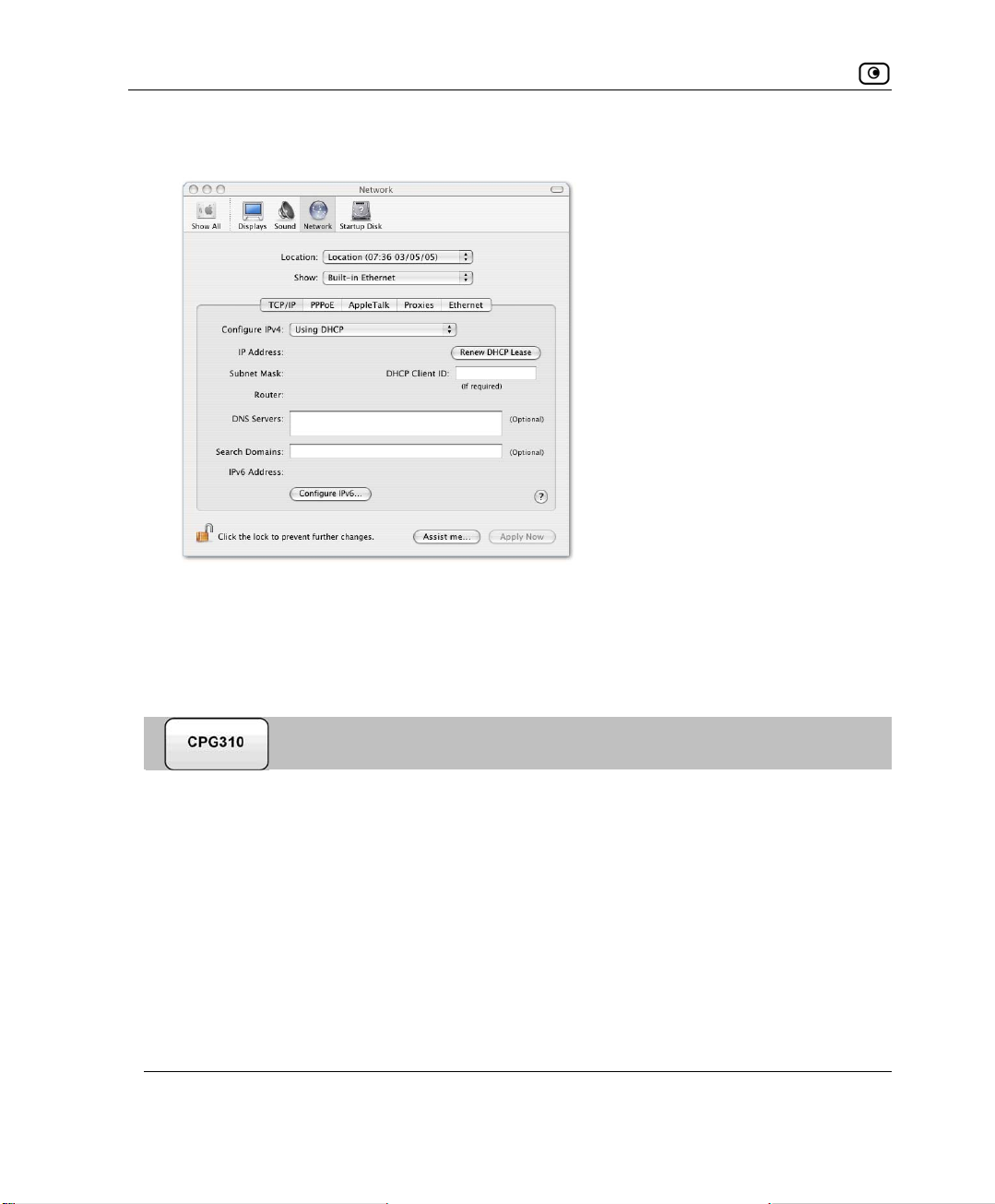

TCP/IP configuration fields appear.

4. Click the Click 5.

Wall M

Configure IPv4 drop-down list, and select Using DHCP.

Apply Now.

ounting the Appliance

If desired, you can mount your NetDefend firewall on the wall.

To mount the NetDefend firewall on the wall

1. Decide where you want to mount your NetDefend firewall.

2. Decide on the mounting orientation. You can mount the appliance on the wall facing up, down, left, or right.

30 D-Link NetDefend firewall User Guide

Wall Mounting the Appliance

Note: Mounting the appliance facing downwards is not recommended, as dust might accumulate in unused ports.

ark two drill holes on the wall, in accordance with the following sk3. M etch:

4. Drill two 3.5 mm diameter holes, approximately 25 mm deep.

5. Insert two plastic conical anchors into the holes.

Note: The conical anchors you received with your NetDefend firewall are suitabl e for concrete walls. If you want to mount the appliance on a plaster wall, you must use anchors that are suitable for plaster walls.

6. Insert the two screws you received with your NetDefend firewall into the plastic conical anchors, and turn them until they protrude approximately 5 mm from the wall.

Chapter 2: Installing and Setting up the NetDefend firewall 31

Securing the Appliance against Theft

7. Align the holes on the NetDefend firewall' wall, then push

the appliance in and down.

s underside with the screws on the

Your NetDefend firewall is wall mounted. You can now connect it to your computer. See

Securing the Applia

Network Installation on page 35.

nce against Theft

The NetDefend firewall f ht panel, which

eatures a security slot to the rear of the rig enables you to secure your appliance against theft, using an anti-theft security device.

Note: Anti-theft security device er hardware stores.

s are available at most comput

This procedure explains how to install a looped security cable on your appliance. A looped security cable typically includes the parts shown in the diagram below.

Figure 6: Looped Security Cable

32 D-Link NetDefend firewall User Guide

Securing the Appliance against Theft

While these parts may differ between devices, all looped security cables include a bolt with knobs, as shown in the diagram below:

Figure 7: Looped Security Cable Bolt

The bolt has two states, Open and Closed, and is used to connect the looped security cable to the appliance's security slot.

To install an anti-theft device on the NetDefend firewall

1. If your anti-theft device has a combination lock, set the desired code, as

described in the documentation

that came with your device.

2. escribed

Connect the anti-theft device's loop to any sturdy mounting point, as d in the documentation that came with your device.

. Slide the anti-theft device's bolt to the

Chapter 2: Installing and Setting up the NetDefend firewall 33

Open position.

Securing the Appliance against Theft

4. Insert the bolt into the NetDefend firewall's security slot, and then slide the bolt

to the Closed position until the bolt holes are aligned.

5. Thread the anti-theft device's pin through the bolt’s holes, and insert the pin into

the main body of the anti-theft device, as described in the documentation that came with your device.

34 D-Link NetDefend firewall User Guide

Network Installation

1. Verify that you have the correct cable type.

For information, see Network Requirements.

2. Connect the LAN cable:

• Connect one en

d of the Ethernet cable to one of the

LAN ports at the back

of the unit.

• Connect the other end to PCs, hubs, or other network device

. Connect the WAN cable:

• Connect one end of the Ethernet cable to the

WAN port at the

back of the

unit.

• Connect the other end of the cable to a Cable Modem, xDSL modem or office network.

PWR, at the back of the

4. Connect the power adapter to the power socket, labeled NetDefend firewall.

5. Plug the power adapter into the wall electrical outlet.

Warning: The NetDefend firewall power adapter is compatible with either 100, 120 or 230 VAC input power. Verify that the wall outlet vo voltage specified on your po in injuries or damage to equip

wer adapter. Failure to observe this

ment.

ltage is compatible with the

warning may result

Figure 8: Typical Connection Diagram

Chapter 2: Installing and Setting up the NetDefend firewall 35

Setting Up the NetDefend firewall

6. NetDefend firewall for a wireless connection:

In wireless models, prepare the

a. Connect the antennas that came with your NetDefend firewall to the

ANT1 and ANT2 antenna connectors in the appliance's rear panel.

b. Bend the antennas at the hinges, so that they point upwards.

7. In models with a print server, you can connect network printers as follows: a. Connect one end of a USB cable to a

USB port at the back of the unit.

If needed, you can use the provided USB extension cord.

b. Connect the other end to a printer or a USB 2.0 hub.

Warning: Verify that the USB devices' power requirement does not exceed the appliance's USB power supply capabilities. Failure to observe this warning may cause damage to the appliance and void the warranty.

For information on setting up network printers, see Setting up Network Printers on page 424.

S tting

e Up the NetDefend firewall

After you have installed the NetDefend firewall, you must set it up using the steps sh

own below.

When setting up your NetDefend firewall for the first time after installation, these steps follow each other automatically. After you have logged on and set up your password, the Setup Wizard automatically opens and displays the dialog

boxes for configuring your Internet connection. After you have configured your Internet connection, the Setup Wizard automatically displays the dialog boxes for regist d

ering your NetDefend firewall. If desired, you can exit the Setup Wizard an

perfo

rm each of these steps separately.

36 D-Link NetDefend firewall User Guide

Setting Up the NetDefend firewall

Logging on to the NetDefend Portal and setting up your password

Initial Login to the NetDefend Portal on page 39

Configuring an Internet connection

Using the Internet Wizard on page 54

Setting the Time on your NetDefend firewall

Setting the Time on the Appliance on page 397

Setting up a wireless network

(DFL-CPG310 only)

Configuring a Wireless Network on page 161

Installing the Product Key

Upgrading Your Software Product on page 379

Registering your NetDefend firewall

Registering Your NetDefend firewall on page 383

Setting up subscription services

Connecting to a Service Center on page 281

You can access the Setup Wizard at any time after initial setup, using the procedure below.

Chapter 2: Installing and Setting up the NetDefend firewall 37

Setting Up the NetDefend firewall

To access the Setup Wizard

1. Click Setup in the main menu, and click the Firmware t

The

Firmware page appears.

2. Click

The

NetDefend Setup Wizard opens with the Welcome page displayed.

end Setup Wizard. NetDef

ab.

38 D-Link NetDefend firewall User Guide

Initial Login to the NetDefend Portal

Chapter 3

Getting Started

This chapter contains all the information you need in order to get started using your NetDefend firewall.

This chapter includes the following topics:

Initial Login to the NetDefend Portal.........................................................39

Logging on to the NetDefend Portal...........................................................42

Accessing the NetDefend Portal Remotely Using HTTPS.........................44

Using the NetDefend Portal........................................................................46

Logging off.................................................................................................51

Initial Login to the NetDefend Portal

The first time you log on to the NetDefend Portal, you must set up your password.

To log on to the NetDefend Portal for the first time

1. Browse to http://my.firewall.

Chapter 3: Getting Started 39

Initial Login to the NetDefend Portal

The initial login page appears.

Type a password both in the

Password and the Confirm Password fields.

Note: The password must be five to 25 characters (letters or numbers).

Note: You can change your password at any time. For further information, see

Changing Your Password.

3. Click OK.

40 D-Link NetDefend firewall User Guide

Initial Login to the NetDefend Portal

Th Welcome page displayed. e NetDefend Setup Wizard opens, with the

4. Configure y

• Internet e Inte ou

Th rnet Wizard is the first part of the Setup Wizard, and it takes y through using the , see Using the Internet Wizard on page 54.

After you have com guide you th

our Internet connection using one of the following ways:

Wizard

basic Internet connection setup, step by step. For information on

Internet Wizard

pleted the Internet Wizard, the Setup Wizard continues to

rough appliance setup. For more information, see Setting Up the

NetDefend firewall.

• Internet Setup

Internet Setup offers advanced setup options, such as configuring two Internet connections. To use Internet Setup, click

Internet Setup

on page 63.

Cancel and refer to Using

Chapter 3: Getting Started 41

Logging on to the NetDefend Portal

Note: By default, HTTP and HTTPS access to the NetDefend Portal is not allowed from the WLAN, unless you do one of the following:

• Configure a specific Using Rules on page 209.

• Enable HTTPS access from the Internet. See Configuring HTTPS on pag

e 390.

To log on to the NetDefend Portal

firewall rule to allow access from the WLAN. See

1. Do one of the Browse to

• http://my.firewall.

following:

o log on the procedure

• T through HTTPS (locally or remotely), follow

Accessing the NetDefend Portal Remotely on page 44.

42 D-Link NetDefend firewall User Guide

Logging on to the NetDefend Portal

The login page appears.

2. Type your username and password.

3. Click

Chapter 3: Getting Started 43

OK.

Accessing the TNetDefendT Portal Remotely Using HTTPS

The Welcome page appears.

Accessin

g the

NetDefend Portal Remotely Using

HTTPS

You can access the NetDefend Portal remotely (from the Internet) through HTTPS. HTTPS is a protocol for accessing a secure Web server. It is used to transfer confidential user information. If desired, you can also use HTTPS to access the NetDefend Portal from your internal network.

Note: In order to access the NetDefend Portal remotely using HTTPS, you must first do both of the following:

• Configure your password, using HTTP. See

NetDefend Portal

• Configure HTTPS Remote Access. See

390.

44 D-Link NetDefend firewall User Guide

on page 39.

Initial Login to the

Configuring HTTPS on page

Accessing the TNetDefendT Portal Remotely Using HTTPS

Note: Your browser must support 128-bit cipher strength. To check your browser's cipher strength, open Internet Explorer and click

cess the NetDefend Portal from your internal network

To ac

Help > About Internet Explorer.

• Browse to

https://my.firewall. (Note that the URL starts with “https”, not “http”.) The NetD

To access the NetDe

• Browse to ht _IP_address>:981. (Note that h The follow n

efend Portal appears.

fend Po

rtal from the Internet

tps://<firewall

t e URL starts with “https”, not “http”.)

i g things happen in the order below:

If this is your first attempt to access the NetDefend Portal through HTTPS, the certificate in the NetDefend firewall is not yet known to the browser, so the Security Alert dialog box appears.

To avoid seeing this dialog box again, install the certificate of the destination NetDefend firewall. If you are using Internet Explorer 5, do the following:

a. Click

View Certificate.

The Certificate dialog box appears, with the General tab displayed.

b. Click Install Certificate.

The

Certificate Import Wizard opens.

c. Click Next. d. Click e. Click

Next. Finish.

f. Click Yes. g. Click OK.

Chapter 3: Getting Started 45

Using the NetDefend Portal

The Security Alert dialog box reappears.

h. Click

sing the NetDefend Portal

Yes.

The NetDefend Portal appears.

The NetDefend Portal is a Web-based management interface, which enables yo manage and

The NetDefend Portal consists of t

T ents

able 5: NetDefend Portal Elem

Elem

ent Description

Main menu Used for navigating between the various topics (such as Reports, Security,

Main frame Displays information and controls related to the selected topic. The main

Status bar Shows your Internet connection and managed services status.

configure the NetDefend firewall operation and options.

hree major elements.

and Setup).

frame may also contain tabs that allow you to view different pages related to the selected topic.

u to

46 D-Link NetDefend firewall User Guide

Using the NetDefend Portal

Figure 9: NetDefend Portal

Main Me nu

The main menu

able 6: Main Menu Submenus

This s

ubmenu…

Welcome Displays general welcome information.

eports Provides reporting capabilities in terms of event logging, traffic

Securit y computer in

y Provides controls and options for setting the security of an

Antivirus

Services

Chapter 3: Getting Started 47

includes the following submenus.

Does this…

monitoring

the network.

Allows you to configure VStream Antivirus settings.

Allows you to control your subscription to subscription services.

, active computers, and established connections.

Using the NetDefend Portal

This subm

enu…

Network and Internet

Setup Provides a set of tools for managing your NetDefend firewall. Allows you

sers Allows you to manage NetDefend users.

PN Allows you to manage, configure, and log on to VPN sites.

Help xt-sensitive help.

Lo lows you to log off of the NetDefend Portal.

gout Al

ain Frame

The m frame displays the relevant data and controls pertaining to the menu tab you s are

ain and

elect. These elements sometimes differ depending on what model you

Does this…

Allows you to manage and configure your network settings connections.

to upgrade your license and firmware and to configure HTTPS access to your NetDefend firewall.

Provides conte

using. The differences are described throughout this guide.

Status Bar

The status bar is located at the bottom of each page. It displays we

ll as the date and time.

48 D-Link NetDefend firewall User Guide

the fields below, as

Using the NetDefend Portal

Tabl

e 7: Status Bar Fields

This field… Displays this…

Internet Your Internet connection status.

The connection status may be one of the following:

Connected. The NetDefend firewall is connected to the Internet.

•

Connected – Probing OK. Connection probing is enabled and has detected that the Internet connectivity is OK.

•

Connected – Probing Failed. Connection probing is enabled and has detected problems with the Internet connectivity.

Not Connected. The Internet connection is down.

•

• Establishing Connection. The NetDefend firewall is connecting to the

Internet. Contacting Gateway. The NetDefend firewall is trying to contact the

•

Internet default gateway. Disabled. The Internet connection has been manu

•

Note: You can configure both a primary and a secondary Internet connection. When both connections are configured, the Status bar displays both statuses. For example “Internet [Primary]: Connected”. For information on configuring a secondary Internet connection, see

Configuring the Internet Connection on

page 53.

ally disabled.

Chapter 3: Getting Started 49

Using the NetDefend Portal

This field… Displays this…

Service Center

Displays your subscription services status.

Your Service Center may offer various subscription services. These include the firewall service and optional services such as Web Filtering and Email Antivirus.

Your subscription services status may be one of the following:

Not Subscribed. You are not subscribed to sec urity services.

•

Connection Failed. The NetDefend firewall failed to connect to the Service Center.

Connecting. The NetDefend firewall is connecting to the Service

•

Center.

onnected. You are connected to the Service Center, and security

• C

ervices are active.

50 D-Link NetDefend firewall User Guide

Logging off

Logging off terminates your administration session. Any subsequent attempt to connect to the NetDefend Portal will require re-entering of the administration pa

ssword.

To l

log off of the NetDefend Porta

• Do one of the following:

• If you are connected through HTTP, click

The

Logout page appears.

• If you are connected through HTTPS, the

menu. Close the browser window. in the main

Logout in the main menu.

Logout option does not appear

Chapter 3: Getting Started 51

Overview

Chapter 4

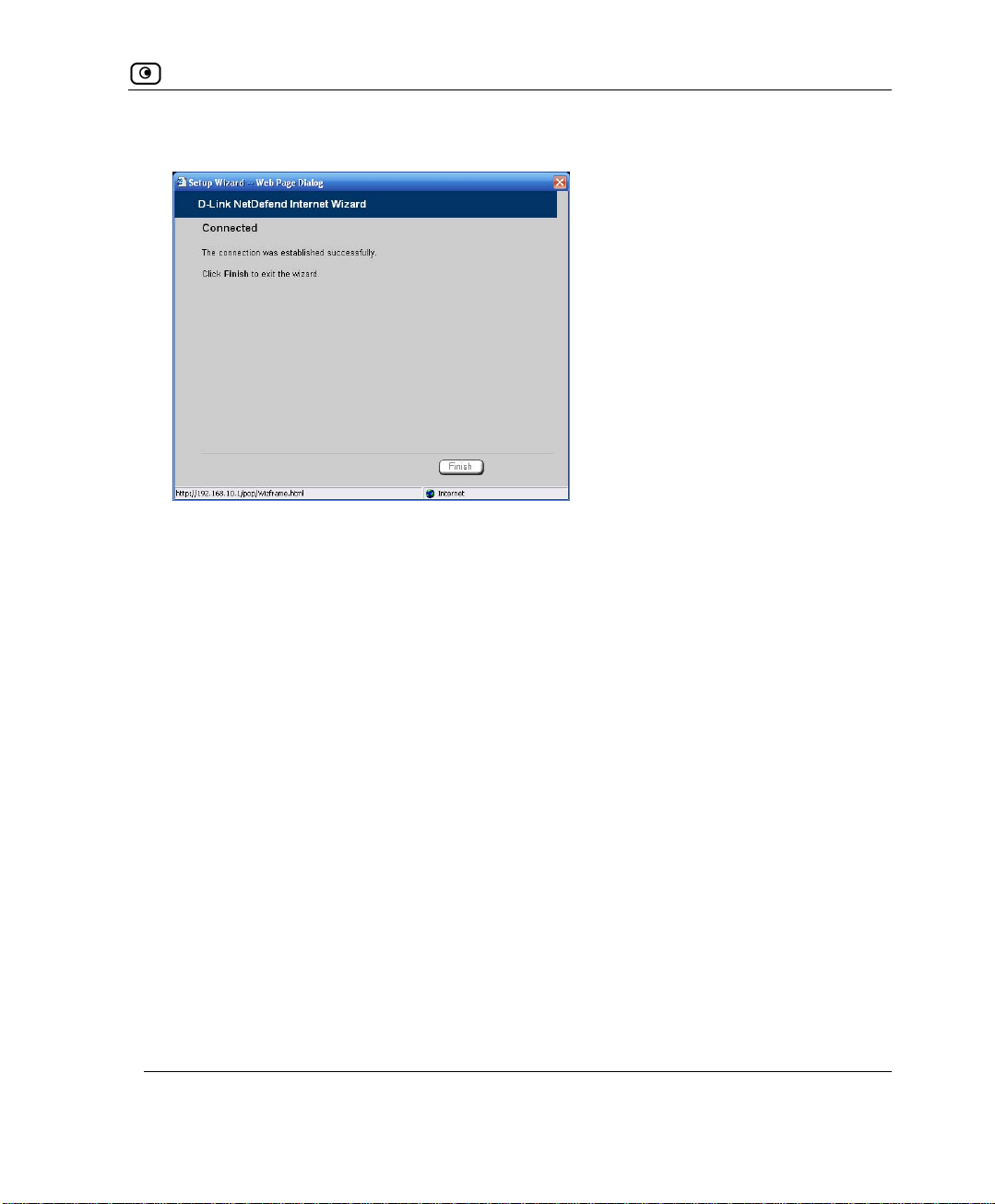

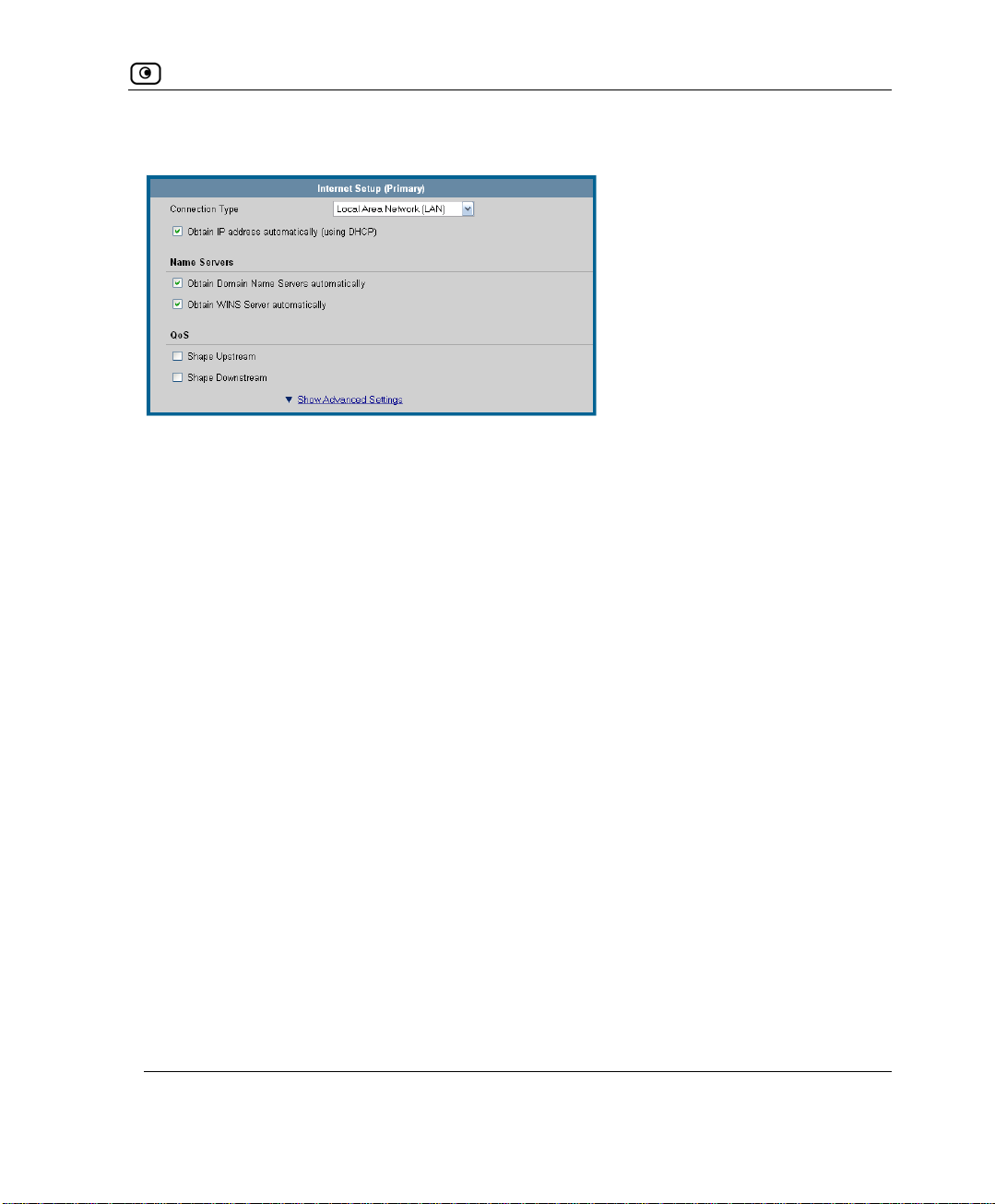

Configuring the Internet Connection

This chapter describes how to configure and work with an Internet connection.
