D-Link DES-1316 User Manual

D-Link DES-1316
Web-Smart 8-Port 10/100Mbps Ethernet Switch with 8
10/100Mbps 802.3af Power Over Ethernet Ports
Manual
First edition
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this pro duct may cause radio interference in which case the user may be required to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem Fall kann vom Benutzer verlangt werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase A. En un entorno doméstico, puede causar interferencias de radio, en cuyo case, puede requerirse al usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe A. Dans un environnement domestique, ce produit pourrait causer des interférences radio, auquel cas l`utilisateur devrait prendre les mesures adéquates.
Attenzione!
2
Il presente prodotto appartiene alla classe A. Se utilizzato in ambiente domestico il prodotto può causare interferenze radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati.
VCCI Warning
BSMI Warning
3

TABLE OF CONTENTS

About This Guide...........................................................................................6
Purpose........................................................................................................6
Terms/Usage...............................................................................................6
Introduction.....................................................................................................7
Fast Ethernet Technology .........................................................................7
Switching Technology..............................................................................7
VLAN (Virtual Local Area Network)....................................................8
Power over Ethernet (PoE).......................................................................9
Features........................................................................................................9
Unpacking and Installation.........................................................................11
Unpacking.................................................................................................11
Installation.................................................................................................11
Rack Mounting.........................................................................................12
Connecting Network Cable ....................................................................13
AC Power..................................................................................................13
Identifying External Components.............................................................14
Front Panel................................................................................................14
Rear Panel.................................................................................................15
Understanding LED Indicators..................................................................16
Power and CPU LEDs .............................................................................16
Ports 1~8 PoE port status LEDs............................................................16
Ports 9~16 Ethernet port status LEDs ..................................................17
4
Configuration ................................................................................................18
Installing the Web Management Utility...............................................18
Discovery List..........................................................................................20
Monitor List..............................................................................................20
Device Setting..........................................................................................22
Toolbar.......................................................................................................25
Configuring the Switch...........................................................................26
Login ..........................................................................................................26
Setup Menu...............................................................................................29
Configuring Setup Setting......................................................................30
Port Settings.........................................................................................30

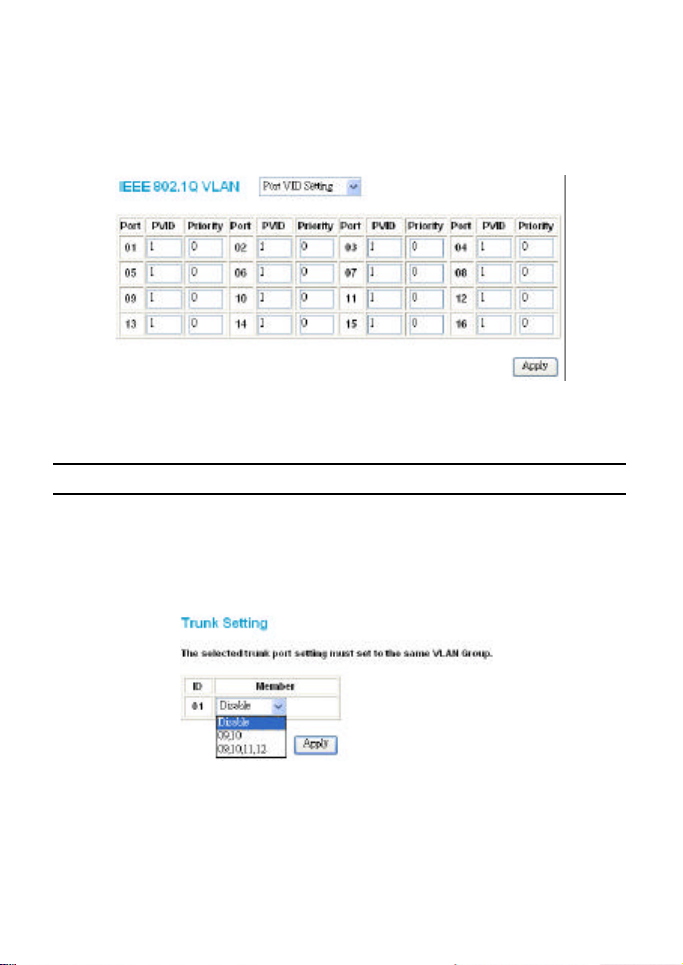

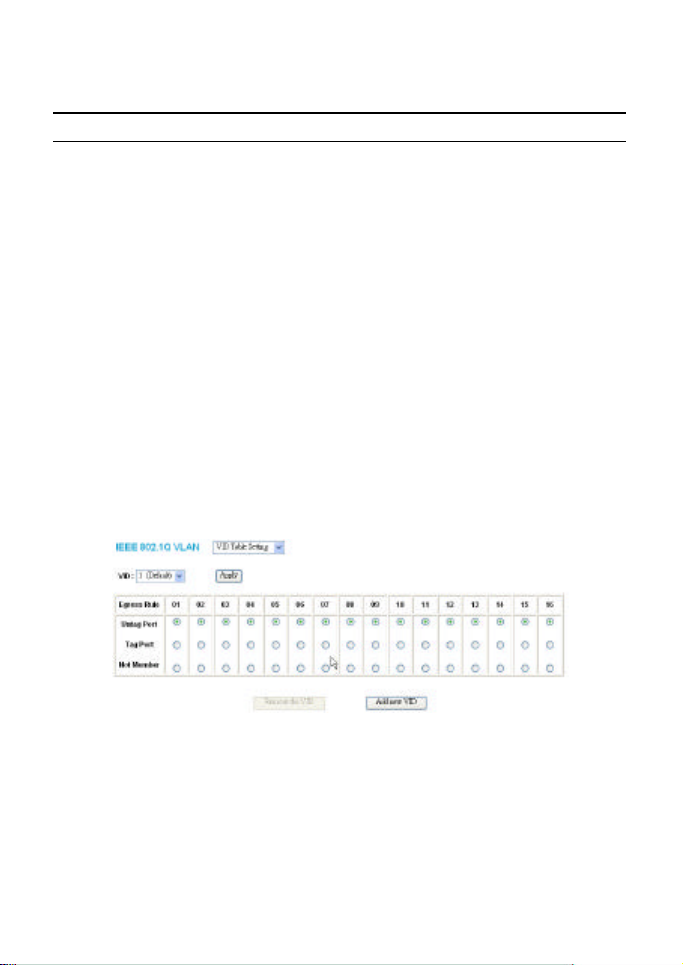

VLAN Settings (Virtual Local Area Network)..............................32
Trunk Setting .......................................................................................33

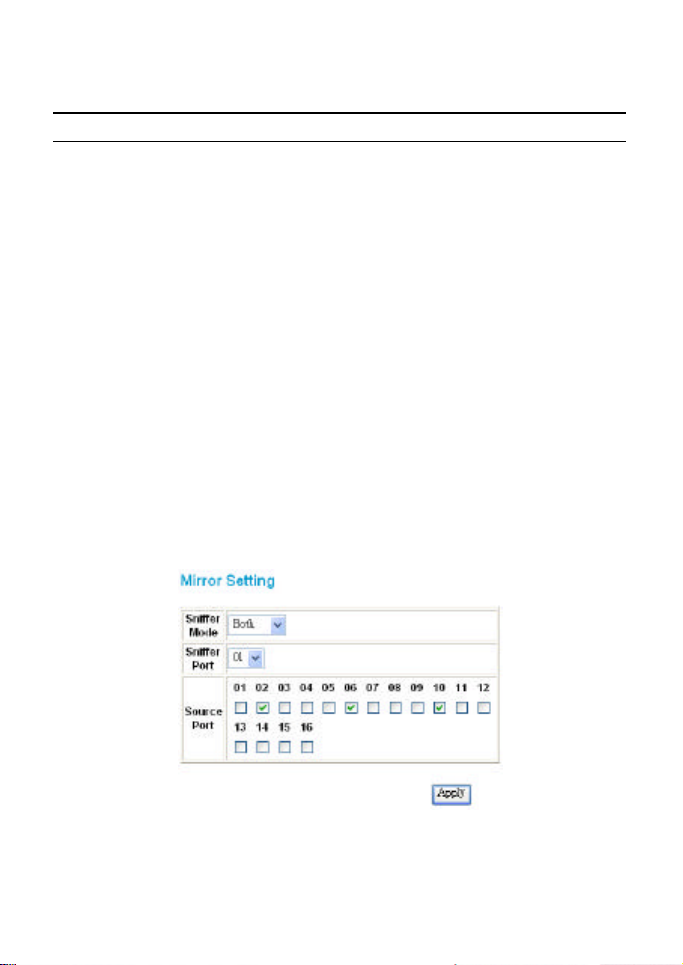

Mirror Setting ......................................................................................34

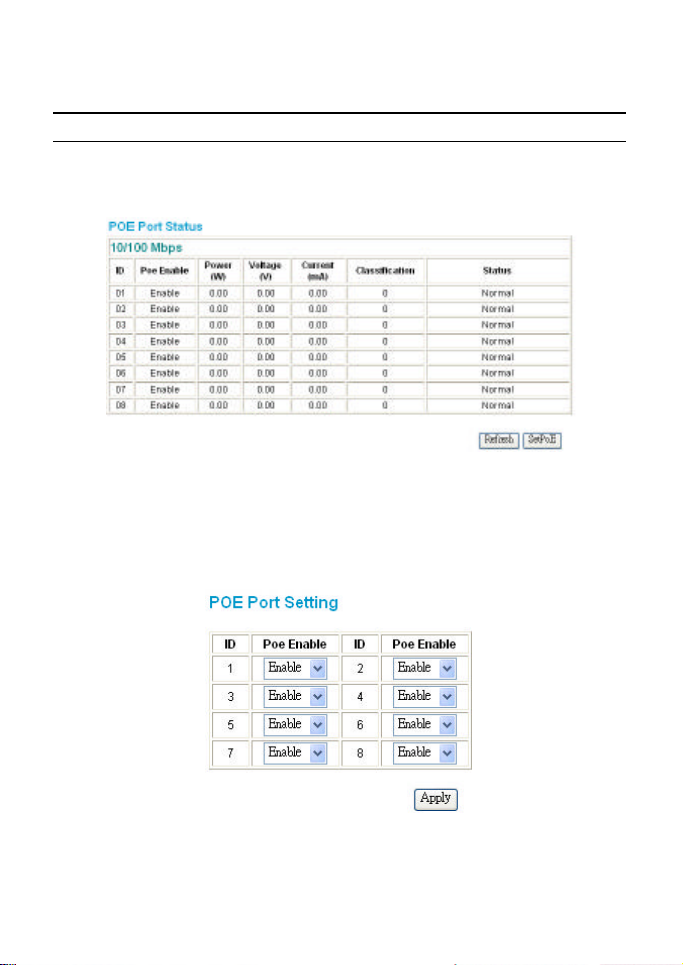

PoE Setting...........................................................................................35
Device Status .......................................................................................36
Statistic..................................................................................................37

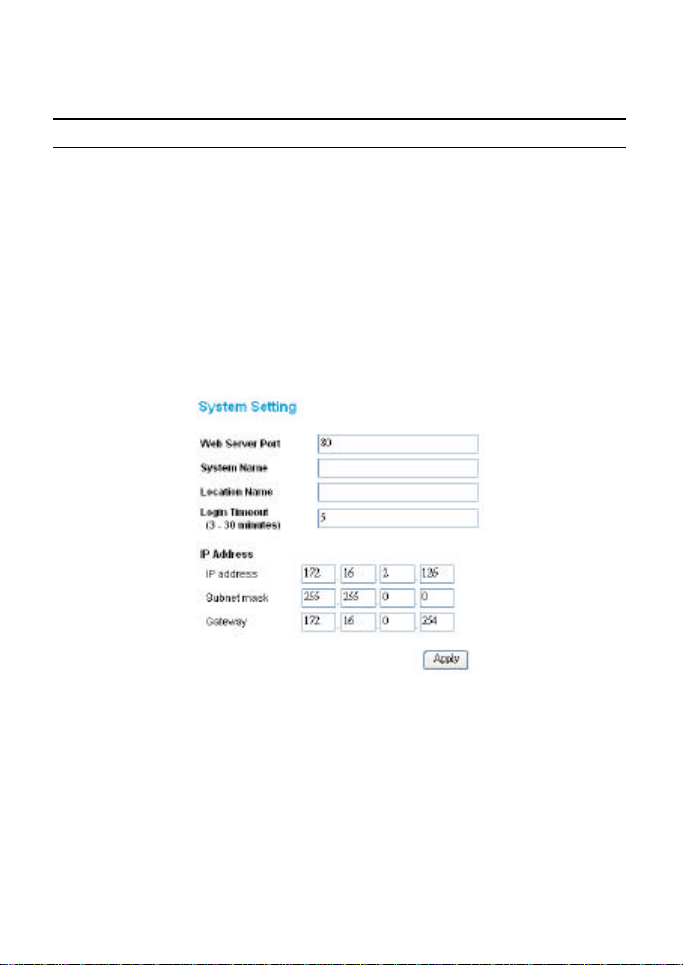

System Setting.....................................................................................39

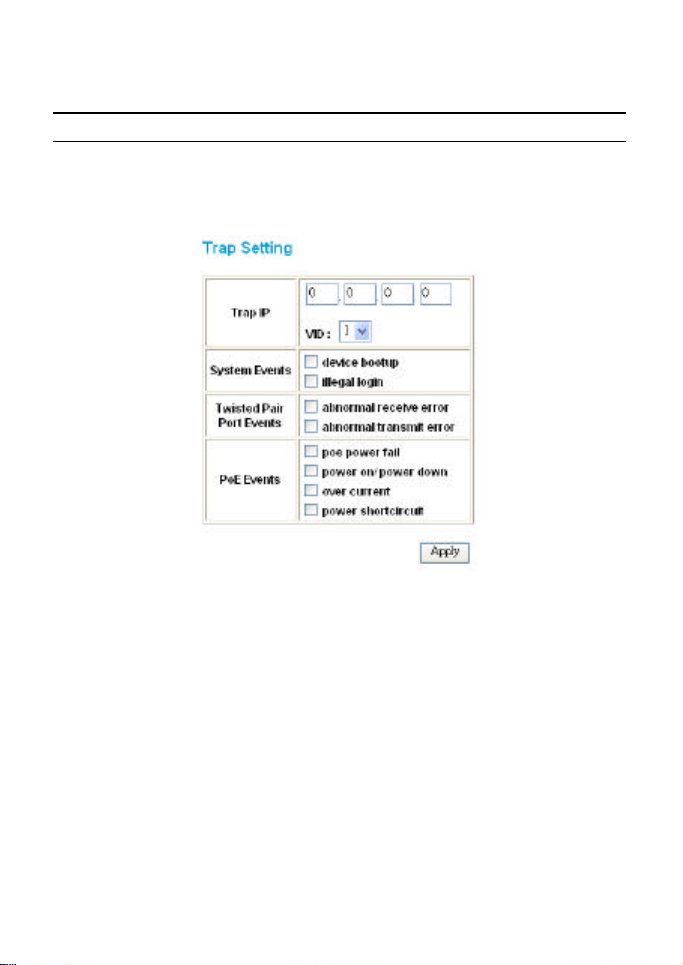

Trap Setting..........................................................................................40
Set Password........................................................................................41
Backup Setting.....................................................................................42

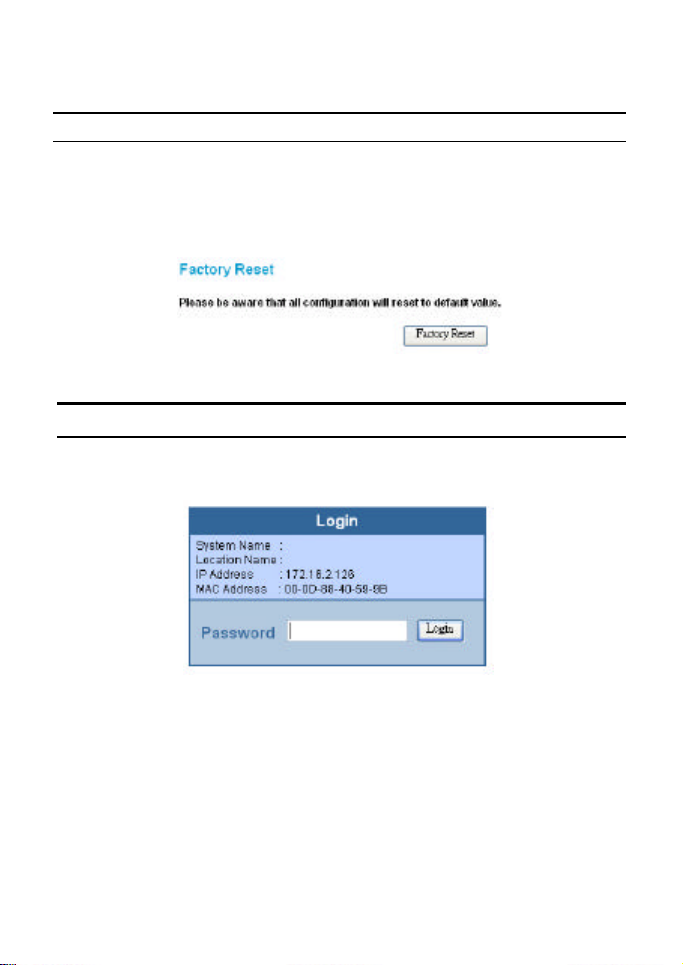

Reset Setting........................................................................................43
Logout........................................................................................................43
Technical Specifications.............................................................................44
5

ABOUT THIS GUIDE

Congratulations on your purchase of the 8-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE. This Switch integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilitie s in a highly flexible package. Since this Switch’s Port-1 to Port -8 are Power over Ethernet (PoE) ports, it will automatically detect the presence of IEEE
802.3af-compliant devices and will provide power through Port-1 to Port-8. The Switch provides 15.4Watts per port and can be connected to WLAN access point, IP phone, video camera, and other PD devices. The Switch will automatically detect the network appliance’s requirements, and the Switch will supply the required power current to each appliance.

Purpose

This guide discusses how to install your Web-Smart16-Port 10/100Mbps Ethernet Switch.

Terms/Usage

In this guide, the term “Switch” (first letter upper case) refers to your Web-Smart 8-Port 10/100Mbps Ethernet Web-Smart Switch with 8 10/100Mbps PoE port s and “switch” (first letter lower case) refers to
other Ethernet switches.
6

INTRODUCTION

This chapter describes the features of the Web Smart Switch and some background information about Ethernet/Fast Ethernet switching technology.

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. A number of high-speed LAN technologies have been proposed to provide greater bandwidth and improve client/server response times. Among them, 100BASE-T (Fast Ethernet) provides a non-disruptive, smooth evolution from the current 10BASE-T technology. The non-disruptive and smooth evolution nature, and the dominating potential market base, virtually guarantees cost-effective and high performance Fast Ethernet solutions.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps Ethernet standard with the ability to transmit and receive data at 100Mbps, while maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet environments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel training.

Switching Technology

Another approach to pushi ng beyond the limits of Ethernet technology is the development of switching technology. A switch bridges Ethernet packets at the MAC address level of the Ethernet protocol
7
transmitting among connected Ethernet or Fast Ethernet LAN segments.
Switching is a cost-effective way of increasing the total network capacity available to users on a local area network. A switch increases capacity and decreases network loading by dividing a local area network into different segments, which do not compete with each other for network transmission capacity.
The switch acts as a high-speed selective bridge between the individual segments. The switch, without interfering with any other segments, automatically forwards traffic that needs to go from one segment to another. By doing this the total network capacity is multiplied, while still maintaining the same network cabling and adapter cards.
Switching LAN technology is a marked improvement over the previous generation of network bridges, which were characterized by higher latencies. Routers have also been used to segment local area networks, but the cost of a router, the setup and maintenance required make routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems.

VLAN (Virtual Local Area Network)

A VLAN is a group of end-stations that are not constrained by their physical location and can communicate as if a common broadcast domain, a LAN. The primary utility of using VLAN is to reduce latency and the need for routers, using faster switching instead. Other VLAN utilities include:
Security: Security is increased with the reduction of opportunity in eavesdropping on a broadcast network because data will be switched to only those confidential users within the VLAN.
8
Cost Reduction: A VLAN can be used to create multiple broadcast domains, thus eliminating the need of expensive routers.
802.1Q VLAN: The VLAN tagging option is a standard set by the IEEE to facilitate the spanning of VLANs across multiple switches. (Reference: IEEE Std 802.1Q-1998 Virtual Bridged Local Area Networks.)

Power over Ethernet (PoE)

Power over Ethernet (PoE) integrates power and data onto one single cabling infrastructure, eliminating the need to have AC power available at all locations.
Power and Data are integrated onto the same cable. Supporting category 5/5e up to 100 Meters, PoE will provide power to PoE compatible device, such as IP telephones, wireless LAN access points, and IP security cameras.
PoE is already widely adopted in the market, saving up to 50% of overall installation costs by eliminating the need to install separate electrical wiring and power outlets.

Features

u 8×10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports with 8-
port PoE function (port-1 ~ port-8)
u Compliant with 802.3af specification u Supports PoE power maximum 15.4W for each PoE port u Supports PoE Powered Device (PD) classification identify u Each port supports auto MDI/MDIX, so there is no need to use
cross-over cables or an up-link port
u Full-/half- duplex transfer mode for each port
9
u Wire speed reception and transmission u Store-and-Forward switching scheme capability to support rate
adaptation and ensure data integrity
u Up to 4K unicast address es entities per device, self-learning, and
table aging
u 512KBytes packet buffer u Supports IEEE 802.3x flow control for full-duplex mode ports u Supports Back-pressure flow control for half-duplex mode ports u Supports 802.1Q VLAN u Supports Port based Trunking u Supports Port-mirroring u Supports Port -settings for Speed/Duplex, Flow control and Port
based QoS (Quality of Service)
u Easy configuration via Web Browser u Easy setting via Web Management Utility u Standard 19” Rack -mount size
10

UNPACKING AND INSTALLATION

This chapter provides unpacking and installation information for the Switch.

Unpacking

Open the shipping cartons of the Switch and carefully unpacks its contents. The carton should contain the following items:
One 8-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE One AC power cord, suitable for your area’s electrical power
connections Four rubber feet to be used for shock cushioning Screws and two mounting brackets CD-ROM with Web Management Utility and Manual
If any item is found missing or damaged, please contact your local reseller for replacement.

Installation

The site where you install the Switch may greatly affect its performance. When installing, consider the following pointers:
Install the Switch in a fairly cool and dry place. See Technical Specifications for the acceptable temperature and humidity opera ting
ranges. Install the Switch in a site free from strong electromagnetic field
generators (such as motors), vibration, dust, and direct exposure to sunlight.
11
Leave at least 10cm of space at the front and rear of the Switch for ventilation.
Install the Switch on a sturdy, level surface that can support its weight, or in an EIA standard-size equipment rack. For information on rack installation, see the next section, titled Rack Mounting.
When installing the Switch on a level surface, attach the rubber feet to the bottom of each device. The rubber feet cushion the Switch and protect the case from scratching.

Rack Mounting

The Switch can be mounted in an EIA standard -size, 19-inch ra ck, which can be placed in a wiring closet with other equipment. Attach the mounting brackets at the Switch’s front panel (one on each side), and secure them with the provided screws.
Figure 1. Combine the Switch with the provided screw s.
Then, use screws provided with the equipment rack to mount each switch in the rack.
Figure 2. Mount the Switch in the rack .
12
Connecting Network Cables
The Switch supports 16 10/100M bps Ethernet ports and Ports 1 ~ 8 are PoE Enabled ports. These PoE ports will be automatically activated when a compatible terminal is identified. The Switch will supply power through the Ethernet port to the connected PoE device.
For Legacy devices that are not yet compatible , the PoE port will not offer the power to these devices. This feature allows users to freely and safely mix legacy and Power over LAN compatible devices on their network.
The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet and it runs both in half- and full- duplex mode using two pairs of Category 5 cables.
These RJ45 ports are Auto-MDI type port. The Switch can auto transform to MDI-II or MDI-X type, so you can just make an easy connection without worrying if you are using a standard or crossover RJ45 cable.

AC Power

The Swit ch uses the AC power supply 100 -240V AC, 50 -60 Hz. The power switch is located at the rear of the unit adjacent to the AC power connector and the system fan. The Switch’s power supply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected.
13

IDENTIFYING EXTERNAL COMPONENTS

This chapter describes the front panel, rear panel, and LED indicators of the Switch.

Front Panel

The figure below shows the front panels of the Switch.
Figure 3. Front panel of 8-port 10/100 Ethernet Switch with 8-port PoE.
LED Indicator:
Comprehensive LED indicators display the status of the Switch and the network (see the LED Indicators chapter below).
PoE Ports (Port 1~8):
These ports are PoE Enable d ports. The PoE port will be automatically activated when a compatible terminal is identified, and the Switch will supply power through the Ethernet port to the connected PoE device.
For Legacy devices that are not yet compatible , the PoE port will not offer the power to these devices. This feature allows users to freely and safely mix legacy and Power over LAN compatible devices on their network.
These ports support network speeds of either 10Mbps or 100Mbps, and can operate in half - and full - duplex transfer modes. These ports also support the automatic MDI/MDIX crossover detection function, providing true “plug and play” capability. Just plug-in the network cable to the Switch directly regardless if the end node is a NIC (Network Interface Card) or switch and hub.
14
Ethernet Ports (Port 9~16):
AC Power Connector
Reset Button
These ports support network speeds of either 10Mbps or 100Mbps, and can operate in half - and full - duplex transfer modes. These ports also support the automatic MDI/MDIX crossover detection function, providing true “plug and play” capability. Just plug-in the network cable to the Switch directly regardless if the end node is a NIC (Network Interface Card) or switch and hub.
Note: When the port is set to “Forced Mode”, Auto MDI/MDIX will be disabled.

Rear Panel

Figure 4. Rear panel of the Switch
AC Power Connector : This is a three-pronged connector that supports the power cord. Plug
in the female connector of the provided power cord into this connector, and the male into a power outlet. Supported input voltages range from 100-240V AC at 50-60Hz.
Reset: The Reset button is to reset all settings back to the factory defaults. Note: Be sure that you recorded the settings of your device, as all
settings will be erase d when pressing the “Reset” button.
15

UNDERSTANDING LED INDICATORS

successfully
is blinking, the port is transmitting or
The front panel LEDs provide instant status feedback, and helps monitor and troubleshoot when needed.
Figure 5. LED indicators of the Switch

Power and CPU LEDs

POWER: Power Indicator
On : When the Power LED lights on, the Switch is receiving power.
Off : When the Power turns off or the power cord has improper connection.
CPU: Management Indicator
Blinking : When the CPU is working, the CPU LED is blinking. On/Off : The CPU is not working.

Ports 1~8 PoE port status LEDs

Link/ACT: Link/Activity
On :
Blinking :
Off : There is no link.
When the Link/ACT LED lights on, the respective port is connected to an Ethernet network.
When the Link/ACT LED receiving data on the Ethernet network.
16
