D-Link DAP-2695 User Manual

Table of Contents

Product Overview ......................................................................4

Introduction ...................................................................................4

Features ............................................................................................ 5

Package Contents ......................................................................... 6

System Requirements ................................................................. 6

Hardware Overview ..................................................................7

LEDs ................................................................................................... 7

Connections ...................................................................................7

Basic Installation ........................................................................8

Hardware Setup ............................................................................8

Method 1 - PoE with PoE Switch or Router .................. 8

Method 2 - PoE without PoE Switch or Router ................9

Method 3 - No PoE..............................................................10

Web User Interface ................................................................. 11

Wireless ..........................................................................................12

Access Point Mode .............................................................12

WDS with AP Mode ............................................................14

WDS Mode ............................................................................16

Wireless Client Mode .........................................................18

Wireless Security .................................................................19

Wired Equivalent Privacy (WEP) ..............................19

Wi-Fi Protected Access (WPA / WPA2)....................20

LAN ..........................................................................................22

Advanced Settings .....................................................................23

Performance .........................................................................24

Wireless Resource Control .......................................................26

Multi-SSID ..............................................................................28

VLAN ........................................................................................30

VLAN List ..........................................................................30

Port List .............................................................................31

Add/Edit VLAN ...............................................................32

PVID Settings ..................................................................33

Intrusion .................................................................................34

Schedule ................................................................................35

Internal RADIUS Server .....................................................36

ARP Spoong Prevention ................................................37

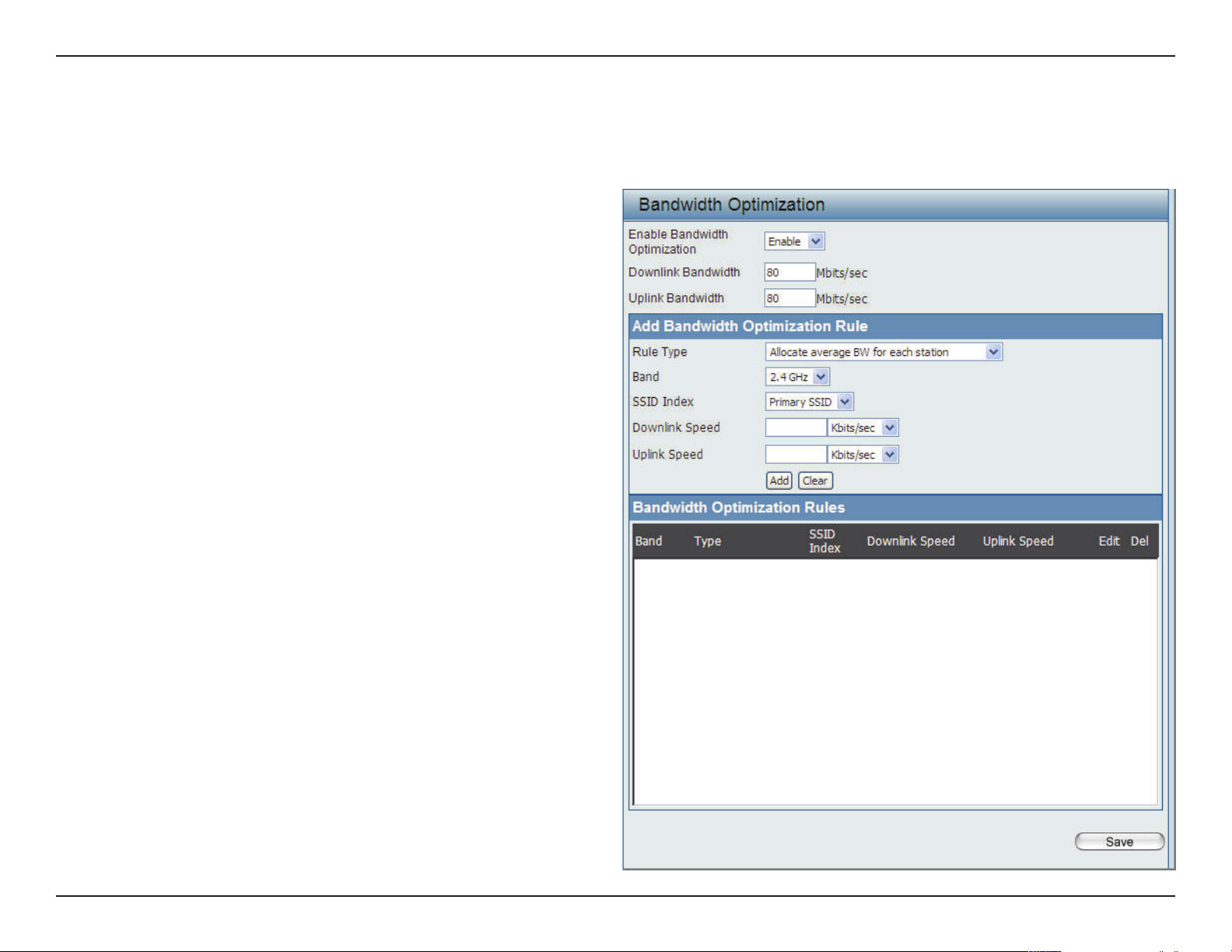

Bandwidth Optimization .................................................38

AP Array ..................................................................................40

AP Array Scan .................................................................40

Conguration Settings ................................................41

Auto-RF .............................................................................45

Load Balance ..................................................................46

Captive Portal .......................................................................47

Authentication Settings - Passcode .......................47

Authentication Settings - Username/Password .48

Authentication Settings - Remote RADIUS ..........49

Authentication Settings - LDAP ...............................50

Authentication Settings - POP3 ...............................51

Web Redirection ............................................................53

DHCP Server .........................................................................54

D-Link DAP-2695 User Manual

Dynamic Pool Settings ................................................54

Static Pool Setting ........................................................55

Current IP Mapping List ..............................................56

Filters .......................................................................................57

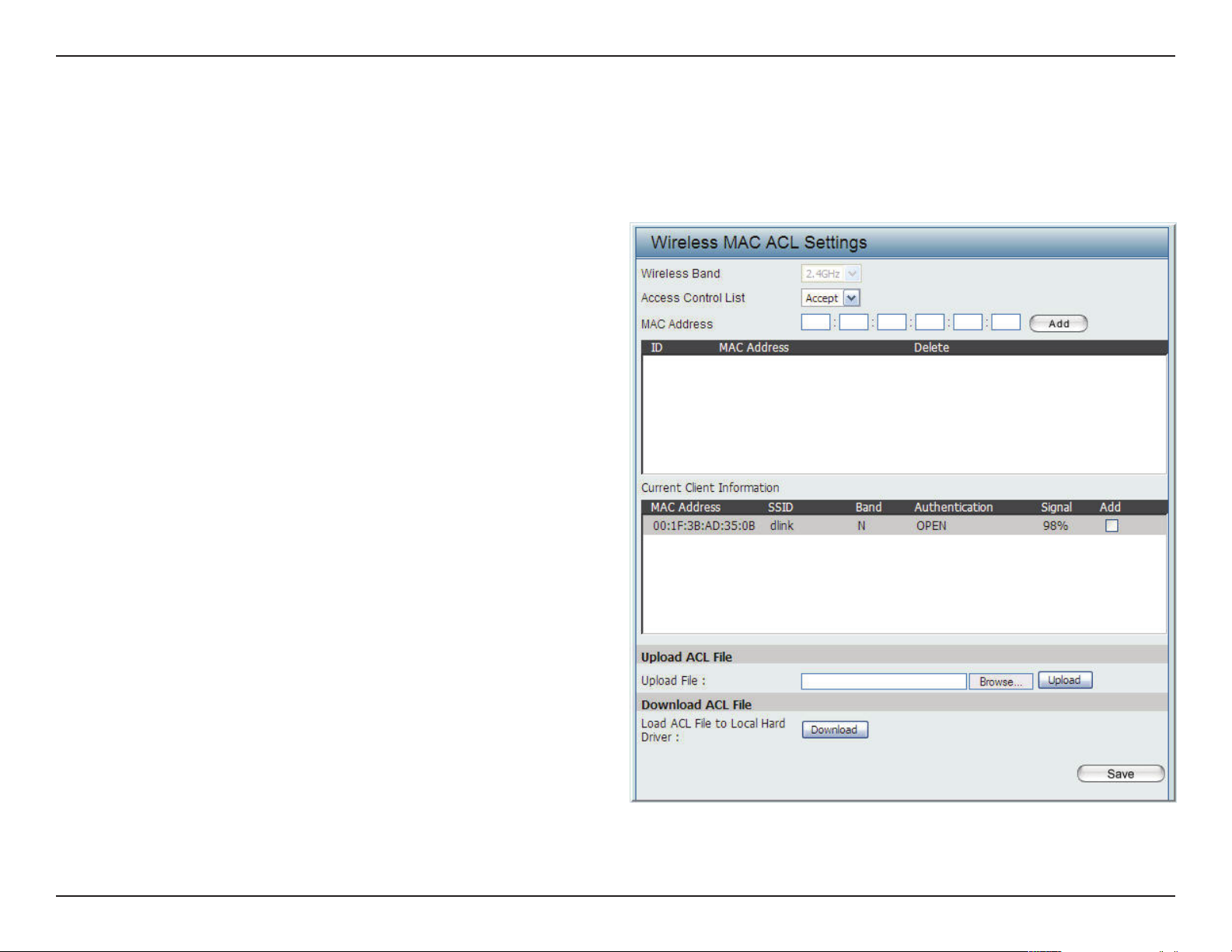

Wireless MAC ACL .........................................................57

WLAN Partition ..............................................................58

Trac Control...............................................................................59

Uplink/Downlink Setting .................................................59

QoS...........................................................................................60

Trac Manager ....................................................................61

Status ..............................................................................................62

Device Information ............................................................63

Client Information ..............................................................64

WDS Information Page .....................................................65

Channel Analyze .................................................................66

Stats Page ......................................................................................67

Ethernet Trac Statistics ..................................................67

WLAN Trac Statistics .......................................................68

Log ...................................................................................................69

View Log .................................................................................69

Log Settings ..........................................................................70

Maintenance Section ................................................................71

Console Settings .................................................................73

SNMP Settings .....................................................................74

Central WiFiManager Settings ........................................74

Firmware and SSL Upload ................................................75

Conguration File Upload ...............................................76

Time and Date Settings ....................................................77

Conguration and System.......................................................78

System Settings ...........................................................................79

Help .................................................................................................80

Knowledge Base ..................................................................... 81

Wireless Basics .............................................................................81

Wireless Installation Considerations ....................................82

Troubleshooting ..................................................................... 83

Why can’t I access the web-based conguration

utility? .....................................................................................83

What can I do if I forgot my password? .......................83

How to check your IP address? ......................................84

How to statically assign an IP address? .......................85

Technical Specications ........................................................ 86

Administration .............................................................................72

Limit Administrator ............................................................72

System Name Settings ......................................................73

D-Link DAP-2695 User Manual

Product Overview

Introduction

D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation 802.11ac LANs. D-Link unveils its new DAP-2695, designed specically for business-class environments such as large or enterprise corporations to provide secure and manageable dual band wireless LAN options for network administrators.

Versatile Access Point

The DAP-2695 Access Point allows network administrators to deploy a highly manageable and extremely robust dual band wireless network. All six antennas are detachable and can provide optimal wireless coverage in either 2.4GHz (802.11g and 802.11n) or 5GHz (802.11ac, 802.11a, and 802.11n) bands. Enclosed in a plenum-rated metal chassis, the DAP-2695 Access Point adheres to strict re codes for placement in air passageways. For advanced installations, this new high-speed Access Point has integrated 802.3at Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.

Enhanced Performance

The DAP-2695 delivers reliable wireless performance with maximum wireless signal rates of up to 1750Mbps. This, coupled with support for Wi-Fi Multimedia™ (WMM) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2695 supports load balance features to ensure maximum performance.

Security

To help maintain a secure wireless network, the DAP-2695 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server back end. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included.

The DAP-2695 includes support for up to 16 VLANs for implementing multiple SSIDs to further help segment users on the network. The DAP-2695 also includes a wireless client isolation mechanism, which limits direct client-to-client communication.

* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11g, 802.11a, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.

**Only compliant with 802.3at PoE switch and 802.3af standard can’t supply sucient power for DAP-2695

D-Link DAP-2695 User Manual

Features

y Provide Ethernet to Wireless LAN bridge fully IEEE 802.3/u/ab compatible on the Ethernet side and fully interoperable with IEEE 802.11ac and b/g/n/a

compliant equipment y Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate y Compatible with IEEE 802.11g higher speed standard to provide wireless 54Mbps data rate y Compatible with IEEE 802.11a higher speed standard to provide wireless 54Mbps data rate y Compatible with IEEE 802.11n higher speed standard to provide wireless 450Mbps data rate y Compatible with 802.11ac higher speed standard to provide wireless 1300Mbps data rate y Operation at 2.4~2.5GHz and 5.15~5.85GHz frequency band to meet worldwide regulations y Supports IEEE 802.11ac and b/g/n/a wireless data encryption with 64/128-bit WEP for security y Allows auto fallback data rate for reliability, optimized throughput and transmission range y Web-based conguration and management y Supports enhanced security – WPA-PSK and WPA2-PSK, RADIUS client, and Cipher negotiation y Supports one 802.3at PoE port y Supports two 10/100/1000M Ethernet ports y AP Mode, WDS Mode, WDS with AP, and Wireless Client Mode y Supports SNMP v1,v2,v3 y Support Trap server (SNMP v1, v2c) y Support AP Manager II and D-View 6.0 y Support AP Array and AP Array Setup Tool y Support Port Redundancy y Support one RJ-45 console port for debug

**Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2695 isn’t supported in the 5.25~5.35GHz and 5.47 ~ 5.725GHz frequency ranges in some regions.

***Only compliant with 802.3at PoE switch and 802.3af standard can’t supply sucient power for DAP-2695

D-Link DAP-2695 User Manual

Package Contents

• DAP-2695 Access Point

• Six Detachable Antennas

• Power Adapter

• PoE Base Unit

• Mounting Plate and Hardware

• Ethernet Cable

• Console Cable

• CD (with software and user manual)

Note: Using a power supply with a dierent voltage rating than the one included with the DAP-2695 will cause damage and void the warranty for this product.

System Requirements

y Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet Adapter y Internet Explorer Version 7.0 or Firefox 3.0 and Above (for conguration)

D-Link DAP-2695 User Manual

1 2 3 4 5

Hardware Overview

LEDs Connections

1 5GHz

2 2.4GHz

3 LAN1 (PoE)

4 LAN2

5 Power

When lit, the access point is operating at 5GHz. This light will blink when there is wireless trac.

When lit, the access point is operating at 2.4GHz. This light will blink when there is wireless trac. Solid light when the Ethernet port is connected to a power over Ethernet (PoE) port, such as a router or switch. The light will blink when there is trac through LAN port. Solid light when the Ethernet port is connected to a working port, such as a router or switch. The light will blink when there is trac through LAN port. The light will blink during boot up. Once solid, the access point is ready.

1 2 3 4 5

1 Reset Button

2 Console Port

3 LAN2 Port Connect to your network with an Ethernet cable.

4 LAN1 (PoE) Port

5 Power Receptor Connect the supplied power adapter.

Press and hold for six seconds to reset the access point to the factory default settings.

Connect the supplied console cable to congure using a command line interface.

Connect to a Power over Ethernet (PoE) switch or router.

D-Link DAP-2695 User Manual

Basic Installation

Hardware Setup

To power the access point, you can use one of the following 3 methods:

Method 1 - Use if you have a PoE switch or router. Method 2 - Use if you do not have a PoE switch or router and do not have a power outlet near the location of the access point. Method 3 - Use if you do not have a PoE switch or router and have a power outlet near the location of the access point.

Method 1 - PoE with PoE Switch or Router

1. Connect one end of your Ethernet cable to the LAN1 (PoE) port on the access point.

2. Connect the other end into one port on a PoE switch or router.

DAP-2695

PoE Switch or Router

D-Link DAP-2695 User Manual

Method 2 - PoE without PoE Switch or Router

1. Connect one end of an Ethernet cable into the Data In port on the PoE base unit and the other end into one port on your switch, router, or computer.

2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and the other end into the LAN1 (PoE) port on the Access Point.

3. Use the supplied power adapter. Connect the power adapter to the Power In receptor on the PoE adapter.

4. Connect the power cable to the power adapter and then connect the other end into a power outlet.

D-Link DAP-2695 User Manual

Method 3 - No PoE

1. Connect one end of your Ethernet cable into the LAN1 (PoE) or LAN2 port and then connect the other end to a switch, router, or computer.

2. Use the supplied power adapter. Connect the power adapter to the Power receptor on the Access Point.

3. Connect the power cable to the power adapter and then connect the other end into a power outlet.

DAP-2695

Power Adapter

Switch or Router

D-Link DAP-2695 User Manual

Web User Interface

The DAP-2695 supports an elaborate web user interface where the user can congure and monitor the device. Most of the congurable settings are located in the left menu of the web GUI which contains section called Basic Settings, Advanced Settings and Status.

D-Link DAP-2695 User Manual

Wireless

On the wireless settings page, you can setup the basic wireless conguration for the access point. The user can choose from 4 dierent wireless modes:

Access Point - Used to create a wireless LAN WDS with AP - Used to connect multiple wireless networks while still functioning as a wireless access point WDS - Used to connect multiple wireless networks Wireless Client - Used when the access point needs to act as a wireless network adapter for an Ethernet enabled device

Access Point Mode

Wireless Band:

Mode:

Network Name (SSID):

SSID Visibility:

Auto Channel Selection:

Select either 2.4 GHz or 5 GHz from the drop-down menu.

Select Access Point from the drop-down menu.

Service Set Identier (SSID) is the name designated for a specic wireless local area network (WLAN). The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. The SSID can be up to 32 characters and is case-sensitive.

Select Enable to broadcast the SSID across the network, thus making it visible to all network users. Select Disable to hide the SSID from the network.

This feature when enabled automatically selects the channel that provides the best wireless performance. The channel selection process only occurs when the AP is booting up. To manually select a channel, set this option to Disable and select a channel from the drop-down menu.

D-Link DAP-2695 User Manual

Channel:

Channel Width:

Authentication:

To change the channel, rst toggle the Auto Channel Selection setting to Disable, and then use the drop-down menu to make the desired selection.

Note: The wireless adapters will automatically scan and match the wireless settings.

Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on your network.

Use the drop-down menu to choose Open System, Shared Key, WPA-Personal, WPA-Enterprise, or 802.1x.

• Select Open System to communicate the key across the network (WEP).

• Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this option is not available.

• Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.

• Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.

• Select 802.1X if your network is using port-based Network Access Control.

D-Link DAP-2695 User Manual

WDS with AP Mode

Wireless Band:

Mode:

Network Name (SSID):

SSID Visibility:

Auto Channel Selection:

Select either 2.4GHz or 5GHz from the drop-down menu.

WDS with AP mode is selected from the drop-down menu.

Enable or Disable SSID visibility. Enabling this feature broadcasts the SSID across the network, thus making it visible to all network users.

Enabling this feature automatically selects the channel that will provide the best wireless performance. This feature is not supported in WDS with AP mode. The channel selection process only occurs when the AP is booting up.

Channel:

Channel Width:

All devices on the network must share the same channel. To change the channel, use the drop-down menu to make the desired selection. (Note: The wireless adapters will automatically scan and match the wireless settings.)

802.11a wireless devices on your network.

D-Link DAP-2695 User Manual

Remote AP MAC Address:

Site Survey:

Authentication:

Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.

Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with.

Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.

• Select Open System to communicate the key across the network. Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled,

• this option is not available.

• Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.

D-Link DAP-2695 User Manual

WDS Mode

Wireless Band:

Mode:

Network Name (SSID):

SSID Visibility:

Auto Channel Selection:

Channel:

Select either 2.4GHz or 5GHz from the drop-down menu.

WDS is selected from the drop-down menu.

Enable or Disable SSID visibility. Enabling this feature broadcasts the SSID across the network, thus making it visible to all network users.

Enabling this feature automatically selects the channel that will provide the best wireless performance. This feature is not supported in WDS mode.

All devices on the network must share the same channel. To change the channel, use the drop-down menu to make the desired selection.

Channel Width:

Remote AP MAC Address:

Use the drop-down menu to choose 20 MHz or Auto 20/40 MHz.

Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.

D-Link DAP-2695 User Manual

Site Survey:

Authentication:

Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with.

Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.

• Select Open System to communicate the key across the network.

• Select Shared Key to limit communication to only those devices that share the same WEP settings.

• Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.

D-Link DAP-2695 User Manual

Wireless Client Mode

Wireless Band:

Mode:

Network Name (SSID):

SSID Visibility:

Auto Channel Selection:

Channel:

Select either 2.4 GHz or 5 GHz from the drop-down menu.

Wireless Client is selected from the drop-down menu.

This option is unavailable in Wireless Client mode.

Enabling this feature automatically selects the channel that will provide the best wireless performance. This feature is not supported in Wireless Client mode.

The channel used will be displayed, and matches the AP that the DAP-2695 is connected to when set to Wireless Client mode.

Channel Width:

Site Survey:

Authentication:

Use the drop-down menu to choose 20 MHz or Auto 20/40 MHz.

Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with.

Will be explained in the next topic.

D-Link DAP-2695 User Manual

Wireless Security

Wireless security is a key concern for any wireless network installed. Unlike any other networking method wireless networks will broadcast it’s presence for anyone to connect to it. Today, wireless security has advanced to a level where it is virtually impenetrable. There are mainly two forms of wireless encryption and they are called Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA). WEP was the rst security method developed. It is a low level encryption but better than now encryption. WPA is the newest encryption standard and with the advanced WPA2 standard wireless networks have nally reach a point where the security is strong enough to give users the peace of mind when installing wireless networks.

Wired Equivalent Privacy (WEP)

WEP provides two variations called Open System and Shared Key.

Open System

will send a request to the access point and if the key used matches the one congured on the access point, the access point will return a success message back to the wireless client. If the key does not match the one congured on the access point, the access point will deny the connection request from the wireless client.

Shared Key

will send a request to the access point and if the key used matches the one congured on the access point, the access point will send a challenge to the client. The client will then again send a conrmation of the same key back to the access point where the access point will either return a successful or a denial packet back to the wireless client.

Encryption:

Use the radio button to disable or enable encryption.

Key Type*:

Key Size:

Key Index (1-4):

Select HEX or ASCII.

Select 64 Bits or 128 Bits.

Select the 1st through the 4th key to be the active key.

Key:

Input up to four keys for encryption. You will select one of these keys in the Key Index drop-down menu.

**Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F. *ASCII (American Standard Code for Information Interchange) is a code that represents English letters using numbers ranging from 0-127.

D-Link DAP-2695 User Manual

Wi-Fi Protected Access (WPA / WPA2)

WPA was created by the Wi-Fi Alliance to address the limitations and weaknesses found in WEP. This protocol is mainly based on the 802.11i standard. There are also two variations found in WPA called WPA-Personal (PSK) and WPA-Enterprise (EAP).

WPA-EAP requires the user to install a Radius Server on the network for authentication. WPA-Personal does not require the user to install a Radius Server on the network.

Comparing WPA-PSK with WPA-EAP, WPA-PSK is seen as a weaker authentication but comparing WPA-PSK to WEP, WPA-PSK is far more secure than WEP. WPA-EAP is the highest level of wireless security a user can use for wireless today.

WPA2 is an upgrade of WPA. WPA2 yet again solves some possible security issues found in WPA. WPA2 has two variations called WPA2-Personal (PSK) and WPA2-Enterprise (EAP) which is the same as found with WPA.

WPA Mode:

Cipher Type:

Group Key Update:

Pass Phrase:

When WPA-Personal is selected for Authentication type, you must also select a WPA mode from the drop-down menu: AUTO (WPA or WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use dierent algorithms. AUTO (WPA or WPA2) allows you to use both WPA and WPA2.

When you select WPA-Personal, you must also select AUTO, AES, or TKIP from the pull down menu.

Select the interval during which the group key will be valid. The default value of 1800 is recommended.

When you select WPA-Personal, please enter a Pass Phrase in the corresponding eld.

D-Link DAP-2695 User Manual

WPA Mode:

Cipher Type:

Group Key Update Interval:

Network Access Protection:

RADIUS Server:

When WPA-Enterprise is selected, you must also select a WPA mode from the drop-down menu: AUTO (WPA or WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use dierent algorithms. AUTO (WPA or WPA2) allows you to use both WPA and WPA2.

When WPA-Enterprise is selected, you must also select a cipher type from the drop-down menu: Auto, AES, or TKIP.

Select the interval during which the group key will be valid. 1800 is the recommended value as a lower interval may reduce data transfer rates.

Enable or disable Microsoft Network Access Protection.

Enter the IP address of the RADIUS server.

RADIUS Port:

RADIUS Secret:

Enter the RADIUS port.

Enter the RADIUS secret.

D-Link DAP-2695 User Manual

LAN

LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for the DAP-2695. These settings may be referred to as private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.

Get IP From:

IP Address:

Subnet Mask:

Default Gateway:

DNS:

Static IP (Manual) is chosen here. Choose this option if

you do not have a DHCP server in your network, or if you wish to assign a static IP address to the DAP-2695. When Dynamic IP (DHCP) is selected, the other elds here will be grayed out. Please allow about 2 minutes for the DHCP client to be functional once this selection is made.

The default IP address is 192.168.0.50. Assign a static IP address that is within the IP address range of your network.

Enter the subnet mask. All devices in the network must share the same subnet mask.

Enter the IP address of the gateway/router in your network.

Enter a DNS server IP address. This is usually the local IP address of your gateway/router.

D-Link DAP-2695 User Manual

Advanced Settings

In the Advanced Settings Section the user can congure advanced settings concerning Performance, Multiple SSID, VLAN, Security, Quality of Service, AP Array, Web Redirection, DHCP Server, Filters and Scheduling. The following pages will explain settings found in the Advanced Settings section in more detail.

D-Link DAP-2695 User Manual

Performance

On the Performance Settings page the users can congure more advanced settings concerning the wireless signal and hosting.

Wireless Band:

Wireless:

Wireless Mode:

Data Rate*:

Beacon Interval (25-500):

Select either 2.4GHz or 5GHz.

Use the drop-down menu to turn the wireless function On or O.

The dierent combination of clients that can be supported include Mixed 802.11n, 802.11g and 802.11b, Mixed 802.11g and 802.11b and 802.11n Only in the 2.4 GHz band and Mixed 802.11n, 802.11a,

802.11a only, and 802.11n Only in the 5 GHz band. Please note that when backwards compatibility is enabled for legacy (802.11a/g/b) clients, degradation of 802.11n wireless performance is expected.

Indicate the base transfer rate of wireless adapters on the wireless LAN. The AP will adjust the base transfer rate depending on the base rate of the connected device. If there are obstacles or interference, the AP will step down the rate. This option is enabled in Mixed 802.11g and 802.11b mode (for 2.4 GHz) and 802.11a only mode (for 5 GHz). The choices available are Best (Up to 54), 54, 48, 36, 24, 18, 12, 9, 6 for 5 GHz and Best (Up to 54), 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2 or 1 for 2.4 GHz.

Beacons are packets sent by an access point to synchronize a wireless network. Specify a value in milliseconds. The default (100) is recommended. Setting a higher beacon interval can help to save the power of wireless clients, while setting a lower one can help a wireless client connect to an access point faster.

DTM Interval (1-15):

Select a Delivery Trac Indication Message setting between 1 and 15. 1 is the default setting. DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.

D-Link DAP-2695 User Manual

Transmit Power:

WMM (Wi-Fi Multimedia):

Ack Time Out

(2.4 GHZ, 64~200):

Short GI:

IGMP Snooping:

Multicast Rate :

Maximum Multicast

Bandwidth :

This setting determines the power level of the wireless transmission. Transmitting power can be adjusted to eliminate overlapping of wireless area coverage between two access points where interference is a major concern. For example, if wireless coverage is intended for half of the area, then select 50% as the option. Use the drop-down menu to select 100%, 50%, 25%, or 12.5%.

WMM stands for Wi-Fi Multimedia. Enabling this feature will improve the user experience for audio and video applications over a Wi-Fi network.

To eectively optimize throughput over long distance links enter a value for Acknowledgement Time Out between 25 and 200 microseconds for 5 GHz or from 64 to 200 microseconds in the 2.4 GHz in the eld provided.

Select Enable or Disable. Enabling a short guard interval can increase throughput. However, be aware that it can also increase the error rate in some installations due to increased sensitivity to radio-frequency installations.

Select Enable or Disable. Internet Group Management Protocol allows the AP to recognize IGMP queries and reports sent between routers and an IGMP host (wireless STA). When IGMP snooping is enabled, the AP will forward multicast packets to an IGMP host based on IGMP messages passing through the AP.

Select the multicast rate for 2.4GHz and 5GHz band.

Set the multicast packets maximum bandwidth pass through rate from the Ethernet interface to the Access Point.

Multicast Bandwidth

Control :

HT20/40 Coexistence :

Transfer DHCP Oer to

Unicast :

Adjust the multicast packet data rate here. The multicast rate is supported in AP mode, (2.4 GHZ and 5 GHZ) and WDS with AP mode, including Multi-SSIDs.

Enable this option to reduce interference from other wireless networks in your area. If the channel width is operating at 40MHz and there is another wireless network’s channel over-lapping and causing interference, the Access Point will automatically change to 20MHz.

Enable to transfer the DHCP Oer to Unicast from LAN to WLAN, suggest to enable this function if stations number is larger than 30.

D-Link DAP-2695 User Manual

Wireless Resource Control

The Wireless Resource Control window is used to congure the wireless connection settings so that the device can detect the better wireless connection in your environment.

Wireless band:

Band Steering:

Band Steering Age:

Band Steering Di:

Select 2.4GHz or 5GHz.

Use the drop-down menu to Enable the Band Steering function. When the wireless clients support both 2.4GHz and 5GHz and the 2.4GHz signal is not strong enough, the device will use 5GHz as higher priority.

Enter the time in seconds to specify the interval of updating information.

The Band Steering dierence value is equal to the number of 5GHz wireless client connections minus the number of 2.4GHz wireless client connections. If the number of 5GHz wireless client connections minus the number of 2.4GHz wireless client connections exceed this value, the extra 5GHz wireless client connections will be forced to connect to the 2.4GHz band and not the 5GHz band.

Band Steering

Refuse Num:

Connection Limit:

Enter the maximum 5GHz connection attempts allowed before the 5GHz preferred function will be disabled for the wireless station connection.

Select Enable or Disable. This is an option for load balancing. This determines whether to limit the number of users accessing this device. The exact number is entered in the User Limit eld below. This feature allows the user to share the wireless network trac and the client using multiple APs. If this function is enabled and when the number of users exceeds this value, or the network utilization of this AP exceeds the percentage that has been specied, the DAP-2695 will not allow clients to associate with the AP.

+ 60 hidden pages
