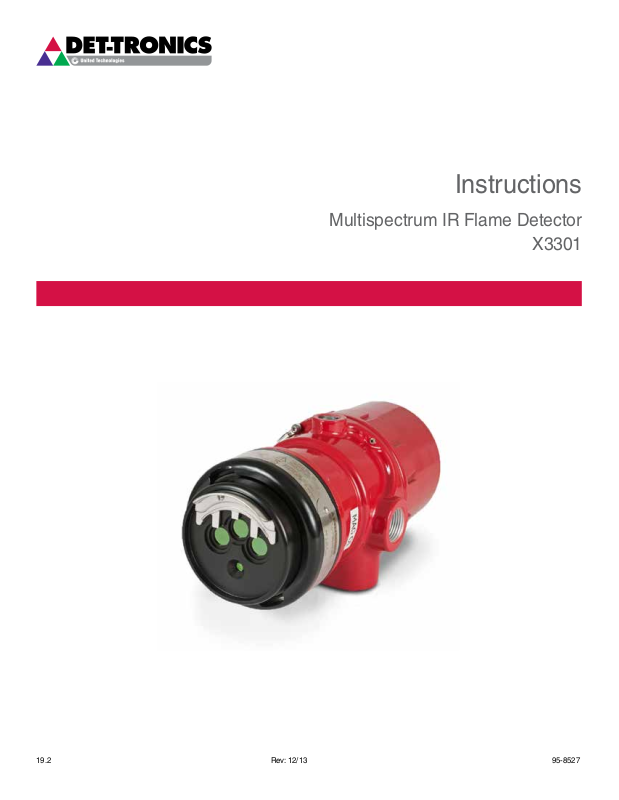

Instructions
Multispectrum IR Flame Detector
X3301
|
|
|
19.2 |
Rev: 12/13 |
95-8527 |
Table of Contents
DESCRIPTION . . . . . . . . . . . . |
. . |
. 1 |
TROUBLESHOOTING . . . . . . . . . . |
. |
14 |
||
Outputs . . . . . . . . . . . . . . . . 1 |
|
|
|
||||
LED . . . . . . . . . . . . . . . |
. |
. |
|
. 2 |
MAINTENANCE . . . . . . . . . . . . |
. |
. 15 |
i |
|
|
|
|
|
|
|
o (Optical Integrity) . . . . . . . . . |
. |
|
. |
2 |
Cleaning Procedure . . . . . . . . . |
. |
. 15 |
|
|
|
|
|
i |
|
|
Communication . . . . . . . . . . . |
. |
|
. |
3 |
o Plate Removal and Replacement . . . |
. |
15 |
Data Logging . . . . . . . . . . . . |
. |
|
. |
3 |
Periodic Checkout Procedure . . . . . . |
. |
16 |
Integral Wiring Compartment . . . . . |
. |
. |
|
. 3 |
Clock Battery . . . . . . . . . . . . |
. |
16 |
Detector Sensitivity Levels . . . . . . |
. |
. |
|
. 3 |
|
|
|
|
|
|
|
|
FEATURES . . . . . . . . . . . . . . . . 16 |
||
General APPLICATION Information . . . . |
4 |
|
|
|
|||
Response Characteristics . . . . . . . |
. |
. 4 |
SPECIFICATIONS . . . . . . . . . . . . |
. |
17 |
||
Important Application Considerations . . |
. |
. |
|
. 4 |
|
|
|
|
|
|
|
|
Replacement parts . . . . . . . . . . . 19 |
||
Important safety notes . . . . . . |
. |
. |
|
. 4 |
|
|
|
|
|
|
|
|
DEVICE REPAIR AND RETURN . . . . . . |
. |
19 |
INSTALLATION . . . . . . . . . . . . . . . 5 |
|
|
|
||||
Detector Positioning . . . . . . . . . |
. |
|
. |
5 |
ORDERING INFORMATION . . . . . . . . |
. |
19 |
Detector Orientation . . . . . . . . . |
. |
|
. |
5 |
Accessories . . . . . . . . . . . . |
. |
. 19 |
Protection Against Moisture Damage . . |
. |
. |
|
. 6 |
X3301 Model Matrix . . . . . . . . . |
. |
. 20 |
Wiring Procedure . . . . . . . . . . . |
|
. |
6 |
|
|
|
|
Setting Device Network Addresses |
|
|
|
|
APPENDIX A – FM APPROVAL AND |
|
|
|
|
|
|
PERFORMANCE REPORT . . . . . . . . . . 21 |
|||
(EQP Model Only) . . . . . . . . |
. |
|
. 13 |
||||
|
|
|
|
||||
|
|
|
|
|
APPENDIX B – CSA APPROVAL . . . . . . |
. |
31 |
STARTUP PROCEDURE . . . . . . . . . |
. |
|
14 |
APPENDIX C – ATEX / CE APPROVAL . . . . . 32 |
|||
Fire Alarm Test . . . . . . . . . . . |
. |
|
. 14 |
||||
|
|
|
|
||||
|
|
|
|
|
APPENDIX D – IECEx APPROVAL . . . . . |
. |
. 34 |
|
|
|
|
|
APPENDIX E – EN54 APPROVALS . . . . . |
. |
35 |
|
|
|
|
|
APPENDIX F – OFFSHORE APPROVALS . . |
. |
. 36 |
|
|
|
|
|
APPENDIX G – ADDITIONAL APPROVALS . . |
. |
37 |
Important
Be sure to read and understand the entire instruction manual before installing or operating the flame detection system. Any deviation from the recommendations in this manual may impair system performance and compromise safety.
ATTENTION
The X3301 includes the Automatic oi ® (Optical Integrity) feature — a calibrated performance test that is automatically performed once per minute to verify complete detector operation capabilities.
Testing with an external test lamp is not approved or required.
DESCRIPTION
The X3301 is a multispectrum infrared (IR) flame detector. It provides unsurpassed detection of fires from light to heavy hydrocarbon fuels combined with the highest degree of false alarm rejection. The detector has Division and Zone explosion-proof ratings and is suitable for use in indoor and outdoor applications.
The X3301 contains three IR sensors with their associated signal processing circuitry. The standard output configuration includes fire, fault and auxiliary relays. Output options include:
––0 to 20 mA output (in addition to the three relays)
––Pulse output for compatibility with existing Detector Electronics Corporation (Det-Tronics®) controller based systems (with fire and fault relays)
––Eagle Quantum Premier® (EQP) compatible model (no analog or relay outputs)
––HART communication
INSTRUCTIONS
Multispectrum IR Flame Detector
X3301
A tri-color LED on the detector faceplate indicates normal condition and notifies personnel of fire alarm or fault conditions.
Microprocessor controlled heated optics increase resistance to moisture and ice.
The X3301 housing is available in copper-free aluminum or stainless steel, with NEMA/Type 4X and IP66/IP67 rating.
Outputs Relays
The standard detector is furnished with fire, fault and auxiliary relays. All three relays are rated 5 amperes at 30 Vdc.
The Fire Alarm relay has redundant terminals and normally open / normally closed contacts, normally de-energized operation, and latching or non-latching operation.
The Fault relay has redundant terminals and normally open contacts, normally energized operation, and latching or non-latching operation.
19.2 |
©Detector Electronics Corporation 2013 |
1 |
Rev: 12/13 |
95-8527 |
The Auxiliary relay has normally open / normally closed contacts, and is configurable for energized or de-energized operation, and latching or non-latching operation.
0 to 20 mA Output
A 0 to 20 mA output is available as an option (in addition to the three relays). This option provides a 0 to 20 mA dc current output for transmitting detector status information to other devices. The circuit can be wired in either an isolated or nonisolated configuration and can drive a maximum loop resistance of 500 ohms from 18 to 19.9 Vdc and 600 ohms from 20 to 30 Vdc. Table 1 indicates the detector status conditions represented by the various current levels. The output is calibrated at the factory, with no need for field calibration. A model with relays and 0-20 mA with HART is also available. Refer to Addendum number 95-8577 for complete details.
NOTE
The output of the 0 to 20 mA current loop is not monitored by the fault detection circuitry of the X3301. Therefore, an open circuit on the loop will not cause the fault relay to change state or the detector status LED to indicate a fault. The status of the LED always follows the status of the relays.
An alarm condition will normally over-ride a fault condition, unless the nature of the fault condition impairs the ability of the detector to generate or maintain an alarm output, i.e. loss of operating power.
Table 1—Detector Status Conditions Indicated by Current Level
Current Level (±0.3 mA) |
Detector Status |
|
|
0 mA |
Power Fault |
1 mA |
General Fault |
2 mA |
oi Fault |
3 mA |
Hi Background IR Fault |
4 mA |
Normal Operation |
20 mA |
Fire Alarm |
|
|
LON/SLC Output
The EQP model is designed for use exclusively with the Det-Tronics Eagle Quantum Premier system. The detector communicates with the system controller over a digital communication network or LON/SLC (Local Operating Network / Signaling Line Circuit). The LON/ SLC is a fault tolerant, two wire digital communication network arranged in a loop configuration. Analog and relay outputs are not available on this model.
LED
A tri-color LED on the detector faceplate indicates normal condition and notifies personnel of fire alarm or fault conditions. Table 2 indicates the condition of the LED for each status.
Table 2—Detector Status Indicator
Detector Status |
LED Indicator |
|
|
|
|
Power On/Normal Operation |
Green |
|
(no fault or fire alarm) |
||
|
||
Fault |
Yellow |
|
|
|
|
Fire (Alarm) |
Red |
|
|
|
|
Low Sensitivity |
One Yellow Flash |
|
During Power-up |
||
|
||
T-Low Sensitivity |
Three Yellow Flashes |
|
During Power-up |
||
|
||
Medium Sensitivity |
Two Yellow Flashes |
|
During Power-up |
||
|
||
Very High Sensitivity |
Four Yellow Flashes |
|
During Power-up |
||
|
NOTE: See "Detector Sensitivity Levels" for additional information.
oi (Optical Integrity) Automatic oi
The X3301 includes the Automatic oi feature — a calibrated performance test that is automatically performed once per minute to verify complete detector operation capabilities. No testing with an external test lamp is required. The detector automatically performs the same test that a maintenance person with a test lamp would perform — once every minute, 60 times per hour. However, a successful Automatic oi test does not produce an alarm condition.
The X3301 signals a fault condition when less than half of the detection range remains. This is indicated by the Fault output and is evident by the yellow color of the LED on the face of the detector. The oi fault condition is self-clearing if the optical contamination is temporary. If the contamination is not automatically cleared and the oi fault remains, the detector may require cleaning or service. See the "Troubleshooting" section for further information.
Magnetic oi / Manual oi
The detector also incorporates both Magnetic oi (Mag oi) and Manual oi (Man oi) features that provide the same calibrated test as the Automatic oi, and in addition actuates the Alarm output to verify operation for preventive maintenance requirements. These features can be performed at any time and eliminate the need for testing with a non-calibrated external test lamp.
19.2 |
2 |
95-8527 |
CAUTION
These tests require disabling of all extinguishing devices to avoid release resulting from a successful test.
The Mag oi test is performed by placing a magnet at the location marked "MAG OI" on the outside of the detector (see Figure 2). The Man oi test is accomplished by connecting the oi lead (terminal 22) to power supply minus via an external switch. The magnet or switch must be held in place for a minimum of 6 seconds to complete the test. Either of these test methods activates the calibrated IR emitters. If the resulting signal meets the test criteria, indicating that greater than half of the detection range remains, the Alarm output changes state, the indicating LED changes to red, and the 0-20 mA current output goes to 20 mA. This condition remains until the magnet is removed or the switch is released, regardless of whether the relays are set for latching or non-latching operation.
If less than half of the detection range remains, no alarm is produced and a fault is generated. The fault indication can be reset by momentarily applying the Mag oi or Man oi switch.
NOTE
Refer to Appendix A for FM verification of the oi function.
Communication
The X3301 is furnished with an RS-485 interface for communicating status and other information with external devices. The RS-485 supports MODBUS protocol, with the detector configured as a slave device.
For HART communication, connect a HART communicator across a 250 ohm resistor in the 0-20 mA loop.
NOTE
The EQP model uses LON/SLC communication. RS-485 and HART communication are not available on the EQP model.
Data Logging
Data logging capability is also provided. Status conditions such as normal, power down, general and oi faults, fire alarm, time and temperature are recorded. Each event is time and date stamped, along with the temperature and input voltage. Event data is stored in non-volatile memory when the event becomes active, and again when the status changes. Data is accessible using the Inspector Connector accessory, RS-485, or the EQP Controller.
Integral Wiring Compartment
All external wiring to the device is connected within the integral junction box. The detector is furnished with four conduit entries, with either 3/4 inch NPT or M25 threads.
Detector Sensitivity Levels
There are four factory configured sensitivity levels available for the X3301 Flame Detector:
Very High, Medium, Low, and T-Low.
The following criteria should be considered when choosing a sensitivity level for the intended application:
•Detector placement
•Speed of response based on fuel type and fire size (see Appendix A for response times)
•Distance between the hazard and the flame detector
Recommended sensitivity guidelines are as follows:
Very High: |
Offshore, Warehousing |
Medium: |
General Duty, Compressors |
Low: |
Offshore, close proximity/high IR |
|
backgrounds |
T-Low: |
Turbine Enclosures |
Additional information on X3301 Flame Detector performance results and sensitivities can be found in Appendix A, the FM Approval and Performance Report.
Consult the factory with any questions on how to choose the optimum sensitivity level for the intended application.
19.2 |
3 |
95-8527 |
General APPLICATION
Information
Response Characteristics
Response is dependent on the detector's sensitivity setting, distance, type of fuel, temperature of the fuel, and time required for the fire to come to equilibrium. As with all fire tests, results must be interpreted according to an individual application.
See Appendix A for third-party approved fire test results. Additional fire test results are available from Det-Tronics.
Important Application Considerations
In applying any type of sensing device as a fire detector, it is important to know of any conditions that can prevent the device from responding to fire, and also to know what other sources besides fire can cause the device to respond.
Welding
Arc welding should not be performed within 40 feet (12.2 m) of the detector configured to very high sensitivity, within 10 feet (3.0 m) at medium sensitivity, within 5 feet (1.5 m) at T-Low sensitivity, or within 5 feet (1.5 m) at Low sensitivity. It is recommended that the system be bypassed during welding operations in situations where the possibility of a false alarm cannot be tolerated. Gas welding mandates system bypass, since the gas torch is an actual fire. Arc welding rods can contain organic binder materials in the flux that burn during the welding operation and are detectable by the X3301. Welding rods with clay binders do not burn and will not be detected by the X3301. However, system bypass is always recommended, since the material being welded may be contaminated with organic substances (paint, oil, etc.) that will burn and possibly cause the X3301 to alarm.
Artificial Lighting
The X3301 should not be located within 3 feet (0.9 m) of artificial lights. Excess heating of the detector could occur due to heat radiating from the lights.
EMI/RFI Interference
The X3301 is resistant to interference by EMI and RFI, and is EMC Directive compliant. It will not respond to a 5 watt walkie-talkie at distances greater than 1 foot (0.3 m). Do not operate a walkie-talkie within 1 foot (0.3 m) of the X3301.
Non-Carbon Fires
The X3301 is a multiple spectrum IR device with detection limited to carbonaceous fuels. It should not be used to detect fires from fuels that do not contain carbon, such as hydrogen, sulfur, and burning metals.
Important safety notes
Warning
Do not open the detector assembly in a hazardous area when power is applied. The detector contains limited serviceable components and should never be opened. Doing so could disturb critical optical alignment and calibration parameters, possibly causing serious damage.
Caution
The wiring procedures in this manual are intended to ensure proper functioning of the device under normal conditions. However, because of the many variations in wiring codes and regulations, total compliance to these ordinances cannot be guaranteed. Be certain that all wiring complies with the NEC as well as all local ordinances. If in doubt, consult the authority having jurisdiction before wiring the system. Installation must be done by a properly trained person.
Caution
To prevent unwanted actuation or alarm, extinguishing devices must be disabled prior to performing system tests or maintenance.
Caution
The multispectrum IR flame detectors are to be installed in places where the risk of mechanical damage is low.
Attention
Remove the protective cap from the front of the detector before activating the system.
Attention
Observe precautions for handling electrostatic sensitive devices.
19.2 |
4 |
95-8527 |
INSTALLATION
note
The recommended lubricant for threads and O-rings is a silicone free grease (p/n 005003001) available from Det-Tronics. Under no circumstances should a lubricant containing silicone be used.
Detector Positioning
Detectors should be positioned to provide the best unobstructed view of the area to be protected. The following factors should also be taken into consideration:
•Identify all high risk fire ignition sources.
•Be sure that enough detectors are used to adequately cover the hazardous area.
•Be sure that the unit is easily accessible for cleaning and other periodic servicing.
•Verify that all detectors in the system are properly located and positioned so that any fire hazards are within both the Field of View (FOV) and detection range of the detector. The Q1201C Laser Aimer is recommended for establishing the detector's FOV. Refer to Appendix A for specific information regarding detector range and FOV.
•The detector should be aimed downward at least 10 to 20 degrees to allow lens openings to drain. See Figure 1. The detector should be positioned so that its FOV does not cover areas outside the hazardous area. This will minimize the possibility of false alarms caused by activities outside the area requiring protection.
•The detector must be mounted on a rigid surface in a low vibration area.
•Dense fog, rain or ice can absorb IR radiation and reduce the sensitivity of the detector. To ensure optimum performance, be certain that the internal optical heater is enabled on detectors that are used in applications where snow, ice, and/condensation are likely to occur.
•Although IR detectors are less affected by smoke than other detectors, the X3301 should not be placed
where rising combustion products can obscure its vision. If smoke is expected before fire, smoke or other alternative detectors should be used in conjunction with the X3301. For indoor applications, if dense smoke is expected to accumulate at the onset of a fire, mount the detector on a side wall at least a few feet (approximately 1 meter) down from the ceiling.
•If possible, fire tests can be conducted to verify correct detector positioning and coverage.
•For ATEX installations, the X3301 Flame Detector housing must be electrically connected to earth ground.
Detector Orientation
Refer to Figure 2 and ensure that the oi plate will be oriented as shown when the X3301 is mounted and sighted. This will ensure proper operation of the oi system and will also minimize the accumulation of moisture and contaminants between the oi plate and the viewing windows.
IMPORTANT
If removed, the o i plate must be securely tightened to ensure proper operation of the oi system (40 oz./inches [28.2 N .cm] recommended).
CENTER AXIS
OF DETECTOR
FIELD OF VIEW
INCORRECT
CENTER AXIS
OF DETECTOR
FIELD OF VIEW
CORRECT |
D1974 |
NOTE: DETECTOR MUST ALWAYS BE AIMED
DOWNWARD AT LEAST 10 TO 20 DEGREES.
oi PLATE
PLACE MAGNET
HERE TO INITIATE MAGNETIC oi
VIEWING WINDOW (3)
oi MAGNET
F2068
DETECTOR
STATUS INDICATOR
Figure 2—Front View of the X3301
Figure 1—Detector Orientation Relative to Horizon
19.2 |
5 |
95-8527 |
Protection Against Moisture Damage
It is important to take proper precautions during installation to ensure that moisture will not come in contact with the electrical connections or components of the system. The integrity of the system regarding moisture protection must be maintained for proper operation and is the responsibility of the installer.
If conduit is used, we recommend installing drains, according to local codes, at water collection points to automatically drain accumulated moisture. It is also recommended to install at least one breather, according to local codes, at upper locations to provide ventilation and allow water vapor to escape.
Conduit raceways should be inclined so that water will flow to low points for drainage and will not collect inside enclosures or on conduit seals. If this is not possible, install conduit drains above the seals to prevent the collection of water or install a drain loop below the detector with a conduit drain at the lowest point of the loop.
Conduit seals are not required for compliance with explosion-proof installation requirements, but are highly recommended to prevent water ingress in outdoor applications. Units with M25 threads must use an IP66/IP67 washer to prevent water ingress.
Wiring Procedure Wire Size and Type
The system should be wired according to local codes. The wire size selected should be based on the number of detectors connected, the supply voltage and the cable length. Typically 16 AWG or 2.5 mm2 shielded cable is recommended. Wires should be stripped 3/8 inch (9 mm). A minimum input voltage of 18 Vdc must be present at the X3301.
|
|
4.0 |
|
4X |
ø0.42 |
(10.2) |
|
3.0 |
|||
|
(1.1) |
||
|
(7.6) |
||
|
|
||
|
|
3.0 |
|
|
|
(7.6) |
|
|
4.0 |
|
|
|
(10.2) |
|
|
|
|
10.6 |
|
|
|
(27.0) |
note
Refer to “Power Consumption” in the “Specifications” section of this manual.
The use of shielded cable is required to protect against interference caused by EMI and RFI. When using cables with shields, terminate the shields as shown in Figures 7 through 12, and Figure 15. Consult the factory if not using shielded cable.
In applications where the wiring cable is installed in conduit, the conduit must not be used for wiring to other electrical equipment.
If disconnection of power is required, separate disconnect capability must be provided.
CAUTION
Installation of the detector and wiring should be performed only by qualified personnel.
Detector Mounting
Install the mounting arm assembly on a rigid surface. The ideal installation surface should be free of vibration and suitable to receive 3/8 inch or M10 bolts with a length of at least 1 inch (25 mm). The surface must also have sufficient capacity to hold the detector and mounting arm weights (see "Specifications" section). Refer to the Q9033 Mounting Arm and Collar Attachment manual (95-8686) for additional mounting information. See Figure 3 for dimensions.
13.1
(33.3)
NOTE: THIS ILLUSTRATION SHOWS THE
DETECTOR MOUNTED AT THE 10° MINIMUM.
THESE DIMENSIONS WILL CHANGE BASED
ON THE DETECTOR’S MOUNTING ANGLE.
F2069
Figure 3—Q9033 Mounting Arm without Collar Attachment Dimensions in Inches (cm)
(See Figure 1 for Correct Detector Orientation.)
19.2 |
6 |
95-8527 |
Relay and 0-20 mA Output Models
Follow the instructions below to install the X3301.
1.Make field connections following local ordinances and guidelines in this manual.
––Figure 4 shows the wiring terminal strip located inside the detector’s integral junction box.
––Figure 5 shows the wiring terminal identification for the X3301 Flame Detector.
––Figure 6 shows an EOL resistor installed within the integral wiring compartment of the detector (refer to “EOL Resistors” for details).
––Figures 7 and 8 provide examples of typical installations with a X3301 wired to a fire alarm panel.
––If the detector is equipped with a 0 to 20 mA output, refer to Figures 9 through 12.
2.Check all field wiring to be sure that the proper connections have been made.
Important
Do not test any wiring connected to the detector with a meg-ohmmeter. Disconnect wiring at the detector before checking system wiring for continuity.
3.Make the final sighting adjustments and use a 14 mm hex wrench to ensure that the mounting arm assembly is tight.
EOL Resistors (Not Used with EQP Model)
To ensure that the insulating material of the wiring terminal block will not be affected by the heat generated by EOL resistors, observe the following guidelines when installing the resistors.
1.Required EOL resistor power rating must be 5 watts minimum.
note
EOL resistors must be ceramic, wirewound type, rated 5 watts minimum, with actual power dissipation not to exceed 2.5 watts. This applies to ATEX/IEC installations only.
2.Resistor leads should be cut to a length of approximately 1 1/2 inches (40 mm).
3.Bend the leads and install the EOL resistor as shown in Figure 6
4.Maintain a 3/8 inch (10 mm) minimum gap between the resistor body and the terminal block or any other neighboring parts.
NOTE
The EOL resistor can only be used within the flameproof terminal compartment. Unused conduit entries shall be closed with suitable blanking elements.
19.2 |
7 |
95-8527 |
Figure 4—X3301 Terminal Block
9 |
mA + |
19 |
mA – |
29 |
SPARE |
|
mA + REF |
|
|
|
|
8 |
18 |
mA – REF |
28 |
SPARE |
|
|
|
|
|
|
|
7 |
COM FIRE |
17 |
COM FIRE |
27 |
COM AUX |
|
|
|
|
|
|
6 |
N.O. FIRE |
16 |
N.O. FIRE |
26 |
N.O. AUX |
|
|
|
|
|
|
5 |
N.C. FIRE |
15 |
N.C. FIRE |
25 |
N.C. AUX |
|
|
|
|
|
|
4 |
COM FAULT |
14 |
COM FAULT |
24 |
RS-485 A |
|
|
|
|
|
|
3 |
N.O. FAULT |
13 |
N.O. FAULT |
23 |
RS-485 B |
|
|
|
|
|
|
2 |
24 VDC + |
12 |
24 VDC + |
22 |
MAN Oi |
|
|
|
|
|
|
1 |
24 VDC – |
11 |
24 VDC – |
21 |
24 VDC – |
|
|
|
|
|
|
D2061
Figure 5—X3301 Wiring Terminal Identification
3/8 INCH (10 MM) GAP MINIMUM
19 18 17 16 15 14 13 12 11
B2126
BULKHEAD
Figure 6—EOL Resistor Installation (For Ex d Wiring only)
19.2 |
8 |
95-8527 |
FIRE ALARM PANEL
ALARM
+
24 VDC
–
C2107
FIRE ALARM PANEL
EOL |
|
ALARM |
DEVICE 4 |
|
|
|
|
ALARM |
|
|
+ |
|
24 VDC |
|
|
|
– |
C2109 |
|
|
X3301 DETECTOR
|
|
|
|
|
|
9 |
mA + |
|
19 |
mA – |
SPARE |
29 |
|
|
|
|
|
|
|
|
|
mA + REF |
|
|
mA – REF |
SPARE |
|
|
|
|
|
|
|
|
|
8 |
|
18 |
28 |
|
||||
|
|
|
|
|
|
|
COM FIRE2 |
|
|
|
|
COM AUX |
|
|
|
|
|
|
|
|
7 |
COM FIRE |
17 |
|
|
27 |
|
||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
6 |
N.O. FIRE2 |
N.O. FIRE |
16 |
|
E.O.L. |
N.O. AUX |
26 |
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
N.C. FIRE2 |
N.C. FIRE |
15 |
|
DEVICE4 |
N.C. AUX |
25 |
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
4 |
COM FAULT1 |
COM FAULT |
14 |
|
|
RS-485 A |
24 |
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
3 |
N.O. FAULT1 |
N.O. FAULT |
13 |
|
|
RS-485 B |
23 |
|
|
|
|
|
|
|
2 |
24 VDC + |
|
12 |
24 VDC + |
MAN Oi |
22 |
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
24 VDC – |
|
|
|
|
24 VDC – |
|
|
|
|
|
|
|
|
1 |
|
11 |
24 VDC – |
21 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
oi TEST 3
WIRING NOTES:
1IN NORMAL OPERATION WITH NO FAULTS OCCURRING, THE FAULT RELAY COIL IS ENERGIZED AND THE NORMALLY OPEN (N.O.) AND COMMON (COM) CONTACTS ARE CLOSED.
2ALARM RELAY IS NORMALLY DE-ENERGIZED WITH NO ALARM CONDITION PRESENT.
3INDIVIDUAL MANUAL oi TEST SWITCHES CAN BE INSTALLED REMOTELY OR A DETECTOR SELECTOR AND
ACTIVATION SWITCH CAN BE INSTALLED AT THE FIRE PANEL. TEST SWITCHES ARE NOT SUPPLIED.
4REFER TO SPECIFICATIONS SECTION FOR EOL RESISTOR VALUES. REFER TO EOL RESISTORS SECTION FOR INSTALLATION DETAILS.
Figure 7—Ex d Wiring Option
|
|
|
|
|
|
|
X3301 DETECTOR |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
mA + |
|
19 |
mA – |
SPARE |
29 |
|
|
|
|
|
|
|
mA + REF |
|
|
mA – REF |
SPARE |
|
|
|
|
|
|
|
8 |
|
18 |
28 |
|
|||
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
COM FIRE2 |
COM FIRE |
|
|
COM AUX |
|
|
|
|
|
|
|
7 |
17 |
|
27 |
|
|||
|
|
|
|
|
|
|
||||||
|
|
|
|
|
6 |
N.O. FIRE2 |
N.O. FIRE |
16 |
|
N.O. AUX |
26 |
|
|
|
|
|
|
5 |
N.C. FIRE2 |
N.C. FIRE |
15 |
|
N.C. AUX |
25 |
|
|
|
|
|
|
4 |
COM FAULT1 |
COM FAULT |
14 |
|
RS-485 A |
24 |
|
|
|
|
|
|
3 |
N.O. FAULT1 |
|
13 |
N.O. FAULT |
RS-485 B |
23 |
|
|
|
|
|
|
2 |
24 VDC + |
|
12 |
24 VDC + |
MAN Oi |
22 |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
24 VDC – |
|
|
24 VDC – |
24 VDC – |
|
|
|
|
|
|
|
1 |
|
11 |
21 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
oi TEST 3
WIRING NOTES:
1IN NORMAL OPERATION WITH NO FAULTS OCCURRING, THE FAULT RELAY COIL IS ENERGIZED AND THE NORMALLY OPEN (N.O.) AND COMMON (COM) CONTACTS ARE CLOSED.
2ALARM RELAY IS NORMALLY DE-ENERGIZED WITH NO ALARM CONDITION PRESENT.
3INDIVIDUAL MANUAL oi TEST SWITCHES CAN BE INSTALLED REMOTELY OR A DETECTOR SELECTOR AND
ACTIVATION SWITCH CAN BE INSTALLED AT THE FIRE PANEL. TEST SWITCHES ARE NOT SUPPLIED.
4EOL RESISTOR SUPPLIED BY PANEL.
Figure 8—Ex d e Wiring Option
19.2 |
9 |
95-8527 |
PLC |
600 MAX |
AT 24 VDC |
+ |
– |
mA |
+ |
24 VDC |
– |
F2063 |
X3301 IR DETECTOR
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
mA + |
|
|
19 |
mA – |
SPARE |
29 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
mA + REF |
|
|
18 |
mA – REF |
SPARE |
28 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
COM FIRE |
COM FIRE |
17 |
|
COM AUX |
27 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
N.O. FIRE |
N.O. FIRE |
16 |
|
N.O. AUX |
26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
N.C. FIRE |
N.C. FIRE |
15 |
|
N.C. AUX |
25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
COM FAULT |
COM FAULT |
14 |
|
RS-485 A |
24 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
N.O. FAULT |
N.O. FAULT |
13 |
|
RS-485 B |
23 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
24 VDC + |
|
|
12 |
24 VDC + |
MAN Oi |
22 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
24 VDC – |
|
|
11 |
24 VDC – |
24 VDC – |
21 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Oi TEST1
Figure 9—X3301 Detector Wired for Non-Isolated 0 to 20 mA Current Output (Sourcing)
PLC |
600 MAX |
AT 24 VDC |
+ |
– |
mA |
+ |
24 VDC |
– |
F2064 |
X3301 IR DETECTOR
|
|
9 |
mA + |
|
|
19 |
mA – |
SPARE |
29 |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
8 |
mA + REF |
|
|
18 |
mA – REF |
SPARE |
28 |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
7 |
COM FIRE |
COM FIRE |
17 |
|
COM AUX |
27 |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
6 |
N.O. FIRE |
N.O. FIRE |
16 |
|
N.O. AUX |
26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
N.C. FIRE |
N.C. FIRE |
15 |
|
N.C. AUX |
25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
COM FAULT |
COM FAULT |
14 |
|
RS-485 A |
24 |
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
N.O. FAULT |
N.O. FAULT |
13 |
|
RS-485 B |
23 |
|
|
|
|
|
|
|
|
24 VDC + |
MAN Oi |
|
|
|
2 |
24 VDC + |
|
|
12 |
22 |
||
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
1 |
24 VDC – |
|
|
11 |
24 VDC – |
24 VDC – |
21 |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
Oi TEST1
Figure 10—X3301 Detector Wired for Non-Isolated 0 to 20 mA Current Output (Sinking)
PLC |
600 MAX |
AT 24 VDC |
+ |
– |
mA |
+ |
24 VDC |
– |
F2065 |
24 VDC |
|
|
|
|
|
|
|
|||
– |
+ |
|
|
|
X3301 IR DETECTOR |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
mA + |
|
19 |
mA – |
SPARE |
29 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
mA + REF |
|
18 |
mA – REF |
SPARE |
28 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
COM FIRE |
COM FIRE |
17 |
|
COM AUX |
27 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
N.O. FIRE |
N.O. FIRE |
16 |
|
N.O. AUX |
26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
N.C. FIRE |
N.C. FIRE |
15 |
|
N.C. AUX |
25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
COM FAULT |
COM FAULT |
14 |
|
RS-485 A |
24 |
|
|
|
|
3 |
N.O. FAULT |
N.O. FAULT |
13 |
|
RS-485 B |
23 |
|
|
|
|
|
|
|
|
|
MAN Oi |
|
|
|
|
|
2 |
24 VDC + |
|
12 |
24 VDC + |
22 |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
24 VDC – |
|
11 |
24 VDC – |
24 VDC – |
21 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Oi TEST1
Figure 11—X3301 Detector Wired for Isolated 0 to 20 mA Current Output (Sourcing)
PLC |
600 MAX |
AT 24 VDC |
+ |
– |
mA |
+ |
24 VDC |
– |
F2066 |
24 VDC |
|
|
|
|
|
|
|
|
|||
+ |
|
|
– |
|
|
|
|
X3301 IR DETECTOR |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
mA + |
|
|
19 |
mA – |
SPARE |
29 |
|
|
|
|
8 |
mA + REF |
|
|
18 |
mA – REF |
SPARE |
28 |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
COM FIRE |
COM FIRE |
17 |
|
COM AUX |
27 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
N.O. FIRE |
N.O. FIRE |
16 |
|
N.O. AUX |
26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
N.C. FIRE |
N.C. FIRE |
15 |
|
N.C. AUX |
25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
COM FAULT |
COM FAULT |
14 |
|
RS-485 A |
24 |
|
|
|
|
|
3 |
N.O. FAULT |
N.O. FAULT |
13 |
|
RS-485 B |
23 |
|
|
|
|
|
|
|
|
|
|
24 VDC + |
MAN Oi |
|
|
|
|
|
2 |
24 VDC + |
|
|
12 |
22 |
||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
24 VDC – |
24 VDC – |
|
|
|
|
|
1 |
24 VDC – |
|
|
11 |
21 |
||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
Oi TEST1
Figure 12—X3301 Detector Wired for Isolated 0 to 20 mA Current Output (Sinking)
NOTES: 1. INDIVIDUAL MANUAL oi TEST SWITCHES CAN BE
INSTALLED REMOTELY OR A DETECTOR SELECTOR AND ACTIVATION SWITCH CAN BE INSTALLED AT THE FIRE PANEL. TEST SWITCHES ARE NOT SUPPLIED.
19.2 |
10 |
95-8527 |
