Model 975-424600-110
Model 975-424600-110
24VDC 25Ahr UPS/BBU
Operators Instruction Manual
June 26, 2007 ● Document 1790 ● Rev. 2.0
1.0 Description
The Detcon Model 975-424600-110 is a 24VDC Uninterruptible Power Supply utilizing two (2) 25Ah
batteries and a 24VDC Power Supply. The unit is capable of delivering 4Amps to the load at 24VDC.
The 24VDC output is rated at 4Amp max. If AC is lost the unit is capable of providing 24VDC at 4Amps to
any load for over 5 hours. A low voltage cutoff board is incorporated in the unit to remove the 24VDC from
the load should the batteries fall below 20VDC. When AC power is restored, the batteries are recharged by
the power supply through a Diode current limiting resistor network that will charge the batteries at a rate of
400mA. Note that as long as AC is applied to the unit, 24VDC output will be available regardless of the
charge state of the batteries.
After initial installation of the unit, the batteries should be allowed to charge for at least 12 hours with power
applied to insure full charge.
2.0 Installation
Securely mount the enclosure in the desired place. The control enclosure is rated NEMA 4X, which is by
definition rain tight and therefore suitable for outdoor location in electrically non-hazardous environments.
Connect 100~240VAC input wiring to the terminals labeled “100~240VAC INPUT”; L1 (or VAC), L2 (or
Neutral), and Ground (Figure 1). The Power Supply will accept input voltages from 100 to 240VAC,
50/60Hz.
Connect wiring from the load to the “24VDC OUTPUT” terminals labeled “+” and “-“ (Figure 1).
NOTE: There is no connection to the terminal labeled “NC”.
NOTE: The unit is shipped with the battery interconnect wire (Blue wire running between B1+ and B2-)
disconnected from one of the batteries. This lead should be reconnected during installation for the unit to
operate correctly.
L1 L2
100~240VAC 24VDC
INPUT OUTPUT
Figure 1 Terminal Connections
+NC
25Ah UPS/BBU Manual Rev. 2.0 Page 1 of 1
0
REV
A
1790-1
SIZE
DRAWING NO.
975-424600-110

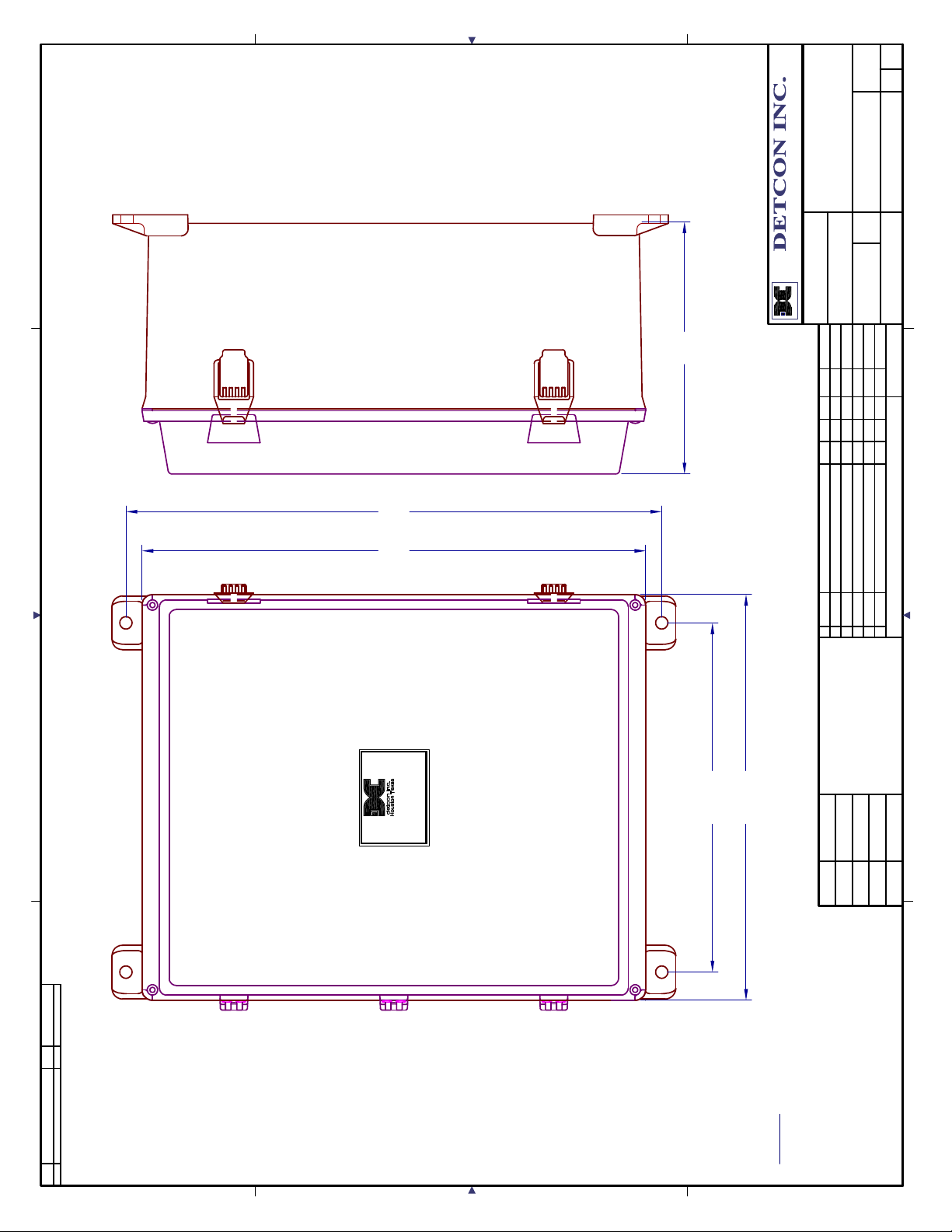

Unit Dimensional
NANTS
NA
SALES ORDER NO.
DETCON PRPOSAL #
SCALE
_
NA
3200 Research Forest Dr. A-1 * The Woodlands Texas 77381 * www.detcon.com
detcon, inc.
CLIENT:
NA
PROJECT:
R HUTSKO
FIRST ISSUE:
DRAWN BY:
06/25/07
19.15"
18"
Model
975-424600-110
25Ah Battery Backup
9"
12.5"
14.5"
SUBJECT
SUBJECT
REF. DWGS
NAZZ
DWG #
APPD
YYWW
DRN CHKD
DESCRIPTION
ISSUED FOR APPROVAL
REVISION HISTORY
XX/YY/ZZ0
Rev DATE
this document may be used and disseminated
The information and technical data disclosed by
NA
not be used or disseminated except as provided
only for the purposes and to the extent
in writing. Such information and technical data
are proprietary to Detcon Incorporated and may
in the foregoing sentence.
specifically authorized by Detcon Incorporated
NA
NANANA
NA
JOB NO.
SIZE
A
DRAWING NO.
1790-1
REV
0
NOTES:
P.O. NO.
REQ. NO.
PROJECT NO.
SERIAL NO.
PLANT:
Part Number Description Qty.
301 4Amp SB Fuse 1ea.
1
3019-1 Terminal Block 6pos 1ea.
2
317 Fuse Holder 1ea.
3
320-228861-104 4Amp Circuit Breaker 1ea.
4
2ea.
12V 25Ah Battery
3448
320-000000-000 DPST Toggle 1ea.
5
6
1ea.
24VDC 6.2A
Power Supply
360-SWS150-024
413 5.1Ohm Resistor 2ea.
7
8
500-505000-000 Low Voltage Cutoff PCB 1ea.
9
500-002860-000 Diode PCB Assy 2ea.
10
800-01817-1 Battery Bracket 2ea.
11
800-003240-000 Switch Mounting Brkt 1ea.
12
8
10
8100-MAP-1 Power Supply Bracket 1ea.
13
14
940 1N4001 Diode 1ea.
14
9
0
REV
A
1790-2
SIZE
DRAWING NO.
975-424600-110
Component Layout
NANTS
NA
SALES ORDER NO.
DETCON PRPOSAL #
SCALE
_
NA
3200 Research Forest Dr. A-1 * The Woodlands Texas 77381 * www.detcon.com
Note:
8, 9, 10, and 14 are mounted under the
Switch Mouniting Bracket, and are not
--- --- ---
shown in drawing.
detcon, inc.
CLIENT:
NA
PROJECT:
R HUTSKO
FIRST ISSUE:
DRAWN BY:
SUBJECT
SUBJECT
NAZZ
DWG #
APPD
YYWW
DRN CHKD
06/26/07
REF. DWGS
1
7
3
13
6
11
6
11
4
5
ON
OFF
12
2
+NC
INPUT OUTPUT
100~240VAC 24VDC
L1 L2
The information and technical data disclosed by
NA
P.O. NO.
DESCRIPTION
ISSUED FOR APPROVAL
REVISION HISTORY
XX/YY/ZZ0
Rev DATE
this document may be used and disseminated
not be used or disseminated except as provided
only for the purposes and to the extent
in writing. Such information and technical data
are proprietary to Detcon Incorporated and may
in the foregoing sentence.
specifically authorized by Detcon Incorporated
NA
NANANA
PROJECT NO.
SERIAL NO.
REQ. NO.
PLANT:
NA
JOB NO.
SIZE
A
DRAWING NO.
1790-2
REV
0
NOTES:
0
REV
1790-3
DRAWING NO.
A
SIZE
JOB NO.
NA
Power Supply
P/N 360-SWS150-024
V ADJ
H
GND
+
567
4-2
L1 N+ -
13
Adjust out put for 26.5VDC
across the output of the
power supply
J1
Red 18AWG Red 18AWG
Red 16AWG
Red 16AWG
Green 16AWG
Black 16AWG
1N4001
R1 2.5 Ohm
(2ea. 5.1Ohm Resistors
in parrallel)
D2
Diode PCB
P/N 500-002860-000
D2
P1
1 2 3 4
Low-Voltage
Cut-off (LV)
P/N 500-505000-000
Red 16AWG
Red 16AWG
Red 16AWG
P2
1 2
+
B1
P/N 3448
Battery 1
-
Blue 16AWG
+
B2
P/N 3448
Battery 2
Pwr Swtch SW1
P/N 322-000000-000
NOTES:
P.O. NO.
REQ. NO.
PROJECT NO.
SERIAL NO.
PLANT:
The information and technical data disclosed by
NA
this document may be used and disseminated
only for the purposes and to the extent
NA
specifically authorized by Detcon Incorporated
NA
in writing. Such information and technical data
are proprietary to Detcon Incorporated and may
NA
not be used or disseminated except as provided
in the foregoing sentence.
NA
Black 18AWG
ON
White 18AWG
OFF
ON
COM
3Amp Fuse
Fuse Holder
OFF
COM
Rev DATE
Green 16AWG
P/N 301
P/N 317
XX/YY/ZZ0
Circuit Breaker
P/N 320-228861-104
White 18AWG
Black 18AWGBlack 18AWG
L1 L2
100~240VAC
INPUT
ISSUED FOR APPROVAL
DESCRIPTION
REVISION HISTORY
White 18AWG
Green 16AWG
GND
OUTPUT
YYWW
APPD
DRN CHKD SUBJECT
Red 16AWG
1
2
Black 16AWG
Red 16AWG
+
24VDC
NAZZ
SUBJECT
DWG #
REF. DWGS
Black 16AWG
detcon, inc.
CLIENT:
PROJECT:
NA
DRAWN BY:
R HUTSKO
FIRST ISSUE:
06/25/07
-
3200 Research Forest Dr. A-1 * The Woodlands Texas 77381 * www.detcon.com
NA
_
BBU Interconnect Wiring
Diagram
SALES ORDER NO.
SCALE
NANTS
DETCON PRPOSAL #
NA
DRAWING NO.
1790-3
SIZE
A
REV
0
