Desa 4E769B User Manual

Operating Instructions & Parts Manual

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

®

4E769B

Dayton Propane Construction Heater

Description

Dayton Model 4E769B heater is a 35,000 BTU/Hr construction heater. This heater uses propane gas for combustion and electricity to run the motor. It is primarily intended for temporary heating of buildings under construction, alteration, or repair. This heater should only be used indoors but never in occupied dwellings.

Unpacking

1. Remove all packing items applied to heater for shipment. Keep plastic cover caps (attached to inlet connector and hose/regulator assembly) for storage.

2. Remove all items from carton.

3. Check all items for shipping damage. If heater is damaged, promptly inform dealer where you bought heater.

GENERAL HAZARD WARNING

Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury, and property loss or damage from hazards of fire, explosion, burn, asphyxiation, carbon monoxide poisoning, and/ or electrical shock.

Only persons who can understand and follow instructions should use or service this heater.

If you need assistance or heater information such

Figure 1 – Model 4E769B

as an instructions manual, labels, etc. contact the manufacturer.

Form 5S3439

Printed in U.S.A. 03430 1199/511/VCPVP

Fire, burn,

inhalation, and explosion hazard. Keep solid combustibles such as building materials, paper or cardboard, a safe distance away from the heater as recommended by the instructions. Never use the heater in spaces which do or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles, or unknown chemicals.

Not for

home or recreational vehicle use.

Heater is designed and approved for use as a construction heater under ANSI Z83.7. The primary purpose of construction heaters is to provide temporary heating of buildings under construction, alteration or repair, and to provide temporary emergency heat. Properly used, the heater provides safe economical heating. Products of combustion are vented into the area being heated.

We cannot foresee every use which may be made of our heaters. Check with your local fire safety authority if you have questions about heater use.

Other standards govern the use of fuel gases and heat producing products for specific uses. Local authorities can advise you about these.

®

Version B - For Reduction G016.J

Dayton Operating Instructions and Parts Manual

®

Dayton Propane Construction Heater

4E769B

General Safety Information

Make certain you read and understand all warnings. Keep these instructions for reference. They are your guide to safe and proper operation of this heater.

Safety information appears throughout these instructions. Pay close attention to them. Below are definitions for the safety information listed throughout this manual.

Under this heading,

installation, operating, and maintenance procedures or practices will be found that, if not carefully followed, WILL result in IMMEDIATE serious personal injury or death.

Under this head-

ing, installation, operating, and maintenance procedures or practices will be found that, if not carefully followed, COULD result in severe personal injury or death.

Under this heading,

installation, operating, and maintenance procedures or practices will be found that, if not carefully followed, MAY result in minor personal injury, product, or property damage.

IMPORTANT: Not every possible circumstance that might involve a hazard can be anticipated. The warnings in this manual and on tags or decals affixed to the unit are therefore not all-inclusive. If a procedure, work method, or operating technique not specifically recommended by Dayton is used, you must make sure it is safe for you and others. You should also ensure that equipment will not be damaged or made unsafe by the operating or maintenance method you choose.

Carbon monoxide

poisoning may lead to death! Some people are more affected by carbon monoxide than others. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be working properly or the areas may not be sufficiently ventilated. Get fresh air at once! Have heater serviced.

Propane Gas: Propane gas is odorless. An odor-making agent is added to propane gas. The odor helps you detect a propane gas leak. However, the odor added to propane gas can fade. Propane gas may be present even though no odor exists.

• Install and use

heater with care. Follow all local ordinances and codes. In the absence of local ordinances and codes, refer to the Standard for Storage and Handling of Liquefied Petroleum Gas ANSI/NFPA 58. This instructs on the safe storage and handling of propane gases.-

• Use only the hose and factory preset regulator provided with the heater.

• Use only propane gas set up for vapor withdrawal.

• Provide adequate ventilation. Before using heater, provide at least a sixsquare-foot opening of fresh, outside air. This heater produces carbon monoxide, which is listed by the State of California as a reproductive toxin under Proposition 65.

• For indoor use only. Do not use heater outdoors.

• Do not use heater in occupied dwellings or in living or sleeping quarters.

• Do not use heater in a basement or below ground level. Propane gas is heavier than air. If a leak occurs, propane gas will sink to the lowest

possible level and may accumulate to explosive concentrations.

• Keep appliance area clear and free from combustible materials, gasoline, paint thinner, and other flammable vapors and liquids. Dust is combustible. Do not use heater in areas with high dust content.

• Minimum heater clearances from combustibles: Outlet: 6 Ft. Sides: 2 Ft. Top: 6 Ft. Rear: 2 Ft.

• Keep heater at least six feet from propane tank(s). Do not point heater at propane tank(s) within 20 feet.

• Keep propane tank(s) below 100° F.

• Check heater for damage before each use. Do not use a damaged heater.

• Inspect hose before each use of heater. If highly worn or cut, replace before using heater. Use the replacement hose assembly specified in this manual.

• Locate heater on stable and level surface if heater is hot or running.

• Never block air inlet (rear) or air outlet (front) of heater.

• Keep heater away from strong drafts, water spray, rain, or dripping water.

• Keep children and animals away from heater.

• Never move, handle, or service a hot, operating, or plugged-in heater. Severe burns may result. You must wait 15 minutes after turning heater off.

• Never attach duct work to heater.

• Do not alter heater. Keep heater in its original state.

• Do not use heater if altered.

• Turn off propane supply and unplug heater when not in use.

• Use only original replacement parts. This heater must use design-specific parts. Do not substitute or use generic parts. Improper replacement parts could cause serious or fatal injuries.

2

Dayton Operating Instructions and Parts Manual

Model 4E769B

General Safety Information

(Continued)

• The electrical connections and grounding of the heater shall follow the National Electric Code, ANSI/ NFPA 70.

• Use only the electrical voltage and frequency specified on model plate.

• Electrical grounding instructions — This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.

• Use only a three-prong, grounded extension cord.

Specifications

ELECTRICAL SPECIFICATIONS

Electrical Input Amperage

120 Volt/60Hertz 2

GENERAL SPECIFICATIONS

Output Fuel Size Regulator Weight Rating BTU/Hr Fuel Consumption L x W x H (Inches) Outlet Pressure (pounds)

35,000 Only Propane Vapor .38 Gallons/Hour 18.5 x 7.7 x 12.8 11" WC 14.5 (Heater)

1.6 Pounds/Hour 16 (Shipping)

GENERAL SPECIFICATIONS (Cont.)

Manifold Hot Air Output Supply Pressure Temperature Range Pressure (CFM Approx) Ignition To Regulator For Operating Heater Motor

10.8" WC 175 Manual 10 psi Minimum (for) -20° F to 85° F* 2735 RPM

Piezo purposes of input

adjustment) Tank Pressure or 200 psi Maximum

(*) When running heater in temperatures above 85° F, high internal temperatures may cause thermal limit device to shut down

heater.Minimum ambient operating temperature: -20°F (-28°C).

3

Version B - For Reduction G016.J

®

Dayton Operating Instructions and Parts Manual

®

Dayton Propane Construction Heater

Product Identification

Shell

Hot Air Outlet (Front)

4E769B

Handle

Heater Base

Piezo Ignitor Button

Automatic Control Valve Button

Hose /Regulator Assembly

Motor

Fan Guard

Inlet Connector

Power Cord

Figure 2 – Model 4E769B

4

Dayton Operating Instructions and Parts Manual

Model 4E769B

Theory of Operation

THE FUEL SYSTEM

The hose/regulator assembly attaches to the propane gas supply. This provides fuel to the heater.

THE AIR SYSTEM

The motor turns the fan. The fan pushes air into and around the combustion chamber. This air is heated and provides a stream of clean, hot air.

Combustion Chamber

Clean Heated Air Out (Front)

THE IGNITION SYSTEM

The piezo ignitor lights the burner.

THE AUTOMATIC CONTROL SYSTEM

This system causes the heater to shut down if the ﬂame goes out.

Fan

Motor

Cool Air In (Back)

Propane Supply

Propane gas and propane tank(s) must to provided by the customer.

Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage

and Handling of Liqueﬁed Petroleum Gas, ANSI/NFPA 58. Your local library or

ﬁre department will have this booklet.

The amount of propane gas ready for use from propane tanks varies. Two factors decide this amount:

1. The amount of propane gas in tank(s)

2. The temperature of tank(s)

This heater is designed to operate with a minimum 20-pound propane tank. You may need two or more tanks or one larger tank in colder weather. Use a 100-pound tank for longer operation or in very cold weather. Less gas is vaporized at lower temperatures. Your local propane gas dealer will help you select the proper supply system. The minimum surrounding air temperature rating for each heater is -20°F (-29°C).

Hose/Regulator Assembly

Air For Combustion Air For Heating

Figure 3 - Cross Section Operational View

Average Temperature Number of Tanks (oF) at Tank Location (100 pound)

40° 1 32° 1 20° 1 10° 1

0° 1

-10° 2

-20° 2

®

5

Version B - For Reduction G016.J

Dayton Operating Instructions and Parts Manual

®

Dayton Propane Construction Heater

4E769B

Installation

Review and

understand the warnings in the General Safety Information Section. They are needed to safely operate this heater. Follow all local codes when using this heater.

Test all gas piping

and connections for leaks after installation or servicing. Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

1. Provide propane supply system (See

Propane Supply, page 5).

2. Connect POL ﬁtting on hose/regulator

assembly to propane tank(s). Turn POL ﬁtting counterclockwise into threads on tank. Tighten ﬁrmly using 7/8" wrench.

IMPORTANT: Position regulator so that hose leaving the regulator is in a horizontal position (See Figure 4). This places the regulator vent in the proper position to protect it from the weather.

3. Connect hose to inlet connector. Tighten ﬁrmly using a wrench.

IMPORTANT: Use extra hose or piping if needed. Install extra hose or piping between hose/regulator assembly and propane tank. You must use the regulator supplied with heater.

4. Open propane supply valve on propane tank(s) slowly.

NOTE: If not opened slowly, excessﬂow check valve on propane tank will stop gas ﬂow. If this happens, close propane supply valve and open again slowly.

5. Check all connections for leaks.

Ventilation

Provide at least a

one-square-foot opening of fresh, outside air while running heater. If proper fresh, outside air ventilation is not provided, carbon monoxide poisoning can occur. Provide proper fresh, outside air ventilation before running heater.

Operation

Review and

understand the warnings in the General Safety Information section. They are needed to safely operate this heater. Follow all local codes when using this heater.

TO START HEATER

1. Follow all installation, ventilation,

and safety information.

2. Locate heater on stable and level

surface. Make sure strong drafts do not blow into front or rear of heater.

3. Plug power cord of heater into a three-

prong, grounded extension cord. Extension cord must be at least six feet long. Extension cord must be UL listed.

Propane Supply Valve

Regulator

Propane Tank

Figure 4 - Regulator Position

POL Fitting

Inlet Connector

Hose

Figure 5 - Hose and Inlet Connector

Never use an open

Flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

6. Close propane supply valve.

6

EXTENSION CORD WIRE SIZE REQUIREMENTS

Up to 50 feet long, use 18 AWG rated cord. 51 to 100 feet long, use 16 AWG rated cord. 101 to 200 feet long, use 14 AWG rated cord.

4. Plug extension cord into a 120 volt/ 60 hertz, three-hole, grounded outlet. Motor will start. Fan will turn, forcing air out front of heater.

5. Open propane supply valve on propane tank(s) slowly.

Dayton Operating Instructions and Parts Manual

Model 4E769B

Operation (Continued)

NOTE: If not opened slowly, excess-ﬂow

check valve on propane tank will stop gas ﬂow. If this happens, close propane supply valve and open again slowly.

Be sure motor and

fan are running before pushing in automatic control valve button. Flames could flash outside heater if motor and fan are not running.

6. Push in and hold automatic control

valve button (See Figure 6). Push piezo ignitor button (See Figure 6). You may need to push piezo ignitor button 3-8 times until the burner lights. When burner lights, keep automatic control valve button pushed in. Release button after 30 seconds.

Piezo Ignitor Button

Automatic Control Valve Button

Figure 6 - Automatic Control Valve Button and Piezo Ignitor Button

NOTE: If heater fails to ignite, hose may

have air in it. If so, keep automatic control valve button pressed and wait 20 seconds. Release automatic control valve button and wait 20 seconds for unburned fuel to exit heater. Repeat step 6.

NOTE: If heater is unplugged or power outage occurs while heater is running, the thermal limit device will stop fuel flow. A few seconds occur before the thermal limit device activates. During this short time, flames may appear outside the heater. This is normal. The flames will go out when thermal limit device activates.

TO STOP HEATER

1. Tightly close propane supply valve on propane tank(s).

2. Wait a few seconds. Heater will burn gas left in supply hose.

3. Unplug heater.

TO RESTART HEATER

1. Wait five minutes after stopping heater.

2. Repeat steps under To Start Heater, page 6.

Storage

Disconnect heater from propane

supply tank(s).

1. Store propane tank(s) in safe manner. See Chapter 5 of Standard

for Storage and Handling of Liqueﬁed Petroleum Gases, ANSI/NFPA 58.

Follow all local codes. Always store propane tanks outdoors.

2. Place plastic cover caps over brass ﬁttings on inlet connector and hose/ regulator assembly.

3. Store in dry, clean, and safe place. Do not store hose/regulator assembly inside heater combustion chamber.

4. When taking heater out of storage, always check inside of heater. Insects and small animals may place foreign objects in heater. Remove motor and other internal parts if needed to remove foreign objects (See Service Procedures, page 8).

Maintenance

Never attempt to

service heater while it is connected to propane supply, operating, or hot. Severe burns and electrical shock can occur.

Keep heater clear

and free from combustible materials, gasoline, and other flammable vapors and liquids.

Do not block the

flow of combustion or ventilation air.

1. Keep heater clean. Clean heater

annually or as needed to remove dust and debris. If heater is dirty or dusty, clean heater with a damp cloth. Use household cleaners on difficult spots.

2. Inspect heater before each use.

Check connections for leaks. Apply mixture of liquid soap and water to connections. Bubbles forming show a leak. Correct all leaks at once.

3. Inspect hose/regulator assembly before

each use. If hose is worn or cut, replace.

4. Have heater inspected yearly by a

qualified service agency.

5. Keep inside of heater free from

combustible and foreign objects. Remove motor and other internal parts if need to clean inside of heater (See Service Procedures, page 8).

6. Clean fan blades each season or as

needed (See Fan, page 8).

®

7

Version B - For Reduction G016.J

Dayton Operating Instructions and Parts Manual

®

Dayton Propane Construction Heater

4E769B

Maintenance (Continued)

SERVICE PROCEDURES

Never attempt to

service heater while it is connected to propane supply, operating, or hot. Severe burns and electrical shock can occur.

ELECTRICAL SYSTEM The entire electrical system for this

heater is contained within the motor. If any part of the electrical system is damaged, you must replace motor.

MOTOR REPLACEMENT

1. Remove three screws that attach

fan guard to heater shell.

2. Remove motor and fan guard from

heater shell (See Figure 7).

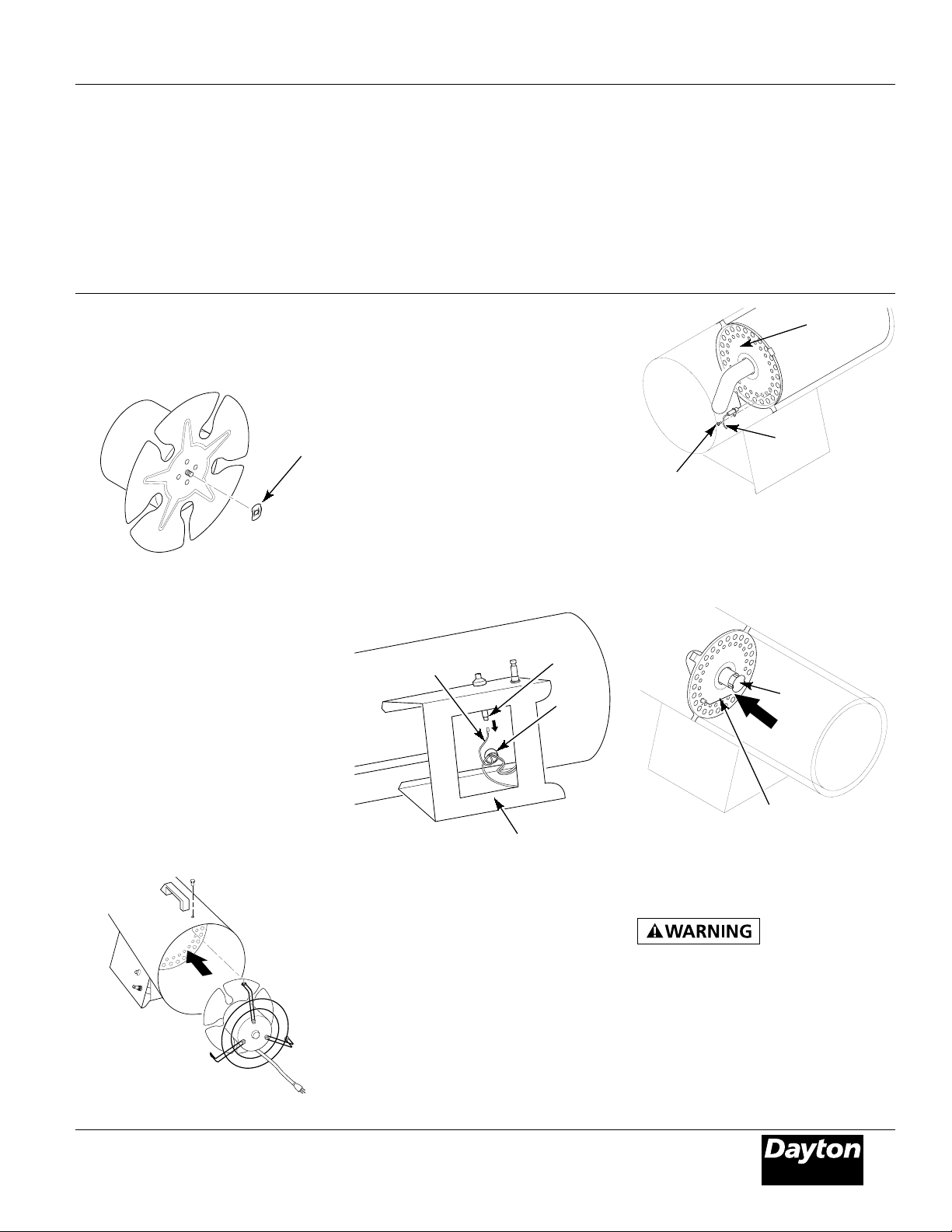

Figure 7 - Removing Motor and Fan Guard from Heater

3. Use pliers to remove the fan nut from

front of motor shaft (See Figure 8).

Fan Nut

Figure 8 - Removing Fan Nut from Motor Shaft

4. Remove fan. Be careful not to damage the fan blade pitch.

5. Remove three nuts that attach fan guard to motor using nut-driver. Remove fan guard from motor (See Figure 9).

Figure 9 - Removing or Attaching Fan Guard from Motor

6. Discard old motor.

7. Attach fan guard to new motor using three nuts. When attaching fan guard to motor, you must position power cord as shown in Figure 9. Tighten nuts ﬁrmly.

8. Place fan onto motor shaft of new motor.

IMPORTANT: When placing fan onto motor shaft, make sure part number stamped on fan is facing motor. Attach fan nut to end of motor shaft. Tighten fan nut firmly.

9. Place motor and fan guard into rear of heater shell. Make sure power cord is properly located (See Figure 10).

10. Insert three screws through heater shell and into fan guard. Tighten screws ﬁrmly.

Figure 10 - Replacing Motor and Fan Guard into Heater

FAN

1. Remove three screws that attach fan guard to heater shell.

2. Remove motor and fan guard from heater shell (See Figure 11).

Figure 11 - Removing Motor and Fan Guard from Heater

8

Dayton Operating Instructions and Parts Manual

Model 4E769B

Maintenance (Continued)

3. Use pliers to remove the fan nut from front of motor shaft (See Figure 12).

Fan Nut

Figure 12 - Removing Fan Nut From Motor Shaft

4a. If replacing fan, remove old fan

and discard. Go to step 7 below.

4b. If cleaning fan, remove fan. Be careful

not to damage the fan blade pitch.

5. Clean fan using soft cloth moistened with kerosene or solvent.

6. Dry fan thoroughly.

7. Place fan onto motor shaft.

IMPORTANT: When placing fan onto motor shaft, make sure part number stamped on fan is facing motor.

8. Attach fan nut to end of motor shaft. Tighten fan nut ﬁrmly.

Figure 13 - Replacing Motor and Fan Guard into Heater

9. Place motor and fan guard into rear of heater shell. Make sure power cord is properly located (See Figure 13).

10.Insert three screws through heater shell and into fan guard. Tighten screws ﬁrmly.

IGNITOR

1. Remove motor and fan guard from heater (See Motor, page 8, steps 1 and 2).

2. Remove black ignitor wire from piezo ignitor. Access ignitor wire through underside of heater base (See Figure 14). Push wire up through bushing in heater shell.

Piezo Ignitor

Ignitor Wire

Bushing

Underside of Heater Base

Figure 14 - Removing Ignitor Wire from Piezo Ignitor

3. Remove ignitor mounting screw from rear head using nut-driver or standard screwdriver (See Figure 15).

4. Remove ignitor from rear head.

5. Install new ignitor. Attach ignitor to rear head with ignitor mounting screw.

6. Run ignitor wire from new ignitor through bushing in heater shell. Attach ignitor wire to piezo ignitor.

Rear Head

Ignitor

Ignitor Mounting Screw

Figure 15 - Removing Ignitor Mounting Screw and Ignitor

7. Set gap between ignitor electrode and target plate to .17" (See Figure 16).

Target Plate

Gap Area

Ignitor Electrode

Figure 16 - Clearance Between Ignitor Electrode and Target Plate

8. Test for spark.

Make sure heater

from propane supply. Heater could ignite causing severe burns.

is disconnected

Push piezo ignitor button and watch for spark between ignitor electrode and target plate.

9. Place motor and fan guard into rear of heater shell (See Motor, page 8, steps 9 and 10).

®

9

Version B - For Reduction G016.J

Dayton Operating Instructions and Parts Manual

For Replacement Parts, call 1-800-323-0620

Dayton Propane

®

24 hours a day - 365 days a year

Please provide following information:

Construction Heater

-Model number

-Serial number (if any)

-Part description and number as shown in parts list

Address parts correspondence to:

Grainger Parts P.O. Box 3074 Northbrook, IL 60065-3074 U.S.A.

1

FAN

2

NUT

RUBBER WASHER

4E769B

23

22

24

21

20

4

7

16

9

8

21

25 27

11

26

FAN

18

26

17

13

10

MOTOR

ASSEMBLY

12

14

15

3

5

6

2

19

Figure 17 - Replacement Parts Illustration

10

Dayton Operating Instructions and Parts Manual

Model 4E769B

Replacement Parts List

Reference Number Description Part No. Quantity

1 Inner shell (Combustion Chamber) 099568-01 1 2 #10-16 x 3/8" Hex tap screw *M11084-26 7 3 Outer shell 099599-01AZ 1 4 Handle M51104-01 1 5 Hex tap shoulder screw 099230-01 4 6 #10-16 x 3/4" Hex tap screw *M11084-29 2 7 #12-14 x 1/2" Hex tap screw *M11084-3 3 8 Thermocouple clip 099237-01 1

9 Burner assembly 099727-01 1 10 Electrode ignitor 099539-01 1 11 #8-18 x 3/8" Hex tap screw *M11084-38 1 12 Fan 099537-01 1 13 Motor assembly 099521-01 1

(Includes rubber washer and fan nut) 14 Fan guard 099540-01 1 15 Captive washer nut 097384-02 3 16 #4-40 x 1/2" Hex screw *097968-05 2 17 #4-40 Hex nut *NPC-00C 2 18 Thermal switch kit 101732-02 1 19 Universal bushing 097776-01 1 20 Wire clip 099542-01 1 21 Thermocouple 099538-01 1 22 Valve/orifice assembly 099728-01 1 23 Piezo ignitor 102445-01 1 24 Sleeve cap 078978-03 1 25 Base 103892-01 1 26 #4 Lock washer *100397-01 4 27 1/8" Steel rivet *099202-02 1

∆ Tradename decal 100163-03 1 ∆ Tradename decal 100163-04 1 ∆ General information decal 099548-05 1 ∆ Operation decal 099666-01 1 ∆ LP Warning decal 079663-01 1 ∆ Notice decal 099672-01 1 ∆ Hose/regulator assembly LPA3090 1

4E769B

(*) Standard hardware item, available locally. (∆) Not shown.

11

®

Version B - For Reduction G016.J

Dayton Operating Instructions and Parts Manual

®

Dayton Propane Construction Heater

Never attempt to service heater while it is connected to propane supply, operating, or hot. Severe burns and electrical shock can occur.

Troubleshooting Chart

Symptom Possible Cause(s) Corrective Action

4E769B

Fan does not turn when heater is plugged in

Heater will not ignite

1. No electrical power to heater

2. Fan hitting inside of heater shell

3. Fan blades bent

4. Defective motor

1. User did not follow installation or operation instructions properly

2. No spark at ignitor. To test for spark, follow step 8 under Ignitor, page 9. If you see spark at ignitor, have heater serviced by qualified service person. If no spark seen: A) Loose or disconnected ignitor

wire

B) Wrong spark gap

C) Piezo ignitor loose

D) Bad ignitor electrode

1. Check voltage to electrical outlet. If voltage is good, check heater power cord for breaks

2. Adjust motor/fan guard to keep fan from hitting inside of heater shell. Bend fan guard if necessary

3. Replace fan. See Fan, page 8

4. Replace motor. See Motor, page 8

1. Repeat installation and operation instructions. See Installation, page 6 and Operation, page 6

2.

A) Check ignitor wire. Tighten or

reattach loose ignitor wire. See Figure 14, page 9 for ignitor wire location

B) Set gap between ignitor electrode and target plate to .17"

C) Tighten nut holding piezo ignitor to base of heater

D) Replace ignitor electrode. See Ignitor, page 9

12

Dayton Operating Instructions and Parts Manual

Model 4E769B

Troubleshooting Chart (Continued)

Symptom Possible Cause(s) Corrective Action

4E769B

Heater shuts down while running 1. High surrounding air temperature

causing thermal limit device to shut down heater

2. Restricted air flow

3. Damaged fan

4. Excessive dust or debris in surrounding area

Accessories

Description Part No.

10' Rubber Hose with Brass Fitting LPA1020

U.L. listed.

15' Rubber Hose with Brass Fitting LPA1030

U.L. listed.

Propane Gas Regulator LPA2110

U.L. listed.

Hose/Regulator Assembly LPA3090

U.L. listed.

Fuel Gas Connector LPA4020

Connects regulator to all standard propane tanks. U.L. and A.G.A. listed.

Tank Stabilizer LPA5000

1. This can happen when running

heater in temperatures above 85°F. Run heater in cooler temperatures

2. Check heater inlet and outlet. Remove any obstructions

3. Replace fan. See Fan, page 8

Use only in areas free of high dust

content.

4. Clean heater. See Maintenance, page 7

13

®

Version B - For Reduction G016.J

Dayton Operating Instructions and Parts Manual

®

Notes

Dayton Propane

4E769B

Construction Heater

____________________________________________________________________________________________________________________

14

Dayton Operating Instructions and Parts Manual

Model 4E769B

Notes

____________________________________________________________________________________________________________________

4E769B

____________________________________________________________________________________________________________________

15

Version B - For Reduction G016.J

®

Dayton Operating Instructions and Parts Manual

®

4E769B

Dayton Propane Construction Heater

LIMITED WARRANTY

DAYTON ONE-YEAR LIMITED WARRANTY. Natural gas construction heater, Models covered in this manual are warranted by Dayton Electric Mfg. Co. (Dayton) to the original user against defects in workmanship or materials under normal use for one year after date of purchase. Any part which is determined to be defective in material or workmanship and returned to an authorized service location, as Dayton designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at Dayton’s option. For limited warranty claim procedures, see PROMPT DISPOSITION below. This limited warranty gives purchasers specific legal rights which vary from jurisdiction to jurisdiction.

LIMITATION OF LIABILITY. To the extent allowable under applicable law, Dayton’s liability for consequential and incidental damages is expressly disclaimed. Dayton’s liability in all events is limited to, and shall not exceed, the purchase price paid.

WARRANTY DISCLAIMER. Dayton has made a diligent effort to provide product information and illustrate the product in this literature accurately; however, such information and illustrations are for the sole purpose of identification, and do not express or imply a warranty that the products are MERCHANTABLE, or FIT FOR A PARTICULAR PURPOSE, or that the products will necessarily conform to the illustrations or descriptions.

Except as provided below, no warranty or affirmation of fact, expressed or implied, other than as stated in “LIMITED WARRANTY” above is made or authorized by Dayton.

PRODUCT SUITABILITY. Many jurisdictions have codes and regulations governing sales, construction, installation, and/or use of products for certain purposes, which may vary from those in neighboring areas. While Dayton attempts to assure that its products comply with such codes, it cannot guarantee compliance, and cannot be responsible for how the product is installed or used. Before purchase and use of a product, review the product applications, and all applicable national and local codes and regulations, and be sure that the product, installation, and use will comply with them.

Certain aspects of disclaimers are not applicable to consumer products; e.g., (a) some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you; (b) also, some jurisdictions do not allow limitations on how long an implied warranty lasts, consequently the above limitation may not apply to you; and (c) by law, during the period of this Limited Warranty, any implied warranties of implied merchantability or fitness for a particular purpose applicable to consumer products purchased by consumers, may not be excluded or otherwise disclaimed.

PROMPT DISPOSITION. Dayton will make a good faith effort for prompt correction or other adjustment with respect to any product which proves to be defective within limited warranty. For any product believed to be defective within limited warranty, first write or call dealer from whom product was purchased. Dealer will give additional directions. If unable to resolve satisfactorily, write to Dayton at address below, giving dealer’s name, address, date and number of dealer’s invoice, and describing the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was damaged in transit to you, file claim with carrier.

Manufactured for Dayton Electric Mfg. Co., 5959 W. Howard St., Niles, Illinois 60714 U.S.A.

Manufactured for Dayton Electric Mfg. Co. Niles, Illinois 60714 U.S.A.

16

101427-01 Rev. B 01/00

®

Version B - For Reduction G016.J

Desa 4E769B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
