Desa 40.000, Btu/Hr 55.000, Btu/Hr 60.000, Btu/Hr 70.000, Btu/Hr 110.000 user manual

...

PORTABLE FORCED

AIR HEATERS

OWNER’S MANUAL

For more information, visit www.desatech.com

Heater Sizes: 40,000 55,000 60,000 70,000 110,000 115,000

150,000 155,000 165,000 and 200,000 Btu/Hr Models

H.S.I. Series

IMPORTANT: Read and understand this manual before assembling, starting or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

PRODUCT IDENTIFICATION ..................................................... 3

UNPACKING............................................................................... 3

THEORY OF OPERATION ......................................................... 4

FUELS......................................................................................... 4

VENTILATION............................................................................. 4

ASSEMBLY................................................................................. 5

OPERATION ............................................................................... 5

OPERATION WITH PORTABLE GENERATOR.......................... 6

PREVENTATIVE MAINTENANCE SCHEDULE ......................... 6

STORING, TRANSPORTING, OR SHIPPING............................ 6

Fill In For Your Records Model No. ___________________

(Located on side panel)

TROUBLESHOOTING ................................................................ 7

SERVICE PROCEDURES .......................................................... 8

TECHNICAL SERVICE ............................................................. 15

REPLACEMENT PARTS .......................................................... 15

SPECIFICATIONS .................................................................... 16

WIRING DIAGRAMS................................................................. 16

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 18

WHEELS AND HANDLES ........................................................ 24

ACCESSORIES ........................................................................ 25

WARRANTY AND REPAIR SERVICE ...................................... 26

Serial No. ___________________

(Located on fuel tank)

Date of Purchase: ______________

Save this manual for future reference.

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, ﬁre, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the ﬂu, with headaches, dizziness, and/or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, persons with heart or lung disease or anemia, those under the inﬂuence of alcohol, and those at high altitudes.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

• Use only kerosene, #1#2 diesel/fuel oil, JET A or JP-8 fuels to avoid risk of ﬁre or explosion. Never use gasoline, naphtha, paint thinners, alcohol, or other highly ﬂammable fuels.

• Fueling a)Personnel involved with fueling shall be qualified and thor-

oughly familiar with the manufacturer's instructions and applicable regulations regarding the safe fueling of heating units.

b)Only the type of fuel specified on the heater's data plate shall

be used.

c) All flame, including the pilot light, if any, shall be extin-

guished and the heater allowed to cool, prior to fueling.

d)During fueling, all fuel lines and fuel-line connections shall

be inspected for leaks. Any leaks shall be repaired prior to returning the heater to service.

e)At no time shall more than one day's supply of heater fuel

be stored inside a building in the vicinity of the heater. Bulk fuel storage shall be outside the structure.

f) All fuel storage shall be located a minimum of 762cm (25

feet) from heaters, torches, welding equipment, and similar sources of ignition (exception: the fuel reservoir integral with the heater unit).

g)Whenever possible, fuel storage shall be confined to areas

where floor penetrations do not permit fuel to drip onto or be ignited by a fire at lower elevation.

h)Fuel storage shall be in accordance with the authority hav-

ing jurisdiction.

• Use only the electrical voltage and frequency speciﬁed on model plate.

• Heater must be grounded. Use only a properly grounded threewire extension cord. Plug into grounded outlet only.

• Use only in areas free of ﬂammable vapors or high dust content.

• Minimum clearance from any combustible materials: 8 feet (244 cm) from hot air outlet; 6 feet (183 cm) from top; and 2 feet (61 cm) from sides and inlet.

• Locate heater on a stable and level surface while hot or operating or a ﬁre may occur.

• Use only in well-vented areas. Before using heater, provide at least a 2800 square cm (three-square-foot) opening of fresh, outside air for each 30 kw (100,000 Btu/Hr) of rating. This heater produces carbon monoxide, which is listed by the State of California as a reproductive toxin under Proposition 65.

• Keep children and animals away from heater at all times.

• Never start heater when combustion chamber is hot or if fuel has accumulated in combustion chamber.

• When used with thermostat, heater may start at anytime.

• When heater is moved or stored, it must be in a level position or fuel spillage may occur.

• Use heater only in accordance with local ordinances and codes.

• Never use gasoline, crankcase drainings, naphtha, paint thinners, alcohol, or other highly flammable fuels.

• Never use heater where gasoline, paint thinner, or other highly flammable vapors are present.

• Never use heater in living or sleeping areas.

• Never leave a heater plugged in without adult supervision if children or animals are likely to be present.

• Never move, handle, refuel, or service a hot, operating, or plugged-in heater.

• Never attach duct work to front or rear of heater.

• Never attach heater to external fuel tank.

• Heaters used in the vicinity of tarpaulins, canvas, or similar enclosure materials shall be located a safe distance from such materials. The recommended minimum safe distance is

304.8cm (10 feet). It is further recommended that these enclosure materials be of a fire retardant nature. These enclosure materials shall be securely fastened to prevent them from igniting or from upsetting the heater due to wind action.

• Unplug heater when not in use.

• Never block air inlet (rear) or air outlet (front) of heater.

• Warning to New York City Residents For Use Only At Construction Sites in accordance with ap-

plicable NYC codes under NYCFD certificate of approval #4803, #4899, #4908, #4909, or #4934.

For more information, visit www.desatech.com

108871

PRODUCT IDENTIFICATION

Hot Air Outlet

Upper Shell

Handle

Thermostat Knob (Thermostat Models Only)

Fan Guard

Hot Air Outlet

PRODUCT IDENTIFICATION

UNPACKING

Thermostat Knob

Upper Shell

(Thermostat Models Only)

Fan Guard

Lower Shell

Fuel Tank

Side Cover

Ignition Control Assembly (On Inside of Side Cover)

Power Cord

Figure 1 - 40/55/60/70 Models

Hot Air Outlet

Lower Shell

Fuel Cap

Upper Shell

Air Filter End Cover

Fan Guard

Lower Shell

Fuel Cap

Side Cover

Figure 3 - 200 Model

Ignition Control Assembly (On Inside of Side Cover)

Fuel Tank

Power Cord

UNPACKING

1. Remove all packing items applied to heater for shipment.

2. Remove all items from carton.

3. Check items for any shipping damage. If heater is damaged, promptly inform dealer where you bought heater.

Side Cover

Ignition Control Assembly (On Inside of Side Cover)

Figure 2 - 110/115/150/155/165 Models

108871

Power Cord

For more information, visit www.desatech.com

Fuel Tank

Thermostat Knob (Thermostat Models Only)

THEORY OF OPERATION

FUELS VENTILATION

THEORY OF OPERATION

The Fuel System: The air pump forces air through the air line. The air

is then pushed through the nozzle. This air causes fuel to be lifted from the tank. A ﬁne mist of fuel is sprayed into the combustion chamber.

The Air System: The motor turns the fan. The fan pushes air into

and around the combustion chamber. This air is heated and provides a stream of clean, hot air.

Clean Heated Air Out

Fuel Tank

Combustion Chamber

Nozzle

Air For Fuel System

Ignitor

Fuel Filter

Air For Combustion And Heating

Motor

Fan

Air Line To Burner

The Ignition System: The ignition control assembly provides

power to the ignitor. This ignites the fuel/air mixture in the combustion chamber.

The Flame-Out Control System: This system causes the heater to

shut down if the ﬂame goes out.

Air Pump

Air Intake Filter

Cool Air In

Air Output Filter

Ignition Control Assembly

Fuel

Figure 4 - Cross Section Operational View

FUELS

WARNING: Use only kerosene, #1/#2 diesel/fuel oil, JET A or JP-8 fuels to avoid risk of ﬁre or explosion. Never use gasoline, oil drained from crankcases, naphtha, paint thinners, alcohol or other highly ﬂammable fuels.

Use only kerosene, #1/#2 diesel/fuel oil, JET A or JP-8 fuels. Heavier fuels such as No. 2 fuel oil or No. 2 diesel fuel may also be used but will result in:

• noticeable odor

• additional fuel ﬁlter maintenance

• the need for nontoxic, anti-icer additives in very cold weather Do not use fuels heavier than No. 2 grade or heavy oils such as oil

drained from crankcases. These heavy oils will not ignite properly and will contaminate the heater.

IMPORTANT:

(yellow) storage container. Be sure storage container is clean. Foreign matter such as rust, dirt, or water will cause the ignition control assembly to shut down heater. Foreign matter may also require heater's fuel system to be frequently cleaned.

Use a KEROSENE ONLY (blue) or DIESEL ONLY

VENTILATION

WARNING: Provide a fresh air opening of at least three square feet (2,800 square cm) for each 100,000 BTU/HR rating. Provide extra fresh air if more heaters are being used. The minimum ventilation requirements must be followed to avoid risks associated with carbon monoxide poisoning. Make certain these requirements are met prior to operating heater.

Example:

following:

• a two-car garage door [4.88 meter (16 feet) opening] raised

12.7 cm (5 inches)

• a single-car garage door [2.74 meter (9 feet) opening] raised

20.3 cm (8 inches)

• two, 76.2 cm (30 inch) windows raised 38.1 cm (15 inches)

A 58.6kw (200,000 Btu/Hr) heater requires one of the

For more information, visit www.desatech.com

108871

ASSEMBLY

OPERATION

ASSEMBLY

(FOR 110/115/150/155/165/200 MODELS ONLY)

These models are furnished with wheels and a rear handle. Some models are furnished with a front handle also. Wheels, handle(s), and the mounting hardware are found in the shipping carton.

Tools Needed

• Medium Phillips Screwdriver

• 3/8" Open or Adjustable Wrench

• Hammer

1. Slide axle through wheel support frame. Install wheels on axle.

IMPORTANT:

wheels toward wheel support frame (see Figure 5).

2. Place cap nuts on axle ends. Gently tap with hammer to secure.

3. Place heater on wheel support frame. Make sure hot air outlet end (front) of heater is over wheels. Line up holes on fuel tank ﬂange with holes on wheel support frame.

4. Place rear handle (and front handle if provided) on top of fuel tank ﬂange. Insert screws through handle(s), fuel tank ﬂange, and wheel support frame. Attach nut ﬁnger tight after each screw is inserted.

5. After all screws are inserted, tighten nuts ﬁrmly.

Front Handle (If Provided)

Hot Air Outlet

Fuel Tank Flange

When installing wheels, point extended hub of

Handle

Screw

Air Inlet

OPERATION

IMPORTANT: Review and understand the warnings in the needed to safely operate this heater. Follow all local ordinances and codes when using this heater.

TO START HEATER

1. Follow all ventilation and safety information.

2. Locate heater to provide maximum circulation of the heated

3. Fill fuel tank with kerosene, #1#2 diesel/fuel oil, JET A or

4. Attach fuel cap.

5. For thermostat models, turn thermostat knob clockwise to the

6. Plug heater’s power cord into approved, grounded, three-wire

7. Plug extension cord into standard 120 volt/60 hertz, 3-prong

8. For thermostat models, adjust thermostat knob to the desired

TO STOP HEATER

Safety Information

air. Follow all location requirements noted in Safety Information, page 2.

JP-8 fuel.

high position.

extension cord. Extension cord must be at least six feet (1.8 meters) long.

Extension Cord Size Requirement

6 to 10 feet (1.8 to 3 meters) long, use 18 AWG (0.75 mm2) rated cord

11 to 100 feet (3.3 to 30.5 meters) long, use 16 AWG (1.0 mm2) rated cord

101 to 200 feet (30.8 to 61 meters) long, use 14 AWG (1.5 mm2) rated cord

grounded outlet. then heater will start.

setting. This thermostat is a general-heating control. It is not intended for precise temperature control. Adjust thermostat until heater cycles at the desired setting.

Note:

A cold heater may affect the thermostat setting.

section, page 2. They are

Ignitor will preheat for five seconds,

Wheel Support

Wheel

Cap Nut

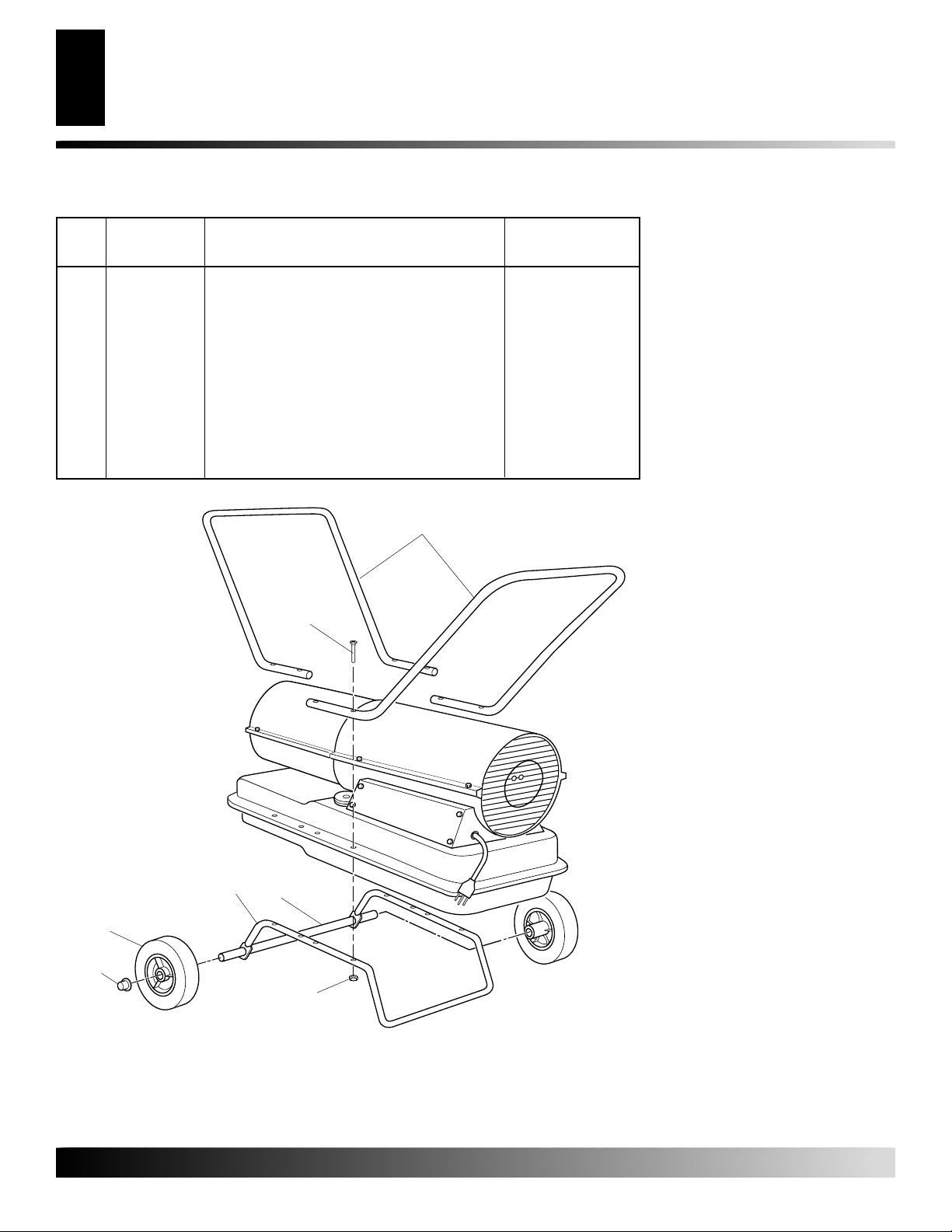

Figure 5 - Wheel and Handle Assembly, 110/115/150/155/165/ 200 Models Only

108871

Frame

Nut

For more information, visit www.desatech.com

Extended Hub

Axle

Unplug extension cord from outlet.

TO RESTART HEATER

1. Unplug extension cord from outlet and wait 10 seconds. (W ait two minutes if heater has been running.)

2. Repeat steps under To Start Heater.

OPERATION WITH PORTABLE GENERATOR

STORING, TRANSPORTING, OR SHIPPING PREVENTATIVE MAINTENANCE SCHEDULE

OPERATION WITH PORTABLE GENERATOR

WARNING: Before operating heater or any appliance from a portable generator, verify that generator has been properly connected to earth ground. Improper grounding or failure to ground generator can result in electrocution if a ground fault occurs. Refer to owner’s manual supplied by generator manufacturer for proper grounding procedures.

The operating voltage range of the heater is 108 to 132 Volts (120 Volts +/- 10%). Prior to plugging heater into generator the output voltage should be verified (if generator is equipped with the automatic idle feature, the output voltage should be measured with the generator running at full speed). If the voltage does not measure in this range the heater should not be plugged into the generator.

Refer to Operation, page 5, for starting, stopping, and resetting heater procedures.

Alternator

Ground Lug

Copper or Brass Grounding Point

STORING, TRANSPORTING, OR SHIPPING

Note:

If shipping, transport companies require fuel tanks to be empty.

1. Drain fuel tank.

Note:

Some models have drain plug on underside of fuel tank. If so, remove drain plug to drain all fuel. If heater does not have drain plug, drain fuel through fuel cap opening. Be sure all fuel is removed.

2. Replace drain plug if provided.

3. If any debris is noted in old fuel, add 1 or 2 quarts of clean kerosene to tank, stir, and drain again. This will prevent excess debris from clogging filters during future use.

4. Replace fuel cap or drain plug. Properly dispose of old and dirty fuel. Check with local automotive service stations that recycle oil.

5. If storing, store heater in dry place. Make sure storage place is free of dust and corrosive fumes.

IMPORTANT:

during next heating season. Using old fuel could damage heater.

Do not store kerosene over summer months for use

Ground Wire (#10 AWG Stranded-Copper)

Figure 6 - Typical Generator Grounding Method (Generator construction may vary from that shown)

PREVENTATIVE MAINTENANCE SCHEDULE

WARNING: Never service heater while it is plugged in, operating, or hot. Severe burns and electrical shock

can occur.

Item

Fuel tank

Air output and lint ﬁlters

Air intake ﬁlter

Fuel ﬁlter

Ignitor

Fan blades

How Often

Flush every 150-200 hours of operation or as needed

Replace every 500 hours of operation or once a year

Wash and dry with soap and water every 500 hours of operation or as needed

Clean twice a heating season or as needed

No maintenance required

Clean every season or as needed

How To

See Storing, Transporting, or Shipping, above

See Air Output, Air Intake, and Lint Filters, page 8

See Fuel Filter, pages 9 and 10

See Fan, page 8

Motor

Not required/permanently lubricated

For more information, visit www.desatech.com

108871

TROUBLESHOOTING

WARNING: Never service heater while it is plugged in, operating, or hot. Severe burns and electrical shock can occur.

TROUBLESHOOTING

FAULT CONDITION

Motor does not start five seconds after heater is plugged in

Motor starts and runs but heater does not ignite

POSSIBLE CAUSE

1. No power to heater

2. If equipped, thermostat setting is too low

WARNING: High voltage!

3. Bad electrical connection between motor and ignition control assembly or ignition control assembly and power cord

4. Binding pump rotor

5. Defective ignition control assembly

6. Defective motor

7. Blown fuse or ignitor control assembly

1. No fuel in tank

2. Pump pressure incorrect

3. Dirty fuel ﬁlter

4. Obstruction in nozzle

5. Water in fuel tank

WARNING: High voltage!

6. Bad electrical connection between ignitor and ignition control assembly

7. Defective ignitor

8. Defective ignition control assembly

9. 200 Model Only: Defective fuel valve (Models equipped with fuel valve only)

REMEDY

1. Check circuit breaker in electrical panel

2. Turn thermostat knob to a higher setting

3. Check all electrical connections. See Wiring Diagrams, page 17

4. If fan does not turn freely, see Pump Ro- tor, page 14

5. Replace ignition control assembly

6. Replace motor

7. See Ignition Control Assembly , page 15

1. Fill tank with kerosene

2. See Pump Pressure Adjustment, page 9

3. See Fuel Filter, pages 9 and 10

4. See Nozzle Assembly, pages 12 and 13

5. Drain and ﬂush fuel tank with clean kerosene. See Storing, Transporting, or Shipping, page 6

6. Check electrical connections. See Wir- ing Diagrams, page 17

7. Replace ignitor, see page 11

8. Replace ignition control assembly

9. See Fuel Valve, page 10

Heater ignites but ignition control assembly shuts heater off after a short period of time

For more information, visit www.desatech.com

108871

1. Pump pressure incorrect

2. Dirty air intake, air output, and/or lint filter

3. Dirty fuel ﬁlter

4. Obstruction in nozzle

5. Photocell assembly not properly installed (not seeing the flame)

6. Dirty photocell lens

WARNING: High voltage!

7. Bad electrical connection between photocell and ignition control assembly

8. Defective photocell

9. Defective ignition control assembly

1. See Pump Pressure Adjustment, page 9

2. See Air Output, Air Intake, and Lint Fil- ters, page 8

3. See Fuel Filter, pages 9 and 10

4. See Nozzle Assembly, pages 12 and 13

5. Make sure photocell boot is properly seated in bracket

6. Clean photocell lens

7. Check electrical connections. See Wir- ing Diagrams, page 17

8. Replace photocell

9. Replace ignition control assembly

SERVICE PROCEDURES

WARNING: To avoid risk of burn and electrical shock, never attempt to service heater while it is plugged in, operating, or hot.

Setscrew

Fan

Motor

Setscrew

Fan

UPPER SHELL REMOVAL

1. Remove screws along each side of heater using 5/16" nut-driver. These screws attach upper and lower shells together. See Figure 7 or 8.

2. Lift upper shell off.

3. Remove fan guard.

Screw

Upper Shell

Fan Guard

Figure 7 - Upper Shell Removal, 40/50/60/70 Models Only

Figure 8 - Upper Shell Removal, 110/115/150/155/ 165/200 Models Only

Screw

Upper Shell

Fan Guard

FAN

Flush

Motor Shaft

Figure 9 - Fan, Motor Shaft, and Setscrew Location

Figure 10 - Fan Cross Section

Motor Shaft

AIR OUTPUT, AIR INTAKE AND LINT FILTERS

1. Remove upper shell (see Figure 7 or 8).

2. Remove filter end cover screws using 5/16" nut-driver (see Figure 11 or 12).

3. Remove filter end cover.

4. Replace air output and lint filters.

5. W ash or replace air intake filter (see Pre ventative Maintenance Schedule, page 6).

6. Replace filter end cover.

7. Replace fan guard and upper shell.

IMPORTANT:

Do not oil filters.

Air Intake Filter

Filter End Cover

IMPORTANT:

Remove fan from motor shaft before removing motor from heater. The weight of the motor resting on the fan could damage the fan pitch (see Figure 9).

1. Remove upper shell (see Figure 7 or 8).

2. Use 1/8" allen wrench to loosen setscrew which holds fan to

motor shaft.

3. Slip fan off motor shaft.

4. Clean fan using a soft cloth moistened with kerosene or solvent.

5. Dry fan thoroughly.

6. Replace fan on motor shaft. Place fan hub flush with end of

motor shaft (see Figure 10).

7. Place setscrew on flat of shaft. Tighten setscrew firmly (40-50

inch-pounds/4.5-5.6 n-m).

8. Replace fan guard and upper shell.

For more information, visit www.desatech.com

Lint Filter

Air Output Filter

Figure 11 - Air Output, Air Intake, and Lint Filters, 40/55/60/70 Models Only

Air Intake Filter

Filter End Cover

Lint Filter

Air Output Filter

Figure 12 - Air Output, Air Intake, and Lint Filters, 110/115/150/ 155/165/200 Models Only

108871

+ 18 hidden pages
