Operating
Instructions
482-1
Important:
Read this manual and all labels carefully before
operating your powder actuated tool. This manual
should always accompany the tool and be transferred
with it upon change of ownership.
INDEX
Warning: Safety Precautions............................................................ 3-11
Why A Fastener Holds ........................................................................ 12
Selecting Fasteners and Power loads ................................................ 13
Operation ............................................................................................ 14
Parts List ............................................................................................. 16
Cleaning and Maintenance ................................................................. 17
Tool Disassembly................................................................................ 18
Tool Assembly..................................................................................... 21
Troubleshooting Guide........................................................................ 24
Fasteners ............................................................................................ 25
Application Chart................................................................................. 26
Warranty................................................................................Back Cover
REMINGTON
Power Pro
Semi-automatic Model 496
The Remington Power Pro
Remington 27 caliber power load strips and Remington power fasteners which are no longer than 3". Remington power fasteners are
manufactured from special steel and heat treated to produce a very
hard yet ductile fastener.
Spall Shield
Power Fastener†
Barrel
Assembly
Muzzle/Guide
Recommended
Approved
Goggles
Model 496 is designed for use with
Maximum 3"
Trigger
10-Shot
Power Load
Strip†
†Not supplied with tool
2
105635
Warning: Safety Precautions
IMPORTANT: Read these operating instructions carefully and completely before trying to operate or service this tool. Improper use of
this tool can cause serious injury or death from firing fastener into
body or from flying debris. We expressly disclaim any liability for any
injury to persons or damage to property which result from your failure
to take the precautions contained in this manual.
WARNING: This tool is designed only for use by qualified operators.
Qualification is obtained through a thorough understanding of the Safety
Warnings and operating instructions as defined in this operating manual.
NOTE: The labor regulations of many states require that the operator of this
tool on a job site be thoroughly trained and certified for competence prior
to operating this tool. For certification procedures, call: DESA Tool Division,
1-800-626-2237 (USA) or 1-905-826-8010 (Canada).
BEFORE USING
1. Always handle the tool as if it were loaded. Before starting work, check that the
tool is unloaded and the muzzle is clear. Never load a tool unless it is going to
be used.
DEFECTIVE
2. Always inspect to make sure the tool is working properly. If the tool does not
work properly, remove from service and tag “DEFECTIVE.” Do not use the tool
again until it has been properly repaired.
G 018
3. Operators and bystanders must ALWAYS wear goggles and ear protection
which meet or exceed the accepted standards for adequate protection in your
country. In the USA, refer to ANSI standards. In Canada, refer to CSA standards.
105635
3
Safety Precautions
WARNING
POWDER
ACTUATED
TOOLS
!
IN USE
482-10
4. Always clear the work area on all sides and post appropriate warning signs on
job sites.
G 018
482-12
5. Make sure the work area is clean from loose material and debris.
HANDLING THE TOOL
G 018
1. Never place your hand over the muzzle. Accidental discharge can cause
serious injury.
G 018
2. Never place your finger on the trigger until the tool’s muzzle is against the work
surface.
4
105635
Safety Precautions
P
O
W
E
PO
L
W
O
ER
A
D
LO
A
DS
G 018
3. Store powder actuated tool and power load strips in a locked container. Unload
tool before storing. Keep power loads of different power levels in separate
containers.
G 018
4. Never carry or pass a loaded powder actuated tool. Never point a powder
actuated tool at anyone.
G 018
5. If the tool is dropped, inspect for damage and repair it before continuing to work.
Never use a damaged tool.
G 018
6. Always take precaution to maintain your balance while operating a powder
actuated tool.
105635
5
Safety Precautions
?
?
?
G 018
7. An operator taking medication should take extra precautions while handling the
tool. Never drink alcoholic beverages or take medications which impair your
vision, balance or judgement before using a powder actuated tool.
KNOW YOUR FASTENING BASE MATERIAL
Sinks in
with
average
hammer
blow
TOO SOFT
Start
GREEN
POWER
LEVEL 3
YELLOW
POWER
LEVEL 4
482-28
G 018
RED
POWER
LEVEL 5
Point
flattens
TOO HARD
?
?
?
?
CENTER
PUNCH TEST
482-26
G 018
482-29
482-27
Surface
shatters
TOO BRITTLE
G 018
482-30
1. Always know the thickness and type of base material into which you are
fastening. Never guess. Test the base material by using the Center Punch Test.
The Center Punch Test is performed by using a hammer to test drive the
particular power fastener to be used into the material. If the point penetrates
easily, the material is too soft. If the point becomes blunt, the material is too
hard. If the material fractures, cracks or shatters, the material is too brittle. Test
fastenings can be made if the material shows a clear fastener impression and
the fastener point is not blunted. Always start with the lowest power load
(Green-Level 3) and proceeding with the order shown in the lower right-hand
figure above. Operators and bystanders must always wear goggles and ear
protection which meet or exceed the accepted standards for adequate protection in your country. In the USA, refer to ANSI standards. In Canada, refer to
CSA standards.
6
105635
Safety Precautions
G 018G 018
BRICK
482-33
CAST IRON GLASS
TILE
2. Never attempt to drive power fasteners into very hard or brittle materials
including, but not limited to cast iron, glass, tile, stone, brick, or hardened steel.
Materials of this type tend to shatter and create hazard from flying particles.
G 018
3. Never make fastenings in spalled or cracked areas.
G 018
4. Never drive power fasteners into thin or easily penetrated materials unless it is
backed by concrete or steel. When in doubt, such as when base material is
concealed, conduct a Center Punch Test (See page 6). Check continually to
avoid fastening into unsuitable material, especially in older buildings.
G 018
5. Do not fasten through or within 1/2" of predrilled or pre-punched holes.
105635
7
Safety Precautions
3"
3"
3"
1X
3X
482-38
6. Do not drive power fasteners into concrete less than three times as thick as the
intended fastener penetration, within 3" of the edge, within 3" of another power
fastener or within 3" of a failed power fastener.
WELD
3"
482-39
1/2"
482-40
TOO THIN
G 018
3/16" MIN
1"
482-41
7. Do not drive power fasteners into steel base material less then 3/16" thick,
within 2" of a weld, within 1/2" of the edge or within 1" of another power fastener.
G 018
8. When fastening into masonry walls, always drive into horizontal mortar joints,
never into vertical mortar joints. Be careful. A poorly laid joint may permit too
much penetration, and/or unsatisfactory holding power.
OPERATING THE TOOL
1. Always hold tool perpendicular to work surface.
8
105635
Safety Precautions
WATER
2. Should the tool fail to fire, hold the muzzle firmly against the work surface for
30 seconds. Release the trigger and remove pressure on the tool while
holding the muzzle against the work surface. Again press the tool firmly
against the work surface and pull the trigger. If the tool still fails to fire, hold
the tool firmly against the work surface for another 30 seconds before
advancing the power load strip. Use remaining loads in strip. Discard power
load strip into water or oil.
G 018
3. Always use the spall shield when driving directly into concrete or steel. Always
wear goggles.
GAS
482-50
GASOLINE
G 018
OLINE
G 018
482-49
4. Never use a powder actuated tool in an explosive or flammable atmosphere or
when non-sparking tools are required.
POWER LOADS AND FASTENERS
POWER
LOADS
G 018
1. Never leave unfired power load strips on floors or work surfaces.
105635
POWER
LOADS
G 018
9
Safety Precautions
Start
GREEN
POWER
LEVEL 3
YELLOW
POWER
LEVEL 4
RED
POWER
LEVEL 5
22
27
B
E
I
L
R
A
C
6
5
S
S
4
A
R
3
B
2
7
N
8
I
C
9
1
1
K
E
L
10
11
12
482-54
NOTE:
Failure to start with
the lowest power
level can result in
overdrive condition
and will result in
damage to tool
(See page 13).
2. Remington power load strips are available in three power levels – green (level
3), yellow (level 4) and red (level 5). Green is lowest power level, red is highest
power level. Always start with the lowest power level (green-level 3) and
increase until a proper fastening is made (See page 13
Fasteners and Power Loads
).
IMPORTANT:
Purple (level 6) power load
Selecting Power
strips will not function in model 496 tool.
G 018G 018
3. Never use power loads in firearms.
POWDER
POWER
LOADS
LOAD
ONLY
STRIPS
ONLY
482-57
4. Never carry fasteners or other hard objects in the same pocket or container with
power load strips.
GREEN?
YELLOW?
RED?
G 018
5. A color blind person must take extra precautions to prevent the chance of
mixing the power load strips of various levels.
10
105635
Safety Precautions
G 018
482-59
6. Power fasteners are a permanently installed fixture. An act of demolition is
required for their removal. Appropriate safety precautions must be taken.
Head
Shank
Plastic Flute
482-60
7. Never use common nails or other materials as fasteners. Remington Power
Fasteners are manufactured from special steel and heat treated to produce a
very hard yet ductile fastener.
G 018
8. Never pry a power load out of the strip. Prying can discharge the load causing
serious injury (See
Troubleshooting Guide
, page 24). Never attempt to reload
used strips.
9. If work is interrupted for any reason, remove the power load strip before
removing the power fastener.
105635
11
Why A Power Fastener Holds
482-64
WHY A POWER FASTENER HOLDS
IN CONCRETE
The compression bond of the concrete to the power
fastener accounts for the majority of the holding power.
The fastener displaces the concrete which tries to return
to its original form causing a squeezing effect.
Maximum holding power is achieved when the depth of
penetration produces a bond on the power fastener equal
to the strength of the concrete. As a general rule, penetration should be approximately 1" to 1 1/4" into the base
concrete. Make sure the concrete is at least three times
as thick as the intended fastener penetration. Never have
the power fastener point protrude through the concrete.
NOTE: Concrete needs to cure for 28 days before
maximum fastening holding power will be achieved.
WHY A POWER FASTENER HOLDS IN STEEL
Holding power in steel depends on the elasticity of the
steel. The steel pushes back on the shank of the power
fastener.
Drop a marble into water; the water parts, the marble
continues down, the water closes back. This is similar to
the reaction when a power fastener penetrates steel.
In steel, the point of the power fastener must penetrate
completely through for highest holding power. If the
fastener does not penetrate, the spring action of the steel
pushes back on the point and tends to force the fastener
out.
Recommended applications are between 3/16-3/8"
steel.
NOTE: When fastening in steel be sure the point goes
through the steel.
12
482-65
105635
Selecting Power Fasteners
and Power loads
FASTENING INTO CONCRETE
The proper power fastener length can be determined by
adding the thickness of the material to be fastened and the
amount of fastener that will actually penetrate the concrete. The concrete must be three times as thick as the
intended fastener penetration. In most cases, penetration
should be approximately 1" to 1 1/4" into the base concrete
material.
FASTENING INTO STEEL
The proper fastener length can be determined by adding
the thickness of the material to be fastened and the
thickness of the steel. The point of the power fastener
must go completely through the steel.
Wood or Non-Metals
To Concrete
Wood or Non-Metals
To Steel
482-85
482-79

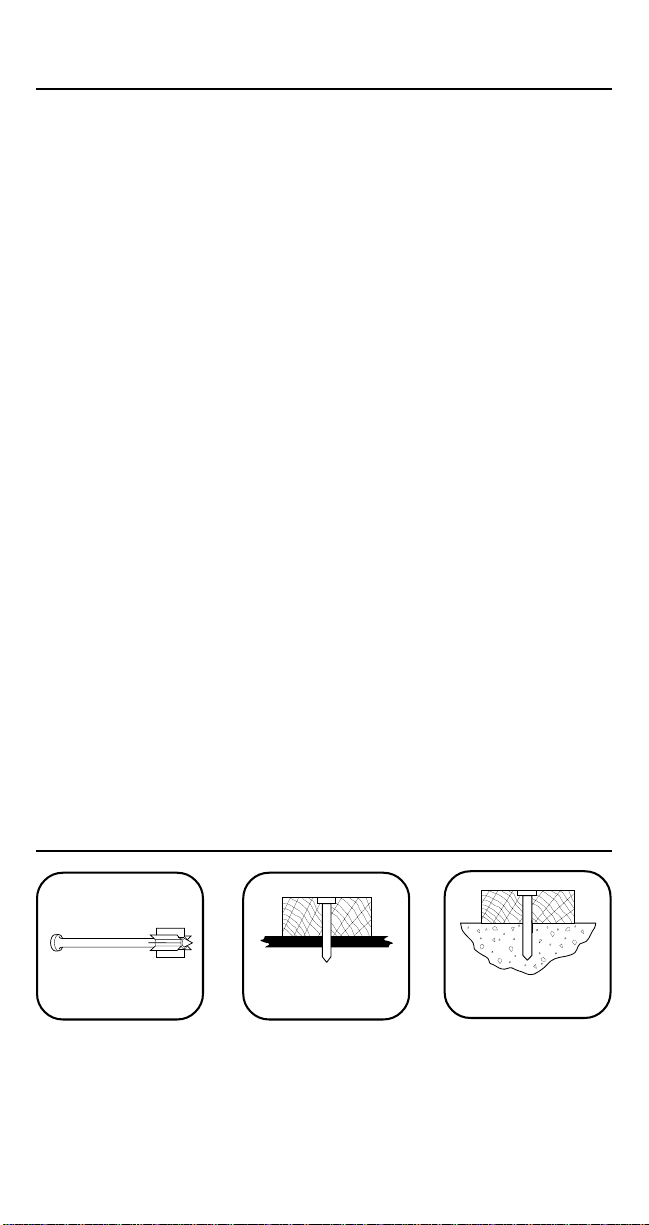

POWER LOADS
Always start with the lowest power level (green-level 3). If
the first test fastener does not penetrate to the desired
depth, move to the next highest power level (yellow-level
4). Increase until a proper fastening is made.
IMPORTANT: Damage to the tool will result if the above
instructions are not followed (see illustrations to right and
lower right).
OVERDRIVEN POWER FASTENERS
AND PISTON
An overdriven power fastener results when too strong of
a power load is used causing the piston to extend past the
muzzle. Move to the next lightest power load. Repeated
overdrive will damage your tool. By avoiding overdrive,
you can extend the life of your tool considerably and avoid
costly repairs.
NOTE: Never fire the tool without a power fastener. This
can damage the tool and/or cause possible injury to the
operator.
RIGHT
482-66
Flush With Surface
OVERDRIVE
482-67
G 018
Piston Extended
Out of Muzzle
105635
13
Operation
1. Grasp barrel assembly and slide forward rapidly until it stops. Push barrel
assembly back into tool to the closed position. This sets piston into firing
position.
482-70
482-71
2. Insert power fastener into muzzle of tool, head end first. Push the fastener until
point is even with end of tool.
NOTE:
Failure to start with
the lowest power
level can result in
overdrive condition
and will result in
damage to tool
(See page 13).
3. Select the proper power level of power load strips. Always insert power load
strips through bottom of handle. Push power load strip in until even with bottom
of handle.
4. Place the muzzle of tool perpendicular to work surface without tilting the tool.
Push tool against work surface until sliding action of barrel stops.
14
105635
Operation
5. Squeeze trigger to set power fastener. Be sure to keep pressure on tool during
this operation.
6. Grasp muzzle cap and slide barrel forward rapidly until it stops. Push barrel
assembly back into tool to the closed position. This advances the power load
strip and resets the piston for the next fastening.
WARNING: Do not depress barrel assembly past the closed position
when loading new power fastener. Live power load is in firing position.
WATER
7. Should the tool fail to fire, hold the muzzle firmly against the work surface for
30 seconds. Release the trigger and remove pressure on the tool while
holding the muzzle against the work surface. Again press the tool firmly
against the work surface and pull the trigger. If the tool still fails to fire, hold
the tool firmly against the work surface for another 30 seconds before
advancing the power load strip. Use remaining loads in strip. Discard power
load strip into water or oil.
105635
15
Parts List 496
Key Part
No. No. Description Qty.
1 502001 Housing 1
2 502100 Outer Liner Assembly 1
3 501104 Push Pin 1
4 301013 Ball Setter 2
5 501106 Spring Ball Set 1
6 501107 Key Stop 1
7 301014 Annular Spring 1
8 502200 Barrel 1
9 502202 Piston Assembly (Includes Ring) 1
10 501212 Ring 1
11 502215 3" Muzzle Cap 1
12 TA4086 Plastic Buffer (5 pack)
13 501300 Firing Pin Assembly
14 501317 Firing Pin Guide 1
15 301047 Spring 1
16 501319 Sear 1
17 501320 Spring 1
18 501321 Safety Spring 1
19 501422 Rear Pad 1
20 501423 Bolt 2
21 301531 Advance Spring 1
22 301533 Trigger 1
23 501526 Trigger Pin 1
24 502600 Rocker Arm Assembly (Includes Rocker Arm,
25 501733 Rocker Arm Spring 1
26 501700 Handle Pad Assembly 1
27 501500 Advance Assembly (Holder, Bar, Tube) 1
(Includes Pin, Spring, Nut, Washer) 1
Rocker Arm Pin and Rocker Arm Holder) 1
101320-02 Spall Shield 1
Optional Accessory
056486 Brush 1
IMPORTANT: Do not use key numbers when ordering service parts. Always
order components by part number and description. Include model number and
serial number of tool.
16
105635
Parts List 496
20
18
17
19
14
13
15
16
7
6
4
2
23
4
11
1
21
22
10
5
9
12
24
3
27
25
26
8
Cleaning and Maintenance
Clean tool after each days use. Disassemble and clean the barrel assembly with the
wire brush provided with tool. Notice: Do not attempt to clean power load strip
channel with wire brush.
Apply good quality penetrating lubricant spray (such as WD-40) sparingly and wipe
dry.
105635
17
Tool Disassembly
WARNING: Always unload a powder actuated tool before disassembling,
replacing barrel, cleaning, or assembling.
A. REMOVING BARREL ASSEMBLY
1. Using screwdriver, lift end of annular spring and rotate spring until stop is
uncovered (see Figure 1).
Figure 1 - Rotating Annular Spring to Uncover Stop
2. Push stop towards rear of tool and remove (see Figure 2).
Annular Spring
Stop
Stop
Stop
Figure 2 - Removing Stop
3. Pull barrel assembly out of housing.
4. Unscrew muzzle cap.
5. Pull buffer out of muzzle cap (see Figure 3).
Barrel
Buffer
Muzzle Cap
Piston
Figure 3 - Separating Barrel Assembly from Housing
18
105635

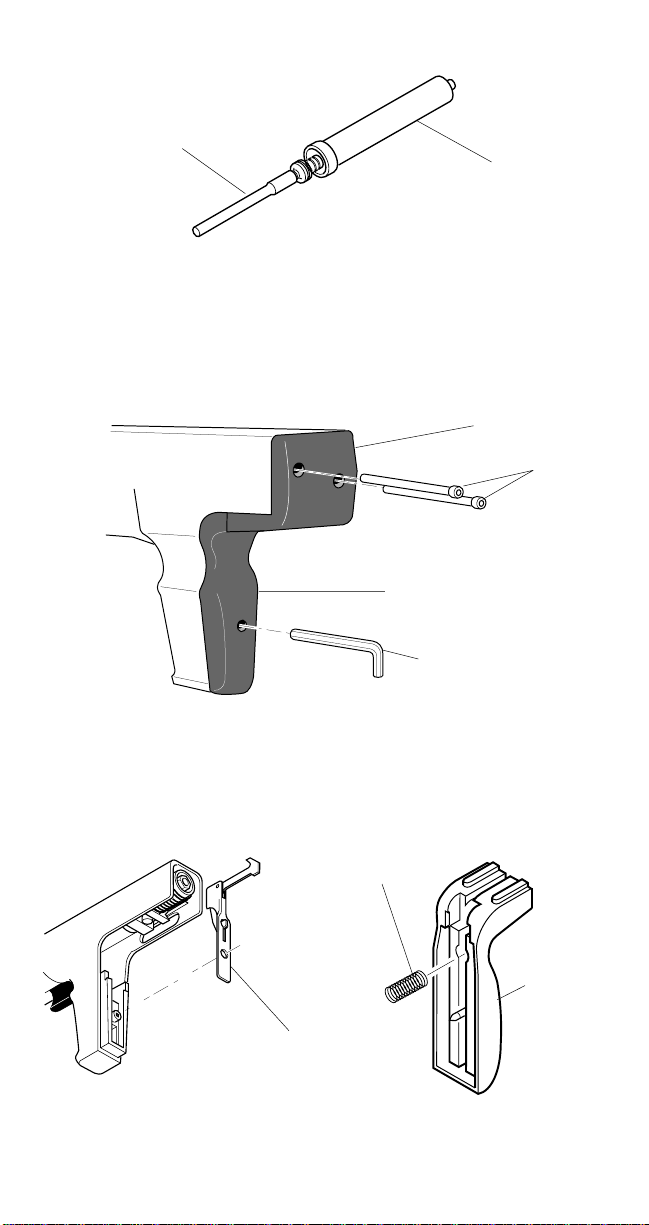

6. Remove piston assembly from barrel (see Figure 4).
Piston
Assembly
Barrel
Figure 4 - Removing Piston Assembly from Barrel
B. REMOVING REAR PAD AND HANDLE PAD ASSEMBLY
1. Loosen screws on back of handle pad assembly and rear pad with 3mm Allen
wrench.
2. Remove assembly handle pad and rear pad. Do not remove the screw from the
assembly handle pad (see Figure 5).
Rear Pad
Screws
Handle Pad Assembly
3mm Allen Wrench
Figure 5 - Removing Handle Pad Assembly and Rear Pad
C. REMOVING ROCKER ARM ASSEMBLY
1. Rocker arm assembly is located in housing. Pull rocker arm assembly out of
housing (see Figure 6).
2. Pull rocker arm spring away from handle pad assembly to remove (see Figure 7).
Rocker Arm
Spring
Assembly
Handle Pad
Rocker Arm
Assembly
Figure 6 - Removing Rocker Arm
Assembly from Housing
105635
Figure 7 - Removing Rocker Arm
Spring from Handle Pad
19
Continued
D. REMOVING FIRING PIN
1. Remove two springs from outer liner assembly (see Figure 8).
2. Push in sear and pull out firing pin guide (see Figure 8). Line up sear with end of
slot. Remove spring and sear. Remove firing pin assembly. Remove push pin
(see Figure 9).
Springs
Sear
Spring
Sear
Firing Pin
Guide
Figure 8 - Removing Springs and
Pushing in Sear to Remove Firing
Outer
Liner
Assembly
Push Pin
Firing Pin Assembly
Figure 9 - Removing Sear, Spring,
Firing Pin Assembly, and Push Pin
Pin Guide
E. REMOVING TRIGGER ASSEMBLY
1. Remove trigger pin from housing with hammer and punch (see Figure 10).
2. Remove trigger assembly from rear of housing.
Housing
Trigger Assembly
Trigger Pin
Figure 10 - Removing Trigger Pin and Trigger Assembly
F. REMOVING OUTER LINER ASSEMBLY FROM HOUSING
1. Grasp outer liner assembly and remove from housing.
2. Remove spring and ball bearing located at rear of liner.
Outer Liner Assembly
Figure 11 - Removing Outer Liner Assembly from Housing
Ball
Bearing
20
Tool Body
Spring
105635
Tool Assembly
WARNING: Always unload a powder actuated tool before disassembling,
replacing barrel, cleaning, or assembling.
A. INSERTING OUTER LINER ASSEMBLY INTO HOUSING
1. Place ball bearing and spring in end of outer liner assembly (see Figure 11, page
20).
2. Slide outer liner assembly into tool body.
B. ATTACHING TRIGGER ASSEMBLY TO HOUSING
1. Insert trigger assembly into tool body at rear of housing (see Figure 10, page 20).
2. Secure trigger pin by inserting trigger pin through housing and trigger assembly
(see Figure 10, page 20) .
C. ATTACHING FIRING PIN ASSEMBLY
1. Insert push pin into hole in housing next to outer liner assembly (see Figure 12).
2. Insert firing pin assembly in outer liner assembly.
3. Insert spring and sear through slot on outer liner assembly and into slot in firing
pin assembly (see Figure 12).
4. Slide firing pin guide on outer liner assembly (see Figure 13).
5. Slide springs on outer liner assembly (see Figure 13).
Sear
Sear
Spring
Outer Liner
Firing Pin Assembly
Figure 12 - Inserting Firing Pin
Assembly, Spring, Sear, and Push Pin
D. REPLACING ROCKER ARM ASSEMBLY
1. Insert rocker arm spring in recess on assembly handle pad (see Figure 14).
2. Put rocker arm assembly inside of the housing. Line up screw hole in housing with
hole in rocker arm assembly (see Figure 15).
Rocker Arm
Spring
Assembly
Handle Pad
Figure 14 - Replacing Rocker Arm
Spring into Handle Pad
105635
Assembly
Figure 13 - Inserting Firing Pin
Guide and Springs
Rocker Arm
Assembly
Figure 15 - Replacing Rocker Arm
Assembly into Housing
21
Springs
Firing Pin
Guide
Continued
E. ATTACHING REAR PAD AND HANDLE PAD ASSEMBLY
1. Replace the handle pad assembly. Tighten screw with 3mm Allen wrench.
2. Replace the rear pad with two screws provided. The screws will also secure the
outer liner replaced in step A.
Inserting Outer Liner Assembly into Housing
(see
Figure 16).
Outer Liner
Assembly
Handle Pad Assembly
3mm Allen Wrench
Figure 16 - Replacing Handle Pad Assembly and Rear Pad
F. ASSEMBLING BARREL ASSEMBLY
1. Insert piston assembly into barrel (see Figure 17).
Piston
Figure 17 - Inserting Piston in Barrel
2. Insert buffer in muzzle cap.
3. Screw muzzle cap to barrel assembly.
4. Insert barrel into outer liner assembly (see Figure 18).
Rear Pad
Screws
Barrel
Barrel
Buffer
Muzzle Cap
Outer Liner Assembly
Piston
Figure 18 - Inserting Barrel Assembly into Outer Liner Assembly
22
105635

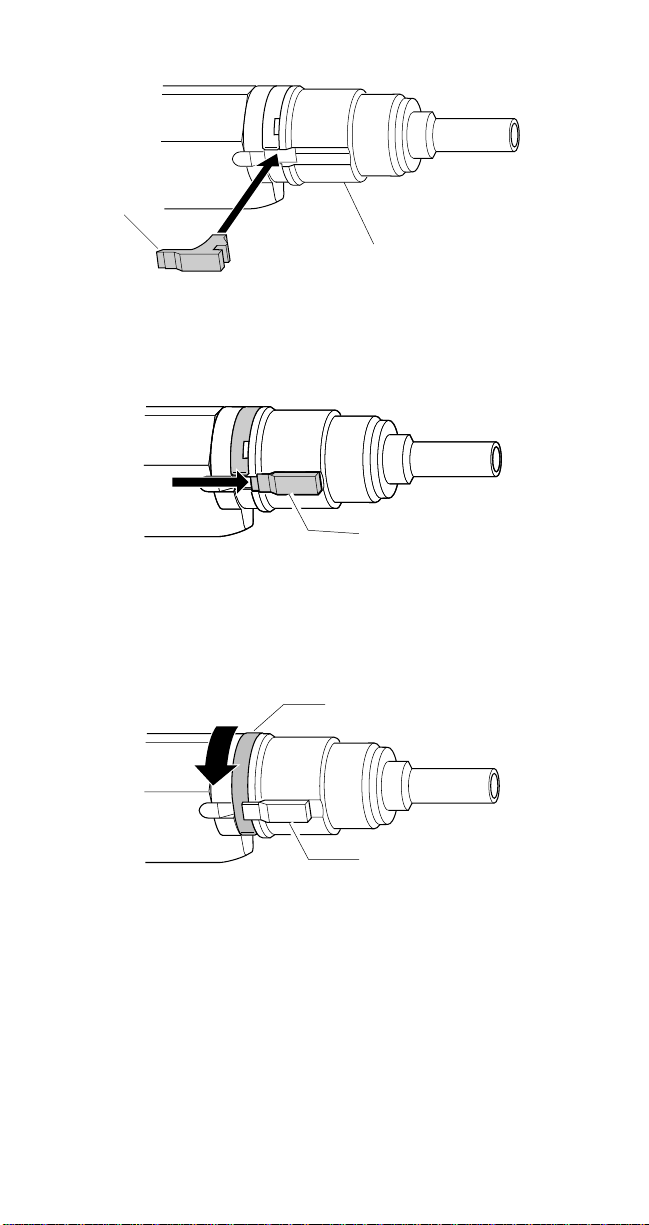

5. Insert stop into slot on outer liner assembly (see Figure 19).
Stop
Outer Liner Assembly
Figure 19 - Replacing Stop
6. Push stop towards front of tool (see Figure 20).
Stop
Figure 20 - Pushing Stop towards Front of Tool
7. Rotate annular spring until stop is covered (see Figure 21).
Annular Spring
Stop
Figure 21 - Rotating Annular Spring to Secure Stop
105635
23
Troubleshooting Guide
PROBLEM
Piston hangs out
of muzzle.
Overdriven
fastener.
Piston jammed.
Power load strip will
not advance.
Reduction or loss
of power.
Tool does not
completely depress.
Tool does not fire.
Opening and closing of barrel or
pushing down on
tool, etc. is not
smooth but is
rough or binds.
POSSIBLE CAUSE
Tool overdriven.
Piston not properly
assembled in relation to
stop.
Broken piston or piston ring.
Excessive power.
Overdriving of fastener (see
above).
Advance bar or spring
damaged
Tool dirty.
Piston not returning to full
rear position.
Worn piston ring or broken
piston.
Misassembled or damaged
sear, firing pin parts, or
guide.
Failure of tool to depress
completely.
Piston not fully reset.
Dirt buildup on sear not
allowing proper penetration
of firing pin or worn firing
pin.
Lack of proper cleaning.
24
REMEDY
Tap piston on hard surface
until piston is pushed back
into the guide. (See
driven Fastener
Remove barrel assembly
(see pages 18-20). Replace
all damaged or missing parts.
Replace piston or piston ring
or take tool to your distributor.
Change either to next lower
power load or next longer
length fastener.
Remove barrel assembly
(see pages 18-20). Replace
other parts if damaged.
Replace advance bar or
springs.
Clean tool. Notice: Do not
attempt to clean power load
strip channel with wire brush.
You may damage tool.
Barrel must be opened to the
full extended position to
properly position piston.
Replace piston and/or piston
ring or take tool to your distributor.
Remove firing pin guide and
check all parts for correct fit
assembly.
See data listed under
Over-
below)
Tool
does not completely depress,
above.
Fully reset piston. See step 1
under
Operation
Check firing pin mark on
power load. Clean firing pin
guide, sear and firing pin. Replace worn or damaged
parts. Notice: Do not attempt
to clean power load strip
channel with wire brush. You
may damage tool.
Inspect and clean complete
tool. Replace worn or damaged parts. Notice: Do not
attempt to clean power load
strip channel with wire brush.
You may damage tool.
, page 14.
105635
Parts Centrals
Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central (see below) or call DESA
International’s Parts Department at 1-800-972-7879for information.
When calling DESA International, have ready
• model number of your tool • replacement part number
BALTIMORE ELECTRIC
1348 Dixwell Avenue
Hamden, CT 06514-0322
1-800-397-7553
203-248-7553
Parts Department
*ALL TOOL & FASTENER
7830 N.W. 72nd Avenue
Miami, FL 33166
305-888-6909
Parts Department
*PRECISION TOOL
431 Commerce Park Drive
Suite 106
Marietta, GA 30060-2746
770-421-0688
Bob Young
*PORTABLE HEATER
PARTS
342 No. County Road 400 E.
Valparaiso, IN 46383-9704
219-462-7441
1-800-362-6951
*Certified For Service
*F B D
1349 Adams Street
Bowling Green, KY
270-846-1199
1-800-654-8534
ROBI TOOL SALES
160 Broadway
Somerville, MA 02145-0002
617-776-1234
FOUR FLAGS POWER
PRODUCTS
1115 Stateline Road
Niles, MI 49120-4728
616-684-2697
Parts Department
1-800-268-4983
MASTER PARTS DIST.
1184 Wilson Ave. NW
Grand Rapids, MI
US 1-800-446-1446
616-791-0505
Mike Fowler
42103-3414
49544-3458
MANZO ASSOCIATES
1645 Bustleton Pike
Feasterville, PA 19053-7305
215-364-0480
Parts Department
21st CENTURY
2950 Fretz Valley Road
Perkasie, PA 18944-4034
215-795-0400
1-800-325-4828
Parts Department
BLUEBONNET TOOL
10490 Shady Trail
Suite 104
Dallas, TX 75354-1145
214-358-2363
Ken Perry
SP FASTENERS
105635
Fasteners
Wood or Non-Metals
To Steel
Fasten wood or nonmetals to concrete or steel.
25
482-79
Wood or Non-Metals
To Concrete
482-80
Application Chart
Power load and power fastener application information.
For fastening this
Two by Fours
to this
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
power fastener
length
2 1/2"
2 1/2"
2"
power load
color
Yellow
Yellow
Yellow/Red
Furring Strips
Electrical
Junction Boxes
Conduit Clips
Shelf Brackets
1/4" Plywood or
Pegboard
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
Concrete
Cement Block
Concrete
Cement Block
Steel (3/16" to 3/8" Thick)
1 1/2"
1 1/2"
1 1/2"
1"
1"
1"
1"
1"
1"
1"
1"
1 1/4"
1 1/4"
1 1/4"
Yellow
Yellow
Yellow/Red
Yellow
Green
Yellow/Red
Yellow
Green
Yellow/Red
Yellow
Green
Yellow
Yellow
Yellow/Red
Power load listings are recommendations only. If you are in doubt, try a test
fastening using the next lightest power load.
IMPORTANT
• Recommended for use with Remington power load strips and power fasteners.
• If power fastener goes below the top surface of the board, use penetrating control
disc (* see illustration below).
• Always wear approved eye and ear protection.
* Use power fastener with penetration control disc, part number 015549.
27 CALIBER
strip loads for
powder
actuated tools
482-90
Load Color Code
Level Load Case
Number Strength Body Head
3 medium brass Green
4 heavy brass Yellow
5 extra heavy brass Red
26
105635
Maintenance Log
Date Maintenance Performed
105635
27
Limited W arranty Agreement
DESA International warrants the Remington Power Pro Model 496 against defects
in materials and workmanship for a period of one (1) year from the date of purchase.
If within one (1) year from the purchase date this Powder Actuated Tool fails due to
a defect in material or workmanship, DESA will send replacement part(s) or replace
the tool at DESA’s option. To obtain service under this warranty, contact DESA at the
number/address listed below. You must have the Serial Number, Model Number,
date of purchase, and indicate the type of problem being experienced. DESA will
send replacement part(s) or replace the tool at DESA’s option. However, this
warranty does not cover failures caused by misusing or abusing the product (for
proper use of this product, read and understand the operating instructions in this
owner’s manual). Repairs made because of misuse, abuse, negligence, or accident
will be charged for at regular repair prices.
This expressed and limited warranty is the only warranty on this product, and to the
full extent permitted by law. There are no other warranties, expressed or implied,
including warranties of merchantability and/or fitness for a particular purpose which
extend beyond the terms of this expressed and limited warranty.
To the full extent permitted by law, the liability of DESA for personal injury, property
damage, or any other damage whatsoever, including consequential and incidental
damages, arising from the sale or use of this product shall not exceed the purchase
price of this product.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
For information about this warranty write:
Printed in Taiwan
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
U.S.A. ONLY
For Technical Assistance or Repair on Your
Remington Powder Actuated Tool, Call
Technical Services Department
1-800-858-8501, ext. 7660
You can also visit DESA International’s Technical
Service web site at www.desatech.com.
For Certification Procedures,
Call 1-800-858-8501, ext. 7690
105635-01
REV. B
03/01
Loading...
