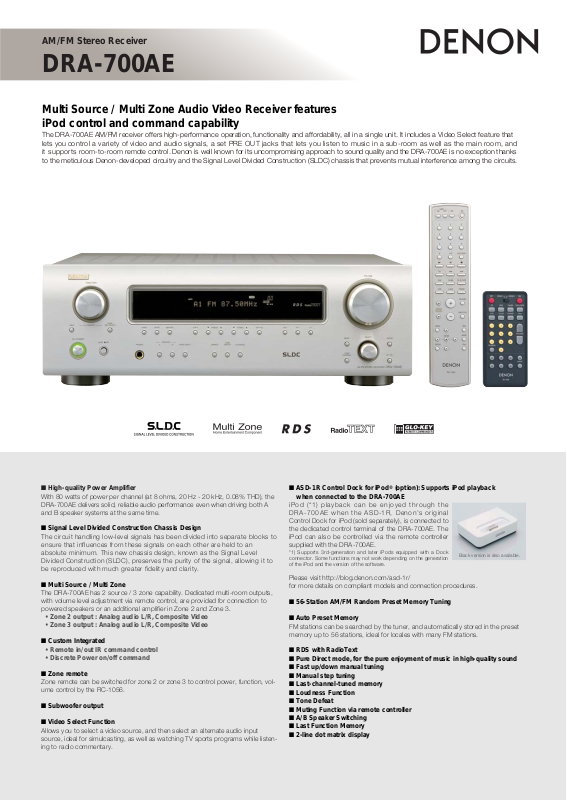

Denon DRA-700AE BROCHURE

AM/FM Stereo Receiver

DRA-700AE

Multi Source / Multi Zone Audio Video Receiver features
iPod control and command capability

The DRA-700AE AM/FM receiver offers high-performance operation, functionality and affordability, all in a single unit. It includes a Video Select feature that
lets you control a variety of video and audio signals, a set PRE OUT jacks that lets you listen to music in a sub-room as well as the main room, and
it supports room-to-room remote control. Denon is well known for its uncompromising approach to sound quality and the DRA-700AE is no exception thanks
to the meticulous Denon-developed circuitry and the Signal Level Divided Construction (SLDC) chassis that prevents mutual interference among the circuits.

■ High-quality Power Amplifier

With 80 watts of power per channel (at 8 ohms, 20 Hz - 20 kHz, 0.08% THD), the
DRA-700AE delivers solid, reliable audio performance even when driving both A
and B speaker systems at the same time.

■ Signal Level Divided Construction Chassis Design

The circuit handling low-level signals has been divided into separate blocks to
ensure that influences from these signals on each other are held to an
absolute minimum. This new chassis design, known as the Signal Level
Divided Construction (SLDC), preserves the purity of the signal, allowing it to
be reproduced with much greater fidelity and clarity.

■ Multi Source / Multi Zone

The DRA-700AE has 2 source / 3 zone capability. Dedicated multi-room outputs,
with volume level adjustment via remote control, are provided for connection to
powered speakers or an additional amplifier in Zone 2 and Zone 3.

• Zone 2 output : Analog audio L/R, Composite Video

• Zone 3 output : Analog audio L/R, Composite Video

■ Custom Integrated

• Remote in/out IR command control

• Discrete Power on/off command

■ Zone remote

Zone remote can be switched for zone 2 or zone 3 to control power, function, vol­ume control by the RC-1056.

■ Subwoofer output

■ Video Select Function

Allows you to select a video source, and then select an alternate audio input
source, ideal for simulcasting, as well as watching TV sports programs while listen­ing to radio commentary.

®

■ ASD-1R Control Dock for iPod
when connected to the DRA-700AE

iPod (*1) playback can be enjoyed through the
DRA-700AE when the ASD-1R, Denon's original
Control Dock for iPod (sold separately), is connected to
the dedicated control terminal of the DRA-700AE. The
iPod can also be controlled via the remote controller
supplied with the DRA-700AE.

*1) Supports 3rd-generation and later iPods equipped with a Dock
connector. Some functions may not work depending on the generation
of the iPod and the version of the software.

Please visit http://blog.denon.com/asd-1r/
for more details on compliant models and connection procedures.

■ 56-Station AM/FM Random Preset Memory Tuning

■ Auto Preset Memory

FM stations can be searched by the tuner, and automatically stored in the preset
memory up to 56 stations, ideal for locales with many FM stations.

■ RDS with RadioText

■ Pure Direct mode, for the pure enjoyment of music in high-quality sound

■ Fast up/down manual tuning

■ Manual step tuning

■ Last-channel-tuned memory

■ Loudness Function

■ Tone Defeat

■ Muting Function via remote controller

■ A/B Speaker Switching

■ Last Function Memory

■ 2-line dot matrix display

(option): Supports iPod playback

Black version is also available.

DRA-700AE

Specifications
Power Amplifier Section

Rated output 80W+80W (8 ohms, 20Hz - 20kHz, 0.08 % THD)
Frequency response 10 Hz - 100 kHz +0 dB, -3 dB (Tone Defeat ON)

Preamplifier Section

Input sensitivity/impedance

Phono 2.5mV/47kohms
CD, CD-R/Tape, DVD/VDP, VCR, V.AUX

Output level/Load impedance

Zone2, Zone3 1.2V/47kohms
RIAA deviation +/- 0.5dB(20Hz - 20kHz)
Total harmonic distortion 0.009% (-3dB at rated output, 1 kHz)

Tone control Treble: ±10 dB at 10 kHz, Bass: ±10 dB at 100 Hz

FM Section

Tuning frequency range 87.5 - 108.0 MHz
Usable sensitivity 1.0 µV (11.2 dBf)
S/N ratio (A-weighted) Mono: 77 dB, Stereo: 72 dB
Total harmonic distortion Mono: 0.15%, Stereo: 0.3%
Frequency response 20 Hz - 15 kHz, +0.5, -1.5 dB
Stereo separation 43 dB (1 kHz)

AM Section

Tuning frequency range 522 - 1611 kHz
Usable sensitivity 18 µV

General

Power supply AC 230 V, 50 Hz
Power consumption 245 W
Dimensions 434 (W) x 147 (H) x 417 (D) mm
Weight 9.7 kg

200mV/47kohms

* Black version is available.

* Design and specifications are subject to change without notice.
* iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
