ECAM45.760

BEAN TO CUP ESPRESSO

AND CAPPUCCINO

MACHINE

Instruction for use

page 6

C D

B15 B13

B14 B11B12

B3 B4 B5 B6 B7 B8 B9

B10

A20

A19

A15

A14

A10

A18

A13

A11

A12

A17

A16

1 2 3 4

5 6 7 8

9 11 12

14 15 16

MILK

19 20

25 26 28

22 23 24

27A 27B

30 31

CONTENTS

INTRODUCTION ................................................7

Symbols used in these instructions .................................. 7

Letters in brackets ............................................................ 7

Troubleshooting and repairs ............................................ 7

SAFETY ............................................................ 7

Fundamental safety warnings.......................................... 7

Designated use ................................................................ 7

Instruction for Use............................................................ 8

DESCRIPTION ...................................................8

Description of the appliance ............................................ 8

Description of the milk container ..................................... 8

Description of the accessories .......................................... 8

BEFORE USE .....................................................8

Checking the appliance .................................................... 8

Setting up the appliance .................................................. 9

Prima messa in funzione dell’apparecchio .......................9

TURNING THE APPLIANCE ON ............................9

TURNING THE APPLIANCE OFF ...........................9

MENU SETTINGS ............................................. 10

Rinsing ........................................................................... 10

Descaling ....................................................................... 10

Install lter .................................................................... 10

Replacing the lter (if installed) .................................... 10

Adjust time .................................................................... 10

Auto-start ...................................................................... 10

Auto-O (standby) ......................................................... 10

Cup warmer ................................................................... 10

Energy saving .................................................................11

Setting the temperature ............................................... 11

Setting water hardness .................................................. 11

Setting the language .................................................... 11

Beep .............................................................................. 11

Default values (reset) ..................................................... 11

Statistics function .......................................................... 11

MAKING COFFEE .............................................12

Selecting the coee taste ............................................... 12

Selecting the quantity of coee in the cup .................... 12

Customising the “my coee” quantity ............................ 12

Adjusting the coee mill ................................................ 12

Tips for a hotter coee ................................................... 12

Making coee using coee beans .................................. 12

Making coee using pre-ground coee ......................... 13

Preparazione del caè LONG ..........................................13

Personalizzazione della quantità di “mio caè LONG” ..... 13

MAKING CAPPUCCINOS AND MILK BASED

COFFEES ......................................................... 13

Filling and attaching the milk container ........................ 13

Adjusting the amount of froth ....................................... 14

Making milk based coees automatically ...................... 14

Making hot drinks using the “MILK MENU” .....................14

Cleaning the milk container after use ............................ 14

Programming the quantity of coee and milk in the cup for the CAPPUCCINO, FLAT WHITE and LATTE

buttons .......................................................................... 14

Programming the quantity of coee and milk in the cup

for the MILK MENU button drinks ................................... 15

DELIVERING HOT WATER AND STEAM ...............15

Delivering hot water ..................................................... 15

Changing the quantity of water delivered automatically 15

Delivering steam ............................................................ 15

Tips for using steam to froth milk ...................................15

Cleaning the spout after use .......................................... 15

CLEANING ...................................................... 16

Cleaning the coee grounds container ........................... 16

Cleaning the inside of the coee machine ..................... 16

Cleaning the water tank .................................................16

Cleaning the coee spouts ............................................. 16

Cleaning the pre-ground coee funnel .......................... 17

Cleaning the infuser ....................................................... 17

Cleaning the milk container ........................................... 17

Cleaning the hot water/steam connection nozzle .......... 18

DESCALING ..................................................... 18

SETTING WATER HARDNESS ............................. 18

Measuring water hardness ............................................. 19

Setting water hardness .................................................. 19

WATER SOFTENER FILTER ................................ 19

Installing the lter ......................................................... 19

Replacing the lter ........................................................ 20

Removing the lter ........................................................ 20

TECHNICAL DATA............................................. 20

DISPLAYED MESSAGES ....................................21

TROUBLESHOOTING ........................................ 22

INTRODUCTION

Thank you for choosing this automatic espresso and cappuccino machine. We hope you enjoy using your new appliance. Take a few minutes to read this Instruction for Use. This will avoid all risks and damage to the appliance.

Symbols used in these instructions

Important warnings are identied by these symbols. It is vital to respect these warnings.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Danger of burns!

Failure to observe the warning could result in burns or scalding.

Please note:

This symbol identies important advice or information for the user.

Letters in brackets

The letters in brackets refer to the legend in the Description of the Appliance on pages 2 and 3.

Troubleshooting and repairs

In the event of problems, rst try and resolve them following the information given in the sections “Displayed messages” on page 21 and “Troubleshooting” on page 22. If this does not resolve the problem or you require further information, you should consult Customer Services by calling the number given on the annexed “Customer Service” sheet. If your country is not among those listed on the sheet, call the number given in the guarantee. If repairs are required, contact De’Longhi Customer Services only. The addresses are given in the guarantee certicate provided with the machine.

SAFETY Fundamental safety warnings

Danger!

This is an electrical appliance and may cause electric shock. You should therefore follow these safety warnings:

• Never touch the appliance with damp hands or feet.

• Never touch the plug with damp hands.

• Make sure the socket used is freely accessible at all times, enabling the appliance to be unplugged when necessary.

• Unplug directly from the plug only. Never pull the power cable as you could damage it.

• To disconnect the appliance completely, unplug it from the mains socket.

• If the appliance is faulty, do not attempt to repair.

Turn it o, unplug from the mains socket and contact Cu-

stomer Services.

If the plug or power cable is damaged, it must be replaced by De’Longhi Customer Services only to avoid all risk. Never immerse the appliance in water when cleaning. It is an electrical appliance.

• Before cleaning the outside of the appliance, turn it o, unplug from the mains socket and allow to cool.

Important:

Keep all packaging (plastic bags, polystyrene foam) away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Danger of burns!

This appliance produces hot water and steam may form while it is in operation. Avoid contact with splashes of water or hot steam. When the appliance is in operation, do not touch the cup warmer shelf, as it is hot.

Surfaces marked with this symbol become hot during use (the symbol is present on certain models only).

Designated use

This appliance is designed and made to prepare coee and heat drinks.

This is a household appliance only.

It is not intended to be used in:

• sta kitchen areas in shops, oces and other working environments;

• farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

Any other use is considered improper and thus dangerous. The manufacturer is not liable for damage deriving from improper use of the appliance.

Instruction for Use

Read these instructions carefully before using the appliance. Failure to respect these instructions may result in burns or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect this Instruction for Use.

Please note:

Keep this Instruction for Use. If the appliance is passed to other persons, they must also be provided with this Instruction for Use.

DESCRIPTION

Description of the appliance

(page 3 - A ) A1. Beans container lid A2. Pre-ground coee funnel lid A3. Beans container A4. Pre-ground coee funnel A5. Grinding adjustment dial A6. Cup warmer shelf A7. Coee spout (adjustable height) A8. Hot water and steam connection nozzle A9. Condensate tray A10. Coee grounds container A11. Cup tray A12. Drip tray A13. Drip tray water level indicator A14. Infuser door A15. Infuser A16. Water tank A17. Water softener lter housing A18. Water tank lid A19. Power cable socket A20. Main switch

Description of the control panel

(page 2 - B )

A number of buttons on the panel have a double function. This is indicated in brackets in the description.

B1. button: turns the appliance on and o (standby) B2. aroma selection button: press to select coee taste B3. CAPPUCCINO button: to make a cappuccino B4. FLAT WHITE button: to make a at white (in the settings

menu, press this button to scroll the menu items)

B5. LATTE button: to make a latte B6. MILK MENU button: to access the functions for preparing

MILK, CAFFELATTE, ESPRESSO MACCHIATO and MY MILK B7. button: to deliver hot water B8. button: to deliver steam (in the settings menu, press

this button to scroll the menu items)

B9. button: to make 1 cup of LONG coee B10. button: to make 2 cups of coee with the settings

displayed B11. button: to make 1 cup of coee with the settings

displayed B12. OK button: to enable and conrm the selected function B13. Display: guides the user in using the appliance B14. MENU/ESC button to access the menu (in the settings

menu: press to exit the menu)

B15. button: to select the quantity of coee

Description of the milk container

(page 2 - C ) C1. Froth adjustment and CLEAN dial C2. Milk container lid C3. Milk container C4. Milk intake tube C5. Frothed milk spout (adjustable)

Description of the accessories

(page 2 - D ) D1. Pre-ground coee measure D2. Cleaning brush D3. Water softener lter (certain models only) D4. Button to release the cappuccino maker/hot water spout D5. Cappuccino maker/hot water spout D6. Power cable D7. “Total Hardness Test” indicator strip D8. Descaler

BEFORE USE Checking the appliance

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact De’Longhi Customer Services.

Installing the appliance

Important!

When you install the appliance, you should respect the following safety warnings:

• The appliance gives o heat. After positioning the appliance on the worktop, leave a space of at least 3 cm between the surfaces of the appliance and the side and rear walls and at least 15 cm above the coee machine.

• Water penetrating the appliance could cause damage. Do not place the appliance near taps or sinks.

• The appliance could be damaged if the water it contains freezes. Do not install the appliance in a room where the temperature could drop below freezing point.

• Arrange the power cable in such a way that it cannot be damaged by sharp edges or contact with hot surfaces (e.g. electric hot plates).

Setting up the appliance

Important!

Check that the mains power supply voltage corresponds to the value indicated on the rating plate on the bottom of the appliance. Connect the appliance to an eciently earthed and correctly installed socket with a minimum current rating of 10A only. If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualied professional.

Using the appliance for the rst time

Please note!

• Coee has been used to factory test the appliance and it is therefore completely normal for there to be traces of coffee in the mill. The machine is, however, guaranteed to be new.

• You should customise water hardness as soon as possible following the Instruction for use in the section “Setting water hardness (page 19).

1. Plug the power cable into the socket on the back of the appliance and connect the appliance to the mains power supply (g. 1) and make sure that the main switch, located on the side of the appliance, is pressed (g. 2).

Select the desired language by scrolling forwards or backwards using the FLAT WHITE or button, or alternatively waiting for the language options to scroll automatically on the display (about every 3 seconds):

2. When “English” appears, hold the button (g. 3) for a few seconds until “English set” is displayed.

Follow the instructions indicated on the appliance display:

3. “FILL TANK”: extract the water tank (g. 4), open the lid (g. 5), ll to the MAX line with fresh water (g. 6); close the lid again and then replace the tank.

4. INSERT WATER SPOUT”: Check that the hot water spout is inserted on the connection nozzle and place a container holding a minimum of 100 ml underneath (g. 7).

5. “Insert Water Spout and Press Ok” is displayed;

6. Press the button to conrm (g. 3). The appliance delivers water from the spout then goes o automatically.

The coee machine is now ready for normal use.

Please note!

• When using the appliance for the rst time, you need to make 4-5 cups of coee or 4-5 cappuccinos before it starts to give satisfactory results.

• When making the rst 5-6 cappuccinos, it is normal to hear the noise of boiling water. After this, the noise becomes less.

• To enjoy your coee even more and improve the performance of your appliance, we recommend installing a water softener lter as described in the section “ WATER SOFTENER FILTER “ (page 19). If your model is not provided with a lter, you can request one from De’Longhi Customer Services.

TURNING THE APPLIANCE ON

Please note!

Before turning the appliance on, make sure the main switch is pressed (g. 2). Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which cannot be interrupted. The appliance is ready for use only after completion of this cycle.

Danger of burns!

During rinsing, a little hot water comes out of the coee spouts and is collected in the drip tray underneath. Avoid contact with splashes of water.

• To turn the appliance on, press the button (g. 8). The message “Heating up, Please wait” is displayed.

After heating, the message “Rinsing” is displayed. As well as heating the boiler, the appliance also heats the internal circuits by circulating hot water. The appliance is at temperature when the message indicating the taste and quantity of coee appears.

TURNING THE APPLIANCE OFF

Whenever the coee machine is turned o after being used to make coee, it performs an automatic rinse cycle.

Danger of burns!

During rinsing, a little hot water ows from the coee spouts. Avoid contact with splashes of water.

• To turn the appliance o, press the button (g. 8).

• The message “Turning o, Please wait” is displayed: if featured, the appliance completes a rinse cycle and then goes o (standby).

Please note!

If you will not be using the appliance for some time, unplug from the mains socket:

• rst turn the appliance o by pressing the button (g. 8);

• release the main switch at the back of the appliance (g.

2).

Important!

Never press the main switch while the appliance is on.

MENU SETTINGS

When you access the settings menu by pressing the MENU/ESC button, scroll the menu items by pressing < or > (g. 9).

Rinsing

Use this function to deliver hot water from the spout to heat the internal circuit and make the coee delivered hotter. To enable the function, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Rinsing” is displayed;

3. Press the OK button: “Conrm?” will be displayed.

4. Press the OK button (g. 10): after a few seconds, hot water ows out of the spout, heating the internal circuit and making the coee delivered hotter.

Please note!

Press any button to stop hot water delivery at any time.

Descaling

For instructions on descaling, see page 18.

Install lter

For instructions on how to install the lter, see the section “Water softener lter” (page 19).

Replacing the lter (if installed)

For instructions on how to replace the lter, see the section “Replacing the lter” (page 20).

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Adjust time” is displayed;

3. Press the OK button (g. 10): the hours ash;

4. Press < or > (g. 9) to change the hours;

5. Press the OK button to conrm: the minutes ash;

6. Press < or > (g. 9) to change the minutes;

7. Press the OK button to conrm. This sets the time. Press the MENU/ESC button to exit the menu.

Auto-start

You can set the auto-start time in order to have the appliance ready at a certain time (for example in the morning) so you can make coee immediately.

Please note!

To enable this function, the time must already be set correc tly.

To enable auto-start, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Auto-start” is displayed;

3. Press the OK button. “Enable?” is displayed;

4. Press the OK button to conrm;

Press < or > to choose the hours;

6. Press the OK button to conrm;

7. Press < or > (g. 9) to change the minutes;

8. Press the OK button to conrm;

9. Then press the MENU/ESC button to exit the menu. Once the time has been conrmed, activation of auto-start is indicated by the symbol displayed alongside the time. To disable the function:

1. Selec t auto-start from the menu;

2. Press the OK button. “Disable?” is displayed;

3. Press the OK button to conrm. The symbol is no longer displayed.

Auto-O (standby)

Auto-o mode can be set, so that the appliance switches o when not used for 15 or 30 minutes, or 1, 2 or 3 hours. To programme Auto-o, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Auto-o ” is displayed;

3. Press the OK button;

4. Press < or > (g. 9) until the required operating time (15 or 30 minutes, or 1, 2 or 3 hours) is displayed;

5. Press the OK button to conrm;

6. Then press the MENU/ESC button to exit the menu.

Auto-o is programmed.

Adjust time

To adjust the time on the display, proceed as follows:

Cup warmer

This function allows the cup warmer to be enabled or disabled.

Proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Cup warmer” is displayed;

3. Press the OK button: “Enable?” or “Disable?” will be displayed

4. Press the OK button to enable or disable the cup warmer (“Cup warmer” “Enabled” on the display indicates the function is enabled)

5. Press the MENU/ESC button to exit the menu.

Warming the cups keeps the coee hot.

Energy saving

Use this function to enable or disable energy saving. When enabled, the function reduces energy consumption in compliance with European regulations. To disable (or enable) energy saving, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Energy saving” is displayed;

3. Press the OK button. “Disable?” is displayed (or “Enable?” if the function has been disabled);

4. Press the OK button to disable (or enable) energy saving mode;

5. Then press the MENU/ESC button to exit the menu.

When the function is active, if the machine is not used for some time, “Energy saving” is displayed.

Please note!

• When in energy saving mode, a few seconds elapse before the rst coee, cappuccino or milk based coee is delivered as the appliance must heat up again.

• To prepare any drink, press any button to exit energy saving, then press the button corresponding to the drink you want to make.

• If the milk container is inserted, “Energy saving” is not activated.

Setting the temperature

To modify the temperature of the water used to make the coee, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Set temperature” is displayed;

3. Press the OK button;

4. Press < or > until the required temperature (●=low;

●●●●=maximum) is displayed;

5. Press the OK button to conrm;

6. Then press the MENU/ESC button to exit the menu.

Setting water hardness

For instructions on setting water hardness, see page 20.

Setting the language

To modify the language of the display, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Set language” is displayed;

3. Press the OK button;

4. Press < or > until the required language is displayed;

5. Press the OK button to conrm;

6. A message conrming the language installed is displayed;

7. Then press the MENU/ESC button to exit the menu.

Beep

This enables or disables the beep emitted by the appliance whenever a button is pressed or an accessory is inserted/removed. To disable or re-enable the beep, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Beep” is displayed;

3. Press the OK button: “Disable?” is displayed (or “Enable?” if disabled);

4. Press the OK button to enable or disable the beep;

5. Press the MENU/ESC button to exit the menu.

Default values (reset)

This resets all menu settings and programmed quantities back to the default values (with the exception of the language which remains as set). To reset the default values, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Default values” is displayed;

3. Press the OK button;

4. “Conrm?” is displayed;

5. Press the OK button to conrm and exit.

Statistics function

This displays statistics relating to the machine. To display, proceed as follows:

1. Press the MENU/ESC button to enter the menu;

2. Press < or > (g. 9) until “Statistics” is displayed;

3. Press the OK button;

4. Press < or > (g. 9) to verify:

- how many coees have been made;

- the total number of cappuccinos and milk based coees made;

- the total number of litres of water delivered.

- how many times the machine has been descaled.

- how many times the water softener lter has been replaced.

5. Press the MENU/ESC button twice to exit the menu.

MAKING COFFEE Selecting the coee taste

The appliance is set by default to make coee with a standard taste. You can also choose one of these tastes: Extra-mild taste Mild taste Standard taste Strong taste Extra-strong taste To change the taste, press the button (g. 11) repeatedly until the required taste is displayed.

Selecting the quantity of coee in the cup

The appliance is set by default to make a standard quantity of coee. To select the quantity of coee, press the button (g. 12) until the message corresponding to the required quantity of coee is displayed:

Coee selected Quantity in cup (ml)

MY COFFEE Programmable:

from ≃20 to ≃180

SHORT

STANDARD

LONG

EXTRA LONG COFFEE

≃40 ≃60 ≃90

≃120

Please note!

The grinding adjustment dial must only be turned when the coee mill is in operation.

If the coee is delivered too slowly or not at all, turn one click clockwise towards “7”. For fuller bodied creamier coee, turn one click anticlockwise towards “1” (do not turn more than one click at a time

otherwise the coee could be delivered a drop at a time). These adjustments will only be evident after at least 2 cups of coee have been delivered. If this adjustment does not obtain the desired result, turn the dial another click.

Tips for a hotter coee

For hotter coee, you should:

• perform a rinse cycle, selecting the “Rinsing” function in

the settings menu (page 10).

• warm the cups by rinsing them with hot water (using the

hot water function);

• increase the coee temperature in the settings menu

(page 11).

Making coee using coee beans

Important!

Do not use caramelised or candied coee beans as they could stick to the coee mill and make it unusable.

Customising the “my coee” quantity

The appliance is set by default to automatically deliver 30 ml of “MY COFFEE”. To modify this quantity, proceed as follows:

1. Place a cup under the coee spouts (g. 13).

2. Press the button (g. 12) until “MY COFFEE” is displayed.

3. Keep the button (g. 17) pressed until the message “1 MY COFFEE Program quantity” is displayed and coee delivery begins. Release the button.

4. As soon as the coee in the cup reaches the required level, press the button (g. 17) again.

The quantity of coee in the cup set has now been programmed.

Adjusting the coee mill

The coee mill is set by default to prepare coee correctly and should not require regulating initially. However, if after making the rst few coees you nd that the coee is either too weak and not creamy enough or delivery is too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment dial (g. 14).

1. Fill the container with coee beans (g. 15).

2. Place under the coee spouts:

- 1 cup, if you want to make 1 coee (g. 13);

- 2 cups if you want 2 coees (g. 16).

3. Lower the spout as near as possible to the cups (g. 16). This makes a creamier coee.

4. Press the button corresponding to the number of coees required (1 cup or 2 cups ).

5. Preparation begins. The amount of coee selected is displayed together with a progress bar which gradually lls as preparation progresses.

Please note:

• While the machine is making coee, delivery can be interrupted at any moment by pressing any button.

• At the end of delivery, to increase the quantity of coee in the cup, just press (within 3 seconds) one of the coee buttons ( or ) (g. 17).

Once the coee has been made, the appliance is ready to make the next drink.

Please note!

• Various alarm messages could be displayed while using the machine (FILL TANK, EMPTY GROUNDS CONTAINER, etc.). Their meaning is explained in the section “Displayed messages” (page 22).

• For hotter coee, see the section “Tips for a hotter coee” (page 12).

• If the coee is delivered a drop at a time, too weak and not creamy enough or too cold, read the tips in the “Troubleshooting” section on (page 22).

Making coee using pre-ground coee

Important!

• Never add pre-ground coee when the machine is o or it could spread through the inside of the machine and dirty it. This could damage the appliance.

• Never use more than one level measure or it could dirty the inside of the machine or block the funnel.

Please note!

If you use pre-ground coee, you can only make one cup of

coee at a time.

1. Press the button (g. 11) repeatedly until “Preground” is displayed.

2. Open the lid on the bean container; then open the lid on the pre-ground coee funnel and lift it up.

3. Make sure the funnel is not blocked, then add one level measure of pre-ground coee (g. 18).

4. Place a cup under the coee spouts.

5. Press the 1 cup button .

6. Preparation begins. The amount of coee selected is displayed together with a progress bar which gradually lls as preparation progresses.

Please note!

If “Energy saving” mode is active, you may have to wait a few seconds before the rst coee is delivered.

Making LONG coee using coee beans

Prepare the appalicen following the same procedure indicated to the paragraph “Making coee using coee beans”, then press the button.

Making LONG coee using pre-ground coee

Follow steps 1 to 4 of the paragraph “Making coee using preground coee”, then press the button. The appliance starts coee delivery and a progress bar is displayed; halfway, the appliance displays “Insert preground coee”,

Press OK”. Add one level measure of pre-ground coee and press OK. Coee delivery resumes and the progress bar gradually lls as preparation progresses.

Customising the LONG coee quantity

The appliance is set by default to automatically deliver 200 ml of “LONG” coee. To modify this quantity, proceed as follows:

1. Place a suciently large cup or a glass under the coee spouts (g. 9).

2. Keep the button pressed (g.17) until “Program quantity” is displayed.

3. Release the button: coee delivery begins.;

4. As soon as the coee in the cup reaches the required level, press the button (g. 17) again.

The quantity of LONG coee in the cup set has now been programmed.

Please note!

If you customise the LONG coee by using the preground coee, a second measure will be requested.

MAKING CAPPUCCINOS AND MILK BASED COFFEES

Please note!

• To avoid producing milk with poor froth or large bubbles, always clean the milk container lid and hot water connection nozzle as described in the section “Cleaning the milk container” on pages 14 and 17.

Filling and attaching the milk container

1. Remove the lid (g. 19);

2. Fill the milk container with a sucient quantity of milk, not exceeding the MAX level marked on the handle (g.

20). Each mark on the side of the container corresponds to around 100 ml of milk.

Please note!

• For a denser more even froth, you must use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).

• If “Energy saving” mode is enabled, you may have to wait a few seconds before the rst coee is delivered.

3. Make sure the milk intake tube is correctly inserted in the bottom of the milk container lid (g. 21).

4. Place the lid back on the milk container.

5. Remove the hot water spout (D5), by pressing the button on the spout (g. 22A)

6. Attach the milk container to the connection nozzle and push as far as it will go (g. 23). The machine emits a beep (if the beep function is enabled).

7. Place a suciently large cup under the coee and frothed milk spouts. Adjust the length of the milk spout. To move it nearer the cup, simply pull it downwards (g. 24).

8. Follow the instructions below for each function.

4. Press < or > until the required drink is displayed (MILK, CAFFELATTE, ESPRESSO MACCHIATO or MY MILK).

5. Press the OK button to start making the drink.

6. After a few seconds, frothed milk is delivered from the milk spout into the cup below.

For drinks with coee, the machine automatically makes

the coee after delivering the milk.

Adjusting the amount of froth

Turn the froth adjustment dial to adjust the amount of froth on the milk delivered while making cappuccino and milk based coees.

Dial position

Description Recommended for…

No froth CAFFELATTE / MILK hot

milk)

Min. froth LATTE / FLAT WHITE

Max. froth CAPPUCCINO / MILK

(frothed milk / ESPRESSO MACCHIATO

Making milk based coees automatically

The control panel features buttons for automatically making CAPPUCCINO, FLAT WHITE, and LATTE. To make one of these coees, proceed as follows:

1. Fill the milk container and attach it as described above.

2. Turn the froth adjustment dial on the milk container lid to the position corresponding to the required froth.

3. Press the button corresponding to the required coee: the name of the coee is displayed, together with a progress bar which lls gradually as preparation proceeds.

4. After a few seconds, frothed milk is delivered from the milk spout into the cup below.

Subsequently, the machine automatically makes the coee

after having delivered the milk.

Making hot drinks using the “MILK MENU”

As well as the coees described above, the machine automatically makes MILK (hot milk), CAFFELATTE, ESPRESSO MACCHIATO and MY MILK (customisable). To make one of these hot drinks, proceed as follows:

1. Fill the milk container and attach it as described above.

2. Turn the froth adjustment dial on the milk container lid to the position corresponding to the required froth.

3. Press the MILK MENU button.

Please note: general instructions for all milk based

preparations

• If during delivery you want to stop preparation, press any button once.

• At the end of delivery, to increase the quantity of milk or coee in the cup, within 3 seconds, press and hold one of the buttons corresponding to the milk based drinks.

• Do not leave the milk container out of the refrigerator for long periods. The warmer the milk (5°C is ideal), the poorer the quality of froth produced.

Cleaning the milk container after use

Important! Danger of burns

When cleaning the internal tubes of the milk container, a little hot water and steam leak out of the frothed milk spout. Avoid contact with splashes of water.

“SET DIAL TO CLEAN” ashes on the display each time you use a milk function. To eliminate all milk residues, proceed as follows:

1. Leave the milk container in the machine (you do not need to empty it);

2. Place a cup or other recipient under the frothed milk spout.

3. Turn the froth adjustment dial to “CLEAN” (g. 25). A progress bar appears and gradually lls as the operation proceeds together with “Cleaning underway”. Cleaning stops automatically.

4. Turn the dial back to one of the froth selections.

5. Remove the milk container and always clean the steam connection nozzle with a sponge (g. 26).

Please note!

• To prepare a number of cappuccinos or milk based coees, clean the milk container after you have prepared the last drink only.

• The milk container can be kept in the refrigerator.

• In some cases, to clean you must wait for the appliance to heat up.

Programming the quantity of coee and milk in the cup for the CAPPUCCINO, FLAT WHITE and LATTE buttons

The appliance is set by default to automatically deliver standard quantities. To change these quantities, proceed as follows:

1. Place a cup under the coee spouts and milk spout.

2. Press and hold one of the function buttons until the name of the hot drink and the message “PROGRAM MILK” is displayed.

3. Release the button. The appliance starts delivering milk.

4. Once the required quantity of milk has been delivered into the cup, press the button again.

5. The appliance stops delivering milk and, if included in the drink, after a few seconds the coee is delivered into the cup: the name of the hot drink and “PROGRAM COFFEE” is displayed.

6. Once the required quantity of coee has been delivered into the cup, press the button again. Coee delivery stops.

The machine is now reprogrammed with the new milk and coffee quantities.

Programming the quantity of coee and milk in the cup for the MILK MENU button drinks

The appliance is set by default to automatically deliver standard quantities. To change these quantities, proceed as follows:

1. Press the MILK MENU button.

2. Press < or > until the required drink is displayed (MILK, CAFFELATTE, ESPRESSO MACCHIATO or MY MILK).

3. Hold the OK button until the name of the drink and “PROGRAM MILK” are displayed.

4. Release the button. The appliance starts delivering milk.

5. Once the required quantity of milk has been delivered into the cup, press the OK button.

6. The appliance stops delivering milk and, if included in the drink, after a few seconds the coee is delivered into the cup: the name of the hot drink and “PROGRAM COFFEE” is displayed.

7. Once the required quantity of coee has been delivered into the cup, press the OK button again. Coee delivery stops.

The machine is now reprogrammed with the new milk and coffee quantities.

DELIVERING HOT WATER AND STEAM

Important! Danger of burns.

Never leave the machine unsupervised while delivering hot water or steam. The spout becomes hot. Hold by the handle only.

Please note!

If “Energy saving” mode is active, you may have to wait a few seconds before the hot water or steam is delivered.

Delivering hot water

1. Make sure the hot water spout is attached correctly (g. 7).

2. Place a container under the spout (as close as possible to avoid splashes).

3. Press the button (g. 3). “HOT WATER” is displayed, together with a progress bar which lls gradually as preparation proceeds.

4. The machine delivers 250 ml of hot water, then delivery stops automatically. To interrupt delivery of hot water manually, press the button again.

Changing the quantity of water delivered automatically

The machine is set by default to automatically deliver 250 ml of hot water. To modify these quantities, proceed as follows:

1. Position a container under the spout.

2. Press and hold the button until “Hot water Program quantity” is displayed, then release the button.

3. When the hot water in the cup reaches the required level, press the button again.

The machine is now reprogrammed with the new quantity.

Delivering steam

1. Make sure the hot water spout is attached correctly (g. 7).

2. Fill a container with the liquid to be heated/frothed and immerse the spout/cappuccino maker (D5) in the liquid.

3. Press the button: after a few seconds, steam comes out of the cappuccino maker and heats the liquid; “STEAM” is displayed.

4. When the required temperature is obtained, interrupt steam delivery by pressing the button. (You should not discharge steam for more than 3 minutes at a time).

Important!

Always stop steam delivery before extracting the container containing the liquid to avoid burns from splashes.

Tips for using steam to froth milk

• When choosing the size of the container, bear in mind that the liquid doubles or triples in volume.

• For a richer denser froth, use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).

• For a creamier froth, rotate the container with slow movements in an upward direction.

• To avoid milk with poor froth or large bubbles, always clean the spout as described in the following section.

Cleaning the spout after use

Always clean the spout after use to avoid the build-up of milk residues and prevent the spout from clogging.

1. Place a container under the cappuccino maker and press the button to deliver a little water (g. 3). Stop the ow of hot water by pressing the button again.

2. Wait a few minutes for the cappuccino maker to cool down, then press the button on the hot water spout and extract it (g. 27A). Hold the spout with one hand and with the other, turn the cappuccino maker anticlockwise (g. 27B) and pull downwards to remove.

3. Also remove the steam connection nozzle by pulling it downwards (g. 28).

Check the hole shown by the arrow in g. 29 is not blocked. If necessary, clean with a pin.

5. Wash all parts of the cappuccino maker thoroughly with a sponge and warm water.

6. Reinsert the nozzle and replace the cappuccino maker on the nozzle, pushing it upwards and turning it until it is attached.

CLEANING

Cleaning the coee grounds container

When “EMPTY GROUNDS CONTAINER” is displayed, the grounds container must be emptied and cleaned. Until the grounds container has been cleaned, the appliance will not make coee. Even if not full, the empty grounds container message is displayed 72 hours after the rst coee has been prepared. For the 72 hours to be calculated correctly, the machine must never be turned o using the main switch.

Important! Danger of burns

If you make a number of cappuccinos one after the other, the metal cup tray becomes hot. Wait for it to cool down before touching it and handle it from the front only. To clean (with the machine on):

• Extract the drip tray (g. 30), empty and clean.

• Empty the grounds container and clean thoroughly to remove all residues left on the bottom. This can be done with the spatula on the brush provided.

• Check the condensate tray and empty if necessary (g. 31).

Important!

When removing the drip tray, the grounds container must be emptied, even if it contains few grounds. If this is not done, when you make the next coees, the grounds container may ll up more than expected and clog the machine.

Cleaning the machine

The following parts of the machine must be cleaned regularly:

- coee grounds container (A10),

- drip tray (A12),

- water tank (A16),

- coee spouts (A7),

- hot water/steam connection nozzle (A8)

- pre-ground coee funnel (A4),

- the infuser (A15), accessible after opening the service door (A14),

- control panel (B)

- milk container (C)

Important!

• D o not use solvents, abrasive detergents or alcohol to clean the appliance. With De’Longhi superautomatic coee machines, you need not use chemical products to clean the machine.

• None of the components of the appliance can be washed in a dishwasher with the exception of the milk container (C).

• Do not use metal objec ts to remove encrustations or coee deposits as they could scratch metal or plastic surfaces.

Cleaning the drip tray and condensate tray

Important!

The drip tray is tted with a level indicator (red) showing the level of water it contains (g. 32). Before the indicator protrudes from the cup tray, the drip tray must be emptied and cleaned, otherwise the water may overow the edge and damage the appliance, the surface it rests on or the surrounding area. To remove the drip tray:

1. Extract the drip tray and grounds container (g. 30);

2. Empty the drip tray and grounds container and wash them;

3. Check the condensate tray and empty if necessary.

4. Replace the drip tray complete with grounds container.

Cleaning the inside of the coee machine

Danger of electric shock!

Before cleaning internal parts, the machine must be turned o (see “Turning o”) and unplugged from the mains power supply. Never immerse the coee machine in water.

1. Check regularly (about once a week) that the inside of the appliance (accessible after removing the drip tray) is not dirty. If necessary, remove coee deposits with the brush supplied and a sponge.

2. Remove the residues with a vacuum cleaner (g. 33).

Cleaning the water tank

Clean the water tank (A16) regularly (about once a month and whenever you replace the water softener lter (if present) with a damp cloth and a little mild washing up liquid.

2. Remove the lter (if present) and rinse with running water.

3. Replace the lter (if present), ll the tank with fresh water and replace the tank.

Cleaning the coee spouts

1. Clean the coee spouts regularly with a sponge or cloth (g. 34).

2. Check the holes in the coffee spout are not blocked. If necessary, remove coee deposits with a toothpick (g. 34).

PUSH

35 36

4. Press the two red release buttons inwards and at the same time pull the infuser outwards (g. 36).

5. Soak the infuser in water for about 5 minutes, then rinse under the tap.

Important!

RINSE WITH WATER ONLY NO WASHING UP LIQUID  NO DISH WASHER Clean the infuser without using washing up liquid as it

could be damaged.

6. Use the brush (D2) to remove any coee residues left in the infuser housing, visible through the infuser door.

7. After cleaning, replace the infuser by sliding it onto the internal support (g. 37), then push the PUSH symbol fully in until it clicks into place.

Infuser

support

Cleaning the pre-ground coee funnel

Check regularly (about once a month ) that the pre-ground coffee funnel (A4) is not blocked. If necessary, remove coee deposits with the brush (D2) supplied.

Cleaning the infuser

The infuser (A15) must be cleaned at least once a month.

Important!

The infuser may not be extracted when the machine is on.

1. Make sure the machine is correctly turned o (see “Turning o”, page “TURNING THE APPLIANCE OFF” a pagina 9).

2. Extract the water tank (g. 4).

3. Open the infuser door (g. 35) on the right side of the appliance.

Please note!

If the infuser is dicult to insert, before insertion, adapt it to the right size by pressing the two levers shown in g. 38.

Large lever

Small lever

8. Once inserted, make sure the two red buttons have snapped out (g. 39).

PUSH

9. Close the infuser door.

10. Replace the water tank.

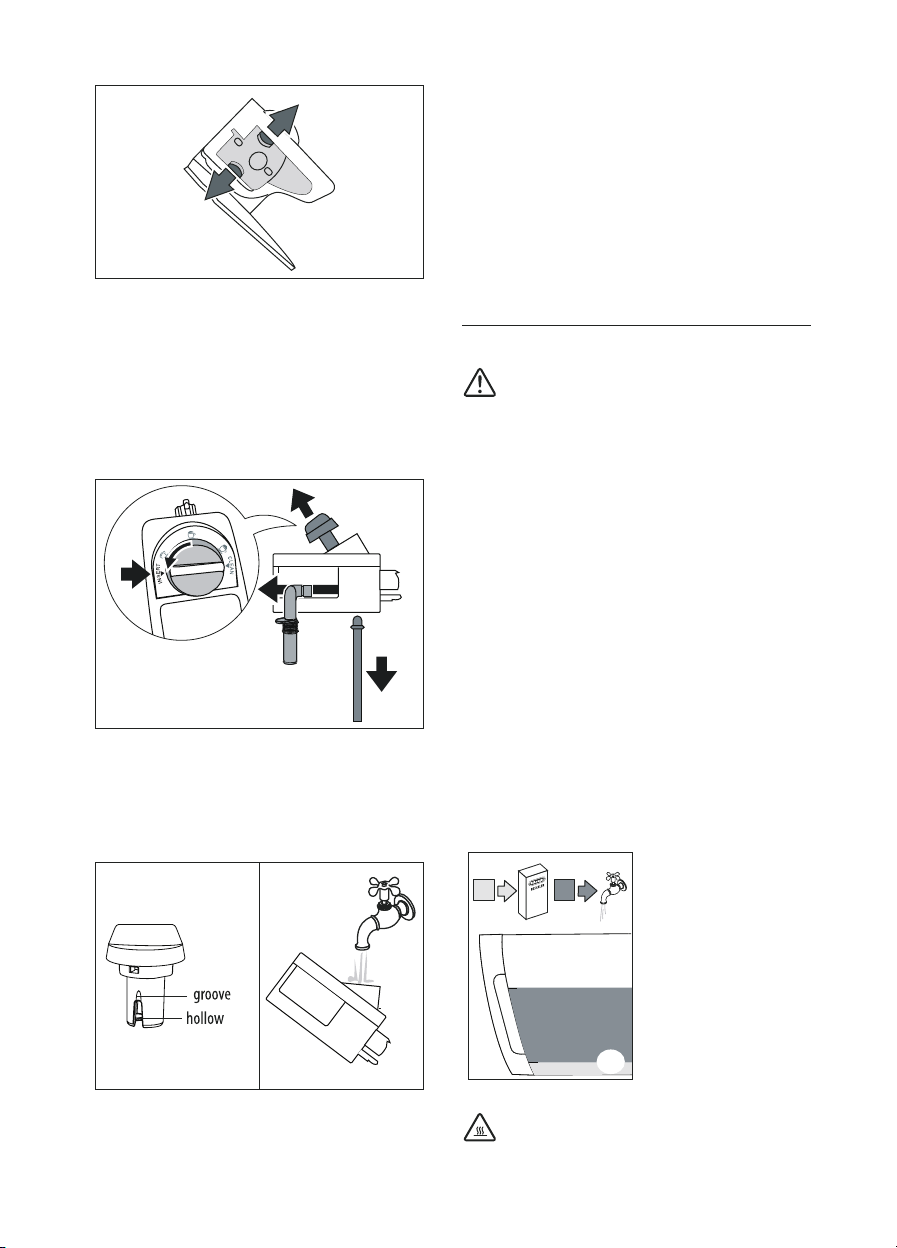

Cleaning the milk container

Clean the milk container every two days as described below:

1. Remove the lid.

2. Remove the milk spout and intake tube.

3. Turn the froth adjustment dial clockwise to the “INSERT” position (g. 40) and pull o upwards.

4. Wash all the components thoroughly with hot water and mild washing-up liquid. All components are dishwasher safe, placing them in the top basket of the dishwasher.

Make sure there are no milk residues on the hollow and

groove under the dial (g. 41). If necessary, scrape the groove with a toothpick.

41 42

5. Rinse inside the froth adjustment dial seat with running water (g. 42)

6. Check that the intake tube and spout are not clogged with milk residues.

7. Replace the dial (in correspondence to the word “INSERT”), spout and milk intake tube.

8. Place the lid back on the milk container.

Cleaning the hot water/steam connection nozzle

Each time you prepare milk, clean the connection nozzle with a sponge to remove milk residues from the gaskets (g. 26).

DESCALING

Descale the machine when the message “DESCALE” ashes on the display.

Important!

• Descaler contains acids which may irritate the skin and eyes. It is vital to respect the manufacturer’s safety warnings given on the descaler pack and the warnings relating to the procedure to follow in the event of contact with the skin and eyes.

• You should use De’Longhi descaler only. Using unsuitable descaler and/or performing descaling incorrectly may result in faults not covered by the manufacturer’s guarantee.

1. Turn the machine on.

2. Press the MENU/ESC button to enter the menu.

3. Press < or > until “Descale” is displayed.

4. Select by pressing the OK button: Conrm? is displayed. Press the OK button to conrm.

5. “EMPTY THE DRIP TRAY” is displayed, alternating with “REMOVE FILTER” (if the lter is featured) and “ADD DESCALER, Press OK”.

6. Empty the water tank (A16) completely and remove the water softener lter (if present). Empty the drip tray (g.

30) and grounds container, then put them back in the appliance.

7. Pour the descaler into the

A B

Important! Danger of burns

Hot water containing acid ows out of the hot water spout.

tank up to level A (corresponding to a 100 ml pack) marked on the back of the tank (g. 43), then add water (1 litre) up to level B (g. 43) and put the water tank back.

8. Place an empty container with a minimum capacity of 1.5 litres under the hot water spout (g. 7).

Avoid contact with splashes of water.

9. Press the OK button to conrm that you have added the solution. The descale programme automatically performs a series of rinses and pauses to remove limescale deposits from inside the machine.

“Descale underway” is displayed. The descale programme

starts, and descaler comes out of the water spout.

After about 30 minutes, the message “RINSING, INSERT FILTER” (if removed previously) is displayed, alternating with “FILL TANK”.

10. The appliance is now ready for rinsing through with clean water. Extract the water tank, empty, rinse under running water, ll with clean water up to the MAX level, insert the lter (if removed previously) and put the water tank back in the machine. “RINSING, Press OK “ is displayed.

11. Empty the container used to collect the descaler solution and replace it empty under the hot water spout.

12. Press the OK button to start rinsing. Hot water ows out of the spout and the message “RINSING, Please wait” is displayed.

13. When the water tank is completely empty, the message “Rinsing complete, Press OK” is displayed.

14. Press the OK button.

15. “Heating up Please wait” is displayed, at the end of which the machine will be ready for use.

Setting water hardness

1. Press the MENU/ESC button to enter the menu.

2. Press < or > to select “Water hardness”.

3. Press the OK button to conrm the selection.

4. Press < or > and set the hardness level as measured by the indicator strip (see the g. in the previous paragraph).

5. Press the OK button to conrm the setting.

6. Press the MENU/ESC button to exit the menu.

The machine is now reprogrammed with the new water hardness setting.

WATER SOFTENER FILTER

Certain models are tted with a water softener lter. If this is not the case with your model, you are recommended to purchase one from De’Longhi Customer Services. To use the lter correctly, follow the instructions below.

SETTING WATER HARDNESS

The DESCALE message is displayed after a period of time established according to water hardness. The machine is set by default for a hardness value of 4. The machine can also be programmed according to the hardness of the mains water in the various regions so that the machine needs to be descaled less often.

Measuring water hardness

1. Remove the “TOTAL HARDNESS TEST” indicator paper from its pack (attached to the English instructions).

2. Immerse the paper completely in a glass of water for one second.

3. Remove the paper from the water and shake lightly. After about a minute, 1, 2, 3, or 4 red squares form, depending on the hardness of the water. Each square corresponds to one level.

Installing the lter

1. Remove the lter from the packaging.

2. Turn the date indicator disk (g. 44) until the next two months of use are displayed.

Please note

The lter lasts about two months if the appliance is used normally. If the coee machine

is left unused with the lter in-

stalled, it will last a maximum of three weeks.

3. To activate the lter, run tap water through the hole in the lter as shown in the gure until water comes out of the openings at the side for more than a minute (g. 45).

4645

0,5 L

47A 47B

4. Extract the tank from the appliance and ll with water.

5. Insert the lter in the water tank and immerse it completely for about ten minutes, sloping it and pressing it lightly to enable the air bubbles to escape (g. 46).

6. Insert the lter in the lter housing (g. 47A) and press as far as it will go.

7. Close the tank with the lid (g. 47B), then put the tank back in the machine.

When you install the lter, you must notify the appliance of its presence.

8. Press the MENU/ESC button to enter the menu;

9. Press < or > (g. 9) until “Install lter” is displayed;

10. Press the OK button;

11. “Install?” is displayed;

12. Press the OK button to conrm the selection. “Water delivery Press OK “ is displayed;

13. Position a container under the hot water spout (min. capacity: 500 ml).

14. Press the OK button to conrm the selection. The appliance begins hot water delivery and the message “Please wait” is displayed.

15. After delivery, the appliance is automatically ready to make the next drink.

The new lter is active. You can now use the appliance.

Replacing the lter

When “REPLACE FILTER” is displayed, after two months (see date indicator) or when the appliance has not been used for 3 weeks, you should replace the lter:

1. Extract the tank and exhausted lter;

2. Take the new lter out of its packet and proceed as illustrated in points 2-3-4-5-6-7 in the previous section;

3. Position a container with a minimum capacity of 500 ml under the hot water spout;

4. Press the MENU/ESC button to enter the menu;

5. Press < or > until “Replace lter” is displayed;

6. Press the OK button;

7. “Conrm?” is displayed;

8. Press the OK button to conrm the selection;

9. “ Water deliver y Press OK” is displayed;

10. Press the OK button to conrm the selection. The appliance begins hot water delivery and the message “Please wait” is displayed;

11. After delivery, the appliance is automatically ready to make the next drink.

The new lter is now active and you can use the coee machine.

Removing the lter

If you want to use the appliance without the lter, you must remove it and notify the appliance of its removal. Proceed as follows:

1. Extract the tank and exhausted lter;

2. Press the MENU/ESC button to enter the menu;

3. Press < or > (g. 9) until “Install lter, Enabled” is displayed;

4. Press the OK button;

5. “Disable?” is displayed;

6. Press the OK button to conrm and the MENU/ESC button to exit the menu.

TECHNICAL DATA

Voltage: 220-240 V~ 50/60 Hz max. 10A Absorbed power: 1450W Pressure: 15 bar Max. water tank capacity: 2 l Size LxHxD: 260 x 360 x 460 mm Cable length: 1,75 m Weight: 11 kg Coee beans container capacity: 400 g

The appliance complies with the following EC directives:

• Low Voltage Directive 2006/95/EC and subsequent amendments;

• EMC Directive 2004/108/EC and subsequent amendments;

• European Stand-by Regulation 1275/2008;

• Materials and accessories coming into contact with food conform to EC regulation 1935/2004.

DISPLAYED MESSAGES

DISPLAYED MESSAGE POSSIBLE CAUSE SOLUTION

FILL TANK Insucient water in the tank. Fill the tank with water and/or insert it cor-

rectly, pushing it as far as it will go until it clicks into place.

EMPTY GROUNDS CONTAINER The grounds container (A10) is full.

GROUND TOO FINE ADJUST MILL

INSERT GROUNDS CONTAINER After cleaning, the grounds container has not

ADD PRE-GROUND COFFEE With the pre-ground function selected, pre-

DESCALE The machine must be descaled. The descaling procedure described in the section

LESS COFFEE Too much coee has been used.

FILL BEANS CONTAINER The coee beans have run out. Fill the beans container (g. 15).

INSERT INFUSER ASSEMBLY The infuser has not been replaced after

INSERT TANK The tank is not correctly in place. The tank is not correctly in place.

The grinding is too ne and the coee is delivered too slowly or not at all.

been replaced.

ground coee has not been poured into the funnel.

The pre-ground coee funnel is clogged. Empty the funnel with the help of a brush as

cleaning.

Empty the grounds container and drip tray, clean and replace (g. 30). Important: when removing the drip tray, the grounds container MUST be emptied, even if it contains few grounds. If this is not done, when you make the next coees, the grounds container may ll up more than expected and clog the machine. If the problem persists, make sure the water tank is fully inserted, press the button and deliver a little water from the spout.

Repeat coee delivery and turn the grinding adjustment dial (g. 14) one click clockwise towards “7” while the coee mill is in operation. If after making at least 2 coees delivery is still too slow, repeat the correction procedure, turning the grinding adjustment dial another click until delivery is correct (see the section: “Adjusting the coee mill on page 12).

Remove the drip tray and insert the grounds container.

Place pre-ground coee in the funnel or deselect the “pre -ground” function (g. 18).

“Descaling” needs to be performed as soon as possible (page 18 ).

Select a milder taste by pressing the button (g. 11) or reduce the quantity of preground coee.

described in the section “Cleaning the preground coee funnel” (page 18).

Insert the infuser as described in the paragraph “Cleaning the infuser” (page 17).

GENERAL ALARM The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly,

as described in the section “Cleaning”. If the message is still displayed after cleaning, contact a service centre.

EMPTY CIRCUIT, FILL CIRCUIT Water delivery PRESS OK

REPLACE FILTER The water softener lter is exhausted. Replace the lter or remove it as described in

SET DIAL TO CLEAN Milk has been delivered recently and the tubes

INSERT WATER SPOUT The hot water spout is not inserted or is

INSERT MILK CONTAINER The milk container is not inserted correctly. Insert the milk container (g. 23) as far as it

The water circuit is empty Press OK and deliver water from the spout

(D5), until it ows out normally.

the section “Water softener lter”.

Turn the froth adjustment dial to CLEAN.

inside the milk container must be cleaned.

Insert the water spout (D5) as far as it will go.

inserted incorrectly.

will go.

TROUBLESHOOTING

Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact Customer Services.

PROBLEM POSSIBLE CAUSE SOLUTION

The coee is not hot The cups were not preheated. • Enable the cup warmer and let the cups

heat up for at least 20 min.

• Warm the cups by rinsing them with hot water (Please note: you can use the hot water function).

The coee is weak or not creamy enough.

The coee is delivered too slowly or a drop at a time.

The infuser has cooled down because 2/3 minutes have elapsed since the last coee was made.

A low coee temperature is set.

The coee is ground too coarsely. Turn the grinding adjustment dial one click

The coee is unsuitable. Use pre-ground coee for espresso machines.

The coee is ground too nely. Turn the grinding adjustment dial one click

Before making coee, use the special function to rinse and heat the infuser (page 10).

Set a higher coee temperature in the menu (page11).

anticlockwise towards “1” while the coee mill is in operation (g. 14). Continue one click at a time until coee delivery is satisfactory. The eect is only visible after delivering 2 coees (see the section: “Adjusting the coee mill” on page 12).

clockwise towards “7” while the coee mill is in operation (g. 14). Continue one click at a time until coee delivery is satisfactory. L’eetto è visibile solo dopo l’erogazione di 2 caè (vedi paragrafo “regolazione del macinacaè”, 12

page

Coee does not come out of one of the spouts.

The appliance does not come on. The power cable is not plugged in

The spouts are blocked. Clean the spouts with a toothpick (g. 34).

properly.

It is not plugged into the mains socket. Plug into the mains socket.

The main switch (A20) is not turned on. Press the main switch (g. 2).

Plug the cable fully into the socket on the back of the appliance (g. 1).

The infuser cannot be extracted. The appliance has not been turned o

correctly.

The milk does not come out of the milk spout.

The milk contains large bubbles and squirts out of the milk spout or there is little froth.

The milk contains large bubbles or squirts out of the milk spout, or is not well frothed.

The milk container lid is dirty.

The milk is not cold enough or is not semi-skimmed.

The froth adjustment dial is incorrectly adjusted.

The milk container lid or froth adjustment dial are dirty.

The hot water/steam connection nozzle is dirty

The spout is dirty. Clean as described in the section “Cleaning the

DISPOSAL

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

Turn the appliance o by pressing the button

(page 9).

Clean the milk container lid as described in the section “Cleaning the milk container” (page

17)

Use skimmed or semi-skimmed milk at refrigerator temperature (about 5° C). If the result is not as you wished, try changing brand of milk.

Adjust following the instructions in the section “Making cappuccinos and milk based coees” (page 13)

Clean the milk container lid and dial as described in the section “Cleaning the milk container”

(page 17)

Clean the connection nozzle as described in the section “Cleaning the hot water/steam nozzle” (page 18)

cappuccino maker after use”

(page 15)

ELECTRICAL CONNECTION UK ONLY

Before using this appliance ensure that the voltage indicated on the product corresponds with the main voltage in your home, if you are in any doubt about your supply contact your local electricity company. The exible mains lead is supplied connected to a B.S. 1363 fused plug having a fuse of 13 amp capacity. Should this plug not t the socket outlets in your home, it should be cut o and replaced with a suitable plug, following the procedure outlined below. Note: Such a plug cannot be used for any other appliance and should therefore be properly disposed of and not left where children might nd it and plug it into a supply socket - with the obvious consequent danger. Please note: We recommend the use of good quality plugs and wall sockets that can be switched o when the machine is not in use. IMPORTANT: The wires in the mains lead tted to this appliance are coloured in accordance with the following code:

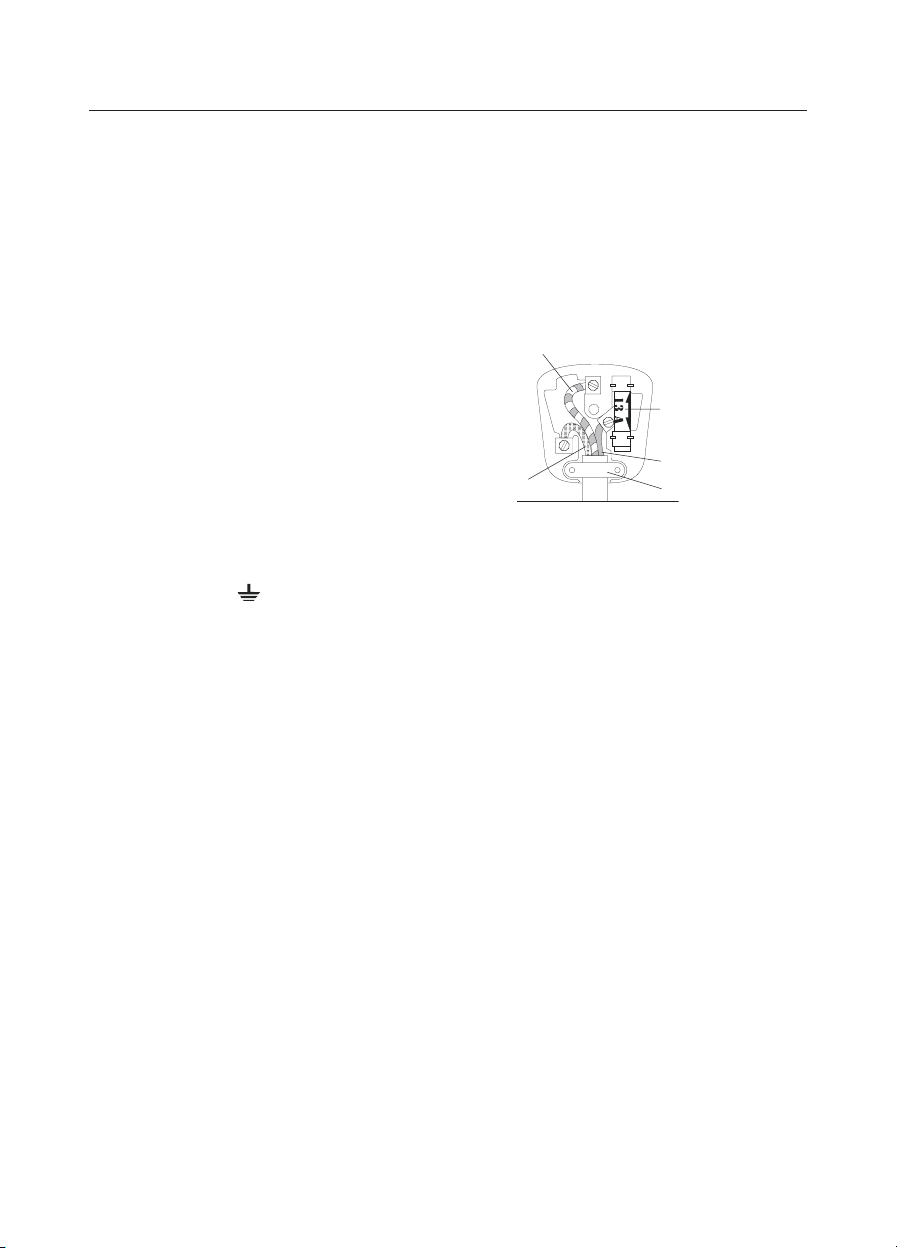

Green and Yellow to Earth

GREEN AND YELLOW EARTH BLUE NEUTRAL

13 amp Fuse

BROWN LIVE

Blue to neutral

Brown to live

Cord Clamp

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

- The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.

- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When wiring the plug, ensure that all strands of wire are securely retained in each terminal. Do not forget to tighten the mains lead clamp on the plug. If your electricity supply point has only two pin socket outlets, or if you are in doubt, consult a qualied electrician. Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualied electrician and should only be replaced with a exible cord of the same size. After replacement of a fuse in the plug, the fuse cover must be retted. If the fuse cover is lost, the plug must not be used until a replacement cover is obtained. The colour of the correct replacement fuse cover is that of the coloured insert in the base of the fuse recess or elsewhere on the plug. Always state this colour when ordering a replacement fuse cover. Only 13amp replacement fuses which are asta approved to B.S. 1362 should be tted. This appliance conforms to the Norms EN 55014 regarding the suppression of radio interference.

Warning - this appliance must be earthed

Delonghi ECAM45760B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
