Implementing FCoE in the Linux
Operating System
This white paper explains using Broadcom-based network adapters and
Dell Force10 and Cisco Nexus switches.
Implementing FCoE in the Linux Operating System
This document is for informational purposes only and may contain typographical errors and
technical inaccuracies. The content is provided as is, without express or implied warranties of any
kind.
© 2012 Dell Inc. All rights reserved. Dell and its affiliates cannot be responsible for errors or omissions
in typography or photography. Dell, the Dell logo, and PowerEdge are trademarks of Dell Inc. Intel and
Xeon are registered trademarks of Intel Corporation in the U.S. and other countries. Microsoft,
Windows, and Windows Server are either trademarks or registered trademarks of Microsoft Corporation
in the United States and/or other countries. Other trademarks and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Dell disclaims
proprietary interest in the marks and names of others.
October 2012| Rev 1.0
ii
Implementing FCoE in the Linux Operating System
Contents
Executive summary ................................................................................................... 5
Introduction ........................................................................................................... 5
Described configuration ............................................................................................. 5
Setting up your network infrastructure for FCoE ................................................................ 7
Setting up FCoE for SLES 11 SP 2 .................................................................................. 12
Installing / verifying FCoE support .............................................................................. 12
Configure the FCoE client VLAN .................................................................................. 14
Configure the FCoE client to start at boot ..................................................................... 18
Troubleshooting ...................................................................................................... 20
Setting-up FCoE for RHEL 6.2 ...................................................................................... 25
Installing / verifying FCoE support .............................................................................. 25
Configuring the FCoE client VLAN................................................................................ 26
Configure the FCoE client to start at boot ..................................................................... 28
Troubleshooting .................................................................................................... 28
Conclusion ............................................................................................................ 29
Figures
Figure 1. Network infrastructure diagram. ...................................................................... 7

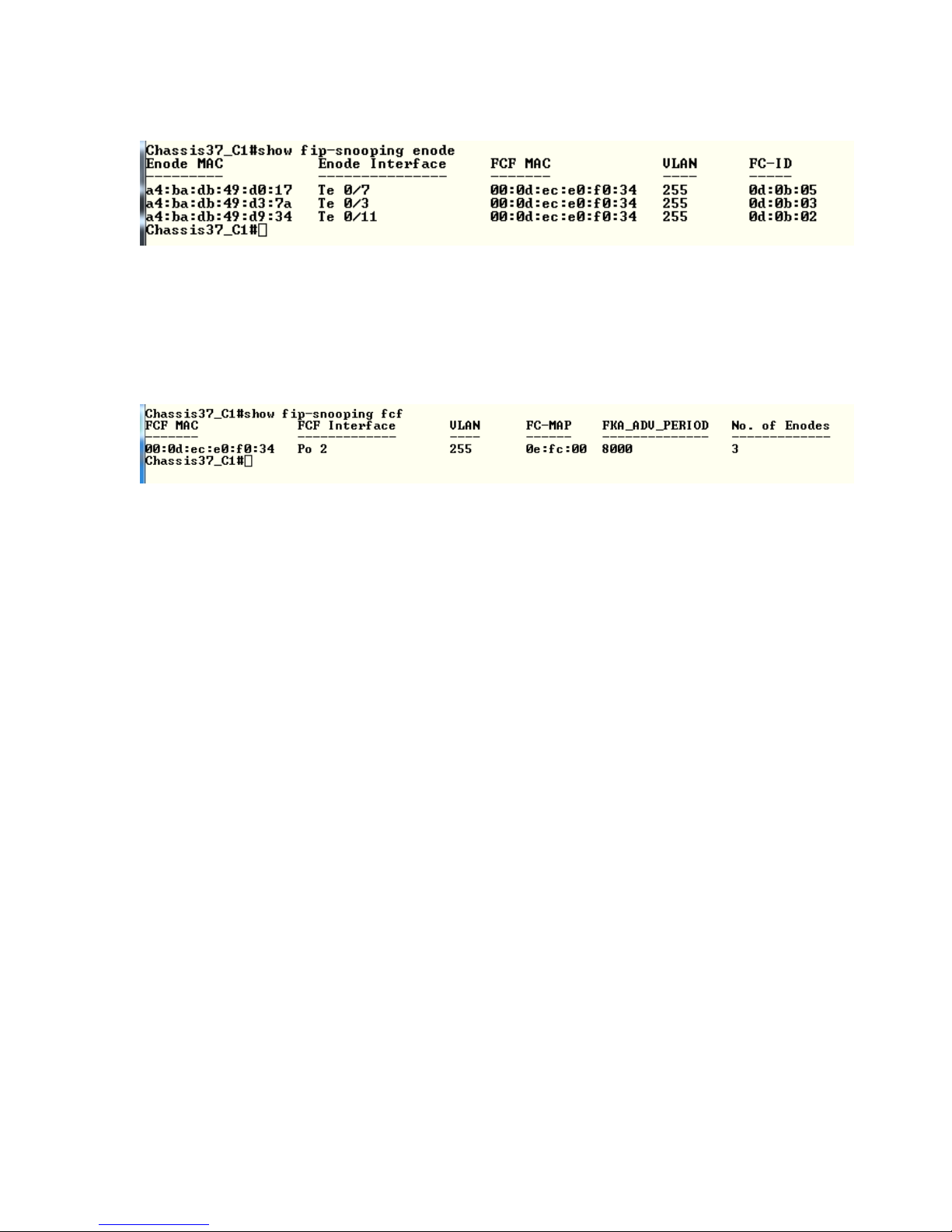

Figure 2. Results of show fip-snooping enode command. .................................................... 10
Figure 3. Results of show fip-snooping fcf command. ........................................................ 10

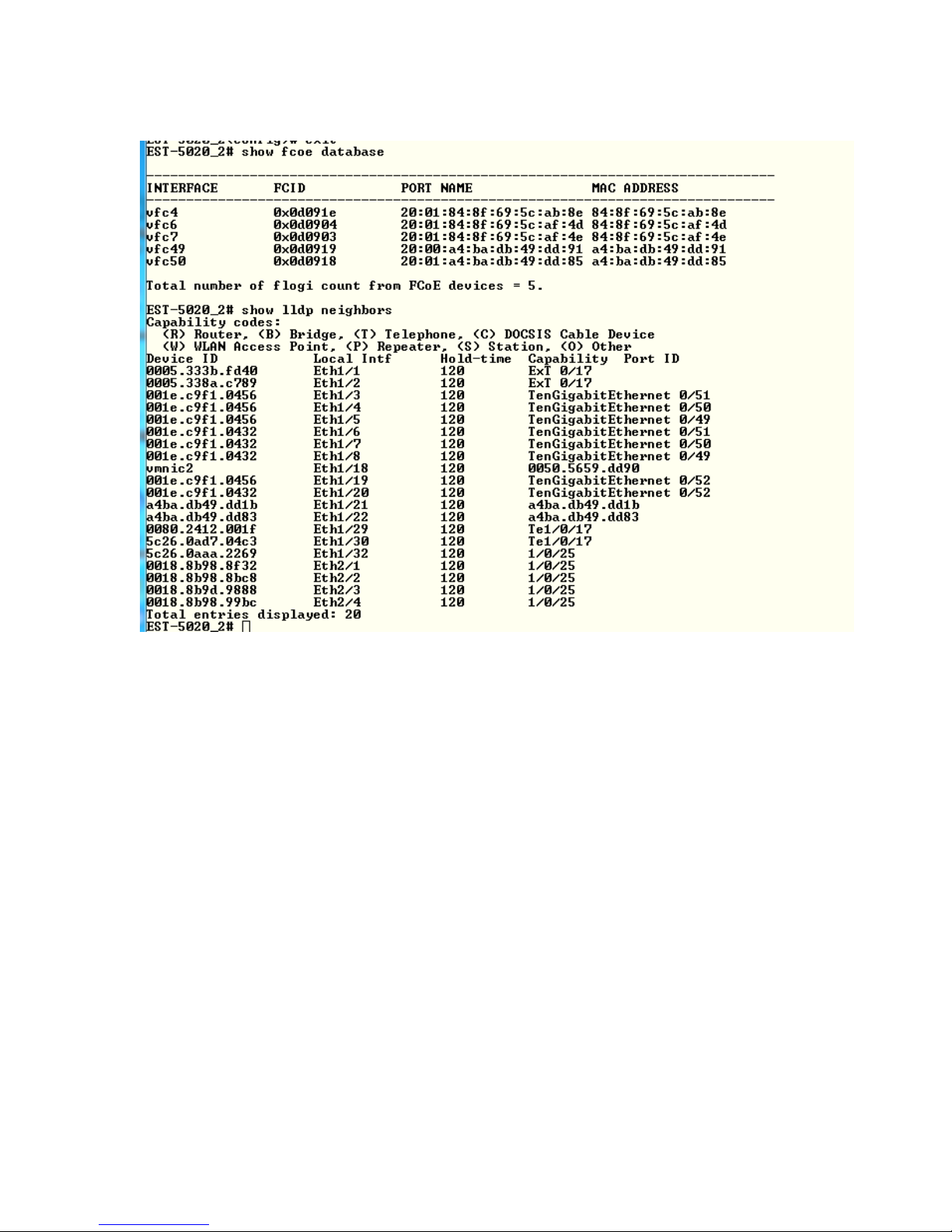

Figure 4. Results of FCoE and LLDP query commands. ....................................................... 11
Figure 5. FCoE support not installed............................................................................. 12

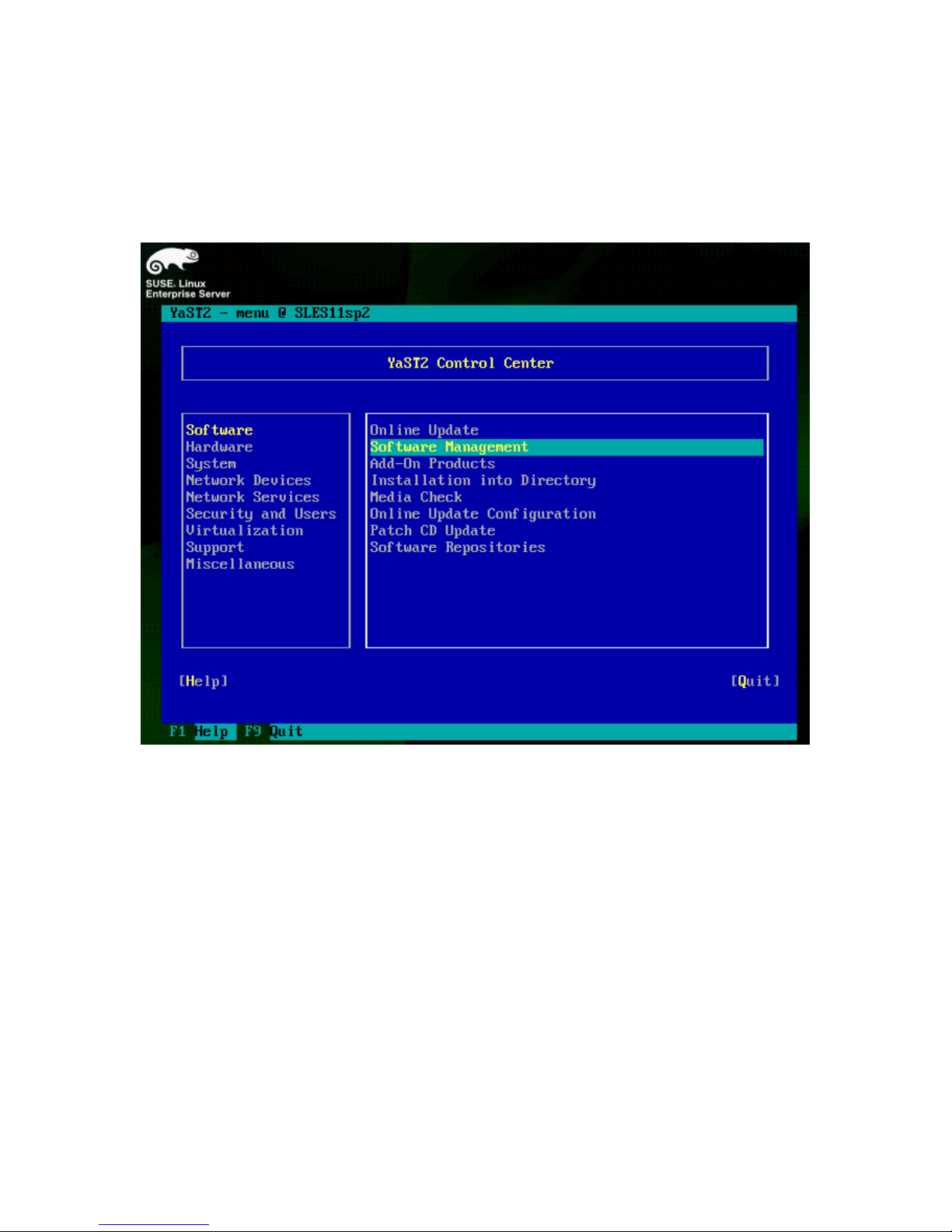

Figure 6. Entering Software Management menu. .............................................................. 13

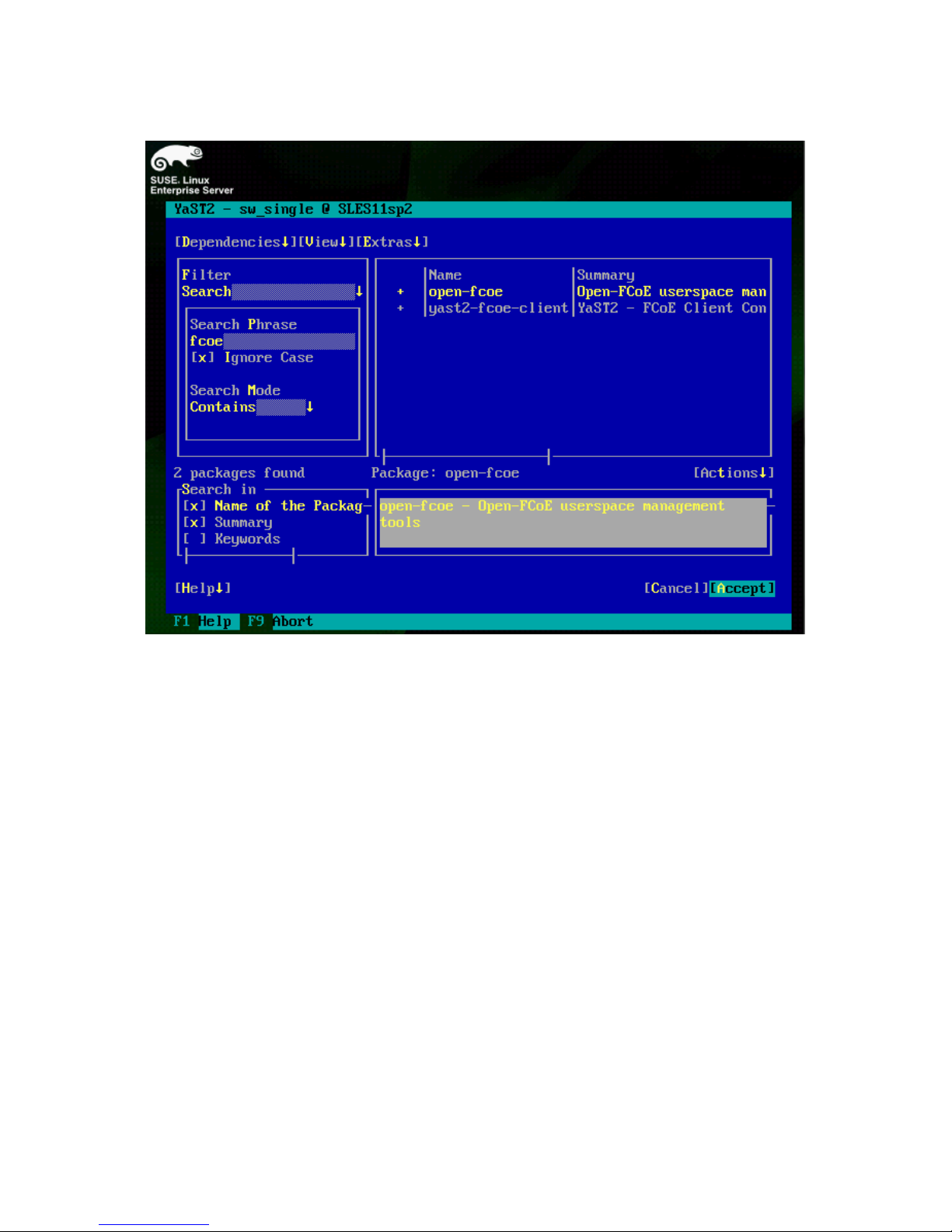

Figure 7. Selecting FCoE packages for installation. ........................................................... 14

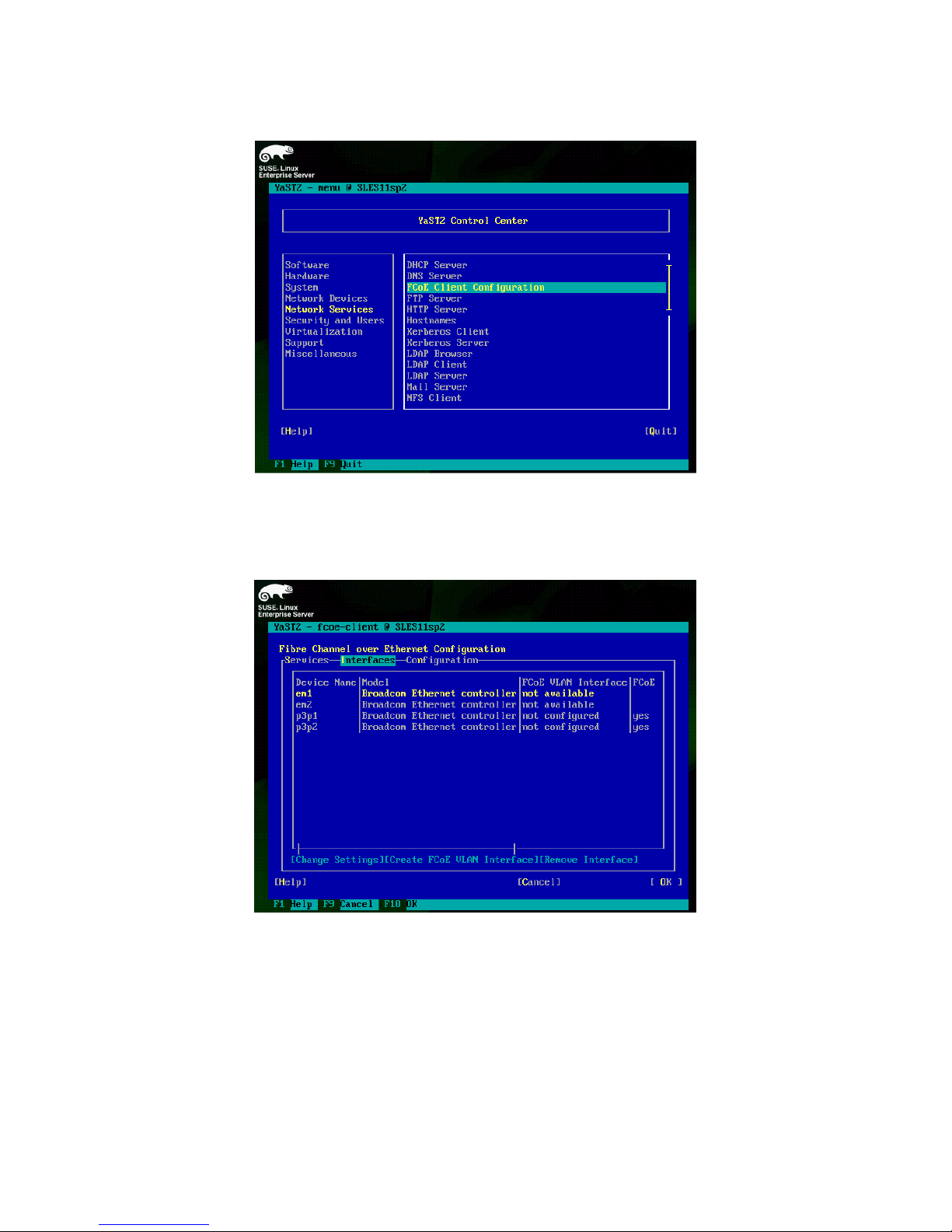

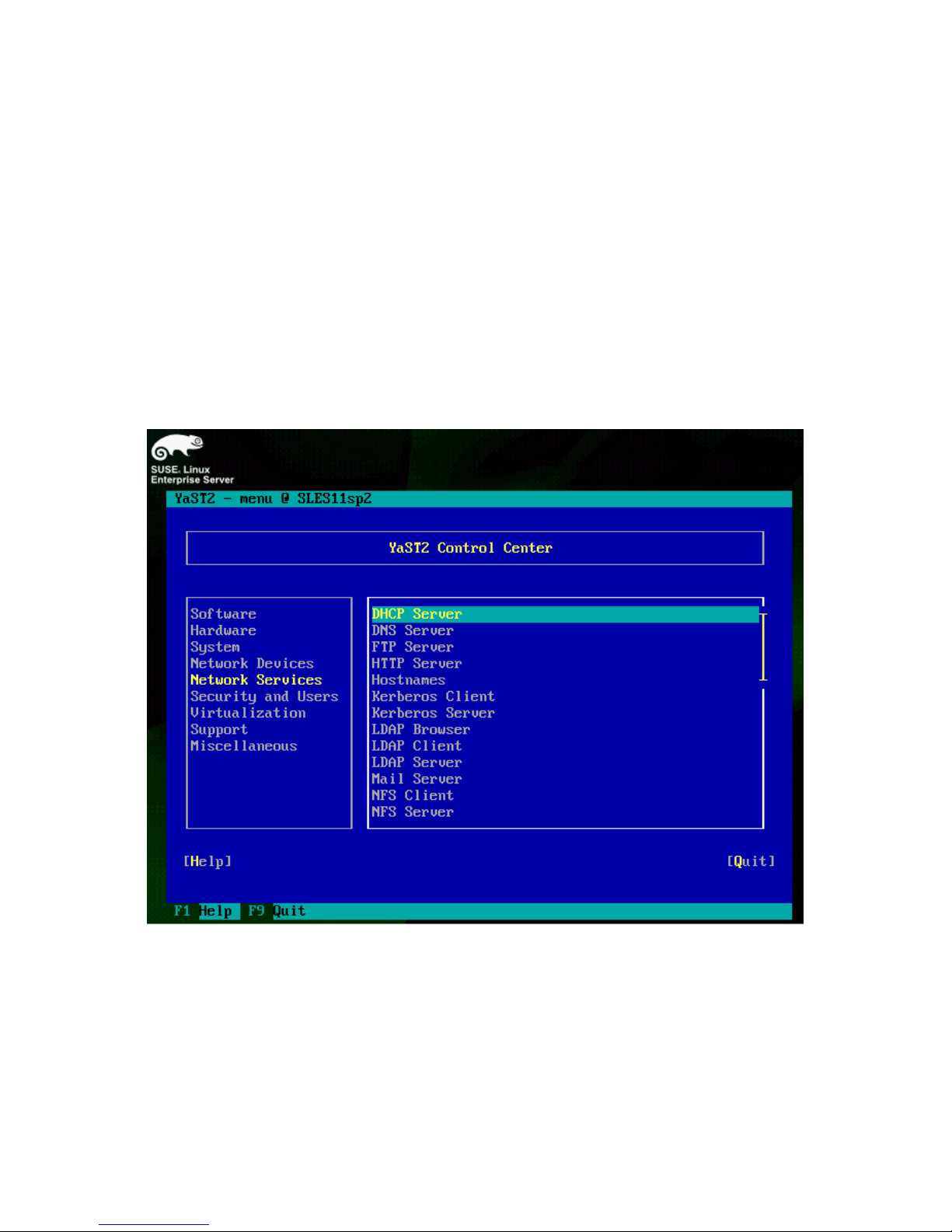

Figure 8. Network Services menu. ............................................................................... 15

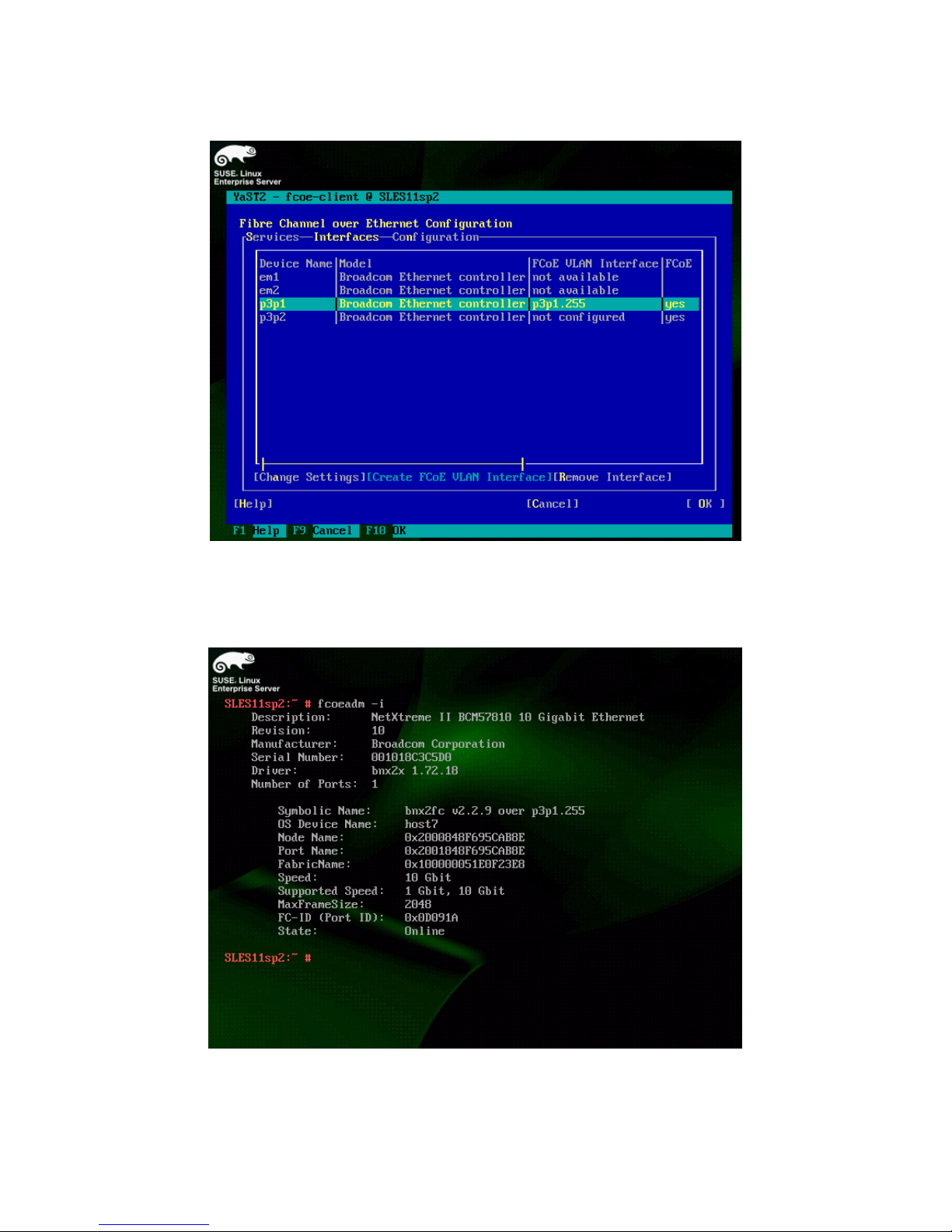

Figure 9. FCoE client configuration screen with interfaces sub menu. .................................... 15

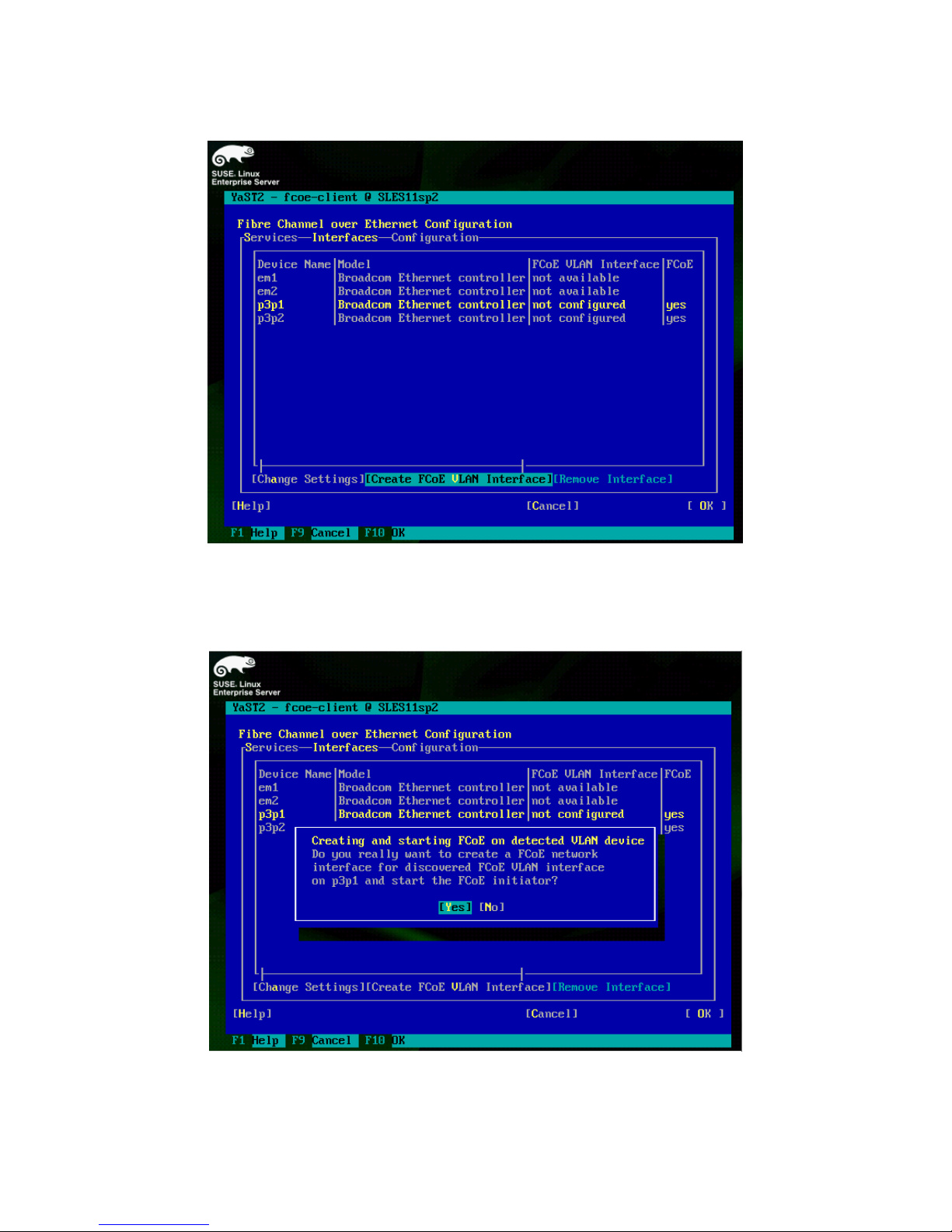

Figure 10. Create FCoE VLAN interface. .......................................................................... 16
Figure 11. Confirmation of new FCoE VLAN interface. ......................................................... 16
Figure 12. New FCoE VLAN created. .............................................................................. 17
Figure 13. FCoE VLAN is now online. .............................................................................. 17

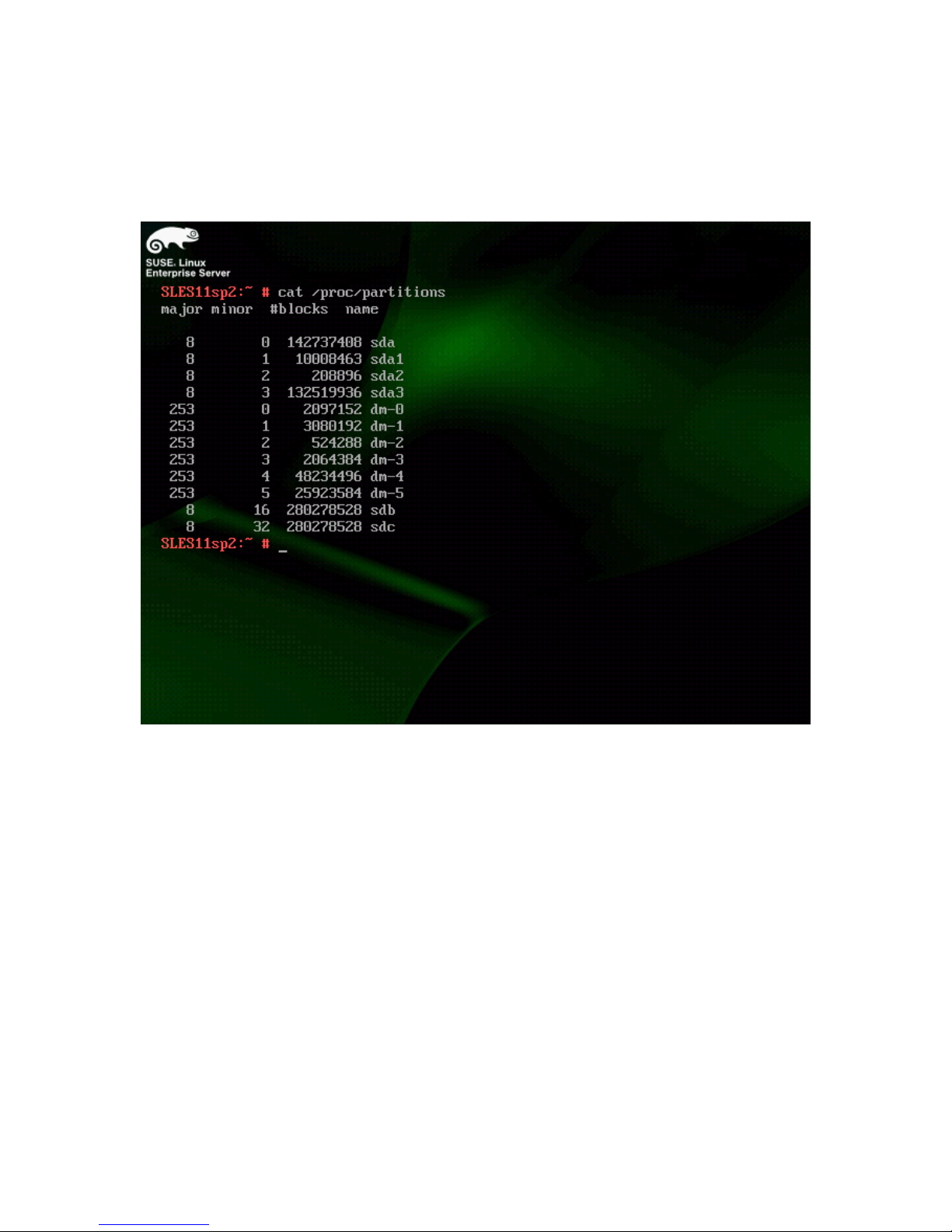

Figure 14. FCoE LUNs displayed. ................................................................................... 18

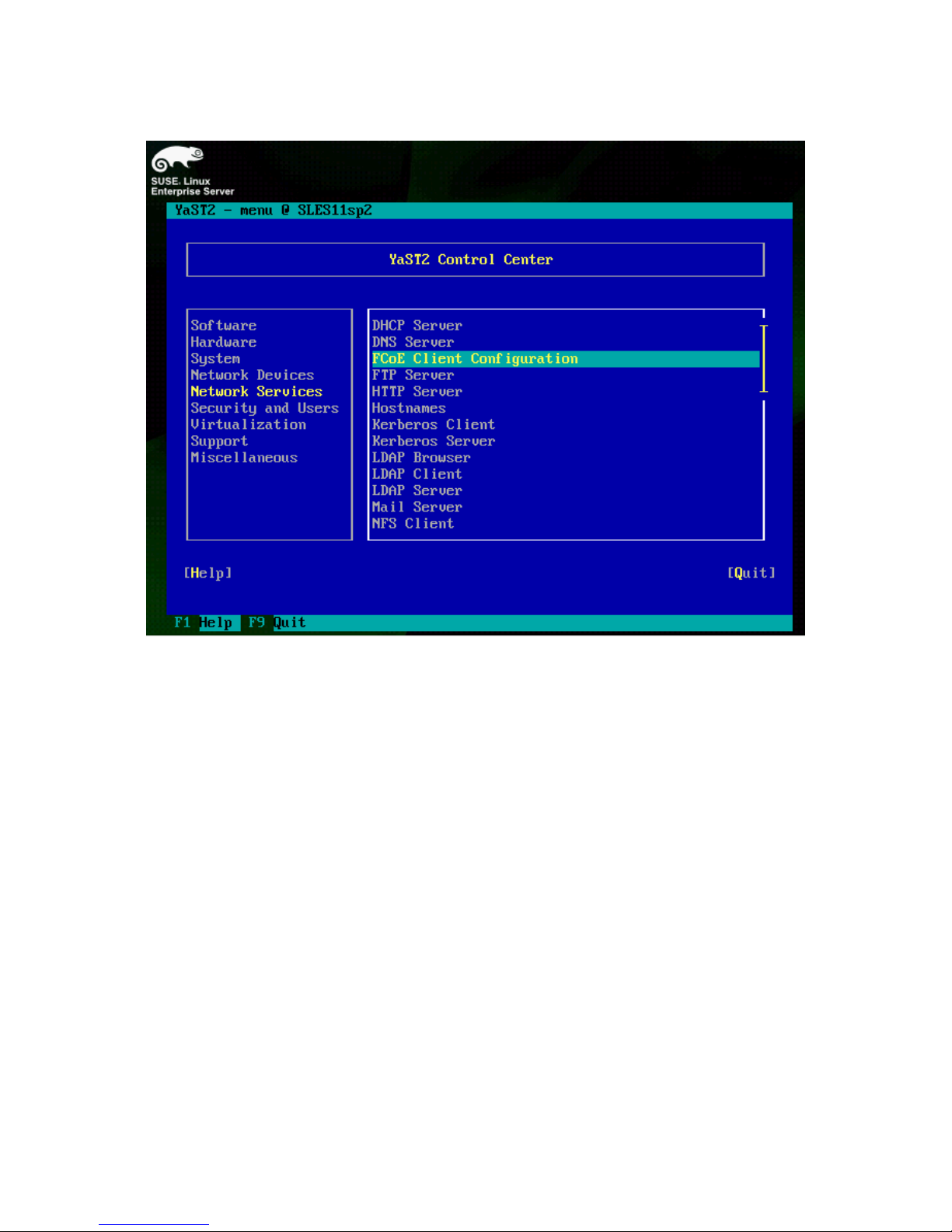

Figure 15. Select the FCoE Client Configuration menu. ....................................................... 19

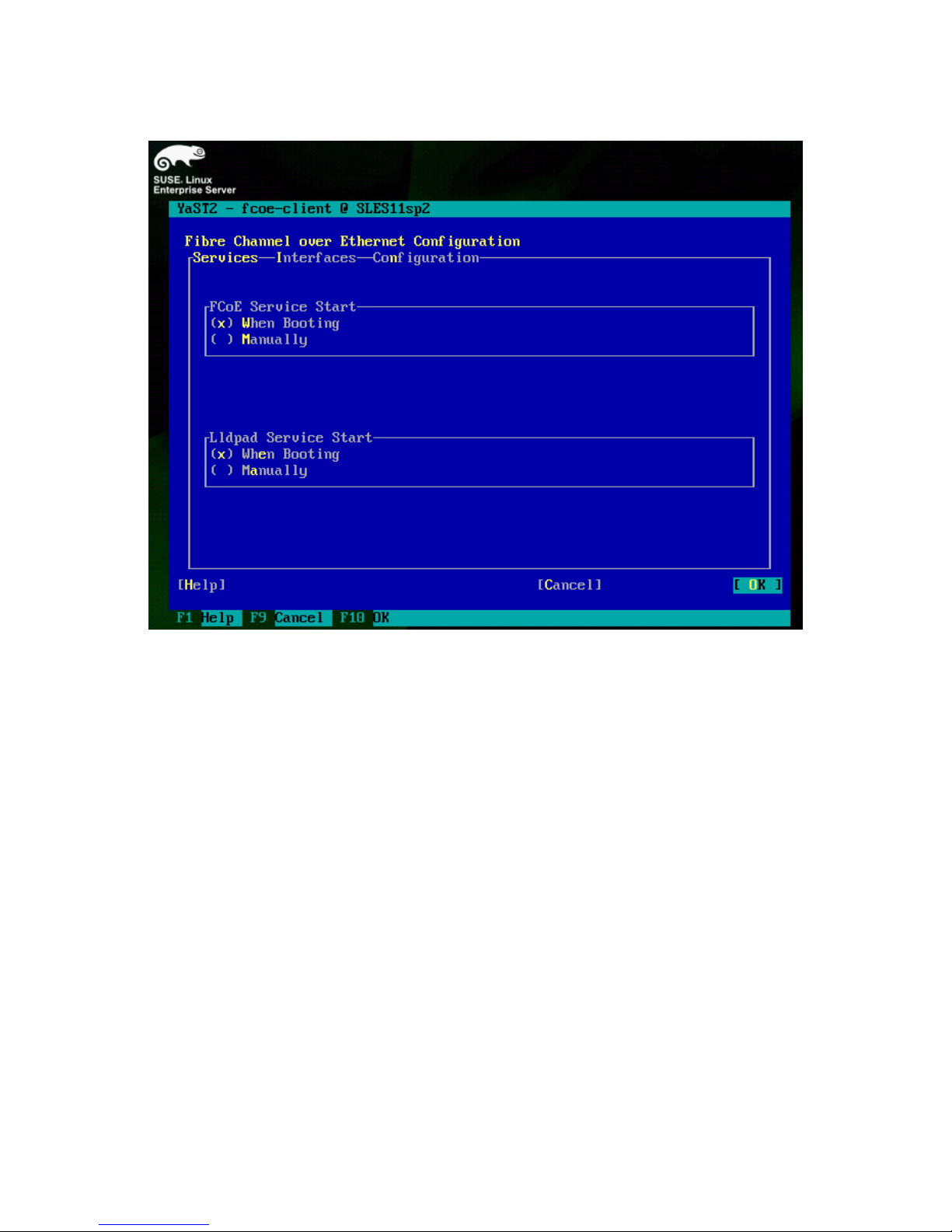

Figure 16. Configure FCoE to start at system boot. ............................................................ 20

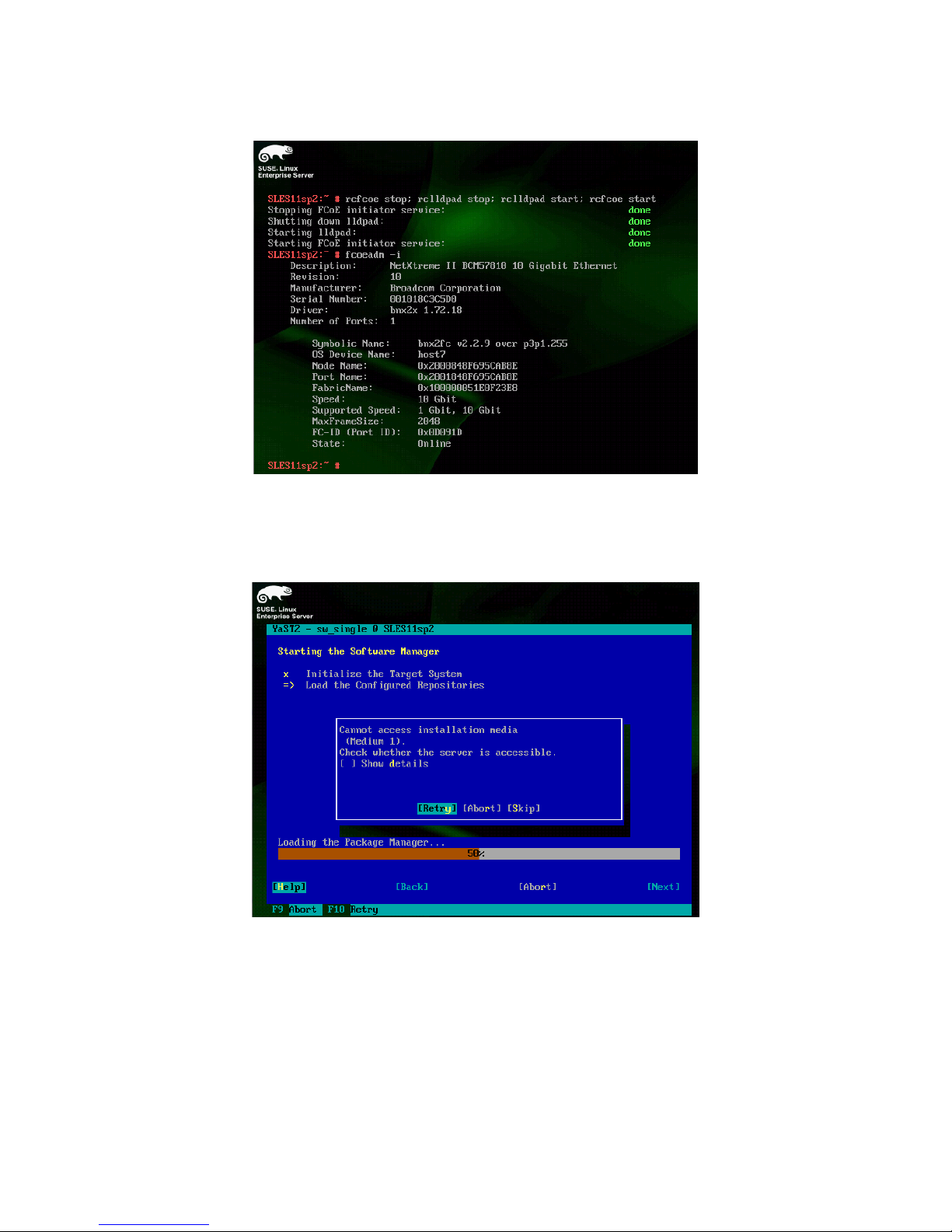

Figure 17. Restarting the rclldpad and rcfcoe daemons. ...................................................... 21
iii
Implementing FCoE in the Linux Operating System
Figure 18. Failure to detect installation media. ................................................................ 21

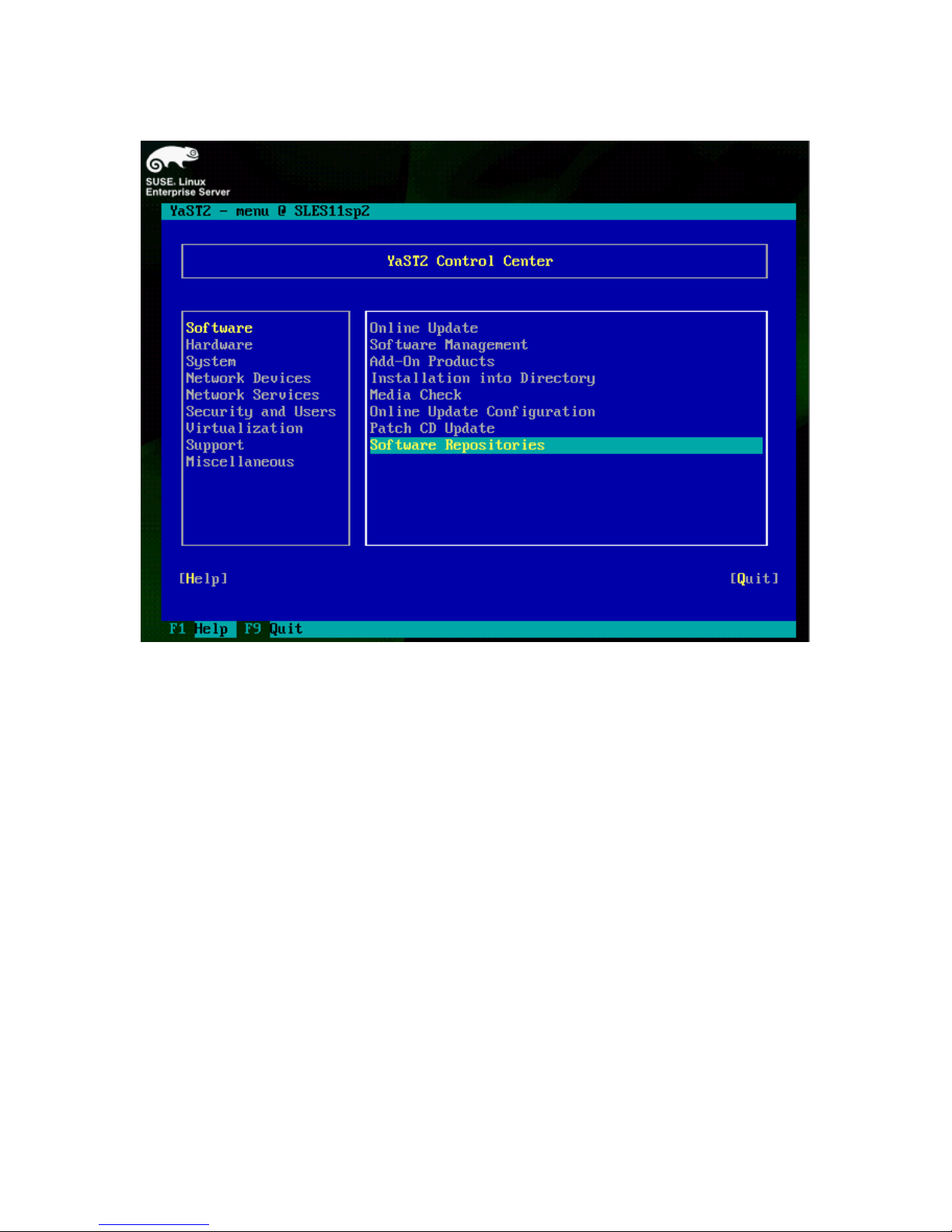

Figure 19. Entering Software Repositories Menu. ............................................................... 22

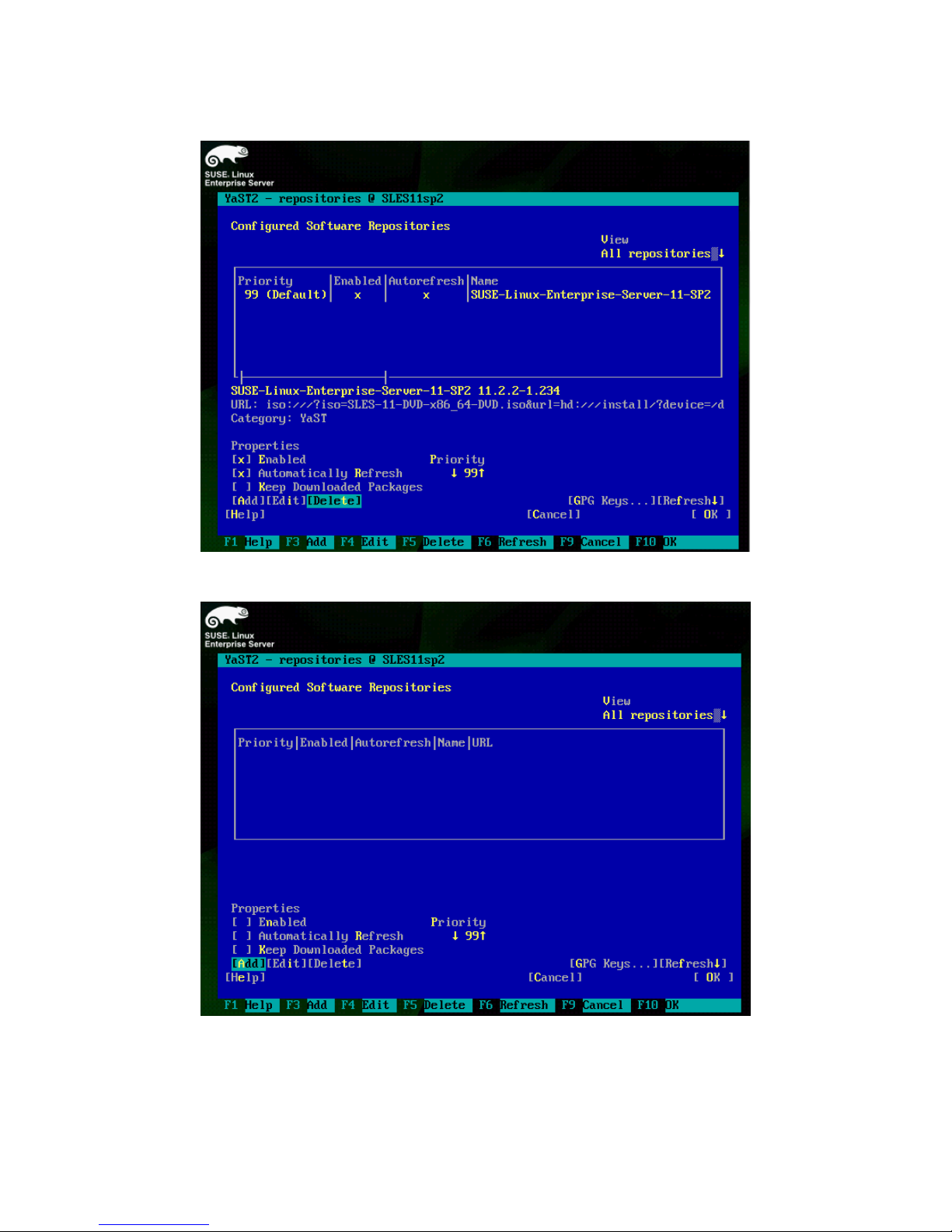

Figure 20. Deleting Old SLES Software Repository. ............................................................. 23
Figure 21. Adding new SLES Install Media Software Repository. .............................................. 23

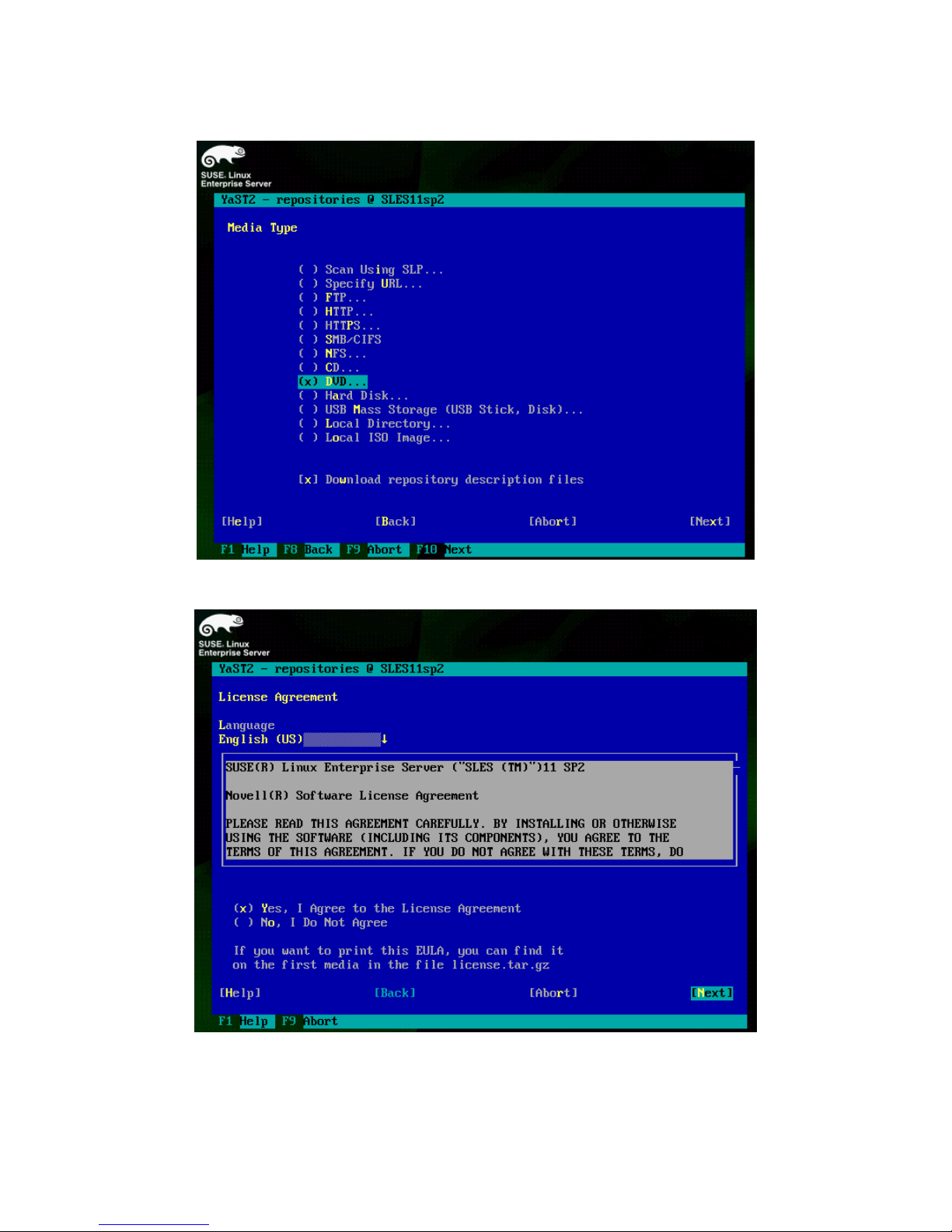

Figure 22. Selecting the installation media. ..................................................................... 24
Figure 23. Accepting the License Agreement. ................................................................... 24

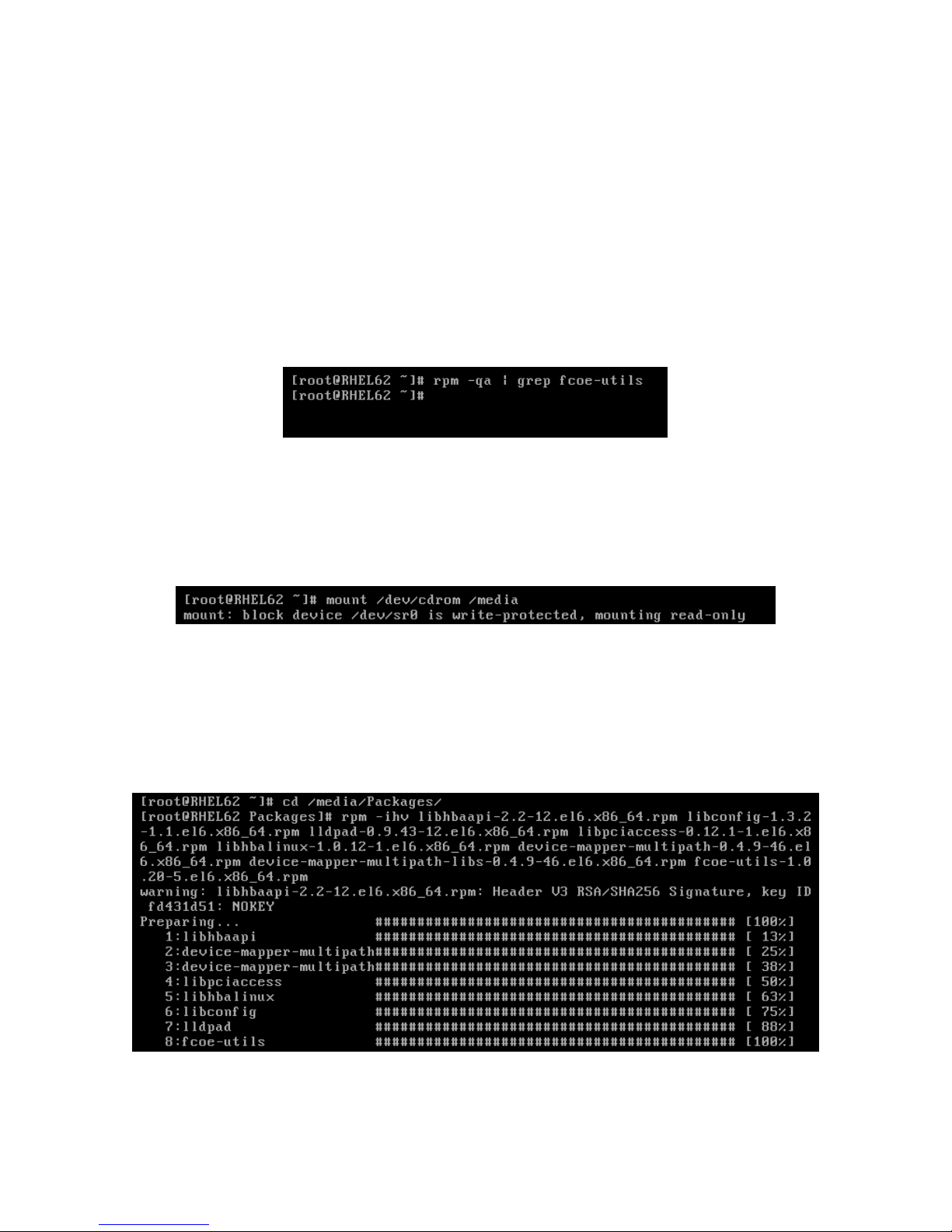

Figure 24. No FCoE support is installed. .......................................................................... 25
Figure 25. Mounting the installation media. ..................................................................... 25
Figure 26. Installing FCoE support. ................................................................................ 25

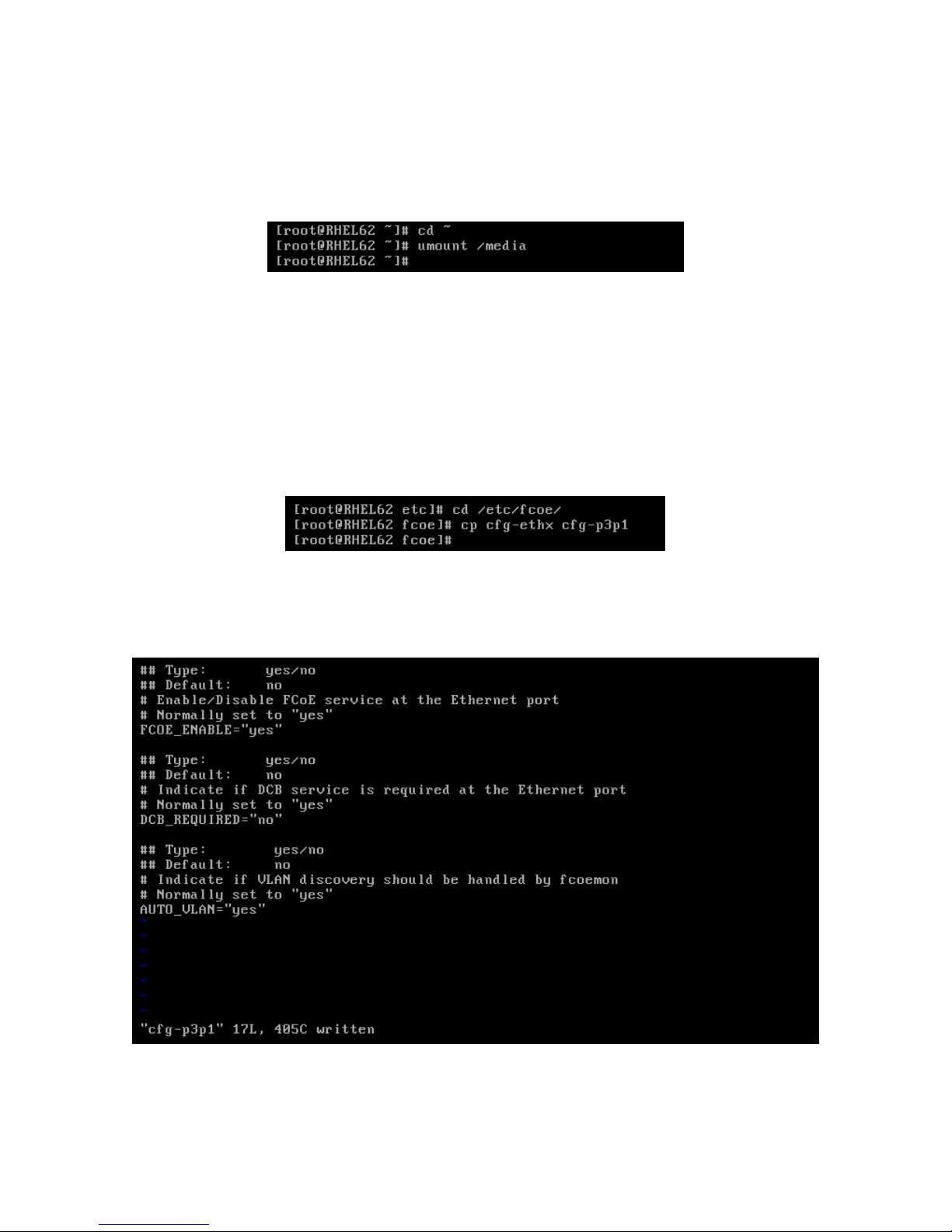

Figure 27. Unmounting the installation media. ................................................................. 26
Figure 28. Creating the FCoE Adapter Configuration file. ..................................................... 26
Figure 29. Setting the DCB_REQUIRED variable to "no". ....................................................... 26

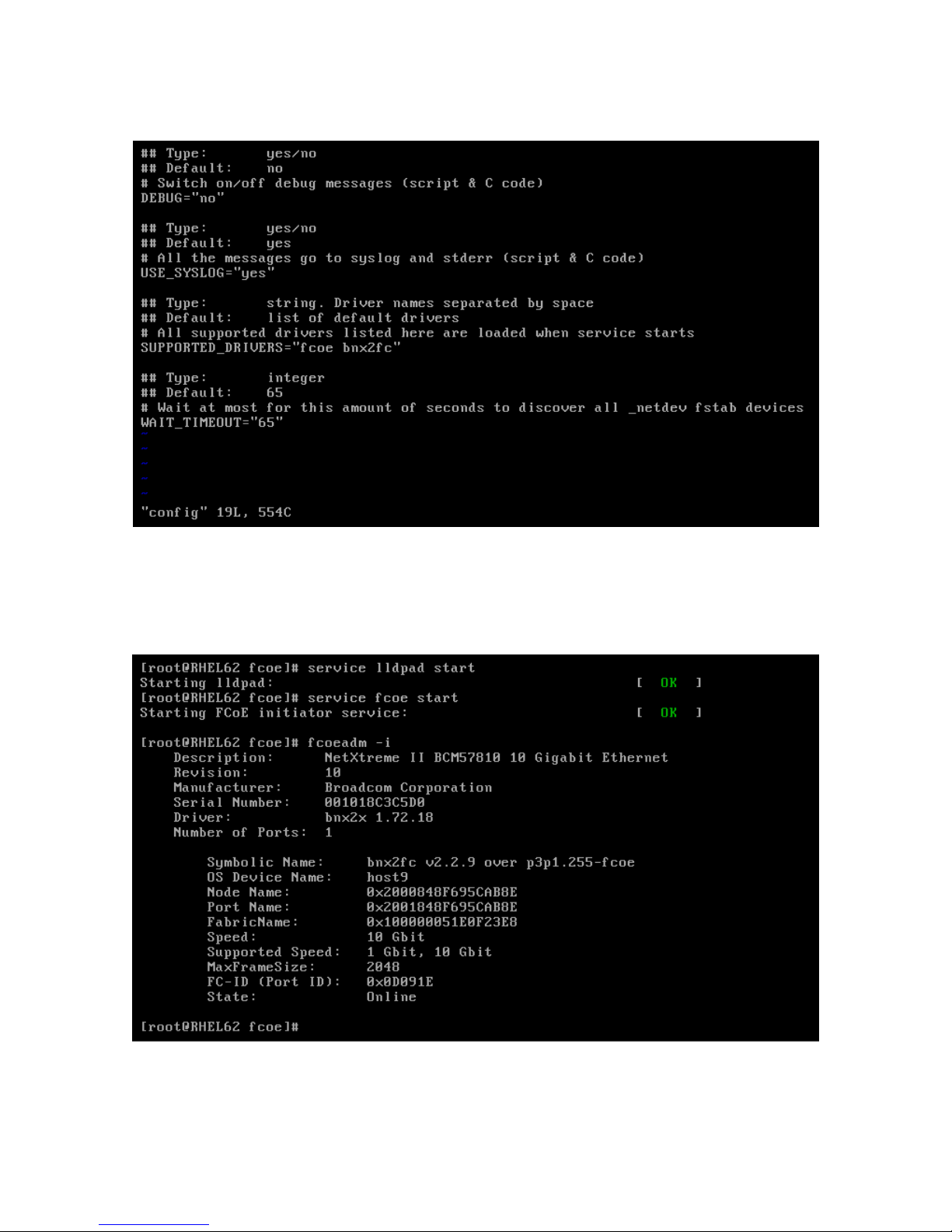

Figure 30. Checking the SUPPORTED_DRIVERS variable. ....................................................... 27
Figure 31. Verifying proper configuration of FCoE VLAN. ...................................................... 27

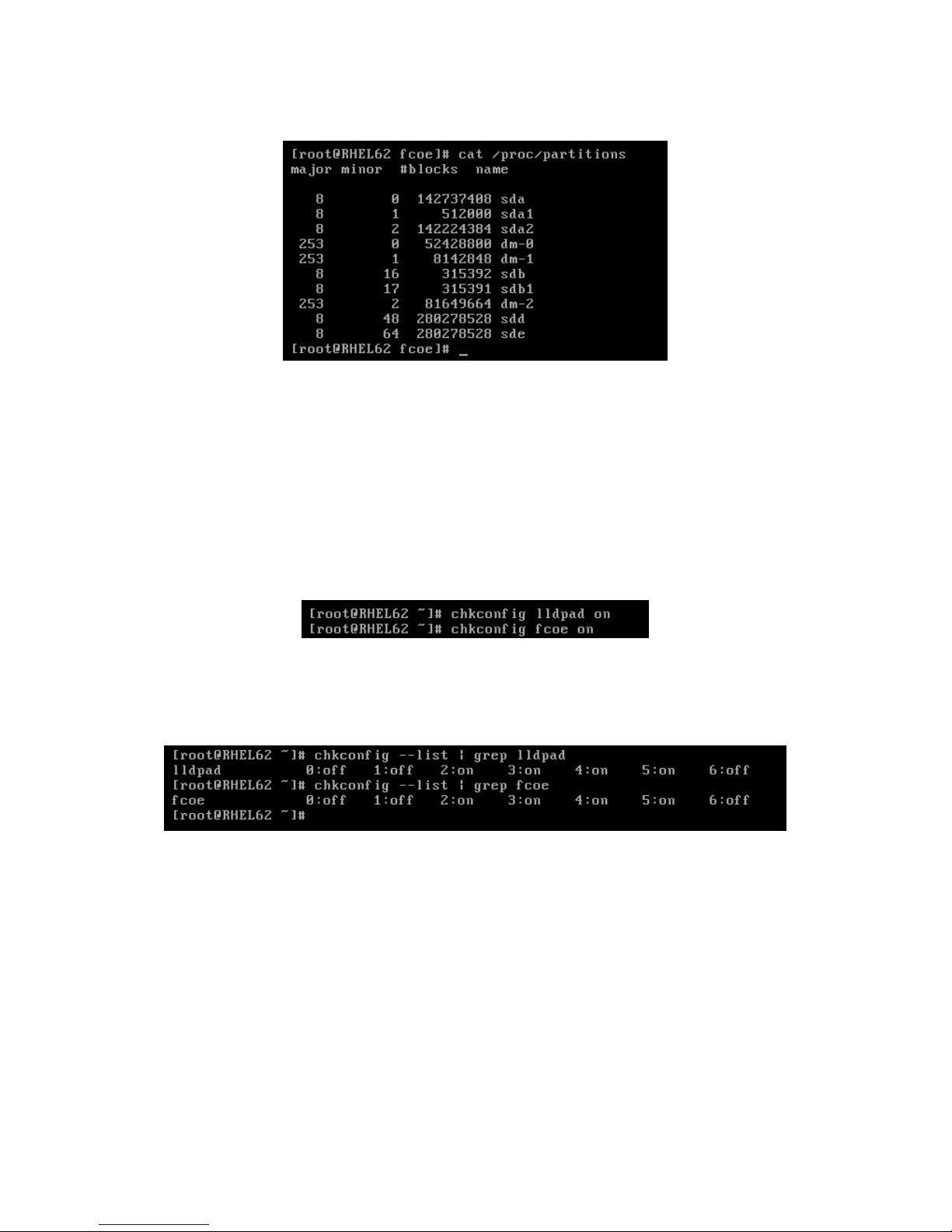

Figure 32. Verifying LUNs availability. ............................................................................ 28
Figure 33. Configuring FCoE to start at system boot. .......................................................... 28
Figure 34. Verifying that FCoE services are configured to start at boot time .............................. 28

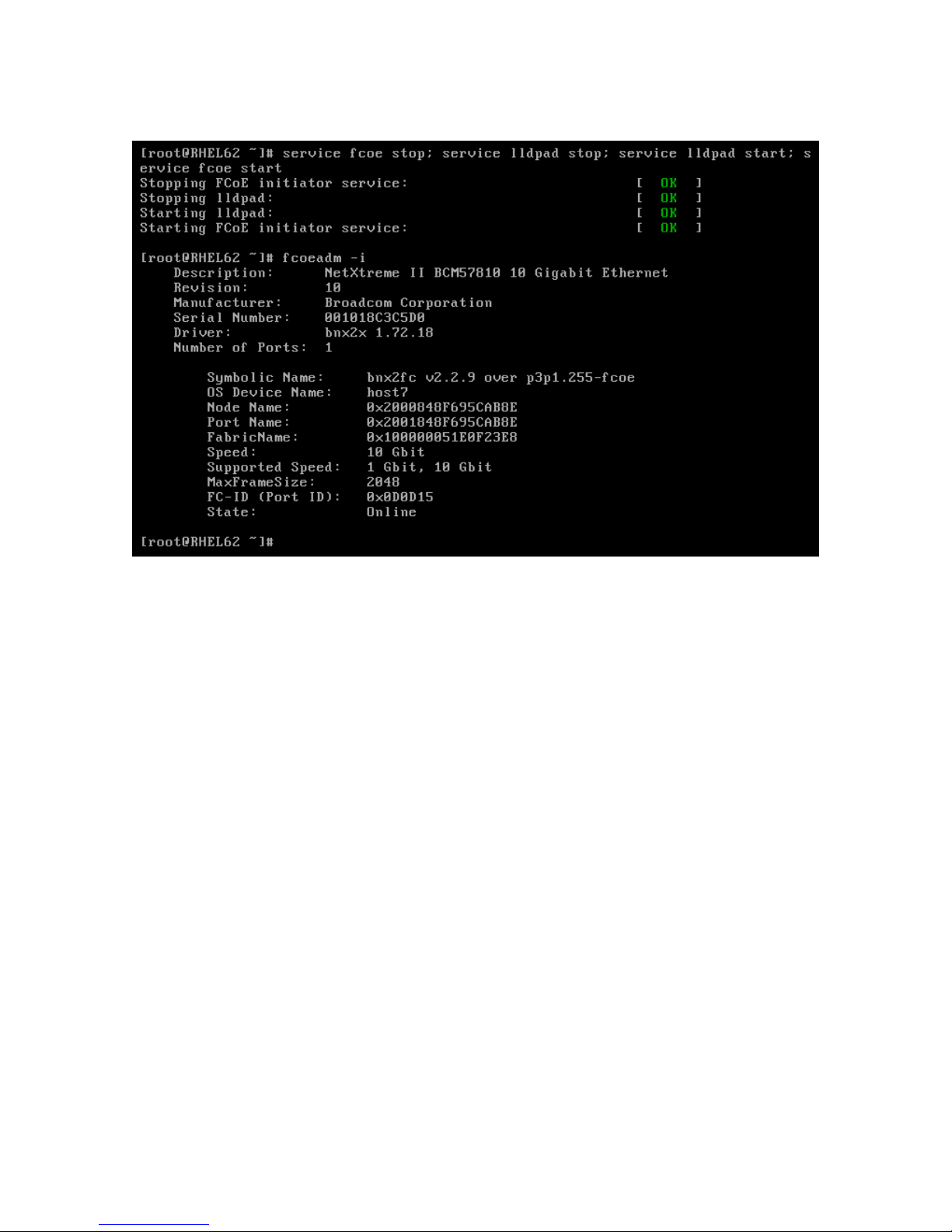

Figure 35. Restarting the lldpad and fcoe daemons. ........................................................... 29
iv
Implementing FCoE in the Linux Operating System
Executive summary
This document provides instructions on setting up Fibre Channel over Ethernet (FCoE) using a Dell
Force10 switch, a Cisco Nexus switch, Broadcom-based network adapters, and servers running
supported Linux operating systems. It is intended for intermediate Network and System Administrators
with 2-5 years of experience, and assumes a moderate level of network switch administration expertise
and Linux system administration expertise.
Introduction
Fibre Channel over Ethernet (FCoE) encapsulates Fibre Channel frames over IEEE 802.3 Ethernet
networks equipped with FCoE compliant hardware, thereby reducing the amount of physical IO
connectivity necessary to access Fibre Channel-based storage. However, FCoE can be challenging to
implement due to the complexities involved in correctly configuring the various devices on the
network, such as the SAN, switches, network interface adapters, and operating systems on the servers.
This Dell How-To document is intended to assist you in setting-up FCoE in your environment.
Due to the numerous variances in possible SAN, switch, network interface adapter, and server choices,
it is not possible to write exact instructions for every conceivable supported configuration. As such,
this document is written toward implementing one specific real-world configuration, as detailed in the
Described Configuration section below.
Described configuration
This example used the following Hardware:
SAN: EMC Clariion CX700.
Switches: Dell Force10 MXL 10/40GbE Switch (edge); Cisco Nexus 5020 Switch (distribution);
Appropriate core switch for your network of any applicable make and model (core)
Chassis: Dell M1000e Blade Server Chassis
Server: Dell PowerEdge M520 Server
Network Adapter: Broadcom 57810S Dual-Port 10GbE KR Blade Converged Mezzanine Card
Operating System: Red Hat Enterprise Linux 6.2; SuSE Linux Enterprise Server 11 Service Pack 2
5
Implementing FCoE in the Linux Operating System
Prerequisites
Prior to attempting to configure FCoE for Linux, meet the following prerequisites:
1. The Firmware of the Dell Force10 switch must be up-do-date. Refer to the Dell Support
Website and enter your service tag to download and receive instruction on how to update your
Dell Force10 switch to the latest firmware. In this document, Dell Force10 MXL 10/40GbE
firmware version 8.3.16.1 was used.
2. The Firmware of the Cisco switch must be up-do-date. Refer to the Cisco Support Website to
download and receive instruction on how to update your Cisco switch to the latest firmware.
In this document, Cisco Nexus 5020 firmware version 5.1(3)N2(1a) was used.
3. The firmware of the Broadcom network adapter must be up-to-date. Please refer to Dell
Support Website and enter your service tag to download and receive instruction on how to
update your Broadcom network adapter to the latest firmware. In this document, Broadcom
57810S Dual-Port 10GbE KR Blade Converged Mezzanine Card firmware version 7.2.14 was used.
4. Install the appropriate Linux Operating System and make sure it is functioning on the Dell
PowerEdge server. In addition, the Ethernet interface over which you want FCoE traffic to flow
must be configured and online. Verify that you can ping another device on the network using
this Ethernet interface before attempting to setup FCoE.
5. The driver for the Broadcom network adapter must be up-do-date. Refer to Dell Support
Website and enter your service tag to download and receive instruction on how to install the
latest driver for your Broadcom network adapter. In this document, Broadcom LAN driver for
Linux version 17.2.0 was used.
6. You need access to the installation media for your particular Linux operating system.
7. You must set up the appropriate LUNs for use on your Fibre Channel SAN. The SAN is not aware
that the FCoE is being used and the LUN will be set up and functioning identically as would any
other non-FCoE connected Fibre Channel LUN, regardless of the make and model of the SAN.
Configuration of the SAN is outside the scope of this FCoE-centric document. For instructions
on setting-up the appropriate LUNs for your particular SAN, refer the documentation for your
Fibre Channel SAN.
6
Implementing FCoE in the Linux Operating System
Setting up your network infrastructure for FCoE
Perform the following steps to set up your network infrastructure for FCoE. While performing these
steps, refer to the network diagram in Figure 1.
Network infrastructure diagram. Figure 1.
1. Set up in NPIV mode and enable the FCoE feature on the Cisco Nexus 5020 distribution switch.
From the Global Configuration Mode of the distribution switch, run the following commands:
feature fcoe
feature lcap
feature lldp
feature npiv
7
Implementing FCoE in the Linux Operating System
2. Enable the FCoE feature on the Dell Force10 MXL 10/40GbE edge switch by running the
following commands from the Global Configuration Mode of the edge switch command line:
service-class dynamic dot1p
cam-acl l2acl 4 ipv4acl 2 ipv6acl 0 ipv4qos 2 l2qos 1 l2pt 0 ipmacacl 0 vman-qos 0 ecfmacl 0
fcoeacl 2 iscsioptacl 2
feature fip-snooping
fip-snooping enable
protocol lldp
no advertise dcbx-tlv ets-reco
advertise management-tlv system-description system-name
3. Program the server facing ports (internal ports connected to the PowerEdge blade servers) on
the edge switch by running the following commands from the switch command line:
interface TenGigabitEthernet 0/30
no ip address
mtu 12000
portmode hybrid
switchport
spanning-tree pvst edge-port
!
protocol lldp
dcbx port-role auto-downstream
no shutdown
4. Program the switch facing ports (physically accessible ports on the back of the M1000e chassis)
on the edge switch by running the following commands from the switch command line:
interface TenGigabitEthernet 0/49
description LAG port to Cisco 5020
no ip address
mtu 12000
!
port-channel-protocol LACP
port-channel 2 mode active
!
protocol lldp
no advertise dcbx-tlv ets-reco
dcbx port-role auto-upstream
no shutdown
!
***NOTE: If not in a LAG, omit the highlighted in red above***
5. Create the default VLAN by giving the default-vlan XX command (where XX equals the
VLAN number) from the edge switch command line as seen below:
default-vlan 46
6. Create the FCoE VLAN (this is the actual VLAN that allows FCoE traffic on the edge switch) from
the edge switch command line as seen below:
int vlan 255
8
Implementing FCoE in the Linux Operating System
7. On the Cisco Nexus 5020 distribution switch, make sure that the FCoE VLAN is created and
associated to the appropriate Virtual SAN (VSAN) by running the following from the switch
command line:
interface vlan 255 (creates the VLAN)
FCOE vsan 255 (defines the VLAN as FCoE, and then associates it to VSAN 255)
no shut (turns on the VLAN)
8. On the distribution switch; make sure that the appropriate native VLAN for that interface is set
up as seen below:
interface Ethernet 1/12
switchport mode trunk
switchport trunk native vlan 46
switchport trunk allowed vlan 46,255 (notice that the appropriate FCoE VLAN is
also allowed, VLAN 255)
9. Bind the FCoE-FIP MAC address of the server’s network interface adapter. You can get the
server’s MAC address from the CMC by navigating to Server -> Setup ->FlexAddress from the
CMC management GUI. Be aware of what port your server is on and what side of the fabric
your server is on (for example: Fabric A side 2). You bind this address on the Cisco 5020
distribution switch that is running NPIV mode by running the following commands from the
switch command line:
interface vfc XX (this creates a Virtual Fibre Channel (FVC) interface; XX is any
number id that is available)
bind mac-address a4:ba:db:49:d0:17 (binding FCoE-FIP MAC Address)
no shutdown (this turns on the interface)
10. The last thing to do on the distribution switch is to place the newly created VFC into the
proper VSAN database while in global configuration mode. To do this, run the following
commands from the distribution switch command line:
VSAN database (enter VSAN definition/configuration mode)
VSAN 255 interface vfc 50 (VFC 50 being placed into VSAN 255)
11. On the Dell Force10 MXL 10/40GbE (edge) switch, verify that an FCoE connection was
established. To do this, run the following command on the edge switch command line while in
EXEC mode; see Figure 2 for sample results:
show fip-snooping enode
9
Loading...
