Dell WR1J6 Specification Sheet

OptiPlex 3080 Small Form Factor

Setup and specifications guide

Regulatory Model: D15S
Regulatory Type: D15S002
May 2020
Rev. A00

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may
be trademarks of their respective owners.

Contents

Chapter 1: Set up your computer......................................................................................................5

Chapter 2: Chassis overview...........................................................................................................10

Front view............................................................................................................................................................................. 10

Back view...............................................................................................................................................................................11

System board Layout...........................................................................................................................................................12

Chapter 3: Technical specifications.................................................................................................13

Dimensions and weight........................................................................................................................................................13

Chipset...................................................................................................................................................................................13

Processors.............................................................................................................................................................................14

Operating system.................................................................................................................................................................15

Memory................................................................................................................................................................................. 15

Intel Optane memory........................................................................................................................................................... 16

Ports and connectors.......................................................................................................................................................... 16

Communications................................................................................................................................................................... 17

Graphics and Video controller.............................................................................................................................................18

Audio and Speaker............................................................................................................................................................... 18

Storage.................................................................................................................................................................................. 19

Power ratings.......................................................................................................................................................................20

Dimensions and weight.......................................................................................................................................................20

Physical system dimensions......................................................................................................................................... 20

Add-in cards.................................................................................................................................................................... 21

Security............................................................................................................................................................................21

Data security.................................................................................................................................................................. 22

Accessories.....................................................................................................................................................................22

Environmental................................................................................................................................................................ 22

Energy Star, EPEAT and Trusted Platform Module (TPM).....................................................................................23

Service and support...................................................................................................................................................... 23

Computer environment.......................................................................................................................................................24

Chapter 4: Software......................................................................................................................25

Downloading Windows drivers...........................................................................................................................................25

Chapter 5: System setup............................................................................................................... 26

Boot menu............................................................................................................................................................................26

Navigation keys....................................................................................................................................................................26

Boot Sequence.....................................................................................................................................................................27

System setup options..........................................................................................................................................................27

General options.............................................................................................................................................................. 27

System information....................................................................................................................................................... 28

Video screen options.....................................................................................................................................................29

Security...........................................................................................................................................................................29

Secure boot options...................................................................................................................................................... 30

Contents 3

Intel Software Guard Extensions options....................................................................................................................31

Performance................................................................................................................................................................... 31

Power management...................................................................................................................................................... 32

Post behavior................................................................................................................................................................. 33

Manageability................................................................................................................................................................. 33

Virtualization support.................................................................................................................................................... 34

Wireless options.............................................................................................................................................................34

Maintenance...................................................................................................................................................................34

System logs.................................................................................................................................................................... 35

Advanced configuration................................................................................................................................................35

SupportAssist System Resolution............................................................................................................................... 35

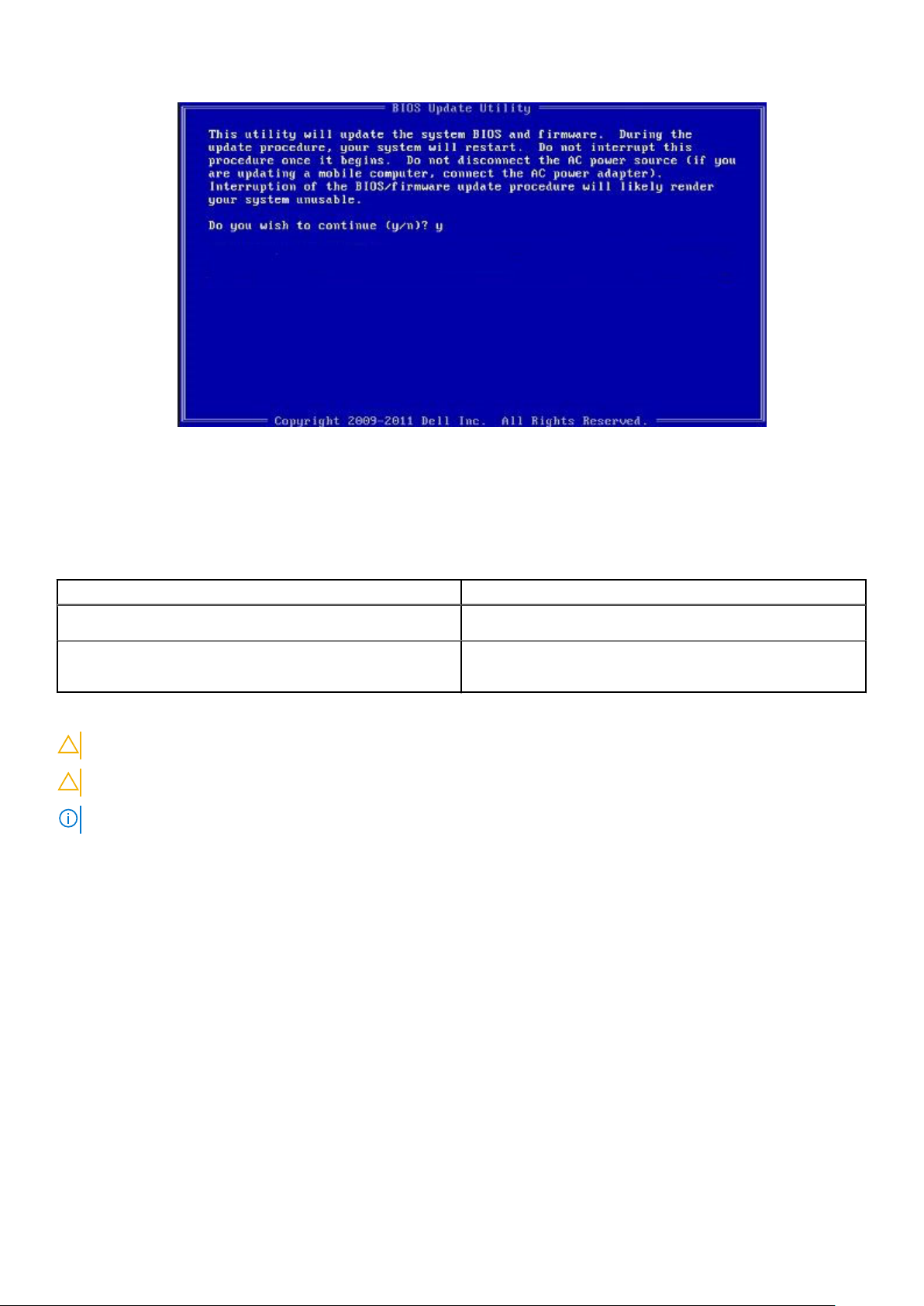

Updating the BIOS in Windows ........................................................................................................................................ 35

Updating BIOS on systems with BitLocker enabled..................................................................................................36

Updating your system BIOS using a USB flash drive................................................................................................36

System and setup password.............................................................................................................................................. 37

Assigning a system setup password............................................................................................................................37

Deleting or changing an existing system setup password........................................................................................38

Chapter 6: Getting help................................................................................................................. 39

Contacting Dell.................................................................................................................................................................... 39

4

Contents

Steps

1. Connect the keyboard and mouse.

1

Set up your computer

2. Connect to your network using a cable, or connect to a wireless network.

Set up your computer 5

3. Connect the display.

4. Connect the power cable.

6

Set up your computer

5. Press the power button.

Set up your computer

7

6. Finish Windows system setup.

Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:

• Connect to a network for Windows updates.

NOTE:

If connecting to a secured wireless network, enter the password for the wireless network access when

prompted.

• If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.

• On the Support and Protection screen, enter your contact details.

7. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Dell apps Details

Dell Product Registration

Register your computer with Dell.

Dell Help & Support

Access help and support for your computer.

8 Set up your computer

SupportAssist

Proactively checks the health of your computer’s hardware and
software.

Table 1. Locate Dell apps (continued)

Dell apps Details

Dell Update

Updates your computer with critical fixes and important device
drivers as they become available.

Dell Digital Delivery

Download software applications including software that is
purchased but not preinstalled on your computer.

NOTE: Renew or upgrade your warranty by clicking the

warranty expiry date in SupportAssist.

Set up your computer 9

Topics:

• Front view

• Back view

• System board Layout

Front view

2

Chassis overview

1. Power button with diagnostic LED

2. Hard-disk drive activity light

3. Universal audio jack port

4. Two USB 2.0 ports

5. Two USB 3.2 Gen 1 Type-A ports

6. Optical Disk Drive (optional)

10 Chassis overview

Back view

1.

Line-out re-tasking Line-in audio port

2. HDMI 1.4b port

3. 3rd Video Port (VGA/DP 1.4/HDMI 2.0b) (optional)

4. DisplayPort 1.4

5. Serial/PS2 slot (Optional)

6. Two USB 3.2 Gen 1 Type-A ports

7. Two USB 2.0 ports with Smart Power on

8. RJ-45 port 10/100/1000 Mbps

9. Two expansion card slots

10. Power connector port

11. Power supply diagnostic light

12. Padlock loop

13. Antenna module slot

14. Kensington security-cable slot

Chassis overview

11

System board Layout

1.

Video connector

2. Intrusion switch connector (Intruder)

3. CPU power connector (ATX_CPU)

4. CPU fan connector

5. Memory slots (DIMM1, DIMM2)

6. M.2 Solid-state drive connector

7. PWR switch connector(PWR_SW)

8. PSU connector

9. M.2 WLAN connector

10. SATA 0 connector

11. SATA 2 connector

12. SATA power connector

13. Internal speaker connector

14. PCIe connector

15. Coin-cell battery

16. KB/MS serial header

17. Processor socket (CPU)

12

Chassis overview
