Dell Powered USB Hub User Manual

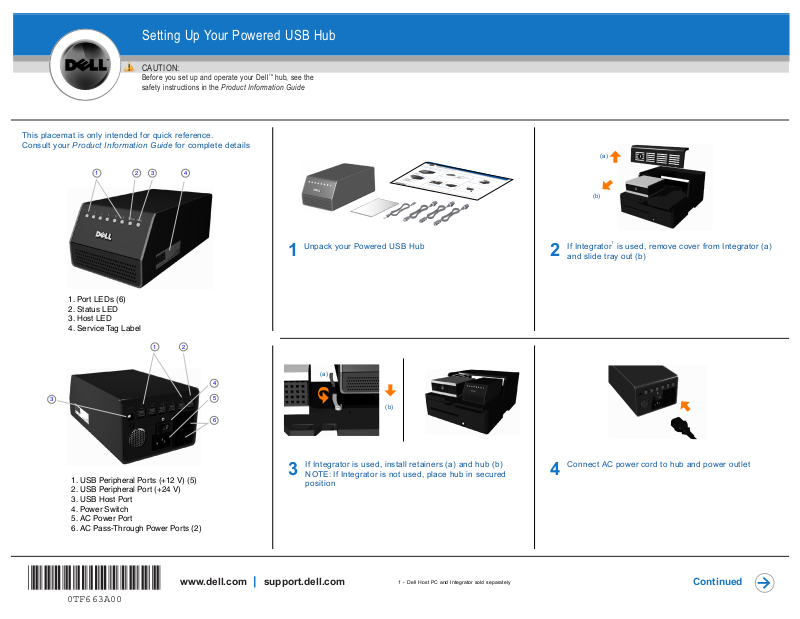

Setting Up Your Powered USB Hub
CAUTION:
Before you set up and operate your Dell hub, see the
safety instructions in the Product Information Guide
This placemat is only intended for quick reference.
Consult your Product Information Guide for complete details
1 2 3
1. Port LEDs (6)
2. Status LED
3. Host LED
4. Service Tag Label
1 2
4
TM
(a)
(b)
Unpack your Powered USB Hub
1
If Integrator is used, remove cover from Integrator (a)
2
and slide tray out (b)
1
3
1. USB Peripheral Ports (+12 V) (5)
2. USB Peripheral Port (+24 V)
3. USB Host Port
4. Power Switch
5. AC Power Port
6. AC Pass-Through Power Ports (2)
*0TF663A00*
0TF663A00
4
5
6
3
www.dell.com | support.dell.com Continued
(a)
(b)
If Integrator is used, install retainers (a) and hub (b)
NOTE: If Integrator is not used, place hub in secured
position
Dell Host PC and Integrator sold separately1 -
Connect AC power cord to hub and power outlet
4
Connect one AC pass-through power cord to hub and
5
Host PC. Connect other AC pass-through power cord
to hub and monitor.
NOTE: Do not connect AC pass-through connectors
to other devices without checking the Product
Information Guide
Connect USB cable to hub and Host PC
6
(Windows XP)
(Windows 2000)
Connect peripheral cables to peripherals and then
7
hub when hot-plugging. NOTE: This order must be
observed or damage may result to peripherals
and/or hub
(a)
2
(b)
Turn power switch on. Ensure green "Status" LED
8
is illuminated
Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell is strictly forbidden.
Dell and the DELL logo are trademarks of Dell Inc. Dell disclaims proprietary interest in the marks and names of others.
February 2006
Allow Windows to install drivers for devices. Ensure
9
green "Host" and green "Port" LEDs are illuminated.
Amber "Port" LEDs indicate over-current
Cables not included. Peripherals sold separately.2 -
If Integrator is used, slide Integrator tray in (a) and
10
replace cover (b)
