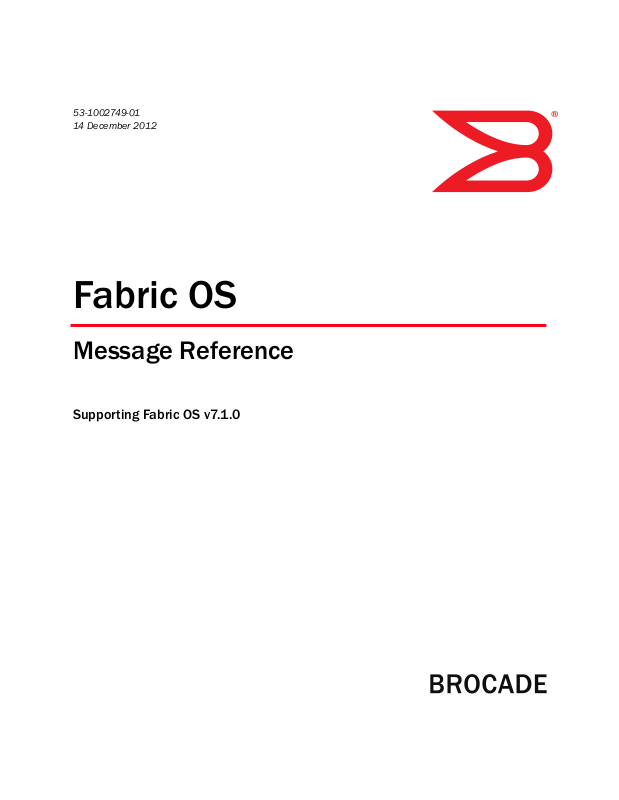

Dell PowerConnect B-DCX-4s Messages Reference Guide

53-1002749-01 14 December 2012

Fabric OS

Message Reference

Supporting Fabric OS v7.1.0

Brocade, Brocade Assurance, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, MLX, NetIron, SAN Health, ServerIron, TurboIron, VCS, and VDX are registered trademarks, and AnyIO, Brocade One, CloudPlex, Effortless Networking, ICX, NET Health, OpenScript, and The Effortless Network are trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries. Other brands, products, or service names mentioned may be trademarks of their respective owners.

Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time, without notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available. Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in this document may require an export license from the United States government.

The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.

The product described by this document may contain “open source” software covered by the GNU General Public License or other open source license agreements. To find-out which open source software is included in Brocade products, view the licensing terms applicable to the open source software, and obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.

Brocade Communications Systems, Incorporated

Corporate and Latin American Headquarters Brocade Communications Systems, Inc. 130 Holger Way San Jose, CA 95134 Tel: 1-408-333-8000 Fax: 1-408-333-8101 E-mail: info@brocade.com

European Headquarters Brocade Communications Switzerland Sàrl Centre Swissair Tour B - 4ème étage 29, Route de l'Aéroport Case Postale 105 CH-1215 Genève 15 Switzerland Tel: +41 22 799 5640 Fax: +41 22 799 5641 E-mail: emea-info@brocade.com

Document History

Title Publication

number

Diagnostic and System Error Message Reference v3.0, v4.0

Diagnostic and System Error Message Reference v3.1.0

Diagnostic and System Error Message Reference v4.1.0

Diagnostic and System Error Message Reference v4.1.2

Diagnostic and System Error Message Reference v4.2.0

53-0000210-02 First release March 2002

53-0000511-04 Major content reorganization June 2003

54-0000515-02 Major content reorganization June 2003

53-0000515-06 Minor editorial changes October 2003

53-0000515-07 Added FW and PLATFORM messages December 2003

53-0000515-08 Updated software and hardware support March 2004

Asia-Pacific Headquarters Brocade Communications Systems China HK, Ltd. No. 1 Guanghua Road Chao Yang District Units 2718 and 2818 Beijing 100020, China Tel: +8610 6588 8888 Fax: +8610 6588 9999 E-mail: china-info@brocade.com

Asia-Pacific Headquarters Brocade Communications Systems Co., Ltd. (Shenzhen WFOE) Citic Plaza No. 233 Tian He Road North Unit 1308 – 13th Floor Guangzhou, China Tel: +8620 3891 2000 Fax: +8620 3891 2111 E-mail: china-info@brocade.com

Summary of changes Date

Title Publication

number

Summary of changes Date

Fabric OS System Error Message Reference Manual

Fabric OS Message Reference 53-1000242-01 Updated for Fabric OS v5.2.0:

Fabric OS Message Reference 53-1000437-01 Updated for Fabric OS v5.3.0:

Fabric OS Message Reference 53-1000600-01 Updated for Fabric OS v6.0.0:

Fabric OS Message Reference 53-1000600-02 Updated for Fabric OS v6.1.0:

Fabric OS Message Reference 53-1001116-01 Updated for Fabric OS v6.1.1_enc:

53-0000515-09 Updated for v4.4.0,

First RASLog release

53-0000515-10 Added 22 ZONE messages April 2005

53-0000515-11 Added FICU-1010, HAMK-1004, and

PLAT-1001

53-1000046-01 Added BM, FCR, IPS, FCIP, SEC, and

ZONE messages

53-1000046-02 Minor updates to a few messages. June 2006

-Changed doc title and number

-Added the following new modules: IBPD, ICPD, ISCSI, ISNSCD. Added Audit messages: AUTH, CONF, HTTP, SEC, SNMP, SULB, ZONE.

-Updated Introduction chapter with AUDIT log information.

-Updated chapter titles.

-Added new chapters: AG, BKSW, IBD, IPAD, SAS. Revised and added new messages to: AUTH, CDR, CONF, EM, FABR, HAM, ISNS, ISW, PDM,SEC,TS, KTRC.SEC, TS.

Revised/updated BL,BLL,FCPD, FICU,FW, HIL,LOG, SNMP, SULB,SWCH,SYSM, TRCE, ZOLB, ZONE.

-Deleted USWD chapter.

-Updated Introductory chapters.

-Updated throughout: rebranding, supported hardware, CLI changes.

-Added new chapters: C2, ESS, FICON

-Added new messages to: AG, BL, BM, C2, FCIP, ISW, NS, PLAT, SS, HIL.

-Added Audit messages: SEC, SULB

-Updated Introductory chapters.

-Revised and added new messages to: AG, BL, C2, EM, FABR, FCR, FCIP, FW, SEC, NS, PDM, PLAT, SULB, SWCH, ZONE, WEBD.

-Added new Audit chapter: FW.

-Added new Audit messages to: SEC.

-Updated Introductory chapters.

-Revised and added new messages to AG

-Added new chapters: CNM, CTAP, CVLC, CVLM, KAC, RKD, SPC, SPM.

-Added new Audit chapters: AG, FCIP, FICU, IPAD, PORT, SWCH, UCST.

-Updated Introductory chapters.

August 2004

July 2005

January 2006

September 2006

June 2007

October 2007

Jun 2008

Aug 2008

Title Publication

number

Summary of changes Date

Fabric OS Message Reference 53-1001157-01 Updated for Fabric OS v6.2.0:

-Revised and added new messages to FSS, KSWD, CTAP, CNM, CVLM, EM, FABR, FCIP, FW, HIL, FCR, SEC, SWCH, UCST, ZONE.

-Added new chapters: CHASSIS, LFM, PMGR, TAPE.

-Updated Introductory chapters.

Fabric OS Message Reference 53-1001338-01 Updated for Fabric OS v6.3.0:

-Modified a message to BKSW, BL, BKSW, BLL, CDR, CEE CONFIG, CONF, EM, FCOE, FCPD, FCPH, FCR, FICON, FICU, FLOD, FSPF, FSSM, FW, HAM,,HAMK, HIL, IPS, ISNS, L2SYS, MFIC, PDM, PLAT, PORT, RCS, RPCD, RTWR, SEC, SNMP, SWCH, TRCE, TRCK, WEBD, ZONE.

-Added new messages to AG, AN, AUTH, BLS, C2, CDR, CEE, CONFIG, CHASSIS, CNM, CONF, CTAP, CVLC, CVLM, DAUTH, EM, FABR, FCIP, FCPH, FCR, FICON, FICU, FSPF, FSS, FW, HAM, HSL, KAC, KSWD, LANCE, LFM, MS, NS, NSM, PMGR, PORT, PSWP, RKD, SEC, SPC, SPM, SS, SULB, SWCH, TAPE, UCST, UPTH, XTUN, ZONE.

-Added new chapters for LANCE, BLS, AN, CVLM, DAUTH, XTUN.

-Updated Introductory chapters.

Fabric OS Message Reference 53-1001338-02 Updated for Fabric OS v6.3.0 patch:

-Modified a message to BL.

-Added new messages to AG, BL, and FCOE.

-Added new chapters for Audit CNM, Audit CVLM, and Audit SPM.

Fabric OS Message Reference 53-1001767-01 Updated for Fabric OS v6.4.0:

-Modified messages to FICU and FW.

-Deleted messages to BL, FCOE and FW.

-Added new messages to AG, AN, AUTH, BL, C2, CNM, CONF, CVLC, CVLM, FABR, FICU, FW, HAM, HIL, MQ, MS, MSTP, NS, NSM, ONM, PS, PSWP, RKD, SEC, SPM, SS, SSM, SULB, SWCH and ZONE.

-Updated Introductory chapters.

November 2008

July 2009

November 2009

March 2010

Title Publication

number

Summary of changes Date

Fabric OS Message Reference 53-1002149-01 Updated for Fabric OS v7.0.0:

-Added new chapters: C3, CAL, MCAST_SS, RTE, and VS.

-Added new messages: AG, AN, ANV, BL, C2, CDR, CCFG, ECC, EM, ESS, FABR, FCOE, FCPH, FICN, FICU, FSPF, FW, HIL, IPAD, IPS, KAC, L2SYS, LACP, LOG, MS, NS, NSM, ONM, PDM, PS, RAS, RCS, SCN, SEC, SNMP, SPM, SS, SSM, SULB, SWCH, XTUN, ZEUS, and ZONE.

-Modified messages: CDR, EM, FABR, FCOE, FICU, FW, HIL, L2SYS, PMGR, SEC, SPM, SS, and XTUN.

-Deleted messages: C2, FCOE, FICU, and NSM.

-Added new Audit chapters: ESS, MS, PMGR, and RAS.

-Updated Introductory chapter.

Fabric OS Message Reference 53-1002448-01 Updated for Fabric OS v7.0.1:

-Added new messages: BL, CVLC, FICON, FSPF, and PS

-Modified messages: AG, AN, C2, C3, CDR, FABR, FSPF, L2SYS, NSM, RTE, and ZONE.

-Deleted messages: EM, FABR, ISCS, SAS, and ZOLB.

-Updated Introductory chapter.

Fabric OS Message Reference 53-1002749-01 Updated for Fabric OS v7.1.0:

- Added new chapters: MM and VDR.

- Added new messages: AG, ANV, BL, C2, C3, CDR, CONF, CVLM, EM, FABR, FCR, FSPF, FW, HAM, HIL, KAC, LOG, MS, NBFS, PLAT, PS, RAS, SEC, SS, SWCH, TRCE, VDR, XTUN, ZEUS, and ZONE.

- Modified messages: AN, AUTH, BL, C2, C3, CDR, CAL, CNM, DOT1, FABR, FCOE, FCPD, FCR, FICU, FSPF, FSS, HIL, HSL, HTTP, IPS, KTRC, L2SS, LFM, PMGR, PS, RCS, RTWR, SEC, ZONE.

- Deleted messages: EM, FCOE, HAM, SNMP, SYSC, UCST, ZONE.

- Deleted modules: BLL, CER, FCIP, IBPD, and ICPD.

- Updated Introductory chapter.

April 2011

December 2011

December 2012

About This Document

How this document is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

Supported hardware and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

What’s new in this document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Document conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvii

Text formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Command syntax conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Command examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Notes, cautions, and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Key terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Brocade resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Other industry resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Getting technical help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Chapter 1 Introduction to System Messages

Overview of system messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System message types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Message severity levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System error message logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Configuring the syslog message destinations. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System logging daemon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SNMP trap recipient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SNMP inform recipient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Port logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Changing the severity level of swEventTrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Commands for displaying and configuring the system message logs. . . . . . . .13

Displaying message content on switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Fabric OS Message Reference vii 53-1002749-01

Configuring system messages and attributes. . . . . . . . . . . . . . . . . . . . . . . . . . .15

Configuring event auditing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Disabling a RASLog message or module . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Enabling a RASLog message or module. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting the severity level of a RASLog message . . . . . . . . . . . . . . . . . . . . . 17

Displaying system message logs and attributes. . . . . . . . . . . . . . . . . . . . . . . . . 17

Displaying RASLog messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Displaying RASLog messages one message at a time . . . . . . . . . . . . . . . .18

Displaying Audit messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Displaying FFDC messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Displaying status of the system messages . . . . . . . . . . . . . . . . . . . . . . . . .20

Displaying the severity level of RASLog messages . . . . . . . . . . . . . . . . . . .20

Displaying RASLog messages by severity level . . . . . . . . . . . . . . . . . . . . . . 21

Displaying RASLog messages by message ID . . . . . . . . . . . . . . . . . . . . . . . 21

Displaying messages on a slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Viewing RASLog messages from Web Tools. . . . . . . . . . . . . . . . . . . . . . . . .22

Clearing the system message logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Clearing the system message log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Clearing the Audit message log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Reading the system messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Reading a RAS system message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Reading an Audit message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Responding to a system message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Looking up a system message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Gathering information about the problem . . . . . . . . . . . . . . . . . . . . . . . . . .26

Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

System module descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Chapter 2 Log Messages

Chapter 3 Audit Messages

Chapter 4 FFDC Messages

Chapter 5 Fabric OS System Messages

AG Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

AN Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

ANV Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

viii Fabric OS Message Reference

53-1002749-01

AUTH Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

BKSW Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

BL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163

BLS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180

BM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

C2 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

C3 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

CAL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202

CCFG Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

CDR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207

CHS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214

CNM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216

CONF Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239

CTAP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244

CVLC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .245

CVLM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258

DOT1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .273

ECC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277

EM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

ESS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .297

ESW Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300

EVMD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303

FABR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

FABS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .321

FBC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .326

FCMC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .327

FCOE Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .328

FCPD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .341

FCPH Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .343

FCR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .345

FICN Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374

FICU Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .418

FKLB Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .425

FLOD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .426

FSPF Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .428

FSS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .432

FSSM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .436

Fabric OS Message Reference ix 53-1002749-01

FW Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .438

HAM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .541

HAMK Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .546

HIL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .548

HLO Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565

HMON Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .567

HSL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .568

HTTP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571

IBD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .572

IPAD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .573

IPS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .575

ISNS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .578

KAC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .582

KSWD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .587

KTRC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .588

L2SS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .590

L3SS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .593

LACP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .594

LANCE Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .595

LFM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .596

LOG Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .598

LSDB Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .602

MCAST_SS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .604

MFIC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .611

MM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .613

MPTH Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .614

MQ Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .615

MS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .617

MSTP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .624

NBFS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .627

NS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .629

NSM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .633

ONMD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .640

PDM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .642

PDTR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650

PLAT Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .651

PMGR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .653

x Fabric OS Message Reference

53-1002749-01

PORT Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .657

PS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .660

PSWP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .664

RAS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .667

RCS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .672

RKD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .677

RMON Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .679

RPCD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .680

RTE Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .683

RTWR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .684

SCN Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .686

SEC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .688

SFLO Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 771

SNMP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .774

SPC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .777

SPM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .790

SS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .805

SSMD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .810

SULB Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .825

SWCH Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .843

SYSC Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .852

SYSM Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .854

TAPE Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .857

TRCE Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .858

TRCK Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .863

TS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .865

UCST Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .868

UPTH Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 871

VDR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .872

VS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .873

WEBD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .876

XTUN Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .879

ZEUS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .889

ZONE Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .892

Fabric OS Message Reference xi 53-1002749-01

xii Fabric OS Message Reference

53-1002749-01

About This Document

In this chapter

•How this document is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

•Supported hardware and software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

•What’s new in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

•Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

•Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

•Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

•Getting technical help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

•Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

How this document is organized

This document is organized to help you find the information that you want as quickly and easily as possible.

The document contains the following components:

• Chapter 1, “Introduction to System Messages” provides basic information on system

messages.

• Chapter 2, “Log Messages” includes a lookup list for LOG messages.

• Chapter 3, “Audit Messages” includes a lookup list for Audit messages.

• Chapter 4, “FFDC Messages” includes a lookup list for FFDC messages.

• Chapter 5, “Fabric OS System Messages” provides message text, probable cause,

recommended action, and severity for each of the messages.

Supported hardware and software

In those instances in which procedures or parts of procedures documented here apply to some switches but not to others, this guide identifies exactly which switches are supported and which are not.

Although many different software and hardware configurations are tested and supported by Brocade Communications Systems, Inc. for Fabric OS v7.1.0, documenting all possible configurations and scenarios is beyond the scope of this document.

Fabric OS Message Reference xiii 53-1002749-01

The following hardware platforms are supported by this release of Fabric OS:

• Brocade 300

• Brocade 5100

• Brocade 5300

• Brocade 5410

• Brocade 5424

• Brocade 5430

• Brocade 5450

• Brocade 5460

• Brocade 5470

• Brocade 5480

• Brocade 6505

• Brocade 6510

• Brocade 6520

• Brocade 7800

• Brocade 8000

• Brocade Encryption Switch

• Brocade DCX Backbone and Brocade DCX-4S Backbone

- FC8-16 port blade

- FC8-32 port blade

- FC8-48 port blade

- FC8-64 port blade

- FCOE10-24 DCX Blade

- FS8-18 Encryption Blade

- FX8-24 DCX Extension Blade

• Brocade DCX 8510-8 Backbone and Brocade DCX 8510-4 Backbone

- FC8-32E port blade

- FC8-48E port blade

- FC8-64 port blade

- FC16-32 port blade

- FC16-48 port blade

- FS8-18 Encryption Blade

- FX8-24 DCX Extension Blade

• Brocade VA-40FC

xiv Fabric OS Message Reference

53-1002749-01

What’s new in this document

The following changes have been made since this document was last released:

• The lookup lists in Chapter 2 through Chapter 4 provide hyperlinks to messages by type (LOG,

Audit, and FFDC).

• Information that was added:

- AG Messages

- ANV Messages

- BL Messages

- C2 Messages

- C3 Messages

- CDR Messages

- CONF Messages

- CVLM Messages

- EM Messages

- FABR Messages

- FCR Messages

- FSPF Messages

- FW Messages

- HAM Messages

- HIL Messages

- KAC Messages

- LOG Messages

- MM Messages

- MS Messages

- NBFS Messages

- PLAT Messages

- PS Messages

- RAS Messages

- SEC Messages

- SS Messages

- SWCH Messages

- TRCE Messages

- VDR Messages

- XTUN Messages

- ZEUS Messages

- ZONE Messages

Fabric OS Message Reference xv 53-1002749-01

• Information that was changed:

- AN Messages

- AUTH Messages

- BL Messages

- C2 Messages

- C3 Messages

- CDR Messages

- CAL Messages

- CNM Messages

- DOT1 Messages

- FABR Messages

- FCOE Messages

- FCPD Messages

- FCR Messages

- FICU Messages

- FSPF Messages

- FSS Messages

- HIL Messages

- HSL Messages

- HTTP Messages

- IPS Messages

- KAC Messages

- KTRC Messages

- L2SS Messages

- LFM Messages

- PMGR Messages

- PS Messages

- RCS Messages

- RTWR Messages

- SEC Messages

- ZONE Messages

xvi Fabric OS Message Reference

53-1002749-01

• Information that was deleted:

- BLL System Messages

- CER System Messages

- EM Messages

- FCIP System Messages

- FCOE Messages

- HAM Messages

- IBPD System Messages

- ICPD System Messages

- SNMP Messages

- SYSC Messages

- UCST Messages

- ZONE Messages

For further information about new features and documentation updates for this release, refer to the release notes.

Document conventions

This section describes text formatting conventions and important notice formats used in this document.

Text formatting

The narrative-text formatting conventions that are used are as follows:

bold text Identifies command names

Identifies the names of user-manipulated GUI elements Identifies keywords and operands Identifies text to enter at the GUI or CLI

italic text Provides emphasis

Identifies variables Identifies paths and Internet addresses Identifies document titles

code text Identifies CLI output

Identifies command syntax examples

For readability, command names in the narrative portions of this guide are presented in mixed lettercase: for example, switchShow. In actual examples, command lettercase is all lowercase.

Command syntax conventions

Command syntax in this manual follows these conventions:

Fabric OS Message Reference xvii 53-1002749-01

command Commands are printed in bold.

--option, option Command options are printed in bold.

-argument, arg Arguments.

[ ] Optional element.

variable Variables are printed in italics. In the help pages, values are underlined

enclosed in angled brackets < >.

... Repeat the previous element, for example “member[;member...]”

value Fixed values following arguments are printed in plain font. For example,

--show WWN

| Boolean. Elements are exclusive. Example:

--show -mode egress | ingress

Command examples

This book describes how to perform configuration tasks using the Fabric OS command line interface, but does not describe the commands in detail. For complete descriptions of all Fabric OS commands, including syntax, operand description, and sample output, see the Fabric OS Command Reference.

Notes, cautions, and warnings

The following notices and statements are used in this manual. They are listed below in order of increasing severity of potential hazards.

NOTE

A note provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.

ATTENTION

An Attention statement indicates potential damage to hardware or data.

CAUTION

A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware, software, or data.

DANGER

A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels are also attached directly to products to warn of these conditions or situations.

xviii Fabric OS Message Reference

53-1002749-01

Key terms

For definitions specific to Brocade and Fibre Channel, see the technical glossaries on MyBrocade. See “Brocade resources” on page xix for instructions on accessing MyBrocade.

For definitions of SAN-specific terms, visit the Storage Networking Industry Association online dictionary at:

http://www.snia.org/education/dictionary

Notice to the reader

This document may contain references to the trademarks of the following corporations. These trademarks are the properties of their respective companies and corporations.

These references are made for informational purposes only.

Corporation Referenced Trademarks and Products

Red Hat, Inc. Red Hat, Red Hat Network, Maximum RPM, Linux Undercover

Additional information

This section lists additional Brocade and industry-specific documentation that you might find helpful.

Brocade resources

To get up-to-the-minute information, go to http://my.brocade.com to register at no cost for a user ID and password.

White papers, online demonstrations, and data sheets are available through the Brocade website at:

http://www.brocade.com/products-solutions/products/index.page

For additional Brocade documentation, visit the Brocade website:

http://www.brocade.com

Release notes are available on the MyBrocade website.

Other industry resources

For additional resource information, visit the Technical Committee T11 website. This website provides interface standards for high-performance and mass storage applications for Fibre Channel, storage management, and other applications:

http://www.t11.org

Fabric OS Message Reference xix 53-1002749-01

For information about the Fibre Channel industry, visit the Fibre Channel Industry Association website:

http://www.fibrechannel.org

Getting technical help

Contact your switch support supplier for hardware, firmware, and software support, including product repairs and part ordering. To expedite your call, have the following information available:

1. General Information

• Switch model

• Switch operating system version

• Software name and software version, if applicable

• Error numbers and messages received

• supportSave command output

• Detailed description of the problem, including the switch or fabric behavior immediately

following the problem, and specific questions

• Description of any troubleshooting steps already performed and the results

• Serial console and Telnet session logs

• syslog message logs

2. Switch Serial Number

The switch serial number and corresponding bar code are provided on the serial number label, as illustrated below.

The serial number label is located as follows:

• Brocade 300, 5100, 5300, 6505, 6510, 6520, 7800, 8000, VA-40FC, and Brocade

Encryption Switch—On the switch ID pull-out tab located inside the chassis on the port side on the left.

• Brocade 5410, 5424, 5430, 5450, 5460, 5470, 5480—Serial number label attached to

the module.

• Brocade DCX and DCX 8510-8—On the port side of the chassis, on the lower right side and

directly above the cable management comb.

• Brocade DCX-4S and DCX 8510-4—On the non-port side of the chassis, on the lower left

side.

3. World Wide Name (WWN)

Use the licenseIdShow command to display the WWN of the chassis.

xx Fabric OS Message Reference

53-1002749-01

If you cannot use the licenseIdShow command because the switch is inoperable, you can get the WWN from the same place as the serial number, except for the Brocade DCX. For the Brocade DCX, access the numbers on the WWN cards by removing the Brocade logo plate at the top of the non-port side of the chassis.

Document feedback

Quality is our first concern at Brocade and we have made every effort to ensure the accuracy and completeness of this document. However, if you find an error or an omission, or you think that a topic needs further development, we want to hear from you. Forward your feedback to:

documentation@brocade.com

Provide the title and version number of the document and as much detail as possible about your comment, including the topic heading and page number and your suggestions for improvement.

Fabric OS Message Reference xxi 53-1002749-01

xxii Fabric OS Message Reference

53-1002749-01

Chapter

Introduction to System Messages

In this chapter

•Overview of system messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

•Configuring the syslog message destinations. . . . . . . . . . . . . . . . . . . . . . . . . 5

•Changing the severity level of swEventTrap . . . . . . . . . . . . . . . . . . . . . . . . . . 11

•Commands for displaying and configuring the system message logs. . . . . 13

•Displaying message content on switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

•Configuring system messages and attributes . . . . . . . . . . . . . . . . . . . . . . . . 15

•Displaying system message logs and attributes . . . . . . . . . . . . . . . . . . . . . . 17

•Clearing the system message logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

•Reading the system messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

•Responding to a system message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

•System module descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Overview of system messages

This guide supports Fabric OS v7.1.0 and documents system messages that can help you diagnose and fix problems with a switch or fabric. The messages are organized alphabetically by module name. A module is a subsystem in the Fabric OS. Each module generates a set of numbered messages. For each message, this guide provides message text, probable cause, recommended action, and severity level. There may be more than one cause and more than one recommended action for any given message. This guide discusses the most probable cause and typical action recommended.

System message types

Fabric OS supports three types of system messages. A system message can be of one or more of the following types:

• RASLog messages

• Audit log messages

• FFDC messages

Fabric OS supports a different methodology for storing and accessing each type of message.

Fabric OS Message Reference 1 53-1002749-01

Overview of system messages

RASLog messages

RASLog messages report significant system events (failure, error, or critical conditions) or information and are also used to show the status of the high-level user-initiated actions. RASLog messages are forwarded to the console, to the configured syslog servers, and to the SNMP management station through the Simple Network Management Protocol (SNMP) traps or informs.

The following is an example of a RASLog system message.

2012/10/25-17:51:05, [C3-1001], 937, CHASSIS, ERROR, switch, Port 18 failed due to SFP validation failure. Check if the SFP is valid for the configuration.

For information on displaying and clearing the RASLog messages, refer to “Displaying system

message logs and attributes” on page 17.

Audit log messages

Event auditing is designed to support post-event audits and problem determination based on high-frequency events of certain types such as security violations, zoning configuration changes, firmware downloads, and certain types of fabric events. Audit messages flagged as AUDIT are not saved in the switch error logs. The switch can be configured to stream Audit messages to the switch console and to forward the messages to specified syslog servers. The Audit log messages are not forwarded to an SNMP management station. There is no limit to the number of audit events.

The following is an example of an Audit message.

0 AUDIT, 2012/10/14-06:07:33 (UTC), [SULB-1003], INFO, FIRMWARE, admin/admin/192.0.2.2/telnet/CLI ad_0/switch, , Firmwarecommit has started.

For any given event, Audit messages capture the following information:

• User Name - The name of the user who triggered the action.

• User Role - The access level of the user, such as root or admin.

• Event Name - The name of the event that occurred.

• Event Information - Information about the event.

The seven event classes described in Table 1 can be audited.

TABLE 1 Event classes

Operand Event class Description

1 Zone You can audit zone event configuration changes, but not the actual

values that were changed. For example, you may receive a message that states “Zone configuration has changed,” but the message does not display the actual values that were changed.

2 Security You can audit any user-initiated security event for all management

interfaces. For events that have an impact on the entire fabric, an audit is only generated for the switch from which the event was initiated.

3 Configuration You can audit configuration downloads of existing SNMP

configuration parameters. Configuration uploads are not audited.

4 Firmware You can audit configuration downloads of existing SNMP

configuration parameters. Configuration uploads are not audited.

5 Fabric You can audit Administration Domain-related changes.

2 Fabric OS Message Reference

53-1002749-01

Overview of system messages

TABLE 1 Event classes (Continued)

Operand Event class Description

6 FW You can audit Fabric Watch (FW)-related changes.

7 LS You can audit Virtual Fabric (Logical Switch)-related changes.

8 CLI You can audit the CLI commands executed on the switch.

N/A RAS Used to audit or track the RASLog messages or modules that are

enabled or disabled using the rasAdmin command.

NOTE: The RAS class is not configurable, and it is always enabled

internally.

Fabric OS v7.1.0 generates component-specific Audit messages.

Event auditing is a configurable feature, which is by default disabled. You mus t enable event auditing using the auditCfg

--enable command to send the events to a configured remote host.

Syslogd must be configured for logging audit messages. You can set up filters to screen out particular classes of events using the auditCfg command. The defined set of Audit messages is sent to the configured remote host in the Audit message format, so that they are easily distinguishable from other syslog events that may occur in the network. For details on how to configure event auditing, refer to “Configuring event auditing” on page 15.

FFDC messages

First Failure Data Capture (FFDC) is used to capture failure-specific data when a problem or failure is noted for the first time and before the switch reboots, or trace and log buffer get wrapped. All subsequent iterations of the same error are ignored. This critical debug information is saved in nonvolatile storage and can be retrieved using the supportSave command. The FFDC data is used for debugging or analyzing the problem. FFDC is intended for use by Brocade technical support.

FFDC is enabled by default. Execute the supportFfdc command to enable or disable FFDC. If FFDC is disabled, the FFDC daemon does not capture any data, even when a message with an FFDC attribute is logged.

The following is an example of the FFDC message.

2000/12/17-08:30:13, [SS-1000], 88, SLOT 6 | FFDC | CHASSIS, INFO, DCX, supportSave has uploaded support information to the host with IP address

192.0.2.2.

Message severity levels

Tab le 2 shows the four levels of severity for system messages, ranging from CRITICAL (1) to INFO

(4). In general, the definitions are wide ranging and are to be used as general guidelines for troubleshooting. For all cases, you must look at each specific error message description thoroughly before taking action.

Fabric OS Message Reference 3 53-1002749-01

Overview of system messages

TABLE 2 Severity levels of a message

Severity level Description

1 = CRITICAL Critical-level messages indicate that the software has detected serious problems that

2 = ERROR Error-level messages represent an error condition that does not impact overall system

3 = WARNING Warning-level messages highlight a current operating condition that should be

4 = INFO Info-level messages report the current non-error status of the system components: for

System error message logging

will cause a partial or complete failure of a subsystem if not corrected immediately; for example, a power supply failure or rise in temperature must receive immediate attention.

functionality significantly. For example, error-level messages might indicate time-outs on certain operations, failures of certain operations after retries, invalid parameters, or failure to perform a requested operation.

checked or it may lead to a failure in the future. For example, a power supply failure in a redundant system relays a warning that the system is no longer operating in redundant mode unless the failed power supply is replaced or fixed.

example, detecting online and offline status of a fabric port.

The RASLog service generates and stores messages related to abnormal or erroneous system behavior. It includes the following features:

• All RASLog error messages are saved to nonvolatile storage by default.

• The system error message log can save a maximum of 1024 messages in random access

memory (RAM).

• The system message log is implemented as a circular buffer. When more than the maximum

entries are added to the log file, old entries are overwritten by new entries.

• Messages are numbered sequentially from 1 to 2,147,483,647 (0x7ffffff). The sequence

number will continue to increase beyond the storage limit of 1024 messages. The sequence number can be reset to 1 using the errClear command. The sequence number is persistent across power cycles and switch reboots.

• Trace dump, FFDC, and core dump files can be uploaded to the FTP server using the

supportSave command.

• Brocade recommends that you configure the syslogd facility as a management tool for error

logs. This is particularly important for dual-domain switches because the syslogd facility saves messages from two logical switches as a single file and in sequential order. For more information, refer to “System logging daemon” on page 5.

• RASLog messages are streamed to the console, and are forwarded to the configured syslog

servers and to the SNMP management station through the SNMP traps (in SNMPv1 and SNMPv3) or informs (in SNMPv3). Use the snmpConfig command to configure the SNMPv1 and SNMPv3 hosts and their configurations.

• Audit messages are streamed to the switch console, and are forwarded to the configured

syslog servers. The Audit log messages are not forwarded to an SNMP management station.

4 Fabric OS Message Reference

53-1002749-01

Configuring the syslog message destinations

You can configure the Fabric OS to send the syslog messages to the following output locations: syslog daemon, system console, and SNMP management station.

System logging daemon

The system logging daemon (syslogd) is a process on UNIX, Linux, and some Windows systems that reads and logs messages as specified by the system administrator.

Fabric OS can be configured to use a UNIX-style syslogd process to forward system events and error messages to log files on a remote host system. The host system can be running UNIX, Linux, or any other operating system that supports the standard syslogd functionality. Configuring for syslogd involves configuring the host, enabling syslogd on the Brocade model, and, optionally, setting the facility level.

For the Brocade DCX family of switches, each control processor (CP) has a unique error log, depending on which CP was active when that message was reported. To fully understand message logging, you should enable the syslogd, because the logs on the host computer are maintained in a single merged file for both CPs and are in sequential order. Otherwise, you must examine the error logs in both CPs, particularly for events such as firmwareDownload or haFailover, for which the active CP changes.

For the Brocade DCX family of switches, any security violations that occur through Telnet, HTTP, or serial connections are not propagated between CPs. Security violations on the active CP are not propagated to the standby CP counters in the event of a failover, nor do security violations on the standby CP get propagated to the active CP counters.

Configuring a syslog server

To configure the switch to forward all system events and error messages to the syslogd of one or more servers, perform the following steps.

1. Log in to the switch as admin.

2. Execute the syslogdIpAdd IP address command to add a server to which system messages are forwarded.

switch:admin> syslogdipadd 192.0.2.2

You can configure up to six syslog servers to receive the syslog messages.

3. Execute the syslogdIpShow command to verify the syslog configuration on the switch.

switch:admin> syslogdipshow syslog.1 192.0.2.2

You can remove a configured syslog server using the syslogdIpRemove IP address command.

System console

The system console displays RASLog messages, Audit messages (if enabled), and panic dump messages. These messages are mirrored to the system console; they are always saved in one of the system logs.

Fabric OS Message Reference 5 53-1002749-01

Configuring the syslog message destinations

The system console displays messages only through the serial port. If you log in to a switch through the Ethernet port or modem port, you will not receive system console messages.

You can filter messages that display on the system console by severity using the errFilterSet command. All messages are still sent to the system message log and syslogd (if configured).

Setting the system console severity level

You can limit the types of messages that are logged to the console using the errFilterSet command. The system messages displayed on the console are filtered up to and include the configured severity level. You can choose one of the following severity levels: INFO, WARNING, ERROR, or CRITICAL.

To set the severity levels for the system console, perform the following steps.

1. Log in to the switch as admin.

2. Execute the errFilterSet [-d console -v severity] command to set the console severity level. The severity can be one of the following: INFO, WARNING, ERROR, or CRITICAL. The severity values are not case-sensitive.

For example, to set the filter severity level for the console to ERROR, enter the following command.

switch:admin> errfilterset -d console -v error

3. Execute the errFilterSet command to verify the configured filter settings.

switch:admin> errfilterset console: filter severity = ERROR

SNMP trap recipient

An unsolicited message that comes to the management station from the SNMP agent on the device is called a trap. When an event occurs and if the event severity level is at or below the set severity level, the SNMP trap, swEventTrap, is sent to the configured trap recipients. The VarBind in the Trap Data Unit contains the corresponding instance of the event index, time information, event severity level, the repeat count, and description. The following are the possible severity levels:

• None (0)

• Critical (1)

• Error (2)

• Warning (3)

• Informational (4)

• Debug (5)

By default, the severity level is set to None, implying all traps are filtered and therefore no event traps are received. When the severity level is set to Informational, all traps with the severity level of Informational, Warning, Error, and Critical are received. For more information on changing the severity level of swEventTrap, refer to “Changing the severity level of swEventTrap” on page 11.

NOTE

The Audit messages are not converted into swEventTrap.

6 Fabric OS Message Reference

53-1002749-01

Configuring the syslog message destinations

The SNMP traps are unreliable because the trap recipient does not send any acknowledgment when it receives a trap. Therefore, the SNMP agent cannot determine if the trap was received.

Brocade switches send traps out on UDP port 162. To receive traps, the management station IP address must be configured on the switch. You can configure the SNMPv1 and SNMPv3 hosts to receive the traps.

For more information on the swEventTrap, refer to the Fabric OS MIB Reference.

Configuring the SNMPv1 trap recipient

Use the snmpConfig --set snmpv1 command to specify the recipient of the SNMP trap. To configure the SNMPv1 host to receive the trap, perform the following steps.

1. Log in to the switch as admin.

2. Execute the snmpConfig

switch:admin> snmpconfig --set snmpv1

SNMP community and trap recipient configuration: Community (rw): [Secret C0de] Trap Recipient's IP address : [192.0.2.2] Trap recipient Severity level : (0..5) [4] Trap recipient Port : (0..65535) [162] Community (rw): [OrigEquipMfr] Trap Recipient's IP address : [fec0:60:22bc:200:313:72ff:fe64:78b2]

--set snmpv1 command to configure the SNMP trap recipient.

NOTE

To receive the traps, the management station IP address must be configured on the switch.

3. Execute the snmpConfig

switch:admin> snmpconfig --show snmpv1

SNMPv1 community and trap recipient configuration: Community 1: Secret C0de (rw) Trap recipient: 192.0.2.2 Trap port: 162 Trap recipient Severity level: 5 Community 2: OrigEquipMfr (rw) Trap recipient: fec0:60:22bc:200:313:72ff:fe64:78b2 Trap port: 162 Trap recipient Severity level: 5 Community 3: private (rw) Trap recipient: tools.lab.brocade.com Trap port: 162 Trap recipient Severity level: 5 Community 4: public (ro) Trap recipient: 192.0.10.10 Trap port: 65530 Trap recipient Severity level: 1 Community 5: common (ro) Trap recipient: fec0:60:69bc:200:213:72ff:fe64:069f Trap port: 11 Trap recipient Severity level: 2 Community 6: FibreChannel (ro) Trap recipient: WT.org.brocade.com Trap port: 65521

--show snmpv1 command to verify the SNMPv1 agent configuration.

Fabric OS Message Reference 7 53-1002749-01

Configuring the syslog message destinations

Trap recipient Severity level: 2 SNMPv1:Enabled

Configuring the SNMPv3 trap recipient

To configure the SNMPv3 host to receive the trap, perform the following steps.

1. Log in to the switch as admin.

2. Execute the snmpConfig

--set snmpv3 command to configure the SNMP trap recipient. Ignore

the step to enable the SNMP informs “SNMP Informs Enabled”.

switch:admin> snmpconfig --set snmpv3

SNMP Informs Enabled (true, t, false, f): [false]

SNMPv3 user configuration(snmp user not configured in FOS user database will have physical AD and admin role as the default): User (rw): [snmpadmin1] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] User (rw): [snmpadmin2] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] User (rw): [snmpadmin3] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] User (ro): [snmpuser1] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] User (ro): [snmpuser2] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] User (ro): [snmpuser3] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2]

SNMPv3 trap recipient configuration: Trap Recipient's IP address : [192.0.2.2] UserIndex: (1..6) [1] Trap recipient Severity level : (0..5) [1] Trap recipient Port : (0..65535) [35432] Trap Recipient's IP address : [192.0.10.10] UserIndex: (1..6) [2] Trap recipient Severity level : (0..5) [5] Trap recipient Port : (0..65535) [162] Trap Recipient's IP address : [192.0.20.20] [...]

NOTE

To receive the SNMP traps, the username, the authentication protocol, the UDP port number, and the privacy protocol must match between the switch and the management station.

8 Fabric OS Message Reference

53-1002749-01

Configuring the syslog message destinations

3. Execute the snmpConfig --show snmpv3 command to verify the SNMP agent configuration.

switch:admin> snmpconfig --show snmpv3 SNMP Informs = 0 (OFF) SNMPv3 USM configuration: User 1 (rw): snmpadmin1 Auth Protocol: noAuth Priv Protocol: noPriv User 2 (rw): snmpadmin2 Auth Protocol: MD5 Priv Protocol: noPriv User 3 (rw): snmpadmin3 Auth Protocol: MD5 Priv Protocol: DES User 4 (ro): snmpuser1 Auth Protocol: noAuth Priv Protocol: noPriv User 5 (ro): snmpuser2 Auth Protocol: noAuth Priv Protocol: noPriv User 6 (ro): snmpuser3 Auth Protocol: noAuth Priv Protocol: noPriv SNMPv3 Trap configuration: Trap Entry 1: 192.0.2.2 Trap Port: 162 Trap User: snmpadmin1 Trap recipient Severity level: 1 Trap Entry 2: fe80::224:1dff:fef6:0f21 Trap Port: 162 [...]

SNMP inform recipient

An SNMP inform is similar to the SNMP trap except that the management station that receives an SNMP inform acknowledges the system message with an SNMP response packet data unit (PDU). If the sender does not receive the SNMP response PDU, the inform request can be sent again. An SNMP inform request is saved in the switch memory until a response is received or the request times out. The informs are more reliable and they consume more resources in the device and in the network. Use SNMP informs only if it is important that the management station receives all event notifications. Otherwise, use the SNMP traps. Brocade devices support SNMPv3 informs.

Configuring the SNMPv3 inform recipient

To configure the SNMPv3 host to receive the SNMP informs, perform the following steps.

1. Log in to the switch as admin.

2. Execute the snmpConfig prompted to enable the SNMP informs, enter true or t. Informs are disabled by default.

switch:admin> snmpconfig --set snmpv3

SNMP Informs Enabled (true, t, false, f): [false] t

--set snmpv3 command to configure the inform recipient. When

Fabric OS Message Reference 9 53-1002749-01

Configuring the syslog message destinations

Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] User (rw): [snmpadmin2] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] 1 New Auth Passwd: Verify Auth Passwd: Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (1..6) [2] 1 New Priv Passwd: Verify Priv Passwd: Engine ID: [0:0:0:0:0:0:0:0:0] 80:00:05:23:01:0A:23:34:1B User (rw): [snmpadmin3] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] User (ro): [snmpuser1] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] User (ro): [snmpuser2] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] User (ro): [snmpuser3] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] SNMPv3 trap recipient configuration: Trap Recipient's IP address : [0.0.0.0] 192.0.2.2 UserIndex: (1..6) [1] Trap recipient Severity level : (0..5) [0] 4 Trap recipient Port : (0..65535) [162] Trap Recipient's IP address : [0.0.0.0] 192.0.10.10 UserIndex: (1..6) [2] Trap recipient Severity level : (0..5) [0] 4 Trap recipient Port : (0..65535) [162] Trap Recipient's IP address : [0.0.0.0] Trap Recipient's IP address : [0.0.0.0] Trap Recipient's IP address : [0.0.0.0] Trap Recipient's IP address : [0.0.0.0]

Committing configuration.....done.

NOTE

To receive the SNMP informs, the username, the authentication protocol, the privacy protocol, the UDP port number, and the engine ID must match between the switch and the management station.

3. Execute the snmpConfig

switch:admin> snmpconfig --show snmpv3 SNMP Informs = 1 (ON) SNMPv3 USM configuration: User 1 (rw): snmpadmin1 Auth Protocol: noAuth

10 Fabric OS Message Reference

--show snmpv3 command to verify the SNMP agent configuration.

53-1002749-01

Changing the severity level of swEventTrap

Priv Protocol: noPriv Engine ID: 80:00:05:23:01:0a:23:34:21 User 2 (rw): snmpadmin2 Auth Protocol: MD5 Priv Protocol: DES Engine ID: 80:00:05:23:01:0a:23:34:1b User 3 (rw): snmpadmin3 Auth Protocol: noAuth Priv Protocol: noPriv Engine ID: 00:00:00:00:00:00:00:00:00 User 4 (ro): snmpuser1 Auth Protocol: noAuth Priv Protocol: noPriv Engine ID: 00:00:00:00:00:00:00:00:00 User 5 (ro): snmpuser2 Auth Protocol: noAuth Priv Protocol: noPriv Engine ID: 00:00:00:00:00:00:00:00:00 User 6 (ro): snmpuser3 Auth Protocol: noAuth Priv Protocol: noPriv Engine ID: 00:00:00:00:00:00:00:00:00 SNMPv3 Trap configuration: Trap Entry 1: 192.0.2.2 Trap Port: 162 Trap User: snmpadmin1 Trap recipient Severity level: 4 Trap Entry 2: 192.0.10.10 Trap Port: 162 Trap User: snmpadmin2 Trap recipient Severity level: 4 Trap Entry 3: No trap recipient configured yet Trap Entry 4: No trap recipient configured yet Trap Entry 5: No trap recipient configured yet

Port logs

The Fabric OS maintains an internal log of all port activity. Each switch or logical switch maintains a log file for each port. Port logs are circular buffers that can save up to 8000 entries per logical switch. When the log is full, the newest log entries overwrite the oldest log entries. Port logs capture switch-to-device, device-to-switch, switch-to-switch, some device A-to-device B, and control information. Port logs are not persistent and are lost over power cycles and reboots.

Execute the portLogShow command to display the port logs for a particular port.

Execute the portLogEventShow command to display the specific events reported for each port.

Port log functionality is completely separate from the system message log. Port logs are typically used to troubleshoot device connections.

Changing the severity level of swEventTrap

When an event occurs and if the event severity level is at or below the set severity level, the SNMP trap, swEventTrap, is sent to the configured trap recipients. By default, the severity level is set at 0 (None), implying that all the event traps are sent. Use the snmpConfig command to modify the severity level of swEventTrap.

Fabric OS Message Reference 11 53-1002749-01

--set mibCapability

Changing the severity level of swEventTrap

To change the severity level of swEventTrap, perform the following steps.

1. Log in to the switch as admin.

2. Execute the snmpConfig

--set mibCapability command to configure MIBs interactively. All the

supported MIBs and associated traps are displayed. You can change the DesiredSeverity for swEventTrap to 1 (Critical), 2 (Error), 3 (Warning), or 4 (Informational). The default value is 0.

switch:admin> snmpconfig --set mibcapability FE-MIB: YES SW-MIB: YES FA-MIB: YES FICON-MIB: YES HA-MIB: YES FCIP-MIB: YES ISCSI-MIB: YES IF-MIB: YES BD-MIB: YES SW-TRAP: YES swFault: YES swSensorScn: YES swFCPortScn: YES swEventTrap: YES DesiredSeverity:Informational swFabricWatchTrap: YES DesiredSeverity:None swTrackChangesTrap: YES swIPv6ChangeTrap: YES swPmgrEventTrap: YES swFabricReconfigTrap: YES swFabricSegmentTrap: YES swExtTrap: NO swStateChangeTrap: NO swPortMoveTrap: NO swBrcdGenericTrap: YES

... <lines omitted for brevity>

SW-TRAP (yes, y, no, n): [yes] swFault (yes, y, no, n): [yes] swSensorScn (yes, y, no, n): [yes] swFCPortScn (yes, y, no, n): [yes] swEventTrap (yes, y, no, n): [yes]

DesiredSeverity: (0..4) [4] 3

swFabricWatchTrap (yes, y, no, n): [yes] DesiredSeverity: (0..4) [0] 2 swTrackChangesTrap (yes, y, no, n): [yes] swIPv6ChangeTrap (yes, y, no, n): [yes] swPmgrEventTrap (yes, y, no, n): [yes] [...]

3. Execute the snmpConfig --show mibCapability command to verify the severity level of swEventTrap.

switch:admin> snmpconfig --show mibcapability FE-MIB: YES SW-MIB: YES FA-MIB: YES FICON-MIB: YES HA-MIB: YES FCIP-MIB: YES ISCSI-MIB: YES

12 Fabric OS Message Reference

53-1002749-01

Commands for displaying and configuring the system message logs

IF-MIB: YES BD-MIB: YES SW-TRAP: YES swFault: YES swSensorScn: YES swFCPortScn: YES swEventTrap: YES

DesiredSeverity:Informational

swFabricWatchTrap: YES DesiredSeverity:Critical swTrackChangesTrap: YES swIPv6ChangeTrap: YES swPmgrEventTrap: YES swFabricReconfigTrap: YES [...]

Commands for displaying and configuring the system message logs

Tab le 3 describes commands that you can use to view or configure the system message logs. Most

commands require the admin access level. For detailed information on required access levels and commands, refer to the Fabric OS Command Reference.

TABLE 3 Commands for viewing or configuring the system parameters and message logs

Command Description

auditCfg Configures the audit message log.

auditDump Displays or clears the audit log.

errClear Clears all error log messages for all switch instances on this control processor (CP).

errDelimiterSet Sets the error log start and end delimiter for messages pushed to the console.

errDump Displays the entire error log, without page breaks. Use the -r option to show the

messages in reverse order, from newest to oldest.

errFilterSet Sets an error severity filter for the system console.

errModuleShow Displays all the defined error log modules.

errShow Displays the entire error log, with page breaks. Use the -r option to show the messages

in reverse order, from newest to oldest.

pdShow Displays the contents of the panic dump and core dump files.

portErrShow Displays the port error summary.

portLogClear Clears the port log. If the port log is disabled, this command enables it.

portLogDisable Disables the port log facility.

portLogDump Displays the port log, without page breaks.

portLogDumpPort Displays the port log of the specified port, without page breaks.

portLogEnable Enables the port log facility.

portLogEventShow Displays which port log events are currently being reported.

portLoginShow Displays port logins.

portLogPdisc Sets or clears the debug pdisc_flag.

portLogReset Enables the port log facility.

Fabric OS Message Reference 13 53-1002749-01

Displaying message content on switch

TABLE 3 Commands for viewing or configuring the system parameters and message logs (Continued)

Command Description

portLogResize Resizes the port log to the specified number of entries.

portLogShow Displays the port log, with page breaks.

portLogShowPort Displays the port log of the specified port, with page breaks.

portLogTypeDisable Disables an event from reporting to the port log. Port log events are described by the

portLogTypeEnable Enables an event to report to the port log. Port log events are described by the

rasAdmin Used to enable or disable logging for selected messages or modules, to change the

rasMan Displays message documentation on switch.

setVerbose Sets the verbose level of a particular module within the Fabric OS.

snmpConfig Manages the SNMP agent configuration.

supportFfdc Enables and disables FFDC.

supportFtp Sets, clears, or displays support FTP parameters or a time interval to check the FTP

supportSave Collects RASLog, trace files, and supportShow (active CP only) information for the local

supportShow Executes a list of diagnostic and error display commands. This output is used by your

syslogdFacility Changes the syslogd facility.

syslogdIpAdd Adds an IP address as a recipient of system messages.

syslogdIpRemove Removes an IP address as a recipient of system messages.

syslogdIpShow Views the currently configured IP addresses that are recipients of system messages.

traceDump Displays, initiates, or removes a Fabric OS module trace dump.

portLogEventShow command.

default severity level for a specified message, and to display configured RASLog message settings.

server.

CP and then transfers the files to an FTP server. The operation can take several minutes.

switch service provider to diagnose and correct problems with the switch. The output from this command is very long.

Displaying message content on switch

Beginning with Fabric OS v7.1.0, you can view the message documentation such as the message text, message type, class (for audit messages), message severity, cause, and action on the switch console by using the rasMan message_ID command.

To display the message documentation on switch, perform the following steps.

1. Log in to the switch as admin.

2. Use the rasMan message_ID command to display the documentation of a message. The message_ID values are case-sensitive.

14 Fabric OS Message Reference

53-1002749-01

Configuring system messages and attributes

For example, execute the following command to display the documentation for PS-1007.

switch:admin> rasman PS-1007 Log Messages PS-1007(7m)

MESSAGE PS-1007 - Failed to add Fabricmode Top Talker on domain=<domain id>. <function name>.

MESSAGE TYPE LOG

SEVERITY WARNING

PROBABLE CAUSE Indicates that FC Routing (FCR) is enabled on the specified fabric.

RECOMMENDED ACTION Top Talker cannot be installed on a fabric with FCR service enabled. In case Top Talker must be installed on a fabric, disable FCR using the fosconfig --disable fcr command.

Configuring system messages and attributes

This section provides information on configuring the system message logs and its attributes. All admin-level commands mentioned in this section are used to enable or disable only the external messages.

Configuring event auditing

To configure event auditing, perform the following steps.

1. Log in to the switch as admin.

2. Execute the auditCfg

switch:admin> auditcfg --enable Audit filter is enabled.

3. Execute the auditCfg --class command to configure the event classes you want to audit.

switch:admin> auditcfg --class 1,2,3,4,5,6,7,8 Audit filter is configured.

NOTE

The class option 9 (MAPS) is for internal use only. The RAS class is not configurable, and it is always enabled internally.

4. Execute the auditCfg level. By default, all messages are logged. When the severity is set, only messages with the configured severity and higher are displayed. Valid values for severity level are INFO, WARNING, ERROR, and CRITICAL

--enable command to enable the audit feature.

--severity severity level command if you want to set the Audit severity

switch:admin> auditcfg --severity ERROR

Fabric OS Message Reference 15 53-1002749-01

Configuring system messages and attributes

5. Execute the auditCfg --show command to verify the configuration.

switch:admin> auditcfg --show Audit filter is enabled. 1-ZONE 2-SECURITY 3-CONFIGURATION 4-FIRMWARE 5-FABRIC 6-FW 7-LS 8-CLI Severity level: ERROR

You must configure the syslog daemon to send the Audit events to a configured remote host using the syslogdIpAdd command. For more information on configuring the syslog server, refer to

“Configuring a syslog server” on page 5.

Disabling a RASLog message or module

To disable a single RASLog message or all messages in a module, perform the following steps.

1. Log in to the switch as admin.

2. Use the following commands to disable a single RASLog message or all messages that belong to a module:

• Execute the rasadmin --disable -log messgae_ID command to disable a RASLog message.

For example, execute the following command to disable the BL-1001 message.

switch:admin> rasadmin --disable -log BL-1001 2012/07/20-13:30:41, [LOG-1005], 378, SLOT 4 | CHASSIS, INFO, switch, Log message NSM-1009 has been disabled.

Use the rasadmin --show -log messgae_ID command to verify the status of the message.

• Execute the rasadmin --disable -module module_ID command to disable all messages in a

module. For example, execute the following command to disable all messages that belong to the BL module.

switch:admin> rasadmin --disable -module BL 2012/07/20-13:28:37, [LOG-1007], 375, SLOT 4 | CHASSIS, INFO, switch, Log Module BL has been disabled.

Use the rasadmin --show -module module_ID command to verify the status of the messages that belong to a module.

NOTE

You cannot disable Audit and FFDC messages using the rasAdmin command.

16 Fabric OS Message Reference

53-1002749-01

Displaying system message logs and attributes

Enabling a RASLog message or module

To enable a single RASLog message or all messages in a module that were previously disabled, perform the following steps.

1. Log in to the switch as admin.

2. Use the following commands to enable a single RASLog message or all messages that belong to a module:

• Execute the rasadmin --enable -log messgae_ID command to enable a single RASLog

message that has been disabled.

For example, execute the following command to enable BL-1001 message that was previously disabled.

switch:admin> rasadmin --enable -log BL-1001 2012/10/15-13:24:30, [LOG-1006], 373, SLOT 4 | CHASSIS, INFO, switch, Log message BL-1001 has been enabled.

Use the rasadmin --show -log messgae_ID command to verify the status of the message.

• Execute the rasadmin --enable -module module_ID command to enable all messages in a

module. For example, execute the following command to enable to all previously disabled BL messages.

switch:admin> rasadmin --enable -module BL 2012/10/15-13:28:37, [LOG-1007], 375, SLOT 4 | CHASSIS, INFO, switch, Log Module BL has been enabled.

Use the rasadmin --show -module module_ID command to verify the status of the messages that belong to a module.

Setting the severity level of a RASLog message

To change the default severity level of a RASLog message, perform the following steps.

1. Log in to the switch as admin.

2. Use the rasadmin --set -log message_ID -severity [DEFAULT | INFO | WARNING | ERROR | CRITICAL] to change the severity level of a message. For example, execute the following command to change the severity level of C2-1004 message to WARNING.

switch:admin> rasadmin --set -log C2-1004 -severity WARNING

3. Use the rasadmin --show -severity message_ID command to verify the severity of the message.

switch:admin> rasadmin --show -severity C2-1004 Message Severity

C2-1004 : WARNING

Displaying system message logs and attributes

This section provides information on displaying the system message logs. These procedures are valid for all the supported platforms.

Fabric OS Message Reference 17 53-1002749-01

Displaying system message logs and attributes

Displaying RASLog messages

To display the system message log on a switch with no page breaks, perform the following steps. You can display the messages in reverse order using the reverse option. To display message logs in all switches (logical switches), use the all option.

1. Log in to the switch as admin.

2. Enter the errDump command at the command line.

switch:admin> errdump Version: v7.1.0

2000/12/17-05:54:30, [HAM-1004], 1, CHASSIS, INFO, switch, Processor rebooted

- Reset

2000/12/17-05:55:04, [ZONE-1034], 2, FID 128, INFO, switch, A new zone database file is created.

2000/12/17-05:55:04, [FCR-1069], 3, FID 128, INFO, switch, The FC Routing service is enabled.

2000/12/17-05:55:04, [FCR-1068], 4, FID 128, INFO, switch, The FC Routing service is disabled.

2000/12/17-05:55:11, [EM-1034], 5, CHASSIS, ERROR, switch, PS 2 set to faulty, rc=2000e. [...]

Displaying RASLog messages one message at a time

To display the system message log one message at a time, perform the following steps.

1. Log in to the switch as admin.

2. Enter the errShow command at the command line.

switch:admin> errshow Version: v7.1.0

2011/11/11-05:54:30, [HAM-1004], 1, CHASSIS, INFO, switch, Processor rebooted

- Reset

Type <CR> to continue, Q<CR> to stop:

2011/11/11-05:55:04, [ZONE-1034], 2, FID 128, INFO, switch, A new zone database file is created.

Type <CR> to continue, Q<CR> to stop:

2011/11/11-05:55:04, [FCR-1069], 3, FID 128, INFO, switch, The FC Routing service is enabled.

Type <CR> to continue, Q<CR> to stop: [...]

18 Fabric OS Message Reference

53-1002749-01

Displaying system message logs and attributes

Displaying Audit messages

To display the Audit messages, perform the following steps. Beginning with Fabric OS v7.1.0 release, the RAS-3005 message is generated for each CLI command executed on switch and is saved in the Audit message log.

1. Log in to the switch as admin.

2. Enter the auditDump -s command at the command line.

switch:admin> auditdump -s

0 AUDIT, 2011/01/14-06:06:49 (UTC), [RAS-2001], INFO, SYSTEM, admin/admin/192.0.2.2/telnet/CLI, ad_0/switch/FID 128, , Audit message log is enabled.

2 AUDIT, 2011/01/14-06:07:03 (UTC), [SEC-3020], INFO, SECURITY, admin/admin/192.0.2.2/telnet/CLI ad_0/switch, , Event: login, Status: success, Info: Successful login attempt via SERIAL.

3 AUDIT, 2011/01/14-06:07:33 (UTC), [SULB-1003], INFO, FIRMWARE, admin/admin/192.0.2.2/telnet/CLI ad_0/switch, , Firmwarecommit has started.

4 AUDIT, 2011/12/11-10:08:58 (UTC), [SULB-1004], INFO, FIRMWARE, admin/admin/192.0.2.2/telnet/CLI ad_0/switch, , Firmwarecommit has completed.

5 AUDIT, 2012/05/23-03:45:15 (UTC), [RAS-3005], INFO, CLI, admin/admin/NONE/console/CLI, ad_0/switch/CHASSIS, , CLI: clihistory --all

6 AUDIT, 2012/05/23-04:12:04 (UTC), [RAS-3005], INFO, CLI, admin/admin/NONE/console/CLI, ad_0/switch/CHASSIS, , CLI: auditdump -s [...]

Displaying FFDC messages

To display the saved FFDC messages, perform the following steps.

1. Log in to the switch as admin.

2. Enter the errDump --attribute FFDC command at the command line.

switch:admin> errDump --attribute FFDC Fabric OS: v7.1.0

2012/10/15-10:39:02, [LOG-1002], 4496, FFDC, WARNING, switch, A log message was not recorded.

2012/10/15-10:39:18, [RAS-1001], 4496, FFDC, WARNING, switch, First failure data capture (FFDC) event occurred. [...]

Fabric OS Message Reference 19 53-1002749-01

Displaying system message logs and attributes

Displaying status of the system messages

To display the status of the system message, perform the following steps.

1. Log in to the switch as admin.

2. Use the following commands to display the status of all messages in the log, a single message, or all messages that belong to a module:

• Execute the rasadmin --show -all command to the status of all RASLog messages in the

system log.

switch:admin> rasadmin --show -all Message Status Default Severity Current Severity

FCIP-1000 ENABLED CRITICAL CRITICAL FCIP-1001 ENABLED INFO ERROR FCIP-1002 ENABLED INFO INFO

[...]

• Execute the rasadmin --show -log message_ID command to display the status of a single

RASLog message.

switch:admin> rasadmin --show -log IPAD-1002 Message Status Default Severity Current Severity

IPAD-1002 DISABLED INFO INFO

• Execute the rasadmin --show -module module_ID command to display the status of all

messages that belong to the module.

switch:admin> rasadmin --show -module ECC Message Status Default Severity Current Severity

ECC-1000 ENABLED ERROR ERROR ECC-1001 DISABLED ERROR WARNING

• Execute the rasadmin --show -disabled command to display the list of all RASLog

messages that are disabled.

switch:admin> rasadmin --show -disabled Message Status CDR-1001 : DISABLED CDR-1003 : DISABLED CDR-1004 : DISABLED ECC-1001 : DISABLED

IPAD-1002 : DISABLED

Displaying the severity level of RASLog messages

To display the severity level of a RASLog message, perform the following steps.

1. Log in to the switch as admin.

2. Use the rasadmin --show -severity message_ID command to display the severity level of a RASLog message. For example, execute the following command to display the status of the SEC-1203 message.

switch:admin> rasadmin --show -severity SEC-1203 Message Severity SEC-1203 : WARNING

20 Fabric OS Message Reference

53-1002749-01

Displaying system message logs and attributes

Displaying RASLog messages by severity level

To display the RASLog messages based on the severity level, perform the following steps.

1. Log in to the switch as admin.

2. Execute the errdump --severity [DEFAULT | INFO | WARNING | ERROR | CRITICAL] command. For more information on message severity levels, refer to “Message severity levels” on page 3. You can set the count of messages to display using the count option. The following example filters messages by severity level of ERROR.

switch:admin> errdump --count 4 --severity ERROR Fabric OS: v7.1.0 2012/10/24-11:23:24, [C3-1001], 12, CHASSIS, ERROR, switch, Port 4 failed due to SFP validation failure. Check if the SFP is valid for the configuration.

2012/10/24-11:23:24, [C3-1001], 13, CHASSIS, ERROR, switch, Port 5 failed due to SFP validation failure. Check if the SFP is valid for the configuration.

2012/10/24-11:23:25, [C3-1001], 14, CHASSIS, ERROR, switch, Port 18 failed due to SFP validation failure. Check if the SFP is valid for the configuration.

2012/10/24-11:46:14, [C3-1001], 27, CHASSIS, ERROR, switch, Port 4 failed due to SFP validation failure. Check if the SFP is valid for the configuration.

Displaying RASLog messages by message ID

To display the RASLog messages based on the message ID, perform the following steps.

1. Log in to the switch as admin.

2. Execute the errdump --message message_ID command. The following example displays all instances of the message HAM-1004.

switch:admin> errdump --message HAM-1004 Fabric OS: v7.1.0 2012/11/27-16:18:38, [HAM-1004], 1, CHASSIS, INFO, switch, Processor rebooted

- Reset.

2012/11/27-17:26:44, [HAM-1004], 90, CHASSIS, INFO, switch, Processor rebooted

- FirmwareDownload.

2012/11/27-21:06:25, [HAM-1004], 201, CHASSIS, INFO, switch, Processor rebooted - FirmwareDownload. [...]

Displaying messages on a slot

To display the saved messages for a specific slot, perform the following steps.

1. Log in to the switch as admin.

2. Execute the errdump --slot slot_num command.

switch:admin> errdump --slot 4 Fabric OS: v7.1.0

2012/06/19-03:26:44, [HAM-1004], 31, SLOT 4 | CHASSIS, INFO, switch, Processor rebooted - Reboot.

Fabric OS Message Reference 21 53-1002749-01

Clearing the system message logs

2012/06/19-03:26:44, [SULB-1003], 32, SLOT 4 | CHASSIS, INFO, switch, Firmwarecommit has started.

2012/06/19-03:26:44, [IPAD-1001], 33, SLOT 4 | CHASSIS, INFO, switch, CP/1 IPv6 manual fe80::224:38ff:fe1b:4400 DHCP Off.

2012/06/19-03:29:15, [IPAD-1000], 48, SLOT 4 | CHASSIS, INFO, switch, CP/0 Ether/0 IPv6 autoconf fd00:60:69bc:816:205:1eff:fe84:3f49/64 tentative DHCP Off. [...]

NOTE

The slot option is not supported on the non-bladed systems.

Viewing RASLog messages from Web Tools

To view the system message log for a switch from Web Tools, perform the following steps.

1. Launch Web Tools.

2. Select the desired switch from the Fabric Tree. The Switch View displays.

3. Click the Switch Events tab. You can view the switch events and messages in the Switch Events Report displayed.

In dual-domain switches, an Event button exists for each logical switch. Only messages relating to that switch (and chassis) will be displayed.

Clearing the system message logs

This section provides information on clearing the system message logs. These procedures are valid for all the supported platforms.

Clearing the system message log

To clear the system message log for a particular switch instance, perform the following steps.

1. Log in to the switch as admin.

2. Execute the errClear command to clear all messages from memory.

NOTE

For products that have a single processor, all error log messages are cleared. For products that have multiple processors, this command only clears the error logs of the processor from which it is executed.

22 Fabric OS Message Reference

53-1002749-01

Clearing the Audit message log

To clear the Audit message log for a particular switch instance, perform the following steps.

1. Log in to the switch as admin.

2. Execute the auditDump -c command to clear all Audit messages from memory.

Reading the system messages

This section provides information about reading the RASLog and Audit messages.

Reading a RAS system message

This section provides information about reading system messages.

The following example shows the format of a RAS system error message.

The following example shows a sample message from the error log.

Reading the system messages

2011/02/10-14:18:04, [SS-1000], 88, SLOT 6 | FFDC | CHASSIS, INFO, ESNSVT_DCX, supportSave has uploaded support information to the host with IP address

192.0.2.2.

2011/02/10-14:13:34, [SS-1001], 87, SLOT 6/1 | FFDC | CHASSIS, WARNING, ESNSVT_DCX, supportSave's upload operation to host IP address aborted.

2011/02/10-15:44:51, [SEC-1203], 89, SLOT 6 | FFDC | FID 128, INFO, ESNSVT_DCX, Login information: Login successful via TELNET/SSH/RSH. IP Addr:192.0.2.2.

NOTE

Any reference to slot 0 in a system message is a reference to the blade within the switch platform, for example, Brocade DCX contains FC8-48 blade, FC8-32 blade, FC8-16 blade, and so on.

The fields in the error message are described in Table 4.

TABLE 4 System message field description

Variable name Description

Time Stamp The system time (UTC) when the message was generated on the switch. The

RASLog subsystem supports an internationalized time stamp format based on the “LOCAL” setting.

Event ID The message module and number. These values uniquely identify each

message in the Fabric OS and reference the cause and actions recommended in this manual. Note that not all message numbers are used; there can be gaps in the numeric message sequence.

Fabric OS Message Reference 23 53-1002749-01

Reading the system messages

TABLE 4 System message field description (Continued)

Variable name Description

Sequence Number The error message position in the log. When a new message is added to the

Flags For most messages, this field contains a space character (null value)

Severity Level The severity of the error, which can be one of the following:

Switch name The defined switch name or the chassis name of the switch depending on the

Event-specific information A text string explaining the error encountered and providing parameters

log, this number is incremented by 1. The message sequence number starts at 1 after a firmwareDownload and will

increase up to a value of 2,147,483,647 (0x7ffffff). The sequence number continues to increase after the message log wraps

around, i.e. the oldest message in the log is deleted when a new message is added. The sequence number can be reset to 1 using the errClear command. The sequence number is persistent across power cycles and switch reboots.

indicating that the message is neither an AUDIT or FFDC message. Messages may contain the following values:

• FFDC – Indicates that additional first failure data capture information has

also been generated for this event.

• FID – The Fabric ID that can range from 0 to 128. FID 128 means the

message was generated by the default switch instance.

• CHASSIS – The message that was generated by the chassis instance.

• SLOT number – Indicates the message was generated from slot # blade

main CPU.

• SLOT #/1 – Indicates the message was generated from slot # blade

Co-CPU.

• 1 – CRITICAL

• 2 – ERROR

• 3 – WARNING

• 4 – INFO

action; for example, high availability (HA) messages typically show the chassis name, and login failures show the logical switch name.

This value is truncated if it exceeds 16 characters in length. Run either the chassisName command to name the chassis or the switchName command to rename the logical switch.

supplied by the software at runtime.

Reading an Audit message

Compared to RASLog error messages, messages flagged as AUDIT provide additional user and system-related information of interest for post-event auditing and troubleshooting the problem.

The following example shows the format of the Audit event message.

<Sequence Number> AUDIT, <timestamp>, [<Event ID>], <Severity>, <Event Class>, <User ID>/<Role>/<IP address>/<Interface>/<Application Name>, <Admin Domain>/<Switch name>, <Reserved field for future expansion>, <Event-specific information>

The following is a sample Audit event message.

0 AUDIT, 2005/12/10-09:54:03, [SEC-1000], WARNING, SECURITY, JohnSmith/root/192.0.2.2/Telnet/CLI, Domain A/JohnsSwitch, , Incorrect password during login attempt.

24 Fabric OS Message Reference

53-1002749-01

Reading the system messages

The fields in the error message are described in Table 5.

TABLE 5 Audit message field description

Variable name Description

Sequence Number The error message position in the log.

Audit flag Identifies the message as an Audit message.

Time Stamp The system time (UTC) when the message was generated on the switch. The

RASLog subsystem will support an internationalized time stamp format based on the “LOCAL” setting.

Event ID The message module and number. These values uniquely identify each

message in the Fabric OS and reference the cause and actions recommended in this manual. Note that not all message numbers are used; there can be gaps in the numeric message sequence.

Severity The severity of the error, which can be one of the following:

• 1 – CRITICAL

• 2 – ERROR

• 3 – WARNING

• 4 – INFO

Event Class The event class, which can be one of the following:

• CFG

• CLI

• FABRIC

• FIRMWARE

• FW

• LS

• MAPS (internal use only)

• RAS

• SECURITY

• ZONE

User ID The user ID.

Role The role of the user ID.

IP address The IP address.

Interface The interface being used.

Application Name The application name being used on the interface.

Admin Domain The Admin Domain, if there is one.

Switch name The defined switch name or the chassis name of the switch depending on

the action; for example, HA messages typically show the chassis name and login failures show the logical switch name. This value is truncated if it is over 16 characters in length.

Execute the chassisName command to name the chassis or the switchName command to rename the logical switch.

Reserved field for future expansion

Event-specific information A text string explaining the error encountered and providing parameters

This field is reserved for future use and contains a space character (null value).

supplied by the software at runtime.

Fabric OS Message Reference 25 53-1002749-01

Responding to a system message

This section provides procedures on gathering information on system messages.

Looking up a system message

Messages in this manual are arranged alphabetically by Module ID, and then numerically within a given module. To look up a message, copy down the module (see Table 6 on page 28) and the error code and compare this with the Table of Contents or look up lists to determine the location of the information for that message.

The following information is provided for each message:

• Module and code name for the error

• Message text

• Message type

• Class (for Audit messages only)

• Message severity

• Probable cause

• Recommended action

Gathering information about the problem

Questions to ask yourself when troubleshooting a system message are as follows:

• What is the current Fabric OS level?

• What is the switch hardware version?

• Is the switch operational?

• Assess impact and urgency:

- Is the switch down?

- Is it a standalone switch?

- How large is the fabric?

- Is the fabric redundant?

• Execute the errDump command on each logical switch.

• Execute the supportFtp command (as needed) to set up automatic FTP transfers, and then run

the supportSave command.

• Document the sequence of events by answering the following questions:

- What happened just prior to the problem?

- Is the problem repeatable?

- If so, what are the steps to produce the problem?

- What configuration was in place when the problem occurred?

• Did a failover occur?

• Was security enabled?

• Was POST enabled?

26 Fabric OS Message Reference

53-1002749-01

Responding to a system message

• Are serial port (console) logs available?

• Which CP was master?

• What and when were the last actions or changes made to the system?

Common steps to be followed when troubleshooting a system message are as follows:

• Execute the errDump command on each logical switch.

• Execute the supportFtp command (as needed) to set up automatic FTP transfers, and then

execute the supportSave command.

Support

Fabric OS creates a number of files that can help support personnel troubleshoot and diagnose a problem. This section describes those files and how to access or save the information for support personnel.

Panic dump and core dump files

The Fabric OS creates panic dump files and core files when there are problems in the Fabric OS kernel. You can view panic dump files using the pdShow command. These files can build up in the kernel partition (typically because of failovers) and might need to be periodically deleted or downloaded using the supportSave command.

The software watchdog process (SWD) is responsible for monitoring daemons critical to the function of a healthy switch. The SWD holds a list of critical daemons that ping the SWD periodically at a predetermined interval defined for each daemon. The ping interval is set at 133 seconds, with the exception of the Fabric Watch daemon and the IP storage demon, which ping the SWD every 333 seconds. (For a complete listing of daemons, refer to the KSWD entry in Tab le 6.)

If a daemon fails to ping the SWD within the defined interval, or if the daemon terminates unexpectedly, then the SWD dumps information to the panic dump files, which helps to diagnose the root cause of the unexpected failure.

Execute the pdShow command to view these files or the supportSave command to send them to a host workstation using FTP. The panic dump files and core files are intended for support personnel use only.

Trace dumps

The Fabric OS produces trace dumps when problems are encountered within Fabric OS modules. The Fabric OS trace dump files are intended for support personnel use only. You can use the supportSave or supportFTP commands to collect trace dump files to a specified remote location to provide to support when requested.

supportSave command

The supportSave command can be used to send the output of the system messages (RASLog), the trace files, and the output of the supportShow command to an off-switch storage location through FTP. Prior to running the supportSave command, you can optionally set up the FTP parameters using the supportFtp command. The supportShow command runs a large number of dump and show commands to provide a global output of the status of the switch. Refer to the Fabric OS Command Reference for more information on these commands.

Fabric OS Message Reference 27 53-1002749-01

System module descriptions

Tab le 6 provides a summary of the system modules for which messages are documented in this

guide; the system modules are listed alphabetically by name. A module is a subsystem in the Fabric OS. Each module generates a set of numbered messages.

TABLE 6 System module descriptions

System module

AG Access Gateway (AG) allows multiple hosts (or HBAs) to access the fabric using fewer physical ports.

AN Error or warning messages from the Bottleneck Detection module, including notification of detected

ANV ANV error messages indicate problems with the driver that deal with the ENET application-specific

AUTH Authentication error messages indicate problems with the authentication module of the Fabric OS.

BKSW BKSW messages are generated by the Fabric OS blade kernel software watchdog module.

BL BL error messages are a result of faulty hardware, transient out-of-memory conditions, ASIC errors,

BLS Fibre Channel over IP port configuration messages over the Brocade 7800 and FX8-24 blade.

BM Blade management error messages are a result of autoleveling firmware upgrades performed by the

C2 C2 error messages indicate problems with the 8 Gbps-capable FC module of the Fabric OS.

C3 C3 error messages indicate problems with the 16 Gbps-capable FC module of the Fabric OS.

CAL Common Access Layer (CAL) provides XML interface for configuring switch parameters in an object

CCFG CCFG error messages indicate problems with the Converged Enhanced Ethernet (CEE) configuration

CDR Driver error messages.

CHS Error messages reporting the problems in the management of the blades in the different slots of the

CNM Cluster Node Manager (CNM) is a software daemon module of the Fabric OS. The messages from

CONF Status messages for configUpload and configDownload operations.

CTAP A user-space daemon that forwards non-performance-critical messages from the TAPE driver to the

CVLC Crypto Virtual LUN Controller (CVLC) is a software module running on blade FOS (BFOS). The

CVLM Crypto Virtual LUN Manager (CVLM) is a software module of the Fabric OS. The messages of CVLM

DOT1 DOT1 error messages indicate problems with the 802.1x authentication module of the Fabric OS.

Description

Access Gateway mode transforms the Brocade switches as well as embedded switches into a device management tool that is compatible with different types of fabrics, including Brocade-, Cisco-, and McDATA-based fabrics.

bottlenecks.

integrated circuits (ASICs) on the Fabric OS. They can be software- or hardware-related errors.

or inconsistencies in the software state between a blade and the environment monitor (EM) module.

control processor (CP).

model.

module of the Fabric OS.

chassis.

CNM are problems encountered by CNM, warnings, or information to the user of events.

Crypto Virtual LUN Controller (CVLC) and Security Processor (SP), and vice versa. This module also maintains a cache of recently acquired keys, reducing requests to the key vault itself.

messages of CVLC are problems encountered by CVLC, warnings to alert the user, or information to the user.

are problems encountered by CVLM, warnings to alert the user, or information to the user.

28 Fabric OS Message Reference

53-1002749-01

System module descriptions

TABLE 6 System module descriptions (Continued)

System module

ECC Error Checking and Correction (ECC) error messages indicate single-bit and multiple-bit errors in the

EM The environmental monitor (EM) manages and monitors the various field-replaceable units (FRUs),

ESS Exchange Switch Support (ESS) error messages indicate problems with the ESS module of the Fabric

ESW ESW error messages indicate problems with the Ethernet switch module of Fabric OS.

EVMD EVMD is the event management module.

FABR FABRIC refers to a network of Fibre Channel switches. The FABR error messages come from the

FABS Fabric OS system driver module.

FBC Firmware blade compatibility errors with the control processor (CP).

FCMC Fibre Channel miscellaneous messages relate to problems with the physical layer used to send Fibre

FCOE FCoE error messages indicate problems with the FCoE module of the Fabric OS.

FCPD The Fibre Channel Protocol daemon is responsible for probing the devices attached to the loop port.

FCPH The Fibre Channel Physical Layer is used to send Fibre Channel traffic to and from the switch.

FCR Fibre Channel router-related traffic and activity on the fabric or back-end fabric.

FICN The FICN messages are generated during FICON emulation processing on an FCIP Tunnel.

FICU The FICON-CUP daemon handles communication with fibre connectivity (FICON) on IBM FICON

FKLB Fabric OS I/O kernel library module.

FLOD FLOD is a part of the Fabric Shortest Path First (FSPF) protocol that handles synchronization of the

FSPF Fabric Shortest Path First (FSPF) is a link state routing protocol that is used to determine how frames

Description

Dynamic Random Access Memory (DRAM) devices. ECC is a technology that helps to correct memory errors.

including the port cards, control processor (CP) blades, blower assemblies, power supplies, and World Wide Name (WWN) cards. EM controls the state of the FRUs during system startup, hot-plug sequences, and fault recovery.

EM provides access to and monitors the sensor and status data from the FRUs and maintains the integrity of the system using the environmental and power policies. EM reflects system status by CLI commands, system light emitting diodes (LEDs), and status and alarm messages. EM also manages some component-related data.

OS. ESS is an SW_ILS mechanism utilized by switches to exchange vendor and support information.

fabric daemon. The fabric daemon follows the FC-SW-3 standard for the fabric initialization process, such as determining the E_Ports, assigning unique domain IDs to switches, creating a spanning tree, throttling the trunking process, and distributing the domain and alias lists to all switches in the fabric.

Channel traffic to and from the switch.

Probing is a process the switch uses to find the devices attached to the loop ports and to update the Name Server with the information.

storage devices. Errors to this module are usually initiation errors or indications that FICON-CUP prerequisites have not been met, such as a license key, core process ID (PID), and secure mode on the fabric.

link state database (LSDB) and propagation of the link state records (LSRs).

should be routed. These messages are about protocol errors.

Fabric OS Message Reference 29 53-1002749-01

System module descriptions

TABLE 6 System module descriptions (Continued)

System module

FSS The Fabric OS state synchronization framework provides facilities by which the active control

FSSM The Fabric OS state synchronization management module is defined both as a component and a

FW FW is the Fabric Watch module. This module monitors thresholds for many switch subsystems; for

HAM HAM is a user-space daemon responsible for high availability management.

HAMK This is the kernel module for the high availability management (HAM) daemon.

HIL Hardware independent layer.

HLO HLO is a part of the Fabric Shortest Path First (FSPF) protocol that handles the HELLO protocol

HMON Health monitor.

HSL HSL error messages indicate problems with the Hardware Subsystem Layer of the Fabric OS.

HTTP HTTP error messages.

IBD IBD generates messages related to port restart failure.

IPAD System messages generated by the IP admin demon.

IPS Fibre Channel over IP license, tunneling, and port-related messages.

ISNS ISNS server and client status messages.

KAC KAC error messages indicate problems associated with Fabric OS and the external key vaults.

KSWD The kernel software watchdog (KSWD) watches daemons for unexpected terminations and “hang”

Description

processor (CP) can synchronize with the standby CP, enabling the standby CP to take control of the switch nondisruptively during failures and software upgrades. These facilities include version negotiation, state information transfer, and internal synchronization functions, enabling the transition from standby to active operation.

FSS is defined both as a component and a service. A component is a module in the Fabric OS, implementing a related set of functionality. A service is a collection of components grouped together to achieve a modular software architecture.

service. A component is a module in Fabric OS, implementing a related set of functionality. A service is a collection of components grouped together to achieve a modular software architecture.

example, temperature, voltage, fan speed, and switch status. Any changes that cross a specified threshold are reported to the system message log.

between adjacent switches. The HELLO protocol is used to establish connectivity with a neighbor switch, to establish the identity of the neighbor switch, and to exchange FSPF parameters and capabilities.

conditions and informs the HAM module to take corrective actions such as failover or reboot. The following daemons are monitored by KSWD:

• Access Gateway daemon (agd)

• Alias Server daemon (asd)

• ARR daemon (arrd)

• Authentication daemon (authd)

• Blade Manager daemon (bmd)

• Cluster Node Manager daemon (cnmd)

• Common Access Layer daemon (cald)

• DAUTH daemon (dauthd)

• Diagnostics daemon (diagd)

• Environment Monitor daemon (emd)

• Event Manager daemon (evmd)

• Exchange Switch Support daemon (essd)

• FA-API rpc daemon (rpcd)

30 Fabric OS Message Reference

53-1002749-01

TABLE 6 System module descriptions (Continued)

System module

Description

System module descriptions

KSWD (continued)

• Fabric daemon (fabricd)

• Fabric Device Management Interface daemon (fdmid)

• Fabric Watch daemon (fwd)

• FCoE daemon (fcoed)

• Fibre Channel Protocol daemon (fcpd)

• FICON CUP daemon (ficud)

• FSPF daemon (fspfd)

• IGMP daemon (igmpd)

• IMI daemon (imid)

• Inter-fabric Routing daemon (iswitchd)

• IP Storage daemon (ipsd)

• ISNS client daemon on CP (isnscd)

• KAC daemon (kacd)

• Layer 2 System daemon (l2sysd)

• LFM daemon (lfmd)

• Link Aggregation Control Protocol daemon (lacpd)

• Management Server daemon (msd)

• MM daemon (mmd)

• Multicast Sub-System daemon (mcast_ssd)

• Multiple Spanning Tree Protocol daemon (mstpd)

• Name Server daemon (nsd)

• NSM daemon (nsmd)

• ONM daemon (onmd)

• Parity data manager daemon (pdmd)

• Proxy daemon (proxyd)

• PS daemon (psd)

• RASLOG daemon (raslogd)

• RCS daemon (rcsd)

• RM daemon (rmd)

• RMON daemon (rmond)

• Security daemon (secd)

• Sigma daemon (sigmad)

• SNMP daemon (snmpd)

• SP management daemon (spmd)

• SVP daemon (svpd)

• System services module daemon (ssmd)

• Time Service daemon (tsd)

• TRACE daemon (traced)

• Traffic daemon (trafd)

• VS daemon (vsd)

• Web linker daemon (weblinkerd)

• Web Tools daemon (webd)

• ZONE daemon (zoned)

KTRC Kernel RAS trace module.

L2SS L2SYS error messages indicate problems with the Layer 2 System manager that controls the Layer 2

forwarding engine and controls the learning/aging/forwarding functionality.

LACP LACP error messages indicate problems with the Link Aggregation Control Protocol module of the

Fabric OS.

LANCE LANCE error messages indicate problems with the LANCE module of the Fabric OS.

Fabric OS Message Reference 31 53-1002749-01

System module descriptions

TABLE 6 System module descriptions (Continued)

System

Description

module

LFM LFM error messages indicate problems with the logical fabric manager module that is responsible

for making a logical switch use XISLs. This involves creating and managing LISLs in a logical fabric.

LOG RASLog subsystem.

LSDB The link state database is a part of the FSPF protocol that maintains records on the status of port

links. This database is used to route frames.

MCAST_SS The Multicast Sub-System messages indicate any problems associated with the Layer 2 and Layer 3

Multicast platform support, including allocation of global platform resources such as MGIDs, hardware acceleration resources for Multicast, and route programming into the hardware (Layer 2 EXM for IGMP Snooping).

MFIC MS-FICON messages relate to Fibre Connection (FICON) installations. Fibre Connection control unit

port (FICON-CUP) messages are displayed under the FICU module.

MM MM message indicate problems with the management modules.

MPTH Multicast path uses the shortest path first (SPF) algorithm to dynamically compute a broadcast tree.

MQ Message queues are used for interprocess communication. Message queues allow many messages,

each of variable length, to be queued. Any process or interrupt service routine (ISR) can write messages to a message queue. Any process can read messages from a message queue.

MS The Management Service enables the user to obtain information about the Fibre Channel fabric

topology and attributes by providing a single management access point. MS provides for both monitoring and control of the following areas:

• Fabric Configuration Server: Provides for the configuration management of the fabric.

• Unzoned Name Server: Provides access to Name Server information that is not subject to zone

constraints.

• Fabric Zone Server: Provides access to and control of zone information.

MSTP MSTP error messages indicate problems with Multiple Spanning Tree Protocol modules of the Fabric

OS.

NBFS NBFSM is a part of the Fabric Shortest Path First (FSPF) protocol that handles a neighboring or

adjacent switch’s finite state machine (FSM). Input to the FSM changes the local switch from one state to another, based on specific events. For

example, when two switches are connected to each other using an interswitch link (ISL) cable, they are in the Init state. After both switches receive HELLO messages, they move to the Database Exchange state, and so on. NBFSM states are Down (0), Init (1), Database Exchange (2), Database Acknowledge Wait (3), Database Wait (4), and Full (5).

NS Indicates problems with the simple Name Server module.

NSM NSM error messages indicate problems with the Interface Management and VLAN Management

module of the Fabric OS.

ONMD ONMD error messages indicate problems with the Operation, Administration and Maintenance

module of the Fabric OS.

PDM Parity data manager (PDM) is a user-space daemon responsible for the replication of persistent

configuration files from the primary partition to the secondary partition and from the active CP blade to the standby CP blade.

PDTR PDTR messages indicate panic dump trace files have been created.

PLAT PLAT messages indicate hardware problems.

PMGR A group of messages relating to logical switch creation, deletion, and configuration.

32 Fabric OS Message Reference

53-1002749-01

System module descriptions

TABLE 6 System module descriptions (Continued)

System module

PORT PORT error messages refer to the front-end user ports on the switch. Front-end user ports are

PS The performance server daemon measures the amount of traffic between endpoints or traffic with

PSWP The portswap feature and associated commands generate these error messages.

RAS Informational messages when first failure data capture (FFDC) events are logged to the FFDC log

RCS The reliable commit service daemon generates log entries when it receives a request from the

RKD These messages are either error or informational messages pertaining to the re-key daemon of the

RMON RMON messages are error or informational messages pertaining to the RMOND daemon.

RPCD The remote procedure call daemon (RPCD) is used by Fabric Access for API-related tasks.

RTE RTE is responsible for determining the correct paths for each ingress frame and populating the

RTWR The reliable transport write and read daemon helps deliver data messages either to specific

SCN The internal state change notification daemon is used for state change notifications from the kernel

SEC The security daemon generates security errors, warnings, or information during security-related data

SFLO sFlow is a standard-based sampling technology embedded within switches and routers, which is

Description

directly accessible by users to connect end devices or connect to other switches.

particular frame formats, such as SCSI frames, IP frames, and customer-defined frames.

and size or roll-over warning.

zoning, security, or management server for passing data messages to switches in the fabric. RCS then requests reliable transport write and read (RTWR) to deliver the message. RCS also acts as a gatekeeper, limiting the number of outstanding requests for the Zoning, Security, or Management Server modules.

Fabric OS.

routing tables in the ASICs with this information. The ASIC then uses the information available in the routing tables to determine the path a particular ingress frame needs to take before it exits the switch.

switches in the fabric or to all of the switches in the fabric. For example, if some of the switches are not reachable or are offline, RTWR returns an “unreachable” message to the caller, allowing the caller to take the appropriate action. If a switch is not responding, RTWR retries 100 times.

to the daemons within Fabric OS.

management or fabric merge operations. Administrators should watch for these messages to distinguish between internal switch and fabric operation errors and external attacks.

used to monitor high-speed network traffic for Data Center Ethernet (DCE) and Converged Enhanced Ethernet (CEE) platforms.

sFlow uses two types of sampling:

• Statistical packet-based sampling of switched or routed packet flows.

• Time-based sampling of interface counters.

SFLO messages indicate errors or information related to the sflowd daemon.

SNMP Simple Network Management Protocol (SNMP) is a universally supported low-level protocol that

allows simple get, get next, and set requests to go to the switch (acting as an SNMP agent). It also allows the switch to send traps to the defined and configured management station. Brocade switches support six management entities that can be configured to receive these traps.

SPC SPC messages indicate problems and informational updates associated with the security processor.

These messages could be triggered by the following three modules: Security processor controller, SP system controller, and SP Keyapp.

SPM Error messages indicating problems either with key or SP management.

SS The supportSave command generates these error messages if problems are encountered.

Fabric OS Message Reference 33 53-1002749-01

System module descriptions

TABLE 6 System module descriptions (Continued)

System module

SSMD SSMD error messages indicate problems with the System Services Module of the Fabric OS.

SULB The software upgrade library provides the firmwareDownload command capability, which enables

SWCH These messages are generated by the switch driver module that manages a Fibre Channel switch

SYSC System controller is a daemon that starts up and shuts down all Fabric OS modules in the proper

SYSM General system messages.

TAPE A kernel-space driver that handles all I/O operations aimed at Tape containers.

TRCE RAS TRACE error messages.

TRCK The track change feature tracks the following events:

Description

firmware upgrades to both CP blades with a single command, as well as nondisruptive code load to all Fabric OS switches. These messages might display if there are any problems during the firmwareDownload procedure. Most messages are informational only and are generated even during successful firmware download. For additional information, refer to the Fabric OS Administrator’s Guide.

instance.

sequence.

• Turning on or off the track change feature

• CONFIG_CHANGE

• LOGIN

• LOGOUT

• FAILED_LOGIN

If any of these events occur, a message is sent to the system message log. Additionally, if the SNMP trap option is enabled, an SNMP trap is also sent.

For information on configuring the track change feature, refer to the Fabric OS Command Reference or the Fabric OS Administrator’s Guide.

TS Time Service provides fabric time-synchronization by synchronizing all clocks in the fabric to the

clock time on the principal switch.

UCST UCST is a part of the Fabric Shortest Path First (FSPF) protocol that manages the Unicast routing

table.

UPTH UPATH is a part of the FSPF protocol that uses the SPF algorithm to dynamically compute a Unicast

tree.

VDR VDR messages indicate Field-Programmable Gate Array (FPGA) parity errors.

VS The VS module messages indicate any problems or information associated with the Dynamic Fabric

Provisioning feature, including commands associated with the fapwwn command and configurations.

WEBD Indicates problems with the Web Tools module.

XTUN XTUN messages are generated by the FCIP Tunnel implementation. These messages indicate status

of FCIP tunnels, FCIP emulation events for FCP traffic, or FCIP debug information (FTRACE buffer status changes).

ZEUS Zeus error messages indicate problems with the Zeus driver module.

ZONE The zone module messages indicate any problems associated with the zoning features, including

commands associated with aliases, zones, and configurations.

34 Fabric OS Message Reference

53-1002749-01

Chapter

Log Messages

AG Messages

AG-1001

AG-1002

AG-1003

AG-1004

AG-1005

AG-1006

AG-1007

AG-1008

AG-1009

AG-1010

AG-1011

AG-1012

AG-1013

AG-1014

AG-1015

AG-1016

AG-1017

AG-1018

AG-1019

AG-1020

AG-1021

AG-1022

AG-1023

AG-1024

AG-1025

AG-1026

AG-1027

AG-1028

Fabric OS Message Reference 35 53-1002749-01

AN Messages

AG-1029

AG-1030

AG-1031

AG-1032

AG-1033

AG-1034

AG-1035

AG-1036

AG-1037

AG-1038

AG-1039

AG-1040

AG-1041

AG-1042

AN Messages

ANV Messages

AG-1043

AG-1044

AN-1001

AN-1002

AN-1003

AN-1004

AN-1005

AN-1010

AN-1011

AN-1012

AN-1013

ANV-1001

ANV-1002

ANV-1003

ANV-1004

ANV-1005

36 Fabric OS Message Reference

53-1002749-01

AUTH Messages

ANV-1006

ANV-1007

ANV-1008

ANV-1015

ANV-1016

ANV-1028

AUTH-1001

AUTH-1002

AUTH-1003

AUTH-1004

AUTH-1005

AUTH-1006

AUTH Messages

AUTH-1007

AUTH-1008

AUTH-1010

AUTH-1011

AUTH-1012

AUTH-1013

AUTH-1014

AUTH-1016

AUTH-1017

AUTH-1018

AUTH-1020

AUTH-1022

AUTH-1023

AUTH-1025

AUTH-1026

AUTH-1027

AUTH-1028

AUTH-1029

AUTH-1030

AUTH-1031

AUTH-1032

Fabric OS Message Reference 37 53-1002749-01

BKSW Messages

AUTH-1033

AUTH-1034

AUTH-1035

AUTH-1036

AUTH-1037

AUTH-1038

AUTH-1039

AUTH-1040

AUTH-1041

AUTH-1042

AUTH-1043

AUTH-1044

AUTH-1045

AUTH-1046

AUTH-1047

BKSW Messages

BKSW-1003

BL Messages

BL-1000

BL-1001

BL-1002

BL-1003

BL-1004

BL-1006

BL-1007

BL-1008

BL-1009

BL-1010

BL-1011

BL-1012

BL-1013

BL-1014

38 Fabric OS Message Reference

53-1002749-01

BL-1015

BL-1016

BL-1017

BL-1018

BL-1019

BL-1020

BL-1021

BL-1022

BL-1023

BL-1024

BL-1025

BL-1026

BL-1027

BL-1028

BL Messages

BL-1029

BL-1030

BL-1031

BL-1032

BL-1033

BL-1034

BL-1035

BL-1036

BL-1037

BL-1038

BL-1039

BL-1041

BL-1045

BL-1046

BL-1047

BL-1048

BL-1049

BL-1050

BL-1051

BL-1052

Fabric OS Message Reference 39 53-1002749-01

BLS Messages

BM Messages

BLS-1000

BLS-1001

BLS-1002

BLS-1003

BLS-1004

BLS-1005

BM-1001

BM-1002

BM-1003

BM-1004

C2 Messages

BM-1005

BM-1006

BM-1007

BM-1008

BM-1009

BM-1010

BM-1053

BM-1054

BM-1055

BM-1056

BM-1058

C2-1001

C2-1002

C2-1004

C2-1006

C2-1007

C2-1008

C2-1009

C2-1010

40 Fabric OS Message Reference

53-1002749-01

C3 Messages

C2-1012

C2-1013

C2-1014

C2-1015

C2-1016

C2-1017

C2-1018

C2-1019

C2-1025

C2-1026

C2-1027

C2-1028

C3 Messages

C3-1001

C3-1002

C3-1004

C3-1006

C3-1007

C3-1008

C3-1009

C3-1010

C3-1011

C3-1012

C3-1013

C3-1014

C3-1015

C3-1016

C3-1017

C3-1018

C3-1019

C3-1020

C3-1021

C3-1023

C3-1025

Fabric OS Message Reference 41 53-1002749-01

CAL Messages

CCFG Messages

C3-1026

C3-1027

C3-1028

CAL-1001

CCFG-1001

CCFG-1002

CCFG-1003

CCFG-1004

CCFG-1005

CCFG-1006

CDR Messages

CCFG-1007

CCFG-1008

CCFG-1009

CCFG-1010

CCFG-1011

CCFG-1012

CDR-1001

CDR-1002

CDR-1003

CDR-1004

CDR-1005

CDR-1006

CDR-1007

CDR-1008

CDR-1009

CDR-1010

CDR-1011

CDR-1012

42 Fabric OS Message Reference

53-1002749-01

CHS Messages

CDR-1014

CDR-1015

CDR-1016

CDR-1017

CDR-1018

CDR-1019

CDR-1022

CDR-1028

CHS-1002

CHS-1003

CHS-1004

CHS-1005

CHS Messages

CNM Messages

CNM-1001

CNM-1002

CNM-1003

CNM-1004

CNM-1005

CNM-1006

CNM-1007

CNM-1008

CNM-1009

CNM-1010

CNM-1011

CNM-1012

CNM-1013

CNM-1014

CNM-1015

CNM-1016

CNM-1017

CNM-1018

Fabric OS Message Reference 43 53-1002749-01

CNM Messages

CNM-1019

CNM-1020

CNM-1021

CNM-1022

CNM-1023

CNM-1024

CNM-1025

CNM-1026

CNM-1027

CNM-1028

CNM-1029

CNM-1030

CNM-1031

CNM-1032

CNM-1033

CNM-1034

CNM-1035

CNM-1036

CNM-1037

CNM-1038

CNM-1039

CNM-1040

CNM-1041

CNM-1042

CNM-1043

CNM-1044

CNM-1045

CNM-1046

CNM-1047

CNM-1048

CNM-1049

CNM-1050

CNM-1051

CNM-1052

CNM-1053

44 Fabric OS Message Reference

53-1002749-01

CNM-1054

CNM-1055

CNM-1056

CNM-1057

CNM-1058

CNM-1059

CNM-1060

CNM-1061

CNM-1062

CNM-3001

CNM-3002

CNM-3003

CNM-3004

CNM-3005

CONF Messages

CNM-3006

CNM-3007

CNM-3008

CNM-3009

CNM-3010

CNM-3011

CNM-3012

CONF-1000

CONF-1001

CONF-1021

CONF-1023

CONF-1024

CONF-1030

CONF-1031

CONF-1032

CONF-1040

CONF-1041

CONF-1042

CONF-1043

Fabric OS Message Reference 45 53-1002749-01

CTAP Messages

CVLC Messages

CONF-1044

CTAP-1001

CVLC-1001

CVLC-1002

CVLC-1003

CVLC-1004

CVLC-1005

CVLC-1006

CVLC-1007

CVLC-1008

CVLC-1009

CVLC-1010

CVLC-1011

CVLC-1012

CVLC-1013

CVLC-1014

CVLC-1015

CVLC-1016

CVLC-1017

CVLC-1018

CVLC-1019

CVLC-1020

CVLC-1021

CVLC-1022

CVLC-1023

CVLC-1024

CVLC-1025

CVLC-1026

CVLC-1027

CVLC-1028

46 Fabric OS Message Reference

53-1002749-01

CVLM Messages

CVLC-1029

CVLC-1030

CVLC-1031

CVLC-1032

CVLC-1033

CVLC-1034

CVLC-1035

CVLC-1039

CVLC-1041

CVLM-1001

CVLM-1002

CVLM-1003

CVLM Messages

CVLM-1004

CVLM-1005

CVLM-1006

CVLM-1007

CVLM-1008

CVLM-1009

CVLM-1010

CVLM-1011

CVLM-1012

CVLM-1013

CVLM-1014

CVLM-1015

CVLM-1016

CVLM-3001

CVLM-3002

CVLM-3003

CVLM-3004

CVLM-3005

CVLM-3006

CVLM-3007

CVLM-3008

Fabric OS Message Reference 47 53-1002749-01

DOT1 Messages

CVLM-3009

CVLM-3010

CVLM-3011

CVLM-3012

CVLM-3013

CVLM-3014

CVLM-3015

CVLM-3016

CVLM-3017

CVLM-3018

CVLM-3019

CVLM-3020

CVLM-3021

CVLM-3022

DOT1 Messages

CVLM-3023

CVLM-3024

CVLM-3025

CVLM-3026

CVLM-3027

CVLM-3028

DOT1-1001

DOT1-1002

DOT1-1003

DOT1-1004

DOT1-1005

DOT1-1006

DOT1-1007

DOT1-1008

DOT1-1009

DOT1-1010

48 Fabric OS Message Reference

53-1002749-01

ECC Messages

EM Messages

ECC-1000

ECC-1001

EM-1001

EM-1002

EM-1003

EM-1004

EM-1005

EM-1006

EM-1008

EM-1009

ECC Messages

EM-1010

EM-1011

EM-1012

EM-1013

EM-1014

EM-1015

EM-1016

EM-1017

EM-1018

EM-1019

EM-1020

EM-1028

EM-1029

EM-1031

EM-1033

EM-1034

EM-1035

EM-1036

EM-1037

EM-1042

EM-1043

Fabric OS Message Reference 49 53-1002749-01

ESS Messages

EM-1044

EM-1045

EM-1046

EM-1047

EM-1048

EM-1049

EM-1050

EM-1051

EM-1057

EM-1058

EM-1059

EM-1060

EM-1061

EM-1062

ESS Messages

EM-1063

EM-1064

EM-1065

EM-1066

EM-1067

EM-1068

EM-1069

EM-1070

EM-1071

EM-1072

EM-2003

ESS-1001

ESS-1002

ESS-1003

ESS-1004

ESS-1005

ESS-1008

ESS-1009

ESS-1010

50 Fabric OS Message Reference

53-1002749-01

ESW Messages

ESW-1001

ESW-1002

ESW-1003

ESW-1004

ESW-1005

ESW-1006

ESW-1007

ESW-1008

EVMD Messages

EVMD-1001

ESW Messages

FABR Messages

FABR-1001

FABR-1002

FABR-1003

FABR-1004

FABR-1005

FABR-1006

FABR-1007

FABR-1008

FABR-1009

FABR-1010

FABR-1011

FABR-1012

FABR-1013

FABR-1014

FABR-1015

FABR-1016

FABR-1017

FABR-1018

FABR-1019

FABR-1020

Fabric OS Message Reference 51 53-1002749-01

FABS Messages

FABR-1021

FABR-1022

FABR-1023

FABR-1024

FABR-1029

FABR-1030

FABR-1031

FABR-1032

FABR-1034

FABR-1035

FABR-1036

FABR-1037

FABR-1038

FABR-1039

FABS Messages

FABR-1040

FABR-1041

FABR-1043

FABR-1044

FABR-1045

FABR-1046

FABR-1047

FABR-1048

FABR-1049

FABR-1050

FABR-1051

FABR-1052

FABR-1053

FABR-1054

FABR-1055

FABS-1001

FABS-1002

FABS-1004

FABS-1005

52 Fabric OS Message Reference

53-1002749-01

FABS-1006

FABS-1007

FABS-1008

FABS-1009

FABS-1010

FABS-1011

FABS-1013

FABS-1014

FABS-1015

FBC Messages

FBC-1001

FCMC Messages

FBC Messages

FCOE Messages

FCMC-1001

FCOE-1001

FCOE-1002

FCOE-1003

FCOE-1004

FCOE-1005

FCOE-1006

FCOE-1007

FCOE-1009

FCOE-1010

FCOE-1012

FCOE-1014

FCOE-1015

FCOE-1016

FCOE-1017

FCOE-1019

FCOE-1021

FCOE-1022

Fabric OS Message Reference 53 53-1002749-01

FCPD Messages

FCOE-1023

FCOE-1024

FCOE-1025

FCOE-1026

FCOE-1027

FCOE-1028

FCOE-1029

FCOE-1030

FCOE-1031

FCOE-1032

FCOE-1033

FCOE-1034

FCOE-1037

FCOE-1038

FCPD Messages

FCPH Messages

FCOE-1039

FCOE-1040

FCOE-1041

FCOE-1042

FCOE-1043

FCOE-1044

FCOE-1045

FCOE-1046

FCOE-1047

FCOE-1048

FCPD-1001

FCPD-1002

FCPD-1003

FCPH-1001

FCPH-1002

FCPH-1003

54 Fabric OS Message Reference

53-1002749-01

FCR Messages

FCPH-1004

FCPH-1005

FCR-1001

FCR-1002

FCR-1003

FCR-1004

FCR-1005

FCR-1006

FCR-1007

FCR-1008

FCR-1009

FCR-1010

FCR Messages

FCR-1011

FCR-1012

FCR-1013

FCR-1015

FCR-1016

FCR-1018

FCR-1019

FCR-1020

FCR-1021

FCR-1022

FCR-1023

FCR-1024

FCR-1025

FCR-1026

FCR-1027

FCR-1028

FCR-1029

FCR-1030

FCR-1031

FCR-1032

FCR-1033

Fabric OS Message Reference 55 53-1002749-01

FCR Messages

FCR-1034

FCR-1035

FCR-1036

FCR-1037

FCR-1038

FCR-1039

FCR-1040

FCR-1041

FCR-1042

FCR-1043

FCR-1048

FCR-1049

FCR-1053

FCR-1054

FCR-1055

FCR-1056

FCR-1057

FCR-1058

FCR-1059

FCR-1060

FCR-1061

FCR-1062

FCR-1063

FCR-1064

FCR-1065

FCR-1066

FCR-1067

FCR-1068

FCR-1069

FCR-1070

FCR-1071

FCR-1072

FCR-1073

FCR-1074

FCR-1075

56 Fabric OS Message Reference

53-1002749-01

FCR-1076

FCR-1077

FCR-1078

FCR-1079

FCR-1080

FCR-1081

FCR-1082

FCR-1083

FCR-1084

FCR-1085

FCR-1086

FCR-1087

FCR-1088

FCR-1089

FICN Messages

FCR-1091

FCR-1092

FCR-1093

FCR-1094

FCR-1095

FCR-1096

FCR-1097

FCR-1098

FICN-1003

FICN-1004

FICN-1005

FICN-1006

FICN-1007

FICN-1008

FICN-1009

FICN-1010

FICN-1011

FICN-1012

FICN-1013

Fabric OS Message Reference 57 53-1002749-01

FICN Messages

FICN-1014

FICN-1015

FICN-1016

FICN-1017

FICN-1018

FICN-1019

FICN-1020

FICN-1021

FICN-1022

FICN-1023

FICN-1024

FICN-1025

FICN-1026

FICN-1027

FICN-1028

FICN-1029

FICN-1030

FICN-1031

FICN-1032

FICN-1033

FICN-1034

FICN-1035

FICN-1036

FICN-1037

FICN-1038

FICN-1039

FICN-1040

FICN-1041

FICN-1042

FICN-1043

FICN-1044

FICN-1045

FICN-1046

FICN-1047

FICN-1048

58 Fabric OS Message Reference

53-1002749-01

FICN-1049

FICN-1050

FICN-1051

FICN-1052

FICN-1053

FICN-1054

FICN-1055

FICN-1056

FICN-1057

FICN-1058

FICN-1059

FICN-1060

FICN-1061

FICN-1062

FICN Messages

FICN-1063

FICN-1064

FICN-1065

FICN-1066

FICN-1067

FICN-1068

FICN-1069

FICN-1070

FICN-1071

FICN-1072

FICN-1073

FICN-1074

FICN-1075

FICN-1076

FICN-1077

FICN-1078

FICN-1079

FICN-1080

FICN-1081

FICN-1082

FICN-1083

Fabric OS Message Reference 59 53-1002749-01

FICN Messages

FICN-1084

FICN-1085

FICN-1086

FICN-1087

FICN-1088

FICN-1089

FICN-1090

FICN-1091

FICN-1092

FICN-1093

FICN-1094

FICN-1095

FICN-1096

FICN-1097

FICN-1098

FICN-1099

FICN-1100

FICN-1101

FICN-1102

FICN-1103

FICN-1104

FICN-1105

FICN-1106

FICN-1107

FICN-1108

FICN-1109

FICN-1110

FICN-1111

FICN-1112

FICN-1113

FICN-1114

FICN-1115

FICN-1116

FICN-1117

FICN-1118

60 Fabric OS Message Reference

53-1002749-01

FICN-1119

FICN-1120

FICN-1121

FICN-1122

FICN-2005

FICN-2006

FICN-2064

FICN-2065

FICN-2066

FICN-2082

FICN-2083

FICN-2085

FICN-2086

FICN-2087

FICU Messages

FICU-1001

FICU-1002

FICU-1003

FICU-1004

FICU-1005

FICU-1006

FICU-1007

FICU-1008

FICU-1009

FICU-1010

FICU-1011

FICU-1012

FICU-1013

FICU-1017

FICU-1018

FICU-1019

FICU-1020

FICU-1021

FICU-1022

Fabric OS Message Reference 61 53-1002749-01

FKLB Messages

FLOD Messages

FSPF Messages

FICU-1023

FICU-1024

FKLB-1001

FLOD-1001

FLOD-1003

FLOD-1004

FLOD-1005

FLOD-1006

FSS Messages

FSPF-1001

FSPF-1002

FSPF-1003

FSPF-1005

FSPF-1006

FSPF-1007

FSPF-1008

FSPF-1009

FSPF-1010

FSPF-1011

FSPF-1012

FSS-1001

FSS-1002

FSS-1003

FSS-1004

FSS-1005

FSS-1006

FSS-1007

62 Fabric OS Message Reference

53-1002749-01

FSSM Messages

FW Messages

FSS-1008

FSS-1009

FSS-1010

FSS-1011

FSSM-1002

FSSM-1003

FSSM-1004

FW-1001

FW-1002

FW-1003

FSSM Messages

FW-1004

FW-1005

FW-1006

FW-1007

FW-1008

FW-1009

FW-1010

FW-1011

FW-1012

FW-1033

FW-1034

FW-1035

FW-1036

FW-1037

FW-1038

FW-1039

FW-1040

FW-1041

FW-1042

FW-1043

Fabric OS Message Reference 63 53-1002749-01

FW Messages

FW-1044

FW-1045

FW-1046

FW-1047

FW-1048

FW-1049

FW-1050

FW-1051

FW-1052

FW-1053

FW-1054

FW-1113

FW-1114

FW-1115

FW-1116

FW-1117

FW-1118

FW-1119

FW-1120

FW-1121

FW-1122

FW-1123

FW-1124

FW-1125

FW-1126

FW-1127

FW-1128

FW-1129

FW-1130

FW-1131

FW-1132

FW-1133

FW-1134

FW-1135

FW-1136

64 Fabric OS Message Reference

53-1002749-01

FW-1137

FW-1138

FW-1139

FW-1140

FW-1160

FW-1161

FW-1162

FW-1163

FW-1164

FW-1165

FW-1166

FW-1167

FW-1168

FW-1169

FW Messages

FW-1170

FW-1171

FW-1172

FW-1173

FW-1174

FW-1175

FW -1176

FW-1177

FW-1178

FW-1179

FW-1180

FW-1181

FW-1182

FW-1183

FW-1184

FW-1185

FW-1186

FW-1187

FW-1188

FW-1189

FW-1190

Fabric OS Message Reference 65 53-1002749-01

FW Messages

FW-1191

FW-1192

FW-1193

FW-1194

FW-1195

FW-1196

FW-1197

FW-1198

FW-1199

FW-1200

FW-1201

FW-1202

FW-1203

FW-1204

FW-1205

FW-1206

FW-1207

FW-1216

FW-1217

FW-1218

FW-1219

FW-1240

FW-1241

FW-1242

FW-1243

FW-1244

FW-1245

FW-1246

FW-1247

FW-1248

FW-1249

FW-1250

FW-1251

FW-1272

FW-1273

66 Fabric OS Message Reference

53-1002749-01

FW-1274

FW-1275

FW-1296

FW-1297

FW-1298

FW-1299

FW-1300

FW-1301

FW-1302

FW-1303

FW-1304

FW-1305

FW-1306

FW-1307

FW Messages

FW-1308

FW-1309

FW-1310

FW-1311

FW-1312

FW-1313

FW-1314

FW-1315

FW-1316

FW-1317

FW-1318

FW-1319

FW-1320

FW-1321

FW-1322

FW-1323

FW-1324

FW-1325

FW-1326

FW-1327

FW-1328

Fabric OS Message Reference 67 53-1002749-01

FW Messages

FW-1329

FW-1330

FW-1331

FW-1332

FW-1333

FW-1334

FW-1335

FW-1336

FW-1337

FW-1338

FW-1339

FW-1340

FW-1341

FW-1342

FW-1343

FW-1344

FW-1345

FW-1346

FW-1347

FW-1348

FW-1349

FW-1350

FW-1351

FW-1352

FW-1353

FW-1354

FW-1355

FW-1356

FW-1357

FW-1358

FW-1359

FW-1360

FW-1361

FW-1362

FW-1363

68 Fabric OS Message Reference

53-1002749-01

FW-1364

FW-1365

FW-1366

FW-1367

FW-1368

FW-1369

FW-1370

FW-1371

FW-1372

FW-1373

FW-1374

FW-1375

FW-1376

FW-1377

FW Messages

FW-1378

FW-1379

FW-1400

FW-1401

FW-1402

FW-1403

FW-1404

FW-1405

FW-1406

FW-1407

FW-1408

FW-1424

FW-1425

FW-1426

FW-1427

FW-1428

FW-1429

FW-1430

FW-1431

FW-1432

FW-1433

Fabric OS Message Reference 69 53-1002749-01

FW Messages

FW-1434

FW-1435

FW-1436

FW-1437

FW-1438

FW-1439

FW-1440

FW-1441

FW-1442

FW-1443

FW-1444

FW-1445

FW-1446

FW-1447

FW-1448

FW-1500

FW-1501

FW-1502

FW-1510

FW-1511

FW-1512

FW-1513

FW-1514

FW-1515

FW-1516

FW-1517

FW-1518

FW-1519

FW-1520

FW-1521

FW-1522

FW-1523

FW-1524

FW-1525

FW-1526

70 Fabric OS Message Reference

53-1002749-01

FW-1527

FW-1528

FW-1529

FW-1530

FW-1531

FW-1532

FW-1533

FW-1534

FW-1535

FW-2000

FW-3010

FW-3011

FW-3012

FW-3013

HAM Messages

FW-3014

FW-3015

FW-3016

FW-3017

FW-3018

FW-3019

FW-3020

FW-3021

FW-3022

HAM-1001

HAM-1002

HAM-1004

HAM-1005

HAM-1006

HAM-1007

HAM-1008

HAM-1009

HAM-1010

HAM-1011

Fabric OS Message Reference 71 53-1002749-01

HAMK Messages

HAM-1013

HAM-1014

HAMK Messages

HAMK-1001

HAMK-1002

HAMK-1003

HAMK-1004

HIL Messages

HIL-1101

HIL-1102

HIL-1103

HIL-1104

HIL-1105

HIL-1106

HIL-1107

HIL-1108

HIL-1201

HIL-1202

HIL-1203

HIL-1204

HIL-1206

HIL-1207

HIL-1208

HIL-1301

HIL-1302

HIL-1303

HIL-1304

HIL-1305

HIL-1306

HIL-1307

HIL-1308

HIL-1309

72 Fabric OS Message Reference

53-1002749-01

HIL-1310

HIL-1311

HIL-1401

HIL-1402

HIL-1403

HIL-1404

HIL-1501

HIL-1502

HIL-1503

HIL-1504

HIL-1505

HIL-1506

HIL-1507

HIL-1508

HLO Messages

HIL-1509

HIL-1510

HIL-1511

HIL-1601

HIL-1602

HIL-1603

HIL-1605

HIL-1610

HIL-1611

HIL-1612

HIL-1613

HIL-1650

HLO-1001

HLO-1002

HLO-1003

HMON Messages

HMON-1001

Fabric OS Message Reference 73 53-1002749-01

HSL Messages

HTTP Messages

HSL-1000

HSL-1001

HSL-1002

HSL-1003

HSL-1004

HSL-1005

HSL-1006

HSL-1007

HTTP-1001

HTTP-1002

IBD Messages

IPAD Messages

IPS Messages

HTTP-1003

IBD-1000

IPAD-1000

IPAD-1001

IPAD-1002

IPAD-1003

IPAD-1004

IPS-1001

IPS-1002

IPS-1003

IPS-1004

IPS-1005

IPS-1006

IPS-1007

74 Fabric OS Message Reference

53-1002749-01

ISNS Messages

ISNS-1001

ISNS-1002

ISNS-1003

ISNS-1004

ISNS-1005

ISNS-1006

ISNS-1008

ISNS-1009

ISNS-1010

ISNS-1011

ISNS-1013

ISNS-1014

ISNS Messages

KAC Messages

KAC-1002

KAC-1004

KAC-1006

KAC-1007

KAC-1008

KAC-1009

KAC-1010

KAC-1011

KAC-1012

KAC-1013

KAC-1014

KAC-1015

KAC-1016

KAC-1017

KSWD Messages

KSWD-1001

KSWD-1002

Fabric OS Message Reference 75 53-1002749-01

KTRC Messages

L2SS Messages

KTRC-1001

KTRC-1002

KTRC-1003

KTRC-1004

KTRC-1005

L2SS-1001

L2SS-1002

L2SS-1003

L2SS-1004

L2SS-1005

L2SS-1006

L2SS-1007

L2SS-1008

L3SS Messages

L3SS-1004

LACP Messages

LACP-1001

LACP-1002

LANCE Messages

LANCE-1000

LFM Messages

LFM-1001

LFM-1002

LFM-1003

LFM-1004

LFM-1005

76 Fabric OS Message Reference

53-1002749-01

LOG Messages

LFM-1006

LOG-1000

LOG-1001

LOG-1002

LOG-1003

LOG-1004

LOG-1005

LOG-1006

LOG-1007

LOG-1008

LOG-1009

LOG-1010

LOG Messages

LOG-1011

LSDB Messages

LSDB-1001

LSDB-1002

LSDB-1003

LSDB-1004

MCAST_SS Messages

MCAST_SS-1001

MCAST_SS-1002

MCAST_SS-1003

MCAST_SS-1004

MCAST_SS-1005

MCAST_SS-1006

MCAST_SS-1007

MCAST_SS-1008

MCAST_SS-1009

MCAST_SS-1010

MCAST_SS-1011

Fabric OS Message Reference 77 53-1002749-01

MFIC Messages

MCAST_SS-1012

MCAST_SS-1013

MCAST_SS-1014

MCAST_SS-1015

MCAST_SS-1016

MCAST_SS-1017

MCAST_SS-1018

MCAST_SS-1019

MCAST_SS-1020

MFIC-1001

MFIC-1002

MFIC-1003

MM Messages

MM-1001

MPTH Messages

MPTH-1001

MPTH-1002

MPTH-1003

MQ Messages

MQ-1004

MQ-1005

MQ-1006
