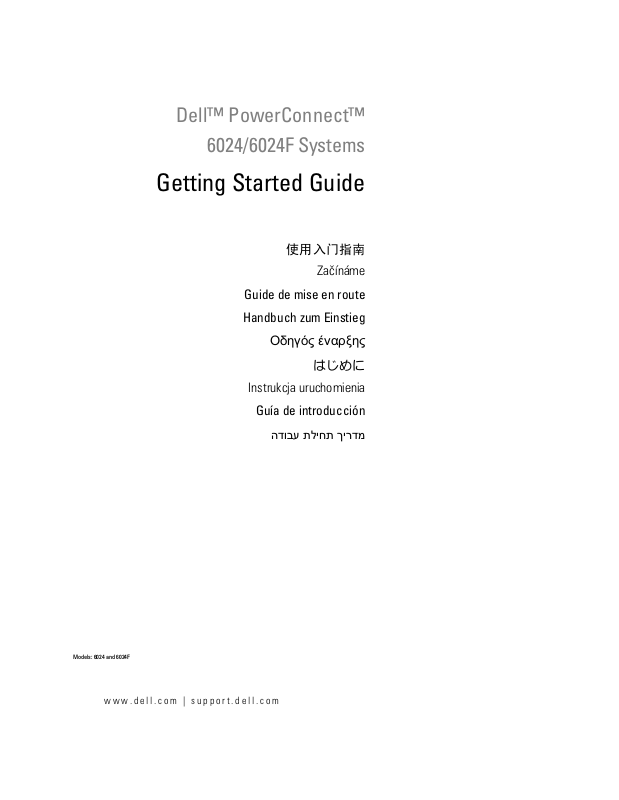

Dell™ PowerConnect™

6024/6024F Systems

Getting Started Guide

使用入门指南

Začínáme

Guide de mise en route

Handbuch zum Einstieg

Οδηγός έναρξης

はじめに

Instrukcja uruchomienia

Guía de introducción

Models: 6024 and 6024F

www.dell.com | support.dell.com

הדובע תליחת ךירדמ

Dell™ PowerConnect™

6024/6024F Systems

Getting Started Guide

www.dell.com | support.dell.com

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

____________________

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerConnect are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Models 6024 and 6024F

January 2005 P/N N5382 Rev. A01

Installation

Overview

This document provides basic information to install, configure, and operate Dell™ PowerConnect™ 6024 and 6024F systems. For more information, see the which is available on your

support.dell.com

for the latest updates on documentation and software.

User Documentation

CD, or check the Dell Support website at

Site Preparation

PowerConnect 60xx devices can be mounted in a standard 48.26-cm (19-inch) rack or left free-standing (placed on a tabletop). Before installing the device, ensure that the chosen installation location meets the following site requirements:

• Power — The device is installed near an easily accessible 100–250 VAC, 50–60 Hz outlet.

• General — The power supply is correctly installed by checking that the LEDs on the front panel are illuminated.

• Clearance — There is adequate frontal clearance for operator access. Allow clearance for cabling, power connections, and ventilation.

• Cabling — The cabling is routed to avoid sources of electrical noise such as radio transmitters, broadcast amplifiers, power lines, and fluorescent lighting fixtures.

• Ambient — The ambient device operating temperature range is 0 to 55ºC (32 to 131ºF) at a relative humidity of up to 95 percent, non-condensing.

User's Guide

Unpacking

Package Contents

When unpacking the device, ensure that the following items are included:

• One PowerConnect device

• Two AC power cables

• One RS-232 crossover cable

• One rack-mount kit for rack installation (two mounting brackets, bolts, and cage nuts)

• One set of self-adhesive rubber pads for the free-standing device (four pads are included)

User Documentation

•

• Getting Started Guide

•

Safety and Regulatory Information

document

Getting Started Guide 3

Unpacking the Device

NOTE: Before unpacking the device, inspect the container and immediately report any evidence of damage.

Place the container on a clean, flat surface and cut all straps securing the container.

Open the container or remove the container top.

Carefully remove the device from the container and place it on a secure and clean surface.

Remove all packing material.

Inspect the product and accessories for damage. Report any damage immediately.

Mounting the Device

www.dell.com | support.dell.com

The following instructions apply to PowerConnect 60xx series devices. The PowerConnect 6024 and 6024F have the console port on the front panel.

The power connectors are positioned on the back panel of the device. We recommend connecting both hot-swappable power supplies.

Installing in a Rack

CAUTION: Do not use rack mounting kits to suspend the device from under a table or desk, or attach it

to a wall.

CAUTION: Disconnect all cables from the device before continuing. Remove all self-adhesive pads

from the underside of the device, if they have been attached.

CAUTION: When mounting multiple devices into a rack, mount the devices from the bottom up.

4 Getting Started Guide

Place the supplied rack-mounting bracket on one side of the device, ensuring that the mounting holes on the device line up to the mounting holes on the rack-mounting bracket. Figure 1-1 illustrates where to mount the brackets.

Figure 1-1. Attaching the Brackets

Insert the supplied bolts into the rack-mounting holes and tighten with a screwdriver.

Repeat the process for the rack-mounting bracket on the other side of the device.

Insert the device into the 48.26 cm (19 inch) rack, ensuring that the rack-mounting holes on the device line up to the mounting holes on the rack.

Secure the device to the rack with either the rack bolts or cage nuts and cage nut bolts with washers (depending on the kind of rack you have). Fasten the bolts on bottom before fastening the bolts on top. Ensure that the ventilation holes are not obstructed.

CAUTION: Ensure that the supplied rack bolts fit the pre-threaded holes on the rack.

Installing on a Flat Surface (Free-standing Device)

NOTE: We highly recommend that the device be mounted.

Install the device on a flat surface if you are not installing it on a rack. The surface must be able to support the weight of the device and the device cables. The device is supplied with four self-adhesive rubber pads.

Attach the self-adhesive rubber pads on each location marked on the bottom of the chassis.

Set the device on a flat surface, leaving 5.08 cm (2 inches) on each side and 12.7 cm (5 inches) at the back.

Ensure that the device has proper ventilation.

Getting Started Guide 5

Connecting a Device to a Power Supply

Connect the supplied AC power cable to the AC power connector located on the back panel.

NOTE: Do not connect the power cable to a grounded AC outlet at this time. Connect the device to a

power source as described in the step detailed in “Starting and Configuring the Device."

NOTE: Read the safety information in the Product information Guide as well as the safety information for

other devices that connect to or support the switch.

Figure 1-2. Connecting Power Cable

www.dell.com | support.dell.com

6 Getting Started Guide

Starting and Configuring the Device

After completing all external connections, connect a terminal to the device to configure the device. Additional advanced functions are described in the

User Documentation

NOTE: Read the release notes for this product before proceeding. You can download the release notes

from the Dell Support website at support.dell.com.

NOTE: We recommend that you obtain the most recent version of the user documentation from the Dell

Support website at support.dell.com.

CD.

Connecting the Terminal to the Device

A console port on the device enables you to connect the device to a terminal desktop system running terminal emulation software; for monitoring and configuring the device. The console port connector is a male DB-9 connector, implemented as a data terminal equipment (DTE) connector.

To use the console port, the following is required:

• VT100-compatible terminal or a desktop or a portable system with a serial port, running VT100 terminal emulation software.

• An RS-232 crossover cable with a female DB-9 connector for the console port and the appropriate connector for the terminal.

Perform the following tasks to connect a terminal to the device console port:

Connect an RS-232 crossover cable to the terminal running VT100 terminal emulation software.

Configure the terminal emulation software as follows:

Select the appropriate serial port (serial port 1 or serial port 2) to connect to the console.

Set the data rate to 115200 baud.

Set the data format to 8 data bits, 1 stop bit, and no parity.

Set the flow control to none.

Select

VT100 for Emulation

Select Terminal keys for Function, Arrow, and Ctrl keys. Ensure that the setting is for Terminal keys (not Microsoft

mode under

Windows® keys).

User's Guide

Properties

located on your

NOTICE: When using HyperTerminal with Microsoft Windows 2000, ensure that you have Windows 2000

Service Pack 2 or later installed. With Windows 2000 Service Pack 2, the arrow keys function properly in HyperTerminal's VT100 emulation. Go to www.microsoft.com for more information on Windows 2000 service packs.

Connect the female connector of the RS-232 crossover cable directly to the device console

port, and tighten the captive retaining bolts. The PowerConnect 6024 and 6024F console ports are located on the front panel as shown in Figure 1-3.

Getting Started Guide 7

Figure 1-3. Connecting to the Console Port

to VT100 terminal device

www.dell.com | support.dell.com

Booting the Device

Ensure that the device console port is connected to a VT100 terminal device or VT100 terminal emulator via the RS-232 crossover cable.

Locate an AC power receptacle.

Deactivate the AC power receptacle.

Connect the device to the AC receptacle.

Activate the AC power receptacle.

When the power is turned on with the local terminal already connected, the device goes through a power-on self-test (POST). POST runs every time the device is initialized and checks hardware components to determine if the device is fully operational before completely booting. If POST detects a critical problem , the program flow stops. If POST passes successfully, a valid executable image is loaded into RAM. POST messages are displayed on the terminal and indicate test success or failure. The boot process runs for approximately 30 seconds.

Initial Configuration

NOTE: The initial simple configuration procedure is based on the following assumptions:

• The PowerConnect device was never configured before and is in the same state as when you received it.

• The PowerConnect device booted successfully.

• The console connection was established and the console prompt appears on the screen of a VT100 terminal device.

to console port

8 Getting Started Guide

The initial device configuration is performed through the console port. After the initial configuration, you can manage the device either from the already-connected console port or remotely through an interface defined during the initial configuration.

NOTE: The device is not configured with a default user name and password.

NOTE: All of the above settings are necessary to allow the remote management of the device through

Telnet (Telnet client) or HTTP (Web browser).

Before setting up the initial configuration of the device, obtain the following information from your network administrator:

• The IP address to be assigned to the Out-of-Band Ethernet Management Port through which the device is managed.

• The IP subnet mask for the network

• The IP address of the Out-of-Band Ethernet Management Port default gateway for configuring the default route.

NOTE: For additional information about the Out-of-Band Ethernet Management Port see the User’s Guide.

Initial Configuration Procedure

You can perform the initial configuration using the Dell PowerConnect Easy Setup Wizard, or by using the Command Line Interface (CLI). The Setup Wizard automatically starts when the device configuration file is empty. You can invoke CLI by entering [ctrl+z] anytime during the wizard. For more information on CLI initial configuration see the

User Guide

. This guide shows how to use

the Setup Wizard for initial device configuration. The Setup Wizard configures the following fields.

• SNMP Community String and SNMP Management System IP address (optional)

• Username and Password

• Out-of-Band Ethernet Management Port IP Address

• Out-of-Band Ethernet Management Port default gateway address

After the device completes the POST and is booted, the following information appears:

Welcome to Dell Easy Setup Wizard The Setup Wizard guides you through the initial switch

configuration, and gets you up and running easily and quickly. You can also skip the setup wizard, and enter CLI mode to manually configure the switch if you prefer.

You can exit the Setup Wizard at any time by entering [ctrl+Z]. The system will prompt you with a default answer; by pressing

enter, you accept the default. After you configure basic settings using the Setup Wizard, you can

manage the device from the Out-of-band ethernet management port. Would you like to enter the setup wizard? (Y/N)[Y]

Getting Started Guide 9

If you enter [N], the Setup Wizard exits. If there is no response within 60 seconds, the Setup Wizard automatically exits and the CLI console prompt appears. If you enter [Y], the Setup Wizard provides interactive guidance throughout the initial device configuration.

NOTE: If there is no response within 60 seconds, and there is a BootP server on the network, an address

is retrieved from the BootP server.

NOTE: You can exit the Setup Wizard at any time by entering [ctrl+z].

Wizard Step 1

If you enter [Y] the following information appears:

The system is not setup for SNMP management by default. To

www.dell.com | support.dell.com

manage the switch using SNMP (required for Dell Network Manager) you can:

•

Setup the initial SNMP version 2 account now.

•

Return later and setup the SNMP version 2 account. (For more information on setting up a SNMP version 2 account, see the user documentation).

Would you like to setup the SNMP management interface now? (Y/N)[Y]

Enter [N] to skip to Step 2 or enter [Y] to continue the Setup Wizard. If you enter [Y] the following information appears:

To setup the SNMP management account you must specify the management system IP address and the “community string” or password that the particular management system uses to access the switch. The wizard automatically assigns the highest access level [Privilege Level 15] to this account. You can use Dell Network Manager or other management interfaces to change this setting later, and to add additional management system later. For more information on adding management systems, see the user documentation.

To add a management station:

Please enter the SNMP community string to be used:[Dell_NetWork_Manager]

Enter the following: User SNMP community string, for example "MYSETUPWIZARD".

Press

Enter

10 Getting Started Guide

Wizard Step 2

Please enter the IP address of the Management System (A.B.C.D) or wildcard (0.0.0.0) to manage from any Management Station:[0.0.0.0]

Enter – Management System IP address for example “0.0.0.0”, or wildcard mask.

Press

Enter

Wizard Step 3

The following information appears:

Now we need to setup your initial privilege (Level 15) user account. This account is used to login to the CLI and Web interface. You may setup other accounts and change privilege levels later. For more information on setting up user accounts and changing privilege levels, see the user documentation.

To setup a user account:

Please enter the user name:

Please enter the user password:

Please reenter the user password:

Enter: – User name, for example “admin” – Password and password confirmation.

NOTE: If the first and second password entries are not identical, the wizard prompts you to enter

identical passwords.

Press

Enter

Getting Started Guide 11

Enter the password, for example "secret".

Press enter.

Confirm the password, by entering the identical string, for example, "secret".

Press

Wizard Step 4

The following information appears:

Next, an IP address is setup. The IP address is defined on the OOB port. This is the IP address you use to access the CLI, Web interface, or SNMP interface for the switch.

To setup an IP address:

Please enter the IP address of the device (A.B.C.D):

Please enter the IP subnet mask (A.B.C.D or /nn):

Enter the IP address, for example 192.168.1.100.

Press

www.dell.com | support.dell.com

Wizard Step 5

Enter

Enter the IP subnet mask, for example 255.255.255.0 Press

Enter

The following information appears:

Finally, setup the default gateway. Please enter the IP address of the gateway from which this network is reachable (for example 192.168.1.1):

Enter the default gateway, for example, 192.168.1.1.

Press

Enter

The following information appears (as per the example parameters described):

This is the configuration information that has been collected:

SNMP Interface = MYSETUPWIZARD@0.0.0.0

User Account setup = admin

Password = **********

Management IP address = 192.168.1.100 255.255.255.0

Default Gateway = 192.168.1.1

12 Getting Started Guide

Wizard Step 6

The following information appears:

If the information is correct, please select (Y) to save the configuration, and copy to the start-up configuration file. If the information is incorrect, select (N) to discard configuration and restart the wizard: [Y/N]

Enter [Y] to complete the Setup Wizard or enter [N] to skip to restart the wizard. If you enter [Y] the following information appears:

Configuring SNMP management interface.

Configuring user account.......

Configuring IP and subnet......

...............................

Thank you for using Dell Easy Setup Wizard. You will now enter CLI mode.

Wizard Step 7

The CLI prompt appears.

You can now manage the device from the already connected Console port or remotely through the Out-of-Band Ethernet Management Port interface defined during the initial configuration.

Getting Started Guide 13

www.dell.com | support.dell.com

14 Getting Started Guide

Dell™ PowerConnect™

6024/6024F 系统

使用入门指南

www.dell.com | support.dell.com

注、注意和警告

注 : 注表示可以帮助您更好地使用计算机的重要信息。

注意 : 注意表示硬件的潜在损坏或数据丢失，并且告诉您如何避免此类问题。

警告 : 警告表示潜在的财产损坏、人身伤害或死亡。

____________________

未经 Dell Inc. 书面许可，严禁以任何方式进行复制。

本文件中使用的商标： Dell、 DELL 徽标和 PowerConnect 是 Dell Inc. 的商标； Microsoft 和 Windows 是 Microsoft Corporation 的注册商标。

本说明文件中述及的其它商标和商品名称是指拥有相应标记和名称的公司或其制造的产品。 Dell Inc. 对不属于自己的商标和商品名称不拥有任何专有权益。

型号 6024 和 6024F

2005 年 1 月 P/N N5382 修订版 A01

安装

概览

本说明文件提供了安装、配置和操作 Dell™ PowerConnect™ 6024 和 6024F 系统的基本信息。有关详情，请参阅用户说明文件光盘中的《用户指南》，或访问 Dell 支持 Web 站点 support.dell.com 以获取说明文件和软件的最新更新。

场所准备

PowerConnect 60xx 设备可以安装在标准的 48.26 厘米（19 英寸）机架中或独自站立（置于桌面上）。在安装该设备之前，请确保所选的安装位置满足以下场所要求：

•

电源

—

设备安装在容易接近的

•

常规

—

通过检查前面板上的

空隙

—

•

布线明装置。

环境

95%

前方留有操作员进出的适当空隙。留有布线、电源连接和通风的空隙。

—

布线路径应避免电子噪声源，如无线电发射器、广播放大器、电源线路和荧光照

—

设备操作环境温度范围是

，非冷凝。

拆包

封装目录

拆封设备时，确保其中包括以下项目：

•

一个

PowerConnect

•

两根交流电源电缆

•

一根

RS-232

•

一个用于机架安装的机架固定套件（两个固定支架、螺栓和锁紧螺帽）

•

一组用于独立式设备的自粘胶垫（共包括四个）

•

用户说明文件光盘

•

《使用入门指南》

•

安全和管制信息说明文件

交叉电缆

设备

100-250

LED

伏交流电压、

指示灯是否点亮来确保电源已正确安装。

0 到 55

摄氏度（

50-60

32 到 131

赫兹电源插座附近。

华氏度），相对湿度最高

使用入门指南 17

拆封设备

注 : 在拆封设备前，请检查包装箱，如果有任何损坏迹象，请立即报告。

将包装箱放置在干净平坦的表面上，割断所有紧固包装箱的带子。

打开包装箱或移除包装箱顶盖。

小心地从包装箱中取出设备，并将其置于安全和干净的表面上。

除去所有包装材料。

检查产品和附件有无损坏。如有任何损坏，请立即报告。

安装设备

www.dell.com | support.dell.com

以下说明适用于 PowerConnect 60xx 系列设备。PowerConnect 6024 和 6024F 的前面板上均具有控制台端口。

电源连接器位于设备的背面板上。我们建议同时连接两个热交换电源。

在机架中安装

警告 : 请勿使用机架安装套件悬挂工作台或办公桌下面的设备，也请勿将其连接到墙上。

警告 : 在继续操作之前，请断开所有电缆与设备的连接。如果设备底部附着有自粘垫，请将它

们全部移除。

警告 : 将多个设备安装到机架中时，请自下而上安装设备。

18 使用入门指南

将所提供的机架固定支架置于设备的一侧，确保设备上的固定孔与机架固定支架上的固定孔对齐。图

图 1-1. 连接支架

将提供的螺栓插入机架固定孔中并用螺丝刀拧紧。

对设备另一侧的机架固定支架重复该步骤。

将设备插入

1-1

图示说明了固定支架的位置。

48.26

厘米（

英寸）机架中，确保设备上的机架固定孔与机架上的固定孔

对齐。

根据您所用机架的类型，使用机架螺栓或锁紧螺帽以及带有垫圈的锁紧螺帽螺栓将设备固定到机架上。在拧紧顶部的螺栓前，先拧紧底部的螺栓。

警告 : 确保提供的机架螺栓与机架上的预制螺纹孔适配。

确保未阻塞通风孔。

安装到平面上（独立式设备）

注 : 我们强烈建议将设备固定好。

如果不将设备安装到机架上，则请将其安装到平坦表面上。该表面必须能够支持设备和设备电缆的重量。设备附带四个自粘胶垫。

将自粘胶垫粘到机箱底部每个标记的位置。

将设备置于平面上，每侧留出

确保设备通风良好。

5.08

厘米

英寸)，后面留出

12.7

厘米

英寸)。

使用入门指南 19

连接设备至电源

将所提供的交流电源电缆连接到位于背面板上的交流电源连接器。

注 : 此时，请勿连接电源电缆至接地交流电源插座。请按照 “启动和配置设备”中详述的步骤

将设备连接至电源。

注 : 请阅读《产品信息指南》中的安全信息，以及连接至或支持该交换机的其它设备的安全信

息。

图 1-2. 连接电源电缆

www.dell.com | support.dell.com

20 使用入门指南

启动和配置设备

完成所有外部连接后，将终端连接到设备以配置该设备。其它高级功能在用户说明文件光盘上的《用户指南》中说明。

注 : 在继续之前，请阅读本产品的发布注释。您可以从 Dell 支持 Web 站点 support.dell.com 下载

该发布注释。

注 : 我们建议您从 Dell 支持 Web 站点 support.dell.com 获取用户说明文件的最新修订版本。

连接终端至设备

设备上的控制台端口使您可以将设备连接至运行终端仿真软件的终端台式机系统，以监测和配置设备。控制台端口连接器是一个作为数据终端设备 (DTE) 连接器实现的 DB-9 插头连接器。

要使用控制台端口，必须具备以下条件：

• VT100

•

请执行以下任务，将终端连接到设备控制台端口：

注意 : 在 Microsoft Windows 2000 中使用 HyperTerminal 时，确保安装 Windows 2000 服务软件包 2

兼容终端或具有串行端口并运行

具有连接控制台端口的

DB-9

内孔连接器和适当的连接终端的连接器的

VT100

终端仿真软件的台式机或便携式系统。

RS-232

交叉电

缆。

将

RS-232

交叉电缆连接到运行

VT100

终端仿真软件的终端。

配置终端仿真软件设置如下：

选择适当的串行端口（串行端口

设置数据速率为

设置数据格式为

设置流控制为

在 Properties

为功能、箭头和

Windows

或更高版本。使用 Windows 2000 服务软件包 2，箭头键在 HyperTerminal 的 VT100 仿真中功能正常。 Windows 2000 服务软件包的有关详情，请访问 www.microsoft.com。

将

RS-232

交叉电缆的内孔连接器直接连接到设备控制台端口，并拧紧系留固定螺栓。

PowerConnect 6024

115200

none

波特。

数据位、1 停止位，并且无奇偶校验。

（无）。

（属性）下，选择 VT100 for Emulation（VT100

Ctrl

键）。

键选择终端键。确保设置用于终端键（非

和

6024F

控制台端口均位于前面板上，如图

或串行端口 2）连接至控制台。

仿真）模式。

Microsoft®

1-3

所示。

使用入门指南 21

图 1-3. 连接至控制台端口

至 VT100 终端设备

www.dell.com | support.dell.com

引导设备

确保设备控制台端口通过器。

找到交流电源插座。

去活交流电源插座。

将设备连接到交流电源插座。

激活交流电源插座。

当本地终端已连接并打开电源时，设备将进行开机自测 (POST)。开机自测在设备每次初始化时运行，并在完全引导之前检查硬件组件，以确定设备是否完全可操作。如果开机自测检测到严重问题，程序流将停止。如果成功通过开机自测，一个有效的可执行程序映像被载入到随机存取存储器 (RAM) 中。开机自测信息显示在终端上，并表明测试获得成功或发生故障。引导过程大约运行 30 秒钟。

初始配置

注 : 初始简单配置程序基于以下假定：

•

该

PowerConnect

• PowerConnect

•

控制台连接已建立，并且控制台提示符出现在

初始设备配置通过控制台端口进行。初始配置之后，您可以从已经连接的控制台端口管理设备，或者通过初始配置期间定义的接口远程管理设备。

注 : 设备未配置默认用户名和密码。

至控制台端口

RS-232

交叉电缆连接到

VT100

终端设备或

VT100

设备以前从未配置过，并且设备的状态与您接收到时相同。

设备成功引导。

VT100

终端设备屏幕上。

终端仿真

22 使用入门指南

注 : 要想通过远程登录（远程登录客户机）或 HTTP （Web 浏览器）来远程管理设备，则所有

以上设置都是必需的。

在设置设备的初始配置之前，必须从网络管理员处获取以下信息：

•

将要分配给 “带外以太网管理端口”的

•

该网络的

•

“带外以太网管理端口”默认网关的

注 : 有关 “带外以太网管理端口”的其它信息，请参阅《用户指南》。

初始配置程序

子网掩码

地址，通过该端口管理设备。

地址，用来配置默认路由。

您可以使用 “Dell PowerConnect 简易安装向导”，或者使用 “命令行界面” (CLI)，来执行初始配置。当设备配置文件为空时，“安装向导”自动启动。在向导过程的任何时候，您都可以通过输入 [ctrl+z] 调用 CLI。有关 CLI 初始配置的详情，请参阅《用户指南》。本指南显示了如何使用 “安装向导”进行初始设备配置。“安装向导”配置了以下字段。

•SNMP

•

团体字符串和

SNMP

管理系统用户名和密码带外以太网管理端口

地址

带外以太网管理端口默认网关地址

地址（可选）

在设备完成开机自测并引导之后，以下信息出现：

Welcome to Dell Easy Setup Wizard

The Setup Wizard guides you through the initial switch configuration, and gets you up and running easily and quickly. You can also skip the setup wizard, and enter CLI mode to manually configure the switch if you prefer.

You can exit the Setup Wizard at any time by entering [ctrl+Z].

The system will prompt you with a default answer; by pressing enter, you accept the default.

After you configure basic settings using the Setup Wizard, you can manage the device from the Out-of-band ethernet management port.

Would you like to enter the setup wizard? (Y/N)[Y]

（欢迎使用 “Dell 简易安装向导” “安装向导”将指导您进行初始交换机配置，帮助您简单快捷地进入工作状态。如果

您愿意，您也可以跳过安装向导，进入 CLI 模式以手动配置交换机。您可以在任何时候通过输入 [ctrl+Z] 退出 “安装向导”。系统会用默认答案提示您；

按 Enter 键，您将接受默认值。

在您使用 “安装向导”配置完基本设置之后，您可以从带外以太网管理端口管理设备。

您要进入安装向导吗？ (Y/N)[Y]）

使用入门指南 23

如果您输入出，并且过程中提供交互式的导航。

注 : 如果 60 秒之内无响应，并且网络中有 BootP 服务器，将从 BootP 服务器检索地址。

注 : 您可以在任何时候通过输入 [ctrl+Z] 来退出 “安装向导”。

向导步骤 1

如果您输入

The system is not setup for SNMP management by default. To manage the switch using SNMP (required for Dell Network Manager) you can:

www.dell.com | support.dell.com

•

Setup the initial SNMP version 2 account now.

•

Return later and setup the SNMP version 2 account. (For more

information on setting up a SNMP version 2 account, see the user documentation).

Would you like to setup the SNMP management interface now? (Y/N)[Y]

（系统默认不进行 SNMP 管理设置。若要使用 SNMP 管理交换机（这是 “Dell 网络

管理器”要求的），您可以：

•

立即设置初始

•

稍后返回并且设置

户文档

[N]

，“安装向导”将退出。如果

CLI

控制台提示符出现。如果您输入

[Y]

，以下信息出现：

）

。

SNMP

版本

2 帐号。

SNMP 版本 2

帐号。（有关设置

秒之内无响应，“安装向导”会自动退

[Y]

，“安装向导”将在整个初始设备配置

SNMP 版本 2

帐号的详情，请参阅用

您要立即设置 SNMP 管理接口吗？ (Y/N)[Y]）

输入出现：

24 使用入门指南

[N]

以跳至步骤 2，或者输入

[Y]

以继续 “安装向导”。如果您输入

[Y]

，以下信息

To add a management station:

Please enter the SNMP community string to be used:[Dell_NetWork_Manager]

（要设置 SNMP 管理帐号，您必须指定管理系统 IP 地址和 “团体字符串”或密码，

特定的管理系统可以用其来访问交换机。向导会自动分配最高访问级别 [ 优先权级别 15] 给此帐号。您随后可以使用 “Dell 网络管理器”或其它管理接口更改此设置，以及添加附加的管理系统。有关添加管理系统的详情，请参阅用户文档。

要添加管理站：

请输入将要使用的 SNMP 团体字符串：[Dell_NetWork_Manager]）

输入以下内容：用户

按 Enter 键。

向导步骤 2

SNMP

团体字符串，例如 “

MYSETUPWIZARD

”。

Please enter the IP address of the Management System (A.B.C.D) or wildcard (0.0.0.0) to manage from any Management Station:[0.0.0.0]

（请输入 “管理系统”的 IP 地址 (A.B.C.D)，或者通配地址 (0.0.0.0) 以从任何 “管理

站”进行管理：[0.0.0.0]）

输入

–

“管理系统”

按 Enter 键。

地址，例如 “

0.0.0.0

”，或者通配掩码。

向导步骤 3

以下信息出现：

To setup a user account:

Please enter the user name:

Please enter the user password:

Please reenter the user password:

（现在我们需要设置您的初始优先权 [ 级别 15 ] 用户帐号。此帐号被用来登录到 CLI

和 Web 接口。您可以随后设置其它帐号并更改优先权级别。有关设置用户帐号和更改优先权级别的详情，请参阅用户文档。

使用入门指南 25

要设置用户帐号：

请输入用户名：

请输入用户密码：

请重新输入用户密码：）

输入：

–

用户名，例如 “

–

密码和密码确认。

注 : 如果第一次和第二次密码输入不一致，向导会提示您输入一致的密码。

按 Enter 键。

www.dell.com | support.dell.com

输入密码，例如 “

按

Enter

通过输入相同的字符串确认密码，例如，“

按 Enter 键。

向导步骤 4

以下信息出现：

Next, an IP address is setup. The IP address is defined on the OOB port. This is the IP address you use to access the CLI, Web interface, or SNMP interface for the switch.

键。

admin

”

secret

”。

secret

”。

To setup an IP address:

Please enter the IP address of the device (A.B.C.D):

Please enter the IP subnet mask （A.B.C.D or /nn):

下一步，设置

（

We b

要设置

请输入设备的

请输入

输入

按 Enter 键。

输入

按 Enter 键。

26 使用入门指南

接口或

SNMP

地址：

IP 地址 [A.B.C.D]

子网掩码

地址，例如

子网掩码，例如

地址。

接口的

地址定义在

地址。

：

[A.B.C.D 或 /nn]

192.168.1.100

255.255.255.0

：）

OOB

端口上。这是您用来访问交换机的

CLI

、

向导步骤 5

以下信息出现：

Finally, setup the default gateway. Please enter the IP address of the gateway from which this network is reachable (for example 192.168.1.1):

（

最后，设置默认网关。请输入使本网络可达的网关的

输入默认网关，例如，

按 Enter 键。

192.168.1.1

地址[例如

192.168.1.1]:

以下信息出现（按照所说明的实例参数）：

This is the configuration information that has been collected:

SNMP Interface = MYSETUPWIZARD@0.0.0.0

User Account setup = admin

Password = **********

Management IP address = 192.168.1.100 255.255.255.0

Default Gateway = 192.168.1.1

这是收集到的配置信息：

（

SNMP 接口 = MYSETUPWIZARD@0.0.0.0

）

用户帐号设置

密码

管理

默认网关

向导步骤 6

= **********

= admin

地址

= 192.168.1.100 255.255.255.0

= 192.168.1.1

）

以下信息出现：

（

如果信息是正确的，请选择

正确，选择

输入

[N]

以放弃配置，并且重新启动向导：

[Y]

以完成 “安装向导”，或者输入

[Y]

以保存配置，并将其复制到启动配置文件。如果信息不

[Y/N]

）

[N]

以跳至重新启动向导。如果您输入

下信息出现：

Configuring SNMP management interface.

[Y]

，以

使用入门指南 27

Configuring user account.......

Configuring IP and subnet......

...............................

Thank you for using Dell Easy Setup Wizard. You will now enter CLI mode.

正在配置

（

正在配置用户帐号

正在配置

www.dell.com | support.dell.com

...............................

感谢您使用 “

向导步骤 7

CLI

提示符出现。

您现在可以从已经连接的控制台端口管理设备，或者通过初始配置期间定义的 “带外以太网管理端口”接口远程管理设备。

SNMP

和子网

管理接口。

.......

......

Dell

简易安装向导”。您现在将进入

CLI

模式。

）

28 使用入门指南

+ 124 hidden pages
