Page 1
Dell PowerEdge C4130
Owner's Manual
Regulatory Model: E32S Series
Regulatory Type: E32S001
Page 2
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
2015 - 04
Rev. A01
Page 3
Contents
1 About the PowerEdge C4130 system................................................................8
Supported configurations on PowerEdge C4130 systems..................................................................8
Customer and field replaceable units...................................................................................................9
Front panel features and indicators....................................................................................................10
Back panel features and indicators..................................................................................................... 11
NIC indicator codes.............................................................................................................................13
uSATA SSD indicator codes.................................................................................................................14
Redundant power supply indicator codes......................................................................................... 14
Documentation matrix........................................................................................................................ 16
Quick Resource Locator ...............................................................................................................17
2 Performing initial system configuration ........................................................18
Setting up your system........................................................................................................................18
Methods of setting up and configuring the iDRAC IP address .........................................................18
Logging in to iDRAC............................................................................................................................19
Methods of installing the operating system....................................................................................... 19
Managing your system remotely........................................................................................................ 19
Downloading drivers and firmware.................................................................................................... 19
3 Pre-operating system management applications........................................ 21
Navigation keys....................................................................................................................................21
About System Setup............................................................................................................................22
Enabling Console Redirection...................................................................................................... 22
Entering System Setup.................................................................................................................. 22
System Setup Main Menu..............................................................................................................22
System BIOS screen...................................................................................................................... 22
System Information screen...........................................................................................................23
Memory Settings screen............................................................................................................... 24
Processor Settings screen ............................................................................................................24
SATA Settings screen ....................................................................................................................26
Boot Settings screen..................................................................................................................... 28
Network Settings screen...............................................................................................................28
Integrated Devices screen ........................................................................................................... 29
Serial Communication screen...................................................................................................... 30
System Profile Settings screen...................................................................................................... 31
System Security Settings screen................................................................................................... 32
Miscellaneous Settings screen......................................................................................................34
About Boot Manager...........................................................................................................................35
3
Page 4
Entering Boot Manager ................................................................................................................ 35
Boot Manager main menu............................................................................................................ 35
Changing the boot order....................................................................................................................36
Choosing the system boot mode.......................................................................................................36
Assigning a system and setup password............................................................................................ 37
Deleting or changing an existing system password or setup password...........................................37
4 Installing and removing system components...............................................39
Safety instructions...............................................................................................................................39
Before working inside your system.................................................................................................... 39
After working inside your system....................................................................................................... 39
Recommended tools..........................................................................................................................40
System covers..................................................................................................................................... 40

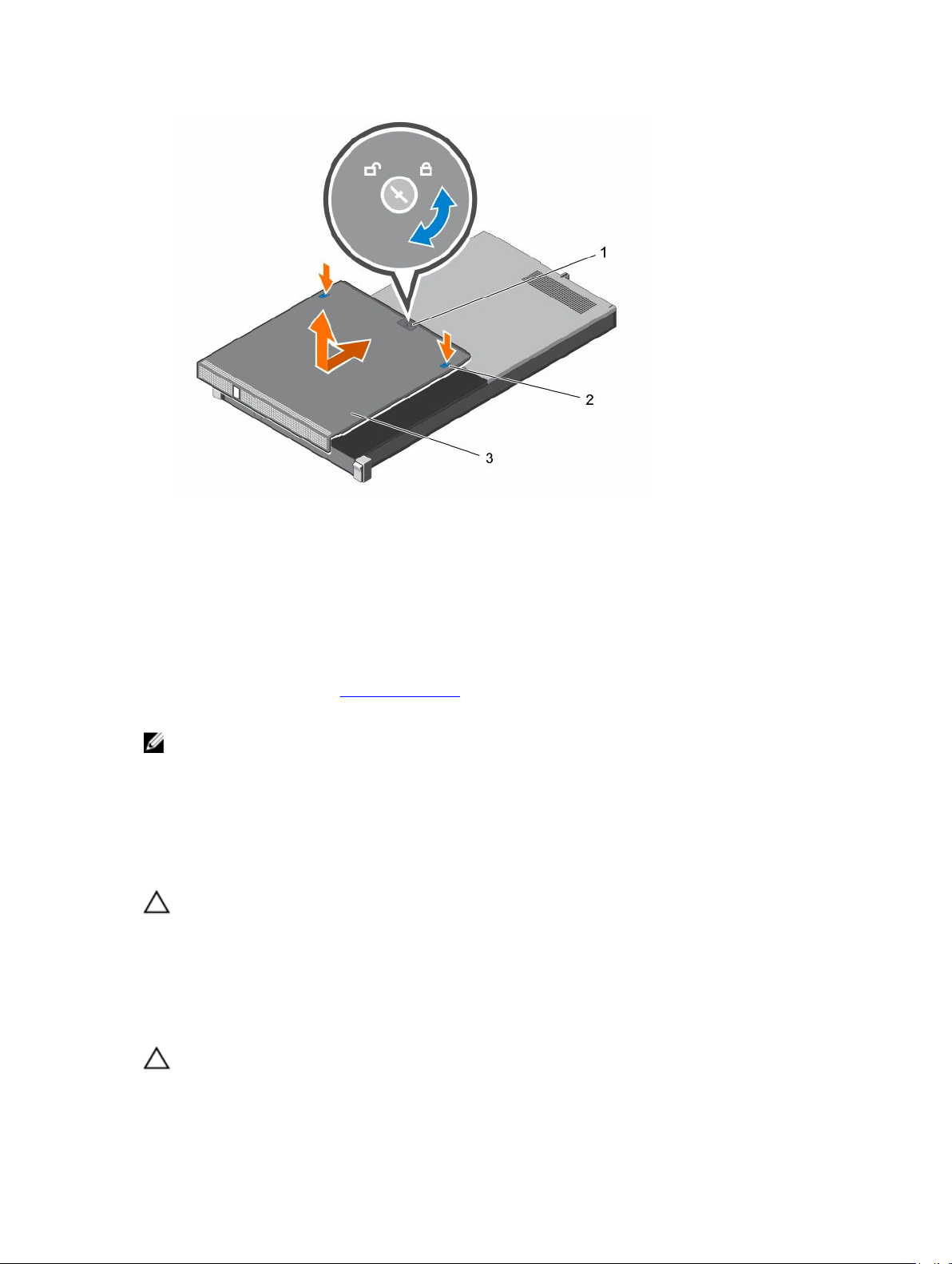

Removing the system top cover (front)....................................................................................... 40
Installing the system top cover (front)..........................................................................................41
Removing the system top cover (back)........................................................................................ 41
Installing the system top cover (back)..........................................................................................42

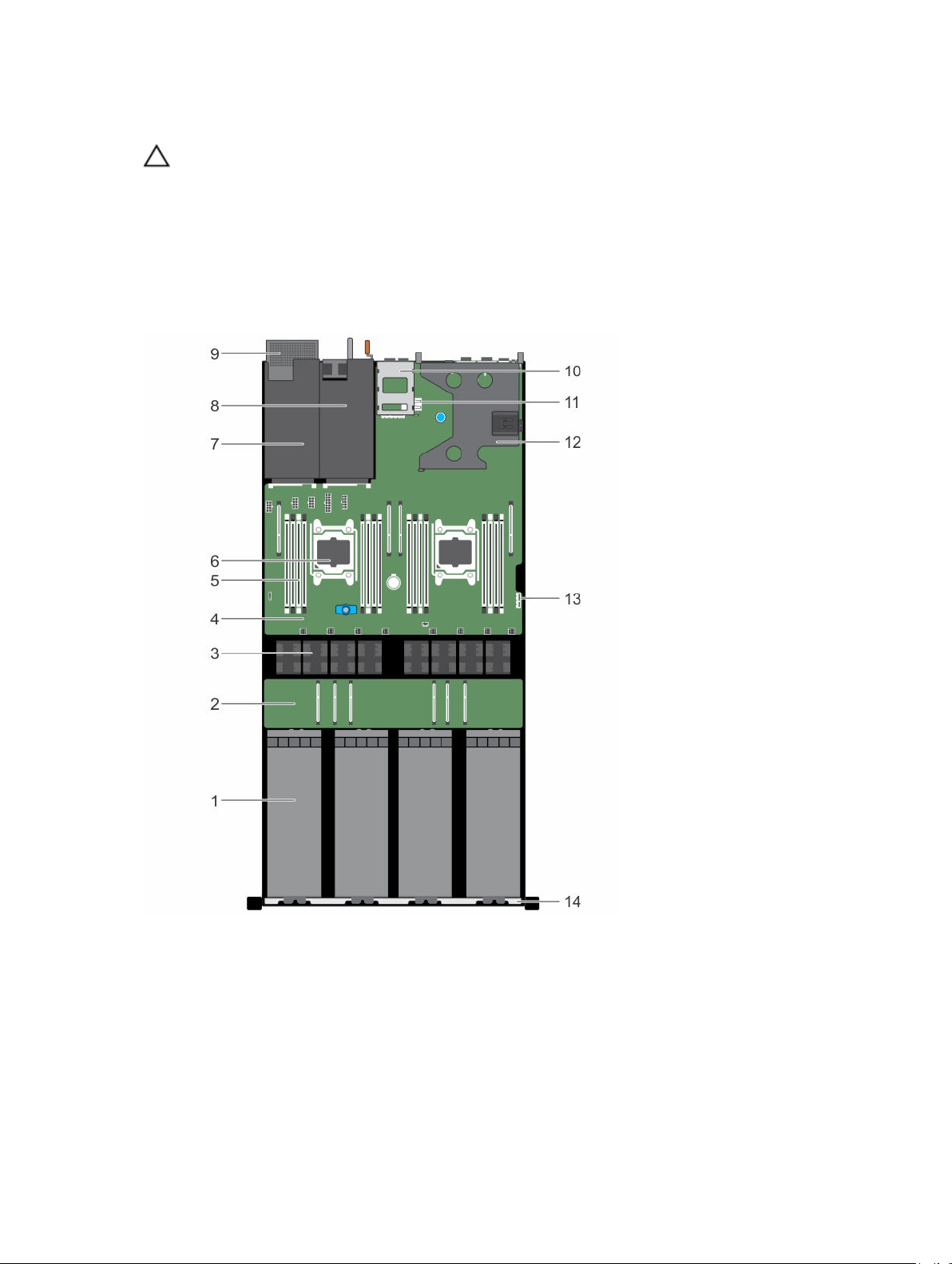

Inside the system.................................................................................................................................43

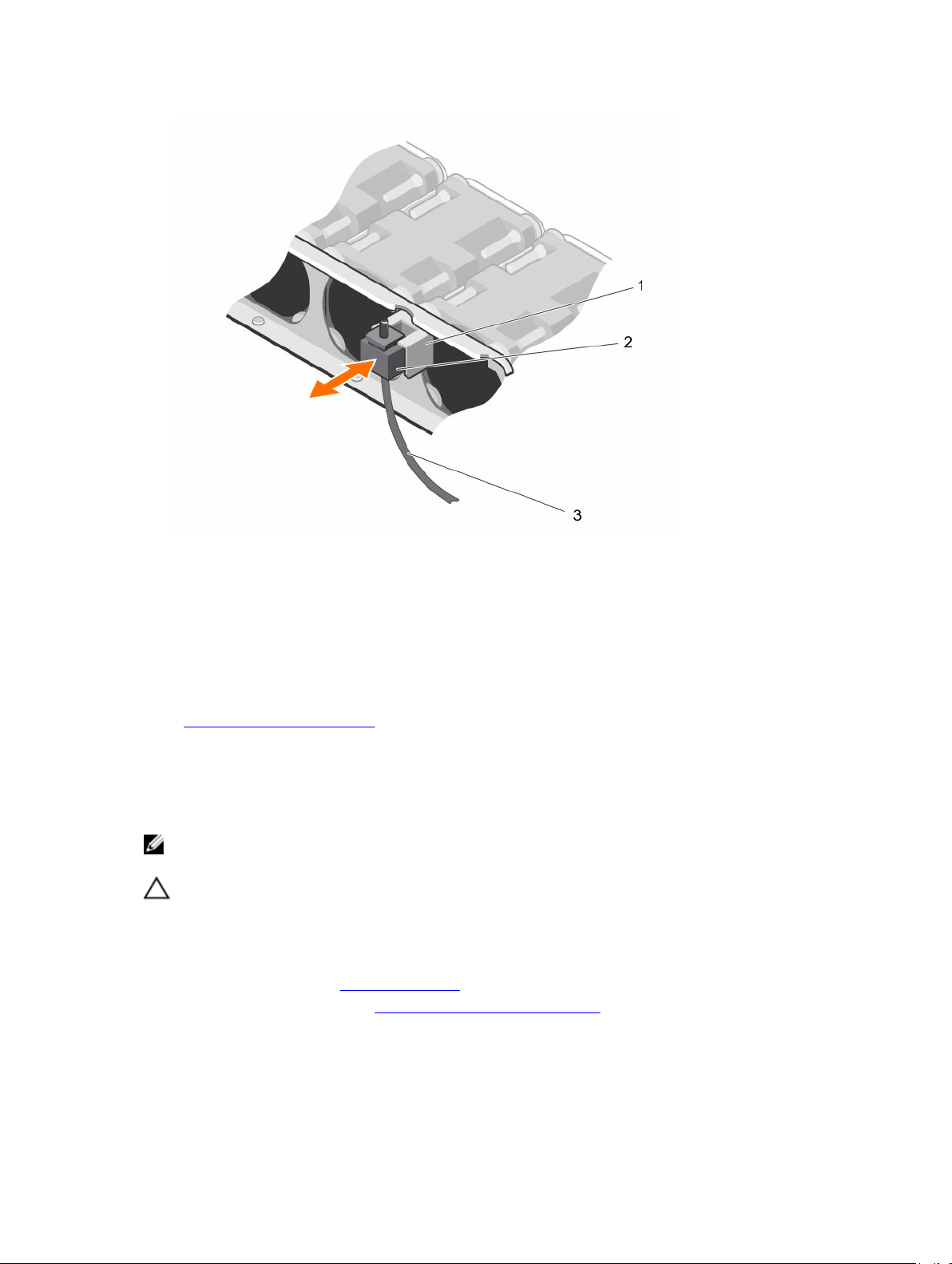

Intrusion switch...................................................................................................................................44
Removing the intrusion switch.....................................................................................................44
Installing the intrusion switch.......................................................................................................45

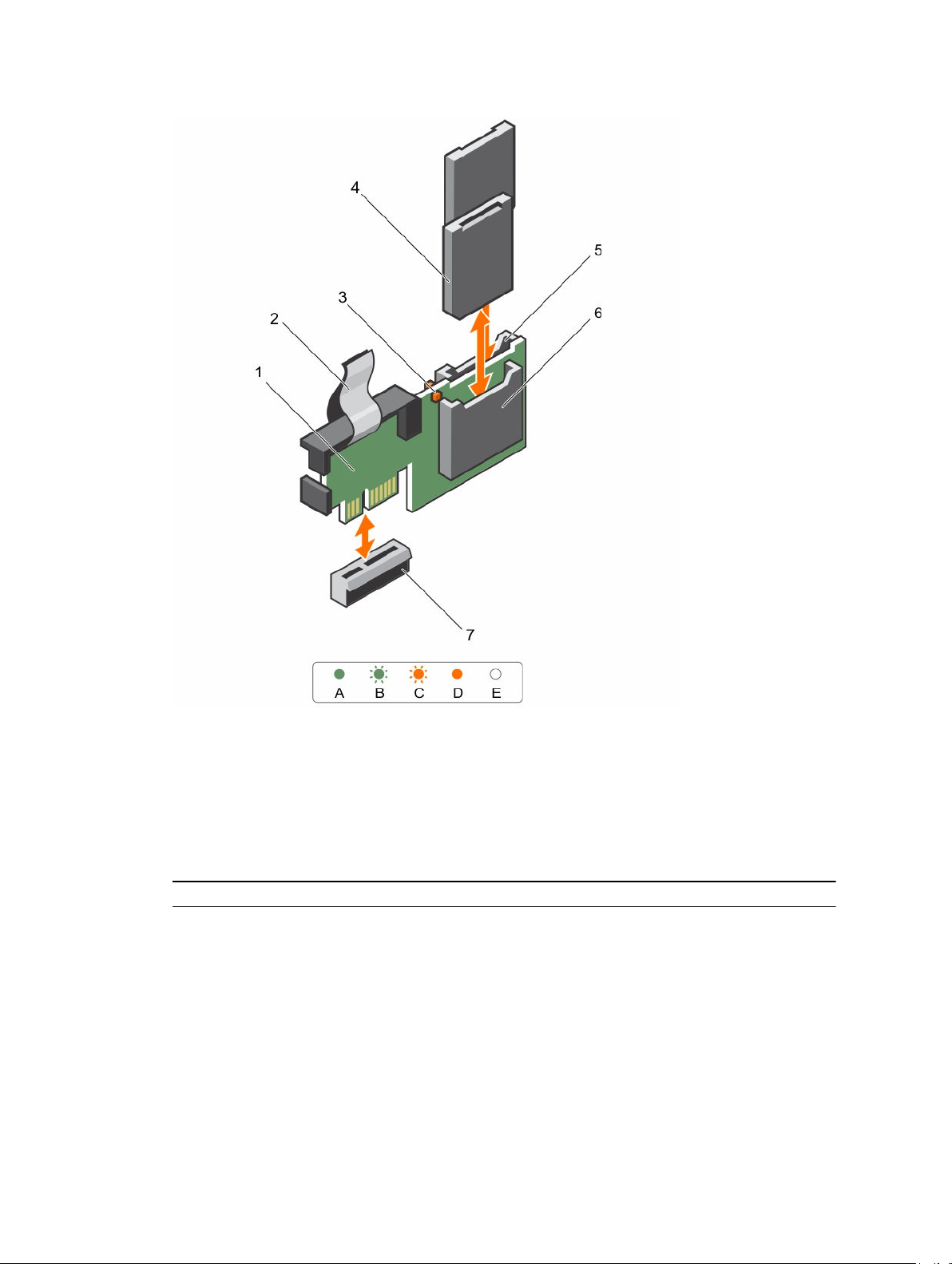

Internal dual SD module (optional).................................................................................................... 46
Removing an internal SD card......................................................................................................46
Installing an internal SD card........................................................................................................46
Removing the internal dual SD module ...................................................................................... 47
Installing the internal dual SD module ........................................................................................ 49

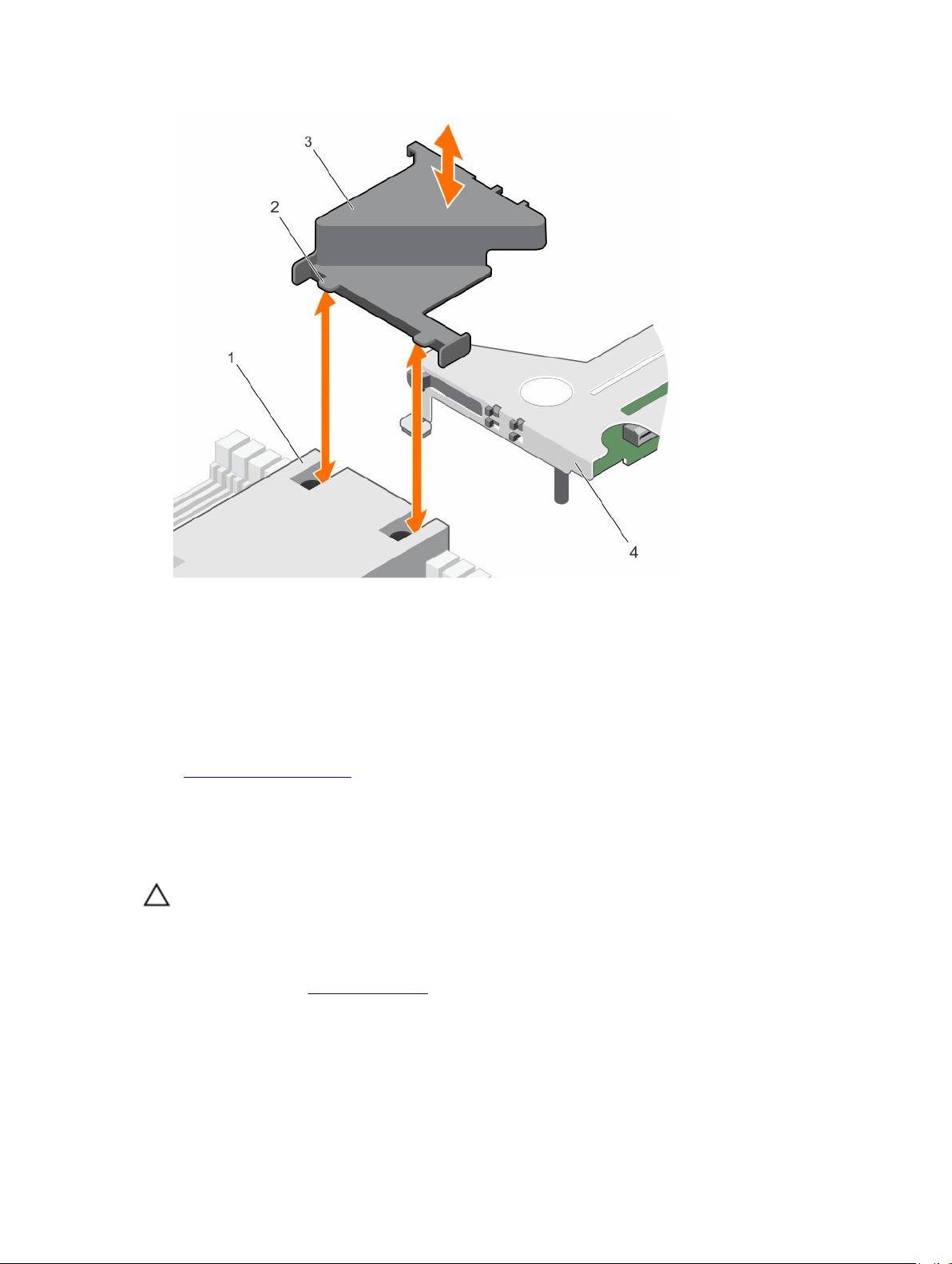

Cooling shroud................................................................................................................................... 49
Removing the cooling shroud......................................................................................................50
Installing the cooling shroud.........................................................................................................51
Processor blank................................................................................................................................... 51
Removing a processor blank.........................................................................................................51
Installing a processor blank.......................................................................................................... 52

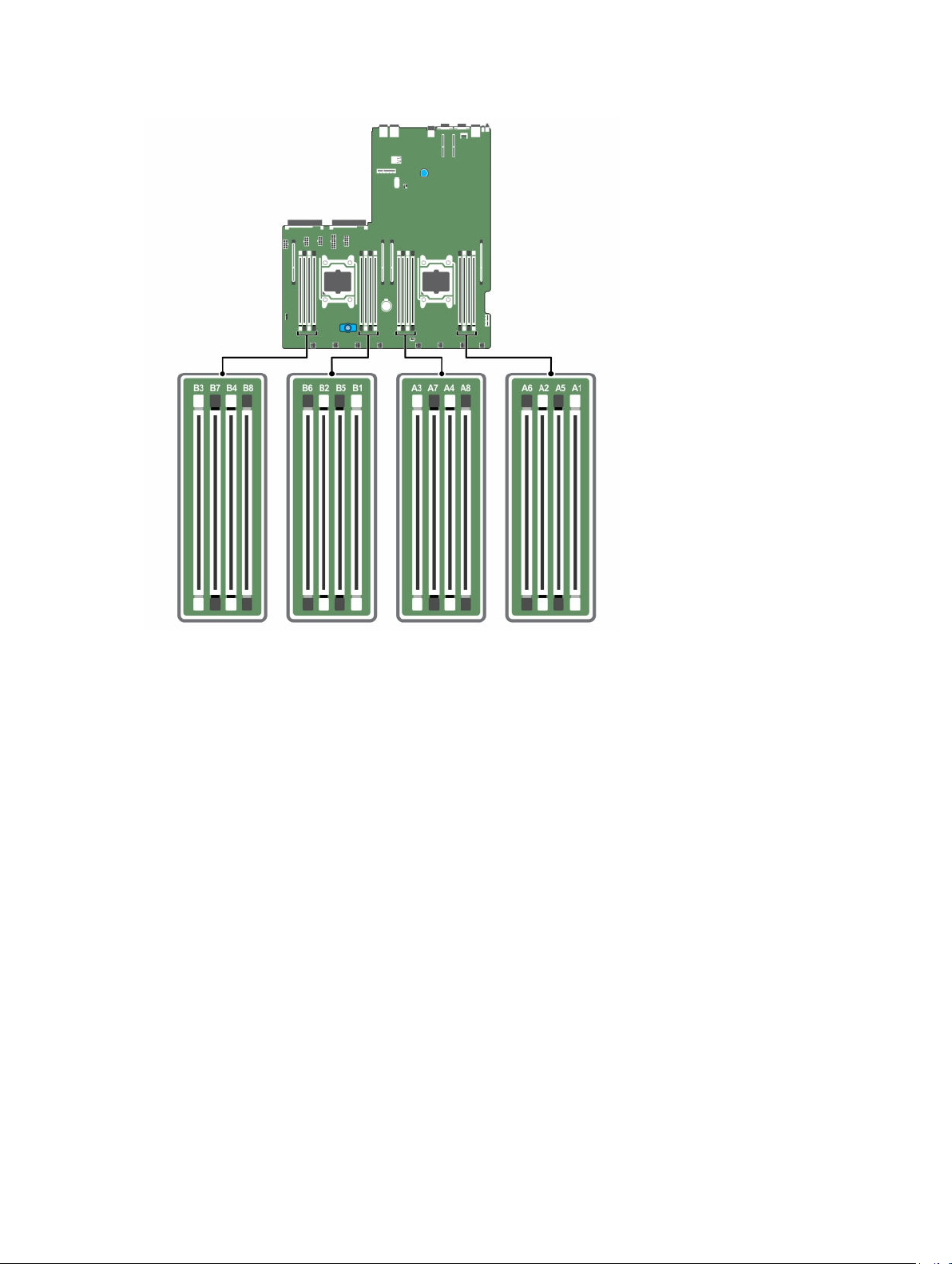

System memory.................................................................................................................................. 53
General memory module installation guidelines.........................................................................55
Mode-specific guidelines..............................................................................................................55
Sample memory configurations................................................................................................... 57

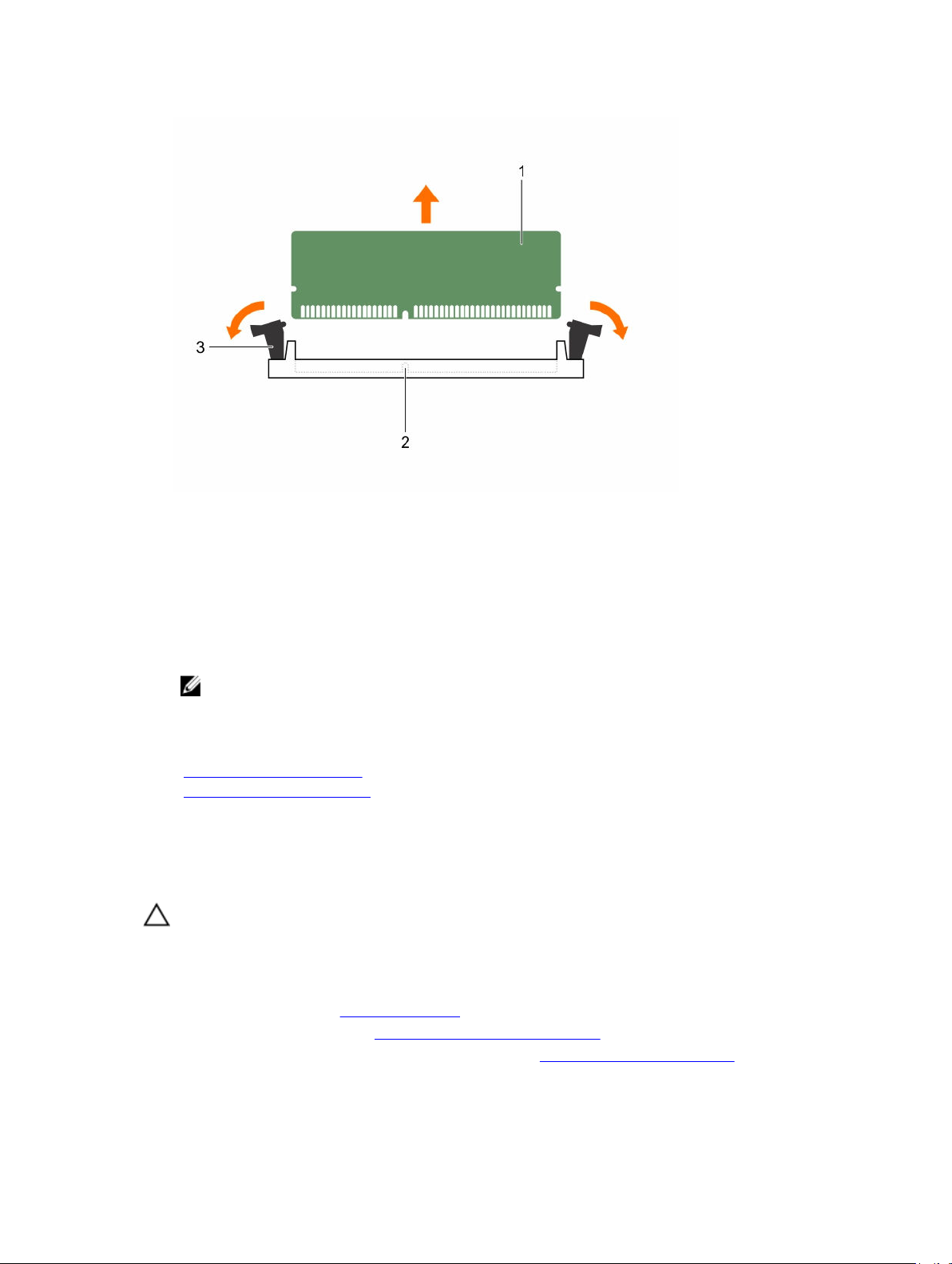

Removing memory modules........................................................................................................60
Installing memory modules...........................................................................................................61
Processors........................................................................................................................................... 63
Removing a heat sink....................................................................................................................64
Removing a processor.................................................................................................................. 65
Installing a processor.................................................................................................................... 69
4
Page 5
Installing a heat sink...................................................................................................................... 70
System battery.....................................................................................................................................72
Replacing the system battery........................................................................................................72
PCIe shroud.........................................................................................................................................74
Removing the PCIe shroud...........................................................................................................74
Installing the PCIe shroud............................................................................................................. 75
Expansion card riser and expansion cards......................................................................................... 76
Expansion card installation guidelines..........................................................................................76
Removing the expansion card riser.............................................................................................. 78
Installing the expansion card riser................................................................................................ 79
Removing expansion cards...........................................................................................................80
Installing expansion cards............................................................................................................. 81
Expansion card cabling diagrams.................................................................................................83
Power supply units..............................................................................................................................85
Hot Spare feature.......................................................................................................................... 85
Removing the power supply unit blank....................................................................................... 86
Installing the power supply unit blank..........................................................................................87
Removing an AC power supply unit............................................................................................. 87
Installing an AC power supply unit...............................................................................................88
Hard drives.......................................................................................................................................... 89
Removing the optional 2.5 inch hard drive cage.........................................................................89
Installing the optional 2.5 inch hard drive cage...........................................................................90
Removing the optional 2.5 inch hard drive cage cover...............................................................91
Installing the optional 2.5 inch hard drive cage cover.................................................................92
Removing 2.5 inch cabled hard drives from the hard drive cage............................................... 93
Installing a 2.5 inch cabled hard drive into the hard drive cage..................................................95
Hard drive cabling diagrams......................................................................................................... 97
uSATA SSDs......................................................................................................................................... 99
Removing a 1.8 inch uSATA SSD blank.........................................................................................99
Installing a 1.8 inch uSATA SSD blank........................................................................................ 100
Removing a 1.8 inch uSATA SSD carrier.....................................................................................100
Installing a 1.8 inch uSATA SSD carrier....................................................................................... 101
Removing a 1.8 inch uSATA SSD from a SSD carrier................................................................. 102
Installing a 1.8 inch uSATA SSD into a SSD carrier.....................................................................103
Removing the 1.8 inch uSATA SSD cage....................................................................................104
Installing the 1.8 inch uSATA SSD cage......................................................................................105
Removing the 1.8 inch uSATA SSD backplane........................................................................... 105
Installing the 1.8 inch uSATA SSD backplane.............................................................................106
Internal USB memory key (optional)................................................................................................ 107
Replacing the internal USB key...................................................................................................107
Cable routing clip..............................................................................................................................108
Removing the cable routing clip................................................................................................ 108
5
Page 6
Installing the cable routing clip.................................................................................................. 109
System board.....................................................................................................................................110
Removing the system board....................................................................................................... 110
Installing the system board..........................................................................................................112
Trusted Platform Module...................................................................................................................115
Installing the Trusted Platform Module.......................................................................................115
Re-enabling the TPM for BitLocker users...................................................................................116
Re-enabling the TPM for TXT users............................................................................................116
Cooling fans....................................................................................................................................... 117
Removing a cooling fan...............................................................................................................117
Installing a cooling fan................................................................................................................ 118
Graphics processing unit...................................................................................................................119
GPU installation guidelines..........................................................................................................119
Removing a GPU blank .............................................................................................................. 120
Removing a GPU riser cable from the system board................................................................. 121
Removing a GPU......................................................................................................................... 122
Removing a GPU riser cable board.............................................................................................124
Removing the custom GPU brackets from the GPU removed from your system................... 125
Removing the GPU brackets from the replacement GPUs........................................................127
Installing the GPU brackets on the GPU removed from your system...................................... 129
Installing the custom GPU brackets on the replacement GPU.................................................130
Installing a GPU riser cable board.............................................................................................. 130
Installing a GPU blank..................................................................................................................131
Installing a GPU........................................................................................................................... 132
Installing a GPU riser cable on the system board...................................................................... 132
GPU cabling diagrams.................................................................................................................134
GPU switch board (optional)............................................................................................................ 148
Removing the optional GPU switch board ................................................................................148
Installing the optional GPU switch board ..................................................................................149
Control panel module.......................................................................................................................150
Removing the control panel module......................................................................................... 150
Installing the control panel module............................................................................................151
5 Troubleshooting your system........................................................................ 153
Safety first—for you and your system...............................................................................................153
Troubleshooting system startup failure............................................................................................153
Troubleshooting external connections............................................................................................153
Troubleshooting the video subsystem............................................................................................. 153
Troubleshooting a USB device......................................................................................................... 154
Troubleshooting a serial I/O device................................................................................................. 154
Troubleshooting a NIC......................................................................................................................155
Troubleshooting a wet system......................................................................................................... 155
6
Page 7
Troubleshooting a damaged system................................................................................................156
Troubleshooting the system battery.................................................................................................157
Troubleshooting power supply units............................................................................................... 158
Troubleshooting power source problems................................................................................. 158
Troubleshooting power supply unit problems...........................................................................158
Troubleshooting cooling problems..................................................................................................159
Troubleshooting cooling fans.......................................................................................................... 159
Troubleshooting system memory....................................................................................................160
Troubleshooting an internal USB key............................................................................................... 161
Troubleshooting an SD card............................................................................................................. 161
Troubleshooting a hard drive........................................................................................................... 162
Troubleshooting a storage controller.............................................................................................. 163
Troubleshooting expansion cards....................................................................................................164
Troubleshooting processors.............................................................................................................164
Troubleshooting a GPU.................................................................................................................... 165
System messages.............................................................................................................................. 165
Warning messages.......................................................................................................................165
Diagnostic messages...................................................................................................................165
Alert messages.............................................................................................................................166
6 Using system diagnostics................................................................................167
Dell Embedded System Diagnostics.................................................................................................167
When to use the Embedded System Diagnostics...................................................................... 167
Running the Embedded System Diagnostics from Boot Manager............................................167
Running the Embedded System Diagnostics from the Dell Lifecycle Controller.................... 168
System diagnostic controls.........................................................................................................168
7 Jumpers and connectors................................................................................ 169
System board jumper settings..........................................................................................................169
System board connectors.................................................................................................................170
Disabling a forgotten password........................................................................................................ 171
8 Technical specifications..................................................................................173
9 Getting help....................................................................................................... 177
Contacting Dell..................................................................................................................................177
Locating your system service tag......................................................................................................177
Mini Express Service Tag............................................................................................................. 178
Quick Resource Locator .................................................................................................................. 178
7
Page 8
About the PowerEdge C4130 system
The Dell PowerEdge C4130 rack servers support up to:
• Two Intel Xeon E5-2600 v3 processors
• Sixteen DIMMs
• Four 2.5 inch hard drives (optional)
• Two 1.8 inch solid state drives (SSDs)
• Two power supply units (PSUs)
• Four graphics processing units (GPUs)
NOTE: All GPU cards must be of the same type and model. Mixing GPUs is not supported.
NOTE: The PSU 2 slot also functions as the optional 2.5 inch hard drive cage slot. If you install the
optional 2.5 inch hard drives, your system will not support the redundancy feature.
Supported configurations on PowerEdge C4130 systems
Table 1. Supported configurations
1
PowerEdge
C4130
systems
Single
processor
systems
Dual
processor
systems
8
Configuration
type
A Supports four GPUs and a GPU
E Supports two GPUs but does not
B Supports four GPUs and a GPU
C Supports four GPUs but does not
D Supports two GPUs but does not
G Supports four GPUs and a GPU
F Supports two GPUs but does not
Description Expansion card
slot 1
x8 x16
switch board.
x8 Not supported
support a GPU switch board.
x8 x16
switch board.
x8 x8
support a GPU switch board.
x16 x16
support a GPU switch board.
x16 x16
switch board with dual GPU virtual
mode.
x8 x8
support a GPU switch board.
Expansion
card slot 2
Page 9
PowerEdge
C4130
systems
Configuration
type
Description Expansion card
slot 1
Expansion
card slot 2
H Supports three GPUs but does not
support a GPU switch board.
I Supports three GPUs but does not
support a GPU switch board.
NOTE: Incorrect removal and installation of the GPUs will cause operational issues to your system.
x8 x8
x8 Not supported
Customer and field replaceable units
The following components are Customer Replaceable Units (CRUs):
• Cooling fans
• Expansion card riser
• Expansion cards
• Internal dual SD module (IDSDM)
• SD cards
• Internal USB keys
• Power supply units (PSUs)
• 1.8 inch uSATA SSDs
• 1.8 inch uSATA SSD cage
• 1.8 inch uSATA SSD backplane
• 2.5 inch hard drives
• 2.5 inch hard drive cage
• Memory modules
• PCI shroud
• Cooling shroud
• Cable routing clip
• Heat sinks and processors
The following components are Field Replaceable Units (FRUs). Removal and installation procedures
should be performed only by Dell certified service technicians.
• Graphics processing units (GPUs)
• GPU switch board
• GPU riser cable board
• GPU brackets
• GPU blanks
• Intrusion switch
• System board
• Trusted Platform Module (TPM)
• System battery
9
Page 10
• Control panel module
Front panel features and indicators
Figure 1. Front panel features and indicators
Item Indicator, button, or
connector
1 Health indicator Indicates the health of the system.
2 Ambient air temperature
sensor
3 Power-on indicator,
power button
Icon Description
• If the system is on and in good health, the
indicator lights solid blue. No corrective action
is required.
• The indicator blinks amber if the system is on or
in standby, and if any error exists (for example, a
failed fan). See the System Event Log or system
messages for the specific issue. For more
information on error messages, see the Dell
Event and Error Messages Reference Guide at
dell.com/esmmanuals. Invalid memory
configurations can cause the system to halt at
startup without any video output. See Getting
help.
Measures the ambient air temperature.
The power-on indicator lights when the system
power is on. The power button controls the power
supply output to the system.
NOTE: On ACPI-compliant operating systems,
turning off the system using the power button
causes the system to perform a graceful
shutdown before power to the system is
turned off.
4 System identification
button
10
The identification button on the front and back
panels can be used to locate a particular system
within a rack. When one of these buttons is pressed,
the corresponding system identification button on
Page 11
Item Indicator, button, or
connector
5 Control panel Consists of the health indicator, ambient air
Icon Description
the back flashes until one of the buttons is pressed
again.
Press the system identification button to turn the
system ID on or off.
If the system stops responding during POST, press
and hold the system ID button for more than five
seconds to enter BIOS progress mode.
To reset iDRAC (if not disabled in F2 iDRAC setup),
press and hold the button for more than 15
seconds.
temperature sensor, power-on indicator, power
button, and the system identification button.
Back panel features and indicators
Figure 2. Back panel features and indicators—PowerEdge C4130
Item Indicator, button, or
connector
1 System identification
button
Icon Description
The identification button on the front and back
panels can be used to locate a particular system
within a rack. When one of these buttons is
pressed, the corresponding system identification
button on the back flashes until one of the buttons
is pressed again.
Press the system identification button to turn the
system ID on or off.
If the system stops responding during POST, press
and hold the system ID button for more than five
seconds to enter BIOS progress mode.
11
Page 12
Item Indicator, button, or
connector
Icon Description
To reset iDRAC (if not disabled in F2 iDRAC setup),
press and hold the button for more than 15
seconds.
2 NMI button
3 iDRAC8 Enterprise port Dedicated management port.
4 Half-height PCIe
expansion card slot 1
5 Serial connector Allows you to connect a serial device to the
6 Video connector Allows you to connect a VGA display to the system.
7 USB connector (2) Allows you to connect USB devices to the system.
8 Half-height PCIe
expansion card slot 2
9 Information tag A slide-out label panel which allows you to record
Used to troubleshoot software and device driver
errors when running certain operating systems.
This button can be pressed using the end of a
paper clip.
Use this button only if directed to do so by
qualified support personnel or by the operating
system documentation.
Allows you to connect half-height, half-length, low
profile PCI Express expansion cards.
system.
The ports are USB 3.0-compliant.
Allows you to connect half-height, half-length, low
profile PCI Express expansion cards.
system information such as Service Tag, NIC, MAC
address and so on as per your need.
10 Ethernet connector (2) Two integrated 10/100/1000/Mbps NIC
connectors.
11 Hard drive (2) Up to two 1.8 inch uSATA SSDs.
12 Power supply unit (PSU1) One 1600 W or 1100 W PSU.
13 Power supply unit
(PSU2)/2.5 inch Hard
drive cage slot
12
One 1600 W or 1100 W PSU or up to four 2.5 inch
cabled hard drives.
Page 13
NIC indicator codes
Figure 3. NIC indicators
1. link indicator 2. activity indicator
Convention Indicator pattern Description
A Link and activity indicators
are OFF
B Link indicator is green The NIC is connected to a valid network at its maximum
C Link indicator is yellow The NIC is connected to a valid network at less than its
D Activity indicator is blinking
green
The NIC is not connected to the network.
port speed (1 Gbps).
maximum port speed.
Network data is being sent or received.
13
Page 14
uSATA SSD indicator codes
Figure 4. uSATA SSD indicators
1. uSATA SSD activity indicator 2. uSATA SSD status indicator
3. uSATA SSD
NOTE: If the SSD is in Advanced Host Controller Interface (AHCI) mode, the status indicator (on the
right side) does not function and remains off.
Drive-status indicator pattern Condition
Blinks green two times per second Identifying drive or preparing for removal.
Off Drive ready for insertion or removal.
NOTE: The drive status indicator remains off until
all hard drives are initialized after the system is
turned on. Drives are not ready for insertion or
removal during this time.
Blinks green, amber, and turns off Predicted drive failure
Blinks amber four times per second Drive failed
Steady green Drive online
Blinks green three seconds, amber three
seconds, and turns off six seconds
Rebuild aborted
Redundant power supply indicator codes
Each AC power supply unit (PSU) has an illuminated translucent handle that indicates whether power is
present or whether a power fault has occurred.
14
Page 15
Figure 5. AC PSU status indicator
1. AC PSU status indicator/handle
Convention Power Indicator
Description
Pattern
A Green A valid power source is connected to the PSU and the PSU is
operational.
B Flashing green When the firmware of the PSU is being updated, the PSU handle
flashes green.
CAUTION: Do not disconnect the power cord or unplug the
PSU when updating firmware. If firmware update is
interrupted, the PSUs will not function. You must roll back the
PSU firmware by using Life cycle controller. See Dell Lifecycle
Controller User’s Guide at dell.com/esmmanuals.
C Flashing green
and turns off
When hot-adding a PSU, the PSU handle flashes green five times at
4 Hz rate and turns off. This indicates that there is a PSU mismatch
with respect to efficiency, feature set, health status, and supported
voltage. Replace the PSU with a PSU that matches the capacity of
the PSU.
CAUTION: For AC power supplies, use only PSUs with the
Extended Power Performance (EPP) label on the back. Mixing
PSUs from previous generations of PowerEdge servers can
result in a PSU mismatch condition or failure to power on.
D Flashing amber Indicates a problem with the PSU.
15
Page 16
Convention Power Indicator
Pattern
E Not lit Power is not connected.
Description
CAUTION: When correcting a PSU mismatch, replace only the
PSU with the flashing indicator. Swapping the other PSU to
make a matched pair can result in an error condition and
unexpected system shutdown. To change from a High Output
configuration to a Low Output configuration or vice versa,
you must power down the system.
CAUTION: AC PSUs support both 220 V and 110 V input
voltages with the exception of Titanium PSUs, which support
only 220 V. When two identical PSUs receive different input
voltages, they can output different wattages, and trigger a
mismatch.
CAUTION: If two PSUs are used, they must be of the same type
and have the same maximum output power.
CAUTION: Combining AC and DC PSUs is not supported and
triggers a mismatch.
Documentation matrix
The documentation matrix provides information on documents that you can refer to for setting up and
managing your system.
To... Refer to...
Install your system into a rack Rack documentation included with your rack
solution
Set up your system and know the system technical
specifications
Install the operating system Operating system documentation at dell.com/
Get an overview of the Dell Systems Management
offerings
Configure and log in to iDRAC, set up managed
and management system, know the iDRAC
features and troubleshoot using iDRAC
Know about the RACADM subcommands and
supported RACADM interfaces
Launch, enable and disable Lifecycle Controller,
know the features, use and troubleshoot Lifecycle
Controller
Getting Started With Your System that shipped with
your system or see dell.com/poweredgemanuals
operatingsystemmanuals
Dell OpenManage Systems Management Overview
Guide at dell.com/openmanagemanuals
Integrated Dell Remote Access Controller User's
Guide at dell.com/esmmanuals
RACADM Command Line Reference Guide for
iDRAC and CMC at dell.com/esmmanuals
Dell Lifecycle Controller User’s Guide at dell.com/
esmmanuals
16
Page 17
To... Refer to...
Use Lifecycle Controller Remote Services Dell Lifecycle Controller Remote Services Quick
Start Guide at dell.com/esmmanuals
Set up, use, and troubleshoot OpenManage Server
Administrator
Install, use, and troubleshoot OpenManage
Essentials
Know the features of the storage controller cards,
deploy the cards, and manage the storage
subsystem
Check the event and error messages generated by
the system firmware and agents that monitor
system components
Dell OpenManage Server Administrator User’s
Guide at dell.com/openmanagemanuals
Dell OpenManage Essentials User’s Guide at
dell.com/openmanagemanuals
Storage controller documentation at dell.com/
storagecontrollermanuals
Dell Event and Error Messages Reference Guide at
dell.com/esmmanuals
Quick Resource Locator
Use the Quick Resource Locator (QRL) to get immediate access to system information and how-to
videos. This can be done by visiting dell.com/QRL or by using your smartphone or tablet and a model
specific Quick Resource (QR) code located on your Dell PowerEdge system. To try out the QR code, scan
the following image.
17
Page 18
2
Performing initial system configuration
After you receive your system, you must set up your system, install the operating system if it is not preinstalled, and set up and configure the system iDRAC IP address.
Setting up your system
1. Unpack the system.
2. Install the system into the rack. For more information on installing the system into the rack, see your
system Rack Installation Placemat at dell.com/poweredgemanuals.
3. Connect the peripherals to the system.
4. Connect the system to its electrical outlet.
5. Turn the system on by pressing the power button or using iDRAC.
6. Turn on the attached peripherals.
Methods of setting up and configuring the iDRAC IP address
You can set up the Integrated Dell Remote Access Controller (iDRAC) IP address by using one of the
following interfaces:
1. iDRAC Settings utility.
2. Lifecycle Controller.
3. Dell Deployment Toolkit.
You can configure iDRAC IP using:
1. iDRAC Web Interface.
For more information, see the Integrated Dell Remote Access Controller User's Guide.
2. Remote Access Controller ADMin (RACADM).
For more information, see the RACADM Command Line Interface Reference Guide and the
Integrated Dell Remote Access Controller User's Guide.
3. Remote Services that includes Web Services Management (WS-Man). For more information, see the
Lifecycle Controller Remote Services Quick Start Guide.
For more information on setting up and configuring iDRAC, see the Integrated Dell Remote Access
Controller User's Guide at dell.com/esmmanuals.
18
Page 19
Logging in to iDRAC
You can log in to iDRAC as an iDRAC local user, a Microsoft Active Directory user, or a Lightweight
Directory Access Protocol (LDAP) user. You can also log in by using Single Sign-On or a Smart Card. The
default user name is root and password is calvin. For more information on logging in to iDRAC and
iDRAC licenses, see the Integrated Dell Remote Access Controller User's Guide at dell.com/esmmanuals.
You can also access iDRAC using RACADM. For more information, see the RACADM Command Line
Interface Reference Guide and the Integrated Dell Remote Access Controller User's Guide available at
dell.com/esmmanuals.
Methods of installing the operating system
If the system is shipped without an operating system, install the supported operating system on the
system by using one of the following methods:
• Dell Systems Management Tools and Documentation media. See the operating system
documentation at dell.com/operatingsystemmanuals.
• Dell Lifecycle Controller. See the Lifecycle Controller documentation at dell.com/esmmanuals.
• Dell OpenManage Deployment Toolkit. See the OpenManage documentation at dell.com/
openmanagemanuals.
For information on the list of operating systems supported on your system, see the operating systems
support matrix at dell.com/ossupport.
Managing your system remotely
To perform out-of-band systems management using iDRAC, you must configure iDRAC for remote
accessibility, set up the management station and managed system, and configure the supported Web
browsers. For more information, see the Integrated Dell Remote Access Controller User’s Guide at
dell.com/esmmanuals.
You can also remotely monitor and manage the server by using the Dell OpenManage Server
Administrator (OMSA) software and OpenManage Essentials (OME) systems management console. For
more information, see dell.com/openmanagemanuals.
Downloading drivers and firmware
It is recommended that you download and install the latest BIOS, drivers, and systems management
firmware on your system.
Prerequisites
Ensure that you clear the web browser cache.
19
Page 20
Steps
1. Go to dell.com/support/drivers.
2. In the Product Selection section, enter the Service Tag of your system in the Service Tag or Express
Service Code field.
NOTE: If you do not have the Service Tag, select Automatically detect my Service Tag for me
to allow the system to automatically detect your Service Tag, or select Choose from a list of all
Dell products to select your product from the Product Selection page.
3. Click Get drivers and downloads.
The drivers that are applicable to your selection are displayed.
4. Download the drivers you require to a USB drive, CD, or DVD.
20
Page 21
3
Pre-operating system management applications
The pre-operating system management applications for your system helps you manage different settings
and features without booting to the operating system.
Your system has the following pre-operating system management applications:
• System Setup
• Boot Manager
• Dell Lifecycle Controller
Navigation keys
The navigation keys can help you quickly access the pre-operating system management applications.
Key Description
<Page Up> Moves to the previous screen.
<Page
Down>
Up arrow Moves to the previous field.
Down
arrow
<Enter> Enables you to type a value in the selected field (if applicable) or follow the link in the field.
Spacebar Expands or collapses a drop-down list, if applicable.
<Tab> Moves to the next focus area.
<Esc> Moves to the previous page until you view the main screen. Pressing <Esc> in the main
<F1> Displays the System Setup help.
Moves to the next screen.
Moves to the next field.
NOTE: This feature is applicable for the standard graphic browser only.
screen exits System BIOS or iDRAC Settings/ Device Settings/Service Tag Settings and
proceeds with system boot.
21
Page 22
About System Setup
Using System Setup, you can configure the BIOS settings, iDRAC settings, and device settings of your
system.
You can access System Setup in two ways:
• Standard Graphical Browser — This is enabled by default.
• Text Browser — This is enabled by using Console Redirection.
NOTE: By default, help text for the selected field is displayed in the graphical browser. To view the
help text in the text browser, press <F1>.
Enabling Console Redirection
To enable Console Redirection, in System Setup, select System BIOS → Serial Communication → On
with Console Redirection via COMx (or Auto if a serial terminal is present).
Entering System Setup
1. Turn on or restart your system.
2. Press <F2> immediately after you see the following message:
<F2> = System Setup
If your operating system begins to load before you press <F2>, wait for the system to finish booting,
and then restart your system and try again.
System Setup Main Menu
Option Description
System BIOS Enables you to configure BIOS settings.
iDRAC Settings Enables you to configure iDRAC settings.
The iDRAC Settings utility is an interface to set up and configure the
iDRAC parameters by using UEFI. You can enable or disable various
iDRAC parameters by using the iDRAC Settings utility. For more
information about this utility, see the Integrated Dell Remote Access
Controller User’s Guide at dell.com/esmmanuals.
Device Settings Enables you to configure device settings.
System BIOS screen
By using the System BIOS screen, you can view the BIOS settings as well as edit specific functions such
as Boot Order, System Password, Setup Password, setting the RAID mode, and enabling or disabling USB
ports.
To view the System BIOS screen click System BIOS on the System Setup Main Menu.
22
Page 23
The System BIOS screen details are explained as follows:
Menu Item Description
System Information Displays information about the system such as the system model name,
BIOS version and Service Tag.
Memory Settings Displays information and options related to the installed memory.
Processor Settings Displays information and options related to the processor such as speed,
cache size.
SATA Settings Displays options to enable or disable the integrated SATA controller and
ports.
Boot Settings Displays options to specify the boot mode (BIOS or UEFI). Enables you to
modify UEFI and BIOS boot settings.
Network Settings Displays options to change the network settings.
Integrated Devices Displays options to enable or disable integrated device controllers and
ports and specify related features and options.
Serial Communication Displays options to enable or disable the serial ports and specify related
features and options.
System Profile Settings Displays options to change the processor power management settings,
memory frequency, and so on.
System Security Displays options to configure the system security settings such as, system
password, setup password, TPM security. It also enables or disables
support for the power and NMI buttons on the system.
Miscellaneous Settings Displays options to change the system date, time, and so on.
System Information screen
You can use the System Information screen to view system properties such as Service Tag, system
model, and the BIOS version.
To view the System Information click System Setup Main Menu → System BIOS → System Information.
The System Information screen details are explained as follows:
Menu Item Description
System Model Name Displays the system model name.
System BIOS Version Displays the BIOS version installed on the system.
System Management
Engine Version
System Service Tag Displays the system service tag.
System Manufacturer Displays the name of the system manufacturer.
System Manufacturer
Contact Information
System CPLD Version Displays the current revision of the system CPLD firmware.
UEFI Compliance Version Displays the system firmware UEFI compliance level.
Displays the current revision of the Management Engine firmware.
Displays the contact information of the system manufacturer.
23
Page 24
Memory Settings screen
You can use the Memory Settings screen to view all the memory settings as well as enable or disable
specific memory functions such as system memory testing and node interleaving.
You can view the Memory Setting screen by clicking System Setup Main Menu → System BIOS →
Memory Settings.
The Memory Settings screen details are explained as follows:
Menu Item Description
System Memory Size Displays the amount of memory installed in the system.
System Memory Type Displays the type of memory installed in the system.
System Memory Speed Displays the system memory speed.
System Memory Voltage Displays the system memory voltage.
Video Memory Displays the amount of video memory.
System Memory Testing Specifies whether system memory tests are run during system boot.
Options are Enabled and Disabled. By default, the System Memory
Testing option is set to Disabled.
Memory Operating Mode Specifies the memory operating mode. The options available are
Optimizer Mode, Advanced ECC Mode, Mirror Mode, Spare Mode,
Spare with Advanced ECC Mode, and Dell Fault Resilient Mode. By
default, the Memory Operating Mode option is set to Optimizer Mode.
NOTE: The Memory Operating Mode can have different default and
available options based on the memory configuration of your
system.
NOTE: The Dell Fault Resilient Mode establishes an area of memory
that is fault resilient. This mode can be used by an operating system
that supports the feature to load critical applications or enables the
operating system kernel to maximize system availability.
Node Interleaving Specifies if Non-Uniform Memory architecture (NUMA) is supported. If
this field is Enabled, memory interleaving is supported if a symmetric
memory configuration is installed. If Disabled, the system supports
NUMA (asymmetric) memory configurations. By default, Node
Interleaving
Snoop Mode Specifies the Snoop Mode options. Snoop Mode options available are
Home Snoop, Early Snoop, Cluster on Die. By default, the Snoop Mode
option is set to Early Snoop. The field is available only when Node
Interleaving is Disabled.
option is set to Disabled.
Processor Settings screen
You can use the Processor Settings screen to view the processor settings and perform functions such as
enabling virtualization technology, hardware prefetcher, and logical processor idling.
You can view the Processor Settings screen by clicking System Setup Main Menu → System BIOS →
Processor Settings.
24
Page 25
The Processor Settings screen details are explained as follows:
Menu Item Description
Logical Processor Enables or disables the logical processors and displays the
number of logical processors. If the Logical Processor option
is set to Enabled, the BIOS displays all the logical processors.
If this option is set to Disabled, the BIOS displays only one
logical processor per core. By default, the Logical Processor
option is set to Enabled.
Alternate RTID (Requestor Transaction
ID) Setting
Virtualization Technology Enables or disables the additional hardware capabilities
Address Translation Service (ATS) Defines the Address Translation Cache (ATC) for devices to
Adjacent Cache Line Prefetch Optimizes the system for applications that require high
Hardware Prefetcher Enables or disables the hardware prefetcher. By default, the
DCU Streamer Prefetcher Enables or disables the Data Cache Unit (DCU) streamer
Enables you to allocate more RTIDs to the remote socket,
thereby increasing cache performance between the sockets
or easing work in normal mode for NUMA. By default, the
Alternate RTID (Requestor Transaction ID) Setting is set to
Disabled.
provided for virtualization. By default, the Virtualization
Technology option is set to Enabled.
cache the DMA transactions. This field provides an interface
to a chipset's Address Translation and Protection Table to
translate DMA addresses to host addresses. By default, the
option is set to Enabled.
utilization of sequential memory access. By default, the
Adjacent Cache Line Prefetch option is set to Enabled. You
can disable this option for applications that require high
utilization of random memory access.
Hardware Prefetcher option is set to Enabled.
prefetcher. By default, the DCU Streamer Prefetcher option is
set to Enabled.
DCU IP Prefetcher Enables or disables the Data Cache Unit (DCU) IP prefetcher.
By default, the DCU IP Prefetcher option is set to Enabled.
Execute Disable Enables or disables the execute disable memory protection
technology. By default, the Execute Disable option is set to
Enabled.
Logical Processor Idling Enables or disables the operating system capability to put
logical processors in the idling state in order to reduce power
consumption. By default, the option is set to Disabled.
Configurable TDP Allows reconfiguration of Thermal Design Power (TDP) to
lower levels.
TDP refers to the maximum amount of power the cooling
system is required to dissipate.
25
Page 26
Menu Item Description
X2Apic Mode Enables or disables the X2Apic mode.
Number of Cores per Processor Controls the number of enabled cores in each processor. By
default, the Number of Cores per Processor option is set to
All.
Processor 64-bit Support Specifies if the processor(s) support 64-bit extensions.
Processor Core Speed Displays the maximum core frequency of the processor.
Processor 1
Family-Model-Stepping Displays the family, model and stepping of the processor as
Brand Displays the brand name reported by the processor.
Level 2 Cache Displays the total L2 cache.
Level 3 Cache Displays the total L3 cache.
Number of Cores Displays the number of cores per processor.
NOTE: Depending on the number of installed CPUs,
there may be up to four processor listings. The following
settings are displayed for each processor installed in the
system.
defined by Intel.
SATA Settings screen
You can use the SATA Settings screen to view the SATA settings of SATA devices and enable RAID on
your system.
You can view the SATA Settings screen by clicking System Setup Main Menu → System BIOS → SATA
Settings.
The SATA Settings screen details are explained below.
Menu Item Description
Embedded SATA Enables the embedded SATA to be set to Off, ATA, AHCI, or RAID modes.
By default, the Embedded SATA option is set to AHCI.
Security Freeze Lock Sends Security Freeze Lock command to the Embedded SATA drives
during POST. This option is only applicable to ATA and AHCI mode.
Write Cache Enables or disables the command for Embedded SATA drives during
POST.
Port A Sets the drive type of the selected device. For Embedded SATA settings
in ATA mode, set this field to Auto to enable BIOS support. Set it to OFF
to turn off BIOS support.
For AHCI mode or RAID mode, BIOS always enables support.
Model Displays the drive model of the selected device.
Drive Type Displays the type of drive attached to the SATA port.
Capacity Displays the total capacity of the hard drive. The field is undefined for
removable media devices such as optical drives.
26
Page 27
Menu Item Description
Port B Sets the drive type of the selected device. For Embedded SATA settings
in ATA mode, set this field to Auto to enable BIOS support. Set it to OFF
to turn off BIOS support.
For AHCI mode or RAID mode, BIOS always enables support.
Model Displays the drive model of the selected device.
Drive Type Displays the type of drive attached to the SATA port.
Capacity Displays the total capacity of the hard drive. The field is undefined for
removable media devices such as optical drives.
Port C Sets the drive type of the selected device. For Embedded SATA settings
in ATA mode, set this field to Auto to enable BIOS support. Set it to OFF
to turn off BIOS support.
For AHCI mode or RAID mode, BIOS always enables support.
Model Displays the drive model of the selected device.
Drive Type Displays the type of drive attached to the SATA port.
Capacity Displays the total capacity of the hard drive. The field is undefined for
removable media devices such as optical drives.
Port D Sets the drive type of the selected device. For Embedded SATA settings
in ATA mode, set this field to Auto to enable BIOS support. Set it to OFF
to turn off BIOS support.
For AHCI mode or RAID mode, BIOS always enables support.
Model Displays the drive model of the selected device.
Drive Type Displays the type of drive attached to the SATA port.
Capacity Displays the total capacity of the hard drive. The field is undefined for
removable media devices such as optical drives.
Port E Sets the drive type of the selected device. For Embedded SATA settings
in ATA mode, set this field to Auto to enable BIOS support. Set it to OFF
to turn off BIOS support.
For AHCI mode or RAID mode, BIOS always enables support.
Model Displays the drive model of the selected device.
Drive Type Displays the type of drive attached to the SATA port.
Capacity Displays the total capacity of the hard drive. The field is undefined for
removable media devices such as optical drives.
Port F Sets the drive type of the selected device. For Embedded SATA settings
in ATA mode, set this field to Auto to enable BIOS support. Set it to OFF
to turn off BIOS support.
For AHCI mode or RAID mode, BIOS always enables support.
27
Page 28
Boot Settings screen
You can use the Boot Settings screen to set the Boot mode to either BIOS or UEFI. It also enables you to
specify the boot order.
To view the Boot Settings screen, click System Setup Main Menu → System BIOS → Boot Settings.
Menu Item Description
Boot Mode Enables you to set the boot mode of the system.
CAUTION: Switching the boot mode may prevent the system from
booting if the operating system is not installed in the same boot
mode.
NOTE: Setting this field to UEFI disables the BIOS Boot Settings
menu. Setting this field to BIOS disables the UEFI Boot Settings
menu.
If the operating system supports UEFI, you can set this option to UEFI.
Setting this field to BIOS allows compatibility with non-UEFI operating
systems. By default, the Boot Mode option is set to BIOS.
Boot Sequence Retry Enables or disables the Boot Sequence Retry feature. If this field is
enabled and the system fails to boot, the system reattempts the boot
sequence after 30 seconds. By default, the Boot Sequence Retry option
is set to Enabled.
Hard-Disk Failover Specifies which devices in the Hard-Disk Drive Sequence are attempted
in the boot sequence. When the option is set to Disabled, only the first
hard disk device in the list is attempted to boot. When set to Enabled, all
hard disk devices are attempted in the order, as listed in the Hard-Disk
Drive Sequence
Boot Option Settings Configures the boot sequence and the boot devices.
. This option is not enabled for UEFI Boot Mode.
Network Settings screen
You can use the Network Settings screen to modify PXE device settings. Network Settings are only
available in UEFI boot mode. BIOS does not control network settings in the BIOS boot mode. For BIOS
boot mode, the network settings are handled by the network controllers option ROM.
To view the Network Settings screen, click System Setup Main Menu → System BIOS → Network
Settings
Menu Item Description
PXE Device n (n = 1 to 4) Enables or disables the device. When enabled, a UEFI boot option is
PXE Device n Settings (n = 1
to 4)
28
.
created for the device.
Allows you to control the configuration of the PXE device.
Page 29
Integrated Devices screen
You can use the Integrated Devices screen to view and configure the settings of all integrated devices
including the video controller, integrated RAID controller, and the USB ports.
You can view the Integrated Devices screen by clicking System Setup Main Menu → System BIOS →
Integrated Devices.
The Integrated Devices screen details are explained below.
Menu Item Description
USB 3.0 Setting Enables or disables the USB 3.0 support. Enable this option only if your
operating system supports USB 3.0. If you disable this option, devices operate
at USB 2.0 speed. USB 3.0 is disabled by default.
User Accessible USB
Ports
Internal USB Port Enables or disables the internal USB port. By default, the option is set to
Integrated Network
Card 1
Embedded NIC1 and
NIC2
I/OAT DMA Engine Enables or disables the I/OAT option. Enable only if the hardware and
Embedded Video
Controller
Current State of
Embedded Video
Controller
Enables or disables the USB ports. Selecting Only Back Ports On disables the
front USB ports, selecting All Ports Off disables all USB ports. The USB
keyboard and mouse operates during boot process in certain operating
systems. After the boot process is complete, the USB keyboard and mouse do
not work if the ports are disabled.
NOTE: Selecting Only Back Ports On and All Ports Off will disable the
USB management port and also restrict access to iDRAC features.
Enabled.
Enables or disables the integrated network card.
NOTE: The Embedded NIC1 and NIC2 option is only available on
systems that do not have Integrated Network Card 1.
Enables or disables the Embedded NIC1 and NIC2. If set to Disabled, the NIC
may still be available for shared network access by the embedded
management controller. The embedded NIC1 and NIC2 option is only
available on systems that do not have NDCs. This option is mutually exclusive
with the Integrated Network Card 1 option. Configure this function using the
NIC management utilities of the system.
software support the feature.
Enables or disables the Embedded Video Controller. By default, the
embedded video controller is Enabled. Current state of Embedded Video
Controller is Enabled. Current State of Embedded Video Controller is a read
only field, indicating the current state for the Embedded Video Controller. If
the Embedded Video Controller is the only display capability in the system
(that is, no add-in graphics card is installed), then the Embedded Video
Controller is automatically used as the primary display even if the Embedded
Video Controller setting is
Displays the current state of the Embedded Video Controller. Current State
of Embedded Video Controller is a read only field, indicating the current
state for the Embedded Video Controller.
Disabled.
29
Page 30
Menu Item Description
SR-IOV Global Enable Enables or disables the BIOS configuration of Single Root I/O Virtualization
(SR-IOV) devices. By default, the SR-IOV Global Enable option is set to
Disabled.
OS Watchdog Timer If your system stops responding, this watchdog timer aids in the recovery of
your operating system. When this field is set to Enabled, the operating system
is allowed to initialize the timer. When the option is set to Disabled (the
default), the timer will have no effect on the system.
Memory Mapped I/O
above 4 GB
Slot Disablement Enables or disables the available PCIe slots on your system. The Slot
Enables or disables the support for PCIe devices that require large amounts of
memory. By default, the option is set to Enabled.
Disablement feature controls the configuration of PCIe cards installed in the
specified slot. Slot disablement must be used only when the installed
peripheral card is preventing booting into the operating system or causing
delays in system startup. If the slot is disabled, both the Option ROM and UEFI
driver are disabled.
Serial Communication screen
You can use the Serial Communication screen to view the properties of the serial communication port.
To view the Serial Communication click System Setup Main Menu → System BIOS → Serial
Communication.
Menu Item Description
Serial Communication Selects serial communication devices (Serial Device 1 and Serial Device 2)
in the BIOS. BIOS console redirection can also be enabled and the port
address can be specified. By default, Serial Communication option is set
to Auto.
Serial Port Address Enables you to set the port address for serial devices. By default, the
Serial Port Address option is set to Serial Device 1=COM2, Serial Device
2=COM1
NOTE: You can use only Serial Device 2 for the Serial Over LAN
(SOL) feature. To use console redirection by SOL, configure the
same port address for console redirection and the serial device.
NOTE: Every time the system boots, the BIOS syncs the serial MUX
setting saved in iDRAC. The serial MUX setting can independently be
changed in iDRAC. Therefore, loading the BIOS default settings from
within the BIOS setup utility may not always revert this setting to the
default setting of Serial Device 1.
External Serial Connector You can associate the External Serial Connector to Serial Device 1, Serial
Device 2, or the Remote Access Device using this field.
NOTE: Only Serial Device 2 can be used for (Serial Over LAN) SOL.
To use console redirection by SOL, configure the same port address
for console redirection and the serial device.
30
Page 31
Menu Item Description
NOTE: Every time the system boots, the BIOS syncs the serial MUX
setting saved in iDRAC. The serial MUX setting can independently be
changed in iDRAC. Therefore, loading the BIOS default settings from
within the BIOS setup utility may not always revert this setting to the
default setting of Serial Device 1.
Failsafe Baud Rate Displays the failsafe baud rate for console redirection. The BIOS attempts
to determine the baud rate automatically. This failsafe baud rate is used
only if the attempt fails, and the value must not be changed. By default,
the Failsafe Baud Rate option is set to 115200.
Remote Terminal Type Sets the remote console terminal type. By default, the Remote Terminal
Type option is set to VT 100/VT 220.
Redirection After Boot Enables or disables the BIOS console redirection when the operating
system is loaded. By default, the Redirection After Boot option is set to
Enabled.
System Profile Settings screen
You can use the System Profile Settings screen to enable specific system performance settings such as
power management.
To view the System Profile Settings click System Setup Main Menu → System BIOS → System Profile
Settings.
Menu Item Description
System Profile Sets the system profile. If you set the System Profile option to a mode
other than Custom, the BIOS automatically sets the rest of the options.
You can only change the rest of the options if the mode is set to Custom.
By default, the System Profile option is set to Performance Per Watt
Optimized (DAPC)
NOTE: The following parameters are available only when the System
Profile is set to Custom.
CPU Power Management Sets the CPU power management. By default, the CPU Power
Management option is set to System DBPM (DAPC). DBPM is Demand-
Based Power Management.
Memory Frequency Sets the speed of the system memory. You can select Maximum
Performance, Maximum Reliability, or a specific speed.
Turbo Boost Enables or disables the processor to operate in turbo boost mode. By
default, the Turbo Boost option is set to Enabled.
Energy Efficient Turbo Enables or disables the Energy Efficient Turbo.
Energy Efficient Turbo (EET) is a mode of operation where a processor’s
core frequency is adjusted within the turbo range based on workload.
C1E Enables or disables the processor to switch to a minimum performance
state when it is idle. By default, the C1E option is set to Enabled.
C States Enables or disables the processor to operate in all available power states.
By default, the C States option is set to Enabled.
. DAPC is Dell Active Power Controller.
31
Page 32
Menu Item Description
Collaborative CPU
Performance Control
Memory Patrol Scrub Sets the memory patrol scrub frequency. By default, the Memory Patrol
Memory Refresh Rate Sets the memory refresh rate to either 1x or 2x. By default, the Memory
Uncore Frequency Selects the Processor Uncore Frequency.
Energy Efficient Policy Enables you to select the Energy Efficient Policy.
Enables or disables the CPU power management. When set to Enabled,
the CPU power management is controlled by the OS DBPM and the
System DBPM (DAPC). By default, the option is set to Disabled.
Scrub option is set to Standard.
Refresh Rate option is set to 1x.
Dynamic mode allows the processor to optimize power resources across
the cores and uncore during runtime. The optimization of the uncore
frequency to either save power or optimize performance is influenced by
the setting of the Energy Efficiency Policy.
The CPU uses the setting to manipulate the internal behavior of the
processor and determines whether to target higher performance or
better power savings.
Number of Turbo Boot
Enabled Cores for Processor
1
Monitor/Mwait Enables the Monitor/Mwait instructions in the processor. By default, the
NOTE: If there are two processors installed in the system, you see an
entry for Number of Turbo Boost Enabled Cores for Processor 2.
Controls the number of turbo boost enabled cores for processor 1. By
default, the maximum number of cores is enabled.
Monitor/Mwait option is set to Enabled for all system profiles, except
Custom.
NOTE: This option can be disabled only if the C States option in
Custom mode is set to disabled.
NOTE: When C States set to Enabled in Custom mode, changing
the Monitor/Mwait setting does not impact system power/
performance.
System Security Settings screen
You can use the System Security screen to perform specific functions such as setting the system
password, setup password and disabling the power button.
To view the System Security click System Setup Main Menu → System BIOS → System Security Settings.
Menu Item Description
Intel AES-NI Improves the speed of applications by performing encryption and
decryption using the Advanced Encryption Standard Instruction Set and is
set to Enabled by default.
System Password Sets the system password. This option is set to Enabled by default and is
read-only if the password jumper is not installed in the system.
Setup Password Sets the setup password. This option is read-only if the password jumper
is not installed in the system.
32
Page 33
Menu Item Description
Password Status Locks the system password. By default, the Password Status option is set
to Unlocked.
TPM Security
TPM Information Changes the operational state of the TPM. By default, the TPM Activation
TPM Status Displays the TPM status.
TPM Command
Intel TXT Enables or disables the Intel Trusted Execution Technology (TXT). To
Power Button Enables or disables the power button on the front of the system. By
NMI Button Enables or disables the NMI button on the front of the system. By default,
AC Power Recovery Sets how the system reacts after AC power is restored to the system. By
AC Power Recovery Delay Sets how the system supports staggering of power up after AC power is
User Defined Delay (60s to
240s)
UEFI Variable Access Provides varying degrees of securing UEFI variables. When set to
Secure Boot Enables Secure Boot, where the BIOS authenticates each pre-boot image
Secure Boot Policy When Secure Boot policy is Standard, the BIOS uses the system
NOTE: The TPM menu is available only when the TPM module is
installed.
Allows you to control the reporting mode of the Trusted Platform
Module (TPM). By default, the TPM Security option is set to Off. You can
only modify the TPM Status, TPM Activation, and Intel TXT fields if the
TPM Status field is set to either On with Pre-boot Measurements or On
without Pre-boot Measurements.
option is set to No Change.
CAUTION: Clearing the TPM results in the loss of all keys in the
TPM. The loss of TPM keys may affect booting to the operating
system.
Clears all the contents of the TPM. By default, the TPM Clear option is set
to
No.
enable Intel TXT, Virtualization Technology must be enabled and TPM
Security must be Enabled with Pre-boot measurements. By default, the
Intel TXT option is set to Off.
default, the Power Button option is set to Enabled.
the NMI Button option is set to Disabled.
default, the AC Power Recovery option is set to Last.
restored to the system. By default, the AC Power Recovery Delay option
is set to Immediate.
Sets the User Defined Delay when the User Defined option for AC Power
Recovery Delay is selected.
Standard (the default) UEFI variables are accessible in the Operating
System per the UEFI specification. When set to Controlled, selected UEFI
variables are protected in the environment and new UEFI boot entries are
forced to be at the end of the current boot order.
using the certificates in the Secure Boot Policy. Secure Boot is disabled
by default.
manufacturer’s key and certificates to authenticate pre-boot images.
When Secure Boot policy is Custom, the BIOS uses the user-defined key
and certificates. Secure Boot policy is Standard by default.
33
Page 34
Menu Item Description
Secure Boot Policy
Summary
Displays the list of certificates and hashes that secure boot uses to
authenticate images.
Secure Boot Custom Policy Settings screen
Secure Boot Custom Policy Settings is displayed only when Secure Boot Policy is set to Custom.
In the System Setup Main Menu, click System BIOS → System Security → Secure Boot Custom Policy
Settings.
Menu Item Description
Platform Key Imports, exports, deletes, or restores the platform
key (PK).
Key Exchange Key Database Allows you to import, export, delete, or restore
entries in the Key Exchange Key (KEK) Database.
Authorized Signature Database Imports, exports, deletes, or restores entries in the
Authorized Signature Database (db).
Forbidden Signature Database Imports, exports, deletes, or restores entries in the
Forbidden Signature Database (dbx).
Miscellaneous Settings screen
You can use the Miscellaneous Settings screen to perform specific functions such as updating the asset
tag, and changing the system date and time.
To view the Miscellaneous Settings screen, click System Setup Main Menu → System BIOS →
Miscellaneous Settings.
Menu Item Description
System Time Enables you to set the time on the system.
System Date Enables you to set the date on the system.
Asset Tag Displays the asset tag and enables you to modify it
for security and tracking purposes.
Keyboard NumLock Enables you to set whether the system boots with
the NumLock enabled or disabled. By default the
Keyboard NumLock is set to On.
NOTE: This option does not apply to 84-key
keyboards.
F1/F2 Prompt on Error Enables or disables the F1/F2 prompt on error. By
default, F1/F2 Prompt on Error is set to Enabled.
The F1/F2 prompt also includes keyboard errors.
Load Legacy Video Option ROM Enables you to determine whether the system
BIOS loads the legacy video (INT 10H) option ROM
from the video controller. Selecting Enabled in the
operating system does not support UEFI video
output standards. This field is only for UEFI boot
mode. You cannot set this to
Secure Boot mode is enabled.
Enabled if UEFI
34
Page 35
Menu Item Description
In-System Characterization This option enables or disables In-System
Characterization. By default, In-System
Characterization is set to Disabled. The two other
options are Enabled and Enabled - No Reboot.
NOTE: The default setting for In-System
Characterization is subject to change in
future BIOS releases.
When enabled, In-System Characterization (ISC)
executes during POST upon detecting relevant
change(s) in system configuration. This helps in
optimizing the system power and performance.
ISC takes about 20 seconds to execute, and system
reset is required for ISC results to be applied. The
Enabled - No Reboot option executes ISC and
continues without applying ISC results until the
next time system reset occurs. The Enabled option
executes ISC and forces an immediate system
reset so that ISC results can be applied. It takes the
system longer to be ready due to the forced
system reset. When disabled, ISC does not execute.
About Boot Manager
Boot Manager enables you to add, delete, and arrange boot options. You can also access System Setup
and boot options without restarting the system.
Entering Boot Manager
The Boot Manager screen enables you to select boot options and diagnostic utilities.
1. Turn on or restart your system.
2. Press F11 when you see the message F11 = Boot Manager.
If your operating system begins to load before you press F11, allow the system to finish booting, and
then restart your system and try again.
Boot Manager main menu
Menu Item Description
Continue Normal Boot The system attempts to boot to devices starting
with the first item in the boot order. If the boot
attempt fails, the system continues with the next
35
Page 36
Menu Item Description
item in the boot order until the boot is successful
or no more boot options are found.
One Shot Boot Menu Takes you to the boot menu, where you can select
a one time boot device to boot from.
Launch System Setup Enables you to access System Setup.
Launch Lifecycle Controller Exits the Boot Manager and invokes the Lifecycle
Controller program.
System Utilities Launches System Utilities menu such as System
Diagnostics and UEFI shell.
Changing the boot order
You may have to change the boot order if you want to boot from a USB key or an optical drive. The
instructions given below may vary if you have selected BIOS for Boot Mode.
1. In the System Setup Main Menu, click System BIOS → Boot Settings.
2. Click Boot Option Settings → Boot Sequence.
3. Use the arrow keys to select a boot device, and use the <+> and <-> keys to move the device down
or up in the order.
4. Click Exit, click Yes to save the settings on exit.
Choosing the system boot mode
System Setup enables you to specify the boot mode for installing your operating system:
• BIOS boot mode (the default) is the standard BIOS-level boot interface.
• Unified Extensible Firmware Interface (UEFI) boot mode is an enhanced 64-bit boot interface. If you
have configured your system to boot to UEFI mode, it overlays the system BIOS.
To select the system Boot Mode:
1. In System Setup click Boot Settings and select Boot Mode.
2. Select the boot mode you want the system to boot into.
NOTE: After the system boots in the specified boot mode, proceed to install your operating system
from that mode.
CAUTION: Trying to boot the operating system from the other boot mode will cause the system
to halt at startup.
NOTE: Operating systems must be UEFI-compatible to be installed from the UEFI boot mode. DOS
and 32-bit operating systems do not support UEFI and can only be installed from the BIOS boot
mode.
NOTE: For the latest information on supported operating systems, go to dell.com/ossupport.
36
Page 37
Assigning a system and setup password
Prerequisites
NOTE: The password jumper enables or disables the System Password and Setup Password
features. For more information about the password jumper settings, see System board connectors.
You can assign a new System Password and Setup Password or change an existing System Password
and Setup Password only when the password jumper setting is enabled and Password Status is
Unlocked.
If the password jumper setting is disabled, the existing System Password and Setup Password are deleted
and you need not provide the system password to boot the system.
Steps
1. To enter System Setup, press <F2> immediately after a power-on or reboot.
2. From the System Setup Main Menu, select System BIOS and press <Enter>.
The System BIOS screen is displayed.
3. On the System BIOS screen, select System Security and press <Enter>.
The System Security screen is displayed.
4. On the System Security screen, verify that Password Status is Unlocked.
5. Select System Password, enter your system password, and press <Enter> or <Tab>.
Use the following guidelines to assign the system password:
• A password can have up to 32 characters.
• The password can contain the numbers 0 through 9.
• Only the following special characters are allowed: space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`).
A message prompts you to re-enter the system password.
6. Re-enter the system password, and click OK.
7. Select Setup Password, enter your setup password and press <Enter> or <Tab>.
A message prompts you to re-enter the setup password.
8. Re-enter the setup password, and click OK.
9. Press <Esc> to return to the System BIOS screen. Press <Esc> again.
A message prompts you to save the changes.
NOTE: Password protection does not take effect until the system reboots.
Deleting or changing an existing system password or setup password
Prerequisites
Ensure that the Password jumper is set to enabled and the Password Status is set to Unlocked before
attempting to delete or change the existing System password or Setup password. You cannot delete or
change an existing System password or Setup password if the Password Status is set to Locked.
37
Page 38
Steps
1. To enter System Setup, press F2 immediately after a power-on or restart.
2. In System Setup Main Menu, select System BIOS and press Enter.
The System BIOS screen is displayed.
3. In the System BIOS screen, select System Security and press Enter.
The System Security screen is displayed.
4. In the System Security screen, verify that Password Status is set to Unlocked.
5. Select System Password, change or delete the existing system password and press Enter or Tab.
6. Select Setup Password, change or delete the existing setup password and press Enter or Tab.
NOTE: If you change the System password or Setup password, a message prompts you to reenter the new password. If you delete the System password or Setup password, a message
prompts you to confirm the deletion.
7. Press Esc to return to the System BIOS screen. Press Esc again, and a message prompts you to save
the changes and exit.
38
Page 39
Installing and removing system components
Safety instructions
WARNING: Whenever you need to lift the system, get others to assist you. To avoid injury, do not
attempt to lift the system by yourself.
WARNING: Opening or removing the system covers when the system is on may expose you to a
risk of electric shock.
CAUTION: Do not operate the system without the covers. This can cause damage to components.
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
4
NOTE: It is recommended that you always use a static mat and static strap while working on
components inside the system.
NOTE: To ensure proper operation and cooling, all GPU bays in the system must be populated at all
times with either a module or with a blank.
Before working inside your system
1. Turn off the system, including any attached peripherals.
2. Disconnect the system from the electrical outlet and disconnect the peripherals.
3. Remove the system from the rack.
4. Remove the system top cover (back).
After working inside your system
1. Install the system top cover (back).
2. Install the system into the rack.
3. Reconnect the peripherals and connect the system to the electrical outlet.
39
Page 40
4. Turn the system on, including any attached peripherals.
Recommended tools
You need the following tools to perform the removal and installation procedures:
• Phillips #2 screwdriver
• Phillips #1 screwdriver
• Torx T10 screwdriver
• Torx T6 screwdriver
System covers
Removing the system top cover (front)
Prerequisites
CAUTION: Do not operate the system without the system cover. This can result in overheating
and cause component damage.
1. Ensure that you read the Safety instructions.
2. Turn off the system, including any attached peripherals.
3. Disconnect the system from the electrical outlet and disconnect the peripherals.
Steps
1. Turn the system cover lock to the unlocked position.
2. Press the release tabs on the system top cover, and slide the cover toward the front of the system.
3. Hold the cover on both sides, and lift the cover away from the system.
40
Page 41
Figure 6. Removing and installing the system top cover (front)
1. system cover lock 2. release tab (2)
3. system top cover (front)
Installing the system top cover (front)
Prerequisites
1. Ensure that you read the Safety instructions.
2. Ensure that all internal cables are connected and routed correctly.
NOTE: Closing the system cover with incorrect cable routing can damage the cables.
Steps
1. Align the slots of the system top cover with the tabs on the chassis.
2. Slide the cover toward the back of the chassis until it locks into place.
3. Turn the system cover lock to the locked position.
Next steps
CAUTION: Turn on the system only when both the system top covers are installed.
Reconnect the system to its electrical outlet and turn the system on, including any attached peripherals.
Removing the system top cover (back)
Prerequisites
CAUTION: Do not operate the system without the system cover. This can result in overheating
and cause component damage.
41
Page 42
1. Ensure that you read the Safety instructions.
2. Turn off the system, including any attached peripherals.
3. Disconnect the system from the electrical outlet and disconnect the peripherals.
4. Remove the system from the rack.
5. Keep the Phillips #1 screwdriver ready.
Steps
1. Remove the screws securing the system top cover to the chassis.
2. Slide the system top cover toward the back of the system.
3. Hold the cover on both sides, and lift the cover away from the system.

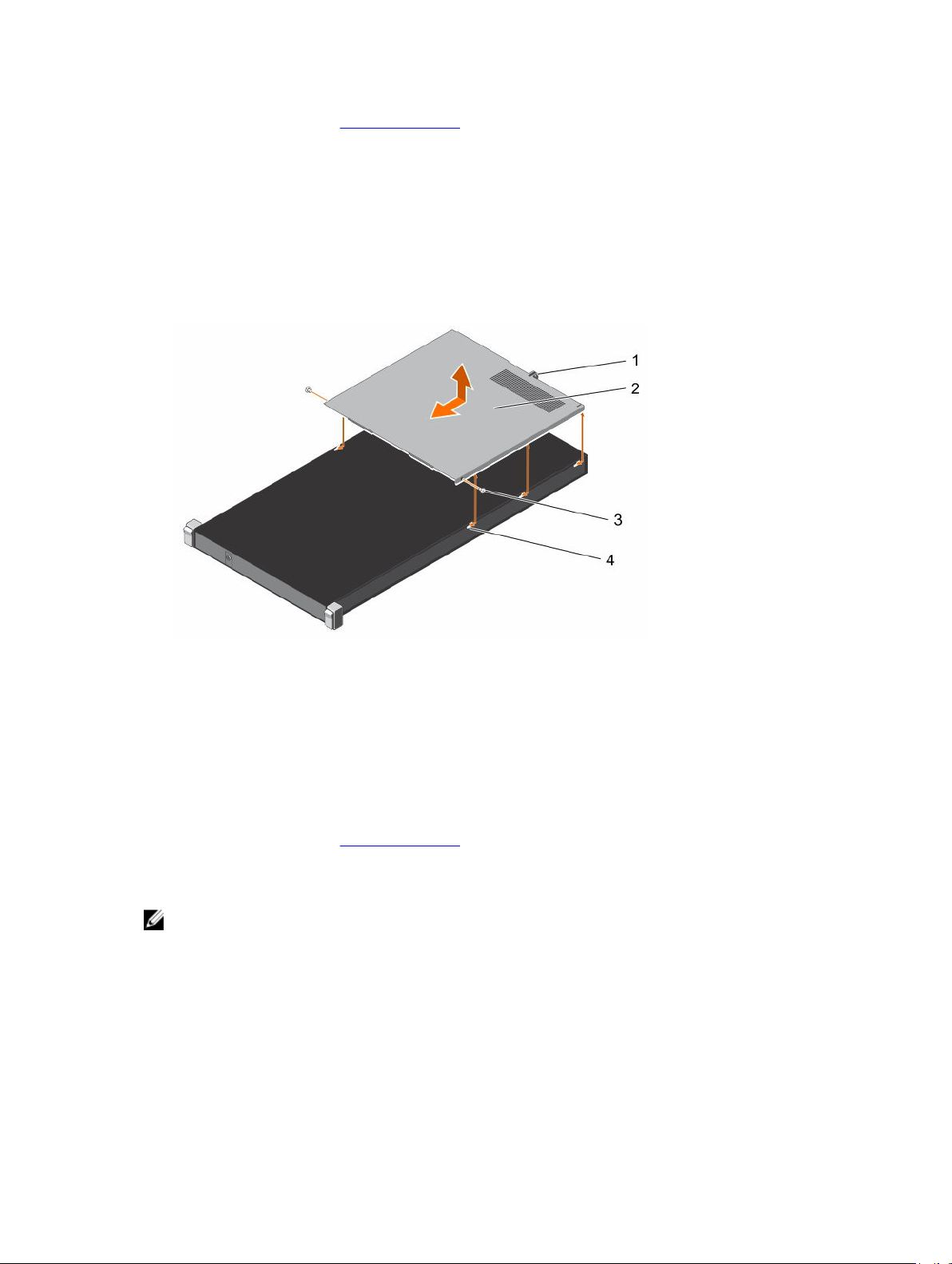

Figure 7. Removing and installing the system top cover (back)
1. guide slot on the system cover 2. system top cover (back)
3. screw (2) 4. tab on the chassis (6)
Installing the system top cover (back)
Prerequisites
1. Ensure that you read the Safety instructions.
2. Ensure that all internal cables are connected and routed correctly.
3. Keep the Phillips #1 screwdriver ready.
NOTE: Closing the system cover with incorrect cable routing can damage the cables.
Steps
1. Align the slots of the system top cover with the tabs on the chassis.
2. Align the guide pin on the back of the chassis with the guide slot on the back of the cover.
3. Slide the cover toward the front of the chassis until the guide pin on the back of the chassis locks
into the guide slot on the back of the cover.
4. Secure the system top cover to the chassis by using the screws.
42
Page 43
Next steps
CAUTION: Turn on the system only when both the system top covers are installed.
1. Reconnect the system to its electrical outlet and turn the system on, including any attached
peripherals.
2. Install the system into the rack.
Inside the system
Figure 8. Inside the system—PowerEdge C4130
1. GPU (4) 2. GPU switch board (optional)
3. cooling fan (8) 4. system board
5. DIMM (16) 6. processor (2)
7. power supply unit 2 slot/2.5 inch hard drive slot 8. power supply unit 1 slot
9. 2.5 inch hard drive cage (optional) 10. 1.8 inch uSATA SSD cage
43
Page 44
11. internal USB key connector 12. expansion card riser
13. IDSDM connector 14. front inner wall of the chassis
Intrusion switch
Removing the intrusion switch
Prerequisites
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures should be
performed only by Dell certified service technicians.
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Ensure that the GPU power and signal cables are do not interfere with the intrusion switch cable.
Steps
1. Disconnect the intrusion switch cable from the connector on the system board.
2. Slide the intrusion switch out of the intrusion switch slot.
44
Page 45
Figure 9. Removing and installing the intrusion switch
1. intrusion switch slot 2. intrusion switch
3. intrusion switch cable
Next steps
Install the intrusion switch.
Related Tasks
Installing the intrusion switch
Installing the intrusion switch
Prerequisites
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures should be
performed only by Dell certified service technicians.
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
45
Page 46
Steps
1. Slide the intrusion switch into the intrusion switch slot.
2. Connect the intrusion switch cable to the connector on the system board.
Next steps
Follow the procedure listed in After working inside your system.
Related References
System board connectors
Internal dual SD module (optional)
Removing an internal SD card
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
NOTE: When the Redundancy option is set to Mirror Mode in the Integrated Devices screen of
System Setup, the information is replicated from one SD card to another.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Locate the SD card slot on the internal dual SD module and press the card to release it from the slot.
Temporarily label each SD card with its corresponding slot before removal. Install the SD card(s) into
the same slots.
Next steps
Install the SD card.
Installing an internal SD card
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Ensure that the Internal SD Card Port option is enabled in System Setup.
46
Page 47
Steps
1. Locate the SD card slot on the internal dual SD module.
NOTE: The slot is keyed to ensure correct insertion of the card.
2. Orient the SD card appropriately and insert the contact-pin end of the card into the slot.
3. Press the card into the card slot until it locks into place.
Next steps
Follow the procedure listed in After working inside your system.
Removing the internal dual SD module
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Locate the internal dual SD module (IDSDM) on the system board.
2. If installed, remove the SD card(s). For more information, see Removing an internal SD card.
Temporarily label each SD card with its corresponding slot before removal. Install the SD card(s) into
the same slots.
3. Hold the pull tab and pull the dual SD module out of the system board.
47
Page 48
Figure 10. Removing and installing the internal dual SD module (IDSDM)
1. IDSDM 2. pull tab
3. LED status indicator (2) 4. SD card (2)
5. SD card slot 2 6. SD card slot 1
7. IDSDM connector
The following table describes the IDSDM indicator codes.
Convention IDSDM indicator code Condition
A Green Indicates that the card is online
B Flashing green Indicates rebuild or activity
C Flashing amber Indicates card mismatch or that the card has
failed
D Amber Indicates that the card is offline, has failed, or is
write protected
48
Page 49
Convention IDSDM indicator code Condition
E Not lit Indicates that the card is missing or is booting
Next steps
Follow the procedure listed in After working inside your system.
Related References
System board connectors
Installing the internal dual SD module
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Locate the internal dual SD module (IDSDM) connector on the system board.
2. Align the connectors on the system board and the IDSDM.
3. Push the IDSDM until it is firmly seated on the system board.
Next steps
1. Install the SD card(s).
Temporarily label each SD card with its corresponding slot before removal. Replace the SD card(s)
into the same slots.
2. Follow the procedure listed in After working inside your system.
Related References
System board connectors
Related Tasks
Installing an internal SD card
Cooling shroud
49
Page 50
Removing the cooling shroud
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
CAUTION: Never operate your system with the cooling shroud removed. The system may get
overheated quickly, resulting in shutdown of the system and loss of data.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Lift the cooling shroud away from the chassis.

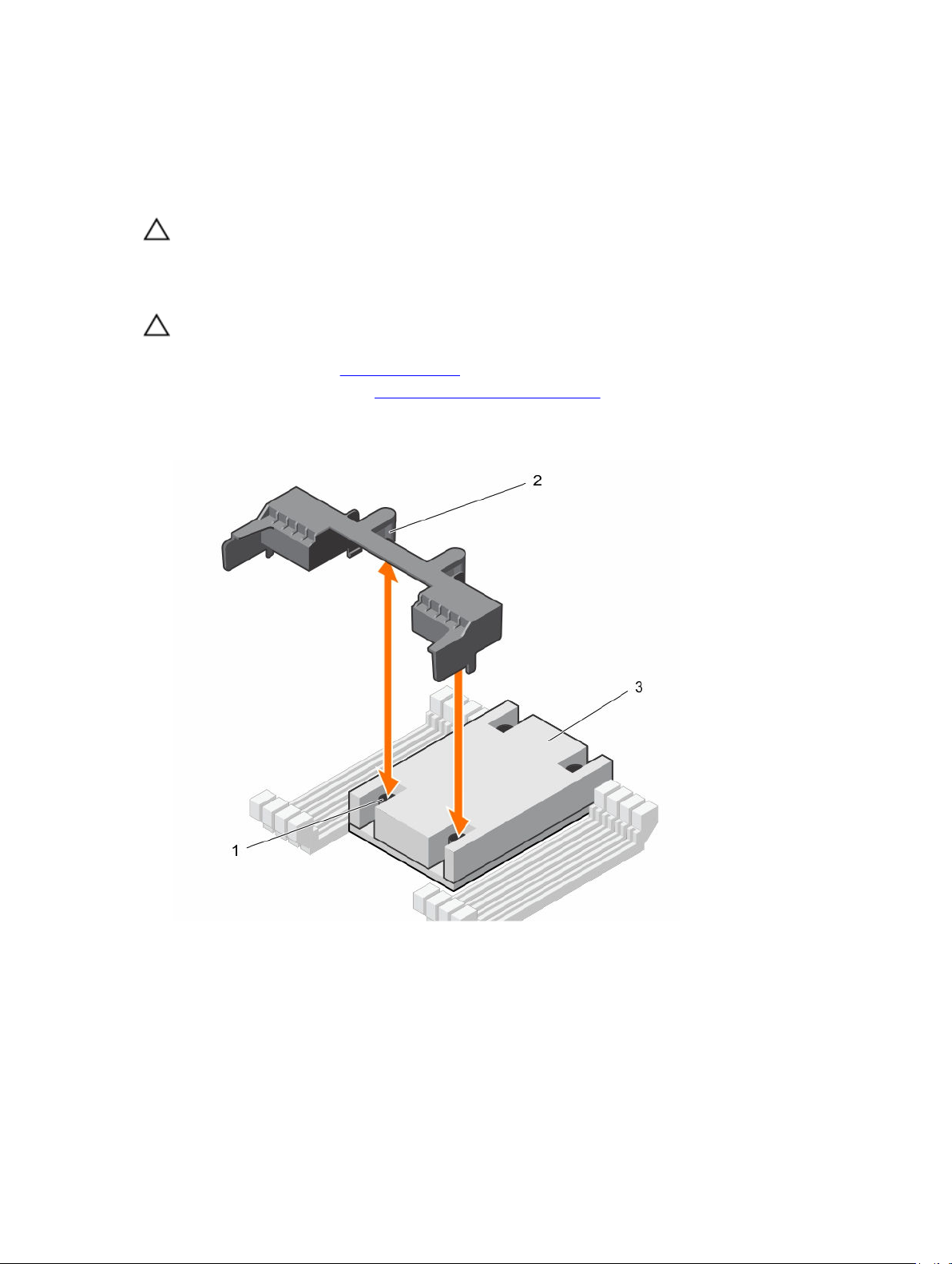

Figure 11. Removing and installing the cooling shroud
1. screw on the heat sink (2) 2. guide slot on the cooling shroud (2)
3. heat sink
Next steps
1. Install the cooling shroud.
50
Page 51
Related Tasks
Installing the cooling shroud
Installing the cooling shroud
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Ensure that the memory module ejectors are closed.
Steps
1. Align the guide slots on the cooling shroud with the screws on the heat sink.
2. Lower the cooling shroud into the chassis until it is firmly seated.
Next steps
Follow the procedure listed in After working inside your system.
Processor blank
Removing a processor blank
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Press the ejectors on both ends of the memory module socket to open it.
2. Hold the processor blank by its edges, and lift it away from the chassis.
51
Page 52

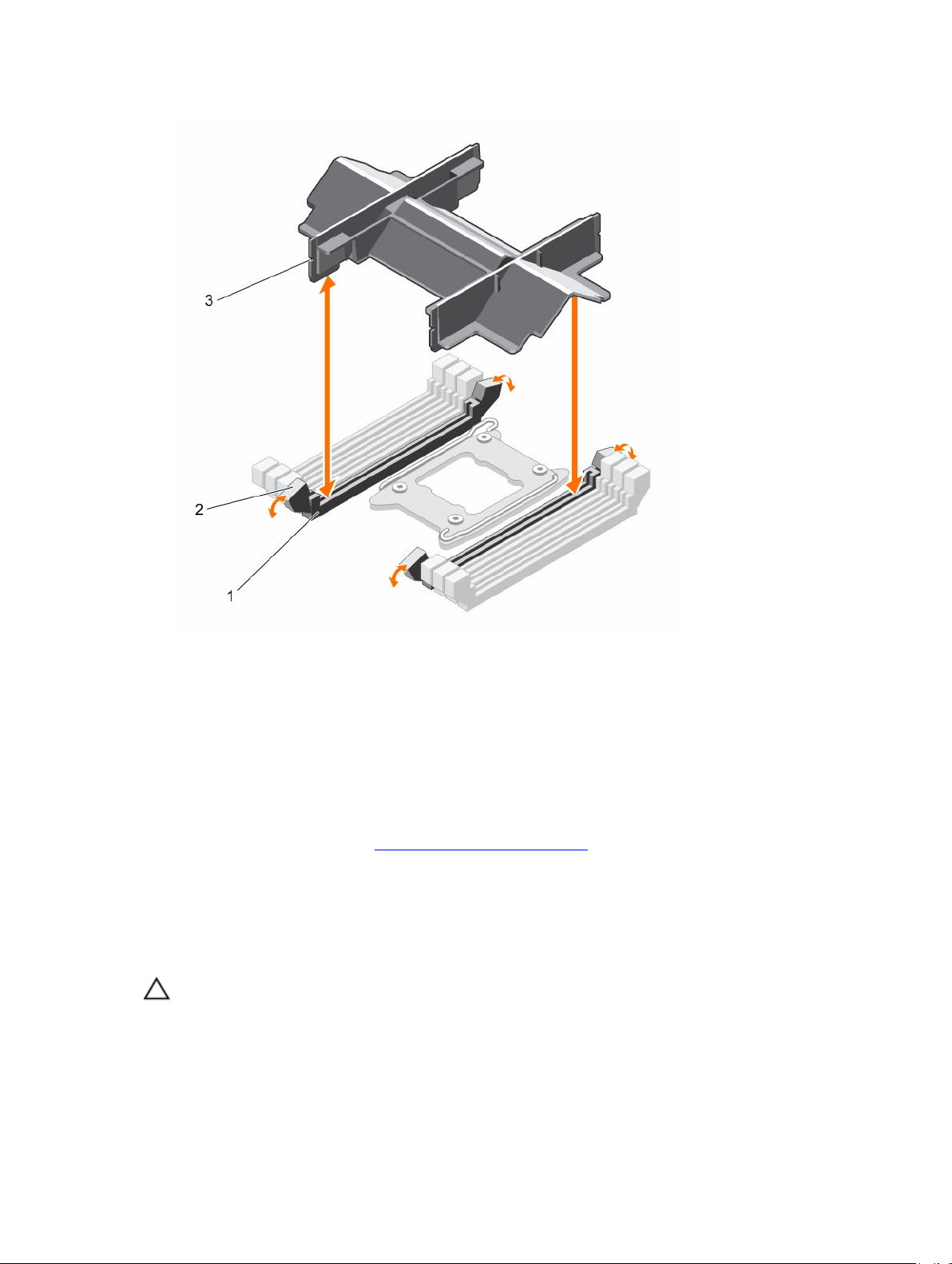

Figure 12. Removing and installing a processor blank
1. memory module socket (2) 2. memory module socket ejector (2)
3. processor blank
Next steps
1. Install the processor.
2. Install the heat sink.
3. Install the memory module(s).
4. Follow the procedure listed in After working inside your system.
Installing a processor blank
If you are converting a dual processor system to a single processor system, install the processor blank.
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
52
Page 53
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Ensure that the memory module socket ejectors are in the unlocked position.
Steps
1. Align the processor blank with the memory module socket on the system board.
2. Lower the processor blank into the memory module socket, and press the blank firmly until the
memory module socket ejectors click into place.
Next steps
Follow the procedure listed in After working inside your system.
System memory
Your system supports DDR4 registered DIMMs (RDIMMs).
NOTE: MT/s indicates DIMM speed in MegaTransfers per second.
Memory bus operating frequency can be 1333 MT/s, 1600 MT/s, 1866 MT/s, or 2133 MT/s depending on
the following factors:
• DIMM type (RDIMM)
• Number of DIMMs populated per channel
• System profile selected (for example, Performance Optimized, Custom, or Dense Configuration
Optimized)
• Maximum supported DIMM frequency of the processors
The system contains 16 memory sockets split into two sets of 8 sockets, one set per processor. Each 8socket set is organized into four channels. In each channel, the release levers of the first socket are
marked white and the second socket black.
NOTE: DIMMs in sockets A1 to A8 are assigned to processor 1 and DIMMs in sockets B1 to B8 are
assigned to processor 2.
53
Page 54
Figure 13. Memory socket locations
Memory channels are organized as follows:
Processor 1 channel 0: slots A1, A5
channel 1: slots A2, A6
channel 2: slots A3, A7
channel 3: slots A4, A8
Processor 2 channel 0: slots B1, B5
channel 1: slots B2, B6
channel 2: slots B3, B7
channel 3: slots B4, B8
The following table shows the memory populations and operating frequencies for the supported
configurations.
54
Page 55
DIMM Type DIMMs Populated/
Channel
RDIMM 1 2133, 1866, 1600, 1333 Dual rank or single rank
2 2133, 1866, 1600, 1333 Dual rank or single rank
Operating Frequency (in
MT/s)
1.2 V
Maximum DIMM Rank/Channel
General memory module installation guidelines
This system supports flexible memory configuration, enabling the system to be configured and run in any
valid chipset architectural configuration. The following are the recommended guidelines for installing
memory modules:
• x4 and x8 DRAM based memory modules can be mixed. For more information, see Mode-specific
guidelines.
• Up to two dual- or single-rank RDIMMs can be populated per channel.
• Populate memory module sockets only if a processor is installed. For single-processor systems,
sockets A1 to A8 are available. For dual-processor systems, sockets A1 to A8 and sockets B1 to B8 are
available.
• Populate all sockets with white release tabs first and then the black release tabs.
• Populate the sockets by the highest rank count, in the following order—first in sockets with white
release tabs and then with the black release tabs. For example, if you want to mix single-rank and
dual-rank memory modules, populate dual-rank memory modules in the sockets with white release
tabs and single-rank memory modules in the sockets with black release tabs.
• When mixing memory modules with different capacities, populate the sockets with memory modules
with the highest capacity first. For example, if you want to mix 4 GB and 8 GB memory modules,
populate 8 GB memory modules in the sockets with white release tabs and 4 GB memory modules in
the sockets with black release tabs.
• In a dual-processor configuration, the memory configuration for each processor should be identical.
For example, if you populate socket A1 for processor 1, then populate socket B1 for processor 2, and
so on.
• Memory modules of different capacities can be mixed provided other memory population rules are
followed (for example, 4 GB and 8 GB memory modules can be mixed).
• Mixing of more than two memory module capacities in a system is not supported.
• Populate two memory modules per processor (one memory module per channel) at a time to
maximize performance.
Mode-specific guidelines
Four memory channels are allocated to each processor. The allowable configurations depend on the
memory mode selected.
NOTE: You can mix x4 and x8 DRAM based DIMMs to support RAS features. However, all guidelines
for specific RAS features must be followed. x4 DRAM based DIMMs retain Single Device Data
Correction (SDDC) in memory optimized (independent channel) mode. x8 DRAM based DIMMs
require Advanced ECC mode to gain SDDC.
The following sections provide additional slot population guidelines for each mode:
55
Page 56
Advanced ECC (lockstep)
Advanced ECC mode extends SDDC from x4 DRAM based DIMMs to both x4 and x8 DRAMs. This
protects against single DRAM chip failures during normal operation.
The installation guidelines for memory modules are as follows:
• Memory modules must be identical in size, speed, and technology.
• DIMMs installed in memory sockets with white release levers must be identical and the same rule
applies for sockets with black release levers. This ensures that identical DIMMs are installed in
matched pair —for example, A1 with A2, A3 with A4, A5 with A6, and so on.
NOTE: Advanced ECC with mirroring is not supported.
Memory optimized (independent channel) mode
This mode supports SDDC only for memory modules that use x4 device width, and this mode does not
impose any specific slot population requirements.
Memory sparing
NOTE: To use memory sparing, this feature must be enabled in System Setup.
In this mode, one rank per channel is reserved as a spare. If persistent correctable errors are detected on
a rank, the data from this rank is copied to the spare rank, and the failed rank is disabled.
With memory sparing enabled, the system memory available to the operating system is reduced by one
rank per channel. For example, in a dual-processor configuration with sixteen 4 GB dual-rank memory
modules, the available system memory is: 3/4 (ranks/channel) × 16 (memory modules) × 4 GB = 48 GB,
and not 16 (memory modules) × 4 GB = 64 GB.
NOTE: Memory sparing does not offer protection against a multi-bit uncorrectable error.
NOTE: Both Advanced ECC/Lockstep and Optimizer modes support memory sparing.
Memory mirroring
Memory mirroring offers the strongest memory module reliability mode compared to all other modes,
providing improved uncorrectable multi-bit failure protection. In a mirrored configuration, the total
available system memory is one half of the total installed physical memory. Half of the installed memory
is used to mirror the active memory modules. In the event of an uncorrectable error, the system switches
over to the mirrored copy. This ensures SDDC and multi-bit protection.
The installation guidelines for memory modules are as follows
• Memory modules must be identical in size, speed, and technology.
• Memory modules installed in memory module sockets with white release levers must be identical and
the same rule applies for sockets with black and green release tabs. This ensures that identical
memory modules are installed in matched pairs—for example, A1 with A2, A3 with A4, A5 with A6, and
so on.
56
Page 57
Sample memory configurations
The following tables show sample memory configurations for single and dual processor configurations
that follow the appropriate memory guidelines.
NOTE: 1R, 2R, and 4R in the following tables indicate single-, dual-, and quad-rank memory
modules respectively.
Table 2. Memory configurations—single processor
System
capacity (in
GB)
4 4 1
8 4 2
16 4 4
24 4 6
32 8 4
Memory
modules
size (in GB)
8 2
Number of
memory
modules
Memory module rank,
organization, and
frequency
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
Memory module slot population
A1
A1, A2
A1, A2, A3, A4
A1, A2
A1, A2, A3, A4, A5, A6
A1, A2, A3, A4
16 2
32 1
48 8 6
64 8 8
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
A1, A2
A1
A1, A2, A3, A4, A5, A6
A1, A2, A3, A4, A5, A6, A7, A8
57
Page 58
System
capacity (in
GB)
Memory
modules
size (in GB)
16 4
Number of
memory
modules
Memory module rank,
organization, and
frequency
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
Memory module slot population
A1, A2, A3, A4
32 2
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
96 16 6
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s
128 16 8
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s,
32 4
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s,
192 32 6
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s
256 32 8
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s
Table 3. Memory configurations—dual processors
System
capacity (in
GB)
Memory
modules size
(in GB)
Number of
memory
modules
8 4 2
Memory module rank,
organization, and
frequency
1R, x8, 2133 MT/s,
A1, A2
A1, A2, A3, A4, A5, A6
A1, A2, A3, A4, A5, A6, A7, A8
A1, A2, A3, A4
A1, A2, A3, A4, A5, A6
A1, A2, A3, A4, A5, A6, A7, A8
Memory module slot
population
A1, B1
16 4 4
32 4 8
64 4 16
8 8
58
1R, x8, 1866 MT/s
1R, x8, 2133 MT/s,
A1, A2, B1, B2
1R, x8, 1866 MT/s
1R, x8, 2133 MT/s,
A1, A2, A3, A4, B1, B2, B3, B4
1R, x8, 1866 MT/s
1R, x8, 2133 MT/s
A1, A2, A3, A4, A5, A6, A7, A8,
B1, B2, B3, B4, B5, B6, B7, B8
1R, x8, 1866 MT/s
2R, x8, 2133 MT/s, A1, A2, A3, A4, B1, B2, B3, B4
Page 59
System
capacity (in
GB)
Memory
modules size
(in GB)
Number of
memory
modules
Memory module rank,
organization, and
frequency
2R, x8, 1866 MT/s
Memory module slot
population
16 4
32 2
96 8 12
128 8 16
16 8
32 4
160 16 and 8 12
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
2R, x8, 2133 MT/s,
2R, x8, 1866 MT/s
2R, x8, 2133 MT/s
2R, x8, 1866 MT/s
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s
1R, x8, 2133 MT/s,
1R, x8, 1866 MT/s
2R, x4, 2133 MT/s,
2R, x8, 2133 MT/s,
2R, x4, 1866 MT/s
2R, x8, 1866 MT/s
A1, A2, B1, B2
A1, B1
A1, A2, A3, A4, A5, A6, B1, B2,
B3, B4, B5, B6
A1, A2, A3, A4, A5, A6, A7, A8,
B1, B2, B3, B4, B5, B6, B7, B8
A1, A2, A3, A4, B1, B2, B3, B4
A1, A2, B1, B2
A1, A2, A3, A4, A5, A6, B1, B2,
B3, B4, B5, B6
NOTE: 16 GB memory
modules must be installed
in slots numbered A1, A2,
A3, A4, B1, B2, B3, and B4
and 8 GB memory
modules must be installed
in slots A5, A6, B5, and B6.
192 16 12
256 16 16
32 8
384 32 12
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s,
2R, x4, 2133 MT/s,
2R, x4, 1866 MT/s
2R, x4, 2133 MT/s A1, A2, A3, A4, A5, A6, B1, B2,
A1, A2, A3, A4, A5, A6, B1, B2,
B3, B4, B5, B6
A1, A2, A3, A4, A5, A6, A7, A8,
B1, B2, B3, B4, B5, B6, B7, B8
A1, A2, A3, A4, B1, B2, B3, B4
B3, B4, B5, B6
59
Page 60
System
capacity (in
GB)
512 32 16
Memory
modules size
(in GB)
Number of
memory
modules
Memory module rank,
organization, and
frequency
2R, x4, 2133 MT/s A1, A2, A3, A4, A5, A6, A7, A8,
Memory module slot
population
B1, B2, B3, B4, B5, B6, B7, B8
Removing memory modules
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the cooling shroud. For more information, see Removing the cooling shroud.
WARNING: The memory modules are hot to touch for some time after the system has been
powered down. Allow the memory modules to cool before handling them. Handle the memory
modules by the card edges and avoid touching the components or metallic contacts on the
memory module.
CAUTION: To ensure proper system cooling, memory module blanks must be installed in any
memory socket that is not occupied. Remove memory module blanks only if you intend to install
memory modules in those sockets.
Steps
1. Locate the appropriate memory module socket.
2. To release the memory module from the socket, simultaneously press the ejectors on both ends of
the memory module socket.
CAUTION: Handle each memory module only by the card edges, making sure not to touch
the middle of the memory module or metallic contacts.
3. Lift the memory module away from the chassis.
60
Page 61
Figure 14. Removing and installing a memory module
1. memory module 2. memory module socket
3. memory module socket ejector (2)
Next steps
1. Install the memory module, if applicable.
2. If you are removing a memory module permanently, install a memory module blank.
NOTE: The procedure to install a memory module blank is similar to the procedure to install a
memory module.
3. Install the cooling shroud.
Related Tasks
Installing memory modules
Installing the cooling shroud
Installing memory modules
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the cooling shroud. For more information, see Removing the cooling shroud.
61
Page 62
WARNING: The memory modules are hot to touch for some time after the system has been
powered down. Allow the memory modules to cool before handling them. Handle the memory
modules by the card edges and avoid touching the components or metallic contacts on the
memory module.
CAUTION: To ensure proper system cooling, memory module blanks must be installed in any
memory socket that is not occupied. Remove memory module blanks only if you intend to install
memory modules in those sockets.
Steps
1. Locate the appropriate memory module socket.
CAUTION: Handle each memory module only by the card edges, making sure not to touch
the middle of the memory module or metallic contacts.
2. If a memory module or a memory module blank is installed in the socket, remove it.
NOTE: The procedure to remove a memory module blank is similar to the procedure to remove
a memory module.
NOTE: Retain the removed memory module blank(s) for future use.
CAUTION: To prevent damage to the memory module or the memory module socket during
installation, do not bend or flex the memory module; insert both ends of the memory module
simultaneously.
3. Align the edge connector of the memory module with the alignment key of the memory module
socket, and insert the memory module in the socket.
NOTE: The memory module socket has an alignment key that allows you to install the memory
module in the socket in only one orientation.
CAUTION: Do not apply pressure at the center of the memory module; apply pressure at both
ends of the memory module evenly.
4. Press the memory module with your thumbs until the socket levers firmly click into place.
62
Page 63

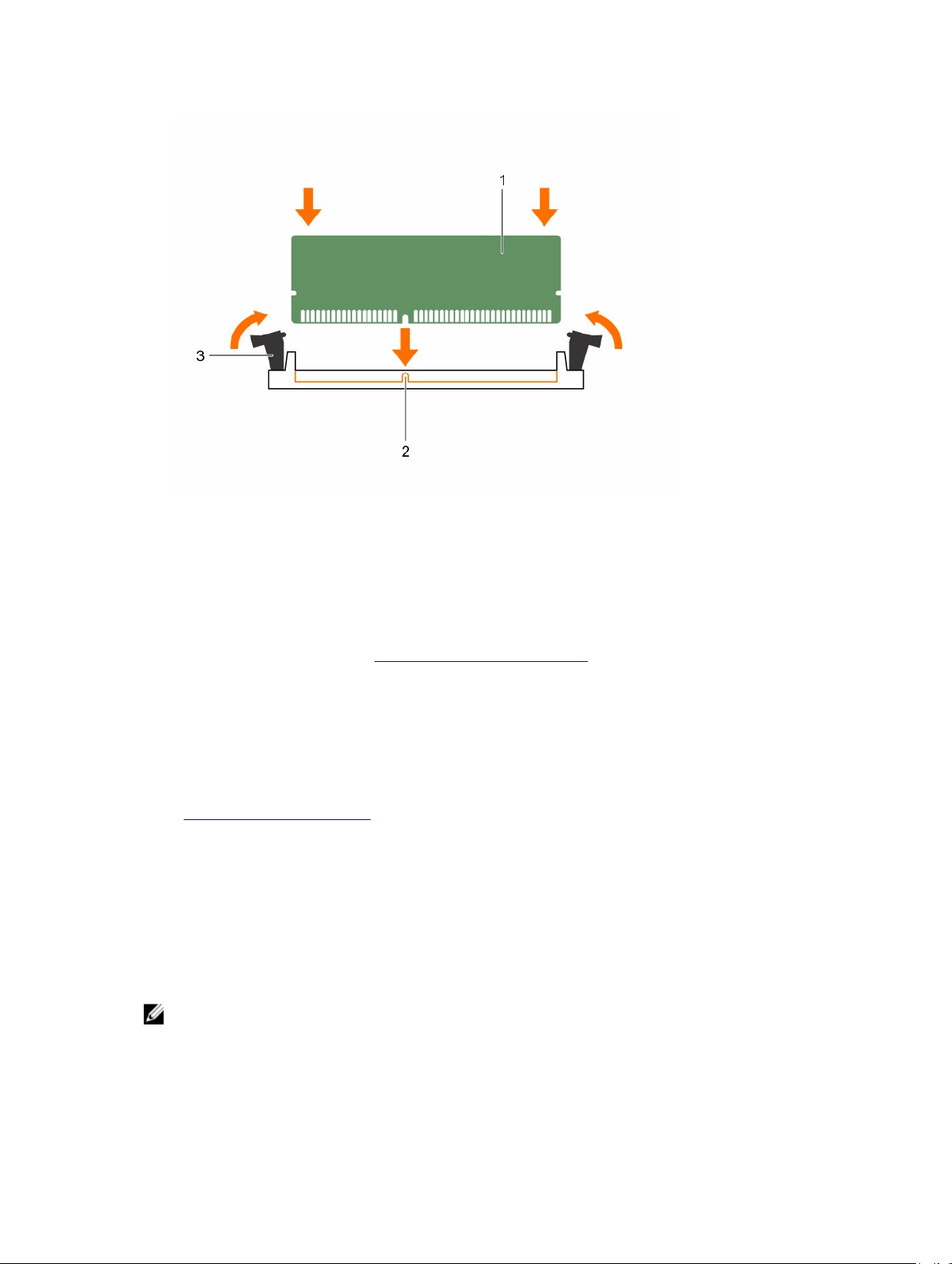

Figure 15. Installing the memory module
1. memory module 2. alignment key
3. memory module socket ejector (2)
Next steps
1. Install the cooling shroud.
2. Follow the procedure listed in After working inside your system.
3. Press <F2> to enter System Setup, and check the System Memory setting.
The System Memory Size should reflect the installed memory.
4. If the System Memory Size is incorrect, one or more of the memory modules may not be installed
properly. Ensure that the memory modules are firmly seated in their sockets.
5. Run the system memory test in system diagnostics.
Related Tasks
Installing the cooling shroud
Processors
Use the following procedures when:
• Installing an additional processor
• Replacing a processor
NOTE: To ensure proper system cooling, you must install a processor blank in any empty processor
socket.
63
Page 64
Removing a heat sink
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
CAUTION: Never remove the heat sink from a processor unless you intend to remove the
processor. The heat sink is necessary to maintain proper thermal conditions.
NOTE: To ensure proper system cooling, you must install a processor blank in any empty processor
socket.
1. Ensure that you read the Safety instructions.
2. Keep the Phillips #2 screwdriver ready.
3. Follow the procedure listed in Before working inside your system.
4. Remove the cooling shroud. For more information, see Removing the cooling shroud.
WARNING: The heat sink will be hot to touch for some time after the system has been powered
down. Allow the heat sink to cool before removing it.
Steps
1. Loosen one of the screws that secure the heat sink to the system board.
Wait 30 seconds for the heat sink to loosen from the processor.
2. Remove the screw diagonally opposite the screw you first removed.
3. Repeat the procedure for the remaining two screws.
64
Page 65
Figure 16. Removing and installing a heat sink
1. captive screw (4) 2. heat sink
3. processor socket 4. screw hole (4)
Next steps
1. Remove the processor.
Related Tasks
Removing a processor
Removing a processor
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
NOTE: To ensure proper system cooling, you must install a processor blank in any empty processor
socket.
1. Ensure that you read the Safety instructions.
2. Keep the Phillips #2 screwdriver ready.
3. If you are upgrading your system (from a single processor system to a dual processor system or a
processor with a higher processor bin), download the latest system BIOS version from dell.com/
support and follow the instructions included in the compressed download file to install the update
on your system.
65
Page 66
NOTE: You can update the system BIOS by using Lifecycle Controller.
4. Follow the procedure listed in Before working inside your system.
5. Remove the cooling shroud. For more information, see Removing the cooling shroud.
6. Remove the heat sink. For more information, see Removing a heat sink
WARNING: The processor will be hot to touch for some time after the system has been powered
down. Allow the processor to cool before removing it.
CAUTION: The processor is held in its socket under strong pressure. Be aware that the release
lever can spring up suddenly if not firmly grasped.
Steps
1. Release the open first socket release lever near the unlock icon by pushing the lever down and
out from under the tab.
2. Release the close first socket release lever near the lock icon by pushing the lever down and out
from under the tab. Lift the lever 90 degrees upward.
3. Lower the open first socket release lever to lift the processor shield.
4. Hold the tab on the processor shield and lift the processor shield until the open first socket release
lever lifts up.
CAUTION: The socket pins are fragile and can be permanently damaged. Be careful not to
bend the pins in the socket when removing the processor out of the socket.
5. Lift the processor out of the socket and leave the open first socket release lever up.
NOTE: If you are permanently removing the processor, you must install a socket protective cap
in the vacant socket to protect the socket pins and keep the socket free of dust.
NOTE: After removing the processor, place it in an anti-static container for reuse, return, or
temporary storage. Do not touch the bottom of the processor. Touch only the side edges of
the processor.
66
Page 67
Figure 17. Processor shield
1. close first socket release lever 2. lock icon
3. processor 4. open first socket release lever
5. unlock icon
67
Page 68
Figure 18. Removing and installing a processor
1. close first socket release lever 2. pin-1 indicator of processor
3. processor 4. slot (4)
5. processor shield 6. open first socket release lever
7. socket 8. socket keys (4)
Next steps
1. Install the processor.
2. Install the heat sink.
3. Follow the procedure listed in After working inside your system.
Related Tasks
Installing a processor
Installing a heat sink
68
Page 69
Installing a processor
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Keep the Phillips #2 screwdriver ready.
3. If you are upgrading your system (from a single processor system to a dual processor system or a
processor with a higher processor bin) download the latest system BIOS version from dell.com/
support and follow the instructions included in the compressed download file to install the update
on your system.
NOTE: You can update the system BIOS by using Lifecycle Controller.
4. Follow the procedure listed in Before working inside your system.
5. Remove the processor blank. For more information, see Removing a processor blank.
NOTE: If you are installing a single processor, it must be installed in socket CPU 1.
Steps
1. Unpack the new processor.
2. Locate the processor socket.
3. If applicable, remove the socket protective cap.
4. Release the open first socket release lever near the unlock icon by pushing the lever down and
out from under the tab.
5. Release the close first socket release lever near the lock icon by pushing the lever down and out
from under the tab. Lift the lever 90 degrees upward.
6. Hold the tab near the lock symbol on the processor shield and lift it up and out of the way.
CAUTION: Positioning the processor incorrectly can permanently damage the system board
or the processor. Be careful not to bend the pins in the socket.
CAUTION: While removing or reinstalling the processor, wipe your hands of any
contaminants. Contaminants on the processor pins such as thermal grease or oil can damage
the processor.
7. Align the processor with the socket keys.
CAUTION: Do not use force to seat the processor. When the processor is positioned
correctly, it engages easily into the socket.
8. Align the pin-1 indicator of the processor with the triangle on the socket.
9. Place the processor on the socket such that the slots on the processor align with the socket keys.
CAUTION: Do not use force to seat the processor. When the processor is positioned
correctly, it engages easily into the socket.
10. Close the processor shield.
11. Lower the close first socket release lever near the lock icon and push it under the tab to lock it.
69
Page 70
12. Lower the open first socket release lever near the unlock icon and push it under the tab to lock
it.
Next steps
NOTE: Ensure that you install the heat sink after you install the processor. The heat sink is necessary
to maintain proper thermal conditions.
1. Install the heat sink.
2. Follow the procedure listed in After working inside your system.
Related Tasks
Installing a heat sink
Installing a heat sink
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Keep the Phillips #2 screwdriver ready.
3. Install the processor. See Installing a processor.
4. Follow the procedure listed in Before working inside your system.
NOTE: If you are installing a single processor, it must be installed in socket CPU 1.
Steps
1. If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean
lint-free cloth.
2. Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on
the top of the processor as shown in the following figure.
CAUTION: Applying too much thermal grease can result in excess grease coming in contact
with and contaminating the processor socket.
NOTE: The thermal grease syringe is intended for one-time use only. Dispose of the syringe
after you use it.
70
Page 71

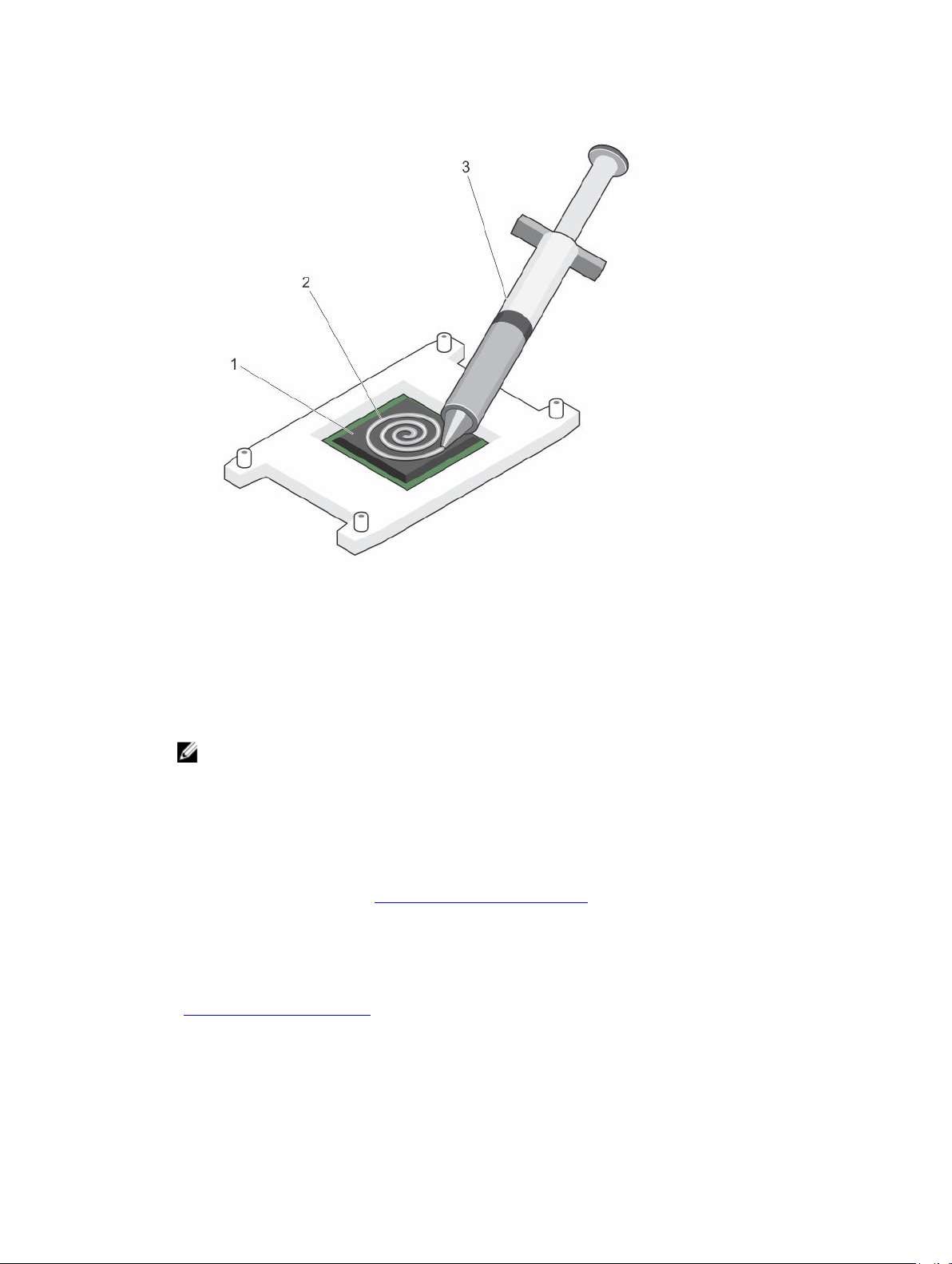

Figure 19. Applying thermal grease on the top of the processor
1. processor 2. thermal grease
3. thermal grease syringe
3. Place the heat sink onto the processor.
4. Tighten one of the four screws to secure the heat sink to the system board.
5. Tighten the screw diagonally opposite to the first screw you tightened.
NOTE: Do not over-tighten the heat sink retention screws when installing the heat sink. To
prevent over-tightening, tighten the retention screw until resistance is felt, and stop once the
screw is seated. The screw tension should be no more than 6 in-lb (6.9 cm-kg).
6. Repeat the procedure for the remaining two screws.
Next steps
1. Install the cooling shroud.
2. Follow the procedure listed in After working inside your system.
3. While booting, press <F2> to enter System Setup and check that the processor information matches
the new system configuration.
4. Run system diagnostics to verify that the new processor operates correctly.
Related Tasks
Installing the cooling shroud
71
Page 72
System battery
Replacing the system battery
Prerequisites
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures should be
performed only by Dell certified service technicians.
WARNING: There is a danger of a new battery exploding if it is incorrectly installed. Replace the
battery only with the same or equivalent type recommended by the manufacturer. For more
information, see the safety information that shipped with your system.
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Disconnect the GPU signal and power cables from the system board.
Steps
1. Locate the battery socket.
CAUTION: To avoid damage to the battery connector, you must firmly support the connector
while installing or removing a battery.
2. Place your finger between the securing tabs at the negative side of the battery connector, and lift the
battery out of the socket.
72
Page 73

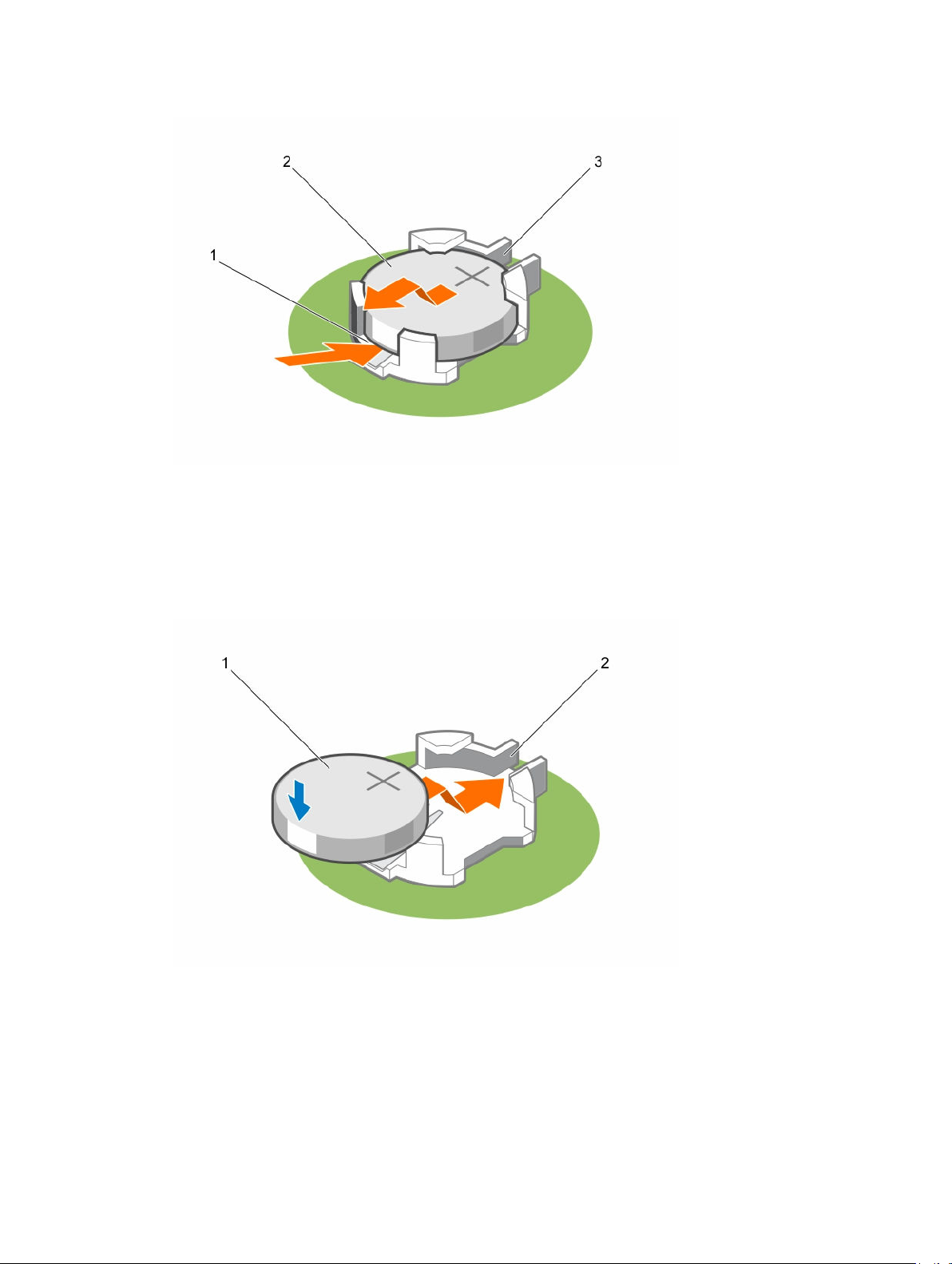

Figure 20. Removing the system battery
1. negative side of the battery connector 2. system battery
3. positive side of the battery connector
3. To install a new system battery, hold the battery with the "+" sign facing up and slide it under the
securing tabs at the positive side of the connector.
4. Press the battery into the connector until it locks into place.
Figure 21. Installing the system battery
1. system battery 2. positive side of the battery connector
73
Page 74
Next steps
1. Connect the GPU signal and power cables to the system board.
2. Follow the procedure listed in After working inside your system.
3. While booting, press <F2> to enter System Setup and ensure that the battery is operating properly.
4. Enter the correct time and date in the System Setup Time and Date fields.
5. Exit System Setup.
Related References
System board connectors
Related Tasks
Installing a GPU riser cable on the system board
Installing a processor blank
PCIe shroud
Removing the PCIe shroud
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Lift the PCIe shroud away from the system.
74
Page 75
Figure 22. Removing and installing the PCIe shroud
1. slot on the heat sink (2) 2. tab on the PCIe shroud (2)
3. PCIe shroud 4. expansion card riser
Next steps
1. Install the PCIe shroud.
Related Tasks
Installing the PCIe shroud
Installing the PCIe shroud
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
Ensure that you read the Safety instructions.
75
Page 76
Steps
Insert the tabs on the PCIe shroud into the slots on the heat sink.
Next steps
Follow the procedure listed in After working inside your system.
Expansion card riser and expansion cards
Expansion card installation guidelines
Depending on your system configuration, the following PCI Express generation 3 expansion cards are
supported:
Table 4. Supported expansion cards
Configuration PCIe
Four GPUs with switch
board and one processor
(Configuration A)
Four GPUs with switch
board and two processors
(Configuration B)
Four GPUs without switch
board and two processors
(Configuration C)
Two GPUs without switch
board and two processors
(Configuration D)
Two GPUs without switch
board and one processor
(Configuration E)
slot
1 Processor 1 Low Profile Half
2 Processor 1 Low Profile Half
1 Processor 1 Low Profile Half
2 Processor 1 Low Profile Half
1 Processor 1 Low Profile Half
2 Processor 2 Low Profile Half
1 Processor 1 Low Profile Half
2 Processor 2 Low Profile Half
1 Processor 1 Low Profile Half
2 NA NA NA NA NA
Processor
connection
Height Length Link
width
x8 x16
Length
x16 x16
Length
x8 x16
Length
x16 x16
Length
x8 x16
Length
x8 x16
Length
x16 x16
Length
x16 x16
Length
x8 x16
Length
Slot
width
Two GPUs without switch
board and two processors
(Configuration F)
76
1 Processor 1 Low Profile Half
Length
2 Processor 2 Low Profile Half
Length
x8 x16
x8 x16
Page 77
Configuration PCIe
slot
Processor
connection
Height Length Link
width
Slot
width
Four GPUs with switch
board with dual GPU virtual
mode and two processors
(Configuration G)
Three GPUs without switch
board and two processors
(Configuration H)
1 Processor 1 Low Profile Half
Length
2 Processor 2 Low Profile Half
Length
1 Processor 1 Low Profile Half
Length
2 Processor 2 Low Profile Half
x16 x16
x16 x16
x8 x16
x8 x16
Length
Three GPUs without switch
board and two processors
(Configuration I)
1 Processor 1 Low Profile Half
x8 x16
Length
2 NA NA NA NA NA
NOTE: Configuration G supports virtual mode. In the virtual mode, GPUs 1 and 2 are connected to
processor 1 and GPUs 3 and 4 are connected to processor 2.
The following table provides guidelines for installing expansion cards to ensure proper cooling and
mechanical fit. The expansion cards with the highest priority should be installed first using the slot priority
indicated. All other expansion cards should be installed in the card priority and slot priority order.
NOTE: The x16 link width riser cards on the expansion card riser are cabled to the system board.
NOTE: The expansion card slots are not hot swappable.
Table 5. Expansion card installation order
Card
priority
Card type Configurations A, B, C, D, F, G,
and H
Configurations E and I
Slot priority Max allowed Slot priority Max
1 RAID H730P (low profile) 1 1 1 1
2 RAID H730 (low profile) 1 1 1 1
3 RAID H330 (low profile) 1 1 1 1
4 RAID H830 (low profile) 1, 2 2 1 1
5 RAID H810 (low profile) 1, 2 2 1 1
6 12 GB SAS HBA (low profile) 1, 2 2 1 1
7 Mellanox dual port InfiniBand
1, 2 2 1 1
adapter
8 Mellanox single port
1, 2 2 1 1
InfiniBand adapter
9 QLOGIC dual port 16 Gbps
1, 2 2 1 1
Fibre Channel adapter
allowed
77
Page 78
Card
priority
Card type Configurations A, B, C, D, F, G,
and H
Slot priority Max allowed Slot priority Max
Configurations E and I
allowed
10 EMULEX dual port 16 Gbps
Fibre Channel adapter
11 QLOGIC single port 16 Gbps
Fibre Channel adapter
12 EMULEX single port 16 Gbps
Fibre Channel adapter
13 10 Gb NICs (low profile) 1, 2 2 1 1
14 10 Gb SFP+ NICs (low profile) 1, 2 2 1 1
1, 2 2 1 1
1, 2 2 1 1
1, 2 2 1 1
Removing the expansion card riser
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the PCIe shroud. See Removing the PCIe shroud.
4. If installed, disconnect the expansion card riser cables from the system board.
CAUTION: The expansion card riser cables must be removed before removing the expansion
card riser to prevent pin damage in the PCIe connectors on the system board.
Steps
Holding the touch points, lift the expansion card riser from the riser connector on the system board.
78
Page 79

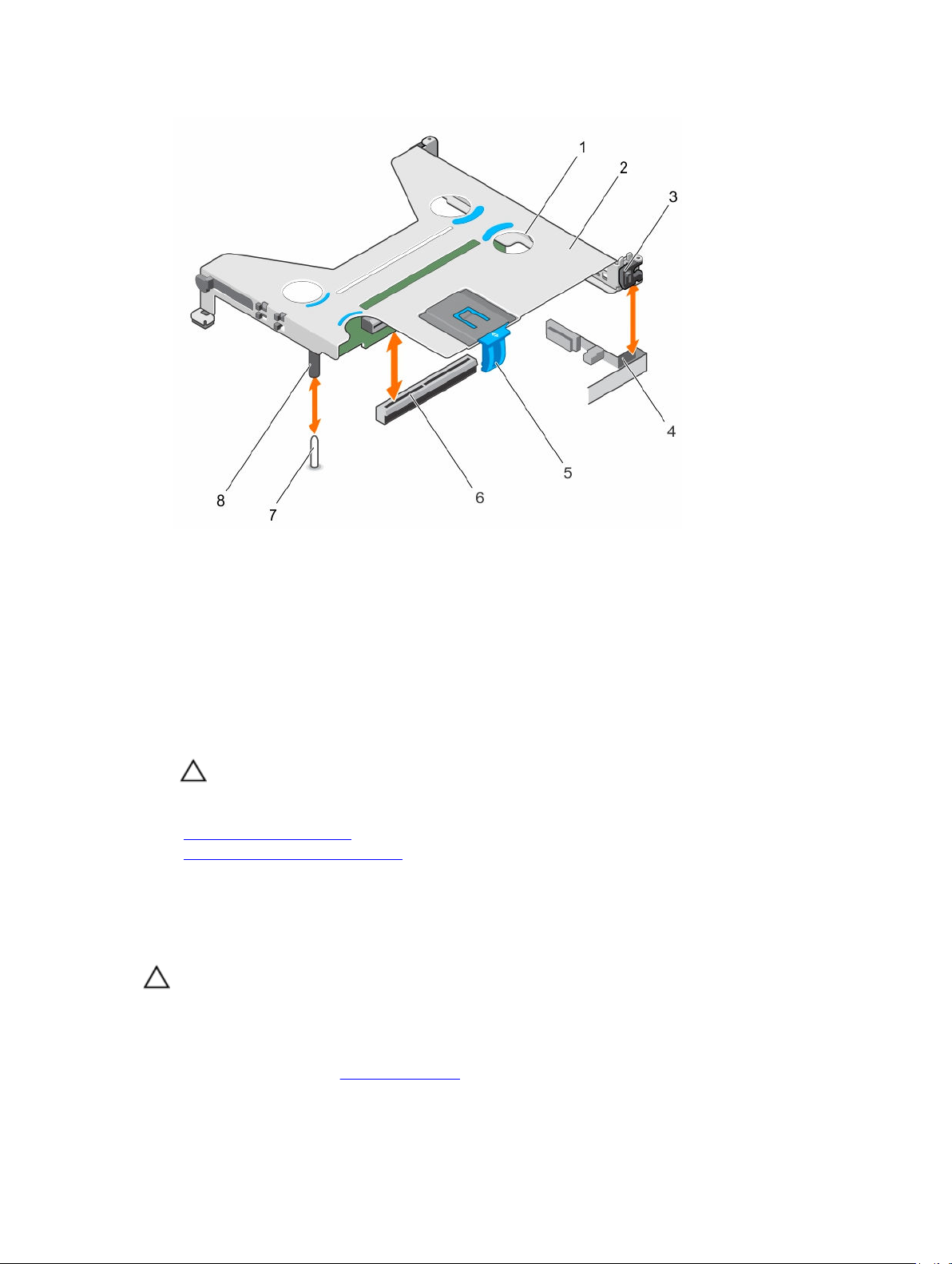

Figure 23. Removing and installing the expansion card riser
1. touch point (4) 2. expansion card riser
3. expansion card clip 4. guide slot on the chassis
5. expansion card latch 6. riser connector on the system board
7. guide pin on the system board 8. guide post on the expansion card riser
Next steps
1. Install the expansion card, if applicable.
2. Install the expansion card riser.
CAUTION: The expansion card riser cables must be removed before removing the expansion
card riser to prevent pin damage in the PCIe connectors on the system board.
Related Tasks
Installing expansion cards
Installing the expansion card riser
Installing the expansion card riser
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
79
Page 80
2. Follow the procedure listed in Before working inside your system.
3. If applicable, install the expansion card(s) into the expansion card riser. For more information, see
Installing expansion cards.
Steps
1. Align the expansion card riser with the guide pin on the system board and the guide slot on the
chassis.
2. Lower the expansion card riser and press it until it clicks into place.
CAUTION: The expansion card riser should be installed in the system before you install the
expansion card riser cables to prevent pin damage in the PCIe connectors on the system
board.
Next steps
1. If applicable, connect the riser cables to the system board.
2. Install the PCIe shroud.
3. Follow the procedure listed in After working inside your system.
4. Install any device drivers required for the expansion card. For more information, see the
documentation for the card.
Related Tasks
Installing the PCIe shroud
Removing expansion cards
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Disconnect any cables connected to the expansion card and the system board.
CAUTION: The expansion card riser cables should be removed before removing the
expansion card riser to prevent pin damage in the PCIe connectors on the system/switch
board.
4. Remove the PCIe shroud. For more information, see Removing the PCIe shroud.
5. Remove the expansion card riser. For more information, see Removing expansion cards.
Steps
1. Pull the expansion card latch to open it.
2. Open the expansion card clip.
3. Hold the expansion card by its edges, and remove it from the expansion card connector.
4. If you are removing the expansion card permanently, install an expansion card blank by performing
the following steps:
a. Slide the expansion card blank into the expansion card slot on the side of the expansion card
riser.
80
Page 81
b. Close the expansion card clip.
NOTE: You must install an expansion card blank to maintain Federal Communications
Commission (FCC) certification of the system. The expansion card blank keeps dust and dirt out
of the system and aids in proper cooling and airflow inside the system.

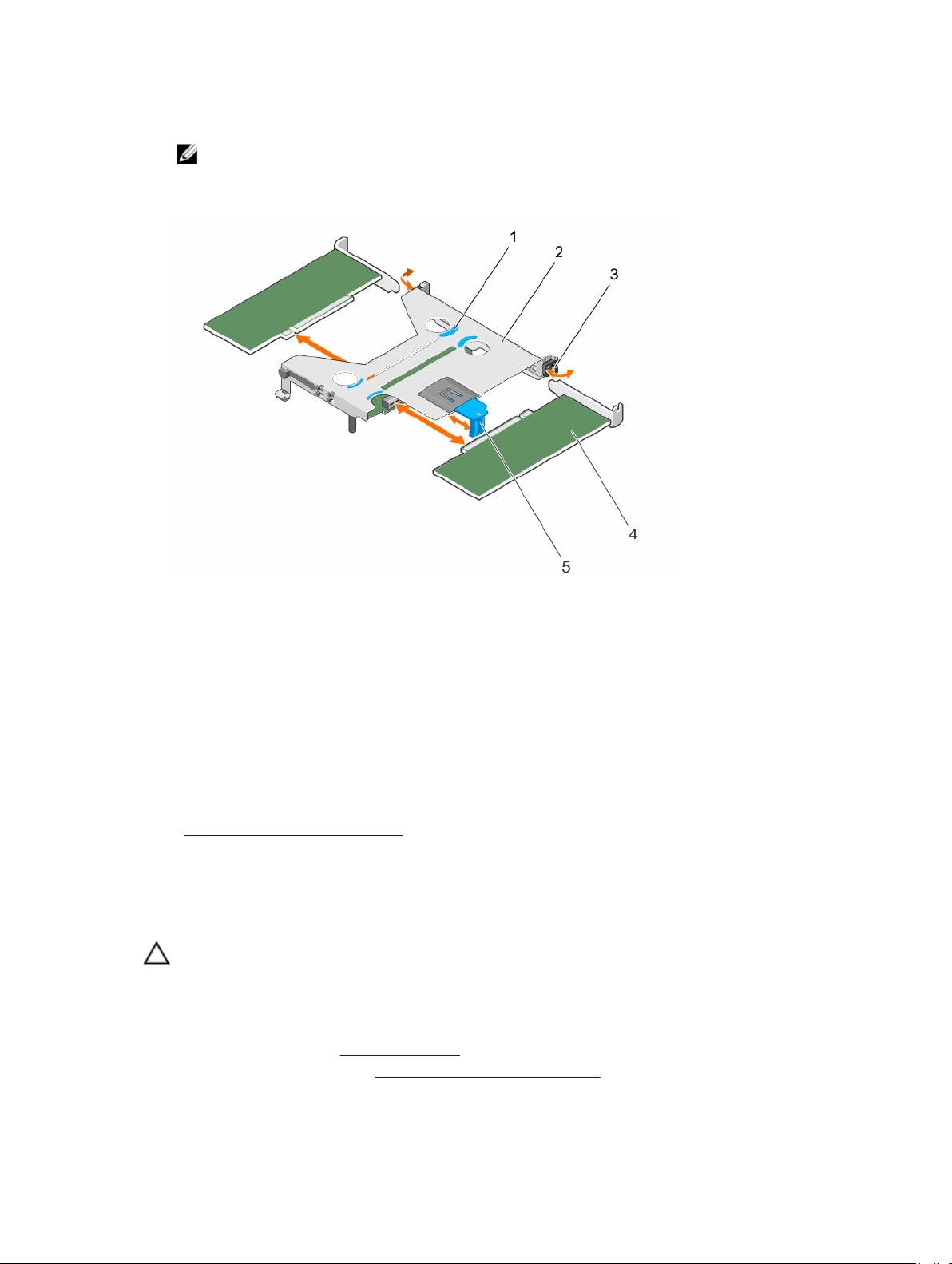

Figure 24. Removing and installing the expansion card from the expansion card riser
1. touch point (4) 2. expansion card riser
3. expansion card clip 4. expansion card (low-profile, half-length
5. expansion card latch
Next steps
1. Close the expansion card latch.
2. Install the expansion card riser.
Related Tasks
Installing the expansion card riser
card)
Installing expansion cards
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
81
Page 82
3. Remove the PCIe shroud. For more information, see Removing the PCIe shroud.
4. Remove the expansion card riser cables.
CAUTION: The expansion card riser cables should be removed before removing the
expansion card riser to prevent pin damage in the PCIe connectors on the system/switch
board.
5. Remove the expansion card riser. For more information, see Removing the expansion card riser.
Steps
1. Locate the expansion card connector on the expansion card riser.
2. Open the expansion card clip.
3. If the expansion card blank is installed, slide it out of the expansion card slot on the side of the
expansion card riser.

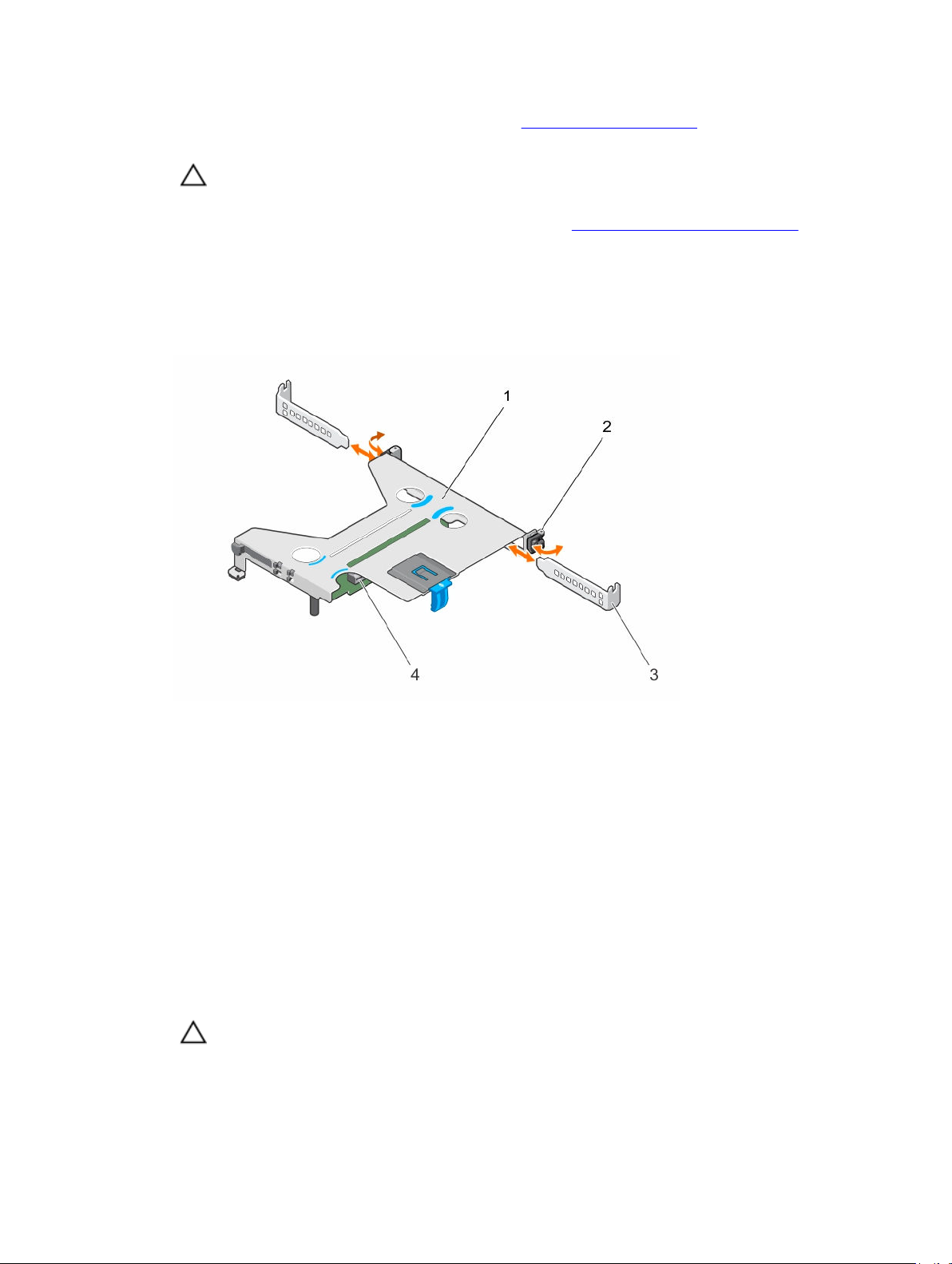

Figure 25. Removing and installing an expansion card blank
1. expansion card riser 2. expansion card clip
3. expansion card blank 4. expansion card connector on the
expansion card riser
4. Pull the expansion card latch to open it.
5. Hold the expansion card by its edges and align the expansion card-edge connector with the
expansion card connector.
6. Insert the expansion card-edge connector into the expansion card connector until the expansion
card is fully seated.
7. Close the expansion card latch.
8. Close the expansion card clip.
Next steps
1. Connect the cables to the expansion card and the system board.
CAUTION: The expansion card riser should be installed in the system before you install the
expansion card riser cables to prevent pin damage in the PCIe connectors on the system
board.
2. Install the expansion card riser.
82
Page 83
3. Install the PCIe shroud.
4. Follow the procedure listed in After working inside your system.
Related Tasks
Installing the expansion card riser
Installing the PCIe shroud
Expansion card cabling diagrams
Cabling two expansion cards

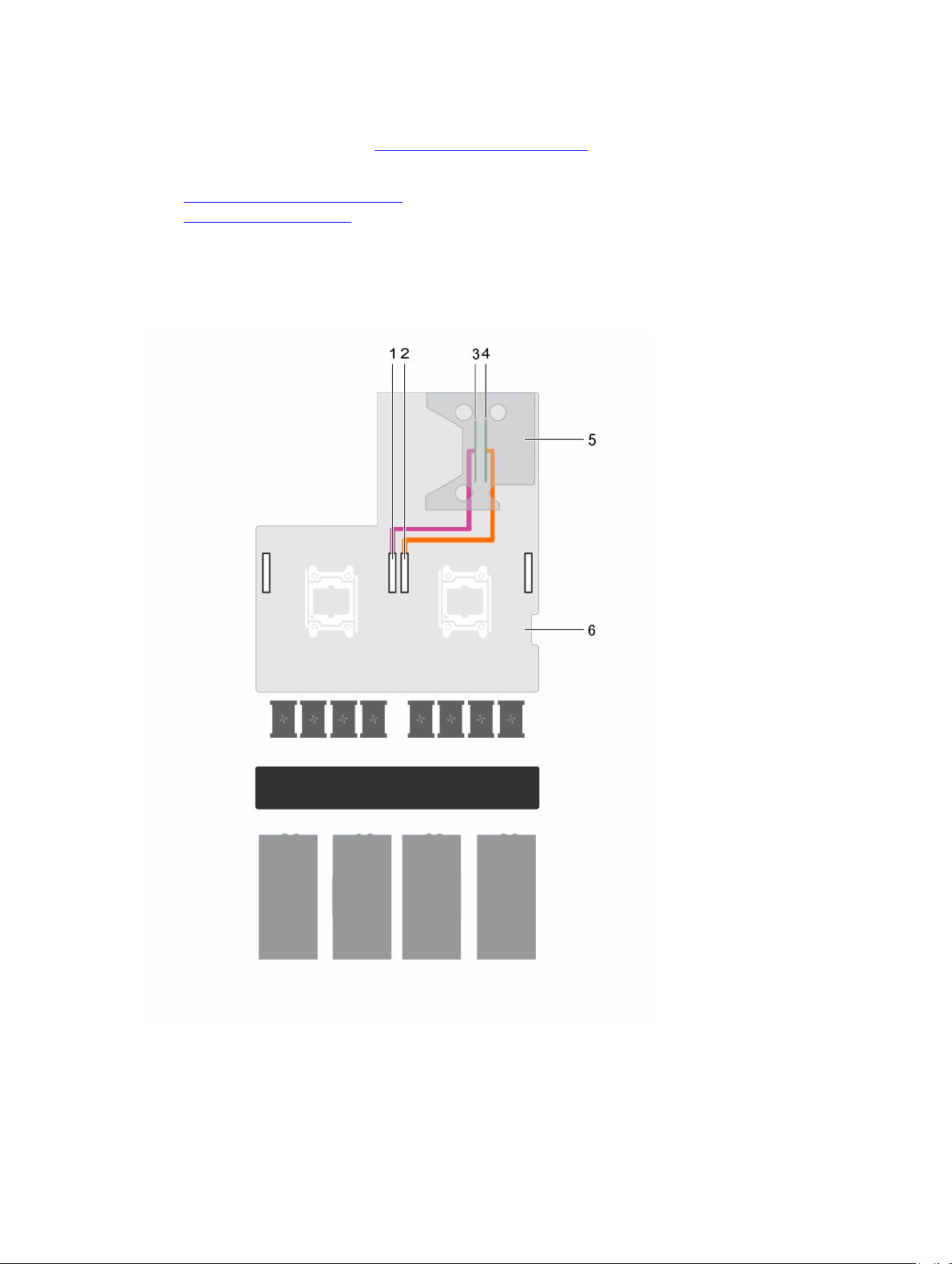

Figure 26. Cabling two expansion cards
1. GPU 4 PCIe connector on the system board 2. GPU 1 PCIe connector on the system board
83
Page 84
3. expansion slot 2 connector (x16) 4. expansion slot 1 connector (x16)
5. expansion card riser 6. system board
Cabling one expansion card

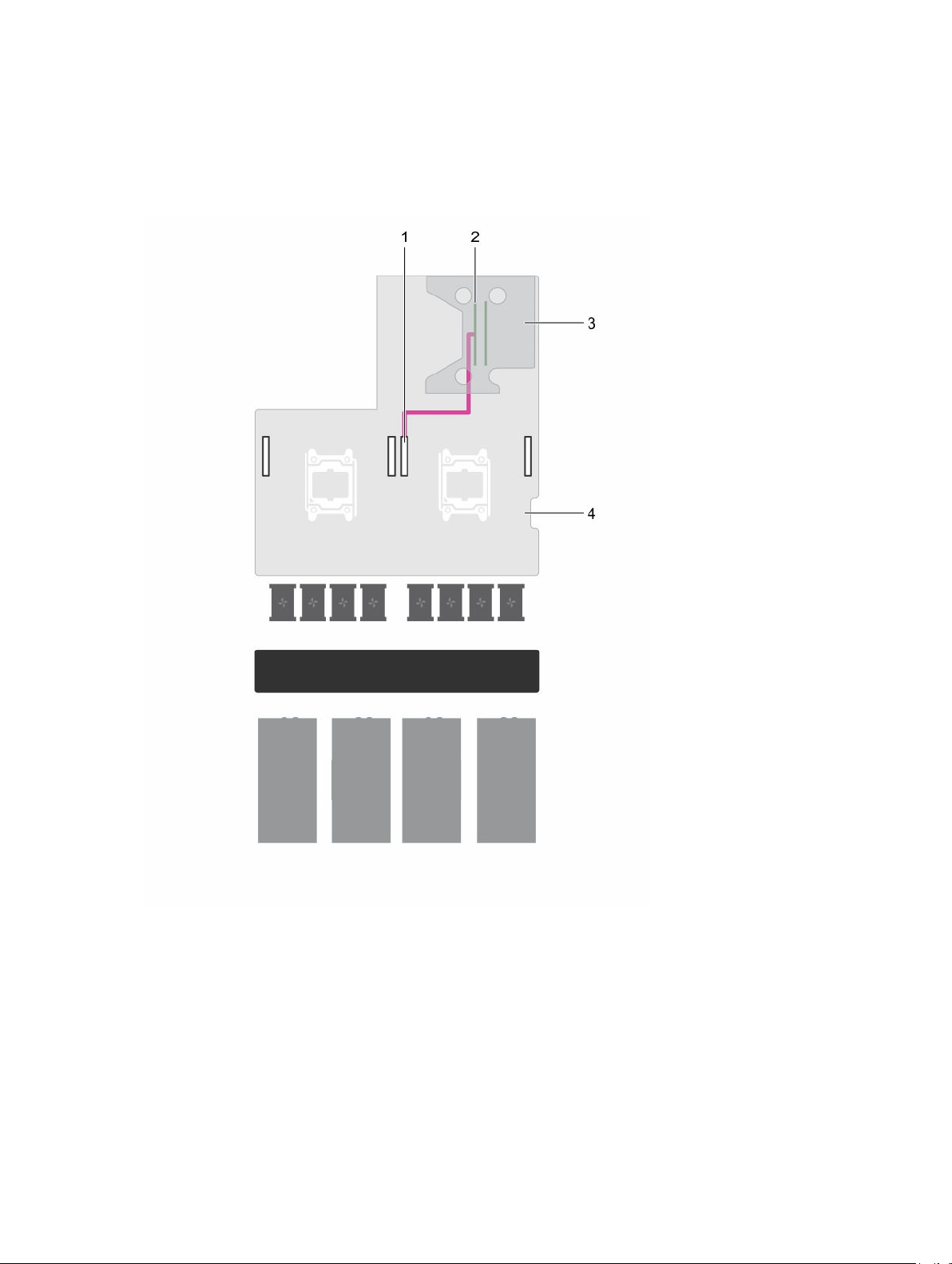

Figure 27. Cabling one expansion card
1. GPU 1 PCIe connector on the system board 2. expansion slot 2 connector (x16)
3. expansion card riser 4. system board
84
Page 85
Power supply units
Your system supports up to:
• Two 1600 W AC power supply units (PSUs) or
• Two 1100 W AC PSUs (only for systems that support two GPUs)
NOTE: The PSU 2 slot also functions as the optional 2.5 inch hard drive cage slot. If you install the
2.5 inch hard drive cage in the PSU 2 slot, your system will not support the redundancy feature.
NOTE: Platinum 1600 W PSU is rated for 200 V AC to 240 V AC input only.
NOTE: When two identical PSUs are installed, power supply redundancy (1+1 – with redundancy or
2+0 – without redundancy) is configured in system BIOS. In redundant mode, power is supplied to
the system equally from both PSUs when Hot Spare is disabled. When Hot Spare is enabled, one of
the PSUs will be put into standby when system utilization is low in order to maximize efficiency.
NOTE: If two PSUs are used, they must be of the same maximum output power.
NOTE: For AC PSUs, use only PSUs with the Extended Power Performance (EPP) label on the back.
Mixing PSUs from previous generations of servers can result in a PSU mismatch condition or failure
to power on.
Hot Spare feature
Your system supports the Hot Spare feature that significantly reduces the power overhead associated
with power supply redundancy.
When the Hot Spare feature is enabled, one of the redundant PSUs is switched to the sleep state. The
active PSU supports 100% of the load, thus operating at higher efficiency. The PSU in the sleep state
monitors output voltage of the active PSU. If the output voltage of the active PSU drops, the PSU in the
sleep state returns to an active output state.
If having both PSUs active is more efficient than having one PSU in a sleep state, the active PSU can also
activate a sleeping PSU.
The default PSU settings are as follows:
• If the load on the active PSU is more than 50%, then the redundant PSU is switched to the active state.
• If the load on the active PSU falls below 20%, then the redundant PSU is switched to the sleep state.
You can configure the Hot Spare feature by using the iDRAC settings. For more information on iDRAC
settings, see the Integrated Dell Remote Access Controller User’s Guide at dell.com/support/home.
85
Page 86
Removing the power supply unit blank
Remove the power supply unit (PSU) blank when you are installing a second PSU or a 2.5 inch hard drive
cage in the PSU 2 slot.
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
Ensure that you read the Safety instructions.
Steps
Remove the PSU blank from the PSU 2 slot by pulling the blank outward.
CAUTION: To ensure proper system cooling, the PSU blank must be installed in the PSU 2 slot
in a non-redundant configuration. Remove the PSU blank only if you are installing a second
PSU or a 2.5 inch hard drive cage.

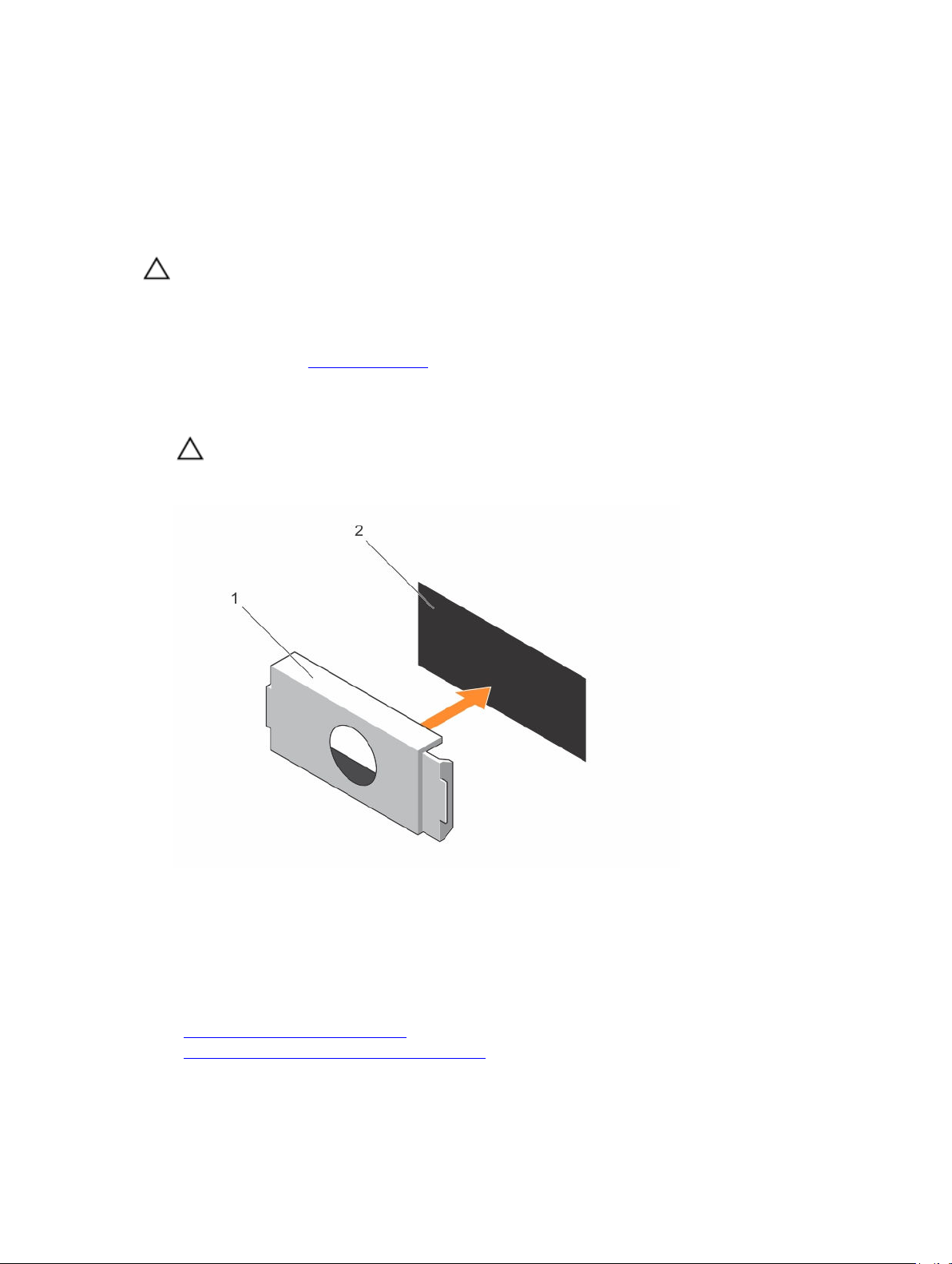

Figure 28. Removing and installing the PSU blank
1. PSU blank 2. PSU slot
Next steps
Install PSU 2 or the 2.5 inch hard drive cage.
Related Tasks
Installing an AC power supply unit
Installing the optional 2.5 inch hard drive cage
86
Page 87
Installing the power supply unit blank
Install the power supply unit (PSU) blank when you remove PSU 2 or the 2.5 inch hard drive cage from
the PSU 2 slot. Install the PSU blank only in the PSU 2 slot.
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. If applicable, remove PSU 2 or the 2.5 inch hard drive cage. For more information, see Removing an
AC power supply unit or Removing the optional 2.5 inch hard drive cage.
Steps
Align the power supply unit blank with the power supply unit slot and push it into the power supply
unit slot until it clicks into place.
Removing an AC power supply unit
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
CAUTION: The system requires one power supply unit (PSU) for normal operation. On powerredundant systems, remove and install only one PSU at a time in a system that is powered on.
1. Ensure that you read the Safety instructions.
2. Disconnect the power cable from the power source and from the PSU you intend to remove.
3. Remove the cables from the strap on the PSU.
Steps
Press the release latch and slide the PSU out of the PSU slot by holding the PSU handle.
87
Page 88

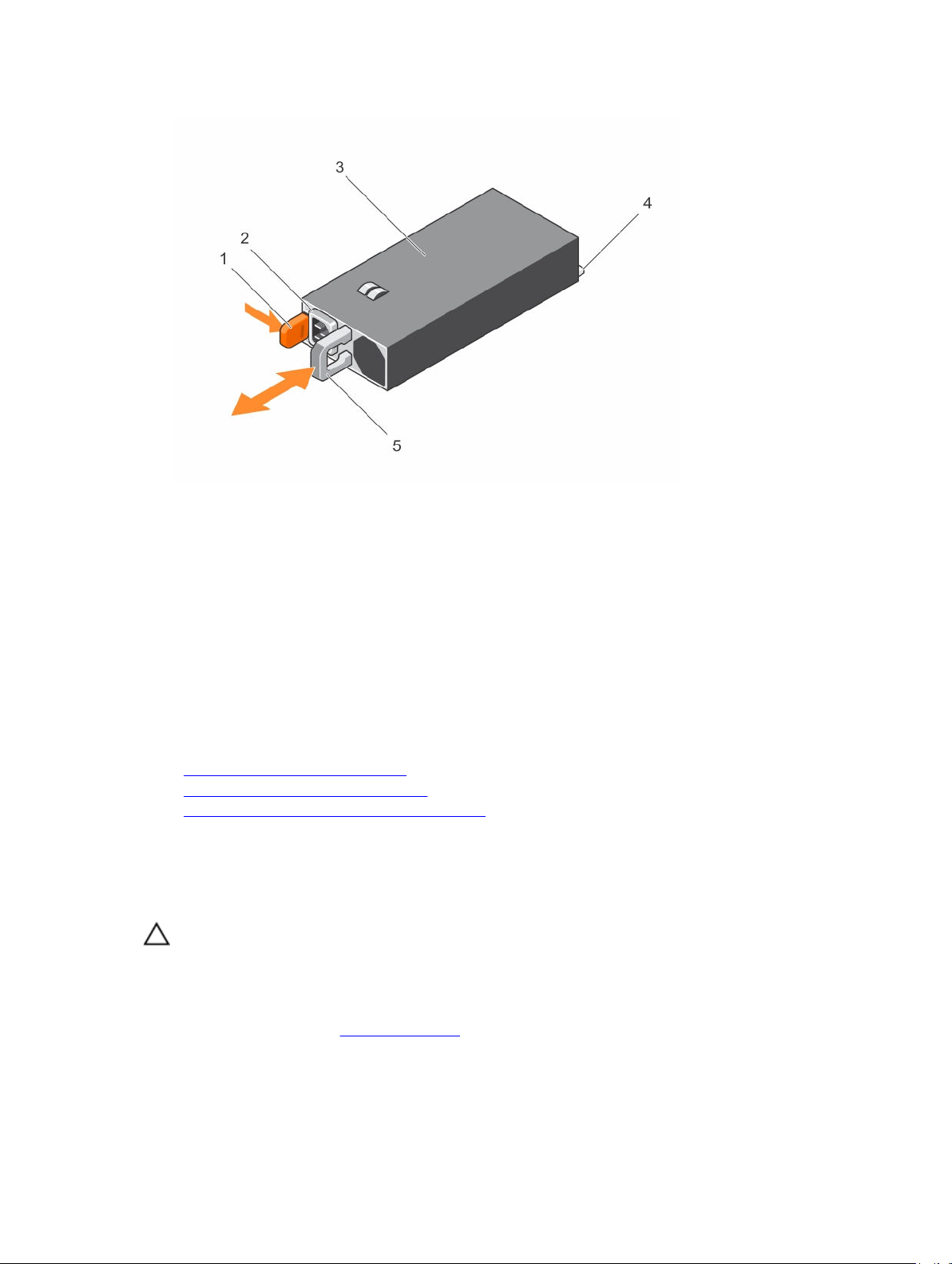

Figure 29. Removing and installing an AC PSU
1. release latch 2. PSU power cable connector
3. PSU 4. PSU connector
5. PSU handle
Next steps
Depending on your requirement, perform one of the following steps:
• If you are not replacing PSU 2 immediately, install a PSU blank.
• Install the replacement AC PSU.
• Install the 2.5 inch hard drive cage.
Related Tasks
Installing an AC power supply unit
Installing the power supply unit blank
Installing the optional 2.5 inch hard drive cage
Installing an AC power supply unit
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. For systems that support redundant power supply units (PSUs), ensure that both the PSUs are of the
same type and same maximum output power.
88
Page 89
NOTE: The maximum output power (shown in watts) is listed on the PSU label.
3. If applicable, remove the PSU blank. For more information, see Removing the power supply unit
blank.
Steps
1. Slide the replacement PSU into the PSU slot until the PSU is fully seated and the release latch snaps
into place.
CAUTION: When connecting the power cable, secure the cable with the strap.
2. Connect the PSU power cable to the PSU power cable connector.
NOTE: When installing, hot swapping, or hot adding a new PSU, wait for 15 seconds for the
system to recognize the PSU and determine its status. The power supply redundancy may not
occur until the new PSU discovery is complete. Wait until the new PSU is discovered and
enabled before you remove the other PSU. The PSU status indicator turns green to signify that
the PSU is functioning properly.
3. Plug the power cable into a power outlet.
Hard drives
Your system supports up to four 2.5 inch SAS or SATA cabled hard drives.
NOTE: SAS and SATA hard drives cannot be mixed in a system.
NOTE: Use only SAS and SATA hard drives that have been tested and approved for your system.
CAUTION: Do not turn off or reboot your system while the hard drive is being formatted. Doing
so can cause a hard drive failure.
When you format a hard drive, allow enough time for the formatting to be completed. High-capacity
hard drives can take a number of hours to format.
Removing the optional 2.5 inch hard drive cage
The PSU 2 slot also functions as the optional 2.5 inch hard drive cage slot.
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Disconnect the power cable from the system board.
4. Disconnect the signal cable from the system board or expansion card.
5. Keep the Phillips #1 screwdriver ready.
Steps
1. Remove the screw securing the hard drive cage to the hard drive cage slot.
89
Page 90
NOTE: When you slide the hard drive cage out of the hard drive cage slot, ensure that the
cables disconnected from the system board do not interfere with other components on the
system board.
2. Slide the hard drive cage out of the hard drive cage slot.

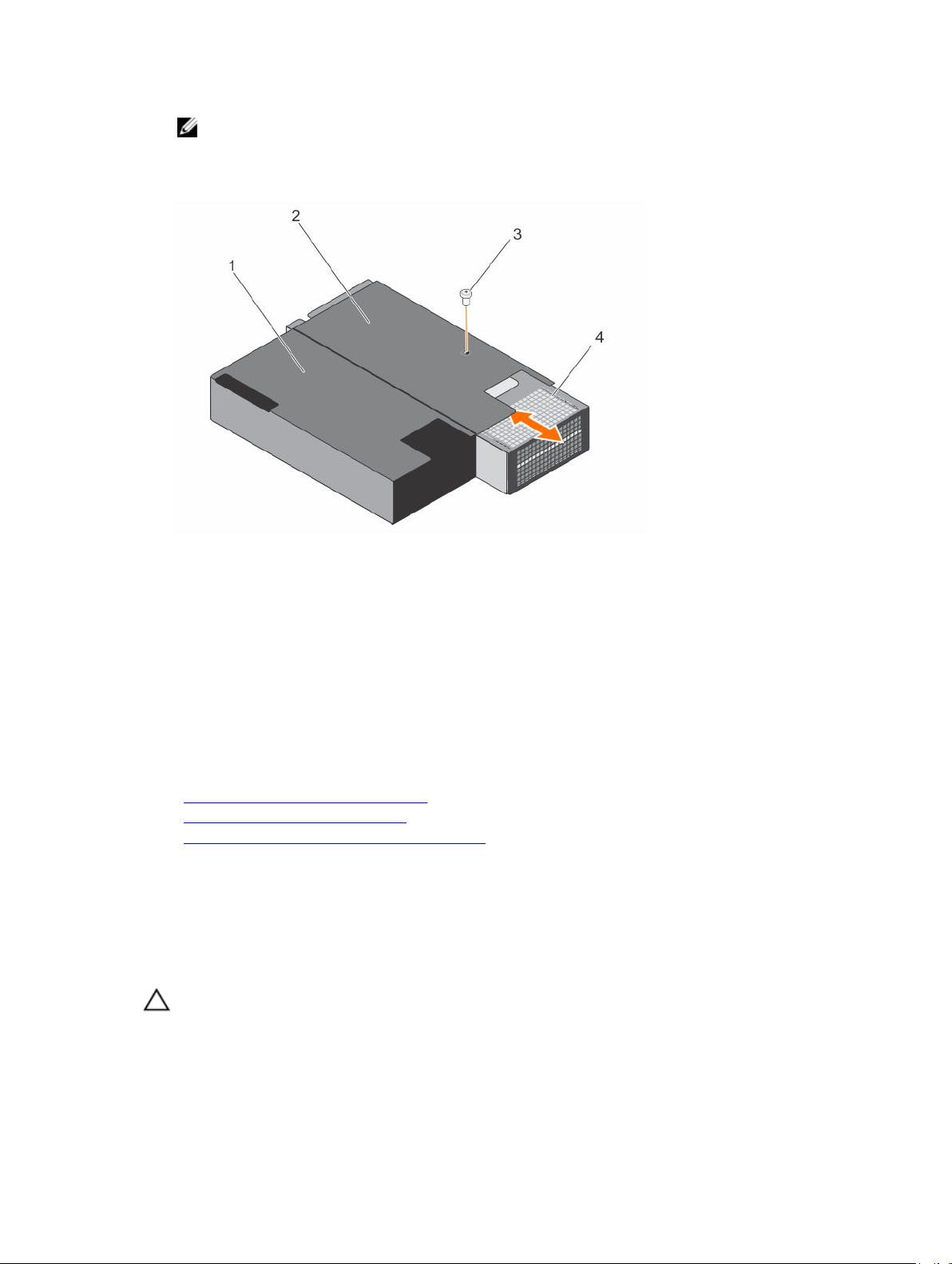

Figure 30. Removing and installing the 2.5 inch hard drive cage
1. PSU 1 slot 2. PSU 2 slot/2.5 inch hard drive cage slot
3. screw 4. hard drive cage
Next steps
If you are removing the hard drive cage permanently, install any one of the following:
• PSU blank
• PSU 2
• 2.5 inch hard drive cage
Related Tasks
Installing the power supply unit blank
Installing an AC power supply unit
Installing the optional 2.5 inch hard drive cage
Installing the optional 2.5 inch hard drive cage
The PSU 2 slot also functions as the optional 2.5 inch hard drive cage slot. If you install the 2.5 inch hard
drive cage in the PSU 2 slot, your system will not support the redundancy feature.
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
90
Page 91
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the PSU/PSU blank, if installed. See Removing the power supply unit blank, Removing an AC
power supply unit.
4. Install the 2.5 inch hard drives in the hard drive cage. See Installing a 2.5 inch cabled hard drive into
the hard drive cage.
5. Route the power and signal cables through the hard drive cage slot.
6. Keep the Phillips #1 screwdriver ready.
Steps
1. Slide the hard drive cage into the hard drive cage slot in the chassis.
2. Secure the hard drive cage to the hard drive cage slot by using the screws.
Next steps
1. Connect the power cable to the system board.
2. Connect the signal cables to the system board or expansion card.
3. Follow the procedure listed in After working inside your system.
Removing the optional 2.5 inch hard drive cage cover
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2.5 inch hard drive cage. For more information, see Removing the optional 2.5 inch hard
drive cage.
4. Keep the Phillips #1 screwdriver ready.
Steps
1. Remove the screws securing the hard drive cage cover to the hard drive cage.
2. Slide the hard drive cage cover toward the front of the hard drive cage to disengage it from the slots
on the hard drive cage.
3. Lift the hard drive cage cover away from the hard drive cage.
91
Page 92

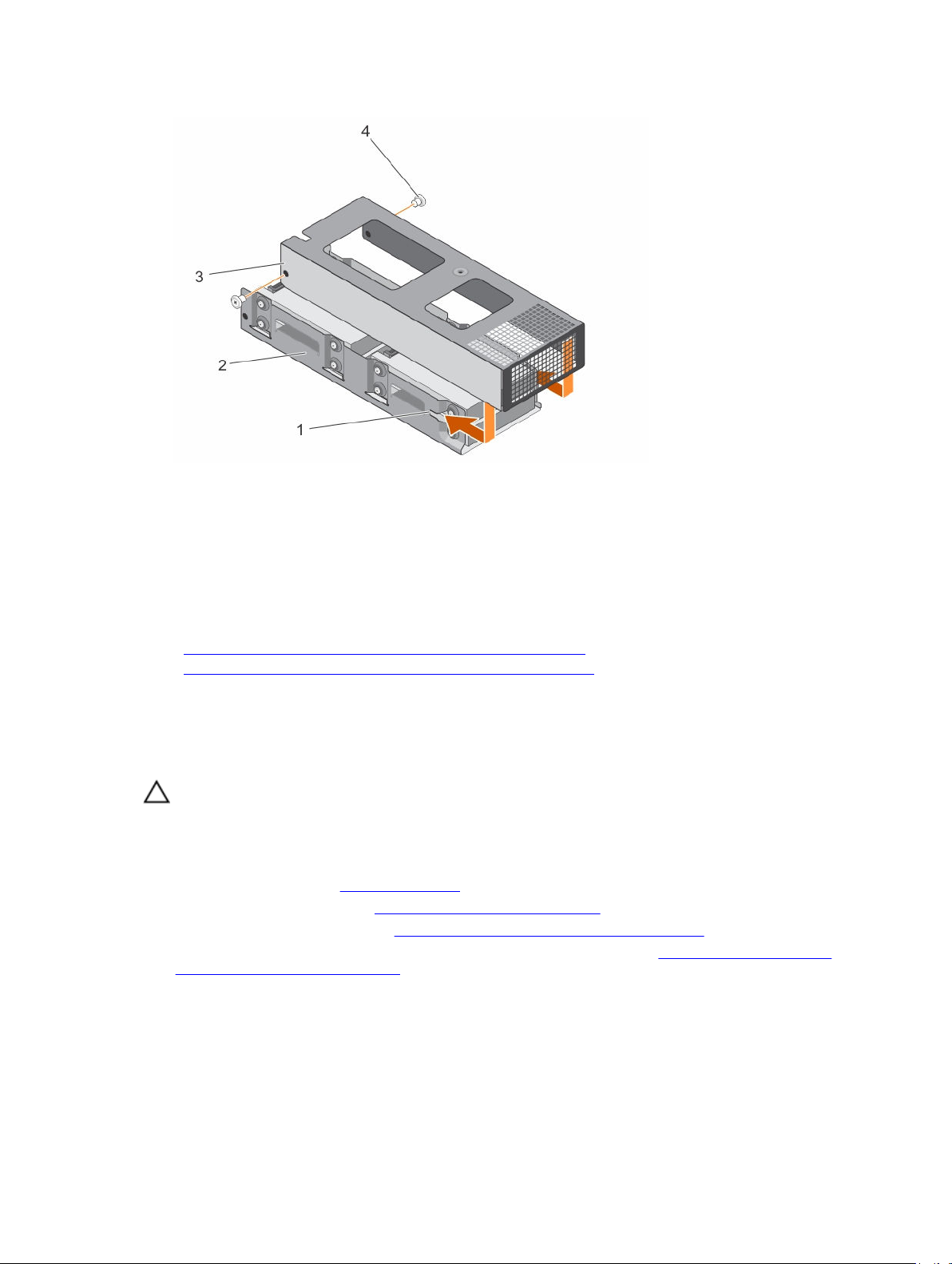

Figure 31. Removing and installing the 2.5 inch hard drive cage cover
1. slot on the hard drive cage (2) 2. hard drive cage
3. hard drive cage cover 4. screw (2)
Next steps
Depending on your requirement, install or remove the 2.5 inch hard drive(s).
Related Tasks
Installing a 2.5 inch cabled hard drive into the hard drive cage
Removing 2.5 inch cabled hard drives from the hard drive cage
Installing the optional 2.5 inch hard drive cage cover
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the hard drive cage. See Removing the optional 2.5 inch hard drive cage.
4. If applicable, install the 2.5 inch hard drive(s) into the hard drive cage. See Installing a 2.5 inch cabled
hard drive into the hard drive cage.
5. Connect the power and signal cable(s) to the hard drive(s) in the hard drive cage.
Steps
1. Lower the hard drive cage cover onto the hard drive cage.
2. Slide the hard drive cage cover toward the back of the cage to engage it with the slots on the hard
drive cage.
92
Page 93
3. Use the screws to secure the hard drive cage cover to the hard drive cage.
Next steps
1. Install the hard drive cage into the PSU 2 slot/2.5 inch hard drive slot on the chassis.
2. Follow the procedure listed in After working inside your system.
Removing 2.5 inch cabled hard drives from the hard drive cage
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Keep the Phillips #2 screwdriver ready.
4. Remove the 2.5 inch hard drive cage. For more information, see Removing the optional 2.5 inch hard
drive cage.
5. Remove the 2.5 inch hard drive cage cover. For more information, see Removing the optional 2.5
inch hard drive cage cover.
About this task
CAUTION: To maintain proper system cooling, a minimum of two hard drives must be installed in
hard drive 0/E and 1/F slots.
Steps
1. Remove the screws securing the hard drive to the hard drive cage.
2. Remove hard drives 0/E and 1/F by performing the following steps:
a. Disconnect the signal/power cable from the hard drives.
b. Lift hard drive 0/E out of the hard drive cage.
c. Slide hard drive 1/F out of the hard drive cage.
93
Page 94

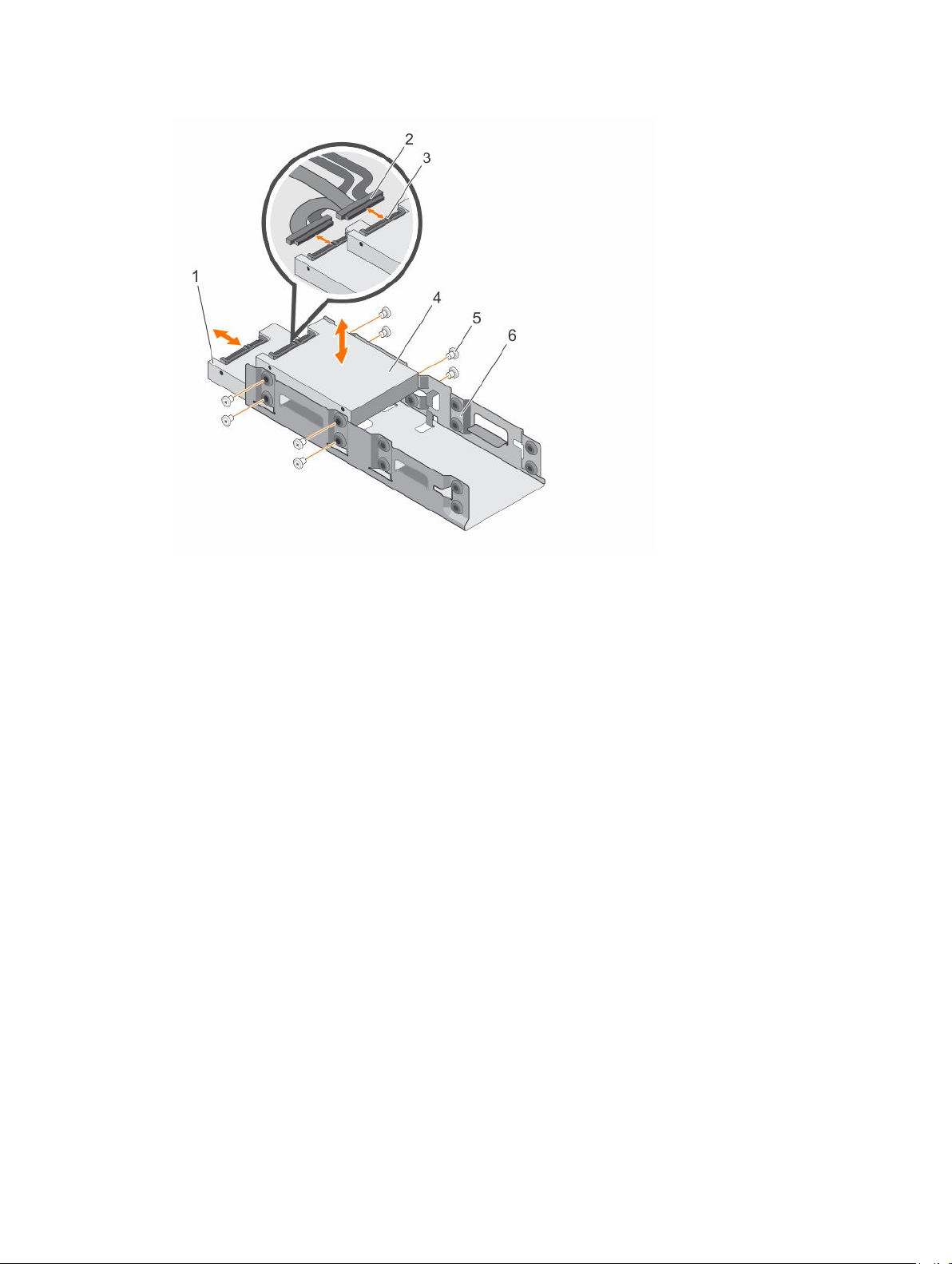

Figure 32. Removing and installing a 2.5 inch cabled hard drive (hard drive 0/E and hard drive 1/F) from
the hard drive cage
1. hard drive 1/F 2. power and signal cable connector (2)
3. power and signal cable connector on
4. hard drive 0/E
hard drive
5. screw (8) 6. hard drive cage
3. If you want to remove hard drives 2/C and 3/D, perform the following steps:
a. Remove hard drives 0/E and 1/F.
b. Disconnect the signal/power cables from hard drive 2/C and 3/D.
c. Remove the signal/power cables routed through the cable clip on the hard drive cage.
d. Lift hard drive 2/C out of the hard drive cage.
e. Slide hard drive 3/D out of the hard drive cage.
94
Page 95

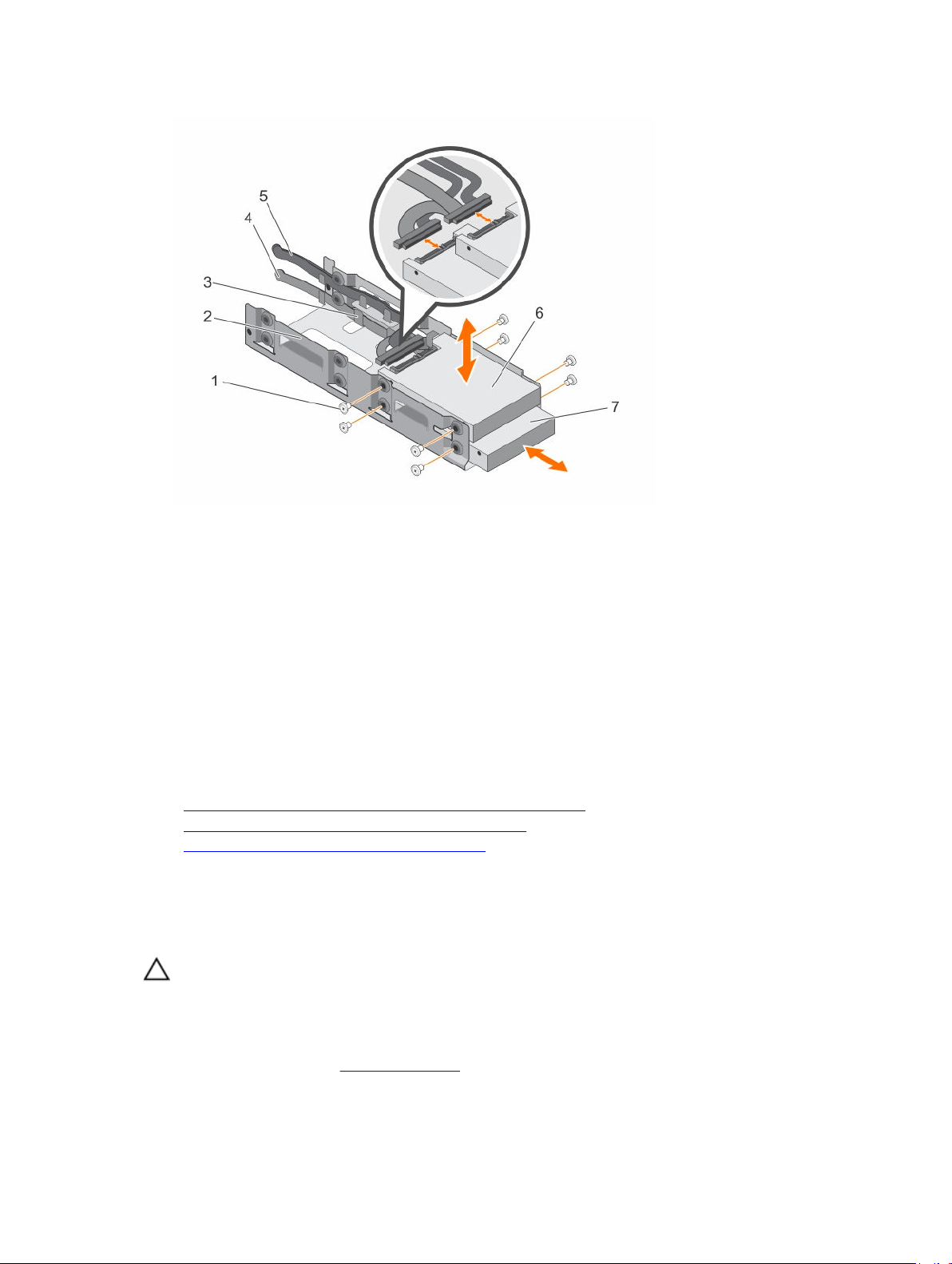

Figure 33. Removing and installing a 2.5 inch cabled hard drive (hard drive 2/C and hard drive 3/D) from
the hard drive cage
1. screw (8) 2. hard drive cage
3. cable routing clip 4. power cable
5. signal cable 6. hard drive 2/C
7. hard drive 3/D
Next steps
1. Install the hard drives.
2. Install the hard drive cage cover.
3. Install the hard drive cage into the hard drive cage slot in the chassis.
Related Tasks
Installing a 2.5 inch cabled hard drive into the hard drive cage
Installing the optional 2.5 inch hard drive cage cover
Installing the optional 2.5 inch hard drive cage
Installing a 2.5 inch cabled hard drive into the hard drive cage
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
95
Page 96
2. Keep the Phillips #2 screwdriver ready.
3. Remove the hard drive cage. For more information, see Removing the optional 2.5 inch hard drive
cage.
4. Remove the hard drive cage cover. For more information, see Removing the optional 2.5 inch hard
drive cage cover.
NOTE: If you are installing four hard drives, ensure that you install hard drives 3/D and 2/C before
you install hard drives 1/F and 0/E.
NOTE: If you are installing two hard drives, install hard drives 1/F and 0/E.
NOTE: To maintain proper system cooling, a minimum of 2 hard drives must be installed in hard
drive slots 0/E and 1/F.
Steps
1. To install hard drives 3/D and 2/C, perform the following steps:
a. Slide hard drive 3/D into the hard drive cage.
b. Lower hard drive 2/C into the hard drive cage.
c. Secure the hard drives to the hard drive cage by using the screws.
d. Connect the power/signal cable to the hard drives.
e. Route the cables through the cable routing clip on the hard drive cage.
2. To install hard drives 1/F and 0/E, perform the following steps:
a. Slide hard drive 1/F into the hard drive cage.
b. Lower hard drive 0/E into the hard drive cage.
c. Secure the hard drives to the hard drive cage by using the screws.
d. Connect the power/signal cable to the hard drives.
Next steps
1. Install the 2.5 inch hard drive cage cover.
2. Install the hard drive cage into the hard drive cage slot.
3. Connect the power/signal cables to the system board.
4. Follow the procedure listed in After working inside your system.
5. Enter System Setup and ensure that the hard drive's controller is enabled.
6. Exit the System Setup program and reboot the system.
7. Install any software required for the hard drive operation as described in the documentation for the
hard drive.
Related Tasks
Installing the optional 2.5 inch hard drive cage cover
Installing the optional 2.5 inch hard drive cage
96
Page 97
Hard drive cabling diagrams
Cabling SAS and SATA hard drives to the RAID card

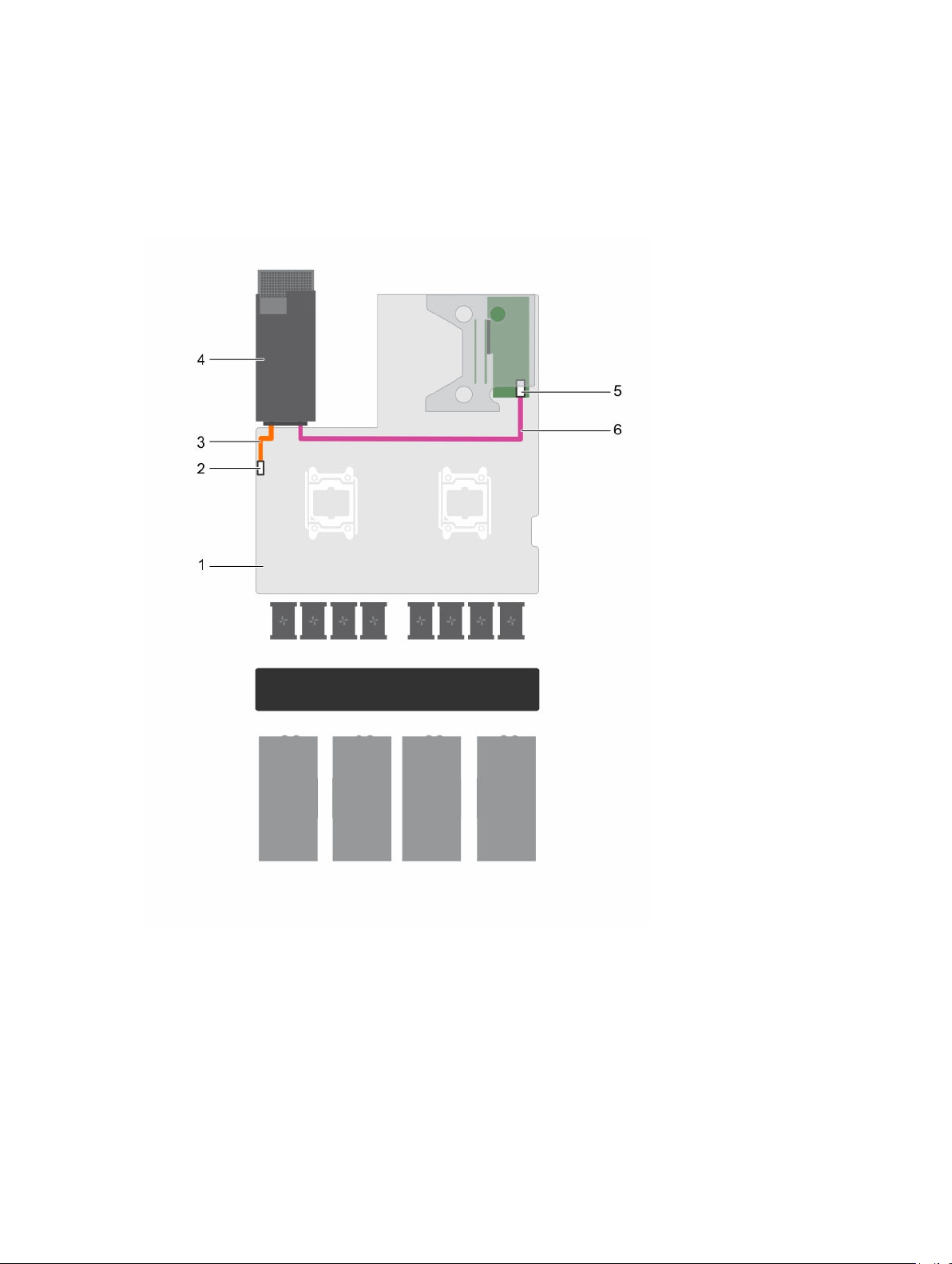

Figure 34. Cabling SAS and SATA hard drives to the RAID card
1. system board 2. 2.5 inch hard drive cage power connector
3. power cable 4. 2.5 inch hard drive cage slot
5. Port A connector on the RAID card 6. signal cable
97
Page 98
Cabling SATA hard drives to the SATA connector on the system board

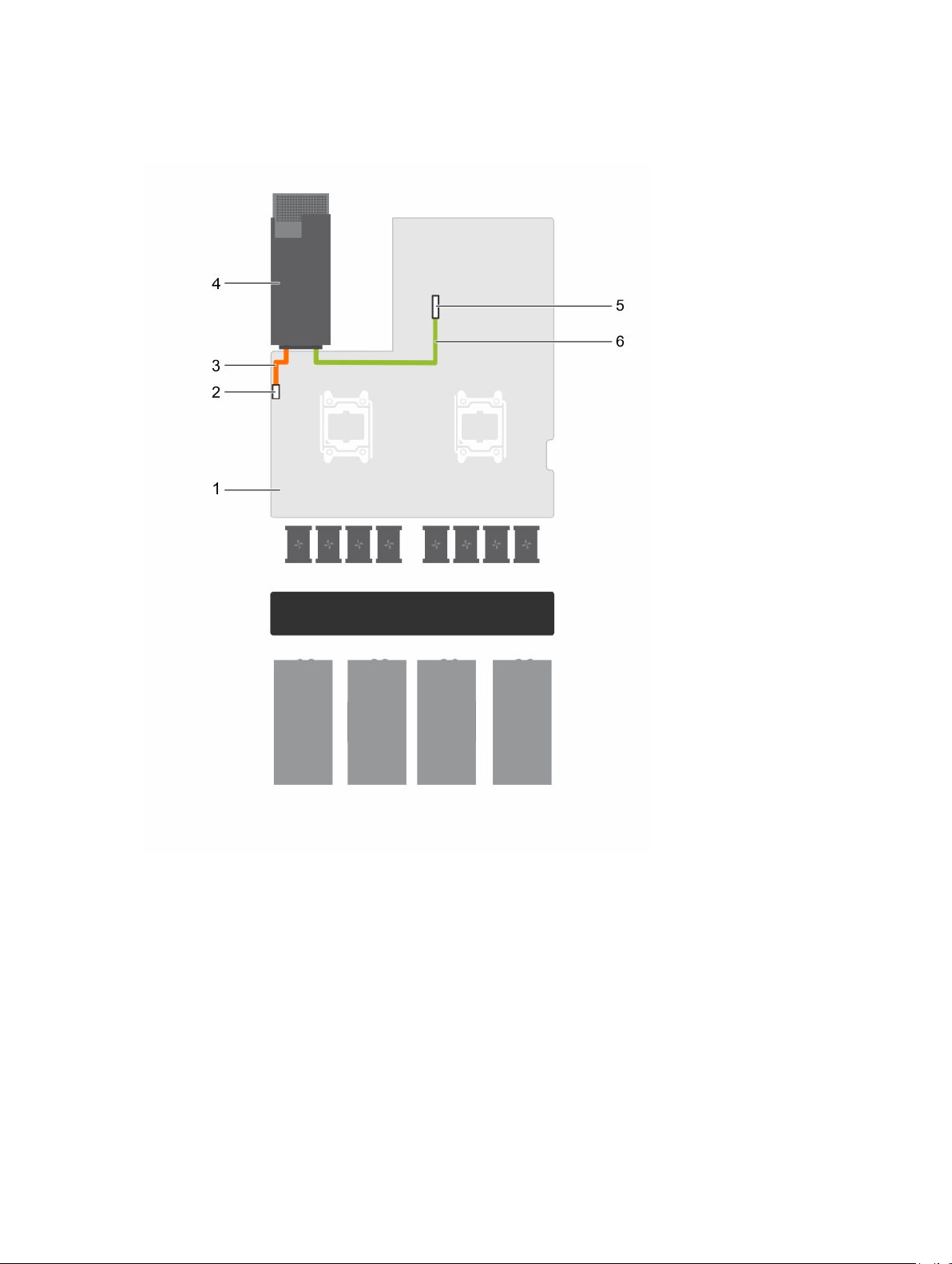

Figure 35. Cabling SATA hard drives to the SATA connector on the system board
1. system board 2. 2.5 inch hard drive cage power connector
3. power cable 4. 2.5 inch hard drive cage slot
5. SATA connector on the system board 6. signal cable
98
Page 99
uSATA SSDs
The PowerEdge C4130 supports up to two 1.8 inch uSATA Solid State Drives (SSDs). The uSATA SSDs
connect to the system board through the hard drive backplane.
NOTE: Use only SSDs that have been tested and approved for use with the hard drive backplane.
When you format an SSD, allow enough time for the formatting to be completed. High-capacity SSDs
can take a number of hours to format.
Removing a 1.8 inch uSATA SSD blank
Prerequisites
1. Ensure that you read the Safety instructions.
CAUTION: To maintain proper system cooling, all empty SSD slots must have SSD blanks
installed.
Steps
Press the release button and slide the SSD blank out of the SSD slot.

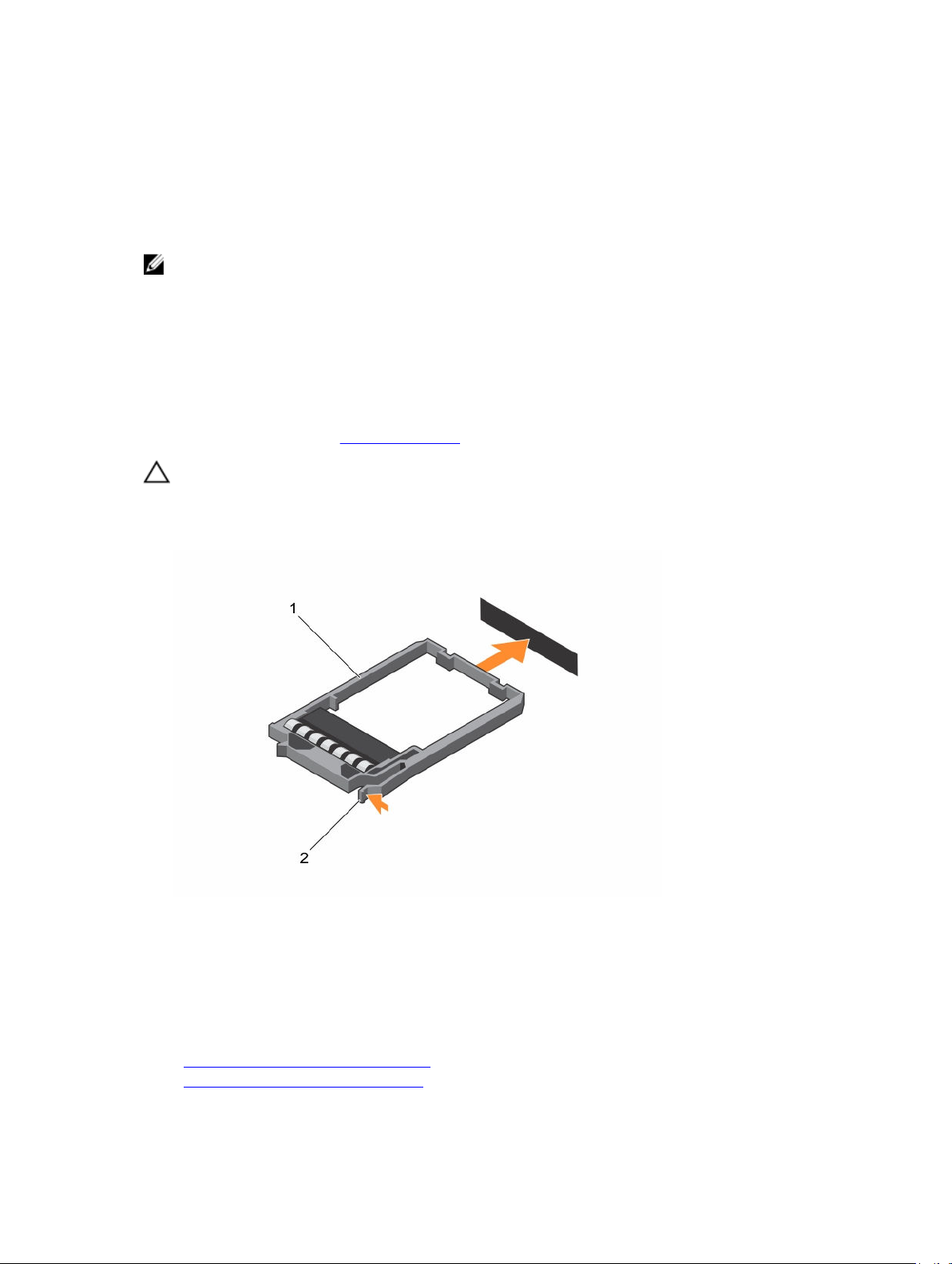

Figure 36. Removing and installing a 1.8 inch SSD blank
1. SSD blank 2. release button
Next steps
Install the 1.8 inch uSATA SSD carrier or SSD blank.
Related Tasks
Installing a 1.8 inch uSATA SSD carrier
Installing a 1.8 inch uSATA SSD blank
99
Page 100
Installing a 1.8 inch uSATA SSD blank
Install the SSD blank if you are removing the SSD permanently or not replacing it immediately.
Prerequisites
Ensure that you read the Safety instructions.
Steps
Insert the SSD blank into the SSD slot until the release button clicks into place.
Removing a 1.8 inch uSATA SSD carrier
You need to remove the SSD carrier because the SSD is installed in the SSD carrier.
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Using the management software, prepare the SSD for removal. Wait until the indicators on the SSD
carrier signal that the SSD can be removed safely.
If the SSD is online, the green activity/fault indicator flashes as the drive is turned off. When the SSD
indicators are off, the SSD drive is ready for removal. For more information, see the documentation
for the storage controller.
NOTE: The 1.8 inch uSATA SSDs are hot swappable only with software RAID S130. If your
system supports software RAID S130 proceed to step 4. If not, continue with step 3.
3. Turn off the system, including any attached peripherals.
4. Disconnect the system from the electrical outlet and disconnect the peripherals.
Steps
1. Press the release button to open the SSD carrier release handle.
2. Slide the SSD carrier out of the SSD cage.
The SSD is installed in the SSD carrier.
CAUTION: To maintain proper system cooling, all empty SSD slots must have SSD blanks
installed.
100
