Introduction
Checklist
Carefully unpack the Dell PowerEdge C410X server and check that the following items were included.
One Dell PowerEdge C410X system
Dell PowerEdge C410x Getting Started Guide
Safety, Environmental, and Regulatory Information (SERI)
Warranty and Support Information (WSI) or End User License Agreement (EULA)
Contact Dell if some items are missing or appear damaged.
1
Chapter 1: Product Overview
1.1 A Tour of the System
The following sections describe the external features of the Dell PowerEdge C410X server.
1.1.1. System Front View
Figure 1 – Front View
1 System LED 8 GPGPU Cage 5
2 UID LED/Button 9 GPGPU Cage 6
3 Power LED/Button 10 GPGPU Cage 7
4 GPGPU Cage 1 11 GPGPU Cage 8
5 GPGPU Cage 2 12 GPGPU Cage 9
6 GPGPU Cage 3 13 GPGPU Cage 10
7 GPGPU Cage 4
2
1.1.2. System Back View
Back view of system is shown below:
1 Power Module 1 11 iPass connector 6
2 Power Module 2 12 iPass connector 7
3 Power Module 3 13 iPass connector 8
4 Power Module 4 14 GPGPU Cage 11
5 BMC LAN Cable 15 GPGPU Cage 12
Figure 2 – Back View
6 iPass connector 1 16 GPGPU Cage 13
7 iPass connector 2 17 GPGPU Cage 14
8 iPass connector 3 18 GPGPU Cage 15
9 iPass connector 4 19 GPGPU Cage 16
10 iPass connector 5
3
1.2 System LEDs Description
1.2.1. Front System LEDs
The front system LEDs contain Status LED, Power LED and UID LED information.
The detailed LEDs information is listed below:
Table 1 Front System LEDs
Status LED
UID LED
Power LED
Figure 3 – Front System LEDs
Displays status/errors and is controlled by BMC.
Color Condition Occurrence
Amber
Lights when front or rear ID button is pressed.
Color Condition Occurrence
Blue
Lights green when server is powered on.
Color Condition Occurrence
Green
Blink Fast Power supply fail
On FAN fail or sensor error
Blink GPU card fail
Off No identification
Blinking
ID Button pressed on system (ID command
executed)
On Power on
Blinking
Power on fail or without
any GPU card
4
1.2.2. LAN LEDs
Table 2 LAN LEDs
Figure 4 – LAN LEDs
LAN LAN Link/Activity
On LAN Link / no Access
N/A Off Idle
10 LAN Speed N/A Off 10Mbps connection
100 LAN Speed On 10Mbps connection
GbE LAN Speed On 1Gbps connection
Color Condition Occurrence
Green
Blink LAN Access
Green
Blink Port identification with 10 or 100Mbps connection
Yellow
Blink Port identification with 1Gbps connection
5
Chapter 2: Removing and Installing Hardware
Safety Measures
Computer components and electronic circuit boar ds can be damaged by discharges of static electricity.
Working on computers that are still connected to a power supply can be extremely dangerous. Follow the
simple guidelines below to avoid damage to your computer or injury to yourself.
Always disconnect the computer from the power outlet whenever you are working inside the
computer case.
If possible, wear a grounded wrist strap when you are working inside the computer case.
Alternatively, discharge any static electricity by touching the bare metal system of the
computer case, or the bare metal body of any other grounded appliance.
Hold electronic circuit boards by the edges only. Do not touch the components on the board
unless it is necessary to do so. Do not flex or stress the circuit board.
Leave all components inside the static-proof packaging until you are ready to use the
component for the installation.
6
2.1. Dell PowerEdge C410X Middle Board Connectors and Jumpers
Figure 5 displays the most important DELL PowerEdge C410X middle board components.
Item Component
1.
2.
3.
4.
5.
PCI-E connectors
PCI-E connectors
Power connectors
iPass connectors
Battery
Figure 5 – Middle Board Connectors and Jumpers
Items Component
6.
7.
8.
9.
Front I/O connector
FAN connectors
FAN LED connectors
Failover setting pin header
7
2.2. System Cover
WARNING:
Follow these instructions to remove the system cover:
1. Loosen and remove the securing screw on the top of the system.
2. Slide the cover horizontally to the back using the traction pad and remove the cover in the
direction of the arrow.
Before you remove or install the system cover:
make sure the server is not turned on or connected to the AC
power.
NOTE:
Follow these instructions to install the system cover:
Reverse the steps above to install the system cover.
This system must be operated with the system cover installed to ensure proper cooling.
8
2.3. GPGPU Cage
NOTE:
Follow these instructions to remove the cage:
1. Press the release button along the direction of the arrow.
When you remove or install the GPGPU cage, note the following points:
Take note of the drive tray orientation before sliding it out.
The tray will not fit back into the bay if inserted incorrectly.
2. Slide the cage assembly out of the system.
Follow these instructions to install the cage:
Reverse the steps above to install the cage.
9
2.4. Replacing GPGPU Card
WARNING:
Follow these instructions to replace a GPGPU card:
For M1060 System
1. Insert the GPGPU card by 45 degree and push it into socket vertically.
Before you remove or install the system fan, take the steps below:
Make sure the system is not turned on or connected to the AC power.
Disconnect all necessary cable connections.
Turn off the specific single GPU cage power.
Failure to observe these warnings could result in personal injury or damage to
the equipment.
10
2. Secure the card in place with screws and place the GPGPU side cover as illustration arrow show.
3. Secure the GPGPU side cover and back cover in place with screws.
11
Follow these instructions to replace a GPGPU card:
For M2050 System
1. Attach the support bracket on the GPGPU board and secure it in place with screws.
2. Insert the GPGPU card by 45 degree and push it into socket vertically.
12
3. Secure the card in place with screws and place the GPGPU side cover as illustration arrow show.
4. Secure the card in place with screws and place the GPGPU side cover as illustration arrow show.
13
2.5. System Fans
In case a of system fan failure, you can quickly replace the system fan.
WARNING:

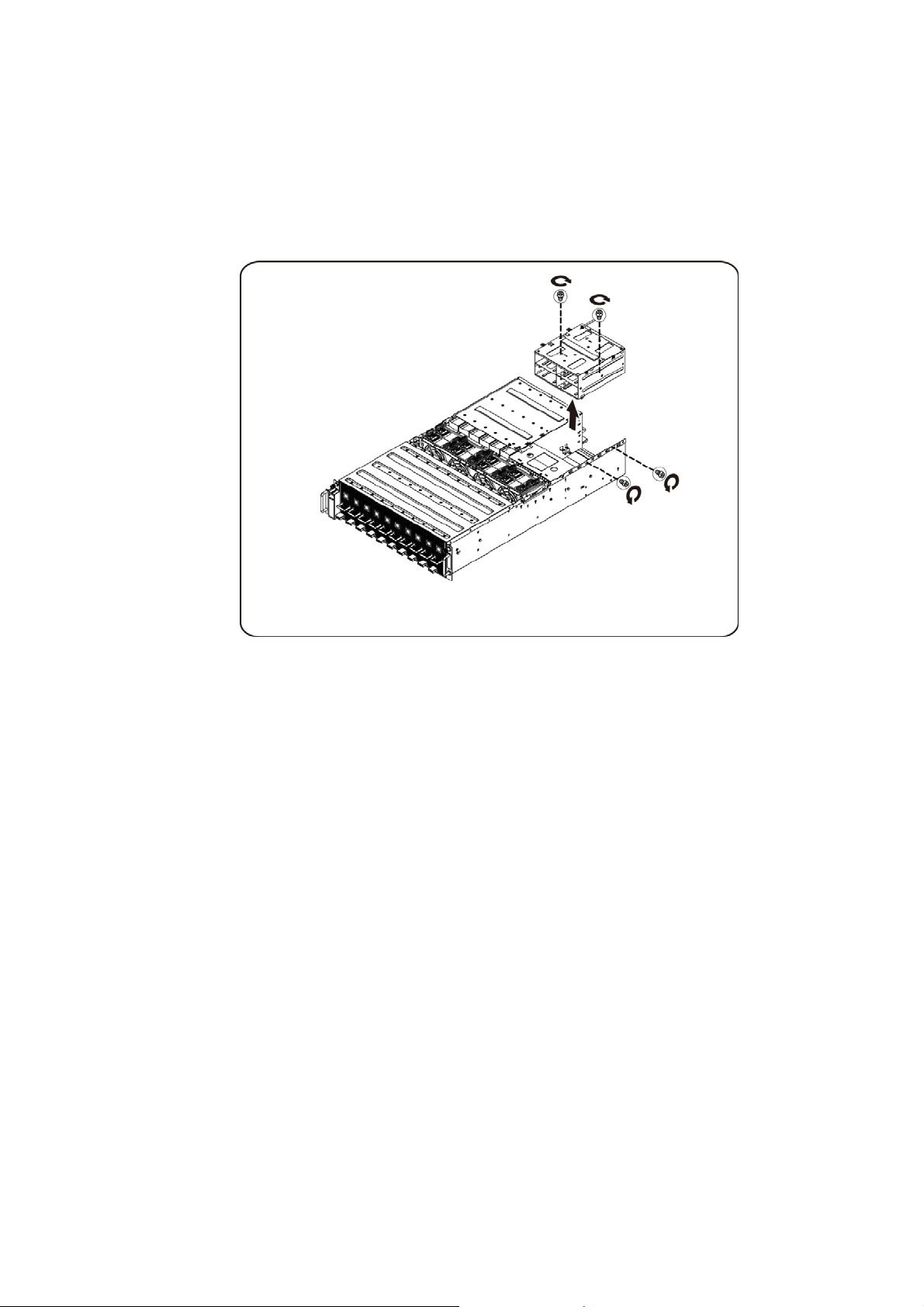

Follow the instruction to remove the system fan:
1. Loosen and remove the securing screw on the top of the system.
Before you remove or install the system fan, take the steps below:
Make sure the system is not turned on or connected to the AC power.
Disconnect all necessary cable connections.
Failure to observe these warnings could result in personal injury or damage to
the equipment.
14
2. Lift the system fan out of the system fan cage.
Follow these instructions to install the system fan:
Reverse the step above to install the system fan.
15
