Datasheet TEA6322T Datasheet (Philips)

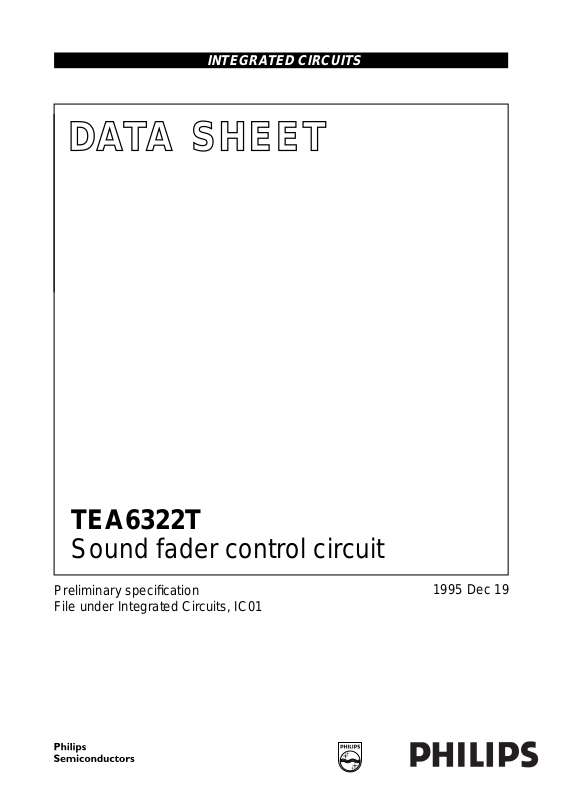

INTEGRATED CIRCUITS

DATA SH EET

TEA6322T

Sound fader control circuit

Preliminary specification
File under Integrated Circuits, IC01

1995 Dec 19

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

FEATURES

• Source selector for three stereo and one differential
stereo input for remote sources

• The differential stereo input works optional as a fourth
stereo input and the common mode pin can be used as
well as an additional mono input

• Interface for noise reduction circuits

• Interface for external equalizer

• Volume, balance and fader control

• Output at volume I for external booster

• Special loudness characteristic automatically controlled

in combination with volume setting

• Bass and treble control

• Mute control at audio signal zero crossing

• Logic output to read mute status

2

• Fast mute control via I

C-bus

• Fast mute control via pin

• I2C-bus control for all functions

• Power supply with internal power-on reset

• Power-down indication.

GENERAL DESCRIPTION

The sound fader control circuit TEA6322T is an I

2

C-bus
controlled stereo preamplifier for car radio hi-fi sound
applications.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CC

I

CC

V

o(rms)

G

v

G

step(vol)

G

bass

G

treble

G

step(treble)

(S+N)/N signal-plus-noise to noise ratio V

supply voltage 7.5 8.5 9.5 V
supply current VCC= 8.5 V − 26 − mA
maximum output voltage level VCC= 8.5 V; THD ≤ 0.1% − 2000 − mV
voltage gain −86 − +20 dB
step resolution (volume) − 1 − dB
bass control −15 − +15 dB
treble control −12 − +12 dB
step resolution (bass, treble) − 1.5 − dB

= 2.0 V; Gv= 0 dB;

O

− 105 − dB

unweighted

RR

100

ripple rejection V

r(rms)

< 200 mV;

− 75 − dB

f = 100 Hz; Gv=0dB

CMRR common mode rejection ratio

43 53 − dB

differential stereo input

ORDERING INFORMATION

PACKAGE

TYPE NUMBER

NAME DESCRIPTION VERSION

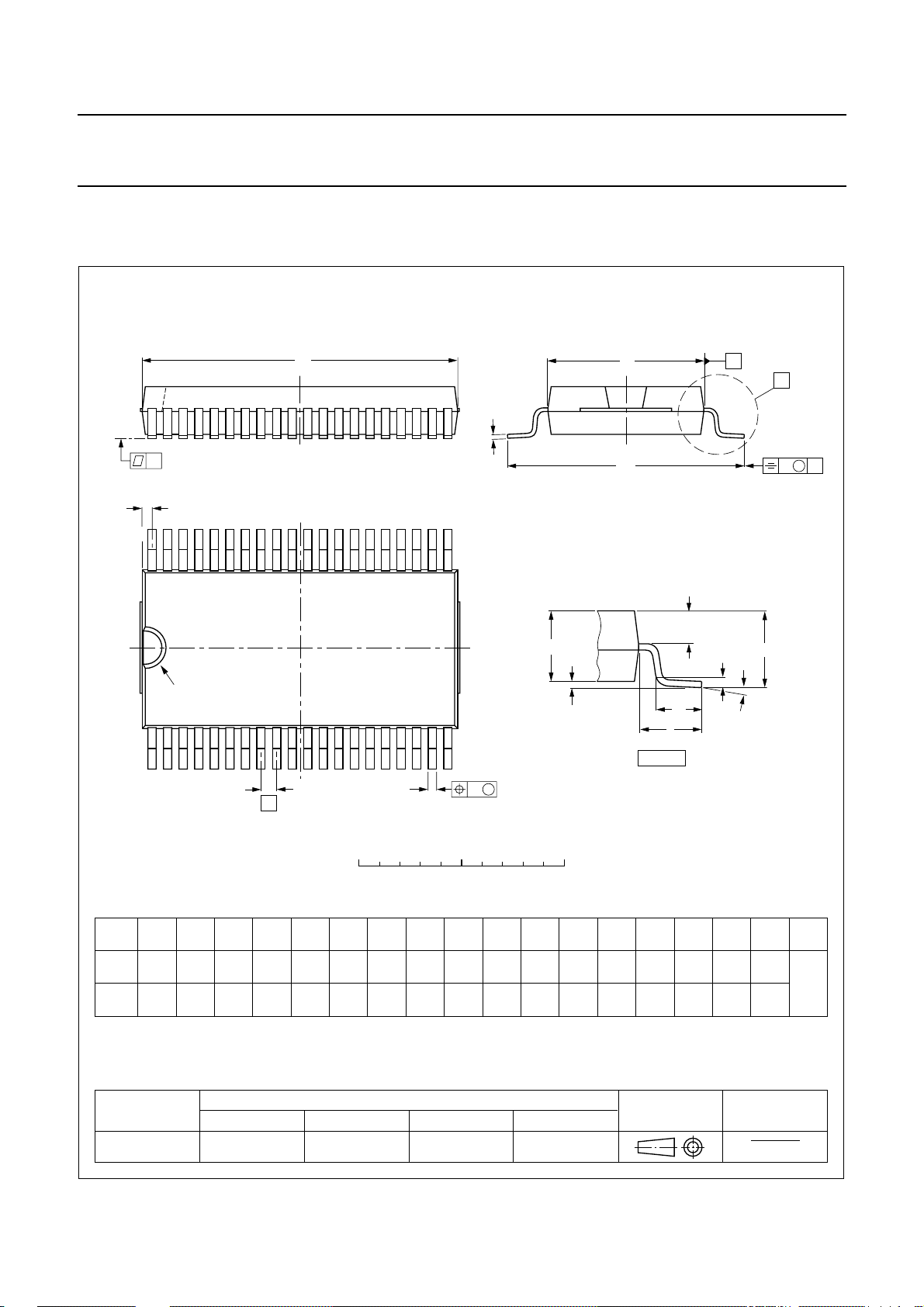

TEA6322T VSO40 plastic very small outline package; 40 leads SOT158-1

1995 Dec 19 2

1995 Dec 19 3

BLOCK DIAGRAM

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

OVL

V

GND

input

left

source

input

mono

source

input

right

source

CC

100 µF

47 µF

9 x 220 nF

C

KIN

26
38
3
4
24

20
18
16
14

17

27
25
23
21

POWER
SUPPLY

8.2 nF

220 nF

13

SOURCE

SELECTOR

220 nF

8.2 nF

C

C

20 kΩ

KVL

KVL

20 kΩ

2.2 kΩ

150 nF

1211

VOLUME I

+20 to −31 dB

LOUDNESS

LEFT

VOLUME I

+20 to −31 dB

LOUDNESS

RIGHT

150 nF

2.2 kΩ

33 nF

BASS

LEFT

± 15 dB

LOGIC

BASS

RIGHT

± 15 dB

33 nF

TREBLE

LEFT

± 12 dB

TREBLE

RIGHT

± 12 dB

5.6 nF

FUNCTION

ZERO CROSS

DETECTOR

TEA6322T

34333231293028

5.6 nF

+ 5 V

MUTE

4.7 kΩ

278910

VOLUME II
0 to −55 dB

BALANCE

FADER REAR

VOLUME II
0 to −55 dB

BALANCE

FADER FRONT

I2C-BUS

RECEIVER

VOLUME II
0 to −55 dB

BALANCE

FADER FRONT

VOLUME II
0 to −55 dB

BALANCE

FADER REAR

40

35

36

MHA084

MUTE

5

output

left

6

SCL

1

SDA

output

right

OVR

Fig.1 Block diagram.

handbook, full pagewidth

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

PINNING

SYMBOL PIN DESCRIPTION

SDA 1 serial data input/output
MUTE 2 mute control input and output
DGND 3 digital ground
AGND 4 analog ground
OUTLR 5 output left rear
OUTLF 6 output left front
TL 7 treble control capacitor left channel or input from external equalizer
B2L 8 bass control capacitor left channel or output to an external equalizer
B1L 9 bass control capacitor, left channel
OVL 10 output volume I, left channel
IVL 11 input volume I, left control part
ILL 12 input loudness, left control part
QSL 13 output source selector, left channel
IDL 14 input D left source
i.c. 15 COMM, common mode rejection adjust, centre position
ICL 16 input C left source
COM 17 common mode input / mono source input
IBL 18 input B left source
i.c. 19 COML, common mode rejection adjust, left position
IAL 20 input A differential source left
IAR 21 input A differential source right
i.c. 22 COMR, common mode rejection adjust, right position
IBR 23 input B right source
CAP 24 electronic filtering for supply
ICR 25 input C right source
V

ref

IDR 27 input D right source
QSR 28 output source selector right channel
ILR 29 input loudness right channel
IVR 30 input volume I, right control part
OVR 31 output volume I, right channel
B1R 32 bass control capacitor right channel
B2R 33 bass control capacitor right channel or output to an external equalizer
TR 34 treble control capacitor right channel or input from an external equalizer
OUTRF 35 output right front
OUTRR 36 output right rear
n.c. 37 not connected
V

CC

n.c. 39 not connected
SCL 40 serial clock input

26 reference voltage (0.5 VCC)

38 supply voltage

1995 Dec 19 4

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

The volume control function is split into two sections:

handbook, halfpage

OUTLR

OUTLF

SDA
MUTE
DGND
AGND

TL
B2L

B1L

OVL

IVL

ILL

QSL

IDL

i.c.

ICL

COM

IBL

i.c.

IAL

1
2
3
4
5
6
7
8
9

10

TEA6322T

11
12
13
14
15
16
17
18
19
20

MHA085

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

SCL
n.c.
V

CC

n.c.

OUTRR
OUTRF
TR
B2R
B1R
OVR
IVR
ILR
QSR
IDR

V

ref

ICR
CAP
IBR

i.c.
IAR

Fig.2 Pin configuration.

FUNCTIONAL DESCRIPTION

The source selector allows either the source selection
between the differential stereo input (IAL, IAR and COM)
and three stereo inputs, or selection of four stereo inputs
and the mono input (COM). The maximum input signal
voltage is V

= 2 V. The outputs of the source selector

i(rms)

and the inputs of the following volume control parts are
available at pins 13 and 11 for the left channel and pins 28
and 30 for the right channel. This offers the possibility of
interfacing a noise reduction system.

The volume control part is following the source selector.
The signal phase from input volume control part to all
outputs is 180°.

volume I control block and volume II control block.
The control range of volume I is between +20 dB and

−31 dB in steps of 1 dB. The volume II control range is
between 0 dB and −55 dB in steps of 1 dB. Although the
theoretical possible control range is 106 dB
(+20 to −86 dB), in practice a range of 86 dB
(+20 to −66 dB) is recommended. The gain/attenuation
setting of the volume I control block is common for both
channels.

The volume I control block operates in combination with
the loudness control. The filter is linear when the maximum
gain for the volume I control (+20 dB) is selected. The filter
characteristic increases automatically over a range of
32 dB down to a setting of −12 dB. That means the
maximum filter characteristic is obtained at −12 dB setting
of volume I. Further reduction of the volume does not
further influence the filter characteristic (see Fig.5). The
maximum selected filter characteristic is determined by
external components. The proposed application gives a
maximum boost of 17 dB for bass and 4.5 dB for treble.
The loudness may be switched on or off via I2C-bus control
(see Table 7).

The volume I control block has an output pin and is
followed by the bass control block. A single external
capacitor of 33 nF for each channel in combination with
internal resistors, provides the frequency response of the
bass control (see Fig.3). The adjustable range is between

−15 and +15 dB at 40 Hz.
Both loudness and bass control result in a maximum bass

boost of 32 dB for low volume settings.
The treble control block offers a control range between

−12 and +12 dB in steps of 1.5 dB at 15 kHz. The filter
characteristic is determined by a single capacitor of 5.6 nF
for each channel in combination with internal resistors
(see Fig.4).

The basic step width of bass and treble control is 3 dB. The
intermediate steps are obtained by switching 1.5 dB boost
and 1.5 dB attenuation steps.

The bass and treble control functions can be switched off
via I2C-bus. In this event the internal signal flow is
disconnected. The connections B2L and B2R are outputs
and TL and TR are inputs for inserting an external
equalizer.

1995 Dec 19 5

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

The last section of the circuit is the volume II block. The
balance and fader functions are performed using the same
control blocks. This is realized by 4 independently
controllable attenuators, one for each output. The control
range of these attenuators is 55 dB in steps of 1 dB with an
additional mute step.

The circuit provides 3 mute modes:

1. Zero crossing mode mute via I2C-bus using
2 independent zero crossing detectors
(ZCM, see Tables 2 and 9).

2. Fast mute via MUTE pin.

3. Fast mute via I2C-bus either by general mute (GMU,
see Tables 2 and 9) or volume II block setting
(see Table 4).

The mute function is performed immediately if ZCM is
cleared (ZCM = 0). If the bit is set (ZCM = 1) the mute is
activated after changing the GMU bit. The actual mute
switching is delayed until the next zero crossing of the
audio frequency signal. As the two audio channels (left and
right) are independent, two comparators are built-in to
control independent mute switches.

To avoid a large delay of mute switching when very low
frequencies are processed or the output signal amplitude
is lower than the DC offset voltage a second I2C-bus
transmission is needed. Both transmissions have the
same data and the second transmission a delay time of
e.g. 100 ms. The first transmission starts the zero cross
circuit, but second transmission moves the mute switch
immediately if the circuit has no zero cross detected.

The mute function can also be controlled externally. If the
mute pin is switched to ground all outputs are muted
immediately (except the outputs volume left and right (OVL
and OVR) and hardware mute). This mute request
overwrites all mute controls via the I2C-bus for the time the
pin is held LOW. The hardware mute position is not stored
in the TEA6322T.

The MUTE pin can also be used as output. The mute pin
voltage is LOW when all outputs are in mute position.

For the turn on/off behaviour the following explanation is
generally valid. To avoid AF output caused by the input
signal coming from preceding stages, which produces
output during drop of VCC, the mute has to be set, before
the VCC will drop. This can be achieved by I2C-bus control
or by grounding the MUTE pin.

For use where is no mute in the application before turn off,
a supply voltage drop of more than 1 × VBE will result in a
mute during the voltage drop.

The power supply should include a VCC buffer capacitor,
which provides a discharging time constant. If the input
signal does not disappear after turn off the input will
become audible after certain time. A 4.7 kΩ resistor
discharges the VCC buffer capacitor, because the internal
current of the IC does not discharge it completely.

The hardware mute function is favourable for use in Radio
Data System (RDS) applications. The zero crossing mute
avoids modulation plops. This feature is an advantage for
mute during changing presets and/or sources (e.g. traffic
announcement during cassette playback).

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

CC

V

n

supply voltage 0 10 V
voltage at pins 1, 2 and 5 to 40

0VCCV

to pins 3 and 4

T

amb

T

stg

V

es

operating ambient temperature −40 +85 °C
storage temperature −65 +150 °C
electrostatic handling note 1

Note

1. Human body model: C = 100 pF; R = 1.5 kΩ; V ≥ 2 kV. Charge device model: C = 200 pF; R = 0 Ω; V ≥ 500 V.

1995 Dec 19 6

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

CHARACTERISTICS

VCC = 8.5 V; RS= 600 Ω; RL=10kΩ; CL= 2.5 nF; AC coupled; f = 1 kHz; T
linear; treble linear; fader off; balance in mid position; loudness off; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CC

I

CC

V

DC

supply voltage 7.5 8.5 9.5 V
supply current − 26 33 mA
internal DC voltage at inputs and

outputs

V

ref

G
V

o(rms)

v(max)

internal reference voltage at pin 26 − 4.25 − V
maximum voltage gain RS=0Ω; RL= ∞ 19 20 21 dB
output voltage level for

at the power output stage THD ≤ 0.5%; see Fig.10 − 2000 − mV

P

max

start of clipping THD = 1%; G

R

=2kΩ; CL= 10 nF;

L

= 3 dB 2300 −−mV

v

THD = 1%
V
f

ro

i(rms)

input sensitivity Vo= 2000 mV; Gv=20dB − 200 − mV
roll-off frequency C

= 220 nF;

KIN

C

= 220 nF; Zi=Z

KVL

low frequency (−1 dB) 60 −−Hz
low frequency (−3 dB) 30 −−Hz
high frequency (−1 dB) 20000 −−Hz

C

= 470 nF;

KIN

C

= 100 nF; Zi=Z

KVL

low frequency (−3 dB)

α

cs

channel separation Vi= 2 V; frequency range

250 Hz to 10 kHz
THD total harmonic distortion frequency range

20 Hz to 12.5 kHz

Vi= 100 mV; Gv=20dB − 0.1 − %
V

= 1 V; Gv=0dB − 0.05 0.1 %

i

V

= 2 V; Gv=0dB − 0.1 − %

i

= 2 V; Gv= −10 dB − 0.1 − %

V

i

RR ripple rejection V

r(rms)

< 200 mV
f = 100 Hz 70 76 − dB
f = 40 Hz to 12.5 kHz − 66 − dB

=25°C; gain control Gv= 0 dB; bass

amb

3.83 4.25 4.68 V

2000 −−mV

i(min)

17 −−Hz

i(typ)

74 80 − dB

1995 Dec 19 7

Philips Semiconductors Preliminary specification



Sound fader control circuit TEA6322T

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

(S+N)/N signal-plus-noise to noise ratio unweighted;

20 Hz to 20 kHz (RMS);
Vo= 2.0 V;
see Figs 6 and 7

CCIR468-2 weighted;
quasi peak; V

G

=0dB − 95 − dB

v

G

=12dB − 88 − dB

v

=20dB − 81 − dB

G

v

differential input

G

=0dB − 90 − dB

v

=20dB − 79 − dB

G

v

CMRR common mode rejection ratio

differential stereo input

P

no(rms)

noise output power (RMS value)

mute position; note 1 −−10 nW

only contribution of TEA6322T;
power amplifier for 6 W

α

ct

crosstalk

V



20



bus p p–()

-------------------------- -log
V

o rms()

between bus

note 2 − 110 − dB

inputs and signal outputs

= 2.0 V

o

− 105 − dB

43 53 − dB

Source selector

Z

α

V

V

i
S

i(rms)

offset

input impedance 25 35 45 kΩ
input isolation of one selected

source to any other input
maximum input voltage

(RMS value)

f=1kHz − 105 − dB
f = 12.5 kHz − 95 − dB
THD < 0.5%; VCC= 8.5 V − 2.15 − V
THD < 0.5%; V

= 7.5 V − 1.8 − V

CC

DC offset voltage at source selector
output

by selection of any stereo inputs −−10 mV
by selection of differential input or

mono input

Z

o

R

L

C

L

G

v

output impedance − 80 120 Ω
output load resistance 10 −−kΩ
output load capacity 0 − 2500 pF
voltage gain, source selector − 0 − dB

Control part (source selector disconnected; source resistance 600 Ω)

Z

i

input impedance volume input 100 150 200 kΩ
input impedance loudness input 25 33 40 kΩ

Z

o

R

L

C

L

output impedance − 80 120 Ω
output load resistance 2 −−kΩ
output load capacity 0 − 10 nF

−−20 mV

1995 Dec 19 8

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

i(rms)

V

no

CR

tot

G

step

∆G

a

∆G

t

MUTE
V

offset

maximum input voltage

THD < 0.5% − 2.15 − V

(RMS value)
noise output voltage CCIR468-2 weighted;

quasi peak

=20dB − 110 220 µV

G

v

G

=0dB − 33 50 µV

v

G

= −66 dB − 13 22 µV

v

mute position − 10 −µV
total continuous control range − 106 − dB
recommended control range − 86 − dB
step resolution − 1 − dB
step error between any adjoining

−−0.5 dB

step
attenuator set error Gv= +20 to −50 dB −−2dB

G

=−51 to −66 dB −−3dB

v

gain tracking error Gv= +20 to −50 dB −−2dB
mute attenuation see Fig.9 100 110 − dB

att

DC step offset between any
adjoining step

DC step offset between any step to
mute

Gv=0to−66 dB − 0.2 10 mV

=20to0dB − 215mV

G

v

G

=0to−66 dB −−10 mV

v

G

=20to0dB −−40 mV

v

G

=0to−31 dB;

v

−−17 mV

loudness on

Volume I control and loudness

CR
G
G
L

vol
v
step

Bmax

continuous volume control range − 51 − dB
voltage gain −31 − +20 dB
step resolution − 1 − dB
maximum loudness boost loudness on; referred to

loudness off; boost is
determined by external
components

f = 40 Hz − 17 − dB
f = 10 kHz − 4.5 − dB

Bass control

G

bass

bass control, maximum boost f = 40 Hz 14 15 16 dB
maximum attenuation f = 40 Hz 14 15 16 dB

G

step

step resolution (toggle switching) f = 40 Hz − 1.5 − dB
step error between any adjoining

f = 40 Hz −−0.5 dB

step

V

offset

DC step offset in any bass position −−20 mV

1995 Dec 19 9

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Treble control

G

treble

G

step

V

offset

Volume II, balance and fader control

CR continuous attenuation fader and

G

step

treble control, maximum boost f = 15 kHz 11 12 13 dB
maximum attenuation f = 15 kHz 11 12 13 dB
maximum boost f > 15 kHz −−15 dB
step resolution (toggle switching) f = 15 kHz − 1.5 − dB
step error between any adjoining

f = 15 kHz −−0.5 dB

step
DC step offset in any treble position −−10 mV

53.5 55 56.5 dB

volume control range
step resolution − 12dB
attenuation set error −−1.5 dB

Mute function

V

muteLOWI

input level for fast mute detection −−1.0 V
input level for no mute detection 2.2 −−V

V

muteLOWO

V

muteHIGH

V

CCdrop

Power-on reset (when reset is active the GMU-bit (general mute) is set and the I

output level for mute I ≤ 1 mA; CL≤ 100 pF −−0.4 V
pull-up voltage open collector −−VCCV
supply drop to V

for mute active −−0.7 − V

CAP

2

C-bus receiver is in

reset position)

V

CC

increasing supply voltage start of

−−2.5 V

reset
end of reset 5.2 6.5 7.2 V
decreasing supply voltage start of

4.2 5.5 6.2 V

reset

Digital part (I

V

iH

V

iL

I

iH

I

iL

V

oL

2

C-bus pins); note 3

HIGH level input voltage 3 − 9.5 V
LOW level input voltage −0.3 − +1.5 V
HIGH level input current VCC= 0 to 9.5 V −10 − +10 µA
LOW level input current −10 − +10 µA
LOW level output voltage IL=3mA −−0.4 V

Notes to the characteristics

1. The indicated values for output power assume a 6 W power amplifier at 4 Ω with 20 dB gain and a fixed attenuator
of 12 dB in front of it. Signal-to-noise ratios exclude noise contribution of the power amplifier.

2. The transmission contains: total initialization with MAD and subaddress for volume and 8 data words, see also
definition of characteristics, clock frequency = 50 kHz, repetition burst rate = 400 Hz, maximum bus signal
amplitude = 5 V (p-p).

3. The AC characteristics are in accordance with the I2C-bus specification. This specification, “

use it

”, can be ordered using the code 9398 393 40011.

The I2C-bus and how to

1995 Dec 19 10

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

I2C-BUS PROTOCOL

2

C-bus format

I

(1)

S

SLAVE ADDRESS

Notes

1. S = START condition.

2. SLAVE ADDRESS (MAD) = 1000 0000.

3. A = acknowledge, generated by the slave.

4. SUBADDRESS (SAD), see Table 1.

5. DATA, see Table 1; if more than 1 byte of DATA is transmitted, then auto-increment of the significant subaddress is
performed.

6. P = STOP condition.

Table 1 Second byte after MAD

(2)

(3)

A

SUBADDRESS

(4)

(3)

A

DATA

(5)

(3)

A

(6)

P

FUNCTION BIT

765432

(1)

(1)

1

(1)

0

Volume/loudness V 00000000
Fader front right FFR 00000001
Fader front left FFL 00000010
Fader rear right FRR 00000011
Fader rear left FRL 00000100
Bass BA 00000101
Treble TR 00000110
Switch S 00000111

Note

1. Significant subaddress.

MSB LSB

1995 Dec 19 11

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Table 2 Definition of third byte after MAD and SAD

FUNCTION BIT

MSB LSB

76543210

Volume/loudness V ZCM

(1)

Fader front right FFR 0 0 FFR5
Fader front left FFL 0 0 FFL5
Fader rear right FRR 0 0 FRR5
Fader rear left FRL 0 0 FRL5

LOFF

(2)

V5

(3)

(6)

(8)

(5)

(7)

FFR4

FFL4
FRR4
FRL4

Bass BA 0 0 0 BA4
Treble TR 0 0 0 TR4
Switch S GMU

(11)

0000SC2

Notes

1. Zero crossing mode.

2. Switch loudness on/off.

3. Volume control.

4. Don’t care bits (logic 1 during testing).

5. Fader control front right.

6. Fader control front left.

7. Fader control rear right.

8. Fader control rear left.

9. Bass control.

10. Treble control.

11. Mute control for all outputs except OVL and OVR (general mute).

12. Source selector control.

V4

(3)

(9)

(10)

(6)

(8)

(5)

(7)

V3

FFR3

FFL3

FRR3

FRL3

BA3

TR3

(3)

(10)

(9)

(6)

(5)

(7)
(8)

V2

FFR2

FFL2
FRR2
FRL2

BA2

TR2

(3)

(9)
(10)
(12)

(6)

(8)

(5)

(7)

V1

FFR1

FFL1
FRR1
FRL1

BA1

TR1
SC1

(3)

(9)
(10)
(12)

(6)

(8)

(5)

(7)

V0

FFR0

FFL0

FRR0

FRL0

BA0
TR0
SC0

(3)

(5)

(6)

(7)
(8)

(9)
(10)
(12)

1995 Dec 19 12

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Table 3 Volume I setting

G

v

(dB)

Loudness on: the increment of the loudness characteristics is linear at every volume step in the range from
+20 to −11 dB

[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]
[phone]

+9 110100
+8 110011
+7 110010
+6 110001
+5 110000
+4 101111
+3 101110
+2 101101
+1 101100

0 101011

−1 101010

−2 101001

−3 101000

−4 100111

−5 100110

−6 100101

−7 100100

−8 100011

−9 100010

−10 100001

−11 100000

V5 V4 V3 V2 V1 V0

DATA

1995 Dec 19 13

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

G

v

(dB)

Loudness characteristic is constant in a range from −11 dB to −31 dB

−12 011111

−13 011110

−14 011101

−15 011100

−16 011011

−17 011010

−18 011001

−19 011000

−20 010111

−21 010110

−22 010101

−23 010100

−24 010011

−25 010010

−26 010001

−27 010000

−28 001111

−29 001110

−30 001101

−31 001100

V5 V4 V3 V2 V1 V0

DATA

Repetition of steps in a range from −28 dB to −31 dB

−28 001011

−29 001010

−30 001001

−31 001000

−28 000111

−29 000110

−30 000101

−31 000100

−28 000011

−29 000010

−30 000001

−31 000000

1995 Dec 19 14

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Table 4 Volume II setting (fader and balance)

DATA

FRR5 FRR4 FRR3 FRR2 FRR1 FRR0

G

v

(dB)

0 111111

−1 111110

−2 111101

−3 111100

−4 111011

−5 111010

−6 111001

−7 111000

−8 110111

−9 110110

−10 110101

−11 110100

−12 110011

−13 110010

−14 110001

−15 110000

−16 101111

−17 101110

−18 101101

−19 101100

−20 101011

−21 101010

−22 101001

−23 101000

−24 100111

−25 100110

−26 100101

−27 100100

−28 100011

−29 100010

−30 100001

−31 100000

−32 011111

−33 011110

−34 011101

FRL5 FRL4 FRL3 FRL2 FRL1 FRL0
FFL5 FFL4 FFL3 FFL2 FFL1 FFL0
FFR5 FFR4 FFR3 FFR2 FFR1 FFR0

1995 Dec 19 15

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

DATA

FRR5 FRR4 FRR3 FRR2 FRR1 FRR0

G

v

(dB)

−35 011100

−36 011011

−37 011010

−38 011001

−39 011000

−40 010111

−41 010110

−42 010101

−43 010100

−44 010011

−45 010010

−46 010001

−47 010000

−48 001111

−49 001110

−50 001101

−51 001100

−52 001011

−53 001010

−54 001001

−55 001000

mute 0 0 0 1 1 1
mute 0 0 0 1 1 0
mute 0 0 0 1 0 1
mute 0 0 0 1 0 0
mute 0 0 0 0 1 1
mute 0 0 0 0 1 0
mute 0 0 0 0 0 1
mute 0 0 0 0 0 0

FRL5 FRL4 FRL3 FRL2 FRL1 FRL0
FFL5 FFL4 FFL3 FFL2 FFL1 FFL0
FFR5 FFR4 FFR3 FFR2 FFR1 FFR0

1995 Dec 19 16

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Table 5 Bass setting

G

bass

(dB)

BA4 BA3 BA2 BA1 BA0

DATA

+15.0 11111
+13.5 11110
+15.0 11101
+13.5 11100
+15.0 11011
+13.5 11010
+12.0 11001
+10.5 11000
+9.0 10111
+7.5 10110
+6.0 10101
+4.5 10100
+3.0 10011
+1.5 10010

(1)

0

(2)

0

10001
10000

−1.5 01111

−3.0 01110

−4.5 01101

−6.0 01100

−7.5 01011

−9.0 01010

−10.5 01001

−12.0 01000

−13.5 00111

−15.0 00110

−13.5 00101

−15.0 00100

note 3 00011
note 3 00010
note 3 00001

notes 3 and 4 00000

Notes

1. Recommended data word for step 0 dB.

2. Result of 1.5 dB boost and 1.5 dB attenuation.

3. The last four bass control data words mute the bass response.

4. The last bass control and treble control data words (00000) enable the external equalizer connection.

1995 Dec 19 17

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Table 6 Treble setting

G

(dB)

treble

TR4 TR3 TR2 TR1 TR0

DATA

+12.0 11111
+10.5 11110
+12.0 11101
+10.5 11100
+12.0 11011
+10.5 11010
+12.0 11001
+10.5 11000
+9.0 10111
+7.5 10110
+6.0 10101
+4.5 10100
+3.0 10011
+1.5 10010

(1)

0

(2)

0

10001
10000

−1.5 01111

−3.0 01110

−4.5 01101

−6.0 01100

−7.5 01011

−9.0 01010

−10.5 01001

−12.0 01000

note 3 00111
note 3 00110
note 3 00101
note 3 00100
note 3 00011
note 3 00010
note 3 00001

notes 3 and 4 00000

Notes

1. Recommended data word for step 0 dB.

2. Result of 1.5 dB boost and 1.5 dB attenuation.

3. The last eight treble control data words select treble output.

4. The last treble control and bass control data words (00000) enable the external equalizer connection.

1995 Dec 19 18

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Table 7 Loudness setting

CHARACTERISTIC DATA LOFF

With loudness 0
Linear 1

Table 8 Selected input

FUNCTION

SC2 SC1 SC0

Stereo inputs IAL and IAR 1 1 1
Stereo inputs IBL and IBR 1 1 0
Stereo inputs ICL and ICR 1 0 1
Stereo inputs IDL and IDR 1 0 0
(Stereo inputs) IAL and IAR 0 1 1
Differential inputs IAL, IAR

and COM
No input (input mute) 0 0 1
Mono input COM 0 0 0

DATA

010

Table 9 Mute mode

FUNCTION

Direct mute off 0 0
Mute off delayed until the next zero

crossing
Direct mute 1 0
Mute delayed until the next zero

crossing

DATA

GMU ZCM

01

11

1995 Dec 19 19

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

18

handbook, full pagewidth

G

bass

(dB)

12

6

0

−6

−12

−18

10

MED423

2

10

3

10

f (Hz)

4

10

Fig.3 Bass control.

15

handbook, full pagewidth

G

treble
(dB)

10

5

0

−5

−10

−15

10

32

10

Fig.4 Treble control.

MED424

4

10

f (Hz)

5

10

1995 Dec 19 20

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

20

handbook, full pagewidth

G

v

(dB)

10

0

−10

−20

−30

−40

10

2

10

3

10

4

10

Fig.5 Volume control with loudness (including low roll-off frequency).

f (Hz)

MED425

5

10

100

handbook, full pagewidth

S/N

(dB)

90

80

70

60

50

−4

10

(1) Vi= 2.0V.
(2) Vi= 0.5V.
(3) Vi= 0.2V.

−3

10

−2

10

−1

10

1

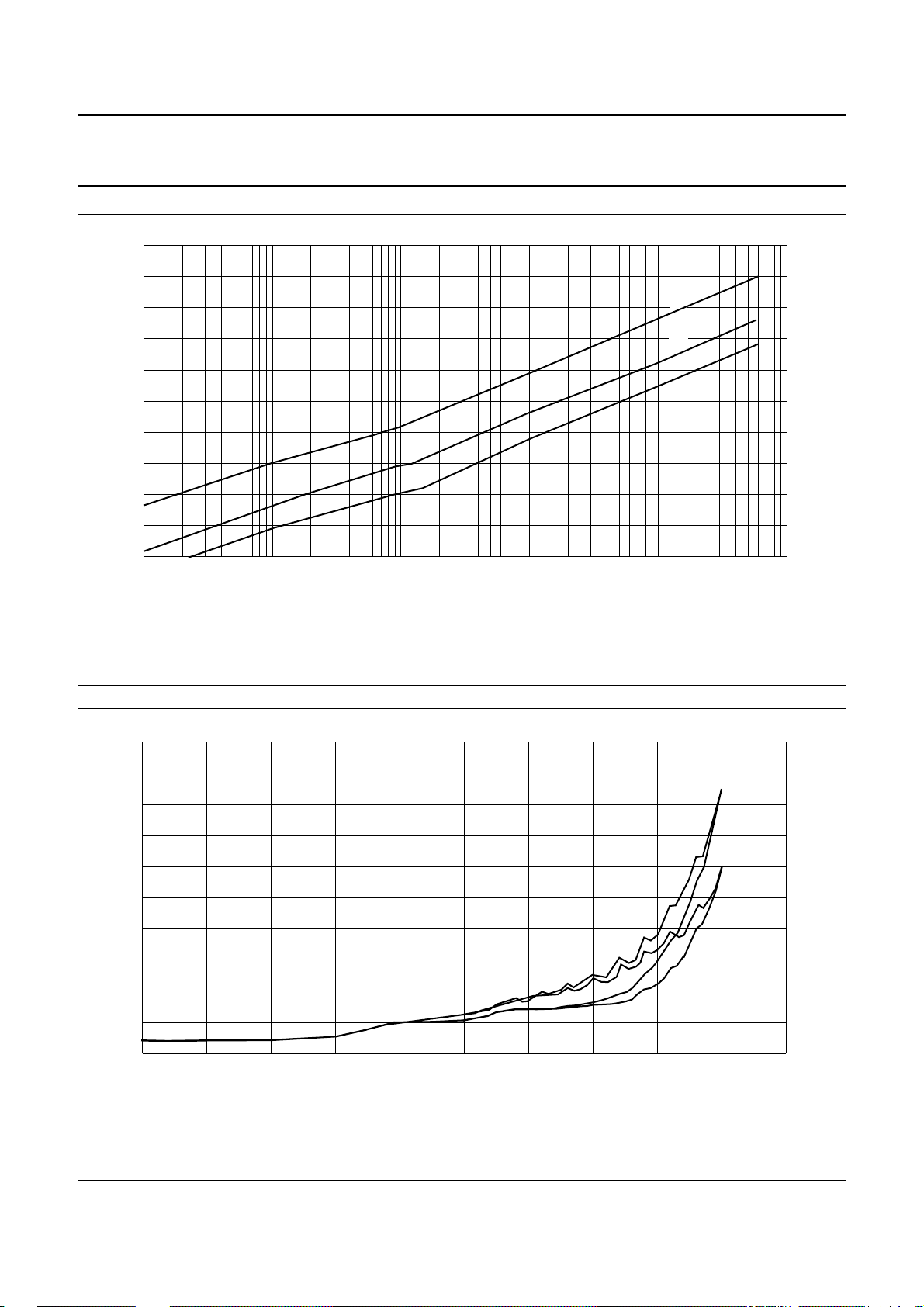

Fig.6 Signal-to-noise ratio; noise weighted: CCIR468-2, quasi peak.

MED426

(1)

(2)
(3)

Po (W)

10

1995 Dec 19 21

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

110

handbook, full pagewidth

S/N

(dB)

100

90

80

70

60

−4

10

(1) Unweighted RMS.
(2) CCIR-468-2 RMS.
(3) CCIR-468-2 quasi-peak.

−3

10

−2

10

Fig.7 Signal-to-noise ratio; Vi= 2 V; P

MED427

(1)

(2)

(3)

−1

10

=6W.

max

1

Po (W)

10

250

handbook, full pagewidth

noise

(µV)

200

150

100

50

0

−70 −50 −30 −10 10

(1) Symmetrical input; loudness on.
(2) Symmetrical input; loudness off.

(3) Stereo/mono inputs; loudness on.
(4) Stereo/mono inputs; loudness off.

Fig.8 Noise output voltage; CCIR468-2, quasi peak.

(1)

(2)

(3)

(4)

gain (dB)

MHA086

30

1995 Dec 19 22

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

−60

handbook, full pagewidth

(dB)

−80

−100

−120

−140

MED429

2

10

3

10

2 x 10

3

5 x 10

3

4

10

f (Hz)

2 x 10

45020 500200

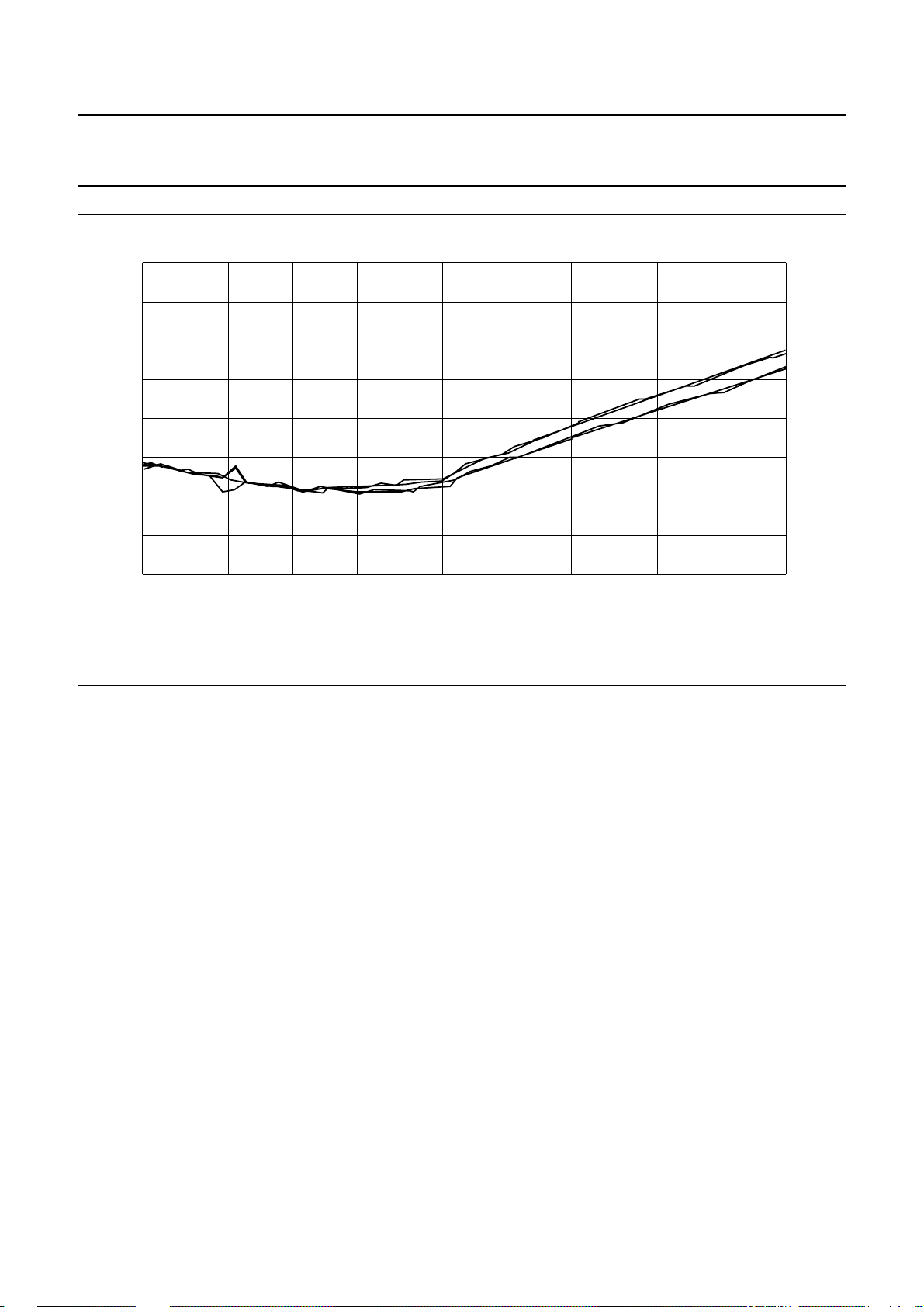

Fig.9 Muting.

1995 Dec 19 23

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

If the 20 dB gain is not required for the maximum volume
position, it will be an advantage to use the maximum boost
gain and then increased attenuation in the last section,
Volume II.

handbook, halfpage

TEA6322T

= 200 mV

I(min)

Vo = 2 V for P

Therefore the loudness will be at the correct place and a
lower noise and offset voltage will be achieved.

POWER STAGE

G = 20 dB

P

= 100 W at 4 ΩV

(max)

(max)

MHA087

a.

a.Gain volume I =20 dB (G
b.Gain volume I = 20 dB (G

handbook, halfpage

= 200 mV

I(min)

TEA6322T

Vo = 1 V for P

POWER STAGE

G = 26 dB

P

= 100 W at 4 ΩV

(max)

(max)

MHA088

b.

); gain volume II = 0 dB; fader and balance range = 55 dB.

v(max)

); gain volume II = −6 dB global setting; fader and balance range now 49 dB, previously 55 dB.

v(max)

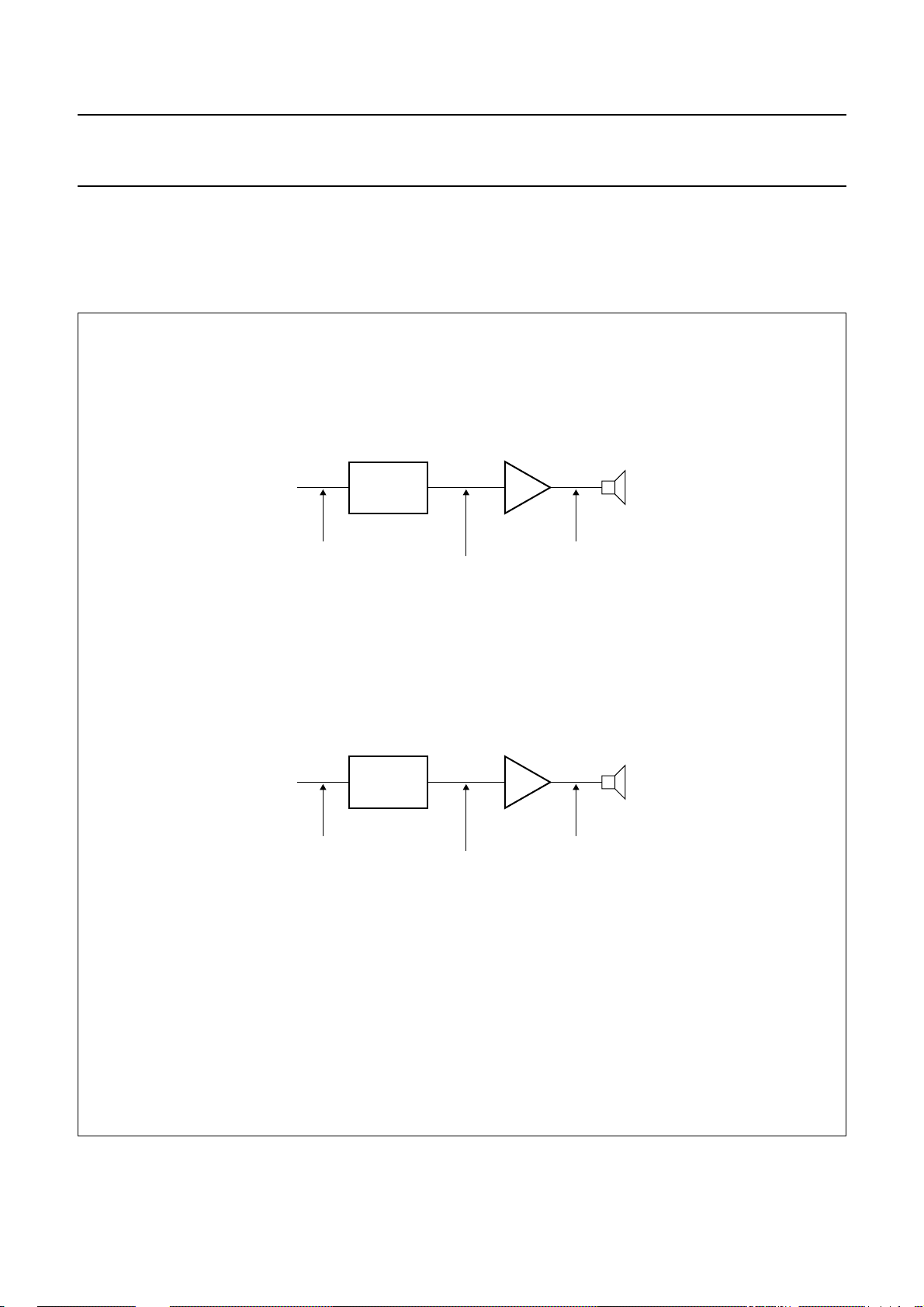

Fig.10 Level diagram.

1995 Dec 19 24

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

handbook, full pagewidth

+

V

CC

8.5 V

9 × 220 nF

9 × 600 Ω

V

P

4.7 kΩ

inputs

470 µF

20
18
16
14
17
27
25
23
21

38

TEA6322T

42426

3

47

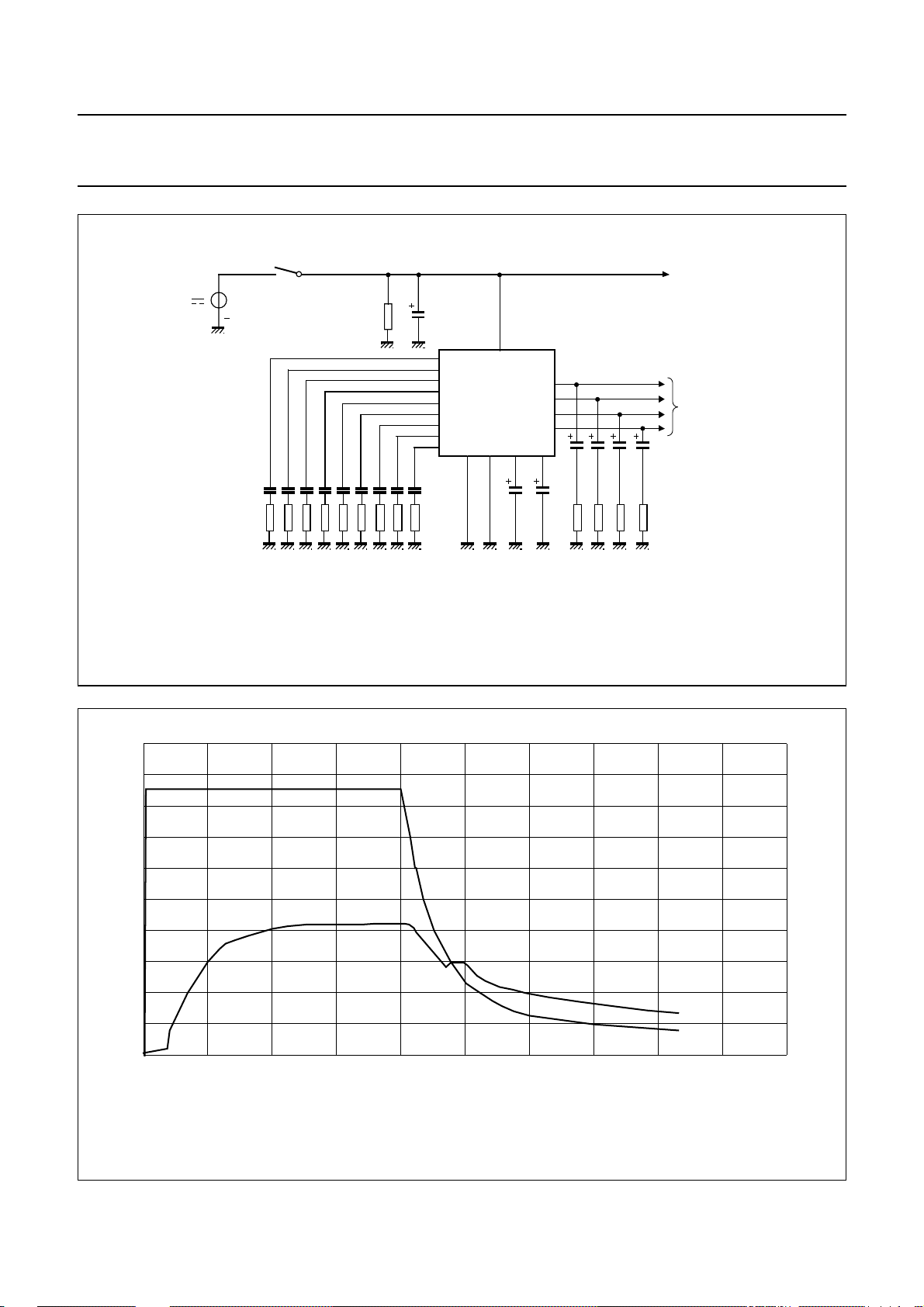

Fig.11 Turn-on/off power supply circuit diagram.

+8.5 V to
oscilloscope

5
6

35
36

outputs to
oscilloscope

4 × 4.7 µF

100

µFµF

4 × 10 kΩ

MHA089

10

handbook, full pagewidth

(V)

8

6

4

2

0

01234

(1) VCC.
(2) VO.

(1)

(2)

Fig.12 Turn-on/off behaviour.

t (s)

MED433

5

1995 Dec 19 25

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

handbook, full pagewidth

V

P

10 kΩ

VCC = 8.5 V

1000 µF

0.2 V (RMS)

0.1 µF

600 Ω

100 µF

47 µF

220 nF

220 nF 33 nF

13 11 9 8 7 2

26
38

3
4

24

input A to D left and right
and input mono

28 30 33 3432

33 nF220 nF

5.6 nF

TEA6322T

5.6 nF

Fig.13 Test circuit for power supply ripple rejection (RR).

+5 V

4.7 kΩ

output right

output left

front and rear

40

1

MHA090

4.7 µF

SCL

SDA

V

O

handbook, full pagewidth

V

p

470 µF

V

V

i

= 8.5 V

CC

0.1 µF

600 Ω

100 µF

47 µF

220 nF

220 nF

220 nF 33 nF

13 11 9 8 7 2

26
38

3
4

24

input A to D right and left

input A to D left and right
and input mono

28 30 33 3432

33 nF220 nF

5.6 nF

TEA6322T

front and rear

5.6 nF

Fig.14 Test circuit for channel separation (αcs).

+5 V

4.7 kΩ

output left

output right

40

1

MHA091

4.7 µF

SCL

SDA

V

O

1995 Dec 19 26

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

Loudness filter calculation example

Figure 15 shows the basic loudness circuit with an
external low-pass filter application. R1 allows an
attenuation range of 21 dB while the boost is determined
by the gain stage V2. Both result in a loudness control
range of +20 to −12 dB.

Defining f

as the frequency where the level does not

ref

change while switching loudness on/off. The external
resistor R3 for f

=

R3 R1

--------------------­110

→∞ can be calculated as:

ref

G

v

------ ­20

10

–

. With G

G

v

------ ­20

= −21 dB and R1 = 33 kΩ,

v

R3 = 3.2 kΩ is generated.
For the low-pass filter characteristic the value of the

external capacitor C1 can be determined by setting a
specific boost for a defined frequency and referring the

at f

gain to G

1

------------­j ω C

1

=

as indicated above.

v

ref

G

v

------ -

R1 R3+()10

-------------------------------------------------------------­110

20

G

v

------ ­20

–

R3–×

handbook, halfpage

C

KVL

C1

R3

0 dB

11

V

1

R1

33 kΩ

12

V

2

Fig.15 Basic loudness circuit.

R2

MHA092

For example: 3 dB boost at f = 1 kHz
G

v=Gv(ref)

+ 3 dB = −18 dB; f = 1 kHz and C1 = 100 nF.

If a loudness characteristic with additional high frequency
boost is desired, an additional high-pass section has to be
included in the external filter circuit as indicated in the
block diagram. A filter configuration that provides
AC coupling avoids offset voltage problems.

1995 Dec 19 27

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

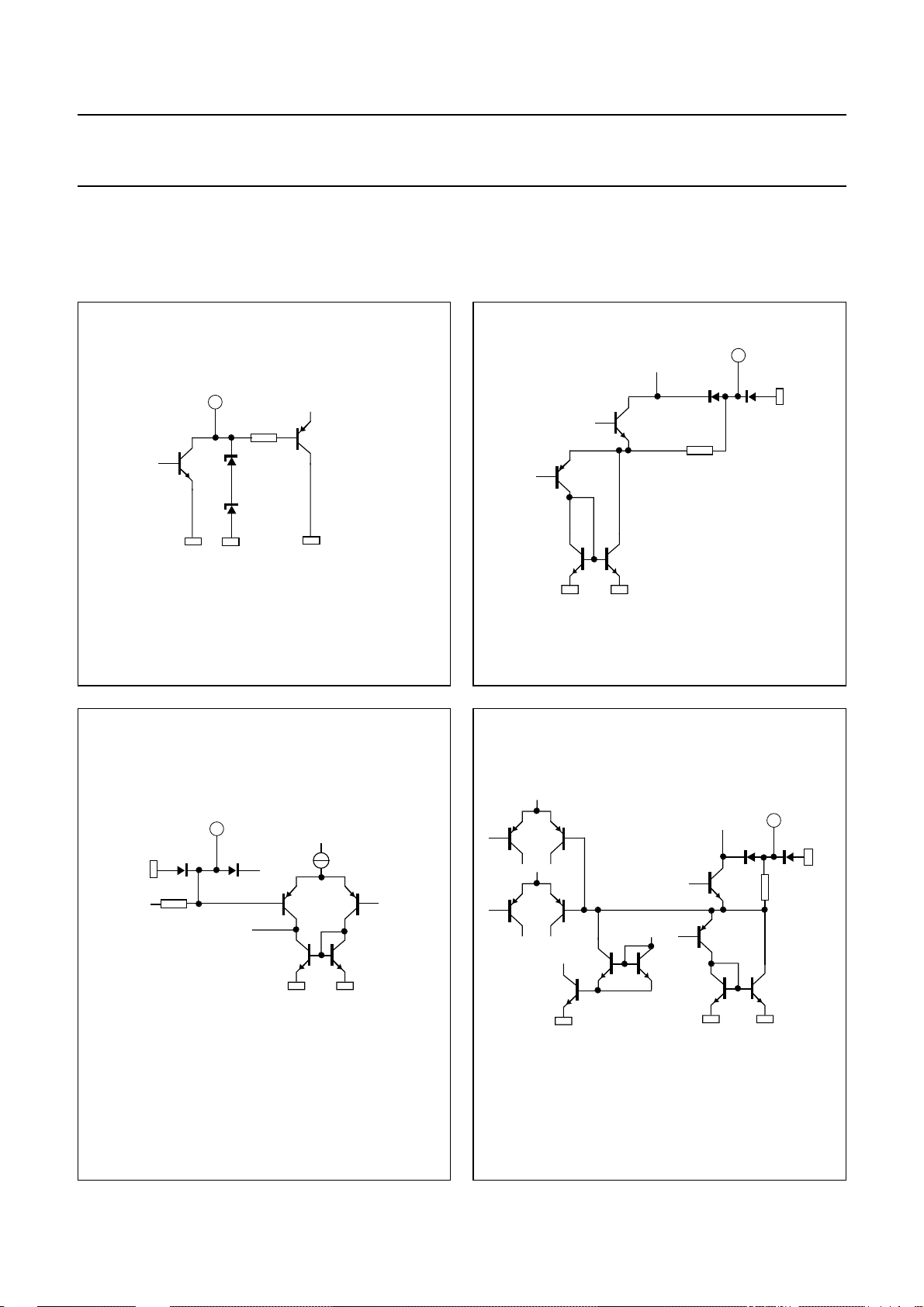

INTERNAL PIN CONFIGURATIONS

Values shown in Figs 16 to 28 are typical DC values;
VCC= 8.5 V.

5

+

1

5 V

1.8 kΩ

80 Ω

MBE900

4.25 V

Fig.16 Pin 1: SDA (I2C-bus data).

7

4.25 V
+

2.4 kΩ

MHA094

+

MHA093

Fig.17 Pins 5, 6, 10, 31, 35, 36: output signals.

+

8

4.25 V

80 Ω

MHA095

Fig.18 Pins 7 and 34: treble control capacitors.

1995 Dec 19 28

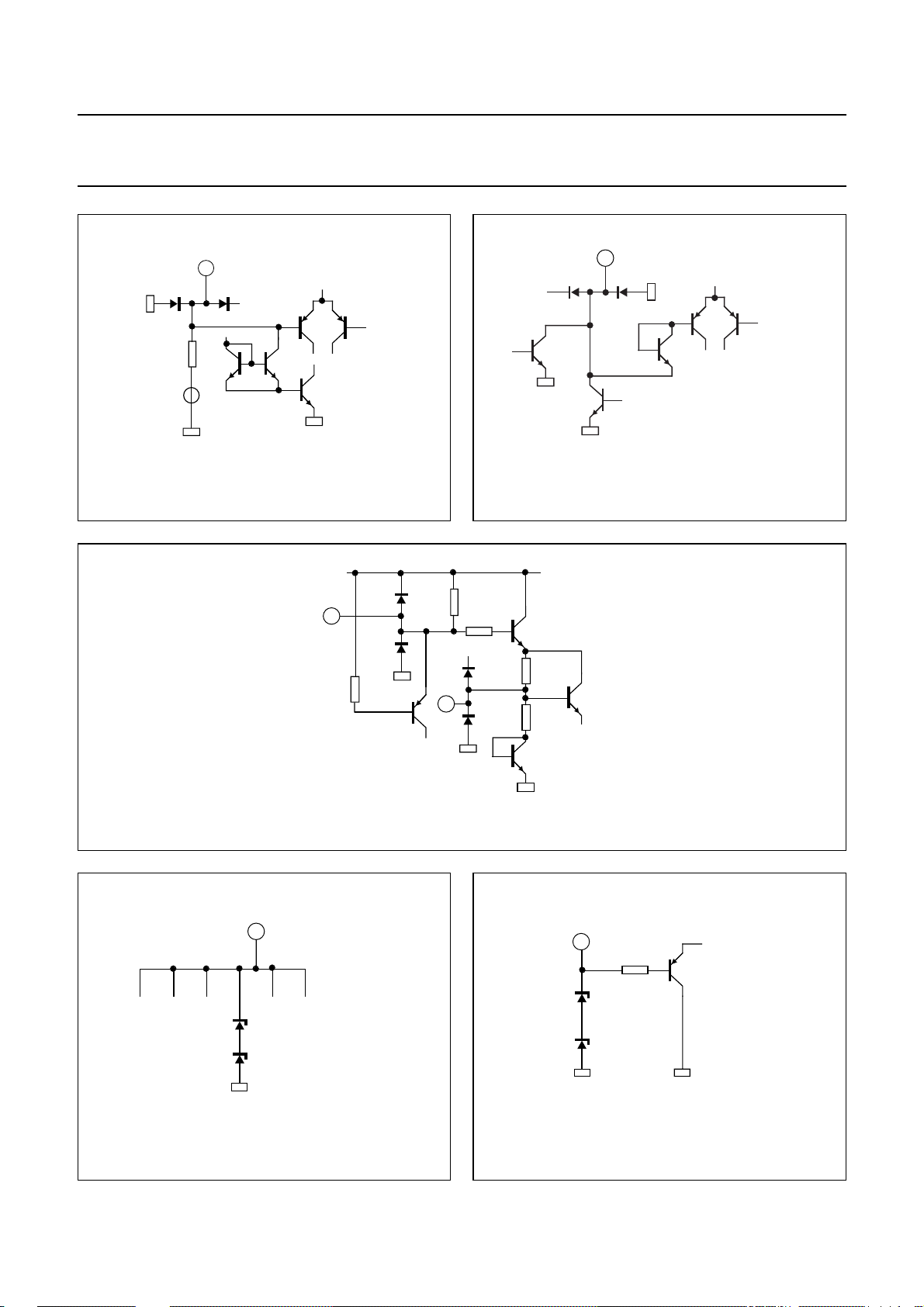

Fig.19 Pins 8 and 33: bass control capacitor outputs.

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

9

4.16 kΩ

4.25 V
+

11

4.25 V
+

9.4 kΩ

4.25 V

MHA096

Fig.20 Pins 9 and 32: bass control capacitor inputs.

12

4.25 V
+

150 kΩ

4.25 V

MHA097

Fig.21 Pins 11 and 30: input volume 1, control part.

+

13

4.25 V

1.12 kΩ

MHA098

Fig.22 Pins 12 and 29: input loudness, control part.

1995 Dec 19 29

80 Ω

MHA099

Fig.23 Pins 13 and 28: output source selector.

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

14

4.25 V
+

35 kΩ

4.25 V

MHA100

Fig.24 Pins 14, 16 to 18, 20, 21, 23, 25, 27: inputs.

8.4 V

24

5 kΩ

4.25 V
26

4.7 kΩ
300 Ω

+

2

+

1.5 V

Fig.25 Pin 2: mute control.

+

3.4 kΩ

3.4 kΩ

MHA102

constant

2.2 V

Fig.26 Pin 24: filtering for supply; pin 26: reference voltage.

38

apply +8.5 V to this pin

MHA103

Fig.27 Pin 38: supply voltage.

1995 Dec 19 30

MHA101

40

5 V

1.8 kΩ

MHA104

Fig.28 Pin 40: SCL (I2C-bus clock).

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

PACKAGE OUTLINE

VSO40: plastic very small outline package; 40 leads

D

y

Z

40

pin 1 index

SOT158-1

E

c

H

E

21

A

2

A

1

L

p

L

A

X

v M

A

Q

(A )

A

3

θ

1

b

(1)E(2)

7.6

7.5

0.30

0.29

p

scale

0.762 2.25

0.03 0.089

e

0 5 10 mm

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

mm

OUTLINE

VERSION

SOT158-1

A

max.

2.70

0.11

0.3

0.1

0.012

0.004

A

b

0.42

0.30

p

0.0087

0.0055

cD

0.22

15.6

0.14

15.2

0.61

0.60

REFERENCES

2

3

2.45

0.25

2.25

0.096

0.089

IEC JEDEC EIAJ

0.010

0.017

0.012

UNIT A1A

inches

Notes

1. Plastic or metal protrusions of 0.4 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

1995 Dec 19 31

20

w M

eHELLpQywv θ

12.3

11.8

0.48

0.46

1.7

1.5

0.067

0.059

detail X

1.15

0.2

1.05

0.045

0.008 0.004

0.041

EUROPEAN

PROJECTION

0.1 0.1

0.004

(1)

Z

0.6

0.3

0.024

0.012

ISSUE DATE

92-11-17
95-01-24

o

7

o

0

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all VSO
packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

(order code 9398 652 90011).

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering techniques can be used for all VSO
packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream end.

1995 Dec 19 32

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

2

C COMPONENTS

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

2

C components conveys a license under the Philips’ I2C patent to use the

1995 Dec 19 33

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

NOTES

1995 Dec 19 34

Philips Semiconductors Preliminary specification

Sound fader control circuit TEA6322T

NOTES

1995 Dec 19 35

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

CEP: 04552-903-SÃO PAULO-SP, Brazil,
P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 51 40, 20035 HAMBURG,

Tel. [phone], Fax. [phone]

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

th

floor, Suite 51,

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430, Johannesburg 2000,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone]

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

Ukraine: Philips UKRAINE, 2A Akademika Koroleva str., Office 165,

252148 KIEV, Tel.[phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

Internet: http://www.semiconductors.philips.com/ps/
For all other countries apply to: Philips Semiconductors,

International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCD47 © Philips Electronics N.V. 1995

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

513061/1100/01/pp36 Date of release: 1995 Dec 19
Document order number: 9397 750 00535
